CATH-TECH CIC-200 Operation Manual

Operation Manual for CIC-200

Cathodic Technology Ltd.

15-1 Marconi Court

Bolton, Ontario

Canada L7E 1E2

Ph: ++1-905-857-1050

[e-mail]

www.cath-tech.com

GPS Synchronized Current Interrupter Controller

CATH-TECH

CORROSION CONTROL EQUIPMENT

CI-100

Rev 0 – Nov 2016 CIC-200 Manual 1

Table of Contents

Table of Contents ....................................................................................................... 1

Limited Warranty ....................................................................................................... 2

Safety .......................................................................................................................... 2

Welcome .................................................................................................................... 3

Rating Info ............................................................................................................. 3

Features ...................................................................................................................... 4

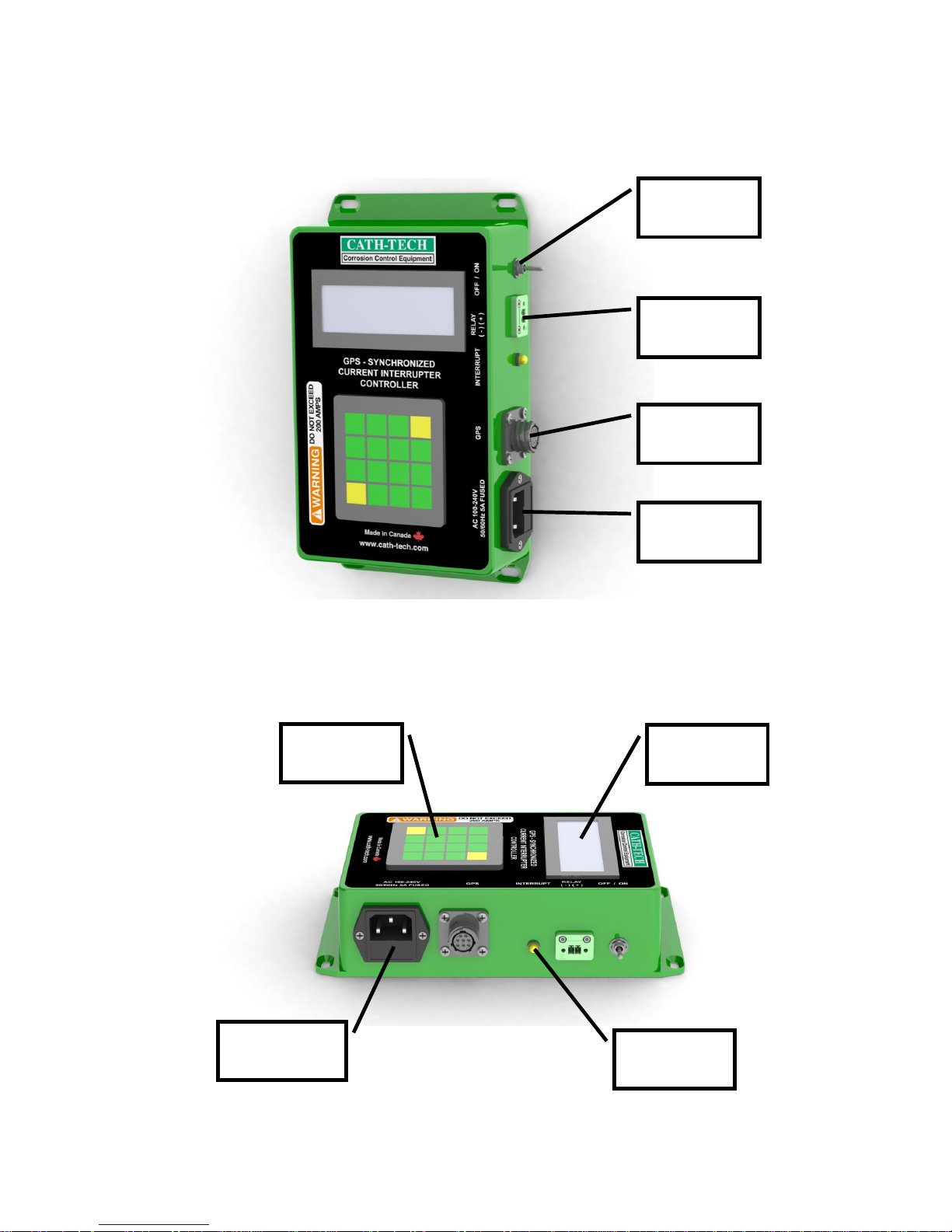

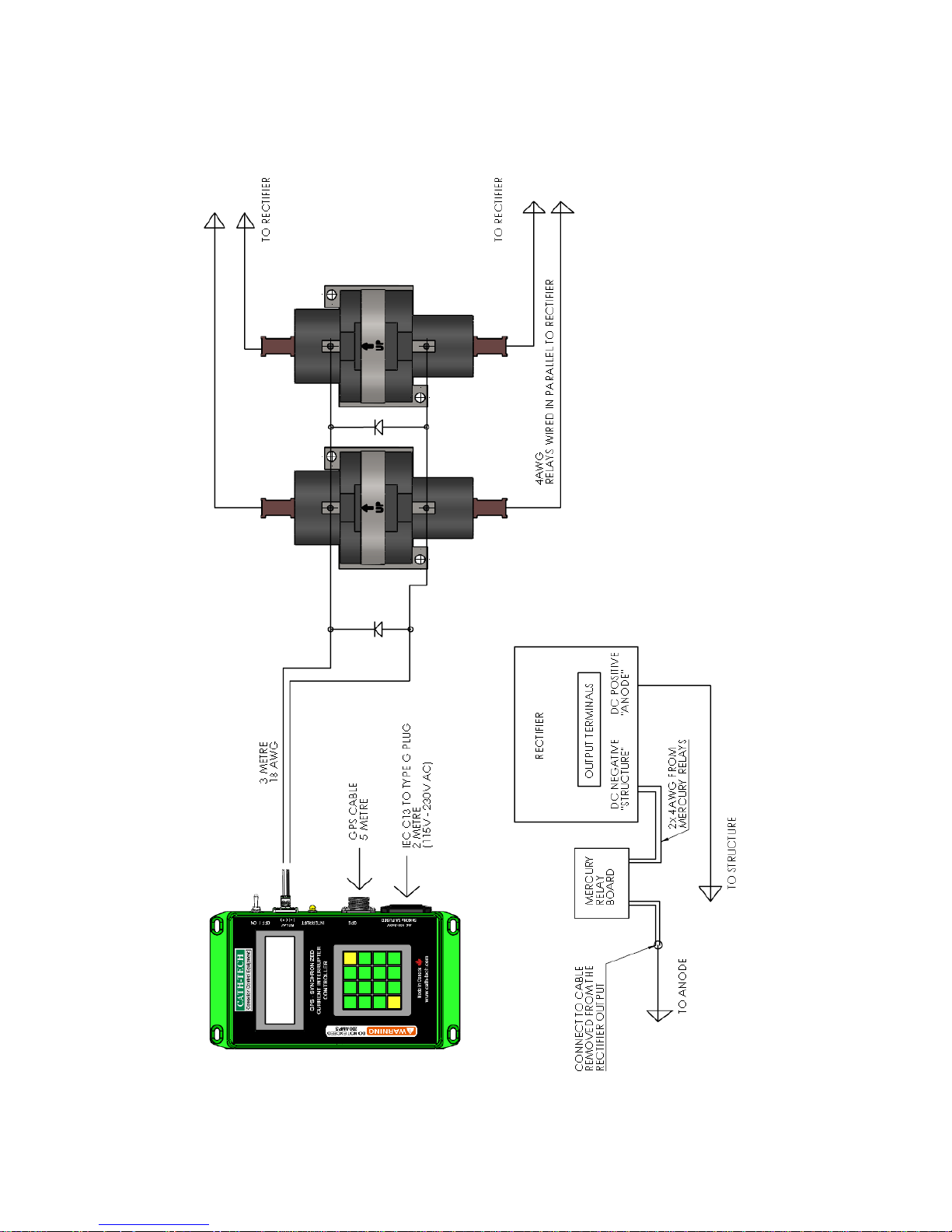

Installation .................................................................................................................. 4

AC Power ............................................................................................................... 5

Rectifier .................................................................................................................. 5

GPS (Global Positioning System) .......................................................................... 5

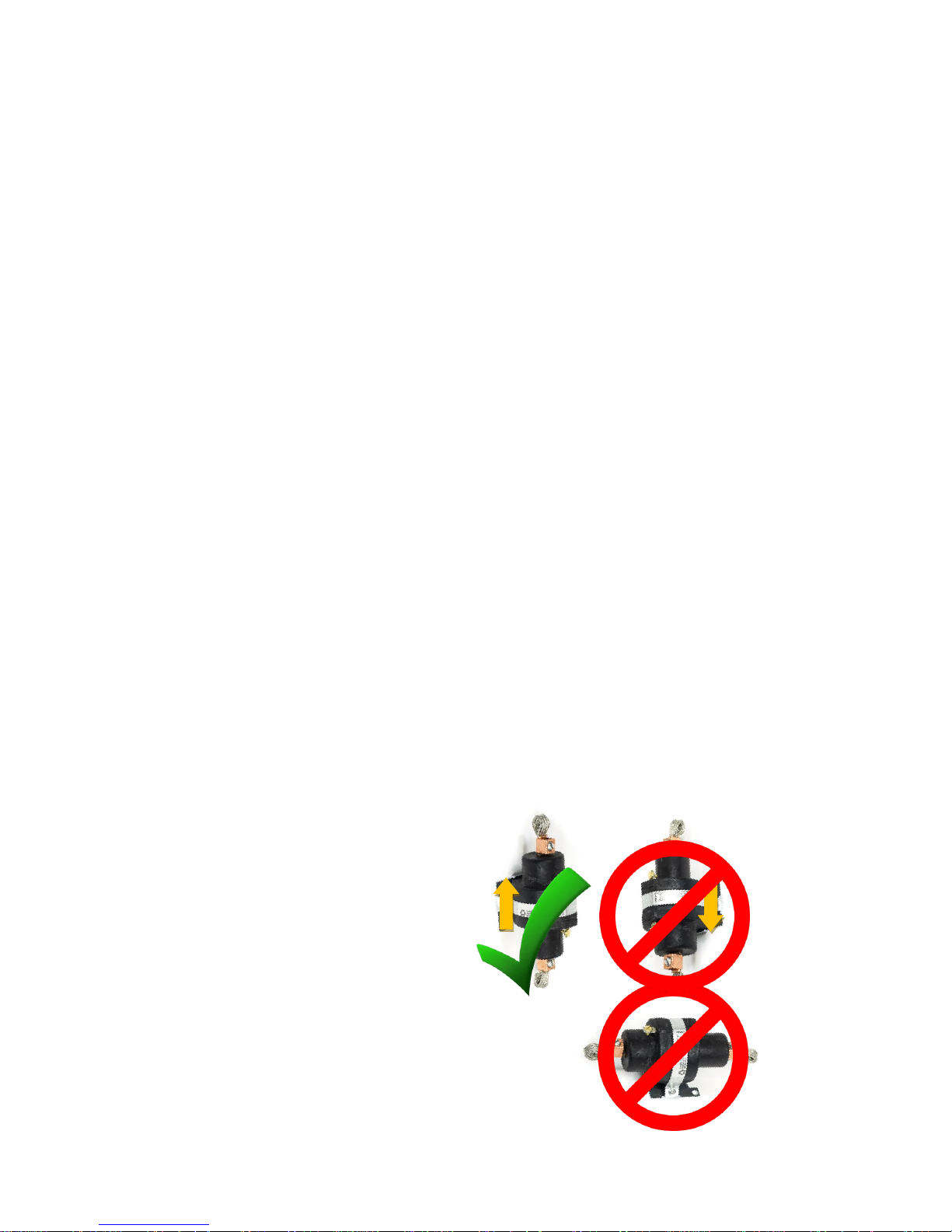

Physical Orientation ............................................................................................... 5

Setup ........................................................................................................................... 6

Main Menu ............................................................................................................. 6

E-program .............................................................................................................. 6

C-GPS-power ......................................................................................................... 8

0-RS232 ................................................................................................................. 9

Operation .................................................................................................................... 9

Maintenance .............................................................................................................10

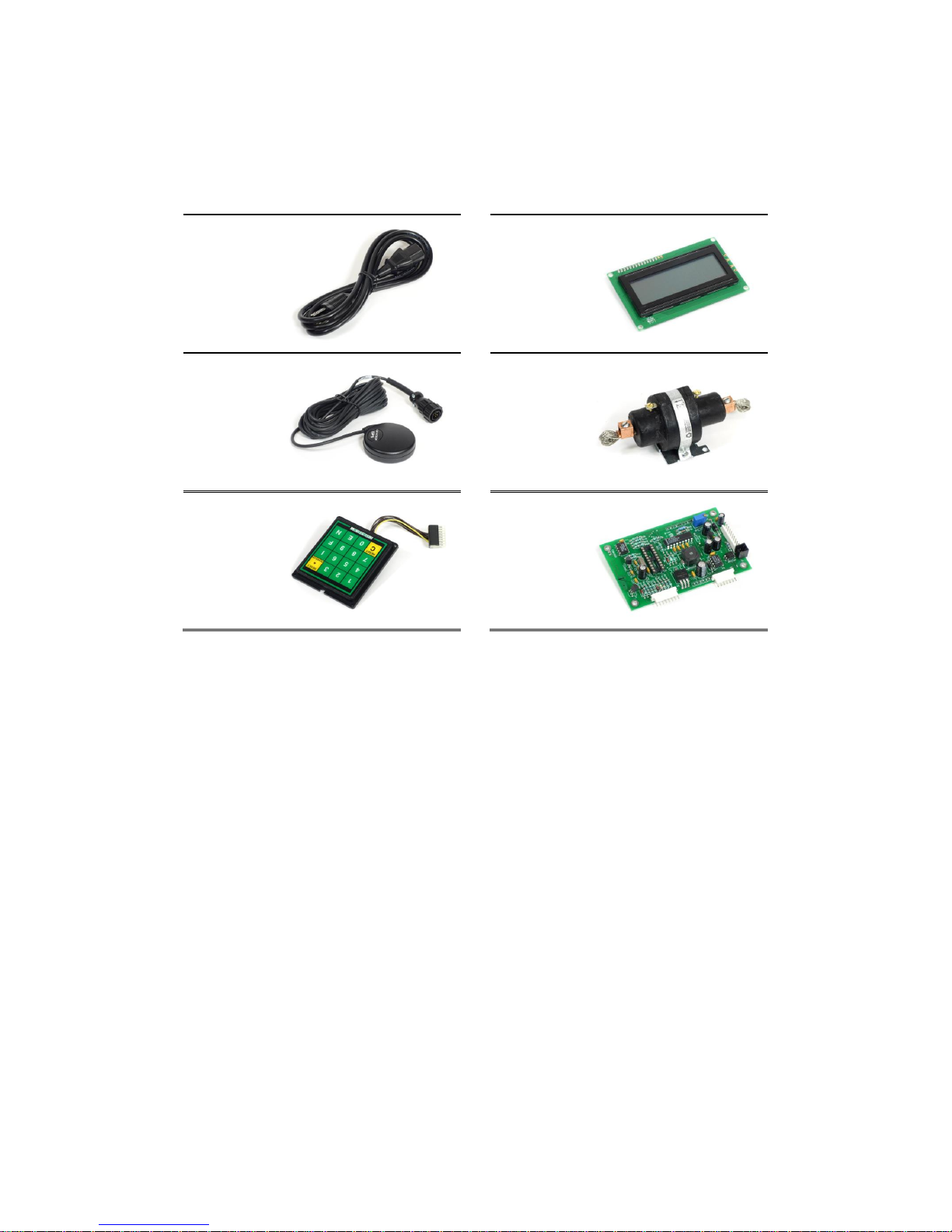

Spare Parts ................................................................................................................12

Rev 0 – Nov 2016 CIC-200 Manual 2

Limited Warranty

All Cathodic Technology Limited (Cath-Tech) instruments and equipment are
warranted against defects in materials, design or workmanship for a period of two
years from date of sale. This warranty excludes damage due to misuse, abuse,
tampering or acts of God such as fires, floods, wind damage, lightning etc.

We will repair or replace at our option any defective component, after examination
in our manufacturing facility, if the fault is due to defective materials or labour,
within two years of the purchase date. For warranty repair, a Returned Goods
Authorization (RGA) must be obtained from Cathodic Technology Ltd prior to
shipping the defective unit pre-paid to our location.

Note: There is no warranty expressed or implied on batteries.
Cath-Tech Policy

 Cath-Tech extends a two-year in use warranty on all units, which have been

designed and/or manufactured by Cath-Tech staff.

 Cath-Tech reserves the right to make any changes in design or specification

which it deems an improvement, with no liability to make the same changes on
existing equipment.

 This warranty is in lieu of all other warranties or guaranties, expressed or

implied, which might otherwise exist. The purchaser is relying only upon this
guarantee and not upon any representations not herein expressed.

 Any material or equipment being returned to the factory must first have a

Returned Goods Authorization (RGA) from Cath-Tech.

Safety

Do not operate the CIC-200 GPS synchronized current interrupter during electrical
storms. Damage to both the CIC-200 GPS synchronized current interrupter and the
rectifier could occur.

The installation of the CIC-200 GPS synchronized current interrupter requires
electrical connections in the rectifier. Only personnel who are trained in electrical
safety should undertake this. The CIC-200 can interrupt either DC or AC current.
Turn the AC supply to the rectifier OFF and verify with a volt meter before making
any connections to the rectifier.

Rev 0 – Nov 2016 CIC-200 Manual 3

Welcome

Thank you for selecting the CIC-200 GPS synchronized current interrupter. Cath­Tech is the world leader in electronic equipment for corrosion control.

The CIC-200 GPS synchronized current interrupter is equipped with a GPS engine
to ensure accurate synchronization with other interrupters no matter how far apart.

Your CIC-200 GPS synchronized current interrupter is a precision instrument. It is
designed to interrupt the current flow from your cathodic protection rectifier or
sacrificial anode system on a cyclic basis.

Open and inspect your CIC-200 GPS synchronized current interrupter on receipt.
If any damage occurred during shipping, file a claim with the carrier immediately.

Rating Info

The CIC-200 is rated for a maximum of 200 Amps. As the voltage increases,
the maximum amperage decreases as per the table below:

AC Voltage

Max Amps

DC Voltage

Max Amps

240 V AC

200 Amp

48 V DC

200 Amp

480 V AC

160 Amp

125 V DC

100 Amp

600 V AC

140 Amp

250 V DC

60 Amp

Do NOT exceed 200 Amps rectifier output.

Environmental Protection

Waste electrical products should not be disposed of with household waste. Please
recycle where facilities exist. Check with your local authority or retailer for
recycling advice.
