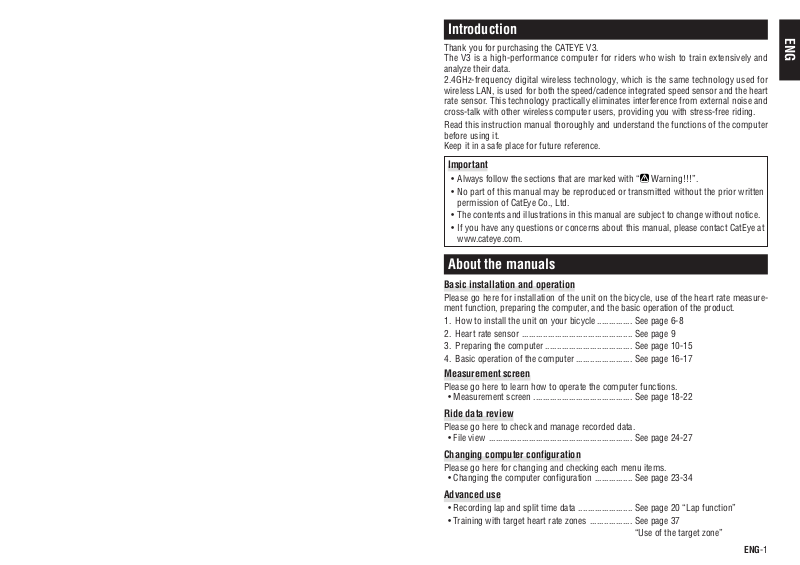

Introduction
Thank you for purchasing the CATEYE V3.
The V3 is a high-performance computer for riders who wish to train extensively and
analyze their data.
2.4GHz-frequency digital wireless technology, which is the same technology used for
wireless LAN, is used for both the speed/cadence integrated speed sensor and the heart
rate sensor. This technology practically eliminates interference from external noise and
cross-talk with other wireless computer users, providing you with stress-free riding.
Read this instruction manual thoroughly and understand the functions of the computer
before using it.
Keep it in a safe place for future reference.
Important
• Always follow the sections that are marked with “ Warning!!!”.
• No part of this manual may be reproduced or transmitted without the prior written
permission of CatEye Co., Ltd.
• The contents and illustrations in this manual are subject to change without notice.
• If you have any questions or concerns about this manual, please contact CatEye at
www.cateye.com.
About the manuals
Basic installation and operation
Please go here for installation of the unit on the bicycle, use of the heart rate measurement function, preparing the computer, and the basic operation of the product.
1. How to install the unit on your bicycle ............... See page 6-8
2. Heart rate sensor ............................................... See page 9
3. Preparing the computer ..................................... See page 10-15
4. Basic operation of the computer ........................ See page 16-17
Measurement screen
Please go here to learn how to operate the computer functions.
• Measurement screen .......................................... See page 18-22
Ride data review
Please go here to check and manage recorded data.
• File view ............................................................. See page 24-27
Changing computer configuration
Please go here for changing and checking each menu items.
• Changing the computer configuration ................ See page 23-34
Advanced use
• Recording lap and split time data ....................... See page 20 “Lap function”
• Training with target heart rate zones .................. See page 37
“Use of the target zone”
ENG-1
ENG
Page 2
Contents
Introduction .......................................... 1
About the manuals ............................... 1
Proper use of the CatEye V3 ................. 3
Description of computer and its parts .... 4
Computer ......................................... 4
Accessories ...................................... 4
Screen display ...................................... 5
How to install the unit on your bicycle ... 6
1. Attach the bracket to the stem or
handlebar ..................................... 6
2. Mount the speed sensor and
magnet ......................................... 7
3. Remove/Install the computer ....... 8
Heart rate sensor .................................. 9
Before wearing the heart rate sensor .... 9
Wearing the heart rate sensor .......... 9
Preparing the computer ......................10
Removing the insulation sheet ....... 10
1. Formatting/Restarting operation .... 11
2. Date/Clock setting ...................... 11
3. Tire circumference input ............. 12
4. Set the sensor ID ........................ 13
5. Selecting speed unit ................... 14
6. Operation test ............................. 15
Sensor signal status ....................... 15
Basic operation of the computer ........ 16
Functions on the measurement
screen ............................................ 16
Starting/Stopping the
measurement ................................. 17
Backlight ........................................ 17
Resetting the measurement data .... 17
Power-saving function.................... 17
Measurement screen .......................... 18
Upper and middle display data ....... 18
Lower display data ......................... 19
Pace function ................................. 20
Lap function ................................... 20
Countdown distance ....................... 21
Target heart rate zone .....................22
Changing the computer configuration ... 23
File view (FILE VIEW) ..................... 24
Setting the clock/date
(CLOCK.DATE) ................................ 28
Wheel selection and tire
circumference (WHEEL) ................. 29
Searching the sensor ID
(SEnSOR-ID) ................................... 29
Setting the measurement unit
(UnIT) ............................................. 31
Total distance manual entry
(ODO InPUT) .................................. 31
Setting the auto-mode
(AUTO MODE) ................................. 32
Setting the countdown distance
→→
(C.D.DST
→) .................................. 32
→→
Setting sound (SOUnD) .................. 33
Setting the target heart rate zone
(HR.ZOnE) ......................................34
Heart rate training .............................. 35
1. Improving general fitness ........... 35
2. Training for competition ............. 36
3. Use of the target zone ................ 37
Trouble shooting ................................ 38
Trouble on display .......................... 38
Trouble on operation ...................... 40
Replacing battery ............................... 41
Computer ....................................... 41
Heart rate sensor ............................ 41
Speed sensor ................................. 41
Maintenance ....................................... 42
Spare accessories .............................. 42
Specifications ..................................... 43
Registration ........................................ 44
Limited warranty ................................ 44
Proper use of the CatEye V3
Observe the following instructions for safe usage.
The meaning of icons in this manual:
Warning!!! : Sections marked with these icons are critical for safe use of the device.
Caution : Important cautionary notes on the use and operation of the V3.
Warning!!! :
• Pace maker users should never use this device.
• Do not concentrate on the data while riding. Always be sure to ride safely.
• Do not leave any battery within the reach of children, and dispose of them correctly.
If a battery is swallowed, consult a doctor immediately.
Caution:
• Regularly check the positions of the magnets and the speed/cadence sensors and make
sure that they are securely mounted. Tighten it firmly if there is any looseness.
• Avoid leaving the main unit / wireless sensor in direct sunlight for extended periods of time.
• Do not disassemble the computer, heart rate sensor, or speed sensor.
• Do not subject the computer, heart rate sensor, or speed sensor to strong impact; take
care also to prevent any of them from falling.
• Do not use paint thinner or rubbing alcohol to clean the unit.
• Stop using the unit if you have skin irritation with the HR strap or electrode pad.
• Do not twist or pull strongly the heart rate sensor.
• The heart rate sensor may deteriorate due to long-term use.
Replace the heart rate sensor if it has frequent measurement errors.
• As a nature of liquid crystal displays, sunglasses with polarized lens may block the visibility.
2.4GHz digital wireless system
2.4GHz-frequency digital wireless technology, which is the same technology used for
wireless LAN, is used for both the speed/cadence integrated speed sensor and the heart
rate sensor. This technology practically eliminates interference from external noise and
cross-talk with other wireless computer users, and enables to store highly reliable data.
However, in a very rare occasions, objects and places may generate strong electromagnetic waves and interference, which may result in incorrect measurement:
• TV, PC, radios, motors/engines, or in cars and trains.
• Railroad crossings and near railway tracks, around television transmitting stations and
radar bases.
• Other wireless computers or digitally controlled lights.
Be sure to follow these instructions.
* Helpful tips are highlighted with asteriks.
ENG
ENG-2
ENG-3
Page 3
Description of computer and its parts
Computer
Front
Back-light button (LT)
Start / stop / enter button (SSE)
Back
All clear button (AC)
Accessories
Bracket /
Bracket band
Heart rate sensor / HR strap
Speed sensor
(SPEED/CADENCE)
Mode-1 button (M1/+)
Mode-2 button (M2/-)
Lap button (LAP)
Battery cover
Menu button (MENU)
Bracket rubber pad
Wheel magnet
Cadence magnet
Nylon ties (x5)
Screen display
: Speed sensor signal
Indicate Speed sensor signal status.
(page 15)
: Alarm
Lights up when the HR alarm sound feature is turned on.
: Wheel selection
Displays the wheel currently selected.
: Heart rate sensor signal
Indicate Heart Rate sensor signal status.
(page 15)
: Target zone
Lights up when the target zone is on,
and flashes when it is out of the zone.
Dot display
Mainly displays mode descriptions for the values displayed
just below.
Button navigation
Operative buttons at set-up
of the computer, or on the
menu screen, will flash.
Lights up or
flashes when the
SSE is operative.
: Speed pace arrow
The pace arrows show whether the current speed is faster (
the average speed.
: Speed unit
Flashes while speed measurement is in
progress.
: Low battery indicator
Lights up when the remaining battery capacity for the computer is low.
: Average display
Lighting up displays that the speed, heart rate,
and cadence displays are average values.
: Maximum value display
Lighting up displays that the speed, heart rate,
and cadence displays are maximum values.
: Heart rate pace arrow
The pace arrows show whether the current heart rate is faster (
than the average heart rate.
: Heart rate unit
: Auto-mode
Lights up when the auto-mode function is on.
: Lap icon
Lights up while the lap data is displayed.
: Cadence sensor signal
Indicate Cadence sensor signal status.
(page 15)
Selected data icon/unit
Displays together with the data currently displayed in
the lower display.
) or slower ( ) than
) or slower ( )
Lights up when the
M1/+ is operative.
Lights up when the
M2/- is operative.
ENG
ENG-4
ENG-5
Page 4
S
P
E
E
D
C
A
D
E
N
C
E
How to install the unit on your bicycle
1. Attach the bracket to the stem or handlebar
The Flex Tight ™ bracket can be attached to either the stem or the handlebar depending on how the bracket and band are configured.
Caution:
Tighten the dial on the bracket band by hand only.
Over-tightening can damage the screw threads.
When attaching the Flex Tight ™ bracket to the stem
* Attach the bracket with its open end facing to the right.
Bracket band
Bracket
Bracket rubber pad
Stem
2. Mount the speed sensor and magnet
Speed sensor
2-1. Temporarily secure the speed sensor
Locate the speed sensor on the left chain stay as shown
above, and loosely secure it with the nylon ties.
* Do not tighten the nylon ties completely at this stage.
Once a nylon tie is tightened, it cannot be pulled out.
ENG
Wheel magnet
Cadence magnet
Speed sensor
SPEED
When attaching the Flex Tight ™ bracket to the handlebar
* Attach the bracket with its open end facing to the right.
Bracket band
Bracket rubber pad
Bracket
Cut extra length of the band with scissors.
Caution:
Round off the cut edge of the bracket band to
prevent injury.
ENG-6
Handlebar
2-2. Mount the magnet
1. Loosen the setscrews both on the SPEED side
and CADENCE side of the speed sensor, and turn
the sensor to the angle as shown on the right.
2. Temporarily secure the wheel magnet to the
spoke so that it faces the sensor zone on the
SPEED side.
3. Temporarily secure the cadence magnet inside
the crank with nylon ties, so that it faces the
sensor zone on the CADENCE side.
* When the speed sensor is not positioned ap-
propriately in respect to the two magnets (in both
Steps 2 and 3), move the speed sensor back
and forth so that it is positioned properly.
After you move the speed sensor, adjust the
position so that the two magnets face the relevant sensor zone.
4. After adjustment, tighten the nylon ties firmly
to secure the speed sensor.
Nylon ties
Setscrew on the
CADENCE side
Sensor zone
Wheel
magnet
CADENCE
Setscrew on the
SPEED side
Cadence
magnet
Nylon ties
Continue
SPEED
Sensor
zone
ENG-7
Page 5

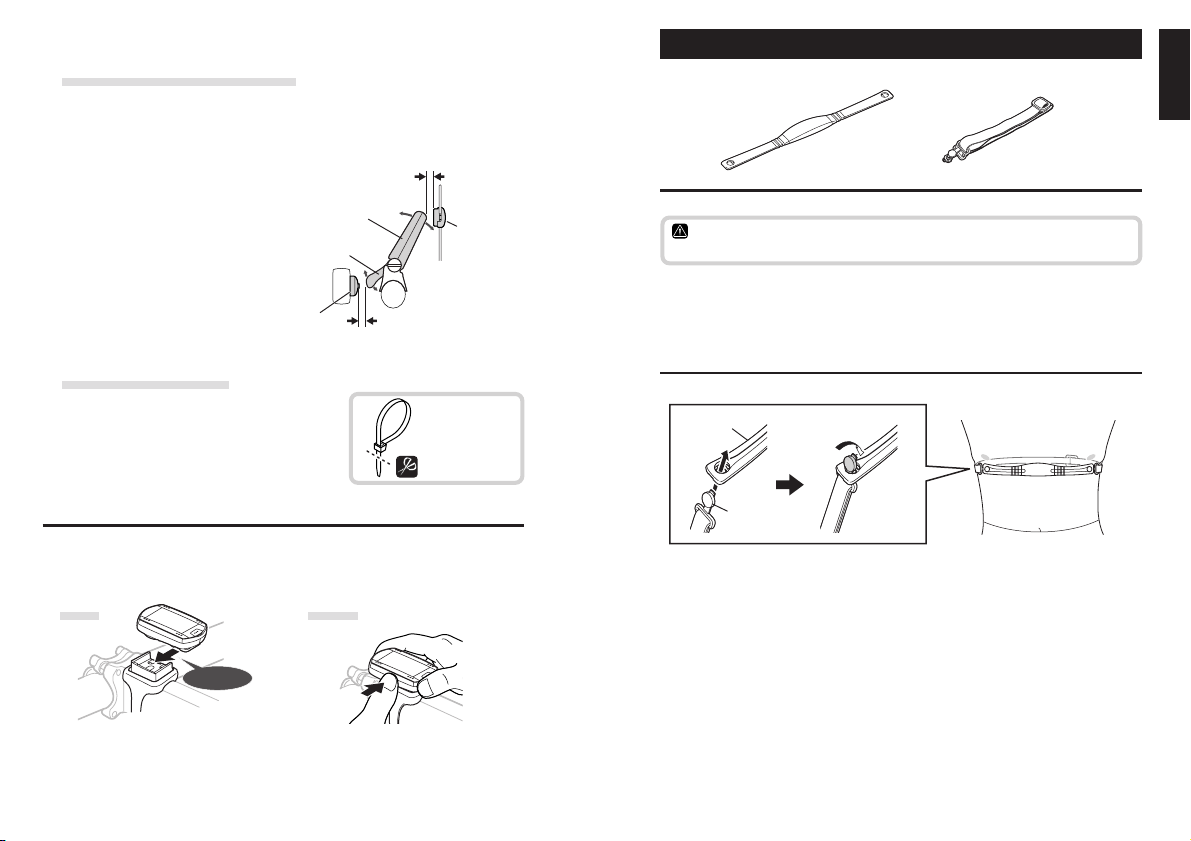

2-3. Adjust the distance to the magnet
1. Adjust the distance between the wheel magnet
and the SPEED side of the speed sensor to be
about 3 mm. After adjustment, tighten the
setscrew on the SPEED side.
2. Adjust the distance between the cadence
magnet and the CADENCE side of the speed
sensor to be about 3 mm. After adjustment,
tighten the setscrew on the CADENCE side.
CADENCE
Cadence magnet
2-4. Securing various parts
Tighten the speed sensor, setscrew, and magnet
firmly, and check for any looseness.
* For steel axle pedals, cadence magnet can be
compacly installed onto the end face of the
pedal axle. Make sure to remove the doublesided tape from the magnet when doing this.
3. Remove/Install the computer
Caution:
When removing, hold the unit to prevent it from falling.
Install Remove
Slide the computer
from the right
Click
Push outward
About 3 mm
SPEED
About 3 mm
Cut extra length
of the nylon tie
with scissors.
Holding the unit
Wheel
magnet
Heart rate sensor
Heart rate is measured when the heart rate sensor is worn on the chest.
Heart rate sensor HR strap
Before wearing the heart rate sensor
Warning!!! :
This product must NOT be used by those who have a pacemaker.
• To avoid measurement errors, it is recommended to moisten the electrode pads with
water.
• If your skin is ultra-sensitive, the electrode pad may be moistened with water and worn
on a thin undershirt.
• Chest hair may interfere with the measurement.
Wearing the heart rate sensor
Heart rate sensor
Hook
1. Insert the HR strap hook to a hole on the heart rate sensor, and push it until it clicks.
2. Wear the heart rate sensor with the HR strap, and adjust the length of the HR strap to
fit your chest size (under bust). Fastening the strap too tightly may cause discomfort.
3. Insert the HR strap hook to another hole on the heart rate sensor, and push it until it
clicks.
4. For removal, hold near the hole on the heart rate sensor and the hook, and twist off.
* Ensure that the rubber part of the electrode pad is in direct contact with the body.
* When your skin is dry, or wearing the heart rate sensor on top of your undershirt
may produce measurement errors.
To avoid errors, moisten the rubber part of the electrode pad.
ENG
ENG-8
ENG-9
Page 6
Preparing the computer
Computer's basic items must be set up before using it.
Removing the insulation sheet
When using the unit for the first time after purchasing, open the battery cover and remove the insulation sheet.
* After you remove the insulation sheet, replace the
battery cover in place.
Open
Close
Insulation
sheet
1. Formatting/Restarting operation
Formatting operation
Caution: All data are reset to the default and deleted.
1. While pressing the MENU button on the back of the
computer, press AC button.
Release the MENU button when a test pattern is displayed
on the screen. The date/clock setting screen appears.
Continue with date/clock setting.
Formatting operation:
(At initial purchase, or reset all to default.)
MENU
ENG
Flow of set-up
There are 2 different set-up operations:
• Formatting operation: At initial purchase, or reset all to default.
• Restarting operation: When you replace batteries, or an error is displayed.
Each operation has a different flow of set-up.
For formatting: For restarting:
Formatting operation
Date/clock setting
Restarting operation
Date/clock setting
* The date when you per-
Tire circumference input
Set the sensor ID
Selecting speed unit
Measurement screen
formed the restarting
operation will be initially displayed.
In the restarting operation,
the following data are retained.
Measurement screen
Total time
Total distance
Menu screen
File data saved
Time format
Date
Tire circumference and
wheel selection
Speed unit
Sensor ID
Auto-mode
Countdown distance
Sound
Setting the target zone
* If mistake was made or “ID-ERROR” showed in the initial set up, go through the
full initial set up steps first, and all corrections can be made afterwords through
Menu screens. (page 23)
ENG-10
AC
* When all screen items light up without any test pattern displayed on the screen,
the formatting operation has not been completed properly. Perform the formatting
After a test pattern is
displayed, all screen
items light up.
operation again.
Restarting operation
1. Press the AC button on the back of the computer.
After all screen items light up for a second, the date/clock
(When you replace batteries, or an error is displayed.)
setting screen appears.
Continue with date/clock setting.
Restarting operation:
AC
* Most of the settings and file data saved are retained for the restarting operation
(see chart on page 10).
All screen items light
up (for a second).
2. Date/Clock setting
Set the current date and time.
1. Select the date display format.
Select the date display format from “YY/MM/DD”, “MM/DD/
YY”, and “DD/MM/YY” using the M1/+ and M2/- buttons,
and confirm with the SSE button.
Switch the display:
M1/+
M2/-
(or)
Confirm:
SSE
Continue
ENG-11
Page 7
Tire size L (mm) Tire size L (mm) Tire size L (mm)
12 x 1.75
14 x 1.50
14 x 1.75
16 x 1.50
16 x 1.75
18 x 1.50
18 x 1.75
20 x 1.75
20 x 1-3/8
22 x 1-3/8
22 x 1-1/2
24 x 1
24 x 3/4
Tubular
24 x 1-1/8
24 x 1-1/4
24 x 1.75
24 x 2.00
24 x 2.125
26 x 7/8
935
1020
1055
1185
1195
1340
1350
1515
1615
1770
1785
1753
1785
1795
1905
1890
1925
1965
1920
26 x 1(59
)
26 x 1(65
)
26 x 1.25
26 x 1-1/8
26 x 1-3/8
26 x 1-1/2
26 x 1.40
26 x 1.50
26 x 1.75
26 x 1.95
26 x 2.00
26 x 2.10
26 x 2.125
26 x 2.35
26 x 3.00
27 x 1
27 x 1-1/8
27 x 1-1/4
27 x 1-3/8
1913
1952
1953
1970
2068
2100
2005
2010
2023
2050
2055
2068
2070
2083
2170
2145
2155
2161
2169
650 x 20C
650 x 23C
650 x 35A
650 x 38A
650 x 38B
700 x 18C
700 x 19C
700 x 20C
700 x 23C
700 x 25C
700 x 28C
700 x 30C
700 x 32C
700C Tubular
700 x 35C
700 x 38C
700 x 40C
29 x 2.1
29 x 2.3
1938
1944
2090
2125
2105
2070
2080
2086
2096
2105
2136
2146
2155
2130
2168
2180
2200
2288
2326
2. Enter the “Year”, “Month” and “Day.”
Enter the “Year”, “Month” and “Day” in the display order
selected in Step 1 using the M1/+ and M2/- buttons, and
confirm with the SSE button. Enter the last 2 digits of the year.
Increase/decrease:
3. Select the clock display format.
Select “24h (24 hour)” or “12h (12 hour)” using the M1/+ and
M1/+
M2/-
(or)
Confirm:
SSE
Display format
M2/- buttons, and confirm with the SSE button.
24h
↔↔
↔ 12h:
↔↔
M1/+
M2/-
(or)
Confirm:
SSE
4. Enter the “Hour” and “Minute.”
Enter the “Hour” using the M1/+ and M2/- buttons, confirm
with the SSE button, and then enter the “Minute” in the
same way.
Increase/decrease:
5. After you set the date/clock, press the MENU button to
proceed to the next set up item.
M1/+
M2/-
(or)
Confirm:
SSE
For the formatting operation: To the “Tire circumference input” screen below
For the restarting operation: To the measurement screen and ready for use
3. Tire circumference input
Enter the tire circumference of the bicycle wheel in millimeter.
1. Enter the last 2 digits of the tire circumference.
Enter using the M1/+ and M2/- buttons, and move digits
using the SSE button. Then, enter the first 2 digits in the
same way.
Increase/decrease:
2. After completed, press the MENU button to proceed to “Set
ENG-12
the sensor ID” below.
To “Set the sensor ID”:
M1/+
M2/-
(or)
MENU
(Back)
Move digits:
SSE
Hour Minute
MENU
(Back)
Tire circumference
You can find the tire circumference (L) of your tire size in the chart below, or actually
measure the tire circumference (L) of your bicycle.
How to measure the tire circumference (L)
For the most accurate measurement, do a wheel roll out. With the tires
under proper pressure, place the valve stem at the bottom. Mark the
spot on the floor and with the rider's weight on the bike, roll exactly one
wheel revolution in a straight line (until the valve comes around again to the bottom). Mark
where the valve stem is and measure the distance in millimeter.
L mm
* For your reference, use the tire circumference chart below.
4. Set the sensor ID
Set the heart rate sensor ID and the speed sensor ID.
* This unit requires the sensor ID in order for the computer to receive signal from
the sensors.
* To check the sensor ID, heart rate sensor must be worn properly (page 9), and be
within 5 m from the bicycle with a speed sensor mounted (page 7).
* When performing ID Synch, make sure there is no other similar sensors in the
surrounding area. (It may pick up other sensor's ID)
1. Wear the heart rate sensor.
2. Press the SSE button to start searching for the heart rate
sensor ID.
When the heart rate is displayed as “ID-OK” on the screen,
searching is completed.
Start searching:
SSE
Continue
ENG
ENG-13
Page 8
3. Verify that the speed/cadence sensor is mounted properly to
the bicycle.
4. Press the SSE button to start searching the speed sensor ID.
When the speed (cadence) is displayed as “ID-OK” on the
screen by spinning the rear wheel or crank, searching is
completed.
Start searching:
SSE
5. Press the MENU button to proceed to “Selecting speed unit”
below.
To “Selecting speed unit”:
* This unit enters the search mode for 5 minutes after starting the ID check.
Press the SSE button during the search mode, then “ID-SKIP” is indicated and it
proceeds to “Selecting speed unit” screen below. Or, unless a sensor signal is
received in 5 minutes, “ID-ERROR” is indicated and it proceeds to “Selecting
speed unit” screen below.
When “ID-SKIP” or “ID-ERROR” is indicated, this unit is not ready for
measurement because the sensor ID has not been registered even though the
set-up is completed. Be sure to check the sensor ID from the menu screen
“Searching the sensor ID” (page 29).
MENU
(Back)
5. Selecting speed unit
Select the speed unit from “km” and “mile”.
1. Select the speed unit.
↔↔
km
↔ mile:
↔↔
2. After selecting, press the MENU button. The measurement
screen appears and the computer set-up is completed.
M1/+
M2/-
(or)
6. Operation test
Test the functioning of the speed sensor (SPEED) and the cadence sensor (CADENCE).
* If the sensor signal icons,
turn them on.
Speed sensor (SPEED)
1. Raise the rear wheel and spin the wheel.
flashes on the computer screen
2. When
and the speed is displayed, it is operating
normally.
Cadence sensor (CADENCE)
1. Turn the crank.
2. When
flashes on the computer screen
and the cadence is displayed, it is
operating normally.
* When or does not flash, the position of the sensor and the magnet is not
proper. Check and adjust the position of the sensor and magnet again (page 7).
Important: In the following situations, it is possible that other sensor's ID was picked
up; (such can happen when performing ID Synch at the race venue or
group rides)
• Does not display values, even though sensor/magnet position is proper
• Does not display HR values, even though HR sensor is strapped properly
Recommended Action: Go to the computer's ID Synch setup screen
(page 23) and go through the process of ID Synch. (Make sure that here
is no similar devices in the vicinity. Signal transition distance can vary
from environmental conditions such as weather, buildings, etc)

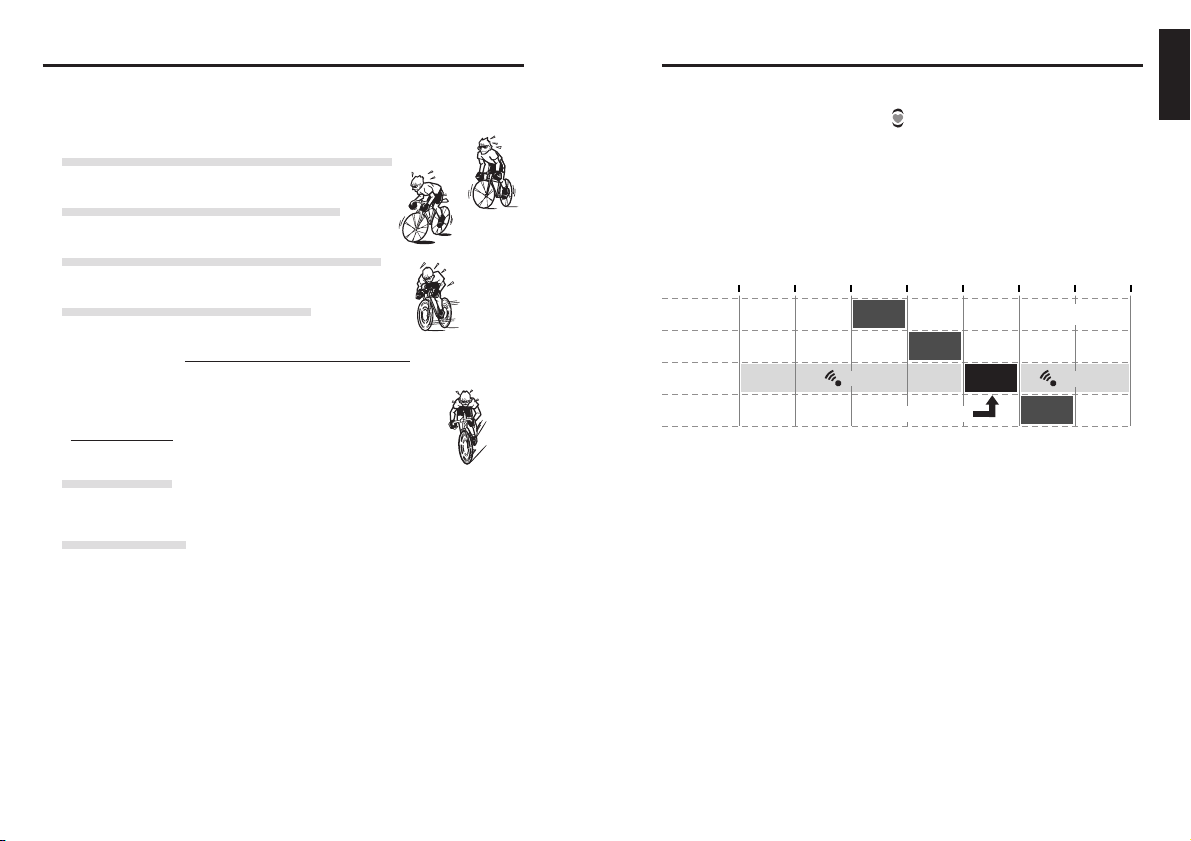

Sensor signal status
If there is no incoming signal for approximately 5 minutes, the transmission stops
and no longer receive the sensor data.
Once you press the M1/+ or M2/- button, the computer will come out of the Sleep
mode and return to the Stand-by for sensor signal.
Signal transmission status can be checked with Signal icon.
(flashing) : Receiving sensor signal
(constant) : Stand-by for sensor signal
(off) : Transmission off
* Transmission off status is independent for heart rate and speed/cadence sensor.
If both sensors stop transmission, the computer screen will change to Sleep
mode (page 17).
, and are turned off, press the M1/+ or M2/- button to
ENG
ENG-14
ENG-15
Page 9
Basic operation of the computer
Functions on the measurement screen

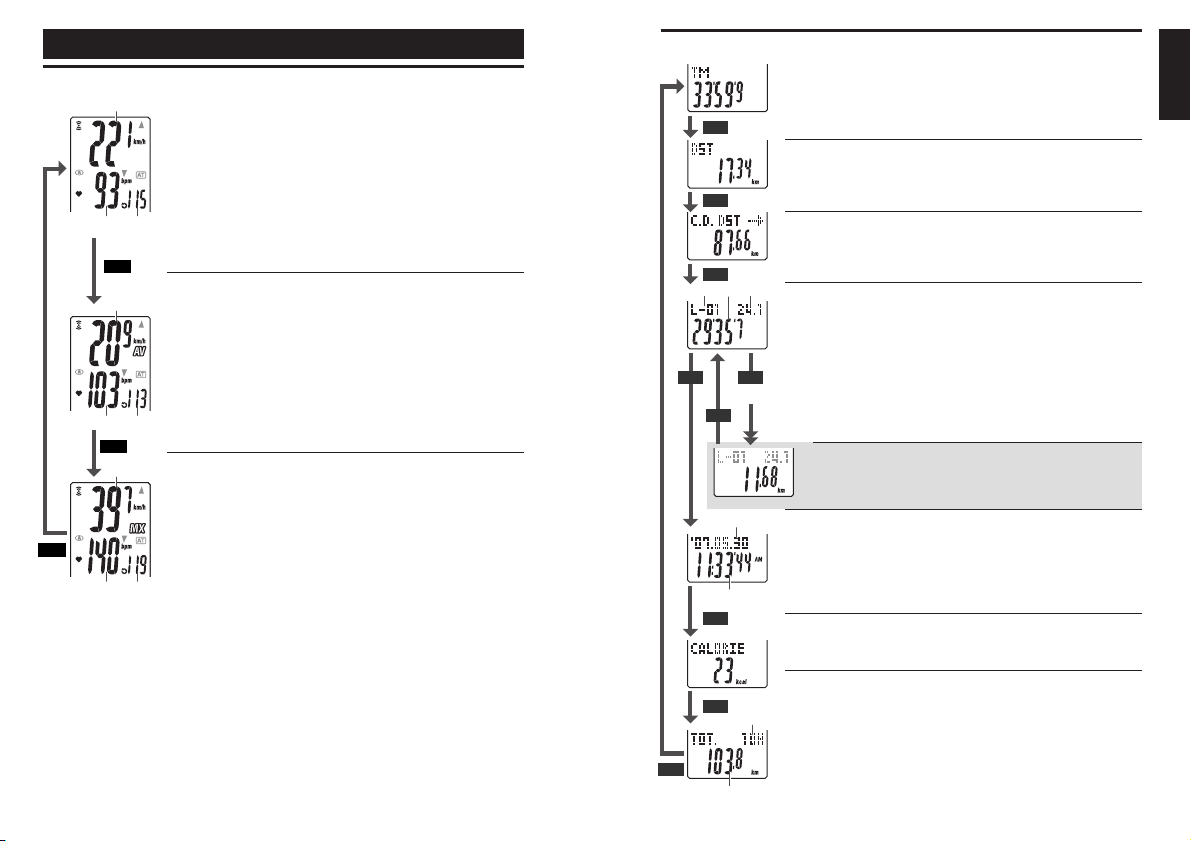

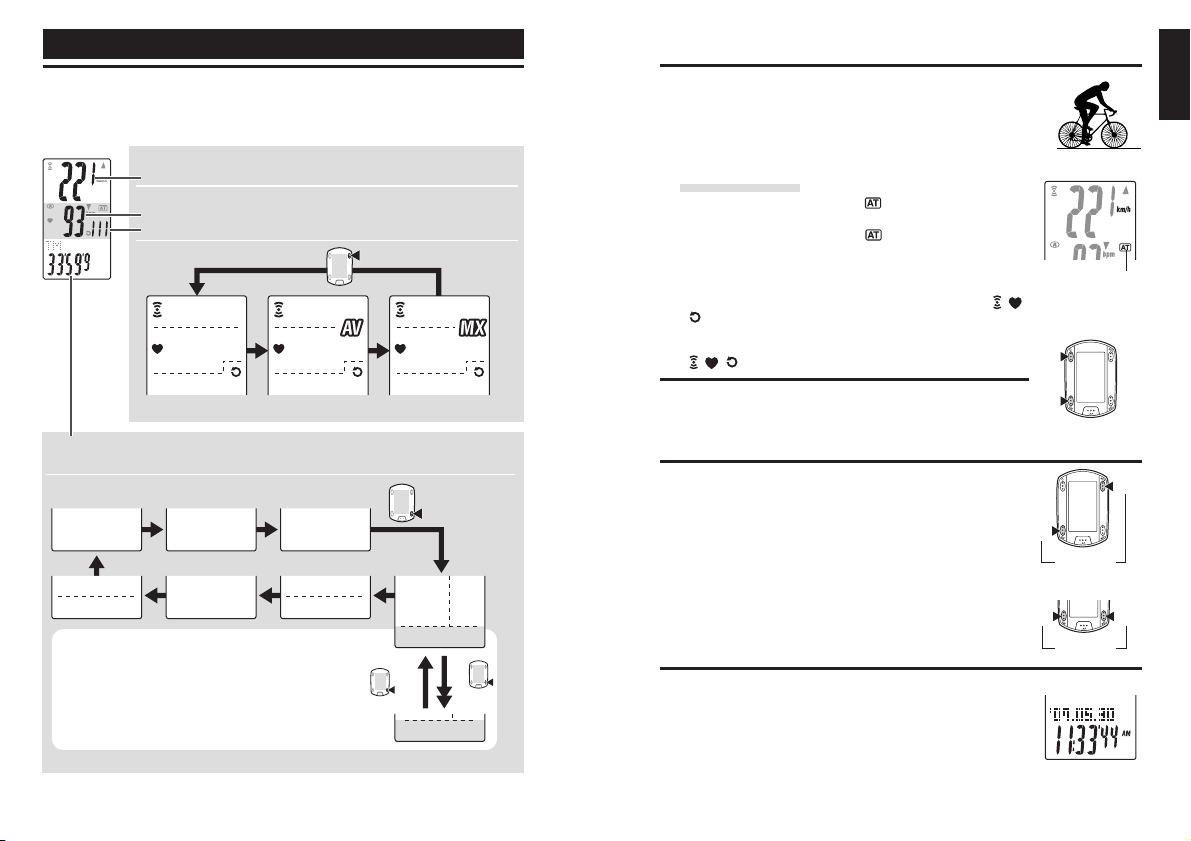

The measurement screen displays 4 different types of data, which are switched by pressing the M1/+ and M2/- buttons.
The display data are as follows.
Upper display data
Displays the data related to the speed.
Middle display data
Displays the data related to the heart rate.
Displays the data related to the cadence.
Switch using the M1/+ button
Current speed
Heart rate
Cadence
Average cadence
* Upper and Middle display data are switched in sync together.
Lower display data
Displays the other data.
Switch using the M2/- button
Elapsed time Trip distance
Total time
Total distance
Calorie
Consumption
Real time lap data (on-going lap data)
* Pressing and holding the M2/- button while
displaying the lap timer switches the lap timer to
the lap distance.
Pressing it again returns to the lap timer.
Average speed
Average heart
rate
Countdown
distance
Date
Clock
M1/+
Maximum
speed
Maximum
heart rate
Maximum cadence
Lap
number
Lap timer
M2/-
Lap distance
M2/-
Average
lap
speed
(2 Sec.)
M2/-
Starting/Stopping the measurement
Initially, the unit starts or stops measurement automatically in sync
with the bicycle motion. This is called auto-mode function.
“km/h” or “mph” flashes during measurement.
The total distance, maximum speed, maximum heart rate, and maximum
cadence are updated independently of stating/stopping measurement.
Auto-mode function
When the auto-mode is turned on ( lights up), the unit detects
the wheel spinning, and starts/stops measurement automatically.
When the auto-mode is turned off ( lights off), the unit starts/
stops measurement by using the SSE button.
* For on/off of the auto-mode, see the menu screen “Setting the auto-
mode” (page 32).
* When the transmission is stopped and Sensor signal icons
are off (page 15), the main timer may not start due to speed
signal not responding.
Press the M1/+ or M2/- button to turn on the sensor signal icons
, , .
, ,
Backlight
Pressing the LT button illuminates the displays for about 3 seconds.
* Pressing any button while backlight is still on extends the illumination
for another 3 seconds.
Resetting the measurement data
To reset the measurement data (TM, DST, Lap Time, C.D. DST, etc)
and the lap data, simultaneously press the SSE button and the
M1/+ or M2/- button in the measurement screen.
* Resetting the measurement data saves the data automatically on a
file. (page 24)
* The screen will freeze for about 2 seconds after resetting; however,
all measurements are operating normally, including the elapsed time.
* The countdown setting (C.D.DST→) is returned to the manu set
value you set.
* Cannot reset for 5 seconds after pressing the LAP button.
Power-saving function
When the computer does not receive any data for 5 minutes, it will
enter the power-saving mode, in which only the date/clock is displayed.
By pressing any buttons except the AC recovers from the powersaving mode, and the measurement screen appears. You must press
a button when the computer is in power saving mode before it will
start to measure any data.
LT
SSE
SSE
(Simultaneously press)
(or)
SSE
(Simultaneously press)
Power-saving mode
ENG
AT icon
M1/+
M2/-
ENG-16
ENG-17
Page 10
Measurement screen
Upper and middle display data
1
1 Current speed
Displays the current speed.
Updated every second.
2 Heart rate
Displays the heart rate in real time.
2 3
M1/+
5 6
M1/+
M1/+
8 9
*1: When the trip distance (DST) exceeds 10,000 km [mile], or the elapsed time (TM) exceeds
100 hours, [E] appears indicating further measurement is impossible. Clear the data by
resetting (page 17).
*2: This device stops calculating the average when the heart rate sensor is detached, and re-
sumes the calculation when the heart rate sensor is worn again. This feature produces
actual averages with the heart rate sensor worn.
*3: This device calculates the average excluding the time when you stop pedaling. This feature
produces actual averages, which are different from those with conventional models that
calculate it for the entire measurement time period.
ENG-18
Updated every second.
3 Cadence
Displays the number of pedal rotations per minute.
Updated every second.
4 Average speed
4
Displays the average speed after the start of measurement.
5 Average heart rate
*1
*2
Displays the average heart rate after the start of measurement.
The average will not be reflected when the heart rate is not
measured.
6 Average cadence
*3
Displays the average cadence after the start of measurement.
The average will not be reflected when you stop pedaling.
7 Maximum speed
7
Displays the maximum speed after the start of measurement.
Updated independently of starting/stopping measurement.
8 Maximum heart rate
Displays the maximum heart rate after the start of measurement.
Updated independently of starting/stopping measurement.
9 Maximum cadence
Displays the maximum cadence after the start of measurement.
Updated independently of starting/stopping measurement.
Lower display data
M2/-
M2/-
M2/-
0 qw
M2/-
M2/-
M2/-
M2/-
(2 sec.)
e
r
y
t
M2/-
M2/-
Elapsed time
Displays the elapsed time from the start of measurement to the 1/10 second.
When it exceeds 99:59’59”, it repeats from 00’00”0.
*
When the elapsed time reaches 1 hour, the 1/10 second is not displayed.
Trip distance
Displays the trip distance from the start of measurement.
Countdown distance (page 21)
Displays the countdown distance to the target distance.
0 Lap number (page 20)
Displays the number of current lap.
q Average lap speed in real time
Displays the average lap speed of the current lap in real time.
w Lap timer
Displays the elapsed time of the current lap in real time.
Trip lap distance in real time
Displays the trip distance of the current lap in real time.
e Date
Displays the day, month, and year (last 2 digits).
* Display format is different depending on display set up.
r Clock
Displays the current time of day in the 24- or 12-hour system.
Calorie Consumption
Displays the estimated calorie consumption from the start of measurement based on the heart rate.
t Total time
The total time is accumulated time since purchase. It can only be
reset with Format (page 11).
y Total distance
The total distance is accumulated distance. It is updated independently of starting/stopping measurement.
It can be edited to desired value.
ENG-19
ENG
Page 11
Pace function
Current speed
2 types of pace arrow icons for the current speed and the heart rate
are displayed on the screen.
These arrow icons indicate whether the current speed (heart rate) is
above or below the average speed (average heart rate).
: Appears when the current value is above the average.
: Appears when the current value is below the average.
No arrows : When the current value is equal to the average, or zero.
Heart rate
Lap function
Pressing the LAP button on the measurement screen during measurement records the
measurement data between a given set of points (average lap speed/maximum lap speed,
average lap heart rate/maximum lap heart rate, lap time/split time, and trip lap distance)
up to 99 points. Immediately after recording, the lap data are displayed in the order as
shown below, and then return to the measurement screen.
Measurement
screen
1
2
LAP
5
1 Average lap speed
2 Average lap heart rate
Displays the average lap speed (average
lap heart rate) from the previous point
(for L-01: from the start of measurement).
3 Lap number
Displays the lap number just recorded.
* When the total number of laps exceeds
99 points, “--” appears indicating further lap recording cannot be done.
4 Trip lap distance
Displays the trip lap distance from the
previous point (for L-01: from the start
of measurement).
ENG-20
Lap data
6
2.5 sec. 2.5 sec.
3
7
4
8
5 Lap time
Displays the elapsed time from the
previous point (for L-01: from the start
of measurement).
6 Maximum lap speed
7 Maximum lap heart rate
Displays the maximum lap lap speed
(maximum lap heart rate) from the
previous point (for L-01: from the start
of measurement).
8 Split time
Displays the total elapsed time from the
start of measurement.
Measurement
screen

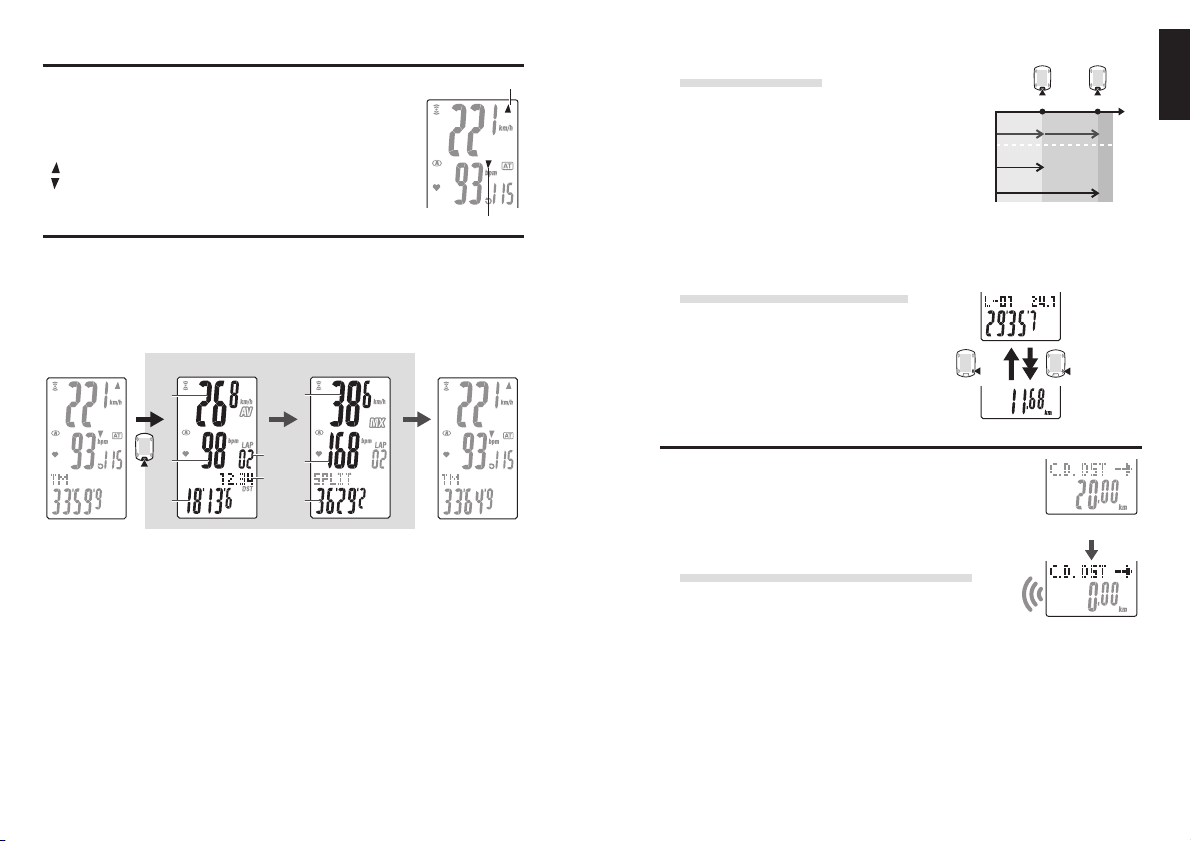

Lap time and split time
The lap time displays elapsed time from the last
press of the LAP button.
The split time displays the elapsed time from the
start of measurement to the point LAP button is
pressed.
Start of
measurement
Lap time 1
Split time 1
Split time 2
LAP LAP
Lap time 2
* The measured lap data is saved to a file when you perform a reset operation (page 17)
and can be reviewed in “File view” (page 24).
* Pressing the LAP button while the total number of laps reaches 99 points displays the lap
data, but “--” appears in place of the lap number indicating further recording is impossible.
Advance use of the real time lap data
For the real time lap data indicated in the lower display, the unit starts/stops measurement in sync with
the main time measurement; however, it resets and
restarts the data every time you press the LAP button.
This independent feature of lap time can be useful
also for intervals and sectional trials such as hill
M2/-
(For 2 seconds)
M2/-
climb section.
Countdown distance
The countdown distance feature displays the countdown distance to a
predetermined target trip distance, and notifies when it reaches zero.
When it reaches the target trip distance, the unit switches any measurement data to the countdown data, and notifies it by flashing the
numeric/dot display and an alarm sound.
Example of how the countdown distance is used
1. Entering the race event distance
For distance system events such as a road race and
century ride, enter the race event distance before the
start, and develop your strategy and pace based on the
countdown distance during the race.
2. Entering the destination sign distance
For touring, enter the sign distance whenever you encounter a destination sign
along the road, and develop your pace based on the countdown distance.
3. Entering the periodical target distance
Enter the periodical target distance for a week, month, or year to check your progress.
* The target trip distance is set from the menu screen “Setting the countdown distance”
(page 32).
In case of 20 km
Beep
When reached
(displays for 5
seconds)
ENG-21
ENG
TM
Page 12
Target heart rate zone
During measurement, on the screen displays the target heart rate
status.
(constant) : The target zone is set to any of HR.ZONE:1 to 4.
(flashing) : The current heart rate is out of the selected zone.
(off) : The target zone is set to off.
* The target heart rate zone is set from the menu screen “Setting
the target heart rate zone” (page 34).
Target heart rate
zone
Changing the computer configuration
Pressing the MENU button in the measurement screen switches to the menu screen.
In the menu screen, you can view and delete the files saved, and view and change various
configurations.
* Use the M1/+ and M2/- to change menu items.
* After changes are made, be sure to review the setting(s) and confirm by pressing the MENU button.
* Leaving the menu screen without any operation for 2 minutes returns to the measurement screen,
and changes are not saved.
Measurement
screen
(Back)
MENU
(Back)
M1/+
MENU
Menu top screen
File view
Setting the clock/date
Wheel selection and
tire circumference
Searching the sensor
ID
Setting the measurement unit
Viewing and deleting files
Changing the clock/
date
Selecting wheel and
changing the tire circumference
Synchronizing the
heart rate and speed/
cadence sensor ID.
Changing the measurement unit
SSE
(page 24)
SSE
(page 28)
SSE
(page 29)
SSE
(page 29)
SSE
(page 31)
ENG
ENG-22
Total distance manual
entry
Setting the auto-mode
Setting the countdown
distance
Setting sound
Setting the target heart
M2/-
rate zone
Total distance in-
put
On/off of the automode
Countdown distance input
On/off of the HR
alarm, and button
operation sound
Selecting the zone,
and changing the
upper/lower limit
SSE
(page 31)
SSE
(page 32)
SSE
(page 32)
SSE
(page 33)
SSE
(page 34)
ENG-23
Page 13
File view
The lap and measurement data are saved into a file automatically each time a ride is reset
(Resetting Operation page 17)
With the file view, you can review the past rides or delete data recorded.
Measurement data to be recorded in a file
The computer can record up to 14 files*1.
When 14 files (rides) are saved, the oldest one is deleted automatically. The latest file
is always F-01.
The measurement data to be saved in a file are as follows.
Date of creation: New
F-01 F-02 F-03 F-14
• Trip distance
• Elapsed time
• Various average values (average speed, average heart rate, and average cadence)
• Various maximum values (maximum speed, maximum heart rate, and maxi-
mum cadence)
• Date and time of file creation (date/time when the measurement started)
• Number of laps used
• Calorie consumption
• Time distribution to the target zone (time in the zone, time above the zone, and
time below the zone) and the percentage (%)
• Lap data (average lap speed, average lap heart rate, maximum lap speed, maximum lap heart rate, lap time, split time, trip lap distance)
*1: One lap per file is used even in the case there is no lap data. Therefore, when the total
number of laps reaches 99 points, no more files can be saved.
Viewing the measurement data in a file
View the measurement data in a file saved in the computer.
1. Press the MENU button in the measurement screen to
switch to the menu top screen.
Press the SSE button on the FILE VIEW screen.
Menu top:
MENU
(Back)
Confirm:
ENG-24
Old
Total number of laps
SSE
Total number of files
2. Select the file using the M1/+ and M2/- buttons, and confirm
with the SSE button.
Switching the file number:
M1/+
M2/-
(or)
File number
Number of laps
used in a file
3. Scroll through the data saved in each file by pressing the
SSE button.
The display items are as follows.
SSE
SSE
Various average
values
2
4
1 Average speed
2 Average heart rate
3 Average cadence
4 Trip distance
5 Elapsed time
6 Maximum speed
7 Maximum heart rate
8 Maximum cadence
When the HR target
zone is set to OFF
Various maximum
values
1
SSE SSE SSE
7
3
5
6
8
9
9 Calorie consumption
0 Upper zone limit
q Lower zone limit
w Selected zone
e Time in the zone, and the percentage
r Time above the zone, and the percentage
t Time blow the zone, and the percentage
*2
In the target zone
q
w
Time of
the start
Out of the target zone
0
e
e
Date of file
creation
(Displayed
alternately)
4. Pressing the MENU button returns to the menu top screen
(FILE VIEW screen). Pressing it again returns to the
measurement screen.
To the menu top/measurement screen:
MENU
(Back)
*2: HR target zone is set to OFF during measurement, no data related to the target
zone is displayed.
* Pressing the LAP button while viewing some data switches to viewing the lap
data (page 26).
Continue
ENG
r
r
t
t
ENG-25
Page 14
Viewing the lap data
View the lap data in a file saved in the computer.
Select the file number you want to view from the menu screen “File view” (page 24).
1. Press the LAP button to view the lap data contained in the
file selected.
Press the LAP button again to return from the lap data.
The average and maximum values are displayed alternately
File number
Number of laps
used in a file
as follows.
Viewing/exiting lap data:
Average values Maximum values
LAP
6
1
2
3
4
5
(Displayed alternately)
1 Average lap speed
Average lap heart rate
2
3 Lap number
7
4 Trip lap distance
5 Lap time
6 Maximum lap speed
8
7 Maximum lap heart rate
8 Split time
Date of file
creation
Time of the start
2. Switch the laps, if applicable, using the M1/+ and M2/- buttons.
Switching the lap number:
M1/+
M2/-
(or)
3. Pressing the MENU button returns to the menu top screen
(FILE VIEW screen). Pressing it again returns to the
measurement screen.
To the menu top/measurement screen:
MENU
(Back)
Deleting files
Delete the file saved in the computer.
You can select deleting only the file specified, or all files.
Switch to the menu screen “File view” (page 24).
1. Simultaneously press the SSE button and the M1/+ or M2/-
button to switch to the deleting screen.
Switching to the deleting screen:
M1/+
SSE
(Simultaneously press)
(or)
(Simultaneously press)
SSE
M2/-
2. Select the file number you want to delete from the date/clock
of file creation. To delete all files, select “aLL”.
Switching the file number:
↔↔
↔↔
⋅⋅⋅⋅⋅⋅
01
↔ 02
↔ 03
↔↔
↔↔
⋅⋅⋅ aLL
⋅⋅⋅⋅⋅⋅
↔↔
↔ 01
↔↔
M1/+
M2/-
(or)
3. Press the SSE button to delete the file.
Deleting files:
4. Pressing the MENU button returns to the menu top screen
(FILE VIEW screen). Pressing it again returns to the
SSE
measurement screen.
To the menu top/measurement screen:
MENU
(Back)
File number
Number of laps
used in a file
Date of file
creation
Time of the start
Searching delete
screen
(Displayed alternately)
ENG
ENG-26
* When the computer has no files (F-00) the delete file operation is not operable.
* Once a file is deleted, all lap data associated with that file is also deleted.
* Once a file is deleted, it cannot be restored.
ENG-27
Page 15
M2/- M1/+
M2/- M1/+

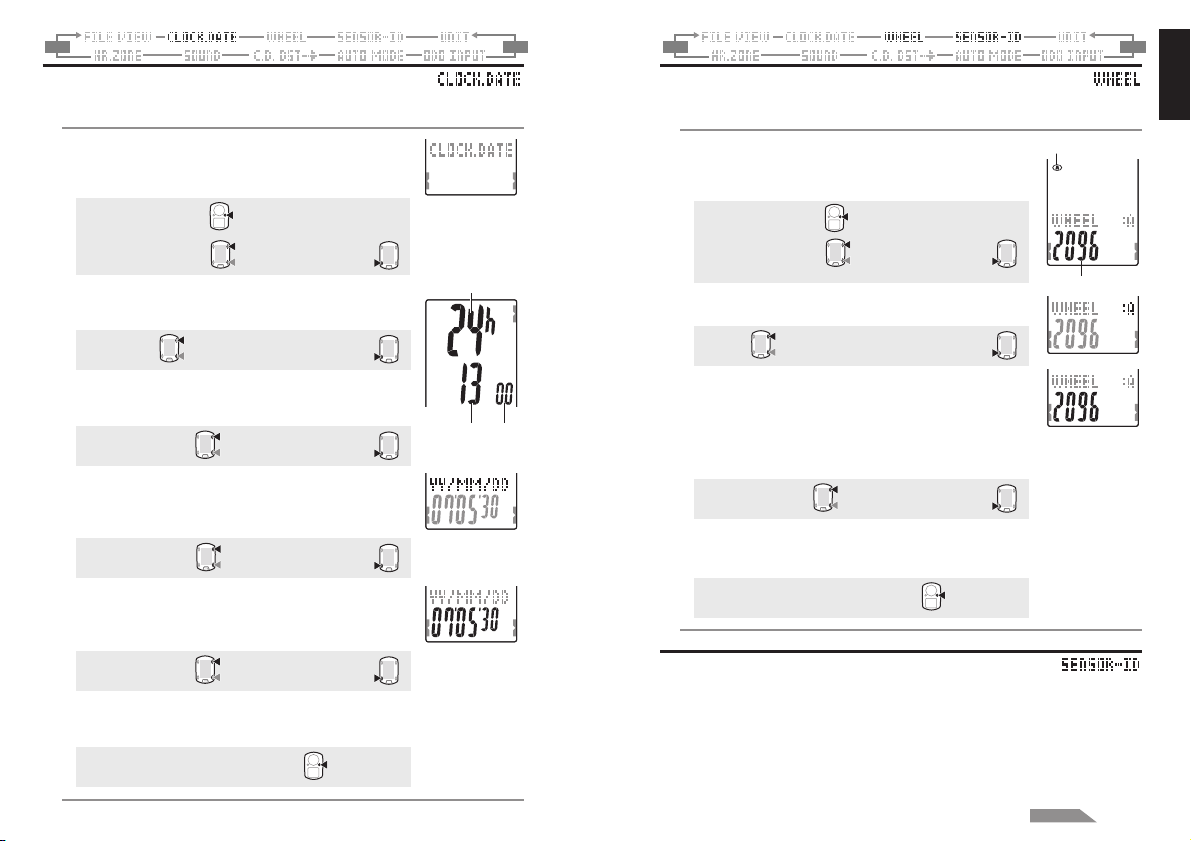

Setting the clock/date
Set the “Clock display format”, “Hour”, “Minute”, “Date display format”, “Year”,
“Month” and “Day.”
1. Press the MENU button in the measurement screen to
switch to the menu top screen.
Switch to the CLOCK.DATE screen using the M1/+ and M2/-
buttons, and confirm with the SSE button.
Menu top:
Changing the menu:
2. Select the clock display format.
Select “24h (24 hour)” or “12h (12 hour)” using the M1/+
and M2/- buttons, and confirm with the SSE button.
↔↔
24h
↔ 12h:
↔↔
3. Enter the “Hour” or “Minute.”
Enter the “Hour” using the M1/+ and M2/- buttons, confirm with
the SSE button, and then enter the “Minute” in the same way.
Increase/decrease:
4. Select the date display format.
Select the date display format from “YY/MM/DD”, “MM/DD/
YY”, and “DD/MM/YY” using the M1/+ and M2/- buttons,
and confirm with the SSE button.
Switch the display:
5. Enter the “Year”, “Month” and “Day.”
Enter the “Year”, “Month” and “Day” in the display order
selected in Step 4 using the M1/+ and M2/- buttons, and
confirm with the SSE button. Enter the last 2 digits of the year.
Increase/decrease:
6. Pressing the MENU button returns to the menu top screen
(CLOCK.DATE screen), and confirm the change(s).
Pressing it again returns to the measurement screen.
To the menu top/measurement screen:
ENG-28
M1/+
M2/-
(or)
M1/+
M2/-
M1/+
M2/-
M1/+
M2/-
MENU
(Back)
M1/+
M2/-
(or)
(or)
(or)
(or)
Confirm:
Confirm:
Confirm:
Confirm:
Confirm:
MENU
(Back)
SSE
Display format
SSE
Hour Minute
SSE
SSE
SSE
Wheel selection and tire circumference
Switch the Wheel Size (A / B), and change the Tire Size (tire roll out length).
* For the tire size, see “Tire circumference” (page 13).
1. Press the MENU button in the measurement screen to
switch to the menu top screen.
Switch to the WHEEL screen using the M1/+ and M2/-
buttons, and confirm with the SSE button.
Menu top:
Changing the menu:
2. Select the Wheel Size “A” or “B” using the M1/+ and M2/-
buttons.
A ↔ B:
M1/+
M2/-
(or)
MENU
(Back)
M1/+
M2/-
(or)
Confirm:
Confirm:
Wheel selection
SSE
Current wheel size
SSE
At this point if change of tire circumference is not necessary,
you can escape the setup by pressing the MENU button.
3. Enter the last 2 digits of the tire circumference for the wheel
selected in Step 1 using the M1/+ and M2/- buttons, and
confirm with the SSE button.
Then, enter the first 2 digits in the same way.
Increase/decrease:
M1/+
M2/-
(or)
Move digits:
SSE
4. Pressing the MENU button returns to the menu top screen
(WHEEL screen), and confirm the change(s).
Pressing it again returns to the measurement screen.
To the menu top/measurement screen:
MENU
(Back)
Searching the sensor ID
When moving the computer from one sensor to another or to use a different HR chest
strap, this operation must be performed.
* This unit requires the sensor ID.
The computer cannot receive the sensor signal unless the sensor ID is synchronized properly.
* To synchronize the sensor ID, the heart rate sensor must be worn properly (page 9), and be near
the bicycle with a speed/cadence mounted (page 7).
* When searching the sensor ID, make sure no other sensors are in the area within 10 m radius.
For the Speed/Cadence sensor, it is also possible to press the Reset button on the sensor to
intentionally turn off the signal transmission from the sensor.
Continue
ENG
ENG-29
Page 16
M2/- M1/+
1. Press the MENU button on the measurement screen to
switch to the menu top screen.
Switch to the SEnSOR-ID screen using the M1/+ and M2/-
buttons, and confirm with the SSE button.
Menu top:
Changing the menu:
MENU
(Back)
M1/+
M2/-
(or)
Confirm:
SSE
2. Select the sensor ID to be checked.
Select it from “Hr (heart rate sensor)”, “SP1 (speed sensor 1)”,
and “SP2 (speed sensor 2)” using the M1/+ and M2/- buttons.
Selecting the sensor:
M1/+
M2/-
(or)
3. Check whether the heart rate sensor is worn properly when
you selected “Hr”, or whether the speed sensor is mounted
properly when you selected “SP1” or “SP2”.
4. Press the SSE button to start searching the ID.
Spin the rear wheel or crank when you selected “SP1” or
“SP2”.
When the heart rate or speed (cadence) is displayed with
“ID-OK” on the screen, synchronization is completed.
Start searching:
5. Pressing the MENU button returns to the menu top screen
(SEnSOR-ID screen), and confirm the change(s).
SSE
Pressing it again returns to the measurement screen.
To the menu top/measurement screen:
* This unit enters the search mode for 5 minutes after starting the ID synch.
While “ID-SKIP” is indicated, press the SSE button in the search mode to cancel
MENU
(Back)
the ID synch, and “ID-SKIP” is displayed. Unless a sensor signal is received in 5
minutes, “ID-ERROR” is displayed.
When “ID-SKIP” or “ID-ERROR” is displayed, the ID has not been synchronized
properly. In such a case, the sensor ID retains the previous ID setup.
Be sure to check the sensor/mounting condition before you check the ID again.
* SP2 is used when a computer is commonly used for second bicycles. By synchro-
nizing the ID of the second bicycle equipped with a second speed/cadence sensor
and the computer with SP2, re-synchronizing and the computer with SP2, synchronizing the ID is not required every time you move the computer between first
bike to the second bike.
ENG-30
Setting the measurement unit
Change the unit (km or mile).
* Stop measurement and perform the resetting operation (page 17) before you change
the unit. Unless you perform the resetting operation, “DATA RESET” appears on
the screen, preventing from changing the unit.
1. Press the MENU button in the measurement screen to
switch to the menu top screen.
Switch to the UnIT screen using the M1/+ and M2/- buttons,
and confirm with the SSE button.
Menu top:
Changing the menu:
MENU
(Back)
M1/+
M2/-
(or)
Confirm:
Current speed unit
SSE
2. Select the speed unit using the M1/+ and M2/- buttons.
km ↔ mile:
M1/+
M2/-
(or)
3. Pressing the MENU button returns to the menu top screen
(UnIT screen), and confirm the change(s).
Pressing it again returns to the measurement screen.
To the menu top/measurement screen:
* After the unit is switched, the total distance measured in the past is automatically
converted to the new unit.
MENU
(Back)
Total distance manual entry
You can enter any value to the total distance.
The total distance in the past can be input after formatting or to a new computer.
1. Press the MENU button in the measurement screen to
switch to the menu top screen.
Switch to the ODO InPUT screen using the M1/+ and M2/-
buttons, and confirm with the SSE button.
Menu top:
Changing the menu:
MENU
(Back)
M1/+
M2/-
(or)
Confirm:
SSE
2. Enter the total distance using the M1/+ and M2/- buttons,
and move digits using the SSE button.
* The total distance shall be entered with a positive value.
Increase/decrease:
M1/+
M2/-
(or)
Move digits:
SSE
Current total value
Continue
ENG
ENG-31
Page 17
M2/- M1/+
M2/- M1/+
3. Pressing the MENU button returns to the menu top screen
(ODO InPUT screen), and confirm the change(s).
Pressing it again returns to the measurement screen.
To the menu top/measurement screen:
MENU
(Back)
Setting the auto-mode
Switch on/off of the auto-mode (page 17).
1. Press the MENU button in the measurement screen to
switch to the menu top screen.
Switch to the AUTO MODE screen using the M1/+ and M2/-
buttons, and confirm with the SSE button.
Menu top:
Changing the menu:
MENU
(Back)
M1/+
M2/-
(or)
Confirm:
SSE
Current setting
2. Select On or OFF using the M1/+ and M2/- buttons.
On ↔ OFF:
3. Pressing the MENU button returns to the menu top screen
(AUTO MODE screen), and confirm the change(s).
M1/+
M2/-
(or)
Pressing it again returns to the measurement screen.
To the menu top/measurement screen:
MENU
(Back)
Setting the countdown distance
Enter the target trip distance for the countdown (page 21).
1. Press the MENU button in the measurement screen to
switch to the menu top screen.
Switch to the C.D.DST→ screen using the M1/+ and M2/-
buttons, and confirm with the SSE button.
Menu top:
Changing the menu:
MENU
(Back)
M1/+
M2/-
(or)
Confirm:
SSE
Current setting
2. Enter the target distance using the M1/+ and M2/- buttons,
and move digits using the SSE button.
* The target distance can be set to the 0.1 km.
Increase/decrease:
M1/+
M2/-
(or)
Move digits:
SSE
3. Pressing the MENU button returns to the menu top screen
(C.D.DST→ screen), and confirm the change(s).
Pressing it again returns to the measurement screen.
To the menu top/measurement screen:
MENU
(Back)
Setting sound
Switch on/off of the target zone alarm sound and button operation sound.
1. Press the MENU button in the measurement screen to
switch to the menu top screen.
Switch to the SOUnD screen using the M1/+ and M2/-
buttons, and confirm with the SSE button.
Menu top:
Changing the menu:
2. Switch between the HR out of zone alarm and button
operation using the SSE button.
HR.ALARM ↔ BUTTOn:
3. Select On or OFF using the M1/+ and M2/- buttons.
On ↔ OFF:
4. Pressing the MENU button returns to the menu top screen
(SOUnD screen), and confirm the change(s).
Pressing it again returns to the measurement screen.
To the menu top/measurement screen:
M1/+
M2/-
(or)
MENU
(Back)
M1/+
M2/-
SSE
(or)
Confirm:
MENU
(Back)
SSE
Target distance
In case of 100.0 km
HR zone alarm
Button operation
sound
ENG
ENG-32
ENG-33
Page 18
PULSE RATE (bpm)
AGE
200
180
160
140
120
100
90
20 30 40 50 60 70
TARGET
ZONE
TARGET
ZONE
30%30%
40%40%
50%50%
60%60%
70%
80%80%
Exercise Level
30%
40%
50%
60%
70%
80%
MAXIMUM PULSE RATE (204 MAXIMUM PULSE RATE (204 — 0.69 x AGE) 0.69 x AGE)MAXIMUM PULSE RATE (204 —
0.69 x AGE)
190 190 – AGE AGE
180 180 – AGE AGE
190 – AGE
180 – AGE
M2/- M1/+
Setting the target heart rate zone
You can select the target heart rate zone, and change the upper/lower limit.
* Stop measurement and perform the resetting operation (page 17) before you can
change the target heart rate zone. Unless you perform the resetting operation, “DATA
RESET” appears on the screen, preventing from changing the target heart rate zones.
* For details of the target zone, see “Use of the target zone” (page 37).
1. Press the MENU button in the measurement screen to
switch to the menu top screen.
Switch to the HR.ZOne screen using the M1/+ and M2/-
buttons, and confirm with the SSE button.
Menu top:
Changing the menu:
2. Select one from OFF, I, 2, 3, or 4 for the target heart rate
zone using the M1/+ and M2/- buttons.
When using the target zone, select from 1 to 4, confirm with
the SSE button, and then proceed to Step 3.
When not using the target heart rate zone, select OFF, and
then proceed to Step 4.
Select the zone:
↔↔
↔↔
↔ 01
↔↔
↔ 02
↔↔
⋅⋅⋅⋅⋅⋅
⋅⋅⋅ 04
⋅⋅⋅⋅⋅⋅
OFF
3. Enter the lower limit for the selected zone using the M1/+
and M2/- buttons, and enter the upper limit in the same way
after pressing the SSE button.
Increase/decrease:
4. Pressing the MENU button returns to the menu top screen
(HR.ZOnE screen), and confirm the change(s).
Pressing it again returns to the measurement screen.
To the menu top/measurement screen:
* You can enter any upper/lower limit to each zone; however, the upper limit is ad-
justed automatically to the lower limit + 1 when the entered lower limit exceeds the
upper limit. In case of the upper limit, vice versa, the lower limit is adjusted in the
same way.
* The upper limit is displayed with the digit in a small numeric when it exceeds 199.
ENG-34
MENU
(Back)
M1/+
(or)
M2/-
M1/+
↔↔
↔ OFF
↔↔
M2/-
M1/+
(or)
M2/-
(or)
Confirm:
Confirm:
Confirm:
MENU
(Back)
SSE
SSE
SSE
Current setting
Upper limit
Lower limit
Heart rate training
This section is just a general overview of training with heart rate data. For more complete
information, there are books and websites with more in-depth information.
Generally, the heart rate increases during exercise, getting higher in conjunction with the
intensity of the workout. Measurement the rate of your heart beat is a good indicator of
the intensity of your workout. By setting target HR (heart rate) zones and sticking to preset exercises, you will be able to work out more efficiently. Before beginning a training
program, be sure to first consult a medical specialist or sports trainer.
1. Improving general fitness
Bicycling is one of the best activities to improve your general fitness. To improve your
overall fitness through bicycling, set a target heart rate zone from between 30% and 70%
of your maximum HR, depending on your physical strength. For best results, exercise
consistently in this zone for periods of at least 20-30 minutes, 3 or more times a week.
To obtain your target zone, see the table below, which illustrates the correlation between heart rate and training level. For beginners, it is recommended to start with the
level of 30% of your max. From this point, gradually increase the level according to
your fitness level and experience. Training at levels over 70% of your HR max will
focus more on anaerobic exercise, and less on aerobic exercise. Weight loss usually
occurs through longer rides (over 1 hour) at lower HR levels.
Continue
ENG-35
ENG
Page 19
60 200
bpm
Heart rate
HR.ZONE :1
100 - 120 bpm
HR.ZONE :2
120 - 140 bpm
HR.ZONE :3
140 - 160 bpm
HR.ZONE :4
160 - 180 bpm
Default zone
80 100 120 140 160 180
Target training zone
Heart rate zone
ZONE:1
ZONE:2
ZONE:3
ZONE:4
Alarm Alarm
2. Training for competition
Measure your resting heart rate just after waking in the morning and your maximum
heart rate (perhaps during competition). Then set your target zone according to your
goal:
A) For recovery, endurance training, and weight loss :
60% - 70% (aerobic exercise)
B) For quality endurance and tempo training :
70% - 80% (aerobic exercise)
C) For increasing TT and race ability, and VO2 max :
85% + (anaerobic exercise)
D) For anaerobic capacity and sprinting :
92.5% + (anaerobic exercise)
• Training level (%) = x 100
• Target heart rate = (Maximum heart rate - Resting heart rate) x
Training level (%)
100
Resting heart rate
Your resting heart rate is usually the lowest recorded rate soon after waking up in the
morning.
Maximum heart rate
The following calculations are generally used: (220 - age) or (204 - 0.69 x age).
For more precise figure, consult a training specialist.
(Target heart rate) - (Resting heart rate)
(Maximum heart rate) - (Resting heart rate)
+ Resting heart rate
3. Use of the target zone
When the heart rate is out of the zone during the measurement, the computer sounds an
alarm and notifies the rider by flashing
The heart rate zone is selected from 4 predetermined zones.
For a training aiming at a heart rate of 140 to 160 bpm, select HR.ZONE:3 as shown below.
Then, the computer sounds an alarm when the heart rate falls below 139 bpm, or
rises above 161 bpm.
Once the target zone is set to On, the relevant data are recorded and the time in the
zone, time above the zone, and time below the zone and their percentages can be
viewed in the file view (page 24).
* You can enter any upper/lower limit to each zone.
* For the target zone, you can select OFF or Zone 1 to 4, and change the upper/lower
limit from the menu screen “Setting the target heart rate zone” (page 34).
* On/off of the alarm sound is selected from the menu screen “Setting sound” (page
33).
.
ENG
ENG-36
ENG-37
Page 20
Trouble shooting
If a malfunction occurs, check the following before contacting CatEye or your retailer for
repair or service.
Trouble on display
Trouble Check Items Remedy
Display motion becomes slower.
Flashes on the
screen.
No displays appear. Is the battery for the com-
Meaningless display
appears.
Cannot measure the
trip speed (cadence)
Is the surrounding temperature low (below zero degree
Celsius or 32 degrees Fahrenheit)?
The remaining battery capacity for the computer is
low.
puter empty?
Have you checked the sensor ID?
Is the computer ID Synch'ed
with somebody else's sensor?
Is the Speed and Cadence
sensor icon on
Check whether the distance
between the speed (cadence) sensor and the magnet is too large.
Is the sensor zone of the
speed (cadence) sensor off
the center of the magnet?
Has the power-saving function been activated, showing
only date/clock on the
screen?
Is the battery for the speed
sensor empty?
, ?
Temperatures below freezing may result in slower screen response. Data
is not affected.
Replace it with a new battery
(CR2032) immediately.
After replacement, be sure to
perform the restarting operation
(page 11).
Replace it with a new battery
(CR2032).
After replacement, be sure to
perform the restarting operation
(page 11).
Perform the restarting operation
(page 11).
Check the speed sensor ID (page 29)
for SP1 (speed sensor 1) or SP2
(speed sensor 2).
If the Speed and Cadence sensor
icon is off
not receive data. Press the M1/+ or
M2/- button once to turn on the icon.
Adjust the position of the speed (cadence) sensor and that of the magnet correctly. (See “How to install the
unit on your bicycle” on page 6.)
Press any button on the computer
to cancel the power-saving function.
Replace it with a new battery
(CR2032).
After replacement, be sure to press
the RESET button on the speed
sensor.
, , the computer can-
Trouble Check Items Remedy
Heart rate signals are
not received.
Fluctuation in the heart
rate indicator, for example it returns to zero
and then the heart rate
is measured again.
Moving the main unit
away from your body
will prevent measurement of the heart rate.
Pressing the LT button
does not turn on a light.
Have you checked the sensor
ID? Is the computer ID Synch'ed
with somebody else's sensor?
Is the Heart rate sensor
?
icon off
Has the power-saving function been activated, showing only date/clock on the
screen?
Is the heart rate sensor attached securely to your
body?
Dry skin (particularly in
winter)
Is the battery for the heart
rate sensor used up?
Check whether
up on the computer screen.
The remaining battery capacity for the computer is low.
Is the electrode pad overly
worn and damaged after
long use?
Is the electrode pad being
worn correctly?
Check whether
up on the computer screen.
The remaining battery capacity for the computer is low.
Is the battery for the heart
rate sensor used up?
Check whether
up on the computer screen.
The remaining battery capacity for the computer is low.
lights
lights
lights
Check the speed sensor ID (page 29)
for Hr (heart rate sensor).
If the Heart rate sensor icon is off
the computer cannot receive the Heart
rate data. Press the M1/+ or M2/- button once to turn on the icon.
Press any button on the computer to
cancel the power-saving function.
Adjust the electrode pad with its rubber surface to have a good contact with
the body.
Slightly moisten the electrode pad of
the heart rate sensor.
Replace it with a new battery (CR2032).
Replace it with a new battery (CR2032).
After replacement, be sure to perform
the restarting operation (page 11).
Replace it with a new heart rate sensor.
To wear the electrode pad correctly, follow the instructions for wearing the
heart rate sensor (page 9).
Replace it with a new battery (CR2032).
After replacement, be sure to perform
the restarting operation (page 11).
Replace it with a new battery (CR2032).
Replace it with a new battery (CR2032).
After replacement, be sure to perform
the restarting operation (page 11).
ENG
,
ENG-38
Continue
ENG-39
Page 21

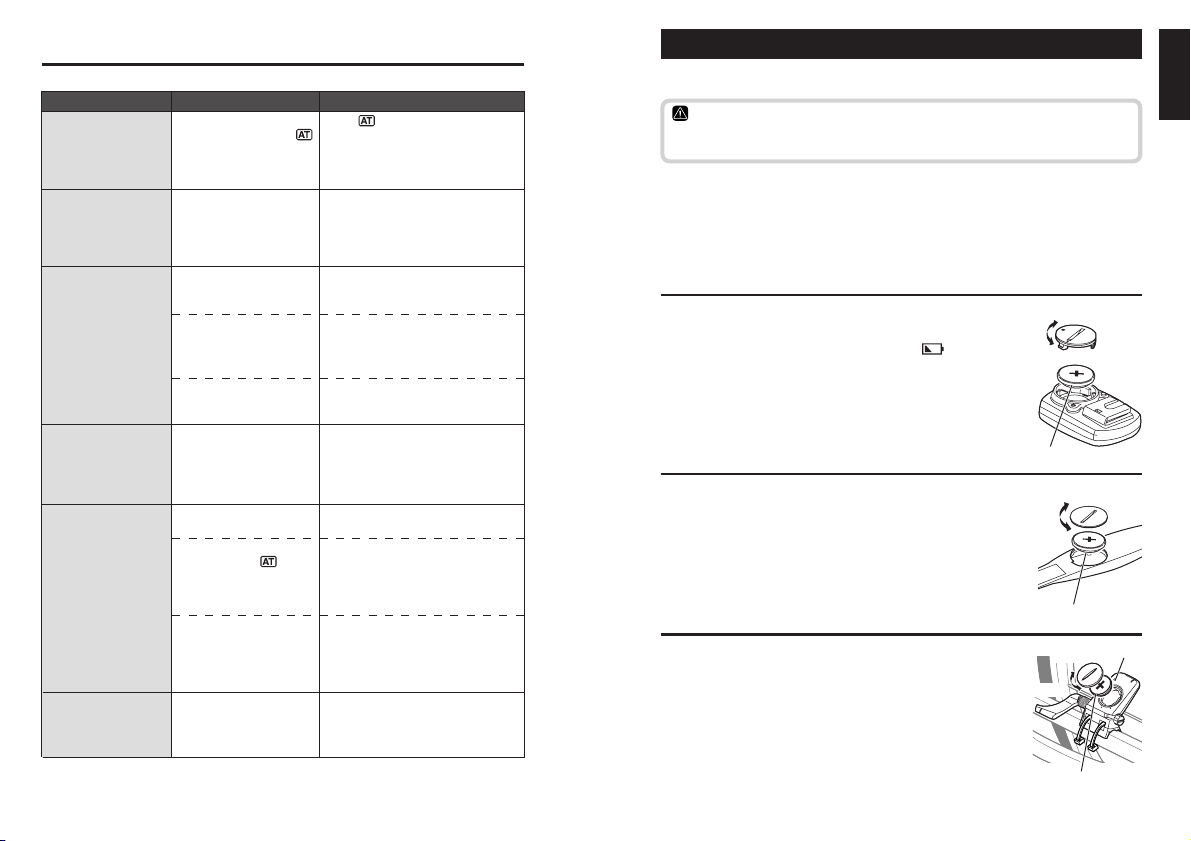

Trouble on operation
Trouble Check Items Remedy
Pressing the SSE button
does not start/stop
measurement.
The heart rate sensor
(speed sensor) ID check
failed.
Lap data cannot be
stored.
Abnormal values appear.
In menu mode, cannot
change settings.
Measurement data cannot be stored on the file
view.
ENG-40
Check whether the automode is turned on (with
illuminating).
Have you already completed 99 laps?
Is the lap time over 100
hours (Or is the trip lap distance over 9999.99 km)?
Is it immediately after
pressing the LAP button?
Are there any objects emitting electromagnetic waves
(railway tracks, transmitting stations for television,
etc.) nearby?
Is it currently measurement?
When the auto-mode is
turned on (with
nating), it may enter the measurement mode due to electromagnetic waves.
Is it the target zone or the
measurement unit that cannot be changed?
Has the total number of laps
reached 99 points?
illumi-
When illuminates, the auto-mode
is on; you cannot start or stop measurement by pressing the button.
Turn off the auto-mode. (See “Setting
the auto-mode” on page 32.)
The battery for the heart rate sensor
(speed sensor) is possibly depleted.
After replacing the battery with a new
one (CR2032), check the sensor ID
again (page 29).
Delete data files that contain several laps
from the file view (page 27) in order to
obtain free space for lap recording.
With the recording range exceeded, the
lap cannot be measured.
Perform the resetting operation (page
17) for further measurements.
You cannot record the lap for 5 seconds immediately after pressing the
LAP button.
Keep the unit away from any object that
may be causing interference, and reset the data (page 17).
Only top menu can be viewed during
measurement.
Keep the unit away from any object that
may be causing interference with electromagnetic waves.
To change the target zone and
measurement unit, the resetting
operation is required.
Stop measurement, and perform the
resetting operation (page 17).
Delete data files that contain several
laps from the file view (page 27) in order to obtain free space for lap recording.
Replacing battery
The product comes with factory-installed batteries. When a battery is empty, replace it
with a new one according to the following instructions.
Warning!!! :
Safely dispose of the old batteries, and do not place them within reach of children.
If a battery is swallowed, consult a doctor immediately.
* When any battery for the computer, heart rate sensor, or speed sensor is depleted, we
recommend replacing all batteries at the same time.
* The battery life shown in this manual is not definitive and it varies depending on the
use environment.
* The battery cover sealing is critical to maintain the waterproof feature.
Clean any contamination on the battery cover or the seal, and check whether it seals
correctly.
Computer
Battery life: Approx. 1 years when used for 1 hour per day.
* When the remaining battery capacity is low,
lights up.
1. Remove the battery cover on the back of the computer using a
coin, or the equivalent.
2. Insert new lithium batteries (CR2032) with the (+) sign upward,
and close the battery cover firmly.
3. After replacement, be sure to perform the restarting operation
(page 11), and set the date and time.
Heart rate sensor
Battery life: Approx. 1 years when worn for 1 hour per day.
1. Remove the battery cover on the back of the heart rate sensor
using a coin, or the equivalent.
2. Insert new lithium batteries (CR2032) with the (+) sign upward,
and close the battery cover firmly.
* The heart rate sensor consumes power when worn. Remove the
heart rate sensor whenever measurement is not required.
Speed sensor
Battery life: Approx. 1 years when used for 1 hour per day.
1. Remove the battery cover on the speed sensor using a coin, or
the equivalent.
2. Insert new lithium batteries (CR2032) with the (+) sign upward,
and close the battery cover firmly.
3. After replacement, be sure to press the RESET button on the
speed sensor, and check that the positions of the magnet and
sensor are correct and they are secured firmly.
Open
CR2032
Open
Open
Close
Close
CR2032
Close
CR2032
RESET
ENG-41
ENG
Page 22
Maintenance
Perform the daily care according to the following instructions.
• Regularly check that the positions of the magnets and sensors are correct, and they
are secured firmly.
• When the computer, heart rate sensor, and speed sensor are dirty, wash them with
water or wipe them with a soft cloth dampened with diluted neutral detergent, then
wipe with dry cloth. Do not use solvents such as benzine or rubbing alcohol as they
may damage the surfaces.
• The heart rate strap absorbs sweat easily, and leaving it as such is unsanitary. Wash
with neutral detergent.
Spare accessories
Standard accessories
#160-2380
Parts kit
#160-2395
HR Strap
#169-9691
Wheel magnet
#160-2385
Speed sensor kit
#160-0280
Bracket band
#169-9766
Cadence magnet
#160-2390
Heart rate sensor kit
#160-2193
Bracket
#166-5150
Lithium battery (CR2032)
Specifications
Display
Upper display Current speed 0.0 (4.0) − 150.0 km/h [0.0 (3.0) − 93.0 mph]
functions
Middle display Heart rate 0 (30) − 299 bpm
Lower display Date ‘07.01.01 − '99.12.31(Display format can be switched)
Lap Upper display (Average lap speed,maximum lap speed)
Control system 4-bit one-chip microcomputer, crystal oscillator
Display system Liquid crystal display (EL backlight)
Speed/Cadence sensor signal detection system
Sensor signal transmission and reception 2.4 GHz ISM Band
Communication range
Operating temperature range 32 ° F − 104 °F [0 °C − 40 °C]
Storage temperature range -4 °F − 122 °F [-20 °C − 50 °C]
Wheel circumference set range 0100 − 3999 mm
Power supply/battery life Computer : CR2032 x 1 / Approx. 1 years (When using 1 hour/day)
Dimensions/Weight Computer : 2-7/32” x 1-1/2” x 11/16” (56.0 x 38.0 x 17.3 mm) / 0.98 oz (28 g)
* When the elapsed time exceeds 100 hours, or the trip distance exceeds 9999.99 km/h, “E” appears in place of
the average speed.
* Designs and specifications are subject to change without notice, due to modifications or improvements.
Average speed 0.0 − 150.0 km/h [0.0 − 93.0 mph]
Maximum speed 0.0 (4.0) − 150.0 km/h [0.0 (3.0) − 93.0 mph]
Average heart rate 0 − 299 bpm
Maximum heart rate 0 (30) − 299 bpm
Cadence 0 (20) − 199 rpm
Average cadence 0 − 199 rpm
Maximum cadence 0 (20) − 199 rpm
Clock 0:00’00” − 23:59’59”
Calorie consumption 0 − 9999/10000 − 999999 kcal
Total time 0 − 99999 hour
Odometer 0.0 − 9999.9/10000 − 999999 km [mile]
Elapsed time 00’00”0 − 59’59”9 / 1:00’00” − 99:59’59”
Trip distance 0.00 − 9999.99 km [mile]
Countdown distance 9999.90 − 0.00 km [mile]
Lap number L-01 − L-99
Average lap speed in real time 0 .0 − 150.0 km/h [0.0 − 93.0 mph]
Lap timer 00’00”0 − 59’59”9 / 01:00’00” − 99:59’59”
Trip lap distance in real time 0.00 − 9999.99 km [mile]
Middle display (average lap heart rate,Lap number,maximum lap heart rate)
Lower display (trip lap distance,lap time,split time)
Noncontact magnetic sensor
5 m (above 5 m, transmission distance may vary due to environmental conditions)
(This product will not function appropriately when exceeding the
Working Temperature range. Slow response or black LCD at lower
or higher temperature may happen respectively.)
Heart rate sensor : CR2032 x 1 / Approx. 1 years (When worn about 1 hour per day)
Speed sensor : CR2032 x 1 / Approx. 1 years (When using 1 hour/day)
Heart rate sensor : 12-13/16” x 1-1/4” x 1/2” (325.0 x 31.4 x 12.2 mm) / 1.41 oz (40 g)
Speed sensor : 2-9/16” x 3-9/16” x 9/16” (65.0 x 90.5 x 14.4 mm) / 1.25 oz (36 g)
(With the batteries)
(With the batteries)
(With the batteries)
For 27-inch tire size
[AM 1:00’00” − PM 12:59’59”]
(Both 12 and 24-hour modes can be selected)
(Calculation-based estimation only)
ENG
ENG-42
ENG-43
Page 23
Registration
CATEYE Web Site (http://www.cateye.com)
For warranty service you must register your product. Please register your V3 as soon as
possible. CATEYE provides you technical support and new product information as much
as possible.
Please register on-line through our web site, or send the registration card below directly
to our Customer Service Department. For registration, please fill in the product's serial
number (the 7-digits number marked on on the battery cover of computer).
Limited warranty
2-Year: computer, heart rate sensor and speed sensor
(Not including depletion of batteries)
CatEye products are warranted to be free of defects from materials and workmanship
for a period of two years from original purchase. If the product fails to work due to
normal use, CatEye will repair or replace the defect at no charge. Service must be
performed by CatEye or an authorized retailer.
To return the product, pack it carefully and enclose the warranty certificate (proof or
purchase) with instruction for repair.
Please write or type your name and address clearly on the warranty certificate.
Insurance, handling and transportation charges to CatEye shall be borne by person
desiring service.
For UK and REPUBLIC OF IRELAND consumers, please return to the place of purchase.
This does not affect your statutory rights.
ENG-44
CO
Service & Research Address for USA:
CATEYE Service and Research Center
1705 14th St. 115 Boulder, CO 80302
Phone: 303.443.4595 Fax: 303.473.0006
Toll Free: 800.5CATEYE E-mail: service@cateye.com
URL: http://www.cateye.com
Japan Office:
2-8-25, Kuwazu, Higashi Sumiyoshi-ku, Osaka 546-0041 Japan
Attn: CATEYE Customer Service Section
.,LTD.
Loading...
