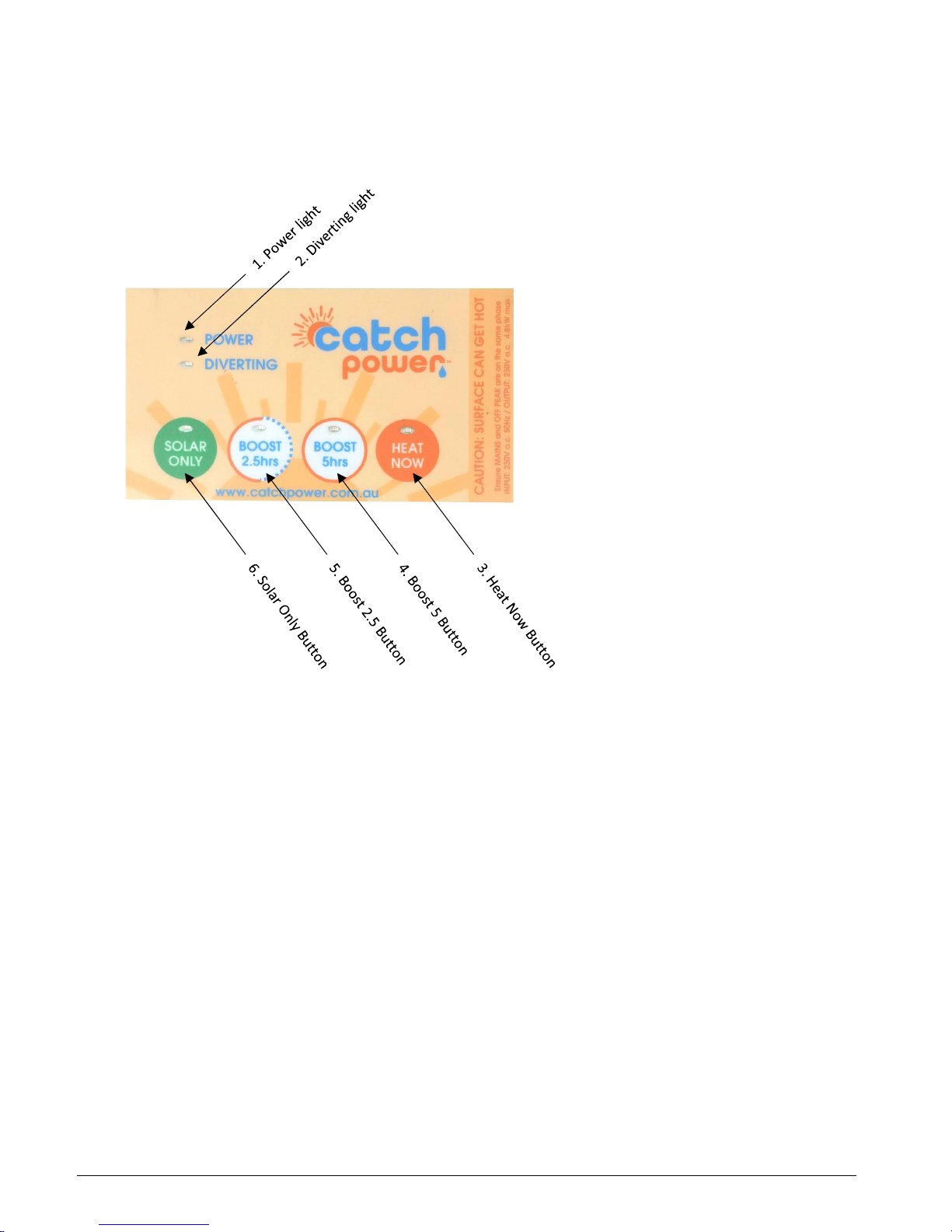

Catch Power GREEN Installation & User Manual

GREEN

INSTALLATION & USERS GUIDE

CATCH Power GREEN – Installation manual - Page 1

IMPORTANT

DANGER

This product must be installed by a
licensed electrician. This product must be
installed according to the AS3000 –
Australian Wiring Standards.

Danger to life due to high voltage AC

Always ensure all electricity sources are
appropriately isolated when installing this
piece of equipment.

DANGER

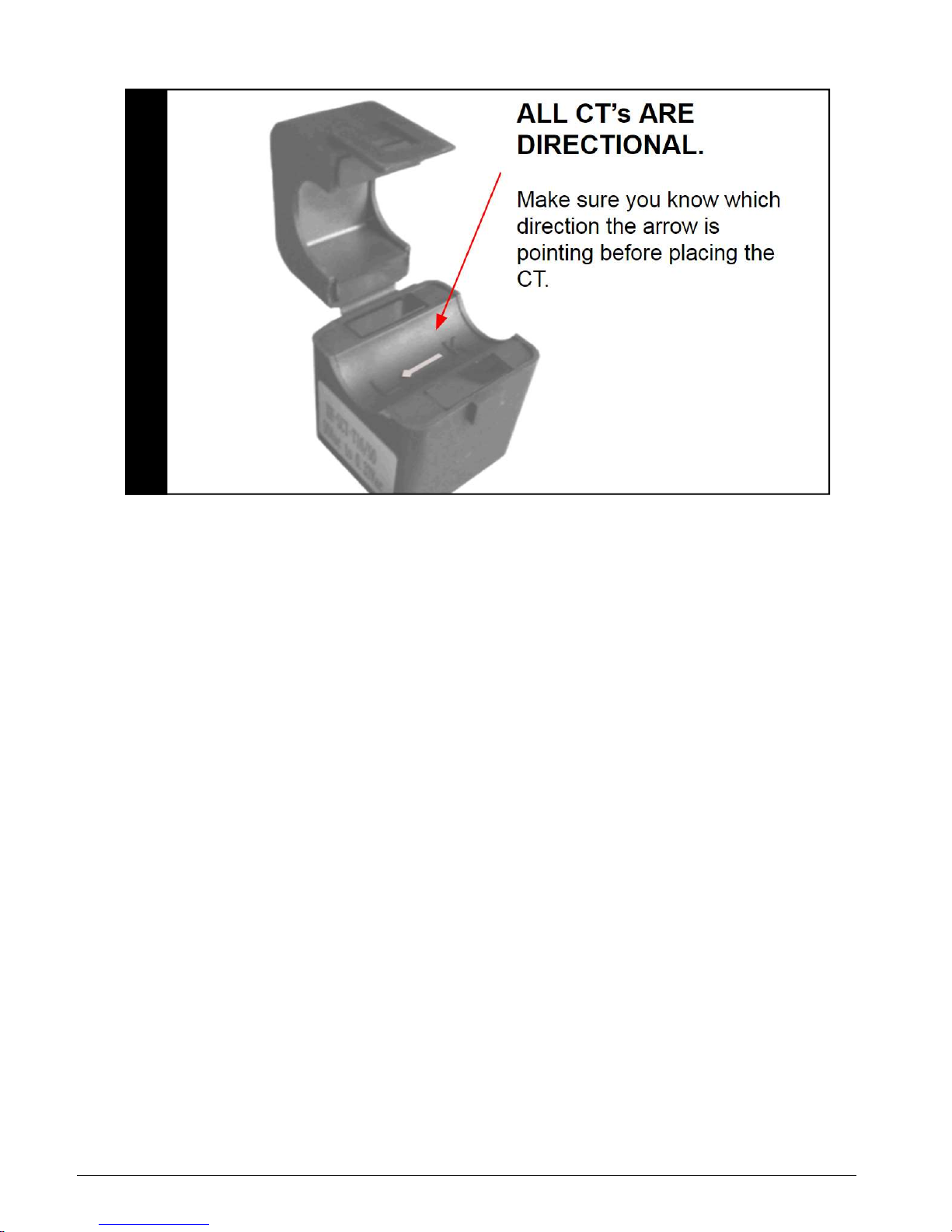

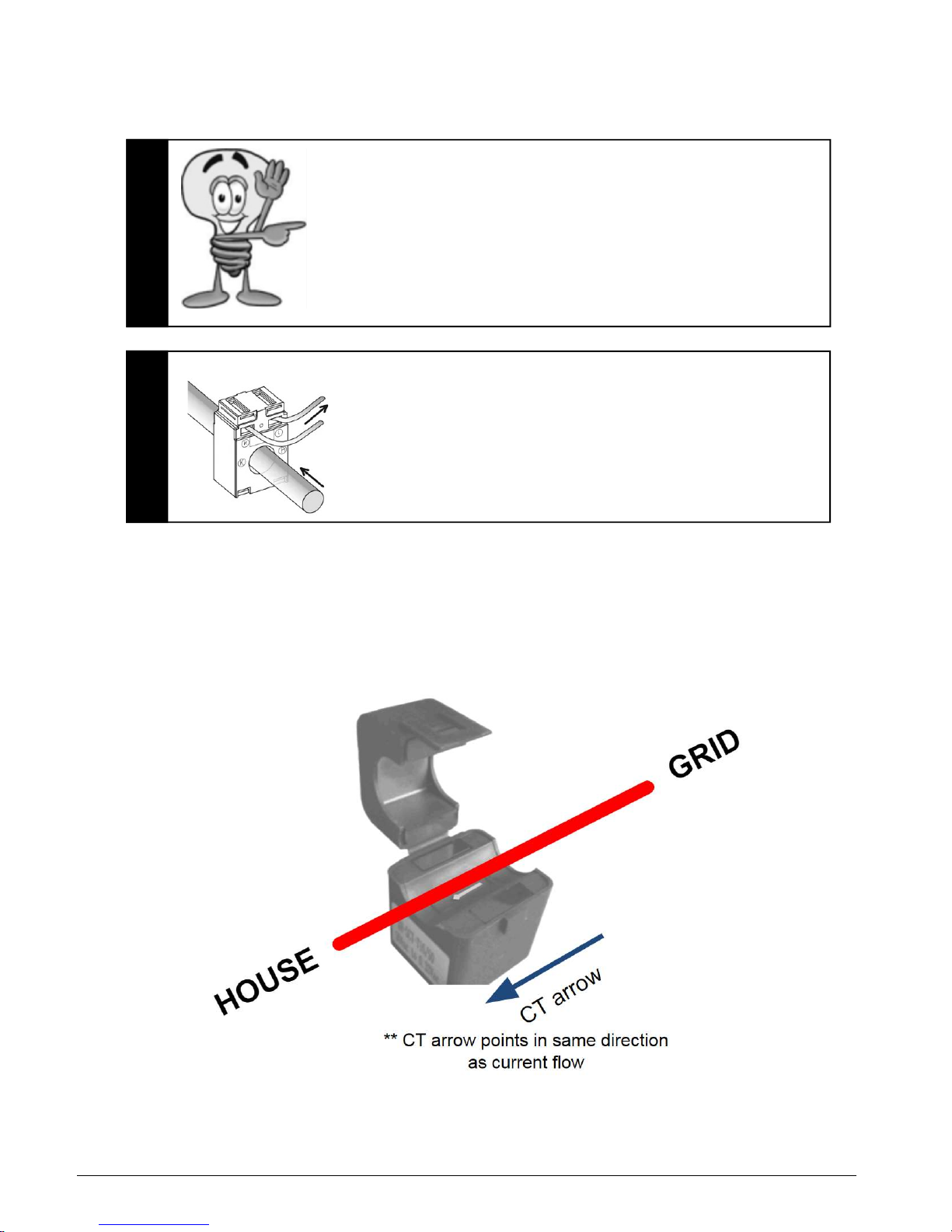

Electric Shock Risk with CT’s

CT’s must be fitted to insulated cables
only. Ensure CT is terminated into the
device before clamping onto cables.

Catch Power GREEN – Installation manual - Page 2

Inside the package

1 x CATCH Diverter
1 x Current Transformers
1 x Mounting Plate

Specifications

Operational Voltage 230VAC

Operational Frequency 50Hz

Maximum AC Load 4.8kW (20A)

Load Types Resistive Only

Control Method Zero Cross

Diversion Start 100W

Max A/C Cable Size 6mm

CT lead length 1m

IP Rating IP2X

Operating Temperature range -20oC to +45oC

Battery Compatible Yes

Size 100W x 110H x 50D (mm)

Standards Conformity AS/NZS3100, AS/NZS CISPR 32:2015

2

Catch Power GREEN – Installation manual - Page 3

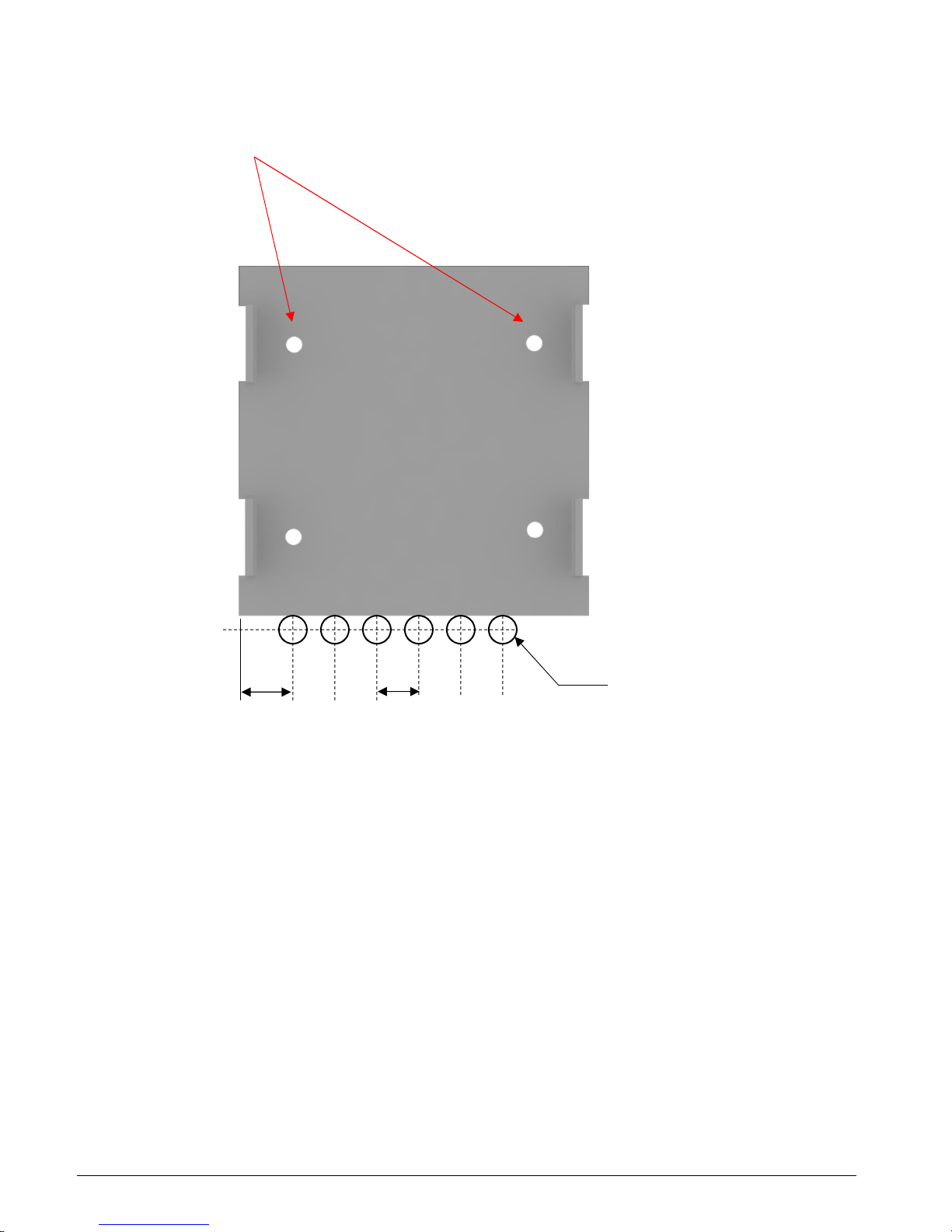

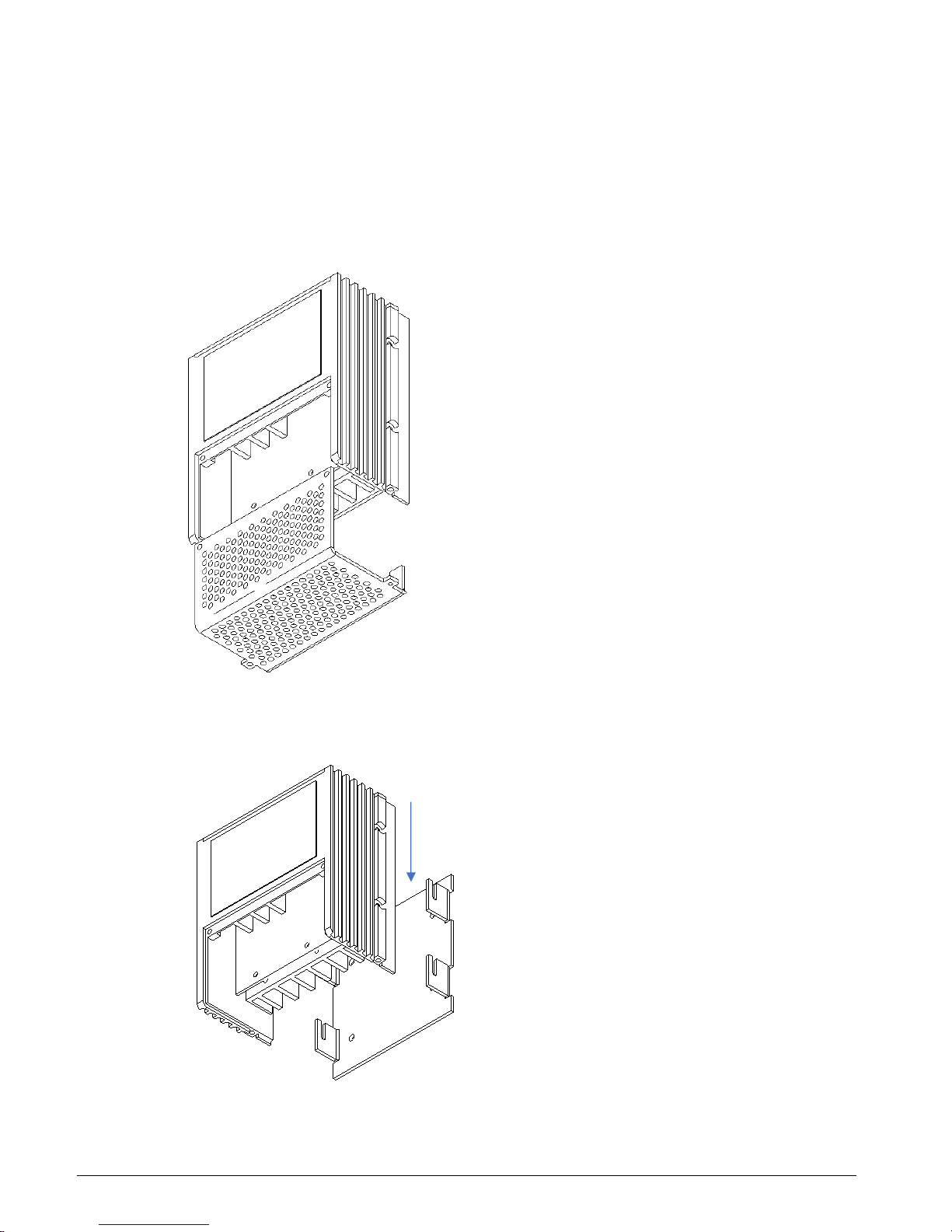

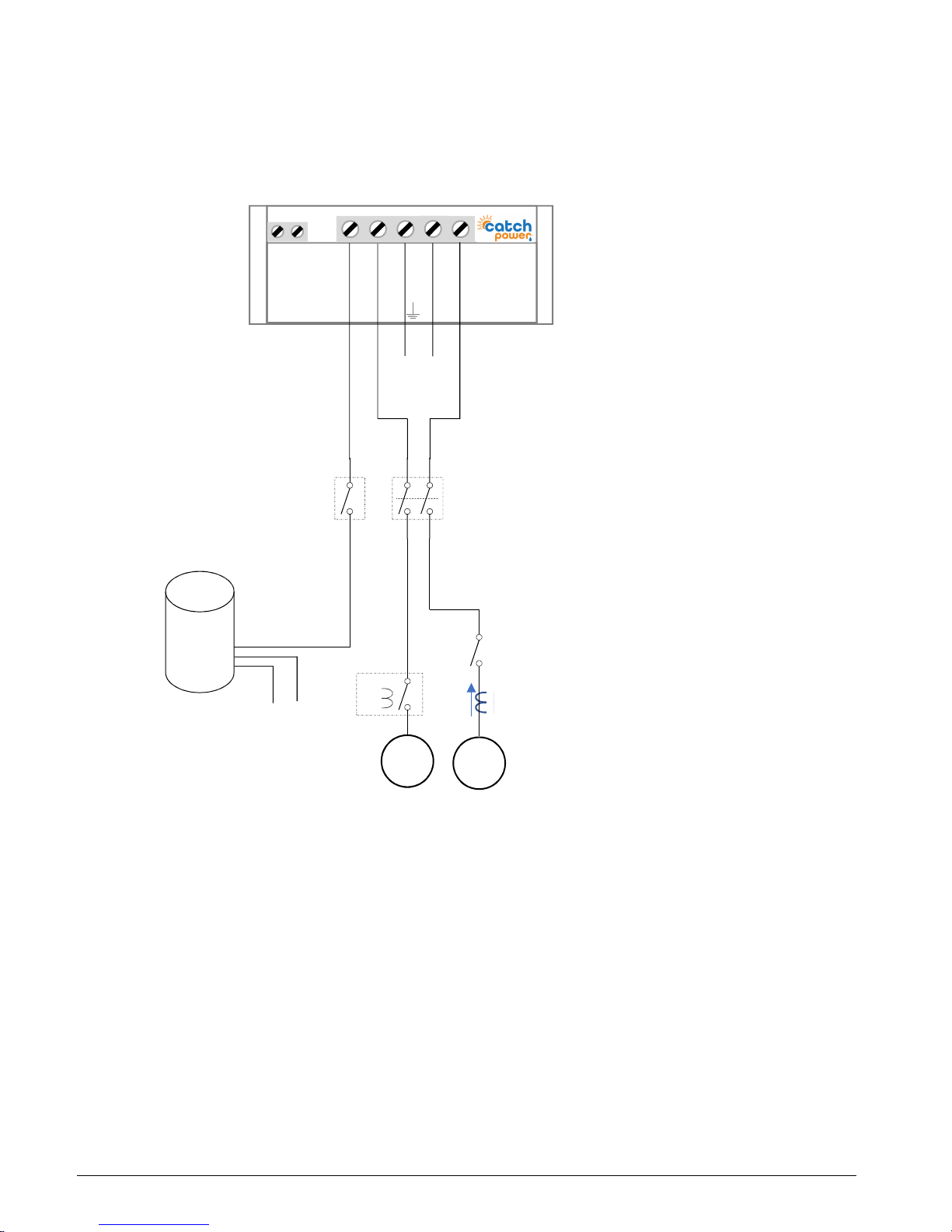

CATCH DIVERTER Installation

IMPORTANT:

• Maximum load allowed to be connected to HW terminal is 4.8kW.

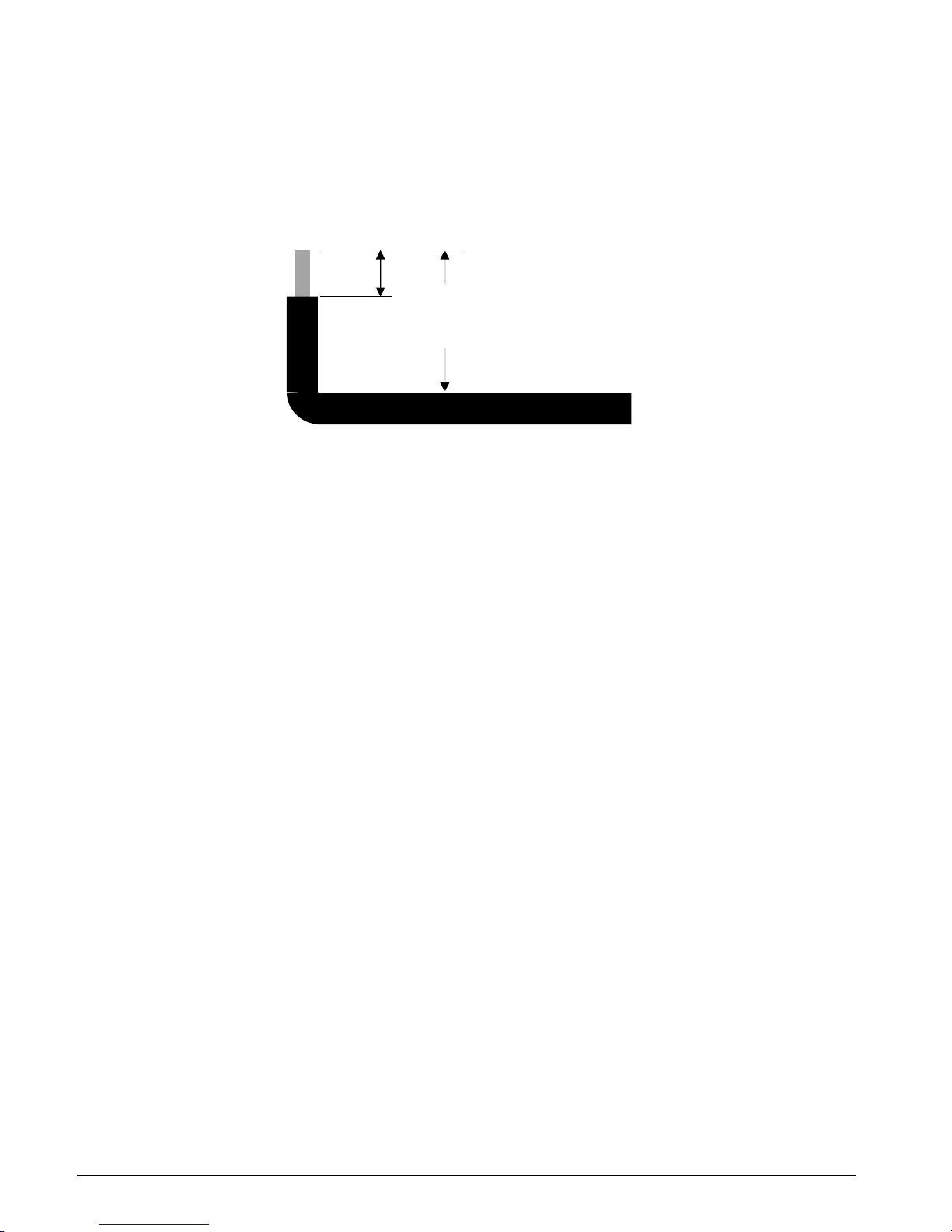

• Cable sizing must be chosen based on the AS3000 wiring standard.

• The Diverter must be protected from weather. The recommended

installation location is inside the meter box.

CLEARANCE

The clearance specifications below are recommended clearances. If the
clearances cannot be achieved the diverter will de rate if needed to
accommodate the installation environment.

Case temperature can reach 60oC.

Ensure the diverter is not placed next to anything
that can be affected by moderate temperatures.

IMPORTANT

50mm

30mm

30mm

50mm
