CAT 422E, 428E, 432E, 434E, 442E Maintenance Manual

Operation and
Maintenance
Manual

SEBU8475-10 (en-us)

April 2019

422E, 428E, 432E, 434E, 442E, 444E
Backhoe Loaders

JBA 1-Up (432E)
NBA 1-Up (444E)
EME 1-Up (442E)
SEF 1-Up (434E)
DPH 1-Up (428E)
SJL 1-Up (434E)
MAW 1-Up (422E)

PUBLICATIONS.CAT.COM

i06558969

Important Safety Information

Most accidents that involve product operation, maintenance and repair are caused by failure to observe
basic safety rules or precautions. An accident can often be avoided by recognizing potentially hazardous
situations before an accident occurs. A person must be alert to potential hazards, including human factors
that can affect safety. This person should also have the necessary training, skills and tools to perform these
functions properly.

Improper operation, lubrication, maintenance or repair of this product can be dangerous and could
result in injury or death.

Do not operate or perform any lubrication, maintenance or repair on this product, until you verify
that you are authorized to perform this work, and have read and understood the operation,
lubrication, maintenance and repair information.

Safety precautions and warnings are provided in this manual and on the product. If these hazard warnings
are not heeded, bodily injury or death could occur to you or to other persons.

The hazards are identified by the “Safety Alert Symbol” and followed by a “Signal Word” such as
“DANGER”, “WARNING” or “CAUTION”. The Safety Alert “WARNING” label is shown below.

The meaning of this safety alert symbol is as follows:

Attention! Become Alert! Your Safety is Involved.

The message that appears under the warning explains the hazard and can be either written or pictorially
presented.

A non-exhaustive list of operations that may cause product damage are identified by “NOTICE” labels on
the product and in this publication.

Caterpillar cannot anticipate every possible circumstance that might involve a potential hazard.
The warnings in this publication and on the product are, therefore, not all inclusive. You must not
use this product in any manner different from that considered by this manual without first
satisfying yourself that you have considered all safety rules and precautions applicable to the
operation of the product in the location of use, including site-specific rules and precautions
applicable to the worksite. If a tool, procedure, work method or operating technique that is not
specifically recommended by Caterpillar is used, you must satisfy yourself that it is safe for you
and for others. You should also ensure that you are authorized to perform this work, and that the
product will not be damaged or become unsafe by the operation, lubrication, maintenance or repair
procedures that you intend to use.

The information, specifications, and illustrations in this publication are on the basis of information that was
available at the time that the publication was written. The specifications, torques, pressures,
measurements, adjustments, illustrations, and other items can change at any time. These changes can
affect the service that is given to the product. Obtain the complete and most current information before you
start any job. Cat dealers have the most current information available.

When replacement parts are required for this
product Caterpillar recommends using Cat re­placement parts.

Failure to follow this warning may lead to pre­mature failures, product damage, personal in­jury or death.

In the United States, the maintenance, replacement, or repair of the emission control devices and
systems may be performed by any repair establishment or individual of the owner's choosing.

SEBU8475-10

3

Table of Contents

Table of Contents

Foreword ........................................................... 4

Safety Section

Safety Messages............................................... 6

Additional Messages ....................................... 13

General Hazard Information............................ 14

Crushing Prevention and Cutting Prevention.. 17

Burn Prevention............................................... 17

Fire Prevention and Explosion Prevention...... 18

Fire Safety ....................................................... 21

Fire Extinguisher Location............................... 22

Tire Information ............................................... 22

Product Information Section

General Information ........................................ 31

Identification Information ................................. 68

Operation Section

Before Operation ............................................. 73

Machine Operation .......................................... 75

Controls ......................................................... 135

Engine Starting .............................................. 148

Parking .......................................................... 151

Transportation Information ............................ 160

Towing Information ........................................ 166

Engine Starting (Alternate Methods)............. 168

Electrical Storm Injury Prevention................... 22

Before Starting Engine .................................... 23

Engine Starting ................................................ 23

Visibility Information ........................................ 23

Restricted Visibility .......................................... 24

Before Operation ............................................. 24

Operation......................................................... 24

Engine Stopping .............................................. 25

Work Tools....................................................... 25

Parking ............................................................ 26

Slope Operation .............................................. 26

Equipment Lowering with Engine Stopped ..... 27

Maintenance Section

Tire Inflation Information................................ 170

Lubricant Viscosities and Refill Capacities ... 172

Maintenance Support .................................... 178

Maintenance Interval Schedule..................... 181

Reference Information Section

Reference Materials ...................................... 232

Index Section

Index.............................................................. 236

Sound Information and Vibration Information . 27

Operator Station .............................................. 30

4

Foreword

SEBU8475-10

Foreword

California Proposition 65 Warning

Diesel engine exhaust and some of its
constituents are known to the State of
California to cause cancer, birth defects,
and other reproductive harm.

WARNING – This product can
expose you to chemicals

including ethylene glycol, which

is known to the State of California to
cause birth defects or other reproductive

harm. For more information go to:

www.P65Warnings.ca.gov

Do not ingest this chemical. Wash hands
after handling to avoid incidental
ingestion.

WARNING – This product can
expose you to chemicals

including lead and lead
compounds, which are known to the
State of California to cause cancer, birth

defects, or other reproductive harm. For
more information go to:

www.P65Warnings.ca.gov

Wash hands after handling components
that may contain lead.

Literature Information

This manual should be stored in the operator's
compartment in the literature holder or seat back
literature storage area.

This manual contains safety information, operation
instructions, transportation information, lubrication
information, and maintenance information.

Some photographs or illustrations in this publication
show details or attachments that can be different

from your machine. Guards and covers might have
been removed for illustrative purposes.

Continuing improvement and advancement of
product design might have caused changes to your
machine which are not included in this publication.
Read, study, and keep this manual with the machine.

Whenever a question arises regarding your machine,
or this publication, please consult your Cat dealer for
the latest available information.

Safety

The safety section lists basic safety precautions. In
addition, this section identifies the text and locations

of warning signs and labels used on the machine.

Read and understand the basic precautions listed in
the safety section before operating or performing
lubrication, maintenance, and repair on this machine.

Operation

The operation section is a reference for the new
operator and a refresher for the experienced
operator. This section includes a discussion of
gauges, switches, machine controls, attachment
controls, transportation, and towing information.

Photographs and illustrations guide the operator
through correct procedures of checking, starting,
operating, and stopping the machine.

Operating techniques outlined in this publication are
basic. Skill and techniques develop as the operator
gains knowledge of the machine and its capabilities.

Maintenance

The maintenance section is a guide to equipment
care. The Maintenance Interval Schedule (MIS) lists
the items to be maintained at a specific service
interval. Items without specific intervals are listed
under the "When Required" service interval. The
Maintenance Interval Schedule lists the page number
for the step-by-step instructions required to
accomplish the scheduled maintenance. Use the
Maintenance Interval Schedule as an index or "one

safe source" for all maintenance procedures.

Maintenance Intervals

Use the service hour meter to determine servicing
intervals. Calendar intervals shown (daily, weekly,
monthly, etc.) can be used instead of service hour
meter intervals if the calendar intervals provide more
convenient servicing schedules and approximate the
indicated service hour meter reading. Perform the
recommended service at the interval that occurs first.

Under severe, dusty, or wet operating conditions,
more frequent lubrication than is specified in the
maintenance intervals chart might be necessary.

SEBU8475-10

5

Foreword

Perform service on items at multiples of the original
requirement. For example, at every 500 service
hours or 3 months, also service those items listed

under every 250 service hours or monthly and every
10 service hours or daily.

Certified Engine Maintenance

Proper maintenance and repair are essential to keep
the engine and machine systems operating correctly.
As the heavy-duty off-road diesel engine owner, you
are responsible for the performance of the required
maintenance listed in the Owner Manual, Operation
and Maintenance Manual, and Service Manual.

It is prohibited for any person engaged in the
business of repairing, servicing, selling, leasing, or
trading engines or machines to remove, alter, or to
render inoperative, any emission-related device or
element of design installed on or in an engine or
machine that is in compliance with all applicable
regulations of the intended country to which it has
been shipped. Certain elements of the machine and
engine such as the exhaust system, fuel system,
electrical system, intake air system, and cooling
system may be emission-related and should not be
altered unless approved by Caterpillar.

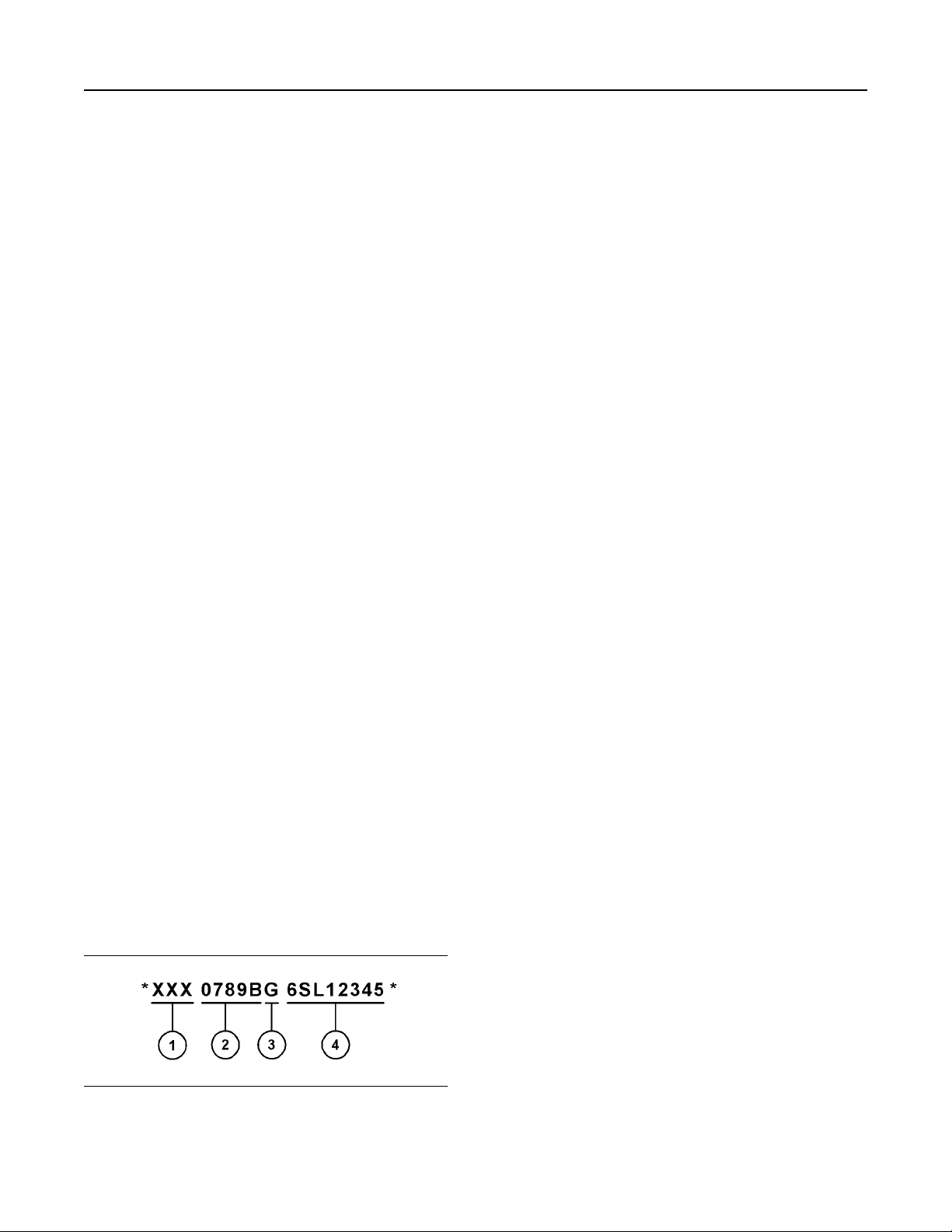

2. Machine Descriptor (characters 4-8)

3. Check Character (character 9)

4. Machine Indicator Section (MIS) or Product
Sequence Number (characters 10-17). These were
previously referred to as the Serial Number.

Machines and generator sets produced before First
Quarter 2001 will maintain their 8 character PIN

format.

Components such as engines, transmissions, axles,
and work tools will continue to use an 8 character

Serial Number (S/N).

Machine Capacity

Additional attachments or modifications may exceed
machine design capacity which can adversely affect
performance characteristics. Included would be
stability and system certifications such as brakes,
steering, and rollover protective structures (ROPS).
Contact your Cat dealer for further information.

Product Identification Number

Effective First Quarter 2001 the Product Identification
Number (PIN) has changed from 8 to 17 characters.

To provide uniform equipment identification,
construction equipment manufacturers are moving to
comply with the latest version of the product
identification numbering standard. Non-road machine
PINs are defined by ISO 10261. The new PIN format
will apply to all machines and generator sets. The
PIN plates and frame marking will display the 17
character PIN. The new format will look like the

following:

Illustration 1 g03891925

Where:

1. World Manufacturing Code (characters 1-3)

6

Safety Section
Safety Messages

Safety Section

Safety Messages

SMCS Code: 7000; 7405

SEBU8475-10

i04571109

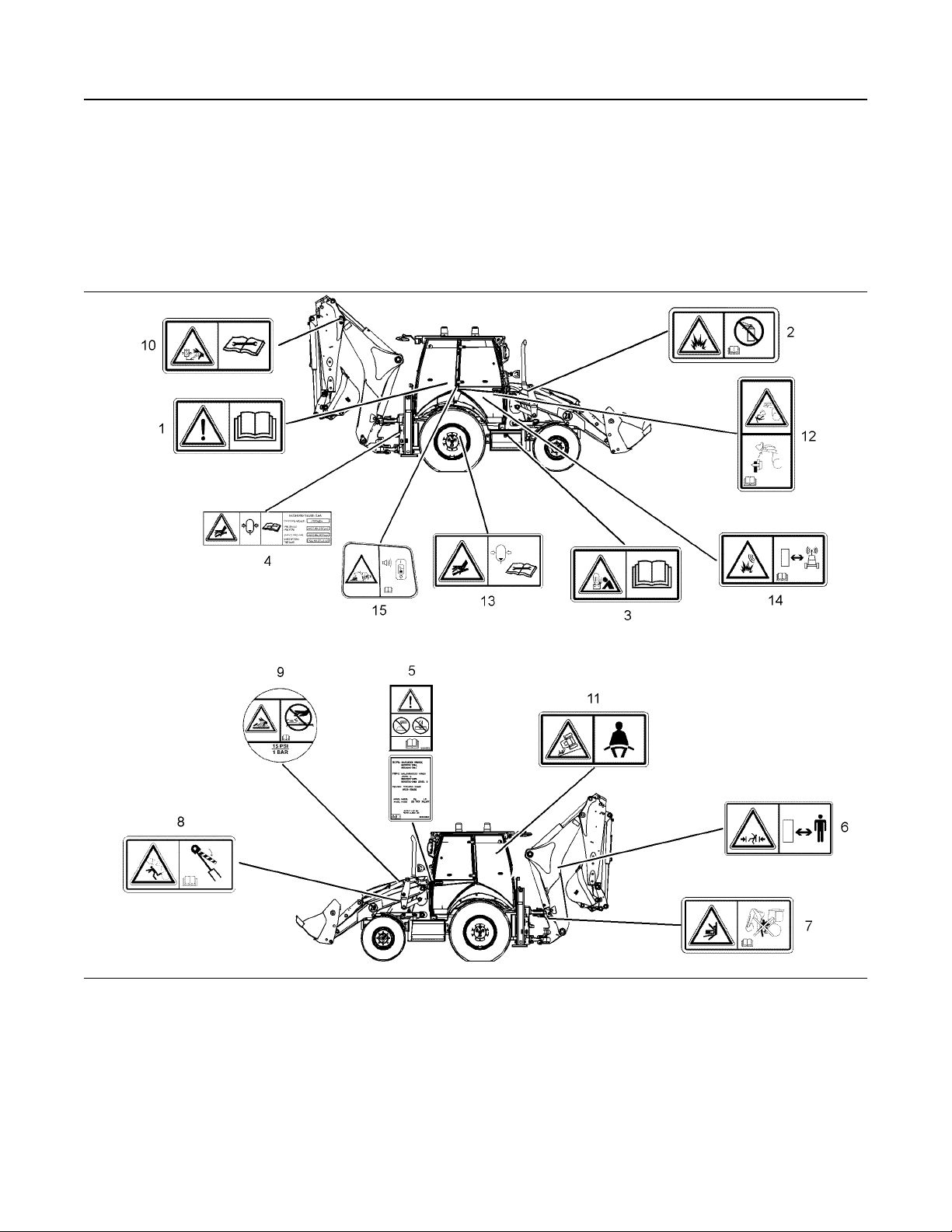

Illustration 2 g01912973

There are several specific safety messages on this
machine. The exact location of the hazards and the

description of the hazards are reviewed in this
section. Please become familiarized with all safety

messages.

SEBU8475-10

Make sure that all of the safety messages are legible.
Clean the safety messages or replace the safety
messages if you cannot read the words. Replace the
illustrations if the illustrations are not legible. When
you clean the safety messages, use a cloth, water,
and soap. Do not use solvent, gasoline, or other
harsh chemicals to clean the safety messages.
Solvents, gasoline, or harsh chemicals could loosen
the adhesive that secures the safety message. Loose
adhesive will allow the safety message to fall.

7

Safety Section

Safety Messages

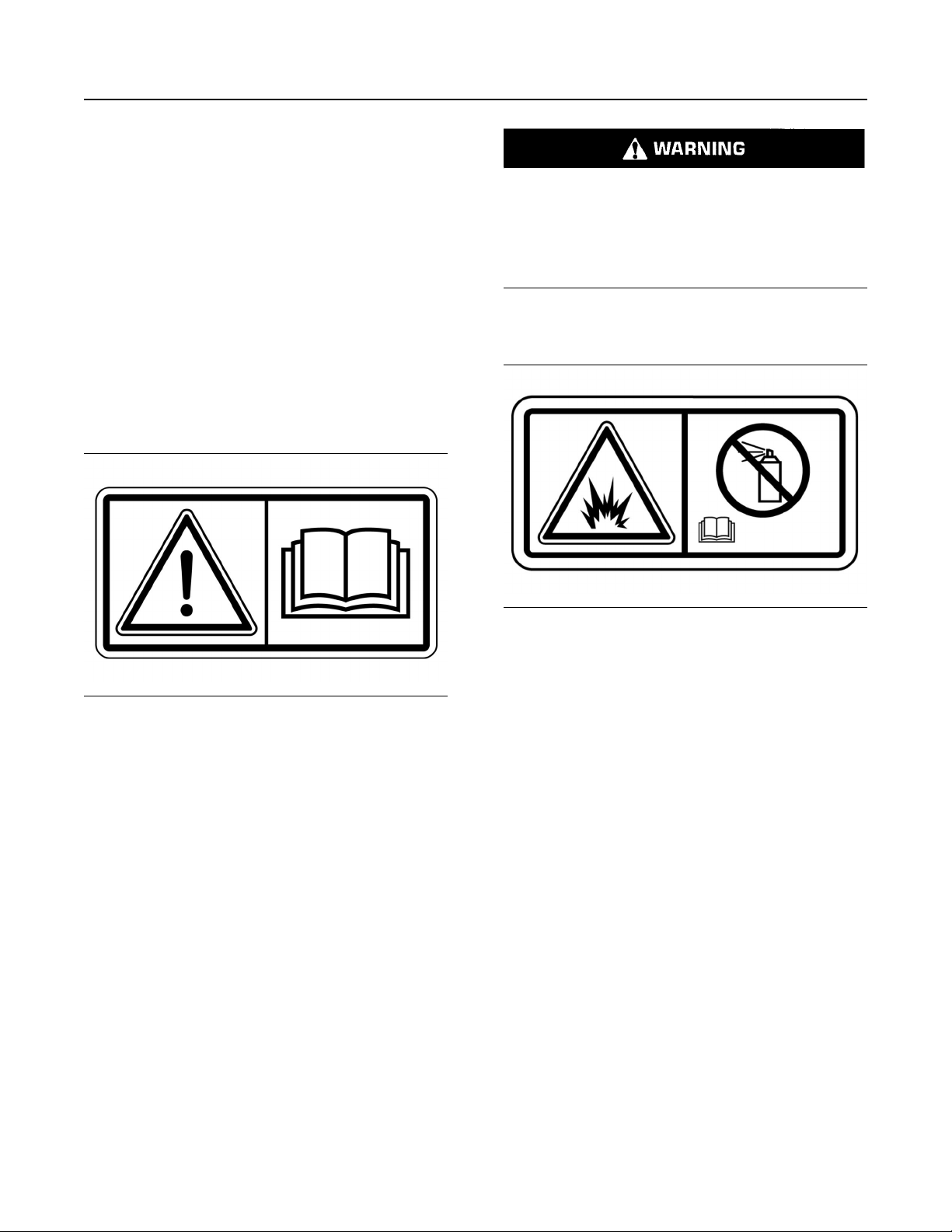

Do not operate or work on this machine unless
you have read and understand the instructions
and warnings in the Operation and Maintenance
Manuals. Failure to follow the instructions or

heed the warnings could result in injury or death.
Contact your Cat dealer for replacement manuals.
Proper care is your responsibility.

Replace any safety message that is damaged, or
missing. If a safety message is attached to a part that
is replaced, install a safety message on the
replacement part. Any Caterpillar dealer can provide
new safety messages.

Do Not Operate (1)

Illustration 3 g01370904

This safety message is located under the engine start
switch.

No Ether In Air Inlet (2)

Illustration 4 g01372254

This safety message is located on the air filter cover.

8

Safety Section
Safety Messages

If equipped with an air inlet heater (AIH) for cold
weather starting, do not use aerosal types of
starting aids such as ether. Such use could result
in an explosion and personal injury.

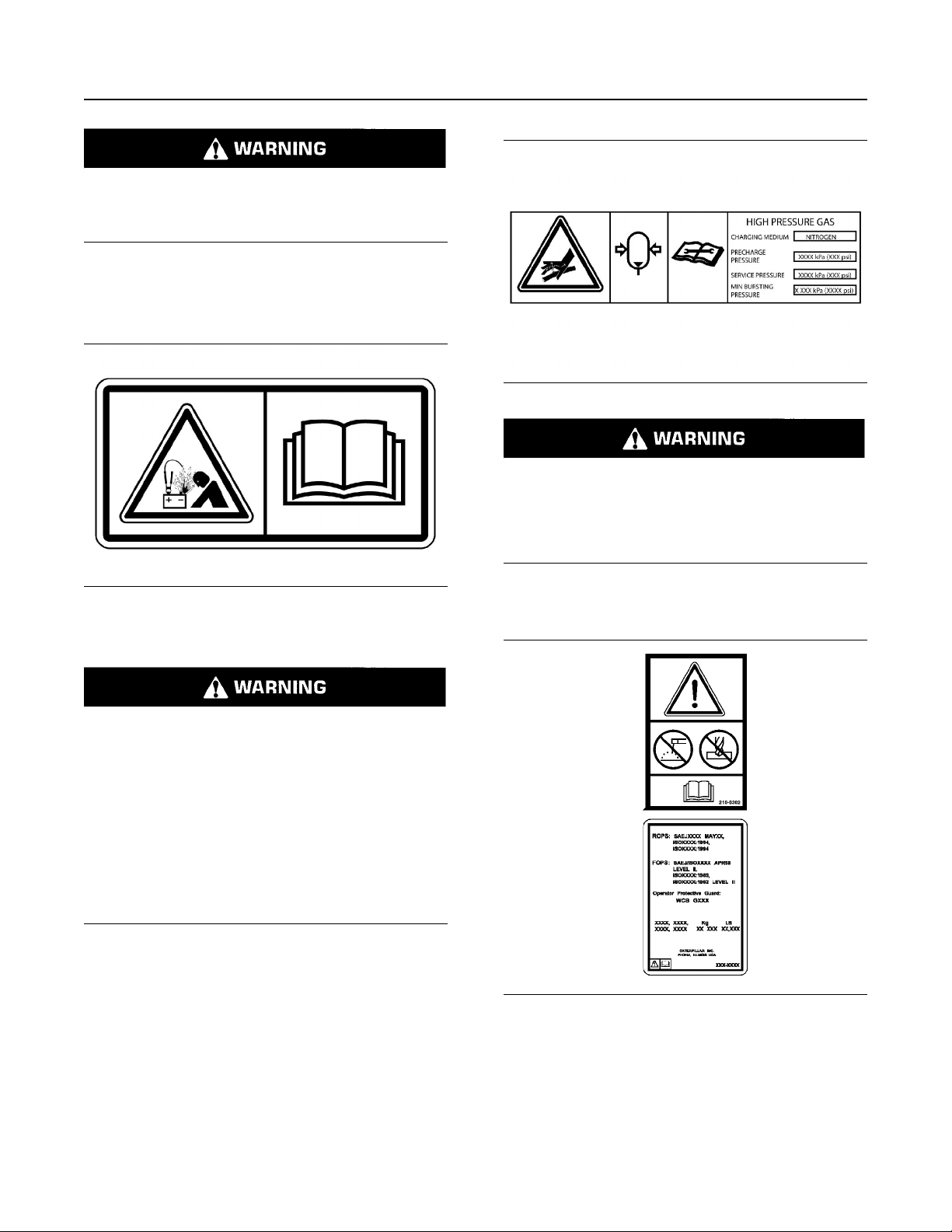

Proper Connections for Jump Start
Cables (3)

SEBU8475-10

Illustration 6 g01374065

Hydraulic accumulator contains gas and oil
under high pressure. Improper removal or repair
procedures could cause severe injury. To remove
or repair, instructions in the service manual must
be followed. Special equipment is required for
testing and charging.

Illustration 5 g01370909

This safety message is located on the inside of the
door for the battery compartment.

Explosion Hazard! Improper jumper cable con­nections can cause an explosion resulting in seri­ous injury or death. Batteries may be located in
separate compartments. When using jump start
cables, always connect the positive (+) cable
from the source to the positive (+) terminal of the
battery that is connected to the starter solenoid.
Connect the negative (−) cable from the source to
the negative (−) terminal of the starter. If the ma­chine is not equipped with a starter negative ter­minal, connect the negative (−) cable to the
engine block. Follow the procedure in the Opera­tion and Maintenance Manual.

High Pressure Accumulator (4)

This safety message is located on the accumulator
for the pilot operated hydraulic controls. This
accumulator is located on the frame on the right rear
of the machine.

ROPS (5)

Illustration 7 g01113333

This safety message is located on the cab next to the
left side door.

SEBU8475-10

9

Safety Section

Safety Messages

Structural damage, an overturn, modification, al­teration, or improper repair can impair this struc­ture's protection capability thereby voiding this
certification. Do not weld on or drill holes in the

structure. Consult a Caterpillar dealer to deter­mine this structure's limitations without voiding
its certification.

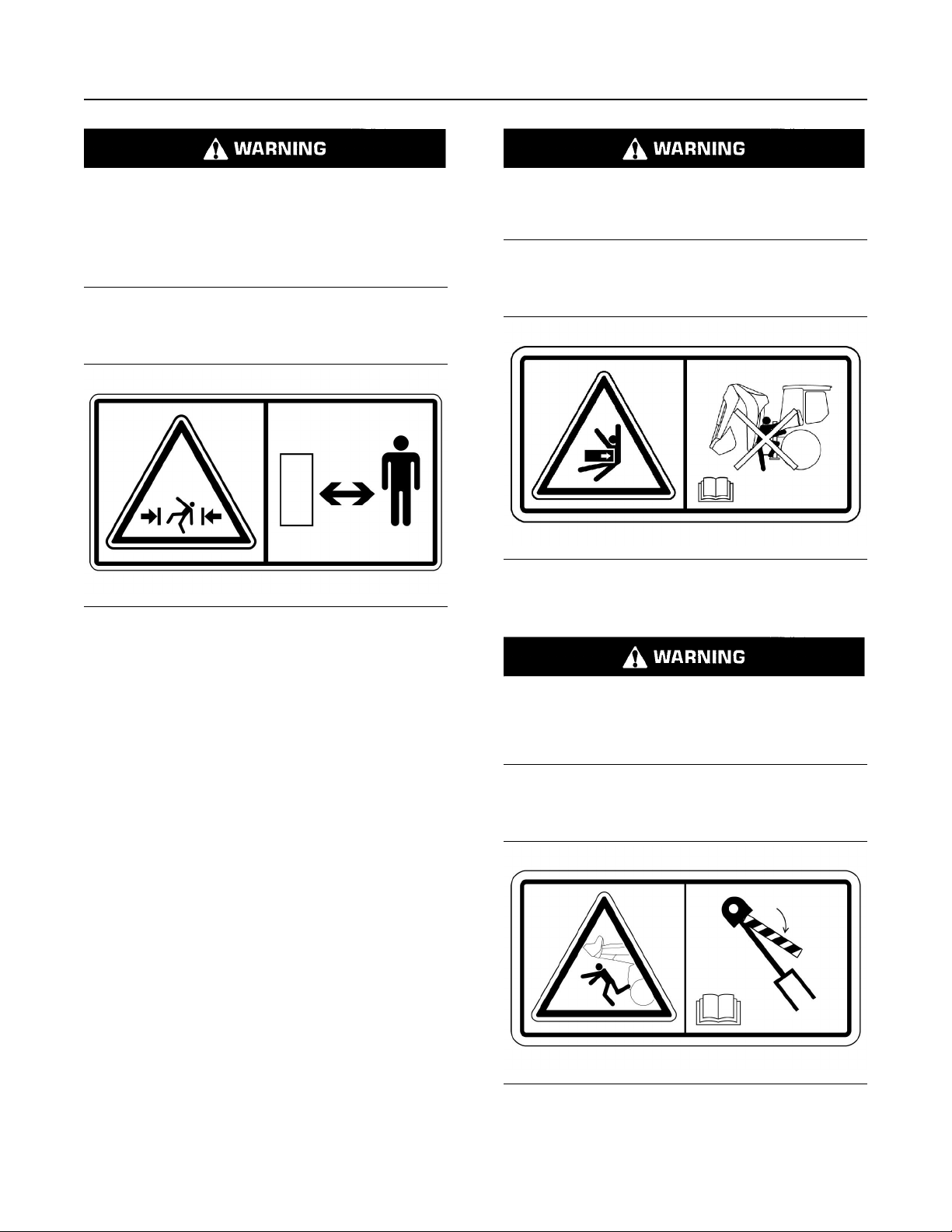

Crush Hazard (6)

Illustration 8 g01371644

Crushing Hazard! Stay back a safe distance.
There is no clearance for a person in this area
when the machine turns. Failure to follow these

instructions could cause serious injury or death.

No Exit (7)

Illustration 9 g01407377

This safety message is located on the rear of the
slide frame.

This safety message is located on the boom above
the boom foot pin.

Crush hazard; This is not an entrance or exit.
Stay clear of this area when the machine is oper-

ating. Start and operate the backhoe from the op­erator seat only. Failure to follow these warnings
could result in injury or death.

Brace The Lift Cylinder (8)

Illustration 10 g01407376

This safety message is located on the brace for the
loader lift arm.

10

Safety Section
Safety Messages

When performing any work underneath a raised
loader lift arm, the loader lift arm brace must be

in place. Install the loader lift arm brace as
follows.

1. Empty loader bucket. Remove pin that secures

loader lift arm brace to left loader arm. Raise
the loader arms with the bucket in the dump
position.

2. Position service brace over left lift cylinder with

flat end against cylinder end.

3. Push pin through holes of loader lift arm brace

and install cotter pin.

4. Slowly lower loader arms until brace contacts

the top of the lift cylinder and bosses on loader
arm.

5. To remove loader lift arm brace, reverse

procedure.

Failure to follow this procedure can result in
death or serious injury if the loader arms are acci­dentally lowered.

SEBU8475-10

Illustration 11 g01370913

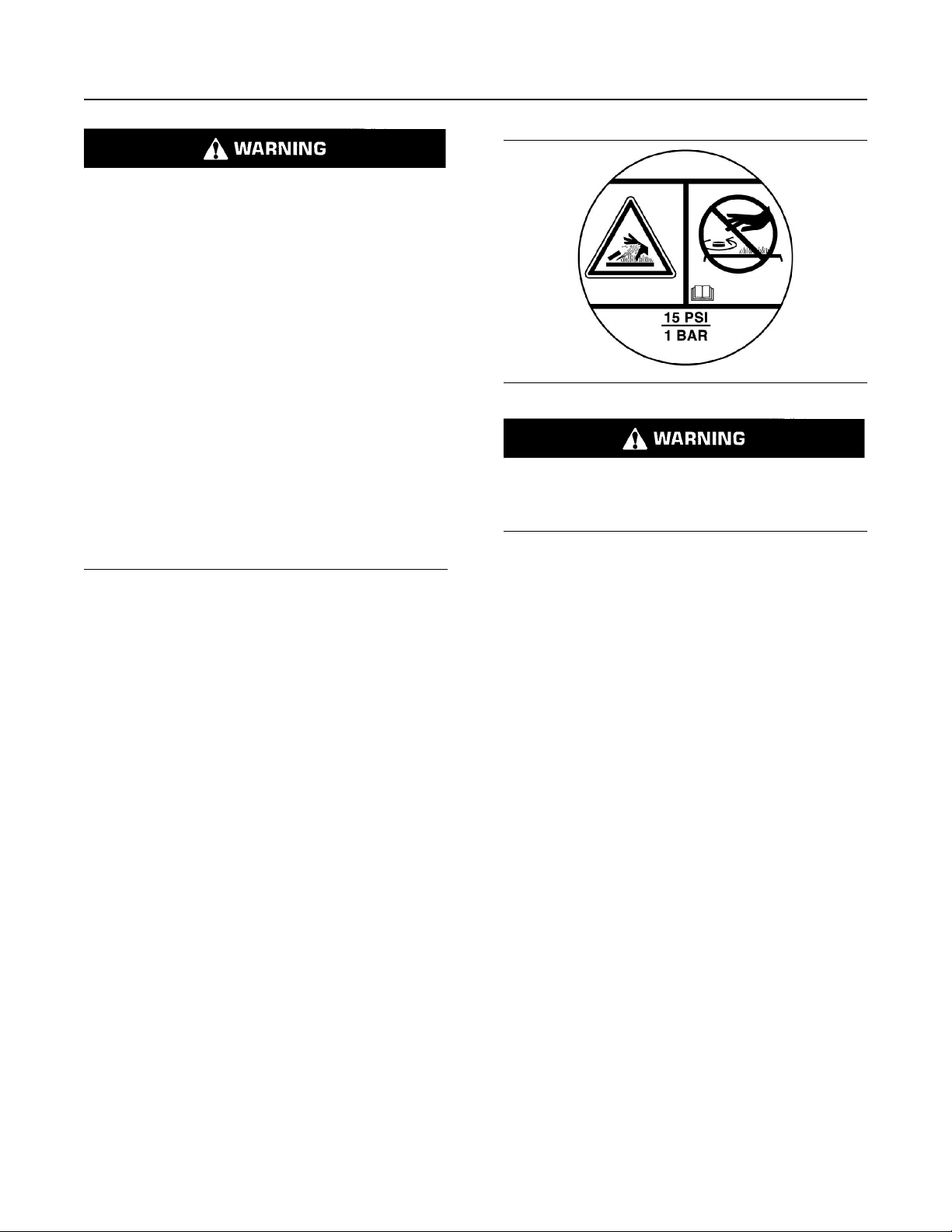

Pressurized system: Hot coolant can cause seri­ous burn. To open cap, stop engine, wait until ra­diator is cool. Then loosen cap slowly to relieve
the pressure.

High Cylinder Pressure (10)

Refer to Operation and Maintenance Manual, “Lift
Cylinder Brace - Connect and Disconnect” for more
information.

Pressurized System (9)

This safety message is located on the cooling system
filler cap.

This safety message is located on both sides of the
boom near the connection with the stick.

SEBU8475-10

Illustration 12 g01407379

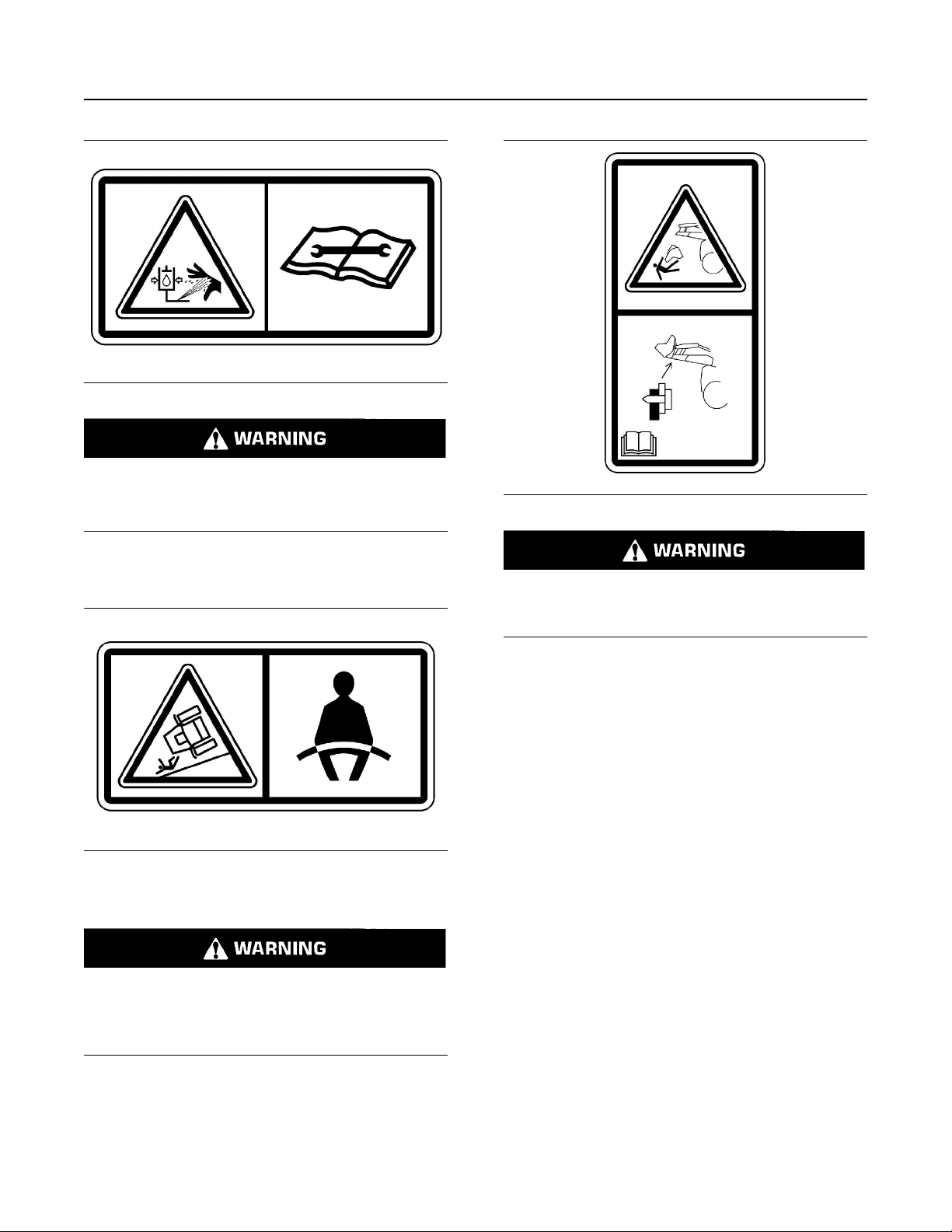

High Pressure Cylinder. Failure to read and follow
these instructions can cause rapidly discharging
gas and/or hydraulic fluid which can result in
death, personal injury and property damage.

11

Safety Section

Safety Messages

Illustration 14 g01411137

Seat Belt (11)

Illustration 13 g01370908

This safety message is located above the engine
start switch.

A seat belt should be worn at all times during ma­chine operation to prevent serious injury or death
in the event of an accident or machine overturn.

Failure to wear a seat belt during machine opera­tion may result in serious injury or death.

CRUSH INJURY. COULD CAUSE SERIOUS IN­JURY OR DEATH. ALWAYS CONFIRM QUICK
COUPLER PINS ARE ENGAGED. REFER TO THE
OPERATION AND MAINTENANCE MANUAL

High Pressure Accumulator (13)

This safety message is located next to the
accumulator if the machine is equipped with the
option for ride control. The accumulator is located
behind the battery box.

Quick Coupler (12) (If Equipped)

This safety message is located in the front of the cab
on the right side.

12

Safety Section
Safety Messages

SEBU8475-10

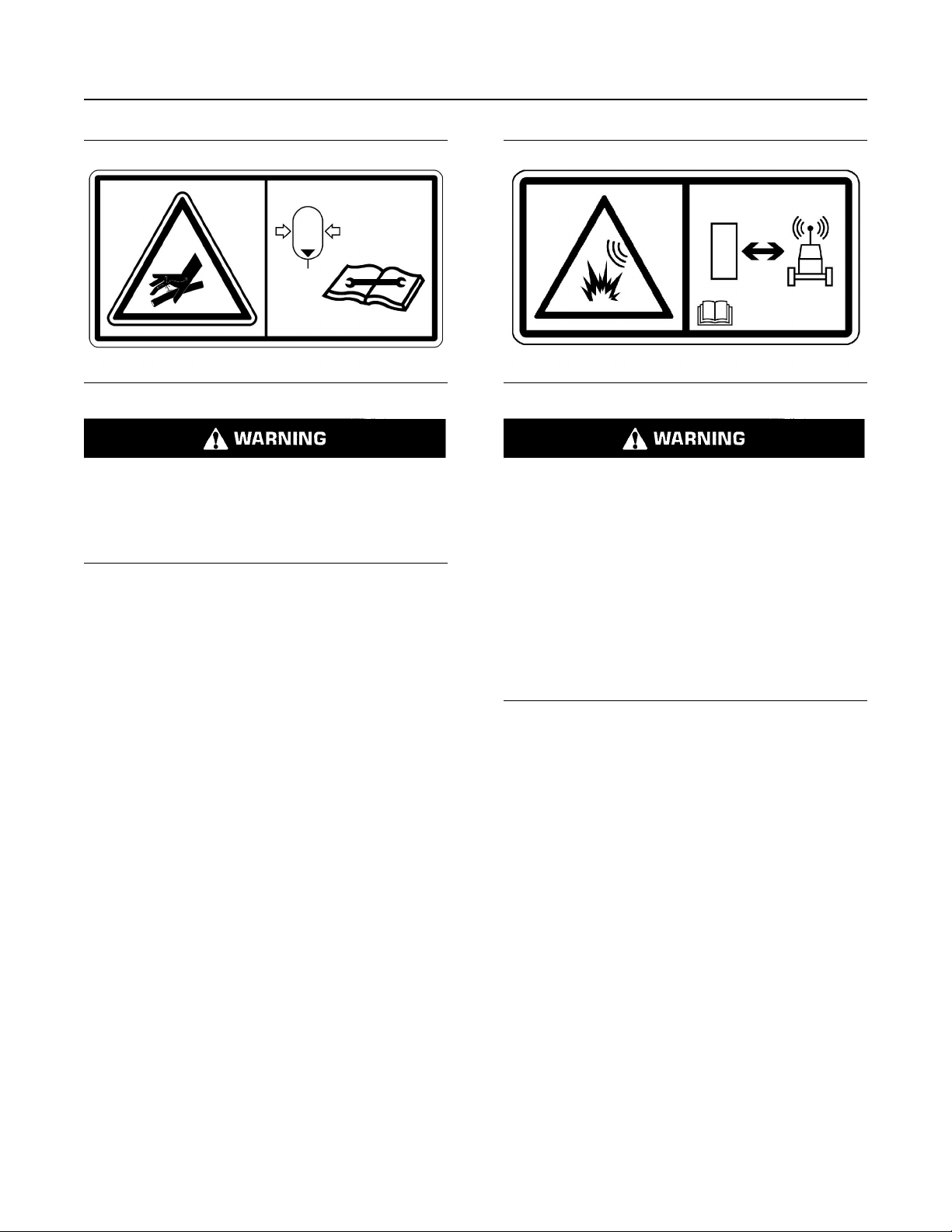

Illustration 15 g01370912

Hydraulic accumulator contains gas and oil
under high pressure. Improper removal or repair
procedures could cause severe injury. To remove
or repair, instructions in the service manual must
be followed. Special equipment is required for
testing and charging.

Product Link (14) (If Equipped)

This safety message is located in the front of the cab
on the left post.

Illustration 16 g01370917

This machine is equipped with a Caterpillar Prod­uct Link communication device. When electric

detonators are used, this communication device
should be deactivated within 12 m (40 ft) of a

blast site for satellite-based systems and within
3 m (10 ft) of a blast site for cellular based sys­tems, or within the distance mandated under ap­plicable legal requirements. Failure to do so
could cause interference with blasting operations
and result in serious injury or death.

In cases where the type of Product Link module
cannot be identified, Caterpillar recommends that
the device be disabled no less than 12 m (40 ft)
from the blast perimeter.

Object Handling Stability (15) (If
Equipped)

This safety message is located on the right of the cab
on the console.

SEBU8475-10

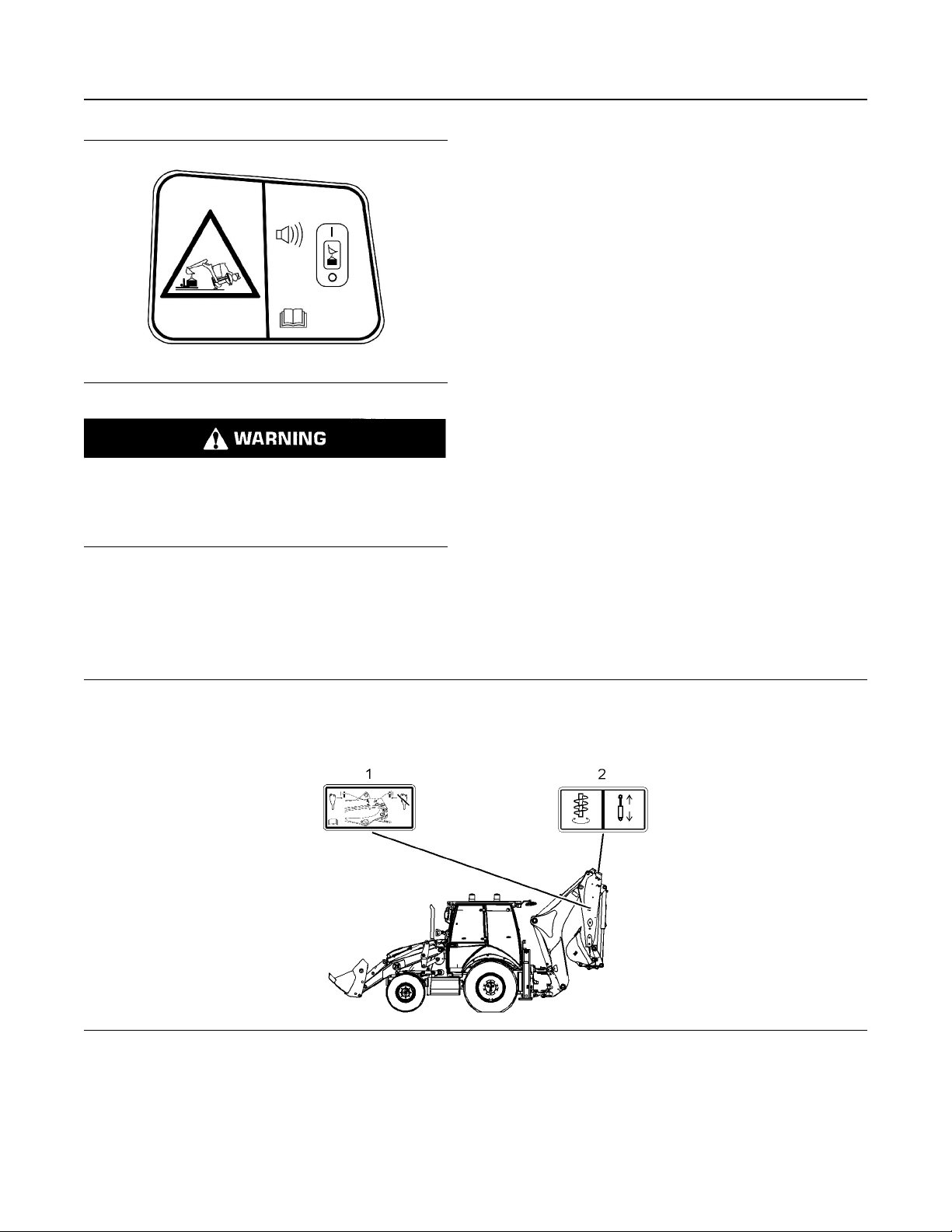

Illustration 17 g01957323

Overloading the machine could impact the ma­chine's stability which could result in a tip over
hazard. A tip over hazard could result in serious
injury or death. Always activate the stability alarm
switch before you handle or lift objects.

13

Safety Section

Additional Messages

Additional Messages

SMCS Code: 7000; 7405

i03694560

Illustration 18 g01985953

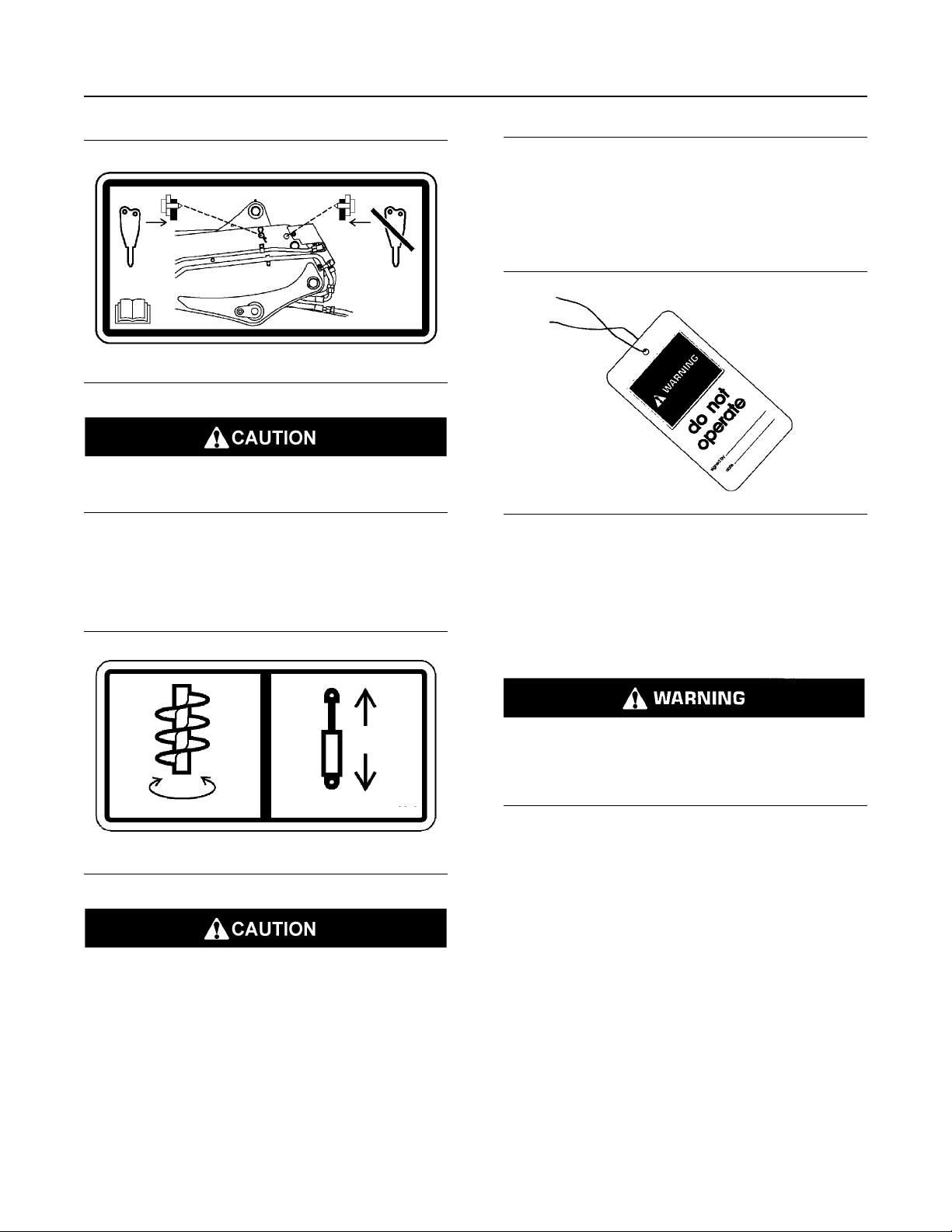

Pin the Extendable Stick (1)

If equipped, this message is located on the stick.

14

Safety Section
General Hazard Information

Illustration 19 g01985954

The E-Stick must be pinned before using
attachments, to prevent movement which could
cause personal injury.

SEBU8475-10

i07746355

General Hazard Information

SMCS Code: 7000

Two-Way (Combination) Flow
Control (2)

This message is located on the cover plate.

Illustration 20 g01973398

The flow control handle position will indicate
work tool control or the flow control handle

position will indicate cylinder control.

Illustration 21 g00104545

Typical example

Attach a “Do Not Operate” warning tag or a similar
warning tag to the start switch or to the controls.
Attach the warning tag before you service the
equipment or before you repair the equipment.
Warning tag SEHS7332 is available from your Cat
dealer.

Operating the machine while distracted can result
in the loss of machine control. Use extreme cau-

tion when using any device while operating the
machine. Operating the machine while distracted
can result in personal injury or death.

Know the width of your equipment to maintain proper
clearance when you operate the equipment near
fences or near boundary obstacles.

Be aware of high-voltage power lines and power
cables that are buried. If the machine comes in

contact with these hazards, serious injury or death
may occur from electrocution.

SEBU8475-10

Illustration 22 g00702020

Wear a hard hat, protective glasses, and other
protective equipment, as required.

Do not wear loose clothing or jewelry that can snag
on controls or on other parts of the equipment.

15

Safety Section

General Hazard Information

When you perform maintenance above ground level,
use appropriate devices such as ladders or man lift
machines. If equipped, use the machine anchorage
points and use approved fall arrest harnesses and
lanyards.

Pressurized Air and Water

Pressurized air and/or water can cause debris and/or
hot water to be blown out. The debris and/or hot
water could result in personal injury.

When pressurized air and/or pressurized water is
used for cleaning, wear protective clothing, protective
shoes, and eye protection. Eye protection includes
goggles or a protective face shield.

The maximum air pressure for cleaning purposes
must be reduced to 205 kPa (30 psi) when the
nozzle is deadheaded and the nozzle is used with an

effective chip deflector and personal protective
equipment. The maximum water pressure for
cleaning purposes must be below 275 kPa (40 psi).

Make sure that all protective guards and all covers
are secured in place on the equipment.

Keep the equipment free from foreign material.
Remove debris, oil, tools, and other items from the

deck, from walkways, and from steps.

Secure all loose items such as lunch boxes, tools,
and other items that are not a part of the equipment.

Know the appropriate work site hand signals and the
personnel that are authorized to give the hand
signals. Accept hand signals from one person only.

Do not smoke when you service an air conditioner.
Also, do not smoke if refrigerant gas may be present.
Inhaling the fumes that are released from a flame that
contacts air conditioner refrigerant can cause bodily
harm or death. Inhaling gas from air conditioner
refrigerant through a lighted cigarette can cause
bodily harm or death.

Never put maintenance fluids into glass containers.
Drain all liquids into a suitable container.

Obey all local regulations for the disposal of liquids.

Use all cleaning solutions with care. Report all
necessary repairs.

Do not allow unauthorized personnel on the
equipment.

Unless you are instructed otherwise, perform
maintenance with the equipment in the servicing
position. Refer to Operation and Maintenance
Manual for the procedure for placing the equipment
in the servicing position.

Avoid direct spraying of water on electrical
connectors, connections, and components. When
using air for cleaning, allow the machine to cool to
reduce the possibility of fine debris igniting when re­deposited on hot surfaces.

Trapped Pressure

Pressure can be trapped in a hydraulic system.
Releasing trapped pressure can cause sudden
machine movement or attachment movement. Use

caution if you disconnect hydraulic lines or fittings.
High-pressure oil that is released can cause a hose
to whip. High-pressure oil that is released can cause
oil to spray. Fluid penetration can cause serious
injury and possible death.

Fluid Penetration

Pressure can be trapped in the hydraulic circuit long
after the machine has been stopped. The pressure
can cause hydraulic fluid or items such as pipe plugs
to escape rapidly if the pressure is not relieved
correctly.

Do not remove any hydraulic components or parts
until pressure has been relieved or personal injury
may occur. Do not disassemble any hydraulic
components or parts until pressure has been relieved
or personal injury may occur. Refer to the Service
Manual for any procedures that are required to
relieve the hydraulic pressure.

16

Safety Section
General Hazard Information

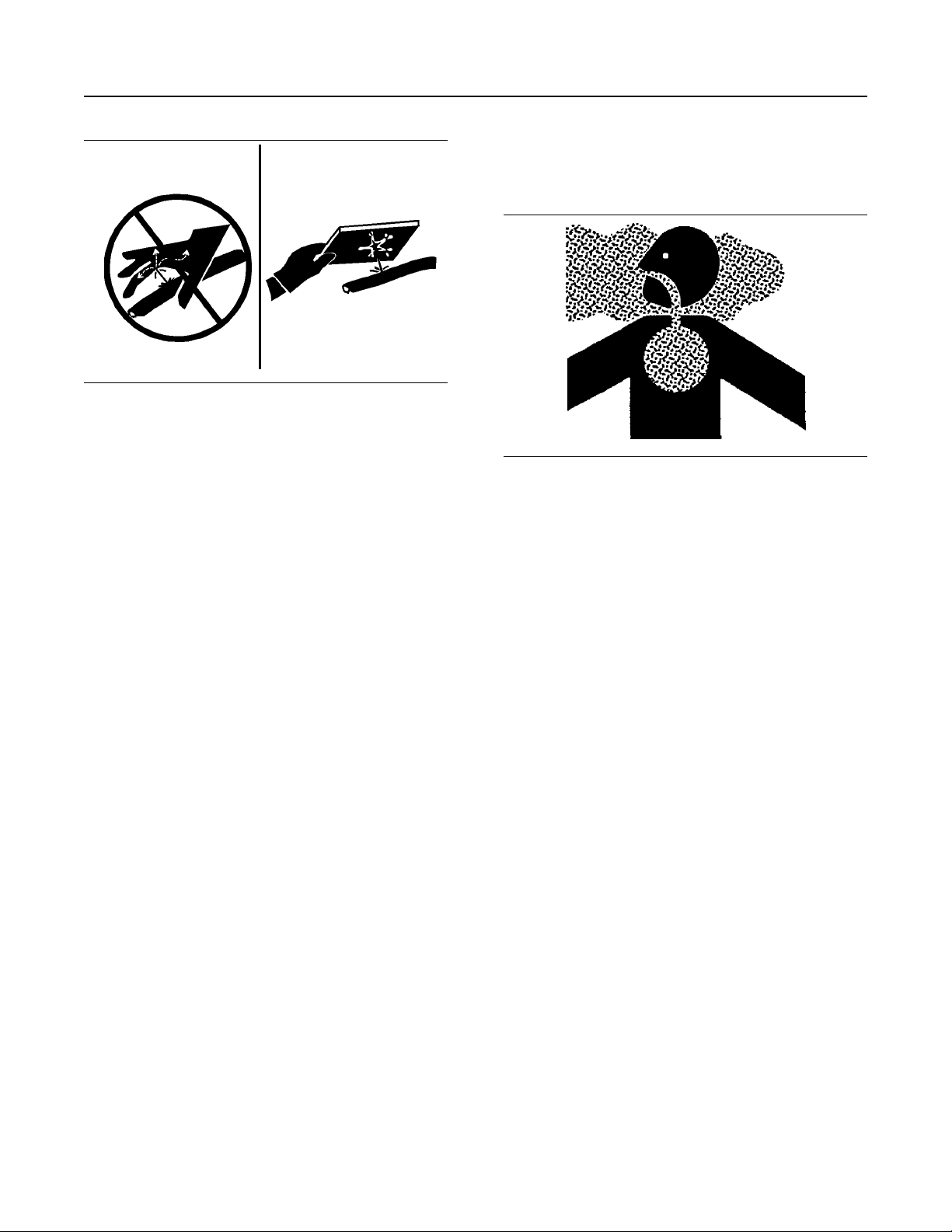

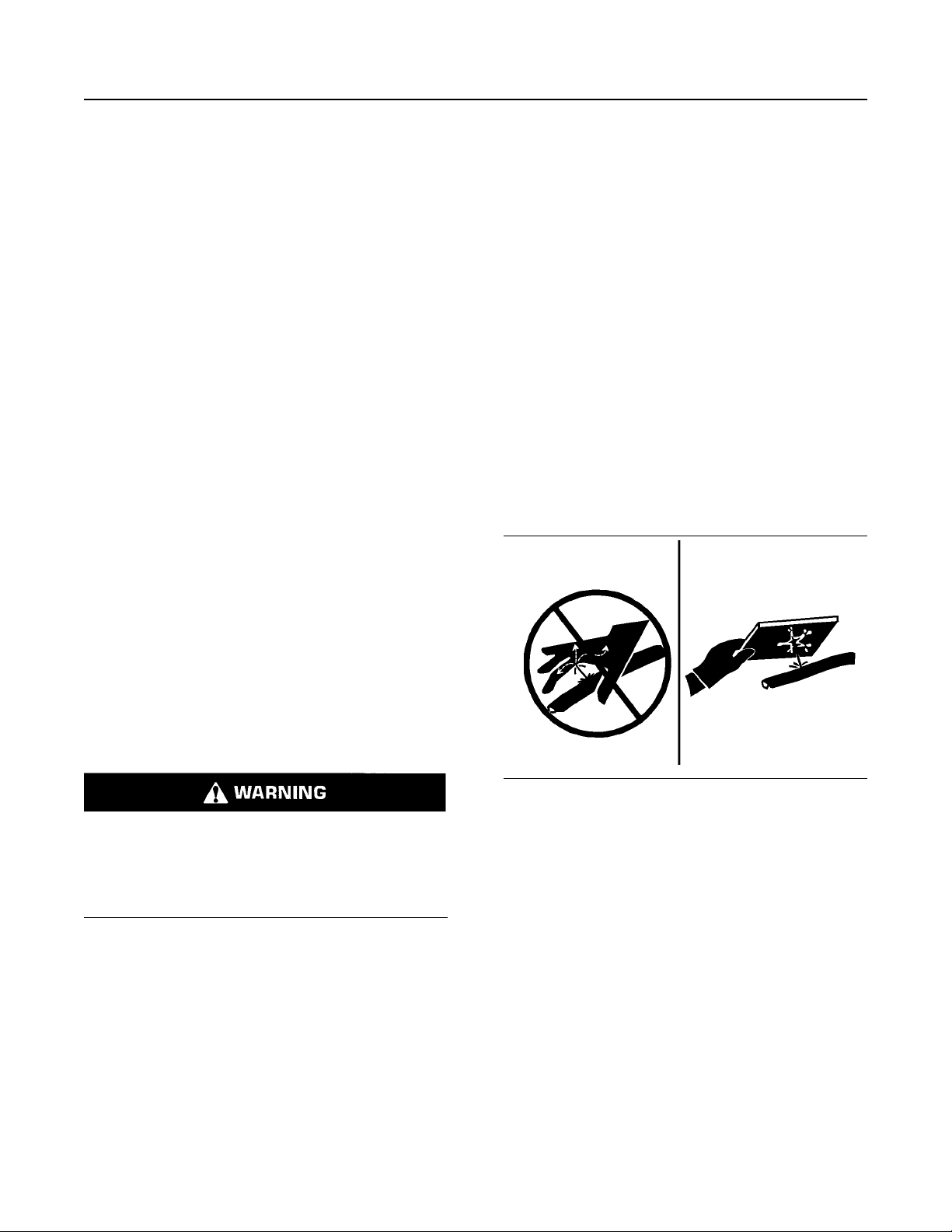

Illustration 23 g00687600

Always use a board or cardboard when you check for
a leak. Leaking fluid that is under pressure can
penetrate body tissue. Fluid penetration can cause
serious injury and possible death. A pin hole leak can
cause severe injury. If fluid is injected into your skin,
you must get treatment immediately. Seek treatment
from a doctor that is familiar with this type of injury.

Containing Fluid Spillage

SEBU8475-10

Obey all local regulations for the disposal of liquids.

Inhalation

Illustration 24 g02159053

Exhaust

Use caution. Exhaust fumes can be hazardous to
your health. If you operate the machine in an

enclosed area, adequate ventilation is necessary.

Care must be taken in order to ensure that fluids are
contained during performance of inspection,

maintenance, testing, adjusting, and repair of the
equipment. Prepare to collect the fluid with suitable
containers before opening any compartment or
disassembling any component that contains fluids.

Refer to Special Publication, NENG2500, “Cat dealer
Service Tool Catalog” for the following items:

• Tools that are suitable for collecting fluids and

equipment that is suitable for collecting fluids

• Tools that are suitable for containing fluids and

equipment that is suitable for containing fluids

Asbestos Information

Cat equipment and replacement parts that are
shipped from Caterpillar are asbestos free.
Caterpillar recommends the use of only genuine Cat
replacement parts. Use the following guidelines when
you handle any replacement parts that contain
asbestos or when you handle asbestos debris.

Use caution. Avoid inhaling dust that might be
generated when you handle components that contain
asbestos fibers. Inhaling this dust can be hazardous
to your health. The components that may contain
asbestos fibers are brake pads, brake bands, lining
material, clutch plates, and some gaskets. The
asbestos that is used in these components is bound
in a resin or sealed in some way. Normal handling is
not hazardous unless airborne dust that contains

asbestos is generated.

If dust that may contain asbestos is present, there
are several guidelines that should be followed:

• Never use compressed air for cleaning.

• Avoid brushing materials that contain asbestos.

• Avoid grinding materials that contain asbestos.

• Use a wet method in order to clean up asbestos
materials.

• A vacuum cleaner that is equipped with a high
efficiency particulate air filter (HEPA) can also be
used.

SEBU8475-10

17

Safety Section

Crushing Prevention and Cutting Prevention

• Use exhaust ventilation on permanent machining
jobs.

• Wear an approved respirator if there is no other
way to control the dust.

• Comply with applicable rules and regulations for
the work place. In the United States, use
Occupational Safety and Health Administration
(OSHA) requirements. These OSHA requirements
can be found in “29 CFR 1910.1001”. In Japan,
use the requirements found in the “Ordinance on
Prevention of Health Impairment due to Asbestos”
in addition to the requirements of the Industrial
Safety and Health Act.

• Obey environmental regulations for the disposal of
asbestos.

• Stay away from areas that might have asbestos
particles in the air.

Dispose of Waste Properly

Do not work beneath the cab of the machine unless
the cab is properly supported.

Unless you are instructed otherwise, never attempt
adjustments while the machine is moving or while the
engine is running.

Never jump across the starter solenoid terminals in
order to start the engine. Unexpected machine
movement could result.

Whenever there are equipment control linkages the
clearance in the linkage area will change with the
movement of the equipment or the machine. Stay
clear of areas that may have a sudden change in
clearance with machine movement or equipment

movement.

Stay clear of all rotating and moving parts.

If it is necessary to remove guards in order to perform
maintenance, always install the guards after the
maintenance is performed.

Keep objects away from moving fan blades. The fan
blade will throw objects or cut objects.

Do not use a kinked wire cable or a frayed wire cable.
Wear gloves when you handle wire cable.

Illustration 25 g00706404

Improperly disposing of waste can threaten the
environment. Potentially harmful fluids should be
disposed of according to local regulations.

Always use leakproof containers when you drain
fluids. Do not pour waste onto the ground, down a
drain, or into any source of water.

i01359664

Crushing Prevention and
Cutting Prevention

SMCS Code: 7000

Support the equipment properly before you perform
any work or maintenance beneath that equipment.
Do not depend on the hydraulic cylinders to hold up
the equipment. Equipment can fall if a control is
moved, or if a hydraulic line breaks.

When you strike a retainer pin with force, the retainer
pin can fly out. The loose retainer pin can injure
personnel. Make sure that the area is clear of people
when you strike a retainer pin. To avoid injury to your
eyes, wear protective glasses when you strike a
retainer pin.

Chips or other debris can fly off an object when you
strike the object. Make sure that no one can be
injured by flying debris before striking any object.

i07746334

Burn Prevention

SMCS Code: 7000

Do not touch any part of an operating engine. Allow
the engine to cool before any maintenance is
performed on the engine. Relieve all pressure in the
air system, in the oil system, in the lubrication
system, in the fuel system, or in the cooling system
before any lines, fittings, or related items are
disconnected.

Coolant

When the engine is at operating temperature, the
engine coolant is hot. The coolant is also under
pressure. The radiator and all lines to the heaters or
to the engine contain hot coolant.

Any contact with hot coolant or with steam can cause
severe burns. Allow cooling system components to
cool before the cooling system is drained.

18

Safety Section
Fire Prevention and Explosion Prevention

SEBU8475-10

Check the coolant level only after the engine has
been stopped.

Ensure that the filler cap is cool before removing the
filler cap. The filler cap must be cool enough to touch
with a bare hand. Remove the filler cap slowly to
relieve pressure.

Cooling system conditioner contains alkali. Alkali can
cause personal injury. Do not allow alkali to contact
the skin, the eyes, or the mouth.

Oils

Hot oil and hot components can cause personal
injury. Do not allow hot oil to contact the skin. Also,
do not allow hot components to contact the skin.

Remove the hydraulic tank filler cap only after the
engine has been stopped. The filler cap must be cool
enough to touch with a bare hand. Follow the
standard procedure in this manual to remove the
hydraulic tank filler cap.

Batteries

The liquid in a battery is an electrolyte. Electrolyte is
an acid that can cause personal injury. Do not allow
electrolyte to contact the skin or the eyes.

Always wear protective glasses when you work with
batteries. Wash hands after touching batteries. The
use of gloves is recommended.

i07746336

Fire Prevention and Explosion
Prevention

SMCS Code: 7000

Illustration 26 g00704000

Do not smoke while checking the battery electrolyte
levels. Batteries give off flammable fumes which can
explode.

General

All fuels, most lubricants, and some coolant mixtures
are flammable.

To minimize the risk of fire or explosion, Caterpillar
recommends the following actions.

Always perform a Walk-Around Inspection, which
may help you identify a fire hazard. Do not operate a
machine when a fire hazard exists. Contact your Cat
dealer for service.

Understand the use of the primary exit and
alternative exit on the machine. Refer to Operation
and Maintenance Manual, “Alternative Exit”.

Do not operate a machine with a fluid leak. Repair
leaks and clean up fluids before resuming machine
operation. Fluids that are leaking or spilled onto hot
surfaces or onto electrical components can cause a
fire. A fire may cause personal injury or death.

Remove flammable material such as leaves, twigs,
papers, trash, and so on. These items may
accumulate in the engine compartment or around
other hot areas and hot parts on the machine.

Keep the access doors to major machine
compartments closed and access doors in working
condition in order to permit the use of fire
suppression equipment, in case a fire should occur.

Clean all accumulations of flammable materials such
as fuel, oil, and debris from the machine.

SEBU8475-10

19

Safety Section

Fire Prevention and Explosion Prevention

Do not operate the machine near any flame.

Keep shields in place. Exhaust shields (if equipped)
protect hot exhaust components from oil spray or fuel
spray in case of a break in a line, in a hose, or in a
seal. Exhaust shields must be installed correctly.

Do not weld or flame cut on tanks or lines that contain
flammable fluids or flammable material. Empty and

purge the lines and tanks. Then clean the lines and
tanks with a nonflammable solvent prior to welding or
flame cutting. Ensure that the components are
properly grounded in order to avoid unwanted arcs.

Dust that is generated from repairing nonmetallic
hoods or fenders may be flammable and/or
explosive. Repair such components in a well
ventilated area away from open flames or sparks.
Use suitable Personal Protection Equipment (PPE).

Inspect all lines and hoses for wear or deterioration.
Replace damaged lines and hoses. The lines and the
hoses should have adequate support and secure
clamps. Tighten all connections to the recommended
torque. Damage to the protective cover or insulation
may provide fuel for fires.

Store fuels and lubricants in properly marked
containers away from unauthorized personnel. Store
oily rags and flammable materials in protective
containers. Do not smoke in areas that are used for

storing flammable materials.

Avoid static electricity risk when fueling. Ultra low
sulfur diesel (ULSD) poses a greater static ignition
hazard than earlier diesel formulations with a higher
sulfur content. Avoid death or serious injury from fire
or explosion. Consult with your fuel or fuel system
supplier to ensure that the delivery system is in
compliance with fueling standards for proper
grounding and bonding practices.

Never store flammable fluids in the operator
compartment of the machine.

Battery and Battery Cables

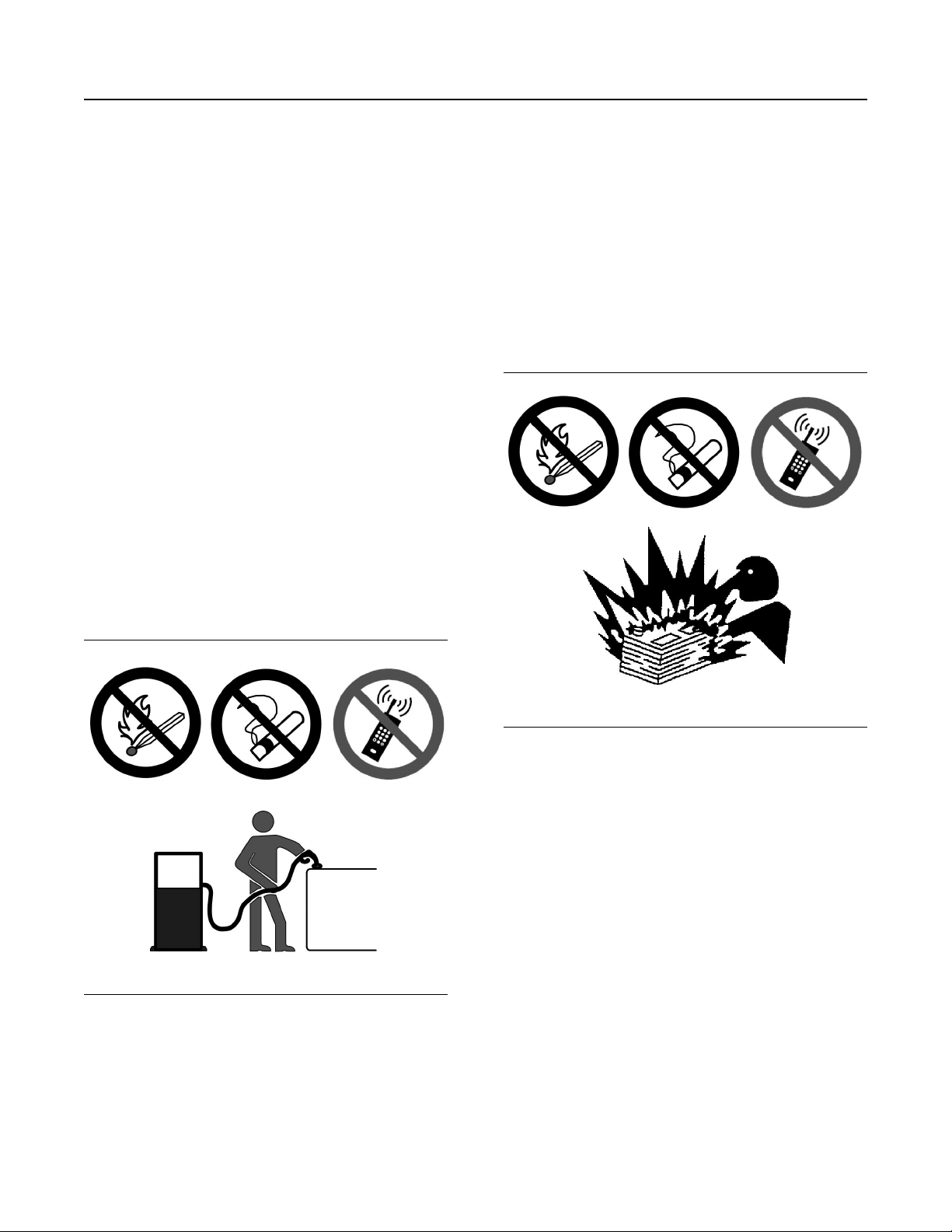

Illustration 27 g03839130

Use caution when you are fueling a machine. Do not
smoke while you are fueling a machine. Do not fuel a
machine near open flames or sparks. Do not use cell
phones or other electronic devices while you are
refueling. Always stop the engine before fueling. Fill
the fuel tank outdoors. Properly clean areas of
spillage.

Illustration 28 g03839133

Caterpillar recommends the following in order to
minimize the risk of fire or an explosion related to the
battery.

Do not operate a machine if battery cables or related
parts show signs of wear or damage. Contact your
Cat dealer for service.

Follow safe procedures for engine starting with jump­start cables. Improper jumper cable connections can
cause an explosion that may result in injury. Refer to
Operation and Maintenance Manual, “Engine Starting
with Jump Start Cables” for specific instructions.

Do not charge a frozen battery. This may cause an
explosion.

Gases from a battery can explode. Keep any open
flames or sparks away from the top of a battery. Do
not smoke in battery charging areas. Do not use cell
phones or other electronic devices in battery
charging areas.

Never check the battery charge by placing a metal
object across the terminal posts. Use a voltmeter in
order to check the battery charge.

20

Safety Section
Fire Prevention and Explosion Prevention

SEBU8475-10

Daily inspect battery cables that are in areas that are
visible. Inspect cables, clips, straps, and other
restraints for damage. Replace any damaged parts.
Check for signs of the following, which can occur
over time due to use and environmental factors:

• Fraying

• Abrasion

• Cracking

• Discoloration

• Cuts on the insulation of the cable

• Fouling

• Corroded terminals, damaged terminals, and
loose terminals

Replace damaged battery cable(s) and replace any
related parts. Eliminate any fouling, which may have
caused insulation failure or related component
damage or wear. Ensure that all components are
reinstalled correctly.

An exposed wire on the battery cable may cause a
short to ground if the exposed area comes into
contact with a grounded surface. A battery cable
short produces heat from the battery current, which
may be a fire hazard.

• Cuts on insulation

• Other damage

Make sure that all clamps, guards, clips, and straps
are reinstalled correctly. This will help to prevent
vibration, rubbing against other parts, and excessive
heat during machine operation.

Attaching electrical wiring to hoses and tubes that
contain flammable fluids or combustible fluids should

be avoided.

Consult your Cat dealer for repair or for replacement
parts.

Keep wiring and electrical connections free of debris.

Lines, Tubes, and Hoses

Do not bend high-pressure lines. Do not strike high­pressure lines. Do not install any lines that are bent
or damaged. Use the appropriate backup wrenches
in order to tighten all connections to the
recommended torque.

An exposed wire on the ground cable between the
battery and the disconnect switch may cause the
disconnect switch to be bypassed if the exposed area
comes into contact with a grounded surface. This
may result in an unsafe condition for servicing the
machine. Repair components or replace components
before servicing the machine.

Fire on a machine can result in personal injury or
death. Exposed battery cables that come into
contact with a grounded connection can result in
fires. Replace cables and related parts that show
signs of wear or damage. Contact your Cat
dealer.

Wiring

Check electrical wires daily. If any of the following
conditions exist, replace parts before you operate the
machine.

• Fraying

• Signs of abrasion or wear

• Cracking

• Discoloration

Illustration 29 g00687600

Check lines, tubes, and hoses carefully. Wear
Personal Protection Equipment (PPE) in order to
check for leaks. Always use a board or cardboard
when you check for a leak. Leaking fluid that is under
pressure can penetrate body tissue. Fluid penetration
can cause serious injury and possible death. A pin
hole leak can cause severe injury. If fluid is injected
into your skin, you must get treatment immediately.
Seek treatment from a doctor that is familiar with this

type of injury.

Replace the affected parts if any of the following
conditions are present:

• End fittings are damaged or leaking.

• Outer coverings are chafed or cut.

• Wires are exposed.

• Outer coverings are swelling or ballooning.

• Flexible parts of the hoses are kinked.

SEBU8475-10

21

Safety Section

Fire Safety

• Outer covers have exposed embedded armoring.

• End fittings are displaced.

Make sure that all clamps, guards, and heat shields
are installed correctly. During machine operation, this
will help to prevent vibration, rubbing against other
parts, excessive heat, and failure of lines, tubes, and
hoses.

Do not operate a machine when a fire hazard exists.
Repair any lines that are corroded, loose, or
damaged. Leaks may provide fuel for fires. Consult
your Cat dealer for repair or for replacement parts.
Use genuine Cat parts or the equivalent, for
capabilities of both the pressure limit and
temperature limit.

Ether

Ether (if equipped) is commonly used in cold-weather
applications. Ether is flammable and poisonous.

Only use approved Ether canisters for the Ether
dispensing system fitted to your machine, do not
spray Ether manually into an engine, follow the
correct cold engine starting procedures. Refer to the
section in the Operation and Maintenance Manual
with the label “Engine Starting” .

Use ether in ventilated areas. Do not smoke while
you are replacing an ether cylinder.

Do not store ether cylinders in living areas or in the
operator compartment of a machine. Do not store
ether cylinders in direct sunlight or in temperatures
above 49° C (120.2° F). Keep ether cylinders away
from open flames or sparks.

Dispose of used ether cylinders properly. Do not
puncture an ether cylinder. Keep ether cylinders
away from unauthorized personnel.

Fire Extinguisher

Note: Locate fire extinguishers and how to use a fire

extinguisher before you operate the machine.

If you find that you are involved in a machine fire,
your safety and that of others on site are the top
priority. The following actions should only be
performed if the actions do not present a danger or
risk to you and any nearby people. Assess the risk of
personal injury and move away to a safe distance as
soon as you feel unsafe.

Move the machine away from nearby combustible
material such as fuel/oil stations, structures, trash,

mulch, and timber.

Lower any implements and turn off the engine as
soon as possible. If you leave the engine running, the
engine will continue to feed a fire. The fire will be fed
from any damaged hoses that are attached to the
engine or pumps.

If possible, turn the battery disconnect switch to the
OFF position. Disconnecting the battery will remove
the ignition source in the event of an electrical short.
Disconnecting the battery will eliminate a second
ignition source if electrical wiring is damaged by the
fire, resulting in a short circuit.

Notify emergency personnel of the fire and your
location.

If your machine is equipped with a fire suppression
system, follow the manufacturers procedure for
activating the system.

Note: Fire suppression systems need to be regularly
inspected by qualified personnel. You must be
trained to operate the fire suppression system.

If you are unable to do anything else, shut off the
machine before exiting. By shutting off the machine,
fuels will not continue to be pumped into the fire.

If the fire grows out of control, be aware of the
following risks:

As an additional safety measure, keep a fire
extinguisher on the machine.

Be familiar with the operation of the fire extinguisher.
Inspect the fire extinguisher and service the fire
extinguisher regularly. Follow the recommendations
on the instruction plate.

Consider installation of an aftermarket Fire
Suppression System, if the application and working

conditions warrant the installation.

i07041871

Fire Safety

SMCS Code: 7000

Note: Locate secondary exits and how to use the

secondary exits before you operate the machine.

• Tires on wheeled machines pose a risk of
explosion as tires burn. Hot shrapnel and debris
can be thrown great distances in an explosion.

• Tanks, accumulators, hoses, and fittings can
rupture in a fire, spraying fuels and shrapnel over
a large area.

• Remember that nearly all the fluids on the
machine are flammable, including coolant and oils.
Additionally, plastics, rubbers, fabrics, and resins
in fiberglass panels are also flammable.

22

Safety Section
Fire Extinguisher Location

SEBU8475-10

i00980571

Fire Extinguisher Location

SMCS Code: 7000; 7419

Make sure that a fire extinguisher is on the machine.
Make sure that you are familiar with the operation of
the fire extinguisher. Inspect the fire extinguisher and
service the extinguisher. Obey the recommendations
on the instruction plate.

Mount the fire extinguisher in the battery box. Do not
weld the ROPS in order to install the fire extinguisher.
Also, do not drill holes in the ROPS in order to mount

the fire extinguisher on the ROPS.

i06164462

Tire Information

SMCS Code: 7000

Explosions of air inflated tires have resulted from
heat-induced gas combustion inside the tires.
Explosions can be caused by heat that is generated
by welding, by heating rim components, by external
fire, or by excessive use of brakes.

A tire explosion is much more violent than a blowout.
The explosion can propel the tire, the rim
components, and the axle components from the
machine. Stay out of the trajectory path. Both the
force of the explosion and the flying debris can cause
property damage, personal injury, or death.

Caterpillar recommends against using water or
calcium as a ballast for the tires except in machines
designed for this additional mass. For those
applicable machines, the maintenance section will
contain instructions on the correct tire inflation and

filling procedures. Ballast, such as fluid in the tires,
increases overall machine weight and may affect
braking, steering, power train components, or the
certification of the protective structure such as the
ROPS. The use of tire/rim rust preventatives or other
liquid additives is not required.

Proper nitrogen inflation equipment, and training
in using the equipment, are necessary to avoid
over inflation. A tire blowout or rim failure can re-

sult from improper or misused equipment and
personal injury or death can occur.

A tire blowout and/or rim failure can occur if the
inflation equipment is not used correctly, due to

the fact that a fully charged nitrogen cylinder's
pressure is approximately 15000 kPa (2200 psi).

Dry nitrogen gas is recommended for inflation of
tires. If the tires were originally inflated with air,
nitrogen is still preferred for adjusting the pressure.
Nitrogen mixes properly with air.

Nitrogen inflated tires reduce the potential of a tire
explosion because nitrogen does not aid combustion.
Nitrogen helps to prevent oxidation of the rubber,
deterioration of rubber, and corrosion of rim

components.

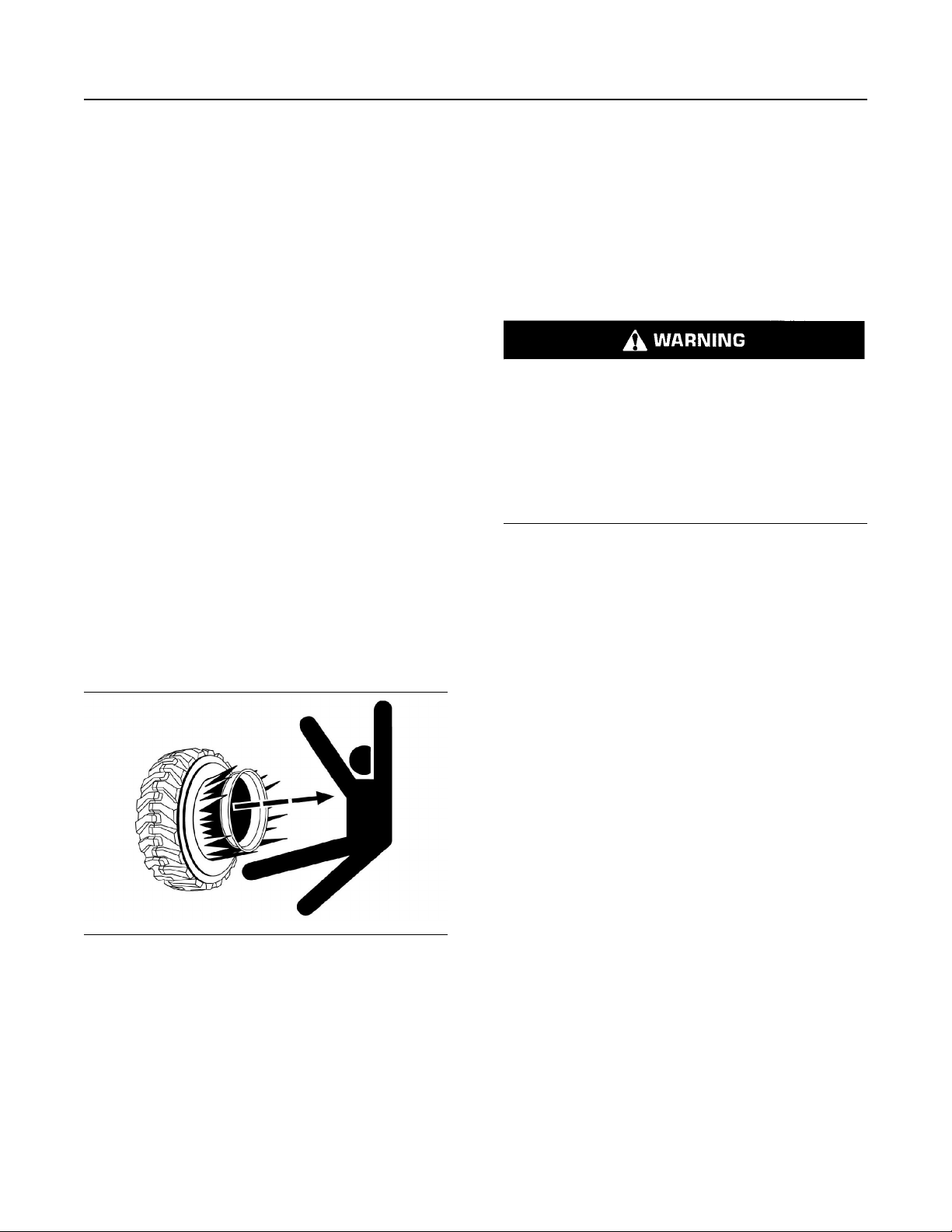

Illustration 30 g02166933

Typical example of tire is shown

Do not approach a hot or an apparently damaged
tire.

To avoid overinflation, proper nitrogen inflation
equipment and training in the usage of the equipment
are necessary. A tire blowout or a rim failure can
result from improper equipment or from misused
equipment.

When you inflate a tire, stand behind the tread and
use a self-attaching chuck.

Servicing tires and rims can be dangerous. Only
trained personnel that use proper tools and proper
procedures should perform this maintenance. If
correct procedures are not used for servicing tires
and rims, the assemblies could burst with explosive
force. This explosive force can cause serious
personal injury or death. Carefully obey the specific
instructions from your tire dealer.

i01122596

Electrical Storm Injury
Prevention

SMCS Code: 7000

When lightning is striking in the vicinity of the
machine, the operator should never attempt the
following procedures:

SEBU8475-10

23

Safety Section

Before Starting Engine

• Mount the machine.

• Dismount the machine.

If you are in the operator's station during an electrical
storm, stay in the operator's station. If you are on the
ground during an electrical storm, stay away from the
vicinity of the machine.

i00771840

Before Starting Engine

SMCS Code: 1000; 7000

Start the engine only from the operator compartment.
Never short across the starter terminals or across the

batteries. Shorting could damage the electrical
system by bypassing the engine neutral start system.

Inspect the condition of the seat belt and of the
mounting hardware. Replace any parts that are worn
or damaged. Regardless of appearance, replace the
seat belt after three years of use. Do not use a seat
belt extension on a retractable seat belt.

Adjust the seat so that full pedal travel can be
achieved with the operator's back against the back of
the seat.

i07746368

Visibility Information

SMCS Code: 7000

Before you start the machine, perform a walk-around
inspection in order to ensure that there are no
hazards around the machine.

While the machine is in operation, constantly survey
the area around the machine in order to identify
potential hazards as hazards become visible around
the machine.

Your machine may be equipped with visual aids.
Some examples of visual aids are Closed Circuit
Television (CCTV) and mirrors. Before operating the
machine, ensure that the visual aids are in proper
working condition and that the visual aids are clean.
Adjust the visual aids using the procedures that are
located in this Operation and Maintenance Manual. If
equipped, the Work Area Vision System shall be
adjusted according to Operation and Maintenance
Manual, SEBU8157, “Work Area Vision System”. If
equipped, the Cat Detect Object Detection shall be
adjusted according to the Operation and
Maintenance Manual, “Cat Detect Object Detection”
for your machine.

Make sure that the machine is equipped with a
lighting system that is adequate for the job
conditions. Make sure that all machine lights are
working properly.

Before you start the engine and before you move the
machine, make sure that no one is underneath the

machine, around the machine, or on the machine.
Make sure that the area is free of personnel.

i03571438

Engine Starting

SMCS Code: 1000; 7000

If a warning tag is attached to the start switch or to
the controls, do not start the engine. Also, do not
move any controls.

Move all hydraulic controls to the HOLD position
before you start the engine.

Move the transmission direction control lever to the
NEUTRAL position.

Engage the parking brake.

Diesel engine exhaust contains products of
combustion which can be harmful to your health.
Always start the engine in a well ventilated area.
Always operate the engine in a well ventilated area. If
you are in an enclosed area, vent the exhaust to the
outside.

It may not be possible to provide direct visibility on
large machines to all areas around the machine.
Appropriate job site organization is required in order
to minimize hazards that are caused by restricted
visibility. Job site organization is a collection of rules
and procedures that coordinates machines and
people that work together in the same area.
Examples of job site organization include the
following:

• Safety instructions

• Controlled patterns of machine movement and
vehicle movement

• Workers that direct safe movement of traffic

• Restricted areas

• Operator training

• Warning symbols or warning signs on machines or
on vehicles

• A system of communication

• Communication between workers and operators
prior to approaching the machine

Modifications of the machine configuration by the
user that result in a restriction of visibility shall be
evaluated.

Briefly sound the horn before you start the engine.

24

Safety Section
Restricted Visibility

SEBU8475-10

i03260240

Restricted Visibility

SMCS Code: 7000

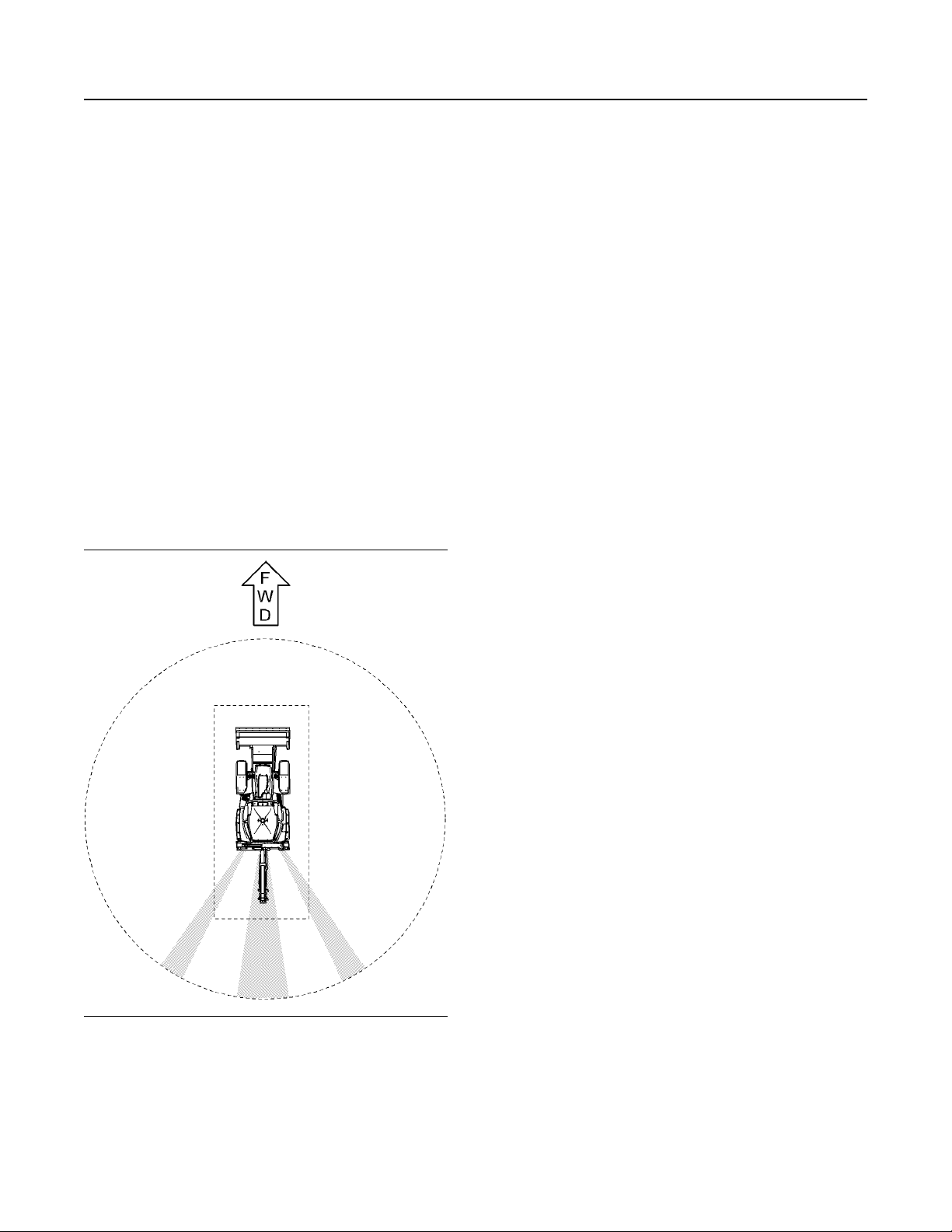

The size and the configuration of this machine may
result in areas that can not be seen when the

operator is seated. Illustration 31 provides an
approximate visual indication of areas of significant
restricted visibility. Illustration 31 indicates restricted
visibility areas at ground level inside a radius of

12.00 m (39.37 ft) from the operator on a machine
without the use of optional visual aids. This
illustration does not provide areas of restricted
visibility for distances outside a radius of 12.00 m
(39.37 ft).

This machine may be equipped with optional visual
aids that may provide visibility to some of the
restricted visibility areas. For areas that are not
covered by the optional visual aids, job site
organization must be utilized to minimize hazards of
this restricted visibility. For more information
regarding job site organization refer to Operation and
Maintenance Manual, “Visibility Information”.

i03105380

Before Operation

SMCS Code: 7000

Clear all personnel from the machine and from the
area.

Clear all obstacles from the path of the machine.
Beware of hazards such as electrical wires, ditches,

etc.

The stabilizers must be in the correct position before
you operate the machine. Completely raise the
stabilizers for transporting the machine or for loader
operation. Lower the stabilizers before you operate
the backhoe. DO NOT DIG UNDER THE

STABILIZERS!

Make sure that all windows are clean. Secure the
doors in the open position or in the shut position.

Secure the windows in the open position or in the
shut position.

For the best visibility of the area that is close to the
machine, adjust the rear view mirrors (if equipped).

Make sure that the machine horn, the backup alarm
(if equipped) and all other warning devices are
working properly.

Illustration 31 g01662033

Top view of the machine

Fasten the seat belt securely.

i07443772

Operation

SMCS Code: 7000

Only operate the machine while you are sitting in a
seat. The seat belt must be fastened while you
operate the machine. Only operate the controls while
the engine is running.

While you operate the machine slowly in an open
area, check for proper operation of all controls and all
protective devices.

Before you move the machine, make sure that no
one will be endangered.

Do not allow riders on the machine unless the
machine has an additional seat with a seat belt. The
rider must be seated and the seat belt must be
fastened.

Never use the work tool for a work platform.

Note any needed repairs during machine operation.
Report any needed repairs.

Note: The shaded areas indicate the approximate
location of areas with significant restricted visibility.

Carry work tools at approximately 40 cm (15 inches)
above ground level.

Do not go close to the edge of a cliff, an excavation,
or an overhang.

SEBU8475-10

25

Safety Section

Engine Stopping

Avoid operating the machine across the slope. When
possible, operate the machine up the slopes and
down the slopes. If the machine begins to sideslip on
a downgrade, immediately remove the load and turn
the machine downhill.

Avoid any conditions that can lead to tipping the
machine. The machine can tip when you work on
hills, on banks and on slopes. Also, the machine can
tip when you cross ditches, ridges, or other
unexpected obstructions.

Maintain control of the machine. Do not overload the
machine beyond the machine capacity.

Never straddle a wire cable. Never allow other
personnel to straddle a wire cable.

Know the maximum dimensions of your machine.

Always keep the Rollover Protective Structure
(ROPS) installed during machine operation.

Fueling Machine

Ultra Low Sulfur Diesel (ULSD) poses a greater
static ignition hazard than earlier diesel formula­tions, with a higher Sulfur content, which may re­sult in a fire or explosion. Consult with your fuel
or fuel system supplier for details on proper
grounding and bonding practices.

Fuel cap may be hot. To avoid injury, use personal
protective equipment. Allow the cap to cool before
fueling the machine.

Limiting Conditions and Criteria

Limiting conditions are immediate issues with this
machine that must be addressed prior to continuing
operation.

The Safety Section of the Operation and
Maintenance Manual describes limiting condition
criteria for replacing items such as safety messages,
seat belt and mounting hardware, lines, tubes, hoses,
battery cables and related parts, electrical wires, and
repairing any fluid leak.

The Maintenance Interval Schedule in the Operation
and Maintenance Manual describes limiting condition
criteria that require repair or replacement for items (if
equipped) such as alarms, horns, braking system,
steering system, and rollover protective structures.

The Monitoring System (if equipped) described in the
Operation Section of the Operation and Maintenance
Manual provides information on limiting condition
criteria, including a warning level that requires
immediate shutdown of the machine.

i06299648

Engine Stopping

SMCS Code: 1000; 7000

To avoid possible injury or death, do not smoke
while in an area that contains flammable liquids.

All fuels, most lubricants, and some coolants are
flammable.

Keep all fuels and lubricants stored in properly
marked containers and away from unauthorized

persons.

Fuel leaked or spilled onto hot surfaces or electri­cal components can cause a fire.

Store all oily rags or other flammable materials in
a protective container in a safe place.

Remove all flammable materials such as fuel, oil,
and other debris before they accumulate on the

machine.

Do not expose the machine to flames, burning
brush, etc., if at all possible.

Locate fuel fill on machine, and remove the fuel cap.
When fueling the machine is complete, replace the
fuel cap and lock into place.

Do not stop the engine immediately after the machine
has been operated under load. Stopping the engine
immediately can cause overheating and accelerated
wear of engine components.

After the machine is parked and the parking brake is
engaged, allow the engine to run at low idle for 5
minutes before shutdown. Running the engine allows
hot areas of the engine to cool gradually.

i04159629

Work Tools

SMCS Code: 6700

Only use work tools that are recommended by
Caterpillar for use on Cat machines.

26

Safety Section
Parking

SEBU8475-10

Use of work tools, including buckets, which are
outside of Caterpillar's recommendations or
specifications for weight, dimensions, flows,
pressures, and so on. may result in less-than-optimal
vehicle performance, including but not limited to
reductions in production, stability, reliability, and
component durability. Caterpillar recommends
appropriate work tools for our machines to maximize
the value our customers receive from our products.
Caterpillar understands that special circumstances
may lead a customer to use tools outside of our
specifications. In these cases, customers must be
aware that such choices can reduce vehicle

performance and will affect their ability to claim
warranty in the event of what a customer may
perceive as a premature failure.

Work tools and work tool control systems, that are
compatible with your Cat machine, are required for
safe machine operation and/or reliable machine
operation. If you are in doubt about the compatibility
of a particular work tool with your machine, consult
your Cat dealer.

Make sure that all necessary guarding is in place on
the host machine and on the work tool.

Keep all windows and doors closed on the host
machine. A polycarbonate shield must be used when
the host machine is not equipped with windows and
when a work tool could throw debris.

Apply the service brake in order to stop the machine.
Move the transmission control lever to the NEUTRAL

position.

Move the speed control lever to the LOW IDLE
position.

Engage the parking brake.

Engage the transmission neutral lock.

Lower all work tools to the ground.

Stop the engine.

Turn the engine start switch key to the OFF position
for 4 seconds.

Turn the engine start switch key back to the ON
position.

Press the hydraulic shutoff switch to the UNLOCKED
position.

Move the hydraulic control levers back and forth in
order to relieve hydraulic pressure.

Move the hydraulic control levers to the HOLD
position.

Turn the engine start switch to OFF position and
remove the key.

Do not exceed the maximum operating weight that is
listed on the ROPS certification.

If your machine is equipped with an extendable stick,
install the transport pin when you are using the
following work tools: hydraulic hammers, augers and
compactors

Always wear protective glasses. Always wear the
protective equipment that is recommended in the
operation manual for the work tool. Wear any other
protective equipment that is required for the
operating environment.

To prevent personnel from being struck by flying
objects, ensure that all personnel are out of the work

area.

While you are performing any maintenance, any
testing, or any adjustments to the work tool stay clear
of the following areas: cutting edges, pinching
surfaces and crushing surfaces.

Never use the work tool for a work platform.

i03112589

Parking

SMCS Code: 7000

Park on a level surface. If you must park on a grade,
chock the machine.

Stow the steering column if the adjustable steering
column is available on the machine.

i07746366

Slope Operation

SMCS Code: 7000

Machines that are operating safely in various
applications depend on these criteria: the machine
model, configuration, machine maintenance,
operating speed of the machine, conditions of the
terrain, fluid levels, and tire inflation pressures. The
most important criteria are the skill and judgment of
the operator.

A well trained operator that follows the instructions in
the Operation and Maintenance Manual has the
greatest impact on stability. Operator training
provides a person with the following abilities:
observation of working and environmental conditions,
feel for the machine, identification of potential
hazards and operating the machine safely by making
appropriate decisions.

When you work on side hills and when you work on
slopes, consider the following important points:

Speed of travel – At higher speeds, forces of inertia
tend to make the machine less stable.

Roughness of terrain or surface – The machine
may be less stable with uneven terrain.

SEBU8475-10

27

Safety Section

Equipment Lowering with Engine Stopped

Direction of travel – Avoid operating the machine
across the slope. When possible, operate the
machine up the slopes and operate the machine
down the slopes. Place the heaviest end of the
machine uphill when you are working on an incline.

Mounted equipment – Balance of the machine may
be impeded by the following components: equipment
that is mounted on the machine, machine

configuration, weights, and counterweights.

Nature of surface – Ground that has been newly
filled with earth may collapse from the weight of the
machine.

Surface material – Rocks and moisture of the
surface material may drastically affect the machine's

traction and machine's stability. Rocky surfaces may
promote side slipping of the machine.

Slippage due to excessive loads – This may cause
downhill tracks or downhill tires to dig into the ground,
which will increase the angle of the machine.

Width of tracks or tires – Narrower tracks or
narrower tires further increase the digging into the

ground which causes the machine to be less stable.

Implements attached to the drawbar – This may
decrease the weight on the uphill tracks. This may
also decrease the weight on the uphill tires. The
decreased weight will cause the machine to be less
stable.

Height of the working load of the machine – When
the working loads are in higher positions, the stability
of the machine is reduced.

Operated equipment – Be aware of performance
features of the equipment in operation and the effects
on machine stability.

Operating techniques – Keep all attachments or
pulled loads low to the ground for optimum stability.

Machine systems have limitations on slopes –
Slopes can affect the proper function and operation
of the various machine systems. These machine
systems are needed for machine control.

i01329161

Equipment Lowering with
Engine Stopped

SMCS Code: 7000

Before lowering any equipment with the engine
stopped, clear the area around the equipment of all
personnel. The procedure to use will vary with the
type of equipment to be lowered. Keep in mind most
systems use a high pressure fluid or air to raise or
lower equipment. The procedure will cause high
pressure air, hydraulic, or some other media to be
released in order to lower the equipment. Wear
appropriate personal protective equipment and follow
the established procedure in the Operation and
Maintenance Manual, “Equipment Lowering with
Engine Stopped” in the Operation Section of the
manual.

i03696989

Sound Information and
Vibration Information

SMCS Code: 7000

Sound Level Information

The operator Equivalent Sound Pressure Level (Leq)
is 78 dB(A) when “ANSI/SAE J1166 OCT 98” is used
to measure the value for an enclosed cab. This is a

work cycle sound exposure level. The cab was
properly installed and maintained. The test was
conducted with the cab doors and the cab windows

closed.

Hearing protection may be needed when the
machine is operated with an open operator station for
extended periods or in a noisy environment. Hearing
protection may be needed when the machine is
operated with a cab that is not properly maintained or
when the doors and windows are open for extended
periods or in a noisy environment.

Note: Operators with lots of experience and proper
equipment for specific applications are also required.
Safe operation on steep slopes may also require
special machine maintenance. Refer to Lubricant
Viscosities and Refill Capacities in this manual for the
proper fluid level requirements and intended machine
use. Fluids must be at the correct levels to ensure
that systems will operate properly on a slope.

28

Safety Section
Sound Information and Vibration Information

SEBU8475-10

The average exterior sound pressure level is 80 dB
(A) when the “SAE J88Apr95 - Constant Speed
Moving Test” procedure is used to measure the value
for the standard machine. The measurement was

conducted under the following conditions: distance of
15 m (49.2 ft) and “the machine moving forward in an
intermediate gear ratio”.

Sound Level Information for
Machines in European Union
Countries and in Countries that
Adopt the “EU Directives”

The dynamic operator sound pressure level is 78 dB
(A) when “ISO 6396:2008” is used to measure the
value for an enclosed cab. The cab was properly
installed and maintained. The test was conducted

with the cab doors and the cab windows closed.

“The European Union Physical
Agents (Vibration) Directive 2002/
44/EC”

Vibration Data for Backhoe Loaders

• Operator training, behavior, mode and stress

• Job site organization, preparation, environment,
weather and material

• Machine type, quality of the seat, quality of the
suspension system, attachments and condition of
the equipment

It is not possible to get precise vibration levels for this
machine. The expected vibration levels can be
estimated with the information in Table 3 in order to

calculate the daily vibration exposure. A simple
evaluation of the machine application can be used.

Estimate the vibration levels for the three vibration
directions. For typical operating conditions, use the

average vibration levels as the estimated level. With
an experienced operator and smooth terrain, subtract
the Scenario Factors from the average vibration level
in order to obtain the estimated vibration level. For

aggressive operations and severe terrain, add the
Scenario Factors to the average vibration level in
order to obtain the estimated vibration level.

Note: All vibration levels are in meter per second
squared.

Information Concerning Hand/Arm Vibration
Level

When the machine is operated according to the
intended use, the weighted root mean square (RMS)
acceleration emission of the machine to which the

arms are subjected have been measured as follows:

Table 1

Weighted RMS Acceleration

Emission (Mechanical

Machines)

Left Hand/Arm 4.0

Right Hand/Arm 3.8

Table 2

Weighted RMS Acceleration

Emission (Pilot Machines)

Left Hand/Arm 4.3

Right Hand/Arm 1.5

Note: All vibration levels are in meter per second
squared.

Information Concerning Whole Body Vibration
Level

This section provides vibration data and a method for
estimating the vibration level for backhoe loaders.

Note: Vibration levels are influenced by many
different parameters. Many items are listed below.

SEBU8475-10

Safety Section

Sound Information and Vibration Information

Table 3

“ISO Reference Table A - Equivalent vibration levels of whole body vibration emission for earthmoving equipment.”

29

Machine Type

Backhoe Loader

Typical Operating

Activity

excavating

X axis Y axis Z axis X axis Y axis Z axis

0,28 0,26 0,20 0,09 0,16 0,06

Note: Refer to “ISO/TR 25398 Mechanical Vibration ­Guideline for the assessment of exposure to whole
body vibration of ride on operated earthmoving
machines” for more information about vibration. This
publication uses data that is measured by
international institutes, organizations and
manufacturers. This document provides information
about the whole body exposure of operators of
earthmoving equipment. Refer to Operation and
Maintenance Manual, SEBU8257, “The European
Union Physical Agents (Vibration) Directive 2002/44/
EC” for more information about machine vibration
levels.

The Caterpillar suspension seat meets the criteria of
“ISO 7096”. This represents vertical vibration level
under severe operating conditions. This seat is tested
with the input “spectral class EM5”. The seat has a
transmissibility factor of “SEAT<0.7”.

The whole body vibration level of the machine varies.
There is a range of values. The low value is 0.5 meter
per second squared. The machine meets the short
term level for the design of the seat in “ISO 7096”.
The value is 1.68 meter per second squared for this
machine.

Guidelines for Reducing Vibration Levels on
Earthmoving Equipment

Properly adjust machines. Properly maintain
machines. Operate machines smoothly. Maintain the
conditions of the terrain. The following guidelines can
help reduce the whole body vibration level:

1. Use the right type and size of machine, equipment,

and attachments.

2. Maintain machines according to the

manufacturer's recommendations.

a. Tire pressures

b. Brake and steering systems

c. Controls, hydraulic system and linkages

3. Keep the terrain in good condition.

a. Remove any large rocks or obstacles.

b. Fill any ditches and holes.

c. Provide machines and schedule time in order to

maintain the conditions of the terrain.

Vibration Levels Scenario Factors

4. Use a seat that meets “ISO 7096”. Keep the seat

maintained and adjusted.

a. Adjust the seat and suspension for the weight

and the size of the operator.

b. Inspect and maintain the seat suspension and

adjustment mechanisms.

5. Perform the following operations smoothly.

a. Steer

b. Brake

c. Accelerate.

d. Shift the gears.

6. Move the attachments smoothly.

7. Adjust the machine speed and the route in order to

minimize the vibration level.

a. Drive around obstacles and rough terrain.

b. Slow down when it is necessary to go over

rough terrain.

8. Minimize vibrations for a long work cycle or a long
travel distance.

a. Use machines that are equipped with

suspension systems.

b. Use the ride control system on compact

backhoe loaders.

c. If no ride control system is available, reduce

speed in order to prevent bounce.

d. Haul the machines between workplaces.

9. Less operator comfort may be caused by other risk
factors. The following guidelines can be effective
in order to provide better operator comfort:

a. Adjust the seat and adjust the controls in order

to achieve good posture.

b. Adjust the mirrors in order to minimize twisted

posture.

c. Provide breaks in order to reduce long periods

of sitting.

d. Avoid jumping from the cab.

30

Safety Section
Operator Station

e. Minimize repeated handling of loads and lifting

of loads.

f. Minimize any shocks and impacts during sports

and leisure activities.

Sources

The vibration information and calculation procedure
is based on “ISO/TR 25398 Mechanical Vibration -

Guideline for the assessment of exposure to whole
body vibration of ride on operated earthmoving
machines”. Harmonized data is measured by
international institutes, organizations and
manufacturers.

This literature provides information about assessing
the whole body vibration exposure of operators of
earthmoving equipment. The method is based on
measured vibration emission under real working
conditions for all machines.

You should check the original directive. This
document summarizes part of the content of the
applicable law. This document is not meant to
substitute the original sources. Other parts of these
documents are based on information from the United

Kingdom Health and Safety Executive.

SEBU8475-10

Refer to Operation and Maintenance Manual,
SEBU8257, “The European Union Physical Agents
(Vibration) Directive 2002/44/EC” for more
information about vibration.

Consult your local Caterpillar dealer for more
information about machine features that minimize

vibration levels. Consult your local Caterpillar dealer
about safe machine operation.

Use the following web site in order to find your local
dealer:

Caterpillar, Inc.
www.cat.com

i07746362

Operator Station

SMCS Code: 7000; 7300

Any modifications to the inside of the operator station
should not project into the operator space or into the
space for the companion seat (if equipped). The
addition of a radio, fire extinguisher, and other
equipment must be installed so that the defined
operator space and the space for the companion seat
(if equipped) is maintained. Any item that is brought
into the cab should not project into the defined
operator space or the space for the companion seat
(if equipped). A lunch box or other loose items must
be secured. Objects must not pose an impact hazard
in rough terrain or in the event of a rollover.

SEBU8475-10

31

Product Information Section

General Information

Product Information
Section

General Information

i03601426

Specifications

SMCS Code: 7000

Intended Use

This machine is classified as a backhoe loader as
described in ISO 6165:2006. When the machine is
used as a loader, this machine is attached with a
front mounted bucket or Caterpillar approved work

tools. Work tools are used for digging, loading, lifting,
and carrying material such as earth, crushed rock or
gravel. When the machine is operating as a backhoe,
the intended use of this machine is for excavating
with a bucket or working with Caterpillar approved
work tools. This machine can be used in object
handling applications that are within the lift capacity
of the machine. When this machine is used in object
handling applications use approved lifting points and
approved lifting devices.

Table 6

432E BACKHOE LOADER

Approximate Weight 7932 kg (17487 lb)

Transport Length 5836 mm (19.1 ft)

Width Across Stabilizers 2368 mm (7.8 ft)

Transport Height 3717 mm (12.2 ft)

Table 7

434E BACKHOE LOADER

Approximate Weight 8460 kg (18651 lb)

Transport Length 6120 mm (20.1 ft)

Width Across Stabilizers

Transport Height 3623 mm (11.9 ft)

Table 8

442E BACKHOE LOADER

Approximate Weight 8692 kg (19163 lb)

Transport Length 5834 mm (19.1 ft)

Width Across Stabilizers

Transport Height 3914 mm (12.8 ft)

2368 mm (7.8 ft)

2368 mm (7.8 ft)

General Machine Specifications

Note: Basic machine specifications are listed below.

Actual machine specifications will vary with different
work tools.

Table 4

422E BACKHOE LOADER

Approximate Weight 7641 kg (16845 lb)

Transport Length 5830 mm (19.1 ft)

Width Across Stabilizers 2368 mm (7.8 ft)

Transport Height 3736 mm (12.3 ft)

Table 5

428E BACKHOE LOADER

Approximate Weight 7807 kg (17211 lb)

Transport Length 5869 mm (19.3 ft)

Width Across Stabilizers

Transport Height 3717 mm (12.2 ft)

2368 mm (7.8 ft)

Table 9

444E BACKHOE LOADER

Approximate Weight 8898 kg (19617 lb)

Transport Length 6099 mm (20.0 ft)

Width Across Stabilizers

Transport Height 3871 mm (12.7 ft)

2368 mm (7.8 ft)

Backhoe Buckets

Table 10

STANDARD DUTY BUCKETS (HIGH ROTATION)

)

)

)

3

)

3

)

Weight

100 kg

(220.46 lb)

114 kg

(251 lb)

134 kg

(295 lb)

153 kg

(337 lb)

172 kg

(379 lb)

Width Rated

305 mm

(12 inches)

457 mm

(18 inches)

610 mm

(24 inches)

762 mm

(30 inches)

914 mm

(36 inches)

78 L (2.75 ft

118 L

(4.167 ft

175 L (6.18 ft

233 L

(8.228 ft

292 L

(10.31 ft

3

3

3

Number of

Teeth

3

3

4

5

6

32

Product Information Section
Specifications

Table 11

HEAVY DUTY BUCKETS

Number of

Width Rated

305 mm

(12 inches)

457 mm

(18 inches)

610 mm

(24 inches)

762 mm

(30 inches)

914 mm

(36 inches)

Table 12

78 L (2.75 ft

118 L

3

(4.167 ft

175 L (6.18 ft

233 L

3

(8.228 ft

292 L

3

(11.31 ft

Weight

3

108 kg

)

(238 lb)

)

)

)

126 kg

(278 lb)

3

150 kg

)

(331 lb)

169 kg

(372 lb)

193 kg

(425 lb)

Teeth

EXTREME SERVICE BUCKETS

Width Struck Rated Weight Number

of Teeth

600 mm

(24 inches)

760 mm

(30 inches)

230 L

(8.1 ft

290 L

(10.0 ft

270 L

3

)

(9.5 ft3)

370 L

3

)

(13.0 ft3)

237 kg

(521 lb)

287 kg

(631 lb)

Loader Buckets

Table 13

GENERAL PURPOSE CAPACITIES

Rated Width Weight

1.14 m

3

(1.5 yd3)

2434 mm

(96 inches)

604 kg (1329 lb)

Travel Speeds

Table 14

TRAVEL SPEEDS FOR 422E WITH STANDARD

First Gear

Forward

Reverse

TRANSMISSION

6.0 km/h

(3.7 mph)

6.0 km/h

(3.7 mph)

Second

Gear

9.6 km/h

(6.0 mph)

9.6 km/h

(6.0 mph)

Third

Gear

19.9 km/h

(12.3 mph)

19.9 km/h

(12.3 mph)

39.9 km/h

(24.8 mph)

39.9 km/h

(24.8 mph)

3

3

4

5

6

4

4

Fourth

Gear

SEBU8475-10

Table 15

TRAVEL SPEEDS FOR 428E WITH STANDARD

First Gear

Forward

Reverse

Table 16

TRAVEL SPEEDS FOR 432E WITH STANDARD

Forward

Reverse

Table 17

TRAVEL SPEEDS FOR 432E WITH AUTO SHIFT

First
Gear

Forward

Reverse

Table 18

5.9 km/h

(3.7 mph)

5.9 km/h

(3.7 mph)

TRAVEL SPEEDS FOR 434E WITH STANDARD DRIVE

Forward

Reverse

TRANSMISSION

6.0 km/h

(3.7 mph)

6.0 km/h

(3.7 mph)

TRANSMISSION

First
Gear

6.0 km/h

(3.7 mph)

6.0 km/h

(3.7 mph)

TRANSMISSION

Second

9.4 km/h

(5.8 mph)

12.3 km/h
(7.7 mph)

TRANSMISSION

First
Gear

5.5 km/h

(3.4 mph)

5.5 km/h

(3.4 mph)

Second

9.6 km/h

(6.0 mph)

9.6 km/h

(6.0 mph)

Second

9.6 km/h

(6.0 mph)

9.6 km/h

(6.0 mph)

Gear

Second

8.8 km/h

(5.5 mph)

8.8 km/h

(5.5 mph)

Gear

Gear

Gear

(12.4 mph)

(12.4 mph)

(12.3 mph)

(12.3 mph)

Third

Gear

19.5 km/
h

(12.1

mph)

26.6 km/
h

(16.5

mph)

(11.4 mph)

(11.4 mph)

Third

Gear

20.0 km/h

20.0 km/h

Third

Gear

19.9 km/h

19.9 km/h

Fourth

Gear

26.9 km/h
(16.7
mph)

Third

Gear

18.4 km/h

18.4 km/h

Fourth

Gear

40.1 km/h

(24.9 mph)

40.1 km/h

(24.9 mph)

Fourth

Gear

39.9 km/h

(24.7 mph)

39.9 km/h

(24.7 mph)

Fifth
Gear

40.7 km/

(25.2
mph)

Fourth

Gear

36.8 km/h

(22.8 mph)

36.8 km/h

(22.8 mph)

h

SEBU8475-10

Table 19

TRAVEL SPEEDS FOR 434E WITH AUTO SHIFT

First
Gear

Forward

Reverse

Table 20

5.4 km/h

(3.3 mph)

5.4 km/h

(3.3 mph)

TRAVEL SPEEDS FOR 442E WITH STANDARD DRIVE

Forward

Reverse

Table 21

TRAVEL SPEEDS FOR 442E WITH AUTO SHIFT

Forward

Reverse

5.9 km/h

(3.7 mph)

5.9 km/h

(3.7 mph)

TRANSMISSION

Second

8.7 km/h

(5.4 mph)

11.5 km/h
(7.1 mph)

TRANSMISSION

First

Gear

6.0 km/h

(3.7 mph)

6.0 km/h

(3.7 mph)

TRANSMISSION

First

Gear

Gear

Second

Gear

9.6 km/h

(6.0 mph)

9.6 km/h

(6.0 mph)

Second

Gear

9.5 km/h

(5.9 mph)

12.4 km/h
(7.7 mph)

Third

Gear

18.0 km/
h

(11.2

mph)

24.8 km/
h

(15.4
mph)

(12.3 mph)

(12.3 mph)

Third

Gear

19.9 km/
h

(12.3
mph)

27.0 km/
h

(16.8
mph)

Fourth

Gear

24.8 km/h
(15.4
mph)

Third

Gear

19.9 km/h

19.9 km/h

Fourth

Gear

27.4 km/

(17.0
mph)

Fifth
Gear

37.5 km/

(23.3
mph)

Fourth

Gear

40.5 km/h

(25.1 mph)

40.5 km/h

(25.1 mph)

Fifth

Gear

42.0 km/

h

(26.0
mph)

33

Product Information Section

Rated Load

Table 23

TRAVEL SPEEDS FOR 444E WITH AUTO SHIFT

TRANSMISSION

First

h

Forward

Reverse

Gear

5.9 km/h

(3.7 mph)

5.9 km/h

(3.7 mph)

Second

Gear

9.4 km/h

(5.8 mph)

12.2 km/h
(7.6 mph)

Third
Gear

19.6 km/
h

(12.2
mph)

26.6 km/
h

(16.5
mph)

Fourth

Gear

27.1 km/
h

(16.8
mph)

Fifth

Gear

41.3 km/
h

(25.6
mph)

i04768509

Rated Load

SMCS Code: 6001; 6136; 6542; 7000

Failure to comply with the rated load can cause
personal injury or attachment damage.

Review the rated load of a particular attachment
before performing any operation. Make adjust­ments to the rated load as necessary for non­standard configurations.

h

Note: Rated loads are based upon a standard
machine with the following conditions:

• Lubricants

• Full fuel tank

• Enclosed ROPS

Table 22

TRAVEL SPEEDS FOR 444E WITH STANDARD DRIVE

TRANSMISSION

Forward

Reverse

First
Gear

6.1 km/h

(3.8 mph)

6.1 km/h

(3.8 mph)

Second

Gear

9.7 km/h

(6.0 mph)

9.7 km/h

(6.0 mph)

Third

Gear

20.1 km/h

(12.5 mph)

20.1 km/h

(12.5 mph)

Fourth

Gear

40.4 km/h

(25.0 mph)

40.4 km/h

(25.0 mph)

• 80 kg (176 lb) operator

Note: A standard machine for backhoe bucket lifting
and object handling consists of:multipurpose bucket,
recommended counterweight, standard cab and no
rear worktool.

Note: A standard machine for loader bucket lifting,
fork applications and the material handling arm,
consists of:standard stick, 61 cm (24 inch) hoe
bucket, standard cab and recommended
counterweight.

Rated loads will vary with different work tools and
attachments. Consult your Cat dealer regarding the
rated load for specific work tools and attachments.

34

Product Information Section
Rated Load

Rated loads were calculated with a machine that was
equipped with a standard bucket and no quick

coupler. If other combinations of work tools are used,
the difference between the weight of the work tool
and/or quick coupler and the standard bucket must
be subtracted from the rated loads.

Note: Rated loads should be used as a guide.
Attachments, uneven ground conditions, soft ground
conditions, or poor ground conditions have effects on
rated loads. The operator is responsible for being
aware of these effects.

Note: Incorrect tire pressures can affect the stability
of the load. Ensure that the tire pressures are correct
before you perform handling or loading operations.
Refer to Operation and Maintenance Manual, “Tire
Inflation Information” for more information.

SEBU8475-10

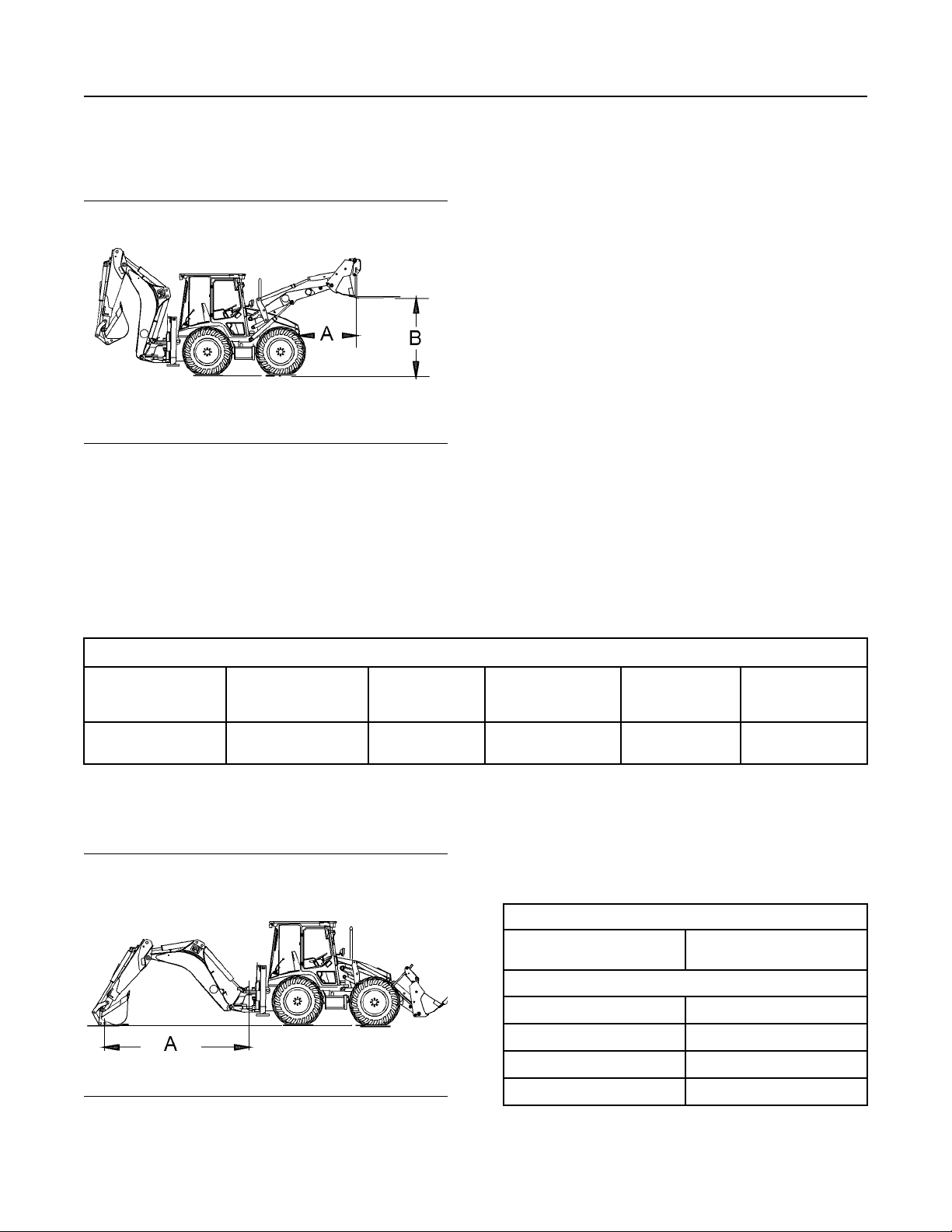

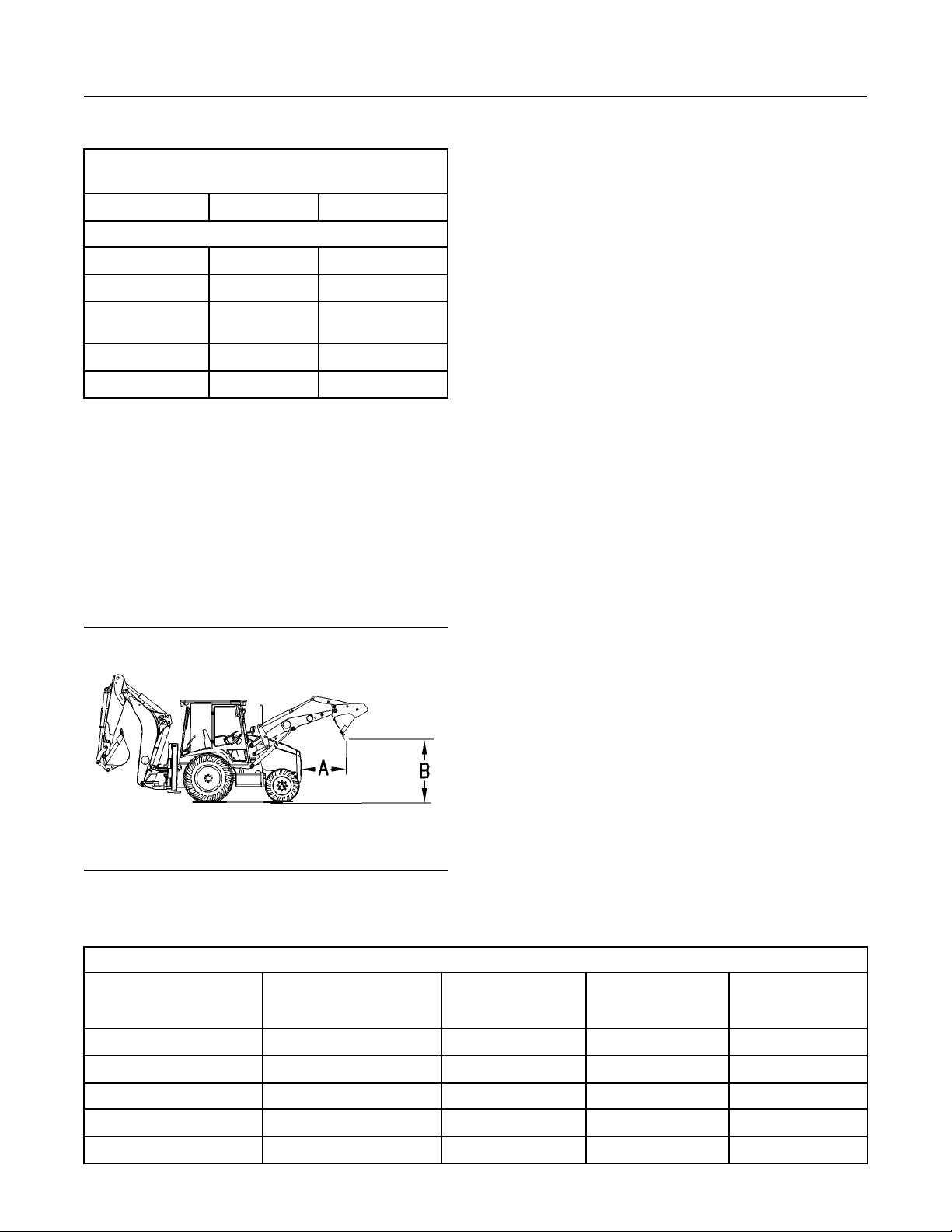

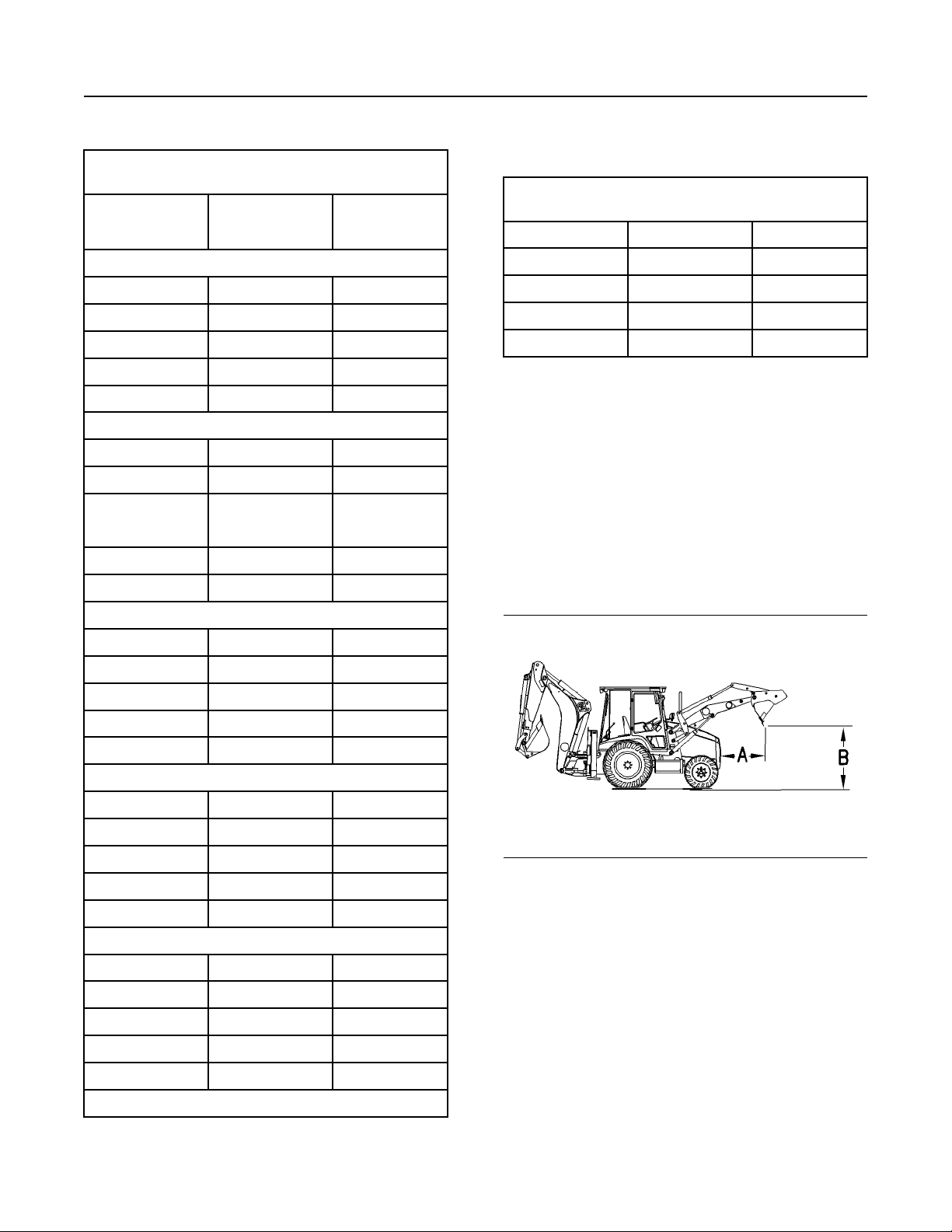

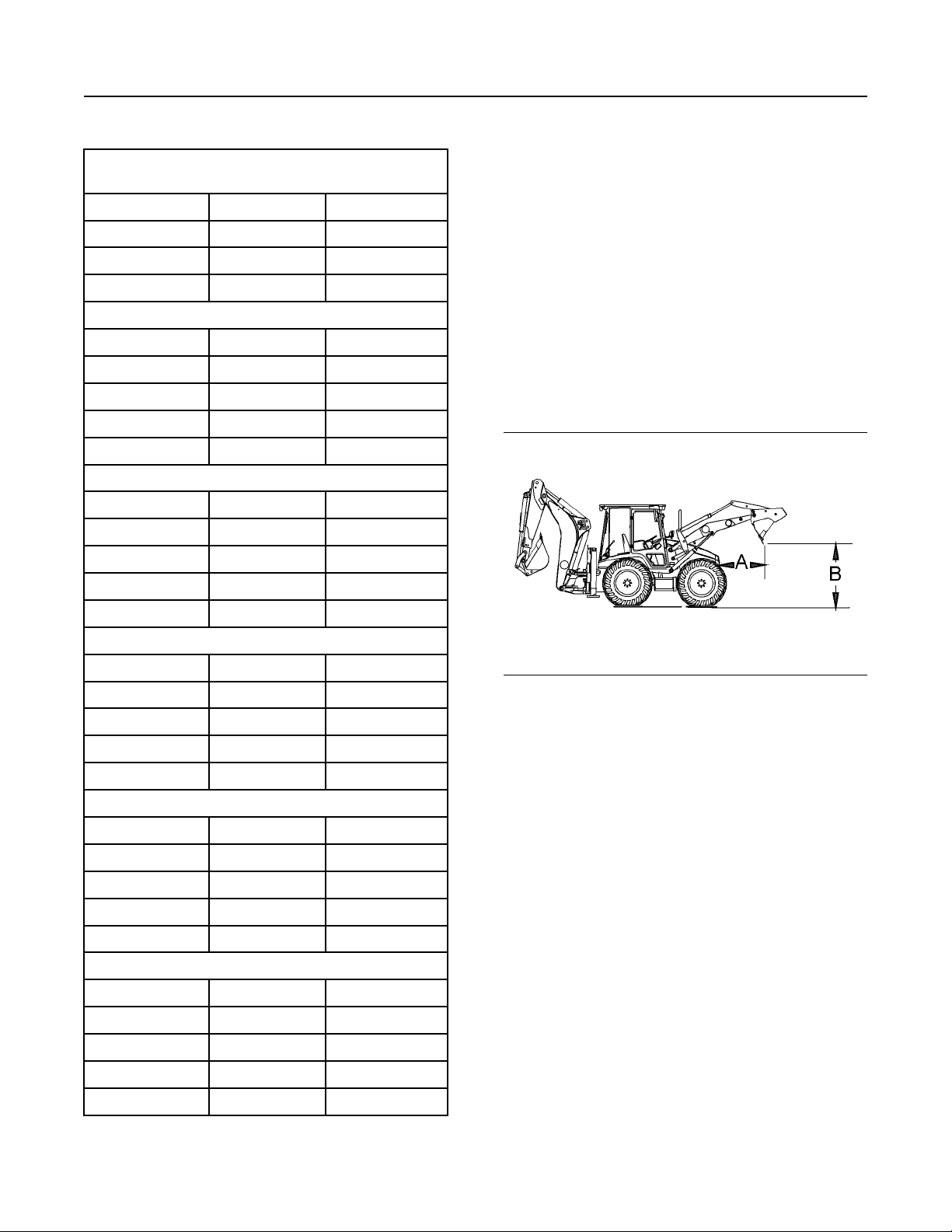

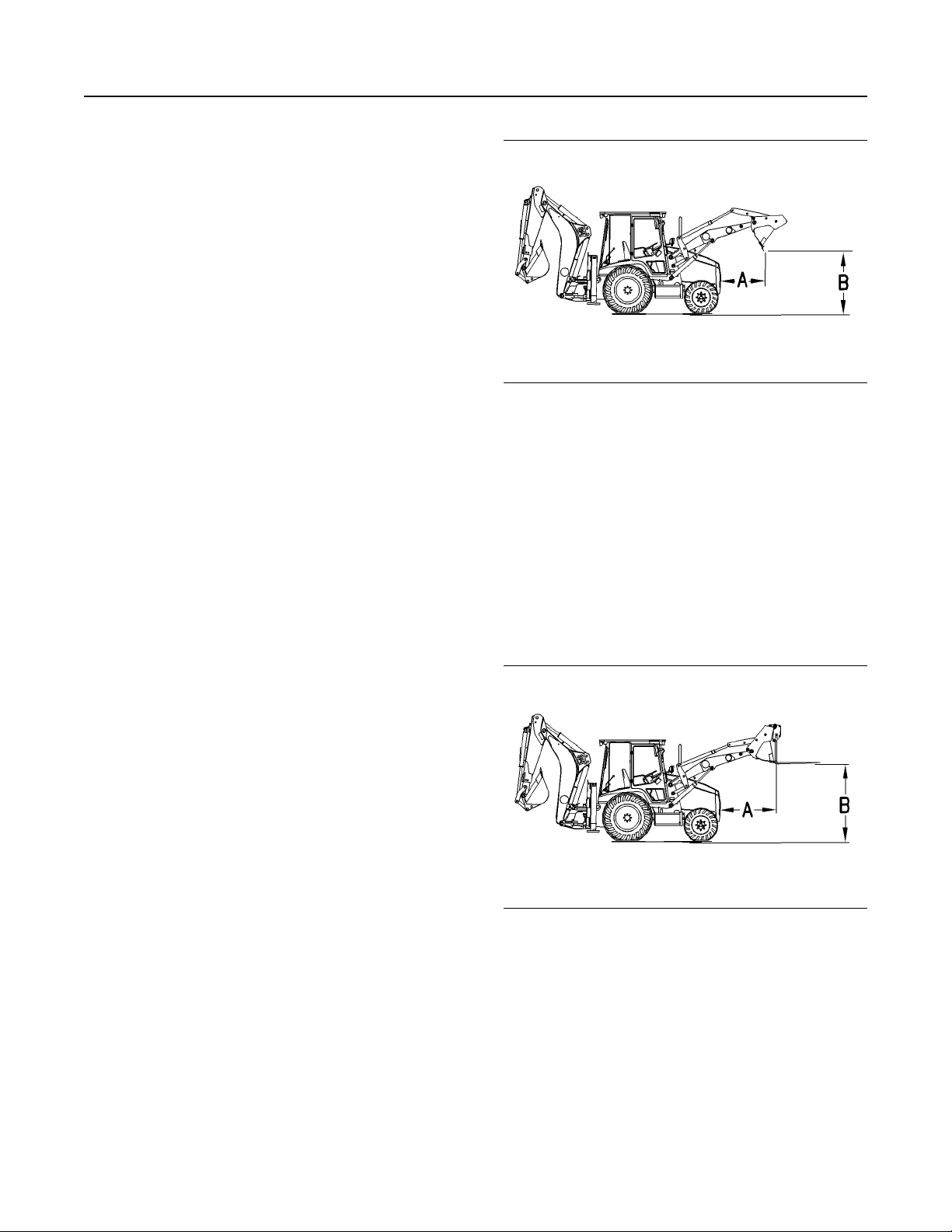

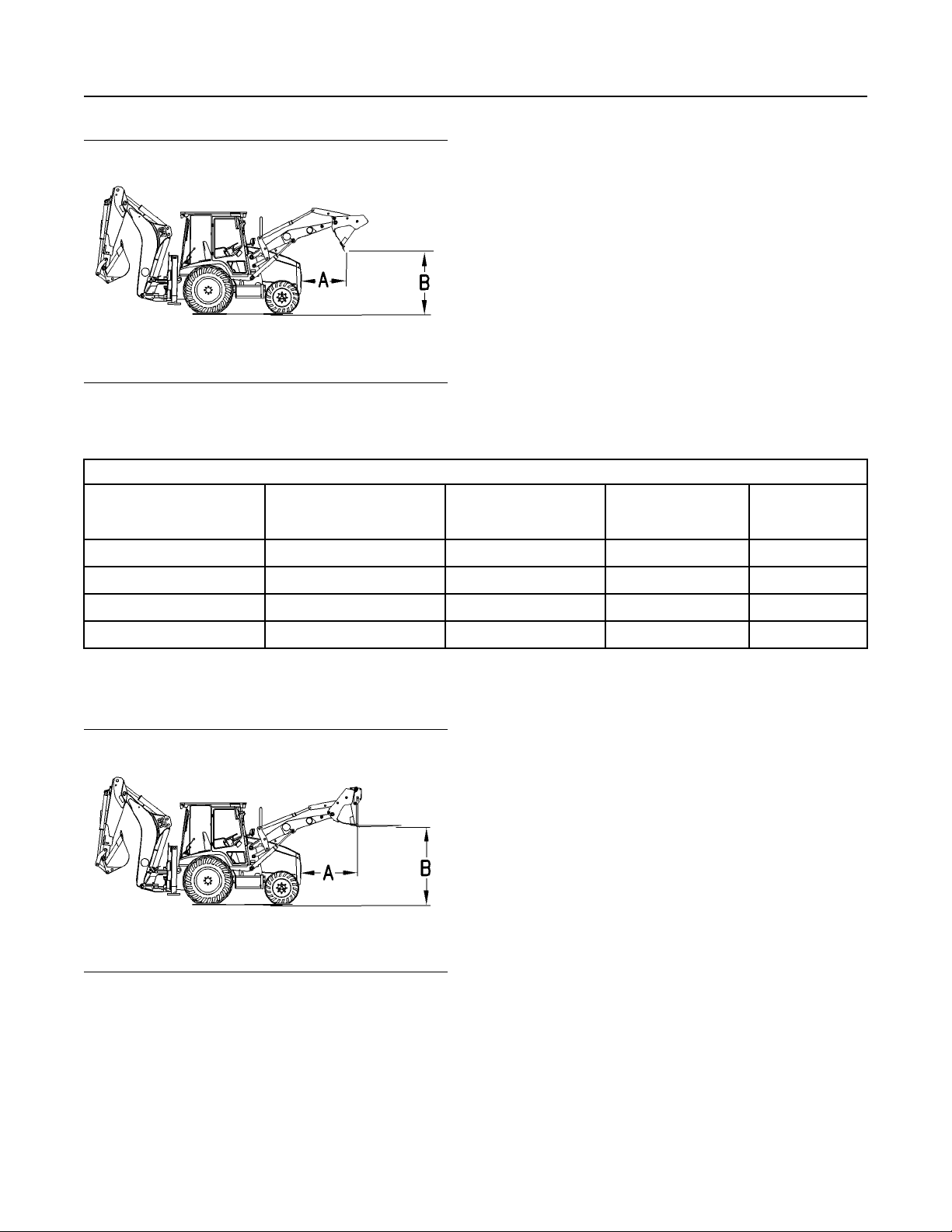

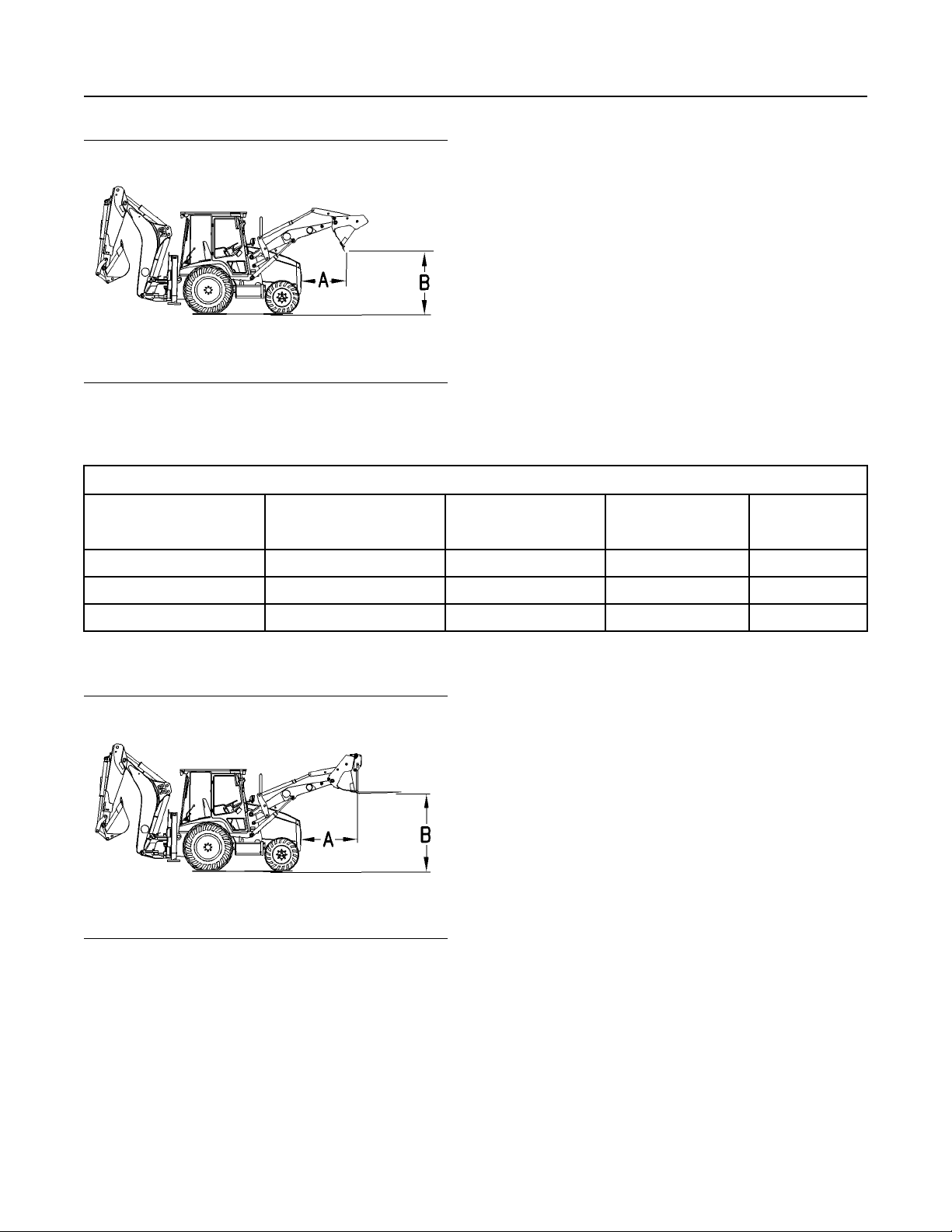

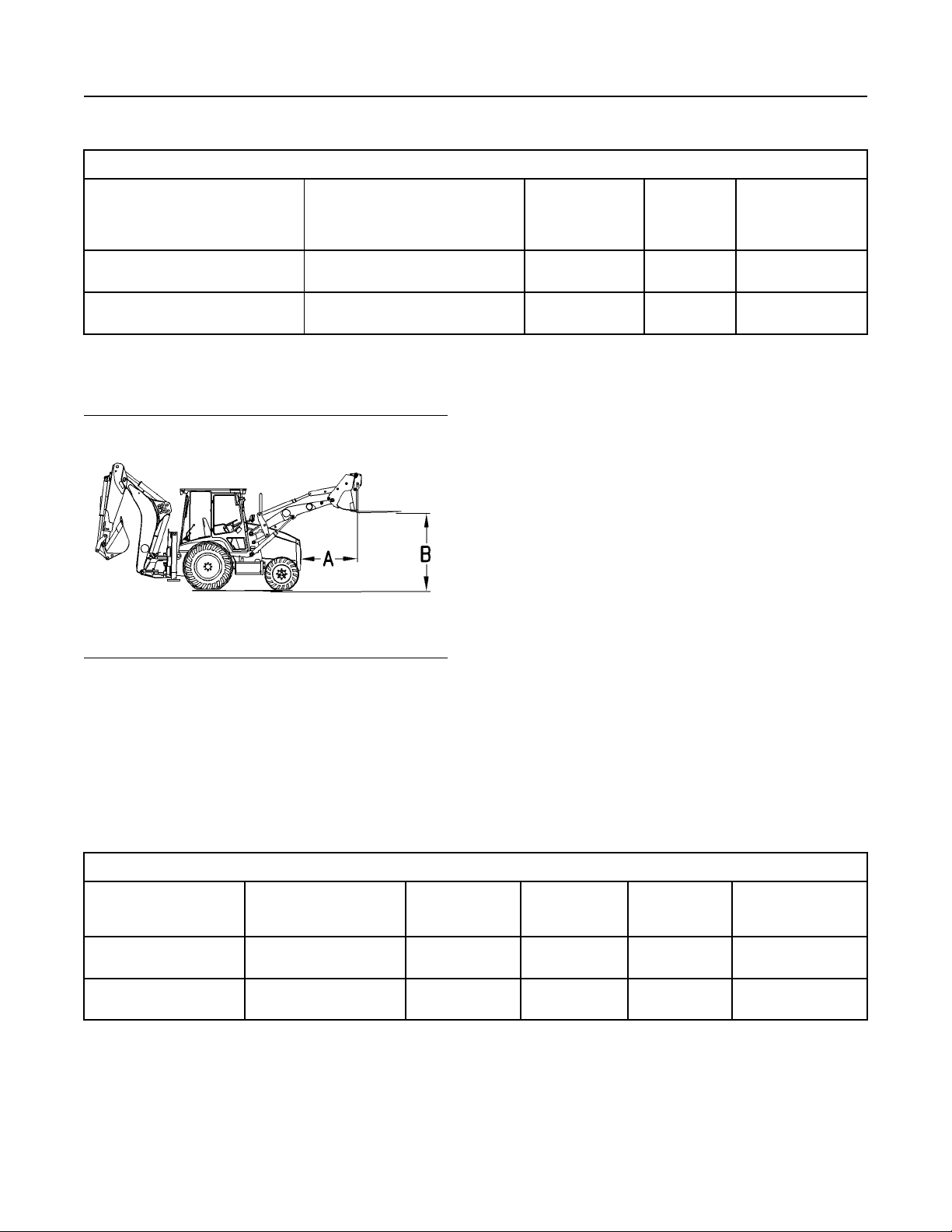

Illustration 32 g00285635

Dump Reach (A) and Dump Height (B)

Special hazards (toxic gases, ground conditions, etc)
require special precautions. The operator must
determine whether special hazards exist in each
application. The operator shall perform the
appropriate steps in order to eliminate the hazard.
The operator shall perform the appropriate steps in
order to reduce the hazard.

Rated Load for Loader Buckets

For European applications, the rated operating load
is defined by “EN 474-4:2006 +A1:2009”. The rated
operating load is defined as the lesser value of 50%
of the static tipping capacity or the hydraulic lift
capacity, or as otherwise specified.

Rated Load for Pallet Forks

For European applications, the rated operating load
is defined by “EN 474-4:2006 +A1:2009”. The rated
operating load is defined as the lesser value of 80%
of the static tipping capacity or the hydraulic lift
capacity over firm and level ground. In rough terrain,
the rated operating load is defined as the lesser value
of 60% of the static tipping capacity or the hydraulic
lift capacity. The intended operating range of the
pallet forks starts from the fully racked back position.
The range ends at the top face of the pallet forks at
20° below the horizontal at any given lift height.

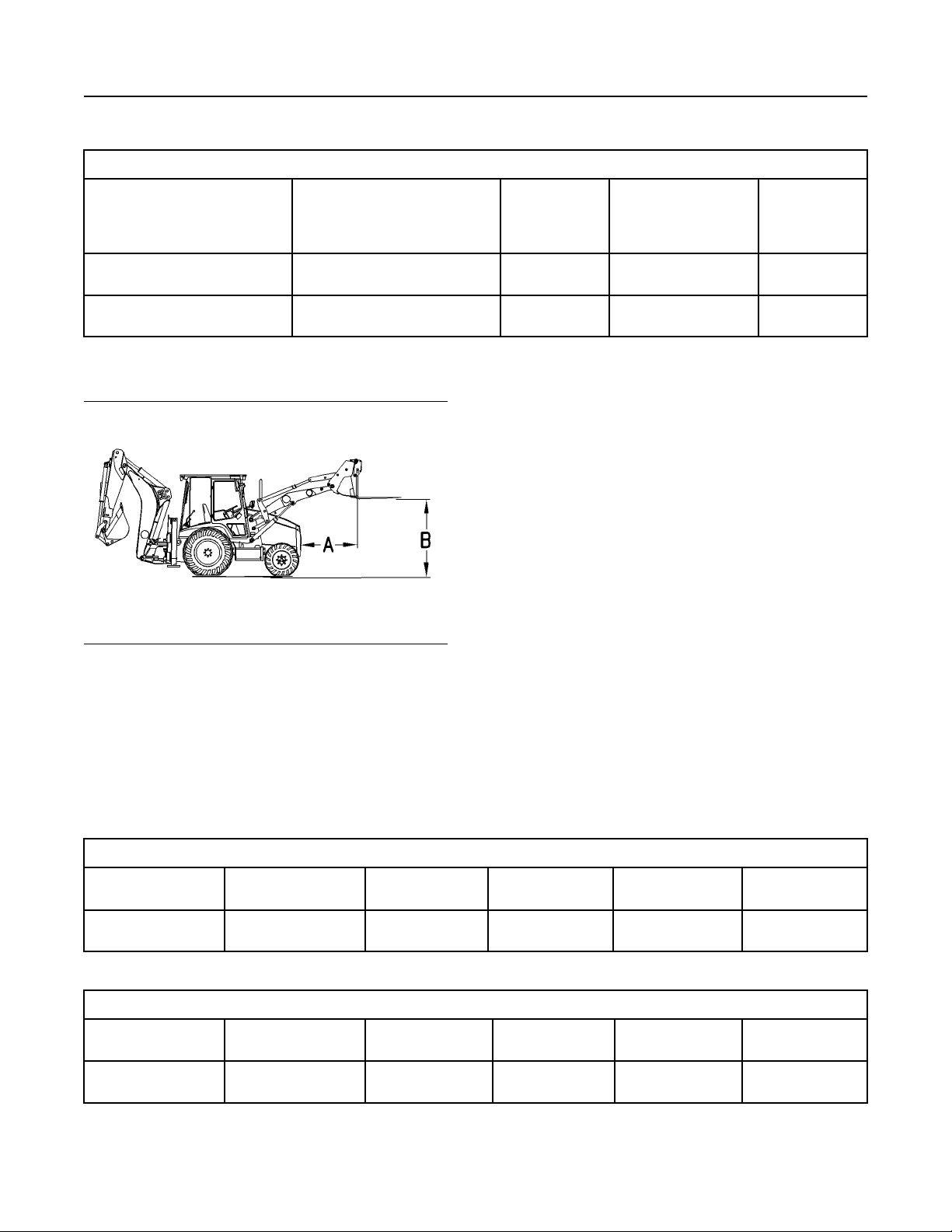

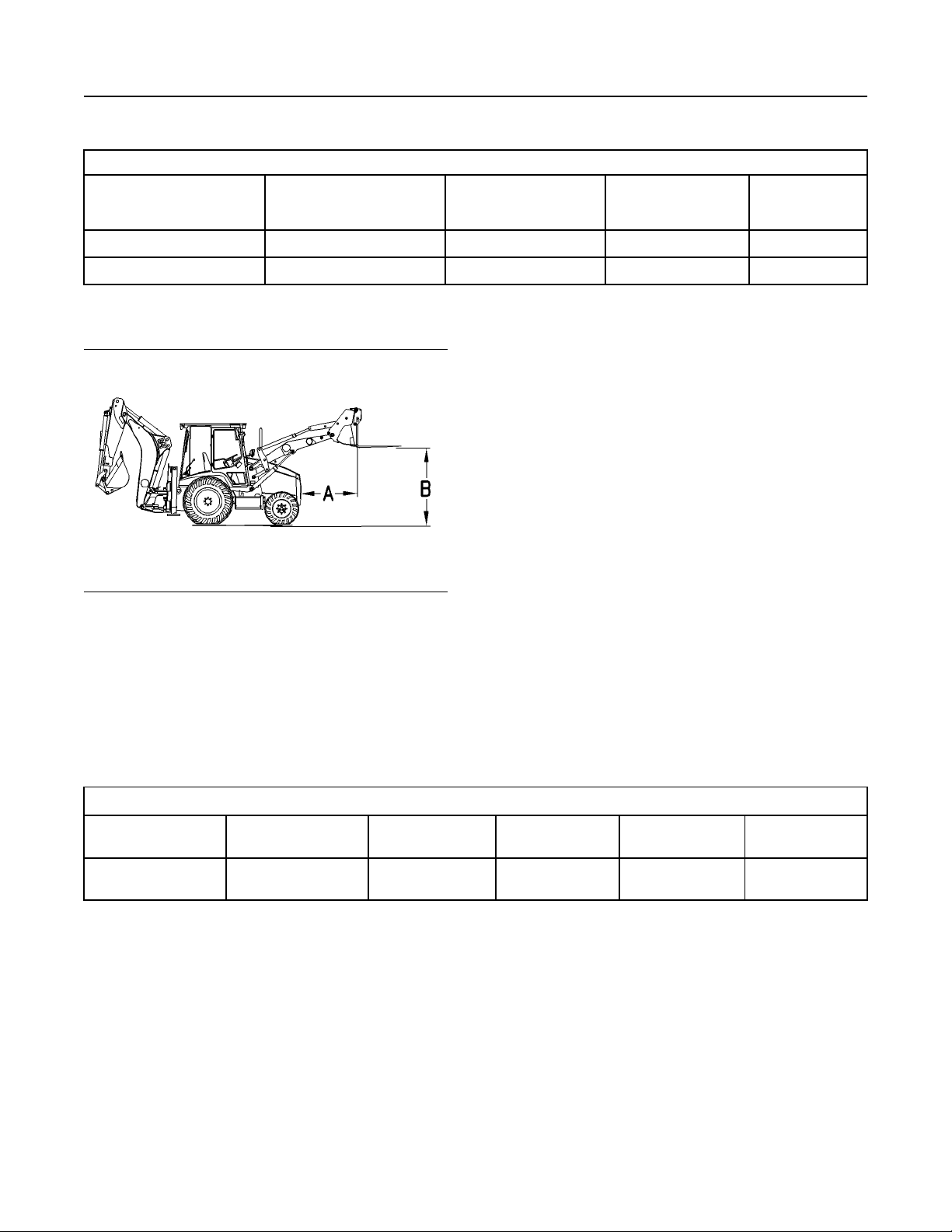

Illustration 33 g00285636

Reach (A) and Placement Height (B)

Rated Load for Material Handling
Arm

The rated operating load is defined by “EN 474­4:2006 +A1:2009”. The rated operating load is
defined as the lesser value of 50% of the static

tipping capacity or the hydraulic lift capacity.

SEBU8475-10

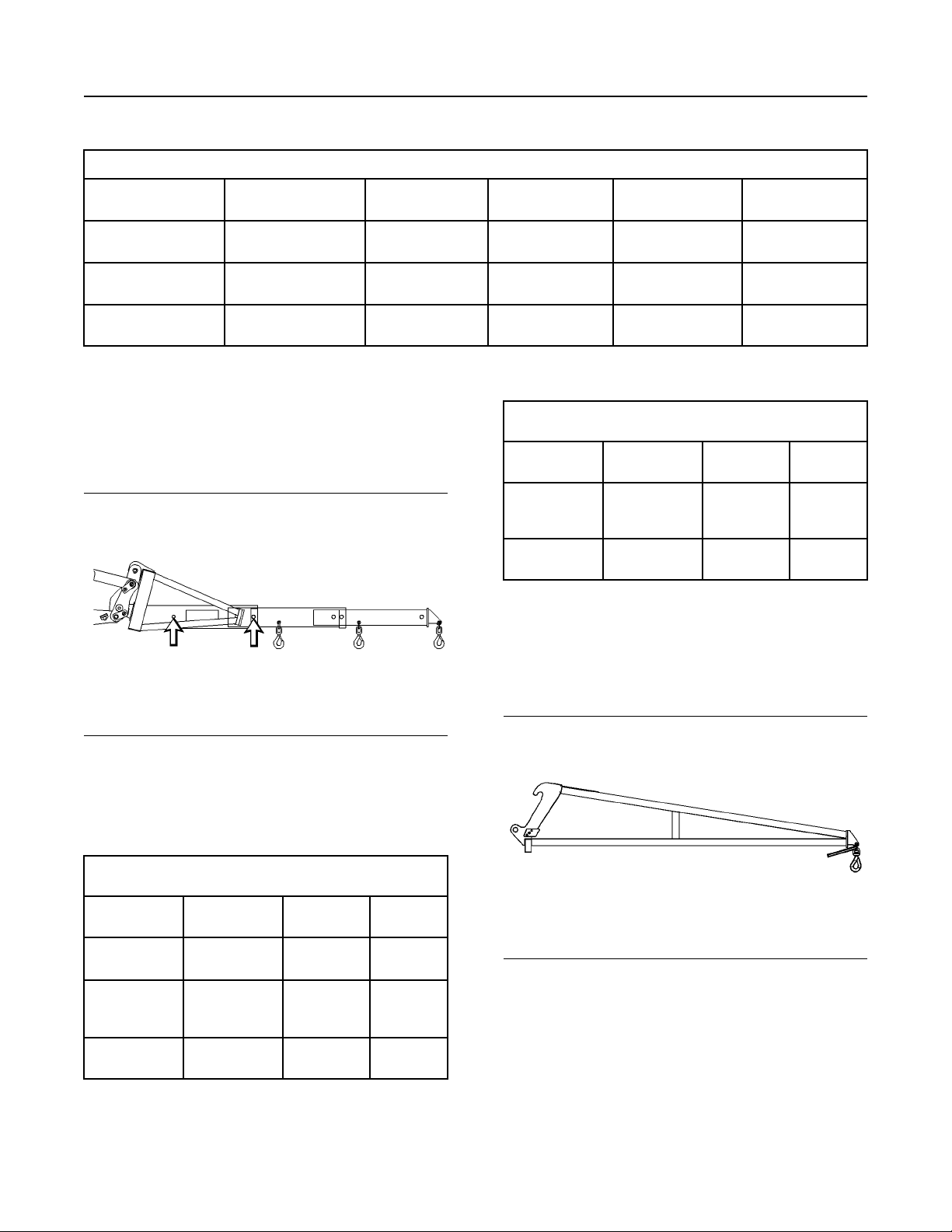

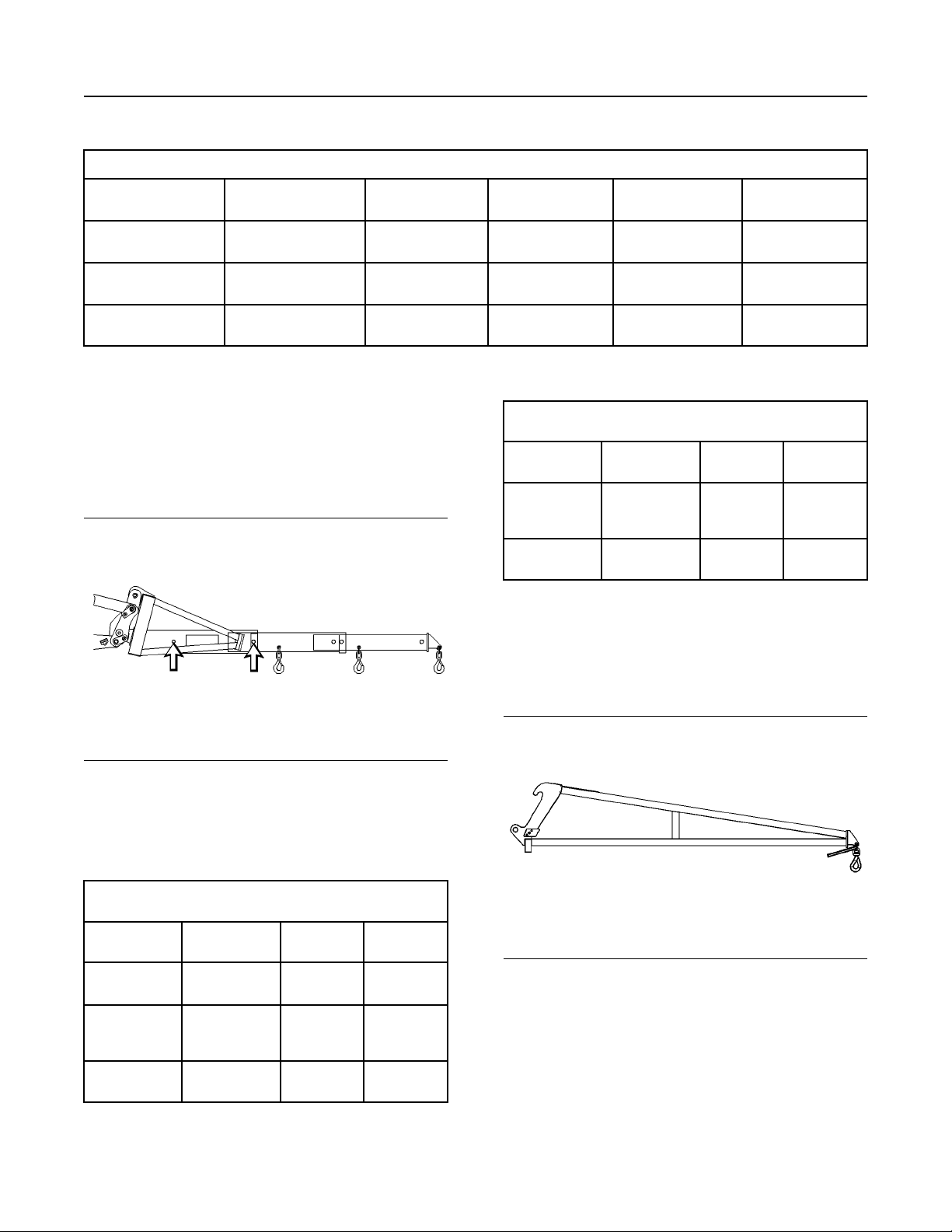

Illustration 34 g00285638

Remove the retainer pins from the arm in order to
extend or retract the arm.

Replace the pins after the arm has been extended or
retracted in order to lock the arm into position.

35

Product Information Section

Rated Load

Do not apply side loads on the hook and on the
shackle. Check the condition of the hook, of the

shackle and of any lifting chains. Replace the parts if
any sign of unusual wear is indicated.

Rated Load for Hook

The rated operating load is defined by “EN 474­4:2006 +A1:2009”. The rated operating load is
defined as the lesser value of 50% of the static

tipping capacity or the hydraulic lift capacity.

Lift the load close to the machine for best stability.
Move the machine slowly in order to avoid excessive
load swing.

Do not apply side loads on the hook and on the
shackle. Check the condition of the hook, of the

shackle and of any lifting chains. Replace the parts if
any sign of unusual wear is indicated.

Rated Load for Truss Boom

The rated operating load is defined by “EN 474­4:2006 +A1:2009”. The rated operating load is
defined as the lesser value of 50% of the static

tipping capacity or the hydraulic lift capacity.

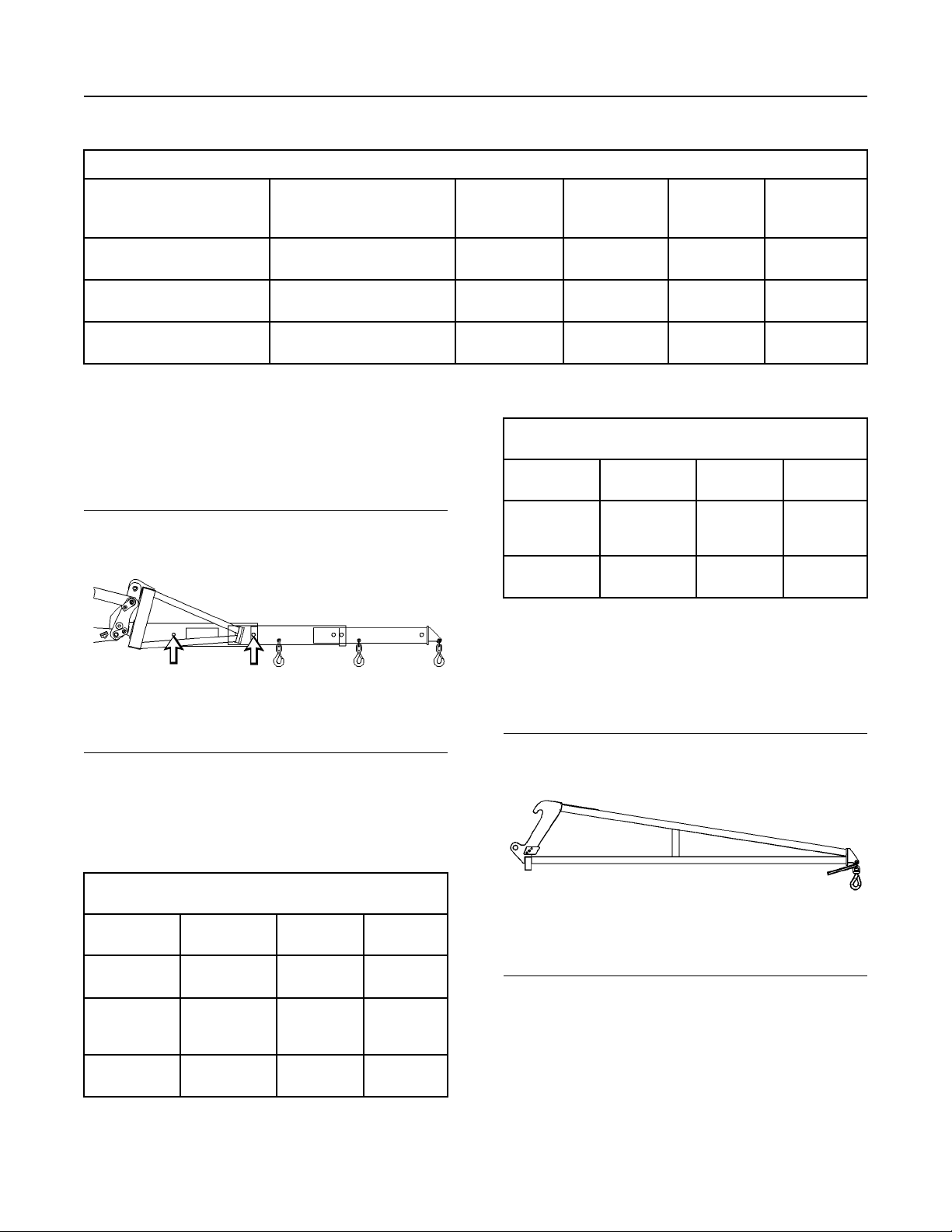

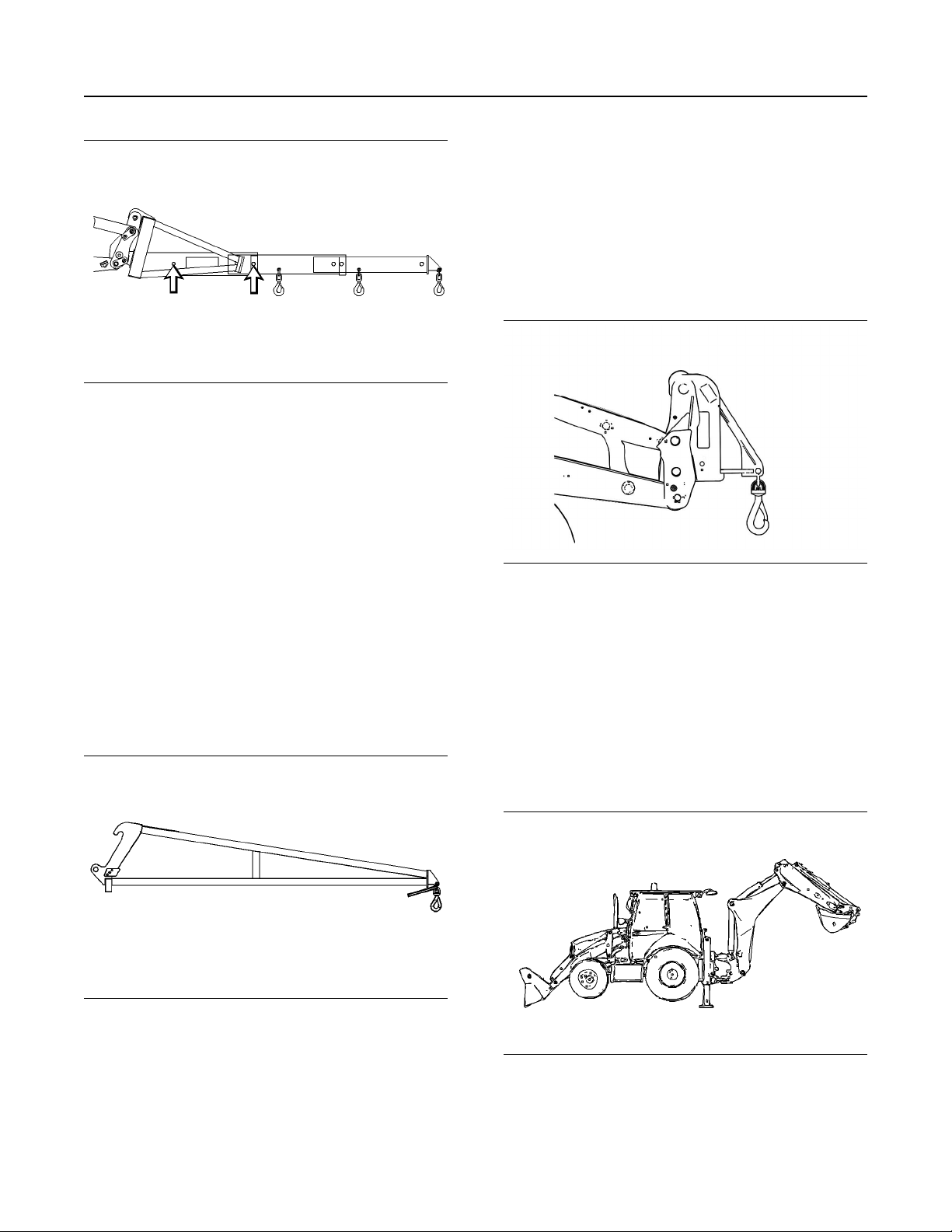

Illustration 36 g02042153

Lift the load close to the machine for best stability.
Move the machine slowly in order to avoid excessive
load swing.

Do not apply side loads on the hook and on the
shackle. Check the condition of the hook, of the

shackle and of any lifting chains. Replace the parts if
any sign of unusual wear is indicated.

Rated Load for Backhoe Object
Handling

Illustration 35 g02042134

Lift the load close to the machine for best stability.
Move the machine slowly in order to avoid excessive
load swing.

Illustration 37 g01977833

Backhoe Lifting and Object Handling Position

36

Product Information Section
Rated Load

SEBU8475-10

Before lifting and before object handling place the
machine on level ground. Lower the stabilizers and
lower the bucket to stabilize the machine. Test the

object handling stability alarm, refer to Operation and
Maintenance Manual, “Operator Controls” for more
information.

The rated load for the backhoe lifting applications is
defined by “EN 474-4:2006 +A1:2009”. Rated
operating loads are given according to this standard.

The rated lift capacity for the backhoe loader used in
the bucket application or used in the shovel
application is defined as the lesser value of the
following conditions at the specified lift point radius:

• 75% of the static tipping load

• The hydraulic lifting capacity

• 75% of the hydraulic holding capacity

Note: You may only perform lifting applications with
the correct linkage. The correct linkage will have a
lifting eye in the linkage. If there is not a lifting eye in
the linkage, lifting applications are not allowed.

• 75% of the static tipping load

• 75% of the hydraulic holding capacity

• 87% of the hydraulic lifting capacity

Illustration 40 g00286077

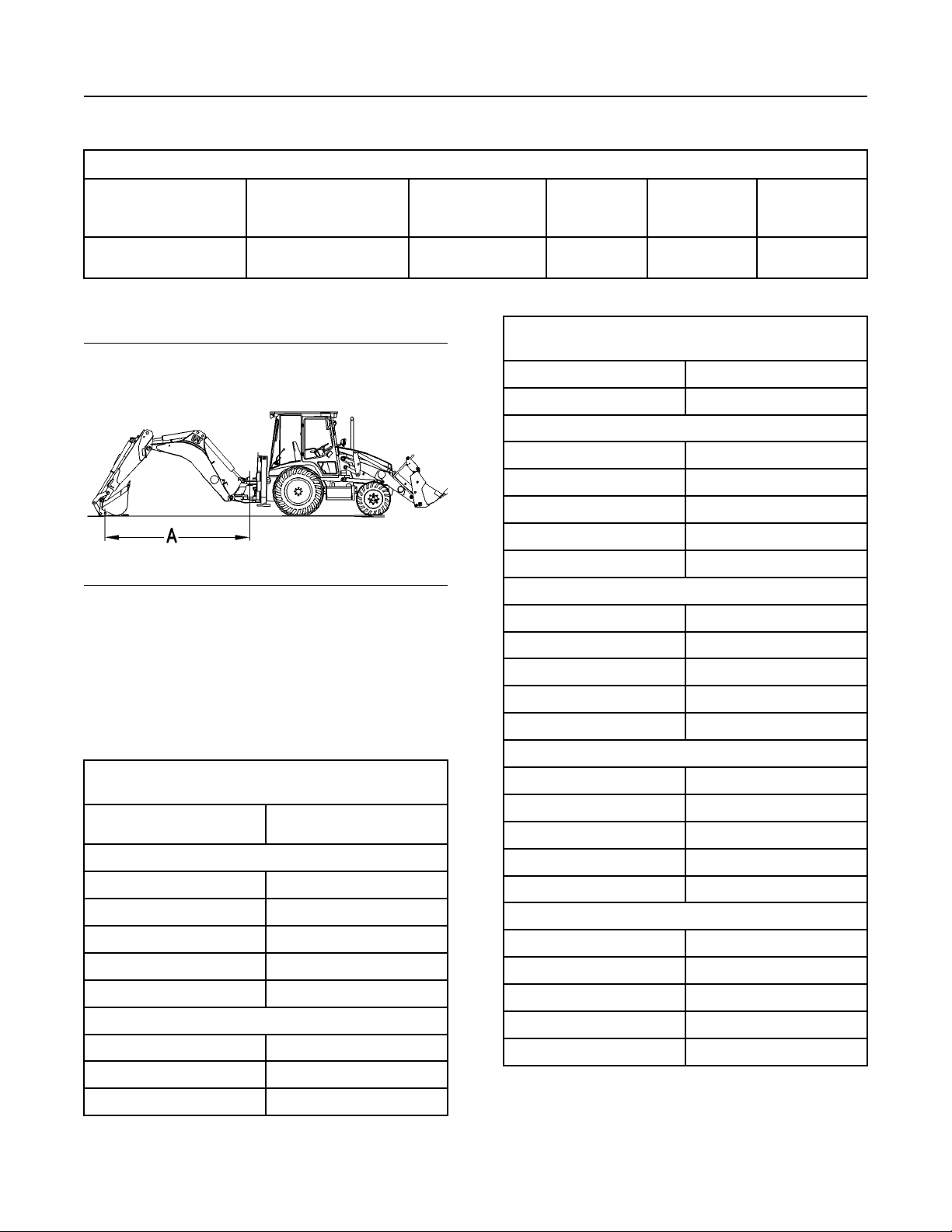

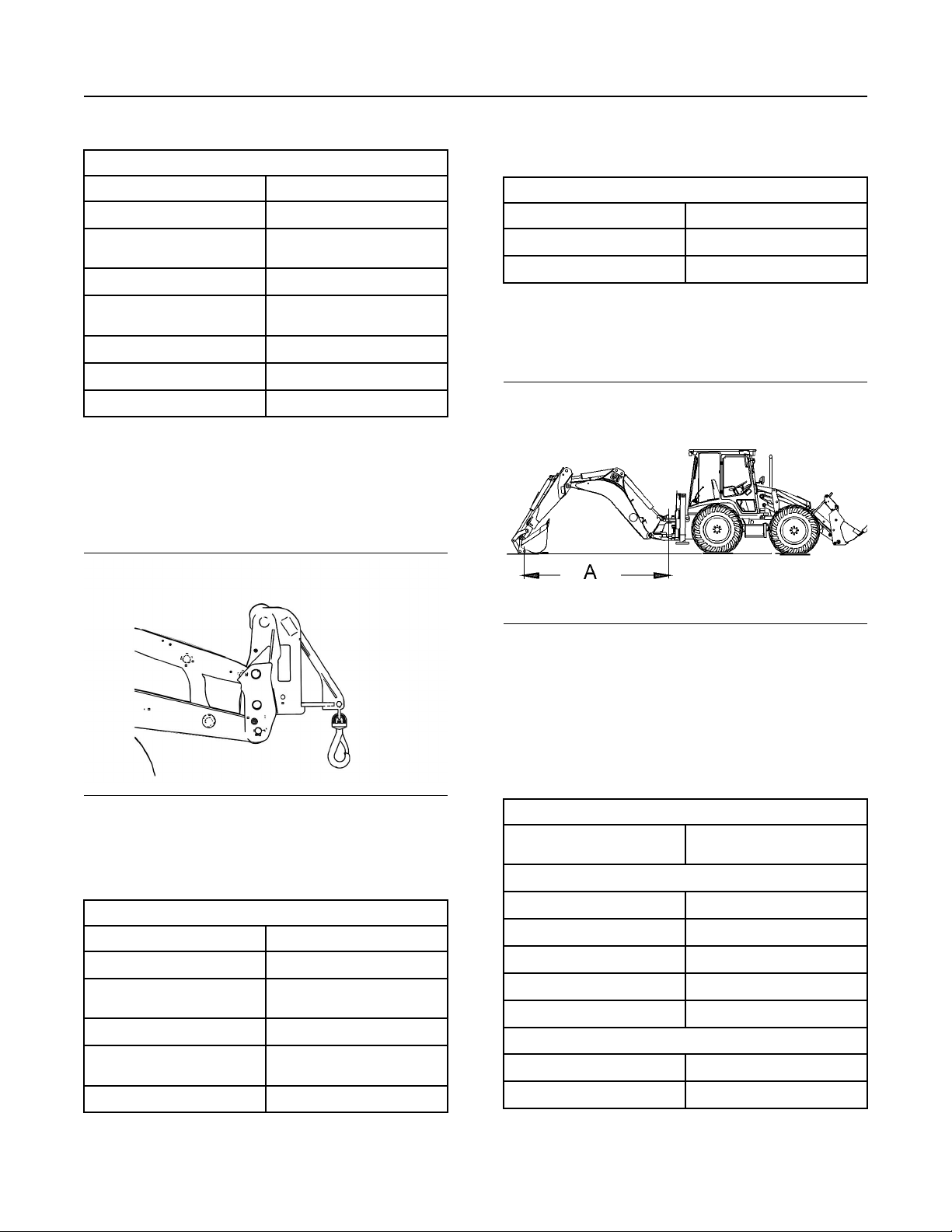

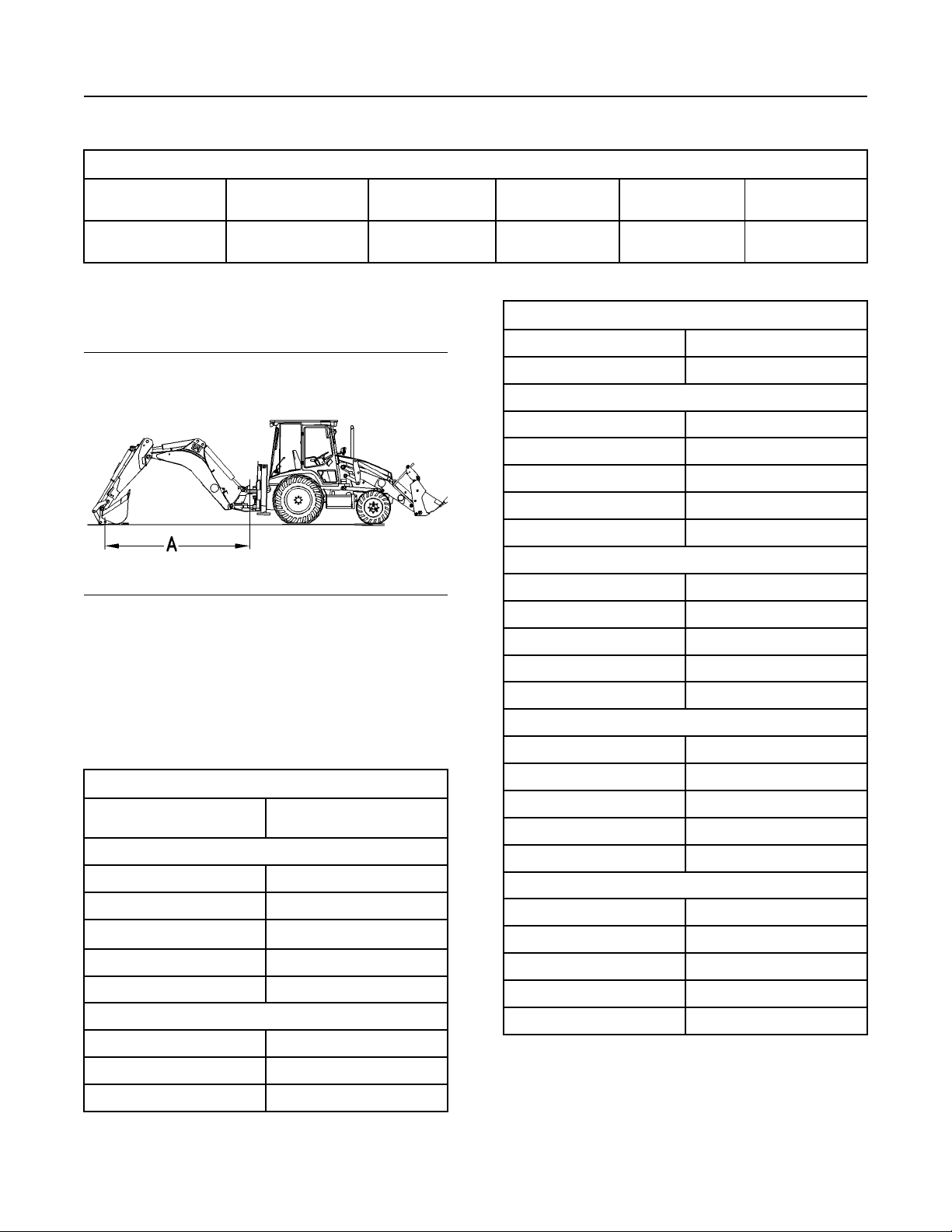

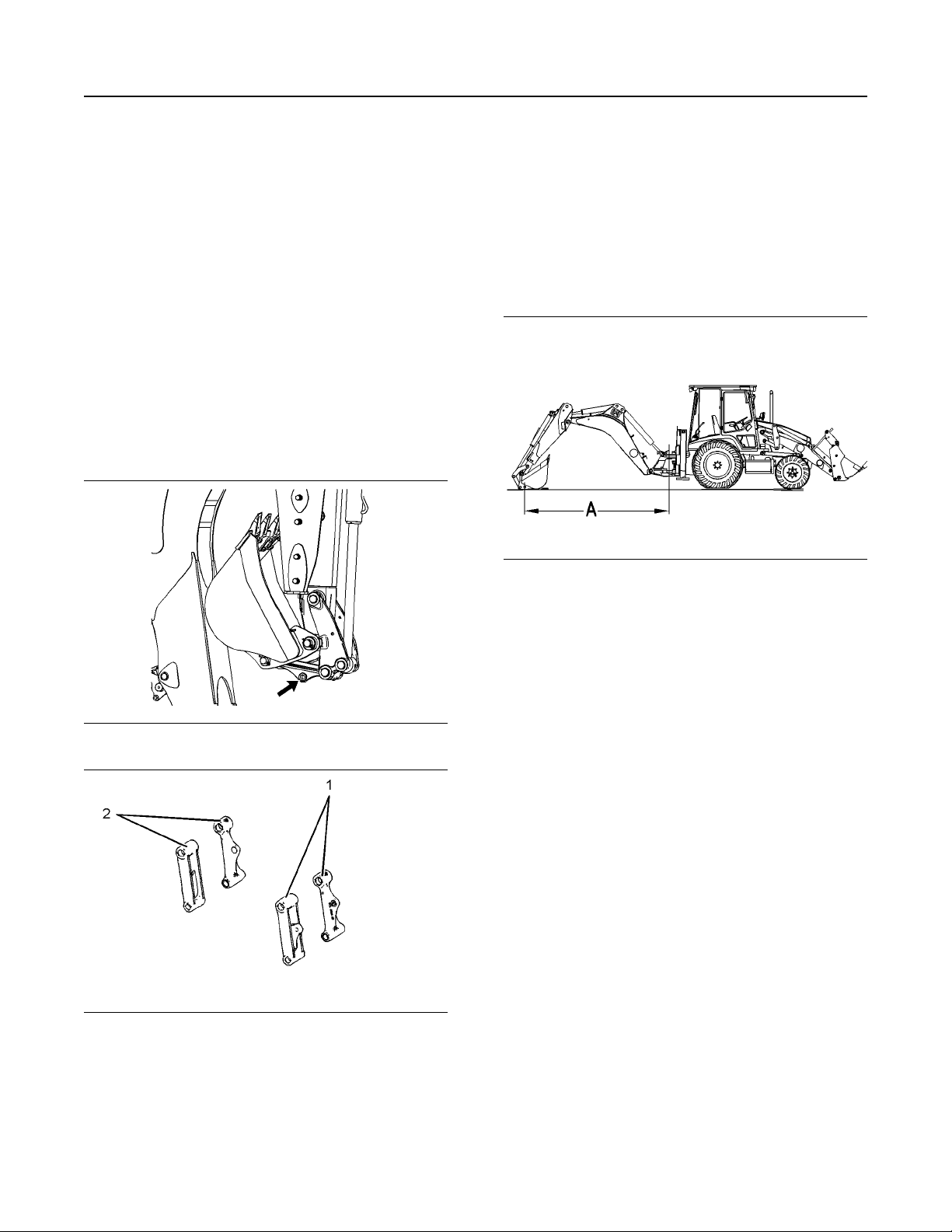

Lift Point Radius (A)

Illustration 38 g01967554

Illustration 39 g01977913

Linkage with lift eye (1).
Linkage without lift eye

(2).

The lift point radius is defined as the distance from
the swing pivot center to the bucket hinge pin for the
backhoe. The bucket hinge pin for the backhoe is
level with the lower boom hinge pin at each lift point
radius (A). Rated loads do not include the weight of
the attachment. The rated operating loads are for the
standard machine configuration.

422E Loader Buckets

The following tables provide the rated operating
loads for the standard machine that is equipped with
the given bucket. The corresponding dump clearance
is given for each bucket at maximum lift height and at
the full dump angle. The reach is given for each
bucket at maximum lift height and at the full dump
angle. Clearance is measured from the ground to the
bucket edge in order to dump the load. The reach is
measured from the front grill to the bucket edge.

The rated operating load for backhoe object handling
applications is defined as the lesser value of the
following conditions at the specified lift point radius:

SEBU8475-10

Illustration 41 g00285635

Dump Reach (A) and Dump Height (B)

Table 24

Rated Bucket Load For A 422E With Single Tilt

37

Product Information Section

Rated Load

Bucket Part Number VOLUMETRIC RATING

3

9R-5202

318-7265

318-7266

1.00 m

1.03 m

1.03 m

(1.31 yd3) 2349 kg (5178 lb) 2470 mm (8 ft 1 inch) 753 mm (2 ft 6 inch)

3

(1.35 yd3) 2440 kg (5380 lb) 2508 mm (8 ft 3 inch) 681 mm (2 ft 3 inch)

3

(1.35 yd3) 2364 kg (5212 lb) 2508 mm (8 ft 3 inch) 681 mm (2 ft 3 inch)

422E Pallet Forks

Illustration 42 g00285636

Reach (A) and Placement Height (B)

“EN 474-4” and “SAE

J818” Rated Operating

Load

DUMP HEIGHT (B) DUMP REACH (A)

The following tables provide the rated operating
loads for the standard machine configuration with the
given loader type (Single Tilt, Parallel Lift, or Parallel
Lift with Quick Coupler). The rated loads are provided
for multipurpose buckets with the flip over fork and for
quick coupler type pallet forks that are associated
with the quick coupler carriage.

38

Product Information Section
Rated Load

Table 25

SEBU8475-10

Rated Load For Flip Over Fork 422E Single Tilt

BUCKET PART NUMBER VOLUMETRIC RATING

3

318-7266

1.03 m

(1.35 yd3) 1174 kg (2589 lb)

“EN 474-4” Rated Op-

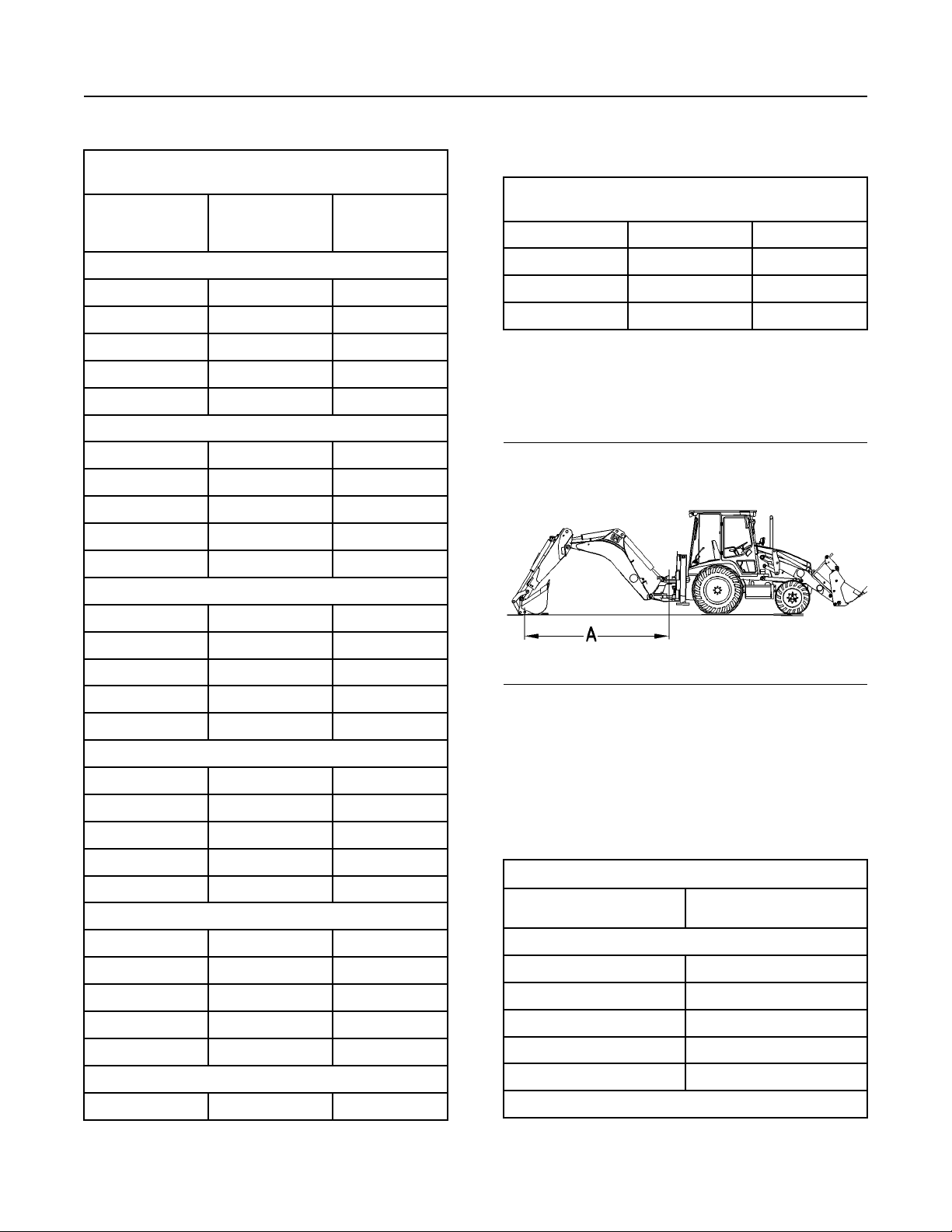

422E Backhoe Lifting

Illustration 43 g00286077

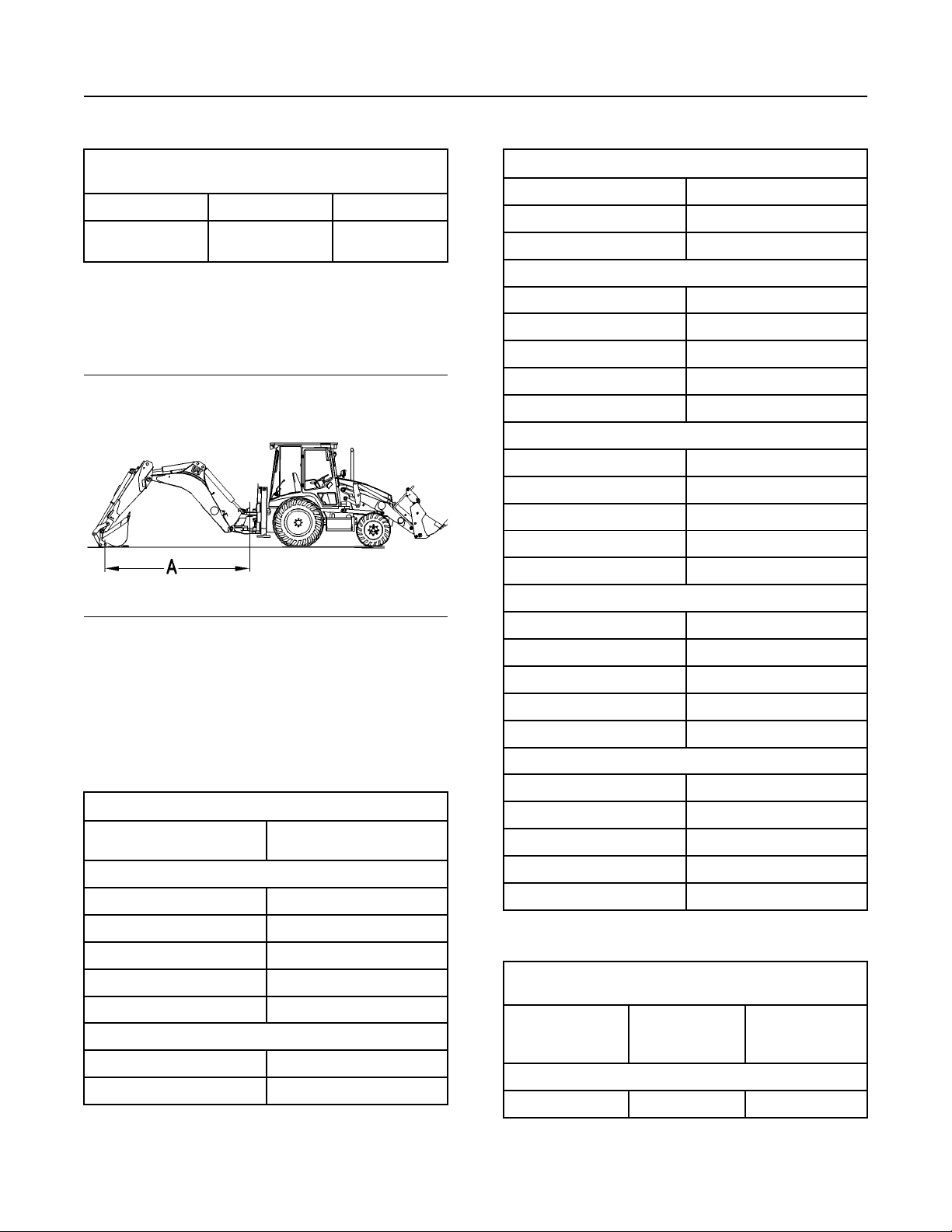

Lift Point Radius (A)

The bucket hinge pin for the backhoe is level with the
lower boom hinge pin at each lifting point in the
following tables. Rated loads do not include the
weight of the attachment. The following tables
provide the operating loads for the standard machine
configuration.

Table 26

422E Rated Operating Load For Backhoe Bucket

Lift Point Radius

Backhoe Straight Back, Standard Stick

1.74 m (5 ft 9 in) 4990 kg (11001 lb)

2.95 m (9 ft 8 in) 2801 kg (6175 lb)

3.72 m (12 ft 3 in) 2189 kg (4826 lb)

4.31 m (14 ft 2 in) 1864 kg (4110 lb)

4.81 m (15 ft 9 in) 1604 kg (3537 lb)

Backhoe Side Shifted, Swung to Side, Standard Stick

1.74 m (5 ft 9 in) 3563 kg (7854 lb)

2.95 m (9 ft 8 in) 1785 kg (3935 lb)

3.72 m (12 ft 3 in) 1304 kg (2874 lb)

Application

Rated Operating Load “EN

474-4”

(1)

(1)

(1)

(1)

erating Load

“SAE J1197”

Rated Operat-

ing Load

1163 kg

(2565 lb)

Placement Height

(B)

3004 mm

(9 ft 10 inch)

Reach (A)

1056 mm

(3 ft 6 inch)

(Table 26, contd)

422E Rated Operating Load For Backhoe Bucket

Application

4.32 m (14 ft 2 in) 1061 kg (2340 lb)

4.81 m (15 ft 9 in) 906 kg (1998 lb)

Backhoe Straight Back, Retracted E-Stick

1.75 m (5 ft 9 in) 4702 kg (10365 lb)

2.96 m (9 ft 8 in) 2595 kg (5721 lb)

3.73 m (12 ft 3 in) 2007 kg (4425 lb)

4.32 m (14 ft 2 in) 1693 kg (3732 lb)

4.81 m (15 ft 9 in) 1440 kg (3174 lb)

Backhoe Side Shifted Swung to Side, Retracted E-Stick

1.75 m (5 ft 9 in) 3243 kg (7150 lb)

2.96 m (9 ft 8 in) 1583 kg (3489 lb)

3.73 m (12 ft 3 in) 1123 kg (2476 lb)

4.32 m (14 ft 2 in) 891 kg (1963 lb)

4.81 m (15 ft 9 in) 742 kg (1637 lb)

Backhoe Straight Back, Extended E-Stick

2.17 m (7 ft 1 in) 1352 kg (2981 lb)

3.26 m (10 ft 8 in) 1635 kg (3604 lb)

4.28 m (14 ft 1 in) 1514 kg (3338 lb)

5.06 m (16 ft 7 in) 1356 kg (2989 lb)

5.73 m (18 ft 10 in) 1054 kg (2324 lb)

Backhoe Side Shifted, Swung to Side, Extended E-Stick

2.40 m (7 ft 10 in) 1137 kg (2506 lb)

3.26 m (10 ft 8 in) 1437 kg (3169 lb)

4.28 m (14 ft 1 in) 994 kg (2192 lb)

5.06 m (16 ft 7 in) 742 kg (1635 lb)

5.73 m (18 ft 10 in) 584 kg (1288 lb)

(1)

Limited by Tipping

(1)

(1)

(1)

(1)

(1)

(1)

(1)

(1)

(1)

(1)

(1)

(continued)

SEBU8475-10

Table 27

422E Rated Operating Load For Object Handling

Lift Point Radius

Backhoe Straight Back, Standard Stick

1.74 m (5 ft 9 inch) 2000 kg (4409 lb) 2000 kg (4409 lb)

2.95 m (9 ft 8 inch) 2000 kg (4409 lb) 2000 kg (4409 lb)

3.72 m (12 ft 3 inch) 2000 kg (4409 lb) 2000 kg (4409 lb)

4.31 m (14 ft 2 inch) 1864 kg (4110 lb) 1864 kg (4110 lb)

Application

Rated Operating

Load “SAE J31”/

“ISO 10567”

Rated Operating
Load “EN 474-4”

Product Information Section

Rated Load

(Table 27, contd)

422E Rated Operating Load For Object Handling

2.40 m (7 ft 10 inch) 1137 kg (2507 lb) 1137 kg (2507 lb)

3.26 m (10 ft 8 inch) 1437 kg (3168 lb) 1437 kg (3168 lb)

4.28 m (14 ft 1 inch) 994 kg (2191 lb)

5.06 m (16 ft 7 inch) 742 kg (1636 lb)

5.73 m (18 ft 9 inch) 584 kg (1287 lb)

(1)

Limited by Tipping

Application

(1)

994 kg (2191 lb)

(1)

742 kg (1636 lb)

(1)

584 kg (1287 lb)

39

(1)

(1)

(1)

4.81 m (15 ft 9 inch) 1604 kg (3537 lb) 1604 kg (3537 lb)

Backhoe Side Shifted, Swung to Side, Standard Stick

1.74 m (5 ft 9 inch) 2000 kg (4409 lb) 2000 kg (4409 lb)

(1)

2.95 m (9 ft 8 inch) 1785 kg (3935 lb)

3.72 m (12 ft 3 inch) 1304 kg (2875 lb)

4.31 m (14 ft 2 inch) 1061 kg (2339 lb)

4.81 m (15 ft 9 inch) 906 kg (1997 lb)

1785 kg (3935 lb)

(1)

1304 kg (2875 lb)

(1)

1061 kg (2339 lb)

(1)

906 kg (1997 lb)

Backhoe Straight Back, Retracted E-Stick

1.75 m (5 ft 9 inch) 2000 kg (4409 lb) 2000 kg (4409 lb)

2.96 m (9 ft 8 inch) 2000 kg (4409 lb) 2000 kg (4409 lb)

3.73 m (12 ft 3 inch) 2000 kg (4409 lb) 2000 kg (4409 lb)

4.32 m (14 ft 2 inch) 1693 kg (3732 lb) 1693 kg (3732 lb)

4.81 m (15 ft 9 inch) 1440 kg (3175 lb) 1440 kg (3175 lb)

Backhoe Side Shifted, Swung to Side, Retracted E-Stick

1.75 m (5 ft 8 inch) 2000 kg (4409 lb) 2000 kg (4409 lb)

(1)

2.96 m (9 ft 8 inch) 1583 kg (3490 lb)

3.73 m (12 ft 3 inch) 1123 kg (2476 lb)

4.32 m (14 ft 2 inch) 891 kg (1964 lb)

4.81 m (15 ft 9 inch) 742 kg (1636 lb)

1583 kg (3490 lb)

(1)

1123 kg (2476 lb)

(1)

891 kg (1964 lb)

(1)

742 kg (1636 lb)

428E Loader Buckets (Narrow
Frame)

(1)

(1)

(1)

(1)

(1)

(1)

(1)

(1)

The following tables provide the rated operating
loads for the standard machine that is equipped with
the given bucket. The corresponding dump clearance
is given for each bucket at maximum lift height and at
the full dump angle. The reach is given for each
bucket at maximum lift height and at the full dump
angle. Clearance is measured from the ground to the
bucket edge in order to dump the load. The reach is
measured from the front grill to the bucket edge.

Illustration 44 g00285635

Dump Reach (A) and Dump Height (B)

Backhoe Straight Back, Extended E-Stick

2.17 m (7 ft 2 inch) 1352 kg (2981 lb) 1352 kg (2981 lb)

3.26 m (10 ft 8 inch) 1635 kg (3605 lb) 1635 kg (3605 lb)

4.28 m (14 ft 1 inch) 1514 kg (3338 lb) 1514 kg (3338 lb)

5.06 m (16 ft 7 inch) 1356 kg (2989 lb) 1356 kg (2989 lb)

5.73 m (18 ft 9 inch) 999 kg (2202 lb) 999 kg (2202 lb)

Backhoe Side Shifted, Swung to Side, E-Stick

(continued)

40

Product Information Section
Rated Load

Table 28

Rated Bucket Load For A 428E Parallel Lift Loader

Bucket Part Number

320-9950

320-9947

Volumetric Rating

3

1.00 m

1.03 m

(1.31 yd3) 3310 kg (7298 lb) 2355 mm (7 ft 9 inch) 789 mm (2 ft 7 inch)

3

(1.35 yd3) 3147 kg (6938 lb) 2355 mm (7 ft 9 inch) 789 mm (2 ft 7 inch)

428E Pallet Forks (Narrow Frame)

“EN 474-4” and “SAE

J818” Rated Operating

Load

SEBU8475-10

Dump Height (B) Dump Reach (A)

Illustration 45 g00285636

Reach (A) and Placement Height (B)

The following tables provide the rated operating
loads for the standard machine configuration with the
given loader type (Single Tilt, Parallel Lift, or Parallel
Lift with Quick Coupler). The rated loads are provided
for multipurpose buckets with flip over forks and for
quick coupler type pallet forks that are associated
with the quick coupler carriage.

Table 29

Rated Load For Flip Over Fork 428E Single Tilt

Part Number

320-9947

Volumetric Rating

3

0.96 m

(1.26 yd3) 1602 kg (3532 lb) 1568 kg (3458 lb) 2855 mm (9 ft 4 inch)

“EN 474-4” Rated

Operating Load

428E Loader Buckets

The following tables provide the rated operating
loads for the standard machine that is equipped with
the given bucket. The corresponding dump clearance
is given for each bucket at maximum lift height and at
the full dump angle. The reach is given for each
bucket at maximum lift height and at the full dump
angle. Clearance is measured from the ground to the
bucket edge in order to dump the load. The reach is
measured from the front grill to the bucket edge.

“SAE J1197” Rated

Operating Load

Placement Height

(B)

Reach (A)

1231 mm

(4 ft 0 inch)

SEBU8475-10

Illustration 46 g00285635

Dump Reach (A) and Dump Height (B)

Table 30

Rated Bucket Load For A 428E Parallel Lift Loader

Bucket Part Number

112-1931

318-7263

318-7247

318-7264

(1)

Limited by Tipping

Volumetric Rating

3

1.00 m

1.03 m

1.03 m

1.03 m

(1.31 yd3) 3144 kg (6932 lb)

3

(1.35 yd3) 3124 kg (6888 lb)

3

(1.35 yd3) 3102 kg (6839 lb)

3

(1.35 yd3) 2981 kg (6537 lb) 2610 mm (8 ft 7 inch) 671 mm (2 ft 2 inch)

“EN 474-4” and “SAE

J818” Rated Operating

Load

(1)

(1)

(1)

41

Product Information Section

Rated Load

Dump Height (B) Dump Reach (A)

2574 mm (8 ft 5 inch) 743 mm (2 ft 5 inch)

2610 mm (8 ft 7 inch) 671 mm (2 ft 2 inch)

2610 mm (8 ft 7 inch) 671 mm (2 ft 2 inch)

428E Pallet Forks

Illustration 47 g00285636

Reach (A) and Placement Height (B)

The following tables provide the rated operating
loads for the standard machine configuration with the
given loader type (Single Tilt, Parallel Lift, or Parallel
Lift with Quick Coupler). The rated loads are provided
for multipurpose buckets with flip over forks and for
quick coupler type pallet forks that are associated
with the quick coupler carriage.

42

Product Information Section
Rated Load

Table 31

SEBU8475-10

Rated Load For Flip Over Fork 428E Parallel Lift

Part Number

318-7264

Volumetric Rating

3

1.03 m

(1.35 yd3) 1563 kg (3446 lb) 1530 kg (3372 lb)

“EN 474-4” Rated

Operating Load

428E Backhoe Lifting (Narrow
Frame)

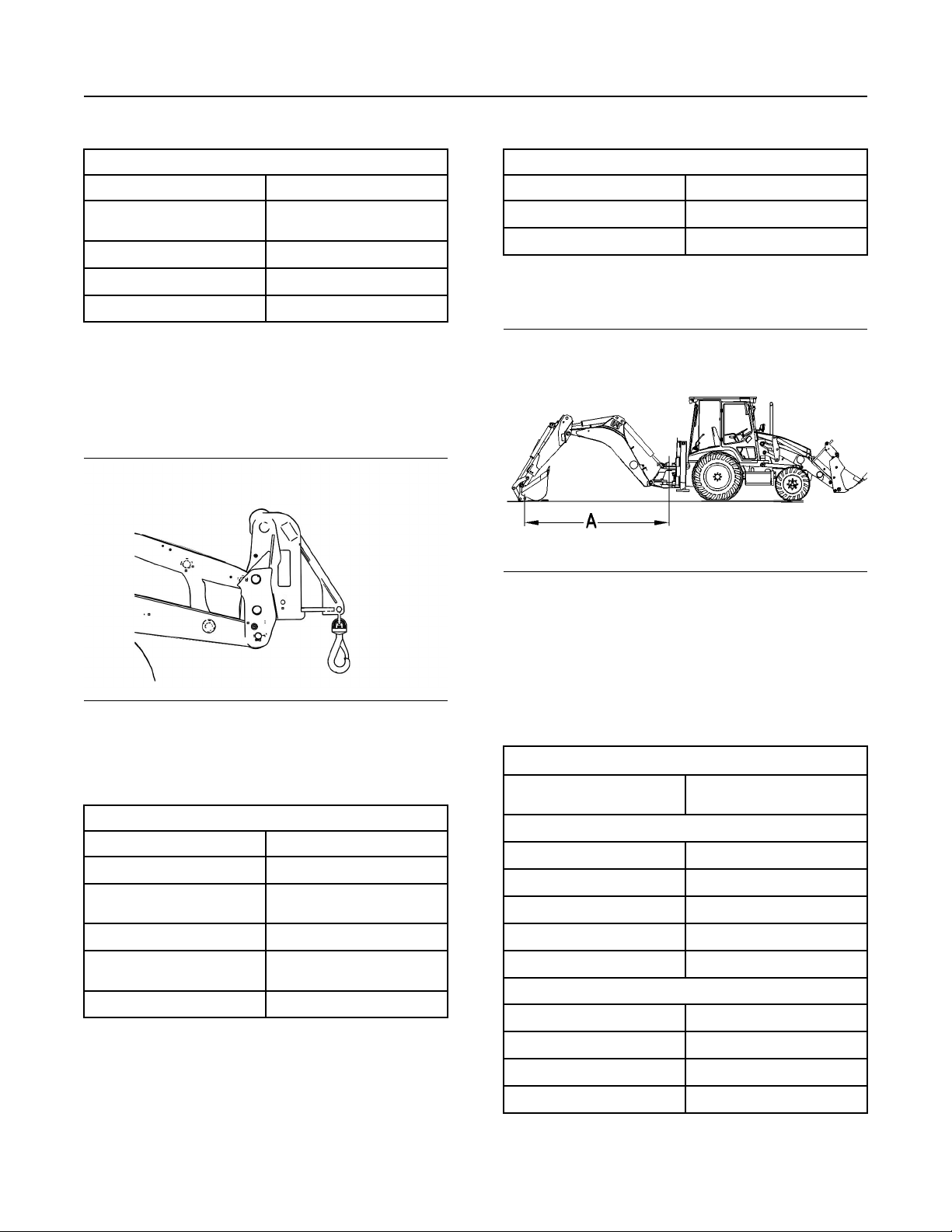

Illustration 48 g00286077

Lift Point Radius (A)

The bucket hinge pin for the backhoe is level with the
lower boom hinge pin at each lifting point in the
following tables. Rated loads do not include the
weight of the attachment. The following tables
provide the operating loads for the standard machine
configuration.

Table 32

Rated Operating Load For 428E With Backhoe Bucket

Lift Point Radius

Backhoe Straight Back, Standard Stick

1.74 m (5 ft 9 inch) 5102 kg (11248 lb)

2.95 m (9 ft 8 inch) 2769 kg (6105 lb)

3.72 m (12 ft 3 inch) 2174 kg (4793 lb)

4.32 m (14 ft 2 inch) 1860 kg (4101 lb)

4.81 m (15 ft 9 inch) 1609 kg (3548 lb)

Backhoe Side Shifted, Swung to Side, Standard Stick

1.74 m (5 ft 9 inch) 3219 kg (7097 lb)

2.95 m (9 ft 8 inch) 1659 kg (3657 lb)

3.72 m (12 ft 3 inch) 1219 kg (2687 lb)

Rated Operating Load “EN

474-4”

(1)

(1)

(1)

(1)

“SAE J1197” Rated

Operating Load

Placement Height

(B)

3092 mm

(10 ft 2 inch)

Reach (A)

1039 mm

(3 ft 5 inch)

(Table 32, contd)

Rated Operating Load For 428E With Backhoe Bucket

4.32 m (14 ft 2 inch) 994 kg (2191 lb)

4.81 m (15 ft 9 inch) 849 kg (1873 lb)

Backhoe Straight Back, Retracted E-Stick

1.75 m (5 ft 9 inch) 5170 kg (11397 lb)

2.96 m (9 ft 8 inch) 2573 kg (5672 lb)

3.73 m (12 ft 3 inch) 2002 kg (4414 lb)

4.32 m (14 ft 2 inch) 1699 kg (3746 lb)

4.81 m (15 ft 9 inch) 1455 kg (3208 lb)

Backhoe Side Shifted Swung to Side, Retracted E-Stick

1.75 m (5 ft 9 inch) 3036 kg (6693 lb)

2.96 m (9 ft 8 inch) 1530 kg (3373 lb)

3.73 m (12 ft 3 inch) 1097 kg (2418 lb)

4.32 m (14 ft 2 inch) 875 kg (1929 lb)

4.81 m (15 ft 9 inch) 733 kg (1615 lb)

Backhoe Straight Back, Extended E-Stick

2.39 m (7 ft 10 inch) 1147 kg (2529 lb)

3.26 m (10 ft 8 inch) 1448 kg (3192 lb)

4.28 m (14 ft 1 inch) 1432 kg (3157 lb)

5.06 m (16 ft 7 inch) 1327 kg (2925 lb)

5.73 m (18 ft 9 inch) 1062 kg (2340 lb)

Backhoe Side Shifted, Swung to Side, Extended E-Stick

2.40 m (7 ft 10 inch) 1141 kg (2516 lb)

3.26 m (10 ft 8 inch) 1441 kg (3178 lb)

4.28 m (14 ft 1 inch) 983 kg (2168 lb)

5.06 m (16 ft 7 inch) 739 kg (1629 lb)

5.73 m (18 ft 9 inch) 585 kg (1291 lb)

(1)

Limited by Tipping

(1)

(1)

(1)

(1)

(1)

(1)

(1)

(1)

(1)

(1)

(1)

(continued)

SEBU8475-10

Table 33

428E Rated Operating Load For Object Handling

Lift Point Radius

Backhoe Straight Back, Standard Stick

1.74 m (5 ft 8 inch) 2000 kg (4409 lb) 2000 kg (4409 lb)

2.95 m (9 ft 8 inch) 2000 kg (4409 lb) 2000 kg (4409 lb)

3.72 m (12 ft 2 inch) 2000 kg (4409 lb) 2000 kg (4409 lb)

Application

“SAE J31”/“ISO

10567” Rated Oper-

ating Load

Rated Operating
Load “EN 474-4”

Product Information Section

Rated Load

(Table 33, contd)

428E Rated Operating Load For Object Handling

3.26 m (10 ft 8 inch) 1441 kg (3178 lb) 1441 kg (3178 lb)

4.28 m (14 ft 1 inch) 983 kg (2168 lb)

5.06 m (16 ft 7 inch) 739 kg (1629 lb)

5.73 m (18 ft 9 inch) 585 kg (1291 lb)

(1)

Limited by Tipping

Application

(1)

983 kg (2168 lb)

(1)

739 kg (1629 lb)

(1)

585 kg (1291 lb)

43

(1)

(1)

(1)

4.32 m (14 ft 2 inch) 1860 kg (4101 lb) 1860 kg (4101 lb)

4.81 m (15 ft 9 inch) 1609 kg (3548 lb) 1609 kg (3548 lb)

Backhoe Side Shifted, Swung to Side, Standard Stick

1.74 m (5 ft 8 inch) 2000 kg (4409 lb) 2000 kg (4409 lb)

(1)

2.95 m (9 ft 8 inch) 1659 kg (3657 lb)

3.72 m (12 ft 2 inch) 1219 kg (2687 lb)

4.32 m (14 ft 2 inch) 994 kg (2191 lb)

4.81 m (15 ft 9 inch) 849 kg (1873 lb)

1714 kg (3779 lb)

(1)

1233 kg (2718 lb)

(1)

994 kg (2191 lb)

(1)

849 kg (1873 lb)

Backhoe Straight Back, Retracted E-Stick

1.75 m (5 ft 8 inch) 2000 kg (4409 lb) 2000 kg (4409 lb)

2.96 m (9 ft 8 inch) 2000 kg (4409 lb) 2000 kg (4409 lb)

3.73 m (12 ft 2 inch) 2000 kg (4409 lb) 2000 kg (4409 lb)

4.32 m (14 ft 2 inch) 1699 kg (3746 lb) 1699 kg (3746 lb)

4.81 m (15 ft 9 inch) 1455 kg (3208 lb) 1455 kg (3208 lb)

Backhoe Side Shifted Swung to Side, Retracted E-Stick

1.75 m (5 ft 8 inch) 2000 kg (4409 lb) 2000 kg (4409 lb)

(1)

2.96 m (9 ft 8 inch) 1530 kg (3373 lb)

3.73 m (12 ft 2 inch) 1097 kg (2418 lb)

4.32 m (14 ft 2 inch) 875 kg (1929 lb)

4.81 m (15 ft 9 inch) 733 kg (1615 lb)

1530 kg (3373 lb)

(1)

1097 kg (2418 lb)

(1)

875 kg (1929 lb)

(1)

733 kg (1615 lb)

Backhoe Straight Back, Extended E-Stick

2.39 m (7 ft 10 inch) 1147 kg (2529 lb) 1147 kg (2529 lb)

3.26 m (10 ft 8 inch) 1448 kg (3192 lb) 1448 kg (3192 lb)

4.28 m (14 ft 1 inch) 1432 kg (3157 lb) 1432 kg (3157 lb)

5.06 m (16 ft 7 inch) 1327 kg (2925 lb) 1327 kg (2925 lb)

5.73 m (18 ft 9 inch) 1007 kg (2221 lb) 1007 kg (2221 lb)

Backhoe Side Shifted, Swung to Side, Extended E-Stick

2.40 m (7 ft 10 inch) 1141 kg (2516 lb) 1141 kg (2516 lb)

428E Backhoe Lifting (Standard
Frame)

(1)

(1)

(1)

(1)

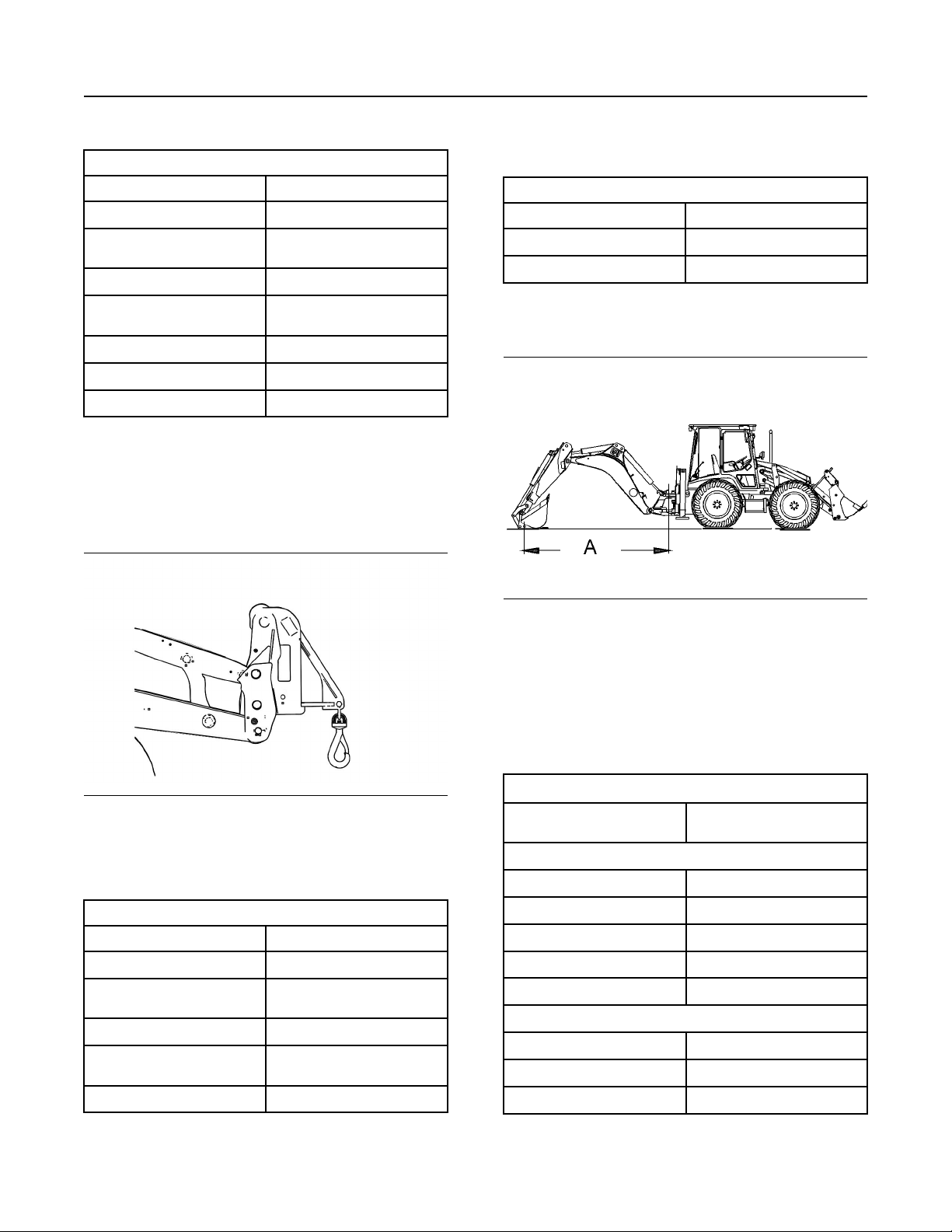

Illustration 49 g00286077

Lift Point Radius (A)

The bucket hinge pin for the backhoe is level with the
lower boom hinge pin at each lifting point in the
following tables. Rated loads do not include the

(1)

(1)

(1)

(1)

weight of the attachment. The following tables
provide the operating loads for the standard machine
configuration.

Table 34

Rated Operating Load For 428E With Backhoe Bucket

Lift Point Radius

Backhoe Straight Back, Standard Stick

1.74 m (5 ft 8 inch) 5423 kg (11956 lb)

2.95 m (9 ft 8 inch) 2769 kg (6105 lb)

3.72 m (12 ft 2 inch) 2174 kg (4793 lb)

4.32 m (14 ft 2 inch) 1860 kg (4101 lb)

4.81 m (15 ft 9 inch) 1609 kg (3548 lb)

Backhoe Side Shifted, Swung to Side, Standard Stick

Rated Operating Load “EN

474-4”

(1)

(continued)

(continued)

44

Product Information Section
Rated Load

SEBU8475-10

(Table 34, contd)

Rated Operating Load For 428E With Backhoe Bucket

1.74 m (5 ft 8 inch) 3866 kg (8523 lb)

2.95 m (9 ft 8 inch) 1942 kg (4281 lb)

3.72 m (12 ft 2 inch) 1424 kg (3138 lb)

4.32 m (14 ft 2 inch) 1163 kg (2563 lb)

4.81 m (15 ft 9 inch) 996 kg (2197 lb)

Backhoe Straight Back, Retracted E-Stick

1.75 m (5 ft 8 inch) 5107 kg (11259 lb)

2.96 m (9 ft 8 inch) 2563 kg (5651 lb)

3.73 m (12 ft 2 inch) 1992 kg (4393 lb)

4.32 m (14 ft 2 inch) 1689 kg (3723 lb)

4.81 m (15 ft 9 inch) 1444 kg (3184 lb)

Backhoe Side Shifted Swung to Side, Retracted E-Stick

1.75 m (5 ft 8 inch) 3534 kg (7792 lb)

2.96 m (9 ft 8 inch) 1733 kg (3822 lb)

3.73 m (12 ft 2 inch) 1238 kg (2730 lb)

4.32 m (14 ft 2 inch) 988 kg (2197 lb)

4.81 m (15 ft 9 inch) 829 kg (1828 lb)

Backhoe Straight Back, Extended E-Stick

2.36 m (7 ft 9 inch) 1167 kg (2573 lb)

3.26 m (10 ft 8 inch) 1467 kg (3235 lb)

4.28 m (14 ft 1 inch) 1437 kg (3168 lb)

5.06 m (16 ft 7 inch) 1324 kg (2919 lb)

5.73 m (18 ft 9 inch) 1054 kg (2324 lb)

Backhoe Side Shifted, Swung to Side, Extended E-Stick

2.40 m (7 ft 10 inch) 1134 kg (2499 lb)

3.26 m (10 ft 8 inch) 1433 kg (3160 lb)

4.28 m (14 ft 1 inch) 1099 kg (2423 lb)

5.06 m (16 ft 7 inch) 829 kg (1827 lb)

5.73 m (18 ft 9 inch) 660 kg (1456 lb)

(1)

Limited by Tipping

(1)

(1)

(1)

(1)

(1)

(1)

(1)

(1)

(1)

(1)

(1)

(1)

(1)

(1)

Table 35

428E Rated Operating Load For Object Handling

Application

“SAE J31”/“ISO

Lift Point Radius

10567” Rated Op-

erating Load

Backhoe Straight Back, Standard Stick

1.74 m (5 ft 8 inch) 2000 kg (4409 lb) 2000 kg (4409 lb)

2.95 m (9 ft 8 inch) 2000 kg (4409 lb) 2000 kg (4409 lb)

3.72 m (12 ft 2 inch) 2000 kg (4409 lb) 2000 kg (4409 lb)

4.32 m (14 ft 2 inch) 1860 kg (4101 lb) 1860 kg (4101 lb)

4.81 m (15 ft 9 inch) 1609 kg (3547 lb) 1609 kg (3547 lb)

Backhoe Side Shifted, Swung to Side, Standard Stick

1.74 m (5 ft 8 inch) 2000 kg (4409 lb) 2000 kg (4409 lb)

2.95 m (9 ft 8 inch)

3.72 m (12 ft 2 inch)

4.32 m (14 ft 2 inch)

1942 kg (4281 lb)

(1)

1424 kg (3139 lb)

(1)

1163 kg (2564 lb)

(1)

4.81 m (15 ft 9 inch) 996 kg (2196 lb)

Backhoe Straight Back, Retracted E-Stick

1.75 m (5 ft 8 inch) 2000 kg (4409 lb) 2000 kg (4409 lb)

2.96 m (9 ft 8 inch) 2000 kg (4409 lb) 2000 kg (4409 lb)

3.73 m (12 ft 2 inch) 1992 kg (4392 lb) 1992 kg (4392 lb)

4.32 m (14 ft 2 inch) 1689 kg (3724 lb) 1689 kg (3724 lb)

4.81 m (15 ft 9 inch) 1444 kg (3183 lb) 1444 kg (3183 lb)

Backhoe Side Shifted Swung to Side, Retracted E-Stick

1.75 m (5 ft 8 inch) 2000 kg (4409 lb) 2000 kg (4409 lb)

2.96 m (9 ft 8 inch)

3.73 m (12 ft 2 inch)

1733 kg (3821 lb)

(1)

1238 kg (2729 lb)

(1)

4.32 m (14 ft 2 inch) 988 kg (2178 lb)

4.81 m (15 ft 9 inch) 829 kg (1828 lb)

Backhoe Straight Back, Extended E-Stick

Rated Operating
Load “EN 474-4”

1942 kg (4281 lb)

1424 kg (3139 lb)

1163 kg (2564 lb)

(1)

996 kg (2196 lb)

1733 kg (3821 lb)

1238 kg (2729 lb)

(1)

988 kg (2178 lb)

(1)

829 kg (1828 lb)

(1)

(1)

(1)

(1)

(1)

(1)

(1)

(1)

2.36 m (7 ft 9 inch) 1167 kg (2573 lb) 1167 kg (2573 lb)

3.26 m (10 ft 8 inch) 1467 kg (3235 lb) 1467 kg (3235 lb)

4.28 m (14 ft 1 inch) 1437 kg (3168 lb) 1437 kg (3168 lb)

5.06 m (16 ft 7 inch) 1324 kg (2919 lb) 1324 kg (2919 lb)

(continued)

SEBU8475-10

(Table 35, contd)

428E Rated Operating Load For Object Handling

Application

5.73 m (18 ft 9 inch) 1054 kg (2324 lb) 1054 kg (2324 lb)

Backhoe Side Shifted, Swung to Side, Extended E-Stick

2.40 m (7 ft 10 inch) 1134 kg (2499 lb) 1134 kg (2499 lb)

3.26 m (10 ft 8 inch) 1433 kg (3160 lb) 1433 kg (3160 lb)

45

Product Information Section

Rated Load

4.28 m (14 ft 1 inch)

1099 kg (2423 lb)

(1)

5.06 m (16 ft 7 inch) 829 kg (1827 lb)

5.73 m (18 ft 9 inch) 660 kg (1456 lb)

(1)

Limited by Tipping

1099 kg (2423 lb)

(1)

829 kg (1827 lb)

(1)

660 kg (1456 lb)

(1)

(1)

(1)

432E Loader Buckets

The following tables provide the rated operating
loads for the standard machine that is equipped with
the given bucket. The corresponding dump clearance
is given for each bucket at maximum lift height and at
the full dump angle. The reach is given for each
bucket at maximum lift height and at the full dump
angle. Clearance is measured from the ground to the
bucket edge in order to dump the load. The reach is
measured from the front grill to the bucket edge.

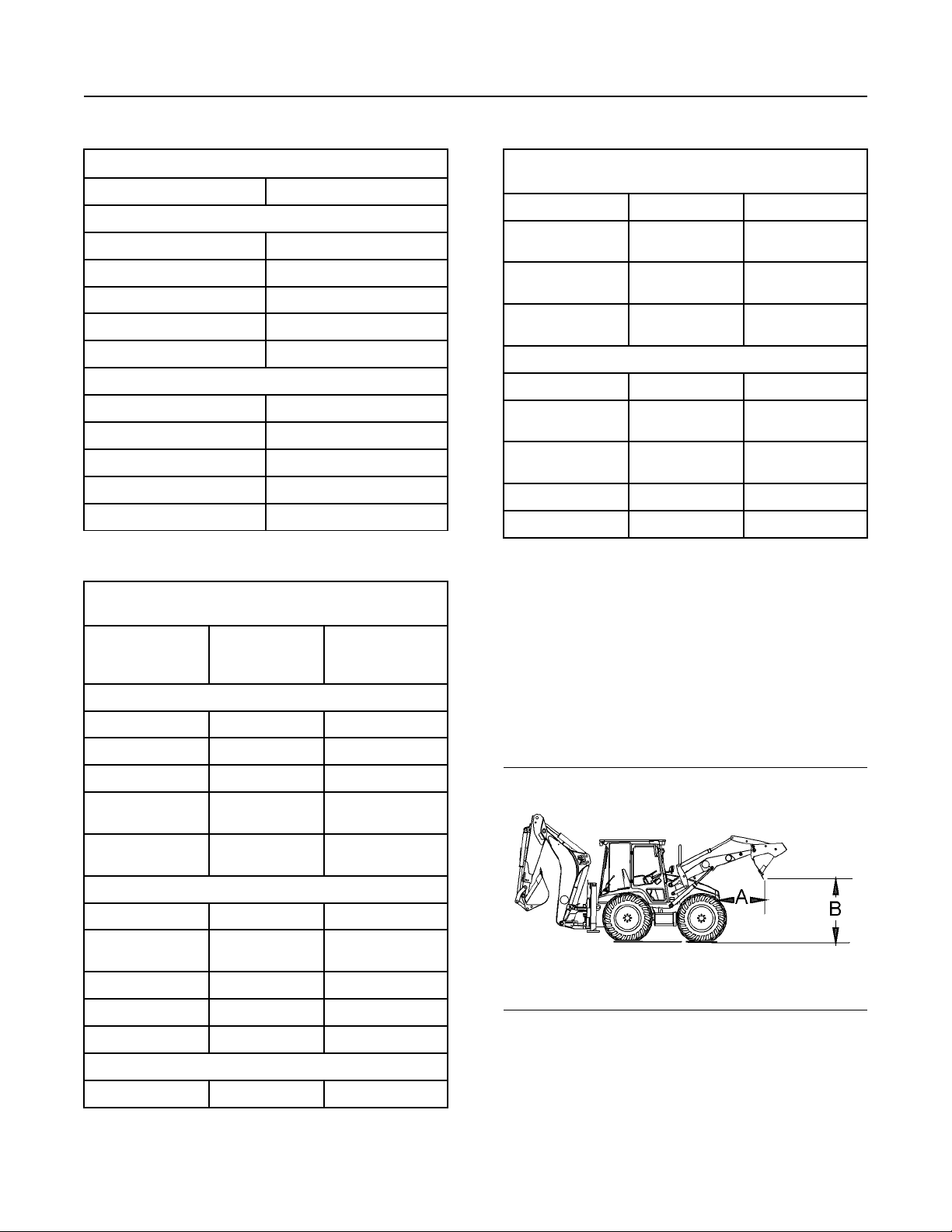

Illustration 50 g00285635

Dump Reach (A) and Dump Height (B)

Table 36

Rated Bucket Load For A 432E Parallel Lift Loader

Bucket Part Number

112-1931

318-7263

318-7264

320-9950

320-9947

Volumetric Rating

3

1.00 m

1.03 m

1.03 m

1.03 m

0.96 m

(1.31 yd3) 3342 kg (7369 lb) 2575 mm (8 ft 5 inch) 743 mm (2 ft 5 inch)

3

(1.35 yd3) 3229 kg (7119 lb) 2610 mm (8 ft 7 inch) 671 mm (2 ft 2 inch)

3

(1.35 yd3) 3102 kg (6840 lb) 2610 mm (8 ft 7 inch) 671 mm (2 ft 2 inch)

3

(1.35 yd3) 3132 kg (6904 lb) 2610 mm (8 ft 7 inch) 671 mm (2 ft 2 inch)

3

(1.26 yd3) 3082 kg (6795 lb) 2610 mm (8 ft 7 inch) 671 mm (2 ft 2 inch)

“EN 474-4” and “SAE

J818” Rated Operating

Load

Dump Height (B) Dump Reach (A)

46

Product Information Section
Rated Load

Table 37

Rated Bucket Load For A 432E Parallel Lift Loader With Quick Coupler

SEBU8475-10

Bucket Part Number

118-1984

318-7267

(1)

Limited by Tipping

432E Pallet Forks

Volumetric Rating

3

1.03 m

1.03 m

(1.35 yd3) 3234 kg (7131 lb)

3

(1.35 yd3) 3076 kg (6781 lb)

“EN 474-4” and

“SAE J818”

Rated Operating

Load

(1)

Dump

Height

2488 mm

(8 ft 2 inch)

2540 mm

(8 ft 4 inch)

Dump Reach (A)

(B)

775 mm (2 ft 6 inch)

726 mm (2 ft 5 inch)

Illustration 51 g00285636

Reach (A) and Placement Height (B)

The following tables provide the rated operating
loads for the standard machine configuration with the
given loader type (Single Tilt, Parallel Lift, or Parallel
Lift with Quick Coupler). The rated loads are provided
for multipurpose buckets with flip over forks and for
quick coupler type pallet forks that are associated
with the quick coupler carriage.

Table 38

Rated Load For Flip Over Fork 432E Parallel Lift

Part Number

318-7264

320-9947

Volumetric Rating

3

1.03 m

0.96 m

(1.35 yd3) 1608 kg (3545 lb) 1573 kg (3469 lb)

3

(1.26 yd3) 1565 kg (3449 lb) 1532 kg (3377 lb)

“EN 474-4” Rated

Operating Load

“SAE J1197”

Rated Operating

Load

Placement

Height (B)

3093 mm

(10 ft 2 inch)

3073 mm

(10 ft 1 inch)

Reach (A)

1038 mm (3 ft 5 inch)

1032 mm (3 ft 5 inch)

SEBU8475-10

Table 39

47

Product Information Section

Rated Load

Rated Load For 432E With Pallet Forks And Parallel Lift With Quick Coupler

Part Number

6W-8933

6W-8900

6W-9739

(1)

Limited by Tipping

Fork Tine Length

1050 mm (3 ft 5 inch) 2743 kg (6047 lb)

1200 mm (3 ft 11 inch) 2741 kg (6043 lb)

1350 mm (4 ft 5 inch) 2739 kg (6038 lb)

432E Material Handling Arm

The placement height (ground line to the chain hook)
and reach (front grill to the chain hook) are given for
the highest position of the material handling arm and
for the lowest position of the material handling arm.

“CEN 474-4”

Rated Operat-

ing Load

(Table 40, contd)

“SAE J1197”

Rated Operat-

ing Load

2285 kg (5037 lb)

2216 kg (4885 lb)

2151 kg (4741 lb)

432E Rated Load For Material Handling Arm “EN 474-

Placement

Height at High-

est Position

Reach at High-

est Position

432E Truss Boom

(1)

(1)

(1)

Retracted

4505 mm

(14 ft 9 inch)

1400 mm

(4 ft 7 inch)

Placement

Height

3200 mm

(10 ft 6 inch)

3200 mm

(10 ft 6 inch)

3200 mm

(10 ft 6 inch)

4”

Mid-

Position

5355 mm

(17 ft 6 inch)

1923 mm

(6 ft 4 inch)

(B)

Reach (A)

637 mm

(2 ft 1 inch)

637 mm

(2 ft 1 inch)

637 mm

(2 ft 1 inch)

Extended

6206 mm

(20 ft 4 inch)

2449 mm

(8 ft 1 inch)

Illustration 52 g00285638

The following table provides the rated operating
loads for the standard parallel lift machine
configuration with a material handling arm and with a
quick coupler.

Table 40

432E Rated Load For Material Handling Arm “EN 474-

Retracted

Rated Operat-

ing Load

Placement

Height at Low-

est Position

Reach at Low-

est Position

1049 kg

(2313 lb)

−2546 mm

(−8 ft 4 inch)

666 mm

(2 ft 2 inch)

4”

Position

−3544 mm

(−11 ft 8 inch)

(2 ft 3 inch)

Mid-

667 kg

(1470 lb)

704 mm

Extended

489 kg

(1078 lb)

−4543 mm
(−14 ft 11

inch)

742 mm

(2 ft 5 inch)

The placement height (ground line to the chain hook)
and reach (front grill to the chain hook) are given for
the highest position of the truss boom and for the
lowest position of the truss boom.

Illustration 53 g02042134

The following table provides the rated operating
loads for the standard parallel lift machine
configuration with a truss boom.

(continued)

48

Product Information Section
Rated Load

Table 41

432E Rated Load For Truss Boom“EN 474-4”

Fixed Position

Rated Operating Load 501 kg (1105 lb)

Placement Height at Lowest

Position

Reach at Lowest Position

Placement Height at Highest

Position

Reach at Highest Position 1337 mm (4 ft 4 inch)

−4033 mm (−13 ft 3 inch)

743 mm (2 ft 5 inch)

7219 mm (23 ft 7 inch)

SEBU8475-10

(Table 42, contd)

432E Rated Load For Hook“EN 474-4”

Fixed Position

Maximum Horizontal Reach

Height at Maximum Reach 1589 mm (5 ft 2 inch)

1576 mm (5 ft 2 inch)

432E Backhoe Lifting (Narrow
Frame)

Maximum Horizontal Reach

Height at Maximum Reach 1633 mm (5 ft 4 inch)

5142 mm (16 ft 10 inch)

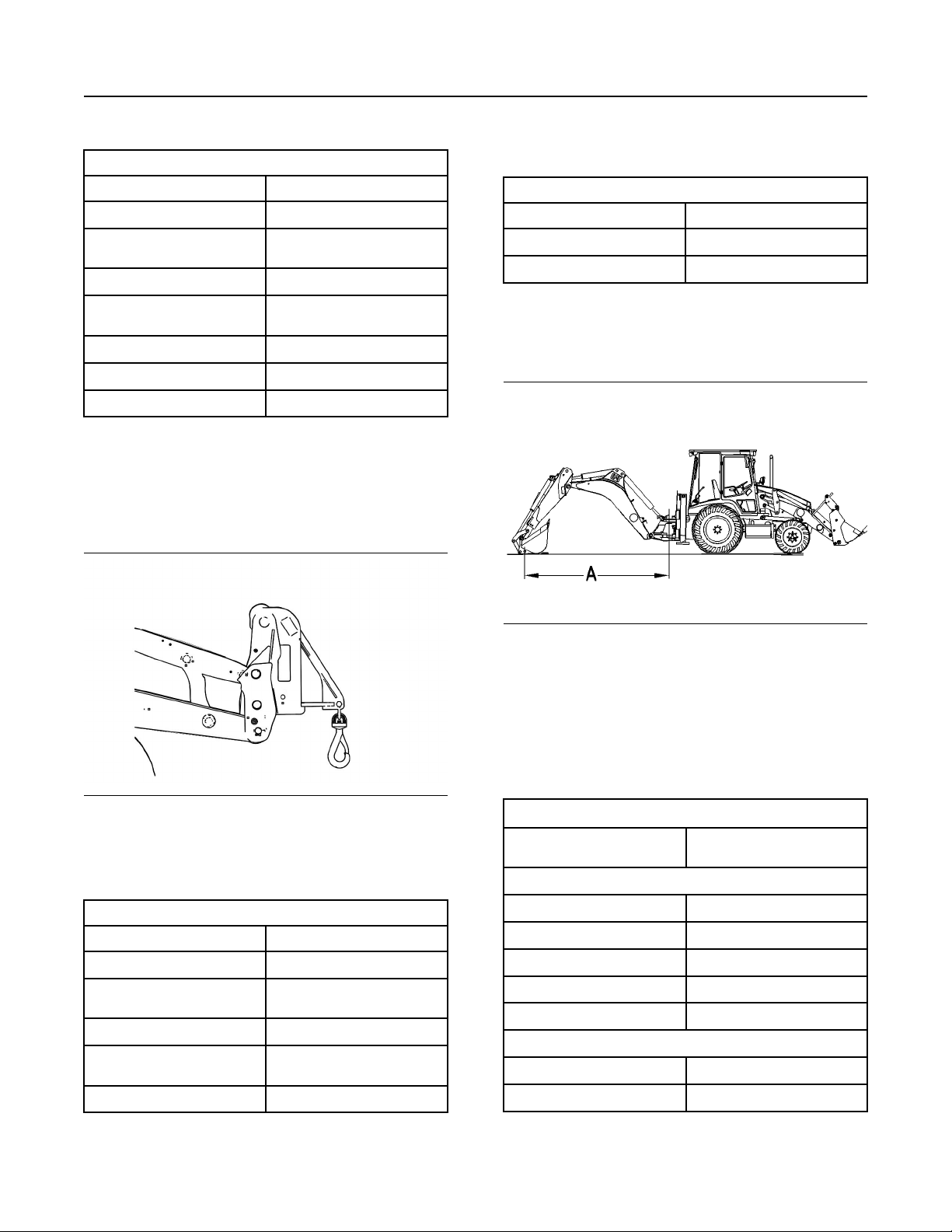

432E Hook

The placement height (ground line to the chain hook)
and reach (front grill to the chain hook) are given for
the highest position of the hook and for the lowest
position of the hook.

Illustration 54 g02042153

The following table provides the rated operating
loads for the standard parallel lift machine
configuration with a hook.

Table 42

432E Rated Load For Hook“EN 474-4”

Fixed Position

Rated Operating Load 3451 kg (7608 lb)

Placement Height at Lowest

Position

Reach at Lowest Position

Placement Height at Highest

Position

Reach at Highest Position 557 mm (1 ft 10 inch)

−466 mm (−1 ft 6 inch)

607 mm (2 ft 0 inch)

3733 mm (12 ft 3 inch)

Illustration 55 g00286077

Lift Point Radius (A)

The bucket hinge pin for the backhoe is level with the
lower boom hinge pin at each lifting point in the
following tables. Rated loads include the weight of
the attachment. The following tables provide the
operating loads for the standard machine
configuration.

Table 43

Rated Operating Load For 432E With Backhoe Bucket

Lift Point Radius

Backhoe Straight Back, Standard Stick

1.74 m (5 ft 9 inch) 5494 kg (12113 lb)

2.95 m (9 ft 8 inch) 3368 kg (7424 lb)

3.72 m (12 ft 3 inch) 2658 kg (5859 lb)

4.32 m (14 ft 2 inch) 2274 kg (5014 lb)

4.81 m (15 ft 9 inch) 1979 kg (4364 lb)

Backhoe Side Shifted, Swung to Side, Standard Stick

1.74 m (5 ft 9 inch) 3279 kg (7229 lb)

2.95 m (9 ft 8 inch) 1691 kg (3727 lb)

Rated Operating Load “EN

474-4”

(1)

(1)

(1)

(1)

(1)

(continued)

(continued)

SEBU8475-10

49

Product Information Section

Rated Load

(Table 43, contd)

Rated Operating Load For 432E With Backhoe Bucket

3.72 m (12 ft 3 inch) 1241 kg (2737 lb)

4.32 m (14 ft 2 inch) 1012 kg (2231 lb)

4.81 m (15 ft 9 inch) 864 kg (1905 lb)

Backhoe Straight Back, Retracted E-Stick

1.75 m (5 ft 9 inch) 5561 kg (12260 lb)

2.96 m (9 ft 8 inch) 3175 kg (7001 lb)

3.73 m (12 ft 3 inch) 2484 kg (5477 lb)

4.32 m (14 ft 2 inch) 2118 kg (4670 lb)

4.81 m (15 ft 9 inch) 1825 kg (4022 lb)

Backhoe Side Shifted Swung to Side, Retracted E-Stick

1.75 m (5 ft 9 inch) 3095 kg (6824 lb)

2.96 m (9 ft 8 inch) 1562 kg (3443 lb)

3.73 m (12 ft 3 inch) 1119 kg (2468 lb)

4.32 m (14 ft 2 inch) 893 kg (1968 lb)

4.81 m (15 ft 9 inch) 747 kg (1648 lb)

Backhoe Straight Back, Extended E-Stick

2.36 m (7 ft 9 inch) 1457 kg (3212 lb)

3.26 m (10 ft 8 inch) 1831 kg (4036 lb)

4.28 m (14 ft 1 inch) 1800 kg (3969 lb)

5.06 m (16 ft 7 inch) 1668 kg (3677 lb)

5.73 m (18 ft 10 inch) 1440 kg (3176 lb)

Backhoe Side Shifted, Swung to Side, Extended E-Stick

2.40 m (7 ft 10 inch) 1417 kg (3125 lb)

3.26 m (10 ft 8 inch) 1537 kg (3389 lb)

4.28 m (14 ft 1 inch) 1006 kg (2217 lb)

5.06 m (16 ft 7 inch) 755 kg (1665 lb)

5.73 m (18 ft 10 inch) 598 kg (1319 lb)

(1)

Limited by Tipping

Table 44

(1)

(1)

(1)

(1)

(1)

(1)

(1)

(1)

(1)

(1)

(1)

(1)

(1)

432E Rated Operating Load For Object Handling

Application

Lift Point Radius

Backhoe Straight Back, Standard Stick

“SAE J31”/“ISO

10567” Rated Oper-

ating Load

Rated Operating
Load “EN 474-4”

(Table 44, contd)

432E Rated Operating Load For Object Handling

Application

2.95 m (9 ft 8 inch) 2000 kg (4409 lb) 2000 kg (4409 lb)

3.72 m (12 ft 3 inch) 2000 kg (4409 lb) 2000 kg (4409 lb)

4.32 m (14 ft 2 inch) 2000 kg (4409 lb) 2000 kg (4409 lb)

4.81 m (15 ft 9 inch) 1979 kg (4364 lb) 1979 kg (4364 lb)

Backhoe Side Shifted, Swung to Side, Standard Stick

1.74 m (5 ft 9 inch) 2000 kg (4409 lb) 2000 kg (4409 lb)

(1)

2.95 m (9 ft 8 inch) 1691 kg (3727 lb)

3.72 m (12 ft 3 inch) 1241 kg (2737 lb)

4.32 m (14 ft 2 inch) 1012 kg (2231 lb)

4.81 m (15 ft 9 inch) 864 kg (1905 lb)

Backhoe Straight Back, Retracted E-Stick

1.75 m (5 ft 9 inch) 2000 kg (4409 lb) 2000 kg (4409 lb)

2.96 m (9 ft 8 inch) 2000 kg (4409 lb) 2000 kg (4409 lb)

3.73 m (12 ft 3 inch) 2000 kg (4409 lb) 2000 kg (4409 lb)

4.32 m (14 ft 2 inch) 2000 kg (4409 lb) 2000 kg (4409 lb)

4.81 m (15 ft 9 inch) 1825 kg (4022 lb) 1825 kg (4022 lb)

Backhoe Side Shifted Swung to Side, Retracted E-Stick

1.75 m (5 ft 9 inch) 2000 kg (4409 lb) 2000 kg (4409 lb)

2.96 m (9 ft 8 inch) 1562 kg (3443 lb)

3.73 m (12 ft 3 inch) 1119 kg (2468 lb)

4.32 m (14 ft 2 inch) 893 kg (1968 lb)

4.81 m (15 ft 9 inch) 747 kg (1648 lb)

Backhoe Straight Back, Extended E-Stick

2.36 m (7 ft 9 inch) 1457 kg (3212 lb) 1457 kg (3212 lb)

3.26 m (10 ft 8 inch) 1831 kg (4036 lb) 1831 kg (4036 lb)

4.28 m (14 ft 1 inch) 1800 kg (3969 lb) 1800 kg (3969 lb)

5.06 m (16 ft 7 inch) 1668 kg (3677 lb) 1668 kg (3677 lb)

5.73 m

(18 ft 10 inch)

1440 kg (3167 lb) 1253 kg (2763 lb)

Backhoe Side Shifted, Swung to Side, Extended E-Stick

2.40 m (7 ft 10 inch) 1417 kg (3125 lb) 1417 kg (3125 lb)

3.26 m (10 ft 8 inch) 1537 kg (3389 lb)

4.28 m (14 ft 1 inch) 1006 kg (2217 lb)

1691 kg (3727 lb)

(1)

1241 kg (2737 lb)

(1)

1012 kg (2231 lb)

(1)

864 kg (1905 lb)

(1)

1562 kg (3443 lb)

(1)

1119 kg (2468 lb)

(1)

893 kg (1968 lb)

(1)

747 kg (1648 lb)

(1)

1537 kg (3389 lb)

(1)

1006 kg (2217 lb)

(1)

(1)

(1)

(1)

(1)

(1)

(1)

(1)

(1)

1.74 m (5 ft 9 inch) 2000 kg (4409 lb) 2000 kg (4409 lb)

(continued)

(continued)

50

Product Information Section
Rated Load

SEBU8475-10

(Table 44, contd)

432E Rated Operating Load For Object Handling

Application

5.06 m (16 ft 7 inch) 755 kg (1665 lb)

5.73 m

(18 ft 10 inch)

(1)

Limited by Tipping

598 kg (1319 lb)

(1)

755 kg (1665 lb)

(1)

598 kg (1319 lb)

432E Backhoe Lifting (Standard
Frame)

(Table 45, contd)

Rated Operating Load For 432E With Backhoe Bucket

(1)

4.32 m (14 ft 2 inch) 1256 kg (2768 lb)

3.72 m (12 ft 3 inch) 1532 kg (3377 lb)

(1)

4.81 m (15 ft 9 inch) 1079 kg (2379 lb)

Backhoe Straight Back, Retracted E-Stick

1.75 m (5 ft 9 inch) 5565 kg (12269 lb)

2.96 m (9 ft 8 inch) 3175 kg (7001 lb)

3.73 m (12 ft 3 inch) 2484 kg (5477 lb)

4.32 m (14 ft 2 inch) 2118 kg (4670 lb)

4.81 m (15 ft 9 inch) 1825 kg (4022 lb)

Backhoe Side Shifted Swung to Side, Retracted E-Stick

1.75 m (5 ft 9 inch) 3630 kg (8002 lb)

2.96 m (9 ft 8 inch) 1814 kg (3998 lb)

3.73 m (12 ft 3 inch) 1306 kg (2880 lb)

4.32 m (14 ft 2 inch) 1049 kg (2312 lb)

4.81 m (15 ft 9 inch) 884 kg (1950 lb)

(1)

(1)

(1)

(1)

(1)

(1)

(1)

(1)

(1)

Illustration 56 g00286077

Lift Point Radius (A)

The bucket hinge pin for the backhoe is level with the
lower boom hinge pin at each lifting point in the
following tables. Rated loads include the weight of
the attachment. The following tables provide the
operating loads for the standard machine
configuration.

Table 45

Rated Operating Load For 432E With Backhoe Bucket

Lift Point Radius

Backhoe Straight Back, Standard Stick

1.74 m (5 ft 9 inch) 5957 kg (13134 lb)

2.95 m (9 ft 8 inch) 3374 kg (7439 lb)

3.72 m (12 ft 3 inch) 2658 kg (5859 lb)

4.32 m (14 ft 2 inch) 2280 kg (5027 lb)

4.81 m (15 ft 9 inch) 1979 kg (4364 lb)

Backhoe Side Shifted, Swung to Side, Standard Stick

1.74 m (5 ft 9 inch) 4076 kg (8987 lb)

2.95 m (9 ft 8 inch) 2079 kg (4582 lb)

Rated Operating Load “EN

474-4”

(1)

(1)

(1)

Backhoe Straight Back, Extended E-Stick

2.36 m (7 ft 9 inch) 1457 kg (3212 lb)

3.26 m (10 ft 8 inch) 1831 kg (4036 lb)

4.28 m (14 ft 1 inch) 1800 kg (3969 lb)

5.06 m (16 ft 7 inch) 1668 kg (3677 lb)

5.73 m (18 ft 10 inch) 1440 kg (3176 lb)

Backhoe Side Shifted, Swung to Side, Extended E-Stick

2.40 m (7 ft 10 inch) 1417 kg (3125 lb)

3.26 m (10 ft 8 inch) 1759 kg (3879 lb)

4.28 m (14 ft 1 inch) 1163 kg (2563 lb)

5.06 m (16 ft 7 inch) 884 kg (1948 lb)

5.73 m (18 ft 10 inch) 709 kg (1563 lb)

(1)

Limited by Tipping

(1)

(1)

(1)

(1)

Table 46

432E Rated Operating Load For Object Handling

Application

“SAE J31”/“ISO

Lift Point Radius

10567” Rated Op-

erating Load

Backhoe Straight Back, Standard Stick

1.74 m (5 ft 9 inch) 2000 kg (4409 lb) 2000 kg (4409 lb)

Rated Operating
Load “EN 474-4”

(continued)

(continued)

SEBU8475-10

(Table 46, contd)

432E Rated Operating Load For Object Handling

2.95 m (9 ft 8 inch) 2000 kg (4409 lb) 2000 kg (4409 lb)

3.72 m (12 ft 3 inch) 2000 kg (4409 lb) 2000 kg (4409 lb)

4.32 m (14 ft 2 inch) 2000 kg (4409 lb) 2000 kg (4409 lb)

4.81 m (15 ft 9 inch) 1979 kg (4364 lb) 1979 kg (4364 lb)

Backhoe Side Shifted, Swung to Side, Standard Stick

1.74 m (5 ft 9 inch) 2000 kg (4409 lb) 2000 kg (4409 lb)

2.95 m (9 ft 8 inch) 2000 kg (4409 lb) 2000 kg (4409 lb)

3.72 m (12 ft 3 inch) 1532 kg (3377 lb)

4.32 m (14 ft 2 inch) 1256 kg (2768 lb)

4.81 m (15 ft 9 inch) 1079 kg (2379 lb)

Backhoe Straight Back, Retracted E-Stick

Application

(1)

1532 kg (3377 lb)

(1)

1256 kg (2768 lb)

(1)

1079 kg (2379 lb)

51

Product Information Section

Rated Load

(Table 46, contd)

(1)

Limited by Tipping

434E Loader Buckets (Pilot
Controls)

The following tables provide the rated operating
loads for the standard machine that is equipped with
the given bucket. The corresponding dump clearance
is given for each bucket at maximum lift height and at
the full dump angle. The reach is given for each
bucket at maximum lift height and at the full dump

(1)

(1)

(1)

angle. Clearance is measured from the ground to the
bucket edge in order to dump the load. The reach is
measured from the front grill to the bucket edge.

1.74 m (5 ft 9 inch) 2000 kg (4409 lb) 2000 kg (4409 lb)

2.95 m (9 ft 8 inch) 2000 kg (4409 lb) 2000 kg (4409 lb)

3.72 m (12 ft 3 inch) 2000 kg (4409 lb) 2000 kg (4409 lb)

4.32 m (14 ft 2 inch) 2000 kg (4409 lb) 2000 kg (4409 lb)

4.81 m (15 ft 9 inch) 1825 kg (4022 lb) 1825 kg (4022 lb)

Backhoe Side Shifted Swung to Side, Retracted E-Stick

1.74 m (5 ft 9 inch) 2000 kg (4409 lb) 2000 kg (4409 lb)

(1)

2.95 m (9 ft 8 inch) 1814 kg (3998 lb)

3.72 m (12 ft 3 inch) 1306 kg (2880 lb)

4.32 m (14 ft 2 inch) 1049 kg (2312 lb)

4.81 m (15 ft 9 inch) 884 kg (1950 lb)

1814 kg (3998 lb)

(1)

1306 kg (2880 lb)

(1)

1049 kg (2312 lb)

(1)

884 kg (1950 lb)

Backhoe Straight Back, Extended E-Stick

2.36 m (7 ft 9 inch) 1457 kg (3212 lb) 1457 kg (3212 lb)

3.26 m (10 ft 8 inch) 1831 kg (4036 lb) 1831 kg (4036 lb)

4.28 m (14 ft 1 inch) 1800 kg (3969 lb) 1800 kg (3969 lb)

5.06 m (16 ft 7 inch) 1668 kg (3677 lb) 1668 kg (3677 lb)

5.73 m (18 ft 10 inch) 1440 kg (3176 lb) 1440 kg (3176 lb)

(1)

Illustration 57 g01205342

Dump Reach (A) and Dump Height (B)

(1)

(1)

(1)

Backhoe Side Shifted, Swung to Side, Extended E-Stick

2.40 m (7 ft 10 inch) 1417 kg (3125 lb) 1417 kg (3125 lb)

(1)

3.26 m (10 ft 8 inch) 1759 kg (3879 lb)

4.28 m (14 ft 1 inch) 1163 kg (2563 lb)

5.06 m (16 ft 7 inch) 884 kg (1948 lb)

5.73 m (18 ft 10 inch) 709 kg (1563 lb)

1759 kg (3879 lb)

(1)

1163 kg (2563 lb)

(1)

884 kg (1948 lb)

(1)

709 kg (1563 lb)

(continued)

(1)

(1)

(1)

(1)

52

Product Information Section
Rated Load

Table 47

Bucket Part Number

248-0960

318-7260

318-7261

318-7258

Table 48

Rated Bucket Load For A 434E Parallel Lift Loader With Quick Coupler

Bucket Part Number

248-0962

320-9940

Rated Bucket Load For A 434E Parallel Lift Loader

Volumetric Rating

3

1.15 m

1.15 m

1.15 m

1.15 m

(1.50 yd3) 3273 kg (7215 lb) 2636 mm (8 ft 8 inch) 905 mm (3 ft 0 inch)

3

(1.50 yd3) 3223 kg (7105 lb) 2647 mm (8 ft 8 inch) 886 mm (2 ft 11 inch)

3

(1.50 yd3) 3127 kg (6894 lb) 2647 mm (8 ft 8 inch) 886 mm (2 ft 11 inch)

3

(1.50 yd3) 2965 kg (6536 lb) 2647 mm (8 ft 8 inch) 886 mm (2 ft 11 inch)

“EN 474-4” and “SAE

J818” Rated Operating

Load

“EN 474-4” and

Volumetric Rating

“SAE J818”

Rated Operating

Load

3

(1.70 yd3) 3139 kg (6921 lb)

1.30 m

3

(1.70 yd3) 2938 kg (6478 lb)

1.30 m

SEBU8475-10

Dump Height (B) Dump Reach (A)

Dump Height

2558 mm

(8 ft 5 inch)

2546 mm

(8 ft 4 inch)

(B)

Dump Reach (A)

965 mm (3 ft 2 inch)

985 mm (3 ft 3 inch)

434E Pallet Forks (Pilot Controls)

Illustration 58 g01205364

Reach (A) and Placement Height (B)

The following tables provide the rated operating
loads for the standard machine configuration with the
given loader type (Single Tilt, Parallel Lift, or Parallel
Lift with Quick Coupler). The rated loads are provided
for multipurpose buckets with flip over forks and for
quick coupler type pallet forks that are associated
with the quick coupler carriage.

Table 49

Rated Load For 434E With Flip Over Forks And Parallel Lift

Bucket Part Number

318-7258

Volumetric Rating

3

1.15 m

(1.50 yd3) 1615 kg (3561 lb) 1584 kg (3491 lb)

“EN 474-4” Rated

Operating Load

“SAE J1197” Rated

Operating Load

Placement Height

(B)

3196 mm

(10 ft 6 inch)

Reach (A)

1295 mm (4 ft 3 inch)

SEBU8475-10

Table 50

53

Product Information Section

Rated Load

Rated Load For 434E With Pallet Forks And Parallel Lift With Quick Coupler

Bucket Part Number

6W-8933

6W-8900

6W-9739

(1)

Limited by Tipping

Fork Tine Length

1050 mm (3 ft 5 inch) 2845 kg (6271 lb)

1200 mm (3 ft 11 inch) 2842 kg (6266 lb)

1350 mm (4 ft 5 inch) 2839 kg (6260 lb)

“EN 474-4” Rated

Operating Load

434E Material Handling Arm (Pilot
Controls)

The placement height (ground line to the chain hook)
and reach (front grill to the chain hook) are given for
the highest position of the material handling arm and
for the lowest position of the material handling arm.

“SAE J1197” Rated

Operating Load

(1)

2348 kg (5177 lb)

(1)

2282 kg (5030 lb)

(1)

2219 kg (4891 lb)

(Table 51, contd)

Placement Height

(1)

(1)

(1)

3322 mm

(10 ft 11 inch)

3322 mm

(10 ft 11 inch)

3322 mm

(10 ft 11 inch)

(B)

792 mm (2 ft 7 inch)

792 mm (2 ft 7 inch)

792 mm (2 ft 7 inch)

434E Rated Load For Material Handling Arm “EN 474-

4”

Mid-

Position

5839 mm

(19 ft 2 inch)

2228 mm

(7 ft 4 inch)

Placement

Height at High-

est Position

Reach at High-

est Position

Retracted

5036 mm

(16 ft 6 inch)

1656 mm

(5 ft 5 inch)

434E Truss Boom

Reach (A)

Extended

6642 mm

(21 ft 9 inch)

2802 mm

(9 ft 2 inch)

Illustration 59 g00285638

The following table provides the rated operating
loads for the standard parallel lift machine
configuration with a material handling arm and with a
quick coupler.

Table 51

434E Rated Load For Material Handling Arm “EN 474-

Retracted

Rated Operat-

ing Load

Placement

Height at Low-

est Position

Reach at Low-

est Position

1227 kg

(2705 lb)

−2129 mm

(−7 ft 0 inch)

584 mm

(1 ft 11 inch)

4”

Position

−3126 mm

(−10 ft 3 inch)

(2 ft 0 inch)

Mid-

787 kg

(1735 lb)

610 mm

Extended

579 kg

(1276 lb)

−4126 mm

(−13 ft 6 inch)

635 mm

(2 ft 1 inch)

The placement height (ground line to the chain hook)
and reach (front grill to the chain hook) are given for
the highest position of the truss boom and for the
lowest position of the truss boom.

Illustration 60 g02042134

The following table provides the rated operating
loads for the standard parallel lift machine
configuration with a truss boom.

(continued)

54

Product Information Section
Rated Load

Table 52

434E Rated Load For Truss Boom“EN 474-4”

Fixed Position

Rated Operating Load 589 kg (1298 lb)

Placement Height at Lowest

Position

Reach at Lowest Position

Placement Height at Highest

Position

Reach at Highest Position 1722 mm (5 ft 8 inch)

−4146 mm (−13 ft 7 inch)

578 mm (1 ft 10 inch)

7240 mm (23 ft 9 inch)

SEBU8475-10

(Table 53, contd)

434E Rated Load For Hook“EN 474-4”

Fixed Position

Maximum Horizontal Reach

Height at Maximum Reach 1620 mm (5 ft 3 inch)

1642 mm (5 ft 4 inch)

434E Backhoe Lifting (Pilot
Controls)

Maximum Horizontal Reach

Height at Maximum Reach 1570 mm (5 ft 2 inch)

5210 mm (17 ft 1 inch)

434E Hook

The placement height (ground line to the chain hook)
and reach (front grill to the chain hook) are given for
the highest position of the hook and for the lowest
position of the hook.

Illustration 61 g02042153

The following table provides the rated operating
loads for the standard parallel lift machine
configuration with a hook.

Table 53

434E Rated Load For Hook“EN 474-4”

Fixed Position

Rated Operating Load 3459 kg (7625 lb)

Placement Height at Lowest

Position

Reach at Lowest Position

Placement Height at Highest

Position

Reach at Highest Position 739 mm (2 ft 5 inch)

−580 mm (−1 ft 10 inch)

537 mm (1 ft 9 inch)

3811 mm (12 ft 5 inch)

Illustration 62 g01205365

Lift Point Radius (A)

The bucket hinge pin for the backhoe is level with the
lower boom hinge pin at each lifting point in the
following tables. Rated loads include the weight of
the attachment. The following tables provide the
operating loads for the standard machine
configuration.

Table 54

Rated Load For 434E Backhoe Bucket

Lift Point Radius

Backhoe Straight Back, Standard Stick

1.74 m (5 ft 9 inch) 6771 kg (14928 lb)

2.95 m (9 ft 8 inch) 3332 kg (7346 lb)

3.72 m (12 ft 3 inch) 2629 kg (5759 lb)

4.32 m (14 ft 2 inch) 2259 kg (4981 lb)

4.81 m (15 ft 9 inch) 1965 kg (4332 lb)

Backhoe Side Shifted, Swung to Side, Standard Stick

1.74 m (5 ft 9 inch) 5085 kg (11210 lb)

2.95 m (9 ft 8 inch) 2561 kg (5646 lb)

Rated Operating Load “EN

474-4”

(1)

(1)

(continued)

(continued)

SEBU8475-10

55

Product Information Section

Rated Load

(Table 54, contd)

Rated Load For 434E Backhoe Bucket

3.72 m (12 ft 3 inch) 1890 kg (4166 lb)

4.32 m (14 ft 2 inch) 1554 kg (3426 lb)

4.81 m (15 ft 9 inch) 1341 kg (2956 lb)

Backhoe Straight Back, Retracted E-Stick

1.74 m (5 ft 9 inch) 6413 kg (14137 lb)

2.95 m (9 ft 8 inch) 3124 kg (6888 lb)

3.72 m (12 ft 3 inch) 2446 kg (5392 lb)

4.32 m (14 ft 2 inch) 2087 kg (4601 lb)

4.81 m (15 ft 9 inch) 1799 kg (3967 lb)

Backhoe Side Shifted Swung to Side, Retracted E-Stick

1.74 m (5 ft 9 inch) 4745 kg (10461 lb)

2.96 m (9 ft 8 inch) 2350 kg (5180 lb)

3.73 m (12 ft 3 inch) 1703 kg (3755 lb)

4.32 m (14 ft 2 inch) 1379 kg (3039 lb)

4.81 m (15 ft 9 inch) 1173 kg (2586 lb)

Backhoe Straight Back, Extended E-Stick

2.28 m (7 ft 6 inch) 1518 kg (3347 lb)

3.26 m (10 ft 8 inch) 1887 kg (4160 lb)

4.28 m (14 ft 1 inch) 1813 kg (3997 lb)

5.06 m (16 ft 7 inch) 1659 kg (3657 lb)

5.73 m (18 ft 10 inch) 1416 kg (3123 lb)

Backhoe Side Shifted, Swung to Side, Extended E-Stick

2.40 m (7 ft 10 inch) 1397 kg (3080 lb)

3.26 m (10 ft 8 inch) 1766 kg (3894 lb)

4.28 m (14 ft 1 inch) 1493 kg (3291 lb)

5.06 m (16 ft 7 inch) 1151 kg (2537 lb)

5.73 m (18 ft 10 inch) 938 kg (2068 lb)

(1)

Limited by Tipping

Table 55

Rated Load For 434E Object Handling Application

Lift Point Radius

Backhoe Straight Back, Standard Stick

“SAE J31”/“ISO

10567” Rated Oper-

ating Load

Rated Operating

Load “EN 474-4”

(Table 55, contd)

Rated Load For 434E Object Handling Application

(1)

(1)

(1)

(1)

(1)

(1)

(1)

(1)

(1)

(1)

(1)

2.95 m (9 ft 8 inch) 2000 kg (4409 lb) 2000 kg (4409 lb)

3.72 m (12 ft 3 inch) 2000 kg (4409 lb) 2000 kg (4409 lb)

4.32 m (14 ft 2 inch) 2000 kg (4409 lb) 2000 kg (4409 lb)

4.81 m (15 ft 9 inch) 1965 kg (4332 lb) 1965 kg (4332 lb)

Backhoe Side Shifted, Swung to Side, Standard Stick

1.74 m (5 ft 9 inch) 2000 kg (4409 lb) 2000 kg (4409 lb)

2.95 m (9 ft 8 inch) 2000 kg (4409 lb) 2000 kg (4409 lb)

(1)

3.72 m (12 ft 3 inch) 1890 kg (4166 lb)

4.32 m (14 ft 2 inch) 1554 kg (3426 lb)

4.81 m (15 ft 9 inch) 1341 kg (2956 lb)

1890 kg (4166 lb)

(1)

1554 kg (3426 lb)

(1)

1341 kg (2956 lb)

Backhoe Straight Back, Retracted E-Stick

1.75 m (5 ft 9 inch) 2000 kg (4409 lb) 2000 kg (4409 lb)

2.96 m (9 ft 8 inch) 2000 kg (4409 lb) 2000 kg (4409 lb)

3.73 m (12 ft 3 inch) 2000 kg (4409 lb) 2000 kg (4409 lb)

4.32 m (14 ft 2 inch) 2000 kg (4409 lb) 2000 kg (4409 lb)

4.81 m (15 ft 9 inch) 1799 kg (3967 lb) 1799 kg (3967 lb)

Backhoe Side Shifted Swung to Side, Retracted E-Stick

1.75 m (5 ft 9 inch) 2000 kg (4409 lb) 2000 kg (4409 lb)

2.96 m (9 ft 8 inch) 2000 kg (4409 lb) 2000 kg (4409 lb)

(1)

3.73 m (12 ft 3 inch) 1703 kg (3755 lb)

4.32 m (14 ft 2 inch) 1379 kg (3039 lb)

4.81 m (15 ft 9 inch) 1173 kg (2586 lb)

1703 kg (3755 lb)

(1)

1379 kg (3039 lb)

(1)

1173 kg (2586 lb)

Backhoe Straight Back, Extended E-Stick

2.28 m (7 ft 6 inch) 1518 kg (3347 lb) 1518 kg (3347 lb)

3.26 m (10 ft 8 inch) 1887 kg (4160 lb) 1887 kg (4160 lb)

4.28 m (14 ft 1 inch) 1813 kg (3997 lb) 1813 kg (3997 lb)

5.06 m (16 ft 7 inch) 1659 kg (3657 lb) 1659 kg (3657 lb)

5.73 m

(18 ft 10 inch)

1416 kg (3123 lb) 1232 kg (2717 lb)

Backhoe Side Shifted, Swung to Side, Extended E-Stick

2.40 m (7 ft 10 inch) 1397 kg (3080 lb) 1397 kg (3080 lb)

3.26 m (10 ft 8 inch) 1766 kg (3894 lb) 1766 kg (3894 lb)

(1)

4.28 m (14 ft 1 inch) 1493 kg (3291 lb)

1493 kg (3291 lb)

(1)

(1)

(1)

(1)

(1)

(1)

(1)

1.74 m (5 ft 9 inch) 2000 kg (4409 lb) 2000 kg (4409 lb)

(continued)

(continued)

56

Product Information Section
Rated Load

(Table 55, contd)

Rated Load For 434E Object Handling Application

5.06 m (16 ft 7 inch) 1151 kg (2537 lb)

5.73 m

(18 ft 10 inch)

(1)

Limited by Tipping

938 kg (2068 lb)

(1)

1151 kg (2537 lb)

(1)

938 kg (2068 lb)

(1)

(1)

434E Loader Buckets (Mechanical
Controls)

The following tables provide the rated operating
loads for the standard machine that is equipped with
the given bucket. The corresponding dump clearance
is given for each bucket at maximum lift height and at
the full dump angle. The reach is given for each
bucket at maximum lift height and at the full dump
angle. Clearance is measured from the ground to the
bucket edge in order to dump the load. The reach is
measured from the front grill to the bucket edge.

SEBU8475-10

Illustration 63 g01205342

Dump Reach (A) and Dump Height (B)

Table 56

Rated Bucket Load For A 434E Parallel Lift Loader

Bucket Part Number

248-0960

318-7260

318-7261

Volumetric Rating

3

1.15 m

1.15 m

1.15 m

(1.50 yd3) 3206 kg (7067 lb) 2636 mm (8 ft 8 inch) 905 mm (3 ft 0 inch)

3

(1.50 yd3) 3154 kg (6953 lb) 2647 mm (8 ft 8 inch) 886 mm (2 ft 11 inch)

3

(1.50 yd3) 3146 kg (6935 lb) 2647 mm (8 ft 8 inch) 886 mm (2 ft 11 inch)

“EN 474-4” and “SAE

J818” Rated Operating

Load

Dump Height (B) Dump Reach (A)

SEBU8475-10

434E Pallet Forks (Mechanical
Controls)

Illustration 64 g01205364

Reach (A) and Placement Height (B)

57

Product Information Section

Rated Load

The following tables provide the rated operating
loads for the standard machine configuration with the
given loader type (Single Tilt, Parallel Lift, or Parallel
Lift with Quick Coupler). The rated loads are provided
for multipurpose buckets with flip over forks and for
quick coupler type pallet forks that are associated
with the quick coupler carriage.

Table 57

Rated Load For 434E With Flip Over Forks And Parallel Lift

Bucket Part Number

318-7258

Volumetric Rating

3

(1.50 yd3) 1615 kg (3561 lb) 1584 kg (3491 lb)

1.15 m

“CEN 474-4”

Rated Operating

Load

434E Backhoe Lifting (Mechanical
Controls)

“SAE J1197” Rated

Operating Load

Placement Height

(B)

3196 mm

(10 ft 6 inch)

Reach (A)

1295 mm (4 ft 3 inch)

The bucket hinge pin for the backhoe is level with the
lower boom hinge pin at each lifting point in the
following tables. Rated loads include the weight of
the attachment. The following tables provide the
operating loads for the standard machine
configuration.

Table 58

Rated Load For 434E Backhoe Bucket

Lift Point Radius

Backhoe Straight Back, Standard Stick

Rated Operating Load “EN

474-4”

Illustration 65 g01205365

Lift Point Radius (A)

1.74 m (5 ft 9 inch) 5608 kg (12364 lb)

2.95 m (9 ft 8 inch) 2753 kg (6070 lb)

3.72 m (12 ft 3 inch) 2167 kg (4777 lb)

4.32 m (14 ft 2 inch) 1858 kg (4096 lb)

(continued)

58

Product Information Section
Rated Load

SEBU8475-10

(Table 58, contd)

Rated Load For 434E Backhoe Bucket

4.81 m (15 ft 9 inch) 1611 kg (3552 lb)

Backhoe Side Shifted, Swung to Side, Standard Stick

1.74 m (5 ft 9 inch) 5137 kg (11324 lb)

2.95 m (9 ft 8 inch) 2591 kg (5713 lb)

3.72 m (12 ft 3 inch) 1917 kg (4266 lb)

4.32 m (14 ft 2 inch) 1580 kg (3483 lb)

4.81 m (15 ft 9 inch) 1366 kg (3012 lb)

Backhoe Straight Back, Retracted E-Stick

1.74 m (5 ft 9 inch) 5259 kg (11594 lb)

2.95 m (9 ft 8 inch) 2548 kg (5616 lb)

3.72 m (12 ft 3 inch) 1985 kg (4376 lb)

4.32 m (14 ft 2 inch) 1686 kg (3718 lb)

4.81 m (15 ft 9 inch) 1447 kg (3189 lb)

Backhoe Side Shifted Swung to Side, Retracted E-Stick

1.74 m (5 ft 9 inch) 4796 kg (10574 lb)

2.96 m (9 ft 8 inch) 2380 kg (5247 lb)

3.73 m (12 ft 3 inch) 1731 kg (3815 lb)

4.32 m (14 ft 2 inch) 1405 kg (3097 lb)

4.81 m (15 ft 9 inch) 1199 kg (2642 lb)

Backhoe Straight Back, Extended E-Stick

2.28 m (7 ft 6 inch) 1238 kg (2729 lb)

3.26 m (10 ft 8 inch) 1535 kg (3383 lb)

4.28 m (14 ft 1 inch) 1468 kg (3237 lb)

5.06 m (16 ft 7 inch) 1337 kg (2948 lb)

5.73 m (18 ft 10 inch) 1054 kg (2324 lb)

Backhoe Side Shifted, Swung to Side, Extended E-Stick

2.40 m (7 ft 10 inch) 1134 kg (2501 lb)

3.26 m (10 ft 8 inch) 1434 kg (3162 lb)

4.28 m (14 ft 1 inch) 1422 kg (3134 lb)

5.06 m (16 ft 7 inch) 1173 kg (2586 lb)

5.73 m (18 ft 10 inch) 961 kg (2118 lb)

(1)

Limited by Tipping

Table 59

Rated Load For 434E Object Handling Application

“SAE J31”/“ISO

Lift Point Radius

10567” Rated Op-

erating Load

(1)

(1)

(1)

(1)

(1)

1.74 m (5 ft 9 inch) 2000 kg (4409 lb) 2000 kg (4409 lb)

2.95 m (9 ft 8 inch) 2000 kg (4409 lb) 2000 kg (4409 lb)

3.72 m (12 ft 3 inch) 2000 kg (4409 lb) 2000 kg (4409 lb)

4.32 m (14 ft 2 inch) 1858 kg (4096 lb) 1858 kg (4096 lb)

Backhoe Straight Back, Standard Stick

4.81 m (15 ft 9 inch) 1611 kg (3552 lb) 1611 kg (3552 lb)

Backhoe Side Shifted, Swung to Side, Standard Stick

1.74 m (5 ft 9 inch) 2000 kg (4409 lb) 2000 kg (4409 lb)

2.95 m (9 ft 8 inch) 2000 kg (4409 lb) 2000 kg (4409 lb)

3.72 m (12 ft 3 inch)

4.32 m (14 ft 2 inch)

(1)

(1)

(1)

(1)

(1)

4.81 m (15 ft 9 inch)

Backhoe Straight Back, Retracted E-Stick

1.75 m (5 ft 9 inch) 2000 kg (4409 lb) 2000 kg (4409 lb)

2.96 m (9 ft 8 inch) 2000 kg (4409 lb) 2000 kg (4409 lb)

1917 kg (4226 lb)

(1)

1580 kg (3483 lb)

(1)

1366 kg (3012 lb)

(1)

3.73 m (12 ft 3 inch) 1985 kg (4376 lb) 1985 kg (4376 lb)

4.32 m (14 ft 2 inch) 1686 kg (3718 lb) 1686 kg (3718 lb)

4.81 m (15 ft 9 inch) 1447 kg (3189 lb) 1447 kg (3189 lb)

Backhoe Side Shifted Swung to Side, Retracted E-Stick

1.75 m (5 ft 9 inch) 2000 kg (4409 lb) 2000 kg (4409 lb)

2.96 m (9 ft 8 inch) 2000 kg (4409 lb) 2000 kg (4409 lb)

3.73 m (12 ft 3 inch)

4.32 m (14 ft 2 inch)

4.81 m (15 ft 9 inch)

(1)

(1)

Backhoe Straight Back, Extended E-Stick

1731 kg (3815 lb)

(1)

1405 kg (3097 lb)

(1)

1199 kg (2642 lb)

(1)

2.28 m (7 ft 6 inch) 1238 kg (2729 lb) 1238 kg (2729 lb)

3.26 m (10 ft 8 inch) 1535 kg (3383 lb) 1535 kg (3383 lb)

Rated Operating
Load “EN 474-4”

1917 kg (4226 lb)

1580 kg (3483 lb)

1366 kg (3012 lb)

1731 kg (3815 lb)

1405 kg (3097 lb)

1199 kg (2642 lb)

(1)

(1)

(1)

(1)

(1)

(1)

4.28 m (14 ft 1 inch) 1468 kg (3237 lb) 1468 kg (3237 lb)

5.06 m (16 ft 7 inch) 1337 kg (2948 lb) 1337 kg (2948 lb)

(continued)

SEBU8475-10

(Table 59, contd)

Rated Load For 434E Object Handling Application

59

Product Information Section

Rated Load

5.73 m

(18 ft 10 inch)

Backhoe Side Shifted, Swung to Side, Extended E-Stick

2.40 m (7 ft 10 inch) 1134 kg (2501 lb) 1134 kg (2501 lb)

3.26 m (10 ft 8 inch) 1434 kg (3162 lb) 1434 kg (3162 lb)

4.28 m (14 ft 1 inch) 1422 kg (3134 lb) 1422 kg (3134 lb)

5.06 m (16 ft 7 inch)

5.73 m

(18 ft 10 inch)

(1)

Limited by Tipping

999 kg (2201 lb) 999 kg (2201 lb)

1173 kg (2586 lb)

(1)

961 kg (2118 lb)

1173 kg (2586 lb)

(1)

961 kg (2118 lb)

(1)

(1)

442E Loader Buckets

The following tables provide the rated operating
loads for the standard machine that is equipped with
the given bucket. The corresponding dump clearance
is given for each bucket at maximum lift height and at
the full dump angle. The reach is given for each
bucket at maximum lift height and at the full dump
angle. Clearance is measured from the ground to the
bucket edge in order to dump the load. The reach is
measured from the front grill to the bucket edge.

Illustration 66 g00285635

Dump Reach (A) and Dump Height (B)

Table 60

Rated Bucket Load For A 442E Parallel Lift Loader

Bucket Part Number

112-1931

318-7263

318-7247

318-7264

Volumetric Rating

3

1.00 m

1.03 m

1.03 m

1.03 m

(1.31 yd3) 3406 kg (7509 lb) 2575 mm (8 ft 5 inch) 743 mm (2 ft 5 inch)

3

(1.35 yd3) 3181 kg (7014 lb) 2610 mm (8 ft 7 inch) 671 mm (2 ft 2 inch)

3

(1.35 yd3) 3131 kg (6902 lb) 2610 mm (8 ft 7 inch) 671 mm (2 ft 2 inch)

3

(1.35 yd3) 2981 kg (6573 lb) 2610 mm (8 ft 7 inch) 671 mm (2 ft 2 inch)

“EN 474-4” and “SAE

J818” Rated Operating

Load

Dump Height (B) Dump Reach (A)

60

Product Information Section
Rated Load

Table 61

Rated Bucket Load For A 442E Parallel Lift Loader With Quick Coupler

Bucket Part Number

Volumetric Rating

“EN 474-4” and

“SAE J818”

Rated Operat-

ing Load

Dump Height

(B)

SEBU8475-10

Dump Reach

(A)

118-1984

318-7267

1.03 m

1.03 m

(1.35 yd3) 3212 kg (7082 lb) 2488 mm (8 ft 2 inch)

3

(1.35 yd3) 2990 kg (6591 lb) 2540 mm (8 ft 4 inch)

3

442E Pallet Forks

Illustration 67 g00285636

Reach (A) and Placement Height (B)

The following tables provide the rated operating
loads for the standard machine configuration with the
given loader type (Single Tilt, Parallel Lift, or Parallel
Lift with Quick Coupler). The rated loads are provided
for multipurpose buckets with flip over forks and for
quick coupler type pallet forks that are associated
with the quick coupler carriage.

Table 62

Rated Load For 442E With Flip Over Forks And Parallel Lift

775 mm

(2 ft 6 inch)

726 mm

(2 ft 5 inch)

Part Number

Table 63

Part Number

318-7264

6W-8933

Volumetric Rating

3

1.03 m

(1.35 yd3) 1563 kg (3446 lb) 1530 kg (3372 lb)

“EN 474-4” Rated

Operating Load

“SAE J1197” Rated

Operating Load

Placement Height

(B)

3093 mm

(10 ft 2 inch)

Rated Load For 442E With Pallet Forks And Parallel Lift With Quick Coupler

Fork Tine Length

1050 mm (3 ft 5 inch) 2682 kg (5914 lb) 2617 kg (5769 lb)

“EN 474-4” Rated

Operating Load

“SAE J1197” Rated

Operating Load

Placement Height

(B)

3200 mm

(10 ft 6 inch)

Reach (A)

1038 mm (3 ft 5 inch)

Reach (A)

637 mm (2 ft 1 inch)

(continued)

SEBU8475-10

(Table 63, contd)

6W-8900

6W-9739

Product Information Section

Rated Load For 442E With Pallet Forks And Parallel Lift With Quick Coupler

1200 mm (3 ft 11 inch) 2680 kg (5909 lb) 2436 kg (5371 lb)

1350 mm (4 ft 5 inch) 2678 kg (5904 lb) 2279 kg (5023 lb)

3200 mm

(10 ft 6 inch)

3200 mm

(10 ft 6 inch)

61

Rated Load

637 mm (2 ft 1 inch)

637 mm (2 ft 1 inch)

442E Material Handling Arm

The placement height (ground line to the chain hook)
and reach (front grill to the chain hook) are given for
the highest position of the material handling arm and
for the lowest position of the material handling arm.

Illustration 68 g00285638

The following table provides the rated operating
loads for the standard parallel lift machine
configuration with a material handling arm and with a
quick coupler.

Table 64

442E Rated Load For Material Handling Arm “EN 474-

Retracted

Rated Operat-

ing Load

Placement

Height at Low-

est Position

Reach at Low-

est Position

1024 kg

(2258 lb)

−2015 mm

(−6 ft 7 inch)

666 mm

(2 ft 2 inch)

4”

Position

(1433 lb)

−3012 mm

(−9 ft 10 inch)

(2 ft 4 inch)

Mid-

650 kg

704 mm

Extended

476 kg

(1049 lb)

−4012 mm

(−13 ft 2 inch)

742 mm

(2 ft 5 inch)

(continued)

(Table 64, contd)

442E Rated Load For Material Handling Arm “EN 474-

4”

Mid-

Position

5848 mm

(19 ft 2 inch)

1923 mm

(6 ft 4 inch)

Extended

6684 mm

(21 ft 11 inch)

2449 mm

(8 ft 1 inch)

Placement

Height at High-

est Position

Reach at High-

est Position

Retracted

5012 mm

(16 ft 5 inch)

1400 mm

(4 ft 7 inch)

442E Truss Boom

The placement height (ground line to the chain hook)
and reach (front grill to the chain hook) are given for
the highest position of the truss boom and for the
lowest position of the truss boom.

Illustration 69 g02042134

The following table provides the rated operating
loads for the standard parallel lift machine
configuration with a truss boom.

Table 65

442E Rated Load For Truss Boom“EN 474-4”

Fixed Position

Rated Operating Load 501 kg (1105 lb)

Placement Height at Lowest

Position

Reach at Lowest Position

−4033 mm (−13 ft 3 inch)

743 mm (2 ft 5 inch)

(continued)

62

Product Information Section
Rated Load

SEBU8475-10

(Table 65, contd)

442E Rated Load For Truss Boom“EN 474-4”

Fixed Position

Placement Height at Highest

Position

Reach at Highest Position 1337 mm (4 ft 4 inch)

Maximum Horizontal Reach

Height at Maximum Reach 1633 mm (5 ft 4 inch)

7219 mm (23 ft 7 inch)

5142 mm (16 ft 10 inch)

442E Hook

The placement height (ground line to the chain hook)
and reach (front grill to the chain hook) are given for
the highest position of the hook and for the lowest
position of the hook.

(Table 66, contd)

442E Rated Load For Hook“EN 474-4”

Fixed Position

Maximum Horizontal Reach

Height at Maximum Reach 1589 mm (5 ft 3 inch)

1576 mm (5 ft 2 inch)

442E Backhoe Lifting

Illustration 71 g00286077

Lift Point Radius (A)

Illustration 70 g02042153

The following table provides the rated operating
loads for the standard parallel lift machine
configuration with a hook.

Table 66

442E Rated Load For Hook“EN 474-4”

Fixed Position

Rated Operating Load 3484 kg (7681 lb)

Placement Height at Lowest

Position

Reach at Lowest Position

Placement Height at Highest

Position

Reach at Highest Position 557 mm (1 ft 10 inch)

−466 mm (−1 ft 6 inch)

607 mm (2 ft 0 inch)

3733 mm (12 ft 3 inch)

(continued)

The bucket hinge pin for the backhoe is level with the
lower boom hinge pin at each lifting point in the
following tables. Rated loads include the weight of
the attachment. The following tables provide the
operating loads for the standard machine
configuration.

Table 67

Rated Operating Load For 442E Backhoe Bucket

Lift Point Radius

Backhoe Straight Back, Retracted E-Stick

1.75 m (5 ft 9 inch) 5228 kg (11526 lb)

3.29 m (10 ft 9 inch) 2846 kg (6275 lb)

4.16 m (13 ft 8 inch) 2196 kg (4841 lb)

4.79 m (15 ft 9 inch) 1861 kg (4102 lb)

5.28 m (17 ft 4 inch) 1651 kg (3639 lb)

Backhoe Side Shifted Swung to Side, Retracted E-Stick

1.75 m (5 ft 9 inch) 3766 kg (8302 lb)

3.29 m (10 ft 9 inch) 1600 kg (3528 lb)

4.16 m (13 ft 8 inch) 1123 kg (2475 lb)

4.79 m (15 ft 9 inch) 890 kg (1963 lb)

Rated Operating Load “EN

474-4”

(1)

(1)

(1)

(1)

(1)

(1)

(1)

(1)

(1)

(continued)

SEBU8475-10

63

Product Information Section

Rated Load

(Table 67, contd)

Rated Operating Load For 442E Backhoe Bucket

5.28 m (17 ft 4 inch) 749 kg (1652 lb)

Backhoe Straight Back, Extended E-Stick

2.30 m (7 ft 7 inch) 1363 kg (3004 lb)

3.64 m (11 ft 11 inch) 2177 kg (4800 lb)

4.76 m (15 ft 7 inch) 1881 kg (4147 lb)

5.57 m (18 ft 3 inch) 1538 kg (3390 lb)

6.22 m (20 ft 5 inch) 1324 kg (2919 lb)

Backhoe Side Shifted, Swung to Side, Extended E-Stick

2.34 m (7 ft 8 inch) 1323 kg (2917 lb)

3.64 m (11 ft 11 inch) 1552 kg (3422 lb)

4.76 m (15 ft 7 inch) 1001 kg (2206 lb)

5.57 m (18 ft 3 inch) 750 kg (1654 lb)

6.22 m (20 ft 5 inch) 599 kg (1321 lb)

(1)

Limited by Tipping

Table 68

(1)

(1)

(1)

(1)

(1)

(1)

(1)

(1)

442E Rated Operating Load For Object Handling

Application

“SAE J31”/“ISO

Lift Point Radius

10567” Rated Op-

erating Load

Backhoe Straight Back, Retracted E-Stick

1.75 m (5 ft 9 inch) 2000 kg (4409 lb) 2000 kg (4409 lb)

3.29 m (10 ft 9 inch) 2000 kg (4409 lb) 2000 kg (4409 lb)

Rated Operating
Load “EN 474-4”

(Table 68, contd)

442E Rated Operating Load For Object Handling

Application

3.64 m (11 ft 11 inch) 2000 kg (4409 lb) 2000 kg (4409 lb)

4.76 m (15 ft 7 inch)

5.57 m (18 ft 3 inch)

6.22 m (20 ft 5 inch)

1881 kg (4147 lb)

(1)

1538 kg (3390 lb)

(1)

1324 kg (2919 lb)

(1)

1881 kg (4147 lb)

1538 kg (3390 lb)

1324 kg (2919 lb)

(1)

(1)

(1)

Backhoe Side Shifted, Swung to Side, Extended E-Stick

2.34 m (7 ft 8 inch) 1323 kg (2917 lb) 1323 kg (2917 lb)

3.64 m (11 ft 11 inch)

4.76 m (15 ft 7 inch)

1552 kg (3422 lb)

(1)

1001 kg (2206 lb)

(1)

5.57 m (18 ft 3 inch) 750 kg (1654 lb)

6.22 m (20 ft 5 inch) 599 kg (1321 lb)

(1)

Limited by Tipping

1552 kg (3422 lb)

1001 kg (2206 lb)

(1)

750 kg (1654 lb)

(1)

599 kg (1321 lb)

(1)

(1)

(1)

(1)

444E Loader Buckets

The following tables provide the rated operating
loads for the standard machine that is equipped with
the given bucket. The corresponding dump clearance
is given for each bucket at maximum lift height and at
the full dump angle. The reach is given for each
bucket at maximum lift height and at the full dump
angle. Clearance is measured from the ground to the
bucket edge in order to dump the load. The reach is
measured from the front grill to the bucket edge.

4.16 m (13 ft 8 inch) 2000 kg (4409 lb) 2000 kg (4409 lb)

4.79 m (15 ft 9 inch)

5.28 m (17 ft 4 inch)

1861 kg (4102 lb)

(1)

1651 kg (3639 lb)

(1)

1861 kg (4102 lb)

1651 kg (3639 lb)

Backhoe Side Shifted Swung to Side, Retracted E-Stick

1.75 m (5 ft 9 inch) 2000 kg (4409 lb) 2000 kg (4409 lb)

3.29 m (10 ft 9 inch)

4.16 m (13 ft 8 inch) 1123 kg (2475 lb)

4.79 m (15 ft 9 inch) 890 kg (1963 lb)

5.28 m (17 ft 4 inch) 749 kg (1652 lb)

1600 kg (3528 lb)

(1)

1600 kg (3528 lb)

(1)

1123 kg (2475 lb)

(1)

890 kg (1963 lb)

(1)

749 kg (1652 lb)

Backhoe Straight Back, Extended E-Stick

2.30 m (7 ft 7 inch) 1363 kg (3004 lb) 1363 kg (3004 lb)

(continued)

(1)

(1)

(1)

(1)

(1)

(1)

Illustration 72 g01205342

Dump Reach (A) and Dump Height (B)

64

Product Information Section
Rated Load

Table 69

Bucket Part Number

248-0961

318-7256

318-7262

318-7254

(1)

Limited by Tipping

Table 70

Rated Bucket Load For A 444E Parallel Lift Loader With Quick Coupler

Rated Bucket Load For A 444E Parallel Lift Loader

Volumetric Rating

3

1.30 m

1.30 m

1.30 m

1.30 m

(1.70 yd3) 3676 kg (8105 lb)

3

(1.70 yd3) 3413 kg (7524 lb)

3

(1.70 yd3) 3379 kg (7450 lb)

3

(1.70 yd3) 3327 kg (7334 lb)

“EN 474-4” and “SAE

J818” Rated Operating

Load

(1)

(1)

(1)

(1)

2758 mm (9 ft 1 inch) 888 mm (2 ft 11 inch)

2793 mm (9 ft 2 inch) 817 mm (2 ft 8 inch)

2793 mm (9 ft 2 inch) 817 mm (2 ft 8 inch)

2699 mm (8 ft 10 inch) 817 mm (2 ft 8 inch)

SEBU8475-10

Dump Height (B) Dump Reach (A)

Bucket Part Number

248-0962

320-9940

(1)

Limited by Tipping

Volumetric Rating

3

1.30 m

1.30 m

(1.70 yd3) 3517 kg (7754 lb)

3

(1.70 yd3) 3312 kg (7301 lb)

444E Pallet Forks

Illustration 73 g01205364

Reach (A) and Placement Height (B)

“EN 474-4” and

“SAE J818” Rated

Operating Load

(1)

(1)

Dump Height

(B)

Dump Reach (A)

2615 mm (8 ft 7 inch) 965 mm (3 ft 3 inch)

2603 mm (8 ft 6 inch) 985 mm (3 ft 3 inch)

The following tables provide the rated operating
loads for the standard machine configuration with the
given loader type (Single Tilt, Parallel Lift, or Parallel
Lift with Quick Coupler). The rated loads are provided
for multipurpose buckets with flip over forks and for
quick coupler type pallet forks that are associated
with the quick coupler carriage.

Table 71

Rated Load For 444E With Flip Over Forks And Parallel Lift

Part Number

318-7254

Volumetric Rating

3

1.30 m

(1.70 yd3) 1895 kg (4178 lb) 1851 kg (4081 lb)

“EN 474-4” Rated

Operating Load

“SAE J1197” Rated

Operating Load

Placement Height

(B)

3252 mm

(10 ft 8 inch)

Reach (A)

1184 mm

(3 ft 11 inch)

SEBU8475-10

Table 72

65

Product Information Section

Rated Load

Rated Load For 444E With Pallet Forks And Parallel Lift With Quick Coupler

Part Number

6W-8933

6W-8900

6W-9739

(1)

Limited by Tipping

Fork Tine Length

1070 mm (3 ft 6 inch) 3190 kg (7034 lb)

1220 mm (4 ft 0 inch) 3188 kg (7028 lb)

1370 mm (4 ft 6 inch) 3185 kg (7022 lb)

“EN 474-4” Rated

Operating Load

444E Material Handling Arm

The placement height (ground line to the chain hook)
and reach (front grill to the chain hook) are given for
the highest position of the material handling arm and
for the lowest position of the material handling arm.

“SAE J1197” Rated

Operating Load

(1)

2634 kg (5806 lb)

(1)

2559 kg (5642 lb)

(1)

2489 kg (5487 lb)

(Table 73, contd)

Placement Height

(1)

(1)

(1)

3379 mm

(11 ft 1 inch)

3379 mm

(11 ft 1 inch)

3379 mm

(11 ft 1 inch)

(B)

792 mm (2 ft 7 inch)

792 mm (2 ft 7 inch)

792 mm (2 ft 7 inch)

444E Rated Load For Material Handling Arm “EN 474-

4”

Mid-

Position

5973 mm

(19 ft 6 inch)

2228 mm

(7 ft 3 inch)

Placement

Height at High-

est Position

Reach at High-

est Position

Retracted

5155 mm

(16 ft 11 inch)

1656 mm

(5 ft 5 inch)

444E Truss Boom

Reach (A)

Extended

6792 mm

(22 ft 3 inch)

2802 mm

(9 ft 2 inch)

Illustration 74 g00285638

The following table provides the rated operating
loads for the standard parallel lift machine
configuration with a material handling arm and with a
quick coupler.

Table 73

444E Rated Load For Material Handling Arm “EN 474-

Retracted

Rated Operat-

ing Load

Placement

Height at Low-

est Position

Reach at Low-

est Position

1514 kg

(3338 lb)

−2042 mm

(−6 ft 8 inch )

555 mm

(1 ft 10 inch)

4”

(−10 ft 0 inch)

Mid-

Position

980 kg

(2161 lb)

−3040 mm

566 mm

(1 ft 10 inch)

Extended

725 kg

(1598 lb)

−4039 mm
(−13 ft 3

inch)

578 mm

(1 ft 10 inch)

The placement height (ground line to the chain hook)
and reach (front grill to the chain hook) are given for
the highest position of the truss boom and for the
lowest position of the truss boom.

Illustration 75 g02042134

The following table provides the rated operating
loads for the standard parallel lift machine
configuration with a truss boom.

(continued)

66

Product Information Section
Rated Load

Table 74

444E Rated Load For Truss Boom“EN 474-4”

Fixed Position

Rated Operating Load 727 kg (1603 lb)

Placement Height at Lowest

Position

Reach at Lowest Position

Placement Height at Highest

Position

Reach at Highest Position 1722 mm (5 ft 8 inch)

−4060 mm (−13 ft 4 inch)

578 mm (1 ft 10 inch)

7362 mm (24 ft 2 inch)

SEBU8475-10

(Table 75, contd)

444E Rated Load For Hook“EN 474-4”

Fixed Position

Maximum Horizontal Reach

Height at Maximum Reach 1737 mm (5 ft 8 inch)

1642 mm (5 ft 4 inch)

444E Backhoe Lifting

Maximum Horizontal Reach

Height at Maximum Reach 1779 mm (5 ft 10 inch)

5210 mm (17 ft 1 inch)

444E Hook

The placement height (ground line to the chain hook)
and reach (front grill to the chain hook) are given for
the highest position of the hook and for the lowest
position of the hook.

Illustration 76 g02042153

The following table provides the rated operating
loads for the standard parallel lift machine
configuration with a hook.

Table 75

444E Rated Load For Hook“EN 474-4”

Fixed Position

Rated Operating Load 3992 kg (8801 lb)

Illustration 77 g01205365

Lift Point Radius (A)

The bucket hinge pin for the backhoe is level with the
lower boom hinge pin at each lifting point in the
following tables. Rated loads include the weight of
the attachment. The following tables provide the
operating loads for the standard machine
configuration.

Table 76

Rated Operating Load For 444E Backhoe Bucket

Lift Point Radius

Backhoe Straight Back, Retracted E-Stick

1.75 m (5 ft 9 inch) 7989 kg (17614 lb)

3.29 m (10 ft 9 inch) 4403 kg (9708 lb)

4.16 m (13 ft 8 inch) 3427 kg (7554 lb)

4.79 m (15 ft 9 inch) 2923 kg (6444 lb)

Rated Operating Load “EN

474-4”

(1)

(1)

(1)

(1)

Placement Height at Lowest

Position

Reach at Lowest Position

Placement Height at Highest

Position

Reach at Highest Position 739 mm (2 ft 5 inch)

−493 mm (−1 ft 7 inch)

537 mm (1 ft 9 inch)

3905 mm (12 ft 10 inch)

(continued)

5.28 m (17 ft 4 inch) 2580 kg (5687 lb)

Backhoe Side Shifted, Swung to Side, Retracted E-Stick

1.75 m (5 ft 9 inch) 5443 kg (12000 lb)

3.29 m (10 ft 9 inch) 2416 kg (5326 lb)

4.16 m (13 ft 8 inch) 1733 kg (3820 lb)

(1)

(1)

(1)

(continued)

SEBU8475-10

67

Product Information Section

Rated Load

(Table 76, contd)

Rated Operating Load For 444E Backhoe Bucket

4.79 m (15 ft 9 inch) 1399 kg (3084 lb)

5.28 m (17 ft 4 inch) 1196 kg (2637 lb)

Backhoe Straight Back, Extended E-Stick

2.33 m (7 ft 8 inch) 1771 kg (3905 lb)

3.64 m (11 ft 11 inch) 2863 kg (6312 lb)

4.76 m (15 ft 7 inch) 2827 kg (6234 lb)

5.57 m (18 ft 3 inch) 2519 kg (5553 lb)

6.22 m (20 ft 5 inch) 1615 kg (3561 lb)

Backhoe Side Shifted, Swung to Side, Extended E-Stick

2.34 m (7 ft 8 inch) 1753 kg (3864 lb)

3.64 m (11 ft 11 inch) 2308 kg (5088 lb)

4.76 m (15 ft 7 inch) 1530 kg (3373 lb)

5.57 m (18 ft 3 inch) 1174 kg (2589 lb)

6.22 m (20 ft 5 inch) 960 kg (2116 lb)

(1)

Limited by Tipping

(Table 77, contd)

444E Rated Operating Load For Object Handling

(1)

(1)

4.76 m (15 ft 7 inch) 2000 kg (4165 lb) 2000 kg (4409 lb)

5.57 m (18 ft 3 inch) 1889 kg (4334 lb)

6.22 m (20 ft 5 inch) 1405 kg (3098 lb) 1405 kg (3098 lb)

Backhoe Side Shifted, Swung to Side, Extended E-Stick

2.34 m (7 ft 8 inch) 1315 kg (2898 lb) 1315 kg (2898 lb)

(1)

3.64 m (11 ft 11 inch) 1731 kg (3816 lb)

4.76 m (15 ft 7 inch) 1147 kg (2530 lb)

5.57 m (18 ft 3 inch) 881 kg (1941 lb)

6.22 m (20 ft 5 inch) 720 kg (1587 lb)

(1)

(1)

(1)

(1)

(1)

Limited by Tipping

Application

(1)

1889 kg (4334 lb)

(1)

1731 kg (3816 lb)

(1)

1147 kg (2530 lb)

(1)

881 kg (1941 lb)

(1)

720 kg (1587 lb)

(1)

(1)

(1)

(1)

(1)

Table 77

444E Rated Operating Load For Object Handling

Application

“SAE J31”/“ISO

Lift Point Radius

10567” Rated Oper-

ating Load

Backhoe Straight Back, Retracted E-Stick

1.75 m (5 ft 9 inch) 2000 kg (4409 lb) 2000 kg (4409 lb)

3.29 m (10 ft 9 inch) 2000 kg (4409 lb) 2000 kg (4409 lb)

4.16 m (13 ft 8 inch) 2000 kg (4409 lb) 2000 kg (4409 lb)

4.79 m (15 ft 9 inch) 2000 kg (4409 lb) 2000 kg (4409 lb)

5.28 m (17 ft 4 inch) 1957 kg (4314 lb)

Backhoe Side Shifted Swung to Side, Retracted E-Stick

1.75 m (5 ft 9 inch) 2000 kg (4409 lb) 2000 kg (4409 lb)

3.29 m (10 ft 9 inch) 1812 kg (3995 lb)

4.16 m (13 ft 8 inch) 1299 kg (2865 lb)

4.79 m (15 ft 9 inch) 1049 kg (2313 lb)

5.28 m (17 ft 4 inch) 897 kg (1978 lb)

Backhoe Straight Back, Extended E-Stick

Rated Operating
Load “EN 474-4”

(1)

1957 kg (4314 lb)

(1)

1812 kg (3995 lb)

(1)

1299 kg (2865 lb)

(1)

1049 kg (2313 lb)

(1)

897 kg (1978 lb)

(1)

(1)

(1)

(1)

(1)

2.33 m (7 ft 8 inch) 1328 kg (2929 lb) 1328 kg (2929 lb)

3.64 m (11 ft 11 inch) 2000 kg (4409 lb) 2000 kg (4409 lb)

(continued)

68

Product Information Section
Identification Information

Identification Information

i04571173

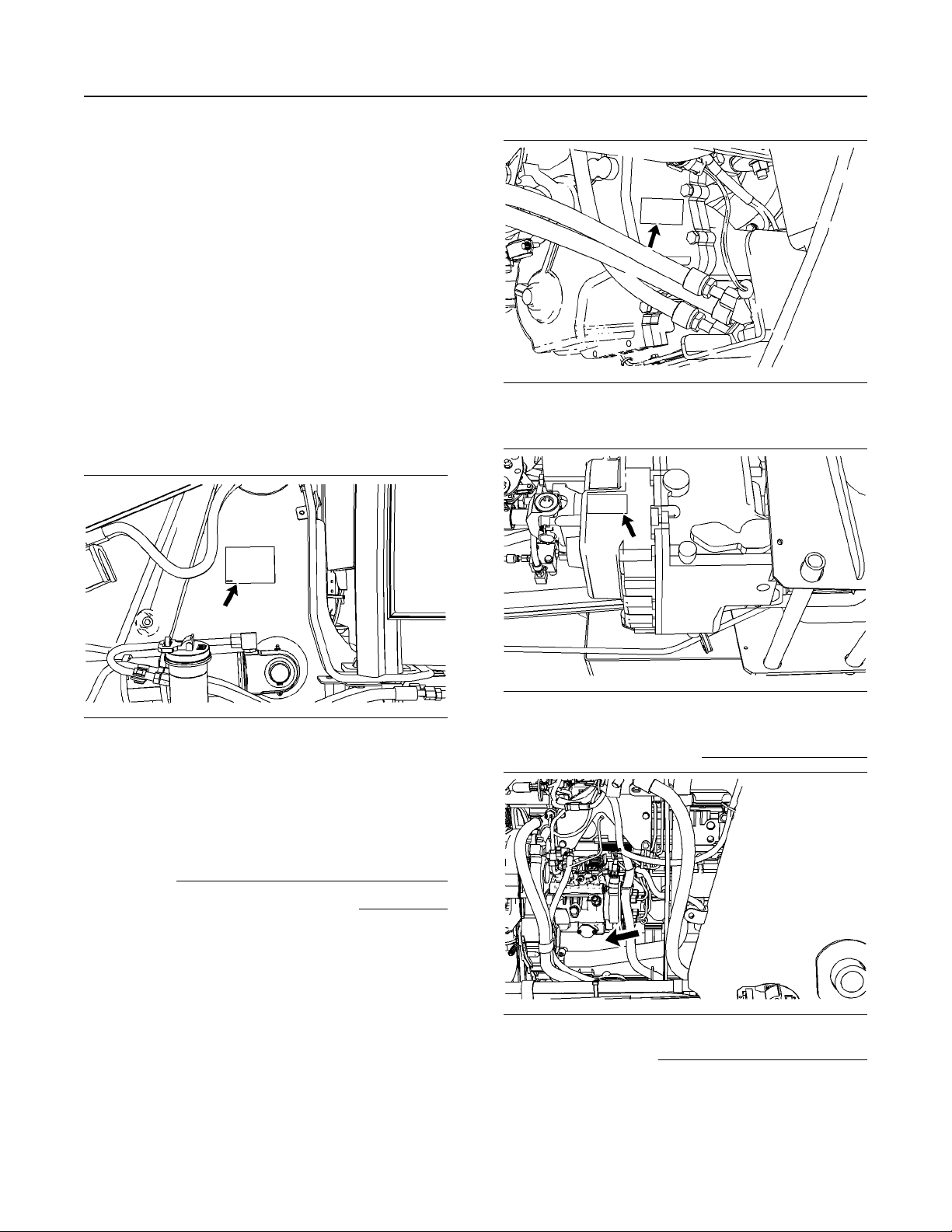

Plate Locations and Film
Locations

SMCS Code: 1000; 7000

The Product Identification Number (PIN) will be used
to identify a powered machine that is designed for an
operator to ride.

Caterpillar products such as engines, transmissions,
and major attachments that are not designed for an
operator to ride are identified by Serial Numbers.

For quick reference, record the identification
numbers in the spaces that are provided below the
illustration.

SEBU8475-10

Illustration 79 g01204809

Direct Drive Transmission

Illustration 78 g01204641

Note: The letter “Z” may be stamped in the block that
is identified as “Parts Order” . This block is located on
the plate for the Product Identification Number (PIN).
This stamp indicates some customization to the
machine which will require special handling when
parts are ordered.

Machine PIN

Service Information Number Plate (SIN)

Illustration 80 g01204811

Power Shift Transmission

Transmission Serial Number

Illustration 81 g01939594

Engine Serial Number

SEBU8475-10

69

Product Information Section

Plate Locations and Film Locations

Certification

ROPS/FOPS Structure

This message is positioned on the ROPS on the left
side of the machine above the door.

Illustration 82 g01211894

Structural damage, an overturn, modification, al­teration, or improper repair can impair this struc­ture's protection capability thereby voiding this
certification. Do not weld on or drill holes in the

structure. This will void the certification. Consult
your Cat dealer to determine this structure's limi-

tations without voiding its certification.

Note: The CE plate is on machines that are certified

to the European Union requirements that were
effective at that time.

For machines compliant to 2006/42/EC, the following
information is stamped onto the CE plate. For quick
reference, record this information in the spaces that
are provided below.

• Engine Power Primary Engine (kW)

• Engine Power for Additional Engine (If Equipped)

• Typical Machine Operating Weight for European
Market (kg)

• Year of Construction

• Machine Type

This machine has been certified to the standards that
are listed on the certification film. The maximum
mass of the machine, which includes the operator

and the attachments without a payload, should not
exceed the mass on the certification film.

European Union

Illustration 83 g01880193

This plate is positioned on the bottom left side of the
plate for the PIN.

Illustration 84 g01120192

This plate is positioned on the bottom left side of the
plate for the PIN.

Note: The CE plate is on machines that are certified
to the European Union requirements that were
effective at that time.

For machines compliant to 98/37/EC and 89/392/
EEC, the following information is stamped onto the
CE plate. For quick reference, record this information
in the spaces that are provided below.

• Engine Power Primary Engine (kW)

• Typical Machine Operating Weight for European
Market (kg)

• Year

For manufacturer name and address and the country
of origin, see the PIN plate.

70

Product Information Section
Emissions Certification Film

Sound

Illustration 85 g00933634

A typical example of this film is shown. Your machine
may have a different value.

If equipped, the certification film is used to verify the
environmental sound certification of the machine to

the requirements of the European Union. The value
that is listed on the film indicates the guaranteed
exterior sound power level L

at the time of

WA

manufacture for the conditions that are specified in
“ISO 6395” and “EU 2000/14/EC Annex III A2.1b”.

Product Link

If equipped, this message is used to verify the
certification of the Product Link as an RF transmitter.

The following specifications are provided to aid in
ensuring compliance with all local regulations:

Table 78

Operating frequency range 148 to 150 MHz

Transmitter power 5-10 w

This message is located on the control group for the
Product Link. The control group is located on the top
of the cab.

SEBU8475-10

Illustration 86 g01261742

This machine is equipped with a Caterpillar Prod­uct Link communication device. When electric

detonators are used, this communication device
should be deactivated within 12 m (40 ft) of a

blast site for satellite-based systems and within
3 m (10 ft) of a blast site for cellular based sys­tems, or within the distance mandated under ap­plicable legal requirements. Failure to do so
could cause interference with blasting operations
and result in serious injury or death.

In cases where the type of Product Link module
cannot be identified, Caterpillar recommends that
the device be disabled no less than 12 m (40 ft)
from the blast perimeter.

If the machine is required to work within 12 m (40 ft)
of a blast area, power to the Product Link module
must be disconnected.

Consult your Cat dealer with any questions that
concern the operation of the Product Link in a
specific country.

i07709181

Emissions Certification Film

SMCS Code: 1000; 7000; 7405

Note: This information is pertinent in the United

States, in Canada and in Europe.

Consult your Cat dealer for an Emission Control
Warranty Statement.

This label is located on the engine.

SEBU8475-10

Product Information Section

Declaration of Conformity

Declaration of Conformity

SMCS Code: 1000; 7000

Table 79

Note: The extract from the EC Declaration of Conformity shown below applies only to those machines originally “CE” marked by the manufac-
turer listed and have not since been modified. This declaration is applicable for machines with serial number DPH1–up, EME1–up, NBA1–up,

SJL1–up, MAW1–up, JBA1–up and SEF1–up

EC DECLARATION OF CONFORMITY OF MACHINERY

Manufacturer: Caterpillar (UK) Limited, Peckleton Lane, Desford, Leicester, England, Great Britain LE9 9JT

Person authorized to compile the Technical File and to communicate relevant part (s) of the Technical File to the Authorities of Euro­pean Union Member States on request:

Standards & Regulations Manager,Cat­erpillar France S.A.S 40 , Avenue Leon­Blum, B.P. 55, 38041 Grenoble Cedex
9, France

71

I, the undersigned, _________, hereby certify that the construction equipment specified hereunder

Description: Generic Denomination: Earth-moving Equipment

Function: Backhoe

Model/Type: 422E, 428E, 432E, 434E, 442E, 444E

Serial Number:

Commercial Name: Caterpillar

Fulfils all the relevant provisions of the following Directives

Directives Notified Body Document No.

2006/42/EC

2000/14/EC amended by 2005/88/EC, Note (1)

2004/108/EC N/A

Note (1) Annex -_____ Guaranteed Sound Power Level -_____dB (A)

Representative Equipment Type Sound Power Level - _____dB (A)
Engine Power per ____-____ kW Rated engine speed - _____ rpm
Technical Documentation accessible through person listed above authorized to compile the Technical File

Done at: Signature

Date: Name/Position

Note: The above information was correct as of September 2009, but may be subject to change, please refer to the individual declaration of

conformity issued with the machine for exact details.

72

SEBU8475-10

Product Information Section
Declaration of Conformity

Declaration of Conformity

SMCS Code: 1000; 7000

Table 80

An EC or EU Declaration of Conformity document was provided with the machine if it was manufactured to comply with specific requirements
for the European Union. In order to determine the details of the applicable Directives, review the complete EC or EU Declaration of Conformity
provided with the machine. The extract shown below from an EC or EU Declaration of Conformity for machines that are declared compliant to
“2006/42/EC” applies only to those machines originally “CE” marked by the manufacturer listed and which have not since been modified.

Original EC or EU DECLARATION OF CONFORMITY

Manufacturer:

Caterpillar Inc., 100 N.E. Adams Street, Peoria, Illinois 61629, USA

Person authorized to compile the Technical File and to communicate relevant part (s) of the Technical File to the Authorities of Euro­pean Union Member States on request:

Standards & Regulations Manager, Caterpillar France SAS
40 Avenue Leon-Blum 38000 Grenoble, France

I, the undersigned, _________, hereby certify that the construction equipment specified hereunder

Description: Generic Denomination: Earth-moving Equipment

Function: Multipurpose Bucket

Model/Type: Multipurpose (MP) Bucket

Serial Number:

Commercial Name: Caterpillar

Fulfills all the relevant provisions of the following Directives

Directives Notified Body Document No.

2006/42/EC N/A

2014/30/EU N/A

Note (1) Technical Documentation accessible through person listed above authorized to compile the Technical File

Done at: Signature

Date: Name/Position

Note: The above information was correct as of February 2016, but may be subject to change, please refer to the individual declaration of con-

formity issued with the machine for exact details.

SEBU8475-10

73

Operation Section

Before Operation

Operation Section

Before Operation

i04021647

Mounting and Dismounting

SMCS Code: 7000

Illustration 87 g00037860

Typical example

Machine Access System
Specifications

The machine access system has been designed to
meet the intent of the technical requirements in “ISO
2867 Earth-moving Machinery – Access Systems”.
The access system provides for operator access to
the operator station and to conduct the maintenance
procedures described in Maintenance section.

Alternate Exit

Machines that are equipped with cabs have alternate
exits. For additional information, see Operation and
Maintenance Manual, “Alternate Exit”.

i03463214

Daily Inspection

SMCS Code: 7000

NOTICE

Accumulated grease and oil on a machine is a fire
hazard. Remove this debris with steam cleaning or
high pressure water, at least every 1000 hours or
each time any significant quantity of oil is spilled on a
machine.

Mount the machine and dismount the machine only
at locations that have steps and/or handholds. Before
you mount the machine, clean the steps and the
handholds. Inspect the steps and handholds. Make
all necessary repairs.

Face the machine whenever you get on the machine
and whenever you get off the machine.

Maintain a three-point contact with the steps and with
the handholds.

Note: Three-point contact can be two feet and one
hand. Three-point contact can also be one foot and
two hands.

Do not mount a moving machine. Do not dismount a
moving machine. Never jump off the machine. Do not
carry tools or supplies when you try to mount the
machine or when you try to dismount the machine.
Use a hand line to pull equipment onto the platform.
Do not use any controls as handholds when you
enter the operator compartment or when you exit the
operator compartment.

Note: For maximum service life of the machine,
make a thorough walk-around inspection before you
operate the machine. Inspect the machine for leaks.
Remove any debris from the engine compartment
and the undercarriage. Remove any debris from the
stabilizers and all working cylinders in order to
prevent damage to the machine. Ensure that all
guards, covers, and caps are secured. Inspect all
hoses and belts for damage. Make the needed
repairs before you operate the machine.

Perform the following procedures on a daily basis.

• Operation and Maintenance Manual, “Backhoe
Boom, Stick, Bucket, and Cylinder Bearings ­Lubricate”

• Operation and Maintenance Manual, “Backup
Alarm - Test”

• Operation and Maintenance Manual, “Braking
System - Test”

• Operation and Maintenance Manual, “Cooling
System Level - Check”

• Operation and Maintenance Manual, “Engine Air
Filter Service Indicator - Inspect”

• Operation and Maintenance Manual, “Engine Oil
Level - Check”

74

Operation Section
Daily Inspection

• Operation and Maintenance Manual, “Fuel System
Water Seperator - Drain”

• Operation and Maintenance Manual, “Hydraulic
System Oil Level - Check”

• Operation and Maintenance Manual, “Loader
Bucket, Cylinder, and Linkage Bearings ­Lubricate”

• Operation and Maintenance Manual, “Seat Belt ­Inspect”

• Operation and Maintenance Manual, “Stabilizer ­Clean/Inspect”

• Operation and Maintenance Manual, “Stabilizer
and Cylinder Bearings - Lubricate”

• Operation and Maintenance Manual, “Swing
Frame and Cylinder Bearings - Lubricate”

• Operation and Maintenance Manual, “Tire Inflation

- Check”

SEBU8475-10

• Operation and Maintenance Manual,
“Transmission Oil Level - Check”

Refer to the Maintenance Section for the detailed
procedures. Refer to the Maintenance Interval

Schedule for a complete list of scheduled
maintenance.

SEBU8475-10

Machine Operation

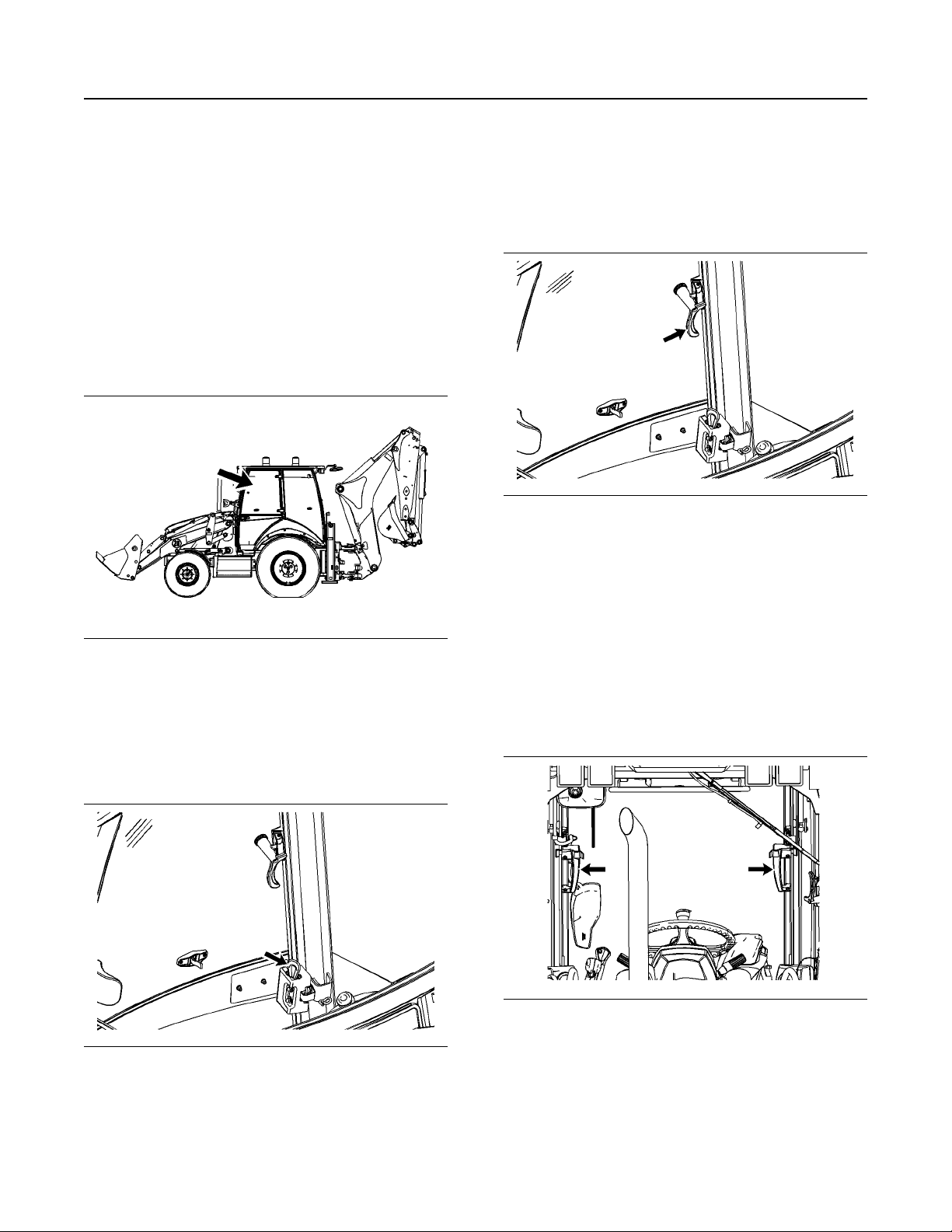

Alternate Exit

SMCS Code: 7310

75

Operation Section

Machine Operation

i03105400

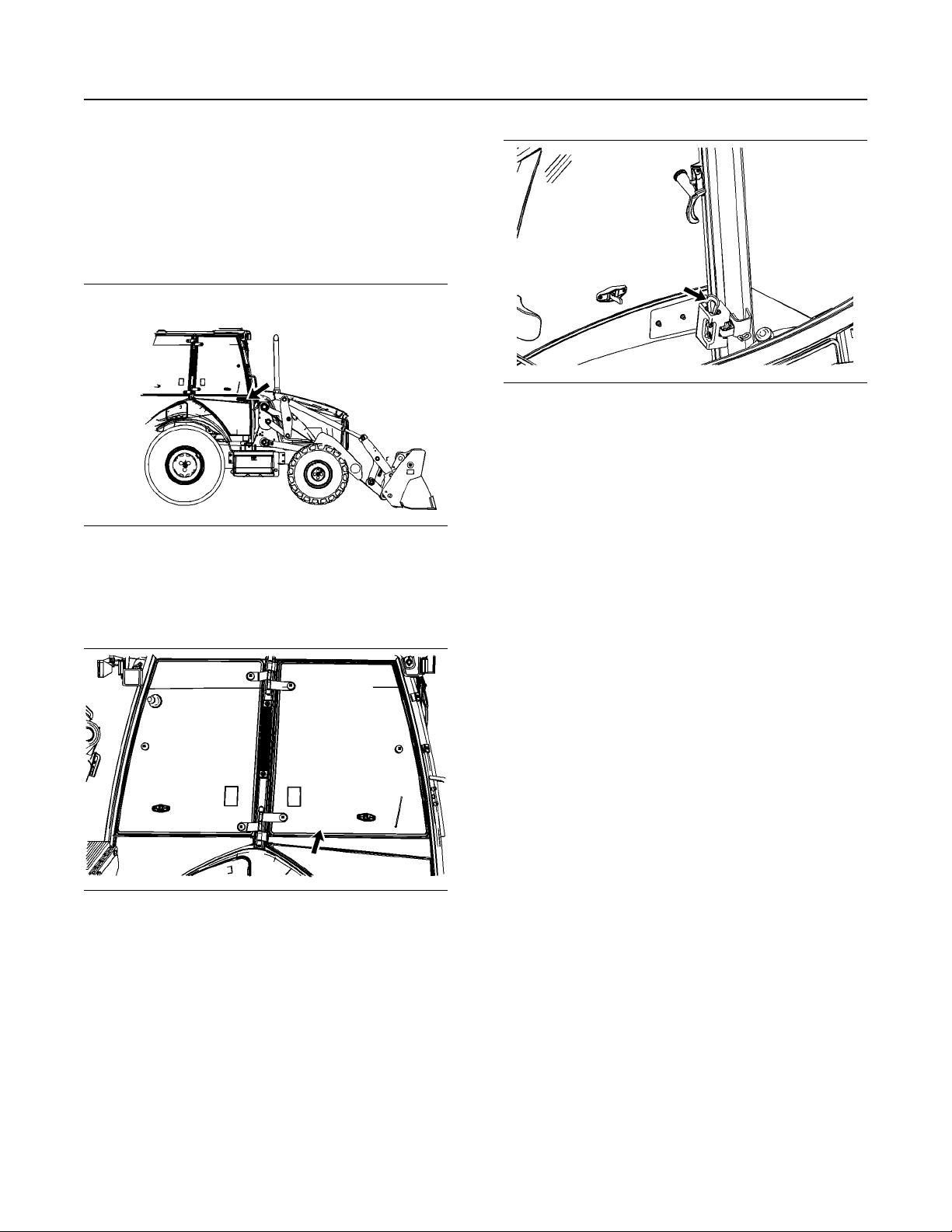

Illustration 90 g01098892

Move the lever on the inside of cab door in order to
unlatch the cab door and open the cab door from the

inside.

i07601347

Illustration 88 g01586048

The cab door on the right side of the machine serves
as an alternate exit. The cab door can be opened
from the inside or from the outside. Pull the door latch

on the outside of the cab door in order to open the
cab door from the outside.

Illustration 89 g01216702

If the machine is not equipped with a cab door on the
right side of the machine, use the front side window
of the machine as an alternate exit. Move the levers

for the window in order to open the front side window.

Seat

SMCS Code: 7312

The operator's seat that is provided with this machine
is in compliance with the appropriate class of “ISO
7096”.

Note: Adjust the seat for another operator or at the
beginning of each shift.

The operator should be seated against the seat
backrest. Adjust the seat so that the operator is
allowed full travel of the foot controls.

76

Operation Section
Seat

SEBU8475-10

Mechanical Suspension

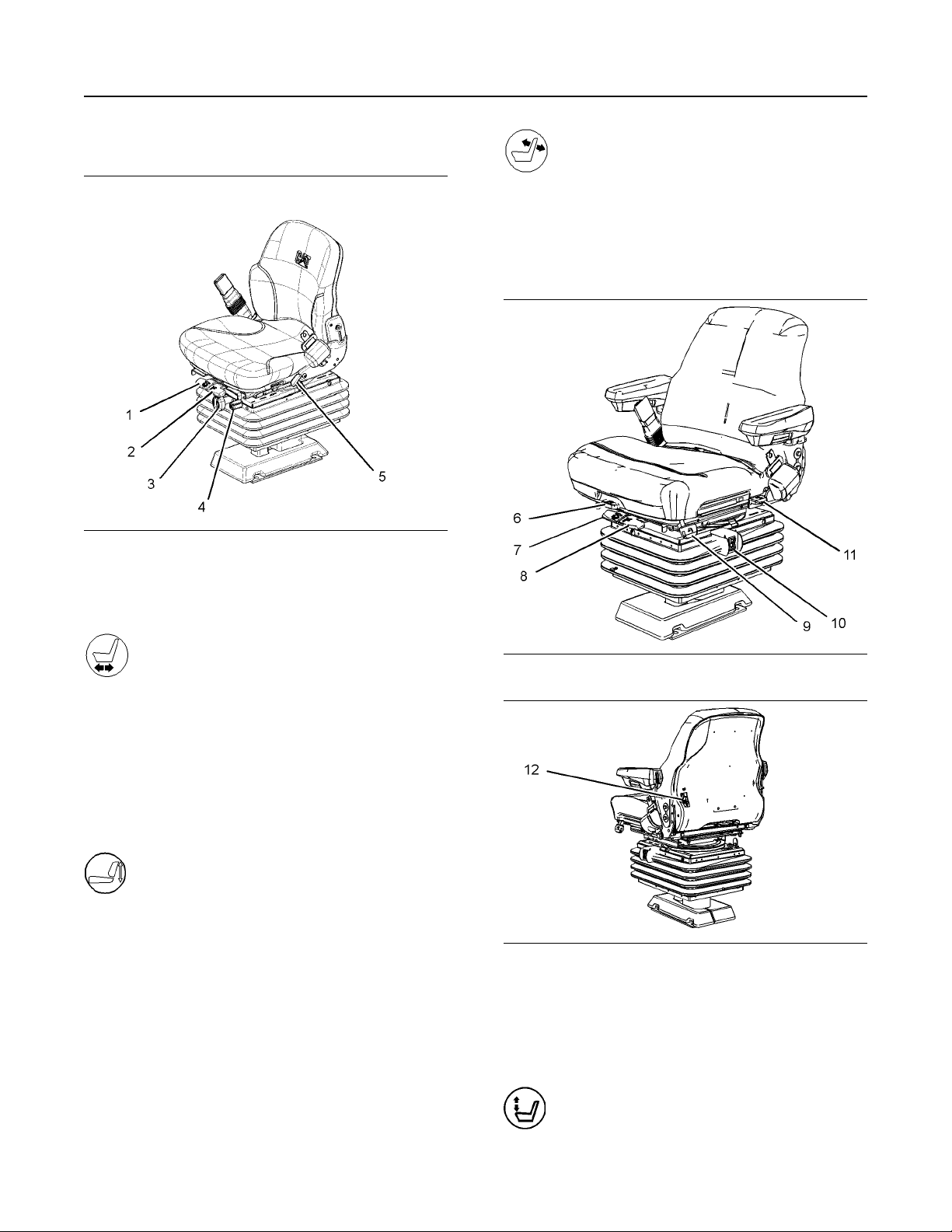

Illustration 91 g01541515

Typical example

Backrest Adjustment Lever (5) – Push
down on the lever for the seat backrest

to adjust the angle of the seat backrest.
Adjust the seat backrest to the desired position.
Release the lever for the seat backrest to lock the
seat backrest in position.

Air Suspension

Pull up on the rotate lever (1). The seat will rotate to
the rear of the machine to operate the backhoe.

Fore/Aft Lever (2) – Pull up on the fore/
aft lever to move the seat forward or

backward. Adjust the seat to the desired
position. Release the fore/aft lever to lock the
seat in position.

Weight Adjustment Knob (3) – Use the handle on

the knob to adjust the seat to the weight of the
operator. Turn the handle clockwise to increase the
suspension stiffness of the seat. Turn the handle
counterclockwise to decrease the suspension
stiffness of the seat.

Seat Height Limiter Knob (4) – Turn the

seat height limiter knob clockwise to

decrease the maximum seat height. Turn
the knob counterclockwise to increase the
maximum seat height.

Illustration 92 g01541516

Illustration 93 g01624202

The air suspension seat has an air bag that controls
the height of the seat and the weight adjustment of
the seat. The amount of air that is in the air bag is
determined by the operator. The pressure in the air
bag is determined by the weight of the operator. This
provides automatic weight adjustment.

Front Seat Cushion Tilt Lever (6) – To
adjust the seat cushion to the desired

angle and height, pull up the front seat
cushion tilt lever. Release the lever to lock the
seat cushion.

SEBU8475-10

77

Operation Section

Seat Belt

Pull up on the rotate lever (7). The seat will rotate to
the rear of the machine to operate the backhoe.

Fore/Aft Lever (8) – Pull up on the fore/
aft lever to move the seat forward or

backward. Adjust the seat to the desired
position. Release the fore/aft lever to lock the
seat in position.

Front Seat Cushion Slide Lever (9) – To

slide the seat cushion to the desired

location, pull up front seat cushion slide
lever. Release the lever to lock the seat cushion.

Height Adjustment Switch (10) – To raise

the seat, push the top of the switch. To

lower the seat, push the bottom of the
switch.

Note: The operator must not change the height of the

suspension so that the stroke is inadequate for the
particular application. The suspension height must be
changed if the seat bottoms out excessively or if the
seat bounces too much to the maximum height.

Backrest Adjustment Lever (11) – Pull

up on the lever for the seat backrest to

adjust the angle of the seat backrest.
Adjust the seat backrest to the desired position.
Release the lever for the seat backrest to lock the
seat backrest in position.

Lumbar Support Knob (12) – The lumbar

support knob is on the left rear side of

the seat. Turn the lumbar support knob
counterclockwise to increase the stiffness of the
lumbar support. Turn the lumbar support knob
clockwise to decrease the stiffness of the lumbar
support.

Seat Belt Adjustment for
Retractable Seat Belts

Fastening The Seat Belt

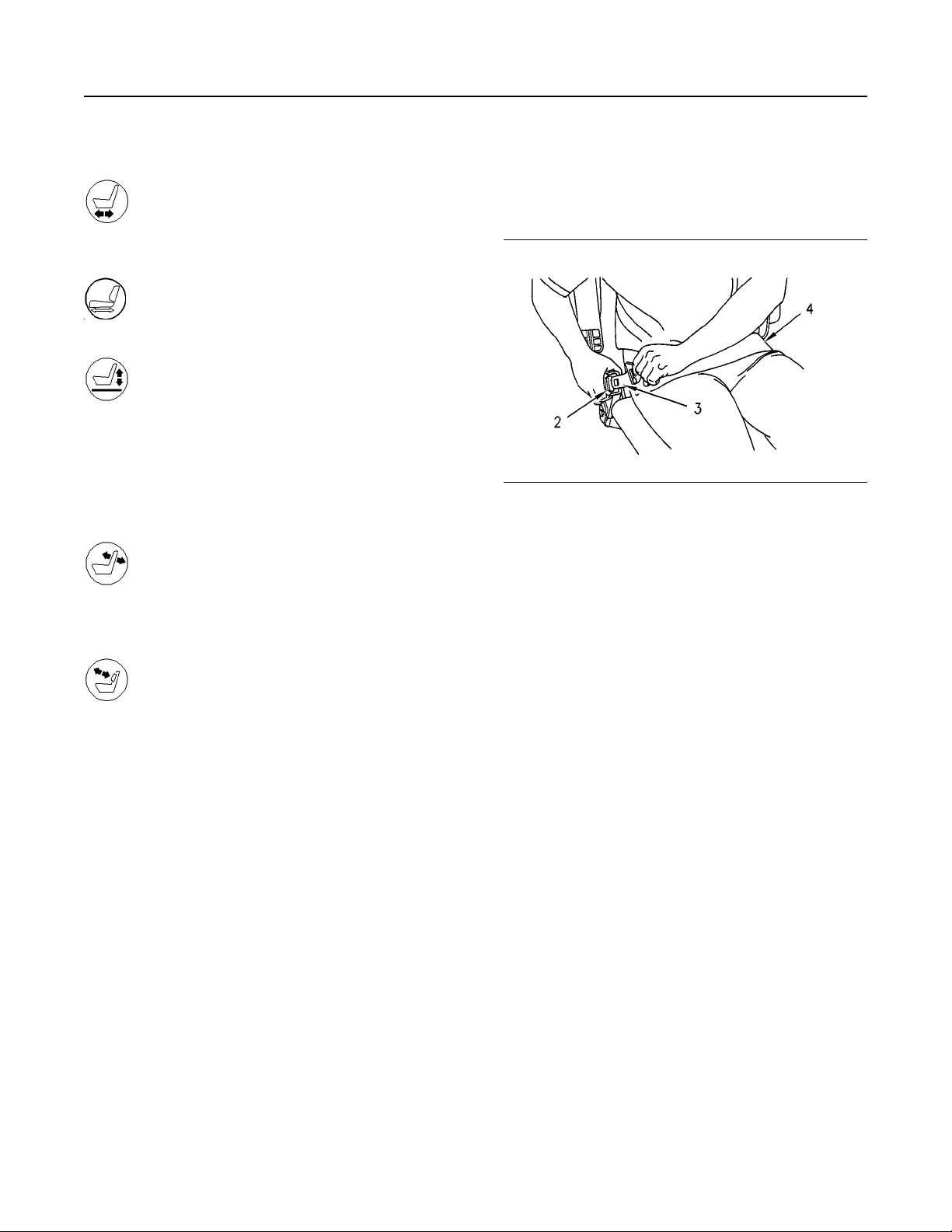

Illustration 94 g00867598

Pull seat belt (4) out of the retractor in a continuous
motion.

Fasten seat belt catch (3) into buckle (2). Make sure
that the seat belt is placed low across the lap of the

operator.

The retractor will adjust the belt length and the
retractor will lock in place. The comfort ride sleeve
will allow the operator to have limited movement.

i03105875

Seat Belt

SMCS Code: 7327

Note: This machine was equipped with a seat belt

when the machine was shipped from Caterpillar. At
the time of installation, the seat belt and the
instructions for installation of the seat belt meet the
SAE J386 standards. See your Caterpillar dealer for
all replacement parts.

Always check the condition of the seat belt and the
condition of the mounting hardware before you
operate the machine.

78

Operation Section
Mirror

SEBU8475-10

Releasing The Seat Belt

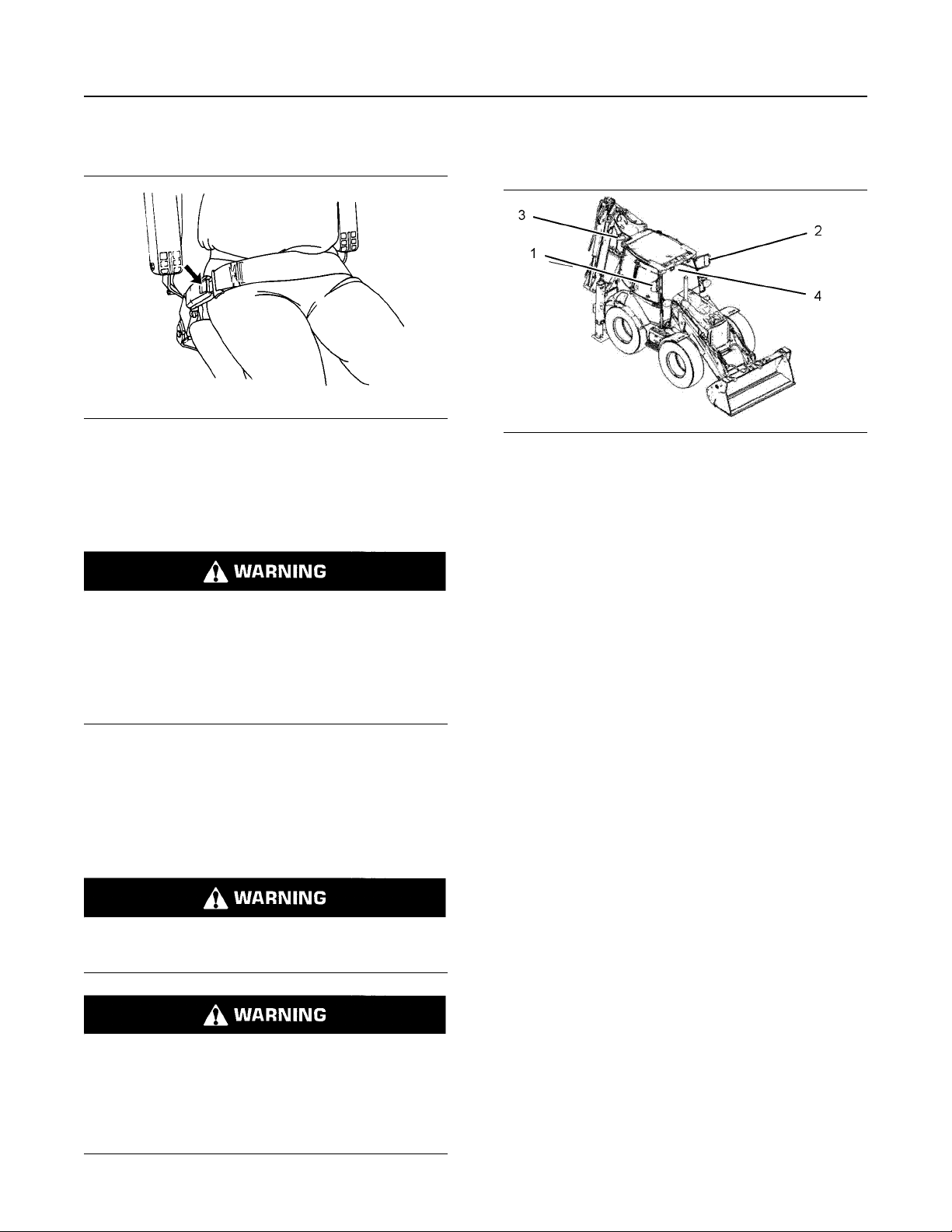

Illustration 95 g00039113

Push the release button on the buckle in order to
release the seat belt. The seat belt will automatically

retract into the retractor.

Extension of the Seat Belt

When using retractable seat belts, do not use
seat belt extensions, or personal injury or death
can result.

The retractor system may or may not lock up de­pending on the length of the extension and the
size of the person. If the retractor does not lock
up, the seat belt will not retain the person.

Consult your Caterpillar dealer for longer seat belts
and for information on extending the seat belts.

Note: Your machine may not be equipped with all of
the mirrors that are described in this topic.

Illustration 96 g01662233

(1) Right Side Mirror
(2) Left Side Mirror
(3) Rear Mirror (If Equipped)
(4) Cab Mirror

Mirrors provide additional visibility around your
machine. Make sure that the mirrors are in proper
working condition and that the mirrors are clean.
Adjust all mirrors at the beginning of each work
period and adjust the mirrors when you change
operators.

The appropriate job site organization is also
recommended in order to minimize visibility hazards.
For more information refer to this Operation and
Maintenance Manual, “Visibility Information”.

Modified Machines or machines that have additional
equipment or attachments may influence your

visibility.

i03260480

Mirror

SMCS Code: 7319

Adjust all mirrors as specified in the Operation
and Maintenance Manual. Failure to heed this

warning can lead to personal injury or death.

Slips and falls can result in personal injury. Use
the machines access systems when adjusting the
mirrors. If the mirrors cannot be reached using
the machine access systems follow the instruc­tions found within the Operation and Mainte­nance Manual, “Mirror” in order to access the

mirrors.

Mirror Adjustment

• Park the machine on a level surface.

• Lower the work tool to the ground.

• Stop the engine.

Note: You may need to use hand tools in order to
adjust certain types of mirrors.

SEBU8475-10

79

Operation Section

Mirror

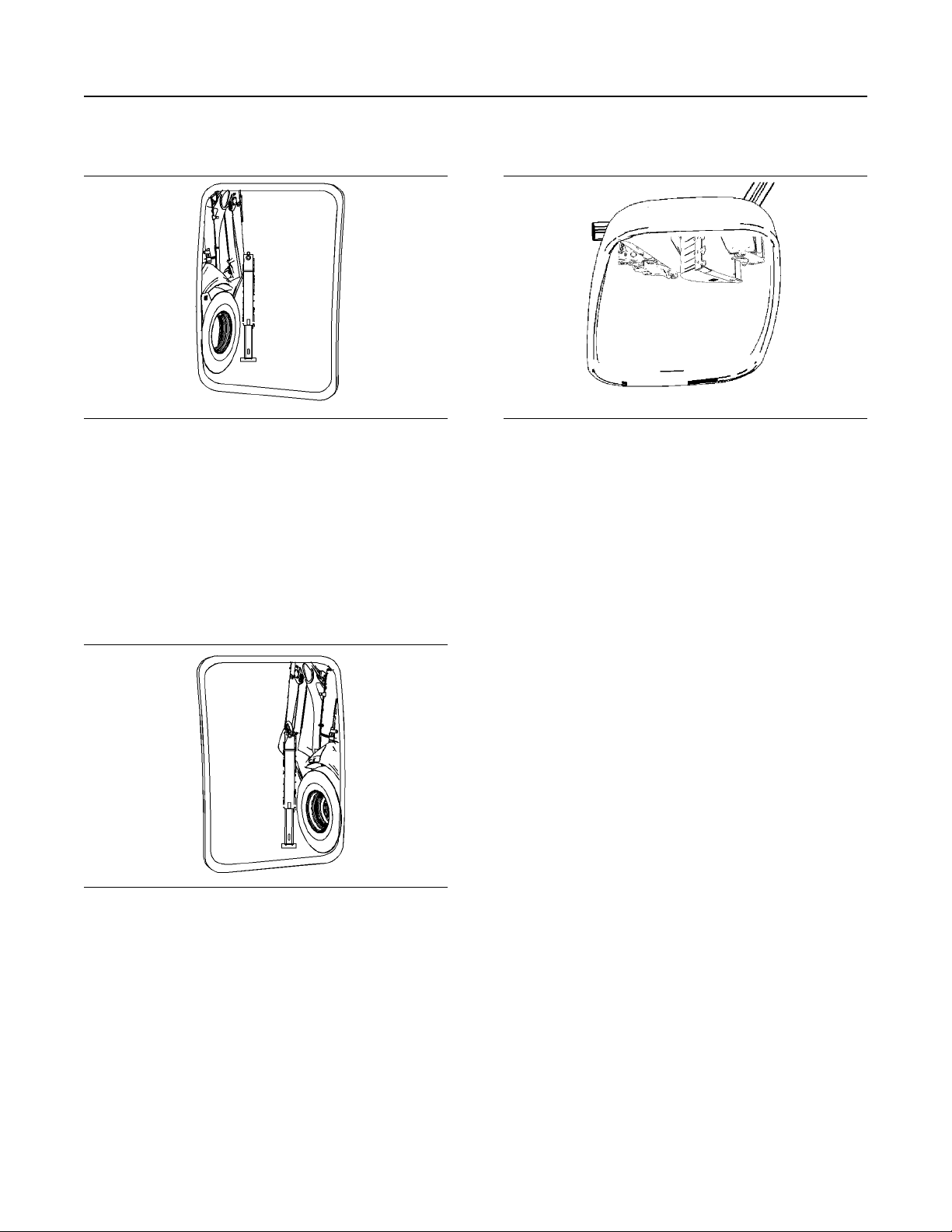

Right Side Mirror (1)

Illustration 97 g01623418

Adjust the right side rear view mirror (1) so 1 m
(3.3 ft) from the side of the machine can be seen.
Refer to illustration 97 . Also adjust the right side rear
view mirror in order to see the following:

• a point on the ground behind the machine at a

maximum distance of 30 m (98 ft) from the rear
corners of the machine

Rear Mirror (3) (If Equipped)

Illustration 99 g01624100

If equipped, adjust the rear view mirror (3) so that an
area of at least 1 m (3.3 ft) from the rear of the
machine can be seen from the operator seat.
Additionally, provide as much visibility to the rear as
possible.

Left Side Mirror (2)

Illustration 98 g01623420

Adjust the left side rear view mirror (1) so 1 m (3.3 ft)
from the side of the machine can be seen. Refer to

illustration 98 . Also adjust the left side rear view
mirror in order to see the following:

• a point on the ground behind the machine at a

maximum distance of 30 m (98 ft) from the rear
corners of the machine

80

Operation Section
Operator Controls

Cab Mirror

The cab mirror (4) can be adjusted to a position in
order to allow the operator to see preferred areas on
the machine during operations.

i04501391

Operator Controls

(422E, 428E, 434E Mechanical
Control)

SMCS Code: 7300; 7451

S/N: SEF1–Up

S/N: DPH1–Up

S/N: MAW1–Up

SEBU8475-10

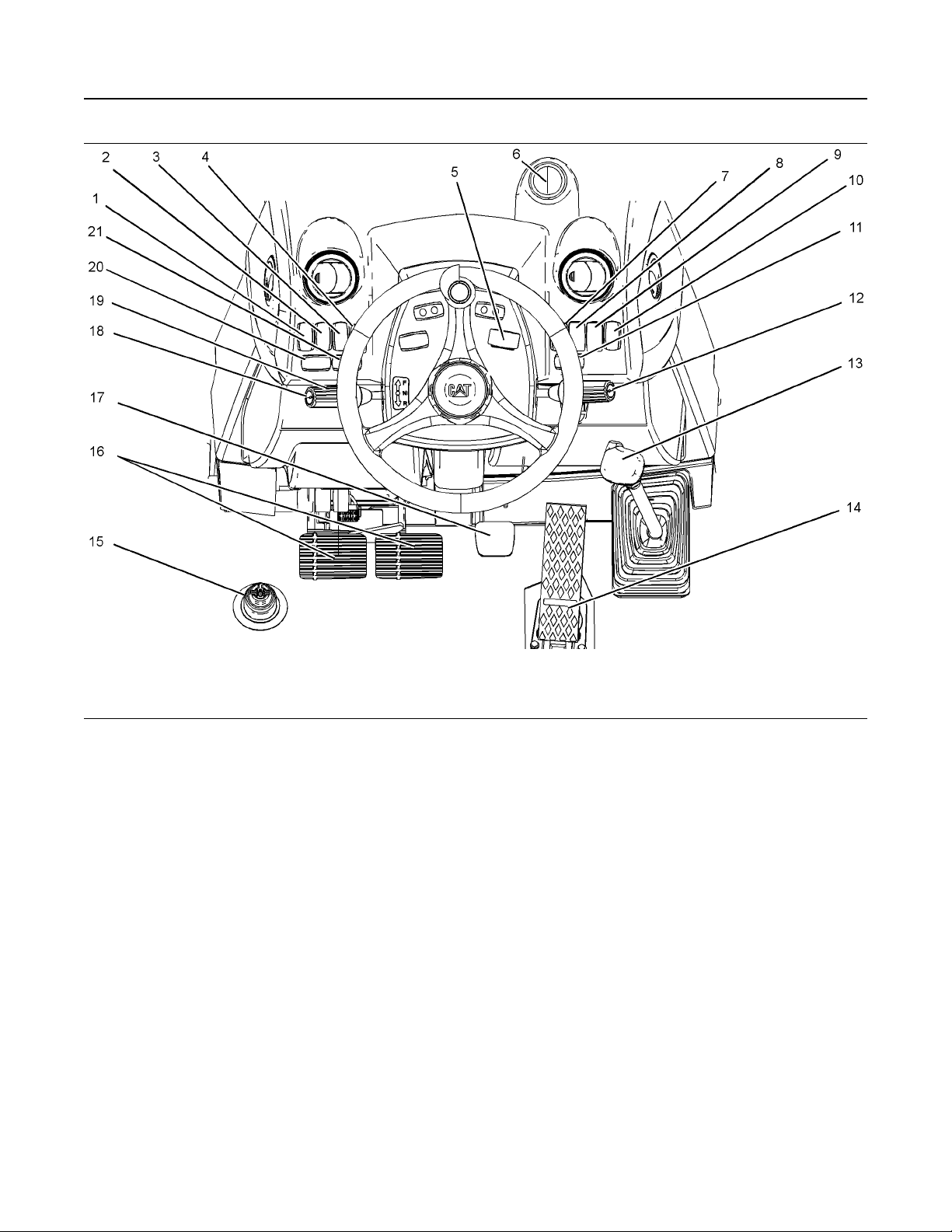

Illustration 100 g01967193

(1) Transmission Neutral Lock
(2) Hazard Flashers
(3) All Wheel Steer Position Gauge (If

Equipped)
(4) Ride Control (If Equipped)
(5) Roading Lights

(6) Two Wheel Steer/Four Wheel Steer (If

Equipped)
(7) All Wheel Steer Control (If Equipped)
(8) Turn Signal Control and Front Window

Wiper
(9) Transmission Speed Control
(10) Throttle Control

(11) Differential Lock Control
(12) Service Brakes
(13) Steering Wheel Tilt Control (If

Equipped)
(14) Horn
(15) Transmission Direction Control
(16) All Wheel Drive Control (If Equipped)

SEBU8475-10

81

Operation Section

422E, 428E, 434E Mechanical Control

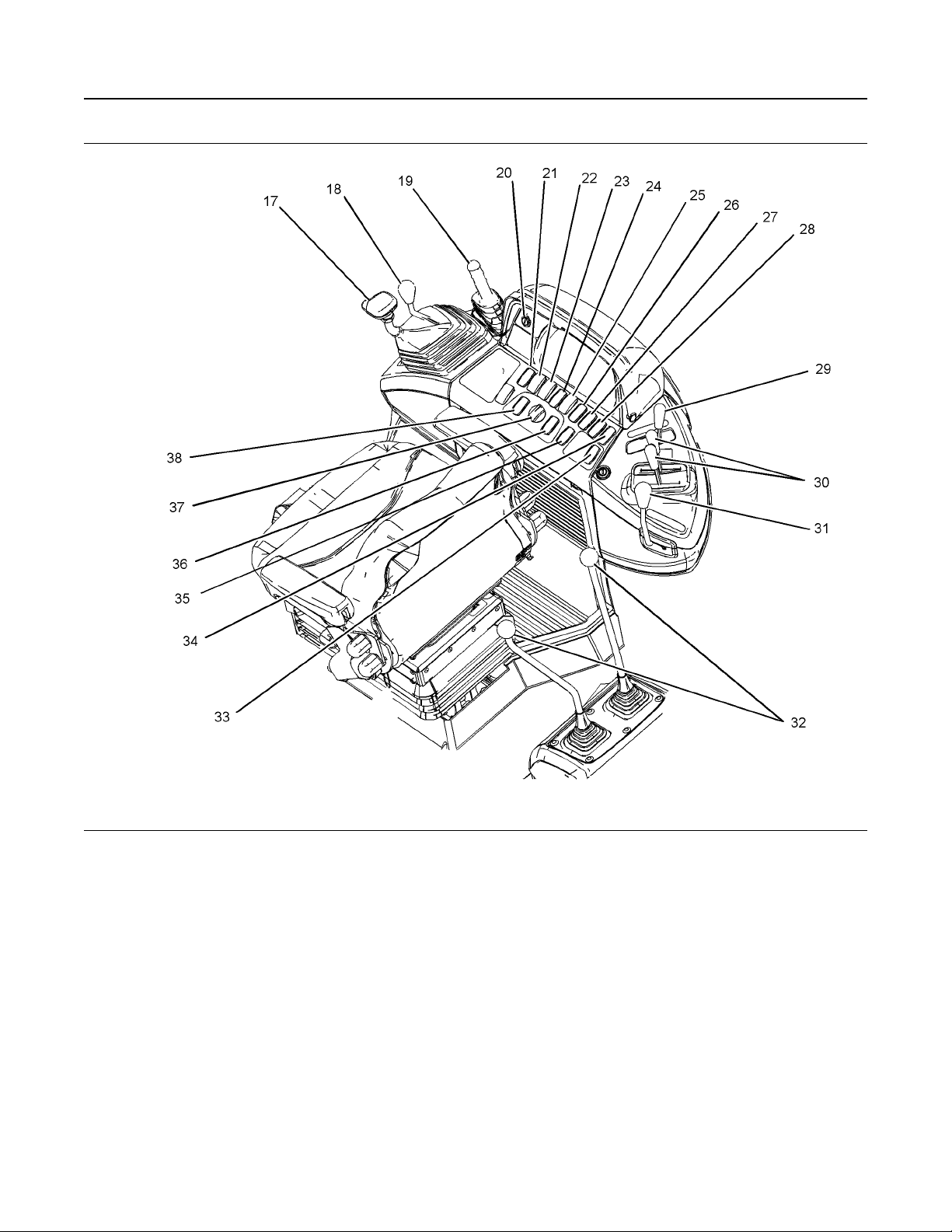

Illustration 101 g02681263

(17) Loader Control
(18) Multipurpose Control
(19) Parking Brake Control
(20) Engine Start Switch
(21) Starting Aid Switch
(22) Rotating Beacon
(23) Front Floodlights
(24) Rear Floodlights
(25) Rear Fog Light (If Equipped)

(26) Sideshift Control
(27) Rear Wiper/Washer Switch
(28) Horn (If Equipped)
(29) Throttle Control
(30) Stabilizer Control
(31) Boom Lock
(32) Backhoe Controls
(33) Quick Coupler Lock/Unlock (Rear Pin)

(If Equipped)

(34) Quick Coupler Unlock (Front Pin) (If

Equipped)
(35) Object Handling Stability Alarm Switch

(If Equipped)
(36) Fan Switch
(37) Variable Temperature Control
(38) Heating and Cooling Control

82

Operation Section
422E, 428E, 434E Mechanical Control

SEBU8475-10

Transmission Neutral Lock (1)

Always engage the parking brake and transmis­sion neutral lock before dismounting the ma­chine, operating the backhoe or engaging the
boom lock for the transport position. Failure to
do so could allow unexpected machine move­ment, resulting in personal injury or death.

TRANSMISSION NEUTRAL LOCK – The
transmission neutral lock is located on
the left side of the front console.

LOCKED – Press the top of the switch in order to

lock the transmission direction control lever into the
NEUTRAL position.

UNLOCKED – Press the bottom of the switch in
order to deactivate the transmission neutral lock.

Note: If the transmission neutral lock has been
activated, shift the direction control lever into the
NEUTRAL position before you shift the direction
control lever into the FORWARD position. If the
transmission neutral lock has been activated, shift
the direction control lever into the NEUTRAL position
before you shift the direction control lever into the
REVERSE position. The direction control lever must
first be shifted into the NEUTRAL position in order to
allow movement of the machine.

Note: When you exit the machine push the top of the
transmission neutral lock switch in order to prevent
the machine from moving out of the NEUTRAL
position. Engage the parking brake in order to
prevent machine movement when the transmission is
in neutral. Refer to the Operation and Maintenance
Manual, “Transport Positions”.

Hazard Flashers (2)

Hazard Flashers – The hazard switch is
located on the right-hand side of the

front console. Push the left side of the
switch in order to activate the hazard flashers.
Both turn signal lights will flash. Push the right
side of the switch in order to deactivate the
hazard flashers.

All Wheel Steer Position Gauge (3)
(If Equipped)

The all wheel steer position gauge will indicate the
position of the rear wheels.

Ride Control (4)

Ride Control – Travel at high speeds

over rough terrain causes bucket

movement and a swinging motion. The
system for ride control acts as a shock absorber
by absorbing forces from the bucket and by
dampening forces from the bucket. This system
also stabilizes the entire machine.

Ride control can cause inadvertent movement of
the loader arms if not used correctly. Don't use

when using loader or backhoe.

The ride control must be turned off in order to
raise the front tires off the ground with the loader

bucket.

Note: In some countries that require lock valves
for material handling operations, the ride control
must be turned off so that the lock valves can
function properly. Lock valves and ride control
cannot function at the same time.

OFF – Put the switch in the center

position in order to turn off the ride

control.

ON – Push the bottom of the switch in

order to turn on the system for ride

control.

SEBU8475-10

83

Operation Section

422E, 428E, 434E Mechanical Control

The ride control will smooth the ride of the machine
during travel.

Roading Lights (5)

Front Running Lights – The front
running light switch is located on the

right side of the front console. Push the
bottom of the switch for the OFF position. The
middle position is for the panel lights, for the tail
lights, and for the position lights. The top
position adds running lights to the following
lighting groups: panel lights, tail lights and
position lights. If the lights are left in the ON
position when the engine start switch is in the
OFF position an alarm will sound.

Two-Wheel Steer Mode/Four-Wheel
Steer Mode (6) (If Equipped)

Two-Wheel Steer – Press the bottom of

switch (6) to activate the Two-Wheel

Steer mode. The Two-Wheel Steer mode
offers the capability to operate the machine on
the road. The Two-Wheel Steer mode is used
when additional maneuvering capability is not
needed. Only the front axle is used to steer the
machine. Use this mode when you are roading
the machine. When you are operating the
machine in this mode the indicator light will not
be on.

Four-Wheel Steer – Slide down the red

button located on switch (6) and then

depress the top of switch (6). The
machine will now be in circle steer mode or the
machine now will be in crab steer mode. This is
dependent upon the placement of the All Wheel
Steer control (7).

All Wheel Steer Control (7) (If
Equipped)

Personal injury or death can result if the machine
is roaded in any mode other than front wheel
steer.

Always road the machine with the rear wheels
centered and the machine in the front wheel steer

mode.

The All Wheel Steer (AWS) has three steering
modes: Two-Wheel Steer, Circle Steer, and crab

steer. When you operate the machine for the first
time, become familiar with the three modes by trying
each one. This should be done in an area that is clear

of personnel and of obstacles.

The All Wheel Steer mode consists of the following
components:

• A Two-Wheel Steer/Four-Wheel Steer Mode
switch.

• An All Wheel Steer Control switch that allows the
operator to choose from circle steer or crab steer

• A rear axle position gauge

Three modes provide maximum machine
performance under various conditions at the job site.

Two-Wheel Steer – The Two-Wheel Steer
mode offers the capability to operate the

machine on the road. The Two-Wheel
Steer mode is used when additional maneuvering
capability is not needed. Only the front axle is
used to steer the machine. Use this mode when
you are roading the machine. When you are
operating the machine in this mode the indicator
light will not be on.

Circle Steer Mode – The Circle Steer

Mode provides reduced turning radii

and tighter operation in confined
spaces. The front and rear axles are used to steer
the machine. When you are operating the
machine in the Circle Steer mode, the indicator
light will come on.

Crab Steer Mode – The crab steer mode

allows the rear wheels to turn in the

same direction as the front wheels
which will allow the machine to move in a
diagonal direction. The front and rear axles are
used to steer the machine

NOTICE

Before changing from one steering mode to another,
always center both the front and rear wheels.

Before you return to the Two-Wheel Steer mode or to
the Circle Steer mode, the front wheels and rear

wheels must be centered. Observe the rear axle
position gauge on the front console. Then, move the

All Wheel Steer switch to the desired mode.

NOTICE

Failure to recenter the steering system at least once
per day may result in a reduction in steering
effectiveness.

The steering must be realigned under the following
conditions:

• The start of each work shift

• One time during the work shift

• Steering difficulty occurs.

84

Operation Section
422E, 428E, 434E Mechanical Control

• The machine will be roaded.

• The machine has traveled 24 km (15 miles) on a
public road in Two-Wheel Steer mode.

Note: If the all wheel steer position gauge (3) is
positioned in the green shaded area the steering
does not need to be realigned.

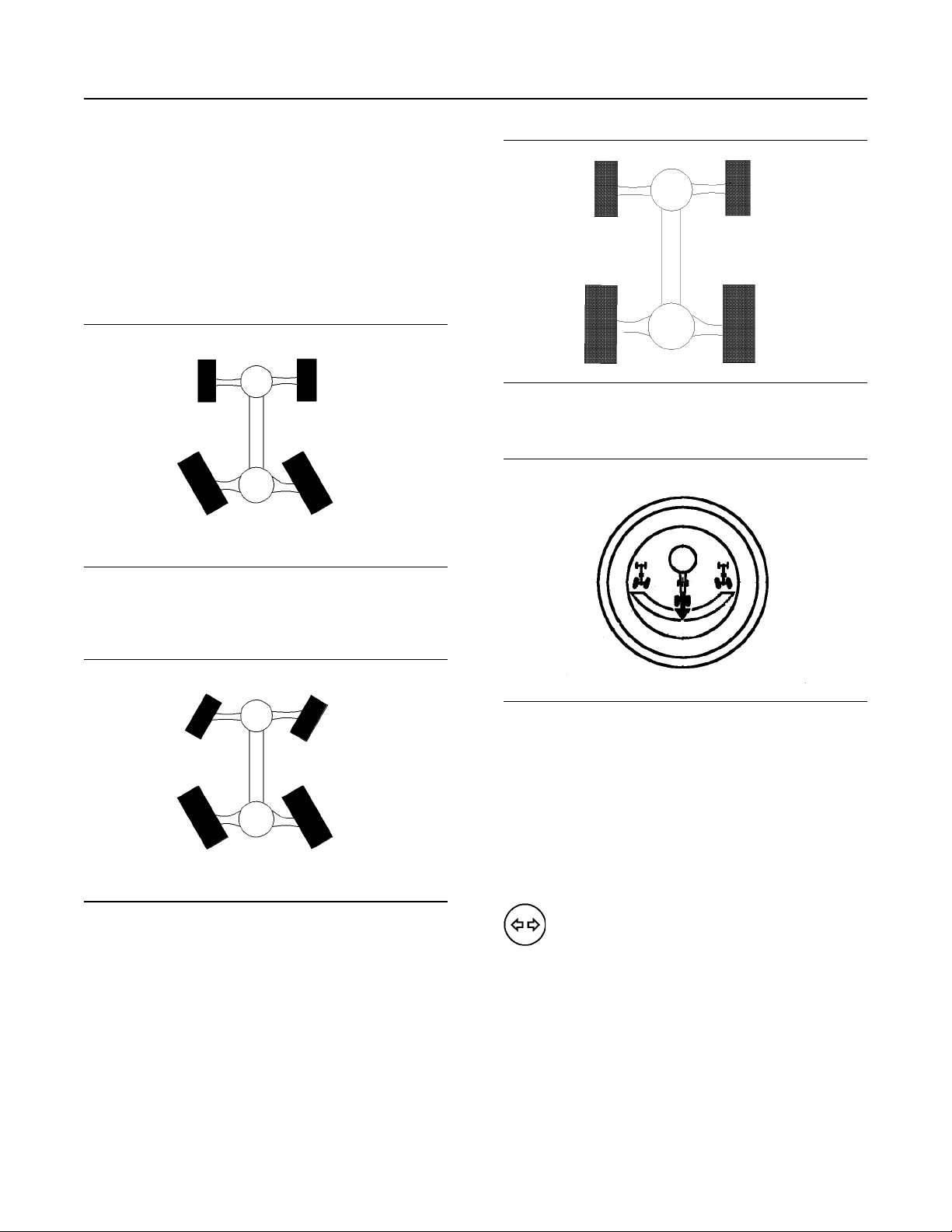

Synchronizing the Wheels

SEBU8475-10

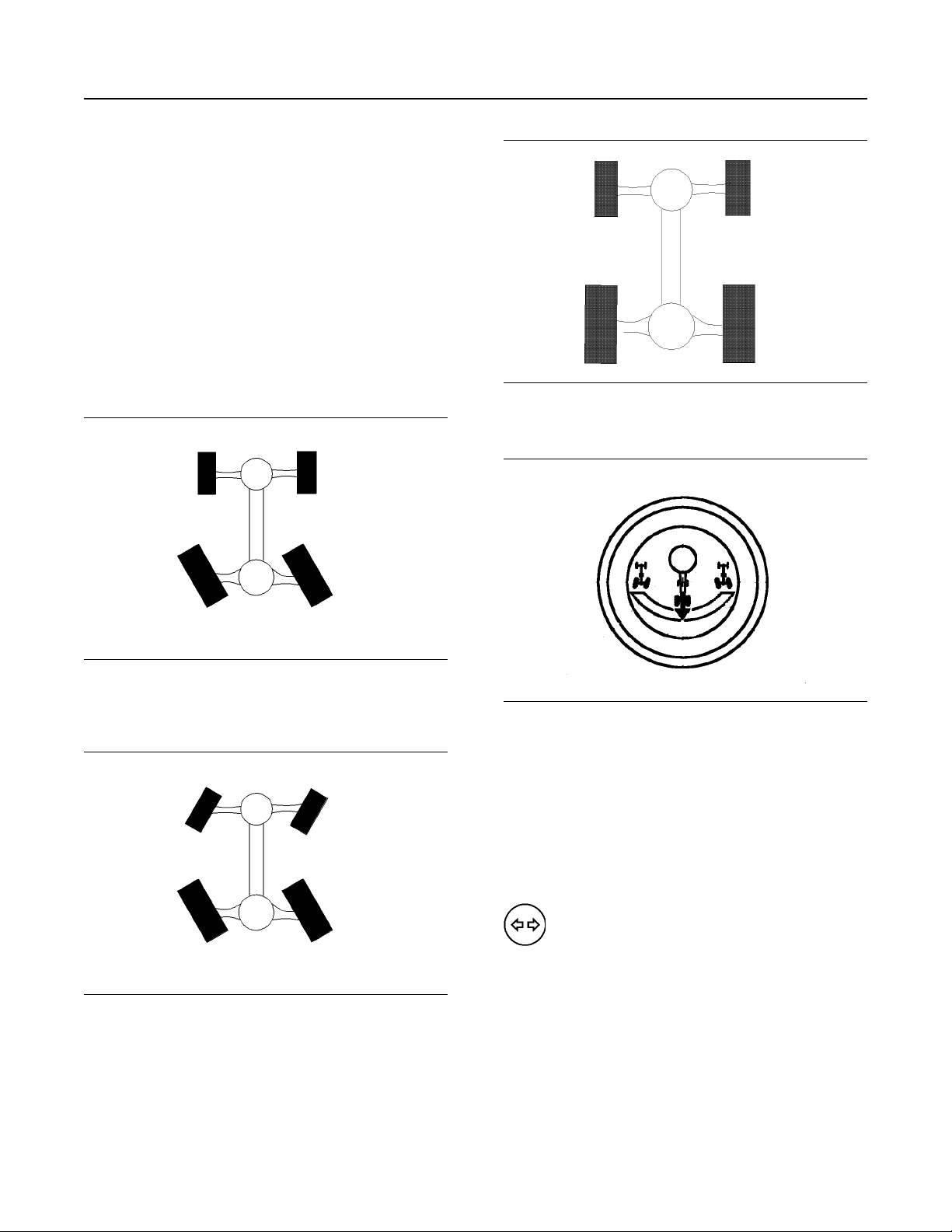

Illustration 104 g01967073

Select the circle steer mode and turn the steering
wheel until the front wheels are facing straight ahead.

Illustration 102 g00830965

In a static position, select the circle steer mode and
turn the steering wheel so that the rear wheels are
turned to full lock.

Illustration 103 g00282686

Select the Two-Wheel steer mode and turn the front
wheels to the opposite full lock.

Illustration 105 g01967574

The rear wheels should also be facing straight
ahead. The all wheel steer position gauge should be
positioned in the green shaded area.

Turn Signal Control and Front
Window Wiper (8)

Directional Turn Signals

Directional Turn Signals – The
directional turn signal lever is on the
right side of the steering column.

Left Directional Signal Lights – Push the lever

away from the operator in order to activate the left
turn signals. When the lever is pushed forward away
from the operator, an indicator light will illuminate on
the front dash. The left turn signal will flash until the
lever is manually returned to the OFF position.

OFF Position – In the OFF position, the directional
signal lights will not flash.

SEBU8475-10

85

Operation Section

422E, 428E, 434E Mechanical Control

Right Directional Signal Lights – Pull the lever
toward the operator in order to activate the Right turn
signals. When the lever is pulled back toward the
operator, an indicator light will illuminate on the front
dash. The right turn signal will flash until the lever is
manually returned to the OFF position.

Note: The directional turn signals will automatically
be returned to the OFF if your machine is equipped
with the steering column tilt.

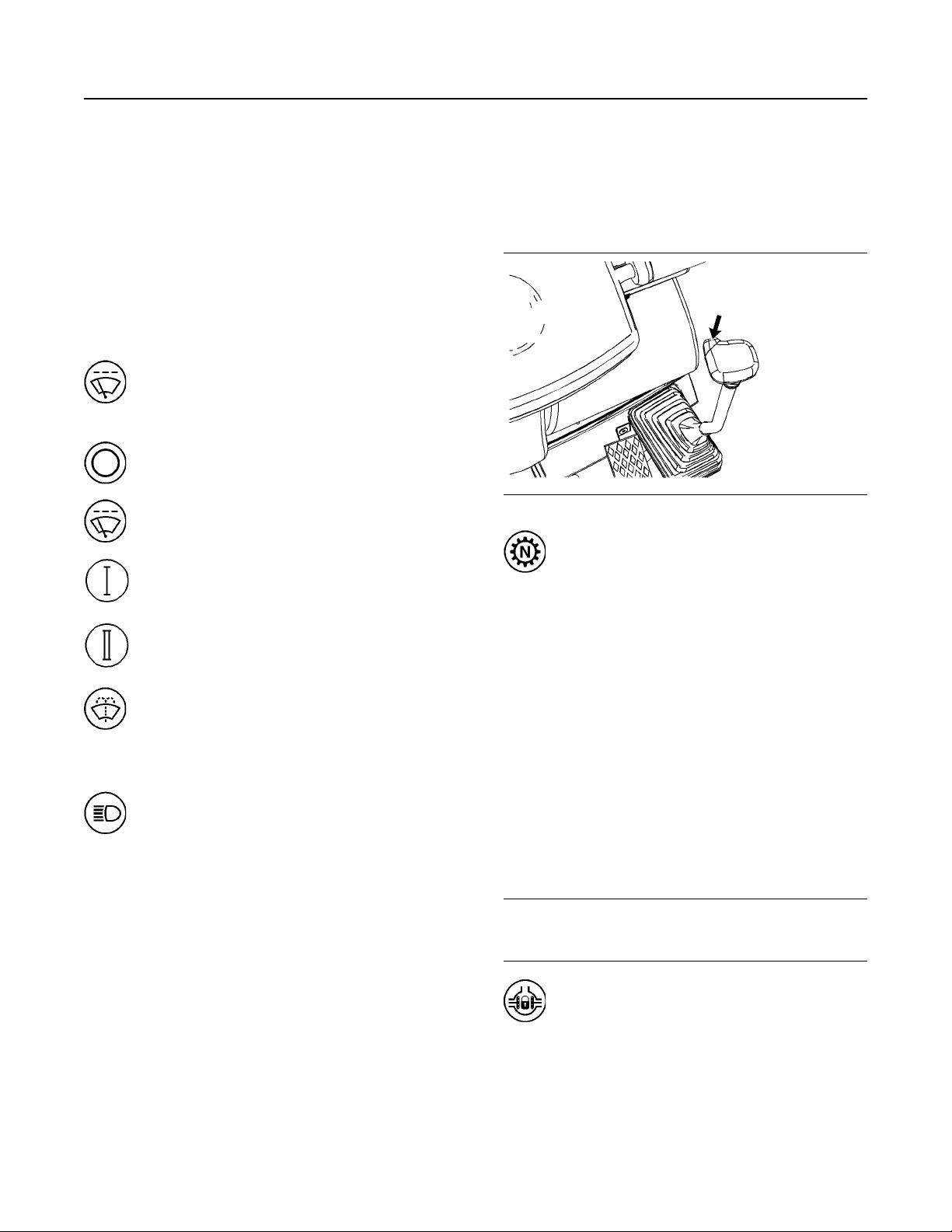

Front Window Wiper/Washer

Window Wipers – Rotate the handle
away from the operator in order to
activate the window wipers. There are

four positions for the window wipers.

OFF – When the handle is in the OFF
position, the wipers will be off.

INTERMITTENT POSITION – The wipers
will operate intermittently.

CONTINUOUS POSITION 1 – The wipers
will operate continuously. This is the
slow continuous speed.

CONTINUOUS POSITION 2 – The wipers
will operate continuously. This is the
fast continuous speed.

Move the transmission speed lever according to the
shift pattern on the machine.

Decelerating the machine and/or applying the brakes
is recommended when you are changing speeds.
This permits operator comfort and maximum service
life of the power train components.

Illustration 106 g01588235

Transmission Neutralizer Button – Push
the button and hold the button when you

are changing speed ranges. This will
disengage the transmission from the driving
wheels.

When all available engine power is desired for the
loader hydraulics, push the transmission neutralizer
button that is located on the loader control lever.

Window Washer – Push the button at the
end of the handle in order to activate the
window washer.

High/Low Beam Switch

High/Low Beam Switch (If Equipped) –
The high/low beam switch is located on

the right side of the steering column.
Pull the high/low beam switch in order to activate
the high beams momentarily. Push the switch
backward in order to activate the high beams of
the front running lights. The alert indicator for the
high beams will come on.

Note: The high/low beam switch is functional only

while the running lights are on.

Transmission Speed Control (9)

Transmission Speed Shift Lever – Push the

transmission neutralizer button and hold the
transmission neutralizer button in order to neutralize
the transmission. Then, move the lever to one of the
four desired travel speeds. Speed changes are

possible when you are moving and when the
machine is at full engine speed.

Throttle Control (10)

Accelerator Pedal – Push down the pedal in order to

increase travel speed. Release the pedal in order to
decrease travel speed. The accelerator pedal will
return to the low idle setting.

Use the pedal to reduce engine rpm for directional
shifts when you use the loader.

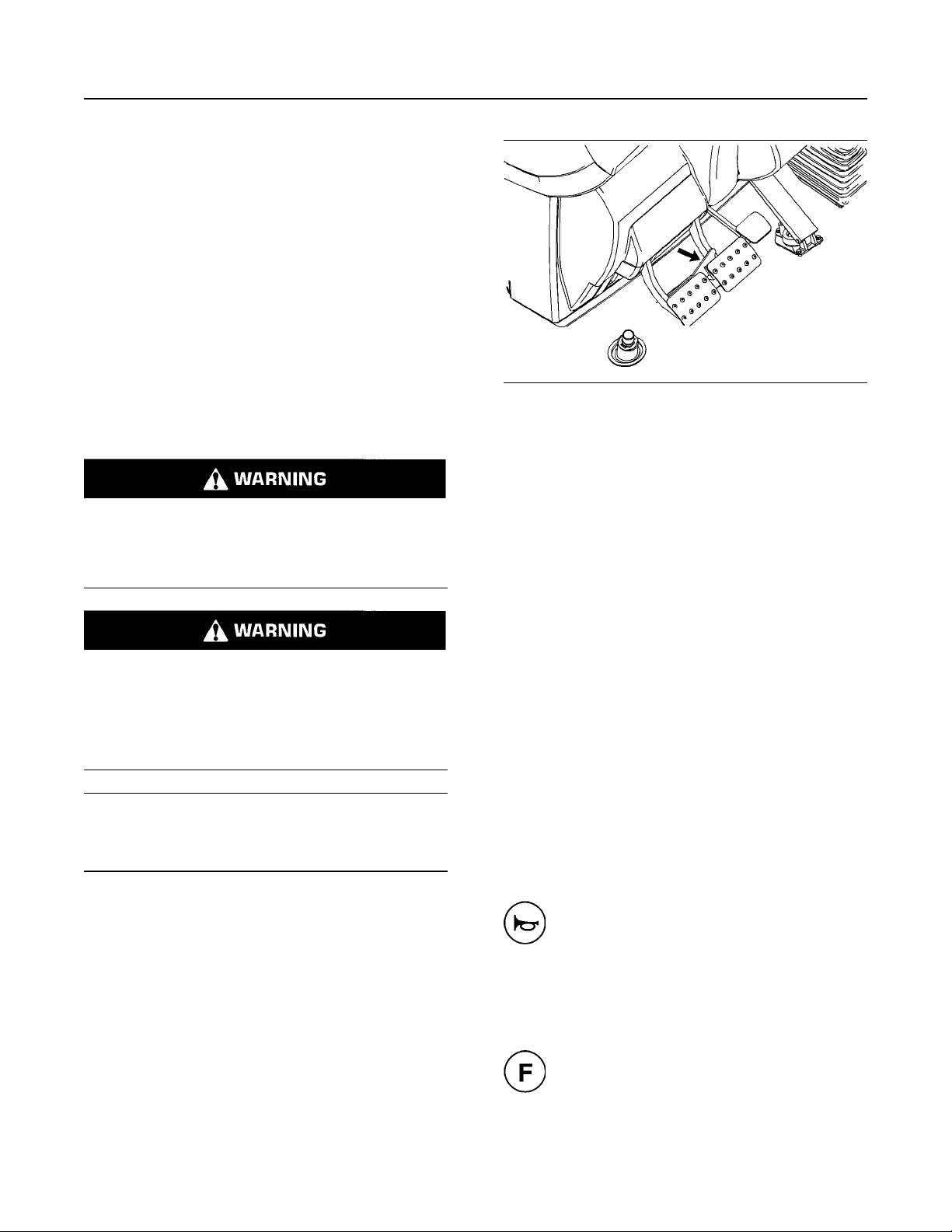

Differential Lock Control (11)

NOTICE

Do not engage the differential lock if the machine is in
third gear or above. Machine damage may occur.

Differential Lock Control – Push down
the switch in order to engage the

differential lock. The differential lock
can prevent wheel slippage. Use the differential
lock control when the machine is moving on soft
ground or on wet ground. Apply the differential
lock when the wheel is slipping. This will ensure
positive engagement. Reduce the engine speed
to the idle speed range before you engage the
differential lock in order to minimize shock loads
on the rear axle.

86

Operation Section
422E, 428E, 434E Mechanical Control

Release the differential lock after engagement is
noticed. The differential will automatically disengage
when the torque allows the differential to disengage.

Use the differential lock to prevent one wheel from
slipping. If the wheels continue to slip in soft material,
reduce the engine speed.

When the differential lock is engaged, the differential
is locked. Both rear wheels will turn at the same

speed.

Note: The differential lock will only function in the
two-wheel steer mode if the machine is equipped
with All Wheel Steer. The differential lock will become
disabled when circle steer mode is selected or crab
steer mode is selected.

SEBU8475-10

Illustration 107 g01090661

Service Brakes (12)

Personal injury or death could result if brake ped­al lock bar is not engaged when recommended.
Machine can swerve out of control if only one
brake is applied for a quick stop. Follow the rec­ommendations below for proper braking.

Do not apply the brake continuously or use the
brake as a footrest as this may cause excessive
heat in the brake circuit. When you drive downhill
for a long distance use a lower gear and use en­gine braking. Excessive heat in the brake circuit
can lead to brake failure. Failure of the brakes

could cause serious injury or death.

NOTICE

Some areas may have a legal requirement to have
the pedals locked when roading. Check state and lo­cal laws.

Brake Pedals – Push both pedals downward in order
to slow down the machine. Push both pedals
downward in order to stop the machine. Use the
brake pedals while you are operating on a
downgrade in order to prevent the engine from
overspeeding.

The rear brake lights must come on when you apply
the brakes. If the rear brake lights are not functioning,
repair the brake lights. Repair the brake lights before
you operate the machine.

As shown, connect the left pedal and the right pedal
together. Move the lock bar between both of the
pedals. If the machine is operating in second gear, in
third gear, and in fourth gear, connect the lock bar.

Only disengage the lock bar when the machine is not
moving. If the lock bar is disengaged, only operate
the machine at low speeds and in first gear. Use the
left pedal or the right pedal to aid in maneuvering in
tight quarters.

Use the pedals with the steering wheel in order to
make sharp turns. Use the left pedal to help with
sharp left turns. Use the right pedal to help with sharp
right turns.

Steering Wheel Tilt Control (13) (If
Equipped)

Steering Wheel Tilt Control – In order to adjust the

steering wheel, push down on steering wheel tilt
control (13) and move the steering wheel to the
desired position. Release the steering wheel tilt
control. The steering wheel will remain in the desired
position.

Horn (14)

Horn – Press the end of the

transmission direction control (15) in

order to sound the horn. Use the horn
for alerting personnel or for signaling personnel.

Transmission Direction Control
(15)

FORWARD – Move the transmission

lever upward. The machine will move

forward.

SEBU8475-10

87

Operation Section

422E, 428E, 434E Mechanical Control

NEUTRAL – Move the transmission lever
to the middle position for the NEUTRAL

position. The machine should not move
when the transmission lever is in the neutral
position.

REVERSE – Move the transmission lever

downward. The machine will move in

reverse.

Forward directional changes and reverse directional
changes are possible while the machine is moving.
However, reducing the engine speed is
recommended, when directional changes are being
made. Reducing the machine ground speed and/or
braking is recommended, when directional changes
are being made. This permits operator comfort and
maximum service life of the power train components.

To avoid an unstable machine, the machine should
be stopped before any directional changes are made

with a raised load.

The lever should be moved to the NEUTRAL position
when you are using the backhoe or when you are
leaving the machine. The transmission neutral lock
should be engaged when you are using the backhoe
or when you are leaving the machine.

Note: The alarm (if equipped) will sound when the
stabilizers are being raised and the machine is
shifted to FORWARD or REVERSE position.

Speed Selector

Powershift Transmissions Only

The transmission has a maximum of four forward
speeds and three reverse speeds. Rotate the

transmission lever to the desired gear speed:

If the transmission is in fourth gear and the direction
control is in the FORWARD position, the
transmission will upshift into fifth gear automatically
once the correct ground speed has been achieved
and back down to fourth gear once the ground speed
has been reduced appropriately. If the transmission is
in fourth gear and the direction control is in the
REVERSE position, the transmission will only shift
into the third gear.

All Wheel Drive Control (16) (If
Equipped)

Three-Position Switch

All Wheel Drive – Push the left side of
the switch to the ON position in order to
activate all wheel drive.

All Wheel Drive can be activated anytime when
additional traction is desired.

All Wheel Drive should always be activated when you
are operating the machine on a slope.

All Wheel Drive Braking – Place the
switch in the middle position in order to

enable the All Wheel Drive Braking. The
machine will operate in two-wheel drive until you
push on the brake pedals. Pushing the brake
pedals will activate the All Wheel Drive.

Note: For machines that are equipped with two

wheel steer, press both of the brake pedals at the
same time in order to enable the All Wheel Drive
Braking. Steering using the brakes is still possible for
two-wheel steer machines, when you press one
brake pedal.

““1”” – First Speed

““2”” – Second Speed

““3”” – Third Speed

““4”” – Fourth Speed

All Wheel Drive Braking should always be activated
when you are roading the machine.

OFF – Push the right side of the switch

to the OFF position for two-wheel drive.

The All Wheel Drive Braking is
deactivated when the switch is in this position.

Two-Position Switch

All Wheel Drive – Push the top of the

switch in order to activate all wheel

drive.

All Wheel Drive can be activated anytime when
additional traction is desired.

All Wheel Drive should always be activated when you
are operating the machine on a slope.

88

Operation Section
422E, 428E, 434E Mechanical Control

All Wheel Drive Braking – Push the
bottom of the switch in order to enable

the All Wheel Drive Braking. The
machine will operate in two-wheel drive until you
push the brake pedals. Pushing the brake pedals
will activate the All Wheel Drive.

SEBU8475-10

Secondary Brake – The secondary brake uses the
same lever as the parking brake. The secondary
brake should be used if the service brakes fail to stop
the machine.

Note: For machines that are equipped with two
wheel steer, press both of the brake pedals at the
same time in order to enable the All Wheel Drive
Braking. Steering using the brakes is still possible for
two-wheel steer machines, when you press one
brake pedal.

Loader Control (17)

Refer to Operation and Maintenance Manual,
“Joystick Control (Loader)” for more information.

Multipurpose Control (18)

Refer to Operation and Maintenance Manual,
“Joystick Control (Loader)” for more information.

Parking Brake Control (19)

Always engage the parking brake and transmis­sion neutral lock before dismounting the ma­chine, operating the backhoe or engaging the
boom lock for the transport position. Failure to
do so could allow unexpected machine move­ment, resulting in personal injury or death.

Parking Brake – The parking brake lever is located

on the right side of the seat. Always stop the engine
and engage the parking brake before you get off the
machine.

If the parking brake is engaged, the action alarm will
sound when the transmission direction control lever

is in the FORWARD position or in the REVERSE
position.

Note: Switching the direction control lever from either
direction to NEUTRAL then back to either direction
may cause the machine to move while the parking
brake lever is engaged.

Engine Start Switch (20)

OFF – Turn the engine start switch key
to the OFF position in order to stop the

engine. Insert the engine start switch
key only while the start switch is in the OFF
position. Remove the engine start switch key
only while the start switch is in the OFF position.
If the engine is not running, turn the engine start
switch key to the OFF position in order to prevent
the fault alarm from sounding.

ON – The engine start switch will return

to the ON position when the engine start

switch key is released from the START
position. When the engine is not running, the
indicator lights and the fault alarm will remain on
until the engine start switch is turned to the OFF
position.

START – Turn the engine start switch

key to the START position in order to

start the engine. Release the engine
start switch key after the engine starts. The fault
alarm should shut off after the engine oil
pressure rises.

The transmission control lever must be in the
NEUTRAL position and the hydraulic control levers

must be in the HOLD position before you turn the
engine start switch and before you start the engine.

Note: The engine may fail to start after the key is
turned to the start position. If this happens, the key
must be returned to the OFF position. Attempt to start
the engine again.

When you are not operating the machine, remove the
key.

Starting Aid Switch (21)

Parking Brake Engaged – Pull up the parking brake

lever in order to engage the parking brake. The
parking brake indicator light on the front console will
come on when the engine start switch is turned on
and when the parking brake is engaged.

Parking Brake disengaged – Push down the
parking brake lever in order to disengage the parking
brake. Slightly raise the parking brake lever and pull
in the release lever before you disengage the parking
brake.

Do not spray ether into engine when using ther­mal starting aid to start engine. Personal injury
and machine damage could result. Follow the
procedures in this manual.

Starting Aid Switch – The starting aid

switch is located on the right side

console.

SEBU8475-10

89

Operation Section

422E, 428E, 434E Mechanical Control

If the machine fails to start due to cold ambient
temperatures, the glow plugs can be activated in

order to provide heated fuel to the inlet manifold.
Refer to Operation and Maintenance Manual,
“Starting Below 0°C (32°F)” for the starting procedure
with the glow plugs.

Rotating Beacon (22)

Rotating Beacon Light (If Equipped) –
Press the top of the switch in order to

turn on the rotating beacon light. Press
the bottom of the switch in order to turn off the
rotating beacon light. The rotating beacon light is
used to alert other vehicles when the machine is
being roaded from one job to another job.

Front Floodlights (23)

Front Floodlights (If Equipped) – The

switch is a two-position switch (If

Equipped).

Push the bottom of the switch for the front running
lights (If Equipped) or the OFF position if the machine
is not equipped with front running lights. Push the top
of the switch for the two front floodlights.

Front Floodlights (If Equipped) – The

switch is a three-position switch (If

Equipped).

Push the bottom of the switch for the Front Running
Lights. Push the switch to the middle position for the
two front floodlights. Push the top of the switch in
order to turn on all four front floodlights.

Rear Floodlights (24)

Rear Floodlights (If Equipped) – The

switch is a two-position switch (If

Equipped).

Push the bottom of the switch to the OFF position in
order to turn off the rear floodlights. Press the switch
to the middle position for the two rear floodlights.
Press the top of the switch in order to turn on all four
rear floodlights.

Rear Fog Light (25)

Rear Fog Lamp (If Equipped) – Press the
top of the switch in order to turn on the
rear fog lamp. Press the bottom of the

switch in order to turn off the rear fog lamp.

The rear fog lamp will only operate when the
headlights are being used.

Sideshift Control (26)

Refer to Operation and Maintenance Manual,
“Sideshift Control” for more information.

Rear Wiper/Washer Switch (27)

Rear Window Wiper – Place the switch
in the middle position in order to

activate the rear window wiper. Push the
bottom of the switch in order to shut off the
window wiper.

Rear Window Washer – Push the top of

the switch and hold in order to activate

the rear window washer.

Horn (28) (If Equipped)

Horn – Press the top of the switch in

order to sound the horn. Use the horn

for alerting personnel or for signaling
personnel.

Throttle Control (29)

Press the bottom of the switch for the OFF position in
order to turn off the rear floodlights. Press the top of
the switch in order to turn on the rear floodlights.

Rear Floodlights (If Equipped) – The
switch is a three-position switch (If
Equipped).

Accelerator Lever – This lever controls the engine

speed for backhoe operation.

Operate the machine in the green operating range on
the tachometer.

High Idle – Move the lever away from the

operator for a faster idle speed.

Low Idle – Move the lever toward the

operator for a lower idle speed.

For roading or loader operation, keep the lever in the
low idle position. Use the accelerator pedal to change
the engine speed.

90

Operation Section
422E, 428E, 434E Mechanical Control

Note: When you are digging with the backhoe, the
maximum recommended engine speed is 1800 rpm.

Stabilizer Controls (30)

Refer to Operation and Maintenance Manual,
“Stabilizer Control” for more information.

Boom Lock (31)

SEBU8475-10

Objects may be lifted while the boom transport lock is

NOTICE

engaged. However, machine damage can result if
both hooks are not fully engaged with the boom
transport lock pins prior to lifting objects.

Boom Lock

Illustration 108 g01925739

1. Close the bucket and completely move in the stick.

Slowly move the boom upward until the boom is
inward.

Illustration 109 g01925718

3. Make sure that the hook engages over the lock in

order to secure the boom into the LOCK position.
Activate the boom downward in order to force the
boom against the boom transport lock. This will
improve the ride of the machine.

Boom Release

1. Slowly move the boom upward until the boom is

inward.

2. Move the boom lock lever toward the rear of the

machine to the lock position.

SEBU8475-10

Illustration 110 g01925718

2. Pull the boom lock lever toward the front of the

machine in order to disengage the boom lock. This
will allow movement of the backhoe for operation.

91

Operation Section

422E, 428E, 434E Mechanical Control

Note: To ensure that the stability alarm is working
properly before use, press the top of switch (35) to
activate the stability alarm. Fully raise the boom and
stall the boom against the stops. The stability alarm
should sound and the action light should illuminate.

Note: The stability alarm switch should not be
activated during normal digging.

Fan Switch (36)

Heater Fan Switch – This switch controls the three-

speed blower fan motor.

Press the bottom of the switch for the LOW position
of the fan.

Press the switch to the middle position for the
MEDIUM fan speed.

Press the top of the switch for the HIGH fan speed.

Backhoe Controls (32)

Refer to Operation and Maintenance Manual,
“Controls ” for more information.

Quick Coupler (33, 34) (If
Equipped)

Two electrical switches are located inside the cab.
Use of both switches is required in order to release

the work tool. Switch (33) is a two-position switch
used to unlock the work tool rear pin locking
mechanism. Switch (34) is a momentary switch used
to unlock the work tool front pin locking mechanism.
Switch (34) will function only when switch (33) is in
the unlock position.

For more information, refer to Operation and
Maintenance Manual, “Quick Coupler Operation
(Hydraulic Pin Grabber Quick Coupler)”.

Object Handling Stability Alarm
Switch (35) (If Equipped)

Stability Alarm Switch – Press the top of
switch (35) to activate the stability

alarm. The stability alarm must be
activated when you perform an object handling
operation. When you lift a load that exceeds the
maximum rated load the stability alarm will sound
and an action light will illuminate on the right side
console, refer to Operation and Maintenance
Manual, “Monitoring System” for more
information. To disengage the stability alarm
press the bottom of switch (35).

Variable Temperature Control (37)

Heating Variable – Turn the knob
between COOL (left) and WARM (right).

Heating and Cooling Control (38)

Heating – Press the top of the switch to
the ON position. Turn the blower fan

switch control to the desired speed
(LOW, MEDIUM, or HIGH). Adjust the temperature
control knob for the desired temperature.

Press the switch to the middle position for the blower
OFF position.

Cooling (If Equipped) – Press the bottom

of the switch to the air conditioning ON

position. Turn the blower fan switch
control to the desired speed (LOW, MEDIUM, or
HIGH). Adjust the temperature control knob for
the desired temperature.

Note: When you are using the cooling system, close

all unused vents in order to provide maximum
cooling.

Pressurizing – When heating or cooling is not
desired, pressure inside the cab will help keep out
dust.

To produce the volume of air that is needed to keep
out dust, set the blower fan switch control to LOW, to

MEDIUM, or to HIGH. Adjust the temperature control
knob to the desired temperature.

Defogging – Use the cooling system to remove
moisture from the air in the cab. This will prevent
moisture from forming on the windows.

92

Operation Section
422E, 428E, 434E Mechanical Control

Press the switch to the air conditioning ON position.
Turn the blower fan switch control to the desired

speed (LOW, MEDIUM, or HIGH). Adjust both control
knobs until the moisture level is lowered and the

windows are free of moisture.

VENTILATION – When heating, cooling, or
defogging is not desired, the system can be used in
order to provide ventilation. Turn the blower fan
switch to the desired speed (LOW, MEDIUM, or
HIGH). Adjust the temperature control knob to the
desired temperature.

Cab Door

SEBU8475-10

Windows

Door Windows

Illustration 111 g01925722

Cab Doors – Pull the door latch in order to open the
door. Open the door all the way to the fully open
position. The door will remain in this position. Both
doors operate the same way.

The doors should be closed while you operate the
machine. While the doors are shut, the windows can

be opened for better cab air flow.

Illustration 113 g01098902

Move the window latch in order to open the window.

Rear Window

Note: The rear window must be closed when the

machine is operated with a work tool that may
discharge debris. If the machine is not equipped with
the rear window, a polycarbonate shield must be
used when the machine is operated with a work tool
that may discharge debris.

The cab rear window has several operational
features from the inside of the cab by the operator.

Illustration 112 g01098892

Cab Door Release Lever – Move the lever in order
to unlatch the door and open the door.

Illustration 114 g01530735

Move the latches above the plastic handles in order
to release the window from the LOCKED position.
Pull the handles toward the seat and then push the
handles upward until the latches engage in order to
stow the window.

SEBU8475-10

To lower the window from the stowed position, move
the latches by the plastic handles. Pull the handles
downward, and push the handles toward the rear of
the machine until the latches lock into position.

Note: Make sure that the rear window is free from
obstructions before you open or before you close the
rear window.

Interior Dome Light

Interior Dome Light – Push the top of the
light in order to turn on the interior
dome light. Push the bottom of the light

in order to turn off the interior dome light.

i05215115

Operator Controls

(432E, 434E Pilot Control, 442E,
444E)

SMCS Code: 7300; 7451

93

Operation Section

Operator Controls

S/N: JBA1–Up

S/N: NBA1–Up

S/N: EME1–Up

S/N: SJL1–Up

94

Operation Section
432E, 434E Pilot Control, 442E, 444E

SEBU8475-10

Illustration 115 g01924659

(1) Quick Coupler Control (If Equipped)
(2) Continuous Flow Control (Loader)
(3) Auxiliary Circuit Control (If Equipped)
(4) Transmission Neutral Lock
(5) Hazard Flashers
(6) All Wheel Steer Position Gauge (If

Equipped)
(7) Autoshift Control (If Equipped)
(8) Ride Control (If Equipped)

(9) Roading Lights
(10) Two Wheel Steer/Four Wheel Steer (If

Equipped)
(11) All Wheel Steer Control (If Equipped)
(12) Turn Signal Control and Front Window

Wiper
(13) Transmission Speed Control (If

Equipped)
(14) Throttle Control

(15) Differential Lock Control
(16) Service Brakes
(17) Steering Wheel Tilt Control (If

Equipped)
(18) Horn
(19) Transmission Direction Control
(20) All Wheel Drive Control (If Equipped)
(21) Work Tool Control (If Equipped)

SEBU8475-10

95

Operation Section

432E, 434E Pilot Control, 442E, 444E

Illustration 116 g02681336

(22) Loader Control
(23) Parking Brake Control
(24) Starting Aid Switch
(25) Engine Start Switch
(26) Rotating Beacon
(27) Front Floodlights
(28) Rear Floodlights
(29) Rear Fog Light (If Equipped)
(30) Sideshift Control
(31) Rear Wiper/Washer Switch

(32) Continuous Flow Control (Backhoe)
(33) Throttle Control
(34) Stabilizer Controls
(35) Boom Lock
(36) Joystick Control
(37) Console Latch
(38) Joystick Control
(39) Quick Coupler Lock/Unlock (Rear Pin)

(If Equipped)

(40) Quick Coupler Unlock (Front Pin) (If

Equipped)
(41) Object Handling Stability Alarm Switch

(If Equipped)
(42) Fan Switch
(43) Variable Temperature Control
(44) Heating and Cooling Control
(45) Hydraulic Lockout

96

Operation Section
432E, 434E Pilot Control, 442E, 444E

SEBU8475-10

Quick Coupler Control (1) (If
Equipped)

Improper attachment of work tools could result in
injury or death.

Do not operate this machine until you have posi­tive indication that the coupler pins are fully en­gaged. Check for engagement by:

1. Tilt the work tool down.

2. Put downward pressure on the work tool.

3. Back the machine up and make sure there is
not any movement between the work tool and the
quick coupler assembly.

The quick coupler pin switch with the red lock button
is used to engage the pins. The quick coupler pin
switch is also used to disengage the quick coupler
pins.

NOTICE

Auxiliary hoses for work tools must be removed be­fore the quick coupler pins are disengaged.

Pulling the work tools with the auxiliary hoses could
result in machine damage.

Disengage – Pull the red button
downward and push down on the top of

the quick coupler pin switch to the
unlocked position. When the quick coupler pin
switch is in the UNLOCKED position, hold the
switch for approximately 5 seconds until the
coupler pins disengage.

Engage – Press the bottom of the quick

coupler pin switch in order to engage

the quick coupler pins. The quick
coupler pin switch should be in the LOCKED
position when you are not disengaging the quick
coupler pins.

NOTICE

Auxiliary hoses for work tools must be attached after
the quick coupler pins are engaged.

Operating the work tool without the hoses properly at­tached may result in damage to the work tool.

Note: Operating the quick coupler switch will
deactivate the ride control system for a short time.
Deactivating the ride control systems enables easier
changing of work tools.

Continuous Flow Control (Loader)
(2)

Continuous Flow Switch – The
momentary switch is located on the

front console on the left-hand side. This
switch works with the thumb wheel on the loader
control. Once the operator selects the desired
flow rate with the thumb wheel press the
momentary switch in order to maintain the
desired flow. Press the switch again in order to
return flow control to the thumb wheel on the
loader control.

Auxiliary Circuit Control (3) (If
Equipped)

AUXILIARY – The switch allows the

operator to activate a 12 V auxiliary

circuit. Press the top of the switch in
order to energize the auxiliary function. Press the
bottom of the switch in order to turn off the
auxiliary function. The auxiliary circuit can
control a separate function such as a water
sprayer for a broom.

Transmission Neutral Lock (4)

Always engage the parking brake and transmis­sion neutral lock before dismounting the ma­chine, operating the backhoe or engaging the
boom lock for the transport position. Failure to
do so could allow unexpected machine move­ment, resulting in personal injury or death.

Transmission Neutral Lock – The

transmission neutral lock is located on

the left side of the front console.

Locked – Press the top of the switch in order to lock

the transmission direction control lever into the
NEUTRAL position.

Unlocked – Press the bottom of the switch in order
to deactivate the transmission neutral lock.

SEBU8475-10

97

Operation Section

432E, 434E Pilot Control, 442E, 444E

Note: If the transmission neutral lock has been
activated, shift the direction control lever into the
NEUTRAL position before you shift the direction
control lever into the FORWARD position. If the
transmission neutral lock has been activated, shift
the direction control lever into the NEUTRAL position
before you shift the direction control lever into the
REVERSE position. The direction control lever must
first be shifted into the NEUTRAL position in order to
allow movement of the machine.

Note: When you exit the machine push the top of the
transmission neutral lock switch in order to prevent
the machine from moving out of the NEUTRAL
position. Engage the parking brake in order to
prevent machine movement when the transmission is
in neutral. Refer to the Operation and Maintenance
Manual, “Transport Positions”.

Hazard Flashers (5)

Hazard Flashers – The hazard switch is
located on the right-hand side of the

front console. Push the left side of the
switch in order to activate the hazard flashers.
Both turn signal lights will flash. Push the right
side of the switch in order to deactivate the
hazard flashers.

All Wheel Steer Position Gauge (6)
(If Equipped)

The kickdown function is activated by momentarily
pressing the transmission neutralizer button. The
transmission neutralizer button is located on the

loader control. The transmission will kick down only if
the current ground speed is within the working range
of the next lower gear. If the ground speed is above
the working range of the next lower gear, the
transmission will wait until the ground speed
decreases. If the ground speed does not decrease,
the transmission control will not kick down.

Push the top of the switch for the autoshift function in
the automatic mode. Push the top of the switch prior
to shifting the transmission into forward or reverse in
order to activate the autoshift function.

Manual Mode – Press the bottom of the switch in
order to disable the autoshift control.

The manual mode allows the operator to select the
desired speed and the desired direction of the
machine.

Ride Control (8) (If Equipped)

Ride Control – Travel at high speeds
over rough terrain causes bucket

movement and a swinging motion. The
system for ride control acts as a shock absorber
by absorbing forces from the bucket and by
dampening forces from the bucket. This system
also stabilizes the entire machine.

The all wheel steer position gauge will indicate the
position of the rear wheels.

Autoshift Control (7) (If Equipped)

Automatic Mode – Press the top of the
switch in order to activate the autoshift.

The operator selects the highest desired gear for the
transmission with the transmission shift lever. When

the autoshift control is activated, the transmission will
not shift higher than the gear that is selected. The

transmission will only shift into fifth gear when fourth
gear is selected. When fourth gear is selected, the
transmission will shift between second gear, third
gear, fourth gear, and fifth gear. The autoshift control
will select the proper transmission gear according to
the ground speed of the machine.

Note: Fifth gear is only available when the autoshift
control is enabled. When the transmission is in
manual mode, the maximum forward gear is fourth
gear.

Ride control can cause inadvertent movement of
the loader arms if not used correctly. Don't use

when using loader or backhoe.

The ride control must be turned off in order to
raise the front tires off the ground with the loader

bucket.

Note: In some countries that require lock valves
for material handling applications, the ride
control must be turned off so that the lock valves
can function properly. Lock valves and ride
control cannot function at the same time.

Automatic Ride Control – Push the top

of the switch in order to turn on the

automatic ride control.

The automatic ride control automatically turns on
when the ground speed exceeds a preset speed of
approximately 9.5 km/h (5.9 mph). The automatic
ride control automatically shuts off during low speed
travel mode.

OFF – Put the switch in the CENTER

position in order to turn off the ride

control.

98

Operation Section
432E, 434E Pilot Control, 442E, 444E

SEBU8475-10

ON – Push the bottom of the switch in
order to turn on the system for ride
control.

The ride control will smooth the ride of the machine
during travel.

Roading Lights (9)

Front Running Lights – The front
running light switch is located on the

right side of the front console. Push the
bottom of the switch for the OFF position. The
middle position is for the panel lights, for the tail
lights, and for the position lights. The top
position adds running lights to the following
lighting groups: panel lights, tail lights and
position lights. If the lights are left in the ON
position when the engine start switch is in the
OFF position an alarm will sound.

Two-Wheel Steer Mode/Four-Wheel
Steer Mode (10)

Two-Wheel Steer – Press the bottom of

switch (10) to activate the Two-Wheel

Steer mode. The Two-Wheel Steer mode
offers the capability to operate the machine on
the road. The Two-Wheel Steer mode is used
when additional maneuvering capability is not
needed. Only the front axle is used to steer the
machine. Use this mode when you are roading
the machine. When you are operating the
machine in this mode the indicator light will not
be on.

Four-Wheel Steer – Slide down the red

button located on switch (10) and then

depress the top of switch (10). The
machine will now be in circle steer mode or the
machine now will be in crab steer mode. This is
dependent upon the placement of the All Wheel
Steer control (11).

The All Wheel Steer (AWS) has three steering
modes: Two-Wheel Steer, Circle Steer, and crab

steer. When you operate the machine for the first
time, become familiar with the three modes by trying
each one. This should be done in an area that is clear

of personnel and of obstacles.

The All Wheel Steer mode consists of the following
components:

• A Two-Wheel Steer/Four-Wheel Steer Mode
switch.

• An All Wheel Steer Control switch that allows the
operator to choose from circle steer or crab steer

• A rear axle position gauge

Three modes provide maximum machine
performance under various conditions at the job site.

Two-Wheel Steer – The Two-Wheel Steer
mode offers the capability to operate the

machine on the road. The Two-Wheel
Steer mode is used when additional maneuvering
capability is not needed. Only the front axle is
used to steer the machine. Use this mode when
you are roading the machine. When you are
operating the machine in this mode the indicator
light will not be on.

Circle Steer Mode – The Circle Steer

Mode (1) provides reduced turning radii

and tighter operation in confined
spaces. The front and rear axles are used to steer
the machine. When you are operating the
machine in the Circle Steer mode, the indicator
light will come on.

Crab Steer Mode – The crab steer mode

allows the rear wheels to turn in the

same direction as the front wheels
which will allow the machine to move in a
diagonal direction. The front and rear axles are
used to steer the machine

All Wheel Steer Control (11) (If
Equipped)

Personal injury or death can result if the machine
is roaded in any mode other than front wheel
steer.

Always road the machine with the rear wheels
centered and the machine in the front wheel steer

mode.

Before changing from one steering mode to another,

NOTICE

always center both the front and rear wheels.

Before you return to the Two-Wheel Steer mode or to
the Circle Steer mode, the front wheels and rear

wheels must be centered. Observe the rear axle
position gauge on the front console. Then, move the

All Wheel Steer switch to the desired mode.

NOTICE

Failure to recenter the steering system at least once
per day may result in a reduction in steering
effectiveness.

The steering must be realigned under the following
conditions:

SEBU8475-10

• The start of each work shift

• One time during the work shift

• Steering difficulty occurs.

• The machine will be roaded.

• The machine has Traveled 24 km (15 mi) on a
public road in Two-Wheel Steer mode.

Note: If the all wheel steer position gauge (6) is
positioned in the green shaded area the steering
does not need to be realigned.

99

Operation Section

432E, 434E Pilot Control, 442E, 444E

Synchronizing the Wheels

Illustration 117 g00830965

In a static position, select the circle steer mode and
turn the steering wheel so that the rear wheels are
turned to full lock.

Illustration 119 g01967073

Select the circle steer mode and turn the steering
wheel until the front wheels are facing straight ahead.

Illustration 120 g01967574

The rear wheels should also be facing straight
ahead. The all wheel steer position gauge should be
positioned in the green shaded area.

Turn Signal Control and Front
Window Wiper (12)

Illustration 118 g00282686

Select the Two-Wheel steer mode and turn the front
wheels to the opposite full lock.

Directional Turn Signals

Directional Turn Signals – The
directional turn signal lever is on the
right side of the steering column.

Left Directional Signal Lights – Push the lever

away from the operator in order to activate the left
turn signals. When the lever is pushed forward away
from the operator, an indicator light will illuminate on
the front dash. The left turn signal will flash until the
lever is manually returned to the OFF position.

OFF Position – In the OFF position, the directional
signal lights will not flash.

100

Operation Section
432E, 434E Pilot Control, 442E, 444E

SEBU8475-10

Right Directional Signal Lights – Pull the lever
toward the operator in order to activate the Right turn
signals. When the lever is pulled back toward the
operator, an indicator light will illuminate on the front
dash. The right turn signal will flash until the lever is
manually returned to the OFF position.

Note: The directional turn signals will automatically
be returned to the OFF if your machine is equipped
with the steering column tilt.

Front Window Wiper/Washer

Window Wipers – Rotate the handle
away from the operator in order to
activate the window wipers. There are

four positions for the window wipers.

OFF – When the handle is in the OFF
position, the wipers will be off.

INTERMITTENT POSITION – The wipers
will operate intermittently.

CONTINUOUS POSITION 1 – The wipers
will operate continuously. This is the
slow continuous speed.

CONTINUOUS POSITION 2 – The wipers
will operate continuously. This is the
fast continuous speed.

Move the transmission speed lever according to the
shift pattern on the machine.

Decelerating the machine and/or applying the brakes
is recommended when you are changing speeds.
This permits operator comfort and maximum service
life of the power train components.

Illustration 121 g01200208

Transmission Neutralizer Button – Push
the button and hold the button when you

are changing speed ranges. This will
disengage the transmission from the driving
wheels.

When all available engine power is desired for the
loader hydraulics, push the transmission neutralizer
button that is located on the loader control lever.

Window Washer – Push the button at the
end of the handle in order to activate the
window washer.

High/Low Beam Switch

High/Low Beam Switch (If Equipped) –
The high/low beam switch is located on

the right side of the steering column.
Pull the high/low beam switch in order to activate
the high beams momentarily. Push the switch
backward in order to activate the high beams of
the front running lights. The alert indicator for the
high beams will come on.

Note: The high/low beam switch is functional only

while the running lights are on.

Transmission Speed Control (13)

Transmission Speed Control – Push the

transmission neutralizer button and hold the
transmission neutralizer button in order to neutralize
the transmission. Then, move the lever to one of the
four desired travel speeds. Speed changes are

possible when you are moving and when the
machine is at full engine speed.

Throttle Control (14)

Accelerator Pedal – Push down the pedal in order to

increase travel speed. Release the pedal in order to
decrease travel speed. The accelerator pedal will
return to the low idle setting.

Use the pedal to reduce engine rpm for directional
shifts when you use the loader.

Differential Lock Control (15)

NOTICE

Do not engage the differential lock if the machine is in
third gear or above. Machine damage may occur.

Differential Lock Pedal – Push down the
pedal in order to engage the differential

lock. The differential lock can prevent
wheel slippage. Use the differential lock pedal
when the machine is moving on soft ground or on
wet ground. Apply the differential lock when the
wheel is slipping. This will ensure positive
engagement. Reduce the engine speed to the idle
speed range before you engage the differential
lock in order to minimize shock loads on the rear
axle.
