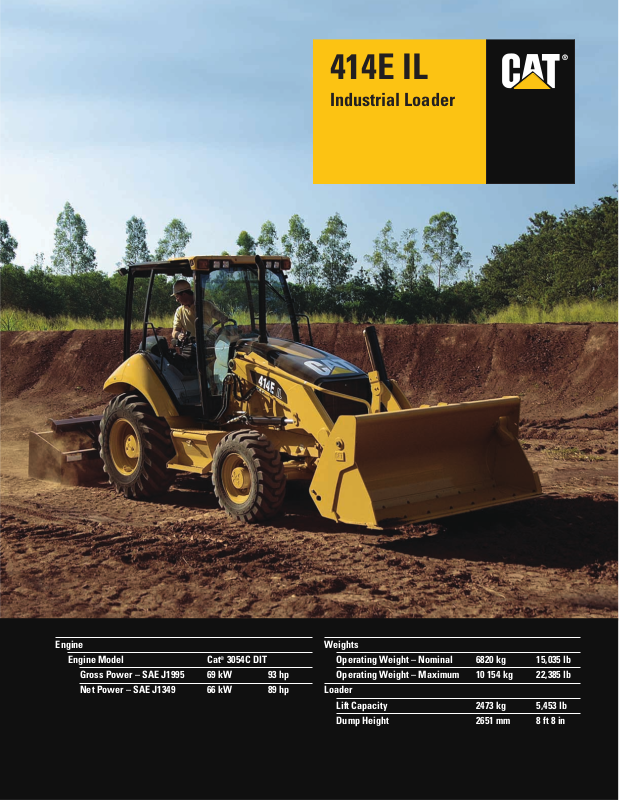

Page 1
®
®
Engine
Engine Model Cat®3054C DIT
Gross Power – SAE J1995 69 kW 93 hp
Net Power – SAE J1349 66 kW 89 hp
Weights
Operating Weight – Nominal 6820 kg 15,035 lb
Operating Weight – Maximum 10 154 kg 22,385 lb
Loader
Lift Capacity 2473 kg 5,453 lb
Dump Height 2651 mm 8 ft 8 in
414E IL
Industrial Loader
Page 2
2
414E Industrial Loader
Cat®Industrial Loaders set the industry standard for operator comfort, performance,
versatility and job site efficiency.
With a more comfortable operator station,
new joystick implement controls, integrated
three-point tool carrier and increased
performance, the 414E IL lets you GET
MORE DONE with less effort.
Power Train
The Cat 3054C DIT engine is U.S. EPA
Tier 3 Certified. The efficient fuel system
delivers reliable engine lug performance.
The transmission and new Cat axles
provide increased roading speed.
✔
Operator Station
The all new operator station maximizes
operator comfort and productivity.
The spacious platform features excellent
visibility, easy to use seat-mounted
joystick controls, ergonomically located
foot throttle and suspension seat with
20 degree rotation for maximum
comfort and productivity.
✔
Hydraulics
The Caterpillar®state-of-the-art closedcenter hydraulic system, variable
displacement piston pump and loadsensing hydraulics improve implement
response and speed while still providing
high forces at any engine speed.
New flow-sharing hydraulic valves
improve multi-function performance.
Page 3
✔ New Feature
3
Joystick Implement Controls
The 414E IL leads the industry with
seat mounted joystick implement
controls that allow for greater operator
comfort and productivity.

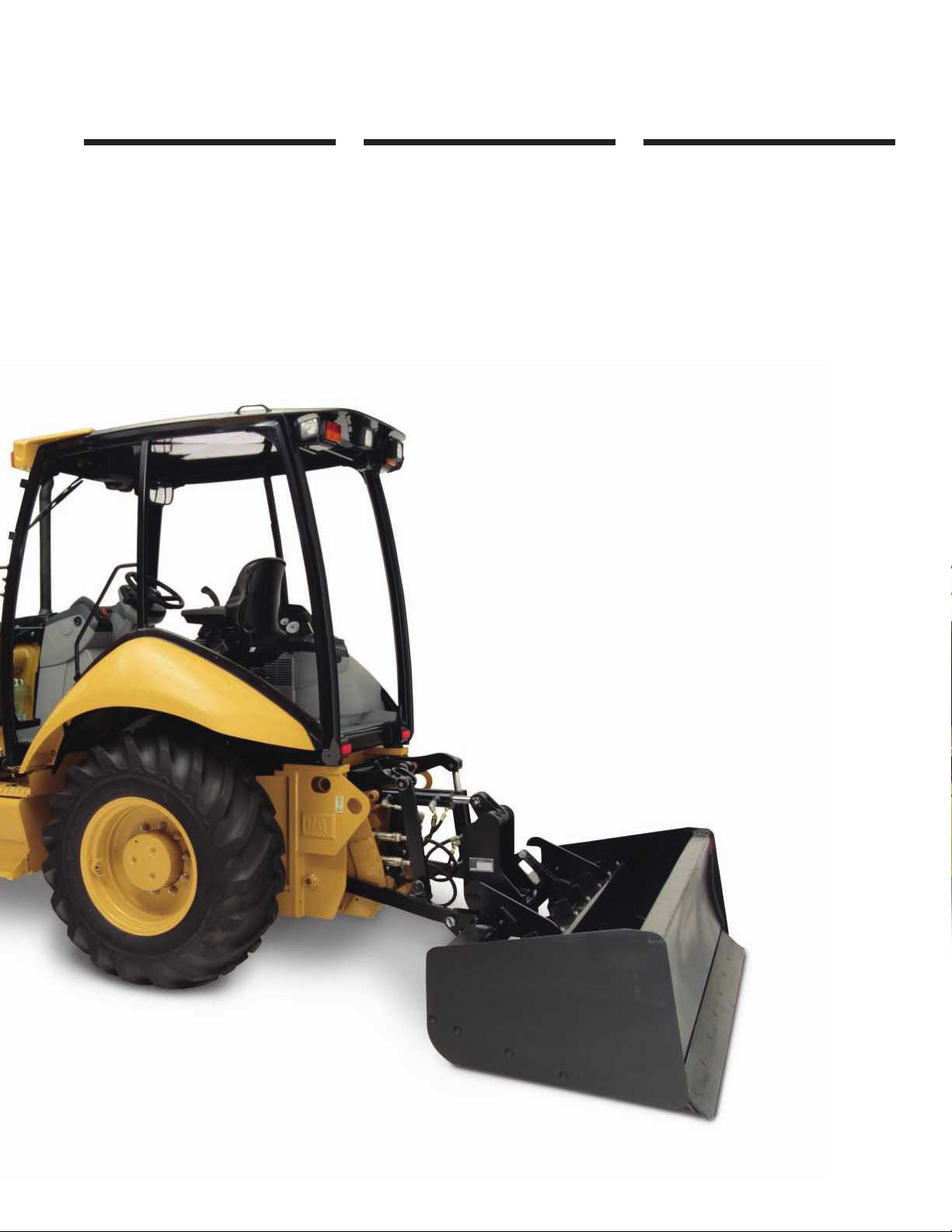

Integrated Three-Point Tool Carrier
The tractor’s new box section
mainframe features an integrated
category II three-point tool carrier
designed to complement a wide range
of Cat and existing work tools.
Serviceability and Customer Support
Easier maintenance results in greater
machine uptime and lower owning
and operating costs. New tilt-up hood
provides easier access to the engine
compartment. Your Cat dealer offers a
wide range of services that can be set up
under a Customer Support Agreement.
✔
✔
Page 4
4

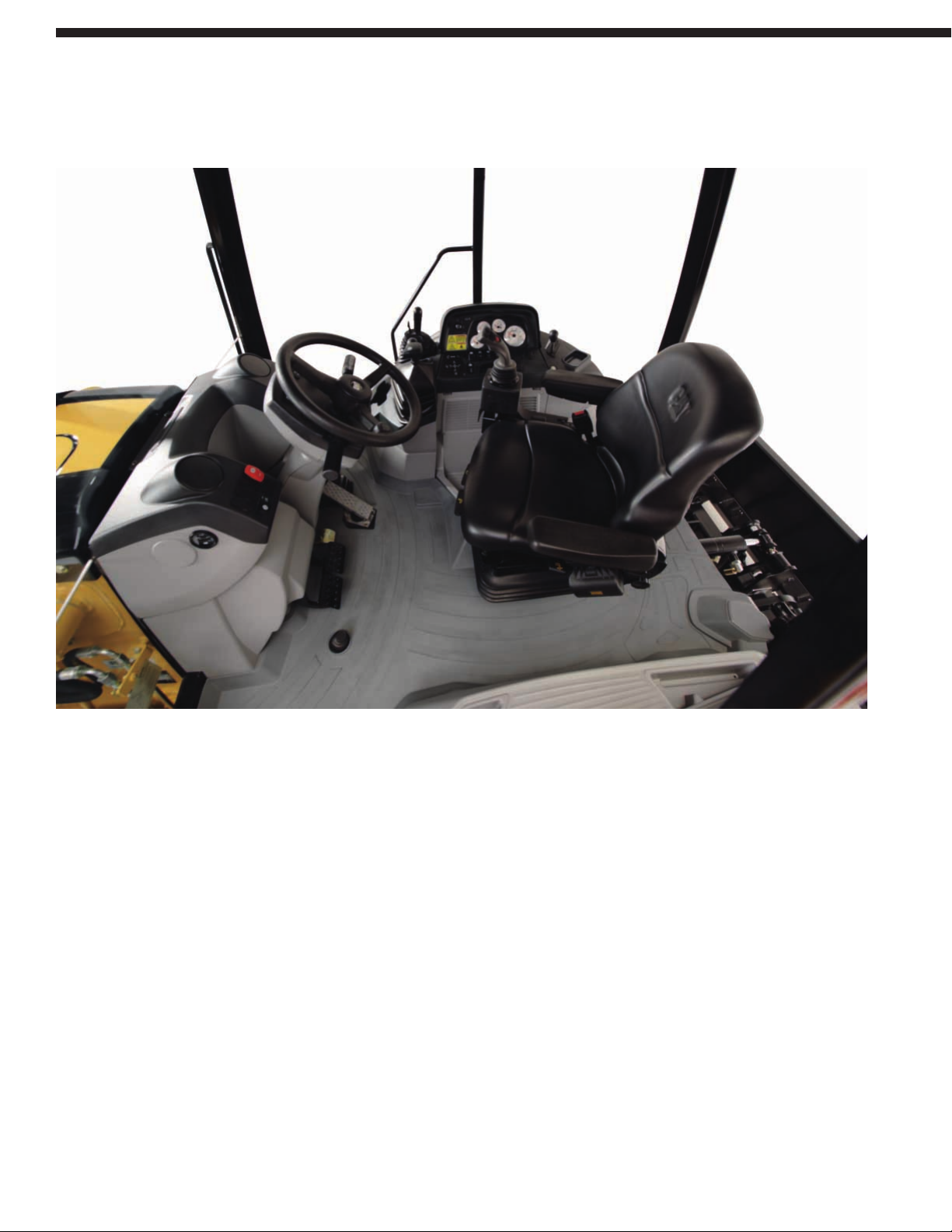

The all-new operator station provides maximum comfort and ease of operation.
Operator Station
Page 5
Operator Comfort. The all-new operator
station has been designed to maximize
operator comfort and productivity.
The spacious work environment provides
more legroom. Integrated storage areas
and cupholders are designed for operator
convenience.
New Styling. The new ergonomic,
automotive styling of the operator
station enhances the operator environment.
The narrow front dash provides excellent
visibility to the front bucket.
ROPS Canopy. Features of the ROPS
canopy includes:
• Mechanical suspension vinyl seat
• Left side storage space with
a lockable compartment
• Tilt steering column
• Floor mat
• Four working lights
• Vandalism guard
• Internal and external power receptacle
• Drink holders
• Phone clip
ROPS Canopy Plus. Includes all of the
features of the ROPS canopy with the
addition of the following:
• Front windshield
• Wiper/washer system
• Eight working lights
Suspension Seat Standard. The standard
vinyl mechanical suspension seat is
ergonomically located and allows a
20 degree side rotation to maximize
operator comfort and productivity.
The seat is adjustable for a greater
operating range and more comfortable
ride. The seat controls allow the seat
to be tailored to support differing
body weights. Adjustable seat height
accommodates all operators.
Machine Controls. Switches are located
at operator level. White-faced gauges
are easy to read.
Viewing Area. Unobstructed view to
rear work tools and integrated threepoint tool carrier.
The sloping front hood and divergent lift
arms allow the operator to see more of
the forward work area and loader
attachments.
Storage Compartment. New lockable, left
side storage is standard.
5
Page 6
6
Cat 3054C Diesel Engine. The standard
Cat 3054C DIT (Direct Injection
Turbocharged) 66 kW (89 hp) engine
is U.S. EPA Tier 3 Certified. It delivers
high horsepower, increased torque rise,
traditional Cat durability and reliable
power with low emissions.
Enhanced Roading Speed. Maximum
roading speed has been increased to
40 km/h (25 mph) for faster travel
between job sites.
Direct Injection Fuel System. Individual
unit fuel injectors deliver efficient and
accurate fuel metering and reduced
emissions. The water separator service
indicator ensures the operator is alerted
when service is necessary.
Air Cleaner. A dry-type axial seal air
cleaner with automatic, integrated dust
ejection system provides more efficient
pre-separation. The two-stage air filter
incorporates both air cleaner and
precleaner functions into a single
unit mounted under the hood.
New Cat Rear Axles. New heavy-duty
rear axles are designed specifically
for demanding loader applications.
Features include outboard planetary
gear sets for serviceability and brake
design improvements for longer life.
Transmission. The Caterpillar power
shuttle transmission provides four speeds
forward and reverse. Full synchromesh
gears and hydraulically shifted forward
and reverse shuttle clutches allow
direction and travel speed to be changed
on-the-go. A neutral start provision
prevents starting while the shuttle
is engaged.
Transmission Neutralizer. Standard on
the 414E IL, the hand-operated power
disconnect provides easy, on-the-go
shifting and full engine rpm for faster
cycle times. Neutralizer is located on the
gear shift lever for operator convenience.
Smoother Shifts. New modulated
transmission control valves provide
smoother speed and directional shifts.
Four Wheel Drive (4WD) Standard.
Heavy-duty front drive axle can be
engaged at any time by activating the
switch on the front console. The switch
can be activated while the machine is
stopped or moving, with or without load.
4WD features outboard planetary gear
final drives and improves mobility and
loader performance in poor traction
conditions.
Brake Mode Selector. The brake
mode selector switch has two positions:
two wheel drive with all wheel braking
and four wheel drive with all wheel
braking. Center position provides
two wheel drive for better tire life
while roading and engages the front
axle when brakes are applied for
improved braking performance.
Ride Control System. The optional ride
control system incorporates a nitrogen
accumulator in the loader lift circuit
that smooths the ride in all conditions,
including load and carry, highway
roading, or simply moving around
the job site.
Power Train
The Cat®3054C engine is built for performance, power, reliability and fuel efficiency.
Page 7
7

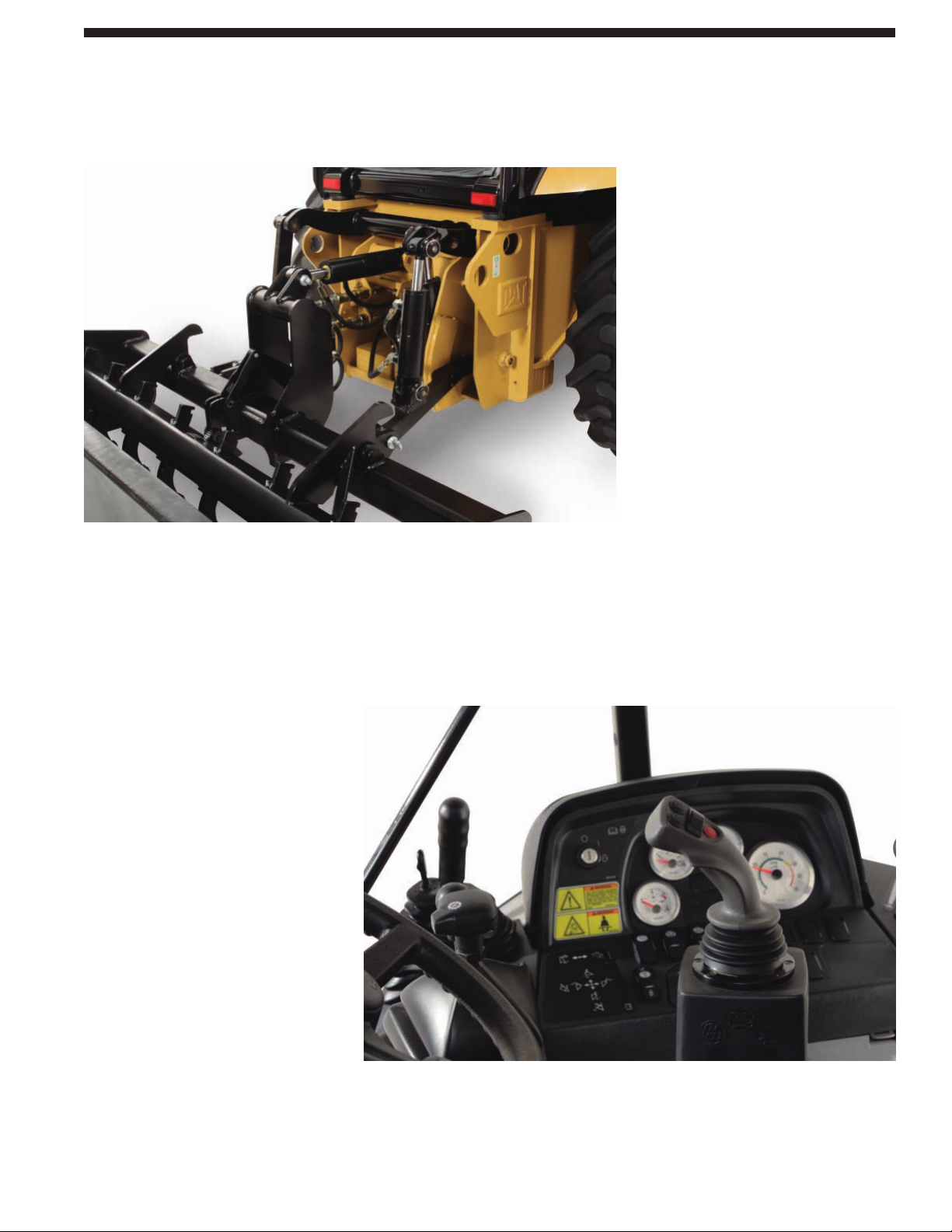

Integrated Three-Point Tool Carrier
Cat®Integrated Three-Point Tool Carrier delivers even greater operator comfort.
Integrated Three-Point Tool Carrier.
The tractor’s new box section
mainframe features an integrated
category II three-point tool carrier
designed to complement a wide range
of Cat and existing work tools.
Joystick Implement Controls.
The Cat 414E IL leads the industry
with standard seat mounted joystick
implement controls.
The single joystick allows the operator
full control of the three-point tool
carrier’s ability to raise, lower, pitch,
tilt, float and activate the 414E IL
auxiliary hydraulics and work tools.
Page 8
8
Engine
Engine Model Cat®3054C DIT
Gross Power – SAE J1995 69 kW 93 hp
Gross Power – ISO 14396 68 kW 92 hp
Net Power – SAE J1349 66 kW 89 hp
Net Power – ISO 9249 67 kW 90 hp
Net Power – EEC 80/1269 67 kW 90 hp
Bore 105 mm 4.13 in
Stroke 127 mm 5 in
Displacement 4.4 L 268 in
3
Net Torque Rise @ 1,400 rpm – 27%
Standard
Net Torque Rise @ 1,400 rpm – 37%
Optional
Net Peak Torque @ 1,400 rpm – 296 N•m 219 lb ft
Standard – SAE J1349
Net Peak Torque @ 1,400 rpm – 386 N•m 285 lb ft
Optional – SAE J1349
• The net power ratings apply at 2,200 rpm when tested under
the specified conditions for the specified standard.
• Net power advertised is the power available at the flywheel
when the engine is equipped with fan, air cleaner, muffler
and alternator.
• Based on standard air conditions of 25° C (77° F) and 99 kPa
(29.32 in) in dry barometer.
• Used 35° API gravity fuel having an LHV of 42 780 kJ/kg
(18,390 BTU/lb) when used at 30° C (89° F) (reference a fuel
density of 838.9 g/L [7.001 lb/gal]).
• No derating required up to 2286 m (7,500 ft).
• Net torque rise meets SAE J1349.
• Cat 3054C DIT engine is U.S. EPA Tier 3 Certified.
Weights
Operating Weight – Nominal 6577 kg 14,500 lb
Operating Weight – Maximum 10 154 kg 22,385 lb
Cab, ROPS/FOPS 240 kg 529 lb
Ride Control 25 kg 55 lb
MP Bucket 1.0 m3(1.3 yd3) 884 kg 1,949 lb
w/Fold-Over Fork
MP Bucket 1.0 m3(1.3 yd3) 714 kg 1,574 lb
w/o Fold-Over Fork
Counterweights (Option 1) 116 kg 255 lb
Counterweights (Option 2) 231 kg 510 lb
Counterweights (Option 3) 488 kg 1,075 lb
Counterweights (Rear) 247 kg 554 lb
• Total gross machine weight not to exceed 10 154 kg (22,385 lb).

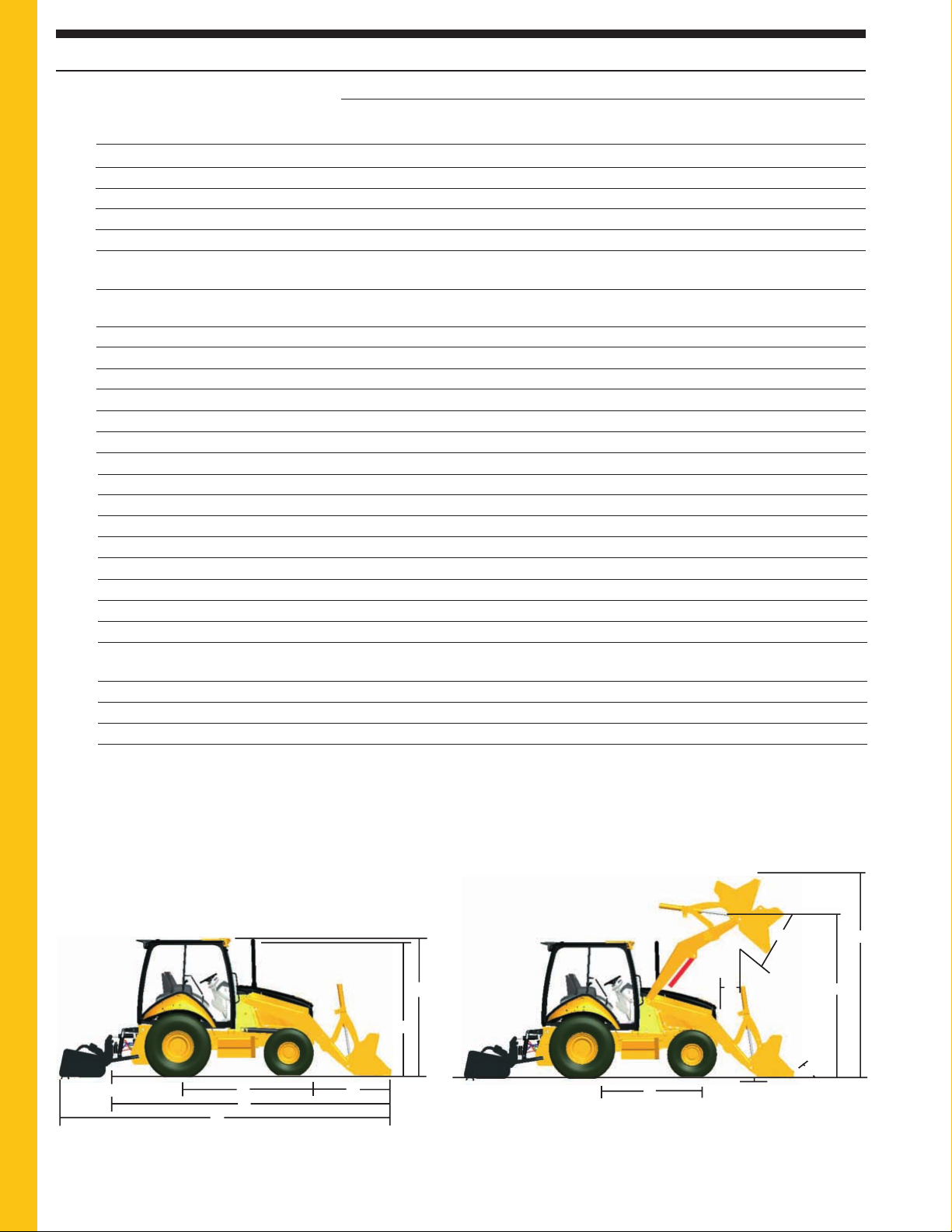

414E Industrial Loader specifications
Loader
Bucket Capacity – General Purpose 0.76 m
3
1 yd
3
Bucket Width – General Purpose 2262 mm 7 ft 5 in
Dump Height @ Max Angle 2651 mm 8 ft 8 in
Dump Reach @ Max Angle 772 mm 2 ft 6 in
Dig Depth 106 mm 4 in
Lift Capacity @ Full Height 2473 kg 5,453 lb
Bucket Breakout Force 44.6 kN 10,036 lb
Hydraulic System
Circuit Type Load-sensing, closed center
Pump Capacity (@ 2,200 rpm) 132 L/min 34.8 gal/min
System Pressure 22 700 kPa 3,292 psi
Pump Type Variable-flow, axial piston
Steering Type Front wheel
Power Steering Hydrostatic
Cylinder – Bore 65 mm 2.56 in
Stroke 120 mm 4.72 in
Rod Diameter 36 mm 1.42 in
4WD Cylinder – Bore 65 mm 2.56 in
Stroke 120 mm 4.72 in
Rod Diameter 36 mm 1.42 in
Brake System Inboard, oil-immersed,
multiple disc
Power Train
Power-Shuttle, Forward 1st 6 km/h 3.7 mph
Forward 2nd 9.5 km/h 5.9 mph
Forward 3rd 19.8 km/h 12.3 mph
Forward 4th 39.9 km/h 24.8 mph
Power-Shuttle, Reverse 1st 6 km/h 3.7 mph
Reverse 2nd 9.5 km/h 5.9 mph
Reverse 3rd 19.8 km/h 12.3 mph
Reverse 4th 39.9 km/h 24.8 mph
Service Refills
Cooling System, A/C 15.9 L 4.2 gal
Cooling System, High-Ambient 16.7 L 4.4 gal
Fuel Tank 144 L 38 gal
Engine Oil w/Filter 7.6 L 2 gal
Transmission – Torque Converter, 18.5 L 4.9 gal
Power Shuttle
Transmission – Torque Converter, 18.5 L 4.9 gal
4WD, Power Shuttle
Rear Axle 16.5 L 4.4 gal
Rear Axle, Planetaries 1.7 L 0.45 gal
Front Axle, 4WD 11 L 2.9 gal
Front Axle, Planetaries 0.7 L 0.2 gal
Hydraulic System 79.5 L 21 gal
Hydraulic Tank 37.9 L 10 gal
Page 9
9
414E Industrial Loader specifications
Standards
Brakes SAE J/ISO 3450, ISO 3450 1996
Cab – ROPS SAE J1040 May 1994/ISO 3741 1994
Cab – Sound ANSI/SAE J1166 Feb08 is 77 dB (A)
Exterior Sound SAE J88 JUN86 is 72.3 dB (A)
Axle Ratings
Front Axle, Static 22 964 kg 50,582 lb
Dynamic 9186 kg 20,233 lb
Front Axle, 4WD, Static 22 964 kg 50,582 lb
Dynamic 9186 kg 20,233 lb
Rear Axle, Static 22 964 kg 50,582 lb
Dynamic 9186 kg 20,233 lb
• Axles are pendulum mounted and permanently sealed and
lubricated, requiring no daily maintenance. Also features
double-acting steering cylinder with 52° steering angle for
increased maneuverability. Oscillation 10° each direction
from centerline.
Engine Features
• Three-ring pistons made of lightweight, silicon/aluminum
alloy for strength and maximum thermal conductivity.
• Forged chrome/molybdenum-steel crankshaft with either
induction hardened or nitrocarburized journals.
• Front and rear crankshaft oil seals are “lip” type Viton and
PTFE designs featuring an integral dust lip.
• Heat resistant, silicone-chrome steel intake and STELLITEfaced exhaust valves provide long life.
• Cylinder block is high strength, cast iron alloy of deep skirt,
monobloc design for increased strength and long life.
• Cylinder head is high strength, cast iron alloy construction
with extra duty wall and deck thickness. Intake and exhaust
ports are precision cast to promote optimum gas flow.
• Direct injection fuel system provides accurate fuel delivery;
remote mounted electric lift pump improves serviceability.
• Self-priming electric lift pump for improved cold start
capability and easy filter changes.
• Dry-type axial seal air cleaner with integral precleaner,
automatic dust ejection system, and filter condition indicator.
• Direct electric, 12-volt starting and charging system
with 880 CCA Group 31 maintenance free battery.
• Standard glow plug starting aid system for efficient
cold weather starting.
• High contact ratio/gear train, peripheral fixed isolation top
cover and open deck block design reduce bare engine noise.
• Higher low end torque for better engine/machine performance.
Tires
Tubeless, nylon, loader-design tires.
Type Size Ply Rating
4WD Bias
Front 12.5/80 18 12
Rear 19.5 24 12
4WD Bias
Front 12.5/80 18 10
Rear 16.9 24 10
Counterweights
Minimum Counterweight Recommendations
Loader Bucket Power Train kg lb
GP 231 510
GP 4WD 116 255
MP 4WD no counterweight
GP 4WD 488 1,075
MP 231 510
MP 4WD 116 255
Brakes
Features:
• Self-adjusting, completely enclosed and sealed.
• Foot operated brake pedals can be interlocked for roading.
• Parking/secondary brakes are independent of the service
brake system. Parking brake is mechanically applied through
an adjustable hand lever located on the right console.
Page 10
10
Overall transport length 6763 mm/22 ft 2 in
Overall length
(loader on ground) w/o box 5633 mm/18 ft 6 in
Altura total para transpor
Largura tota l
Overall transport height
Height to top of cab/canopy 2775 mm/9 ft 1 in
Height to top of exhaust stack
2754 mm/9 ft 0 in
Height to loader hinge pin (transport)
510 mm/1 ft 8 in
Ground clearance (minimum)
297 mm/1 ft 0 in
Rear axle centerline to front grill
2704 mm/8 ft 10 in
Front wheel tread gauge 1871 mm/6 ft 2 in
Rear wheel tread gauge 1714 mm/5 ft 8 in
Wheelbase (AWD)
2200 mm/7 ft 3 in
General Purpose
(0.76 m
3
/1.0 yd3)
Multi Purpose
(0.96 m
3
/1.25 yd3)
General Purpose
(0.96 m
3
/1.25 yd3)
Machine Dimensions and Performance
Single – Tilt Loader
(1)
(2)
(3)
(4)
(5)
Maximum hinge pin height 3266 mm/10 ft 9 in
Dump angle at full height 43°
Dump height at maximum angle 2621 mm/8 ft 7 in
Dump reach at maximum angle 753 mm/2 ft 6 in
Maximum bucket rollback at ground level
40°
Digging depth 135 mm/5 in
Maximum grading angle 110°
Width of dozer cutting edge N/A
Grill to bucket cutting edge
carry position 1474 mm/4 ft 10 in
Maximum operating height 3996 mm/13 ft 1 in
Jaw opening maximum N/A
Bucket jaw clamping force N/A
Weight (does not include teeth or forks)
380 kg/838 lb
(6)
(7)
(8)
(9)
(10)
(11)
(12)
Capacity (SAE) rated 0.76 m
3
/1.0 yd
3
Width 2322 mm/7 ft 7 in
Lift capacity at maximum height
2473 kg/5,453 lb
Breakout force 40.0 kN/8,980 lb
6867 mm/22 ft 6 in
5707 mm/18 ft 9 in
2775 mm/9 ft 1 in
2754 mm/9 ft 0 in
510 mm/1 ft 8 in
297 mm/1 ft 0 in
2704 mm/8 ft 10 in
1871 mm/6 ft 2 in
1714 mm/5 ft 8 in
2200 mm/7 ft 3 in
3266 mm/10 ft 9 in
43°
2544 mm/8 ft 4 in
835 mm/2 ft 9 in
40°
135 mm/5 in
106°
N/A
1548 mm/5 ft 1 in
4146 mm/13 ft 7 in
N/A
N/A
428 kg/944 lb
0.96 m
3
/1.25 yd
3
2322 mm/7 ft 7 in
2400 kg/5,292 lb
37.9 kN/8,524 lb
6790 mm/22 ft 3 in
5660 mm/18 ft 7 in
2775 mm/9 ft 1 in
2754 mm/9 ft 0 in
510 mm/1 ft 8 in
297 mm/1 ft 0 in
2704 mm/8 ft 10 in
1871 mm/6 ft 2 in
1714 mm/5 ft 8 in
2200 mm/7 ft 3 in
3266 mm/10 ft 9 in
43°
2609 mm/8 ft 7 in
721 mm/2 ft 4 in
40°
166 mm/6 in
110 °
2406 mm/7 ft 11 in
1501 mm/4 ft 11 in
4174 mm/13 ft 8 in
790 mm/2 ft 7 in
50.6 kN/11,385 lb
659 kg/1,453 lb
0.96 m
3
/1.25 yd
3
2322 mm/7 ft 7 in
2240 kg/4,938 lb
37.5 kN/8,429 lb
(1a)
12
6
7
8
10
9
5
2
3
11
4
1a
1
Dimensions and performance specifications shown are for
machines equipped with 11L 16 (10 PR) front tires,
19.5 24 (10 PR) rear tires, ROPS canopy and 0.76 m
3
(1.0 yd3)
loader bucket and standard equipment unless otherwise specified.
414E Industrial Loader specifications
Page 11
11
414E Industrial Loader specifications
Standard Equipment
Standard equipment may vary. Consult your Caterpillar®dealer for details.
Indicators
Air cleaner service, water separator service, brake on, engine
coolant, hydraulic oil level sight gauge, oil pressure
Instrument panel lights
Key start/stop system
Lights, working (2 front, 2 rear)
Loader, self-leveling, return-to-dig and transmission
disconnect switch
Lunch box holder
Mirror, rear view
Power receptacle, 12V, internal and external
Power steering, hydrostatic
Rubber impact strips on radiator guard
Seat belt, retractable 51 mm (2 in)
Service harness
Stabilizer shoes, grouser type
Seat, mechanical suspension with armrest
Starting system, glow plugs
Stop and tail lights
Tilt steering wheel
Tires, see page 9
Toolbox, external, lockable
Torque converter
Throttles, hand and foot
Transmission, four speed, syncromesh
Transmission neutralizer switch
Transport tie-downs
Warning horn, electric
Air cleaner
All Wheel Drive
Alarm, back-up
Battery, maintenance-free, 880 CCA
Brace, lift cylinder
Brake, secondary parking
Brakes, oil disc, dual pedals, interlocking
Bucket level indicator
Canopy, ROPS/FOPS
Coat hook
Coolant/Antifreeze, extended life
Counterweight, bumper
Differential lock
Dome light (cab only)
Engine, Cat 3054C DIT (Direct Injection Turbocharged)
Engine enclosure
Face seals, O-ring
Fan, suction and guard
Fast reversing shuttle, all gears
Fenders, rear
Filters, spin-on: fuel, engine oil, transmission oil, water
separator, hydraulic fluid
Flashing hazard/signal lights
Floor mat
Gauges
Coolant temperature, fuel level, tachometer, hour meter,
torque converter oil temperature
Ground level fuel fill
Hydraulic hose, XT™-3 ES
Hydraulic oil cooler
kg lb
Fenders, 4WD, front 12 26
Fenders, rear extensions 1 2
Guards
High ambient cooling package 2 4
Hydraulic valves, loader (3rd valve for MP) 27 59
Lights: Working, additional (2 front, 2 rear) 0 0
Product Link 4 9
Ride control 22 48
Rotating beacon
Magnetic mount 5 11
Teeth, loader bucket 45 99
Vandalism protection
Gauge cover 1 2
Padlocks 1 2
Hood lock 0 0
kg lb
Attachments, front loader (single tilt)
General purpose buckets
0.76 m3(1.0 yd3) 385 847
0.96 m3(1.25 yd3) 452 994
Multi purpose bucket
1.0 m3(1.3 yd3) 714 1,571
1.0 m3(1.3 yd3) with forks 884 1,945
Battery, additional, 880 CCA 25 55
Cab, utility plus with air conditioning* 258 568
Canopy Plus, ROPS 15 33
Coolant, additional protection, –50° C(–58° F) 0 0
Counterweights (Front) 116 255
231 510
488 1,075
Counterweights (Rear) 107 235
Cutting edge, bolt-on, two piece 70 154
Optional Equipment
(with approximate change in operating weight)
Optional equipment may vary. Consult your Caterpillar dealer for details.
* Not available at first production.
Page 12
For more complete information on Cat products, dealer services,
and industry solutions, visit us on the web at www.cat.com
© 2009 Caterpillar
All Rights Reserved
Printed in U.S.A.
Materials and specifications are subject to change without notice.
Featured machines in photos may include additional equipment.
See your Caterpillar dealer for available options.
CAT, CATERPILLAR, AccuGrade, SAFETY.CAT.COM, their respective logos,
“Caterpillar Yellow” and the POWER EDGE trade dress, as well as corporate and product
identity used herein, are trademarks of Caterpillar and may not be used without permission.
AEHQ4001-03 (5-09)
Replaces AEHQ4001-02
414E Industrial Loader
R
Loading...
