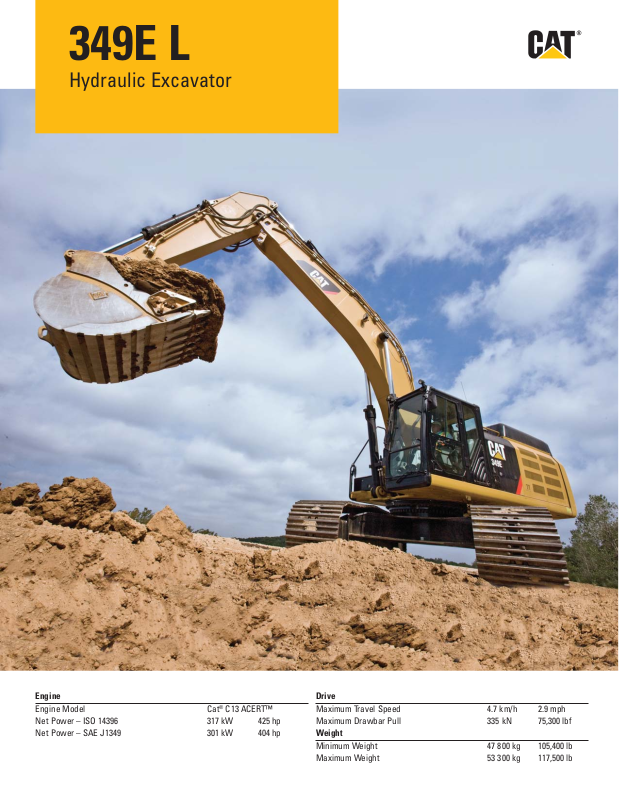

Caterpillar 349E BROCHURE

349E L

Hydraulic Excavator

Engine Drive

Engine Model Cat Net Power – ISO 14396 317 kW 425 hp Maximum Drawbar Pull 335 kN 75,300 lbf Net Power – SAE J1349 301 kW 404 hp Weight

®

C13 ACERT™ Maximum Travel Speed 4.7 km/h 2.9 mph

Minimum Weight 47 800 kg 105,400 lb Maximum Weight 53 300 kg 117,500 lb

Introduction

Since its introduction in the 1990s, the 300 Series family of excavators has become the industry standard in general, quarry, and heavy construction applications. The all-new E Series and the 349E will continue that trend-setting standard.

The 349E meets today’s U.S. emissions standards. It is also built with several new fuel-saving and comfort-enabling features and bene ts that will delight owners andoperators.

If you are looking for more productivity andcomfort, less fuel consumption and emissions, and easier and more sensible serviceability, you will  nd itin the all-new 349E and the E Series family ofexcavators.

Contents

Hydraulics ............................................................3

Operator Station..................................................4

Engine ...................................................................5

Structures and Undercarriage .........................6

Front Linkage .......................................................7

Work Tools ............................................................8

Integrated Technologies ..................................10

Serviceability.....................................................11

Safety ..................................................................12

Complete Customer Care.................................13

Sustainability .....................................................14

349E L Hydraulic Excavator

Speci cations ....................................................15

349E L Standard Equipment.............................29

349E L Optional Equipment ..............................30

Hydraulics

Power to move more dirt, rock, and debris with speed and precision

Hydraulic Horsepower

Hydraulic horsepower is the actual machine power available to do work through implements and work tools. It’s much more than just the engine power under the hood – it’s a core strength that differentiates Cat® machines from other brands.

Main Control Valve and Auxiliary Valves

The 349E uses a high-pressure system to tackle the toughest of work in short order. The 349E uses a redesigned side-byside main control valve, which allows for auxiliary hydraulic lines and valve congurations to be simpli ed forgreater reliability.

Return Filter

The return lter is a capsule-type design with a cartridge inside. Unlike many competitors’ offerings, the Cat cartridge features a handle to help remove and change oil without spillage or contamination. A sensor attached to the  lter warns the operator if it is full or exceeds a certain pressure level.

Swing Priority Circuit

The swing priority circuit on the 349E uses a new electric valve that’s operated by the machine’s improved Electronic Control Module (ECM). Compared to using a hydraulic valve, an electric valve allows for more nely tuned control, which is critical during material loading.

Electric Boom Regeneration Valve

A new electric boom regeneration valve minimizes pump  ow when the boom lowers down, which improves fuel economy. It is optimized for any dial speed setting being used by the operator, which in turn aids controllability and enhances component durability.

Stick Regeneration Circuit

The 349E regenerates the ow of oil from the rod end of the stick cylinder to the head end of the stick cylinder during low-load, stick-in operation – an approach that saves energy and expense.

3

Operator Station

Comfort and convenience to keep people productive

Seats

A new seat range includes mechanical, air suspension, heated, and air cooled options. Each option includes a reclining back, upper and lower seat slide adjustments, andheight and tilt angle adjustments to meet operator needsfor comfort and productivity.

Controls

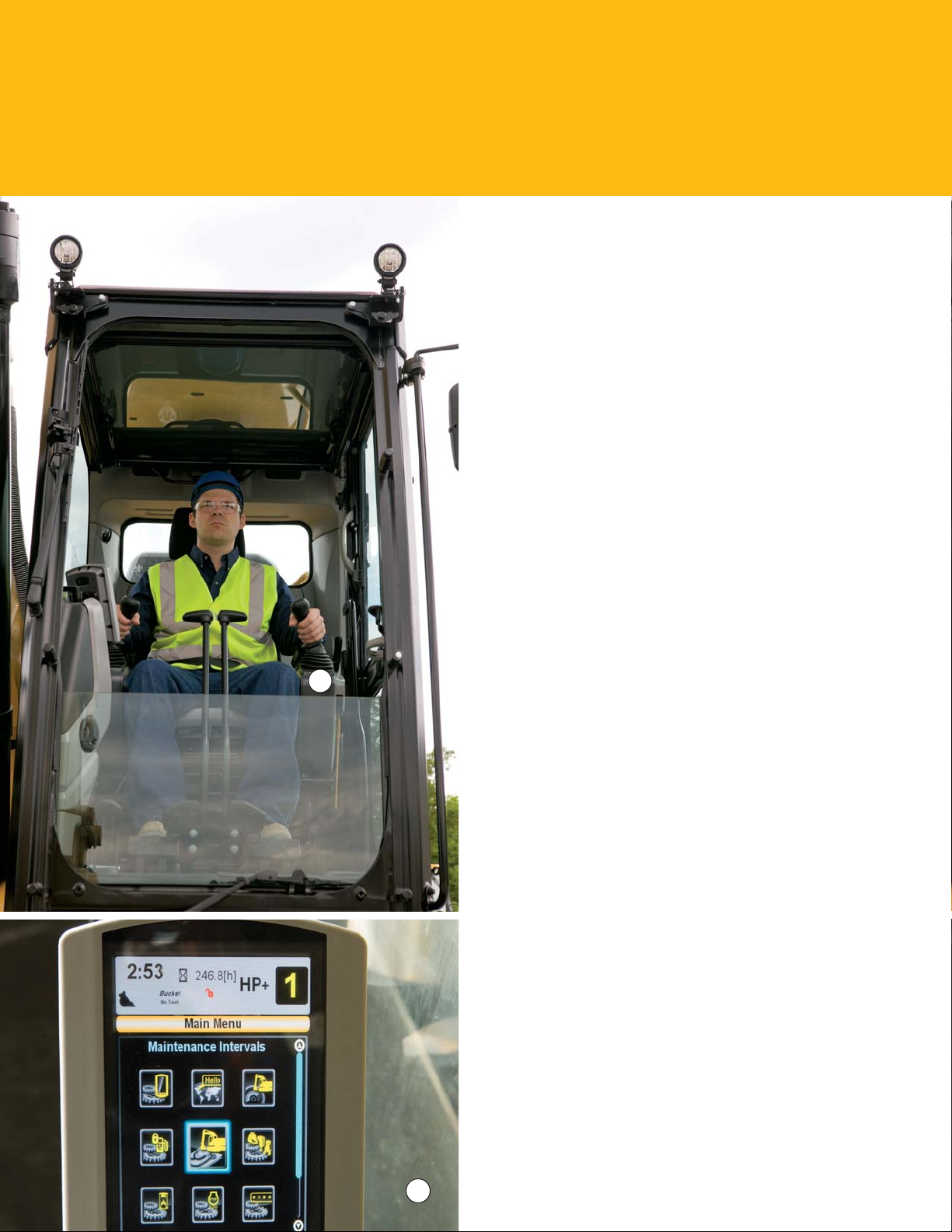

The right and left joystick consoles (1) can be adjusted to meet individual preferences, improving operator comfort andproductivity during the course of a day.

With the touch of the button, one-touch idle reduces engine speed to help save fuel; touch it again or move the joystick and the machine returns to normal operating level.

The optional heavy lift mode increases machine system pressure to improve lift – a nice benet in certain situations. Heavy lift mode also reduces engine speed and pump  ow inorder to improve controllability.

Monitor

The 349E is equipped with a new LCD (Liquid Crystal Display) monitor (2) that’s 40% bigger than the previous model’s with higher resolution for better visibility. Inaddition to an improved keypad and added functionality, it’s programmable

1

to provide information in a choice of 42 languages to support today’s diverse workforce.

A new “Engine Shutdown Setting” accessible through the monitor allows owners and operators to specify how long the machine should idle before shutting down the engine, which can save signicant amounts of fuel.

In addition, the monitor serves as a display for the optional rearview camera. Up to two different camera images can be displayed on the screen.

MP3-Ready Radio and Power Supply

The standard radio is equipped with a new auxiliary audio port for MP3 players. Two 12-volt power supply sockets are located near key storage areas for charging.

Storage

Storage spaces are located in the front, rear, and side consoles. New space near the auxiliary power supply holds MP3 players and cell phones. The drink holder accommodates large mugs with handles, and a new shelf behind the seat stores large lunch or toolboxes.

Automatic Climate Control

The climate control system features ve air outlets with positive ltered ventilation, which makes working in the heat and cold much more pleasant.

2

Engine

Reduced emissions, economical and reliable performance

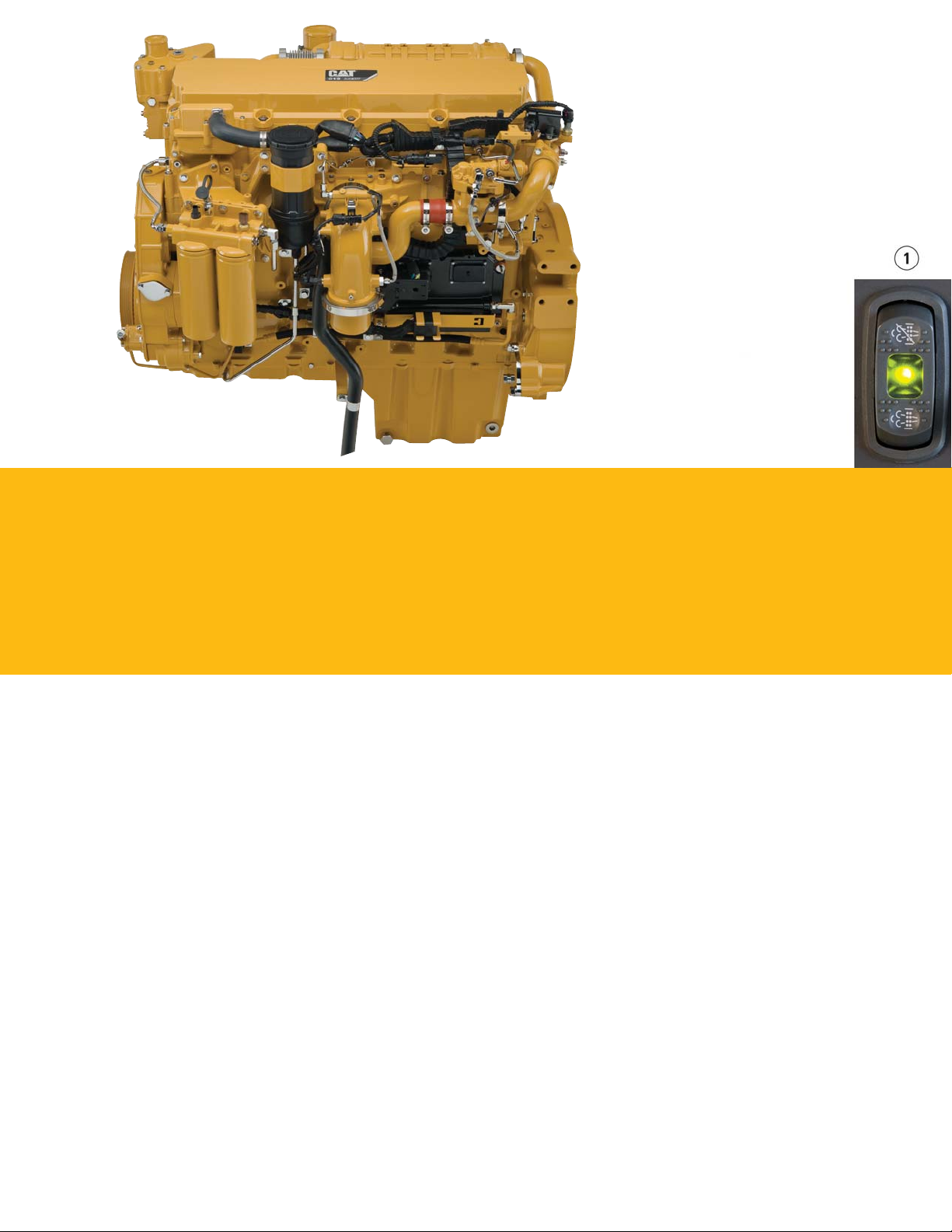

Cat® C13 ACERT™ Engine

The Cat C13 ACERT engine delivers more horsepower using less fuel than the previous series engine.

Emissions Solution

The C13 ACERT engine is equipped to meet current U.S. Tier 4 Interim regulations. Driven by customer input, Cat’saftertreatment regeneration solution ensures the machine works as normal with no operator intervention needed.

The machine comes with two programmable modes of operation: automatic and manual regeneration.

In automatic mode, the machine starts the regeneration process once the ltering system reaches a certain level and conditions are optimal. The system will not interrupt the work process and can regenerate during machine operation.

Manual mode enables the operator to override the automatic mode. With a touch of a button (1) inside the cab, this mode allows the operator to move the machine from ammable or heat-restricted areas before initiating the regeneration process.

Bio Diesel-Ready Fuel System

The Cat C13 ACERT engine is equipped with a mechanically actuated, electronically controlled unit injector (MEUI) fuel system that includes a new electric priming pump and three-layer fuel hose to allow the use of bio fuel up to B20 (bio fuel 20% mixture).

Cooling System

The high-ambient cooling system features a side-by-side-mounted radiator and oil and air coolers for easy cleaning.

Speed and Power Control

The new E Series features isochronous speed control to maintain a constant speed – regardless of load – to improve fuel economy. Three different power modes are offered: high power, standard power, and economy power. The operator can easily change between modes through the monitor or console switch to meet the needs for the job at hand – all to help manage and conserve fuel.

5

Structures and Undercarriage

Built to work in rugged environments

Frame

The upper frame includes new reinforced mountings to support a new Roll-Over Protective Structure (ROPS) cab; the lower frame is reinforced to increase component durability.

Undercarriage

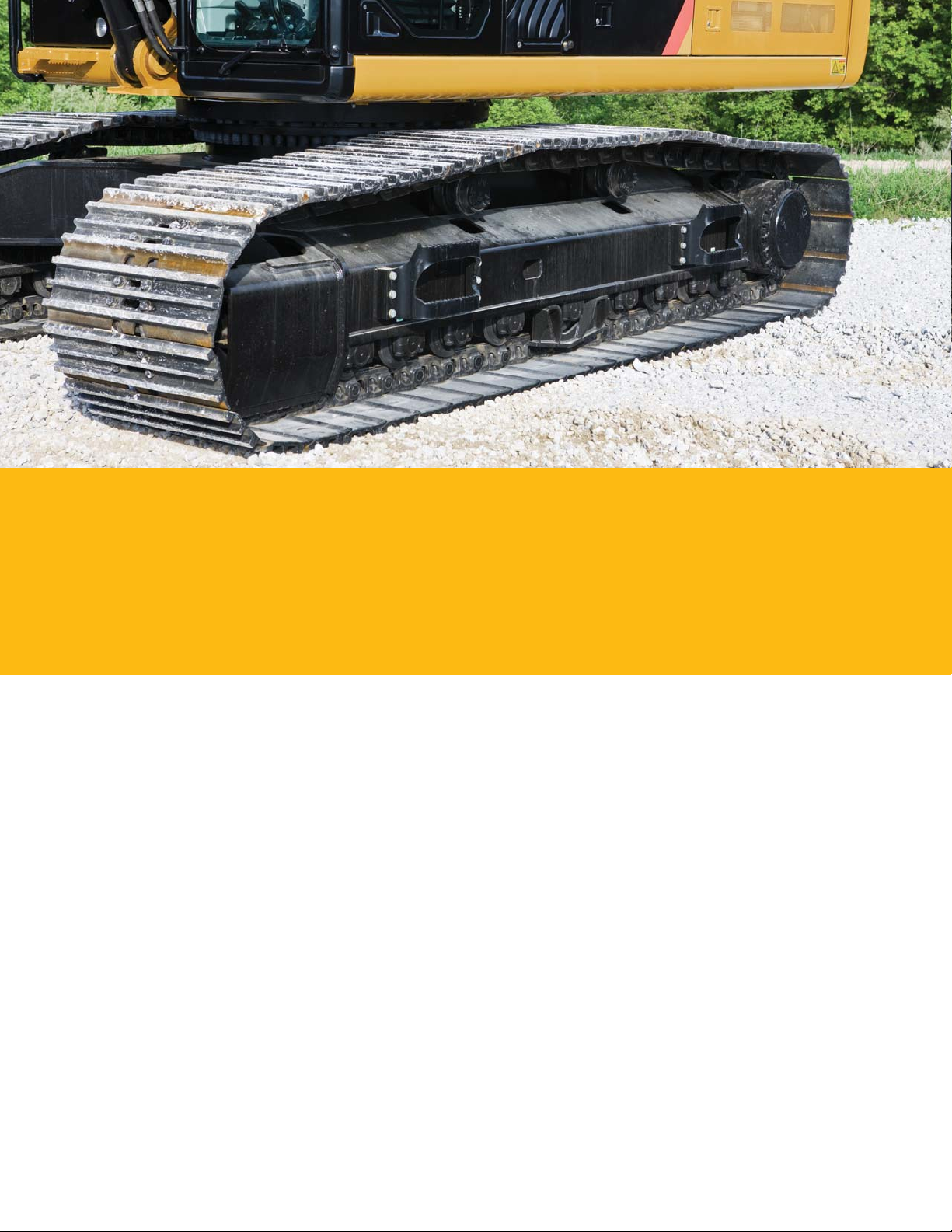

Fixed and variable gauge long undercarriage systems are available to support various work applications.

Heavy-duty track rollers, precision-forged carrier rollers, press-t pin master joints, and enhanced track shoe bolts improve durability and reduce the risk of machine downtime and the need and cost toreplace components.

A new segmented three-piece guiding guard is now offered to maintain track alignment and improve performance in multiple applications.

A redesigned motor housing prevents mud packing and debris buildup around seals.

Counterweights

The standard 9.0 mt (9.9 t) counterweight maintains large lifting capacity and excellent stability. A counterweight with removal device is available as an attachment to reduce the time required in preparation for transport. Both counterweights bolt directly to the main frame for added rigidity andfeature an integrated housing for the new rearview camera option.

6

Front Linkage

Made for high stress and long service life

Booms and Sticks

The 349E is offered with a range of booms and sticks. Eachis built with internal bafe plates and stress-relieved for added durability, and each undergoes ultrasound inspection to ensure quality and reliability. Large box-section structures with thick, multi-plate fabrications, castings, and forgings are used in high-stress areas such as the boom nose, boom foot, boom cylinder, and stick foot to improve durability. Also, the boom nose pin retention method is a captured ag design for enhanced durability.

Selections

Two boom types are offered:

HD = Heavy Duty Reach. HD is designed for general

excavator applications such as multipurpose digging and loading, and it includes additional steel to make it more durable and better suited for more demanding applications like moving rock or using a hammer.

ME = Mass Excavation. ME is best used for quarry, high-

volume loading, and other demanding applications. The ME front provides higher digging forces due to the geometry of the boom and stick relationship. Bucket linkage and cylinders are also built for greater durability.

7

Work Tools

Dig, hammer, rip, and cut with condence

Work Tools

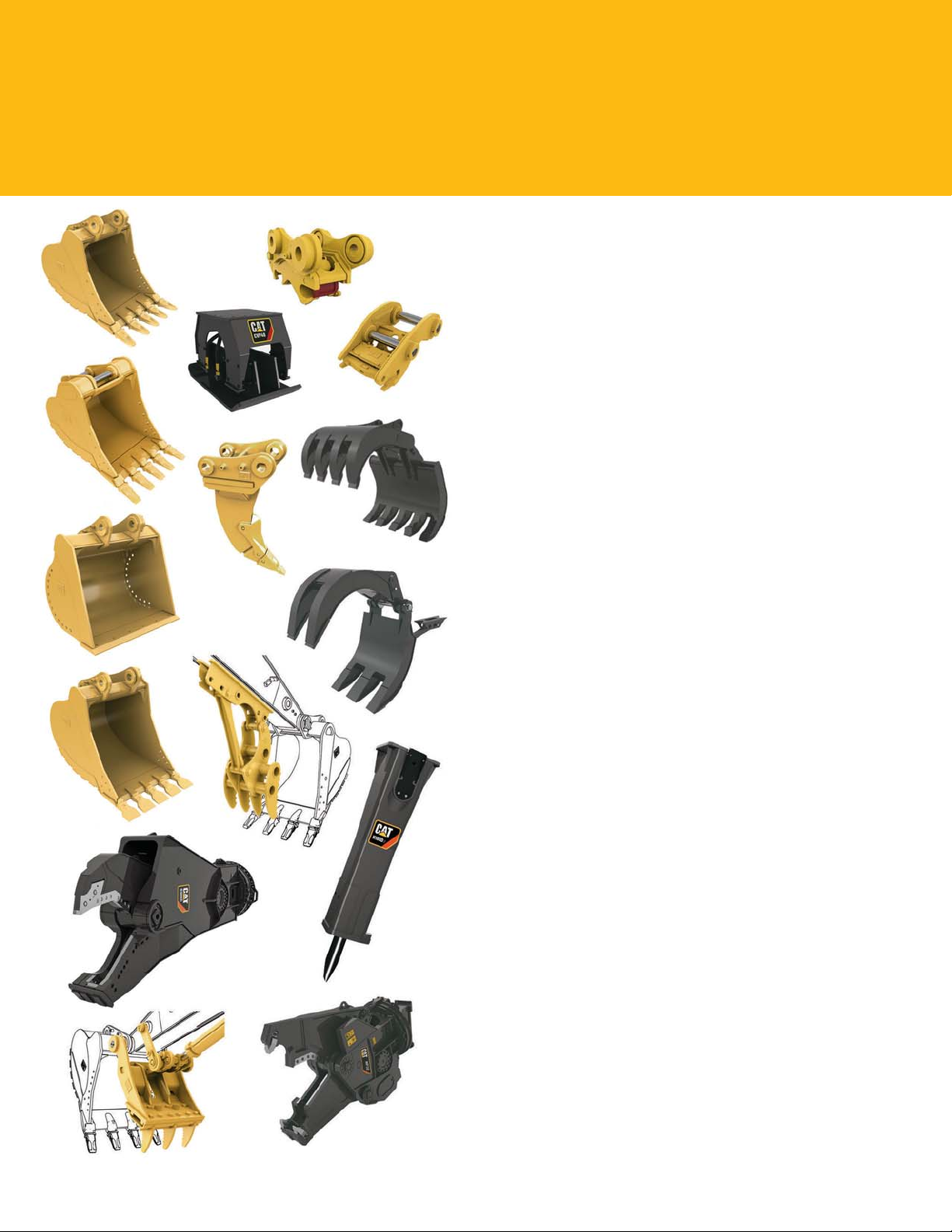

An extensive range of Cat Work Tools for the 349E includes buckets, hydraulic hammers, multi-processors, scrap and demolition shears, contractors’ grapples, trash grapples, rippers, and thumbs. Each is designed to optimize the versatility and performance of your machine.

Couplers

Quick couplers allow one person to change work tools in seconds for maximum performance and exibility on a job site. One machine can move rapidly from task to task, and a eet of similarly equipped machines can share a common work tool inventory.

Cat Center-Lock™ Pin Grabber Coupler

Center-Lock is the pin grabber style of coupler and features a patent-pending locking system. A highly visible secondary lock clearly shows the operator when the coupler is engaged or disengaged from the bucket or work tool.

Hydraulic Kits

Caterpillar offers eld-installed hydraulic kits that areuniquely designed to integrate Cat Work Tools with Catexcavators. Hoses and tubes are pre-made, pre-shaped, and pre-painted to make installation quick and easy.

8

Buckets

Cat buckets are designed as an integral part of the 349E system and feature new geometry for better performance. The leading edge has been pushed forward, resulting in more ef cient lling and better operator control for greatly improved productivity.

Wear coverage in the corners and side cutter and sidebar protector coverage are improved; a new lift eye design accepts a wide range of shackle sizes.

All benets are captured in a new bucket line with a new bucket naming convention. Following are the types offered:

General Duty (GD)

GD buckets are for digging in low-impact, low-abrasion material such as dirt, loam, and mixed compositions of dirt and  ne gravel.

Heavy Duty (HD)

The most popular bucket style, HD buckets are a good starting point when digging conditions are not well known like a wide range of impact and abrasion conditions that include mixed dirt, clay, and rock.

Severe Duty (SD)

SD buckets are for higher abrasion conditions such as well shot granite and caliche.

1 2

3 4

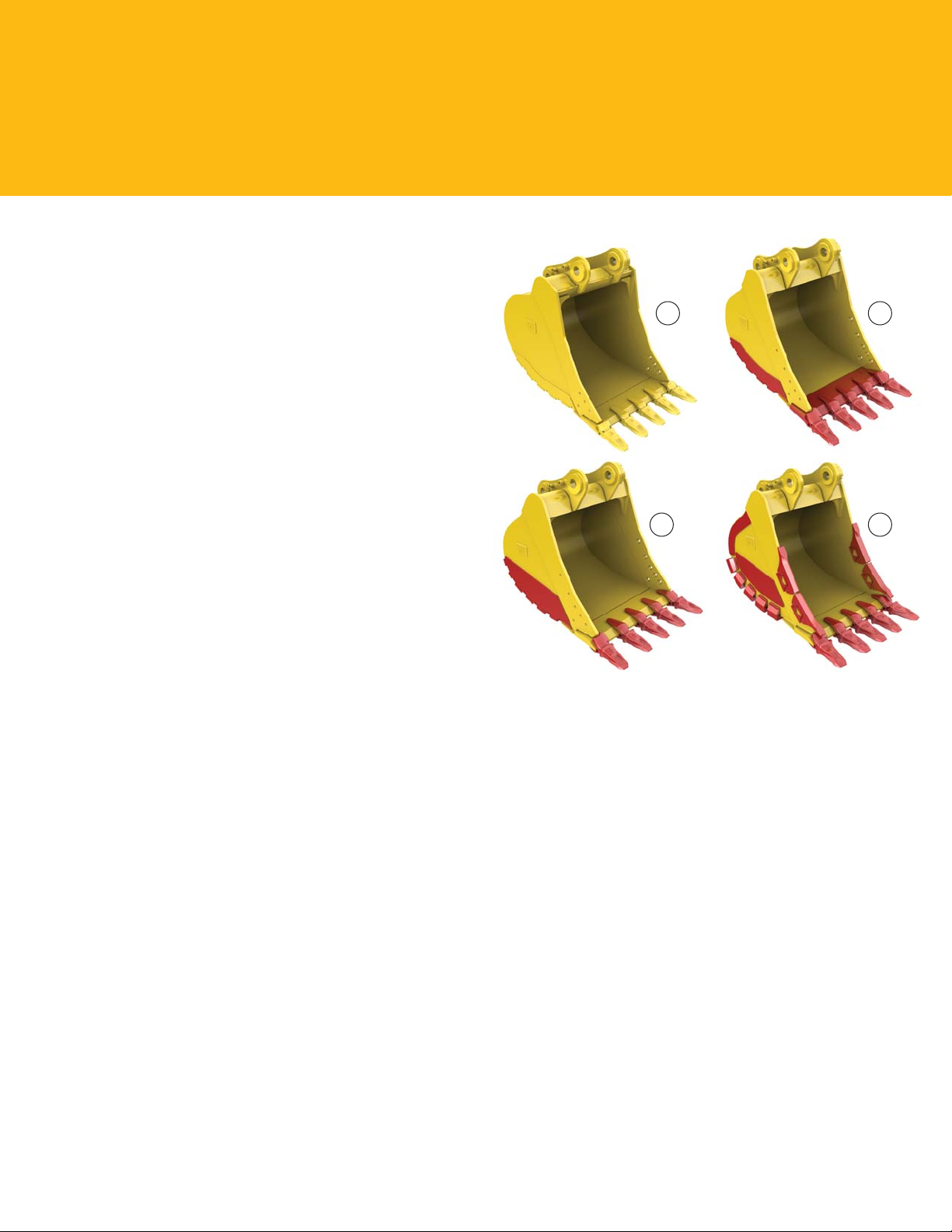

1) General Duty 2) Heavy Duty 3) Severe Duty 4) Extreme Duty

Extreme Duty (XD)

XD buckets are the new standard for high-abrasion conditions, including high quartzite granite.

Specialty Buckets

In addition to the four levels of bucket durability categories, several specialty buckets are available for the 349E, each with a different purpose:

• Ditch cleaning for cleaning ditches, slope grading,

andother  nish work

• Center-Lock Pin Grabber Performance for maximum

digging performance while keeping the versatility and convenience of a coupler

• Power for use in abrasive applications where breakout

force and cycle times are critical

• Wide tip for low-impact material where leaving a

smoother oor and minimal spillage are necessary

9

Integrated Technologies

Solutions that make work easier and more efcient

Cat® Grade Control Depth and Slope

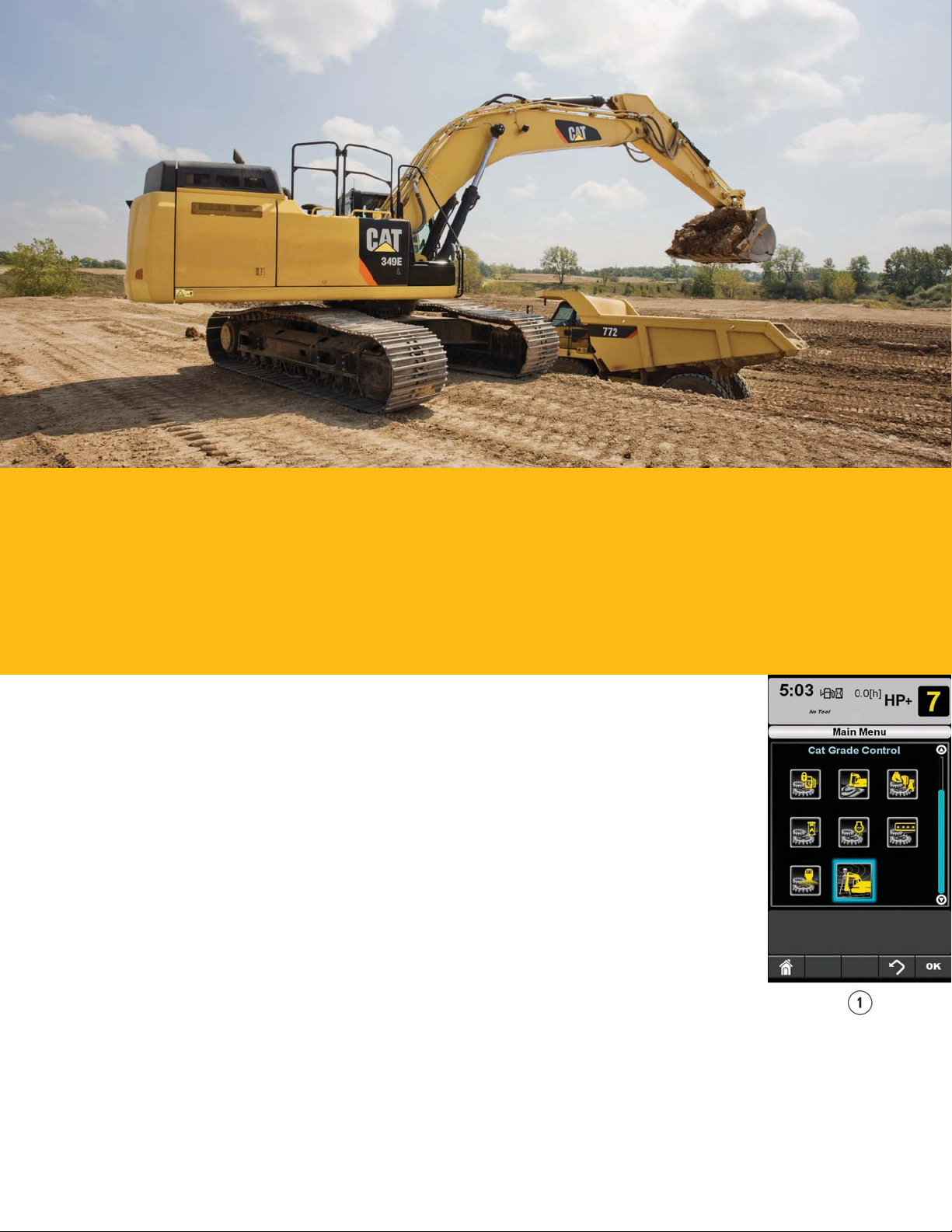

This optional system (1) combines traditional machine control and guidance with standard factoryinstalled and calibrated components, making the system ready to go to work the moment it leaves thefactory. The system utilizes internal front linkage sensors – well protected from the harsh working environment – to give operators real-time bucket tip position information, which minimizes the need and cost for traditional grade checking and improves job site safety. It also helps the operator complete jobs in fewer cycles, which means less fuel use. Cat dealers can upgrade the system to full three-dimensional control by adding proven Cat AccuGrade™ positioning technologies, including GPS and Universal Total Station (UTS).

Cat Product Link*

This deeply integrated machine monitoring system is designed to help customers improve their overall eet management effectiveness. Events and diagnostic codes as well as hours, fuel consumption, idle time, machine location, and other detailed information are transmitted to a secure web application called VisionLink™, which uses powerful tools to communicate to users and dealers.

*Product Link licensing not available in all areas. Please consult your Cat dealer for availability.

10

Serviceability

Fast, easy and safe access built in

Service Doors

Wider service doors (1) feature sturdier hinges and latches and a new screen design to help prevent debris entry; a new two-piece hood provides easier access to the engine and cooling compartments.

Compartments

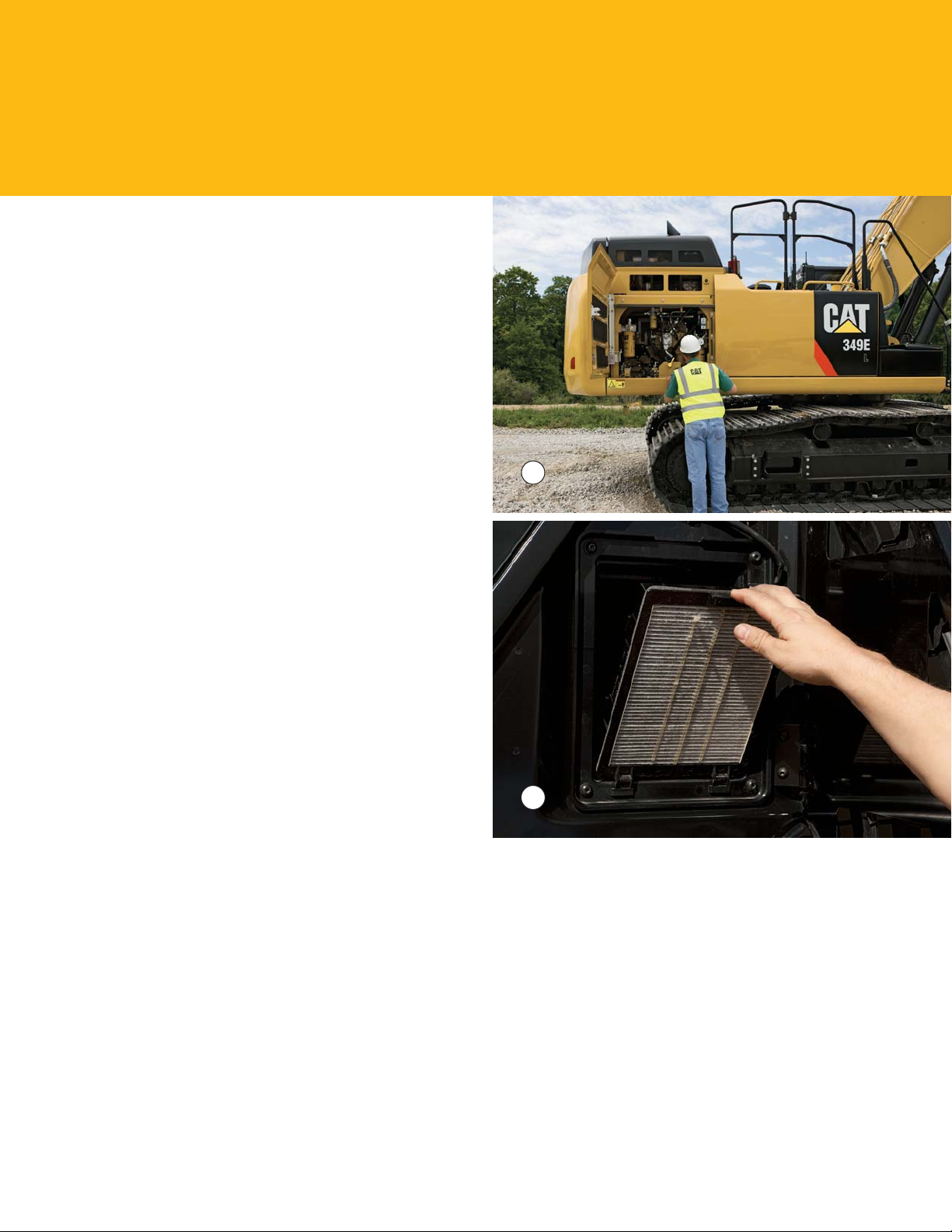

The radiator, pump, and air cleaner compartments provide easy access to major components. The fresh air  lter (2) is located on the side of the cab to make it easier to reach andreplace as needed.

Other Service Improvements

The water separator with water level sensor has a primary fuel lter element located in the pump compartment near ground level; the electric priming pump is mounted on the primary lter base and is easier to service than traditional hand-priming pumps.

The fuel tank features a remote drain cock located in the pump compartment to make it easy to remove water and sediment during maintenance.

The engine oil check gauge is situated in front of the engine compartment and is easy to remove. The engine oil lter is situated in the pump compartment for easy access. Changingengine oil is simple due to a unique drain cock designed toprevent spills.

The optional Fast Fill Hydraulic Oil System and Fast Fill Engine Oil System make what typically takes hours achievable in minutes.

1

2

11

Safety

Features to help protect people

Reinforced Frame

The upper frame is reinforced to accommodate the installation of a new ROPS cab with redesigned overhead guarding to protect operators.

Sound Proong

Improved sealing and cab roof lining lower noise levels signicantly during machine operation.

Anti-Skid Plates

The surface of the upper structure and the top of the storage box area are covered with removable anti-skid plates to help prevent service personnel and operators from slipping during

1

maintenance.

Steps, Hand and Guard Rails

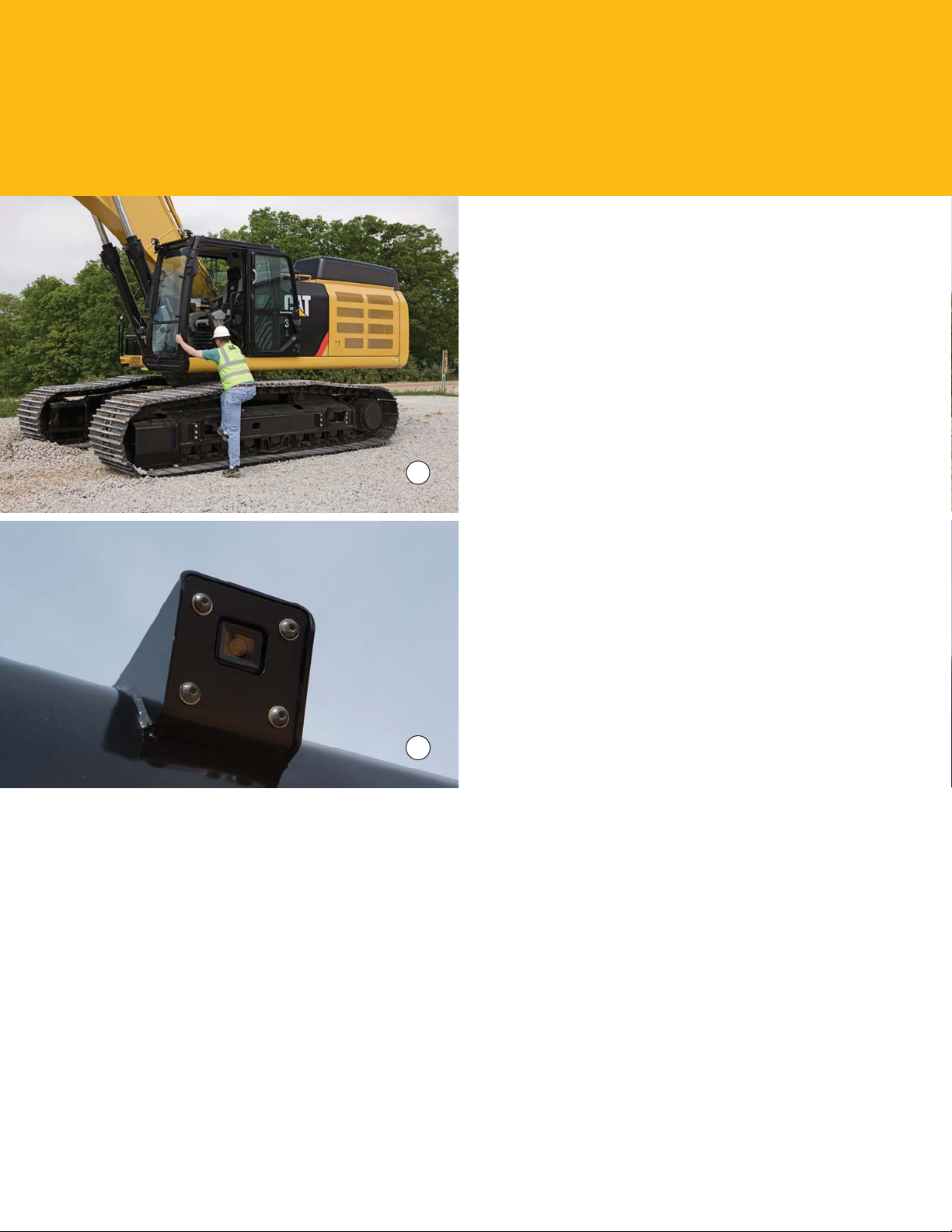

Steps (1) on the track frame and storage box along with extended hand and guard rails to the upper deck enable operators to more securely work on the machine.

High Intensity Discharge (HID) Lights

Cab lights can be upgraded to HID for greater night time visibility.

Visibility – Windows

Increased glass coverage improves visibility while meeting the latest ROPS regulations. The 70/30 split con guration features an upper window equipped with handles on the top

2

and both sides so the operator can slide it to store in the ceiling. The lower window is removable and can be stored on the left wall of the cab shell. An available one-piece front windshield comes with a glass-breaking safety hammer.

The newly designed skylight is larger than the previous series’ and provides greater overhead visibility, excellent natural lighting, and good ventilation. The skylight can beopened completely to become an emergency exit.

Monitor Warning System

The monitor is equipped with a buzzer that can warnan operator of critical events like “Engine Oil Pressure Decrease,” “Coolant Temperature High,” or “Hydraulic Oil Temperature High,” allowing for immediate action to take place.

Rearview Camera

A rearview camera (2) housed in the counterweight area is available as an attachment. The image projects through the cab monitor to give the operator a clear picture of what’s behind the machine.

12

Complete Customer Care

Service you can count on

Product Support

Cat dealers utilize a worldwide parts network to maximize your machines’ uptime. Plus they can help you save money with Cat remanufactured components.

Machine Selection

What are the job requirements and machine attachments? What production is needed? Your Cat dealer can provide recommendations to help you make the right machine choices.

Purchase

Consider nancing options and day-to-day operating costs. Look at dealer services that can be included in the machine’s cost to yield lower owning and operating costs over time.

Customer Support Agreements

Cat dealers offer a variety of customer support agreements and work with you to develop a plan to meet your specic needs. These plans can cover the entire machine, including attachments, to help protect your investment.

Operation

Improving operating techniques can boost your prots. Your Cat dealer has videos, literature, and other ideas to help you increase productivity. Caterpillar also offers simulators and certied operator training to help maximize the return on your investment.

Replacement

Repair, rebuild, or replace? Your Cat dealer can help you evaluate the cost involved so you can make the best choice for your business.

13

Sustainability

Generations ahead in every way

• The C13 ACERT engine, along with the Cat Clean Emissions Module (CEM), meets U.S. EPA Tier4 Interim emissions regulations.

• The 349E performs the same amount of work while burning 3% less fuel than the previous DSeries model, which means more efciency, less resources, and fewer CO2 emissions.

• The 349E has the exibility of running on either ultra-low-sulfur diesel (ULSD) fuel with 15 ppm ofsulfur or less or bio diesel (B20) fuel blended with ULSD.

• The 349E features an overll indicator that rises when the tank is full to help the operator avoidspilling.

• The 349E’s quick ll ports with connectors ensure fast, easy, and secure changing of hydraulic oil.

• The 349E is built to be rebuilt with major structures and components remanufactured to reduce waste and replacement costs.

• The 349E is an efcient, productive machine that’s designed to conserve our natural resources forgenerations ahead.

14

349E L Hydraulic Excavator Specications

Engine Hydraulic System Service Re ll Capacities

Engine Model Cat® C13 ACERT™ Main System – 770 L/min 203 gal/min Fuel Tank Capacity 720 L 190 gal

Net Flywheel Power 295 kW 396 hp Cooling System 50 L 13.2 gal

Net Power – 317 kW 425 hp Engine Oil 43 L 11.4 gal ISO14396 (with lter)

Net Power – 301 kW 404 hp Swing Drive (each) 10 L 2.6 gal SAEJ1349

Gross Power – 322 kW 432 hp SAEJ1995

Bore 130 mm 5.12 in

Stroke 157 mm 6.18 in

Displacement 12.5 L 568 in

Weights

Minimum Weight* 47 800 kg 105,400 lb

Maximum Weight** 53 300 kg 117,500 lb

* 6.9 m (22'8") HD Reach boom,

R3.35TB (11'0") HD stick, 9.0 mt (9.9 t) counterweight, Long FIX undercarriage,

3

(4.1 yd3) bucket, 600 mm (24")

3.1 m DGshoes.

**6.55 m (21'6") Mass boom, M3.0UB (9'10")

HD stick, 9.0 mt (9.9 t) counterweight, Long VG undercarriage, 3.2 m3 (4.2 yd3) bucket, 900 mm (35") TG shoes.

Maximum Flow (Total)

Swing System – 385 L/min 102 gal/min Maximum Flow

Maximum Pressure 35 000 kPa 5,076 psi –Equipment

Maximum Pressure 38 000 kPa 5,512 psi –Equipment (Liftmode)

Maximum Pressure 35 000 kPa 5,076 psi

3

– Travel

Maximum Pressure 27 500 kPa 3,989 psi – Swing

Pilot System – 27 L/min 7.1 gal/min Maximum Flow

Pilot System – 4120 kPa 598 psi Maximum Pressure

Boom Cylinder – Bore

Boom Cylinder – Stroke

Stick Cylinder – Bore

Stick Cylinder – Stroke

DB Family Bucket Cylinder – Bore

DB Family Bucket 1356 mm 53.39 in Cylinder – Stroke

TB Family Bucket 170 mm 6.69 in Cylinder – Bore

TB Family Bucket Cylinder – Stroke

170 mm

1524 mm

190 mm

1758 mm

160 mm

1396 mm 54.96 in

Drive

Maximum 4.7 km/h 2.9 mph TravelSpeed

Maximum DrawbarPull

335 kN 75,300 lbf

Swing Mechanism

6.69 in

60.00 in

7.48 in

69.21 in

6.30 in

Final Drive (each) 15 L 4.0 gal

Hydraulic System 570 L 150.6 gal (including tank)

Hydraulic Tank 407 L 107.5 gal

Track

Number of Shoes (each side)

Long Fix Undercarriage 52

Long Variable Gauge 52 Undercarriage

Number of Track Rollers (eachside)

Long Fix Undercarriage

Long Variable Gauge Undercarriage

Number of Carrier Rollers (eachside)

Long Fix Undercarriage

Long Variable Gauge Undercarriage

9

2

3

Sound Performance

SAE J1166

• When properly installed and maintained, the cab offered by Caterpillar, when tested with doors and windows closed according to ANSI/SAE J1166 OCT98, meets OSHA and MSHA requirements for operator sound exposure limits in effect at time ofmanufacture.

• Hearing protection may be needed when operating with an open operator station and cab (when not properly maintained ordoors/windows open) for extended periods or in noisy environment.

Swing Speed 8.7 rpm

Swing Torque 148.5

kN·m

109,500 lb-ft

Standards

Brakes ISO and SAE

Cab/FOGS ISO and SAE

15

349E L Hydraulic Excavator Specications

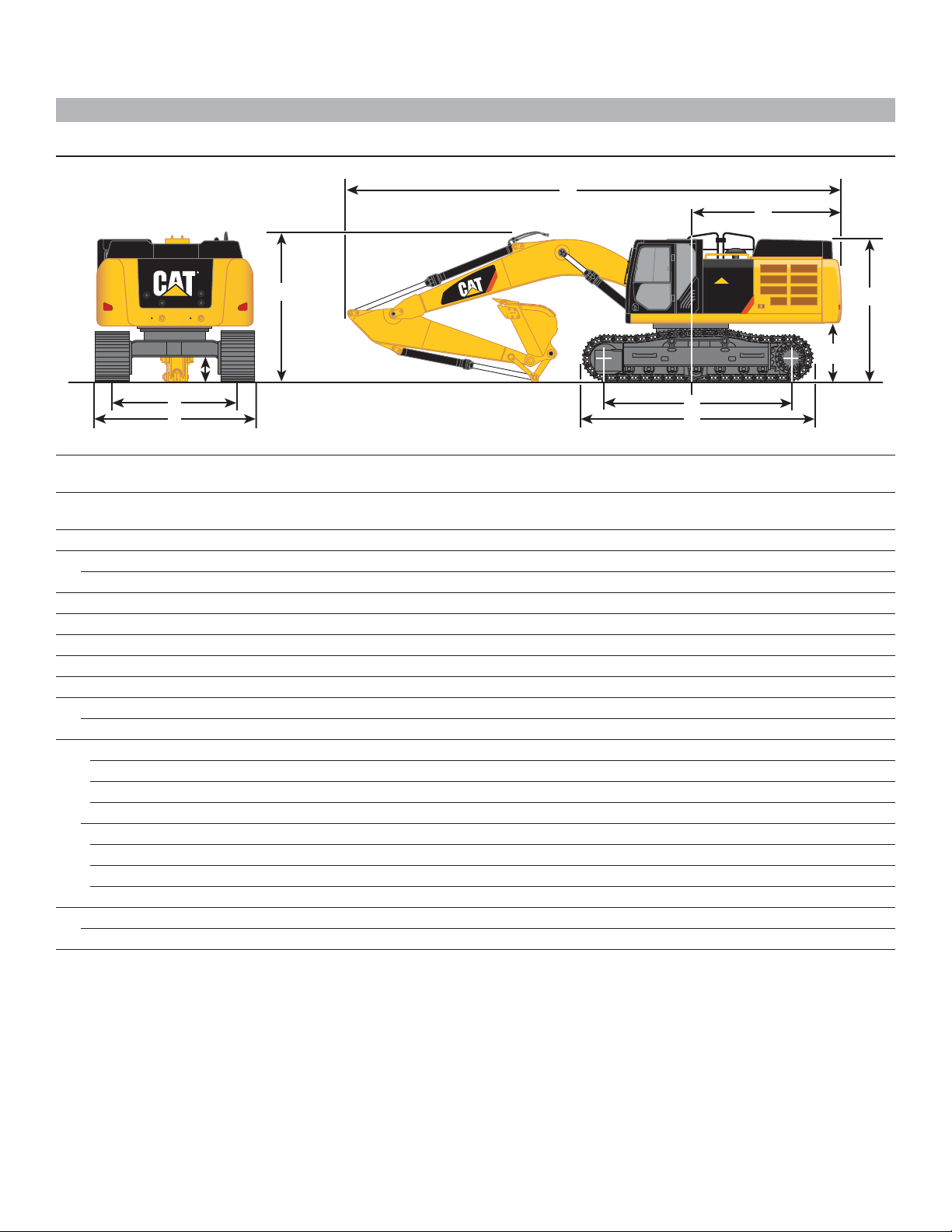

Dimensions – Long FIX Undercarriage

All dimensions are approximate.

2

3

1

10

6

7 8

HD Reach Boom Mass Boom

6.9 m (22'8") 6.55 m (21'6")

Stick R3.9TB R3.35TB M3.0UB M2.5UB

(12'10") (11'0") (9'10") (8'2") mm (ft) mm (ft) mm (ft) mm (ft)

Shipping Height 3670 (12'1") 3730 (12'3") 4020 (13'2") 3980 (13'1")

1

Shipping Height with Top Guard 3670 (12'1") 3730 (12'3") 4020 (13'2") 3980 (13'1")

Shipping Length 11 930 (39'2") 11 920 (39'1") 11 590 (38'0") 11 680 (38'4")

2

Tail Swing Radius 3760 (12'4") 3760 (12'4") 3760 (12'4") 3760 (12'4")

3

Length to Center of Rollers 4360 (14'4") 4360 (14'4") 4360 (14'4") 4360 (14'4")

4

Track Length 5370 (17'7") 5370 (17'7") 5370 (17'7") 5370 (17'7")

5

Ground Clearance (including Shoe Lug Height) 510 (1'8") 510 (1'8") 510 (1'8") 510 (1'8")

6

Track Gauge 2740 (9'0") 2740 (9'0") 2740 (9'0") 2740 (9'0")

7

Transport Width

8

600 mm (24") Shoes 3340 (11'0") 3340 (11'0") 3340 (11'0") 3340 (11'0")

750 mm (30") Shoes 3490 (11'5") 3490 (11'5") 3490 (11'5") 3490 (11'5")

900 mm (36") Shoes 3640 (11'11") 3640 (11'11") 3640 (11'11") 3640 (11'11")

Cab Height 3220 (10'7") 3220 (10'7") 3220 (10'7") 3220 (10'7")

9

Cab Height with Top Guard 3390 (11'1") 3390 (11'1") 3390 (11'1") 3390 (11'1")

Counterweight Clearance 1280 (4'2") 1280 (4'2") 1280 (4'2") 1280 (4'2")

10

4 5

9

16

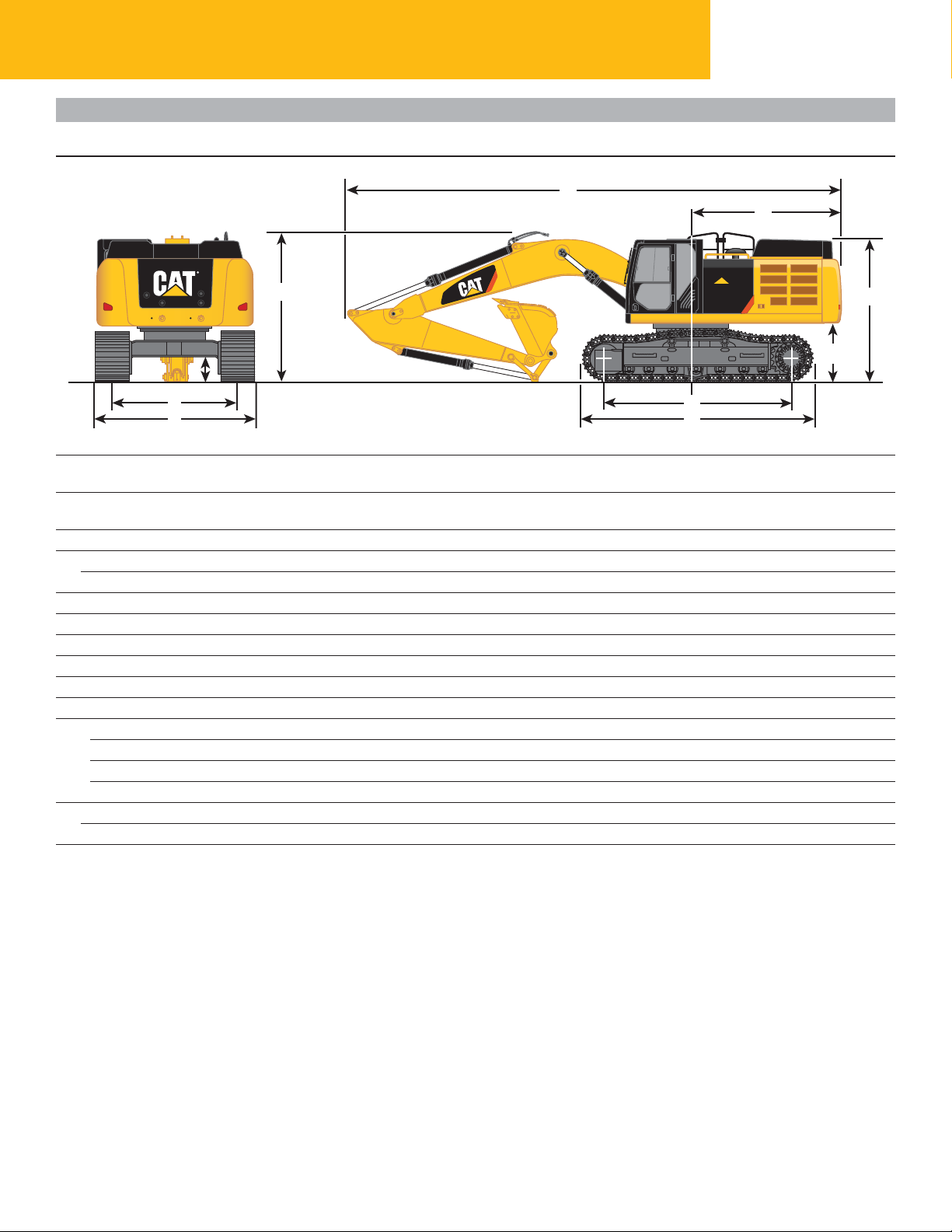

Dimensions – Long VG Undercarriage

All dimensions are approximate.

2

3

1

10

6

7 8

HD Reach Boom Mass Boom

6.9 m (22'8") 6.55 m (21'6")

Stick R3.9TB R3.35TB M3.0UB M2.5UB

(12'10") (11'0") (9'10") (8'2") mm (ft) mm (ft) mm (ft) mm (ft)

Shipping Height 3650 (12'0") 3550 (11'8") 4020 (13'2") 4010 (13'2")

1

Shipping Height with Top Guard 3650 (12'0") 3550 (11'8") 4020 (13'2") 4010 (13'2")

Shipping Length 11 890 (39'0") 11 820 (38'9") 11 560 (37'11") 11 640 (38'2")

2

Tail Swing Radius 3760 (12'4") 3760 (12'4") 3760 (12'4") 3760 (12'4")

3

Length to Center of Rollers 4340 (14'3") 4340 (14'3") 4340 (14'3") 4340 (14'3")

4

Track Length 5380 (17'8") 5380 (17'8") 5380 (17'8") 5380 (17'8")

5

Ground Clearance (including Shoe Lug Height) 740 (2'5") 740 (2'5") 740 (2'5") 740 (2'5")

6

Track Gauge (Expanded) 2890 (9'6") 2890 (9'6") 2890 (9'6") 2890 (9'6")

7

Track Gauge (Retracted) 2390 (7'10") 2390 (7'10") 2390 (7'10") 2390 (7'10")

Transport Width (Expanded)

8

600 mm (24") Shoes 3490 (11'5") 3490 (11'5") 3490 (11'5") 3490 (11'5")

750 mm (30") Shoes 3640 (11'11") 3640 (11'11") 3640 (11'11") 3640 (11'11")

900 mm (36") Shoes 3790 (12'5") 3790 (12'5") 3790 (12'5") 3790 (12'5")

Transport Width (Retracted)

600 mm (24") Shoes 3000 (9'10") 3000 (9'10") 3000 (9'10") 3000 (9'10")

750 mm (30") Shoes 3140 (10'4") 3140 (10'4") 3140 (10'4") 3140 (10'4")

900 mm (36") Shoes 3290 (10'10") 3290 (10'10") 3290 (10'10") 3290 (10'10")

Cab Height 3370 (11'1") 3370 (11'1") 3370 (11'1") 3370 (11'1")

9

Cab Height with Top Guard 3540 (11'7") 3540 (11'7") 3540 (11'7") 3540 (11'7")

Counterweight Clearance 1430 (4'8") 1430 (4'8") 1430 (4'8") 1430 (4'8")

10

4 5

9

17

349E L Hydraulic Excavator Speci cations

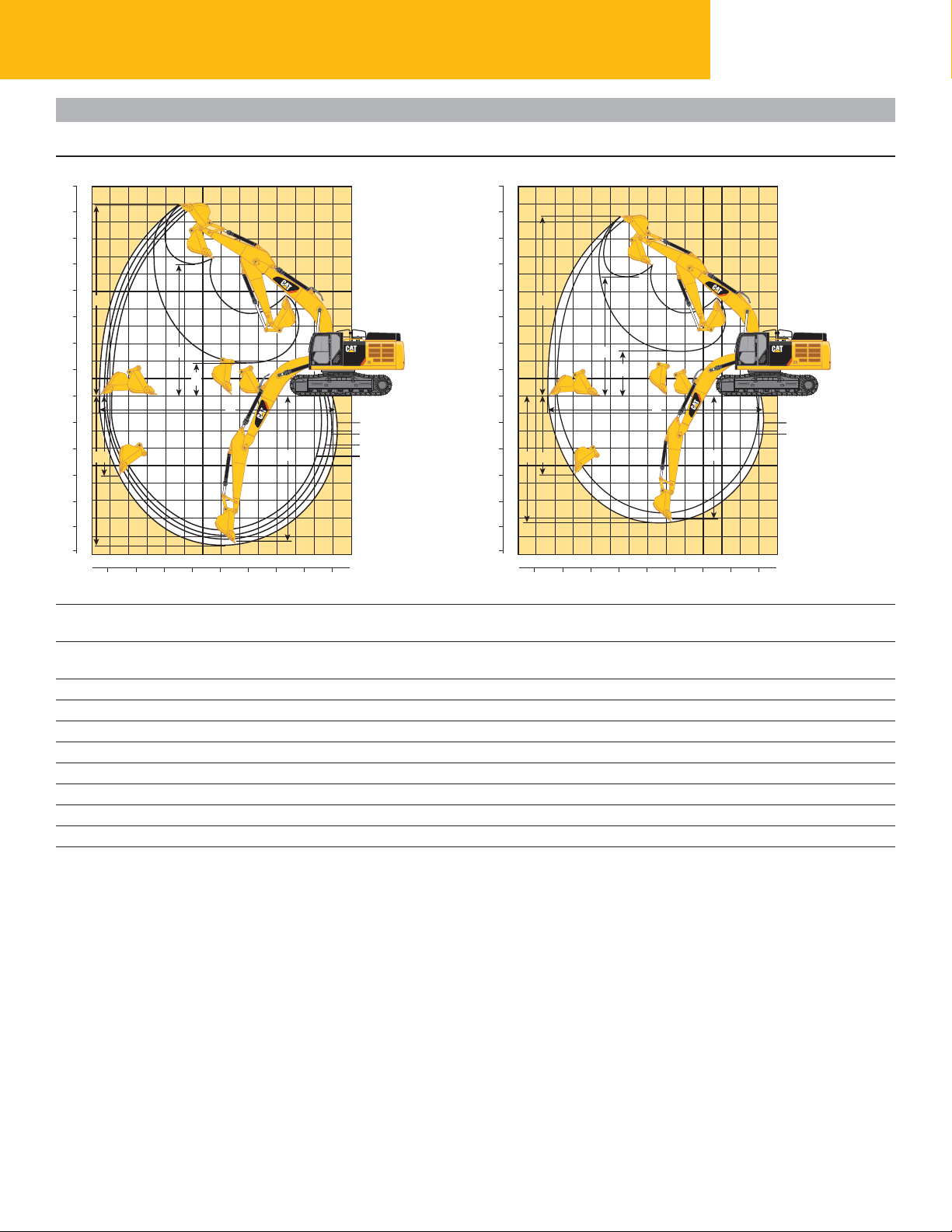

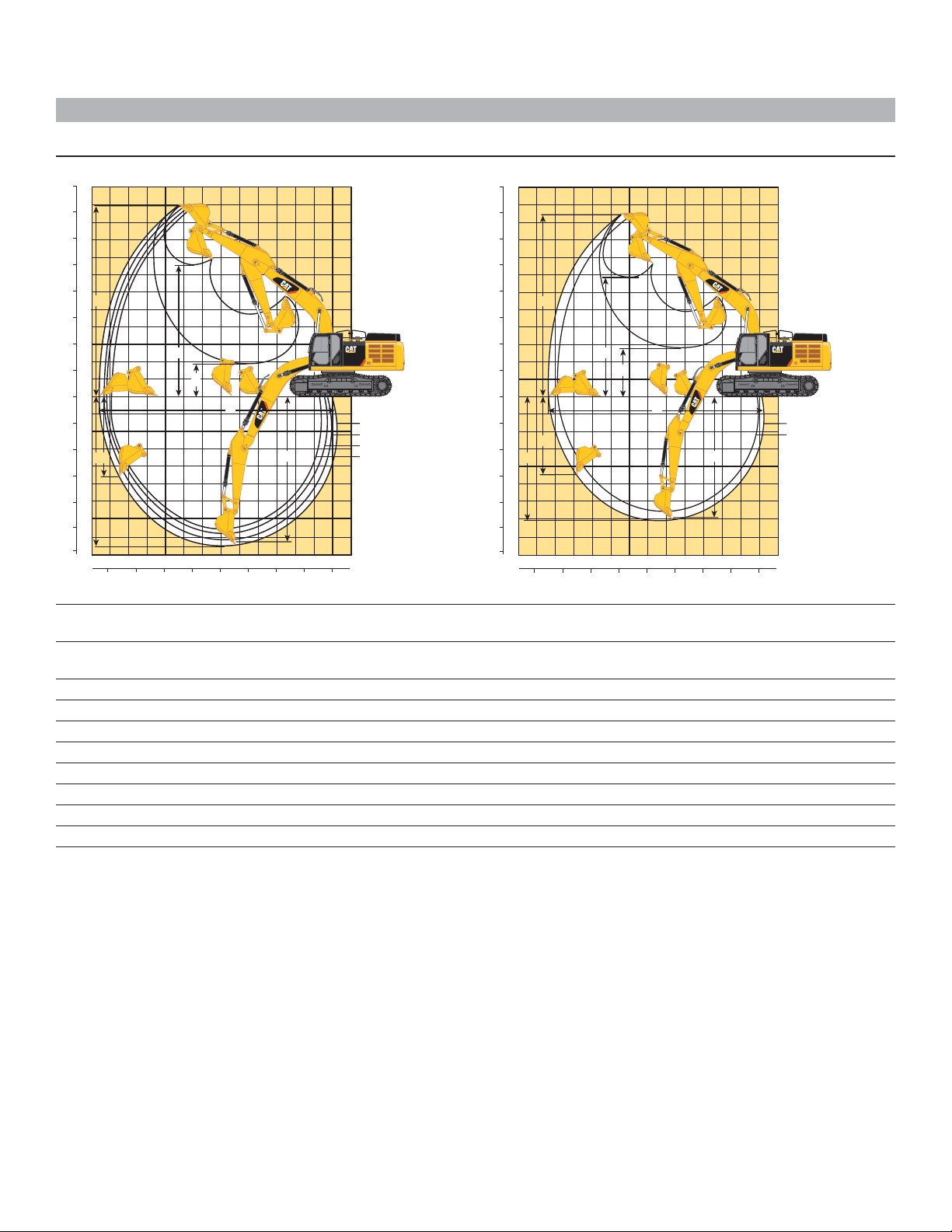

Working Ranges

All dimensions are approximate.

MetersFeet

40

11

35

10

30

9

8

25

7

20

6

3

5

15

4

10

3

2

5

1

0

1

5

2

3

10

1

7

4

15

5

6

20

7

25

8

30

9

12 11 10 9 8 7 6 5 4 3 2 1 0 1

40 35 30 25 20 15 10 5 0 Feet

4

5

2

R3.9TB With Quick Coupler

R3.9TB Without Quick Coupler

6

R3.35TB With Quick Coupler R3.35TB Without Quick Coupler

Meters

MetersFeet

40

11

35

10

30

9

8

25

7

20

6

3

5

15

4

10

3

2

5

1

0

1

5

2

3

10

1

7

4

15

5

6

20

7

25

8

30

9

12 11 10 9 8 7 6 5 4 3 2 1 0 1

40 35 30 25 20 15 10 5 0 Feet

4

5

2

M3.0UB Without Quick Coupler

M2.5UB Without Quick Coupler

6

Meters

HD Reach Boom Mass Boom

6.9 m (22'8") 6.55 m (21'6")

Stick R3.9TB R3.35TB M3.0UB M2.5UB

(12'10") (11'0") (9'10") (8'2") mm (ft) mm (ft) mm (ft) mm (ft)

Long FIX Undercarriage

Maximum Digging Depth 8180 (26'10") 7630 (25'0") 7230 (23'9") 6730 (23'1")

1

Maximum Reach at Ground Level 12 120 (39'9") 11 710 (38'5") 11 200 (36'9") 10 740 (35'3")

2

Maximum Cutting Height 10 730 (35'2") 10 810 (35'6") 10 300 (33'10") 10 110 (33'2")

3

Maximum Loading Height 7450 (24'5") 7460 (25'6") 6820 (22'5") 6620 (21'9")

4

Minimum Loading Height 2230 (7'4") 2780 (9'1") 2650 (8'8") 3150 (10'4")

5

Maximum Depth Cut for 2440 mm (8'0") Level Bottom 8050 (26'5") 7490 (24'7") 7080 (23'3") 6560 (21'6")

6

Maximum Vertical Wall Digging Depth 5890 (19'4") 5760 (18'11") 4570 (15'0") 4140 (13'7")

7

18

Working Ranges

All dimensions are approximate.

MetersFeet

40

11

35

10

30

9

8

25

7

20

6

3

5

15

4

10

3

2

5

1

0

1

5

2

3

10

1

7

4

15

5

6

20

7

25

8

30

9

12 11 10 9 8 7 6 5 4 3 2 1 0 1

40 35 30 25 20 15 10 5 0 Feet

4

5

2

R3.9TB With Quick Coupler

R3.9TB Without Quick Coupler

6

R3.35TB With Quick Coupler R3.35TB Without Quick Coupler

Meters

MetersFeet

40

11

35

10

30

9

8

25

7

20

6

3

5

15

4

10

3

2

5

1

0

1

5

2

7

3

10

1

4

15

5

6

20

7

25

8

30

9

12 11 10 9 8 7 6 5 4 3 2 1 0 1

40 35 30 25 20 15 10 5 0 Feet

4

5

2

M3.0UB Without Quick Coupler

M2.5UB Without Quick Coupler

6

Meters

HD Reach Boom Mass Boom

6.9 m (22'8") 6.55 m (21'6")

Stick R3.9TB R3.35TB M3.0UB M2.5UB

(12'10") (11'0") (9'10") (8'2") mm (ft) mm (ft) mm (ft) mm (ft)

Long VG Undercarriage

Maximum Digging Depth 8040 (26'5") 7490 (24'7") 7140 (23'5") 6640 (21'9")

1

Maximum Reach at Ground Level 12 090 (39'8") 11 680 (38'4") 11 220 (36'10") 10 760 (35'4")

2

Maximum Cutting Height 10 780 (35'4") 10 870 (35'8") 11 440 (37'6") 10 240 (33'7")

3

Maximum Loading Height 7590 (24'11") 7610 (25'0") 6910 (22'8") 6720 (22'1")

4

Minimum Loading Height 2370 (7'9") 2920 (9'7") 2740 (9'0") 3240 (10'8")

5

Maximum Depth Cut for 2440 mm (8'0") Level Bottom 7900 (25'11") 7340 (24'1") 6990 (22'11") 6740 (22'1")

6

Maximum Vertical Wall Digging Depth 5270 (18'3") 5170 (17'0") 4340 (14'3") 3910 (12'10")

7

19

349E L Hydraulic Excavator Specications

Operating Weight and Ground Pressure

900 mm (36") 750 mm (30") 600 mm (24")

Triple Grouser Shoes Triple Grouser Shoes Double Grouser Shoes

kg (lb) kPa (psi) kg (lb) kPa (psi) kg (lb) kPa (psi)

Long FIX Undercarriage

HD Reach Boom – 6.9 m (22'8")

R3.9TB HD (12'10") 49 500 (109,100) 57.0 (8.3) 48 800 (107,600) 68.0 (9.9) 48 100 (106,000) 83.0 (12.0)

R3.35TB HD (11'0") 49 200 (108,500) 57.0 (8.3) 48 500 (106,900) 67.0 (9.7) 47 800 (105,400) 83.0 (12.0)

Mass Boom – 6.55 m (21'6")

M3.0UB HD (9'10") 50 500 (111,300) 58.0 (8.4) 49 700 (109,600) 69.0 (10.0) 49 100 (108,200) 85.0 (12.3)

M2.5UB HD (8'2") 50 200 (110,700) 58.0 (8.4) 49 500 (109,100) 69.0 (10.0) 48 800 (107,600) 85.0 (12.3)

Long VG Undercarriage

HD Reach Boom – 6.9 m (22'8")

R3.9TB HD (12'10") 52 200 (115,100) 61.0 (8.8) 51 500 (113,500) 72.0 (10.4) 50 700 (111,800) 88.0 (12.8)

R3.35TB HD (11'0") 52 000 (114,600) 60.0 (8.7) 51 200 (112,900) 71.0 (10.3) 50 500 (111,300) 88.0 (12.8)

Mass Boom – 6.55 m (21'6")

M3.0UB HD (9'10") 53 300 (117,500) 62.0 (9.0) 52,500 (115,700) 73.0 (10.6) 51 800 (114,200) 90.0 (13.1)

M2.5UB HD (8'2") 53 000 (116,800) 62.0 (9.0) 52,300 (115,300) 73.0 (10.6) 51 500 (113,500) 90.0 (13.1)

Major Component Weights*

kg lb

Base machine (with boom cylinder, without counterweight, front linkage and track)

Long FIX Undercarriage 24 200 53,400

Long VG Undercarriage 26 800 59,100

Counterweight

9.0 mt (9.9 t) 9000 19,800

Boom (includes lines, pins and stick cylinder)

Reach Boom – 6.9 m (22'8") 4510 9,900

Mass Boom – 6.55 m (21'6") 4750 10,500

Stick (includes lines, pins and bucket cylinder)

R3.9TB HD (12'10") 2750 6,100

R3.35TB HD (11'0") 2480 5,500

M3.0UB (9'10") 2930 6,500

M2.5UB (8'2") 2700 6,000

Track shoe (Long FIX/per two tracks)

600 mm (24") double grouser 5240 11,560

750 mm (30") triple grouser 5880 12,960

900 mm (36") triple grouser 6640 14,640

Track shoe (Long VG/per two tracks)

600 mm (24") double grouser 5300 11,680

750 mm (30") triple grouser 5940 13,100

900 mm (36") triple grouser 6700 14,780

Buckets

3

TB1880GD – 3.10 m

TB1555EX – 1.9 m

(4.05 yd3) 2440 5,400

3

(2.49 yd3) 2340 5,200

*Base machine includes 75 kg (165 lb) operator weight, 90% fuel weight, and undercarriage with center guard.

20

Bucket and Stick Forces

HD Reach Boom Mass Boom

6.9 m (22'8") 6.55 m (21'6")

Stick R3.9TB R3.35TB M3.0UB M2.5UB

(12'10") (11'0") (9'10") (8'2") kN (lbf) kN (lbf) kN (lbf) kN (lbf)

General Duty

Bucket Digging Force (ISO) 268 (60,200) 268 (60,200) 296 (66,500) 296 (66,500)

Stick Digging Force (ISO) 184 (41,400) 201 (45,200) 212 (47,700) 241 (54,200)

Bucket Digging Force (SAE) 237 (53,300) 237 (53,300) 260 (58,500) 260 (58,500)

Stick Digging Force (SAE) 180 (40,500) 195 (43,800) 205 (46,100) 231 (51,900)

General Duty Capacity

Bucket Digging Force (ISO) 268 (60,200) 268 (60,200) – –

Stick Digging Force (ISO) 183 (41,100) 199 (44,700) – –

Bucket Digging Force (SAE) 239 (53,700) 239 (53,700) – –

Stick Digging Force (SAE) 178 (40,000) 193 (43,400) – –

Heavy Duty

Bucket Digging Force (ISO) 268 (60,200) 268 (60,200) 296 (66,500) 296 (66,500)

Stick Digging Force (ISO) 184 (41,400) 201 (45,200) 212 (47,700) 241 (54,200)

Bucket Digging Force (SAE) 237 (53,300) 237 (53,300) 260 (58,500) 260 (58,500)

Stick Digging Force (SAE) 180 (40,500) 195 (43,800) 205 (46,100) 231 (51,900)

Severe Duty

Bucket Digging Force (ISO) 268 (60,200) 268 (60,200) 292 (65,600) 292 (65,600)

Stick Digging Force (ISO) 184 (41,400) 201 (45,200) 211 (47,400) 240 (54,000)

Bucket Digging Force (SAE) 237 (53,300) 237 (53,300) 255 (57,300) 255 (57,300)

Stick Digging Force (SAE) 180 (40,500) 195 (43,800) 204 (45,900) 230 (51,700)

Extreme Duty

Bucket Digging Force (ISO) 262 (58,900) 262 (58,900) – –

Stick Digging Force (ISO) 183 (41,100) 199 (44,700) – –

Bucket Digging Force (SAE) 237 (53,300) 237 (53,300) – –

Stick Digging Force (SAE) 180 (40,500) 195 (43,800) – –

21

349E L Hydraulic Excavator Specications

Bucket and Stick Forces

HD Reach Boom Mass Boom

6.9 m (22'8") 6.55 m (21'6")

Stick R3.9TB R3.35TB M3.0UB M2.5UB

(12'10") (11'0") (9'10") (8'2") kN (lbf) kN (lbf) kN (lbf) kN (lbf)

For CW-55

General Duty

Bucket Digging Force (ISO) 220 (49,500) 220 (49,500) – –

Stick Digging Force (ISO) 172 (38,700) 186 (41,800) – –

Bucket Digging Force (SAE) 204 (45,900) 204 (45,900) – –

Stick Digging Force (SAE) 169 (38,000) 182 (40,900) – –

Heavy Duty

Bucket Digging Force (ISO) – – 262 (58,900) 262 (58,900)

Stick Digging Force (ISO) – – 202 (45,400) 228 (51,300)

Bucket Digging Force (SAE) – – 237 (53,300) 237 (53,300)

Stick Digging Force (SAE) – – 197 (44,300) 221 (49,700)

Heavy Duty – Power

Bucket Digging Force (ISO) 223 (50,100) 223 (50,100) – –

Stick Digging Force (ISO) 173 (38,900) 188 (42,300) – –

Bucket Digging Force (SAE) 205 (46,100) 205 (46,100) – –

Stick Digging Force (SAE) 170 (38,200) 184 (41,400) – –

Severe Duty

Bucket Digging Force (ISO) 223 (50,100) 223 (50,100) 259 (58,200) 259 (58,200)

Stick Digging Force (ISO) 173 (38,900) 188 (42,300) 202 (45,400) 227 (51,000)

Bucket Digging Force (SAE) 205 (46,100) 205 (46,100) 234 (52,600) 234 (52,600)

Stick Digging Force (SAE) 170 (38,200) 184 (41,400) 196 (44,100) 220 (49,500)

349E L Work Tool Offering Guide*

Boom Type Reach Boom (HD) Mass Boom Stick Size R3.9 (HD) (12'10") R3.35 (HD) (11'0") M3.0 (9'10") M2.5 (8'2")

Hydraulic Hammer H160Ds H160Ds H160Ds H160Ds

Multi-Processor MP30 MP30 MP30 MP30

Mobile Scrap and Demolition Shear S340B S340B S340B S340B

Contractors’ Grapple G330 G330 G330 G330

Trash Grapple

Thumbs

Rippers

Center-Lock Pin Grabber Coupler

Dedicated Quick Coupler

*Matches are dependent on excavator congurations. Consult your Cat dealer for proper work tool match.

** Boom Mount

22

H180Ds H180Ds H180Ds H180Ds

S365C** S365C** S365C** S365C** S385C** S385C** S385C** S385C**

These work tools are available for the 349E.

Consult your Cat dealer for proper match.

349E L (LC-FIX) HD Reach Boom Lift Capacities – Americas

Load Point Height Load at Maximum Reach Load Radius Over Front Load Radius Over Side

Boom – 6.9 m (22'8") Counterweight – 9.0 mt (9.9 t) Bucket – None Stick – R3.9TB (12'10") Shoes – 900 mm (35") triple grouser

1.5 m/5.0 ft 3.0 m/10.0 ft 4.5 m/15.0 ft 6.0 m/20.0 ft 7.5 m/25.0 ft 9.0 m/30.0 ft

9.0 m kg *7950 *7950 7.86

30.0 ft lb *18,900 *18,900 *17,650 *17,650 25.34

7.5 m kg *7600 *7600 8.96

25.0 ft lb *16,800 *16,800 29.16

6.0 m kg *11 850 11 350 *11 250 8450 *7550 7400 9.71

20.0 ft lb *25,850 24,400 *23,150 18,150 *16,600 16,450 31.74

4.5 m kg *15 100 *15 100 *13 050 10 950 *11 800 8250 *7650 6750 10.18

15.0 ft lb *32,600 *32,600 *28,300 23,550 *25,750 17,750 *16,850 14,900 33.36

3.0 m kg *24 150 21 950 *17 650 14 450 *14 400 10 450 *12 550 8000 *8000 6350 10.42

10.0 ft lb *51,850 47,400 *38,100 31,150 *31,250 22,550 27,050 17,200 *17,600 14,000 34.16

1.5 m kg *25 850 20 500 *19 800 13 650 *15 700 10 000 12 300 7750 *8600 6250 10.43

5.0 ft lb *60,100 44,200 *42,850 29,450 *34,000 21,550 26,450 16,650 *18,900 13,700 34.21

Ground

kg *23 850 19 850 *21 100 13 150 15 800 9650 12 100 7550 *9500 6300 10.21

Line

lb *55,200 42,650 *45,650 28,300 33,950 20,850 26,000 16,200 *20,950 13,900 33.51

–1.5 m kg *15 350 *15 350 *28 450 19 600 *21 350 12 850 15 550 9450 11 950 7400 10 650 6650 9.77

–5.0 ft lb *34,600 *34,600 *62,150 42,200 *46,200 27,700 33,500 20,400 25,750 15,950 23,500 14,650 32.01

–3.0 m kg *22 400 *22 400 *26 850 19 700 *20 450 12 850 15 500 9450 11 950 7450 11 900 7400 9.04

–10.0 ft lb *38,700 *38,700 *50,500 *50,500 *58,150 42,300 *44,250 27,650 33,400 20,350 26,300 16,350 29.58

–4.5 m kg *31 400 *31 400 *23 500 20 000 *18 200 13 000 *14 050 9600 *12 750 8850 7.97

–15.0 ft lb *68,000 *68,000 *50,700 43,000 *39,100 28,000 *29,900 20,700 *28,100 19,750 25.95

–6.0 m kg *17 800 *17 800 *13 450 13 450 *12 300 *12 300 6.38

–20.0 ft lb *37,650 *37,650 *27,900 *27,900 *26,850 *26,850 20.50

m ft

Boom – 6.9 m (22'8") Counterweight – 9.0 mt (9.9 t) Bucket – None Stick – R3.35TB (11'0") Shoes – 900 mm (35") triple grouser

1.5 m/5.0 ft 3.0 m/10.0 ft 4.5 m/15.0 ft 6.0 m/20.0 ft 7.5 m/25.0 ft 9.0 m/30.0 ft

9.0 m kg *9050 *9050 7.30

30.0 ft lb *20,150 *20,150 23.48

7.5 m kg *12 100 11 400 *8550 *8550 8.48

25.0 ft lb *26,600 24,450 *18,850 *18,850 27.57

6.0 m kg *12 700 11 200 *10 800 8350 *8400 7900 9.27

20.0 ft lb *27,650 24,050 *20,350 17,850 *18,450 17,550 30.28

4.5 m kg *21 000 *21 000 *16 200 15 050 *13 800 10 800 *12 450 8150 *8500 7150 9.76

15.0 ft lb *45,000 *45,000 *35,050 32,500 *29,950 23,250 *27,100 17,550 *18,700 15,800 31.97

3.0 m kg *26 050 21 450 *18 650 14 250 *15 100 10 350 12 550 7950 *8850 6750 10.01

10.0 ft lb *56,000 46,300 *40,250 30,700 *32,700 22,350 26,950 17,100 *19,450 14,900 32.81

1.5 m kg *18 650 *18 650 *20 550 13 550 16 100 9950 12 300 7750 *9450 6600 10.02

5.0 ft lb *44,600 43,650 *44,450 29,200 34,700 21,500 26,450 16,650 *20,800 14,550 32.87

Ground

kg *21 000 19 850 *21 450 13 150 15 800 9700 12 100 7550 *10 450 6750 9.80

Line

lb *48,750 42,700 *46,450 28,300 34,000 20,900 26,050 16,300 *23,050 14,800 32.14

–1.5 m kg *14 950 *14 950 *28 100 19 800 *21 250 12 950 15 650 9550 12 050 7500 11 450 7150 9.33

–5.0 ft lb *33,750 *33,750 *61,000 42,550 *46,050 27,900 33,650 20,600 25,950 16,150 25,300 15,800 30.56

–3.0 m kg *23 900 *23 900 *25 750 19 950 *19 950 13 000 15 650 9550 13 000 8050 8.57

–10.0 ft lb *53,950 *53,950 *55,800 42,900 *43,100 28,000 33,700 20,650 *28,650 17,850 28.01

–4.5 m kg *27 850 *27 850 *21 750 20 350 *17 000 13 250 *12 800 9950 7.43

–15.0 ft lb *60,100 *60,100 *46,800 43,750 *36,400 28,550 *28,150 22,200 24.14

*Indicates that the load is limited by hydraulic lifting capacity rather than tipping load. The above loads are in compliance with hydraulic excavator lift capacity

standard ISO 10567:2007. They do not exceed 87% of hydraulic lifting capacity or 75% of tipping load. Weight of all lifting accessories must be deducted from the above lifting capacities. Lifting capacities are based on the machine standing on a rm, uniform supporting surface. The use of a work tool attachment point to handle/lift objects, could affect the machine lift performance.

Always refer to the appropriate Operation and Maintenance Manual for specic product information.

m ft

23

349E L Hydraulic Excavator Specications

349E L (LC-VG) HD Reach Boom Lift Capacities – Americas

Load Point Height Load at Maximum Reach Load Radius Over Front Load Radius Over Side

Boom – 6.9 m (22'8") Counterweight – 9.0 mt (9.9 t) Bucket – None Stick – R3.9TB (12'10") Shoes – 900 mm (35") triple grouser

1.5 m/5.0 ft 3.0 m/10.0 ft 4.5 m/15.0 ft 6.0 m/20.0 ft 7.5 m/25.0 ft 9.0 m/30.0 ft

9.0 m kg *7900 *7900 7.98

30.0 ft lb *17,550 *17,550 25.78

7.5 m kg *7950 *7950 *7600 *7600 9.05

25.0 ft lb *16,750 *16,750 29.46

6.0 m kg *11 950 *11 950 *11 300 9300 *7550 *7550 9.77

20.0 ft lb *26,050 *26,050 *23,800 20,000 *16,600 *16,600 31.93

4.5 m kg *15 350 *15 350 *13 150 12 000 *11 900 9100 *7700 7400 10.22

15.0 ft lb *33,100 *33,100 *28,550 25,850 *25,900 19,550 *16,900 16,400 33.47

3.0 m kg *24 600 24 350 *17 850 15 900 *14 550 11 500 *12 650 8850 *8050 7050 10.43

10.0 ft lb *52,850 52,450 *38,600 34,300 *31,550 24,850 *27,450 19,000 *17,700 15,550 34.20

1.5 m kg *25 100 22 900 *20 000 15 150 *15 800 11 100 12 800 8550 *8650 6950 10.42

5.0 ft lb *59,550 49,350 *43,200 32,600 *34,250 23,900 27,550 18,450 *19,050 15,250 34.18

Ground

kg *9700 *9700 *24 100 22 300 *21 150 14 650 16 400 10 750 12 600 8350 *9600 7050 10.18

Line

lb *22,000 *22,000 *55,700 47,900 *45,850 31,500 35,350 23,150 27,100 18,050 *21,200 15,550 33.40

–1.5 m kg *16 000 *16 000 *28 550 22 100 *21 300 14 400 16 200 10 550 12 450 8250 *11 150 7500 9.71

–5.0 ft lb *36,000 *36,000 *61,900 47,500 *46,100 31,000 34,900 22,750 26,850 17,800 *24,650 16,500 31.82

–3.0 m kg *23 150 *23 150 *26 600 22 200 *20 300 14 350 *16 000 10 550 12 600 8350 8.96

–10.0 ft lb *52,250 *52,250 *57,600 47,700 *43,900 30,950 *34,500 22,700 27,850 18,500 29.29

–4.5 m kg *30 850 *30 850 *23 100 22 500 *17 900 14 550 *13 750 10 700 *12 750 10 100 7.84

–15.0 ft lb *66,500 *66,500 *49,750 48,400 *38,400 31,350 *29,100 23,150 *28,100 22,550 25.52

–6.0 m kg *17 050 *17 050 *12 700 *12 700 *12 150 *12 150 6.18

–20.0 ft lb *27,300 *27,300 19.45

m ft

Boom – 6.9 m (22'8") Counterweight – 9.0 mt (9.9 t) Bucket – None Stick – R3.35TB (11'0") Shoes – 900 mm (35") triple grouser

1.5 m/5.0 ft 3.0 m/10.0 ft 4.5 m/15.0 ft 6.0 m/20.0 ft 7.5 m/25.0 ft 9.0 m/30.0 ft

9.0 m kg *9000 *9000 7.44

30.0 ft lb *19,950 *19,950 23.95

7.5 m kg *12 150 *12 150 *8500 *8500 8.57

25.0 ft lb *26,650 *26,650 *18,800 *18,800 27.88

6.0 m kg *12 800 12 250 *11 250 9200 *8400 *8400 9.33

20.0 ft lb *27,850 26,400 *21,650 19,700 *18,450 *18,450 30.48

4.5 m kg *21 500 *21 500 *16 450 *16 450 *13 900 11 900 *12 500 9000 *8500 7900 9.80

15.0 ft lb *46,100 *46,100 *35,550 *35,550 *30,200 25,600 *27,200 19,400 *18,750 17,400 32.09

3.0 m kg *26 500 23 800 *18 850 15 700 *15 200 11 450 13 050 8800 *8900 7500 10.02

10.0 ft lb *56,850 51,350 *40,700 33,900 *32,950 24,650 28,050 18,900 *19,550 16,450 32.85

1.5 m kg *18 550 *18 550 *20 700 15 050 *16 300 11 050 12 800 8550 *9550 7350 10.01

5.0 ft lb *44,150 *44,150 *44,700 32,400 *35,300 23,800 27,500 18,450 *21,000 16,200 32.83

Ground

kg *21 550 *21 550 *21 500 14 650 16 450 10 750 12 600 8400 *10 600 7550 9.76

Line

lb *49,900 48,000 *46,500 31,550 35,350 23,200 27,150 18,100 *23,350 16,600 32.02

–1.5 m kg *15 800 *15 800 *27 900 22 300 *21 200 14 500 16 300 10 650 12 550 8350 12 050 8050 9.27

–5.0 ft lb *35,600 *35,600 *60,600 47,900 *45,900 31,200 35,050 22,950 27,050 18,050 26,650 17,750 30.36

–3.0 m kg *24 850 *24 850 *25 450 22 450 *19 750 14 550 *15 500 10 700 *13 000 9150 8.47

–10.0 ft lb *56,150 *56,150 *55,100 48,300 *42,650 31,300 *33,350 23,050 *28,650 20,200 27.70

–4.5 m kg *27 100 *27 100 *21 250 *21 250 *16 600 14 800 *12 750 11 400 7.29

–15.0 ft lb *58,450 *58,450 *45,700 *45,700 *35,450 31,900 *28,000 25,400 23.68

*Indicates that the load is limited by hydraulic lifting capacity rather than tipping load. The above loads are in compliance with hydraulic excavator lift capacity

standard ISO 10567:2007. They do not exceed 87% of hydraulic lifting capacity or 75% of tipping load. Weight of all lifting accessories must be deducted from the above lifting capacities. Lifting capacities are based on the machine standing on a rm, uniform supporting surface. The use of a work tool attachment point to handle/lift objects, could affect the machine lift performance.

Always refer to the appropriate Operation and Maintenance Manual for specic product information.

m ft

24

349E L (LC-FIX) Mass Boom Lift Capacities – Americas

Load Point Height Load at Maximum Reach Load Radius Over Front Load Radius Over Side

Boom – 6.55 m (21'6") Counterweight – 9.0 mt (9.9 t) Bucket – None Stick – M3.0UB (9'10") Shoes – 900 mm (35") triple grouser

1.5 m/5.0 ft 3.0 m/10.0 ft 4.5 m/15.0 ft 6.0 m/20.0 ft 7.5 m/25.0 ft 9.0 m/30.0 ft

9.0 m kg

30.0 ft lb

7.5 m kg *11 550 10 900 *10 000 *10 000 7.67

25.0 ft lb *22,050 *22,050 24.87

6.0 m kg *13 000 10 750 *9700 8600 8.53

20.0 ft lb *28,350 23,100 *21,400 19,150 27.85

4.5 m kg *20 900 *20 900 *16 200 14 650 *13 850 10 400 *10 750 7700 *9800 7600 9.07

15.0 ft lb *44,800 *44,800 *35,050 31,600 *30,150 22,350 *21,600 16,850 29.69

3.0 m kg *25 650 20 900 *18 450 13 800 *15 000 9950 12 150 7500 *10 250 7100 9.33

10.0 ft lb *55,100 45,150 *39,850 29,750 *32,500 21,400 26,050 16,150 *22,500 15,650 30.59

1.5 m kg *22 900 19 700 *20 200 13 050 15 700 9550 11 900 7300 *11 050 6900 9.34

5.0 ft lb *55,050 42,400 *43,650 28,150 33,800 20,550 25,600 15,750 *24,250 15,250 30.65

Ground

kg *25 950 19 250 *20 900 12 650 15 400 9250 11 750 7200 11 550 7050 9.10

Line

lb *60,500 41,350 *45,300 27,200 33,100 19,950 25,450 15,550 29.86

–1.5 m kg *17 850 *17 850 *27 100 19 200 *20 500 12 450 15 250 9150 12 550 7600 8.59

–5.0 ft lb *40,400 *40,400 *58,800 41,250 *44,400 26,850 32,800 19,700 27,650 16,800 28.16

–3.0 m kg *29 400 *29 400 *24 300 19 400 *18 700 12 550 *14 300 9250 *13 450 8850 7.76

–10.0 ft lb *66,650 *66,650 *52,550 41,700 *40,400 27,050 *30,450 19,950 *29,650 19,600 25.35

–4.5 m kg *19 300 *19 300 *14 600 12 950 *12 900 11 700 6.48

–15.0 ft lb *41,300 *41,300 *30,750 27,950 *28,300 26,200 20.99

m ft

Boom – 6.55 m (21'6") Counterweight – 9.0 mt (9.9 t) Bucket – None Stick – M2.5UB (8'2") Shoes – 900 mm (35") triple grouser

1.5 m/5.0 ft 3.0 m/10.0 ft 4.5 m/15.0 ft 6.0 m/20.0 ft 7.5 m/25.0 ft

m ft

9.0 m kg

30.0 ft lb

7.5 m kg *13 050 11 800 7.10

25.0 ft lb *28,900 26,600 22.99

6.0 m kg *15 350 15 300 *13 850 10 700 *12 700 9500 8.03

20.0 ft lb *33,300 32,900 *30,350 22,950 *27,950 21,150 26.19

4.5 m kg *22 750 22 400 *17 250 14 550 *14 600 10 350 *12 850 8350 8.60

15.0 ft lb *48,800 48,450 *37,250 31,350 *31,800 22,300 *28,250 18,400 28.14

3.0 m kg *19 300 13 700 *15 600 9950 12 450 7750 8.87

10.0 ft lb *58,350 44,300 *41,750 29,550 *33,850 21,450 27,400 17,050 29.09

1.5 m kg *20 800 13 100 15 750 9600 12 200 7550 8.88

5.0 ft lb *44,950 28,200 33,900 20,700 26,900 16,600 29.15

Ground

kg *23 950 19 450 *21 150 12 750 15 500 9350 12 600 7750 8.63

Line

lb *56,350 41,800 *45,800 27,450 33,350 20,200 27,800 17,050 28.33

–1.5 m kg *18 050 *18 050 *26 250 19 500 *20 300 12 650 15 450 9300 13 850 8450 8.10

–5.0 ft lb *41,150 *41,150 *57,050 41,900 *43,950 27,300 33,250 20,100 30,550 18,650 26.52

–3.0 m kg *28 000 *28 000 *22 900 19 800 *17 900 12 850 *14 100 10 050 7.20

–10.0 ft lb *61,000 *61,000 *49,600 42,550 *38,600 27,650 *31,000 22,250 23.52

–4.5 m kg *16 950 *16 950 *12 900 *12 900 5.79

–15.0 ft lb *36,050 *36,050 *28,100 *28,100 18.72

*Indicates that the load is limited by hydraulic lifting capacity rather than tipping load. The above loads are in compliance with hydraulic excavator lift capacity

standard ISO 10567:2007. They do not exceed 87% of hydraulic lifting capacity or 75% of tipping load. Weight of all lifting accessories must be deducted from the above lifting capacities. Lifting capacities are based on the machine standing on a rm, uniform supporting surface. The use of a work tool attachment point to handle/lift objects, could affect the machine lift performance.

Always refer to the appropriate Operation and Maintenance Manual for specic product information.

25

349E L Hydraulic Excavator Specications

349E L (LC-FIX) Mass Boom Lift Capacities – Americas

Load Point Height Load at Maximum Reach Load Radius Over Front Load Radius Over Side

Boom – 6.55 m (21'6") Counterweight – 9.0 mt (9.9 t) Bucket – None Stick – M3.0UB (9'10") Shoes – 600 mm (24") double grouser

1.5 m/5.0 ft 3.0 m/10.0 ft 4.5 m/15.0 ft 6.0 m/20.0 ft 7.5 m/25.0 ft 9.0 m/30.0 ft

9.0 m kg

30.0 ft lb

7.5 m kg *11 550 10 650 *10 000 *10 000 7.67

25.0 ft lb *22,050 *22,050 24.87

6.0 m kg *13 000 10 500 *9700 8400 8.53

20.0 ft lb *28,350 22,550 *21,400 18,650 27.85

4.5 m kg *20 900 *20 900 *16 200 14 350 *13 850 10 150 *10 750 7500 *9800 7400 9.07

15.0 ft lb *44,800 *44,800 *35,050 30,900 *30,150 21,800 *21,600 16,400 29.69

3.0 m kg *25 650 20 400 *18 450 13 450 *15 000 9700 11 800 7300 *10 250 6900 9.33

10.0 ft lb *55,100 44,050 *39,850 29,000 *32,500 20,850 25,350 15,700 *22,500 15,200 30.59

1.5 m kg *22 900 19 150 *20 200 12 700 15 300 9300 11 550 7100 10 950 6750 9.34

5.0 ft lb *55,050 41,300 *43,650 27,450 32,850 20,000 24,850 15,300 24,050 14,800 30.65

Ground

kg *25 950 18 750 *20 900 12 300 14 950 9000 11 400 7000 11 250 6850 9.10

Line

lb *60,500 40,250 *45,300 26,450 32,150 19,350 24,750 15,100 29.86

–1.5 m kg *17 850 *17 850 *27 100 18 700 *20 500 12 150 14 800 8900 12 150 7400 8.59

–5.0 ft lb *40,400 *40,400 *58,800 40,150 *44,400 26,100 31,900 19,150 26,850 16,350 28.16

–3.0 m kg *29 400 *29 400 *24 300 18 900 *18 700 12 200 *14 300 9000 *13 450 8600 7.76

–10.0 ft lb *66,650 *66,650 *52,550 40,600 *40,400 26,300 *30,450 19,400 *29,650 19,050 25.35

–4.5 m kg *19 300 *19 300 *14 600 12 600 *12 900 11 350 6.48

–15.0 ft lb *41,300 *41,300 *30,750 27,250 *28,300 25,550 20.99

m ft

Boom – 6.55 m (21'6") Counterweight – 9.0 mt (9.9 t) Bucket – None Stick – M2.5UB (8'2") Shoes – 600 mm (24") double grouser

1.5 m/5.0 ft 3.0 m/10.0 ft 4.5 m/15.0 ft 6.0 m/20.0 ft 7.5 m/25.0 ft

m ft

9.0 m kg

30.0 ft lb

7.5 m kg *13 050 11 550 7.10

25.0 ft lb *28,900 26,000 22.99

6.0 m kg *15 350 14 950 *13 850 10 400 *12 700 9250 8.03

20.0 ft lb *33,300 32,150 *30,350 22,350 *27,950 20,600 26.19

4.5 m kg *22 750 21 900 *17 250 14 200 *14 600 10 100 *12 850 8100 8.60

15.0 ft lb *48,800 47,300 *37,250 30,600 *31,800 21,750 *28,250 17,950 28.14

3.0 m kg *19 300 13 350 *15 600 9700 12 100 7500 8.87

10.0 ft lb *58,350 43,200 *41,750 28,850 33,800 20,900 26,650 16,600 29.09

1.5 m kg *20 800 12 750 15 300 9350 11 900 7350 8.88

5.0 ft lb *44,950 27,450 32,950 20,150 26,150 16,150 29.15

Ground

kg *23 950 18 950 *21 150 12 400 15 050 9100 12 250 7550 8.63

Line

lb *56,350 40,650 45,700 26,700 32,400 19,650 27,000 16,600 28.33

–1.5 m kg *18 050 *18 050 *26 250 19 000 *20 300 12 300 15 000 9050 13 450 8200 8.10

–5.0 ft lb *41,150 *41,150 *57,050 40,800 *43,950 26,550 32,300 19,550 29,700 18,100 26.52

–3.0 m kg *28 000 *28 000 *22 900 19 300 *17 900 12 500 *14 100 9750 7.20

–10.0 ft lb *61,000 *61,000 *49,600 41,450 *38,600 26,900 *31,000 21,650 23.52

–4.5 m kg *16 950 *16 950 *12 900 *12 900 5.79

–15.0 ft lb *36,050 *36,050 *28,100 *28,100 18.72

*Indicates that the load is limited by hydraulic lifting capacity rather than tipping load. The above loads are in compliance with hydraulic excavator lift capacity

standard ISO 10567:2007. They do not exceed 87% of hydraulic lifting capacity or 75% of tipping load. Weight of all lifting accessories must be deducted from the above lifting capacities. Lifting capacities are based on the machine standing on a rm, uniform supporting surface. The use of a work tool attachment point to handle/lift objects, could affect the machine lift performance.

Always refer to the appropriate Operation and Maintenance Manual for specic product information.

26

349E L Bucket Specications and Compatibility

Width Capacity Weight Fill Mass Boom Reach Boom (HD)

Linkage

mm in m

3

Without Quick Coupler

General Duty (GDC) TB 750 30 0.95 1.24 1311 2,889 100%

TB 900 36 1.23 1.60 1441 3,176 100%

TB 1050 42 1.51 1.98 1525 3,361 100%

TB 1200 48 1.80 2.36 1676 3,694 100%

TB 1350 54 2.10 2.74 1792 3,950 100%

TB 1500 60 2.39 3.13 1943 4,282 100%

TB 1700 68 2.78 3.64 2128 4,690 100%

TB 1850 74 3.08 4.04 2254 4,968 100%

General Duty XL (GDXL) TB 2043 80 3.82 5.00 2373 5,230 100%

Heavy Duty (HD) TB 900 36 1.08 1.41 1594 3,513 100%

TB 1050 42 1.34 1.75 1684 3,712 100%

TB 1200 48 1.60 2.09 1834 4,043 100%

TB 1350 54 1.87 2.44 1974 4,350 100%

TB 1500 60 2.14 2.80 2125 4,684 100%

TB 1650 66 2.41 3.15 2286 5,039 100%

TB 1800 71 2.69 3.52 2423 5,340 100%

UB 1650 65 2.77 3.62 2581 5,689 100%

UB 1850 73 3.19 4.16 2741 6,041 100%

UB 1950 77 3.43 4.48 2898 6,387 100%

Severe Duty (SD) TB 760 30 0.88 1.15 1446 3,187 90%

TB 900 36 1.08 1.41 1677 3,696 90%

TB 1050 42 1.34 1.75 1779 3,921 90%

TB 1200 48 1.60 2.09 1952 4,302 90%

TB 1400 55 1.87 2.44 2180 4,805 90%

TB 1550 61 2.14 2.80 2381 5,248 90%

TB 1700 67 2.41 3.16 2524 5,563 90%

TB 1850 74 2.69 3.52 2726 6,008 90%

UB 1450 58 2.39 3.13 2540 5,598 90%

UB 1850 73 3.21 4.20 2987 6,583 90%

Extreme Duty (XD) TB 1250 49 1.60 2.09 2224 4,902 90%

TB 1400 55 1.87 2.44 2366 5,215 90%

Maximum load pin-on (payload + bucket) kg 7995 7200 6730 6210

3

yd

kg lb %

lb 17,621 15,869 14,833 13,687

M2.5 (8'2")

M3.0

(9'10")

R3.35 HD

(11'0")

R3.9 HD

(12'10")

Maximum Material Density:

3

2100 kg/m

The above loads are in compliance with hydraulic excavator standard EN474, they do not exceed 87% of hydraulic lifting capacity or 75% of tipping capacity with front linkage fully extended at ground line with bucket curled.

1800 kg/m

1500 kg/m

1200 kg/m

Capacity based on ISO 7451. 900 kg/m

(3,500 lb/yd3)

3

(3,000 lb/yd3)

3

(2,500 lb/yd3)

3

(2,000 lb/yd3)

3

(1,500 lb/yd3)

Bucket weight with General Duty tips. X Not Recommended

Caterpillar recommends using appropriate work tools to maximize the value customers receive from our products. Use of work tools, including buckets, which are outside of Caterpillar’s recommendations or specications for weight, dimensions, ows, pressures, etc. may result in less-than-optimal performance, including but not limited to reductions in production, stability, reliability, and component durability. Improper use of a work tool resulting in sweeping, prying, twisting and/or catching of heavy loads will reduce the life of the boom and stick.

27

349E L Hydraulic Excavator Specications

349E L Bucket Specications and Compatibility

Width Capacity Weight Fill Mass Boom Reach Boom (HD)

Linkage

mm in m

3

yd

kg lb %

M2.5 (8'2")

With Center-Lock Quick Coupler

General Duty (GDC) TB 750 30 0.95 1.24 1311 2,889 100%

TB 900 36 1.23 1.60 1441 3,176 100%

TB 1050 42 1.51 1.98 1525 3,361 100%

TB 1200 48 1.80 2.36 1676 3,694 100%

TB 1350 54 2.10 2.74 1792 3,950 100%

TB 1500 60 2.39 3.13 1943 4,282 100%

TB 1700 68 2.78 3.64 2128 4,690 100%

TB 1850 74 3.08 4.04 2254 4,968 100%

General Duty XL (GDXL) TB 2043 80 3.82 5.00 2373 5,230 100% X

Heavy Duty (HD) TB 900 36 1.08 1.41 1594 3,513 100%

TB 1050 42 1.34 1.75 1684 3,712 100%

TB 1200 48 1.60 2.09 1834 4,043 100%

TB 1350 54 1.87 2.44 1974 4,350 100%

TB 1500 60 2.14 2.80 2125 4,684 100%

TB 1650 66 2.41 3.15 2286 5,039 100%

TB 1800 71 2.69 3.52 2423 5,340 100%

Severe Duty (SD) TB 760 30 0.88 1.15 1446 3,187 90%

TB 900 36 1.08 1.41 1677 3,696 90%

TB 1050 42 1.34 1.75 1779 3,921 90%

TB 1200 48 1.60 2.09 1952 4,302 90%

TB 1400 55 1.87 2.44 2180 4,805 90%

TB 1550 61 2.14 2.80 2381 5,248 90%

TB 1700 67 2.41 3.16 2524 5,563 90%

TB 1850 74 2.69 3.52 2726 6,008 90%

Extreme Duty (XD) TB 1250 49 1.60 2.09 2224 4,902 90%

TB 1400 55 1.87 2.44 2366 5,215 90%

Maximum load with coupler (payload + bucket) kg 5897 5377

lb 12,997 11,851

M3.0

(9'10")

R3.35 HD

(11'0")

R3.9 HD

(12'10")

Maximum Material Density:

3

2100 kg/m

The above loads are in compliance with hydraulic excavator standard EN474, they do not exceed 87% of hydraulic lifting capacity or 75% of tipping capacity with front linkage fully extended at ground line with bucket curled.

1800 kg/m

1500 kg/m

1200 kg/m

Capacity based on ISO 7451. 900 kg/m

(3,500 lb/yd3)

3

(3,000 lb/yd3)

3

(2,500 lb/yd3)

3

(2,000 lb/yd3)

3

(1,500 lb/yd3)

Bucket weight with General Duty tips. X Not Recommended

Caterpillar recommends using appropriate work tools to maximize the value customers receive from our products. Use of work tools, including buckets, which are outside of Caterpillar’s recommendations or specications for weight, dimensions, ows, pressures, etc. may result in less-than-optimal performance, including but not limited to reductions in production, stability, reliability, and component durability. Improper use of a work tool resulting in sweeping, prying, twisting and/or catching of heavy loads will reduce the life of the boom and stick.

28

Standard equipment may vary. Consult your Cat dealer for details.

349E L Standard Equipment

ENGINE

C13 diesel engine Bio diesel capable Meets U.S. Tier 4 (Interim) emission standards 2300 m (7,500 ft) altitude capability Electric priming pump Automatic engine speed control Standard, economy and high power modes Two-speed travel Side-by-side cooling system Radial seal air  lter Primary lter with water separator and

water separator indicator switch Fuel differential indicator switch in fuel line 2×6 micron main  lters 1×10 micron primary fuel line  lter

HYDRAULIC SYSTEM

Regeneration circuit for boom and stick Reverse swing dampening valve Automatic swing parking brake High-performance hydraulic return  lter Capability of installing HP stackable valve

and medium and QC valve Capability of installing additional auxiliary

pump (up to 80 L/min [21 gal/min])

andcircuit Capability of installing boom lowering

control device and stick lowering

checkvalve Capability of installing Cat Bio hydraulic oil

CAB

Pressurized operator station

with positive  ltration Mirror package Sliding upper door window

(left-hand cab door) Glass-breaking safety hammer Removable lower windshield

within cab storage bracket Coat hook Beverage holder Literature holder Radio with MP3 auxiliary audio port Two stereo speakers Storage shelf suitable for lunch or toolbox Color LCD display with warning,  lter/ uid

change, and working hour information Adjustable armrest Height adjustable joystick consoles Neutral lever (lock out) for all controls Travel control pedals with removable

hand levers Capability of installing two additional pedals Two power outlets, 10 amp (total) Laminated glass front upper window

andtempered other windows

UNDERCARRIAGE

Grease Lubricated Track GLT4 Towing eye on base frame Heavy-duty track rollers Track motor guards

ELECTRICAL

80 amp alternator Circuit breaker Capability to electrically connect a beacon

LIGHTS

Boom light Cab lights with time delay Exterior lights integrated into storage box

SECURITY

Cat one key security system Door locks Cap locks on fuel and hydraulic tanks Lockable external tool/storage box Signaling/warning horn Secondary engine shutoff switch Openable skylight for emergency exit Rearview camera-ready

29

349E L Optional Equipment

Optional equipment may vary. Consult your Cat dealer for details.

ENGINE

Electric refueling pump with auto shut off Starting kit, cold weather, –32° C (–26° F) Jump start receptacle Quick drains, engine and hydraulic oil

HYDRAULIC SYSTEM

Control pattern quick-changer, two way Additional circuit Boom and stick lines High-pressure line Medium-pressure line Cat quick coupler line – high- and medium-

pressure capable Quick coupler for high pressure Tool control system Tool 20, Electronic Control device,

(common), 1/2P, common circuit Tool 21, Electronic Control device, 1/2P,

one-way circuit Tool 25, Electronic Control device, 1P,

two-way circuit

CAB

Cab hatch emergency exit Seat, high-back air suspension

with heater and cooling Seat, high-back air suspension with heater Seat, high-back mechanical suspension Sunscreen Windshield wiper, lower with washer AM/FM radio Air pre- lter Travel alarm Left foot switch Left pedal Straight travel pedal

UNDERCARRIAGE

Long FIX undercarriage:

600 mm (24") double grouser shoes 750 mm (28") triple grouser shoes 900 mm (35") triple grouser shoes 600 mm (24") double grouser shoes, PPR2 750 mm (28") triple grouser shoes, PPR2 900 mm (35") triple grouser shoes, PPR2

Long VG undercarriage:

600 mm (24") double grouser shoes, PPR2 750 mm (28") triple grouser shoes, PPR2 900 mm (35") triple grouser shoes, PPR2

Guard, full length for long FIX and

VGundercarriage Guard, heavy-duty bottom Center track guiding guard Segmented (3 piece) track guiding guard

forlong FIX and VG undercarriage Fabricating idler Casting idler

COUNTERWEIGHT

8.6 mt (9.4 t) with counterweight

removaldevice

9.0 mt (9.9 t)

FRONT LINKAGE

Bucket linkage, UB family without lifting eye Bucket linkage, TB family with lifting eye Heavy Duty 6.9 m (22'8") reach boom Heavy Duty R3.9TB 3900 mm (12'10") stick Heavy Duty R3.35TB 3350 mm (11'0") stick Mass 6.55 m (21'6") boom Mass M3.0UB 3000 mm (9'10") stick Mass M2.5UB 2500 mm (8'2") stick

LIGHTS

Working lights, cab mounted with time delay HID lights, cab mounted with time delay Halogen boom lights HID boom lights

SECURITY

FOGS, bolt-on Guard, cab front, mesh Guard, vandalism Cat MSS (anti-theft device) Rearview camera

TECHNOLOGY

Cat Grade Control Depth and Slope Product Link

30

Notes

31

349E L Hydraulic Excavator

For more complete information on Cat products, dealer services, and industry solutions, visit us on the web at www.cat.com

Materials and specications are subject to change without notice. Featured machines in photos may include additional equipment. See your Cat dealer for available options.

CAT, CATERPILLAR, SAFETY.CAT.COM, their respective logos, “Caterpillar Yellow” and the “Power Edge” trade dress, as well as corporate and product identity used herein, are trademarks of Caterpillar and may not be used without permission.

AEHQ6190 (03-2011)
