Specifications

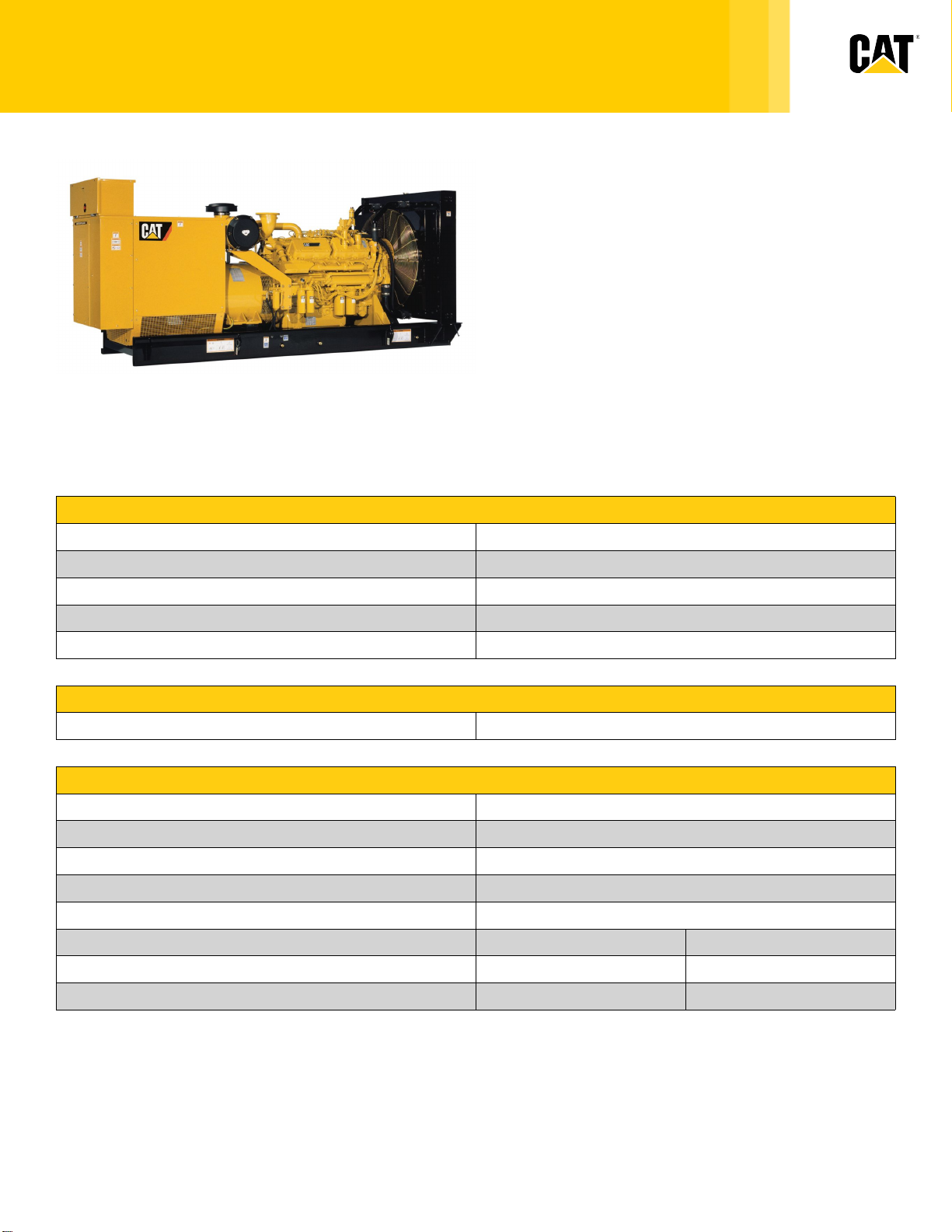

Generator Set Specifications
Minimum Rating
591 ekW (680 kVA)
Maximum Rating
800 ekW (900 kVA)
Voltage
208 to 600 Volts
Frequency
50 or 60 Hz
Speed
1500 or 1800 RPM
Generator Set Configurations
Emissions/Fuel Strategy
Low Fuel Consumption
Engine Specifications
Engine Model
3412C TA, V-12, 4-Stroke Water-Cooled Diesel
Compression Ratio
13:0:1
Aspiration
TA
Governor Type
ADEM™ A5
Fuel System
Pump and Lines
Bore
137.2 mm
5.4 in
Displacement
27.02 L
1648.86 in3
Stroke
152.4 mm
6 in
Caterpillar is leading the power generation marketplace
with Power Solutions engineered to deliver unmatched
flexibility, expandability, reliability, and cost-effectiveness.
Page: M-1 of M-5
© 2015 Caterpillar All Rights Reserved
MSS-EPG-18321546-002.pdf
3412C Generator Set
Electric Power
SS-7155583-18321546-002 SS Page 1 of 8
Page 2
Benefits And Features
Cat Diesel Engine
• Reliable, rugged, durable design
• Field-proven in thousands of applications worldwide
• Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with
minimum weight
Generator
• Matched to the performance and output characteristics of Cat engines
• Industry leading mechanical and electrical design
• Industry leading motor starting capabilities
• High Efficiency
Cat EMCP Control Panel
The EMCP controller features the reliability and durability you have come to expect from your Cat equipment.
EMCP4 is a scalable control platform designed to ensure reliable generator set operation, providing extensive
information about power output and engine operation. EMCP4 systems can be further customized to meet your
needs through programming and expansion modules.
Design Criteria
The generator set accepts 100% rated load in one step per NFPA 110 and meets ISO 8528-5 transient
response.
UL 2200 / CSA - Optional
• UL 2200 listed packages
• CSA Certified
• Certain restrictions may apply.
• Consult with your Cat® Dealer.
Single-Source Supplier
Fully prototype tested with certified torsional vibration analysis available
World Wide Product Support
Cat dealers provide extensive post-sale support including maintenance and repair agreements. Cat dealers have
RYHUGHDOHUEUDQFKVWRUHVRSHUDWLQJLQFRXQWULHV7KH&DWHUSLOODU6ವ2ವ6യSURJUDPFRVWHIIHFWLYHO\
detects internal engine component condition, even the presence of unwanted fluids and combustion by-products
Page: M-2 of M-5
© 2015 Caterpillar All Rights Reserved
MSS-EPG-18321546-002.pdf
3412C Generator Set
Electric Power
SS-7155583-18321546-002 SS Page 2 of 8
Page 3
Standard Equipment
Air Inlet
• Air Cleaner
Cooling
• Package mounted radiator
Exhaust
• Exhaust flange outlet
Fuel
• Primary fuel filter with integral water separator
• Secondary fuel filter
• Fuel priming pump
Generator
• Matched to the performance and output characteristics of Cat engines
• Load adjustment module provides engine relief upon load impact and improves load acceptance and
recovery time
• IP23 Protection
Power Termination
• Bus Bar
Control Panel
• EMCP 4 Genset Controller
General
• Paint - Caterpillar Yellow except rails and radiators gloss black
Optional Equipment
Exhaust
• Exhaust mufflers
Page: M-3 of M-5
© 2015 Caterpillar All Rights Reserved
MSS-EPG-18321546-002.pdf
3412C Generator Set
Electric Power
SS-7155583-18321546-002 SS Page 3 of 8
Page 4
Generator
• Anti-condensation heater
• Internal excitation (IE)
• Permanent magnet excitation (PMG)
• Oversize and premium generators
Power Termination
• Circuit breakers, UL listed
• Circuit breakers, IEC compliant
Control Panels
• EMCP 4.2
• EMCP 4.3
• EMCP 4.4
• Generator temperature monitoring & protection
• Load share module
• Digital I/O module
• Remote monitoring software
Mounting
• Rubber anti-vibration mounts
• Spring-type vibration isolator
• IBC isolators
Starting/Charging
• Battery chargers
• Oversize batteries
• Jacket water heater
• Heavy-duty starting system
• Charging alternator
• Air starting motor with control and silencer
General
• The following options are based on regional and product configuration:
• Seismic Certification per applicable building codes: IBC 2000, IBC 2003, IBC 2006, IBC 2009, CBC 2007
• UL 2200 package
• EU Certificate of Conformance (CE)
• CSA Certification
• EEC Declaration of Conformity
• Enclosures: sound attenuated, weather protective
• Automatic transfer switches (ATS)
• Integral & sub-base fuel tanks
• Integral & sub-base UL listed dual wall fuel tanks
Page: M-4 of M-5
© 2015 Caterpillar All Rights Reserved
MSS-EPG-18321546-002.pdf
3412C Generator Set
Electric Power
SS-7155583-18321546-002 SS Page 4 of 8
Page 5
The International System of Units (SI) is used in this publication. CAT, CATERPILLAR, their
respective logos, ADEM, EUI, S•O•S, "Caterpillar Yellow" and the "Power Edge" trade dress, as well
as corporate and product identity used herein, are trademarks of Caterpillar and may not be used
without permission.
Page: M-5 of M-5
© 2015 Caterpillar All Rights Reserved
MSS-EPG-18321546-002.pdf
3412C Generator Set
Electric Power
SS-7155583-18321546-002 SS Page 5 of 8
Page 6

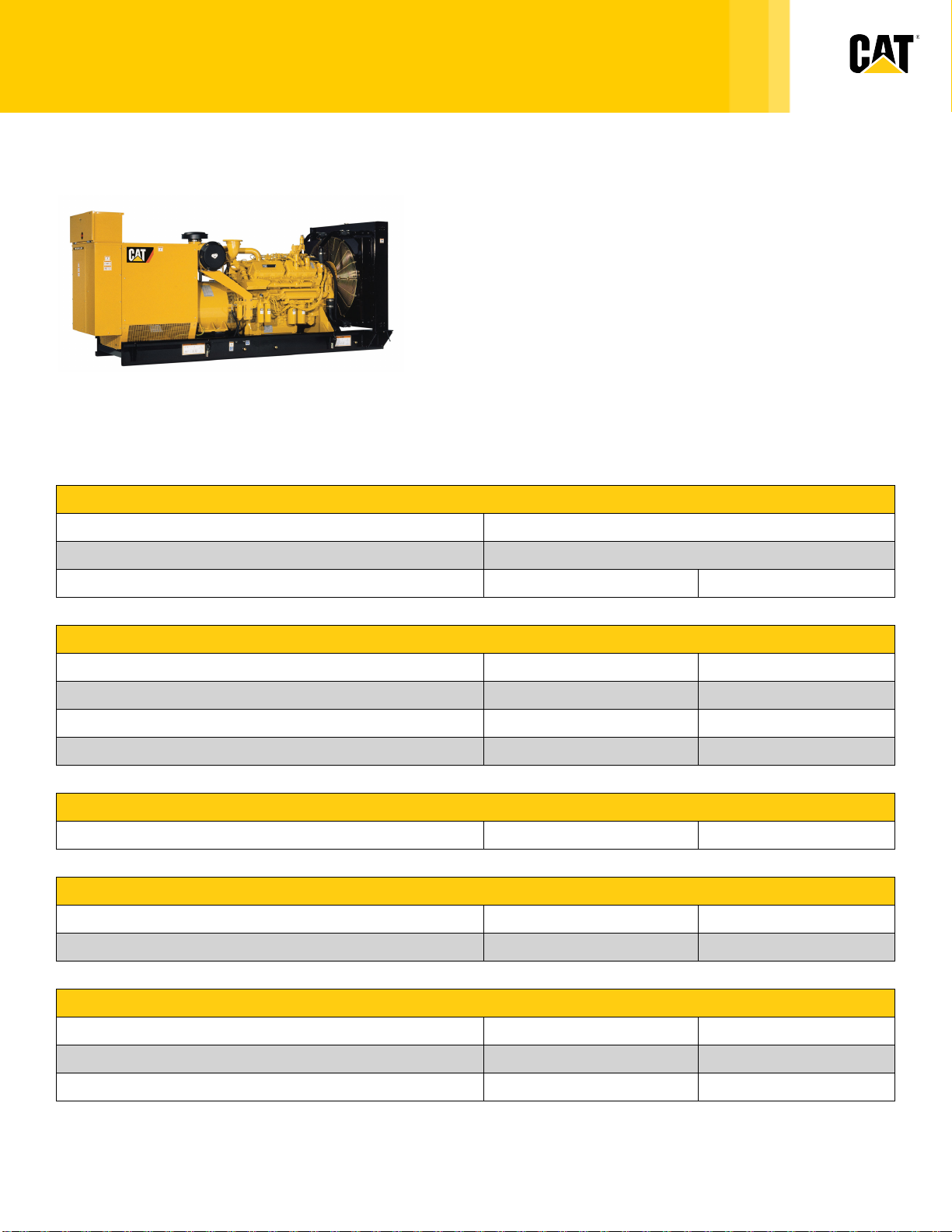

3412C
700 ekW/ 875 kVA
60 Hz/ 1800 rpm/ 480 V
Image shown may not reflect actual configuration
Metric
English
Package Performance
Genset Power Rating with Fan @ 0.8 Power Factor
700 ekW
Genset Power Rating
875 kVA
Aftercooler (Separate Circuit)
91.0 ° C
195.8 ° F
Fuel Consumption
100% Load with Fan
188.1 L/hr
49.7 gal/hr
75% Load with Fan
144.5 L/hr
38.2 gal/hr
50% Load with Fan
103.3 L/hr
27.3 gal/hr
25% Load with Fan
62.9 L/hr
16.6 gal/hr
Cooling System¹
Engine Coolant Capacity
58.6 L
15.5 gal
Inlet Air
Combustion Air Inlet Flow Rate
52.2 m³/min
1843.3 cfm
Max. Allowable Combustion Air Inlet Temp
91 ° C
195 ° F
Exhaust System
Exhaust Stack Gas Temperature
551.0 ° C
1023.8 ° F
Exhaust Gas Flow Rate
153.8 m³/min
5431.1 cfm
Exhaust System Backpressure (Maximum Allowable)
6.7 kPa
27.0 in. water
TSS-DM0634-04-GS-EPG-7155583.pdf
© 2016 Caterpillar All Rights Reserved
Page 1 of 3
ELECTRIC POWER - Technical Spec Sheet
STANDARD
3412C
700 ekW/ 875 kVA/ 60 Hz/ 1800 rpm/ 480 V/ 0.8 Power Factor
Rating Type: STANDBY
Fuel Strategy: LOW FUEL CONSUMPTION
SS-7155583-18321546-002 SS Page 6 of 8
Page 7
DEFINITIONS AND CONDITIONS
1. For ambient and altitude capabilities consult your Cat dealer. Air flow restriction (system) is added to existing
restriction from factory.
2. UL 2200 Listed packages may have oversized generators with a different temperature rise and motor starting
characteristics. Generator temperature rise is based on a 40° C ambient per NEMA MG1-32.
3. Emissions data measurement procedures are consistent with those described in EPA CFR 40 Part 89, Subpart D &
E and ISO8178-1 for measuring HC, CO, PM, NOx. Data shown is based on steady state operating conditions of
77° F, 28.42 in HG and number 2 diesel fuel with 35° API and LHV of 18,390 btu/lb. The nominal emissions data
shown is subject to instrumentation, measurement, facility and engine to engine variations. Emissions data is based
on 100% load and thus cannot be used to compare to EPA regulations which use values based on a weighted cycle.
Heat Rejection
Heat Rejection to Jacket Water
434 kW
24682 Btu/min
Heat Rejection to Exhaust (Total)
700 kW
39810 Btu/min
Heat Rejection to Aftercooler
71 kW
4061 Btu/min
Heat Rejection to Atmosphere from Engine
108 kW
6142 Btu/min
Heat Rejection to Atmosphere from Generator
31 kW
1746 Btu/min
Alternator²
Motor Starting Capability @ 30% Voltage Dip
1406 skVA
Current
1053 amps
Frame Size
595
Excitation
SE
Temperature Rise
130 ° C
Emissions (Nominal)³
NOx
3936.3 mg/Nm³
8.2 g/hp-hr
CO
321.6 mg/Nm³
0.7 g/hp-hr
HC
29.7 mg/Nm³
0.1 g/hp-hr
PM
45.2 mg/Nm³
0.1 g/hp-hr
TSS-DM0634-04-GS-EPG-7155583.pdf
© 2016 Caterpillar All Rights Reserved
Page 2 of 3
ELECTRIC POWER - Technical Spec Sheet
STANDARD
3412C
700 ekW/ 875 kVA/ 60 Hz/ 1800 rpm/ 480 V/ 0.8 Power Factor
Rating Type: STANDBY
Fuel Strategy: LOW FUEL CONSUMPTION
SS-7155583-18321546-002 SS Page 7 of 8
Page 8
Applicable Codes and Standards:
AS1359, CSA C22.2 No100-04, UL142,UL489, UL869, UL2200,
NFPA37, NFPA70, NFPA99, NFPA110, IBC, IEC60034-1, ISO3046, ISO8528,
NEMA MG1-22,NEMA MG1-33, 2006/95/EC, 2006/42/EC, 2004/108/EC.
Note: Codes may not be available in all model configurations. Please consult your local Cat Dealer representative for
availability.
Ratings are based on SAE J1349 standard conditions. These ratings also apply at ISO3046 standard conditions
Fuel Rates are based on fuel oil of 35º API [16º C (60º F)] gravity having an LHV of 42 780 kJ/kg (18,390 Btu/lb) when
used at 29º C (85º F) and weighing 838.9 g/liter (7.001 lbs/U.S. gal.). Additional ratings may be available for specific
customer requirements, contact your Cat representative for details. For information regarding Low Sulfur fuel and
Biodiesel capability, please consult your Cat dealer.
www.Cat-ElectricPower.com
STANDBY:Output available with varying load for the duration of the interruption of the normal source power. Average
power output is 70% of the standby power rating. Typical operation is 200 hours per year, with maximum expected usage
of 500 hours per year.
The International System of Units (SI) is used in this publication. CAT, CATERPILLAR, their respective
logos, ADEM, EUI, S•O•S, "Caterpillar Yellow" and the "Power Edge" trade dress, as well as corporate
and product identity used herein, are trademarks of Caterpillar and may not be used without permission.
Performance No.: DM0634-04
Feature Code: 412DEAB
Generator Arrangement: 1492439
Source Country: U.K.
Date: 07/04/2016
TSS-DM0634-04-GS-EPG-7155583.pdf
© 2016 Caterpillar All Rights Reserved
Page 3 of 3
ELECTRIC POWER - Technical Spec Sheet
STANDARD
3412C
700 ekW/ 875 kVA/ 60 Hz/ 1800 rpm/ 480 V/ 0.8 Power Factor
Rating Type: STANDBY
Fuel Strategy: LOW FUEL CONSUMPTION
SS-7155583-18321546-002 SS Page 8 of 8
