Casio Computer Co EXFR200CA Users Manual

Download

Digital Camera

User’s Guide

Thank you for purchasing this CASIO product.

• Before using it, be sure to read the precautions contained in this User’s Guide.

• Keep the User’s Guide in a safe place for future reference.

• For the most up-to-date information about this product, visit the official EXILIM Website at http://www.exilim.com/

Accessories

As you unpack your camera, check to make sure that all accessories shown below are included. If anything is missing, contact your original retailer.

Camera

(EX-FR200CA)

Lens cap

• The lens cap comes pre-attached to the camera.

Carabiner strap

Controller

(EX-FR200CT)

USB-AC adaptor

(AD-C53U)

Hinge Unit

• The hinge unit comes pre-attached to the camera.

Tripod nut

Power cord*

Micro USB cable Basic Reference

* The shape of the power cord plug varies according to the country or geographic

area where the camera is sold.

Read this first!

• The contents of this manual are subject to change without notice.

• The contents of this manual have been checked at each step of the production process. Feel free to contact us if you notice anything that is questionable, erroneous, etc.

• Any copying of the contents of this User’s Guide, either in part or its entirety, is forbidden. Except for your own personal use, any other use of the contents of this manual without the permission of CASIO COMPUTER CO., LTD. is forbidden under copyright laws.

• CASIO COMPUTER CO., LTD. shall not be held liable for any damages or lost profits suffered by you or any third party due to the use or malfunction of this product.

• CASIO COMPUTER CO., LTD. shall not be held liable for any damages, lost profits, or claims by third parties arising out of the use of the EXILIM Connect application software.

• CASIO COMPUTER CO., LTD. shall not be held liable for any damages or lost profits caused by loss of memory contents due to malfunction, repair, or any other reason.

• Note that the example screens and product illustrations shown in this User’s Guide may differ somewhat from the screens and configuration of the actual camera.

LCD Panel

The liquid crystal panel of the monitor screen uses high-precision technology that provides a pixel yield in excess of 99.99%. This means that some very small number of pixels may not light or may remain lit at all times. This is due to the characteristics of the liquid crystal panel, and does not indicate malfunction.

Take test shots

Before shooting your final image, shoot a test shot to ensure that the camera is recording correctly.

Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Read this first! . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

General Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Monitor Screen Contents and How to Change Them . . . . . . . . . . . . . . . . . . . . 9



Quick Start Basics 12

What you can do with your CASIO camera . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Using the Attachment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14



Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14



Hinge Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15



Tripod nut . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16



Carabiner Strap. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Using the Touch Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

First, charge the battery prior to use.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Turning Power On and Off. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Configuring Basic Settings the First Time You Turn On the Camera. . . . . . . . 28

Preparing a Memory Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30



Supported Memory Cards. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30



To load a memory card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31



To format (initialize) a new memory card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Shooting a Snapshot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33



Selecting the Dome View Recording Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33



To shoot a snapshot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Viewing Snapshots . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Deleting Snapshots and Movies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Snapshot Shooting Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37



Recording Images 38

To configure REC mode settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Selecting a Recording Mode and Shooting a Snapshot . . . . . . . . . . . . . . . . . 39



Shooting a 180° Area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . (Full View). . . 39



Shooting a Panorama Image . . . . . . . . . . . . . . . . . . . . . . . . . . (Panorama) . . . 40



Shooting a 4:3 Aspect Ratio Image . . . . . . . . . . . . . . . (Super Wide Angle). . . 41

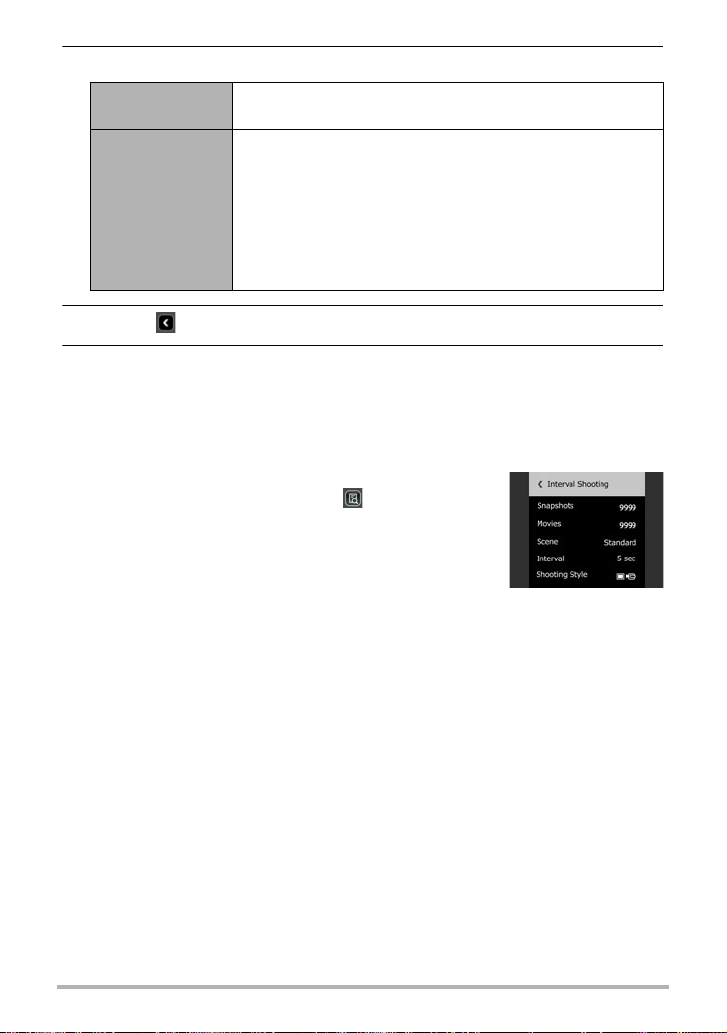

Shooting Scenes of an Activity at a Fixed Interval . . . . (Interval Shooting) . . 42

Shooting with Zoom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

To record a movie . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Contents



Advanced Recording Settings 49

Using the REC Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49



Shooting by Touching the Monitor Screen . . . . . . . . . . . . (Touch Shooting). . . 50



Movie Image Quality Settings . . . . . . . . . . . . . . . . . . . . . . .(Movie Quality) . . . 50



Reducing Blur Due to Camera Movement

During Movie Recording . . . . . . . . . . . . . . . . . . . . . . . .(Movie Anti Shake). . . 51



Shooting a Burst of Images . . . . . . . . . . . . . . . . . . . . . . . (High Speed CS). . . 52



Correcting Image Brightness . . . . . . . . . . . . . . . . . . . . . . . . . . (Brightness). . . 53



Adjusting White Balance . . . . . . . . . . . . . . . . . . . . . . . . . . (White Balance). . . 54



Specifying ISO Sensitivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .(ISO). . . 55



Self-shooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . (Mirror Image) . . . 56



Reducing Wind Noise during Movie Recording . . . . . . . . (Wind Noise Cut) . . . 56



Turning on Image Review . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .(Review) . . . 57



Saving an Additional Full View Version of an Image . . . . . . (Double Save). . . 57



Viewing Snapshots and Movies 58

Viewing Snapshots . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

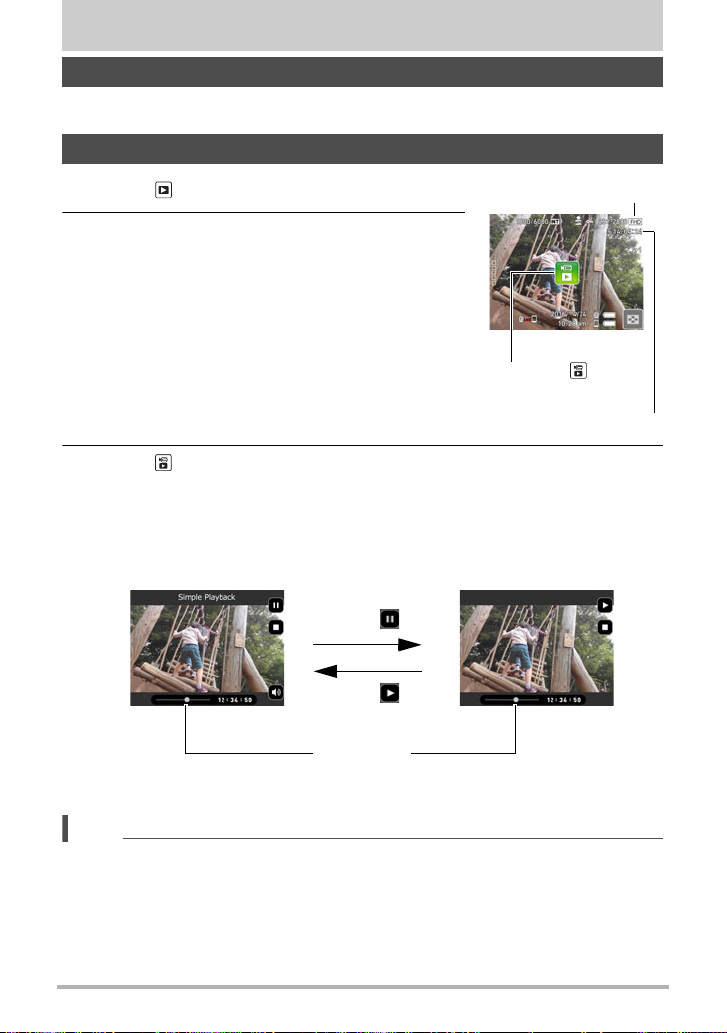

Viewing a Movie. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Viewing a Panorama Snapshot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Viewing the Image Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Zooming an On-screen Image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Creating a Time Lapse Movie . . . . . . . . . . . . . . . . . . . . . . . . (Time Lapse) . . 61



Other Playback Functions (PLAY) 63

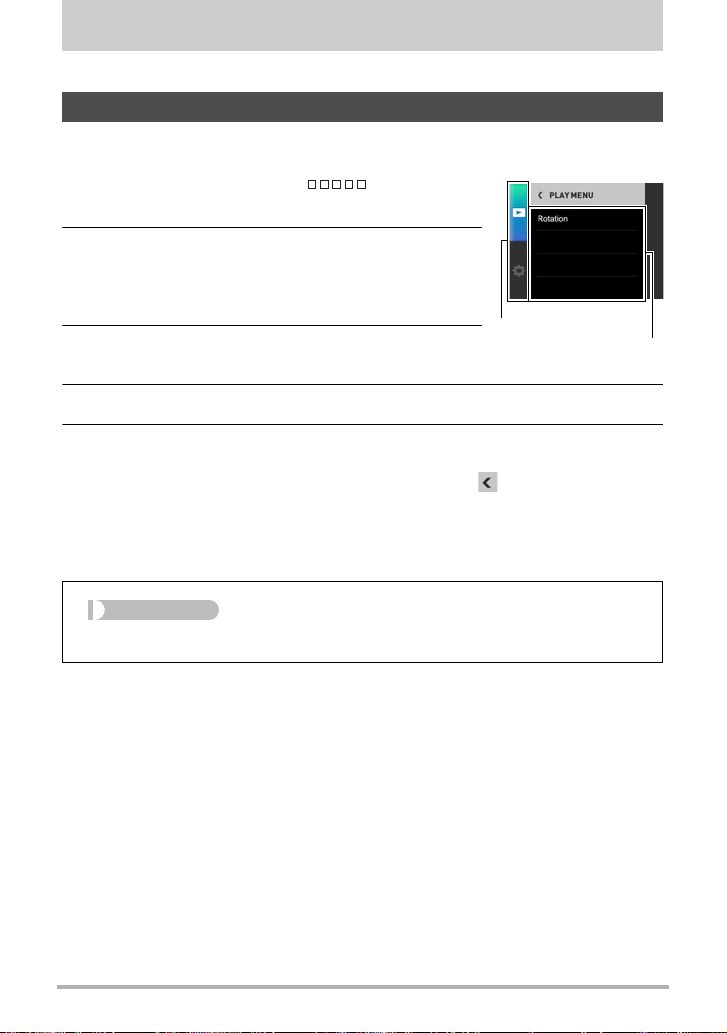

Using the PLAY Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63



Rotating an Image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . (Rotation). . . 64



Generating an Image from a Full View Image . . . . . . . . .(Generate Image). . . 65



Connecting the Camera with a Smartphone (Wireless Connection) 66

Controlling Your Camera with a Smartphone . . . . . . . . . . . . . . . . . . . . . . . . . 66

Using a Wireless Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Getting Ready to Establish a Connection between a Smartphone and Your

Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69



Installing the EXILIM Connect App on Your Smartphone . . . . . . . . . . . . . . . . . . 69



Establishing a Wireless Connection for the First Time . . . . . . . . . . . . . . . . . . . . 70

Using a Smartphone as a Camera Remote Controller (Shoot with phone) . . 72 Sending a Snapshot or Movie File from Camera Memory

to a Smartphone . . . . . . . . . . . . . . . . . . . . . . . . . . (Send Selected Image) . . 73

Viewing Snapshots and Movies in Camera Memory

on a Smartphone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . (View on phone) . . 74

Contents

Configuring Wireless Connection Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . 75



Having Images Shot with the Camera Sent

to a Smartphone Automatically . . . . . . . . . . . . . . . . . . . . . . . . (Auto Send) . . . 75



Specifying Images to be Sent by Auto Send . . . . (Auto Send File Settings). . . 76



Resizing Snapshots before Sending Them

to a Smartphone . . . . . . . . . . . . . . . . . . . . . . . . . . (Resize When Sending). . . 77



Changing the Camera Password

for Wireless LAN Connection . . . . . . . . . . . . . . . . . . . . . (WLAN password). . . 77



Unpairing the Camera from a Smartphone . . . . . . . . . . . . . . . . (Unpairing). . . 78



Using Two Cameras at the Same Time (Multi Camera Mode) 79

What you can do with two cameras . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

Preparing a Second Camera to be Registered on the Controller . . . . . . . . . . 80

Registering a Second Camera on the Controller . . . . . . . . . . . . . . . . . . . . . . . 80

Multi Camera Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Shooting with the Multi Camera Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85



Shooting with the Multi Image Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85



Shooting with the Single Image Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

Viewing Snapshots and Movies in the Multi Camera Mode. . . . . . . . . . . . . . . 90



Multi Image Screen Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90



Single Image Screen Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92



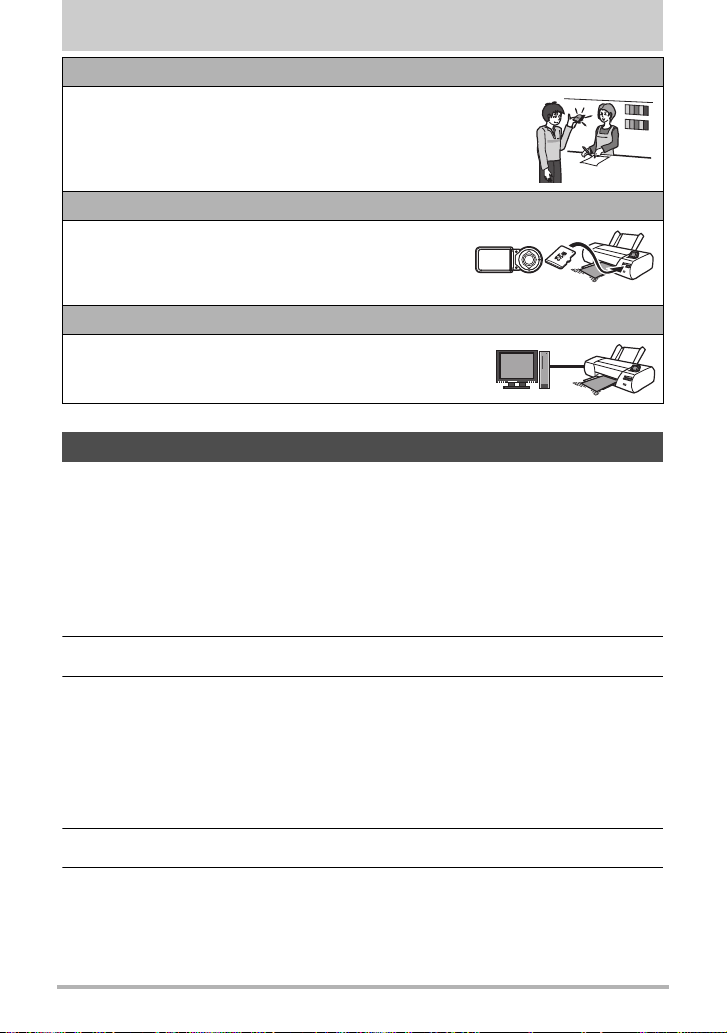

Printing 93

Printing with a Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93



Using the Camera with a Computer 94

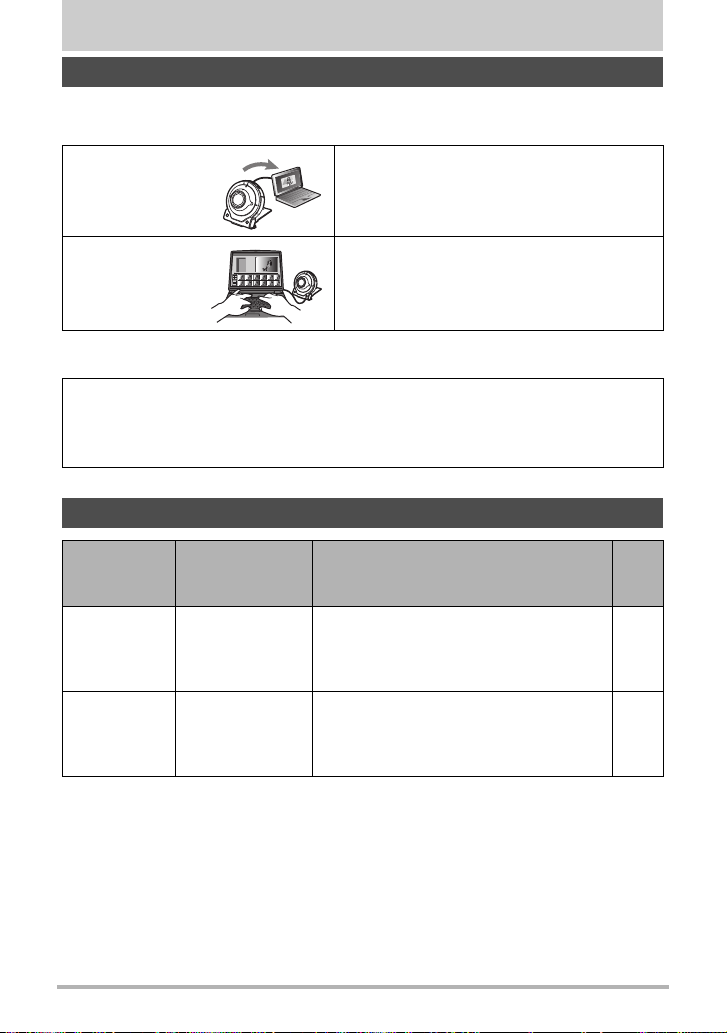

Things you can do using a computer... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

Using the Camera with a Windows Computer . . . . . . . . . . . . . . . . . . . . . . . . . 94



Viewing and Storing Images on a Computer. . . . . . . . . . . . . . . . . . . . . . . . . . . . 95



Playing Movies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97

Using the Camera with a Macintosh . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98



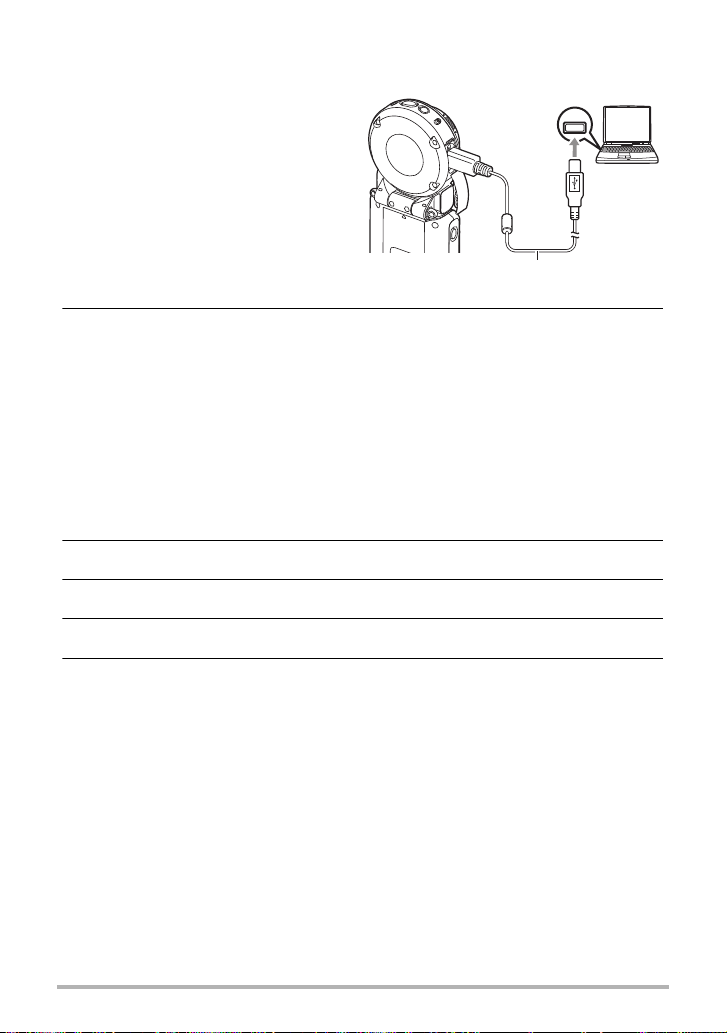

Connecting the Camera to Your Computer and Saving Files . . . . . . . . . . . . . . . 98



Playing a Movie. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100

Files and Folders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101

Memory Card Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102



Other Settings (Set Up) 103

Adjusting Monitor Screen Brightness . . . . . . . . . . . . . . . . . . . . . . (Screen) . 103

Selecting Display Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . (Info) . 103

Locking the Camera or Controller Screen Orientation . . . (Rotation Lock) . 104

Configuring Camera Sound Settings . . . . . . . . . . . . . . . (Camera Sound) . 104

Using the Vibration Function . . . . . . . . . . . . . . . . . . . . . . . . . . . (Vibration) . 105

Setting the Camera’s Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . (Adjust) . 105

Specifying the Date Style . . . . . . . . . . . . . . . . . . . . . . . . . . . . (Date Style) . 105

Contents

Specifying the Display Language . . . . . . . . . . . . . . . . . . . . . . (Language) . 106

Specifying the Controller Sleep State Trigger Time . . . . . . . . . . . . (Sleep) . 106

Formatting Built-in Memory or a Memory Card . . . . . . . . . . . . . . . (Format) . 107

Resetting the Camera to Factory Defaults . . . . . . . . . . . . . . . . . . . (Reset) . 107

Checking the Current Camera Firmware Version . . . . . . . . . . . . (Version) . 107

Registering a Second Camera . . . . . . . . . . . . . . . . . (Multi Camera Mode) . 108



Appendix 109

Safety Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109

Shock resistant, Splashproof, Dustproof . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116

Precautions During Use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120

Power Supply. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133



Charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133



Battery Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134



Using the Camera in another Country . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134

Disposing of the Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135

Using a Memory Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138

Reset Initial Default Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139

When things don’t go right... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141



Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141



Display Messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145

Number of Snapshots/Movie Recording Time . . . . . . . . . . . . . . . . . . . . . . . . 146

Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148

Contents

General Guide

cncocp cq

56758

Camera



[p] (Power) (page 26)



Memory card slot (page 31)



[RESET] button (page 141)



[CARD] cover (page 31)



Microphones (pages 17, 48)



Operation lamp (pages 20, 23)



Lens (page 17)



Wireless LAN connection lamp (page 71)



Shutter button (page 34)



[0] (Movie) (page 47)



Speaker



Cover lens*



[FREE] lever (page 15)



[USB] port (pages 19, 22)



[USB] cover (pages 19, 22)



Strap holes

Controller



[USB] cover (pages 19, 22)



[RELEASE] button (page 14)



[RESET] button (page 141)



[USB] port (pages 19, 22)



Carabiner strap attachment bar (page 17)



Strap holes



[0] (Movie) (page 47)



Shutter button (page 34)



Operation lamp (pages 20, 23)



[p] (Power) (page 26)



Hinge unit slot (page 14)

Camera Controller

Do not remove the cover lens. The camera is not water resistant or dust resistant when the cover lens is removed.

The numbers in parentheses indicate the pages where each item is explained.

br bs

9bk

bl bm bn

bo bp bq

bt ck

Monitor Screen Contents and How to Change Them

2 4 65 7 8



White Balance (page 54)

 

Digital zoom (page 46)



Auto Send (page 75)



Remaining movie memory capacity (page 146)



Remaining snapshot memory capacity (page 146)



Snapshot image size (page 146)



Movie quality (page 50)



Touch Shooting function (page 50)



Movie Anti Shake (page 51)



ISO sensitivity (page 55)



Brightness (page 53)



Date/Time (pages 28, 105)



Camera battery level indicator (page 25)



Controller battery level indicator (page 25)



Communication status between camera and controller (page 27)



PLAY mode icon (page 28)



“ ” (Show Icons) icon



Interval Shooting icon (page 42)



Wireless mode icon (page 68)



Recording mode icon (page 39)



Menu icon (page 49)

The monitor screen uses various indicators, icons, and values to keep you informed of the camera’s status.

• The sample screens in this section are intended to show you the locations of all the indicators and figures that can appear on the monitor screen in various modes. They do not represent screens that actually appear on the camera.

. Snapshot Recording

. Movie Recording

NOTE

21 3

bs ck bt

543 6

bqbr bp bo

bk bl bm bn



Current image number/total number of grouped images (pages 42, 52)



Group images (High Speed CS (page 52), Interval Shooting (page 42))



Auto Send (page 75)



Protect indicator



Folder name-file name (page 101)



Snapshot image size (page 146)

  

White Balance (page 54)



ISO sensitivity (page 55)



Brightness (page 53)



Shutter speed



Image menu icon (p

age 60)



Camera battery level indicator (page 25)



Controller battery level indicator (page 25)



Date/time (pages 28, 105)



Communication status between camera and controller (page 27)



“ ” (Show Icons) icon



REC mode icon (page 28)



Delete icon (page 36)



Wireless mode icon (pages 68, 74)



Time Lapse icon (page 61)



Menu icon (page 63)



Movie quality (



Movie recording time (page 47)



• If you do not perform any operation for about three seconds during snapshot recording or movie recording, icons will become transparent.

. Snapshot Viewing

page 50)

NOTE

• The folder name and file name in the upper right corner of the monitor screen has

NOTE

1 2

the meaning described below (page 101). Example: 100-0023: 23rd image file in the folder named “100CASIO”.

. Movie Playback

Movie recording time (page 58)



Movie quality (pages 47, 50)

 

Image menu ico



Date/time (pages 28, 105)



“”

Movie play ico



“ ” (Show Icons) icon



• If you do not perform any operation for about three seconds during snapshot viewing or movie playback, icons will become transparent.

n (page 60)

n (page 58)

Quick Start Basics

*See page 39 for more information.

*See page 14 for more information.

*See page 42 for more information.

What you can do with your CASIO camera

Your CASIO camera is packed with a powerful selection of features and functions to make recording of digital images easier, including the following main functions.

. Shooting

Shoot without worrying about the angle of view

The camera is equipped with a 185° fisheye lens, which lets you capture the entire scene before you with a single shot.

A variety of shooting styles

The camera connects to the controller using Bluetooth® wireless technology (Bluetooth). You can hang it from your neck, mount it on a tripod, and select the shooting style that suits current conditions.

Interval Shooting

Shoot snapshots and/or movies at fixed intervals. It’s a great way to chronicle an activities or changes over time.

Quick Start Basics

. Viewing

*See page 61 for more information.

*See page 66 for more information.

*See page 79 for more information.

Time Lapse

Creates a movie of snapshots you shot.

. Sharing

Wireless Connection

Turns your smartphone into a camera remote controller and allows you to select one or more snapshot and/or movie file in camera memory and send a copy to a smartphone.

. Simultaneous Use of Two Cameras

Multi Camera Mode

You can register two cameras on the controller and operate them both at the same time or individually.

Quick Start Basics

IMPORTANT!

Using the Attachment

Hinge unit slot

Align the 2 mark on the end of the hinge unit with the 8 mark next to the hinge unit slot.

[RELEASE] button

You can configure the camera to suit your specific needs by attaching the hinge unit, which enables attachment of the controller, and other included and optionally available attachments. This way you can configure the camera to suit your specific needs.

• Do not apply strong pressure to the surface of the monitor screen. Doing so can damage it.

• Never touch the lens with your fingers. Finger smudges, dirt, and other foreign matter on the lens can interfere with proper operation of the camera. Use a blower or other means to keep the lens and flash window free of dirt and dust, and wipe gently with a soft, dry cloth.

Controller

You can attach the controller to the camera and use the camera as a normal camera.

. To attach the controller

1. With the camera lens pointed in the

same direction as the controller’s monitor screen, slide the hinge unit into the controller’s hinge unit slot.

2. Push the hinge unit in until you hear it

click into place.

. To detach the controller

1. While holding down the controller’s

[RELEASE] button, pull it out of the camera.

Quick Start Basics

Hinge Unit

[FREE] lever

Microphones

[FREE] lever

. To use the hinge unit as a stand

. To change the shooting direction by 90 degrees

1. While pulling down on the camera’s [FREE]

lever, rotate the camera clockwise 90 degrees until you hear a click.

• Align the A mark with the B mark on the hinge unit.

• The positions on the microphones indicate the orientation of the image to be shot (landscape, in this case).

. To remove the hinge unit from the camera

1. While pulling down on the camera’s [FREE]

lever, rotate the camera counterclockwise about 15 degrees until the A mark is aligned with the C mark on the hinge unit.

Quick Start Basics

2. Remove the hinge unit from the camera.

Tripod (commercially available)

Tripod nut

. To attach the hinge unit to the camera

1. Align the A mark with the C mark on the hinge

unit.

2. Rotate the camera clockwise about

15 degrees until the A mark is aligned with the D mark on the hinge unit.

Tripod nut

1. Use the tripod nut to secure a tripod

(commercially available) to the hinge unit.

Quick Start Basics

IMPORTANT!

NOTE

Carabiner Strap

flap

Microphones

Lens

1. Pass the carabiner strap belt around

the controller’s carabiner strap attachment bar.

2. Pass the belt through the buckle to

secure it.

Pull on the belt until the belt flap is passed all the way through the buckle.

3. Hook the flap on the buckle.

4. Pull on the carabiner and controller to confirm that

the flap is hooked on the buckle and is secure.

• The carabiner strap is not intended for mountain climbing use. It is designed only to support the camera.

• When shooting hold the camera still. Carefully press the shutter button and take care to avoid all movement as the shutter releases and for a few moments after it releases.

• Take care that your fingers and the strap do not cover any of the areas indicated in the illustration.

• Never swing the camera around by its strap.

• The supplied strap is intended for use with this camera only. Never use it for any other purpose.

Quick Start Basics

Using the Touch Panel

Monitor Screen

The monitor screen of the camera is a touch panel. This means you can perform the following operations by touching the screen with your fingers.

Touch

Momentarily touching the screen with your finger. Touch the screen to select an icon or menu item, and to configure settings.

Flick

Holding your finger against the screen as you flick it up, down, left, or right. Use flick to scroll forward through images.

Spread

Holding your thumb and forefinger against the screen as you spread them out. Use spread to enlarge the screen image.

Squeeze

Holding your thumb and forefinger against the screen as you bring them together. Use squeeze to reduce the size of the screen image, and to display multiple images.

IMPORTANT!

• Never use a pointed or hard object to perform screen operations. Doing so can damage the screen.

• The camera will have a hard time interpreting a screen operation made using your fingernails. Use the fleshy pad of your finger.

Quick Start Basics

NOTE

• Applying a commercially available LCD protective sheet will reduce the operation

NOTE

USB-AC adaptor

(AD-C53U)

When plugging in the connectors, orient this marking as described below. Camera : Towards the lens side Controller: Towards the monitor screen side

[USB] port

Micro USB cable (included with camera)

Power cord

[USB] cover

sensitivity of the monitor screen.

First, charge the battery prior to use.

The camera and the controller each have a built-in rechargeable lithium ion battery. The batteries are not charged when you purchase the camera, so you will need to charge both the camera and controller before using them. You can use either of the two following methods to charge the batteries.

• USB-AC adaptor

• USB connection to a computer (Using the included micro USB cable.)

. To charge with the USB-AC adaptor

While the camera and controller are turned off, connect in the sequence shown below. Charging time

: Camera: Approximately 2 hours 15 minutes

Controller: Approximately 2 hours 55 minutes

• When disconnecting the USB-AC adaptor from the camera or controller, be sure to disconnect from them first.

• If you turn on the camera or controller while charging with the USB-AC adaptor, you will be able to perform normal recording operations. In this case, however, charging of the camera will be stopped while it is turned on.

Quick Start Basics

. Operation Lamp Indications

While power is off

Operation Lamp Status Meaning

Lit red Charging

Charging stopped due to abnormal internal

Flashing red

temperature, USB-AC adaptor problem, battery problem (page 133), timer operation.

Unlit Charging complete

While power is on

•Camera

Operation Lamp Status

Lit green

Slow red-amber flashing

Meaning

Camera turned on

Charging stopped

Charging

Charging stopped due to abnormal High speed red-green flashing

In sleep state

internal temperature, USB-AC adaptor

problem, battery problem (page 133),

timer operation.

Slow green flashing Charging complete

•Controller

Operation Lamp Status Meaning

Lit red Charging

Slow red-amber flashing Charging (sleep state)

High-speed green-amber flashing

Charging stopped due to abnormal internal temperature, USB-AC adaptor problem, battery problem (page 133), timer operation.

High-speed red-green flashing Same as above (sleep state)

Lit green Charging complete

Slow green flashing Charging complete (sleep state)

Quick Start Basics

IMPORTANT!

Camera

Controller

• A battery that has not been used for a long time and/or ambient temperature can cause charging to take longer than normal. These conditions may also cause the operation lamp to flash red. If this happens, refer to page 133.

• The USB-AC adaptor will become warm during charging. This is normal and does not indicate malfunction.

• The shape of the power plug depends on each country or geographic area.

If the operation lamp is not lit or flashing during charging, check the orientation of the USB cable connectors.

• Make sure that you insert the cable connector into the USB port until you feel it click securely into place. Failure to insert the connector fully can result in poor communication or malfunction.

• Note that even while the connector is fully inserted, you still will be able to see the metal part of the connector as shown in the illustration.

Quick Start Basics

. To charge using a USB connection to a computer

NOTE

USB

Micro USB cable

(included with camera)

[USB] port

USB port

Computer

(power turned on)

When plugging in the connectors, orient this marking as described below. Camera : Towards the lens side Controller: Towards the monitor screen side

[USB] cover

While the camera and controller are turned off, connect in the sequence shown below

(

, 

• If the camera or controller is on, hold down [p] (power) for about two seconds to turn it off before connecting to the computer. Charging time

• If you turn on the camera while charging over a USB connection to a computer is in progress, the camera will establish a USB connection with the computer. Charging will continue. Charging will also continue if you turn on the controller. Note that certain types of computers or connection environments may stop charging if supply power is low.

: Camera: Approximately 2 hours 15 minutes

Controller: Approximately 2 hours 55 minutes

Quick Start Basics

. Operation Lamp Indications

While power is off

Operation Lamp Status Meaning

Lit red Charging

Charging stopped due to abnormal internal

Flashing red

temperature, USB-AC adaptor problem, battery problem (page 133), timer operation.

Unlit Charging complete

While power is on

•Camera

Operation Lamp Status Meaning

Lit amber Charging

Charging stopped due to abnormal internal

High speed red-green flashing

temperature, USB-AC adaptor problem, battery problem (page 133), timer operation.

Lit green Charging complete

•Controller

Operation Lamp Status Meaning

Lit amber Charging

Slow red-amber flashing Charging (sleep state)

High-speed green-amber flashing

Charging stopped due to abnormal internal temperature, USB-AC adaptor problem, battery problem (page 133), timer operation.

High-speed red-green flashing Same as above (sleep state)

Lit green Charging complete

Slow green flashing Charging complete (sleep state)

Quick Start Basics

IMPORTANT!

• The first time you connect the camera or controller to your computer with the USB cable, an error message may appear on your computer. If this happens, disconnect and then reconnect the USB cable.

• A battery that has not been used for a long time, certain types of computers, and connection conditions can cause charging to take longer than normal. These conditions may also cause the operation lamp to flash red. If this happens, refer to page 141.

• For faster charging, use of the supplied USB-AC adaptor is recommended.

• Charging is not performed while the connected computer is in the hibernate mode.

Other Charging Precautions

• With the two charging methods described above, you can charge the batteries. Never use any other type of charger device. Attempting to use a different charger can result in unexpected accident.

• This model can be charged only via from USB 2.0 specification USB port.

• USB charging devices and power supply devices are subject to fixed standards. Use of an inferior device or a device that is not up to standard can cause malfunction and/or failure of your camera.

• Operation is not guaranteed in the case of a computer built or modified by you. Even in the case of a commercially available computer, certain USB port specifications may make it impossible to charge via the USB cable.

• A battery that is still warm immediately after normal use may not charge fully. Give the battery time to cool before charging it.

• A battery discharges slightly while it is loaded in the camera or controller. Because of this, it is recommended that you charge the battery immediately before you need to use it.

• Charging the battery may cause interference with TV and radio reception. If this happens, plug the USB-AC adaptor into an outlet that is further away from the TV or radio.

• Actual charging time depends on current battery capacity and charging conditions.

• Do not use the USB-AC adaptor with any other device.

• Never use the power cord with another device.

• Use only the USB-AC adaptor and USB cable specified in this manual for charging. Use of any other type of devices may result in improper charging.

Quick Start Basics

Checking the Current Battery Level

As battery power is consumed, a battery indicator on the monitor screen indicates its current level as shown below.

Level High Low

Battery Indicator

Camera

Controller

***

Indicator Color White * White * Red * Red

indicates battery power is low. Charge the battery as soon as possible. indicates that the battery is about to go dead. Charge the battery immediately.

• The level shown by the battery indicator may change when you switch between the REC mode and PLAY mode.

• Leaving the camera for about 8 days with no power supplied while the battery is dead will cause its date and time settings to be cleared. A message telling you to configure time and date settings will appear the next time you turn on the camera after restoring power. When this happens, configure date and time settings (page

105).

• See page 150 for information about battery life and number of shots.

Quick Start Basics

IMPORTANT!

Turning Power On and Off

[p] (Power)

Operation lamp

[p] (Power)

Operation lamp

. Camera-Controller Wireless Connection (Bluetooth)

The camera and controller communicate over a Bluetooth wireless technology connection. Once you perform the “pairing” operation required for Bluetooth wireless technology connection, the camera and controller will automatically connect to each other whenever you turn them on. Note that the connection will be lost when the distance between the camera and controller becomes too great. The controller will turn off after a preset amount of time after the Bluetooth wireless technology connection is lost. The camera will remain on, so you can shoot images by pressing its shutter button.

• Your camera has Bluetooth wireless technology communication functionality built in. Avoid operating the camera (including camera standalone operations) inside of aircraft or anywhere else where wireless data communication is restricted.

. To turn on power

Both the camera and controller need to be turned on in order to use them.

Camera

Press [p] (Power).

• Turning on the camera causes the camera and controller operation lamps to light green, and automatically starts an operation to establish a Bluetooth wireless technology connection between the camera and controller. An image appears on the controller and shooting is enabled.

• The connection between the camera and controller is affected by their orientation and by the distance between them.

Controller

Press [p] (Power).

Quick Start Basics

• The maximum range for shooting with the controller’s shutter button is around 10 meters (32.8'). The maximum range for viewing the image on the controller’s monitor screen is around five meters (16.4').

• If the connection is poor, the controller operation lamp will flash green and “ ” (Communication status between camera and controller) will appear on the monitor screen. Camera response may be slow if you perform an operation on the controller while communication conditions are bad. If this happens, try adjusting the orientation and the distance between the camera and controller.

• Note the precautions below to ensure stable communication between the camera and controller. – Make sure nothing is blocking the gray areas

as shown in the illustrations.

– Point the back of the controller at the

camera.

– Make sure there are no obstacles in the path

between the camera and controller.

Sleep Mode

If you press [p] (Power) on the controller or if you do not perform any controller operation for the time specified by the “Sleep” setting on the Setup menu (page 106) while there is a Bluetooth wireless technology connection between the camera and controller, the camera and controller will enter a sleep state. The operation lamp slowly flashes green while the camera is in the sleep mode. To restore the controller display, press any controller button. A low-power Bluetooth wireless technology connection between the camera and controller is maintained even while they are in the sleep mode, so operation is quickly enabled when you are ready to use the camera and controller.

• If the distance between the camera and controller becomes to great or if communication conditions become bad while the camera is in the sleep mode, the connection may be dropped between them.

Quick Start Basics

Toggling Between the REC Mode and PLAY Mode

IMPORTANT!

“”

(Show Icons)

Screen after “ ”

(Show Icons) is touched

“ ” (PLAY) / “ ” (REC)

In the REC mode, touch “ ” (PLAY).

• If “ ” (PLAY) is not displayed on

To enter the PLAY mode

To enter the REC mode

the screen, you can touching the Review image (page 57), or switch to the PLAY mode by touching “ ” (Show Icons) and then touching “ ” (PLAY).

In the PLAY mode, touch “ ” (Show Icons). On the screen image that appears, touch “ ” (REC).

. To turn off power

On both the camera and the controller, hold down [p] (Power) for about two seconds.

• Turning off the camera will cause the controller to turn off automatically.

• The camera will emit a sound when the camera is turned off. The camera turns off when the power down process is complete.

Configuring Basic Settings the First Time You Turn On the Camera

The first time you turn on the camera, a screen appears for configuring the display language, date, and time settings. Failure to set the date and time correctly will cause the wrong date and time data to be recorded with images.

• Camera models sold in certain geographic areas may not support display language selection.

1. Turn on the camera and controller (page 26).

• If this is the first time you are turning on power, a language selection screen will appear. If the screen does not appear, check to make sure that the camera is turned on.

2. Flick (page 18) the controller screen upwards and downwards or touch

“ ”, “ ” until you find the language you want, and then touch to select it.

Quick Start Basics

3. Touch the date display format you want.

NOTE

12/24 hour switch icon

Example: July 10, 2017 YY/MM/DD DD/MM/YY MM/DD/YY

* 17/7/10 * 10/7/17 * 7/10/17

4. Set the date and the time.

• Touch the value you want to change (year, month, day, hour, minute) and then touch “ ”, “ ” to change it.

• To switch between 12-hour and 24-hour format, select “am (pm)”/“24h” and then touch “ ”, “ ” to change the setting.

5. When the date and time settings are the way

you want, touch “OK”.

If you make a mistake configuring display language, date, or time settings with the above procedure, refer to the following pages for information about how to correct the settings.

– Display language: Page 106 – Date and time: Page 105

• Each country controls its local time offset and the use of summer time, and so they are subject to change.

Quick Start Basics

Preparing a Memory Card

Though the camera has built-in memory that can be used to store images and movies, you probably will want to purchase a commercially available memory card for greater capacity. The camera does not come with a memory card. Images recorded while a memory card is loaded are saved to the memory card. When no memory card is loaded, images are saved to built-in memory.

• Snapshots and movies stored in built-in memory cannot be copied to a memory card.

• For information about memory capacities, see page 146.

Supported Memory Cards

– microSD Memory Card – microSDHC Memory Card – microSDXC Memory Card

• The above are supported memory card types as of March

2016.

• This camera supports use of microSD memory cards of the following types and capacities: microSD memory cards up to 2GB; microSDHC memory cards greater than 2GB, up to 32GB; microSDXC memory cards greater than 32GB, up to 2TB. Note that the ability to use any particular card with this camera, even if it satisfies the above capacity and type requirements, is not guaranteed.

Warning!

0 Memory cards are small and present a risk of accidentally being swallowed

by infants and young children. Keep memory cards out of the reach of infants and young children. If a memory card is ever swallowed accidentally, contact a physician immediately.

. Memory Card Handling Precautions

Certain types of memory cards can slow down processing speeds. In particular, highquality movies may not be able to be stored correctly. A slow memory card can take too much time to record data and result in breaks in the image and/or audio during playback.

Quick Start Basics

To load a memory card

Back

Front Back

1. On the camera, hold down [p]

(Power) for about two seconds to turn off power, and then open the [CARD] cover.

2. Load a memory card.

Positioning the memory card so its back is facing upwards (towards the lens side of the camera), slide it into the card slot all the way in until you hear it click securely into place.

3. Close the [CARD] cover.

IMPORTANT!

• Never insert anything besides a supported memory card (page 30) into the memory card slot.

• Should water or any foreign object ever get into the card slot, immediately turn off the camera, and contact your retailer or nearest CASIO authorized service center.

Quick Start Basics

. To replace the memory card

IMPORTANT!

Press the memory card and then release it. This will cause it to pop out of the memory card slot slightly. Pull the card out the rest of the way and then insert another one.

• Turn off the camera before replacing the memory card. Replacing the card while the camera is on can result in recorded images not being saved and even damage the memory card.

To format (initialize) a new memory card

Format a memory card on the camera before using it for the first time.

• Formatting a memory card that already has snapshots or other files on it, will delete its contents. Normally you do not need to format a memory card again. However, if storing to a card has slowed down or if you notice any other abnormality, re-format the card.

• Be sure to use the camera to format a memory card. Formatting a card on a computer will result in a non-SD standard format, which can greatly slow down processing time and cause compatibility, performance, and other problems.

1. Load a memory card (page 31).

2. Turn on the camera and controller, and then touch “ ” (Show

Icons).

3. Touch “MENU”.

4. Touch the “¥ Setup” tab.

5. Flick upwards and downwards until you find “Format”, and then touch

it.

6. Touch “Format” and then touch “Yes”.

This starts the memory card format operation.

Quick Start Basics

Shooting a Snapshot

Recording mode icon

Your camera has a variety of different recording modes to suit various shooting conditions and objectives (page 39). This section explains how to use the Dome View recording mode.

Selecting the Dome View Recording Mode

This mode shoots a domed image that covers a much wider area than a conventional camera. The recorded image has a round shape.

1. Turn on the camera and controller (page 26).

This causes the camera and controller to start up on the REC mode.

2. Touch “ ” (Show Icons).

3. Touch the second icon from the top (second

icon from the right in the case of portrait display orientation) (Recording mode).

4. Touch “Full View”.

Quick Start Basics

NOTE

To shoot a snapshot

Shutter button

Camera

Controller

[0] (Movie)

Shutter button

Operation lamp

1. Point the camera at the subject.

2. Press the camera or controller shutter button.

The camera will automatically adjust exposure and focus, and then shoot the snapshot.

• Normally, shooting a snapshot will cause the operation lamp to flash red once. The camera will automatically put the entire image in focus, and then shoot the snapshot.

Shooting a Movie

Press [0] (Movie) on the camera or controller to start movie recording. To stop movie recording, press [0] (Movie) again. See page 47 for details.

• You also touch a location on the screen to focus on it, and then shoot the image (page 50).

• With this mode, the image size is fixed at 15M

3888).

(3888

• The operation lamp flashes red while movie recording is in progress.

. Shooting with the Camera Alone

You can use the camera in a stand-alone configuration without turning on the controller or otherwise establishing a connection between it and the camera.

• If an Interval Shooting (page 42) operation or movie recording (page 47) is in progress, it will continue to shoot images even when controller power is turned off.

Quick Start Basics

NOTE

Viewing Snapshots

“” (PLAY)

Use the following procedure to view snapshots on the camera’s monitor screen.

• For information about how to play back movies, see page 58.

1. Touch “ ” (PLAY) to enter the PLAY mode.

This will display one of the snapshots currently stored in memory.

• You can also enter the PLAY mode by touching the review image screen (page 57).

• Information about the displayed snapshot also is included (page 10).

• You also can clear the information to view only the snapshot (page 103).

• You can zoom the screen image by touching the monitor screen (page 60). If you are recording a snapshot that is very important to you, it is recommended that you zoom the image and check its details after recording it.

2. Flick left or right across the screen image to scroll through the

snapshots.

• Pressing the controller shutter button while in the PLAY mode or while a menu screen is displayed will switch directly to the REC mode.

• A question mark (?) will be displayed for images that cannot be displayed for some reason.

Quick Start Basics

Deleting Snapshots and Movies

If memory becomes full, you can delete snapshots and movies you no longer need in order to free up storage and record more images.

IMPORTANT!

• Remember that a file (image) delete operation cannot be undone.

. To delete a single file

1. Enter the PLAY mode.

2. Touch “ ” (Show Icons).

3. Touch “ ”.

4. Touch “Delete 1 File”.

5. Flick the screen the left or right to scroll through

images until the one you want to delete is displayed.

6. Touch “ ” (Delete).

This will delete the selected image.

. To delete all files

1. Enter the PLAY mode.

2. Touch “ ” (Show Icons).

3. Touch “ ”.

4. Touch “Delete All Files”.

5. Touch “Delete”.

This will cause the message “There are no files.” to appear.

Quick Start Basics

Snapshot Shooting Precautions

Operation

• If unwanted light is shining onto the lens, shade the lens with your hand when shooting an image.

Monitor Screen when Shooting Snapshots

• Subject brightness conditions can cause monitor screen response to slow and can cause digital noise in the monitor screen image.

• The image that appears on the monitor screen is for image composition. The actual image will be recorded in accordance with the currently selected recording mode (page 39).

Shooting Indoors under Fluorescent Lighting

• Minute flickering of fluorescent lighting can affect the brightness or color of an image.

Other Precautions

• A noise reduction process is performed when ISO sensitivity is set to a high value. This can cause the camera to take relatively longer to be ready to shoot again after you press the shutter button. Do not perform any operation while the image recording operation is in progress.

• Due to the characteristics of the imaging element used by the camera, very fast moving objects in an image may appear distorted.

Quick Start Basics

Recording Images

[p] (Power)

Touching the monitor screen in the REC mode will display a screen for configuring REC mode settings.

To configure REC mode settings

1. Press [p] (Power) to turn on the camera and enter the REC mode.

• If the camera is in the PLAY mode, touch “ ” (REC) to enter the REC mode.

2. Touch “ ” (Show Icons).

3. Touch the item whose setting you want to change.

Menu (page 49)*



Recording mode (page 39)



Wireless mode (page 68)



Interval Shooting mode (page 42)



PLAY mode (page 28)



1 2 3 4 5

* Depending on the recording mode, some of the items on the menu that

appears may not be usable.

Recording Images

Selecting a Recording Mode and Shooting a Snapshot

Recording mode icon

185°

The camera has a variety of different recording modes.

1. In the REC mode, touch the “ ” (Show

Icons).

2. Touch the recording mode icon.

3. Touch the icon of the recording mode you want

to use.

This enters the selected recording mode.

• Touching “< >” will display a detailed explanation about each mode. Flick upwards or downwards on the monitor screen to scroll through modes. When the one you want is displayed, touch its icon.

Full View

Panorama

Super Wide Angle

Shooting a 180° Area (Full View)

Use the procedure in this section to record the entire scene being picked up by the lens. Images shot with this function are 3888 to 1:1.

Records the entire scene being picked up by the lens (page 39).

Pressing the shutter button while the camera is aimed upwards records a 360° panorama image (page 40).

Records an image produced by cropping the center (4:3 aspect ratio) of the scene being picked up by the lens (page 41).

3888 in size, and have an aspect ratio

1. Select “< >” (Full View) as the recording mode.

2. Press the shutter button.

This records the snapshot.

Recording Images

Shooting a Panorama Image (Panorama)

You can use the procedure below to shoot a 360° panorama image without moving the camera. This is done by expanding a Full View image with the center of the lens as a reference point. The size of the recorded image is 7456

1994.

1. Select “< >” (Panorama) as the recording mode.

2. Point the camera upwards.

The screen will show part of the final expanded panorama image.

3. Flick the monitor screen to scroll through the panorama images until

the one you want to appear at the far left is displayed.

4. Press the shutter button.

This records the snapshot.

Recording Images

Shooting a 4:3 Aspect Ratio Image (Super Wide Angle)

Use the procedure below to record an image produced by cropping the center (4:3 aspect ratio) of the scene being picked up by the lens. The size of the recorded image

is 3232

2424.

1. Select “< >” (Super Wide Angle) as the recording mode.

2. Press the shutter button.

This records the snapshot.

Recording Images

Shooting Scenes of an Activity at a Fixed Interval

Interval Shooting mode icon

(Interval Shooting)

You can use Interval Shooting to shoot snapshots and movies automatically at a specified interval.

Scene

Standard Shoots at a fixed interval.

Hiking Shoots using a setup optimized for hiking.

Cycling Shoots using a setup optimized for cycling.

Snow & Water

Leisure

REC Screen Icon Display

Description

Shoots using a setup optimized for snow and water sports.

Shoots using a setup optimized for leisure and trips.

. To start an Interval Shooting operation

1. In the REC mode, touch the “ ” (Show Icons).

2. Touch the Interval Shooting mode icon.

3. Touch the Interval Shooting scene you want to

use.

• Touching “ ” will display a detailed explanation about each scene. Flick upwards or downwards on the monitor screen to scroll through scenes. When the one you want is displayed, touch its icon.

4. Touch “ ”.

Recording Images

5. Touch an item and then change its setting.

Interval

Shooting Style

Allows selection of one of the shooting intervals below. 5 sec, 15 sec, 30 sec, 1 min, 2 min

t³:

Shoots five snapshots followed by a five-second movie.

³ Only:

Shoots a five-second movie. Audio is also recorded with this setting.

t Only: Shoots a snapshot.

• When “5 sec” is selected for the “Interval” setting, the movie recording time is two seconds.

6. Touch “ ” (Back).

7. Touch “Start”.

This starts the operation.

• Starting Interval Shooting operation causes the camera and controller to enter a sleep state and standby for recording of the images. This will be indicated by the camera’s operation lamp flashing green. Note that the camera will not enter the sleep state if “5 sec” is selected for the “Interval” setting.

• To recover from the sleep state, press any controller button. Next, touching “ ” on the monitor screen will display the number of recorded images. The maximum number of shots is 9,999.

Recording Images

NOTE

• Anti-shake is applied in accordance with the current camera settings. However, image anti-shake is not applied.

• The current shooting setup, including zoom, cannot be changed while shooting with this function.

• The image after each recording operation is displayed only while “Type 1” is selected as the Review image type (page 57).

• If the camera battery goes dead during an Interval Shooting operation, the operation will terminate. The controller battery going dead does not affect an ongoing operation. To stop the Interval Shooting operation in this case, hold down [p] (Power) on the camera for about two seconds.

• If you are performing manual camera operations or if the camera is out of the sleep state when the Interval Shooting operation reaches a shooting interval, Interval Shooting recording for that interval will be skipped.

• Pressing the controller’s [p] (Power) button while the camera is out of the sleep state will return to the sleep state and restart the Interval Snapshot operation.

• Initial default settings depend on the selected scene.

• If you change any settings, they are retained when you turn the camera off. To restore initial default settings, perform a reset operation (page 107) to reset the camera.

• Certain environments may cause the shooting interval to be longer than normal.

Recording Images

. To stop an Interval Shooting operation

NOTE

1. On the controller, press any button to recover from the sleep state.

2. Touch “ ” icon.

3. Touch “Yes”.

This stops the Interval Shooting operation.

. To shoot images manually during an Interval Shooting operation

You can shoot snapshots and movies manually even while an Interval Shooting operation is in progress.

1. On the controller, press any button to recover from the sleep state.

2. Perform the required controller or camera operation to shoot the image

you want.

• You can also press the camera’s shutter button or [0] (Movie) button to shoot while the camera is in the sleep state.

• You cannot shoot with High Speed CS while an Interval shooting operation is in progress.

Recording Images

NOTE

Shooting with Zoom

Telephoto Wide Angle

Digital zoom up to 4X is supported when shooting with the Super Wide Angle recording mode. Note that a digital process is used to enlarge the center of the image, so there is deterioration of image quality.

1. Perform the required screen operation to change the zoom factor as

desired.

Zoom in: Touch “+”, or spread Zoom out: Touch “–”, or squeeze

Telephoto : Enlarges the subject and narrows the range. Wide Angle : Reduces the size of the subject and broadens the range.

2. Press the shutter button to shoot the image.

• Telephoto images are prone to blurring caused by camera movement when you press the shutter button. Because of this, stabilizing the camera by placing it on a level surface, etc. is recommended.

• Zoom operations are disabled while shooting with Interval Shooting.

• Zoom operations are disabled during movie recording. Perform the zoom operation before you start recording.

•“Ù” is displayed on the monitor screen while digital zoom is being used.

Recording Images

To record a movie

Recording time

The following procedure explains how to record a movie.

• You can change the movie quality setting when shooting with the Super Wide Angle recording mode. See page 50 for details.

1. Press [0] (Movie).

This will start recording.

• Stereo audio is also recorded when something other than “HS120” or “HS240” is selected for the movie quality setting.

• Nothing is shown on the monitor screen during movie recording while the movie quality setting is “4K” or “FHD (60p)”.

• In the Panorama recording mode, the controller displays a Full View image during movie recording, not a Panorama image.

2. Press [0] (Movie) to stop recording.

• Each movie can be up to 29 minutes or 4 GB long. Movie recording also will stop automatically if memory becomes full before you stop movie recording.

Minimizing the Effects of Camera Movement during Movie Recording

While the image quality setting is “FHD (60p)”, “FHD (30p)” or “STD”, you can reduce blur due to camera movement during movie recording by selecting the “Standard” or “Strong” setting for “Movie Anti Shake” (page 51). Note, however, that image stabilization does not prevent image blur due to subject movement during movie recording. Also, image stabilization results in a narrower angle of view during movie recording. Though selecting “Strong” for the Movie Anti Shake setting will increase the anti shake effect, it can also increase the chance horizontal banding in the image due to light source flicker (caused by fluorescent lighting).

High Speed Movie Recording Precautions

• When shooting a high speed movie, shoot in a well-lit environment.

• When recording a high speed movie, light source flicker can cause horizontal bands to appear in the image. This does not indicate malfunction of the camera.

Recording Images

IMPORTANT!

NOTE

Microphones

• Spending a long time using movie recording will cause the camera to become slightly warm to the touch. This is normal and does not indicate malfunction.

• When the movie quality setting is something other than “HS120” or “HS240”, audio will be recorded along with the movie image. Note the following points when shooting a movie. – Take care that the microphones are not blocked by your

fingers, etc.

– Good audio recording results are not possible when the

camera is too far away from what you are trying to record.

• Shooting movies for long periods in areas where temperature is relatively high can cause digital noise (dots of light) to appear in the movie image. A rise in the camera’s internal temperature also may force movie recording to stop automatically. If this happens, stop recording and allow the camera to cool down, which should cause normal operation to resume.

• Use of the camera’s built-in memory or certain types of memory cards can slow down processing speeds. In particular, high-quality movies may not be able to be stored correctly. A slow memory card can take too much time to record data and result in breaks in the image and/or audio during playback.

• Zoom operations are disabled during movie recording. To use zoom, perform the zoom operation before you press [0] (Movie) to start recording.

Recording Images

Advanced Recording Settings

NOTE

Tabs

Items

Procedure

Enter the REC Mode * MENU * “rREC MENU” Tab * Touch Shooting

The following are menu operations you can use to configure various camera settings.

Using the REC Menu

. Example Menu Screen Operation

1. In the REC mode, touch “ ” (Show

Icons).

2. Touch “MENU”.

This will display the menu screen.

• Menu contents are different in the REC mode and PLAY mode.

3. Touch the tab where the menu item you want

to configure is located.

4. Flick upwards and downwards until you find the item whose setting

you want to change.

• To cancel and exit the menu, touch “ ” or press the controller’s shutter button.

5. Touch the item.

6. Configure the setting of the item in accordance with the screen

contents.

• To navigate back to the previous menu level, touch “ ”.

• Depending on the recording mode, some of the items on the menu that appears may not be usable. Nothing will happen if you touch an unusable item.

. Menu Operations in This Manual

Menu operations are represented in this manual as shown below. Touch the indicated icons and items, and perform operations as they are indicated, from left to right.

Advanced Recording Settings

Procedure

NOTE

Procedure

Shooting by Touching the Monitor Screen (Touch Shooting)

Enter the REC mode * MENU * “rREC MENU” Tab * Touch Shooting

When “On” is selected for this setting, you can shoot by touching the screen.

• Touch Shooting cannot be used while the camera is configured with the setting below. – High Speed CS: PAST (page 52)

Movie Image Quality Settings (Movie Quality)

Enter the REC Mode * MENU * “rREC MENU” Tab * Movie Quality

When the recording mode is Super Wide Angle, you can configure movie quality settings.

Movie Quality

Recording speed (frame rate)

Image size (pixels)

Description

Use this setting to record 4K movies.

4K 30 fps 3840

2160

Shooting is performed using an aspect ratio of 16:9.

FHD (60p) 60 fps 1920

FHD (30p) 30 fps 1920

HS120 120 fps 1280

Select this setting to record full high-

1080

definition (Full HD) movies. The aspect ratio of movies recorded with

1080

this setting is 16:9.

720

Select this setting to record high speed movies.

HS240 240 fps 640

480

• Audio is not recorded.

Use this setting for standard movie

STD 30 fps 640

480

recording. Shooting is performed using an aspect ratio of 4:3.

• You can shoot with the image quality setting shown below while the recording mode is Full View or Panorama.

REC Mode Movie Quality Recording speed Movie size

Full View 1:1 30 fps 1440

1440

Advanced Recording Settings

Procedure

REC Mode Movie Quality Recording speed Movie size

Panorama Panorama 30 fps 2880

720

Reducing Blur Due to Camera Movement During Movie Recording (Movie Anti Shake)

Enter the REC mode * MENU * “rREC MENU” Tab * Movie Anti Shake

You can reduce blur due to camera movement during movie recording by selecting the (Standard) or (Strong) setting. However, image anti-shake is not used. Also, Anti Shake results in a narrower angle of view during movie recording. This function can be selected while shooting with one of the movie quality settings below. FHD (60p), FHD (30p), STD

Advanced Recording Settings

Procedure

NOTE

Shooting a Burst of Images (High Speed CS)

Enter the REC mode * MENU * “rREC MENU” Tab * High Speed CS

Use the procedure below to shoot a burst of images.

1. Touch an item that matches what you want to shoot.

Setting Description

30 fps High-speed shooting of 30 images in one second.

PAST

Off High Speed CS shooting turned off.

• If you selected “30 fps”, go to step 3.

• If you selected “PAST”, go to step 2.

Pressing the shutter button will store 15 pre-recorded images along with 15 CS images that are shot after the shutter button is pressed.

2. Touch “Pre REC”.

This will start pre-recording of a group of images that will be continually updated until you press the shutter button.

• To stop the pre-record operation of images, touch “ ”.

3. Press the shutter button.

This will shoot 30 CS images.

• High Speed CS image sizes are shown below. – Full View: 1936 – Panorama: 3480 – Super Wide Angle: 1920

1936

960

1080

Advanced Recording Settings

Procedure

NOTE

Correcting Image Brightness (Brightness)

Decreases the EV value. A lower EV value is best for dark-color subjects and for shooting outdoors on a clear day.

Increases the EV value. A higher EV value is best for light-colored subjects and backlit subjects.

Enter the REC Mode * MENU * “rREC MENU” Tab * Brightness

You can manually adjust an image’s exposure value (EV value) before shooting it. The exposure compensation value you set remains in effect until you change it or turn off the camera (which causes it to revert to “0.0”).

– Exposure Compensation Range: –2.0 EV to +2.0 EV – Unit: 1/3 EV

• To cancel exposure compensation, change the EV value to 0.0.

• When shooting under very dark or very bright conditions, you may not be able to obtain satisfactory results even after performing exposure compensation.

Advanced Recording Settings

Procedure

Adjusting White Balance (White Balance)

Blank white paper

Enter the REC Mode * MENU * “rREC MENU” Tab * White Balance

You can adjust white balance to match the source of light available where you are shooting and avoid the blue cast that results when shooting outdoors when it is cloudy, and the green cast that results when shooting under fluorescent lighting.

1. Touch the type of white balance you want to select.

You can see the affect of the white balance setting you select on the monitor screen.

Setting Description

Configures the camera to adjust white balance automatically

For shooting outdoors on an overcast rainy day, in the shade, etc.

For shooting on a clear day in the shade of trees or buildings

For shooting under white or day white fluorescent lighting

For configuring the camera manually to suit a particular light source.

Touch “· Manual WB”.



In the location where you plan to



shoot, point the camera at a blank white piece of paper so it fills the entire monitor screen. Touch an area of the screen



where no icon is located. The white balance setting is retained even if you turn off the camera.

• When “‡Auto WB” is selected for the white balance setting, the camera automatically determines the white point of the subject. Certain subject colors and light source conditions can cause problems when the camera tries to determine the white point, which makes proper white balance adjustment impossible. If this happens, select the white balance setting that matches your shooting conditions (Daylight, Overcast, etc.).

• When shooting with Premium Auto Pro, the white balance setting is fixed at “‡Auto WB”.

Auto WB

Daylight For shooting outdoors on a clear day

Overcast

Shade

Day White Fl.

Daylight Fluor For shooting under daylight fluorescent lighting

Tungsten For shooting under light bulb lighting

Manual WB

Advanced Recording Settings

Procedure

Specifying ISO Sensitivity (ISO)

Enter the REC Mode * MENU * “rREC MENU” Tab * ISO

ISO sensitivity is a measure of sensitivity to light.

Setting Description

Auto Adjusts sensitivity automatically according to conditions

ISO80

Lower

sensitivity

ISO100

ISO200

ISO400

ISO800

ISO1600

ISO3200

Higher

sensitivity

• Since higher ISO sensitivity values tend to result in digital noise in images, the camera performs a noise filtering process. Because of this, it may take relatively longer for the camera to finish recording an image after it is shot. You will not be able to perform any operation while image recording is in progress.

• When shooting a movie, the ISO setting is fixed at “Auto”.

Slow shutter speed

Fast shutter speed (Set

for shooting in dimly lit

areas.)

Less noise

Some coarseness

(increased digital noise)

Advanced Recording Settings

Procedure

NOTE

Procedure

Self-shooting (Mirror Image)

Normal image Mirrored image

Enter the REC Mode * MENU * “rREC MENU” Tab * Mirror Image

Turning on this function displays the controller monitor image as a mirror image. This comes in handy when using the controller to compose self-shot images. The image is recorded in normal orientation (not mirror imaged).

• You can change an image displayed on the screen to a mirror image by flicking the image.

• You cannot display a mirror image while the recording mode is Panorama.

Reducing Wind Noise during Movie Recording (Wind Noise Cut)

Enter the REC Mode * MENU * “rREC MENU” Tab * Wind Noise Cut

Select “On” to reduce wind noise during movie recording. Note, however, that this will also cause the sound quality to change.

Advanced Recording Settings

Procedure

NOTE

Procedure

NOTE

Turning on Image Review (Review)

Enter the REC Mode * MENU * “rREC MENU” Tab * Review

While Review is turned on, the camera will display an image immediately after it is recorded.

Type 1 Displays a full-screen view of the image for about one second.

Displays a review image in the lower left corner (when the controller is

Type 2

Off Turns off review image display

• A Type 2 review image is displayed during High Speed CS shooting even if “Type 1” is selected for the Review setting.

in landscape orientation) or the upper left corner (in portrait orientation) of the controller monitor screen. Touching the Review image will enter the PLAY mode and display a full-screen view of the image.

Saving an Additional Full View Version of an Image (Double Save)

Enter the REC Mode * MENU * “rREC MENU” Tab * Double Save

When this setting is enabled and the recording mode is something other than Full View, the camera will save a Full View version of any snapshot you shoot, along with the version of the image specified by the recording mode.

Off Saves only the version of the image specified by the recording mode.

• Even when “On” is selected for this setting, a Full View version is not saved in the case of High Speed CS images and movies.

Saves a Full View version of any snapshot you shoot, along with the version of the image specified by the recording mode.

Advanced Recording Settings

Viewing Snapshots and Movies

NOTE

Movie icon:

Movie recording time

Image quality

Playback in progress Playback paused

Touch “ ”.

Progress bar

Viewing Snapshots

See page 35 for the procedure for viewing snapshots.

Viewing a Movie

1. Touch “ ” (PLAY) to enter the PLAY mode.

2. Flick left or right across the screen image to

scroll through the movies until the one you want is displayed.

3. Touch “ ” (Movie) to start playback.

• To clear the icons and shooting information leaving only the image, touch the screen where an icon is not located. Touching the monitor screen again will cause the icons and information to reappear.

• Touching “< >” mutes the audio.

• Playback may not be possible for movies not recorded with this camera.

• When a movie is played back on the camera, the audio output from the camera speaker will be out of sync with the video image. This does not indicate any problem with the movie file. Also, playback on the camera uses a low frame rate. Send the movie to a smartphone for better movie playback results.

Viewing Snapshots and Movies

Viewing a Panorama Snapshot

Current display position

Touch “ ”.

1. In the PLAY mode, flick left or right to display

the panorama snapshot you want to view.

2. Touch “< >” to start playback of the panorama.

Panorama playback causes the image to scroll left or right.

Viewing Snapshots and Movies

Viewing the Image Menu

The image menu shows multiple images on a single screen.

1. In the PLAY mode, touch “ ” or squeeze your

fingers on the screen.

This displays the image menu.

• Touch “ ”, “ ”, or flick upwards or downwards to scroll to the next page of images.

• To view the normal (single image) display mode, touch the image your want to view.

• In the case of a movie, the first image in the movie is displayed.

• In the case of a CS image group or Interval Shooting group, the first image of the group is shown along with “< >” (CS image group) or “< >” (Interval Shooting group). To view the second and subsequent images in a group, touch the group to switch to the normal display, and then flick left or right to scroll through the group images.

• A question mark (?) will be displayed for images that cannot be displayed for some reason.

Zooming an On-screen Image

Snapshots can be zoomed on the monitor screen up to 2X.

1. In the PLAY mode, flick left or right to display the image you want to

view.

2. Touch the center of the screen or spread your thumb and forefinger

(page 18) on the displayed image to enlarge it.

• Dragging an enlarged screen image will change the part of the image that is displayed.

• Touching “ “ or squeezing your thumb and forefinger (page 18) on the displayed image will reduce it in size.

Viewing Snapshots and Movies

Creating a Time Lapse Movie (Time Lapse)

This function creates a Time Lapse Movie up to 10 minutes long by combining snapshots shot with the camera on a particular date, in the order they were shot.

1. In the PLAY mode, touch “ ” (Show Icons).

2. Touch the “ ” (Time Lapse) icon.

3. Select how images should be chosen for conversion to a Time Lapse

Movie.

Date Create a Time Lapse Movie for a specific date.

Interval Group

Create a Time Lapse Movie for group of Interval Shooting images (page 42).

4. Touch “¥”.

5. Touch an item and then change its setting.

Playback Speed

Music Select the background music you want to use.

Time Lapse Size

Specify the playback time of each image. Selecting “Slow” specifies a longer playback time for each image, while “Fast” specifies a shorter playback time.

Select the image quality of the Time Lapse Movie. Full HD: Creates a high-definition movie (16:9 aspect ratio). STD: Creates a standard-definition movie (4:3 aspect ratio).

6. After settings are the way you want, touch “ ” (Back) to return to the

screen in step 4.

7. Use (touch) the up and down arrows (“ ”, “ ”) to display the

recording date or Interval Shooting of the images you want to use to create a Time Lapse Movie.

8. Touch “Yes”.

This creates and displays the Time Lapse Movie.

• Touching “Cancel” while creation of a Time Lapse Movie is in progress will cancel the creation process.

Viewing Snapshots and Movies

NOTE

• If the snapshots you are using are different from the aspect ratio of the Time Lapse Movie, there will be black bands along the top and bottom or left and right of the image.

• When there is a large number of images, this function will stop processing when the Time Lapse Movie reaches a length of 10 minutes. Subsequent images will not be converted to a Time Lapse Movie.

• The types of images below cannot be included in a Time Lapse Movie. – Full View images saved using Double Save – Images created using Generate Image

• Depending on the number of files and other factors when a Time Lapse Movie is being created, the creation operation may take some time.

Viewing Snapshots and Movies

Other Playback Functions (PLAY)

Tabs

Items

Procedure

Enter the PLAY Mode * MENU * Rotation

The following are menu operations you can use to configure various camera settings.

Using the PLAY Menu

. Example Menu Screen Operation

1. In the PLAY mode, touch “ ” (Show

Icons).

2. Touch “MENU”.

This will display the menu screen.

• Menu contents are different in the REC mode and PLAY mode.

3. Touch the tab where the menu item you want

to configure is located.

4. Touch the item whose setting you want to change.

5. Configure the setting of the item in accordance with the screen

contents.

• To navigate back to the previous menu level, touch “ ”.

. Menu Operations in This Manual

Menu operations are represented in this manual as shown below. Touch the indicated icons and items, and perform operations as they are indicated, from left to right.

Other Playback Functions (PLAY)

Procedure

NOTE

Rotating an Image (Rotation)

Enter the PLAY Mode * MENU * Rotation

1. Flick left or right to display the image you want to rotate.

2. Touch “ ”.

This will rotate the image 90 degrees to the left.

3. When the image is in the orientation you want, touch “ ”.

• Note that this procedure does not actually change the image data. It simply alters how the image is displayed on the camera’s monitor screen.

Other Playback Functions (PLAY)

Procedure

Generating an Image from a Full View Image (Generate Image)

Split point

Enter the PLAY Mode * MENU * Generate Image

You can use the procedure below to generate a cropped image or a panorama image from a Full View image or a Global View image.

1. Flick the screen to the left or right to scroll through images until the

Full View or Global view image you want is displayed.

2. Touch the icon of the type of image you want to generate.

This displays the expanded image in the size you selected.

Crops the center portion of the original image to generate an image with an aspect ratio of 4:3.

Crops the center portion of the original image to generate an image with an aspect ratio of 16:9.

Converts the original image into a panorama image.

• You can use the operations below to adjust the angle of view. Flick left/right: Changes the locations of the split point of the panorama image. Flick Up/down: Adjusts the height of the image.

3. Touch “< >”.

This will save the generated image as a new image, retaining the original.

Other Playback Functions (PLAY)

Connecting the Camera with a Smartphone (Wireless Connection)

Controlling Your Camera with a Smartphone

Your camera has both Bluetooth wireless technology and wireless LAN capabilities built in. After establishing a wireless connection with a smartphone, you can perform the operations described in the table below. Requires installation of the EXILIM Connect app on your smartphone.

• Your camera is a Bluetooth device.

• Your camera can connect using Bluetooth wireless technology with a smartphone that supports Bluetooth Smart. Note that the Bluetooth wireless technology that connects your camera with a smartphone is different from the Bluetooth wireless technology that connects the camera with the controller.

With this function: You can do this:

Auto Send

Shoot with phone

Smart

Images can be automatically sent as they are shot to a smartphone that has been Bluetooth paired with the camera.

Send to phone

Remotely control and shoot with the camera using a smartphone (page 72).

Send snapshots and movies recorded with your camera to your smartphone. image to a smartphone, you can then upload it from the smartphone to a social networking service (page 73).

Connecting the Camera with a Smartphone

After sending an

(Wireless Connection)

IMPORTANT!

NOTE

With this function: You can do this:

View on phone

View snapshots stored in camera memory on a smartphone, and copy snapshots and movies to a smartphone for viewing (page 74).

• Inside an aircraft or anywhere else where use of wireless communication is restricted or prohibited, do not use this camera.

• Some smartphone models may not be able to play back movie files from your camera.

• Depending on your smartphone model, its operating system version, and/or its remaining storage capacity can cause failure of a movie or snapshot save operation. Receiving a camera file, perform the required operation on your smartphone to check if the file was stored properly.

• A movie received on an Android terminal: – Movies are not displayed by Gallery app. Movies are stored in a folder named

“EXILIM Connect”.

– A separate movie player is required to playback movies (whose files have the file

name extension MOV).

– Depending on your movie player, you may not be able to playback movies and/

or audio.

• Images recorded on another manufacturer’s camera cannot be sent using this function.

• Note that using wireless functions requires more battery power usage than normal. Make sure that the camera battery is sufficiently charged before starting a wireless LAN operation.

• The operating range depends on the local communication environment and on the type of smartphone you are connected to.

Connecting the Camera with a Smartphone

(Wireless Connection)

. About EXILIM Connect

“ ” (Wireless)

For detailed information about EXILIM Connect, refer to the EXILIM Connect User’s Guide (which you can download at the website below).

http://www.exilim.com/manual/

• Note that to view the EXILIM Connect User’s Guide (PDF), you will have to install Adobe Reader. Consult CASIO authorized service center if you are unable to open to display the PDF format User’s Guide.

• Note that EXILIM Connect User’s Guides may not be available in all languages. If you cannot find a EXILIM Connect User’s Guide in your native language, please use a version in another language.

Using a Wireless Mode

Your camera has a variety of different wireless modes. Select the wireless mode that suits your specific requirements.

1. Touch “ ” (Show Icons).

2. Touch the “ ” (Wireless) icon.

This will display the wireless mode screen.

3. Touch the wireless mode you want.

• To exit the wireless mode, touch “ ”.

Send to phone

Select to view images you shoot with the camera on a smartphone (pages 73,

74).

Pairing

Select this mode to establish a Bluetooth wireless technology connection between the camera and a smartphone (page 70).

Shoot with phone

Select this mode for remote control of image recording from a smartphone (page 72).

Wireless settings

Select this mode to configure wireless settings (page 75).

Connecting the Camera with a Smartphone

(Wireless Connection)

IMPORTANT!

Getting Ready to Establish a Connection between a Smartphone and Your Camera

Installing the EXILIM Connect Smartphone app on your smartphone makes it possible to remotely control the camera from your smartphone and to send images recorded with the camera to your smartphone. Search the EXILIM Connect app on Google Play or App Store and install it on your smartphone.

For information about OS versions (Android and iOS) supported by the EXILIM Connect app, visit the Google Play or the App Store download site, or the Official CASIO Digital Camera Website (http://www.exilim.com/).

. App operation guarantees

No guarantees are made concerning the ability to operate the EXILIM Connect app on any particular smartphone or tablet.

• App functions and the required operating environment are subject to change without notice.

Installing the EXILIM Connect App on Your Smartphone

. Android terminal

1. Open “Google Play”.

2. In the search field, type “EXILIM Connect”.

3. Install EXILIM Connect.

. iPhone (iOS)

1. Open “App Store”.

2. In the search field, type “EXILIM Connect”.

3. Install EXILIM Connect.

Connecting the Camera with a Smartphone

(Wireless Connection)

Establishing a Wireless Connection for the First Time

The first time you establish a wireless connection between the camera and a smartphone, you need to use the procedure below to configure wireless connection settings. This operation is required for the first connection only.

. Smartphone that supports Bluetooth Smart

Connecting the camera to a smartphone using Bluetooth wireless technology (pairing) makes it simple to configure wireless connection settings.

IMPORTANT!

• Performing this operation automatically configures your smartphone’s wireless LAN connection settings (page 71).

• Some smartphone models may not be compatible with this camera.

• If you want to re-pair the camera with the smartphone it is already paired with, first unpair them and then pair again. Re-pairing the camera and smartphone will result in all pending unsent images to remain unsent.

Camera (Controller) Operation

1. Touch the “ ” (Wireless) icon.

This will display the wireless mode screen.

2. Touch “Pairing”.

3. Touch “Start”.

• You can start pairing by performing an operation on the camera, without using the controller.

On the camera, hold down [p] (Power) for about two seconds to turn off



power. On the camera, hold down [p] (Power) for about six seconds.



The camera’s operation lamp will flash amber.

Smartphone Operation

4. Start up the EXILIM Connect app.

5. Tap “Pairing”.

6. Perform the required connection operation as instructed by the app

and your smartphone.

This establishes a Bluetooth wireless technology connection between the camera and smartphone.

• For information about how to configure wireless connection settings, refer to the EXILIM Connect manual (page 68).

Connecting the Camera with a Smartphone

(Wireless Connection)

NOTE

• “Auto Send” (page 75) will be turned on after you configure wireless connection

NOTE

SSID

Password

settings on the camera and smartphone.

• After the camera is paired, Bluetooth wireless technology operation will consume battery power even when the camera it turned off. Because of this, it is recommended that you charge the camera’s battery before you plan to use it.

. Smartphone that does not support Bluetooth Smart

Configure smartphone wireless LAN connection settings (input the camera SSID and password).

1. Touch the “ ” (Wireless) icon.

2. Touch “Shoot with phone”.

3. Touch “Start”.

This will enable connection with a smartphone and the camera will display a screen for input of an SSID and password, and camera’s wireless LAN connection lamp will flash blue.

4. For the smartphone Wi-Fi setting, input the camera “SSID” and

“Password”.

When the smartphone establishes a wireless LAN connection with the camera, the camera’s wireless LAN connection lamp lights blue and the message “Start up the phone app.” appears on the controller’s monitor screen. Next, start up the app on the phone.

• What you need to do to establish a wireless LAN connection depends on the type of smartphone you are using. For details about how to establish a wireless LAN connection see the user documentation that comes with your smartphone.

• The camera SSID (which cannot be changed) and password (initial default) are shown below. SSID: FR200-XXXXXX (6-character alphanumeric ID) Password: 00000000

• You can also use the procedure below to establish a wireless LAN connection between the camera and smartphone.

On the camera, hold down [p] (Power) for about two seconds to turn off power.



On the camera, while holding down [0] (Movie), hold down [p] (Power) for



about one second. The camera’s wireless LAN connection lamp will flash blue. On the smartphone, select the camera’s SSID.



Connecting the Camera with a Smartphone

(Wireless Connection)

. What to do if you are unable to establish a wireless LAN connection

between the camera and a smartphone.

This problem may be caused when the smartphone is already wirelessly connected to one of the networks or devices below. Go to your smartphone’s Wi-Fi settings and select this camera’s SSID.

– Household wireless LAN – Public wireless LAN – Portable wireless LAN device

Using a Smartphone as a Camera Remote Controller (Shoot with phone)

This function lets you remotely shoot a snapshot or movie with the camera using a smartphone. You also can perform remote zoom and other operations as well.

. Bluetooth Wireless Technology Connection

1. Perform one of the operations below.

– Enter the sleep mode.

Turn on the camera and controller.



On the controller, press [p] (Power).



This will enter the sleep mode, which is indicated by the camera’s operation lamp slowly flashing green.

– Display the wireless mode screen.

Touch “ ” (Show Icons).



Touch the “ ” (Wireless) icon.



2. On the smartphone, start up the EXILIM Connect app.

3. On the smartphone, tap “Remote Capture”.

4. Compose the image on the smartphone’s screen as you shoot.

For information about how to use “Shoot with phone”, refer to the EXILIM Connect manual (page 68).

. Cannot Connect with Bluetooth Wireless Technology

1. Touch the “ ” (Wireless) icon.

2. Touch “Shoot with phone”.

3. Touch “Start”.

• If there is a wireless LAN connection between the smartphone and camera, advance to step 5 of this procedure.

Connecting the Camera with a Smartphone

(Wireless Connection)

4. For the smartphone’s Wi-Fi settings, select the SSID displayed on the

camera and establish a wireless LAN connection between the camera and smartphone.

5. On the smartphone, start up the EXILIM Connect app.

6. Compose the image on the smartphone’s screen as you shoot.

For information about how to use “Shoot with phone”, refer to the EXILIM Connect manual (page 68).

Sending a Snapshot or Movie File from Camera Memory to a Smartphone (Send Selected Image)

You can select one more snapshot and/or movie file in camera memory and send it to a smartphone. You can select up to 50 files, totaling no more than 500MB for a single send. After sending an image to a smartphone, you can then upload it to a social networking service.

1. Touch the “ ” (Wireless) icon.

2. Touch “Send to phone”.

3. Touch “Send Selected Image”.

4. Touch the image you want to send to the smartphone.

Selecting the image of a file causes its check box to become selected.

• To exit the send image to smartphone operation, touch “Cancel”.

5. After selecting the images of all of the files you want to send to the

smartphone, touch “OK”.

For information about how to use “Send Selected Image”, refer to the EXILIM Connect manual (page 68).

Connecting the Camera with a Smartphone

(Wireless Connection)

Viewing Snapshots and Movies in Camera Memory on a Smartphone (View on phone)

View snapshots stored in camera memory on a smartphone, and copy snapshots and movies to a smartphone for viewing.

. Bluetooth Wireless Technology Connection

1. Perform one of the operations below.

– Enter the sleep mode.

Turn on the camera and controller.



On the controller, press [p] (Power).



This will enter the sleep mode, which is indicated by the camera’s operation lamp slowly flashing green.

– Display the wireless mode screen.

Touch “ ” (Show Icons).



Touch the “ ” (Wireless) icon.



2. On the smartphone, start up the EXILIM Connect app.

3. On the smartphone, tap “View on Phone”.

After a short while, the camera will start up in its wireless mode and display a menu of images in camera memory.

For information about how to use “View on Phone”, refer to the EXILIM Connect manual (page 68).

. Cannot Connect with Bluetooth Wireless Technology

1. Touch the “ ” (Wireless) icon.

2. Touch “Send to phone”.

3. Touch “View on phone”.

• If there is a wireless LAN connection between the smartphone and camera, advance to step 5 of this procedure.

4. For the smartphone’s Wi-Fi settings, select the SSID displayed on the

camera and establish a wireless LAN connection between the camera and smartphone.

5. On the smartphone, start up the EXILIM Connect app.

After a short while, the camera will start up in its wireless mode and display a menu of images in camera memory.

For information about how to use “View on phone”, refer to the EXILIM Connect manual (page 68).

Connecting the Camera with a Smartphone

(Wireless Connection)

Procedure

IMPORTANT!

Configuring Wireless Connection Settings

This section explains wireless mode operations and setting items.

1. Touch the “ ” (Wireless) icon.

This will display the wireless mode screen.

• Pressing the shutter button will return to the screen that was displayed before the wireless mode screen.

2. Touch “Wireless settings”.

This will display the wireless setting screen.

3. Touch the item you want to configure.

4. Change the setting of the selected item.

• Changing a setting returns to the wireless mode screen.

Having Images Shot with the Camera Sent to a Smartphone Automatically (Auto Send)

“ ” (Wireless) * Wireless settings * Auto Send

While “On” is selected for this setting, images are sent to the paired smartphone automatically. Images are sent to the smartphone while the camera is in the sleep mode. If there is no wireless connection between the camera and smartphone, the images will be sent as soon as a connection is established.

• The camera’s wireless LAN connection lamp will be flashing or lit while an image send operation is in progress. The lamp will go out after the image send operation is complete.

• Auto Send cannot be enabled unless the camera is paired with a smartphone (page 70).

Connecting the Camera with a Smartphone

(Wireless Connection)

NOTE

• Auto Send can be used only with a smartphone that supports Bluetooth Smart.

Procedure

Both a Bluetooth and wireless LAN connection are required between the camera and smartphone to auto send camera images.

• You can specify the size of the image sent to the smartphone using “Resize When Sending” (page 77).

• You can use the smartphone apps below to view snapshots after sending them. – iPhone: Camera Roll – Android terminal: Gallery, Photo, or another photo browser app

• Images shot while the Auto Send setting is “On” will be sent to the smartphone, even if the Auto Send setting is changed to “Off” before they are sent.

• Images that are auto recorded by Interval Shooting are batch sent to the smartphone after the Interval Shooting operation is complete.

• If the connection between the camera and smartphone is terminated while there are still unsent images, Auto Send will be cancelled. The next time the camera and smartphone are turned on and the camera enters the Sleep Mode, the Auto Send operation will restart.

• If you delete an image that has not yet been sent to the smartphone, it will not be included in the next Auto Send.

Specifying Images to be Sent by Auto Send (Auto Send File Settings)

“ ” (Wireless) * Wireless settings * Auto Send File Settings

Specifies the files to be sent to a smartphone by Auto Send.

T » < >

Snapshots, movies, and images recorded with Interval Shooting* are sent.

T » Snapshots and movies are sent.

T < >

Snapshots and images recorded with Interval Shooting* are sent.

T Only Only snapshots are sent.

* After the Interval Shooting operation is complete, the camera automatically selects

10 to 20 of the images and sends them to the smartphone. When “T »” is selected for the Interval Shooting style setting, up to two movie files are sent.

IMPORTANT!

• The maximum size movie file that can be sent by Auto Send is 100 MB.

• Auto Send File Settings cannot be configured unless the camera is paired with a smartphone (page 70).

Connecting the Camera with a Smartphone

(Wireless Connection)

Procedure

NOTE

Procedure

Resizing Snapshots before Sending Them to a Smartphone (Resize When Sending)

“ ” (Wireless) * Wireless settings * Resize When Sending

This feature can be use to resize snapshots before they are sent to a smartphone using “Shoot with phone” or “Send to phone”. Resizing only affects snapshots that satisfy the conditions below. Images that do not satisfy these conditions are sent to the smartphone in the size they are recorded.

• Recording mode (page 41): Super Wide Angle

• High Speed CS (page 52): Off

Off Images are sent in the size they were originally recorded.

• Resizing is supported for images recorded with this model camera only.

Images are converted to 3M size before being sent.

• If an original image is 3M size or smaller, it is sent without resizing.

Changing the Camera Password for Wireless LAN Connection (WLAN password)

“ ” (Wireless) * Wireless settings * WLAN password

Use procedure to change the password you used when establishing a wireless LAN connection between the camera and a smartphone.

IMPORTANT!

• Before changing the wireless LAN password, unpair the camera from its paired smartphone (page 78).

1. Touch the password digit you want to change.

2. Touch “ ” or “ ” to change the currently selected digit.

3. When the password is the way you want, touch “OK”.

Connecting the Camera with a Smartphone

(Wireless Connection)

NOTE

• Changing the wireless LAN password will terminate the connection with the

Procedure

NOTE

smartphone. To reconnect with the smartphone, configure wireless connection settings (page 70). If your smartphone does not support Bluetooth Smart, perform the operations below to change your smartphone’s Wi-Fi settings. – iPhone:

Tap the right arrow of the field where the SSID of the camera is displayed in the Wi-Fi settings to delete network settings. After deleting, select the camera SSID again and input the new password.

– Android terminal:

Tap the field where the SSID of the camera is displayed in the Wi-Fi settings and select Forget. Select the camera SSID again and input the new password.

Unpairing the Camera from a Smartphone (Unpairing)

“ ” (Wireless) * Wireless settings * Unpairing

Unpairs the camera from a smartphone. To use the camera with a different smartphone, first unpair it from the current smartphone.

• When unpairing, be sure also to perform the unpairing operation on the smartphone as well. For details, refer to the EXILIM Connect User’s Guide (page

68).

• Unpairing the camera from a smartphone will result in all pending unsent images to remain unsent.

Connecting the Camera with a Smartphone

(Wireless Connection)

Using Two Cameras at the Same Time (Multi Camera Mode)

What you can do with two cameras

You can register two cameras on the controller and operate them both at the same time or individually.

Feature Description

Simultaneous shooting with two cameras

You could point one camera at yourself and the other camera at a scene, and simultaneously record the scene and your reaction to it. Possibilities are unlimited!

Switching between two cameras

Interval Shooting You can set up two cameras to shoot

Two-camera playback You can simultaneously play back snapshots

You can switch between the two cameras as desired.

snapshots and/or movies at fixed intervals.

and/or movies you recorded with two different cameras.

Using Two Cameras at the Same Time (Multi

Camera Mode)

IMPORTANT!

• In addition to the camera that comes with the controller, you can also register the camera model below on the controller. – Separately available EX-FR100CA (available in Japan only) or EX-FR200CA

digital camera

– EX-FR100 or EX-FR200 camera

Preparing a Second Camera to be Registered on the Controller

Perform the steps below on the second camera before trying to register it on the controller.

1. Charge the camera’s battery (page 19).

2. Prepare a memory card for the camera (page 30).

Registering a Second Camera on the Controller

To use a second camera, you need to register it on the controller.

. To register a second camera on the controller

1. If there is a memory card loaded in the second camera, remove it.

2. On the menu screen, touch the “¥ Setup” tab.

3. Touch “Multi Camera”.

4. Touch “Add”.

5. Touch “Start” to start registration of the camera.

6. While holding down the shutter button of the camera you want to

This will cause the operation lamp to flash orange to indicate that camera registration has started. When the camera is registered successfully, a message appears and then the Multi Image screen appears.

Using Two Cameras at the Same Time (Multi

Camera Mode)

NOTE

• Up to two cameras can be registered at one time. To add a new camera while two cameras are already registered, you will need to first unregister one of the registered cameras.

• A message will appear if camera registration fails, and then the display will return to the screen that was shown before you touched the “¥ Setup” tab. If this happens, perform the camera registration procedure again from step 1.

• You can also use the procedure below to register a camera on a controller.

If the camera has a memory card loaded, remove it.



While holding down the camera shutter button, hold down the [p] (Power)



button for at least one second. While holding down the controller shutter button, hold down the [p] (Power)



button for at least six seconds. This will cause the operation lamps of the camera and the controller to flash orange to indicate that camera registration has started.

. To unregister a camera

1. On the menu screen, touch the “¥ Setup” tab.

2. Touch “Multi Camera”.

3. Touch “Unregister”.

The names of the cameras registered on the controller will appear on the display in sequence.

4. Touch the name of the camera you want to unregister.

5. Touch “Yes”.

The camera you selected will be unregistered and then the display will return to the screen that was shown before you touched the “¥ Setup” tab. A message will appear if the camera you select is connected to the controller. If this happens, touch “Yes” to unregister.

Using Two Cameras at the Same Time (Multi

Camera Mode)

. Camera Connection Priority (Priority)

Normally, when two cameras are registered on the controller, turning on the controller and cameras automatically makes the first camera detected Camera 1 (main camera) and the second camera detected Camera 2. You can also use the procedure below to define one of the cameras as Camera 1 (main camera).

1. On the menu screen, touch the “¥ Setup” tab.

2. Touch “Multi Camera”.

3. Touch “Priority”.

The names of the cameras registered on the controller will appear on the display in sequence.

4. Touch the name of the camera you want to specify as the main camera.

5. Touch “Yes”.

This will specify the camera you selected as the main camera (Camera 1). Next, the display will return to the screen that was shown before you touched the “¥ Setup” tab.

Using Two Cameras at the Same Time (Multi

Camera Mode)

NOTE

Multi Camera Mode

The controller is in the Multi Camera Mode while there are two cameras registered on it. Turning on the controller and the two cameras causes the controller to connect with Camera 1 (main camera) first. At this time, “ ” will appear on the display. Touch “ ” to start the connection operation with Camera 2. The controller will be able to control both cameras after connection with the second camera is established. The first that connects with the controller is Camera 1 (main camera), while the second one is Camera 2.

Multi Image Screen Single Image Screen

This view simultaneously shows the record or playback images of both cameras side by side.

This view shows a full-screen view of either the Camera 1 or the Camera 2

image. The Camera 1 image is on the left, while the Camera 2 image is on the right.

• Both of the cameras must be turned on to use the Multi Camera Mode. A camera will not be able to connect to the controller if it is not turned on.

• The date and time settings of Camera 2 will automatically be synced with the date and time of Camera 1.

• In the case of portrait orientation, the Multi Image screen will show images above and below instead of left and right.

Selecting the Multi Image Screen

On the Single Image screen, touch “ ” (Multi Image icon).

Selecting the Single Image Screen

On the Multi Image screen, touch “ ” or “ ” (Single Image icon). This will display the Single Image screen of the camera whose icon you touched.

Using Two Cameras at the Same Time (Multi

Camera Mode)

. Exiting the Multi Camera Mode

NOTE

Exit the Multi Camera Mode whenever you want to use the controller with a single camera.

1. Touch “ ” on the screen.

2. Touch the screen of the camera you want to use.

This exits the Multi Camera Mode and displays the image of the camera you selected above. The controller will disconnect from the other camera (the one you did not select above).

• Turning off a camera while in the Multi Camera Mode will cause that camera to be disconnected from the controller, and will automatically cause the controller to exit the Multi Camera Mode. At this time the monitor screen will show the image of the camera that is still turned on.

• Establishing a USB connection between a connected camera and a computer (page 94) while in the Multi Camera Mode will automatically cause the controller to exit the Multi Camera Mode. After that, the monitor screen will show the image of the other camera.

Using Two Cameras at the Same Time (Multi

Camera Mode)

NOTE

Shooting with the Multi Camera Mode

Camera 1 REC screen Camera 2 REC screen

Exits the Multi Camera Mode.

Switches to the Camera 1 Single Image screen.

Displays the Interval Shooting setting screen.

Enters the PLAY Mode.

Switches to the Camera 2 Single Image screen.

This section provides an overview of how to shoot images using the Multi Image screen and the Single Image screen in the Multi Camera Mode. For more detailed information, see “Shooting a Snapshot” (page 33).

Shooting with the Multi Image Screen

You can use this screen to display images from the two cameras side by side (or above and below in the case of portrait orientation). In this view you can shoot with both cameras simultaneously or you can shoot individually with one camera.

. Shooting Simultaneously with Both Cameras

You can use the operations below to shoot simultaneously with both cameras while viewing their images on the Multi Image screen.

To shoot snapshots

1. Press the controller shutter button.

This records snapshots on both cameras simultaneously.

To shoot movies

1. On the controller, press [0] (Movie).

This starts movie recording on both cameras simultaneously. Press [0] (Movie) again to stop recording.

• Simultaneous shooting with both cameras is not possible while either of the cameras is recording or playing back a movie.

Using Two Cameras at the Same Time (Multi

Camera Mode)

. Shooting with a Single Camera

NOTE

You can use the operations below to shoot on either one of the cameras while viewing images of both cameras on the Multi Image screen.

To shoot a snapshot

1. Press the Camera 1 or Camera 2 shutter button.

This shoots a snapshot on the camera whose shutter button you pressed.

To shoot a movie

1. Press the Camera 1 or Camera 2 [0] (Movie) button.

This starts movie recording on the camera whose button you pressed. Press [0] (Movie) again to stop recording.

. Interval Shooting with Two Cameras

Use the procedure below to perform an Interval Shooting operation with two cameras.

1. Touch “ ”.

This will displays the Interval Shooting setting screen.

2. Configure Interval Shooting settings as desired, and then touch

“Start”.

This applies the settings to both cameras and starts simultaneous Interval Shooting with them.

• For information about Interval Shooting, see “Shooting Scenes of an Activity at a Fixed Interval (Interval Shooting)” (page 42).

• Interval Shooting is automatically cancelled if either camera is unable to shoot for some reason.

Using Two Cameras at the Same Time (Multi

Camera Mode)

. Multi Image Screen Operations

• You cannot configure camera REC mode settings while the Multi Image screen is displayed. To configure such settings, touch “ ” or “ ” to display the Single Image screen of the camera whose REC mode settings you want to configure, and then touch the REC Mode icon. For information about the REC mode, see page 39. After you are finished configuring settings, touch “ ” to return to Multi Image screen.

• You cannot change movie quality, or configure other REC menu settings while the Multi Image screen is displayed. To configure such settings, touch “ ” or “ ” to display the Single Image screen of the camera whose REC menu settings you want to configure, and then touch “MENU”. For information about the REC menu, see page 49. After you are finished configuring settings, touch “ ” to return to Multi Image screen.

• You cannot perform zoom operations while the Multi Image screen is displayed. To perform such operations, touch “ ” or “ ” to display the Single Image screen of the camera whose image you want zoom, and then perform the zoom operation you want. After you are finished, touch “ ” to return to Multi Image screen with your zoom setting maintained.

Using Two Cameras at the Same Time (Multi

Camera Mode)

NOTE

Shooting with the Single Image Screen

Camera 1 or Camera 2 REC screen

Exits the Multi Camera Mode.

Switches to the Multi Image screen.

Switches the Single Image screen between the two cameras.

You can use the operations below to shoot with either one of the cameras while viewing its image on the Single Image screen.

. To switch the Single Image screen between the two cameras

(Camera 1, Camera 2)

1. Touch “ ” or “ ”.

Each touch toggles between Camera 1 and Camera 2.

. To shoot a snapshot

1. Press the controller shutter button.

This records a snapshot on the currently displayed camera.

• You can also record a snapshot on a particular camera by pressing the camera’s shutter button.

. To shoot a movie

1. On the controller, press [0] (Movie).

This starts movie recording on the currently displayed camera. Press [0] (Movie) again to stop recording.

• You can also record a movie on a particular camera by pressing the camera’s [0] (Movie) button. Press [0] (Movie) again to stop recording.

Using Two Cameras at the Same Time (Multi

Camera Mode)

. Single Image Screen Operations

• Menu screen, REC mode screen, and wireless mode settings you configure for Camera 1 or Camera 2 on the Single Image screen are maintained when you return to Multi Image screen and even when you exit the Multi Camera Mode.

• You cannot perform the operations below while the Single Image screen is displayed. Interval Shooting (page 42), Mirror Image (page 56), Review (page 57), High Speed CS (page 52), Touch Shooting (page 50)

Using Two Cameras at the Same Time (Multi

Camera Mode)

Viewing Snapshots and Movies in the Multi Camera Mode

Each touch toggles between “ ” and “ ”.

Switches to the

Camera 1 Single

Image screen.

Camera 1 PLAY

screen

Enters the REC mode.

Switches to the Camera 2 Single Image screen.

Camera 2 PLAY screen

Exits the Multi Camera Mode.

This section provides an overview of how to view images using the Multi Image screen and the Single Image screen in the Multi Camera Mode. For more detailed information, see “Viewing Snapshots and Movies” (page 58).

Multi Image Screen Operations

You can use this screen to display the playback screens of the two cameras side by side (or above and below in the case of portrait orientation) and view snapshots and movies from both cameras simultaneously.

. Viewing Snapshots

To scroll snapshots on a particular camera

1. If “ ” is on the display, flick the Camera 1 or Camera 2 PLAY screen

left or right.

If “ ” is on the display, touch it to toggle to “ ”.

To scroll snapshots simultaneously on both cameras

1. If “ ” is on the display, flick the screen left or right.

If “ ” is on the display, touch it to toggle to “ ”.

Using Two Cameras at the Same Time (Multi

Camera Mode)

. To playback movies or panorama images shot with both cameras

NOTE

simultaneously

1. On the Camera 1 or Camera 2 screen, display the movie or panorama

image you want to view.

While there is a movie or panorama image displayed on the playback screen of both Camera 1 and Camera 2, “ ” (Playback) is displayed in the center of the screen.

2. Touch “ ” (Playback).

This starts simultaneous playback of both movies or panorama images.

• You cannot playback a movie or panorama image from a particular camera while the Multi Image screen is displayed.

. Multi Image Screen Operations

• Pressing the controller shutter button or [0] (Movie) button while the cameras are in the PLAY mode will cause both cameras to switch simultaneously to the REC mode.

• Pressing the shutter button or [0] (Movie) button of one of the cameras while it is in the PLAY mode will start an image recording operation on that camera. The controller will switch to the Single Image screen showing the image of the camera that is recording the image.

• To view snapshot information, first touch “ ” or “ ” to display the Single Image screen of the camera for the snapshot, and then view its information. After you are finished, touch “ ” to return to the Multi Image screen.

Using Two Cameras at the Same Time (Multi

Camera Mode)

Single Image Screen Operations

Camera 1 or Camera 2 PLAY screen

Switches to the Multi Image screen.

Switches the Single Image screen between the two cameras.

Displays an image menu (page 60).

Exits the Multi Camera Mode.

You can use the operations below to view snapshots or movies of either Camera 1 or Camera 2 on the Single Image screen.

To switch the Single Image screen between the two cameras (Camera 1, Camera 2)

1. Touch “ ” or “ ”.

Each touch toggles between Camera 1 and Camera 2.

. Single Image Screen Operations

• Pressing the controller shutter button or [0] (Movie) button while it is in the PLAY mode will switch to the REC mode.

• Pressing the camera shutter button or [0] (Movie) button while the controller is in the PLAY mode will start an image recording operation on the camera. If you start recording with the camera whose image is currently displayed by the controller, the controller will switch to the recording mode screen.

• Single Image screen playback operations are the same as those for the Single Camera Mode.

Using Two Cameras at the Same Time (Multi

Camera Mode)

Printing

Professional Print Service

You can take a memory card that contains the images you want to print to a professional print service and have them printed.

Printing on a Home Printer

You can use a printer equipped with a memory card slot to print images directly from a memory card. For details, see the user documentation that comes with your printer.

Printing with a Computer

After transferring the images to your computer, use commercially available software to print.

Printing with a Computer

There are a variety of different ways to print images stored on a computer. This section shows one standard printing example.

. Printing on a Windows Computer

1. Use the procedure under “Viewing and Storing Images on a Computer”

(page 95) to store the image you want to print, and then display the image on your computer screen.

2. Click “Print” and then “Print”.

3. Configure the desired print settings and then click “Print”.

. Printing on a Macintosh

1. Use the procedure under “Connecting the Camera to Your Computer

and Saving Files” (page 98) to store the image you want to print, and then display the image on your Macintosh screen.

2. Click “File” and then “Print”.

3. Configure print settings and then click “Print”.

This will print the selected image.

Printing

Using the Camera with a Computer

Things you can do using a computer...

You can perform the operations described below while the camera is connected to a computer.

Save images to a computer and view them there

Play back and edit movies

The procedures you need to perform are different for Windows and the Macintosh.

• Windows users should refer to “Using the Camera with a Windows Computer” on page 94.

• Macintosh users should refer to “Using the Camera with a Macintosh” on page

98.

• Save images and view them manually (USB connection) (pages 95, 98).

• You can play back movies (pages 97,

100).

• To edit movies, use commercially available software as required.

Using the Camera with a Windows Computer

When you want to do this:

Save images to a computer and view them there manually

Play movies

Operating System Version

Windows 10, Windows 8.1, Windows 7, Windows Vista

Required Software

Installation not required.

QuickTime 7 or higher

• You need to download QuickTime 7 on the Web if you want to use it.

See page:

Using the Camera with a Computer

NOTE

Viewing and Storing Images on a Computer

USB

Micro USB cable

(included with camera)

[USB] port

You can connect the camera to your computer in order to view and store images (snapshot and movie files).

Never use your computer to modify, delete, move, or rename any image files that are in the camera’s built-in memory or on its memory card.

Doing so can cause problems with the camera’s image management data, which will make it impossible to play back images on the camera and can drastically alter remaining memory capacity. Whenever you want to modify, delete, move, or rename an image, do so only on images that are stored on your computer.

IMPORTANT!

• Never unplug the USB cable, or operate the camera while viewing or storing images. Doing so can cause data to become corrupted.

• You also can use your computer’s card slot (if it has one) or a commercially available card reader to access image files directly from the camera’s memory card. For details, see the user documentation that comes with your computer.

. To connect the camera to your computer and save files

1. On the camera, hold down [p]

(Power) for about two seconds to turn off power. Next, use the micro USB cable that comes with the camera to connect it to your computer's USB port.

• For details about connecting to the camera and precautions when connecting, see page 23.

2. Press [p] (Power) to turn on the camera.

When you turn on the camera, check to make sure that the color of its operation lamp changes from red to green or amber (page 23). Note that in this case the monitor screen will remain blank.

• The first time you connect the camera to your computer with the USB cable, an error message may appear on your computer. If this happens, disconnect and then reconnect the USB cable.

3. Windows 10 users: Click “Start” and then “Explorer”. Next, in the

sidebar, click “PC”. Windows 8.1 users: Click “Desktop” and then “Explorer”. Windows 7, Windows Vista users: Click “Start” and then “Computer”.

Using the Camera with a Computer

4. Double-click “Removable Disk”.

• Your computer recognizes the memory card loaded in the camera (or built-in memory if there is no card) as a removable disk.

5. Right-click the “DCIM” folder.

6. On the shortcut menu that appears, click “Copy”.

7. Windows 10, Windows 8.1 users: Click “Documents”.

Windows 7, Windows Vista users: Click “Start” and then “Documents”.

• If you already have a “DCIM” folder in “Documents”, the next step will overwrite it. If you want to keep the existing “DCIM” folder, you need to change its name or move it to a different location before performing the next step.

8. Windows 10, Windows 8.1 users: On the “Documents” menus, click

“Home” and then “Paste”. Windows 7, Windows Vista users: On the “Documents” menu, click “Organize” or “Edit”, and then “Paste”.

This will paste the “DCIM” folder (and all the image files it contains) into your “Documents” folder. You now have a copy of the files that are in camera memory on your computer.

• After copying images, it is recommended that you right-click the DCIM folder and change its name to something else.

9. After you finish copying images, disconnect the camera from the

computer.

After the copy or read progress dialog on the computer’s screen indicates that the process is complete, close the displayed image and then disconnect the USB cable.

. To view images you copied to your computer

1. Double-click the copied “DCIM” folder to open it.

2. Double-click the folder that contains the images you want to view.

3. Double-click the image file you want to view.

• For information about file names, see “Memory Folder Structure” on page 102.

• An image that was rotated on the camera will be displayed on your computer screen in its original (unrotated) orientation.

• Viewing CS and interval shot images on a computer will individually display the component images in the group. CS and interval shooting images cannot be viewed as a group on a computer.

Using the Camera with a Computer

Playing Movies

To play back a movie, first copy it to your computer and then double-click the movie file. Some operating systems may not be able to play back movies. If this happens, you need to install separately available software.

• With Windows 10, Windows 8.1 and Windows 7, playback is supported by Windows Media Player 12.

• If you are unable to play back movies, go to the URL below to download QuickTime 7 or higher and install it on your computer. https://www.apple.com/quicktime/

. Minimum Computer System Requirements for Movie Playback

The minimum system requirements described below are necessary to play back movies recorded with this camera on a computer.

Operating System : Windows 10, Windows 8.1, Windows 7, Windows Vista CPU : Image Quality “Full HD”: Core 2 Duo 3.0GHz or higher

Required Software: QuickTime 7 or higher (Not required with Windows 10,

• The above are recommended system environments. Configuring one of these environments does not guarantee proper operation.

• Certain settings and other installed software may interfere with proper playback of movies.

Image Quality “STD”, “HS240”: Pentium 4 3.2GHz or higher

Windows 8.1 and Windows 7.)

. Movie Playback Precautions

• Be sure to move the movie data to the hard disk of your computer before trying to play it. Proper movie playback may not be possible for data accessed over a network, from a memory card, etc.

• Proper movie playback may not be possible on some computers. If you experience problems, try the following. – Quit any other applications you have running, and stop resident applications.

Using the Camera with a Computer

IMPORTANT!

NOTE

Using the Camera with a Macintosh

When you want to do this:

Save images to your Macintosh and view them there manually

Save images to your Macintosh automatically/ Manage images

Play movies

Operating System Version

OS X Installation not required. 98

OS X

OS X 10.5 or higher

Required Software

Photos or iPhoto, which comes bundled with some Macintosh products.

QuickTime Player (installed on computer)

See page:

100

–

Connecting the Camera to Your Computer and Saving Files

Never use your computer to modify, delete, move, or rename any image files that are in the camera’s built-in memory or on its memory card.

• Never unplug the USB cable, or operate the camera while viewing or storing images. Doing so can cause data to become corrupted.

• The camera does not support operation with Mac OS X 10.0 to 10.4. Operation is supported with Mac OS 10.5 to 10.11 (using the OS standard USB driver) only.

Using the Camera with a Computer

. To connect the camera to your computer and save files

Micro USB cable

(included with camera)

[USB] port

1. On the camera, hold down [p]

(Power) for about two seconds to turn off power. Next, use the micro USB cable that comes with the camera to connect it to your computer's USB port.

• For details about connecting to the camera and precautions when connecting, see page 23.

USB

2. Press [p] (Power) to turn on the camera.

When you turn on the camera, check to make sure that the color of its operation lamp changes from red to green or amber (page 23). Note that in this case the monitor screen will remain blank. In this mode, your Macintosh recognizes the memory card loaded in the camera (or the camera’s built-in memory if it does not have a memory card loaded) as a drive. The appearance of the drive icon depends on the Mac OS version you are using.

• The first time you connect the camera to your Macintosh with the USB cable, an error message may appear on your computer. If this happens, disconnect and then reconnect the USB cable.

3. Double-click the camera’s drive icon.

4. Drag the “DCIM” folder to the folder to which you want to copy it.

5. After the copy operation is complete, drag the drive icon to Trash.

6. Disconnect the camera from the computer.

After the copy or read progress dialog on the computer’s screen indicates that the process is complete, close the displayed image and then disconnect the USB cable.

Using the Camera with a Computer

. To view copied images

1. Double-click the camera’s drive icon.

2. Double-click the “DCIM” folder to open it.

3. Double-click the folder that contains the images you want to view.

4. Double-click the image file you want to view.

• For information about file names, see “Memory Folder Structure” on page 102.

• An image that was rotated on the camera will be displayed on your Macintosh screen in its original (unrotated) orientation.

Playing a Movie

To play back a movie, first copy it to your Macintosh and then double-click the movie file.

. Minimum Computer System Requirements for Movie Playback

The minimum system requirements described below are necessary to play back movies recorded with this camera on a computer.

Operating System : Mac OS X 10.5 or higher Required Software: QuickTime Player (installed on computer)

• The above are recommended system environments. Configuring one of these environments does not guarantee proper operation.

• Certain settings and other installed software may interfere with proper playback of movies.

. Movie Playback Precautions

Proper movie playback may not be possible on some Macintosh models. If you experience problems, try the following.

– Shut down other applications that are running.

IMPORTANT!

• Be sure to move the movie data to the hard disk of your Macintosh before trying to play it. Proper movie playback may not be possible for data accessed over a network, from a memory card, etc.

100

Using the Camera with a Computer

Casio Computer Co EXFR200CA Users Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Accessories

Read this first!

Contents

General Guide

Monitor Screen Contents and How to Change Them

Quick Start Basics

What you can do with your CASIO camera

Using the Attachment

Controller

Hinge Unit

Tripod nut

Carabiner Strap

Using the Touch Panel

First, charge the battery prior to use.

Turning Power On and Off

Configuring Basic Settings the First Time You Turn On the Camera

Preparing a Memory Card

Supported Memory Cards

To load a memory card

To format (initialize) a new memory card

Shooting a Snapshot

Selecting the Dome View Recording Mode

To shoot a snapshot

Viewing Snapshots
