Drum Assignment List
Appendix
426-E-099A
A-7
main19.fm 8 ページ ２００２年７月３０日 火曜日 午後３時２７分
Appendix
A-8
426-E-100A
main19.fm 9 ページ ２００２年７月３０日 火曜日 午後３時２７分
Appendix
426-E-101A
A-9
PL40NE01-1.book 10 ページ ２００２年７月２３日 火曜日 午後６時５２分
Appendix

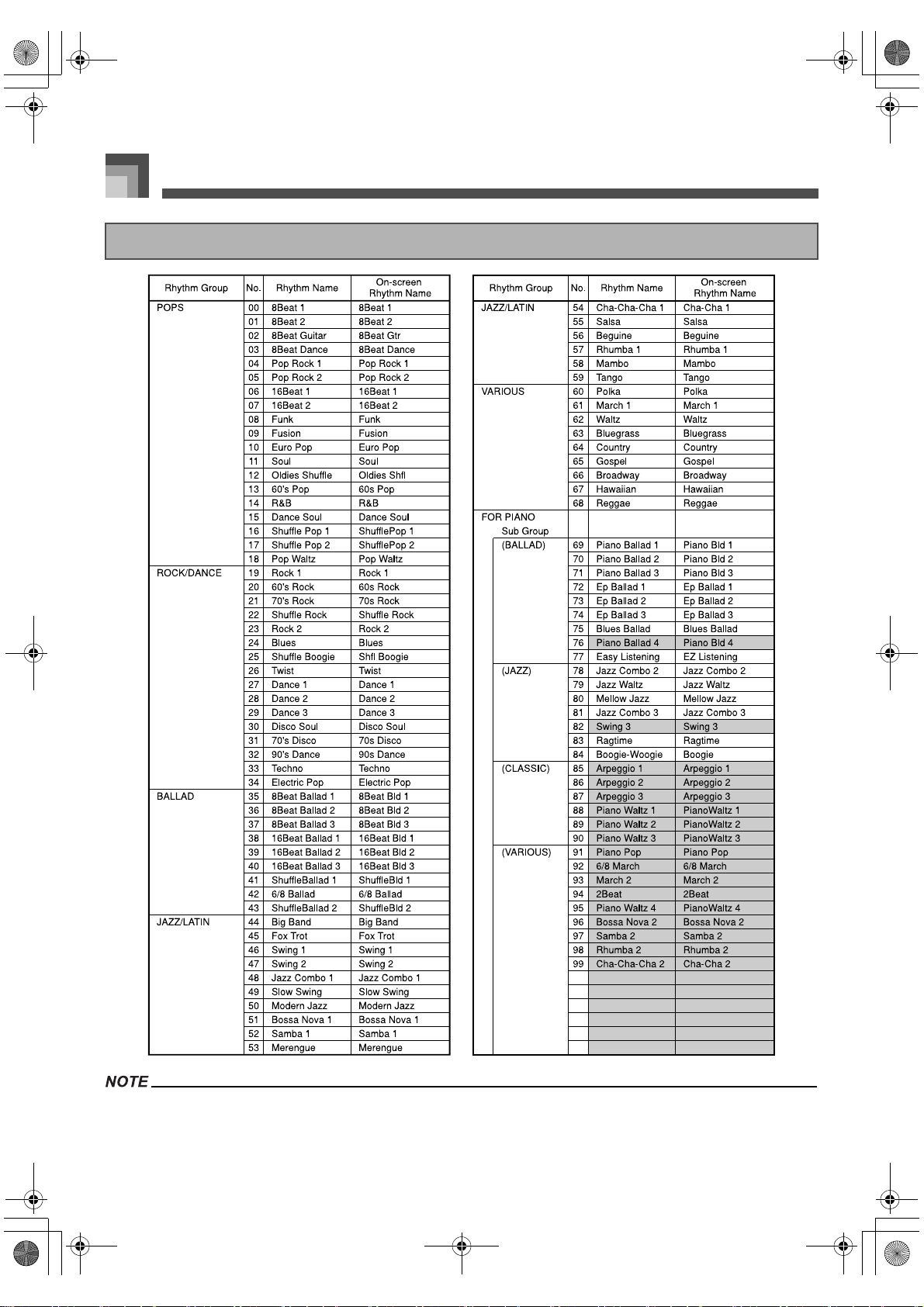

Rhythm List
Rhythms whose names are shaded in the “Rhythm Name” column of the above table are piano-only accompaniment rhythms. These
rhythms are made up of chord accompaniments only, without drum or other rhythm sounds. Because of this, these rhythms do not
sound while auto accompaniment is turned off (all the indicator lamps above the MODE button are off). You can specify chords by
using these rhythms while auto accompaniment is turned on (indicated when one of the indicator lamps above the MODE button is lit).
A-10
426-E-102A
PL40NE01-1.book 11 ページ ２００２年７月２３日 火曜日 午後６時５２分
Effect Table
Appendix
DSP EFFECT List
No. Type Name
1 Reflection
2 Gate Reverb
3 Chorus
4 Ensemble
5 Delay
6 Cross Delay
7 Phaser
8 Flanger
9 Loudness
10 Tremolo
11 Auto Pan
12 Rotary
13 Distortion
14 Auto Wah
15 Ring Mod.
16 Lo-Fi
CHORUS EFFECT List
No. Type Name
1 Chorus 1
2 Chorus 2
3 Chorus 3
4 Chorus 4
5 F-backChorus
6 Flanger
7 Short Delay
8 ShortDelayFB
REVERB EFFECT List
No. Type Name
1 Room 1
2 Room 2
3 Room 3
4 Stage
5 Hall 1
6 Hall 2
7 Delay
8 Pan Delay
426-E-103A
A-11
main19.fm 12 ページ ２００２年７月３０日 火曜日 午後３時４５分
Appendix
Fingered/Full Range Chord Table
Example: Root C
Root Position Chords (23 types)
On Bass Chords: When the bass note is a
chord component (33 types)
In either of the following cases, the lowest note is interpreted
as the bass note, and the chord is interpreted as one of the
chords shown below.
When the lowest note is more than five intervals from the
second note
When the “On Bass Chord” setting is turned on
*1. 6th, m6th Chords
When the “6th chord” option is turned off, there must be
at least five intervals separating the bass note and second
note, as shown above.
When the “6th chord” option is turned on, you can
specify a 6th chord by fingering the root position chord
plus the 6th note, as shown below.
z 3-Note Chords
Example:
F/C
z 4-Note Chords
*2. A fingering that includes the 5th (E) is interpreted as
Am
7/C, while a fingering that does not include the 5th is
interpreted as C
6.
A-12
426-E-104A
PL40NE01-1.book 13 ページ ２００２年７月２３日 火曜日 午後６時５２分
On Bass Chords: When the bass note is not
a chord component (122 types)
In either of the following cases, the lowest note is interpreted
as the bass note, and the chord is interpreted as one of the
chords shown below.
When the lowest note is more than five intervals from the
second note
When the “On Bass Chord” setting is turned on
Appendix
426-E-105A
A-13
main19.fm 14 ページ ２００２年７月３０日 火曜日 午後３時４５分
Appendix
Tension Chords (20 Types) Tension Chord On Bass Chords (39 Types)
Tension chords are recognized only while the “Tension
Chord” setting is turned on.
In either of the following cases, the lowest note is interpreted
as the bass note, and the chord is interpreted as one of the
chords shown below only when the “Tension Chord” setting
is turned on.
When the lowest note is more than five intervals from the
second note
When the “On Bass Chord” setting is turned on
A-14
*3. A fingering that includes the 5th (E) is interpreted as
Am
7(9)/C, while a fingering that does not include the 5th
is interpreted as CM
7(13).
*4. A fingering that includes the 5th (E) is interpreted as
Am
7(13)/C, and a fingering that does not include the 5th
is not recognized.
426-E-106A
PL40NE01-1.book 15 ページ ２００２年７月２３日 火曜日 午後６時５２分
Song List
Appendix
426-E-107A
A-15
PL40NE01-1.book 16 ページ ２００２年７月２３日 火曜日 午後６時５２分
Appendix
A-16
426-E-108A
