MA1107-EA

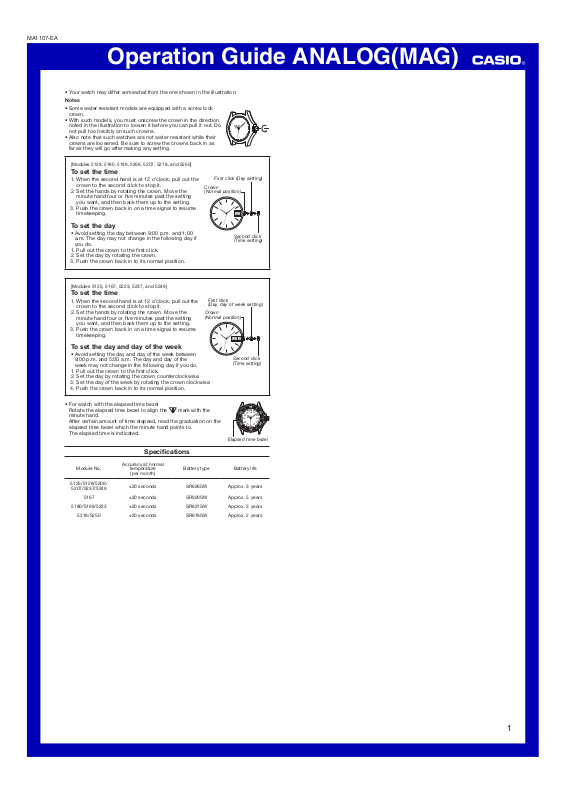

Operation Guide ANALOG(MAG)

Your watch may differ somewhat from the one shown in the illustration.•

Notes

Some water resistant models are equipped with a screw lock •
crown.
With such models, you must unscrew the crown in the direction •
noted in the illustration to loosen it before you can pull it out. Do
not pull too forcibly on such crowns.
Also note that such watches are not water resistant while their •
crowns are loosened. Be sure to screw the crowns back in as
far as they will go after making any setting.

[

Modules 5128, 5180, 5199, 5206,

To set the time

When the second hand is at 12 o’clock, pull out the 1.
crown to the second click to stop it.
Set the hands by rotating the crown. Move the 2.
minute hand four or five minutes past the setting
you want, and then back them up to the setting.
Push the crown back in on a time signal to resume 3.
timekeeping.

To set the day

Avoid setting the day between 9:00 p.m. and 1:00 •
a.m. The day may not change in the following day if
you do.

Pull out the crown to the first click.1.
Set the day by rotating the crown.2.
Push the crown back in to its normal position.3.

[Modules 5125, 5167, 5223, 5237, and 5249]

To set the time

When the second hand is at 12 o’clock, pull out the 1.
crown to the second click to stop it.
Set the hands by rotating the crown. Move the 2.
minute hand four or five minutes past the setting
you want, and then back them up to the setting.
Push the crown back in on a time signal to resume 3.
timekeeping.

To set the day and day of the week

Avoid setting the day and day of the week between •
9:00 p.m. and 5:00 a.m. The day and day of the
week may not change in the following day if you do.

Pull out the crown to the first click.1.
Set the day by rotating the crown counterclockwise.2.
Set the day of the week by rotating the crown clockwise.3.
Push the crown back in to its normal position.4.

5207, 5218, and 5250]

Crown
(Normal position)

Crown
(Normal position)

First click (Day setting)

Second click
(Time setting)

First click
(Day, day of week setting)

Second click
(Time setting)

For watch with the elapsed time bezel •
Rotate the elapsed time bezel to align the
minute hand.
After certain amount of time elapsed, read the graduation on the
elapsed time bezel which the minute hand points to.
The elapsed time is indicated.

mark with the

Elapsed time bezel

Specifications

Module No.

5125/5128/5206/

5207/5237/5249

5167 ±20 seconds SR920SW Approx. 5 years

5180/5199/5223 ±20 seconds SR621SW Approx. 3 years

5218/5250 ±20 seconds SR616SW Approx. 2 years

Accuracy at normal

temperature

(per month)

±20 seconds SR626SW Approx. 3 years

Battery type Battery life
