MA1004-EA
Operation Guide 5123
Congratulations upon your selection of this CASIO watch.
This watch does not have a city code that corresponds to the UTC offset of –3.5
hours for Newfoundland, Canada.
Note that CASIO COMPUTER CO., LTD. assumes no responsibility for any damage
or loss suffered by you or any third party arising through the use of this product or
its malfunction.
About This Manual
Button operations are indicated using the letters A through
D shown in the illustration.
Hand Functions
z Hour Hand
x Second Hand
c Minute Hand
v Upper Left Dial Hand
b Lower Left Dial Hands
n Right Dial Hand: Indicates the current mode.
m Day
This User’s Guide uses numbers shown above to identify
watch hands and indicators.
Things to check before using the watch
1. Hold down C for about two seconds to enter the Timekeeping Mode, and
then observe the movement of the
Is the x Second Hand moving smoothly at one-second intervals?
Is the x Second Hand moving at
two-second intervals or is it stopped
completely?
Power is low. Charge the watch by placing
it in a location where it is exposed to light.
For details, see “Charging the Watch”.
NO
YES
2. Check the Home City and the daylight saving time (DST) setting.
Use the procedure under “To configure Home City settings” to configure your Home
City and daylight saving time settings.
Important!
World Time settings depend on correct Home City, time, and date settings in the
Timekeeping Mode. Make sure these settings are configured correctly.
3. Set the current time.
See “Configuring Current Time and Date Settings”.
The watch is now ready for use.
x Second Hand.
The watch is charged sufficiently.
For details about charging, see
“Charging the Watch”.
Go to step 2.
YES
NEXT
Charging the Watch
The face of the watch is a solar cell that generates power from light. The generated
power charges a built-in rechargeable battery, which powers watch operations. The
watch charges whenever it is exposed to light.
Charging Guide
Warning!
Leaving the watch in bright light for charging can cause it to become quite hot.
Take care when handling the watch to avoid burn injury. The watch can become
particularly hot when exposed to the following conditions for long periods.
On the dashboard of a car parked in direct sunlight •
Too close to an incandescent lamp •
Under direct sunlight •
Important!
Keep the watch in an area normally exposed to bright light when storing it for long •
periods. This helps to ensure that power does not run down.
Storing the watch for long periods in an area where there is no light or wearing it in •
such a way that it is blocked from exposure to light can cause power to run down.
Make sure that the watch is exposed to bright light whenever possible.
Whenever you are not
wearing the watch, be sure
to leave it in a location
where it is exposed to light.
Best charging •
performance is achieved
by exposing the watch to
light that is as strong as
possible.
When wearing the watch,
makes sure that its face is
not blocked from light by the
sleeve of your clothing.
The watch may enter a •
sleep state if its face is
blocked by your sleeve
even only partially.
Power Levels
You can get an idea of the watch’s power level by
observing the movement of the
Timekeeping Mode.
x Second Hand is moving normally at one-second
If the •
intervals, power is at Level 1.
x Second Hand is moving at two-second intervals,
If the •
power is at Level 2, which is quite low. Expose the watch
to light as soon as possible so it can charge.
Moving at two-second
intervals.
Level Hand Movement Function Status
1 Normal. All functions enabled.
x Second Hand moving at two-second
2
intervals.
m Day changes to 1 (home position).
x Second Hand stopped.
3
z Hour Hand and c Minute Hand stopped
at 12 o’clock.
When power drops to Level 3, all functions will be disabled but the watch will •
continue to keep time internally for about one week. If you recharge the battery
sufficiently during this period, the analog hands will move automatically to the
correct setting and regular timekeeping will resume. After one week, all settings
(including timekeeping) will be cleared. Recharging the battery will reset all settings
to their initial factory defaults.
Power Recovery Mode
The watch is designed to go into a power recovery mode that stops hand operation
temporarily whenever power suddenly drops below a certain level due to overuse
of the alarm tone over a short period. Note that all operations are disabled while the
watch is in the power recovery mode.
The hands will move to the correct positions and the watch will resume normal
operation after power recovers (in about 15 minutes). Putting the watch in a location
where it is exposed to light will help power to recover sooner.
x Second Hand in the
Beeper disabled.
All functions disabled.
Charging Times
Exposure Level (Brightness)
Outdoor sunlight (50,000 lux) 8 minutes 2 hours 27 hours
Window sunlight (10,000 lux) 30 minutes 6 hours 100 hours
Window sunlight on cloudy day
(5,000 lux)
Indoor fluorescent lighting (500 lux) 8 hours 112 hours – – –
1 Approximate exposure each day to generate power for normal daily operation. *
2 Approximate exposure to take power up one level. *
The above exposure times all are for reference only. Actual exposure times depend •
on lighting conditions.
For details about the operating time and daily operating conditions, see the “Power •
Supply” section of the Specifications.
Power Saving
Power Saving enters a sleep state automatically whenever the watch is left for a
certain period in an area where it is dark. The table below shows how watch functions
are affected by Power Saving.
There actually are two sleep state levels: “second hand sleep” and “function sleep”. •
Elapsed Time in Dark Operation
60 to 70 minutes (second hand
sleep)
6 or 7 days (function sleep)
The watch will not enter a sleep state between 6:00 AM and 9:59 PM. If the watch •
is already in a sleep state when 6:00 AM arrives, however, it will remain in the sleep
state.
The watch will not enter a sleep state while it is in the Stopwatch Mode. •
To recover from the sleep state
Move the watch to a well-lit area or press any button.
Daily
Operation *1
48 minutes 10 hours – – –
x Second Hand only is stopped at 12 o’clock, all other
functions are enabled.
All functions, including analog timekeeping, disabled •
Internal timekeeping maintained. •
Level Change *2
Level 3 Level 2 Level 1
Mode Reference Guide
Your watch has four “modes”. The mode you should select depends on what you
want to do.
To do this: Enter this mode:
View the current time in your Home City and in one of 29 •
cities around the globe
Configure Home City and daylight saving time (DST) •
settings
Configure time and date settings •
Use the stopwatch to measure elapsed time Stopwatch Mode
View the current time in one of 29 cities (time zones) around
the globe
Set an alarm time Alarm Mode
Selecting a Mode
With this watch, everything starts from the Timekeeping Mode.
To determine the watch’s current mode
Check the position of the
under “To select a mode”.
To return to the Timekeeping Mode from any other
mode
Hold down C for about two seconds until the watch beeps
twice.
Timekeeping Mode
World Time Mode
n Right Dial Hand as shown
1
Operation Guide 5123

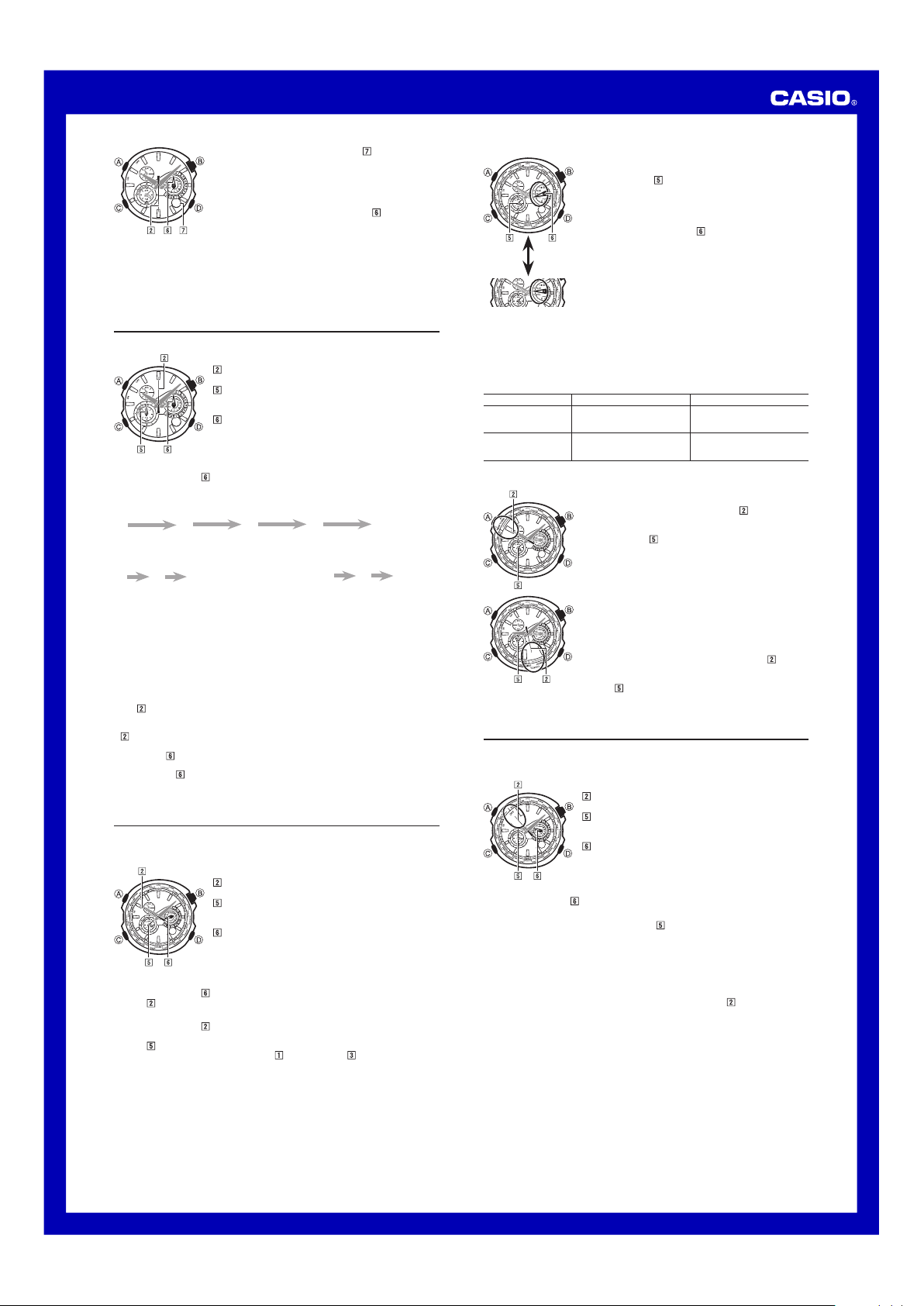

To select a mode
Press C to cycle between the modes as shown below. The
indicates the currently selected mode.
Timekeeping Mode Stopwatch Mode
The short end of the
hand indicates the
day of the week.
Alarm Mode World Time Mode
The hand points to ALM. The hand points to STD
C
n Right Dial Hand
The hand points to 0.
or DST.
Timekeeping
Use the Timekeeping Mode to view the current time and date. To enter the
Timekeeping Mode from any other mode, hold down C for about two seconds.
Hand Functions
z Hour Hand
x Second Hand
c Minute Hand
v Upper Left Dial Hand:
Indicates the current hour in the Home City time in
24-hour format.
b Lower Left Dial Hands:
Indicate the current time in the World Time City in
24-hour format.
n Right Dial Hand: The short end of the hand indicates
m Day
the day of the week.
Configuring Home City Settings
There are two Home City settings: actually selecting the Home City and selecting
either standard time or daylight saving time (DST).
To configure Home City settings
Note
This watch does not have a city code that corresponds •
to Newfoundland.
In the Timekeeping Mode, keep 1. A depressed (for about
five seconds) as the
code of the currently selected Home City.
This indicates the city code setting mode. •
The watch will exit the setting mode automatically if •
you do not perform any operation for about two or
three minutes.
For details about city codes, see the “City Code •
Table”.
To change the Home City setting, press 2. D to move the
x Second Hand clockwise.
Keep pressing • D until the
at the city code you want to select as your Home City.
Each time you select a city code, the •
c Minute Hand, v Upper Left Dial Hand and m Day
move to the current time and date for that city code.
Do not perform the next operation until these hands
stop moving.
Press 3. B to toggle the time for the currently selected
city code between STD (standard time)/DST (daylight
In the city code setting mode, the •
daylight saving time setting as STD (standard time) or DST (daylight saving
time).
Note that you cannot switch between • STD (standard time)/DST (daylight saving
time) while UTC is selected as your Home City.
saving time).
After the setting is the way you want, press 4. A to return to the Timekeeping Mode.
To toggle the Home City time between standard time and daylight saving time
Perform the step 1 under “To configure Home City settings”.1.
Each time you select a city code, the •
v Upper Left Dial Hand move to the current time for that city code. Do not
perform the next operation until these hands stop moving.
Press 2. B to toggle the time for the city code of the currently selected Home City
between STD (standard time)/DST (daylight saving time).
In the city code setting mode, the •
daylight saving time setting as STD (standard time) or DST (daylight saving
time).
Note that you cannot switch between • STD (standard time)/DST (daylight saving
time) while UTC is selected as your Home City.
After the setting is the way you want, press 3. A to return to the Timekeeping Mode.
Note
After you specify a city code, the watch will use UTC* offsets in the World Time •
Mode to calculate the current time for other time zones based on the current time
in your Home City.
Coordinated Universal Time, the world-wide scientific standard of timekeeping. The *
reference point for UTC is Greenwich, England.
x Second Hand moves to the city
x Second Hand is pointing
z Hour Hand,
n Right Dial Hand indicates the current
z Hour Hand, c Minute Hand, and
n Right Dial Hand indicates the current
Configuring Current Time and Date Settings
You can configure current time and date settings.
To change the current time setting
In the Timekeeping Mode, keep 1. A depressed (for about
five seconds) as the
code of the currently selected Home City.
At this time, the •
Home City’s current daylight saving time setting (STD
or DST).
Change the Home City and daylight saving time (DST) 2.
settings, if you want.
For details about these settings, see steps 2 and 3 •
under “To configure Home City settings”.
In the following steps, each press of • C cycles
between settings as shown below.
Home city/DST Hour/Minute Year (tens digit)
Press 3. C.
The watch will beep, and the •
to their 12 o’clock positions. This is the time setting mode.
Use 4. D (+) and B (–) to change the time (hour and minute) setting.
Each press of either button will move the hands ( •
Hand) one minute.
Holding down • D or B will start high-speed
movement in the applicable direction. To stop high-speed hand movement,
press any button.
v Upper Left Dial Hand and z Hour Hand move in sync with each other.
The •
When setting the time, make sure that the •
proper a.m./p.m. hour.
If you want to change the date setting at this time, press • C and perform the
procedure starting from step 3 under “To change the current date setting”.
After the time setting is the way you want, press 5. A to return to the Timekeeping
Mode.
This will cause the •
resume movement from there.
x Second Hand and n Right Dial Hand will move
x Second Hand to move automatically to 12 o’clock and
To change the current date setting
In the Timekeeping Mode, keep 1. A depressed (for about five seconds) as the
Second Hand moves to the city code of the currently selected Home City.
Press 2. C twice.
The watch will beep and change to the year setting mode. •
The year can be set in the range of 2000 to 2099. •
You can save your settings and exit the setting procedure at any time by •
pressing A, which will return to the Timekeeping Mode. This will cause the
Second Hand to move automatically to 12 o’clock and resume normal movement
from there.
Use 3. D to change the tens digit of the year
006010
90
80
70
Setting the year (tens digit)
061
9
8
7
Setting the year (ones digit)
Dec
Nov
Oct
Sep
Aug
Jul
Jun
Setting the month
50
5
setting.
20
After the tens digit of the year setting is the way 4.
30
you want, press C.
40
Use 5. D to change the ones digit of the year
setting.
2
After the ones digit of the year setting is the way 6.
3
you want, press C.
4
Jan
Feb
Mar
Apr
May
x Second Hand moves to the city
n Right Dial Hand will indicate the
Year (ones digit)
Day Month
z Hour Hand and c Minute
z Hour Hand and c Minute Hand
v Upper Left Dial Hand indicates the
Each press of • D will move the
Hand and change the tens digit of the year
setting.
The watch will beep and change to the ones •
digit of the year setting mode.
Each press of • D will move the
Hand and change the ones digit of the year
setting.
The watch will beep and change to the month •
setting mode.
Use 7. D to move the x Second Hand to the
month setting you want.
After the month setting is the way you want, 8.
press C.
The watch will beep and change to the day •
setting mode.
x Second
x Second
x
x
2
