Casio EX-TR700 User's Guide
Digital Camera
EN
User’s Guide
Thank you for purchasing this CASIO product.
• Before using it, be sure to read the precautions contained in this User’s Guide.
• Keep the User’s Guide in a safe place for future reference.
• For the most up-to-date information about this product, visit the official EXILIM
Website at http://www.exilim.com/
Accessories
As you unpack your camera, check to make sure that all accessories shown below
are included. If anything is missing, contact your original retailer.
Rechargeable lithium ion
battery (NP-150)
USB-AC adaptor
(AD-C54UC)
Micro USB cable
2
Read this first!
• The contents of this manual are subject to change without notice.
• The contents of this manual have been checked at each step of the production
process. Feel free to contact us if you notice anything that is questionable,
erroneous, etc.
• Any copying of the contents of this User’s Guide, either in part or its entirety, is
forbidden. Except for your own personal use, any other use of the contents of this
manual without the permission of CASIO COMPUTER CO., LTD. is forbidden
under copyright laws.
• CASIO COMPUTER CO., LTD. shall not be held liable for any damages or lost
profits suffered by you or any third party due to the use or malfunction of this
product.
• CASIO COMPUTER CO., LTD. shall not be held liable for any damages, lost
profits, or claims by third parties arising out of the use of EXILIM Connect.
• CASIO COMPUTER CO., LTD. shall not be held liable for any damages or lost
profits caused by loss of memory contents due to malfunction, repair, or any other
reason.
• Note that the example screens and product illustrations shown in this User’s Guide
may differ somewhat from the screens and configuration of the actual camera.
LCD Panel
The liquid crystal panel of the monitor screen uses high-precision technology that
provides a pixel yield in excess of 99.99%. This means that some very small number
of pixels may not light or may remain lit at all times. This is due to the characteristics
of the liquid crystal panel, and does not indicate malfunction.
Take test shots
Before shooting your final image, shoot a test shot to ensure that the camera is
recording correctly.
3
Contents
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Read this first! . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
General Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Monitor Screen Contents and How to Change Them . . . . . . . . . . . . . . . . . . . . 9
Quick Start Basics 12
What you can do with your CASIO camera . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Changing the Camera Style to Suit Shooting Conditions . . . . . . . . . . . . . . . . 14
Opening and Closing the Frame. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Rotating the Monitor Screen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Camera Configurations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Using the Touch Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
First, charge the battery prior to use.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Loading the Battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Charge the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Configuring Basic Settings the First Time You Turn On the Camera. . . . . . . . 26
Preparing a Memory Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Supported Memory Cards. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
To load a memory card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
To format (initialize) a new memory card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Turning Power On and Off. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
To Shoot a Snapshot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Selecting an Auto Recording Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
To shoot a snapshot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Viewing Snapshots . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Deleting Snapshots and Movies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Snapshot Shooting Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Recording Images 39
Selecting a Recording Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Recording Beautiful Portraits . . . . . . . . . . . . . . . . . . . . . . . . . . . .(Make-up). . . 41
Shooting with Artistic Effects . . . . . . . . . . . . . . . . . . . . . . . . . . . . (Art Shot) . . . 42
Shooting with Posing Shot . . . . . . . . . . . . . . . . . . . . . . . . . . . (Posing Shot) . . . 44
Shooting a Selfie with Distinctive Effects . . . . . . . . . . . . . . . . . (Selfie Art) . . 45
Shooting with Zoom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Shooting a Self-portrait . . . . . . . . . . . . . . . . . . . . . . . . . . . . . (Selfie timer) . . 47
Using the LED Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . (LED) . . 48
Adjusting Skin Tone and Texture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Recording Movie 50
To record a movie . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Shooting a Movie of Short Clips . . . . . . . . . . . . . . . . . . . . .(Instant Movie) . . 53
Configuring Recording Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Shooting the Movie . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
4
Contents
Using BEST SHOT 56
Using Motion Shutter to Trigger a Self-timer Operation . . (Motion Shutter) . . 57
Shooting with High Speed Night Scene . . . . . . . . . . . . .(HS Night Scene) . . 58
Shooting with High Speed Night Scene
and Portraits . . . . . . . . . . . . . . . . . . . . . . . . . . . (HS Night Scene Portrait) . . 59
Shooting Beautiful Food Images . . . . . . . . . . . . . . . . . . . . . . . . . . . (Food) . . 59
Shooting Beautiful Nail Art Images . . . . . . . . . . . . . . . . . . . . . . . . . (Nails) . . 59
Digitally Correcting for Overexposure and Underexposure . . . . . . (HDR) . . 60
Shooting with Triple Shot. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Advanced Recording Settings 62
Using the REC Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Using Touch Shutter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .(Touch Shutter). . . 63
Editing a Movie as You Shoot It . . . . . . . . . . . . . . . . . . . . . . (Instant Movie). . . 63
Horizontally Flipping the Recording Image . . . . . . . . . . . . . (L/R Flip Shot). . . 64
Shooting in a Dark Location . . . . . . . . . . . . . . . . . . . . . . (Lightness Priority) . . . 64

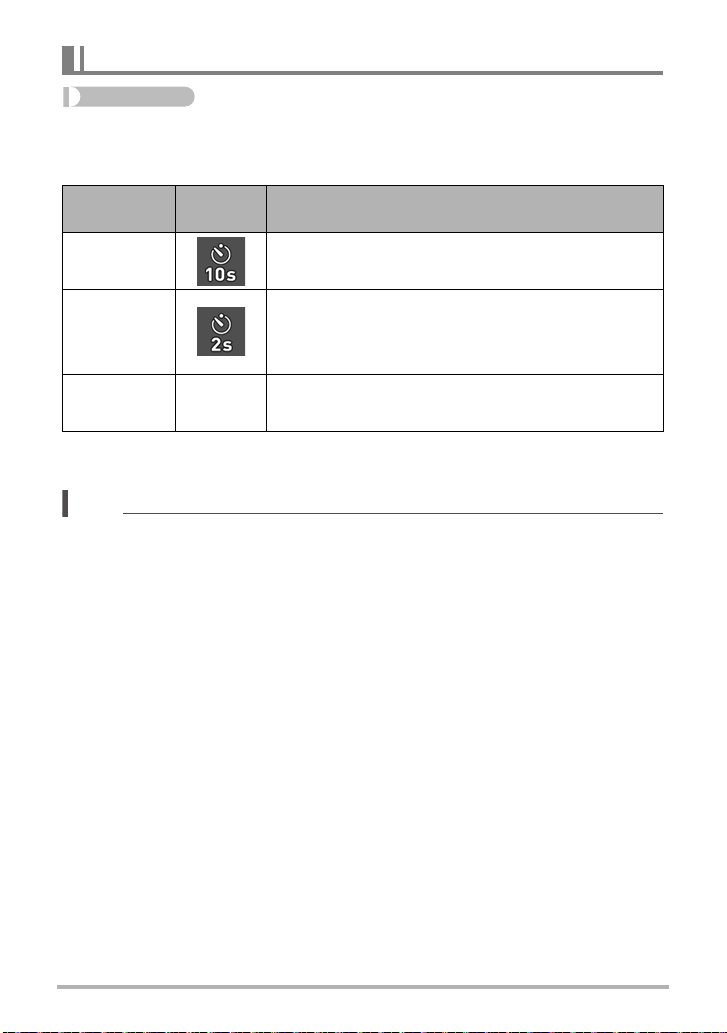

Using the Self-timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . (Self-timer) . . . 65
Changing the Image Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . .(Image Size) . . . 66

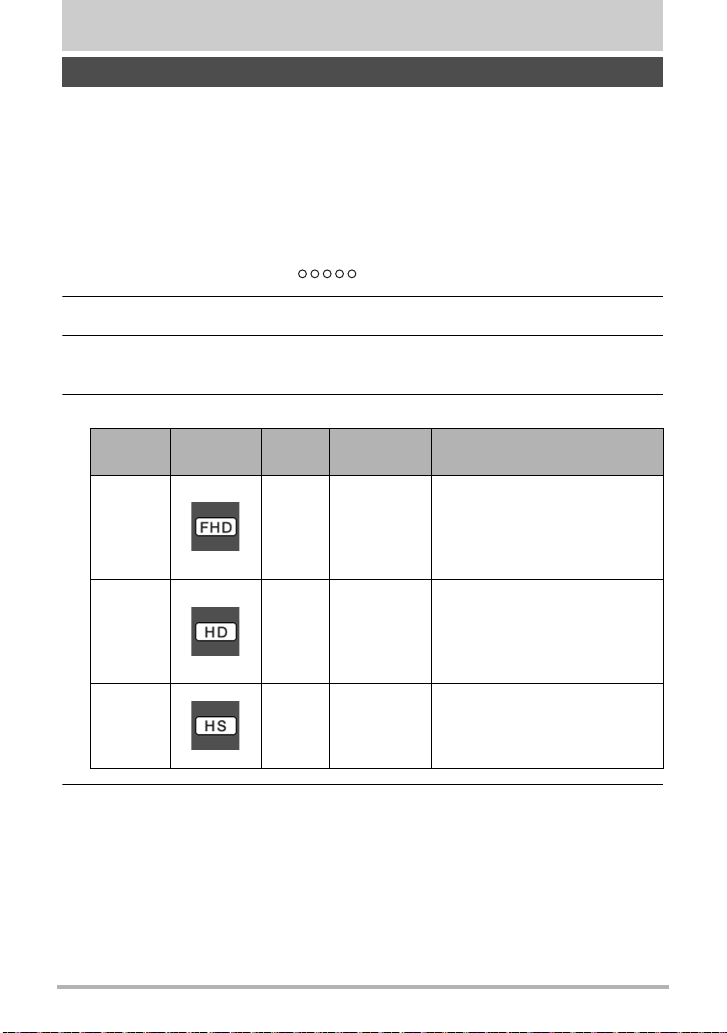

Movie Image Quality Settings . . . . . . . . . . . . . . . . . . . . . . .(Movie Quality) . . . 67
Correcting Image Brightness . . . . . . . . . . . . . . . . . . . . . . . . . . (Brightness). . . 67
Adjusting White Balance . . . . . . . . . . . . . . . . . . . . . . . . . . (White Balance). . . 68
Specifying ISO Sensitivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .(ISO). . . 69
Selecting a Focus Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .(Focus) . . . 70
Turning on Image Review . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .(Review) . . . 71
Viewing Snapshots and Movies 72
Viewing Snapshots . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Displaying the Make-up Level. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Viewing a Movie. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Editing a Movie on the Camera . . . . . . . . . . . . . . . . . . . . . .(Movie Editing). . . 75
Viewing the Image Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Zooming an On-screen Image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Creating a Promotion Movie . . . . . . . . . . . . . . . . . . . . . (Promotion Movie) . . 77
Other Playback Functions (PLAY) 79
Using the PLAY Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Playing a Slideshow on the Camera . . . . . . . . . . . . . . . . . . . . (Slideshow) . . . 80
Protecting a File Against Deletion . . . . . . . . . . . . . . . . . . . . . . . . . (Protect). . . 81
Rotating an Image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . (Rotation). . . 82
Resizing a Snapshot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . (Resize) . . . 82
Cropping a Snapshot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . (Trimming) . . . 83
5
Contents
Connecting the Camera with a Smartphone
(Wireless Connection) 84
Controlling Your Camera with a Smartphone . . . . . . . . . . . . . . . . . . . . . . . . . 84
Using a Wireless Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Getting Ready to Establish a Connection between a Smartphone
and Your Camera. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Installing the EXILIM Connect App on Your Smartphone . . . . . . . . . . . . . . . . . . 89
Establishing a Wireless Connection for the First Time . . . . . . . . . . . . . . . . . . . . 90
Using a Smartphone as a Camera Remote Controller (Shoot with phone) . . 92

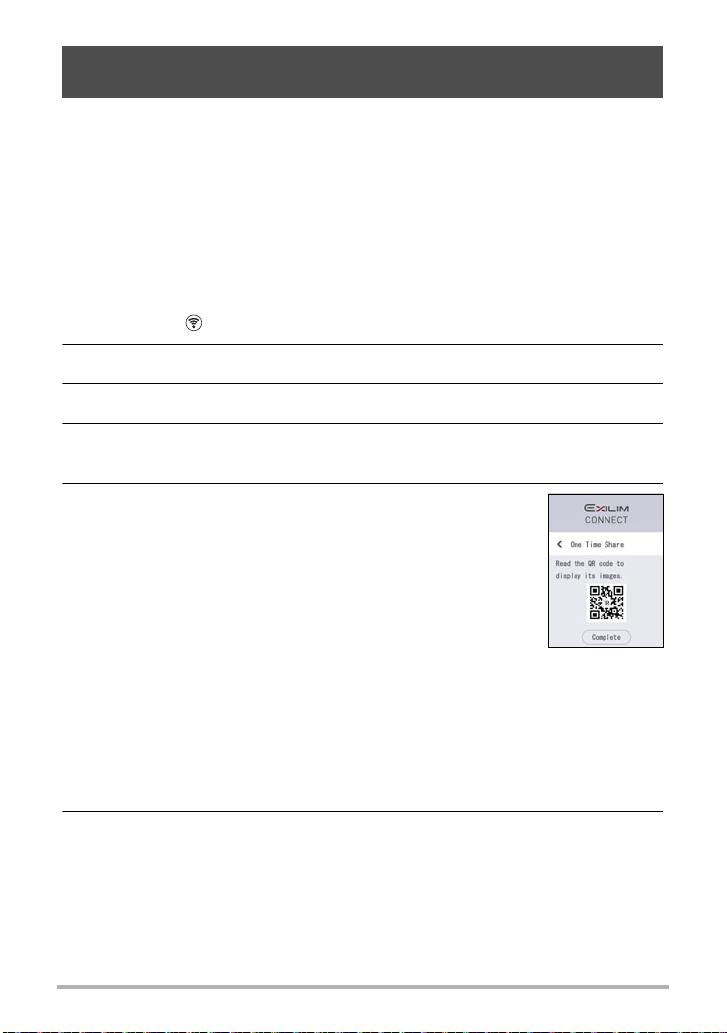

Sharing Snapshots with an Unpaired Smartphone . . . . (One Time Share) . . 94
Sending Images from the Camera to a Smartphone
as They are Recorded . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . (Auto Send) . . 96
Sending a Snapshot or Movie File from Camera Memory
to a Smartphone . . . . . . . . . . . . . . . . . . . . . . . . . . (Send Selected Image) . . 98
Viewing Snapshots and Movies in Camera Memory
on a Smartphone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . (View on phone) . . 99
Configuring Wireless Connection Settings . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Entering the Camera’s Airplane Mode . . . . . . . . . . . . . . . . (Airplane Mode). . 100
Sending Images from the Camera to a Smartphone
as They are Recorded . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . (Auto Send) . . 101
Specifying Images to be Sent by Auto Send . . . . (Auto Send File Settings). . 101
Resizing Snapshots before Sending Them
to a Smartphone . . . . . . . . . . . . . . . . . . . . . . . . . . . . (Resize before send). . 101
Add Location Info to Snapshots . . . . . . . . . . . . . . . . . . . . . . (Location info) . . 102
Changing the Camera Password
for Wireless LAN Connection . . . . . . . . . . . . . . . . . . . . . (WLAN password). . 103
Unpairing the Camera from a Smartphone . . . . . . . . . . . . . . . . (Unpairing). . 104
Printing 105
Printing with a Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Using the Camera with a Computer 106
Things you can do using a computer... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
Using the Camera with a Windows Computer . . . . . . . . . . . . . . . . . . . . . . . . 106
Viewing and Storing Images on a Computer. . . . . . . . . . . . . . . . . . . . . . . . . . . 107
Using the Camera with a Macintosh . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
Connecting the Camera to Your Computer and Saving Files . . . . . . . . . . . . . . 110
Files and Folders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Memory Card Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
6
Contents
Other Settings (Set Up) 115
Adjusting Monitor Screen Brightness . . . . . . . . . . . . . . . . . . . . . . (Screen) . 115
Selecting Display Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . (Info) . 115
Locking the Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . (Screen Lock) . 116
Specify the Shutter Sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
Configuring Camera Sound Settings . . . . . . . . . . . . . . . . . . . . . (Sounds) . 116
Time Stamping Snapshots . . . . . . . . . . . . . . . . . . . . . . . . . . .(Timestamp) . 117
Configuring World Time Settings . . . . . . . . . . . . . . . . . . . . . (World Time) . 118
Setting a Travel Destination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
Selecting the Time Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
Setting the Camera’s Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . (Adjust) . 119
Specifying the Date Style . . . . . . . . . . . . . . . . . . . . . . . . . . . . (Date Style) . 119
Specifying the Display Language . . . . . . . . . . . . . . . . . . . . . . (Language) . 120
Displaying a Startup Screen at Power On . . . . . . . . . . . . . . . . . .(Startup) . 121
Formatting Built-in Memory or a Memory Card . . . . . . . . . . . . . . . (Format) . 121
Resetting the Camera to Factory Defaults . . . . . . . . . . . . . . . . . . . (Reset) . 122
Checking the Current Camera Firmware Version . . . . . . . . . . . . (Version) . 122
Appendix 123
Safety Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Precautions During Use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130
Power Supply. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143
Charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143
Battery Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
Using the Camera in another Country . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
Using a Memory Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
Reset Initial Default Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146
When things don’t go right... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
Display Messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152
Number of Snapshots/Movie Recording Time . . . . . . . . . . . . . . . . . . . . . . . . 153
Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155
7
Contents
General Guide
Frame (page 14)
Monitor screen
(pages 9, 17, 115)
Microphone
(pages 17, 52)
LED light (page 48)
[p] (Power) (page 31)
Lens
Operation lamp
(pages 22, 25, 31, 33)
Shutter button
(page 33)
Speaker
Strap hole (page 8)
2
5
8
7
6
41 3
bk
9
bl bm
bnbo
Battery compartment (page 19)
Memory card slot (page 29)
[USB] port (pages 21, 24)
[OPEN] button (pages 19, 29)
1
2
To attach the strap to the camera
(commercially available or separately available)
Attach strap here.
The numbers in parentheses indicate the pages where each item is explained.
• Above illustration shows the camera’s cover removed (page 19).
8
NOTE
Monitor Screen Contents and How to Change Them
PLAY mode icon (page 31)
“ ” (Show Icons) icon
Make-up icon (page 41)
White Balance (page 68)
Focus mode (page 70)
Digital zoom (page 46)
Timestamp (page 117)
Self-timer mode (page 65)
Snapshot image size (page 66)
Movie quality (pages 50, 67)
Battery level indicator (page 26)
LED light icon (page 48)
Remaining movie memory capacity
(page 154)
Remaining snapshot memory capacity
(page 153)
Wireless LAN communication status
(page 88)
“ ” Movie icon (pages 34, 51)
Date/Time (pages 26, 119)
Brightness (page 67)
ISO sensitivity (page 69)
Bluetooth communication status
(page 88)/Airplane mode (page 100)
Location info (page 102)
Auto Send (page 96)
Menu icon (page 62)
Recording mode icon (page 40)
Wireless mode icon (page 87)
Selfie Art icon (page 45)
bq
bs
bt
1
3
cq1 cp co cn
2
br
cl
cm
ck
9
7
8
5
4
bk
bl
bn bmbobp
6
The monitor screen uses various indicators, icons, and values to keep you informed
of the camera’s status.
• The sample screens in this section are intended to show you the locations of all the
indicators and figures that can appear on the monitor screen in various modes.
They do not represent screens that actually appear on the camera.
. Snapshot Recording
• If you do not perform any operation for about four seconds during snapshot
recording or movie recording, icons will become transparent.
9
. Movie Recording
42
1 3
5
Protect indicator (page 81)
“ ” (Show Icons) icon
Folder name-file name (page 113)
Snapshot image size (page 66)
Image sent (page 96)
Wireless LAN communication status
(page 88)
Battery level indicator (page 26)
Confirm first icon (page 96)
Date/time (pages 26, 119)
Image menu icon (p
age 76)
Shutter speed
Brightness (page 67)
ISO sensitivity (page 69)
Bluetooth communication status
(page 88)/Airplane mode (page 100)
Location info (page 102)
White Balance (page 68)
Auto Send (page 96)
Menu icon (page 79)
Delete icon (page 36)
Wireless mode icon (pages 87, 99)
Promotion Movie icon (page 77)
REC mode icon (page 31)
. Snapshot Viewing
cm cl ck bt bs
Movie quality (
Recording time switch icon (page 51)
Movie remaining time icon (page 51)
Remaining movie memory capacity/
Movie recording time (pages 51, 154)
“ ” Movie stop icon (pages 34, 51)
pages 50, 67)
cm 1 3
br
bq
bp
bo
bn
bm
bl
bk
42
5
6
7
8
9
10
NOTE
• The folder name and file name in the upper right corner of the monitor screen has
the meaning described below (page 113).
Example: 100-0023: 23rd image file in the folder named “100CASIO”.
• If you do not perform any operation for about four seconds during snapshot viewing
or movie playback, icons will become transparent.
. Movie Playback
Protect indicator (page 81)
5
6
“ ” (Show Icons) icon
Folder name-file name (page 113)
Repeat playback icon (page 73)
Movie quality (pages 50, 67)
Movie recording time (page 73)
Date/time (pages 26, 119)
Image menu ico
“”
Movie play ico
n (page 76)
n (page 73)
4213
9
78
11
Quick Start Basics
*See pages 41, 64 for more information.
*See page 47 for more information.
*See page 45 for more information.
*See page 53 for more information.
What you can do with your CASIO camera
Your CASIO camera is packed with a powerful selection of features and functions to
make recording of digital images easier, including the following main functions.
Shooting better looking portraits/
Beautiful images, even in dark
locations
Make-up adjusts skin tone and texture to make your
portraits look better.
The effect of Make-up provides bright images even in
dark locations.
Simple self-portrait shooting
The monitor screen can be rotated so it faces in the
same direction as the camera’s lens, making selfshooting much easier.
Selfie Art
Apply different effects to make self-portraits shot better
looking and more interesting.
Instant Movie
Movie recording can be paused and resumed as
required to create a short movie quickly and easily.
12
Quick Start Basics
Wireless Connection
*See page 84 for more information.
*See page 94 for more information.
*See page 44 for more information.
Use EXILIM Auto Transfer to transfer images you
shoot with the camera to a smartphone or a social
networking service automatically.
You can also turn your smartphone into a camera
remote controller and send images recorded with your
camera to your smartphone.
One Time Share
Share selected snapshots for viewing on smartphones
that are not paired with the camera.
The Scene app needs to be installed on the
smartphone in order to use One Time Share.
Posing Shot
Posing Shot lets you shoot five successive snapshots,
as the camera provides voice guidance for each. This
lets you strike a pose for each individual shot.
13
Quick Start Basics
IMPORTANT!
Changing the Camera Style to Suit Shooting Conditions
225 degrees
You can change the configuration of the camera by opening or closing the frame and
rotating the monitor screen panel to suit shooting conditions.
IMPORTANT!
• Do not apply strong pressure to the surface of the monitor screen. Doing so can
damage it.
• Never touch the lens with your fingers. Finger smudges, dirt, and other foreign
matter on the lens can interfere with proper operation of the camera. Use a blower
or other means to keep the lens and flash window free of dirt and dust, and wipe
gently with a soft, dry cloth.
Opening and Closing the Frame
The camera’s frame can be rotated up to
225 degrees as shown in the illustration.
1. With the lens facing towards you, hold
onto the frame.
2. Push the monitor screen panel.
3. Holding the edges of the monitor
screen panel, swing the frame open.
• Do not try to open or close the frame while the monitor screen panel is rotated.
Doing so can cause the frame to come into contact with the monitor screen panel
and cause malfunction.
14
Quick Start Basics
NOTE
Rotating the Monitor Screen
270 degrees counterclockwise
Use the steps below to rotate the monitor screen.
• While holding the monitor screen panel as shown in the illustration, you can rotate
it up to 270 degrees counterclockwise.
1. Hold the camera as shown in the
illustration.
2. Firmly holding the frame, carefully
rotate the monitor screen panel.
15
Quick Start Basics
Camera Configurations
You can open the frame and rotate the monitor screen for a variety of different styles.
Normal Shooting Shooting with the Frame
Shoot with the monitor screen facing the
opposite direction of the lens.
Tabletop Shooting Self-portrait Shooting
Point the monitor screen and lens in the
same direction and open the frame
about 30 degrees so the camera can
stand up.
Open the frame 90 degrees and hold the
frame. You can also shoot with the
camera upside down, if you like.
Open the frame, point the monitor
screen and lens in the same direction.
16
Quick Start Basics
NOTE
• When shooting hold the camera still. Carefully press the shutter button and take
IMPORTANT!
Microphone
Lens
LED light
care to avoid all movement as the shutter releases and for a few moments after it
releases.
• Take care that your fingers and the strap do not cover
any of the areas indicated in the illustration.
• To protect against accidentally dropping the camera,
attach the wrist strap (commercially available or
separately available) and make sure it is around your
fingers or wrist while you are operating the camera.
• Never swing the camera around by its strap.
• Take care to ensure that your finger is not blocking or
is not too close to the LED light. Fingers can cause
unwanted shadows when shooting.
Using the Touch Panel
The monitor screen of the camera is a touch panel. This means you can perform the
following operations by touching the screen with your fingers.
Touch
Momentarily touching the screen with your finger.
Touch the screen to select an icon or menu item, and
to configure settings.
You can zoom in and zoom out on a displayed image
by tapping it twice in succession.
Touch-and-hold
Holding your finger against the screen.
Touch and hold the screen to perform continual
frame-by-frame playback of a movie.
17
Quick Start Basics
Drag
IMPORTANT!
NOTE
Holding your finger against the screen as you drag it
up, down, left, or right.
Use drag to move a screen image to a different
location, and to scroll between images.
Flick
Holding your finger against the screen as you flick it
up, down, left, or right.
Use flick to scroll forward through images.
To scroll forward or back multiple images, first drag
in the direction opposite the direction you want to
scroll, and then flick in the desired scroll direction.
Spread
Holding your thumb and forefinger against the screen
as you spread them out.
Use spread to enlarge the screen image.
Squeeze
Holding your thumb and forefinger against the screen
as you bring them together.
Use squeeze to reduce the size of the screen image.
• Never use a pointed or hard object to perform screen operations. Doing so can
damage the screen.
• The camera will have a hard time interpreting a screen operation made using your
fingernails. Use the fleshy pad of your finger.
• Applying a commercially available LCD protective sheet will reduce the operation
sensitivity of the monitor screen.
18
Quick Start Basics
First, charge the battery prior to use.
[OPEN] button
CASIO logo
Battery
OK
NG
2
1
2mm
Lens unit
Note that the battery of a newly purchased camera is not charged. Perform the steps
below to load the battery into the camera and charge it.
• Your camera requires a special CASIO rechargeable lithium ion battery (NP-150)
for power. Never try to use any other type of battery.
Loading the Battery
1. Open the frame (page 14).
2. Open the cover.
While depressing the [OPEN] button, slide
the cover in the direction of arrow
nearby illustration.
in the
2
3
1
3. Load the battery.
With the CASIO logo on the battery
upwards, load the battery into the
camera as shown in the illustration.
4. Close the cover.
• Positioning the cover about two millimeters from
the lens unit, keep it parallel with the camera as
you slide it in the direction of arrow
arrow
to secure it in place.
and then
19
Quick Start Basics
To replace the battery
1. Press [p] (Power) to turn off the camera
and then open the battery cover.
2. Remove the current battery and load a new
one.
As shown in the illustration, pull up the edge of
the battery to remove it.
3. Close the battery cover.
IMPORTANT!
• The operation lamp (page 8) will flash green for some time after you press [p]
(Power) to turn off the camera. Never remove the battery while the operation lamp
is flashing green. Doing so can result in corruption or loss of data in camera
memory.
20
Quick Start Basics
Charge the Battery
3
2
1
USB-AC adaptor
u mark of the small (micro
USB) connector facing the side
opposite that of the monitor
screen.
[USB] port
Micro USB cable
(included with camera)
You can use either of the two following methods to charge the battery. Before
charging the battery, use the procedure under “Opening and Closing the Frame”
(page 14) to open the frame.
• USB-AC adaptor
• USB connection to a computer (Using the included micro USB cable.)
. To charge with the USB-AC adaptor
The adaptor lets you charge the battery while it is loaded in the camera.
While the camera is turned off, connect in the sequence shown below.
Charging time: Approximately 2 hours 20 minutes
• When disconnecting the USB-AC adaptor from the camera, be sure to disconnect
from the camera first.
21
Quick Start Basics
IMPORTANT!
Operation lamp
• A battery that has not been used for a long time and/or ambient temperature can
cause charging to take longer than normal. These conditions may also cause the
operation lamp to flash red. If this happens, refer to page 143.
•Pressing [p] (Power) while the USB-AC adaptor is connected to the camera will
turn on the camera with power being supplied by the battery. Because of this,
charging will stop.
• The USB-AC adaptor will become warm during charging. This is normal and does
not indicate malfunction.
• The shape of the power plug depends on each country or geographic area.
Operation Lamp Operation
Lamp Status Description
Lit Red Charging
Abnormal ambient temperature, USB-AC
Flashing Red
adaptor problem, or battery problem (page
143), or charging terminated by the timer
Off Charging complete
22
Quick Start Basics
USB Cable Connection Precautions
Make sure that the u mark side of the
USB cable connector and the opposite side
of the monitor screen are facing in the same
direction.
The opposite side of the
monitor screen
The operation lamp always initially light after charging starts. Even if the battery is
already fully charged, the lamp will light momentarily.
If the lamp does not light, check the orientation of the USB cable connector.
• When connecting the USB cable to the camera, make sure that the cable
connector and monitor screen panel are oriented correctly as shown in the
illustration below.
• Make sure that you insert the cable connector into the USB port until you feel it
click securely into place. Failure to insert the connector fully can result in poor
communication or malfunction.
• Note that even while the connector is fully inserted, you
still will be able to see the metal part of the connector as
shown in the illustration.
23
Quick Start Basics
. To charge using a USB connection to a computer
IMPORTANT!
USB
2
1
Micro USB cable
(included with camera)
u mark of the small (micro USB) connector facing the side
opposite that of the monitor screen.
[USB] port
USB port
Computer
(power turned on)
USB connection lets you charge the battery while it is loaded in the camera.
While the camera is turned off, connect in the sequence shown below (
• If the camera is on, press [p] (Power) to turn it off before connecting it to your
computer.
Charging time: Approximately 2 hours 50 minutes
• The first time you connect the camera to your computer with the USB cable, an
error message may appear on your computer. If this happens, disconnect and then
reconnect the USB cable.
• A battery that has not been used for a long time, certain types of computers, and
connection conditions can cause charging to take longer than normal. These
conditions may also cause the operation lamp to flash red. If this happens, refer to
page 143.
• For faster charging, use of the supplied USB-AC adaptor is recommended.
• You cannot use the camera to shoot images while it is being charged over a
computer USB connection. If you want to shoot with the camera, disconnect the
USB cable.
• If you turn on the camera while charging over a USB connection to a computer is in
progress, the camera will establish a USB connection with the computer. Though
charging normally should continue at this time, certain types of computers or
connection environments may stop charging if supply power is low. This will be
indicated by the camera’s operation lamp lighting green.
• Charging is not performed while the connected computer is in the hibernate mode.
,
).
24
Quick Start Basics
Operation Lamp Operation
Operation lamp
Lamp Status Description
Lit Red,
(Lit/Flashing Amber)
Charging
Abnormal ambient temperature,
Flashing Red
charging taking abnormally long, or
battery problem (page 143)
Off, (Lit Green) Charging complete
• The information in parentheses in the above table shows the lamp status while the
camera is turned on during charging.
Other Charging Precautions
• With the two charging methods described above, you can charge the camera’s
battery (NP-150) without removing it from the camera. Never use any other type of
charger device. Attempting to use a different charger can result in unexpected
accident.
• This model can be charged only from a USB 2.0 specification USB port.
• USB charging devices and power supply devices are subject to fixed standards.
Use of an inferior device or a device that is not up to standard can cause
malfunction and/or failure of your camera.
• Operation is not guaranteed in the case of a computer built or modified by you.
Even in the case of a commercially available computer, certain USB port
specifications may make it impossible to charge via the USB cable.
• A battery that is still warm immediately after normal use may not charge fully. Give
the battery time to cool before charging it.
• A battery discharges slightly even when it is not loaded in the camera. Because of
this, it is recommended that you charge the battery immediately before you need to
use it.
• Charging the camera’s battery may cause interference with TV and radio reception.
If this happens, plug the USB-AC adaptor into an outlet that is further away from
the TV or radio.
• Actual charging time depends on current battery capacity and charging conditions.
• Do not use the USB-AC adaptor with any other device.
• Use only the USB-AC adaptor and USB cable specified in this manual for charging.
Use of any other type of devices may result in improper charging.
25
Quick Start Basics
Checking the Current Battery Level
As battery power is consumed, a battery indicator on the monitor screen indicates its
current level as shown below.
Remaining Power High Low
Battery Indicator ***
Indicator Color White * White * Red * Red
indicates battery power is low. Charge the battery as soon as possible.
Recording is not possible when is indicated. Charge the battery immediately.
• The level shown by the battery indicator may change when you switch between the
REC mode and PLAY mode.
• Leaving the camera for about 20 days with no power supplied while the battery is
dead will cause its date and time settings to be cleared. A message telling you to
configure time and date settings will appear the next time you turn on the camera
after restoring power. When this happens, configure date and time settings (page
119).
• See page 157 for information about battery life and number of shots.
Configuring Basic Settings the First Time You Turn On the Camera
The first time you turn on the camera, a screen appears for configuring the display
language, date, and time settings. Failure to set the date and time correctly will cause
the wrong date and time data to be recorded with images.
IMPORTANT!
• A screen for language selection will not appear in step 2 of the procedure below if
you purchased a camera intended for the Japanese market. To change the display
language from Japanese in this case, use the procedure under “Specifying the
Display Language (Language)” (page 120). Note that a version of this manual in
the language you select may not be included with a camera intended for the
Japanese market.
• Camera models sold in certain geographic areas may not support display language
selection.
26
Quick Start Basics
1. Press [p] (Power) to turn on the camera.
[p] (Power)
12/24 hour switch
icon
This displays the startup screen.
2. Drag (page 18) upwards and downwards until
you find the language you want, and then touch
to select it.
3. Touch the date display format you want.
Example: July 10, 2017
YY/MM/DD
DD/MM/YY
MM/DD/YY
* 17/7/10
* 10/7/17
* 7/10/17
4. Touch the value you want to change (year, month,
day, hour, minute).
5. Touch “ ”, “ ” to change the currently selected
value.
• To switch between 12-hour and 24-hour format, touch
the 12/24 hour switch icon.
6. When the date and time settings are the way you
want, touch “OK”.
7. Touch “Make-up”, “Auto”, or “Premium Auto Pro”
to specify the default power on recording mode.
8. Touch “Apply”.
• If you selected “Auto” in step 7, this is the end of this procedure.
• You will be able to change this setting later, if you want. See page 32 for
details.
9. Touch “OK”.
10.
Select the complexion setting you want.
11.
Touch “OK”.
• You will be able to change the complexion setting later, if you want. See page
49 for details.
If you make a mistake configuring display language, date, or time settings with the
above procedure, refer to the following pages for information about how to correct
the settings.
– Display language: Page 120
– Date and time: Page 119
27
Quick Start Basics
NOTE
• Each country controls its local time offset and the use of summer time, and so they
*
are subject to change.
Preparing a Memory Card
Though the camera has built-in memory that can be used to store images and
movies, you probably will want to purchase a commercially available memory card for
greater capacity. The camera does not come with a memory card. Images recorded
while a memory card is loaded are saved to the memory card. When no memory card
is loaded, images are saved to built-in memory.
• For information about memory card capacities, see page 153.
Supported Memory Cards
– microSD Memory Card
– microSDHC Memory Card
– microSDXC Memory Card
• The above are supported memory card types as of November
2016.
• This camera supports use of microSD memory cards of the following types and
capacities: microSD memory cards up to 2GB; microSDHC memory cards greater
than 2GB, up to 32GB; microSDXC memory cards greater than 32GB, up to 2TB.
Note that the ability to use any particular card with this camera, even if it satisfies
the above capacity and type requirements, is not guaranteed.
Warning!
0 Memory cards are small and present a risk of accidentally being swallowed
by infants and young children. Keep memory cards out of the reach of
infants and young children. If a memory card is ever swallowed accidentally,
contact a physician immediately.
+
. Memory Card Handling Precautions
Certain types of memory cards can slow down processing speeds. In particular, highquality movies may not be able to be stored correctly. A slow memory card can take
too much time to record data and result in breaks in the image and/or audio during
playback. When this happens the movie icon will turn yellow on the monitor screen.
28
Quick Start Basics
IMPORTANT!
To load a memory card
[OPEN] button
Front
Front Back
2
1
2mm
Lens unit
1. Press [p] (Power) to turn off the
camera and then open the frame
(page 14).
2. While holding down [OPEN], slide
the cover in the direction of arrow
in the nearby illustration to
remove it.
3. Load a memory card.
Positioning the memory card as shown in
the nearby illustration insert it into the
camera’s memory card slot and press
until you hear it click into place.
4. Close the cover.
• Positioning the cover about two millimeters from
the lens unit, keep it parallel with the camera as
you slide it in the direction of arrow
arrow
to secure it in place.
and then
2
3
1
• Never insert anything besides a supported memory card (page 28) into the memory
card slot.
• Should water or any foreign object ever get into the card slot, immediately turn off
the camera, and contact your retailer or nearest CASIO authorized service center.
29
Quick Start Basics
. To replace the memory card
IMPORTANT!
Press the memory card and then release it. This will
cause it to pop out of the memory card slot slightly.
Pull the card out the rest of the way and then insert
another one.
• Turn off the camera before replacing the memory
card.
• The operation lamp (page 8) will flash green for some time after you press [p]
(Power) to turn off the camera. Never remove the memory card while the operation
lamp is flashing green. Doing so can cause the image save operation to fail and
even damage the memory card.
To format (initialize) a new memory card
Format a memory card on the camera before using it for the first time.
IMPORTANT!
• Formatting a memory card that already has snapshots or other files on it, will delete
its contents. Normally you do not need to format a memory card again. However, if
storing to a card has slowed down or if you notice any other abnormality, re-format
the card.
• Be sure to use the camera to format a memory card. Formatting a card on a
computer will result in a non-SD standard format, which can greatly slow down
processing time and cause compatibility, performance, and other problems.
1. Load a memory card (page 29).
2. Turn on the camera and then touch “ ” (Show Icons).
3. Touch “MENU”.
4. Drag upwards and downwards until you find “Setup”, and then touch it.
5. Touch “Format”.
6. Touch “Format” and then touch “Yes”.
This starts the memory card format operation.
30
Quick Start Basics
