Digital Camera
User’s Guide
EN
Thank you for purchasing this CASIO product.
• Before using it, be sure to read the precautions contained in this User’s Guide.
• Keep the User’s Guide in a safe place for future reference.
• For the most up-to-date information about this product, visit the official EXILIM
Website at http://www.exilim.com/
Accessories
As you unpack your camera, check to make sure that all accessories shown below
are included. If anything is missing, contact your original retailer.
Rechargeable lithium ion
battery (NP-150)
USB-AC adaptor
(AD-C54UC)
Micro USB cable
2
Read this first!
• The contents of this manual are subject to change without notice.
• The contents of this manual have been checked at each step of the production
process. Feel free to contact us if you notice anything that is questionable,
erroneous, etc.
• Any copying of the contents of this User’s Guide, either in part or its entirety, is
forbidden. Except for your own personal use, any other use of the contents of this
manual without the permission of CASIO COMPUTER CO., LTD. is forbidden
under copyright laws.
• CASIO COMPUTER CO., LTD. shall not be held liable for any damages or lost
profits suffered by you or any third party due to the use or malfunction of this
product.
• CASIO COMPUTER CO., LTD. shall not be held liable for any damages, lost
profits, or claims by third parties arising out of the use of EXILIM Connect.
• CASIO COMPUTER CO., LTD. shall not be held liable for any damages or lost
profits caused by loss of memory contents due to malfunction, repair, or any other
reason.
• Note that the example screens and product illustrations shown in this User’s Guide
may differ somewhat from the screens and configuration of the actual camera.
LCD Panel
The liquid crystal panel of the monitor screen uses high-precision technology that
provides a pixel yield in excess of 99.99%. This means that some very small number
of pixels may not light or may remain lit at all times. This is due to the characteristics
of the liquid crystal panel, and does not indicate malfunction.
Take test shots
Before shooting your final image, shoot a test shot to ensure that the camera is
recording correctly.
3
Contents
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Read this first! . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
General Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Monitor Screen Contents and How to Change Them . . . . . . . . . . . . . . . . . . . . 9
]\
Quick Start Basics 12
What you can do with your CASIO camera . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Changing the Camera Style to Suit Shooting Conditions . . . . . . . . . . . . . . . . 14
]
Opening and Closing the Frame. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
]
Rotating the Monitor Screen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
]
Camera Configurations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Using the Touch Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Using the Selfie Pad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
First, charge the battery prior to use.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
]
Loading the Battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
]
Charge the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Configuring Basic Settings the First Time You Turn On the Camera. . . . . . . . 26
Preparing a Memory Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
]
Supported Memory Cards. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
]
To load a memory card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
]
To format (initialize) a new memory card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Turning Power On and Off. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
To Shoot a Snapshot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
]
Selecting an Auto Recording Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
]
To shoot a snapshot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Viewing Snapshots . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Deleting Snapshots and Movies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Snapshot Shooting Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
]\
Recording Images 39
Selecting a Recording Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
]
Shooting with Posing Shot . . . . . . . . . . . . . . . . . . . . . . . . . . . (Posing Shot) . . . 41
]
Shooting with Artistic Effects . . . . . . . . . . . . . . . . . . . . . . . . . . . . (Art Shot) . . . 42
]
Shooting Three Versions of an Image with
Different Skin Tone Settings . . . . . . . . . . . . . . . . . . . . . . . . .(Make-up BKT). . . 44
]
Recording Beautiful Portraits . . . . . . . . . . . . . . . . . . . . . . . . . . . .(Make-up). . . 45
Using the Camera as a Mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Shooting with Zoom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Shooting a Self-portrait . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
To record a movie . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Using the LED Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . (LED) . . 52
4
Contents
]\
Using BEST SHOT 53
Shooting with Triple Shot. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Using Motion Shutter to Trigger a Self-timer Operation . . (Motion Shutter) . . 55
Digitally Correcting for Overexposure and Underexposure . . . . . . (HDR) . . 56
Shooting with High Speed Night Scene . . . . . . . . . . . . .(HS Night Scene) . . 56
Shooting with High Speed Night Scene
and Portraits . . . . . . . . . . . . . . . . . . . . . . . . . . . (HS Night Scene Portrait) . . 57
]\
Advanced Recording Settings 58
Using the REC Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
]
Using the Selfie Pad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . (Selfie Pad) . . . 59
]
Using Touch Shutter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .(Touch Shutter). . . 60
]
Using the Self-timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . (Self-timer) . . . 61
]
Using the LED Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . (LED) . . . 61
]
Changing the Image Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . .(Image Size) . . . 62
]
Movie Image Quality Settings . . . . . . . . . . . . . . . . . . . . . . .(Movie Quality) . . . 63
]
Correcting Image Brightness . . . . . . . . . . . . . . . . . . . . . . . . . . (Brightness). . . 63
]
Adjusting White Balance . . . . . . . . . . . . . . . . . . . . . . . . . . (White Balance). . . 64
]
Specifying ISO Sensitivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .(ISO). . . 65
]
Selecting a Focus Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .(Focus) . . . 66
]
Turning on Image Review . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .(Review) . . . 67
]\
Viewing Snapshots and Movies 68
Viewing Snapshots . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Viewing a Movie. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
]
Editing a Movie on the Camera . . . . . . . . . . . . . . . . . . . . . .(Movie Editing). . . 70
Viewing the Image Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Zooming an On-screen Image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

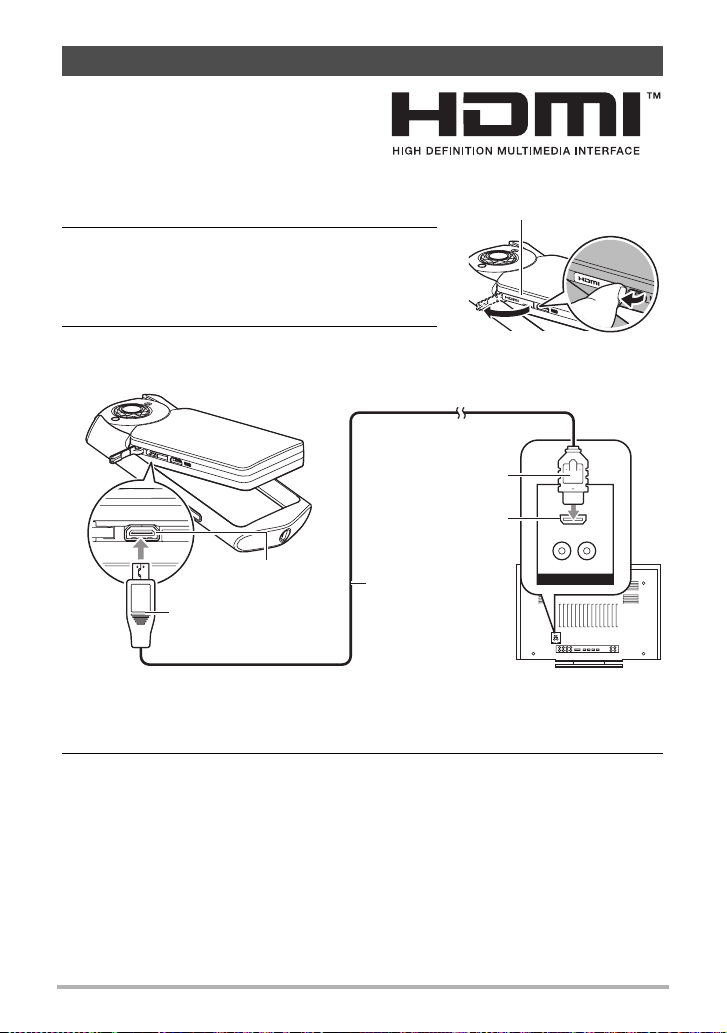

Viewing Snapshots and Movies on a TV Screen. . . . . . . . . . . . . . . . . . . . . . . 72
]\
Other Playback Functions (PLAY) 74
Using the PLAY Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
]
Using the Selfie Pad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . (Selfie Pad) . . . 75
]
Creating a Promotion Movie . . . . . . . . . . . . . . . . . . . . . (Promotion Movie). . . 75
]
Performing Paint Operations on an Image . . . . . . . . . . . . . . . . . . . . .(Paint). . . 77
]
Playing a Slideshow on the Camera . . . . . . . . . . . . . . . . . . . . (Slideshow) . . . 78
]
Extracting an Image from a Snapshot . . . . . . . . . . . . . . . .(Cut out subject). . . 78
]

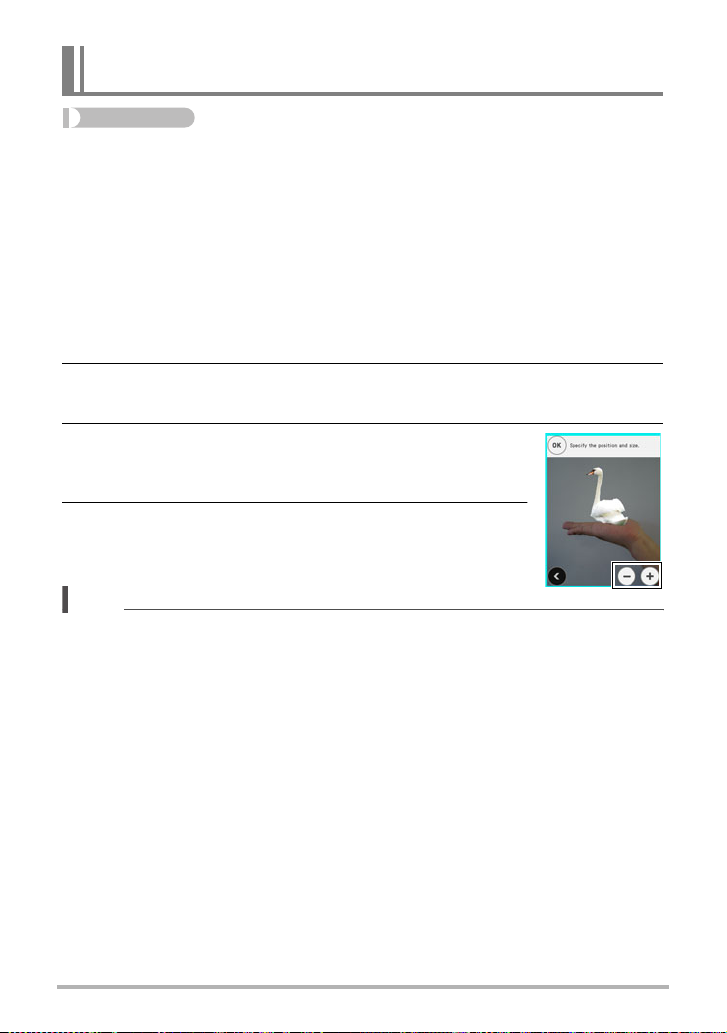

Inserting a Subject into another Snapshot or
Adding a Built-in Frame to a Snapshot . . . . . . . . . . . . . . . . (Paste subject) . . . 80
]
Protecting a File Against Deletion . . . . . . . . . . . . . . . . . . . . . . . . . (Protect). . . 81
]
Rotating an Image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . (Rotation). . . 82
]
Resizing a Snapshot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . (Resize) . . . 82
]
Cropping a Snapshot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . (Trimming) . . . 83
5
Contents
]\
Connecting the Camera with a Smartphone
(Wireless Connection) 84
Controlling Your Camera with a Smartphone . . . . . . . . . . . . . . . . . . . . . . . . . 84
Using a Wireless Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Getting Ready to Establish a Connection between a Smartphone and Your
Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
]
Installing the EXILIM Connect App on Your Smartphone . . . . . . . . . . . . . . . . . . 87
]
Establishing a Wireless Connection for the First Time . . . . . . . . . . . . . . . . . . . . 88
Using a Smartphone as a Camera Remote Controller (Shoot with phone) . . 90
Sending a Snapshot or Movie File from Camera Memory
to a Smartphone . . . . . . . . . . . . . . . . . . . . . . . . . . (Send Selected Image) . . 90
Viewing Snapshots and Movies in Camera Memory
on a Smartphone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . (View on phone) . . 91
Configuring Wireless Connection Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
]
Entering the Camera’s Airplane Mode . . . . . . . . . . . . . . . . (Airplane Mode). . . 92
]
Sending Images from the Camera
to a Smartphone as They are Recorded . . . . . . . . . . . . . . . . . (Auto Send). . . 93
]
Specifying Images to be Sent by Auto Send . . . . (Auto Send File Settings). . . 94
]
Resizing Snapshots before Sending Them
to a Smartphone . . . . . . . . . . . . . . . . . . . . . . . . . . . . (Resize before send). . . 94
]
Changing the Camera Password for
Wireless LAN Connection . . . . . . . . . . . . . . . . . . . . . . . (WLAN password). . . 94
]
Unpairing the Camera from a Smartphone . . . . . . . . . . . . . . . . (Unpairing). . . 95
]\
Printing 96
Printing with a Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
]\
Using the Camera with a Computer 97
Things you can do using a computer... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Using the Camera with a Windows Computer . . . . . . . . . . . . . . . . . . . . . . . . . 97
]
Viewing and Storing Images on a Computer. . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
]
Playing Movies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Using the Camera with a Macintosh . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
]
Connecting the Camera to Your Computer and Saving Files . . . . . . . . . . . . . . 101
]
Playing a Movie. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Files and Folders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
Memory Card Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
6
Contents
]\
Other Settings (Set Up) 106
Adjusting Monitor Screen Brightness . . . . . . . . . . . . . . . . . . . . . . (Screen) . 106
Selecting Display Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . (Info) . 106
Locking the Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . (Screen Lock) . 107
Configuring Camera Sound Settings . . . . . . . . . . . . . . . . . . . . . (Sounds) . 107
Time Stamping Snapshots . . . . . . . . . . . . . . . . . . . . . . . . . . .(Timestamp) . 108
Configuring World Time Settings . . . . . . . . . . . . . . . . . . . . . (World Time) . 109
]
Setting a Travel Destination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
]
Selecting the Time Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
Setting the Camera’s Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . (Adjust) . 110
Specifying the Date Style . . . . . . . . . . . . . . . . . . . . . . . . . . . . (Date Style) . 110
Specifying the Display Language . . . . . . . . . . . . . . . . . . . . . . (Language) . .111
Selecting the HDMI Terminal Output Method . . . . . . . . . . . . . . . . .(HDMI) . .111
Displaying a Startup Screen at Power On . . . . . . . . . . . . . . . . . .(Startup) . 112
Formatting Built-in Memory or a Memory Card . . . . . . . . . . . . . . . (Format) . 112
Resetting the Camera to Factory Defaults . . . . . . . . . . . . . . . . . . . (Reset) . 112
Checking the Current Camera Firmware Version . . . . . . . . . . . . (Version) . 113
]\
Appendix 114
Safety Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
Precautions During Use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
Power Supply. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
]
Charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
]
Battery Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135
]
Using the Camera in another Country . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135
Using a Memory Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
Reset Initial Default Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
When things don’t go right... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
]
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
]
Display Messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143
Number of Snapshots/Movie Recording Time . . . . . . . . . . . . . . . . . . . . . . . . 144
Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146
7
Contents
General Guide
The numbers in parentheses indicate the pages where each item is explained.
2
1 3
9
bo
bk
bo
4
5
8
7
6
bn
bm
bl
Frame (page 14)
1
Shutter button (page 33)
2
[HDMI] cover (page 72)
3
LED light (page 52)
4
Lens
5
Microphone
6
(pages 17, 51)
bp
bq
br
• Above illustration shows the camera’s cover removed (page 19).
To attach the strap (commercially available or
separately available) to the camera
Attach strap here.
[HDMI] HDMI output
7
(micro) (page 72)
[USB] port
8
(pages 21, 24, 98, 102)
[p] (Power) (page 31)
9
Back lamp
bk
(pages 22, 25, 31, 33)
Battery compartment (page 19)
bp
Memory card slot (pages 29, 136)
bq
[OPEN] button (pages 19, 29)
br
Strap hole (page 8)
bl
Monitor screen
bm
(pages 9, 17, 106)
Speaker
bn
Selfie pad
bo
(pages 19, 59, 75)
1
2
8
Monitor Screen Contents and How to Change Them
bm blbnbo
The monitor screen uses various indicators, icons, and values to keep you informed
of the camera’s status.
• The sample screens in this section are intended to show you the locations of all the
indicators and figures that can appear on the monitor screen in various modes.
They do not represent screens that actually appear on the camera.
. Snapshot Recording
1
2
cl
ck
bt
bs
br
bq
bp
PLAY mode icon (page 31)
1
“ ” (Show Icons) icon
2
White Balance (page 64)
3
Focus mode (page 66)
4
Digital zoom (page 47)
5
Timestamp (page 108)
6
Self-timer mode (page 61)
7
Snapshot image size (page 62)
8
Movie quality (pages 49, 63)
9
Battery level indicator (page 26)
bk
LED light (page 52)
bl
3
4
5
6
7
8
9
bk
cp co cn cm
Operation assigned to selfie pad
bm
(pages 19, 59)
Remaining movie memory capacity
bn
(page 144)
Remaining snapshot memory capacity
bo
(page 144)
“ ” Movie icon (pages 34, 49)
bp
Date/Time (pages 26, 110)
bq
Brightness (page 63)
br
ISO sensitivity (page 65)
bs
Bluetooth Smart communication
bt
status (page 88)
Auto Send (page 93)
ck
Wireless LAN communication status
cl
(page 89)/Airplane mode (page 92)
Menu icon (page 58)
cm
Recording mode icon (page 40)
cn
Wireless mode icon (page 86)
co
Mirror mode icon (page 46)
cp
9
. Movie Recording
1 3
Movie quality (
42
1
Recording time switch icon (page 50)
2
Movie remaining time icon (page 50)
3
Remaining movie memory capacity/
4
Movie recording time (pages 50, 144)
“ ” Movie stop icon (pages 34, 50)
5
pages 49, 63)
5
NOTE
• If you do not perform any operation for about three seconds during snapshot
recording or movie recording, icons will become transparent.
. Snapshot Viewing
4213
bq
bp
bo
bn
bm
bl
bk
9
8
Protect indicator (page 81)
1
“ ” (Show Icons) icon
2
Folder name-file name (page 104)
3
Snapshot image size (page 62)
4
Operation assigned to selfie pad
5
(pages 19, 75)
Battery level indicator (page 26)
6
Date/time (pages 26, 110)
7
5
6
7
ck bt bs br
Image menu icon (p
8
Shutter speed
9
Make-up (page 45)
bk
Brightness (page 63)
bl
ISO sensitivity (page 65)
bm
Bluetooth Smart communication
bn
status (page 88)
Auto Send (page 93)
bo
White Balance (page 64)
bp
Wireless LAN communication status
bq
(page 89)/Airplane mode (page 92)
Menu icon (page 74)
br
Delete icon (page 36)
bs
Wireless mode icon (pages 86, 91)
bt
REC mode icon (page 31)
ck
age 71)
NOTE
• The folder name and file name in the upper right corner of the monitor screen has
the meaning described below (page 104).
Example: 100-0023: 23rd image file in the folder named “100CASIO”.
10
. Movie Playback
Protect indicator (page 81)
5
1
“ ” (Show Icons) icon
2
Folder name-file name (page 104)
3
Movie quality (pages 49, 63)
4
Movie recording time (page 68)
5
Date/time (pages 26, 110)
6
Image menu ico
7
“”
Movie play ico
8
n (page 71)
n (page 68)
4213
8
67
NOTE
• If you do not perform any operation for about three seconds during snapshot
viewing or movie playback, icons will become transparent.
11
Quick Start Basics
What you can do with your CASIO camera
Your CASIO camera is packed with a powerful selection of features and functions to
make recording of digital images easier, including the following main functions.
Shooting better looking portraits
Make-up enables adjustment of human skin tone hues
and texture, and softening of facial shadows caused by
harsh sunlight for better looking portraits.
*See page 45 for more information.
A variety of shooting styles
The frame can be opened and the LCD monitor screen
rotated into positions that make long-term shooting
more comfortable and simplify self-shooting.
*See page 14 for more information.
Simple touch panel operation
The monitor screen is a touch panel that can be used
to perform operations.
*See page 17 for more information.
Simple self-portrait shooting
The monitor screen can be rotated so it faces in the
same direction as the camera’s lens, making selfshooting much easier.
*See page 48 for more information.
Posing Shot
Posing Shot lets you shoot five successive snapshots,
as the camera provides voice guidance.
*See page 41 for more information.
12
Quick Start Basics
Art Shot
A variety of artistic effects help to make even common,
ordinary subjects become more novel and exciting.
*See page 42 for more information.
Paint
Draw figures, write text, or stamp information into a
recorded snapshot.
*See page 77 for more information.
Wireless Connection
Turns your smartphone into a camera remote
controller and allows you to send images recorded with
your camera to your smartphone.
*See page 84 for more information.
13
Quick Start Basics
Changing the Camera Style to Suit Shooting Conditions
You can change the configuration of the camera by opening or closing the frame and
rotating the monitor screen panel to suit shooting conditions.
IMPORTANT!
• Do not apply strong pressure to the surface of the monitor screen. Doing so can
damage it.
• Never touch the lens with your fingers. Finger smudges, dirt, and other foreign
matter on the lens can interfere with proper operation of the camera. Use a blower
or other means to keep the lens and flash window free of dirt and dust, and wipe
gently with a soft, dry cloth.
Opening and Closing the Frame
The camera’s frame can be rotated 90 degrees
towards the lens side and 225 degrees towards
the opposite side.
225 degrees
90 degrees
1. With the lens facing towards you, hold
onto the frame.
2. Push the monitor screen panel.
3. Holding the edges of the monitor
screen panel, swing the frame open.
IMPORTANT!
• Do not try to open or close the frame while the monitor screen panel is rotated.
Doing so can cause the frame to come into contact with the monitor screen panel
and cause malfunction.
14
Quick Start Basics
Rotating the Monitor Screen
Use the steps below to rotate the monitor screen.
NOTE
• While holding the monitor screen panel as shown in the illustration, you can rotate
it 180 degrees clockwise and 90 degrees counterclockwise.
• The monitor screen panel can also be rotated when the frame is closed.
1. Hold the camera as shown in the
illustration.
2. Firmly holding the frame, carefully rotate the monitor screen panel.
180 degrees clockwise
90 degrees counterclockwise
15
Quick Start Basics
Camera Configurations
You can open the frame and rotate the monitor screen for a variety of different styles.
Normal Shooting Movie Recording
Shoot with the monitor screen facing the
opposite direction of the lens.
Tabletop Shooting Self-portrait Shooting
Point the monitor screen and lens in the
same direction and open the frame
about 30 degrees so the camera can
stand up.
Open the frame 90 degrees and hold the
frame. You can also shoot with the
camera upside down, if you like.
Open the frame, point the monitor
screen and lens in the same direction.
16
Quick Start Basics
NOTE
• When shooting hold the camera still. Carefully press the shutter button and take
care to avoid all movement as the shutter releases and for a few moments after it
releases.
• Take care that your fingers and the strap do not cover
any of the areas indicated in the illustration.
LED light
• To protect against accidentally dropping the camera,
attach the wrist strap (commercially available or
separately available) and make sure it is around your
fingers or wrist while you are operating the camera.
• Never swing the camera around by its strap.
IMPORTANT!
Microphone
Lens
• Take care to ensure that your finger is not blocking or
is not too close to the LED light. Fingers can cause
unwanted shadows when shooting.
Using the Touch Panel
The monitor screen of the camera is a touch panel. This means you can perform the
following operations by touching the screen with your fingers.
Touch
Momentarily touching the screen with your finger.
Touch the screen to select an icon or menu item, and
to configure settings.
Touch-and-hold
Holding your finger against the screen.
Touch and hold the screen to perform continual
frame-by-frame playback of a movie.
17
Quick Start Basics
Drag
Holding your finger against the screen as you drag it
up, down, left, or right.
Use drag to move a screen image to a different
location, and to scroll between images.
Spread
Holding your thumb and forefinger against the screen
as you spread them out.
Use spread to enlarge the screen image.
Squeeze
Holding your thumb and forefinger against the screen
as you bring them together.
Use squeeze to reduce the size of the screen image.
IMPORTANT!
• Never use a pointed or hard object to perform screen operations. Doing so can
damage the screen.
• The camera will have a hard time interpreting a screen operation made using your
fingernails. Use the fleshy pad of your finger.
NOTE
• Applying a commercially available LCD protective sheet will reduce the operation
sensitivity of the monitor screen.
18
Quick Start Basics
Using the Selfie Pad
You can use the selfie pad on the outside
edge of the frame to perform various functions
while shooting a self-portrait.
Double-tap
Tap the selfie pad twice in succession.
“μ” will appear on the screen, which
indicates that selfie pad operation is enabled.
Slide
Slide your finger upwards or downwards along
the selfie pad.
NOTE
• Use the menu screen’s “Selfie Pad” item (pages 59, 75) to assign an operation to
the selfie pad.
The selfie pad is the area
between the two bumps on
the side of the frame.
First, charge the battery prior to use.
Note that the battery of a newly purchased camera is not charged. Perform the steps
below to load the battery into the camera and charge it.
• Your camera requires a special CASIO rechargeable lithium ion battery (NP-150)
for power. Never try to use any other type of battery.
Loading the Battery
1. Open the frame (page 14).
2. Open the cover.
While depressing the [OPEN] button, slide
the cover in the direction of arrow
nearby illustration.
2
in the
1
3
19
[OPEN] button
2
Quick Start Basics
3. Load the battery.
With the CASIO logo on the battery
upwards, load the battery into the
camera as shown in the illustration.
Battery
NG
OK
CASIO logo
4. Close the cover.
• Positioning the cover about two millimeters from
the lens unit, keep it parallel with the camera as
you slide it in the direction of arrow
arrow
To replace the battery
to secure it in place.
2
and then
1
1. Open the cover and remove the current
battery.
As shown in the illustration, pull up the edge of
the battery to remove it.
2. Load a new battery.
1
2mm
2
20
Quick Start Basics
Charge the Battery
You can use either of the two following methods to charge the battery. Before
charging the battery, use the procedure under “Opening and Closing the Frame”
(page 14) to open the frame.
• USB-AC adaptor
• USB connection to a computer
. To charge with the USB-AC adaptor
The adaptor lets you charge the battery while it is loaded in the camera.
While the camera is turned off, connect in the sequence shown below.
Charging time: Approximately 140 minutes
[USB] port
USB-AC adaptor
2
3
u mark of the small (micro USB) connector
facing the side opposite that of the monitor screen.
• When disconnecting the USB-AC adaptor from the camera, be sure to disconnect
from the camera first.
1
Micro USB cable
(included with camera)
21
Quick Start Basics
IMPORTANT!
• A battery that has not been used for a long time, or ambient temperature extremes
can cause charging to take longer than normal. If charging takes longer than about
five hours, a timer will terminate it automatically, even if the battery is not fully
charged. This is indicated by the back lamp flashing red. If the battery has not been
used for a very long time, charging may be terminated automatically and the back
lamp may start flashing red after only about 60 minutes. In either case, disconnect
the USB cable from the camera and then reconnect it to resume charging.
•Pressing [p] (Power) while the USB-AC adaptor is connected to the camera will
turn on the camera with power being supplied by the battery. Because of this,
charging will stop.
• The USB-AC adaptor will become warm during charging. This is normal and does
not indicate malfunction.
• The shape of the power plug depends on each country or geographic area.
Back Lamp Operation
Lamp Status Description
Back lamp
Lit Red Charging
Abnormal ambient temperature, USB-AC
Flashing Red
adaptor problem, or battery problem (page
134), or charging terminated by the timer
Off Charging complete
22
Quick Start Basics
USB Cable Connection Precautions
• When connecting the USB cable to the camera, make sure that the cable
connector and monitor screen panel are oriented correctly as shown in the
illustration below.
Make sure that the u mark side of the
USB cable connector and the front of the
monitor screen panel (the side opposite that
of the monitor screen) are facing in the same
direction.
Front of monitor screen
The back lamp always initially light after charging starts. Even if the battery is
already fully charged, the lamp will light momentarily.
If the lamp does not light, check the orientation of the USB cable connector.
• Make sure that you insert the cable connector into the USB port until you feel it
click securely into place. Failure to insert the connector fully can result in poor
communication or malfunction.
• Note that even while the connector is fully inserted, you
still will be able to see the metal part of the connector as
shown in the illustration.
panel
23
Quick Start Basics
. To charge using a USB connection to a computer
USB connection lets you charge the battery while it is loaded in the camera.
While the camera is turned off, connect in the sequence shown below (
[USB] port
USB port
1, 2
Computer
(power turned on)
USB
).
1
Micro USB cable
(included with camera)
u mark of the small (micro USB) connector facing the side
opposite that of the monitor screen.
• If the camera is on, press [p] (Power) to turn it off before connecting it to your
computer.
Charging time: Approximately 170 minutes
IMPORTANT!
• The first time you connect the camera to your computer with the USB cable, an
error message may appear on your computer. If this happens, disconnect and then
reconnect the USB cable.
• A battery that has not been used for a long time, certain types of computers, and
connection conditions can cause charging to take more than approximately five
hours, which will trigger a timer that terminates charging automatically, even if the
battery is not fully charged. If this happens, disconnect and then reconnect the
USB cable to restart charging. To complete charging faster, use of the included
USB-AC adaptor is recommended.
• If the battery has not been used for a very long time, charging may terminate
automatically and the back lamp may start flashing red or go out after only about
60 minutes. In either case, use of the USB-AC adaptor that comes with the camera
is recommended.
• If you turn on the camera while charging over a USB connection to a computer is in
progress, the camera will establish a USB connection with the computer. Though
charging normally should continue at this time, certain types of computers or
connection environments may stop charging if supply power is low. This will be
indicated by the camera’s back lamp lighting green.
• Charging is not performed while the connected computer is in the hibernate mode.
2
24
Quick Start Basics
Back Lamp Operation
Lamp Status Description
Lit Red,
(Lit/Flashing Amber)
Charging
Back lamp
Abnormal ambient temperature,
Flashing Red
charging taking abnormally long, or
battery problem (page 134)
Off, (Lit Green) Charging complete
• The information in parentheses in the above table shows the lamp status while the
camera is turned on during charging.
Other Charging Precautions
• With the two charging methods described above, you can charge the camera’s
battery (NP-150) without removing it from the camera. Never use any other type of
charger device. Attempting to use a different charger can result in unexpected
accident.
• This model can be charged only via from USB 2.0 specification USB port only.
• USB charging devices and power supply devices are subject to fixed standards.
Use of an inferior device or a device that is not up to standard can cause
malfunction and/or failure of your camera.
• Operation is not guaranteed in the case of a computer built or modified by you.
Even in the case of a commercially available computer, certain USB port
specifications may make it impossible to charge via the USB cable.
• A battery that is still warm immediately after normal use may not charge fully. Give
the battery time to cool before charging it.
• A battery discharges slightly even when it is not loaded in the camera. Because of
this, it is recommended that you charge the battery immediately before you need to
use it.
• Charging the camera’s battery may cause interference with TV and radio reception.
If this happens, plug the USB-AC adaptor into an outlet that is further away from
the TV or radio.
• Actual charging time depends on current battery capacity and charging conditions.
• Do not use the USB-AC adaptor with any other device.
• Use only the USB-AC adaptor and USB cable specified in this manual for charging.
Use of any other type of devices may result in improper charging.
25
Quick Start Basics
Checking the Current Battery Level
As battery power is consumed, a battery indicator on the monitor screen indicates its
current level as shown below.
Remaining Power High Low
Battery Indicator ***
Indicator Color White * White * Red * Red
indicates battery power is low. Charge the battery as soon as possible.
Recording is not possible when is indicated. Charge the battery immediately.
The level shown by the battery indicator may change when you switch between the
REC mode and PLAY mode.
• Leaving the camera for about 20 days with no power supplied while the battery is
dead will cause its date and time settings to be cleared. A message telling you to
configure time and date settings will appear the next time you turn on the camera
after restoring power. When this happens, configure date and time settings (page
110).
• See page 148 for information about battery life and number of shots.
Configuring Basic Settings the First Time You Turn On the Camera
The first time you turn on the camera, a screen appears for configuring the display
language, date, and time settings. Failure to set the date and time correctly will cause
the wrong date and time data to be recorded with images.
IMPORTANT!
• A screen for language selection will not appear in step 2 of the procedure below if
you purchased a camera intended for the Japanese market. To change the display
language from Japanese in this case, use the procedure under “Specifying the
Display Language (Language)” (page 111). Note that a version of this manual in
the language you select may not be included with a camera intended for the
Japanese market.
• Camera models sold in certain geographic areas may not support display language
selection.
26
Quick Start Basics
1. Press [p] (Power) to turn on the camera.
2. Drag (page 18) upwards and downwards until
you find the language you want, and then touch
to select it.
3. Touch the date display format you want.
Example: July 10, 2016
YY/MM/DD
DD/MM/YY
MM/DD/YY
* 16/7/10
* 10/7/16
* 7/10/16
[p] (Power)
4. Touch the value you want to change (year, month,
day, hour, minute).
5. Touch “ ”, “ ” to change the currently selected
value.
• Touching and holding “ ”, “ ” will change the setting
at high speed.
• To switch between 12-hour and 24-hour format, touch
the 12/24 hour switch icon.
6. When the date and time settings are the way you
want, touch “OK”.
12/24 hour switch
7. Touch “Auto” or “Premium Auto Pro” to select the default auto
recording mode you want.
8. Touch “Apply”.
• You will be able to change this setting later, if you want. See page 32 for
details.
icon
If you make a mistake configuring display language, date, or time settings with the
above procedure, refer to the following pages for information about how to correct
the settings.
– Display language: Page 111
– Date and time: Page 110
NOTE
• Each country controls its local time offset and the use of summer time, and so they
are subject to change.
27
Quick Start Basics
Preparing a Memory Card
Though the camera has built-in memory that can be used to store images and
movies, you probably will want to purchase a commercially available memory card for
greater capacity. The camera does not come with a memory card. Images recorded
while a memory card is loaded are saved to the memory card. When no memory card
is loaded, images are saved to built-in memory.
• For information about memory card capacities, see page 144.
Supported Memory Cards
– microSD Memory Card
– microSDHC Memory Card
– microSDXC Memory Card
• The above are supported memory card types as of January
2015.
• This camera supports use of microSD memory cards of the following types and
capacities: microSD memory cards up to 2GB, microSDHC memory cards from
2GB up to 32GB, microSDXC memory cards from 32GB up to 2TB. Note that the
ability to use any particular card with this camera, even if it satisfies the above
capacity and type requirements, is not guaranteed.
Warning!
*
0 Memory cards are small and present a risk of accidentally being swallowed
by infants and young children. Keep memory cards out of the reach of
infants and young children. If a memory card is ever swallowed accidentally,
contact a physician immediately.
+
. Memory Card Handling Precautions
Certain types of memory cards can slow down processing speeds. In particular, highquality movies may not be able to be stored correctly. A slow memory card can take
too much time to record data and result in breaks in the image and/or audio during
playback. When this happens the movie icon will turn yellow on the monitor screen.
28
Quick Start Basics
To load a memory card
1. Press [p] (Power) to turn off the
camera and then open the frame
(page 14).
2. While holding down [OPEN], slide
the cover in the direction of arrow
in the nearby illustration to
2
remove it.
3. Load a memory card.
Positioning the memory card as shown in
the nearby illustration insert it into the
camera’s memory card slot and press
until you hear it click into place.
1
[OPEN] button
Front
3
2
Front Back
4. Close the cover.
• Positioning the cover about two millimeters from
the lens unit, keep it parallel with the camera as
you slide it in the direction of arrow
arrow
IMPORTANT!
• Never insert anything besides a supported memory card (page 28) into the memory
card slot.
• Should water or any foreign object ever get into the card slot, immediately turn off
the camera, and contact your retailer or nearest CASIO authorized service center.
to secure it in place.
2
and then
1
29
1
2mm
2
Quick Start Basics
. To replace the memory card
Press the memory card and then release it. This will
cause it to pop out of the memory card slot slightly.
Pull the card out the rest of the way and then insert
another one.
• Never remove a card from the camera while the
back lamp is flashing green. Doing so can cause the
image save operation to fail and even damage the
memory card.
To format (initialize) a new memory card
Format a memory card on the camera before using it for the first time.
IMPORTANT!
• Formatting a memory card that already has snapshots or other files on it, will delete
its contents. Normally you do not need to format a memory card again. However, if
storing to a card has slowed down or if you notice any other abnormality, re-format
the card.
• Be sure to use the camera to format a memory card. Formatting a card on a
computer will result in a non-SD standard format, which can greatly slow down
processing time and cause compatibility, performance, and other problems.
1. Load a memory card (page 29).
2. Turn on the camera and then touch “ ” (Show Icons).
3. Touch “MENU”.
4. Drag upwards and downwards until you find “Setup”, and then touch it.
5. Touch “Format”.
6. Touch “Format” and then touch “Yes”.
This starts the memory card format operation.
30
Quick Start Basics
Turning Power On and Off
. To turn on the camera
Press [p] (Power).
This will turn on the camera, which is indicated when the
back lamp lights green, and enter the REC mode.
Entering the REC Mode and PLAY Mode
In the REC mode, touch “ ” (PLAY).
• If “ ” (PLAY) is not displayed on
To enter the
PLAY mode
the screen, you can touching the
Review image (page 67), or switch
to the PLAY mode by touching
“ ” (Show Icons) and then
touching “ ” (PLAY).
To enter the
REC mode
In the PLAY mode, touch “ ”
(Show Icons). On the screen image
that appears, touch “ ” (REC).
. To turn off the camera
Press [p] (Power).
NOTE
• To conserve battery power, an Auto Power Off
function will turn off power automatically if you do not
perform any operation for about five minutes.
Back lamp
[p] (Power)
“”
(Show Icons)
Screen after “ ”
(Show Icons) is touched
“ ” (PLAY) / “ ” (REC)
31
Quick Start Basics
To Shoot a Snapshot
Your camera has a variety of different recording modes to suit various shooting
conditions and objectives (page 40). This section explains general shooting
procedures using the auto recording mode.
Selecting an Auto Recording Mode
You can select one of two auto recording modes (Auto or Premium Auto Pro)
according to your digital imaging needs.
Setting
Auto This is the standard Auto recording mode.
Premium
Auto Pro
REC Screen
Icon Display
Description
With Premium Auto Pro recording, the camera
automatically determines whether you are shooting a
subject or scenery, and other conditions. Premium
Auto Pro recording delivers higher image quality than
standard Auto recording.
• Some of the settings configured automatically by
Premium Auto Pro cannot be changed by you.
• It also requires more power (and runs down the
battery quicker) than Auto.
1. Press [p] (Power) to turn on the camera.
2. Touch “ ” (Show Icons).
3. Touch the second icon from the right (second
icon from the top in the case of portrait display
orientation) (Recording mode).
4. Touch “Auto” or “Premium Auto Pro” to select
the auto recording mode you want.
32
Recording mode icon
Quick Start Basics
To shoot a snapshot
1. Point the camera at the subject.
If you are using Premium Auto Pro, text will appear on the
monitor screen describing the type of shot the camera has
detected.
• Spread your fingers apart on the screen to change the
zoom factor (page 47).
(Telephoto) – (Wide Angle)
+
Type of shot
2. Half-press the shutter button to focus
the image.
When focus is complete, the camera will
beep, the back lamp will light green, and
the focus frame will turn green.
Half-press
Press lightly until
the button stops.
Beep, beep (Image is in focus.)
When you half-press the shutter button, the camera
automatically adjusts exposure and focuses on the
subject it is currently pointed at. Mastering how
much pressure is required for a half-press and a
full-press of the shutter button is an important
technique for good-looking images.
Shutter button
Back lamp
Focus frame
33
Quick Start Basics
3. Continuing to keep the camera still,
press the shutter button the rest of
Full-press
the way down.
This records the snapshot.
Snap (Image is recorded.)
Recording a Movie
Touch “ ” (Movie) to start movie recording. Touch
“ ” (Movie Stop) to stop recording.
See page 49 for details.
“” (Movie)/
“” (Movie Stop)
NOTE
• You also can shoot a snapshot by touching a point on the monitor screen (page
60).
• You can specify the image size for snapshots. See page 62 for more information.
. If the image does not focus...
If the focus frame stays red and the back lamp is flashing green, it means that the
image is not in focus (because the subject is too close, etc.). Re-point the camera at
the subject and try to focus again.
. Shooting with Auto
“Focus lock” (page 67) is the name of a technique you can use when you want to
shoot an image in which the subject to be focused on is not within the focus frame in
the center of the screen.
34
Quick Start Basics
. Shooting with Premium Auto Pro
• Some menu items are not available while Premium Auto Pro is in use (page 58).
Only the menu items whose settings can be configured will be displayed on the
menus while Premium Auto Pro is in use.
• In addition to shutter speed and ISO sensitivity, the camera automatically executes
the following operation as required when shooting with Premium Auto Pro.
– Auto Focus is normally performed until you half-press the shutter button.
– The camera automatically determines the focus point on the screen and focuses
there.
– When shooting people, the face detection feature detects the faces of up to ten
individuals and adjusts focus and brightness accordingly.
• When shooting with Premium Auto Pro, the message “Processing Premium Auto.”
may appear on the monitor screen. If you feel the camera is taking too long to
process data, try shooting with standard Auto instead.
• In some cases, Premium Auto Pro may not be able to interpret the shooting
environment correctly. If this happens, shoot with standard Auto.
• If “Š” is displayed, the camera will shoot a series of CS images and merge them
into a final image. Take care to avoid any camera and subject movement until
shooting of all of the CS images is complete.
Viewing Snapshots
Use the following procedure to view snapshots on the camera’s monitor screen.
• For information about how to play back movies, see page 68.
1. Touch “ ” (PLAY) to enter the PLAY mode.
This will display one of the snapshots currently stored in
memory.
• If “Premium Auto Pro” is selected as the recording
mode, touch the Review image (page 67) on the
monitor screen.
• Information about the displayed snapshot also is
included (page 10).
• You also can clear the information to view only the
snapshot (page 106).
• You can zoom the screen image by touching the
monitor screen (page 71).
If you are recording a snapshot that is very important to you, it is recommended
that you zoom the image and check its details after recording it.
“” (PLAY)
35
Quick Start Basics
2. Drag left or right across the screen image to scroll through the
snapshots.
NOTE
• Pressing the shutter button while in the PLAY mode or while a menu screen is
displayed will switch directly to the REC mode.
• A question mark (?) will be displayed for images that cannot be displayed for some
reason.
Deleting Snapshots and Movies
If memory becomes full, you can delete snapshots and movies you no longer need in
order to free up storage and record more images.
IMPORTANT!
• Remember that a file (image) delete operation cannot be undone.
. To delete a single file
1. In the PLAY mode, drag left or right to display the file you want to
delete.
2. Touch “ ” (Show Icons).
3. Touch “ ”.
4. Touch “Delete 1 File”.
This will delete the selected image.
36
Quick Start Basics
. To delete specific files
1. Enter the PLAY mode.
2. Touch “ ” (Show Icons).
3. Touch “ ”.
4. Touch “Delete Files”.
This displays a file selection screen.
5. Touch a file you want to delete.
This will select the check box of the selected file’s image.
6. After you are finished selecting files, touch “Delete”.
7. Touch “Delete”.
This deletes the files you selected.
• To cancel the delete operation, touch “Cancel” in step 6.
NOTE
• You can also delete images using the image menu (page 71).
. To delete all files
1. Enter the PLAY mode.
2. Touch “ ” (Show Icons).
3. Touch “ ”.
4. Touch “Delete All Files”.
5. Touch “Delete”.
This will cause the message “There are no files.” to appear.
37
Quick Start Basics
Snapshot Shooting Precautions
Operation
• If unwanted light is shining onto the lens, shade the lens with your hand when
shooting an image.
Monitor Screen when Shooting Snapshots
• Subject brightness conditions can cause monitor screen response to slow and can
cause digital noise in the monitor screen image.
• The image that appears on the monitor screen is for image composition. The actual
image will be recorded in accordance with the currently selected recording mode
(page 40).
Shooting Indoors under Fluorescent Lighting
• Minute flickering of fluorescent lighting can affect the brightness or color of an
image.
Other Precautions
• A noise reduction process is performed when ISO sensitivity is set to a high value.
This can cause the camera to take relatively longer to be ready to shoot again after
you press the shutter button. Do not perform any operation while the image
recording operation is in progress.
• Due to the characteristics of the imaging element used by the camera, very fast
moving objects in an image may appear distorted.
. Auto Focus Restrictions
• Any of the following can make proper focus impossible.
– Solid color wall or other very low contrast subject
– Strongly back lit subject
– Very shiny subject
– Blinds or other subject with a repeating horizontal pattern
– Multiple subjects at varying distances from the camera
– Subject in a dark location
– Camera movement while shooting
– Fast-moving subject
– Subjects outside the focus range of the camera
• If you cannot focus properly, try using focus lock (page 67).
38
Quick Start Basics
Recording Images
Touching the monitor screen in the REC mode will display a screen for configuring
REC mode settings.
. To configure REC mode settings
1. Press [p] (Power) to turn on the camera and
enter the REC mode.
• If the camera is in the PLAY mode, touch “ ” (REC)
to enter the REC mode.
[p] (Power)
2. Touch “ ” (Show Icons).
3. Touch the item whose setting you want to change.
Menu (page 58)*
1
Recording mode (page 40)
2
Wireless mode (page 86)
3
Mirror mode (page 46)
4
PLAY mode (page 31)/
5
Make-up (page 45)
Movie (page 49)
6
LED light (page 52)
7
6 7
* Depending on the recording mode, some of the items on the menu that
appears may not be usable.
14532
39
Recording Images
Selecting a Recording Mode
The camera has a variety of different recording modes.
1. In the REC mode, touch the “ ” (Show
Icons).
2. Touch the recording mode icon.
3. Touch the icon of the recording mode you want to
use.
This enters the selected recording mode.
Auto
Premium Auto
Pro
Posing Shot
BEST SHOT
Art Shot
Make-up BKT
Standard Auto recording mode. This is the mode normally
used for shooting (page 32).
With Premium Auto Pro recording, the camera
automatically determines whether you are shooting a
subject or scenery, and other conditions. Premium Auto
Pro recording delivers higher image quality than standard
Auto recording mode (page 32).
Posing Shot lets you shoot five successive snapshots, as
the camera provides voice guidance (page 41).
With BEST SHOT, simply select the sample scene that
resembles the type of shot you want, and the camera
automatically configures ideal settings for the subject and
shooting conditions (page 53).
A variety of artistic effects help to make even common,
ordinary subjects become more novel and exciting (page
42).
Make-up BKT lets you shoot three versions of the same
image with the press of the shutter button, each with a
different Skin Tone setting (page 44).
Recording mode icon
40
Recording Images
Shooting with Posing Shot (Posing Shot)
Posing Shot lets you shoot five successive snapshots, as the camera provides voice
guidance. The result is a series of shots with different poses and expressions.
1. In the REC mode, touch the “ ” (Show Icons).
2. Touch the recording mode icon.
3. Touch “ ” (Posing Shot).
4. Press the shutter button to start recording.
Shoot in accordance with the voice guidance from the camera.
NOTE
• To adjust the volume of the voice guidance, use the “Posing Vol” setting under
“Sounds” (page 107).
• To interrupt an ongoing Posing Shot operation, press the shutter button or touch
the monitor screen.
• Note that preview images are not displayed when shooting with this function.
. Changing the Voice Guidance Type
You can use the procedure below to select one of five types for the voice guidance
that sounds while you are shooting.
1. Touch “ ” (Voice).
2. Touch the number of the voice guidance you want to use.
This will cause the corresponding voice to sound.
3. After selecting the voice guidance type you want to use, touch “OK”.
41
Recording Images
Shooting with Artistic Effects (Art Shot)
A variety of artistic effects help to make even common, ordinary subjects become
more novel and exciting.
Scene Description
HDR Art
Crystal Ball
Sparkling Shot
Toy Camera
Soft Focus Overall blurring for a soft and romantic effect.
Light Tone Weakened contrast for a feeling of airy refinement.
Pop
Sepia Sepia tones create a decidedly retro look.
Monochrome
Miniature
Fisheye
Uses HDR (High Dynamic Range, page 56) to turn normal
images into works of art.
Creates a mysterious effect by placing the image in a bubble
floating in midair.
Softens the overall image and adds points of light for a
sparkle effect.
Dark edges and altered hues make images look like they
were shot by a toy camera.
Enhanced saturation makes colors stand out in with rich
clarity.
All of the strong contrast and graininess of a black and white
print.
Partial blurring makes scenes look like they are from of a
miniature world.
A fisheye lens effect can be used to create a variety of
humorous images.
1. In the REC mode, touch the “ ” (Show Icons).
2. Touch the recording mode icon.
3. Touch “C” (Art Shot).
4. Touch the Art Shot scene you want to use.
• Touch “ ”, “ ” to display another scene.
• Touching “ ” on the monitor screen and then touching a Art Shot scene will
display detailed information about the scene.
42
Recording Images
5. Touch the “ART” icon.
The intensity of the selected effect can be adjusted as described below. Note,
however, that the “Miniature” effect cannot be adjusted.
Scene Adjustment
HDR Art Effect level
Crystal Ball Effect type
Sparkling Shot Effect type
Toy Camera Hue
Soft Focus Effect level
Light Tone Hue
Pop Effect level
Sepia Effect level
Monochrome Effect level
Fisheye Effect level
6. Touch the level you want to select.
7. Touch “OK”.
8. Press the shutter button to shoot.
NOTE
• This function works best when the camera is made stationary by placing it on a
level surface, etc.
• With the HDR Art scene, the settings below are configured automatically.
–LED: Off
• Shooting with this REC mode makes the shooting range narrower than normal.
• The desired effect may not be attained if the camera or subject moves during
shooting.
• Depending on shooting conditions and image composition, this REC mode may not
be able to produce the desired result.
• Movie recording is disabled while shooting with Art Shot.
• Sample images shown on Art Shot scene screens were not shot with this camera.
43
Recording Images
Shooting Three Versions of an Image with Different Skin Tone Settings (Make-up BKT)
Make-up Bracketing (Make-up BKT) lets you shoot three versions of the same image
with the press of the shutter button, each with a different Skin Tone setting. This helps
you get the skin tone effect you want, even if you do not know exactly what settings to
use.
1. In the REC mode, touch “ ” (Show Icons).
2. Touch the Recording mode icon.
3. Touch “ ” (Make-up BKT).
4. Touch “ ” (Show Icons) and then touch “ ” (Make-up).
5. Touch the “Skin Tone”, “Smooth Skin” values and change the levels as
desired.
Skin Tone “Tan +6” to “0” to “Light +6”
Smooth Skin “0 (Off)” to “+12 (Max.)”
6. Touch “OK”.
7. Press the shutter button to shoot.
This will shoot and store three versions of the same image with various “Skin
Tone” settings, based on the setting you selected in step 5, above.
NOTE
• After shooting an image with “Make-up BKT”, you will not be able to shoot another
image until save of the previous image is complete.
• Only two versions of the image will be shot and stored if you shoot with Make-up
BKT while “+6” is selected for “Skin Tone”.
• Movie recording is disabled while shooting with “Make-up BKT”.
44
Recording Images
Recording Beautiful Portraits (Make-up)
Make-up enables adjustment of human skin tone hues and texture, and softening of
facial shadows caused by harsh sunlight for better looking portraits.
• Make-up can be used with the recording modes listed below.
– Premium Auto Pro
– Posing Shot
– Make-up BKT
– Following BEST SHOT scene
Motion Shutter, Triple Shot, HS Night Scene Portrait
1. Select “Premium Auto Pro”, “Posing Shot” or “Motion Shutter” for the
recording mode (pages 40, 53).
2. Touch “ ” (Show Icons).
3. Touch “ ” (Make-up).
4. Touch the screen and adjust “Skin Tone” and
“Smooth Skin”.
Skin Tone “Tan +6” to “0” to “Light +6”
Smooth Skin “0 (Off)” to “+12 (Max.)”
5. Touch “OK”.
6. Press the shutter button to shoot.
45
Skin Tone
Smooth Skin
Recording Images
Using the Camera as a Mirror
You can use the procedure below to configure the camera so its
monitor screen acts as a mirror.
• Images cannot be recorded while in the Mirror Mode. Mirror
Mode image data is not saved in camera memory.
• The Mirror Mode can be entered only while the camera is
positioned in portrait (vertical) orientation. It cannot be
entered while the camera is in landscape (horizontal)
orientation.
1. Rotate the monitor screen panel so the screen is
facing in the same direction as the lens (page 14).
2. On your camera, enter the REC mode and then touch “ ” (Show
Icons).
3. Touch the “ ” icon.
This enter the Mirror Mode.
. Mirror Mode Functions
Brightness
adjustment
Horizontal screen
image flip
Screen image freeze
Zoom
Exit the Mirror Mode Touch “ ”.
• Brightness adjustment and horizontal screen image flip cannot be used while the
screen image is frozen.
Touch the “+” side or “–” side of “ ”.
Touch “ ”.
• Image flips to show how your face appears to others.
Touch “ ”.
• Freezes the image to make it easier to view in detail.
Spread two fingers apart or squeeze then together on the
screen to zoom the image.
• Lets you move in on an image for greater detail.
46
Recording Images
Shooting with Zoom
Your camera is equipped with various types of zoom: HD Zoom, SR Zoom, and digital
zoom. The maximum zoom factor depends on the image size setting.
HD Zoom
SR Zoom
Digital zoom
Allows greater zoom capabilities by cutting out a portion of the
original image and enlarging it, without deterioration of image
quality.
Applies super resolution technology to suppress image
deterioration.
A digital process is used to enlarge the center of the image, so
there is deterioration of image quality.
1. Perform the required screen operation to change the zoom factor as
desired.
Zoom in: Spread
Zoom out: Squeeze
Telephoto Wide Angle
Telephoto : Enlarges the subject and narrows the range.
Wide Angle : Reduces the size of the subject and broadens the range.
2. Press the shutter button to shoot the image.
NOTE
• Telephoto images are prone to blurring caused by camera movement when you
press the shutter button. Because of this, stabilizing the camera by placing it on a
level surface, etc. is recommended.
• Zoom operations are disabled during high speed movie recording. Perform the
zoom operation before you touch “ ” (Movie) to start recording.
•“Ù” is displayed on the monitor screen while digital zoom is being used.
47
Recording Images
. Zoom Factor
• The image deterioration point depends on the image size (page 62). The smaller
the image size, the higher the zoom factor you can use before reaching the image
deterioration point.
Image Size
12M 1.5X 4.0X
3M 2.9X 7.8X
Undeteriorated
Zoom Limit
Shooting a Self-portrait
You can configure the camera so the monitor screen and lens
are facing in the same direction. This means you can shoot
with the self-timer as you compose the self-portrait on the
monitor screen.
• When using the self-timer to shoot a self-portrait, select one
of the following recording modes.
–Auto
– Premium Auto Pro
– Make-up BKT
1. Rotate the monitor screen panel so the screen is
facing in the same direction as the lens (page 14).
2. Select “Auto” or “Premium Auto Pro” for the
recording mode (page 32).
3. Drag “ ” (Self-timer) downwards to specify the
self-timer countdown duration.
The camera will shoot an image when the countdown
reaches zero.
• You can set a self-timer countdown duration within
the range of two to ten seconds. The further you drag,
the longer the duration.
• To cancel an ongoing countdown, touch anywhere on
the screen except where the self-timer icon is
displayed.
• To cancel an ongoing countdown, touch anywhere on
the screen except where the self-timer icon is
displayed or press the shutter button.
Maximum
Zoom Factor
Lens
Monitor screen
“ ” (Self-timer)
48
Recording Images
To record a movie
The following procedure explains how to record a movie.
• You can record a movie while one of the following recording modes is selected.
–Auto
– Premium Auto Pro
– Following BEST SHOT scene
HS Night Scene, HS Night Scene Portrait, Food, Nails
1. In the REC mode, touch “ ” (Show Icons).
2. Touch “MENU”.
3. Drag upwards and downwards until you find “Movie Quality”, and then
touch to select it.
4. Touch the item whose setting you want to change.
Movie
Quality
Full HD 30fps 1920
HD 30fps 1280
HS240 240fps 512
REC Screen
Icon Display
Frame
Rate
Image Size
(Pixels)
x
1080
x
720
x
384
Description
Select this setting to record full
high-definition (Full HD)
movies. The aspect ratio of
movies recorded with this
setting is 16:9.
Select this setting to record
high-definition (HD) movies.
The aspect ratio of movies
recorded with this setting is
16:9.
Select this setting to record
high speed movies at a speed
of 240 fps.
• Audio is not recorded.
5. To close the menu screen, touch “MENU” or press the shutter button.
49
Recording Images
6. Touch “ ” (Movie).
This will start recording.
• Monaural audio is also recorded during movie
recording while “Full HD” or “HD” is selected for
the movie quality setting.
• Touching “o” while recording is in progress
will cause the remaining recording time and “R”
to appear. Touch “o” again to switch back to
the elapsed recording time.
• Zoom is supported during movie recording
when “Full HD” or “HD” is selected for the
movie quality setting (page 47).
• When “Macro” is selected as the movie focus
mode (page 66), you can half-press the shutter
button before starting recording to focus.
Recording time/
Remaining recording time
“” (Movie)/
“” (Movie Stop)
7. Touch “ ” (Movie Stop) to stop recording.
• Each movie can be up to 29 minutes long. Movie recording stops automatically
after 29 minutes of recording. Movie recording also will stop automatically if
memory becomes full before you stop movie recording.
Minimizing the Effects of Camera Movement during Movie Recording
You can configure the camera to minimize the effects of camera movement during
Full HD and HD movie recording. Note, however, that this does not prevent image
blur due to subject movement.
High Speed Movie Recording Precautions
• When shooting a high speed movie, shoot in a well-lit environment.
• When recording a high speed movie, light source flicker can cause horizontal
bands to appear in the image. This does not indicate malfunction of the camera.
50
Recording Images
IMPORTANT!
• Spending a long time using movie recording will cause the camera to become
slightly warm to the touch. This is normal and does not indicate malfunction. The
camera may automatically adjust its monitor screen brightness in order to reduce
heat generation.
• The camera also records audio along with Full HD and HD
movies. Note the following points when shooting a movie.
– Take care that the microphone is not blocked by your
fingers, etc.
– Good audio recording results are not possible when the
camera is too far away from what you are trying to
record.
Microphone
• Shooting movies for long periods in areas where
temperature is relatively high can cause digital noise (dots of light) to appear in the
movie image. A rise in the camera’s internal temperature also may force movie
recording to stop automatically. If this happens, stop recording and allow the
camera to cool down, which should cause normal operation to resume.
• Use of the camera’s built-in memory or certain types of memory cards can slow
down processing speeds. In particular, high-quality movies may not be able to be
stored correctly. A slow memory card can take too much time to record data and
result in breaks in the image and/or audio during playback. When this happens the
movie icon will turn yellow on the monitor screen.
NOTE
• Except for High Speed Movie, zoom operations are supported during movie
recording (page 47). Zoom is disabled during high speed movie recording. If you
want to use zoom, perform the zoom operation before you touch “ ” (Movie) to
start recording.
• SR Zoom (page 47) is disabled during movie recording.
• The effects of camera movement in an image become more pronounced when you
shoot close up or with a large zoom factor. Because of this, stabilizing the camera
by placing it on a level surface, etc. is recommended.
• During High Speed Movie recording, focus is fixed at the position where it was
when recording started. To focus an image, half-press the shutter button for Auto
Focus before you touch “ ” (Movie) to start recording.
51
Recording Images
Using the LED Light (LED)
Use the LED light when shooting where lighting is dim. The effectiveness of the LED
light is reduced the further you are from the subject.
1. In the REC mode, touch “ ” (Show Icons).
2. Touch “ ” (LED).
Each touch of the “ ” (LED) icon cycles between the settings below.
Setting
Auto
On LED always lights when shooting.
Off LED never turns on or fires.
IMPORTANT!
• Do not turn on the LED light near a person’s eyes and do not allow anyone to look
directly into the light.
• You should compose the image so the main subject is in the center of the image
when using the LED light.
• Since the camera is equipped with a wide-angle lens, the center tends to be
brighter while the periphery tends to be darker.
• LED light is disabled while shooting with the following feature.
– Following BEST SHOT scenes
Triple Shot, HDR, HS Night Scene
– Following Art Shot scene
HDR Art
REC Screen
Icon Display
Description
The LED light fires automatically under dark
shooting conditions when the shutter button is
half-pressed to focus and/or full-pressed to shoot.
52
Recording Images
Using BEST SHOT
BEST SHOT provides you with a collection of sample “scenes” that show a variety of
different types of shooting conditions. When you need to change the setup of the
camera, simply find the scene that matches what you are trying to achieve, and the
camera sets up for it automatically. This helps to minimize the chance of ruined
images due to poor exposure and shutter speed settings.
. To shoot an image with BEST SHOT
1. In the REC mode, touch “ ” (Show Icons)
(page 40).
2. Touch the recording mode icon.
3. Touch “b” (BEST SHOT).
This will display a menu of BEST SHOT scenes.
4. Touch the scene you want to select.
• Touching “ ” on the monitor screen and then touching a BEST SHOT scene
will display detailed information about the scene.
5. Press the shutter button (if you are shooting a snapshot) or touch
“ ” (Movie) (if you are shooting a movie).
• With some BEST SHOT scenes, the message “Busy... Please wait...” will
appear on the monitor screen after you press the shutter button. The camera is
in the process of recording an image until the message appears. Keep the
camera still. The image processing operation takes some time to complete
after the message appears. You will not be able to record another image while
the message is displayed.
. BEST SHOT Precautions
• BEST SHOT scene images were not shot using this camera.
• Images shot using a BEST SHOT scene may not produce the results you expected
due to shooting conditions and other factors.
• You can modify the camera settings that are configured after you select a BEST
SHOT scene. Note, however, that the BEST SHOT settings revert to their defaults
when you select another BEST SHOT scene or turn off the camera.
• Movie recording can be performed while one of the BEST SHOT scenes below is
selected. Note that if “HS240” is selected for the movie quality setting, movies will
be recorded using the auto recording “Auto” setting.
HS Night Scene, HS Night Scene Portrait, Food, Nails
53
Using BEST SHOT
Shooting with Triple Shot
Triple Shot shoots a burst of three images and stores them in memory. This feature is
great for making sure you don’t miss those special moments when kids are around.
1. Select “Triple Shot” scene (page 53).
2. Point the camera at the subject and then half-press the shutter button.
The camera will start pre-recording images at this time.
• If you release the half-pressed shutter button before pressing it the rest of the
way down, all of the images currently in the pre-record buffer will be deleted.
3. Press the shutter button all the way down to record.
This will record three images: one of the action before the shutter button is fully
pressed plus two real-time images.
• Pressing the shutter button all the way without first half-pressing it will result in
only two images being recorded.
NOTE
• The following functions cannot be used with this function.
Touch Shutter, Self-timer, LED Light
• “Type 1” cannot be selected for the “Review” setting while shooting with this
function. If “Type 1” is selected in another mode, selecting the “Triple Shot” scene
will cause the “Review” setting to change to “Type 2”.
54
Using BEST SHOT
Using Motion Shutter to Trigger a Self-timer Operation (Motion Shutter)
With Motion Shutter the camera automatically triggers a selftimer countdown whenever it detects subject movement within
an icon you specify on the monitor screen. This means you can
control operation of the self-timer from a distance by waving
your hand, so you can include yourself in the image being shot.
1. Select “ ” (Motion Shutter) scene (page 53).
2. Drag the start self-timer icon “ ” and preview icon
“ ” to the location in the image where you want
movement to be detected.
• Keep the two icons separate from each other. Whenever you move an icon to a
location where it overlaps the other icon, the other icon will move out of the way
automatically.
3. When everything is ready, press the shutter button all the way down.
The start self-timer icon will change to “ ” to indicate that the camera is in
standby for shooting.
4. Facing the camera, move your hand or perform some other movement
in the area of the start self-timer icon you positioned in step 3.
When the camera detects subject movement within the icon, it will automatically
start a self-timer countdown. The camera will shoot an image when the
countdown reaches zero, and then go back into Motion Shutter standby to wait
for the next trigger movement.
NOTE
• The trigger time of the Motion Shutter self-timer is fixed at two seconds.
• The preview icon “ ” will appear on the monitor screen when a snapshot is shot.
When the camera detects movement within the preview icon, it will display the
image that was shot for three seconds.
• Motion Shutter exits standby automatically after it shoots six images.
• To cancel Motion Shutter standby at any time, press the shutter button or touch the
monitor screen.
• The Motion Shutter may not operate properly when there is little difference
between the subject and the background of the icon, or when the subject is located
far away from the camera.
55
Using BEST SHOT
Digitally Correcting for Overexposure and Underexposure (HDR)
With HDR (High Dynamic Range), the camera shoots a series of CS images using
different exposure settings and combines them into a final image to correct for
overexposure or underexposure of subjects of different brightness levels.
1. Select “HDR” scene (page 53).
2. Press the shutter button to shoot.
NOTE
• This function works best when the camera is made stationary by placing it on a
level surface, etc.
• With this BEST SHOT scene, the LED light setting automatically becomes off.
• The desired HDR effect may not be attained if the camera or subject moves during
shooting.
Shooting with High Speed Night Scene (HS Night Scene)
With High Speed Night Scene, the camera automatically detects shooting conditions.
When you press the shutter button, the camera will record a burst of images and
merge them in a way that minimizes image blur due to low light conditions.
1. Select “HS Night Scene” scene (page 53).
2. When you are ready to shoot, press the shutter button.
NOTE
• With this BEST SHOT scene, the LED light setting automatically becomes off.
• When holding the camera by hand while shooting with this BEST SHOT scene,
make sure that the subjects remain as still as possible as the camera shoots the
series of images.
• Movement of the camera while it is placed on a surface may cause erroneous
judgment that it is hand held.
• If surroundings are extremely dark when shooting with “HS Night Scene”, the
camera may not be able to shoot at proper brightness due to insufficient exposure.
• When shooting with this BEST SHOT scene, the ISO sensitivity setting is fixed at
“Auto”.
56
Using BEST SHOT
Shooting with High Speed Night Scene and Portraits (HS Night Scene Portrait)
1. Select “HS Night Scene Portrait” scene (page 53).
2. When you are ready to shoot, press the shutter button.
NOTE
• With this BEST SHOT scene, the LED light setting automatically becomes “Auto”.
• When holding the camera by hand while shooting with this BEST SHOT scene,
make sure that the subjects remain as still as possible as the camera shoots the
series of images.
• Movement of the camera while it is placed on a surface may cause erroneous
judgment that it is hand held.
• If surroundings are extremely dark when shooting with this BEST SHOT scene, the
camera may not be able to shoot at proper brightness due to insufficient exposure.
• When shooting with this BEST SHOT scene, the ISO sensitivity setting is fixed at
“Auto”.
57
Using BEST SHOT
Advanced Recording Settings
The following are menu operations you can use to configure various camera settings.
Using the REC Menu
. Example Menu Screen Operation
1. In the REC mode, touch “ ” (Show Icons).
2. Touch “MENU”.
This will display the menu screen.
• Menu contents are different in the REC mode and PLAY
mode.
3. Drag upwards and downwards until you find the
item whose setting you want to change.
4. Touch the item.
5. Configure the setting of the item in accordance with the screen
contents.
• To cancel and exit the menu, touch “MENU” or press the shutter button.
NOTE
• Depending on the recording mode, some of the items on the menu that appears
may not be usable. While Premium Auto Pro is in use, only the menu items whose
settings can be configured will be displayed on the menus.
. Menu Operations in This Manual
Menu operations are represented in this manual as shown below. Touch the indicated
icons and items, and perform operations as they are indicated, from left to right.
Procedure
Enter the REC Mode * MENU * Touch Shutter
58
Advanced Recording Settings
Using the Selfie Pad (Selfie Pad)
Procedure
Enter the REC Mode * MENU * Selfie Pad
You can assign the REC Mode operations below to the
selfie pad on the outside edge of the frame.
You can use the steps below to select the type of image you
Selfie Art
Shutter
Zoom Sliding the selfie pad performs a zoom operation.
Off Selfie pad operation disabled.
NOTE
• To execute or cancel the assigned operation, double-tap the selfie pad.
For information about selfie pad operation, see page 19.
want to shoot.
Slide the selfie pad to select the image type.
1
Tap to apply.
2
Sliding the selfie pad starts a countdown, after which a
snapshot is recorded.
Selfie Pad
. Square Image Sizes
You can shoot a square snapshot with an aspect ratio of 1:1 by
selecting “Square” for Selfie Art. See page 62 for details.
NOTE
• You cannot record a movie using a square image size.
59
Advanced Recording Settings
Using Touch Shutter (Touch Shutter)
Procedure
Enter the REC Mode * MENU * Touch Shutter
You can use the procedure below to shoot a snapshot.
1. Touch “On”.
2. Point the camera at the subject.
3. When you want to shoot, touch the monitor screen.
The camera automatically comes into focus and then shoots.
• You can still use the shutter button to shoot even when “On” is selected for
Touch Shutter.
NOTE
• When “Auto” is selected as the recording mode, the camera will automatically focus
on the point you touch.
• When “Premium Auto Pro” is selected as the recording mode, the camera will
automatically determine the optimum focus point(s) and focus automatically.
60
Advanced Recording Settings
Using the Self-timer (Self-timer)
Procedure
Enter the REC Mode * MENU * Self-timer
With the Self-timer, pressing the shutter button starts a timer. The shutter is released
and the image is shot after a fixed amount of time.
Setting
10 sec 10-second Self-timer
2 sec
Off None Self-timer is disabled.
• You can interrupt an ongoing Self-timer countdown by pressing the shutter button
or touch the monitor screen.
NOTE
• The Self-timer configured with the above menu cannot be used under the following
conditions.
– Posing Shot (page 41)
– Triple Shot (page 54)
– Motion Shutter (page 55)
– When the monitor screen and lens are facing in the same direction
REC Screen
Icon Display
Description
2-second Self-timer
• When shooting under conditions that slow down the
shutter speed, you can use this setting to prevent
image blur due to camera movement.
Using the LED Light (LED)
Procedure
Enter the REC Mode * MENU * LED
See page 52 for details.
61
Advanced Recording Settings
Changing the Image Size (Image Size)
Procedure
Enter the REC Mode * MENU * Image Size
This setting can be used to configure snapshot image size.
Image Size
(Pixels)
12M
x
(4000
3000)
3M
x
1536)
(2048
REC Screen
Icon Display
Suggested Print
Size and
Application
Poster Print
3.5"×5" Print
Description
Good detail for better clarity even
for images cropped from the
original on a computer, etc.
Best when preserving memory
capacity is relatively more
important than image quality.
• The initial factory default image size setting is 12M (12 million pixels).
• Selecting “3:2” records images with an aspect ratio of 3:2, which matches the
standard aspect ratio of print paper.
. Square Image Sizes
To shoot with a square image size (page 59), select the “Image Size” item and then
select one of the images sizes below.
x
12M * 8M (2976
3M * 2M (1536
2976 pixels)
x
1536 pixels)
. Pixels and image size
A digital camera image is a collection of small
dots called “pixels”. The more pixels there are
in an image, the more detail there will be.
However, you generally can do with fewer
pixels when printing an image (L size)
through a print service, attaching an image to
e-mail, when viewing the image on a
computer, etc.
The size of an image indicates how many
pixels it contains, and is expressed as horizontal pixels
• Note that larger images have more pixels, so they take up more memory space.
• For information about image size and number of images that can be stored, see
page 144.
• For information about movie image size, see page 144.
• For information about resizing existing snapshots, see page 82.
Pixel
x
vertical pixels.
62
Advanced Recording Settings
Movie Image Quality Settings (Movie Quality)
Procedure
Enter the REC Mode * MENU * Movie Quality
This setting can be used to configure movie image quality settings and to select either
normal movie recording or High Speed Movie recording. For information about movie
image quality settings, see page 49.
Correcting Image Brightness (Brightness)
Procedure
Enter the REC Mode * MENU * Brightness
You can manually adjust an image’s exposure value (EV value) before shooting it.
• Exposure Compensation Range: –2.0 EV to +2.0 EV
• Unit: 1/3 EV
1. Touch a level you want to set.
• To cancel exposure compensation, change the EV value to 0.0.
Decreases the EV value. A lower EV
value is best for dark-color subjects and
for shooting outdoors on a clear day.
Increases the EV value. A higher EV
value is best for light-colored subjects
and backlit subjects.
2. Touch “OK”.
This applies the exposure compensation value. The exposure compensation
value you set remains in effect until you change it or turn off the camera (which
causes it to revert to “0.0”).
NOTE
• When shooting under very dark or very bright conditions, you may not be able to
obtain satisfactory results even after performing exposure compensation.
63
Advanced Recording Settings
Adjusting White Balance (White Balance)
Procedure
Enter the REC Mode * MENU * White Balance
You can adjust white balance to match the source of light available where you are
shooting and avoid the blue cast that results when shooting outdoors when it is
cloudy, and the green cast that results when shooting under fluorescent lighting.
1. Touch the type of white balance you want to select.
You can see the affect of the white balance setting you select on the monitor
screen.
Setting Description
Auto WB
Daylight For shooting outdoors on a clear day
Overcast
Shade
Day White Fl.
Daylight Fluor For shooting under daylight fluorescent lighting
Tungsten For shooting under light bulb lighting
Manual WB
• When “‡Auto WB” is selected for the white balance setting, the camera
automatically determines the white point of the subject. Certain subject colors
and light source conditions can cause problems when the camera tries to
determine the white point, which makes proper white balance adjustment
impossible. If this happens, select the white balance setting that matches your
shooting conditions (Daylight, Overcast, etc.).
Configures the camera to adjust white balance
automatically
For shooting outdoors on an overcast rainy day, in the
shade, etc.
For shooting on a clear day in the shade of trees or
buildings
For shooting under white or day white fluorescent
lighting
For configuring the camera manually to suit a particular
light source.
Touch “· Manual WB”.
1
In the location where you plan to
2
shoot, point the camera at a
blank white piece of paper so it
fills the entire monitor screen.
Touch an area of the screen
3
where no icon is located.
The white balance setting is retained even if you turn
off the camera.
Blank white paper
2. Touch “OK”.
64
Advanced Recording Settings
Specifying ISO Sensitivity (ISO)
Procedure
Enter the REC Mode * MENU * ISO
ISO sensitivity is a measure of sensitivity to light.
Setting Description
Auto Adjusts sensitivity automatically according to conditions
ISO 80
Lower
sensitivity
ISO 100
ISO 200
ISO 400
ISO 800
ISO 1600
ISO 3200
Higher
sensitivity
• Since higher ISO sensitivity values tend to result in digital noise in images, the
camera performs a noise filtering process. Because of this, it may take relatively
longer for the camera to finish recording an image after it is shot. You will not be
able to perform any operation while image recording is in progress.
Slow shutter speed
Fast shutter speed (Set
for shooting in dimly lit
areas.)
Less noise
Some coarseness
(increased digital noise)
65
Advanced Recording Settings
Selecting a Focus Mode (Focus)
Procedure
Enter the REC Mode * MENU * Focus
Changing to a different focus mode can help to achieve better focus.
Settings
AF
(Auto
Focus)
Macro
PF (Pan
Focus)
REC Screen
Icon Display
None
Type of Shot
General
recording
Close ups
Shooting
with a
relatively
wide focus
Focus Mode Approximate Focus Range
Snapshot Movies Snapshot Movies
Automatic
Fixed
8 cm to
9
(infinity)
to
(3.1"
8 cm to 50 cm
(3.1" to 19.7")
9
)
52 cm to
9
(20.5"
8 cm to 50 cm
(3.1" to 19.7")
focal point
)
52 cm to
9
(20.5"
Fixed
focal point
1 m to
9
(infinity)
(3.3'
to
9
range
Scenery and
Infinity
other distant
Fixed Infinity (Wide Angle)
subjects
*1 The focus range is the distance from the lens surface.
*2 Focus remains fixed at the position where it was when recording started. To focus
an image, half-press the shutter button to focus before fully pressing the shutter
button to start recording.
(infinity)
to
9
(infinity)
to
9
*
)
)
1
2
*
66
Advanced Recording Settings
Using Focus Lock
“Focus lock” is a technique you can use when you want
to compose an image in which the subject you want to
focus on is not within the focus frame in the center of
the screen.
Subject to be focused on
1. Align the monitor screen’s focus frame with
the subject you want to focus on and then
half-press the shutter button.
Focus frame
2. Keeping the shutter button half-pressed
(which maintains the focus setting), move
the camera to compose the image.
3. When you are ready to shoot the image,
press the shutter button the rest of the way
down.
NOTE
• Focus lock also locks exposure (AE).
• The focus frame does not appear on the display when the Touch Shutter is
enabled (On).
Turning on Image Review (Review)
Procedure
Enter the REC Mode * MENU * Review
While Review is turned on, the camera will display an image immediately after it is
recorded.
Type 1 Displays a full-screen view of the image for about one second.
Displays a Review image in the upper left corner (in the case of a
Type 2
Off Turns off review image display
portrait orientation image) or the lower left corner (in the case of a
landscape orientation image) of the monitor screen. Touching the
Review image will enter the PLAY mode and display a full-screen view
of the image.
• When “Type 1” is selected, the aperture, shutter speed, and ISO sensitivity, will be
red if the Auto Exposure is not correct.
67
Advanced Recording Settings
Viewing Snapshots and Movies
Viewing Snapshots
See page 35 for the procedure for viewing snapshots.
Viewing a Movie
1. Touch “ ” (PLAY) to enter the PLAY mode.
2. Drag left or right across the screen image to
scroll through the movies until the one you
want is displayed.
3. Touch “ ” (Movie) to start playback.
Playback in progress Playback paused
Touch “|”.
Touch “6”.
Progress bar
Image quality
Movie icon:
Movie recording time
68
Viewing Snapshots and Movies
Movie Playback Controls
Pause/Play Touch “|” (pause) or “6” (play).
{” (fast reverse) or “}” (fast
6”.
Fast forward/
Fast reverse
During playback, touch “
forward).
• Each touch of either button increases the speed of the
fast forward or fast reverse operation.
• To return to normal playback speed, touch “
Stop playback During playback, touch “.”.
Volume adjustment
During playback, touch “
to the desired level.
• Volume can be adjusted only while movie playback is in
n” and then drag the volume bar
progress.
1 frame forward/
back
Information display
on/off
Movie editing
While playback is paused, touch “
• Touching and holding this icon advances frames
continuously.
Touch the screen.
Pause movie play at the location where you want to cut,
and then touch “
~” (page 70).
z” or “y”.
• Playback may not be possible for movies not recorded with this camera.
69
Viewing Snapshots and Movies
Editing a Movie on the Camera (Movie Editing)
The Movie Editing feature lets you cut out a specific part of a movie.
1. Enter the PLAY mode and then start playback of the movie you want to
edit.
2. When playback reaches the location where you want to cut, touch “|”
to pause.
3. Touch “~”.
4. Touch the option that specifies what you want to cut.
Previous Cut
Next Cut
Cuts everything from the beginning of the movie up to
the current location.
Cuts everything from the current location to the end of
the movie.
5. Touch “Cut”.
The selected cut operation will take considerable time to complete. Don’t try to
perform any camera operation until the “Busy... Please wait...” message
disappears from the monitor screen. Note that a cut operation can take a long
time if the movie being edited is long.
IMPORTANT!
• When you edit a movie, only the result is saved. The original movie is not retained.
An editing operation cannot be undone.
NOTE
• A movie that is shorter than five seconds cannot be edited.
• Editing of movies recorded with a different type of camera is not supported.
• You will not be able to edit a movie if the amount of remaining memory capacity is
less than the size of the movie file you want to edit. If there is not enough memory
available, delete files you no longer need to free up more.
• Splitting of a movie into two movies and splicing of two different movies into a
single movie are not supported.
70
Viewing Snapshots and Movies
Viewing the Image Menu
The image menu shows multiple images on a single screen.
1. In the PLAY mode, touch “]” or squeeze your
fingers on the screen.
This displays the image menu.
• Drag upwards or downwards to scroll to the next page of
images.
• To view the normal (single image) display mode, touch
the image your want to view.
• In the case of a movie, the first image in the movie is
displayed.
• A question mark (?) will be displayed for images that cannot be displayed for
some reason.
• You can also perform the operations below using the image menu. Touch the
icon of the function you want to use, touch an image, and then touch “OK”.
– Send an image to a smartphone
– Delete an image
– Protect an image
Zooming an On-screen Image
Snapshots can be zoomed on the monitor screen up to 8X.
• The actual available zoom factors depend on the size of the original image.
1. In the PLAY mode, drag left or right to display the image you want to
view.
2. Spread your thumb and forefinger (page 18) on the displayed image to
enlarge it.
• Dragging an enlarged screen image will change the part of the image that is
displayed.
• Squeezing your thumb and forefinger (page 18) on the displayed image will
reduce it in size.
– When monitor screen contents are turned on, a graphic on the monitor
screen shows what part of the zoomed image is currently displayed.
71
Viewing Snapshots and Movies
Viewing Snapshots and Movies on a TV Screen
Use a commercially available HDMI cable to
connect the camera to the TV.
• Use a commercially available HDMI cable
that is marked with the logo shown to the
right.
1. Open the frame (page 14).
[HDMI] cover
2. Hook your nail into the groove of the
[HDMI] cover and pull the cover in the
direction indicated by the arrow to open
it.
3. Turn off the camera and use a
commercially available HDMI cable to connect the camera to a TV.
HDMI connector
HDMI input
HDMI output (micro)
HDMI micro connector
• Make sure that the camera is turned off before plugging in or unplugging the
cable. Check the user documentation that comes with the TV for information
about requirements before plugging into or unplugging from the TV.
HDMI cable
(commercially
available)
4. Turn on the TV and select its HDMI input mode.
If the TV has more than one HDMI input, select the one where the camera is
connected.
72
Viewing Snapshots and Movies
5. Turn on the camera.
The camera monitor screen will shows a remote controller image. The TV screen
will show a recorded image.
• The contents of the remote controller image will depend on the type of image
that is displayed on the TV screen.
6. Touch the camera monitor screen to perform operations.
NOTE
• Use a HDMI cable with a plug that is compatible with the camera’s HDMI micro
connector on one end, and a plug that is compatible with your TV’s HDMI
connector on the other end.
• Proper image and/or audio output and other operations may not be possible with
some devices.
• Connecting the camera to the HDMI connector of another device can damage both
the camera and the other device. Never connect two HDMI output connectors to
each other.
• Disconnect the HDMI cable when you are not using HDMI output. The camera’s
monitor screen may not operate normally while the HDMI cable is connected.
• Audio is monaural.
• Audio is initially output by the camera at maximum volume. When you first start
displaying images, set the TV volume control at a relatively low level and then
adjust it as required.
• To select the digital signal format, see page 111.
73
Viewing Snapshots and Movies
Other Playback Functions (PLAY)
The following are menu operations you can use to configure various camera settings.
Using the PLAY Menu
. Example Menu Screen Operation
1. In the PLAY mode, touch “ ” (Show Icons).
2. Touch “MENU”.
This will display the menu screen.
• Menu contents are different in the REC mode and PLAY
mode.
3. Touch the item whose setting you want to change.
4. Configure the setting of the item in accordance with
the screen contents.
• To cancel and exit the menu, touch “MENU” or press the shutter button.
. Menu Operations in This Manual
Menu operations are represented in this manual as shown below. Touch the indicated
icons and items, and perform operations as they are indicated, from left to right.
Procedure
Enter the PLAY Mode * MENU * Protect
74
Other Playback Functions (PLAY)
Using the Selfie Pad (Selfie Pad)
Procedure
Enter the PLAY Mode * MENU * Selfie Pad
You can assign the PLAY Mode operations below to the
selfie pad on the outside edge of the frame.
Selfie Pad
Scroll
Zoom
Off Selfie Pad operation disabled.
NOTE
• To execute or cancel the assigned operation, double-tap the selfie pad.
For information about selfie pad operation, see page 19.
When viewing images, sliding the
selfie pad scrolls forward or back.
When viewing images, sliding the
selfie pad zooms in or out on the
displayed image.
Creating a Promotion Movie (Promotion Movie)
Procedure
Enter the PLAY Mode * Display snapshot * MENU *
Promotion Movie
With this function, you can select five snapshots and combine them into a 6-second,
10-second or 15-second movie that includes effects and music.
1. Drag upwards or downwards to display the snapshot you want to use
in your Promotion Movie.
2. Touch the snapshot you want to use as the first image.
75
Other Playback Functions (PLAY)
3. Repeat steps 1 and 2 to select a total of five snapshots.
• The snapshots will appear in the Promotion Movie in the same sequence that
you select them.
• Touch a selected snapshot will de-select it.
4. Touch “OK”.
5. Touch “Length”, “Transition”, and “Music”, and configure settings for
each item as required.
Length Select 15 seconds, 10-second or 6 seconds.
Transition
Music
Enable or disable the transition effect. Selecting “On” (enabled)
applies a transition effect when changing from one image to the
next.
Select the background music you want to use. Selecting “Off”
creates a movie without music.
6. Touch “Create”.
This creates a Promotion Movie in accordance with the settings you configured.
NOTE
• Movies cannot be converted to a promotion movie.
• You may experience conversion problems if you try to include snapshots recorded
with a camera other than this one.
• Promotion movies are HD movie quality, with an aspect ratio of 16:9. This means
that the upper and lower parts of a snapshot will be trimmed off when it is
converted to a promotion movie.
• Selecting a portrait orientation snapshot with the “Transition” setting enabled (On)
will trim the top and bottom of the image, with the bottom portion somewhat larger
than the top. When “Transition” is disabled (Off), black bands will appear on the
sides of the image.
• This function cannot be used for fewer than five images.
76
Other Playback Functions (PLAY)
Performing Paint Operations on an Image (Paint)
Procedure
Enter the PLAY Mode * Display snapshot * MENU * Paint
You can use this function to draw on, write on, or stamp information into a recorded
snapshot. If the original image size is 3M or larger, the post-paint image is saved as a
3M size image.
1. On the monitor screen, touch “ ” or “ ”.
2. Touch the pen type or the stamp you want to use.
3. Use the pen to write text or draw figures, or use the stamp to stamp
information.
• The stamp will be located at the final position your finger is in when you remove
it from the screen. Before removing your finger, you can drag the stamp to the
location you want.
4. Touch “OK”.
5. Touch “Yes”.
This will save the image as a new image.
. Paint Functions
Saves the image.
Exits paint without saving an image.
For selecting the pen color and thickness for drawing or writing. Also
can be used to select the eraser and its thickness.
For selecting the stamp type.
Goes back to the previous screen.
NOTE
• After selecting “ ”, you can change either the color (or eraser) or thickness
setting only. To change the other setting, select “ ” again.
77
Other Playback Functions (PLAY)
Playing a Slideshow on the Camera (Slideshow)
Procedure
Enter the PLAY Mode * MENU * Slideshow
You can use the slideshow mode to automatically scroll through all of the images in
camera memory.
NOTE
• All operations are disabled while the slideshow is transitioning from one image to
another.
• The time required for transition from one image to another may be longer in the
case of an image that was not recorded with this camera.
• To return to normal (single image) display, touch the screen.
Extracting an Image from a Snapshot (Cut out subject)
Procedure
Enter the PLAY Mode * Display snapshot * MENU * Cut out subject
You can draw an outline around a subject (person or object) and extract it from the
snapshot. You can then insert the extracted subject into another snapshot.
Extracted Subject Another Snapshot Final Combined Image
1. Touch the drawing tool you want and then draw a boundary around the
subject that you want to extract.
Drawing Tool Line Type Description
•
‚
x
• The boundary line should be continuous, which means it starts and ends at the
same point.
Thin
Thick
– Erases a drawn line.
Draws a line for cutting out a subject.
78
Other Playback Functions (PLAY)
2. Touch “OK”.
This will cause the background of the subject you outlined to become gray.
3. Touch “ ” to select the area to be extracted and then touch “OK”.
This will display the cut out subject.
• To scroll back one screen, touch the “ ” icon on the monitor screen.
Extracted subject screen Original image with subject
extracted
4. After confirming that the part of the image to be extracted is the way
you want, touch “OK”.
This saves the extracted image.
NOTE
• You cannot extract from an extracted subject. Attempting to do so will cause an
error.
• This function cannot be used with a square image (page 62).
79
Other Playback Functions (PLAY)
Inserting a Subject into another Snapshot or Adding a Built-in Frame to a Snapshot (Paste subject)
Procedure
Enter the PLAY Mode * MENU * Paste subject
You can add the camera’s built-in characters or frames to snapshots, or you can
insert characters you create with “Cut out subject” (page 78) into snapshots.
• Only an image that satisfies the following conditions can be used as a background
image.
– It must be a snapshot recorded with this camera or a snapshot transferred to this
camera’s memory.
– It must be an image with an aspect ratio of 4:3.
1. Drag left or right to scroll through images. Select image you want to
use as the background and then touch “OK”.
2. Drag left or right to scroll though subjects. Select the subject you want
to insert and then touch “OK”.
3. Touch “–” (zoom out), “+” (zoom in) to adjust the
size of the subject. You also can drag the subject
around the screen to reposition it.
4. After the subject’s size and position are the way you
want, touch “OK”.
This inserts the subject into the background image.
NOTE
• Performing a delete or format operation will not delete the built-in subjects.
• This function cannot be used with a square image (page 62).
80
Other Playback Functions (PLAY)
Protecting a File Against Deletion (Protect)
Procedure
Enter the PLAY Mode * MENU * Protect
You can protect images to prevent them from being deleted.
• A protected image will be indicated by “›”.
All Files On Protects all files.
All Files Off Unprotects all files.
Protects and unprotects specific files.
Drag upwards or downwards to display the image you want
1
to protect.
Touch an image to be protected, and
2
“›” will appears on the image.
Select
IMPORTANT!
• Note that even if a file is protected, it will be deleted if you perform the format
operation (page 112).
You can repeat steps
many times as necessary to select
multiple images.
Touch “OK”.
3
To unprotect an image, touch it in step
of the above procedure to remove
2
“›”.
and 2 as
1
NOTE
• You can also protect images using the image menu (page 71).
81
Other Playback Functions (PLAY)
Rotating an Image (Rotation)
Procedure
Enter the PLAY Mode * MENU * Rotation
1. Drag upwards or downwards to display the image you want to rotate.
2. Touch “ ”.
This will rotate the image 90 degrees to the left.
3. When the image is in the orientation you want, touch “ ”.
NOTE
• Note that this procedure does not actually change the image data. It simply alters
how the image is displayed on the camera’s monitor screen.
• An image that has been protected or zoomed cannot be rotated.
Resizing a Snapshot (Resize)
Procedure
Enter the PLAY Mode * MENU * Resize
You can reduce the size of a snapshot and save the result as a separate snapshot.
The original snapshot is also retained. You can select resize an image to one of two
image sizes: 3M, VGA.
1. Drag left or right to display the image you want to resize.
2. Touch a size.
This resizes the image to the selected size and saves the result as a new
photograph.
NOTE
• The recording date of the resized version of the snapshot will be the same as the
recording date of the original snapshot.
• This function cannot be used with a square image (page 62).
82
Other Playback Functions (PLAY)
Cropping a Snapshot (Trimming)
Procedure
Enter the PLAY Mode * MENU * Trimming
You can crop a snapshot to trim parts you do not need, and save the result in a
separate file. The original snapshot is also retained.
1. Drag left or right to display the image you want to crop.
2. Touch “OK”.
3. Select the aspect ratio of the saved image and then tap “OK”.
For a 4:3 aspect ratio image, you can select either of two trimmed image aspect
ratio: 4:3 or 1:1 (square).
4. Drag the image until the part you want to keep is displayed.
• To enlarge the image, touch the screen with your thumb and forefinger and
then spread them apart. To reduce the size of the image, touch the screen with
your thumb and forefinger and then squeeze them together.
5. Touch “OK”.
This will crop the image, leaving only the displayed part.
NOTE
• The recording date of the cropped image will be the same as the recording date of
the original snapshot.
83
Other Playback Functions (PLAY)
Connecting the Camera with a Smartphone (Wireless Connection)
Controlling Your Camera with a Smartphone
Your camera has both Bluetooth wireless technology and wireless LAN capabilities
built in. After establishing a wireless connection with a smartphone, you can perform
the operations described in the table below. Requires installation of the EXILIM
Connect app on your smartphone.
• Your camera is a Bluetooth
device.
• Your camera can connect using
Bluetooth wireless technology with a
smartphone that supports Bluetooth low
energy.
With this function: You can do this:
Auto Send
Shoot with phone
®
Smart
Images can be automatically sent as they are
shot to a smartphone that has been Bluetooth
paired with the camera.
Remotely control and shoot with the camera
using a smartphone (page 90).
Send to phone
Send snapshots and movies recorded with your
camera to your smartphone.
image to a smartphone, you can then upload it
from the smartphone to a social networking
service (page 90).
84
After sending an
Connecting the Camera with a Smartphone
(Wireless Connection)
With this function: You can do this:
View on phone
View snapshots stored in camera memory on a
smartphone, and copy snapshots and movies
to a smartphone for viewing. You can also view
snapshots and movies in camera memory on a
computer, and copy them to a computer (page
91).
IMPORTANT!
• Inside an aircraft or anywhere else where use of wireless communication is
restricted or prohibited, put the camera into the airplane mode.
• Some smartphone models may not be able to play back movie files from your
camera.
• Depending on your smartphone model, its operating system version, and/or its
remaining storage capacity can cause failure of a movie or snapshot save
operation. Receiving a camera file, perform the required operation on your
smartphone to check if the file was stored properly.
• Viewing a movie received on an Android terminal:
Note that movies are not displayed by Gallery. Movies are stored in a folder named
“EXILIM Connect”. A separate movie player is required to playback movies (whose
files have the file name extension MOV). Depending on your movie player, you
may not be able to playback movies and/or audio.
• Images recorded on another manufacturer’s camera cannot be sent using this
function.
• Attempting to use a memory card that includes a wireless function with this camera
can cause abnormal operation.
NOTE
• Note that using wireless functions requires more battery power usage than normal.
Make sure that the camera battery is sufficiently charged before starting a wireless
LAN operation.
• The operating range depends on the local communication environment and on the
type of smartphone you are connected to.
85
Connecting the Camera with a Smartphone
(Wireless Connection)
. About EXILIM Connect
For detailed information about EXILIM Connect, refer to the EXILIM Connect User’s
Guide (which you can download at the website below).
http://www.exilim.com/manual/
• Note that to view the EXILIM Connect User’s Guide, you will have to install Adobe
Reader. Consult CASIO authorized service center if you are unable to open to
display the PDF format User’s Guide.
• Note that EXILIM Connect User’s Guides may not be available in all languages. If
you cannot find a EXILIM Connect User’s Guide in your native language, please
use a version in another language.
Using a Wireless Mode
Your camera has a variety of different wireless modes. Select
the wireless mode that suits your specific requirements.
“ ” (Wireless)
1. Touch “ ” (Show Icons).
2. Touch the “ ” (Wireless) icon.
3. Touch the wireless mode you want.
Send to phone
Select to view images you shoot with the camera on a smartphone (page 90).
Pairing
Select this mode to establish a Bluetooth wireless technology connection
between the camera and a smartphone (page 88).
Shoot with phone
Select this mode for remote control of image recording from a smartphone
(page 90).
Wireless settings
Select this mode to configure wireless settings (page 92).
86
Connecting the Camera with a Smartphone
(Wireless Connection)
. Wireless Connection Icons
After you configure camera and smartphone connection settings, the icons below will
appear on the camera screen to indicate the current communication status.
Semitransparent
Opaque
Semitransparent
Opaque Wireless LAN connected.
Opaque Wireless LAN connected, and image data is being sent.
Opaque Camera is in the Airplane Mode.
Pairing is complete, but there is no Bluetooth wireless
technology connection.
Pairing is complete, and there is a Bluetooth wireless
technology connection.
Wireless LAN is enabled, but there is no connection.
Getting Ready to Establish a Connection between a Smartphone and Your Camera
Installing the EXILIM Connect Smartphone app on your smartphone makes it
possible to remotely control the camera from your smartphone and to send images
recorded with the camera to your smartphone. To install the EXILIM Connect app on
your smartphone, go to the EXILIM app site at the URL below.
http://www.casio.com.cn/dc/app/
. App operation guarantees
No guarantees are made concerning the ability to operate the EXILIM Connect app
on any particular smartphone or tablet.
IMPORTANT!
• For information about operating system versions supported by the app, see the
information provided at the EXILIM app site at the URL provided above.
• App functions and the required operating environment are subject to change
without notice.
Installing the EXILIM Connect App on Your Smartphone
. Android terminal
Install EXILIM Connect from the EXILIM app site at the URL provided above.
. iPhone (iOS)
Install EXILIM Connect from the EXILIM app site at the URL provided above.
87
Connecting the Camera with a Smartphone
(Wireless Connection)
Establishing a Wireless Connection for the First Time
The first time you establish a wireless connection between the camera and a
smartphone, you need to use the procedure below to configure wireless connection
settings. This operation is required for the first connection only.
. Smartphone that supports Bluetooth low energy
Connecting the camera to a smartphone using Bluetooth wireless technology
(pairing) makes it simple to configure wireless connection settings.
IMPORTANT!
• Performing this operation automatically configures your smartphone’s wireless
LAN connection settings (page 89).
• Some smartphone models may not be compatible with this camera.
• If you want to re-pair the camera with the smartphone it is already paired with, first
unpair them and then pair again. Re-pairing the camera and smartphone will result
in all pending unsent images to remain unsent.
Camera Operation
1. Touch the “ ” (Wireless) icon.
This will display the wireless mode screen.
2. Touch “Pairing”.
3. Touch “Start”.
Smartphone Operation
4. Start up the EXILIM Connect app.
5. Tap “Pairing”.
6. Perform the required connection operation as instructed by the app
and your smartphone.
This establishes a Bluetooth wireless technology connection between the camera
and smartphone.
• For information about how to configure wireless connection settings, refer to
the EXILIM Connect manual (page 86).
Camera Operation
7. Touch “Next”.
8. Touch “On” if you want to send all images recorded on the camera to
the smartphone, or “Off” if you do not want to send images to the
smartphone.
88
Connecting the Camera with a Smartphone
(Wireless Connection)
NOTE
• After the camera is paired, Bluetooth wireless technology operation will consume
battery power even when the camera it turned off. Because of this, it is
recommended that you charge the camera’s battery before you plan to use it.
• Removing the camera’s battery will terminate the Bluetooth wireless technology
connection. However, the connection will be re-established when you load a
battery into the camera and turn on the power again.
. Smartphone that does not support Bluetooth low energy
Configure smartphone wireless LAN connection settings (input the camera SSID and
password).
1. Touch the “ ” (Wireless) icon.
2. Touch “Shoot with phone”.
3. Touch “Start”.
This will enable connection with a smartphone and the
camera will display a screen for input of an SSID and
password.
4. For the smartphone Wi-Fi setting, input the
camera “SSID:” and “Password:”.
When the message “Start up the phone app.” appears on
the camera’s monitor screen, it means that the
smartphone has established a wireless connection with the camera.
• What you need to do to establish a wireless LAN connection depends on the
type of smartphone you are using. For details about how to establish a wireless
LAN connection see the user documentation that comes with your smartphone.
. What to do if you are unable to establish a wireless LAN connection
between the camera and a smartphone.
This problem may be caused when the smartphone is already wirelessly connected to
one of the networks or devices below. Go to your smartphone’s Wi-Fi settings and
select this camera’s SSID.
– Household wireless LAN
– Public wireless LAN
– Portable wireless LAN device
SSID
Password
89
Connecting the Camera with a Smartphone
(Wireless Connection)
Using a Smartphone as a Camera Remote Controller (Shoot with phone)
This function lets you remotely shoot a snapshot or movie with the camera using a
smartphone. You also can perform remote zoom, self-timer, and other operations as
well.
1. Touch the “ ” (Wireless) icon.
2. Touch “Shoot with phone”.
3. Touch “Start”.
For information about how to use “Shoot with phone”, refer to the EXILIM
Connect manual (page 86).
• For snapshots, Premium Auto Pro is automatically selected as the recording
mode while shooting with Remote Capture.
Sending a Snapshot or Movie File from Camera Memory to a Smartphone (Send Selected Image)
You can select one more snapshot and/or movie file in camera memory and send it to
a smartphone. You can select up to 100 files, totaling no more than 500MB for a
single send. After sending an image to a smartphone, you can then upload it to a
social networking service.
1. Touch the “ ” (Wireless) icon.
2. Touch “Send to phone”.
3. Touch “Send Selected Image”.
4. Touch the image you want to send to the smartphone.
Selecting the image of a file causes its check box to become selected.
5. After selecting the images of all of the files you want to send to the
smartphone, touch “OK”.
For information about how to use “Send Selected Image”, refer to the EXILIM
Connect manual (page 86).
90
Connecting the Camera with a Smartphone
(Wireless Connection)
Viewing Snapshots and Movies in Camera Memory on a Smartphone (View on phone)
You can connect the camera to a smartphone over wireless LAN to view and
download snapshots and movies in camera memory on up to eight connected
smartphones. You can also view snapshots and movies in camera memory on a
computer, and copy them to a computer. A smartphone does not need to have the
EXILIM Connect app installed in order to access camera images using this function.
1. Touch the “ ” (Wireless) icon.
2. Touch “Send to phone”.
3. Touch “View on phone”.
This establishes a connection between the smartphone and camera, and displays
a URL.
• If the message “Connect your phone to the access point below.” remains on
the camera’s monitor screen, change the smartphone’s Wi-Fi settings so your
camera is selected for connection (page 88).
• After about 60 seconds, the camera’s monitor screen will go blank. Touching
the monitor screen will cause its image to reappear.
4. On the smartphone, start up its browser app.
• The browser will automatically access the URL displayed by the camera in
step 3 of this procedure, and then display an image stored in camera memory.
• If no camera image appears automatically, manually
input the URL into the browser.
• To exit the wireless LAN function, touch “Exit” on the
camera’s monitor screen.
URL
IMPORTANT!
• Some smartphone models may not be able to play back movie files.
NOTE
• You can also view image in camera memory on a computer’s browser by
establishing a wireless LAN connection with the computer.
• For information about how to start up EXILIM Connect and view images, refer to
the EXILIM Connect manual (page 86).
91
Connecting the Camera with a Smartphone
(Wireless Connection)
Configuring Wireless Connection Settings
This section explains wireless mode operations and setting items.
1. Touch the “ ” (Wireless) icon.
This will display the wireless mode screen.
• Pressing the shutter button will return to the screen that was displayed before
the wireless mode screen.
2. Touch “Wireless settings”.
This will display the wireless setting screen.
3. Touch the item you want to configure.
4. Change the setting of the selected item.
5. When the settings are the way you want, touch “OK”.
• Touching “4” cancels the currently displayed settings and returns to the
wireless mode screen.
Entering the Camera’s Airplane Mode (Airplane Mode)
Procedure
“ ” (Wireless) * Wireless settings * Airplane Mode
Wireless connection with the camera is disabled while “On” is selected for the
airplane mode setting. Enter the airplane mode to disable generation of radio waves
from the camera while in a medical facility, on an aircraft, etc.
92
Connecting the Camera with a Smartphone
(Wireless Connection)
Sending Images from the Camera to a Smartphone as They are Recorded (Auto Send)
Procedure
“ ” (Wireless) * Wireless settings * Auto Send
While “On” is selected for this setting, images are automatically sent to the paired
smartphone as they are shot. If there is no wireless connection between the camera
and smartphone when the images are shot, they will be sent as soon as a connection
is established.
IMPORTANT!
• Auto Send cannot be enabled unless the camera is paired with a smartphone
(page 88).
NOTE
• Auto Send can be used only with a smartphone that supports Bluetooth low
energy. Both a Bluetooth and wireless LAN connection are required between the
camera and smartphone to auto send camera images.
• The icons below are displayed on the camera screen while the camera and
smartphone are connected.
– Wireless LAN connection: X
– Bluetooth wireless technology connection: V
• You can specify the size of the image sent to the smartphone using “Resize before
send” (page 94).
• You can use the smartphone apps below to view snapshots after sending them.
– iPhone: Camera Roll
– Android terminal: Gallery, Photo, or another photo browser app
• Auto Send is disabled while the camera’s Airplane Mode setting is “On” (page 92).
Auto Send become re-enabled when the camera’s Airplane Mode setting is
changed to “Off”.
• Images shot while the Auto Send setting is “On” will be sent to the smartphone,
even if the Auto Send setting is changed to “Off” before they are sent.
• When “On” is selected for Auto Send, a message will appear whenever you try to
delete a file or turn off the camera.
• If you try to turn off the camera while there are unsent images in memory, a
message will appear to alert you. If you want the images to be sent, leave the
camera on until the send operation is complete. Pressing [p] (Power) again will
turn off the camera.
• Note that if the connection between the camera and smartphone is lost while there
are unsent images in memory, the camera will turn off after about three minutes. In
this case, the camera will try to send the images again after it is turned back on.
93
Connecting the Camera with a Smartphone
(Wireless Connection)
Specifying Images to be Sent by Auto Send (Auto Send File Settings)
Procedure
“ ” (Wireless) * Wireless settings * Auto Send File Settings
Specifies the files to be sent to a smartphone by Auto Send.
T » Snapshots and movies are sent.
T Only Only snapshots are sent.
IMPORTANT!
• The maximum size movie file that can be sent by Auto Send is 100 MB.
Resizing Snapshots before Sending Them to a Smartphone (Resize before send)
Procedure
“ ” (Wireless) * Wireless settings * Resize before send
This feature can be use to resize snapshots before they are sent to a smartphone
using “Shoot with phone” or “Send to phone”.
3M
Off Images are sent in the size they were originally recorded.
Images are converted to 3M size before being sent.
• If an original image is 3M size or smaller, it is sent without
resizing.
Changing the Camera Password for Wireless LAN Connection (WLAN password)
Procedure
“ ” (Wireless) * Wireless settings * WLAN password
Use procedure to change the password you used when establishing a wireless LAN
connection between the camera and a smartphone.
IMPORTANT!
• Before changing the wireless LAN password, unpair the camera from its paired
smartphone (page 95).
1. Touch the password digit you want to change.
2. Touch “ ” or “ ” to change the currently selected digit.
94
Connecting the Camera with a Smartphone
(Wireless Connection)
3. When the password is the way you want, touch “OK”.
NOTE
• Changing the wireless LAN password will terminate the connection with the
smartphone. To reconnect with the smartphone, configure wireless connection
settings (page 88). If your smartphone does not support Bluetooth low energy,
perform the operations below to change your smartphone’s Wi-Fi settings.
– iPhone:
Tap the right arrow of the field where the SSID of the camera is displayed in the
Wi-Fi settings to delete network settings. After deleting, select the camera SSID
again and input the new password.
– Android terminal:
Tap the field where the SSID of the camera is displayed in the Wi-Fi settings and
select Forget. Select the camera SSID again and input the new password.
Unpairing the Camera from a Smartphone (Unpairing)
Procedure
“ ” (Wireless) * Wireless settings * Unpairing
Unpairs the camera from a smartphone.
To use the camera with a different smartphone, first unpair it from the current
smartphone.
NOTE
• When unpairing, be sure also to perform the unpairing operation on the
smartphone as well. For details, refer to the EXILIM Connect User’s Guide (page
86).
• Unpairing the camera from a smartphone will result in all pending unsent images to
remain unsent.
95
Connecting the Camera with a Smartphone
(Wireless Connection)
Printing
Professional Print Service
You can take a memory card that contains the images you want
to print to a professional print service and have them printed.
Printing on a Home Printer
You can use a printer equipped with a memory card slot
to print images directly from a memory card. For details,
see the user documentation that comes with your
printer.
Printing with a Computer
After transferring the images to your computer, use
commercially available software to print.
Printing with a Computer
There are a variety of different ways to print images stored on a computer. This
section shows one standard printing example.
. Printing on a Windows Computer
1. Use the procedure under “Viewing and Storing Images on a Computer”
(page 98) to store the image you want to print, and then display the
image on your computer screen.
2. Click “Print” and then “Print”.
3. Configure the desired print settings and then click “Print”.
. Printing on a Macintosh
1. Use the procedure under “Connecting the Camera to Your Computer
and Saving Files” (page 101) to store the image you want to print, and
then display the image on your Macintosh screen.
2. Click “File” and then “Print”.
3. Configure print settings and then click “Print”.
This will print the selected image.
96
Printing
Using the Camera with a Computer
Things you can do using a computer...
You can perform the operations described below while the camera is connected to a
computer.
Save images to a
computer and
view them there
Play back and
edit movies
The procedures you need to perform are different for Windows and the Macintosh.
• Windows users should refer to “Using the Camera with a Windows Computer”
on page 97.
• Macintosh users should refer to “Using the Camera with a Macintosh” on page
101.
• Save images and view them manually
(USB connection) (pages 98, 101).
• You can play back movies (pages 100,
103).
• To edit movies, use commercially
available software as required.
Using the Camera with a Windows Computer
When you want
to do this:
Save images to a
computer and
view them there
manually
Play movies
Operating
System
Version
Windows 8.1,
Windows 8,
Windows 7,
Windows Vista
Windows 8.1,
Windows 8,
Windows 7,
Windows Vista
Required Software:
Installation not required.
QuickTime 7 or higher
• You need to download QuickTime 7
or higher on the Web if you want to
use it.
See
page:
100
98
97
Using the Camera with a Computer
Viewing and Storing Images on a Computer
You can connect the camera to your computer in order to view and store images
(snapshot and movie files).
Never use your computer to modify, delete, move, or rename any image files
that are in the camera’s built-in memory or on its memory card.
Doing so can cause problems with the camera’s image management data, which
will make it impossible to play back images on the camera and can drastically alter
remaining memory capacity. Whenever you want to modify, delete, move, or
rename an image, do so only on images that are stored on your computer.
IMPORTANT!
• Never unplug the USB cable, or operate the camera while viewing or storing
images. Doing so can cause data to become corrupted.
NOTE
• You also can use your computer’s card slot (if it has one) or a commercially
available card reader to access image files directly from the camera’s memory
card. For details, see the user documentation that comes with your computer.
. To connect the camera to your computer and save files
1. Turn off the camera and then
use the micro USB cable that
comes with the camera to
[USB] port
USB
connect it to your computer.
• For details about connecting to
the camera and precautions
when connecting, see page 24.
Micro USB cable
(included with camera)
2. Press [p] (Power) to turn on the camera.
When you turn on the camera, check to make sure that the color of its back lamp
changes from red to green or amber (page 25). Note that in this case the monitor
screen will remain blank.
• The first time you connect the camera to your computer with the USB cable, an
error message may appear on your computer. If this happens, disconnect and
then reconnect the USB cable.
3. Windows 8.1, Windows 8 users: Click “Desktop” and then “Explorer”.
Windows 7, Windows Vista users: Click “Start” and then “Computer”.
98
Using the Camera with a Computer
4. Double-click “Removable Disk”.
• Your computer recognizes the memory card loaded in the camera (or built-in
memory if there is no card) as a removable disk.
5. Right-click the “DCIM” folder.
6. On the shortcut menu that appears, click “Copy”.
7. Windows 8.1, Windows 8 users: Click “Documents”.
Windows 7, Windows Vista users: Click “Start” and then “Documents”.
• If you already have a “DCIM” folder in “Documents”, the next step will overwrite
it. If you want to keep the existing “DCIM” folder, you need to change its name
or move it to a different location before performing the next step.
8. Windows 8.1, Windows 8 users: On the “Documents” menus, click
“Home” and then “Paste”.
Windows 7, Windows Vista users: On the “Documents” menu, click
“Organize” or “Edit”, and then “Paste”.
This will paste the “DCIM” folder (and all the image files it contains) into your
“Documents” folder. You now have a copy of the files that are in camera memory
on your computer.
9. After you finish copying images, disconnect the camera from the
computer.
On the camera, press [p] (Power) to turn off the camera. After checking to make
sure that the back lamp is unlit or lit red, disconnect the USB cable.
. To view images you copied to your computer
1. Double-click the copied “DCIM” folder to open it.
2. Double-click the folder that contains the images you want to view.
3. Double-click the image file you want to view.
• For information about file names, see “Memory Folder Structure” on page 105.
99
Using the Camera with a Computer
Playing Movies
To play back a movie, first copy it to your computer and then double-click the movie
file. Some operating systems may not be able to play back movies. If this happens,
you need to install separately available software.
• If you are unable to play back movies, go to the URL below to download
QuickTime 7 and install it on your computer.
http://www.apple.com/quicktime/
. Minimum Computer System Requirements for Movie Playback
The minimum system requirements described below are necessary to play back
movies recorded with this camera on a computer.
Operating System : Windows 8.1, Windows 8, Windows 7, Windows Vista
CPU : Image Quality “Full HD”, “HD”:
Required Software: QuickTime 7
• The above are recommended system environments. Configuring one of these
environments does not guarantee proper operation.
• Certain settings and other installed software may interfere with proper playback of
movies.
Core 2 Duo 3.0GHz or higher
Image Quality “HS240”:
Pentium 4 3.2GHz or higher
. Movie Playback Precautions
• Be sure to move the movie data to the hard disk of your computer before trying to
play it. Proper movie playback may not be possible for data accessed over a
network, from a memory card, etc.
• Proper movie playback may not be possible on some computers. If you experience
problems, try the following.
– Quit any other applications you have running, and stop resident applications.
100
Using the Camera with a Computer
