Casio EXILIM EX-TR50 User Guide
Digital Camera
User’s Guide
EN
Thank you for purchasing this CASIO product.
• Before using it, be sure to read the precautions contained in this User’s Guide.
• Keep the User’s Guide in a safe place for future reference.
• For the most up-to-date information about this product, visit the official EXILIM
Website at http://www.exilim.com/
Accessories
As you unpack your camera, check to make sure that all accessories shown below
are included. If anything is missing, contact your original retailer.
Rechargeable lithium ion
battery (NP-150)
Micro USB cable Basic Reference
USB-AC adaptor
(AD-C53U)
Power cord
*
* The shape of the power cord plug varies according to the country or geographic
area where the camera is sold.
2
Read this first!
• The contents of this manual are subject to change without notice.
• The contents of this manual have been checked at each step of the production
process. Feel free to contact us if you notice anything that is questionable,
erroneous, etc.
• Any copying of the contents of this User’s Guide, either in part or its entirety, is
forbidden. Except for your own personal use, any other use of the contents of this
manual without the permission of CASIO COMPUTER CO., LTD. is forbidden
under copyright laws.
• CASIO COMPUTER CO., LTD. shall not be held liable for any damages or lost
profits suffered by you or any third party due to the use or malfunction of this
product.
• CASIO COMPUTER CO., LTD. shall not be held liable for any damages, lost
profits, or claims by third parties arising out of the use of EXILIM Remote.
• CASIO COMPUTER CO., LTD. shall not be held liable for any damages or lost
profits caused by loss of memory contents due to malfunction, repair, or any other
reason.
• Note that the example screens and product illustrations shown in this User’s Guide
may differ somewhat from the screens and configuration of the actual camera.
LCD Panel
The liquid crystal panel of the monitor screen uses high-precision technology that
provides a pixel yield in excess of 99.99%. This means that some very small number
of pixels may not light or may remain lit at all times. This is due to the characteristics
of the liquid crystal panel, and does not indicate malfunction.
Take test shots
Before shooting your final image, shoot a test shot to ensure that the camera is
recording correctly.
3
Contents
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Read this first! . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
General Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Monitor Screen Contents and How to Change Them . . . . . . . . . . . . . . . . . . . . 9
]\
Quick Start Basics 11
What you can do with your CASIO camera . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Changing the Camera Style to Suit Shooting Conditions . . . . . . . . . . . . . . . . 13
]
Opening and Closing the Frame. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
]
Rotating the Monitor Screen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
]
Camera Configurations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Using the Touch Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
First, charge the battery prior to use.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
]
Loading the Battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
]
Charge the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Configuring Basic Settings the First Time You Turn On the Camera. . . . . . . . 24
Preparing a Memory Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
]
Supported Memory Cards. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
]
To load a memory card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
]
To format (initialize) a new memory card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Turning Power On and Off. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
To Shoot a Snapshot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
]
Selecting an Auto Recording Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
]
To shoot a snapshot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Viewing Snapshots . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Deleting Snapshots and Movies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Snapshot Shooting Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
]\
Recording Images 37

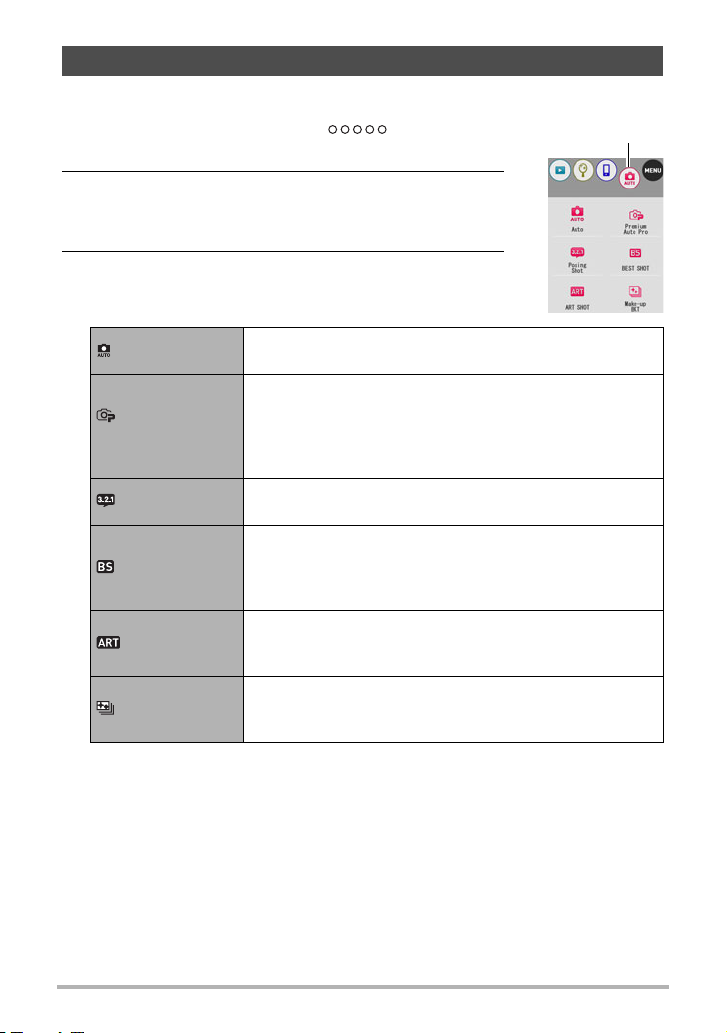

Selecting a Recording Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
]
Shooting with Posing Shot . . . . . . . . . . . . . . . . . . . . . . . . . . . (Posing Shot) . . . 39
]
Shooting with Artistic Effects . . . . . . . . . . . . . . . . . . . . . . . . . .(ART SHOT). . . 40
]
Shooting Three Versions of an Image with
Different Skin Tone Settings . . . . . . . . . . . . . . . . . . . . . . . . .(Make-up BKT). . . 42
]
Recording Beautiful Portraits . . . . . . . . . . . . . . . . . . . . . . . . . . . .(Make-up). . . 43
Using the Camera as a Mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Shooting with Zoom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

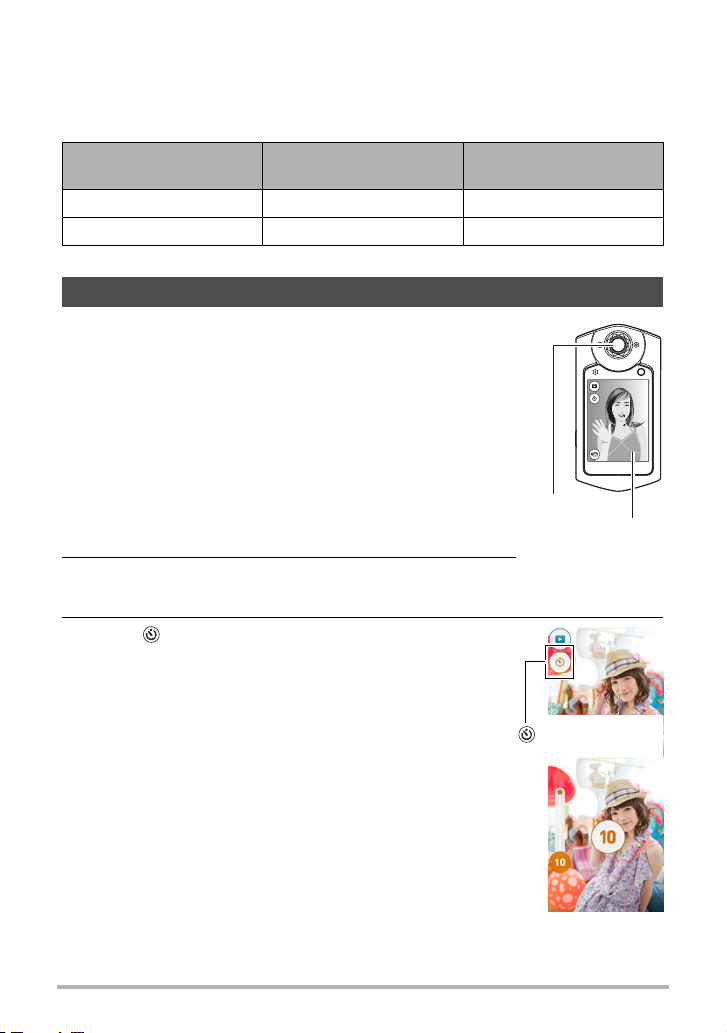

Shooting a Self-portrait . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
To record a movie . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
4
Contents
]\
Using BEST SHOT 50
Shooting with Triple Shot. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Using Motion Shutter to Trigger a Self-timer Operation . . (Motion Shutter) . . 52
Digitally Correcting for Overexposure and Underexposure . . . . . . (HDR) . . 53
Shooting with High Speed Night Scene . . . . . . . . . . . . .(HS Night Scene) . . 53
Shooting with High Speed Night Scene
and Portraits . . . . . . . . . . . . . . . . . . . . . . . . . . . (HS Night Scene Portrait) . . 54
]\
Advanced Recording Settings 55
Using the REC Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
]
Using Touch Shutter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .(Touch Shutter). . . 56
]
Using the Self-timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . (Self-timer) . . . 56
]
Using the LED Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . (LED) . . . 57
]
Changing the Image Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . .(Image Size) . . . 58
]

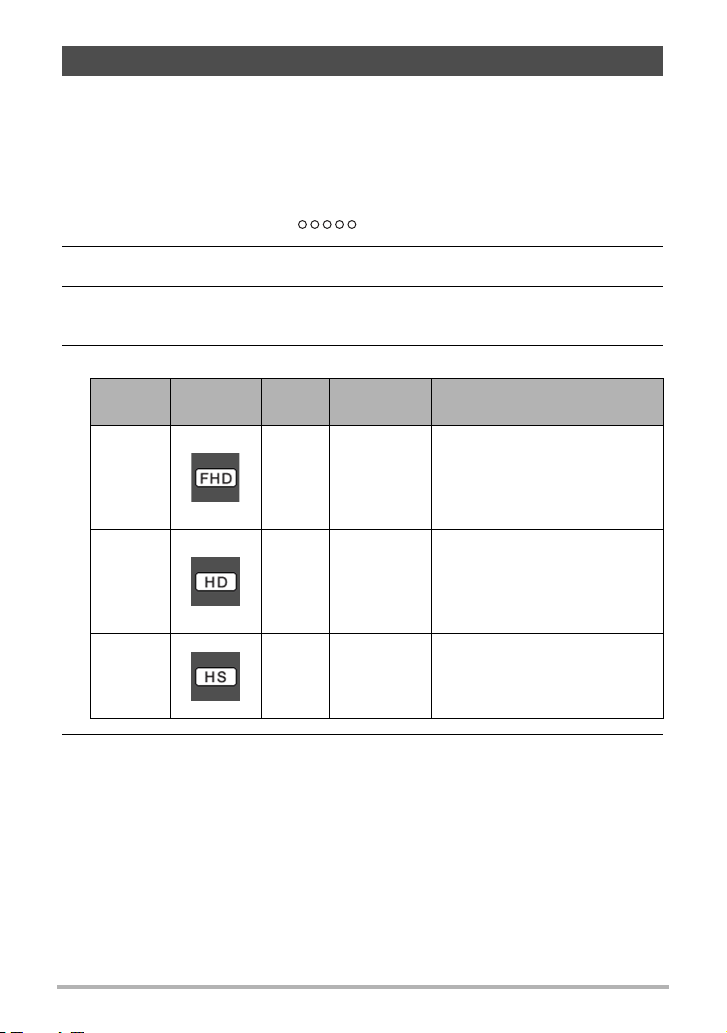

Movie Image Quality Settings . . . . . . . . . . . . . . . . . . . . . . .(Movie Quality) . . . 59
]
Correcting Image Brightness . . . . . . . . . . . . . . . . . . . . . . . . . . (Brightness). . . 59
]
Adjusting White Balance . . . . . . . . . . . . . . . . . . . . . . . . . . (White Balance). . . 60
]
Specifying ISO Sensitivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .(ISO). . . 61
]
Selecting a Focus Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .(Focus) . . . 62
]
Turning on Image Review . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .(Review) . . . 63
]\
Viewing Snapshots and Movies 64
Viewing Snapshots . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Viewing a Movie. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
]
Editing a Movie on the Camera . . . . . . . . . . . . . . . . . . . . . .(Movie Editing). . . 66
Viewing the Image Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Zooming an On-screen Image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

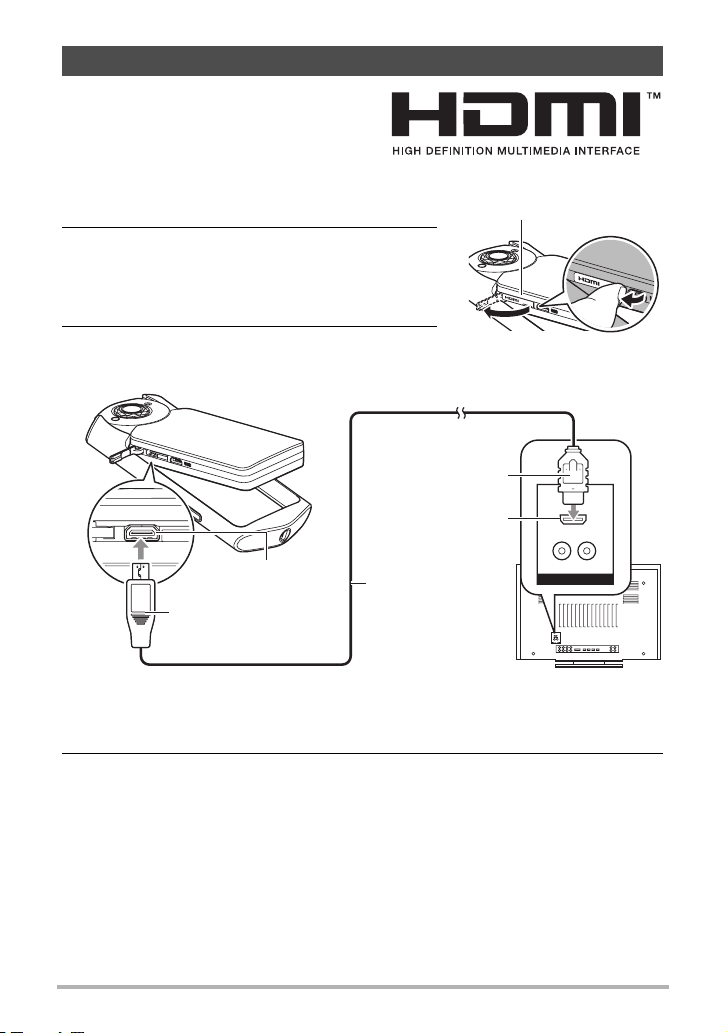

Viewing Snapshots and Movies on a TV Screen. . . . . . . . . . . . . . . . . . . . . . . 68
]\
Other Playback Functions (PLAY) 70
Using the PLAY Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
]
Creating a Promotion Movie . . . . . . . . . . . . . . . . . . . . . (Promotion Movie). . . 70
]
Performing Paint Operations on an Image . . . . . . . . . . . . . . . . . . . . .(Paint). . . 72
]
Playing a Slideshow on the Camera . . . . . . . . . . . . . . . . . . . . (Slideshow) . . . 73
]
Extracting an Image from a Snapshot . . . . . . . . . . . . . . . .(Cut out subject). . . 73
]
Inserting a Subject into another Snapshot or
Adding a Built-in Frame to a Snapshot . . . . . . . . . . . . . . . . (Paste subject) . . . 75
]
Protecting a File Against Deletion . . . . . . . . . . . . . . . . . . . . . . . . . (Protect). . . 76
]
Rotating an Image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . (Rotation). . . 77
]
Resizing a Snapshot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . (Resize) . . . 77
]
Cropping a Snapshot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . (Trimming) . . . 78
5
Contents
]\
Establishing a Wireless LAN Connection 79
Wireless LAN Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Establishing a Connection between a Smartphone and Your Camera . . . . . . 81
]
Installing the EXILIM Remote App on Your Smartphone . . . . . . . . . . . . . . . . . . 81
]
Configuring Wireless LAN Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Using a Smartphone as a Camera Remote Controller . (Remote Capture) . . 83
Sending a Just-recorded Snapshot to a Smartphone . . . (Send Last Shot) . . 85
Sending a Snapshot or Movie File from Camera Memory
to a Smartphone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .(Send to phone) . . 86
Resizing Snapshots before Sending Them
to a Smartphone . . . . . . . . . . . . . . . . . . . . . . . . . . . . (Resize before send) . . 87
Viewing Snapshots and Movies in Camera Memory
on a Smartphone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . (View on phone) . . 88
]\
Printing 89
Printing with a Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
]\
Using the Camera with a Computer 91
Things you can do using a computer... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Using the Camera with a Windows Computer . . . . . . . . . . . . . . . . . . . . . . . . . 91
]
Viewing and Storing Images on a Computer. . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
]
Playing Movies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Using the Camera with a Macintosh . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
]
Connecting the Camera to Your Computer and Saving Files . . . . . . . . . . . . . . . 95
]
Playing a Movie. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Files and Folders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Memory Card Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
]\
Other Settings (Set Up) 100
Adjusting Monitor Screen Brightness . . . . . . . . . . . . . . . . . . . . . . (Screen) . 100
Selecting Display Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . (Info) . 100
Locking the Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . (Screen Lock) . 101
Resizing Snapshots before Sending Them
to a Smartphone . . . . . . . . . . . . . . . . . . . . . . . . . . . . (Resize before send) . 101
Configuring Camera Sound Settings . . . . . . . . . . . . . . . . . . . . . (Sounds) . 101
Time Stamping Snapshots . . . . . . . . . . . . . . . . . . . . . . . . . . .(Timestamp) . 102
Configuring World Time Settings . . . . . . . . . . . . . . . . . . . . . (World Time) . 103
]
Setting a Travel Destination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
]
Selecting the Time Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Setting the Camera’s Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . (Adjust) . 104
Specifying the Date Style . . . . . . . . . . . . . . . . . . . . . . . . . . . . (Date Style) . 104
Specifying the Display Language . . . . . . . . . . . . . . . . . . . . . . (Language) . 105
Selecting the HDMI Terminal Output Method . . . . . . . . . . . . . . . . .(HDMI) . 105
6
Contents
Changing the Camera Password for
Wireless LAN Connection . . . . . . . . . . . . . . . . . . . . . . . (WLAN password) . 106
Displaying a Startup Screen at Power On . . . . . . . . . . . . . . . . . .(Startup) . 106
Formatting Built-in Memory or a Memory Card . . . . . . . . . . . . . . . (Format) . 107
Resetting the Camera to Factory Defaults . . . . . . . . . . . . . . . . . . . (Reset) . 107
]\
Appendix 108
Safety Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Precautions During Use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115
Power Supply. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
]
Charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
]
Battery Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
]
Using the Camera in another Country . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
Using a Memory Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
Reset Initial Default Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
When things don’t go right... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
]
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
]
Display Messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Number of Snapshots/Movie Recording Time . . . . . . . . . . . . . . . . . . . . . . . . 130
Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132
7
Contents
General Guide
The numbers in parentheses indicate the pages where each item is explained.
2
1 3
9
bk
4
5
8
7
6
bn
bm
bl
Frame (page 13)
1
Shutter button (page 31)
2
[HDMI] cover (page 68)
3
LED light (page 57)
4
Lens
5
Microphone
6
(pages 16, 49)
bo
bp
bq
• Above illustration shows the camera’s cover removed (page 18).
To attach the strap (commercially available or
separately available) to the camera
Attach strap here.
[HDMI] HDMI output
7
(micro) (page 68)
[USB] port
8
(pages 19, 22, 92, 96)
[p] (Power) (page 29)
9
Back lamp
bk
(pages 20, 23, 29, 31)
Battery compartment (page 18)
bo
Memory card slot (pages 27, 122)
bp
[OPEN] button (pages 18, 27)
bq
Strap hole (page 8)
bl
Monitor screen
bm
(pages 9, 9, 16, 100)
Speaker
bn
1
2
8
Monitor Screen Contents and How to Change Them
The monitor screen uses various indicators, icons, and values to keep you informed
of the camera’s status.
• The sample screens in this section are intended to show you the locations of all the
indicators and figures that can appear on the monitor screen in various modes.
They do not represent screens that actually appear on the camera.
. Snapshot Recording
1
2
3
bs
br
bq
bp
bm blbnbo
PLAY mode icon (page 29)
1
“ ” (Show Icons) icon
2
LED light (page 57)
3
White Balance (page 60)
4
Focus mode (page 62)
5
Digital zoom (page 45)
6
Timestamp (page 102)
7
Self-timer mode (page 56)
8
Snapshot image size (page 58)
9
4
5
6
7
8
9
bk
cm cl ck bt
Movie quality (pages 47, 59)
bk
Send Last Shot icon (page 85)
bl
Battery level indicator (page 24)
bm
Remaining movie memory capacity
bn
(page 131)
Remaining snapshot memory capacity
bo
(page 130)
“ ” Movie icon (pages 32, 47)
bp
Date/Time (pages 24, 104)
bq
Brightness (page 59)
br
ISO sensitivity (page 61)
bs
Menu icon (page 55)
bt
Recording mode icon (page 38)
ck
Remote capture icon (page 83)
cl
Mirror mode icon (page 44)
cm
. Movie Recording
1 3
5
Movie quality (
42
1
Recording time switch icon (page 48)
2
Movie remaining time icon (page 48)
3
Remaining movie memory capacity/
4
Movie recording time (pages 48, 131)
“ ” Movie stop icon (pages 32, 48)
5
9
pages 47, 59)
. Snapshot Viewing
13
42
bm
bl
bk
9
8
7
Protect indicator (page 76)
1
“ ” (Show Icons) icon
2
Folder name/file name (page 98)
3
Snapshot image size (page 58)
4
Battery level indicator (page 24)
5
Date/time (pages 24, 104)
6
Image menu icon (p
7
Shutter speed
8
. Movie Playback
age 67)
4213
8
5
6
5
bq bp bo bn
Make-up (page 43)
9
Brightness (page 59)
bk
ISO sensitivity (page 61)
bl
White Balance (page 60)
bm
Menu icon (page 70)
bn
Delete icon (page 34)
bo
Image send icon (pages 86, 88)
bp
REC mode icon (page 29)
bq
Protect indicator (page 76)
1
“ ” (Show Icons) icon
2
Folder name/file name (page 98)
3
Movie quality (pages 47, 59)
4
Movie recording time (page 64)
5
Date/time (pages 24, 104)
6
Image menu ico
7
“”
Movie play ico
8
n (page 67)
n (page 64)
67
10
Quick Start Basics
What you can do with your CASIO camera
Your CASIO camera is packed with a powerful selection of features and functions to
make recording of digital images easier, including the following main functions.
A variety of shooting styles
The frame can be opened and the LCD monitor screen
rotated into positions that make long-term shooting
more comfortable and simplify self-shooting.
*See page 13 for more information.
Simple touch panel operation
The monitor screen is a touch panel that can be used
to perform operations.
*See page 16 for more information.
Simple self-portrait shooting
The monitor screen can be rotated so it faces in the
same direction as the camera’s lens, making selfshooting much easier.
*See page 46 for more information.
Shooting better looking portraits
Make-up enables adjustment of human skin tone hues
and texture, and softening of facial shadows caused by
harsh sunlight for better looking portraits.
*See page 43 for more information.
Posing Shot
Posing Shot lets you shoot five successive snapshots,
as the camera provides voice guidance.
*See page 39 for more information.
11
Quick Start Basics
ART SHOT
A variety of artistic effects help to make even common,
ordinary subjects become more novel and exciting.
“ART SHOT” provides the following effects: HDR Art,
Crystal Ball, Sparkling Shot, Toy Camera, Soft Focus,
Light Tone, Pop, Sepia, Monochrome, Miniature,
Fisheye.
*See page 40 for more information.
Paint
Draw figures, write text, or stamp information into a
recorded snapshot.
*See page 72 for more information.
Wireless LAN Connection
Turns your smartphone into a camera remote
controller and allows you to send images recorded with
your camera to your smartphone.
*See page 79 for more information.
12
Quick Start Basics
Changing the Camera Style to Suit Shooting Conditions
You can change the configuration of the camera by opening or closing the frame and
rotating the monitor screen panel to suit shooting conditions.
IMPORTANT!
• Do not apply strong pressure to the surface of the monitor screen. Doing so can
damage it.
• Never touch the lens with your fingers. Finger smudges, dirt, and other foreign
matter on the lens can interfere with proper operation of the camera. Use a blower
or other means to keep the lens and flash window free of dirt and dust, and wipe
gently with a soft, dry cloth.
Opening and Closing the Frame
The camera’s frame can be rotated 90 degrees
towards the lens side and 225 degrees towards
the opposite side.
225 degrees
90 degrees
1. With the lens facing towards you, hold
onto the frame.
2. Push the monitor screen panel.
3. Holding the edges of the monitor
screen panel, swing the frame open.
IMPORTANT!
• Do not try to open or close the frame while the monitor screen panel is rotated.
Doing so can cause the frame to come into contact with the monitor screen panel
and cause malfunction.
13
Quick Start Basics
Rotating the Monitor Screen
Use the steps below to rotate the monitor screen.
NOTE
• While holding the monitor screen panel as shown in the illustration, you can rotate
it 180 degrees clockwise and 90 degrees counterclockwise.
• The monitor screen panel can also be rotated when the frame is closed.
1. Hold the camera as shown in the
illustration.
2. Firmly holding the frame, carefully rotate the monitor screen panel.
180 degrees clockwise
90 degrees counterclockwise
14
Quick Start Basics
Camera Configurations
You can open the frame and rotate the monitor screen for a variety of different styles.
Normal Shooting Movie Recording
Shoot with the monitor screen facing the
opposite direction of the lens.
Tabletop Shooting Self-portrait Shooting
Point the monitor screen and lens in the
same direction and open the frame
about 30 degrees so the camera can
stand up.
Open the frame 90 degrees and hold the
frame. You can also shoot with the
camera upside down, if you like.
Open the frame, point the monitor
screen and lens in the same direction.
15
Quick Start Basics
NOTE
• When shooting hold the camera still. Carefully press the shutter button and take
care to avoid all movement as the shutter releases and for a few moments after it
releases.
• Take care that your fingers and the strap do not cover
any of the areas indicated in the illustration.
LED light
• To protect against accidentally dropping the camera,
attach the wrist strap (commercially available or
separately available) and make sure it is around your
fingers or wrist while you are operating the camera.
• Never swing the camera around by its strap.
IMPORTANT!
Microphone
Lens
• Take care to ensure that your finger is not blocking or
is not too close to the LED light. Fingers can cause
unwanted shadows when shooting.
Using the Touch Panel
The monitor screen of the camera is a touch panel. This means you can perform the
following operations by touching the screen with your fingers.
Touch
Momentarily touching the screen with your finger.
Touch the screen to select an icon or menu item, and
to configure settings.
Touch-and-hold
Holding your finger against the screen.
Touch and hold the screen to perform continual
frame-by-frame playback of a movie.
16
Quick Start Basics
Drag
Holding your finger against the screen as you drag it
up, down, left, or right.
Use drag to move a screen image to a different
location, and to scroll between images.
Spread
Holding your thumb and forefinger against the screen
as you spread them out.
Use spread to enlarge the screen image.
Squeeze
Holding your thumb and forefinger against the screen
as you bring them together.
Use squeeze to reduce the size of the screen image.
IMPORTANT!
• Never use a pointed or hard object to perform screen operations. Doing so can
damage the screen.
• The camera will have a hard time interpreting a screen operation made using your
fingernails. Use the fleshy pad of your finger.
NOTE
• Applying a commercially available LCD protective sheet will reduce the operation
sensitivity of the monitor screen.
17
Quick Start Basics
First, charge the battery prior to use.
Note that the battery of a newly purchased camera is not charged. Perform the steps
below to load the battery into the camera and charge it.
• Your camera requires a special CASIO rechargeable lithium ion battery (NP-150)
for power. Never try to use any other type of battery.
Loading the Battery
1. Open the frame (page 13).
2. Open the cover.
While depressing the [OPEN] button, slide
the cover in the direction of arrow
nearby illustration.
2
in the
1
3
3. Load the battery.
With the CASIO logo on the battery
upwards, load the battery into the
camera as shown in the illustration.
4. Close the cover.
• Positioning the cover about two millimeters from
the lens unit, keep it parallel with the camera as
you slide it in the direction of arrow
arrow
to secure it in place.
2
1
and then
[OPEN] button
Battery
NG
2
OK
CASIO logo
1
2mm
2
18
Quick Start Basics
To replace the battery
1. Open the cover and remove the current
battery.
As shown in the illustration, pull up the edge of
the battery to remove it.
2. Load a new battery.
Charge the Battery
You can use either of the two following methods to charge the battery. Before
charging the battery, use the procedure under “Opening and Closing the Frame”
(page 13) to open the frame.
• USB-AC adaptor
• USB connection to a computer
. To charge with the USB-AC adaptor
The adaptor lets you charge the battery while it is loaded in the camera.
While the camera is turned off, connect in the sequence shown below.
Charging time: Approximately 140 minutes
[USB] port
Micro USB cable
(included with camera)
3
2
Power cord
u mark of the small (micro
USB) connector facing the side
opposite that of the monitor
screen.
4
1
USB-AC adaptor
(AD-C53U)
• When disconnecting the USB-AC adaptor from the camera, be sure to disconnect
from the camera first.
19
Quick Start Basics
IMPORTANT!
• A battery that has not been used for a long time, or ambient temperature extremes
can cause charging to take longer than normal. If charging takes longer than about
five hours, a timer will terminate it automatically, even if the battery is not fully
charged. This is indicated by the back lamp flashing red. If the battery has not been
used for a very long time, charging may be terminated automatically and the back
lamp may start flashing red after only about 60 minutes. In either case, disconnect
the USB cable from the camera and then reconnect it to resume charging.
•Pressing [p] (Power) while the USB-AC adaptor is connected to the camera will
turn on the camera with power being supplied by the battery. Because of this,
charging will stop.
• The USB-AC adaptor will become warm during charging. This is normal and does
not indicate malfunction.
• The shape of the power plug depends on each country or geographic area.
Back Lamp Operation
Lamp Status Description
Back lamp
Lit Red Charging
Abnormal ambient temperature, USB-AC
Flashing Red
adaptor problem, or battery problem (page
120), or charging terminated by the timer
Off Charging complete
20
Quick Start Basics
USB Cable Connection Precautions
• When connecting the USB cable to the camera, make sure that the cable
connector and monitor screen panel are oriented correctly as shown in the
illustration below.
Make sure that the u mark side of the
USB cable connector and the front of the
monitor screen panel (the side opposite that
of the monitor screen) are facing in the same
direction.
Front of monitor screen
The back lamp always initially light after charging starts. Even if the battery is
already fully charged, the lamp will light momentarily.
If the lamp does not light, check the orientation of the USB cable connector.
• Make sure that you insert the cable connector into the USB port until you feel it
click securely into place. Failure to insert the connector fully can result in poor
communication or malfunction.
• Note that even while the connector is fully inserted, you
still will be able to see the metal part of the connector as
shown in the illustration.
panel
21
Quick Start Basics

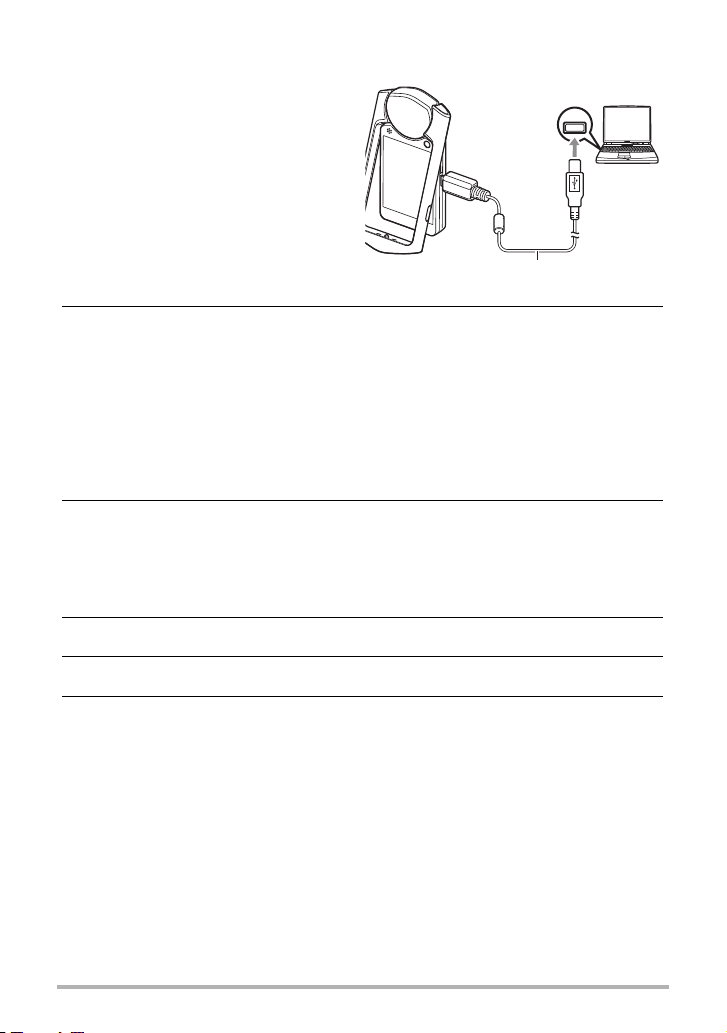

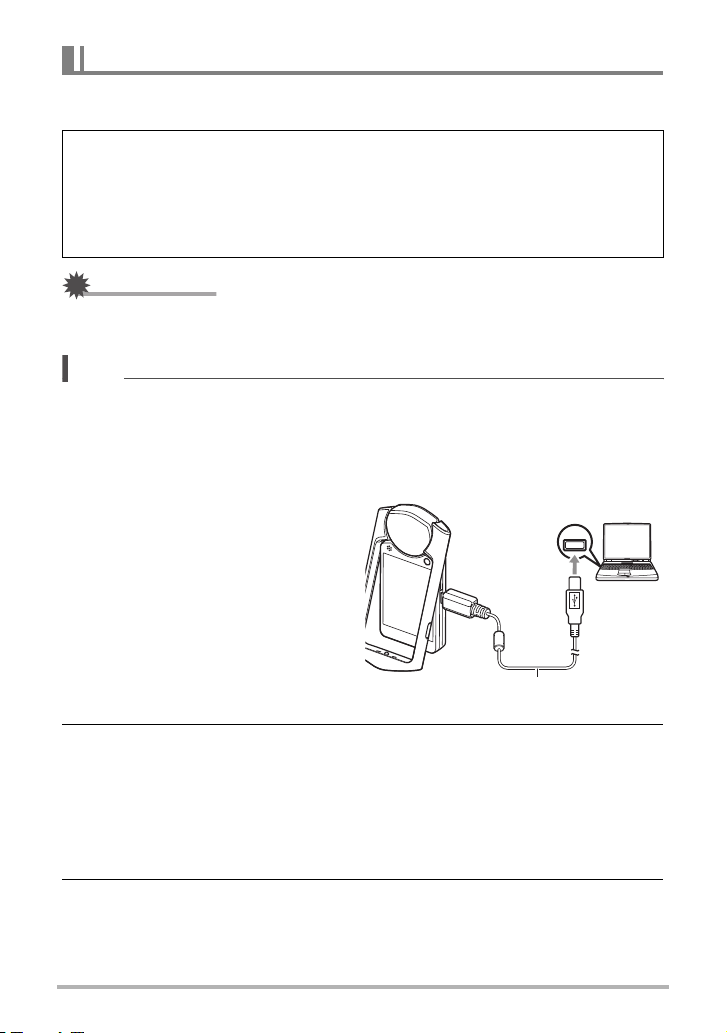

. To charge using a USB connection to a computer
USB connection lets you charge the battery while it is loaded in the camera.
While the camera is turned off, connect in the sequence shown below (
[USB] port
USB port
1, 2
Computer
(power turned on)
USB
).
1
Micro USB cable
(included with camera)
u mark of the small (micro USB) connector facing the side
opposite that of the monitor screen.
• If the camera is on, press [p] (Power) to turn it off before connecting it to your
computer.
Charging time: Approximately 170 minutes
IMPORTANT!
• The first time you connect the camera to your computer with the USB cable, an
error message may appear on your computer. If this happens, disconnect and then
reconnect the USB cable.
• A battery that has not been used for a long time, certain types of computers, and
connection conditions can cause charging to take more than approximately five
hours, which will trigger a timer that terminates charging automatically, even if the
battery is not fully charged. If this happens, disconnect and then reconnect the
USB cable to restart charging. To complete charging faster, use of the included
USB-AC adaptor is recommended.
• If the battery has not been used for a very long time, charging may terminate
automatically and the back lamp may start flashing red or go out after only about
60 minutes. In either case, use of the USB-AC adaptor that comes with the camera
is recommended.
• If you turn on the camera while charging over a USB connection to a computer is in
progress, the camera will establish a USB connection with the computer. Though
charging normally should continue at this time, certain types of computers or
connection environments may stop charging if supply power is low. This will be
indicated by the camera’s back lamp lighting green.
• Charging is not performed while the connected computer is in the hibernate mode.
2
22
Quick Start Basics
Back Lamp Operation
Lamp Status Description
Lit Red,
(Lit/Flashing Amber)
Charging
Back lamp
Abnormal ambient temperature,
Flashing Red
charging taking abnormally long, or
battery problem (page 120)
Off, (Lit Green) Charging complete
• The information in parentheses in the above table shows the lamp status while the
camera is turned on during charging.
Other Charging Precautions
• With the two charging methods described above, you can charge the camera’s
battery (NP-150) without removing it from the camera. Never use any other type of
charger device. Attempting to use a different charger can result in unexpected
accident.
• This model can be charged only via from USB 2.0 specification USB port only.
• USB charging devices and power supply devices are subject to fixed standards.
Use of an inferior device or a device that is not up to standard can cause
malfunction and/or failure of your camera.
• Operation is not guaranteed in the case of a computer built or modified by you.
Even in the case of a commercially available computer, certain USB port
specifications may make it impossible to charge via the USB cable.
• A battery that is still warm immediately after normal use may not charge fully. Give
the battery time to cool before charging it.
• A battery discharges slightly even when it is not loaded in the camera. Because of
this, it is recommended that you charge the battery immediately before you need to
use it.
• Charging the camera’s battery may cause interference with TV and radio reception.
If this happens, plug the USB-AC adaptor into an outlet that is further away from
the TV or radio.
• Actual charging time depends on current battery capacity and charging conditions.
• Do not use the USB-AC adaptor with any other device.
• Never use the power cord with another device.
• Use only the USB-AC adaptor and USB cable specified in this manual for charging.
Use of any other type of devices may result in improper charging.
23
Quick Start Basics
Checking the Current Battery Level
As battery power is consumed, a battery indicator on the monitor screen indicates its
current level as shown below.
Remaining Power High Low
Battery Indicator ***
Indicator Color White * White * Red * Red
indicates battery power is low. Charge the battery as soon as possible.
Recording is not possible when is indicated. Charge the battery immediately.
The level shown by the battery indicator may change when you switch between the
REC mode and PLAY mode.
• Leaving the camera for about 20 days with no power supplied while the battery is
dead will cause its date and time settings to be cleared. A message telling you to
configure time and date settings will appear the next time you turn on the camera
after restoring power. When this happens, configure date and time settings (page
104).
• See page 134 for information about battery life and number of shots.
Configuring Basic Settings the First Time You Turn On the Camera
The first time you turn on the camera, a screen appears for configuring the display
language, date, and time settings. Failure to set the date and time correctly will cause
the wrong date and time data to be recorded with images.
IMPORTANT!
• A screen for language selection will not appear in step 2 of the procedure below if
you purchased a camera intended for the Japanese market. To change the display
language from Japanese in this case, use the procedure under “Specifying the
Display Language (Language)” (page 105). Note that a version of this manual in
the language you select may not be included with a camera intended for the
Japanese market.
• Camera models sold in certain geographic areas may not support display language
selection.
24
Quick Start Basics
1. Press [p] (Power) to turn on the camera.
2. Drag (page 17) upwards and downwards until
you find the language you want, and then touch
to select it.
3. Touch the date display format you want.
Example: July 10, 2015
YY/MM/DD
DD/MM/YY
MM/DD/YY
* 15/7/10
* 10/7/15
* 7/10/15
[p] (Power)
4. Touch the value you want to change (year, month,
day, hour, minute).
5. Touch “ ”, “ ” to change the currently selected
value.
• Touching and holding “ ”, “ ” will change the setting
at high speed.
• To switch between 12-hour and 24-hour format, touch
the 12/24 hour switch icon.
6. When the date and time settings are the way you
want, touch “OK”.
12/24 hour switch
7. Touch “Auto” or “Premium Auto Pro” to select the default auto
recording mode you want.
8. Touch “Apply”.
• You will be able to change this setting later, if you want. See page 30 for
details.
icon
If you make a mistake configuring display language, date, or time settings with the
above procedure, refer to the following pages for information about how to correct
the settings.
– Display language: Page 105
– Date and time: Page 104
NOTE
• Each country controls its local time offset and the use of summer time, and so they
are subject to change.
25
Quick Start Basics
Preparing a Memory Card
Though the camera has built-in memory that can be used to store images and
movies, you probably will want to purchase a commercially available memory card for
greater capacity. The camera does not come with a memory card. Images recorded
while a memory card is loaded are saved to the memory card. When no memory card
is loaded, images are saved to built-in memory.
• For information about memory card capacities, see page 130.
Supported Memory Cards
– microSD Memory Card
– microSDHC Memory Card
– microSDXC Memory Card
• The above are supported memory card types as of June 2014.
• This camera supports use of microSD memory cards of the
following types and capacities: microSD memory cards up to 2GB, microSDHC
memory cards from 2GB up to 32GB, microSDXC memory cards from 32GB up to
2TB. Note that the ability to use any particular card with this camera, even if it
satisfies the above capacity and type requirements, is not guaranteed.
Warning!
*
0 Memory cards are small and present a risk of accidentally being swallowed
by infants and young children. Keep memory cards out of the reach of
infants and young children. If a memory card is ever swallowed accidentally,
contact a physician immediately.
+
26
Quick Start Basics
To load a memory card
1. Press [p] (Power) to turn off the
camera and then open the frame
(page 13).
2. While holding down [OPEN], slide
the cover in the direction of arrow
in the nearby illustration to
2
remove it.
3. Load a memory card.
Positioning the memory card as shown in
the nearby illustration insert it into the
camera’s memory card slot and press
until you hear it click into place.
1
[OPEN] button
Front
3
2
Front Back
4. Close the cover.
• Positioning the cover about two millimeters from
the lens unit, keep it parallel with the camera as
you slide it in the direction of arrow
arrow
IMPORTANT!
• Never insert anything besides a supported memory card (page 26) into the memory
card slot.
• Should water or any foreign object ever get into the card slot, immediately turn off
the camera, and contact your retailer or nearest CASIO authorized service center.
to secure it in place.
2
and then
1
27
1
2mm
2
Quick Start Basics
. To replace the memory card
Press the memory card and then release it. This will
cause it to pop out of the memory card slot slightly.
Pull the card out the rest of the way and then insert
another one.
• Never remove a card from the camera while the
back lamp is flashing green. Doing so can cause the
image save operation to fail and even damage the
memory card.
To format (initialize) a new memory card
Format a memory card on the camera before using it for the first time.
IMPORTANT!
• Formatting a memory card that already has snapshots or other files on it, will delete
its contents. Normally you do not need to format a memory card again. However, if
storing to a card has slowed down or if you notice any other abnormality, re-format
the card.
• Be sure to use the camera to format a memory card. Formatting a card on a
computer will result in a non-SD standard format, which can greatly slow down
processing time and cause compatibility, performance, and other problems.
1. Load a memory card (page 27).
2. Turn on the camera and then touch “ ” (Show Icons).
3. Touch “MENU”.
4. Drag upwards and downwards until you find “Setup”, and then touch it.
5. Touch “Format”.
6. Touch “Format” and then touch “Yes”.
This starts the memory card format operation.
28
Quick Start Basics

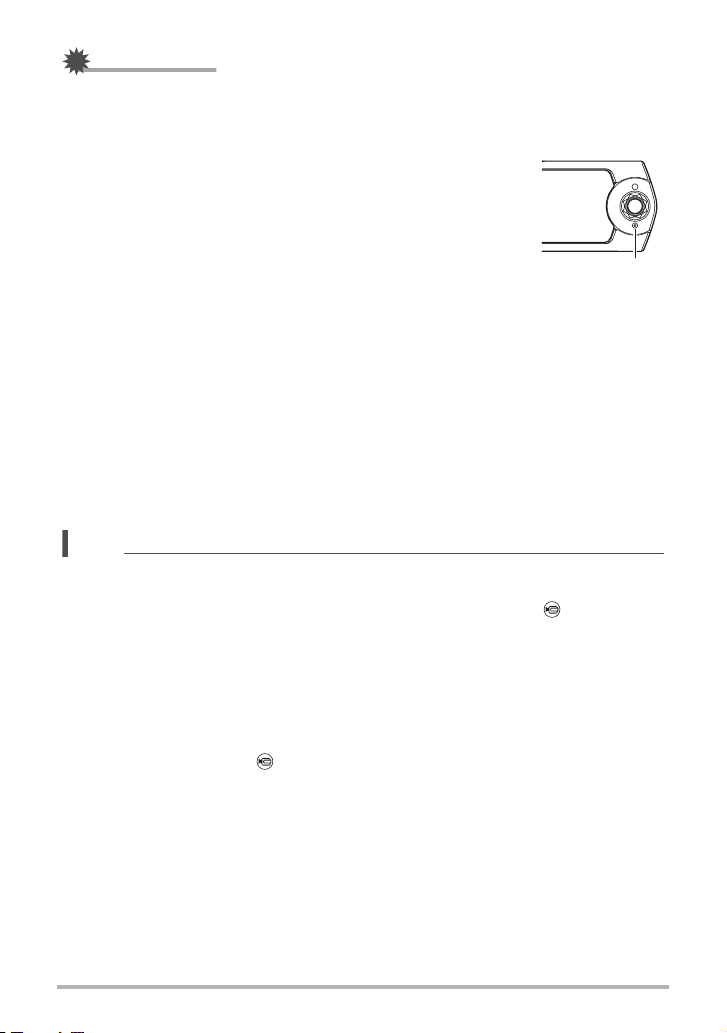

Turning Power On and Off
. To turn on the camera
Press [p] (Power).
This will turn on the camera, which is indicated when the
back lamp lights green, and enter the REC mode.

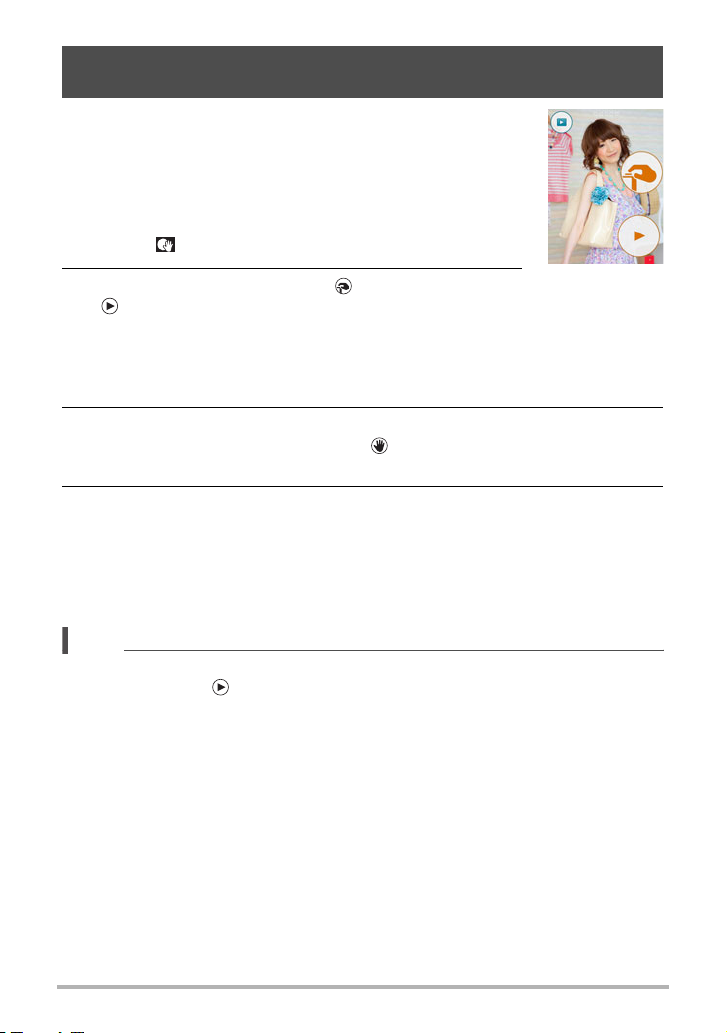

Entering the REC Mode and PLAY Mode
In the REC mode, touch “ ” (PLAY).
• If “ ” (PLAY) is not displayed on
To enter the
PLAY mode
the screen, you can touching the
Review image (page 63), or switch
to the PLAY mode by touching
“ ” (Show Icons) and then
touching “ ” (PLAY).
To enter the
REC mode
In the PLAY mode, touch “ ”
(Show Icons). On the screen image
that appears, touch “ ” (REC).
. To turn off the camera
Press [p] (Power).
NOTE
• To conserve battery power, an Auto Power Off
function will turn off power automatically if you do not
perform any operation for about five minutes.
Back lamp
[p] (Power)
“”
(Show Icons)
Screen after “ ”
(Show Icons) is touched
“ ” (PLAY) / “ ” (REC)
29
Quick Start Basics
To Shoot a Snapshot
Your camera has a variety of different recording modes to suit various shooting
conditions and objectives (page 38). This section explains general shooting
procedures using the auto recording mode.

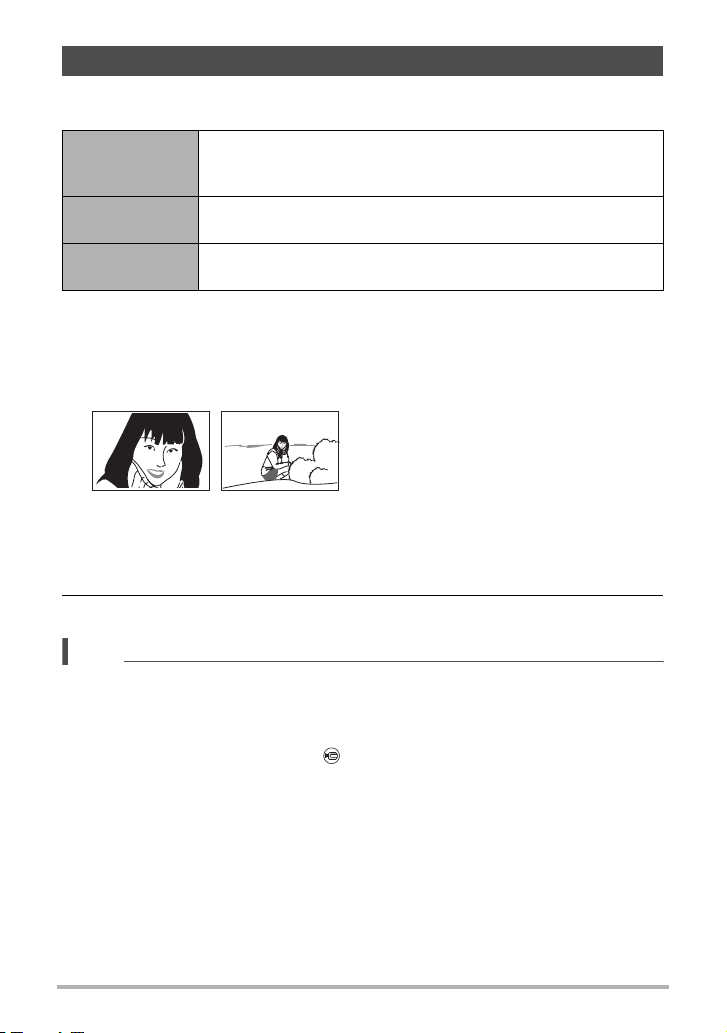

Selecting an Auto Recording Mode
You can select one of two auto recording modes (Auto or Premium Auto Pro)
according to your digital imaging needs.
Setting
Auto This is the standard Auto recording mode.
Premium
Auto Pro
REC Screen
Icon Display
Description
With Premium Auto Pro recording, the camera
automatically determines whether you are shooting a
subject or scenery, and other conditions. Premium
Auto Pro recording delivers higher image quality than
standard Auto recording.
• Some of the settings configured automatically by
Premium Auto Pro cannot be changed by you.
• It also requires more power (and runs down the
battery quicker) than Auto.
1. Press [p] (Power) to turn on the camera.
2. Touch “ ” (Show Icons).
3. Touch the second icon from the right (second
icon from the top in the case of portrait display
orientation) (Recording mode).
4. Touch “Auto” or “Premium Auto Pro” to select
the auto recording mode you want.
30
Recording mode icon
Quick Start Basics
