Casio 5459, 5460 Instruction Manual
MA1607-EA
© 2016 CASIO COMPUTER CO., LTD.
Operation Guide 5459/5460
Contents
About This Manual
Basic Operations
General Guide
Using the Crown
Day Indicator Movement
Solar Charging
Using Mobile Link with a Mobile
Phone
Getting Ready
A Installing Applications
B Configuring Bluetooth settings
C Pairing the watch with a phone
Auto Time Adjustment
Configuring World Time Settings
Correcting Hand Alignment
Phone Finder
Watch Settings
Setting the Time and Date
Configuring Dual Time Settings
Swapping the Home City Time and World Time
(Dual Time)
Hand Alignment Correction
Correcting Hand Alignment
Moving To Another Time Zone
Other Information
Summer Time Switching
Supported Phone Models
Specifications
Mobile Link Precautions
Copyrights and Registered Copyrights
Troubleshooting
Configuring Watch Settings
Changing the Home City Summer Time Setting
Checking the Watch Charge Level
Connection
Connecting with a Phone
Disconnecting from a Phone
Using the Watch in a Medical Facility or
Aircraft
Unpairing
If you purchase another phone
Connecting a Different Watch to a Phone
1
30
30
30
②
③
④
⑤⑥⑦⑧
①
30
②
④
⑤⑥⑨⑦⑧
①
Normal timekeeping
Operation Guide 5459/5460
About This Manual
This manual covers the operations of the
watch models described below. When there
are any differences between models,
separate explanations and illustrations will be
provided for each as required.
●
The module number and model name of
each watch is stamped on its back cover.
Module 5459 (Model Name: SHB-100)
Does not have a small 24-hour hand.
Module 5460 (Model Name: SHB-200)
Has a small 24-hour hand.
Note
●
The illustrations included in this
operation guide have been created
to facilitate explanation. An
illustration may differ somewhat
from the item it represents.
Basic Operations
This section provides an overview of the watch
and its operations.
General Guide
Model without a Small 24-hour Hand
Model with a Small 24-hour Hand
A
Hour and minute hands
Indicate the current time in your Home City
zone.
B
Day
Indicates the day in your Home City zone.
C
A / P marks
When configuring the Dual Time setting, the
second hand will point to “A” for a.m. times,
and to “P” for p.m. times.
D
Small hour and minute hands
Indicate the current time in your World Time
(Dual Time) City.
E
Second hand
Indicates the current second in your Home
City zone.
F
C mark
When the watch is connected with a phone,
the second hand points to “C”.
G
F mark
When the watch is connected with a phone
that supports a phone finder function, the
second hand will point to “F”.
Using the Crown
●
Pulling Out and Pushing In the Crown
Before performing a crown operation, you
need to pull it out to the first or second click as
shown in the figure below. Do not pull the
crown with too much force.
First click
Second click
Important!
●
To prevent loss of water resistance
and/or damage due to impact, be
sure to push the crown in to its
normal position after you are
finished using it.
●
When pushing the crown back in,
take care not to apply too much
force.
●
Fast Forward/Fast Reverse
After pulling out the crown, rotating it quickly
succession in either direction will start a fast
in
forward or fast reverse operation. While a fast
forward or fast reverse hand operation is in
progress, quickly rotating the crown in
succession again will increase the speed even
further.
●
Stopping Fast Forward/Fast Reverse
Rotate the crown in the direction opposite that
of the ongoing operation or press any button.
Note
●
If you do not perform any operation
for about three minutes after pulling
out the crown, crown operations will
automatically become disabled. If
that happens, push the crown back
in and then pull it out again.
H
R mark
When the watch is standing by for connection
with a phone, the second hand points to “R
I
Small 24-hour hand
Indicates the current time in your World Time
(Dual Time) City.
”.
2
30
Day indicator
NOYES
30
Second hand
1
Operation Guide 5459/5460
Day Indicator Movement
The day indication changes each day
between
●
10:00 p.m. to 2:00 a.m. the next day.
day may not be indicated correctly while
The
the watch’s crown is pulled out.
Solar Charging
This watch runs on power supplied from a
rechargeable (secondary) battery that is
charged by a solar panel. The solar panel is
integrated into the face of the watch, and
power is generated whenever the face is
exposed to light.
●
Charging the Watch
When you are not wearing the watch, put it in
a location where it is exposed to bright light.
While you are wearing the watch, make sure
that its face (solar panel) is not blocked from
light by the sleeve of your clothing. Power
the
generation efficiency is reduced even when
the face of the watch is blocked only partially.
Important!
●
Depending on light intensity and
local conditions, the watch may
become hot to the touch when
exposed to light for charging. Take
care to avoid burn injury after
charging. Also, avoid charging the
watch under high-temperature
conditions like the ones described
below.
ー
On the dashboard of a vehicle
parked in the sun
ー
an incandescent light bulb or
Near
other source of heat
ー
Under direct sunlight or in other
hot areas for long periods
●
Remaining Charge and Dead Battery
The charge level is indicated by watch hand
movement. Functions become disabled as
battery power goes low.
Important!
●
Should battery go low or go dead,
the face (solar panel) to light
expose
as soon as possible.
Note
●
Exposing
the battery goes dead will cause the
second hand to revolve
counterclockwise until it stops at
second 57. This indicates charging
has started.
the watch face to light after
Low Battery Power
The second hand jumps at two-second
intervals.
Dead Battery
All hands and the day indicator are stopped.
●
Charging Time Guidelines
The table below shows guidelines for
approximate charging times.
Required Charging Time for 1-day Use
Light Intensity Approximate Charging Time
High
p
Low
A
B
C
D
8 minutes
30 minutes
48 minutes
8 hours
Time Required to Achieve Next Charge
Level
Approximate Charging Time
Light Intensity
Charge Level1Charge Level
2
A
High
p
Low
3 hours 33 hours
B
8 hours 123 hours
C
12 hours 199 hours
D
139 hours -
Light Intensity
A
Sunny day, outdoors (50,000 lux)
B
Sunny day, near a window (10,000 lux)
C
Overcast day, near a window (5,000 lux)
D
Indoor fluorescent lighting (500 lux)
Charge Level 1:
Time from dead battery until hand movement
starts
Charge Level 2:
Time from hand movement starts until a full
charge
3
C mark
11:00
Operation Guide 5459/5460
Note
●
charging time depends on the
Actual
local charging environment.
●
Power Saving
Leaving the watch in a dark location for
approximately
one week will cause movement
all of the watch’s hands to stop in order to save
power.
●
Only the day indicator is operational.
Recovering from Power Saving Operation
Press any button or place the watch in a welllit area to recover from power saving.
Using Mobile Link with
a Mobile Phone
While there is a Bluetooth connection
between
setting is adjusted automatically in
accordance with the phone’s time setting.
To use the watch with a phone, first tap one of the
links below and install the “CASIO WATCH+” app
on the phone.
●
https://itunes.apple.com/us/app/
id760165998?ls=1&mt=8
●
https://play.google.com/store/apps/details?
id=com.casio.watchplus
the watch and phone, the watch time
Note
●
This function is available only while
CASIO WATCH+ is running on the
phone.
●
This section describes watch and
phone operations.
X : Watch operation
Y : Phone operation
Getting Ready
A Installing Applications
iOS (iPhone) Users
AndroidTM
(GALAXY, etc.) Users
B Configuring Bluetooth settings
Enable the phone’s Bluetooth.
●
iPhone Users
1.
Y On the Home Screen, tap “Settings” n
“Bluetooth
2.
Y Enable “Bluetooth”.
3.
Y Tap
”.
“Settings” to return to the “Settings”
screen.
4.
Y Tap
in the following sequence: “Privacy”
n “Bluetooth Sharing”.
5.
Y Enable “CASIO WATCH+
●
Android Users
”.
Y Enable Bluetooth.
●
If you are presented with a choice between
“Bluetooth
” and “Bluetooth Smart”, select
“Bluetooth Smart”.
Note
●
For details about setting
procedures, see your phone
documentation.
C Pairing the watch with a phone
Before you can use the watch in combination
with
a phone, you first need to pair them. Once
the watch is paired with a phone, you normally
do not need to pair them again.
1.
Move the phone you want to pair with
close to (within one meter of) the watch.
2.
Y On the Home Screen, tap the “CASIO
WATCH+”
3.
Y Tap
4.
Y Perform operations as instructed by the
app.
●
The model name is stamped on the
back cover of the watch.
●
If a pairing prompt message appears,
perform the operation shown on the
phone screen.
●
When pairing starts, the second hand
will move to 12 o’clock or to the
mark. When pairing is complete, the
second hand will move to “C”.
icon.
“SHEEN”.
“R”
Auto Time Adjustment
The watch can be set to adjust its time setting
automatically
phone time.
●
Using Auto Adjust
Your watch adjusts its time setting four times
a day. It performs the adjustment operation
automatically as you go about your daily life,
without any operation required by you.
Important!
●
Note
●
●
each day in accordance with the
The watch may not be able to
perform auto time setting
adjustment under the conditions
described below.
ー
While it is too far away from its
paired phone
ー
When communication is not
possible
due to radio interference,
etc.
ー
While the phone is updating its
system
there is a World Time City specified
If
with CASIO WATCH+, its time will
also be adjusted automatically.
The watch will connect with the
phone and perform auto time
adjustment at around 5:00 a.m.,
a.m., 5:00 p.m. and 11:00 p.m.
11:00
The connection is automatically
terminated after auto time
adjustment is complete.
4
30
30
30
World Time hour and minute
30
World Time hour and minute
World Time hour (24-hour)
Operation Guide 5459/5460
●
Summer Time
Once the watch is connected with a phone and
its time is adjusted with the phone time, its
Home City time and World Time will
automatically switch between standard time
and summer time as required, even if the
is no longer connected with the phone.
watch
Summer Time Switching
l
●
Changing the time setting manually with a
watch operation will cancel auto standard
time/summer time switching.
●
A CASIO WATCH+ screen shows
information about summer time periods.
●
Triggering Immediate Time Adjustment
The watch will adjust its time setting to that of
the phone immediately after they are
connected with each other. Whenever you
to adjust the watch’s time setting perform
want
the procedure below to connect with a phone.
●
If CASIO WATCH+ is already running, you
skip step 1. In this case, advance to step
can
2 of this procedure.
1.
Y On the Home Screen, tap the “CASIO
WATCH+
2.
X Press (B).
This causes the second hand to move to
“R”. The second hand will move to
when a connection is established
between the watch and phone, and the
time setting of the watch will adjust to the
phone’s time setting.
●
” icon.
“C”
The connection is terminated
automatically after time adjustment is
complete.
Configuring World Time Settings
Specifying a World Time City with CASIO
WATCH+ causes the city’s time to be
indicated
Watch settings can be configured for auto
summer time switching for the World Time
City.
●
1.
2.
by the small hour and minute hands.
Note
●
CASIO WATCH+ World Time lets
you select from among
approximately 300 cities as the
World Time City.
Selecting a World Time City
Y Tap the
X Hold down the (B) button for about 1.5
seconds.
●
●
“CASIO WATCH+” icon.

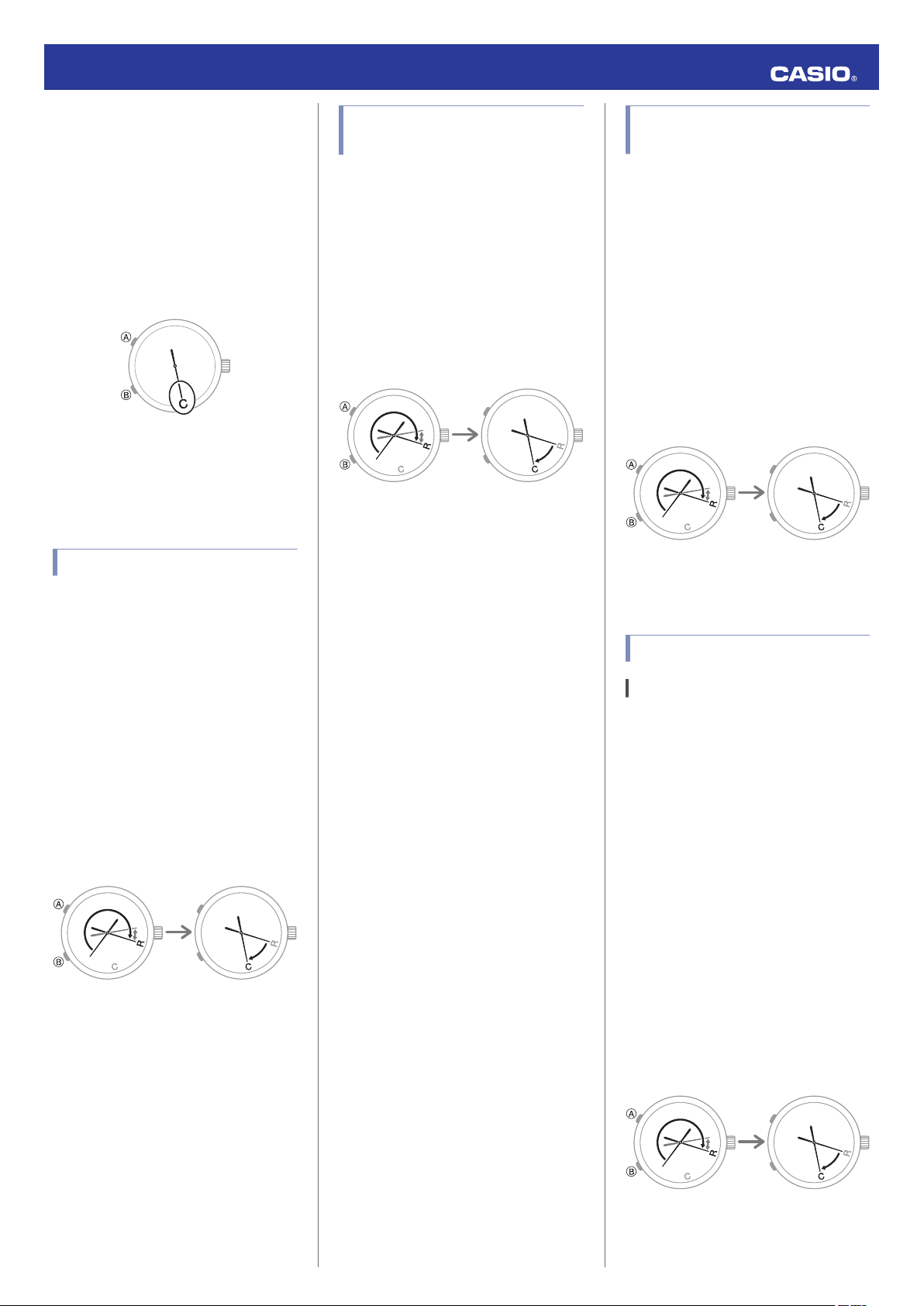

second hand will move to “R”. Keep
The
(B) depressed until the second hand
starts moving again and then stop at
“R”.
second hand will move to “C” when
The
a connection is established between
the watch and phone.
5.
Perform the operation shown on the
phone
screen. The World Time setting will
be reflected on the watch.

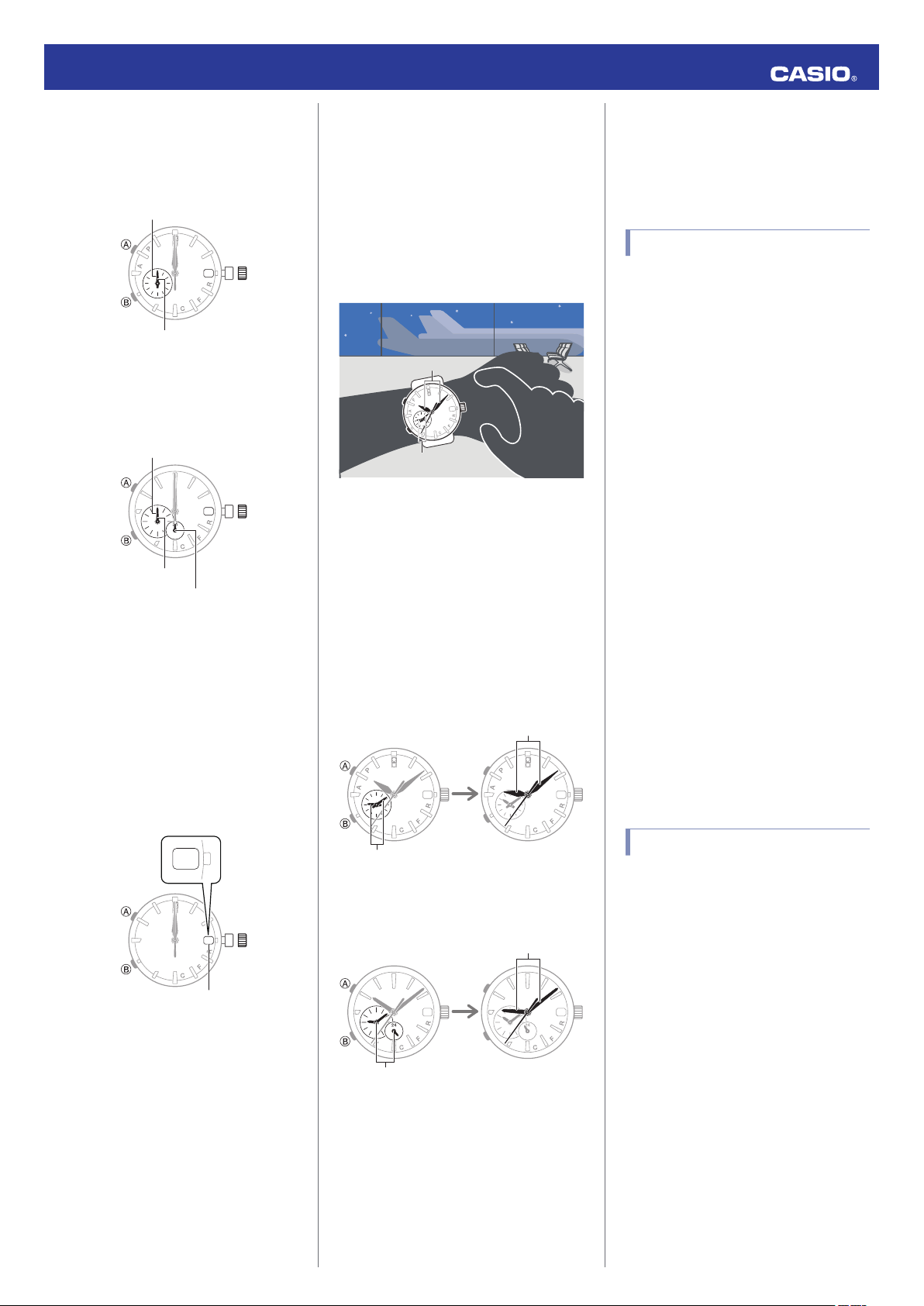

The small hour and minute hands of the
watch will indicate the current time in the
specified World Time City.
●
Model without a Small 24-hour Hand
●
Model with a Small 24-hour Hand
●
Configuring the Summer Time Setting
1.
Y Tap the
“CASIO WATCH+” icon.
3.
Y Tap
“World Time”.
4.
Y Specify
a World Time City by inputting a
city name or by tapping its location on the
on-screen map.
2.
X Hold down the (B) button for about 1.5
seconds.
●
second hand will move to “R”. Keep
The
(B) depressed until the second hand
starts moving again and then stop at
“R”.
●
second hand will move to “C” when
The
a connection is established between
the watch and phone.
5
Loading...
