Operation Guide 5457

About This Manual

x Depending on the model of your watch, display text

appears either as dark fi gures on a light background, or
light fi gures on a dark background. All sample displays
in this manual are shown using dark fi gures on a light
background.

x Button operations are indicated using the letters shown

in the illustration.

x Note that the product illustrations in this manual are

intended for reference only, and so the actual product
may appear somewhat different than depicted by an
illustration.

E-2

Contents

About This Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-2

Things to check before using the watch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-3

Mode Reference Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-7

Timekeeping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-11

Confi guring Home City Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-12

To confi gure Home City settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-12

To change the Daylight Saving Time (summer time) setting . . . . . . . . . . . . . . E-14

Adjusting the Digital Time and Date Settings . . . . . . . . . . . . . . . . . . . . . . . . . E-15

To confi gure the digital time and date settings . . . . . . . . . . . . . . . . . . . . . . . . E-15

Checking the Current Time in a Different Time Zone . . . . . . . . . . . . . . . . . . .E-19

To enter the World Time Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-19

To view the time in another time zone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-19

E-4

Congratulations upon your selection of this CASIO watch.

E-1

Things to check before using the watch

1. Check the Home City and the daylight saving time (DST) setting.

Use the procedure under “To confi gure Home City settings” (page E-12) to confi gure
your Home City and daylight saving time settings.

Important!

x Proper World Time Mode data depend on correct Home City, time, and date

settings in the Timekeeping Mode. Make sure you configure these settings
correctly.

2. Set the current time.

x See “Adjusting the Digital Time and Date Settings” (page E-15).

The watch is now ready for use.

E-3

To specify standard time or daylight saving time (DST) for a city . . . . . . . . . . . E-20

Countdown Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .E-21

To enter the Countdown Timer Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-21

To confi gure the countdown timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-24

To perform a countdown timer operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-26

To stop the alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-26

Using the Stopwatch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .E-27

To enter the Stopwatch Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-27

To perform an elapsed time operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-28

To pause at a split time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-28

To measure two fi nishes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-28

Using the Alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-30

To enter the Alarm Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-31

To set an alarm time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-32

E-5

ENGLISH

To test the alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-33

To turn an alarm and the Hourly Time Signal on and off . . . . . . . . . . . . . . . . . E-33

To stop the alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-33

Adjusting the Analog Hand Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .E-34

To adjust the analog time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-34

Illumination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-36

To turn on illumination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-36

To change the illumination duration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-37

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-38

Specifi cations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .E-39

Operating Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .E-41

User Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-52

E-6

Selecting a Mode

x Press C to cycle between the modes as shown below.
x In any mode (except when a setting mode, with fl ashing digits is on the display),

press B to illuminate the display.

Timekeeping Mode

E-8

World Time Mode Countdown Timer Mode

C

C C

Mode Reference Guide

Your watch has 6 “modes”. The mode you should select depends on what you
want to do.

To do this: Enter this mode: See:

x View the current date in the Home City
x Confi gure Home City and daylight saving time (DST)

settings

x Confi gure time and date settings

View the current time in one of 27 cities
(29 time zones) around the globe

Use the countdown timer Countdown Timer Mode E-21
Use the stopwatch to measure elapsed time Stopwatch Mode E-27
Set an alarm time Alarm Mode E-30
Adjust the analog hands Hand Setting Mode E-34

Stopwatch Mode Alarm Mode

C C

Timekeeping Mode E-11

World Time Mode E-19

Hand Setting Mode

C

E-7

E-9

Operation Guide 5457

General Functions (All Modes)

The functions and operations described in this section can be used in all of the
modes.

Auto Return Features

If you leave a setting mode with fl ashing digits on the display for two or three
minutes without performing any operation, the watch exits the setting mode
automatically.

Initial Screens

When you enter the World Time Mode or Alarm Mode, the data you were viewing
when you last exited the mode appears fi rst.

Scrolling

The B and D buttons are used on the setting mode to scroll through data on the
display. In most cases, holding down these buttons during a scroll operation scrolls
through the data at high speed.

E-10

Confi guring Home City Settings

There are two Home City settings: actually selecting the Home City, and selecting
either standard time or daylight saving time (DST).

Seconds

E-12

To change the Daylight Saving Time (summer time) setting

DST indicator

Note

x After confi guring Home City and/or Daylight Saving Time

(summer time) settings, be sure to adjust the analog
hands to match the digital settings.

x See “Adjusting the Analog Hand Setting” (page E-34).

To confi gure Home City settings

1. In the Timekeeping Mode, hold down A for about two

seconds until the seconds start to fl ash. This is the
setting mode.

x The watch will exit the setting mode automatically if

you do not perform any operation for about two or
three minutes.

1. In the Timekeeping Mode, hold down A for about

two seconds until the seconds start to fl ash. This is
the setting mode.

2. Press C to display the DST setting mode.

3. Press D to toggle between Daylight Saving Time (

and Standard Time (

4. After the setting is the way you want, press A to

return to the Timekeeping Mode.

x The DST indicator appears to indicate that Daylight

Saving Time is turned on.

).

Timekeeping

Minutes

Hour

Seconds

Day of week

City Code

Note

x After you specify a city code, the watch will use UTC* offsets in the World Time

Mode to calculate the current time for other time zones based on the current time
in your Home City.

* Coordinated Universal Time, the world-wide scientifi c standard of timekeeping.

The reference point for UTC is Greenwich, England.

Use the Timekeeping Mode to set and view the current
time and date.

x Each press of D cycles the digital display contents as

shown below.

Day of the Week Month-Day Hour : Minutes

2. Press C twice to move the fl ashing to the city code.

x For details about city codes, see the “City Code

Table” at the back of this manual.

3. Press D (East) and B (West) to select the city code

you want to use as your Home City.

x Keep pressing D or B until the city code you want

to select as your Home City appears on the display.

4. After the setting is the way you want, press A to

return to the Timekeeping Mode.

D D

PM indicator

D

E-11

E-13

Adjusting the Digital Time and Date Settings

Use the procedure below to adjust the digital time and date settings.

Note

x After adjusting the digital time and date setting, be sure to adjust the analog hands

)

so the settings match.

x See “Adjusting the Analog Hand Setting” (page E-34).

To confi gure the digital time and date settings

Seconds

1. In the Timekeeping Mode, hold down A for about two

seconds until the seconds start to fl ash. This is the
setting mode.

E-14

2. Press C to move the fl ashing in the sequence shown below to select the other

settings.

C

Seconds

C

Illumination DurationCDayCMonthCYearC12/24-Hour Format

DST

C

Home City Code

C

Hour

C

Minutes

C

x The following steps explain how to confi gure timekeeping settings only.

E-16

Note

x For information about selecting a Home City and confi guring the DST setting, see

“Confi guring Home City Settings” (page E-12).

x While 12-hour format is selected for timekeeping, a P (PM) indicator will appear

for times from noon to 11:59 p.m. No indicator appears for times from midnight to
11:59 a.m. With 24-hour format, time is displayed from 0:00 to 23:59, without any
P (PM) indicator.

x The watch’s built-in full automatic calendar makes allowances for different month

lengths and leap years. Once you set the date, there should be no reason to
change it except after you have the watch’s battery replaced.

x The day of the week changes automatically when the date changes.

E-18

3. When the timekeeping setting you want to change is fl ashing, use D and/or B

to change it as described below.

Screen To do this: Do this:

Reset the seconds to 00

Toggle between Daylight Saving Time ( )
and Standard Time ( )

Change the city code

Change the hour or minute

Toggle between 12-hour (12H) and 24-hour
(24H) timekeeping

Change the year, month, or day

Press D.

Press D.

Use D (East) and B (West).

Use D (+) and B (–).

Press D.

Use D (+) and B (–).

4. Press A to exit the setting mode.

Checking the Current Time in a Different Time Zone

Current time in the currently
selected World Time City

Currently selected
World Time City

You can use the World Time Mode to view the current
time in one of 29 time zones (27 cities) around the
globe. The city that is currently selected in the World
Time Mode is called the “World Time City”.

To enter the World Time Mode

Use C to select the World Time Mode as shown on
page E-8.

To view the time in another time zone

In the World Time Mode, use D (East) to scroll through
city codes.

E-15

E-17

E-19

Operation Guide 5457

To specify standard time or daylight saving time (DST) for a city

DST indicator

x Using the World Time Mode to change the DST setting of the city code that is

selected as your Home City also will change the Timekeeping Mode time DST
setting.

x Note that you cannot switch between standard time/daylight saving time (DST)

while GMT is selected as the World Time City.

x The standard time/daylight saving time (DST) setting affects only the currently

selected time zone. Other time zones are not affected.

E-20

x See “To confi gure the countdown timer” on page E-24 for information about setting

up the timer.

Auto-repeat

When auto-repeat is turned on, the countdown automatically restarts from the
countdown start time when it reaches zero. If left running, the countdown is
repeated a total of eight times, after which it stops automatically.
When auto-repeat is turned off, the countdown stops when it reaches zero and the
display shows the original countdown start time.

x Pressing D while an auto-repeat countdown is in progress pauses the current

countdown. You can resume the auto-repeat countdown by pressing D, or you
can press A to reset to the countdown time starting value.

Countdown Timer Beeper Operations

The watch beeps at various times during a countdown so you can keep informed
about the countdown status without looking at the display. The following describes
the types of beeper operations the watch performs during a countdown.

E-22

To confi gure the countdown timer

2. Press C to move the fl ashing in the sequence shown below to select other

settings.

Start Time Auto-repeat Progress Beeper

E-24

1. In the World Time Mode, use D (East) to display the

city code (time zone) whose Standard Time/Daylight
Saving Time setting you want to change.

2. Hold down A for about two seconds.

x This toggles the city code you selected in step1

between Daylight Saving Time (DST indicator
displayed) and standard time (DST indicator not
displayed).

1. While the countdown start time is on the display in

the Countdown Timer Mode, hold down A until the
current countdown start time starts to fl ash, which
indicates the setting mode.

x If the countdown start time is not displayed, use the

procedure under “To perform a countdown timer
operation” (page E-26) to display it.

CC

C

Countdown Timer

The countdown timer can be set within a range of
one minute to 60minutes. An alarm sounds when the
countdown reaches zero. The countdown timer also has
an auto-repeat feature and a progress beeper that signals
the progress of the countdown.

To enter the Countdown Timer Mode

Use C to select the Countdown Timer Mode as shown
on page E-8.

SecondsMinutes

Confi guring the Countdown Timer

The following are the settings you should confi gure
before actually using the countdown timer.

Countdown start time; Auto-repeat on/off; Progress
beeper on/off

E-21

Countdown End Beeper

The countdown end beeper lets you know when the countdown reaches zero.

x When the progress beeper is turned off, the countdown end beeper sounds for

about 10seconds, or until you press any button to stop it.

x When the progress beeper is turned on, the countdown end beeper sounds for

about one second.

Progress Beeper

When the progress beeper is turned on, the watch uses beeps to signal countdown
progress as described below.

x Starting from fi ve minutes before the end of the countdown, the watch emits four

short beeps at the top of each countdown minute.

x 30seconds before the end of the countdown, the watch emits four short beeps.
x The watch emits a short beep for each of the last 10seconds of the countdown.
x If the countdown start time is six minutes or greater, the watch emits a short beep

for each second of the fi nal 10seconds before the fi ve-minute point is reached.

Four short beeps are emitted to signal when the fi ve-minute point is reached.

E-23

3. When the setting you want to change is fl ashing, use B and D to change it as

described below.

Setting Screen Button Operation

Start Time

Auto-repeat

Progress Beeper

4. Press A to exit the setting mode.

x You can also perform steps 1 and 2 of the above procedure whenever you need

to view the current auto-repeat and progress beeper settings.

Use D (+) and B (–) to change the setting.

x You can set a start time in the range of 1 to 60minutes in

1-minute increments.

Press D to toggle auto-repeat on ( displayed) and off
( displayed).

Press D to toggle the progress beeper on ( ) and off
( ).

E-25

To perform a countdown timer operation

D

Start Stop Resume (Stop) Reset

x Before starting a countdown timer operation, check to make sure that a

countdown operation is not in progress (indicated by the seconds counting down).
If it is, press D to stop it and then A to reset to the countdown start time.

To stop the alarm

Press any button.

E-26

D D D A

To perform an elapsed time operation

D

Start Stop Resume (Stop) Reset

D D D A

To pause at a split time

D

Start Split

A A D A

(SPL displayed)

Split release Stop Reset

To measure two fi nishes

D

Start Split

E-28

A D A A

(SPL displayed)
First runner fi nishes.
Display time of fi rst
runner.

Stop

Second runner
fi nishes.

Split release

Display time of
second runner.

Reset

Using the Stopwatch

The stopwatch measures elapsed time, split times, and two fi nishes.

Seconds

Minutes

SPL indicator

1/100 second

Note

x The Stopwatch Mode can indicate elapsed time up to 59minutes, 59.99seconds.
x An ongoing elapsed time measurement operation will continue internally even if

you change to another mode. However, if you exit the Stopwatch Mode while a

split time is displayed, the split time will not be displayed when you return to the

Stopwatch Mode.

To enter the Stopwatch Mode

Use C to select the Stopwatch Mode as shown on
page E-9.

E-27

E-29

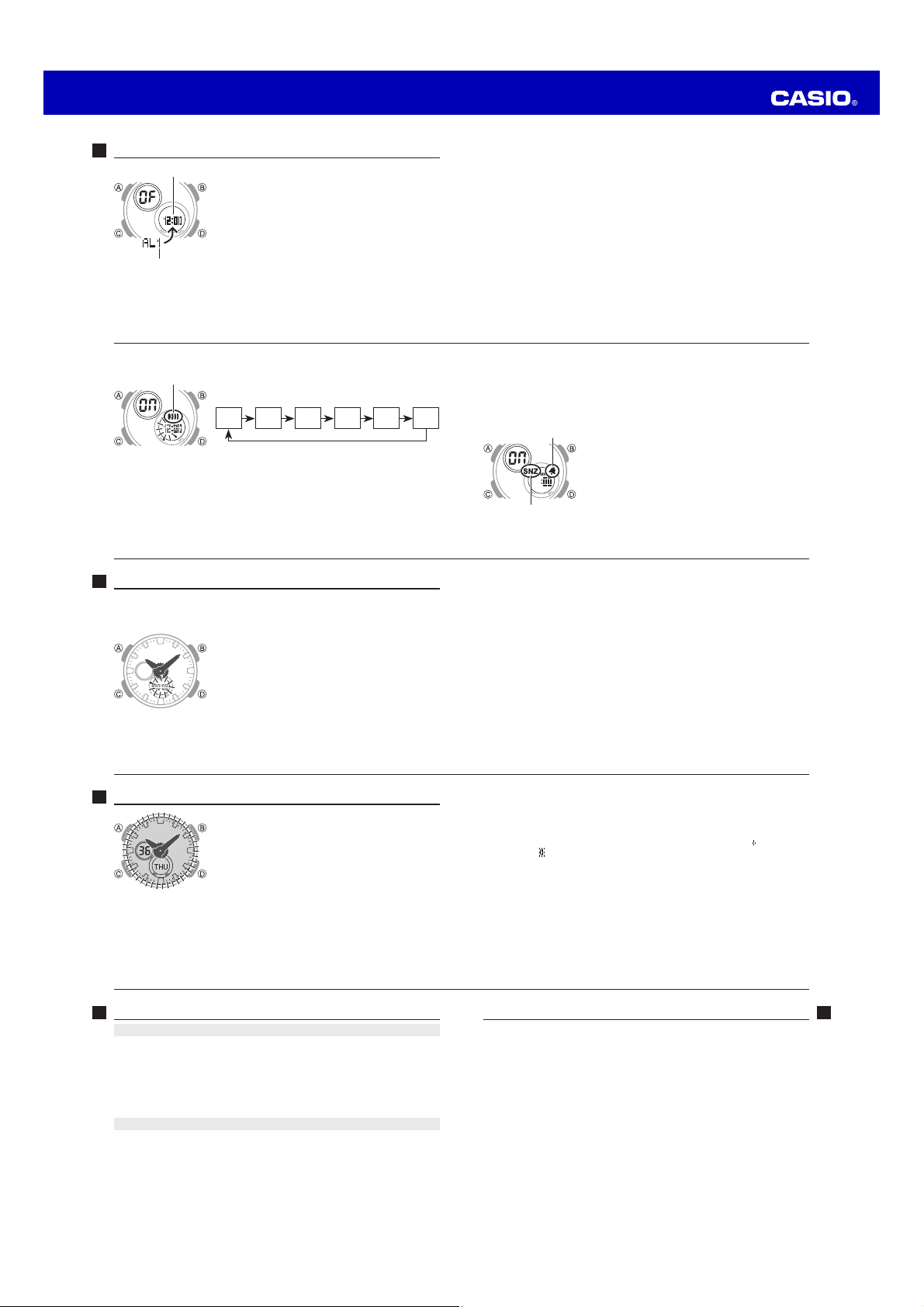

Operation Guide 5457

Using the Alarm

Alarm time (Hour : Minutes)

Alarm number

E-30

To set an alarm time

Alarm ON/OFF indicator

2. Hold down A for about two seconds until the alarm time starts to fl ash. This is

the setting mode.

3. Press C to move the fl ashing between the hour and minute settings.

4. While a setting is fl ashing, use D (+) and B (–) to change it.

x When setting the alarm time using the 12-hour format, take care to set the time

correctly as a.m. (no indicator) or p.m. (P indicator).

E-32

You can set fi ve independent daily alarms. When a
daily alarm is turned on, an alarm tone will sound
for about 20seconds each day when the time in the
Timekeeping Mode reaches the preset alarm time. One
of the alarms is a snooze alarm, while the other four
are one-time alarms. The snooze alarm operation will
repeat every fi ve minutes, up to seven times.
You can also turn on an Hourly Time Signal, which will
cause the watch to beep twice every hour on the hour.

1. In the Alarm Mode, use D to scroll through the alarm

screens until the one whose time you want to set is
displayed.

DDDDD

AL1 AL3 SNZAL2 AL4 SIG

D

Adjusting the Analog Hand Setting

Use the following procedure to adjust the analog hands so their settings match the
digital time.

To adjust the analog time

1. Use C to select the Hand Setting Mode as shown

on page E-9.

2. Hold down A until the current digital time starts to

fl ash, which indicates the analog setting mode.

3. Press D to advance the analog time setting by

20seconds.

x Holding down D advances the analog time setting

at high speed.

To enter the Alarm Mode

Use C to select the Alarm Mode as shown on page E-9.

x The snooze alarm screen is indicated by SNZ, while the other alarm screens are

numbered AL1 through AL4. The Hourly Time Signal screen is indicated by SIG.

x When you enter the Alarm Mode, the data you were viewing when you last exited

the mode appears fi rst.

5. Press A to exit the setting mode.

To test the alarm

In the Alarm Mode, hold down D to sound the alarm.

To turn an alarm and the Hourly Time Signal on and off

Hourly time signal
on indicator

Snooze alarm indicator

x If you need to advance the analog time setting a long way, hold down D until

the time starts advancing at high speed, and then press B. This locks the high­speed hand movement, so you can release the two buttons. High-speed hand
movement continues until you press any button. It will also stop automatically
after the time advances 12hours or if an alarm (daily alarm, Hourly Time Signal,
or countdown beeper) starts to sound.

4. Press A to exit the setting mode.

x The watch will automatically adjust the minute hand slightly to match its internal

second count when you exit the setting mode.

x To return to the Timekeeping Mode, press C.

1. In the Alarm Mode, use D to select an alarm or the

Hourly Time Signal.

2. When the alarm or the Hourly Time Signal you want is

selected, press A to toggle it between on and off.

x The alarm on indicator (when any alarm is on),

snooze alarm indicator (when the snooze alarm is
on), and the Hourly Time Signal on indicator (when
the Hourly Time Signal is on) are shown on the
display in all modes.

To stop the alarm

Press any button.

E-31

E-33

E-34

Illumination

The face of the watch is illuminated for easy reading in
the dark.

To turn on illumination

In any mode (except when a setting mode, with fl ashing
digits is on the display), press B to illuminate the display.

x You can use the procedure below to select either

1.5seconds or 3 seconds as the illumination duration.
When you press B, the display will remain illuminated
for about 1.5seconds or 3 seconds, depending on the
current illumination duration setting.

E-36

Troubleshooting

Time Setting

■ The current time setting is off by hours.

Your Home City setting may be wrong (page E-12). Check your Home City setting and
correct it, if necessary.

■ The current time setting is off by one hour.

You may need to change your Home City’s standard time/daylight saving time
(DST) setting. Use the procedure under “Adjusting the Digital Time and Date
Settings” (page E-15) to change the standard time/daylight saving time (DST) setting.

World Time Mode

■ The time for my World Time City is off in the World Time Mode.

This could be due to incorrect switching between standard time and daylight saving
time. See “To specify standard time or daylight saving time (DST) for a city” (page E-20)
for more information.

E-38

To change the illumination duration

1. In the Timekeeping Mode, hold down A until the seconds start to fl ash. This is

the setting mode.

2. Press C nine times so the illumination duration setting mode is on the display.

3. Press D to toggle the illumination duration between 1.5 seconds (

3seconds (

4. After the settings are the way you want, press A to exit the setting mode.

Illumination Precautions

x Illumination may be hard to see when viewed under direct sunlight.
x Illumination turns off automatically whenever an alarm sounds.
x Frequent use of illumination runs down the battery.

).

) and

Specifi cations

Accuracy at normal temperature: ±30 seconds a month
Digital Timekeeping: Hour, minutes, seconds, p.m. (P), month, day, day of the

Time format: 12-hour and 24-hour
Calendar system: Full Auto-calendar pre-programmed from the year 2000 to 2039
Other: 3 screen formats (Day of the Week, Month - Day, Hour : Minutes); Home

City code (can be assigned one of 31 city codes); Standard Time/Daylight
Saving Time (summer time)

Analog Timekeeping: Hour, minutes (hand moves every 20 seconds)
World Time: 27 cities (29 time zones)

Other: Daylight Saving Time/Standard Time

Stopwatch:

Measuring unit: 1/100 second
Measuring capacity: 59' 59.99"
Measuring modes: Elapsed time, split time, two fi nishes

week

E-35

E-37

E-39

Operation Guide 5457

Countdown Timer:

Measuring unit: 1 second
Countdown range: 60 minutes
Countdown start time setting range: 1 to 60 minutes (1-minute increments)

Alarms: 5 daily alarms (with 1 snooze alarm); Hourly time signal
Illumination: LED (light-emitting diode); selectable illumination duration

Power Supply: Two silver oxide batteries (Type: SR726W)

(approximately 1.5 seconds or 3 seconds)

Approximately 2 years on type SR726W (assuming alarm operation 20seconds
per day and one illumination operation 1.5seconds per day)

Frequent use of illumination runs down the battery.

City Code Table

E-40

City Code Table

City

City

Code

– – – –11
HNL Honolulu –10
ANC Anchorage –9
LAX Los Angeles –8
DEN Denver –7

CHI Chicago –6

NYC New York –5

CCS* Caracas –4

RIO Rio De Janeiro –3
– – – –2
– – – –1

GMT

LON London
PAR Paris +1

CAI Cairo
JRS Jerusalem

L-2

UTC Offset/

GMT Differential

L-1

x

Above table data is current as of December 2014.

City

Code

0

+2

City

JED Jeddah +3
THR Tehran +3.5
DXB Dubai +4
KBL Kabul +4.5
KHI Karachi +5
DEL Delhi +5.5

DAC Dhaka +6
RGN Yangon +6.5
BKK Bangkok +7
HKG Hong Kong +8
TYO Tokyo +9
ADL Adelaide +9.5
SYD Sydney +10
NOU Noumea +11
WLG Wellington +12

UTC Offset/

GMT Differential

* This watch does not refl ect the change in the Caracas, Venezuela (CCS) time offset

to –4.5. For Caracas, Venezuela, please use the –4.0 offset time zone.

x

This table shows the city codes of this watch.

x

The rules governing global times (UTC offset and GMT differential) and summer

time are determined by each individual country.

L-3
