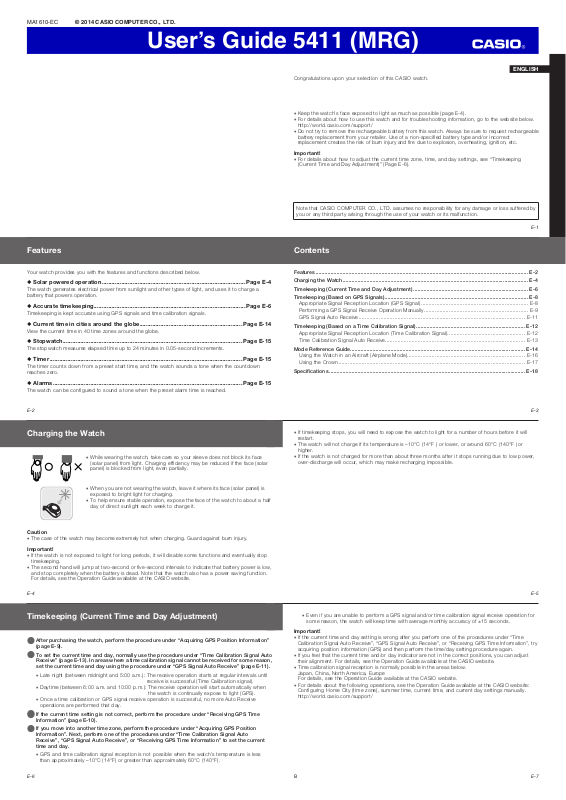

Casio 5411, MRG-G1000 User's Guide

MA1610-EC

User’s Guide 5411 (MRG)

Features

Your watch provides you with the features and functions described below.

◆ Solar powered operation ........................................................................................ Page E-4

The watch generates electrical power from sunlight and other types of light, and uses it to charge a battery that powers operation.

◆ Accurate timekeeping ............................................................................................. Page E-6

Timekeeping is kept accurate using GPS signals and time calibration signals.

◆ Current time in cities around the globe ............................................................... Page E-14

View the current time in 40 time zones around the globe.

◆ Stopwatch .............................................................................................................. Page E-15

The stopwatch measures elapsed time up to 24 minutes in 0.05-second increments.

◆ Timer ......................................................................................................................Page E-15

The timer counts down from a preset start time, and the watch sounds a tone when the countdown reaches zero.

◆ Alarms ....................................................................................................................Page E-15

The watch can be conﬁ gured to sound a tone when the preset alarm time is reached.

Congratulations upon your selection of this CASIO watch.

x Keep the watch’s face exposed to light as much as possible (page E-4). x For details about how to use this watch and for troubleshooting information, go to the website below.

http://world.casio.com/support/

x Do not try to remove the rechargeable battery from this watch. Always be sure to request rechargeable

battery replacement from your retailer. Use of a non-speciﬁ replacement creates the risk of burn injury and ﬁ re due to explosion, overheating, ignition, etc.

Important!

x For details about how to adjust the current time zone, time, and day settings, see “Timekeeping

(Current Time and Day Adjustment)” (Page E-6).

Note that CASIO COMPUTER CO., LTD. assumes no responsibility for any damage or loss suffered by you or any third party arising through the use of your watch or its malfunction.

ed battery type and/or incorrect

E-1

Contents

Features .............................................................................................................................................. E-2

Charging the Watch ............................................................................................................................ E-4

Timekeeping (Current Time and Day Adjustment) ............................................................................. E-6

Timekeeping (Based on GPS Signals) ................................................................................................ E-8

Appropriate Signal Reception Location (GPS Signal) ..................................................................... E-8

Performing a GPS Signal Receive Operation Manually ................................................................... E-9

GPS Signal Auto Receive ........................................................................................................... E-11

Timekeeping (Based on a Time Calibration Signal) ......................................................................... E-12

Appropriate Signal Reception Location (Time Calibration Signal) .................................................. E-12

Time Calibration Signal Auto Receive .......................................................................................... E-13

Mode Reference Guide ..................................................................................................................... E-14

Using the Watch in an Aircraft (Airplane Mode) ............................................................................ E-16

Using the Crown ........................................................................................................................ E-17

Speciﬁ cations ...................................................................................................................................E-18

ENGLISH

E-2

Charging the Watch

x While wearing the watch, take care so your sleeve does not block its face

(solar panel) from light. Charging efﬁ ciency may be reduced if the face (solar panel) is blocked from light, even partially.

x When you are not wearing the watch, leave it where its face (solar panel) is

exposed to bright light for charging.

x To help ensure stable operation, expose the face of the watch to about a half

day of direct sunlight each week to charge it.

Caution

x The case of the watch may become extremely hot when charging. Guard against burn injury.

Important!

x If the watch is not exposed to light for long periods, it will disable some functions and eventually stop

timekeeping.

x The second hand will jump at two-second or ﬁ ve-second intervals to indicate that battery power is low,

and stop completely when the battery is dead. Note that the watch also has a power saving function. For details, see the Operation Guide available at the CASIO website.

E-4

Timekeeping (Current Time and Day Adjustment)

After purchasing the watch, perform the procedure under “Acquiring GPS Position Information”

●

(page E-9).

To set the current time and day, normally use the procedure under “Time Calibration Signal Auto

●

Receive” (page E-13). In areas where a time calibration signal cannot be received for some reason, set the current time and day using the procedure under “GPS Signal Auto Receive” (page E-11).

x Late night (between midnight and 5:00 a.m.): The receive operation starts at regular intervals until

x Daytime (between 6:00 a.m. and 10:00 p.m.):

x Once a time calibration or GPS signal receive operation is successful, no more Auto Receive

operations are performed that day.

If the current time setting is not correct, perform the procedure under “Receiving GPS Time

●

Information” (page E-10).

If you move into another time zone, perform the procedure under “Acquiring GPS Position

●

Information”. Next, perform one of the procedures under “Time Calibration Signal Auto Receive”, “GPS Signal Auto Receive”, or “Receiving GPS Time Information” to set the current time and day.

x GPS and time calibration signal reception is not possible when the watch’s temperature is less

than approximately –10°C (14°F) or greater than approximately 60°C (140°F).

receive is successful (Time Calibration signal).

The receive operation will start automatically when the watch is continually expose to light (GPS).

x If timekeeping stops, you will need to expose the watch to light for anumber of hours before it will

restart.

x The watch will not charge if its temperature is –10°C (14°F ) or lower, or around 60°C (140°F ) or

higher.

x If the watch is not charged for more than about three months after it stops running due to low power,

over-discharge will occur, which may make recharging impossible.

x Even if you are unable to perform a GPS signal and/or time calibration signal receive operation for

some reason, the watch will keep time with average monthly accuracy of ±15 seconds.

Important!

x If the current time and day setting is wrong after you perform one of the procedures under “Time

Calibration Signal Auto Receive”, “GPS Signal Auto Receive”, or “Receiving GPS Time Information”, try acquiring position information (GPS) and then perform the time/day setting procedure again.

x If you feel that the current time and/or day indicator are not in the correct positions, you can adjust

their alignment. For details, see the Operation Guide available at the CASIO website.

x Time calibration signal reception is normally possible in the areas below.

Japan, China, North America, Europe For details, see the Operation Guide available at the CASIO website.

x For details about the following operations, see the Operation Guide available at the CASIO website:

guring Home City (time zone), summer time, current time, and current day settings manually.

Conﬁ http://world.casio.com/support/

E-3

E-5

E-6

E-7B

User’s Guide 5411 (MRG)

Timekeeping (Based on GPS Signals)

Appropriate Signal Reception Location (GPS Signal)

When performing GPS signal reception, move the watch outside where there is a clear view of the sky above, with no obstructing buildings, trees, or other objects.

Note

x If you experience signal reception problems, keep the

watch still and point its display straight up at the sky.

x While a receive operation is being performed, take care

to avoid covering the watch face with your sleeve.

x You may experience GPS signal reception problems in

the areas described below.

- Where the view of the sky above is narrow

- Near trees or buildings

- Near a train station, airport, or other congested areas

x GPS signal reception is not possible in the areas described below.

- Where the sky is not visible

- Underground or in a tunnel

- Indoors (Reception may be possible near a window.)

- Near wireless communication equipment or other devices that generate magnetism

E-8

◆ Receiving GPS Time Information

Perform this operation when you suspect that the time normally indicated by the watch is not correct.

x If the GPS signal time information receive operation is successful the watch will automatically adjust

the current time and day settings of the Home City (time zone).

Important!

x Perform this operation in the Timekeeping Mode (not in the Airplane Mode). See “Mode Reference

Guide” (page E-14).

Second hand

1. Move to a location appropriate for signal reception and orient the watch so its display is pointed straight up at the sky. See “Appropriate Signal Reception Location (GPS Signal)” (page E-8).

2. Hold down B for at least one second. Release the button as soon as the second hand points to T (TIME).

x Reception normally takes anywhere from seven seconds to one



minute. It can take as long as 13 minutes.

x When the receive operation is successful, the watch will adjust its

current time and day settings automatically.

x This operation requires large amounts of power. Perform it only

when necessary.

Performing a GPS Signal Receive Operation Manually

◆ Acquiring GPS Position Information

When position information is acquired successfully, the watch is able to determine its current location and adjust its time and day setting accordingly.

Important!

x Perform this operation in the Timekeeping Mode (not in the Airplane Mode). See “Mode Reference

Guide” (page E-14).

1. Move to a location appropriate for signal reception and orient the watch so its face is pointing straight upwards.

x See “Appropriate Signal Reception Location (GPS Signal)” (page E-8).

Mode hand

Second hand

2. Hold down B for at least three seconds until the second hand moves

T+P. If the second hand moves to any other position besides T+P,

to keep B depressed until it moves to T+P.

x Position information reception takes anywhere from about 30

seconds to two minutes. It can take as long as 13 minutes.

x Successful acquisition of position information will automatically

display the time and day for the resulting location.



x In the normal (not Airplane Mode) Timekeeping Mode, the mode

hand indicates the current day of the week.

x Position information acquisition requires large amounts of power.

Perform the acquisition operation only when it is required.

GPS Signal Auto Receive

Important!

x Perform the signal receive operation in the Timekeeping Mode (not in the Airplane Mode). See “Mode

Reference Guide” (page E-14).

GPS signal time information is received automatically whenever all of the conditions described

●

below are satisﬁ ed.

- The current time is between 6:00 a.m. and 10:00 p.m.

- The face of the watch has been exposed continuously for about one or two minutes to light equivalent to the brightness near a window on a clear day.

- All time calibration signal receive operations performed during the previous night were unsuccessful.

E-9

E-10

Timekeeping (Based on a Time Calibration Signal)

Appropriate Signal Reception Location (Time Calibration Signal)

x Keep the watch away from metal and position it so its 12 o’clock side is

facing a window. Avoid moving the watch as much as possible and do not perform any watch operations while a signal receive operation is in progress.

You may experience time calibration signal reception problems in

●

the areas described below.

- Among or near buildings

- While riding in a vehicle

- Near household appliances, ofﬁ ce machines, mobile phones, etc.

- On a construction site, in an airport, or any other location where radio wave interference occurs

- Near high-voltage lines

- In mountainous areas or behind a mountain

x Always check the time setting on the day there should be switch between

standard time and summer time (DST). If the setting is not correct (due to signal reception failure), turn DST on or off manually as required.

E-12

12 o’clock

Mode Reference Guide

x Use C to navigate between modes.

Timekeeping Mode

x In the Timekeeping Mode (not in the Airplane Mode), the mode hand will point to the

current day of the week.

x In the Airplane Mode, the day of the week hand points to the airplane (

of the day of the week.

24-hour hand

World Time minute hand

C B

World Time hour hand

Hour hand

Second hand

Minute hand



Day Indicator

Day of the week hand

Crown

x Pressing A turns on the

illumination.

x To check the last receive result,

press B once.

x Holding down B for about one

second will start a GPS time information receive operation.

x Holding down B for about three

seconds will start a GPS position information acquisition operation.

x Press C once to enter the

Stopwatch Mode.

) mark instead

Time Calibration Signal Auto Receive

Important!

x To perform time calibration signal auto receive, the watch must be in the Timekeeping Mode (not in the

Airplane Mode). See “Mode Reference Guide” (page E-14).

Leave the watch in a location that is appropriate for time calibration signal reception between

●

the hours of midnight and 5:00 a.m. See “Appropriate Signal Reception Location (Time Calibration Signal)” (page E-12).

x The second hand will point to RC while time calibration signal reception is in progress. x Reception normally takes anywhere from about two to ten minutes, but it can take as long as

20minutes.

x When the receive operation is successful, the time and day settings will be adjusted automatically.

x Holding down C for two seconds in any mode returns to the Timekeeping Mode.

Stopwatch Mode

Stopwatch 1/20 (0.05)-second hand

Points to ST

x Start x Stop

x Reset

Stopwatch minute hand (0 to 24 minutes)

Stopwatch second hand

Countdown Timer

Seconds

0 to 24 hours

Mode

Points to TR

Minutes

x Start x Stop

x Reset

Alarm Mode

Points to AL

Hour

x Illumination

x Alarm

ON/OFF

Minute

E-11C

E-13

E-14

E-15
