Operation Guide 5073
1
MA0905-EA
Congratulations upon your selection of this CASIO watch.
This watch does not have a city code that corresponds to the UTC offset of –3.5
hours. Because of this, the radio-controlled atomic timekeeping function will not
display the correct time for Newfoundland, Canada.
Note that CASIO COMPUTER CO., LTD. assumes no responsibility for any
damage or loss suffered by you or any third party arising through the use of this
product or its malfunction.
About This Manual
Button operations are indicated using the letters A
through D shown in the illustration.
Hand Functions
Regular timekeeping
z Hour Hand
x Second Hand
c Minute Hand
v Day of the Week Hand
b Day
World Time
n World Time Hour Hand: Indicates the current time in the World Time City in
24-hour format.
m World Time Minute Hand
This User’s Guide uses numbers shown above to identify watch hands and indicators.
Things to check before using the watch
1. Hold down C for about two seconds to enter regular timekeeping, and then
observe the movement of the
x Second Hand.
Is the x Second Hand moving smoothly at one-second intervals?
Is the x Second Hand moving at
two-second intervals or is it stopped
completely?
Go to step 2.
The watch is charged sufficiently.
For details about charging, see
“Charging the Watch”.
Power is low. Charge the watch by placing
it in a location where it is exposed to light.
For details, see “Charging the Watch”.
NO
YES
YES
NEXT
2. Check the Home City and the daylight saving time (DST) setting.
Use the procedure under “To configure Home City settings” to configure your Home
City and daylight saving time settings.
Important!
Proper time calibration signal reception and World Time settings depend on correct
Home City, Home Time, and Home Date settings. Make sure you configure these
settings correctly.
3. Set the current time.
To set the time using a time calibration signal •
See “To get ready for a receive operation”.
To set the time manually •
See “Configuring Current Time and Date Settings Manually”.
The watch is now ready for use.
For details about the watch’s radio controlled timekeeping feature, see “Radio
Controlled Atomic Timekeeping”.
Charging the Watch
The face of the watch is a solar cell that generates power from light. The generated
power charges a built-in rechargeable battery, which powers watch operations. The
watch charges whenever it is exposed to light.
Charging Guide
Whenever you are not
wearing the watch, leave
it in a location where it is
exposed to light.
Best charging •
performance is achieved
by exposing the watch to
light that is as strong as
possible.
When wearing the watch,
make sure that its face is
not blocked from light by the
sleeve of your clothing.
The watch may enter a •
sleep state if its face is
blocked by your sleeve
even only partially.
Warning!
Leaving the watch in bright light for charging can cause it to become quite hot.
Take care when handling the watch to avoid burn injury. The watch can become
particularly hot when exposed to the following conditions for long periods.
On the dashboard of a car parked in direct sunlight •
Too close to an incandescent lamp •
Under direct sunlight •
Important!
Keep the watch in an area normally exposed to bright light when storing it for long •
periods. This helps to ensure that power does not run down.
Storing the watch for long periods in an area where there is no light or wearing it in •
such a way that it is blocked from exposure to light can cause power to run down.
Make sure that the watch is exposed to bright light whenever possible.
B +
56 *@>
Power Levels
B +
@ *
Moves at two-second
intervals.
You can get an idea of the watch’s power level by
observing the movement of the
x Second Hand.
If the • x Second Hand is moving normally at one-second
intervals, power is at Level 1.
If the •
x Second Hand is moving at two-second intervals,
power is at Level 2, which is quite low. Expose the watch
to light as soon as possible so it can charge.
Level Hand Movement Function Status
1 Normal All functions enabled
2
x Second Hand moves at two-second
intervals.
b Day changes to 1 (home position).
Time calibration signal reception
disabled
3
x Second Hand stopped.
z Hour Hand and c Minute Hand stopped
at 12 o’clock.
All functions disabled
When power drops to Level 3, all functions will be disabled but the watch will •
continue to keep time internally for about one week. If you recharge the battery
sufficiently during this period, the analog hands will move automatically to the
correct setting and regular timekeeping will resume. After one week, all settings
(including timekeeping) will be cleared. Recharging the battery will reset all settings
to their initial factory defaults.
Charging Times
Exposure Level (Brightness)
Daily
Operation
*1
Level Change *2
Level 3 Level 2 Level 1
Outdoor sunlight (50,000 lux) 8 min. 2 hours 24 hours
Window sunlight (10,000 lux) 30 min. 6 hours 89 hours
Window sunlight on cloudy day
(5,000 lux)
48 min. 9 hours 145 hours
Indoor fluorescent lighting (500 lux) 8 hours 98 hours – – –
1 Approximate exposure each day to generate power for normal daily operation *
2 Approximate exposure to take power up one level *
The above times are for reference only. Actual times depend on lighting conditions. •
For details about the operating time and daily operating conditions, see the “Power •
Supply” section of the Specifications.
Power Saving
Power Saving enters a sleep state automatically whenever the watch is left for a
certain period in an area where it is dark. The table below shows how watch functions
are affected by Power Saving.
There actually are two sleep state levels: “second hand sleep” and “function sleep”. •
Elapsed Time in Dark Operation
60 to 70 minutes
(second hand sleep)
x Second Hand only stopped at 12 o’clock, all other
functions enabled
6 or 7 days (function sleep)
All functions, including analog timekeeping, disabled •
Internal timekeeping maintained •
The watch will not enter a sleep state between 6:00 AM and 9:59 PM. If the watch •
is already in a sleep state when 6:00 AM arrives, however, it will remain in the sleep
state.
To recover from the sleep state
Move the watch to a well-lit area or press any button.
Radio Controlled Atomic Timekeeping
This watch receives a time calibration signal and updates its time setting accordingly.
However, when using the watch outside of areas covered by time calibration signals,
you will have to adjust the settings manually as required. See “Configuring Current
Time and Date Settings Manually” for more information.
This section explains how the watch updates its time settings when the city code
selected as the Home City is in Japan, North America, Europe, or China, and is one
that supports time calibration signal reception.
If your Home City Code setting
is this:
The watch can receive the signal from the
transmitter located here:
LON, PAR, ATH Anthorn (England), Mainflingen (Germany)
HKG Shangqiu City (China)
TYO Fukushima (Japan), Fukuoka/Saga (Japan)
HNL, ANC, LAX, DEN, CHI, NYC Fort Collins, Colorado (United States)
Important!
The areas covered by • HNL and ANC are quite far from the calibration signal
transmitters, so certain conditions may cause reception problems.
When • HNL or HKG is selected as the Home City, only the time and date are
adjusted according to the time calibration signal. You need to switch manually
between standard time and daylight saving time (DST) if required. See “To toggle
the Home City time between standard time and daylight saving time” for information
about how to do this.
Operation Guide 5073
2
Approximate Reception Ranges
UK and German Signals
Anthorn
500 kilometers
1,500 kilometers
Mainflingen
The Anthorn signal is receivable
within this area.
North American Signal
2,000 miles
(3,000 kilometers)
600 miles
(1,000 kilometers)
Fort Collins
Japanese Signal
Fukushima
500 kilometers
1,000 kilometers
Fukuoka/Saga
Chinese Signal
1,500 kilometers
Changchun500 kilometers
Beijing
Shangqiu
Shanghai
Chengdu
Hong Kong
Even when the watch is within range of a transmitter, signal reception may be •
impossible due to the effects of geographic contours, structures, weather, the time
of year, the time of day, radio interference, etc. The signal becomes weaker at
distances of approximately 500 kilometers, which means that the influence of the
above conditions becomes even greater.
Signal reception may not be possible at the distances noted below during certain •
times of the year or day. Radio interference may also cause problems with
reception.
Mainflingen (Germany) or Anthorn (England) transmitters: 500 kilometers −
(310 miles)
Fort Collins (United States) transmitter: 600 miles (1,000 kilometers) −
Fukushima or Fukuoka/Saga (Japan) transmitters: 500 kilometers (310 miles) −
Shangqiu (China) transmitter: 500 kilometers (310 miles) −
As of January 2009, China does not use Daylight Saving Time (DST). If China does •
go to the Daylight Saving Time system in the future, some functions of this watch
may no longer operate correctly.
To get ready for a receive operation
Check to make sure the watch is in the regular timekeeping mode. If it isn’t, hold 1.
down C for about two seconds to enter the regular timekeeping mode.
The antenna of this watch is located on its 6 o’clock side. Position the watch with 2.
6 o’clock facing towards a window as shown in the nearby illustration. Make sure
there are no metal objects nearby.
6 o’clock
or
Signal reception normally is better •
at night.
The receive operation takes from •
two to seven minutes, but in some
cases it can take as long as 14
minutes. Take care that you do not
perform any button operation or
move the watch during this time.
Signal reception may be difficult or even impossible under the conditions •
described below.
Inside or
among
buildings
Inside a
vehicle
Near
household
appliances,
office
equipment,
or a mobile
phone
Near a
construction
site, airport,
or other
sources of
electrical
noise
Near
high-tension
power lines
Among
or behind
mountains
What you should do next depends on whether you are using Auto Receive or 3.
Manual Receive.
Auto Receive: Leave the watch over night in the location you selected in step 2. •
See “Auto Receive” for details.
Manual Receive: Perform the operation under “To perform manual receive”. •
Auto Receive
With Auto Receive, the watch performs the receive operation each day •
automatically up to six times (up to five times for the Chinese calibration signal)
between the hours of midnight and 5 a.m. (according to the Home City time). When
any receive operation is successful, none of the other receive operations for that
day are performed.
The receive operation is not performed if a calibration time is reached while you are •
configuring settings.
To perform manual receive
In the regular timekeeping mode, keep 1. A depressed (for about two seconds) as
the
x Second Hand goes through the following sequence.
Moves to the last signal reception result ( • Y or N), then to READY (or R for some
models).
The 2.
x Second Hand indicates the operations the watch is currently performing.
@
When the x Second
Hand is pointed here:
It means this:
READY (R) Watch is setting up for reception.
WORK (W) Reception is in progress.
YES (Y)
Reception was completed
successfully.
NO (N) Reception failed for some reason.
If signal reception is unstable, the • x Second Hand may
move between WORK (W) and READY (R).
The receive operation is complete when the 3.
x Second
Hand moves to YES (Y) or NO (N) for about five
seconds, and then resumes regular timekeeping.
When the receive operation is successful, the watch •
adjusts the time setting accordingly. It does not adjust
the setting if the operation failed.
Note
To interrupt a receive operation and return to the regular •
timekeeping, press any button.
If the •
x Second Hand is pointing to YES (Y) or NO (N),
you can return to regular timekeeping by pressing A.
To check the result of the latest receive operation
In the regular timekeeping mode, press A.
The •
x Second Hand will move to YES (Y) for five
seconds if the latest receive operation was successful,
or NO (N) if it was not. After that, regular timekeeping
will resume.
Note
The •
x Second Hand will indicate NO (N) if you have
adjusted the time or date setting manually since the
latest receive operation.
If the •
x Second Hand is pointing to YES (Y) or NO (N),
you can return to regular timekeeping by pressing A.
Radio-controlled Atomic Timekeeping Precautions
Strong electrostatic charge can result in the wrong time setting. •
Even if a receive operation is successful, certain conditions can cause the time •
setting to be off by up to one second.
The watch is designed to update the date and day of the week automatically for •
the period January 1, 2000 to December 31, 2099. Updating of the date by signal
reception will no longer be performed starting from January 1, 2100.
If you are in an area where signal reception is not possible, the watch keeps time •
with the precision noted in “Specifications”.
The receive operation is disabled under any of the following conditions. •
While power is at Level 2 or lower −
When the watch is in the function sleep state (“Power Saving”) −
Mode Reference Guide
Your watch has two timekeeping modes, and a number of setting modes. The
timekeeping mode you should select depends on what you want to do.
To do this: Enter this mode:
View the current time in your Home City and in one of 29 •
other cities around the globe
View the current date in the Home City •
Configure Home City and daylight saving time (DST) •
settings
Perform a time calibration receive operation •
Configure time and date settings manually •
Regular timekeeping mode
Select one of 29 cities (time zones) around the world and •
view the current time there.
Select daylight saving/summer time (DST) or standard time •
for a time zone
World Time setting mode
Selecting a Mode
With this watch, everything starts from the regular timekeeping mode.
To determine the watch’s current mode
Check the position of the
v Day of the Week Hand as
shown under “To select a mode”.
To return to the regular timekeeping mode from
another mode
Hold down C for about two seconds until the
x Second
Hand stops and then starts moving again.
@
@
>@

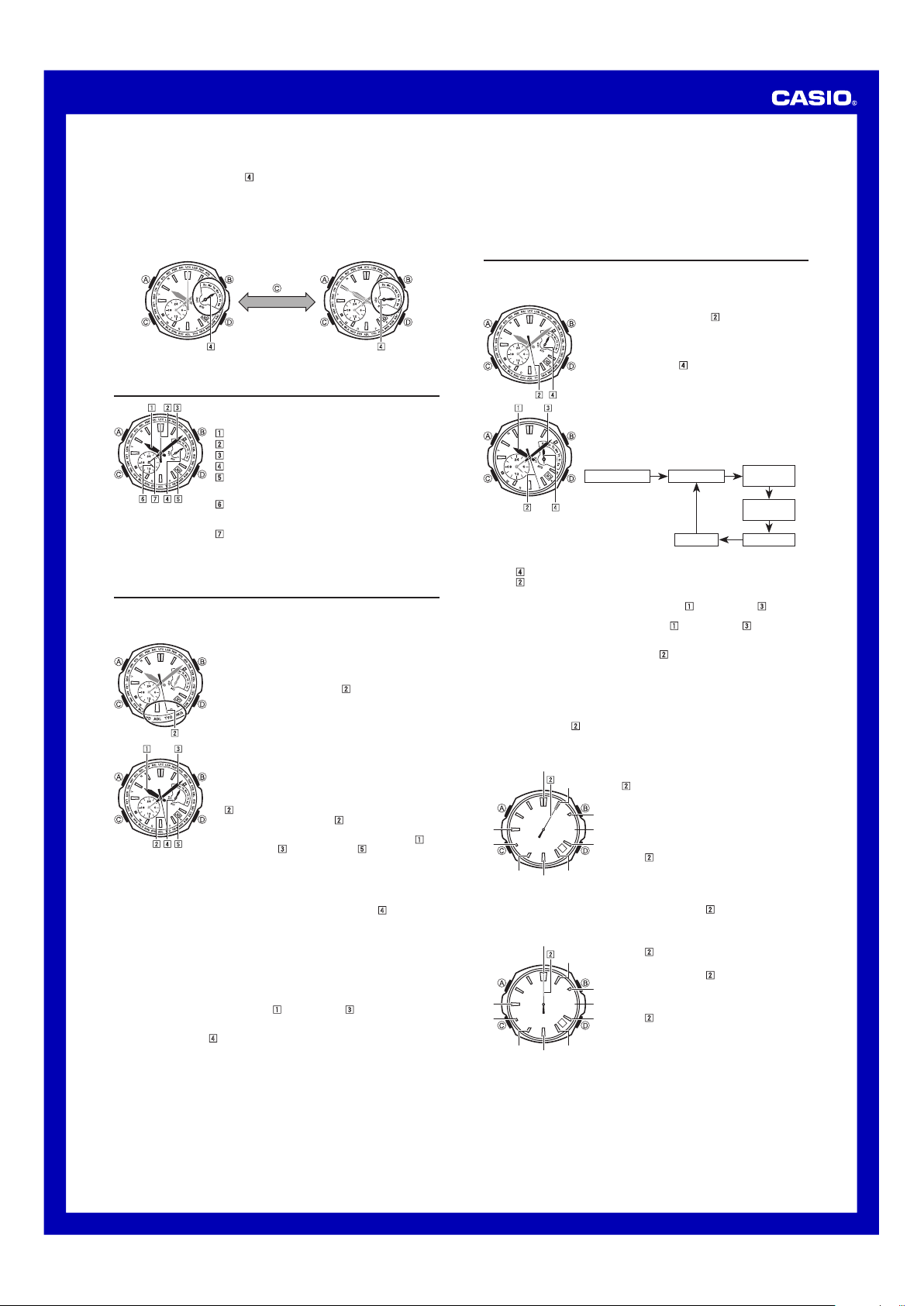

Operation Guide 5073
3
To select a mode
Starting from the regular timekeeping mode, press C to toggle between the regular
timekeeping mode and the World Time setting mode. You can tell what mode is
currently selected by checking the v Day of the Week Hand, as described below.
Regular timekeeping mode
The hand indicates the day of the
week (Su, Mo, Tu, We, Th, Fr, Sa).
World Time setting mode
In the World Time setting mode, the
short end of the hand indicates whether
the time for the currently selected
World Time City is standard time (STD)
or daylight saving/summer time (DST).
> >
Timekeeping
Hand Functions
Regular timekeeping
z Hour Hand
x Second Hand
c Minute Hand
v Day of the Week Hand
b Day
World Time
n World Time Hour Hand: Indicates the current time in
the World Time City in 24-hour
format.
m World Time Minute Hand
To return to regular timekeeping from any other mode or function, hold down • C for
about two seconds.
Configuring Home City Settings
There are two Home City settings: actually selecting the Home City and selecting
either standard time or daylight saving time (DST).
To configure Home City settings
Note
This watch does not have a city code that corresponds •
to Newfoundland.
In the regular timekeeping mode, keep 1. A depressed
(for about five seconds) as the
x Second Hand goes
through the following sequence.
Moves to the last signal reception result ( • Y or N), then
to READY (or R for some models), and then to the city
code of the currently selected Home City.
This is the city code setting mode. •
The watch will exit the setting mode automatically if •
you do not perform any operation for about two or
three minutes.
For details about city codes, see the “City Code •
Table”.
To change the Home City setting, press 2. D to move the
x Second Hand clockwise.
Keep pressing • D until the
x Second Hand is pointing
at the city code you want to select as your Home City.
Each time you change the city code setting, the •
z
Hour Hand,
c Minute Hand and b Day move to
the current time and date for that city code. Do not
perform the next operation until these hands stop
moving.
Press 3. B to toggle the time for the currently selected city code between STD
(standard time)/DST (daylight saving time).
While you are selecting the Home City code, the short end of the •
v Day of the
Week Hand will indicate whether the currently selected city code is configured
for standard time (STD) or daylight saving/summer time (DST).
Note that you cannot switch between • STD (standard time)/DST (daylight saving
time) while UTC is selected as your Home City.
After all the settings are the way you want, press 4. A to return to regular
timekeeping.
To toggle the Home City time between standard time and daylight saving time
Perform the step 1 under “To configure Home City settings”.1.
Each time you select a city code, the •
z Hour Hand and c Minute Hand move to
the current time for that city code. Do not perform the next operation until these
hands stop moving.
The short end of the •
v Day of the Week Hand will indicate whether the currently
selected city code is configured for standard time (STD) or daylight saving/
summer time (DST).
Press 2. B to toggle the time for the city code of the currently selected Home City
between STD (standard time)/DST (daylight saving time).
Note that you cannot switch between • STD (standard time)/DST (daylight saving
time) while UTC is selected as your Home City.
After all the settings are the way you want, press 3. A to return to regular
timekeeping.
B +@
56 *>
@
B +
>@ *
Note
After you specify a city code, the watch will use UTC* offsets to calculate the •
World Time based on the current time in your Home City.
Coordinated Universal Time, the world-wide scientific standard of timekeeping. *
The reference point for UTC is Greenwich, England.
Selecting some city codes automatically makes it possible for the watch to •
receive the time calibration signal for the corresponding area. See “Radio
Controlled Atomic Timekeeping” for details.
Configuring Current Time and Date Settings Manually
You can configure current time and date settings manually when the watch is unable
to receive a time calibration signal.
To change the current time setting manually
In the regular timekeeping mode, keep 1. A depressed
(for about five seconds) as the
x Second Hand goes
through the following sequence.
Moves to the last signal reception result ( • Y or N), then
to READY (or R for some models), and then to the city
code of the currently selected Home City.
The short end of the •
v Day of the Week Hand will
indicate whether the currently selected city code is
configured for standard time (STD) or daylight saving/
summer time (DST).
Change the Home City and daylight saving time (DST) 2.
settings, if you want.
For details about these settings, see steps 2 and 3 •
under “To configure Home City settings”.
In the following steps, each press of • C cycles
between settings as shown below.
Home city/DST Hour/Minute
Year
(tens digit)
Day Month
Year
(ones digit)
Press 3. C.
The •
v Day of the Week Hand will move to Su. This is the time setting mode.
The •
x Second Hand indicates whether the current time is a.m. (A) or p.m. (P).
Use 4. D (+) and B (–) to change the time (hour and minute) setting.
Each press of either button will move the hands ( •
z Hour Hand and c Minute
Hand) to one minute.
Holding down • D or B will start high-speed
z Hour Hand and c Minute Hand
movement in the applicable direction. To stop high-speed hand movement,
press any button.
When setting the time, make sure that the •
x Second Hand is in the correct
A (a.m.) or P (p.m.) position for the time you are setting.
If you want to change the date setting at this time, press • C and perform the
procedure starting from step 3 under “To change the current date setting
manually”.
After the time setting is the way you want, press 5. A to return to regular
timekeeping.
This will cause the •
x Second Hand to move automatically to 12 o’clock and
resume movement from there.
To change the current date setting manually
@
00
50
10
40
20
3090
60
80
70
Setting the year (tens digit)
In the regular timekeeping mode, keep 1. A
depressed (for about five seconds) as the
x Second Hand goes through the following
sequence.
Moves to the last signal reception result ( • Y or
N), then to READY (or R for some models),
and then to the city code of the currently
selected Home City.
Press 2. C twice.
The •
x Second Hand will move to the tens digit
of the current year setting. This is the year
setting mode.
The year can be set in the range of 2000 to •
2099.
Press 3. D to move the
x Second Hand clockwise
until it is pointing at the year tens digit you want
to select.
@
0
5
1
4
2
39
6
8
7
Setting the year (ones digit)
After you select the year tens digit, press 4. C.
The • x Second Hand will move to the ones digit
of the current year.
Press 5. D to move the
x Second Hand clockwise
until it is pointing at the year ones digit you want
to select.
After you select the year ones digit, press 6. C.
The •
x Second Hand will move to the currently
selected month. This is the month setting
mode.
@ >
B +
@ >
Operation Guide 5073
4
Setting the month
@
Dec
May
Jan
Apr
Feb
MarSep
Jun
Aug
Jul
Oct
Nov
Use 7. D to move the x Second Hand to the
month setting you want.
After the month setting is the way you want, 8.
press C.
•
The x Second Hand will move to 12 o’clock,
and the watch will enter the day setting
mode.
Use 9. D (+) and B (–) to change the b Day setting.
If you want to change the time setting at this time, •
press C and then perform the procedure starting
from step 3 under “To change the current time setting
manually”.
After the settings are the way you want, press
10.
A to
return to regular timekeeping.
•
This will cause the x Second Hand to move automatically
to 12 o’clock and resume movement from there.
The day of the week indicated by the • v Day of the
Week Hand changes automatically in accordance with
the date (year, month, and day).
Note
The watch’s built-in full automatic calendar makes allowances for different month •
lengths and leap years. Once you set the date, there should be no reason to
change it except after you have the watch’s rechargeable battery replaced or
after power drops to Level 3.
Checking the Current Time in a Different Time Zone
You can use World Time to view the current time in one of 29 time zones around the
globe. The currently selected city is called the “World Time City”.
Hand Functions
n World Time Hour Hand:
Indicates the current time in the World Time City in
24-hour format.
m World Time Minute Hand
Changing the World Time City
Starting from the regular timekeeping mode, press C to enter the World Time setting
mode. You can use the World Time setting mode to select a World Time City, and to
specify daylight saving/summer time (DST) or standard time for the selected city.
Hand Functions
x Second Hand: Indicates the currently selected World
Time City.
v Day of the Week Hand:
The short end of the hand indicates whether the time
for the currently selected World Time City is standard
time (STD) or daylight saving/summer time (DST).
n World Time Hour Hand:
Indicates the current time in the World Time City in
24-hour format.
m World Time Minute Hand
To view the time in another time zone
In the regular timekeeping mode, press 1. C to enter the World Time setting mode.
The •
x Second Hand will move to 12 o’clock, and then to the city code of the
currently selected World Time City. The
v Day of the Week Hand will move to
Su momentarily, and then the short end of the hand will move to STD (standard
time) or DST (daylight saving/summer time).
Use 2. D to move the
x Second Hand to the city code you want to select as the
World Time City.
The •
n World Time Hour Hand and m World Time Minute Hand will move to the
current time in the time zone of the current city code. At this time, the
z Hour
Hand and
c Minute Hand will continue to indicate the current time in the Home
City.
For full information on city codes, see the “City Code Table”. •
If you think that the time indicated for the selected time zone is not correct, it •
probably means that there is something wrong with your Home City settings.
Use the procedure under “To configure Home City settings” to correct the Home
City settings.
Press 3. C to return to regular timekeeping.
*
@ >
56
56
>
@
To specify standard time or daylight saving time (DST) for a city
>65
Hold down
A for two
seconds
In the regular timekeeping mode, press 1. C to enter the
World Time setting mode.
Use 2. D to select the city code whose setting you want
to change.
Wait until the •
n World Time Hour Hand and
m World Time Minute Hand complete their move
to the time in the currently selected World Time
City. You will not be able to perform step 3 of this
procedure until the hands stop moving.
Hold down 3. A for about two seconds until the short
end of the v Day of the Week Hand toggles to STD
(standard time) or DST (daylight saving/summer time).
Note that you cannot switch between • STD (standard
time)/DST (daylight saving/summer time) while UTC
is selected as the World Time City.
Note that the • STD (standard time)/DST (daylight
saving/summer time) setting affects only the
currently selected time zone. Other time zones are
not affected.
Press 4. C to return to regular timekeeping.
Swapping your Home City and World Time City
You can use the procedure below to swap your Home City and World Time City. This
capability can come in handy when you frequently travel between two locations in
different time zones.
The following example shows what happens when the Home City and World Time
City are swapped while the Home City originally is TYO (Tokyo) and the World Time
City is NYC (New York).
Home City World Time City
Before swapping TYO NYC
After swapping NYC TYO
To swap your Home City and World Time City
In the regular timekeeping mode, press 1. C to enter the
World Time setting mode.
Use 2. D to select the World Time City you want.
In this example, you would move the •
x Second Hand
to NYC in order to select New York as the World
Time City.
Wait until the •
n World Time Hour Hand and m World
Time Minute Hand complete their move to the time in
the currently selected World Time City. You will not
be able to perform step 3 of this procedure until the
hands stop moving.
Hold down 3. B for about three seconds until the
x Second Hand starts to move.
This will make the World Time City ( • NYC in this
example) your new Home City. At the same time, it will
change the Home City you had selected prior to step
3 (TYO in this example), your World Time City.
After swapping the Home City and World Time City, •
the
x Second Hand will point to your new World Time
City (TYO in this example).
The •
n World Time Hour Hand and m World Time
Minute Hand will indicate the current time in your new
World Time City.
Press 4. C to return to regular timekeeping.
Note
If your current World Time City supports time calibration signal reception, making •
it your Home City enables calibration signal reception for that city.
Adjusting Home Positions
Strong magnetism or impact can cause the hands and/or date of the watch to be
off, even if the watch is able to perform the signal receive operation. If this happens,
perform the applicable home position adjustment procedures in this section.
Note
Any time after you enter the home position adjustment mode in step 1 of the following
procedure, you can return to regular timekeeping by pressing A. The watch also
will return to regular timekeeping automatically if you do not perform any operation
for about two or three minutes in the home position adjustment mode. In either case,
any adjustments you made before the watch returned to regular timekeeping will be
applied.
To adjust the home positions
Hold down 1. C for about two seconds until the
x Second Hand stops and then
starts moving again.
Hold down 2. D for about three seconds.
The •
x Second Hand will start to move when you first
press D. Keep D depressed until the
x Second
Hand stops.
The watch is now in the home position adjustment •
mode.
The watch will exit the home position adjustment mode •
automatically if you do not perform any operation for
about two or three minutes.
First is •
x Second Hand home position adjustment.
If the •
x Second Hand moves to 12 o’clock, it is in the
correct home position. If it doesn’t, use D to move it
to 12 o’clock.
Each press of • C in the home position adjustment mode will cycle through the
adjustment settings as shown below.
x Second z Hour/ c Minute
n World Time Hour/
m World Time Minute
v Day of the Weekb Day
@
6 5
@
@
Operation Guide 5073
5
After confirming that the 3. x Second Hand is at the proper
home position, press C. This will switch to
z Hour
Hand and
c Minute Hand home position adjustment.
The •
z Hour Hand and c Minute Hand are at their
proper home positions if they both move to 12 o’clock.
If the hands are not positioned correctly, use D
(+) and B (–) to move them to their proper home
positions.
After confirming that the 4.
z Hour Hand and c Minute Hand are in their correct
home positions, press C. This will switch to
n World Time Hour Hand and m
World Time Minute Hand home position adjustment.
The •
n World Time Hour Hand and m World Time Minute Hand are at their
proper home positions if they both move to 24. If the hands are not positioned
correctly, use D (+) and B (–) to move them to 24.
After confirming that the 5.
n World Time Hour Hand and m World Time Minute
Hand are in the correct home position, press C. This will advance to
v Day of the
Week Hand home position adjustment.
The •
v Day of the Week Hand is in the correct home position if it is pointing at
Su. If it isn’t, use D (+) and B (–) to move it to Su.
After confirming that the 6.
v Day of the Week Hand is in
the correct home position, press C. This will advance to
b Day home position adjustment.
The •
b Day is in the correct home position if it
shows 1. If it doesn’t, use D (+) and B (–) to change
the day to 1.
Press 7. A to return to regular timekeeping.
The •
b Day moves to the current day, and then the z
Hour Hand and the
c Minute Hand will move to the
current time. Wait until everything stops moving.
Troubleshooting
Hand Movement and Position
The
x Second Hand is moving at two second intervals.
All the watch’s hands are stopped at 12 o’clock and none of the buttons work.
Power may be low. Expose the watch to light until the
x Second Hand starts moving
normally, at one-second intervals.
The hands of the watch suddenly start moving at high speed, even when I do
not perform any operation.
This could be due to any one of the following causes. In all cases, the hand movement
does not indicate malfunction, and should stop shortly.
The watch is recovering from a sleep state. •
The time setting is being adjusted following a successful auto time calibration •
signal receive operation.
The current time setting is off by hours.
Your Home City setting may be wrong. Check your Home City setting and correct it,
if necessary.
The current time setting is off by one hour.
If you are using the watch in an area where time calibration signal reception is
possible, see “To configure Home City settings”.
If you are using the watch in an area where time calibration signal reception is not
possible, you may need to change your Home City’s STD (standard time)/DST
(daylight saving/summer time) setting manually. Use the procedure under “To toggle
the Home City time between standard time and daylight saving time” to change the
STD (standard time)/DST (daylight saving/summer time) setting.
The hands and/or day indications are off.
This could indicate that the watch has been exposed to magnetism or strong impact,
which has caused problems with proper hand and day alignment. Adjust the watch’s
hand and day home position alignment.
World Time
The World Time indicated by the
n World Time Hour Hand and m World Time
Minute Hand is one hour off from the actual time in the selected time zone.
The STD (standard time)/DST (daylight saving/summer time) setting of the selected
World Time City may be wrong. Select the correct STD (standard time)/DST (daylight
saving/summer time) setting.
The World Time indicated by the
n World Time Hour Hand and m World Time
Minute Hand is off.
Your Home City settings may be wrong. Check your Home City settings and correct
them, if necessary.
Charging
The watch does not resume operation after I expose it to light.
This can happen after the power level drops to Level 3. Continue exposing the watch
to light until the
x Second Hand starts moving normally (at one-second intervals).
The
x Second Hand starts to move at one-second intervals, but then suddenly
returns to moving at two-second intervals.
The watch probably is not sufficiently charged yet. Continue keeping it exposed to
light.
+B
6 5
>
*
Time Calibration Signal
The information in this section applies only when LON, PAR, ATH, HNL, ANC, LAX,
DEN, CHI, NYC, HKG, or TYO is selected at the Home City. You need to adjust the
current time manually when any other city is selected as the Home City.
The
x Second Hand indicates NO (N) when I check the result of the latest
receive operation.
Possible Cause Remedy
You are wearing or moving the watch, or •
performing a button operation during the
signal receive operation.
The watch is in an area with poor reception •
conditions.
Keep the watch in an area where reception
conditions are good while the signal receive
operation is performed.
You are in an area where signal reception is
not possible for some reason.
See “Approximate Reception Ranges”.
The calibration signal is not being transmitted
for some reason.
Check the website of the organization •
that maintains the time calibration signal
in your area for information about its
down times.
Try again later. •
The current time setting changes after I set it manually.
You may have the watch configured for Auto Receive of the time calibration signal,
which will cause the time to be adjusted automatically according to your currently
selected Home City. If this results in the wrong time setting, check your Home City
setting and correct it, if necessary.
The current time setting is off by one hour.
Possible Cause Remedy
Signal reception on a day for switching
between STD (standard time)/DST (daylight
saving/summer time) may have failed for
some reason.
Perform the operation under “To get ready
for a receive operation”. The time setting
will be adjusted automatically as soon as
signal reception is successful.
If you are unable to receive the time
calibration signal, change the STD
(standard time)/DST (daylight saving/
summer time) setting manually.
Auto Receive is not performed or I cannot perform Manual Receive.
Possible Cause Remedy
Your Home City setting is wrong.
Check your Home City setting and correct
it, if necessary.
There is not enough power for signal
reception.
Expose the watch to light to charge it.
Signal reception is being performed successfully, but the time and/or day is
wrong.
Possible Cause Remedy
Your Home City setting is wrong.
Check your Home City setting and correct
it, if necessary.
The watch may have been exposed to
magnetism or strong impact, which has
caused problems with proper hand and day
alignment.
Adjust the watch’s hand and day home
position alignment.
Specifications
Accuracy at normal temperature: ± 15 seconds a month (with no signal calibration)
Timekeeping: Hour, minutes (hand moves every 10 seconds), seconds, day,
day of the week
Calendar system: Full Auto-calendar pre-programmed from the year 2000 to 2099
Other: Home City code (can be assigned one of 29 city codes and Coordinated
Universal Time); Daylight Saving Time (summer time) / Standard Time
Time Calibration Signal Reception: Auto receive up to six times a day (5 times a
day for the Chinese calibration signal; Remaining auto receives
cancelled as soon as one is successful); Manual receive
Receivable Time Calibration Signals:
Mainflingen, Germany (Call Sign: DCF77, Frequency: 77.5 kHz);
Anthorn, England (Call Sign: MSF, Frequency: 60.0 kHz); Fukushima,
Japan (Call Sign: JJY, Frequency: 40.0 kHz); Fukuoka/Saga, Japan
(Call Sign: JJY, Frequency: 60.0 kHz); Fort Collins, Colorado, the
United States (Call Sign: WWVB, Frequency: 60.0 kHz); Shangqiu City,
Henan Province, China (Call Sign: BPC, Frequency: 68.5 kHz)
World Time: 29 cities (29 time zones) and Coordinated Universal Time
Other: Standard Time/Daylight Saving Time (summer time); Home City/World Time
City swapping
Other: Power Saving
Power Supply: Solar cell and one rechargeable battery
Approximate battery operating time: 5 months (no exposure to light after a full
charge; one signal reception of approximately 4 minutes per day)
Operation Guide 5073
6
City Code Table
City
Code
City
UTC Offset/
GMT Differential
PPG Pago Pago –11
HNL Honolulu –10
ANC Anchorage –9
LAX Los Angeles –8
DEN Denver –7
CHI Chicago –6
NYC New York –5
SCL Santiago –4
RIO Rio De Janeiro –3
FEN
Fernando de Noronha
–2
RAI Praia –1
UTC
0
LON London
PAR Paris +1
ATH Athens +2
City
Code
City
UTC Offset/
GMT Differential
JED Jeddah +3
THR Tehran +3.5
DXB Dubai +4
KBL Kabul +4.5
KHI Karachi +5
DEL Delhi +5.5
DAC Dhaka +6
RGN Yangon +6.5
BKK Bangkok +7
HKG Hong Kong +8
TYO Tokyo +9
ADL Adelaide +9.5
SYD Sydney +10
NOU Noumea +11
WLG Wellington +12
Based on data as of December 2008. •
• The rules governing global times (GMT differential and UTC offset) and summer
time are determined by each individual country.
Loading...
