CashCode AMZ-154, AMZ-1100, AMZ-PLUS Installation Instructions Manual

CashCode Co. Inc.

553 Basaltic Road
Concord, Ontario
Canada L4K 4W8

Tel. [phone]
Fax [phone]
Web Site: www.cashcode.com

_____________________________________________________________________

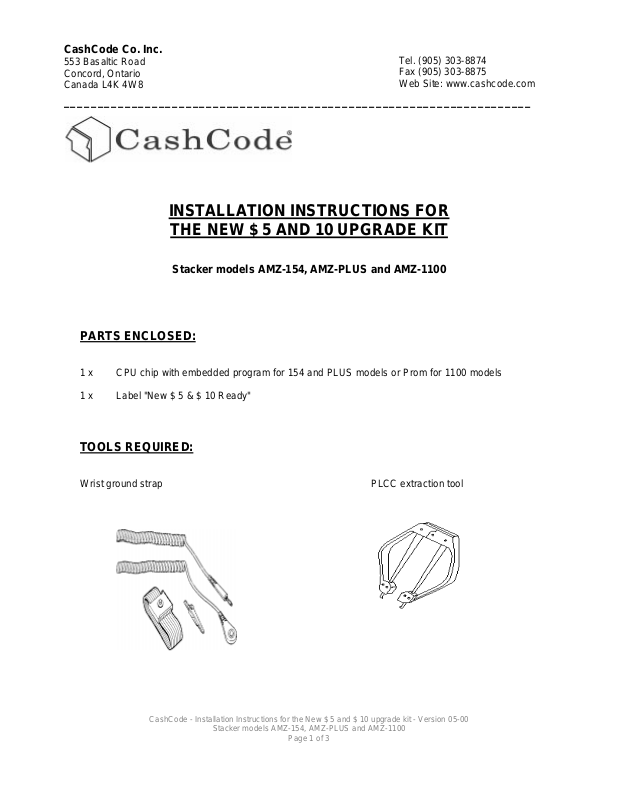

INSTALLATION INSTRUCTIONS FOR

THE NEW $ 5 AND 10 UPGRADE KIT

Stacker models AMZ-154, AMZ-PLUS and AMZ-1100

PARTS ENCLOSED:

1 x CPU chip with embedded program for 154 and PLUS models or Prom for 1100 models
1 x Label "New $ 5 & $ 10 Ready"

TOOLS REQUIRED:

Wrist ground strap PLCC extraction tool

CashCode - Installation Instructions for the New $ 5 and $ 10 upgrade kit - Version 05-00

Stacker models AMZ-154, AMZ-PLUS and AMZ-1100

Page 1 of 3

INSTRUCTIONS:

STEP 1:

plate as marked by the label on the plate).

STEP 2:

STEP 3:

Attach the ground strap to your wrist and the other end with the clip to a metal water

Locate the CPU chip (AMZ-154 and AMZ-PLUS models) or the PROM chip

AMZ-154 and AMZ-PLUS models

Remove banknote cassette from validator and remove metal cover plate (lift cover

'

pipe or electric ground.

(AMZ-1100 models).

IMPORTANT: Note the location of the chamfered edge before you remove the
chip.

AMZ-1100 models

REMOVE THE COVER
BEFORE INSTALLING THE CHIP

CashCode - Installation Instructions for the New $ 5 and $ 10 upgrade kit

Stacker models AMZ-154, AMZ-PLUS and AMZ-1100

Page 2 of 3

STEP 4:

gently squeezing the tool, the chip can be lifted out of the socket. Pay attention to the
fact that one corner of the chip has a chamfered edge. The socket also has a corner to
fit this edge.

CHAMFERED

HOOKS

STEP 5:

Locate the chamfered edge on the new chip, place the new chip in the socket and
press down. NOTE: The chip should go down into the socket with little effort. DO NOT
FORCE IT. DO NOT ALIGN THE CHIP ACCORDING TO THE POSITION OF THE
LABEL. MATCH THE CHAMFERED EDGE.

CPU Chip

Locate the corner slots in the socket and insert the hooks of the extraction tool. While

INSERT

EXTRACTOR
TOOL HOOK INSERT
HERE

EDGE

HERE

EXTRACTOR

TOOL HOOK

Prom Chip

US2A_S30
or
US4A S30

STEP 6:

STEP 7:

DIP switch settings do not change. Re-install the cover plate and your cassette, and

Power up the validator and begin accepting the new $ 5 and $ 10 bills.

NOTE: 24 Volt models use US3B-S30 or US4B-S30 CPU chip.

apply the update sticker to the outside of your validator for reference.

CashCode - Installation Instructions for the New $ 5 and $ 10 upgrade kit

Stacker models AMZ-154, AMZ-PLUS and AMZ-1100

Page 3 of 3

US6R
_S30

CHAMFERED EDGE
