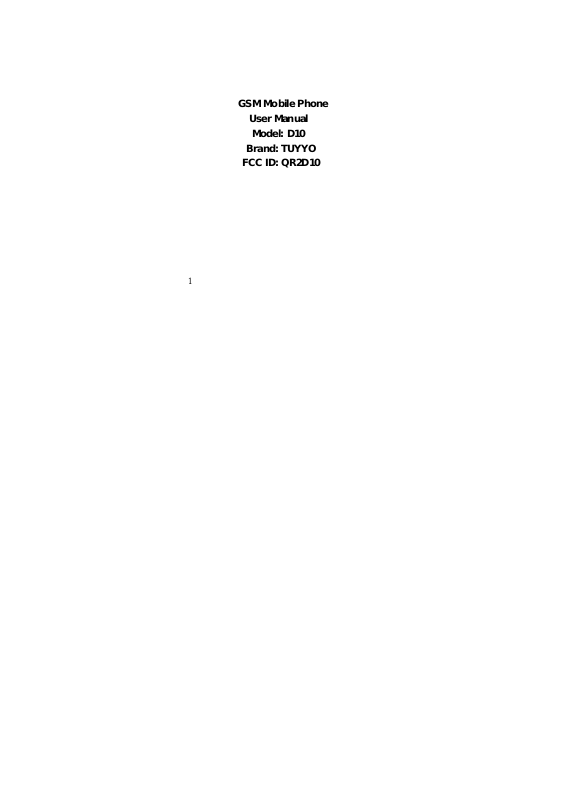

CASERGO D10 User Manual

GSM Mobile Phone

User Manual

Model: D10

Brand: TUYYO

FCC ID: QR2D10

1

1.WARNINGS ......................................................................... - 1 -

2.GETTING STARTED ......................................................... - 2 -

3.YOUR PHONE .................................................................... - 2 -

4.FUNCTION MENU ............................................................ - 3 -

4.1 .CONTACTS ..................................................................... - 4 -

4.2. CALL LOG ...................................................................... - 4 -

4.3.MESSAGE ........................................................................ - 4 -

4.4. SETTINGS ....................................................................... - 5 -

4.5.MULTIMEDIA ................................................................. - 5 -

4.6. FILE MANAGER ........................................................... - 5 -

4.7. APPLICA TION................................................................ - 5 -

4.8. USER PROFILES ........................................................... - 5 -

4.9. TOOLS ............................................................................. - 6 -

5.ENTRY MODE .................................................................... - 6 -

6. CARE AND MAINTENANCE ......................................... - 7 -

7. TECHNICAL INFORMATION ....................................... - 8 -

8.WARNINGS ......................................................................... - 8 -

CONTENT

2

1.Warnings
Not following these simple guideli nes may be dangerous or

illegal. Read the complete user guide for further information.
TURN ON SAFELY
Do not turn on the phone when wireless phone is prohibited or
when it may cause interference or danger.

ROAD SAFETY

Obey all road safety laws. Always use both of your hands to
operate the vehicle while driving.

INTERFERENCE

All wireless phones may be sensitive to interference, which
may affect performance.
TURN OFF IN HOSPIT ALS
Follow all restrictions. Turn off the phone near medical
equipment.

TURN OFF ON AIRCRAFTS

Follow all restrictions . Wireless devi ces can cau se i nt erf eren ce
on aircrafts.

TURN OFF WHEN REFUELING

Do not use the phone at/near refueling stations. Do not use
near fuel or chemicals.

USE SENSIBLY

Only qualified personnel may install or repair this product.
ENHANCEMENTS AND BATTERIES
Use only appropriate enhancements and batteries. Do not
connect incompatible products.

WATER-RESISTANCE

Your phone is not water-resista nt. Keep it dry.

BACKUP COPIES

Remember to make back-up copies or keep a written record of

- 1 -

all important information stored in you r phone.

2.Getting Started

2.1 SIM Card Installation

When you subscribe to a cellular network, you will receive a
plug-in SIM card complete with your subscription details,
such as your PIN, and available optional services.
Caution: Do not bend or scratch your SIM card. Avoid
exposing your SIM card to static electricity, water, or dirt.
Tips：Face the g old color contact poin t of SIM card towards
the cell phone and push the SIM card into the slot.

2.2 Battery Installation
Caution: Install accord ing to the illustration above to avoid

breaking the battery connectors.

2.3 Charging the Battery

Insert the charger; the flas h symbol on the charger p lug must
face upwards.

2.4 T-flash Card

Insert the T-Flash card into phone. This will expand the Flash
memory of the phone. Tap Multimedia menu, you can browse
MP3, MP4, picture, etc.

2.5 USB Cable

You can transfer and store files, such as MP3, MP4 and
pictures from PC, through USB cable, to the U-disk in phone
or identified SD card that is inserted.

3.Your Phone

3.1 Making a Call

In standby mode, press numerical keys to input phone number
to dial phone number. When you finish inputting phone

- 2 -

number, press the dial key、 SIM2 key to make a call. If you're
making a long distance call , add the area code precedi ng the
telephone number. During a call, you can press up/down keys
to adjust volume. Press left soft key to access Options.

3.2 Emergency Service

You can dial an emergency call wit hout th e SIM card . Contact
your service provider to get the emergency call number.

3.3 Answering a Call

When you receive a call, the phone will ring or vibrate and
will display an incoming call indicator. Press the dial key,
SIM2 key or left soft key to answer. Press left soft key to
access options.

3.4 Rejecting/Ending a Call

Press end key to reject an incoming call or end current call.

3.5 Keypad Definition

1. OK key: To confirm

2. Right soft key: To perform the function of the prompt
displayed in lower right corner of the screen.

3. Left soft key: Enter main menu or to perform the function
of the prompt displayed in lower left corner of the screen.
Click the left soft key then * lock the phone

4. Send key: To dial and pickup calls; on standby mode, to see
the record of all calls made.

5. End key: Hold down this key to powe r On/Off.

6.Number keys: To enter numbers and letters

7. * key: cycle according to * keys to switch and input *, +, P,
W , display symbols list in edit mode;

8. # key: long press # key scene mode switch

9.0 key: Long press 0 key open fla shlight

4.Function menu

- 3 -

4.1 .Contacts

You can store contacts' personal information and numbers
while also search for p revio usly s tor ed contact s. P ress l eft so ft
key to access Options.

4.2. Call log

In the call history menu, you can check dialed calls, received
calls, missed calls, rejected calls, delete all, call timers, call
cost, and GPRS counter.

4.3.Message

After entering Messages, in: Templates, Voice Mail Server,
Broadcast Message, SMS Settings and Message capacity.

4.3.1 Write Message

This function can begin a new SMS. After completing the
SMS, press left soft key to access to options.

4.3.2 Inbox

To check received messages in inbox.

4.3.3 Outbox

Checks the information of unsuccessfully sent message in
outbox .

4.3.4 Drafts

Checks the information of unsuccessfully sent message in
drafts .

4.3.5 Sentbox

Checks the information of unsuccessfully sent message in
sentbox .

4.3.6 T e m plates

10 a template for choice

4.3.7 Voice mail server

Edit speech number

4.3.8 Broadcast message

- 4 -

Edit broadcast message list

4.3.9 SMS settings

SMS Broadcast message

4.4. Settings

4.4.1Call settings

Dual-SIM,Network selection,Call divert,Call barred Call
waiting,Hide ID,Select line,Flight mode,Others.

4.4.2 Phone settings

Time & date,Select language,Shortcut settings,Auto power
on/off,Power management, Restore factory settings：1234

4.4.3 Display settings

Wallpaper settings,Idle display
settings,Contrast,Backlight,Keypad backlight time,Animation
effect

4.4.4 Security settings
PIN,PIN2,Privacy,Auto keypad lock,Lock screen by
end-key,Power-on password

4.5.Multimedia

Camera,Image browser, Audio Player, Video player, Video
recorder, FM radio, Recorder

4.6. File manager

Enter this menu; you can check the files store on T-flash card.
Press left soft key, you can do options.

4.7. Application

Your phone supplies built-in game, you can play it whenever
or wherever you want.

4.8. User Profiles

This phone provides sever al profil es, by press ing left s oft key,
you can enter to set: Active, Customize, Rename, and Enhance

- 5 -

Sound.

4.9. T o ols

4.9.1 Alarm

The alarm clock feature sounds an alert or makes a vibration
alert at a time you specify. There are 3 alarm clocks can be
edit and set.

4.9.2 Bluetooth

This mobile phone support Bluetooth w ireless connection. You
can establish wireless connection between mobile phone and
device to realize voice communication, data exchange and
synchronization. Press left soft key to do options

4.9.3 Calendar

You can use this feature to view the year, date and solar term
easily. Use navigation keys to navigate other date. Press left
soft key, you can enter to submenu to do options.

4.9.4 Calculator

This feature can use your phone as a calcularot for simple
claculations. Press corresponding keys to enter the numbers.

4.9.5 STK

If your SIM card supports STK function, This function needs
the network provider support. If user finds STK function can't
operate normally, please contact the network provi der.

5.Entry mode

You can use several methods for entering text and numbers.
By selecting a Text Entry Mode, the phone provides a few
Text Entry Mode for new adding, editing contact records,
finding contacts, editing SMS and writing memos.
Select Text Entry Mode:

5.1 Letter entry mode

- 6 -

Editing interface, click on the appropriate soft keyboard
subtitles.

5.2 Number entry mode
Click the top left corner of the input image to switch to digital
input, through the point of the soft keyboard to enter the
corresponding number.

6. Care and maintenance
Battery care

• Your d evice i s p ower ed b y a re ch argeable b att ery. When the
power is weak, please charge the battery.

• Leaving the battery in hot or col d p l aces, s u ch as in a closed
car in summer or a freezer in winter conditions, will reduce
the capacity and lifetime of the battery. Always try to keep the
battery between 59°F and 77°F (15°C and 25°C ).

• Battery performance is particularly limited in temperatures
below freezing. Cellphones are not considered household
waste.

Mobile phone maintenance

• Keep the device dry. Precipitation, humidity, and all types
of liquids or moisture can contain minerals that will corrode
electronic circuits. If your device does get wet, remove the
battery and allow the device to dry completely before
replacing it.

• Use only the supplied or an approved repl acement antenna.
Unauthorized antennas, modifications, or attachments could
damage the device and may violate regulations governing
radio devices.
All of the above suggestions apply to your device, battery,

- 7 -

charger。

7. Technical Information

Weight
Size Length ×Width ×Depth
Battery
Networks:
Battery work times refer to the list below (Will not announce if
the capacity is changed):
The operation time of the battery depends on conditions such as:

• Transmitting power level

• Signal (distance between the phone and the base station)

• Network parameters defined by the operator

• Phone use (WAP, games, SMS)

• Charging procedure used
Exclusions:
Subject to the exclusions contained below:

1. Damage due to the improper use.

2. User does not follow the manual.
Explanation:
The company has the final right of the explanation for this
document.
Software upgrades will not be announced.

8.Warnings

1.Please used original matched battery. If wrong battery is used,
there will be danger of explosion.

2.Disused old battery,please handle it according to local
environmental protection law and do n't throw it at random.

- 8 -

All pictures are for reference only in the instructio n book;
please refer to the actua l phone.

- 9 -

FCC RF EXPOSURE INFORMATION:

WARNING!! Read this information before using your phone
In August 1986 the Federal Communications Commission (FCC) of the United States with its
action in Report and order FCC 96-326 adopted an updated safety standard for human
exposure to radio frequency (RF) electromagnetic energy emitted by FCC regulated transmitters.
Those guidelines are consistent with the safety standard previously set by both U.S. and
international standards bodies. The design of this phone complies with the FCC guidelines and
these international standards. Use only the supplied or an approved antenna. Unauthorized
antennas modifications, or attachments could impair call quality, damage the phone, or result in
violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged
antenna comes into contact with the skin, a minor burn may result. Please contact your local
dealer for replacement antenna.

BODY-WORN OPERATION:

This device was tested for typical body-worn operations with the back of the phone kept 1.5cm
from the body. To comply with FCC RF exposure requirements, a minimum separation distance
of 1.5cm must be maintained between the user's body and the back of the phone, including the
antenna, whether extended or retracted. Third-party belt-clips, holsters and similar accessories
containing metallic components shall not be used. Body-worn accessories
that cannot maintain 1.5cm separation distance between the user’s body and the back of the
phone, and have not been tested for typical body-worn operations may not comply with FCC RF
exposure limits and should be avoided.
For more information about RF exposure, please visit the FCC website at www.fcc.gov

Your wireless handheld portable telephone is a low power radio transmitter and receiver. When
it is ON, it receives and also sends out radio frequency (RF) signals. In August, 1996, the Federal
Communications Commissions (FCC) adopted RF exposure guidelines with safety levels for
hand-held wireless phones. Those guidelines are consistent with the safety standards previously
set by both U.S. and international standards bodies:

<ANSIC95.1> (1992) / <NCRP Report 86> (1986) / <ICIMIRP> (1996)

Those standards were based on comprehensive and periodic evaluations of the relevant
scientific literature. For example, over 120 scientists, engineers, and physicians from universities,
government health agencies, and industry reviewed the available body of research to develop
the ANSI Standard (C95.1). Nevertheless, we recommend that you use a hands-free kit with
your phone (such as an earpiece or headset) to avoid potential exposure to RF energy. The
design of your phone complies with the FCC guidelines (and those standards).

Use only the supplied or an approved replacement antenna. Unauthorized antennas,
modifications, or attachments could damage the phone and may violate FCC regulations.

NORMAL POSITION:

Hold the phone as you would any other telephone with the antenna pointed up and over your
shoulder.

TIPS ON EFFICIENT OPERATION:
For your phone to operate most efficiently:

• Extend your antenna fully.

• Do not touch the antenna unnecessarily when the phone is in use. Contact with the antenna
affects call quality and may cause the phone to operate at a higher power level than otherwise
needed.

RF

FCC RF Exposure requirements: The highest SAR value reported under this standard
during product certification for use next to the body with the minimum separation
distance of 1.5cm is 0.590W/kg, next to the hea d is 0.708W/kg. This transmitter must not
be collocated or operating in conj unction with any other antenna or transmitter.

This device complies with part 15 of the FCC rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.

NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates uses and can radiate radio frequency e nergy and, if not ins talled and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equi pment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

-Connect the equipment into an outlet on a c ircuit different from that to which t he receiver is

-Consult the dealer or an experienced radio/TV technician for help

Do not use the device with the environment which below minim um -10℃ or maximum over

50, the device may not work.

Changes or modifications to this unit not expressly approved by the party responsible for

compliance could void the user’s authority to operate the equipment.

Exposure Information:

connected.
