Page 1
SERIES
HYDRAULIC EXCAVATORS
CX
CX75SR
Page 2
CX75 SR - 00
2

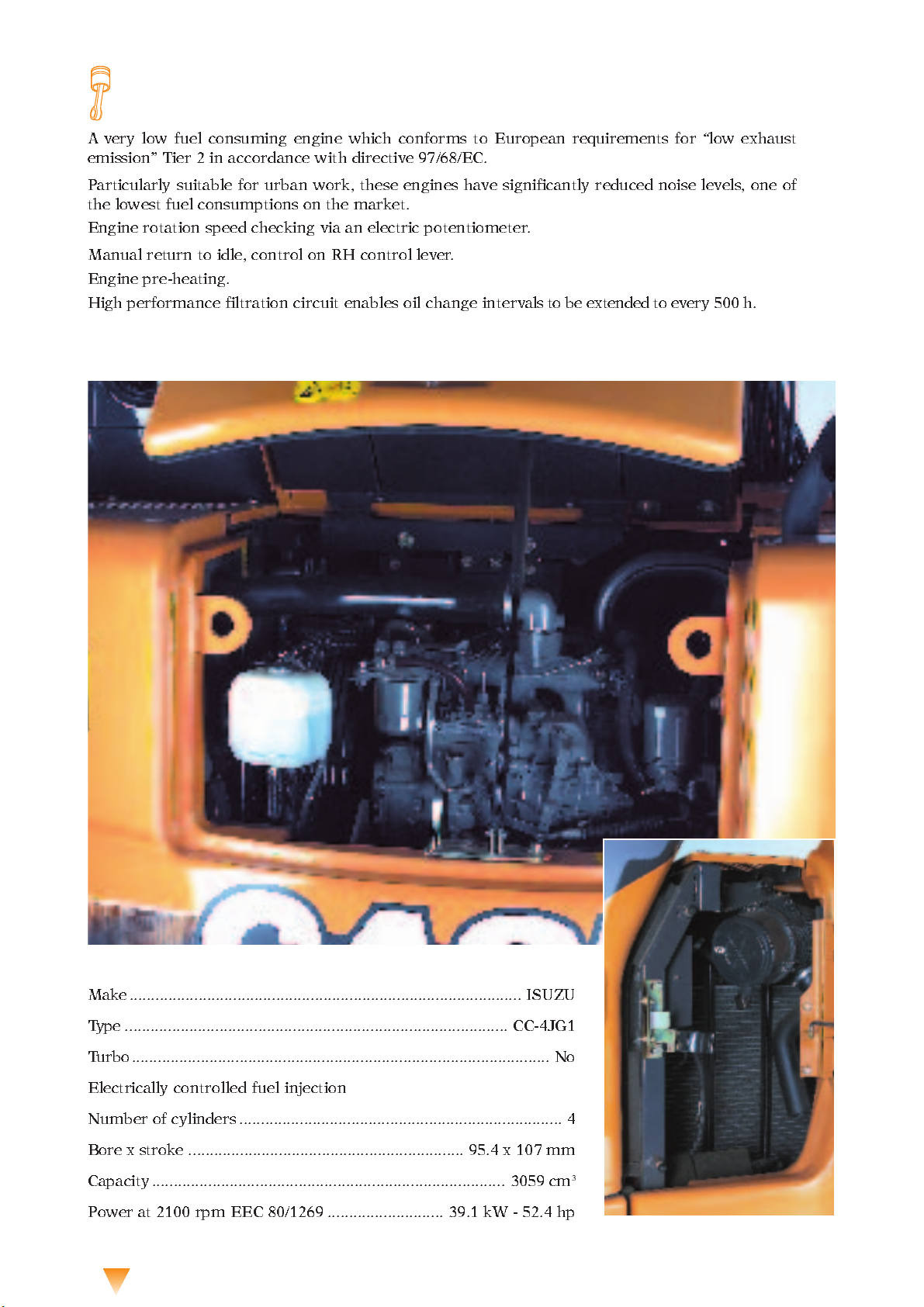

Engine
A very low fuel consuming engine which conforms to European requirements for “low exhaust
emission” Tier 2 in accordance with directive 97/68/EC.
Particularly suitable for urban work, these engines have significantly reduced noise levels, one of
the lowest fuel consumptions on the market.
Engine rotation speed checking via an electric potentiometer.
Manual return to idle, control on RH control lever.
Engine pre-heating.
High performance filtration circuit enables oil change intervals to be extended to every 500 h.
Make ........................................................................................... ISUZU
Type ......................................................................................... CC-4JG1
Turbo................................................................................................. No
Electrically controlled fuel injection
Number of cylinders ........................................................................... 4
Borexstroke ................................................................ 95.4 x 107 mm
Capacity.................................................................................. 3059 cm
3
Power at 2100 rpm EEC 80/1269 ........................... 39.1 kW - 52.4 hp
Page 3
FILTRATION
Hydraulic system components
protected by “ULTRA CLEAN”
filter which filters out particles
larger than 1µ and also traces of
condensation water.
High performance filtration for
longer hydraulic fluid life-time
(fluid change interval now 5000
hours).
CX75 SR - 00
3
CONTROL VALVES
4 control valve sections for the
RH travel, boom, bucket and
dipper acceleration.
5 control valve sections for LH
travel, dipper, swing, auxiliary
circuit and boom acceleration.
2 control valve sections for
dozer blade and boom offset.
Load-holding valves on boom
and dipper.

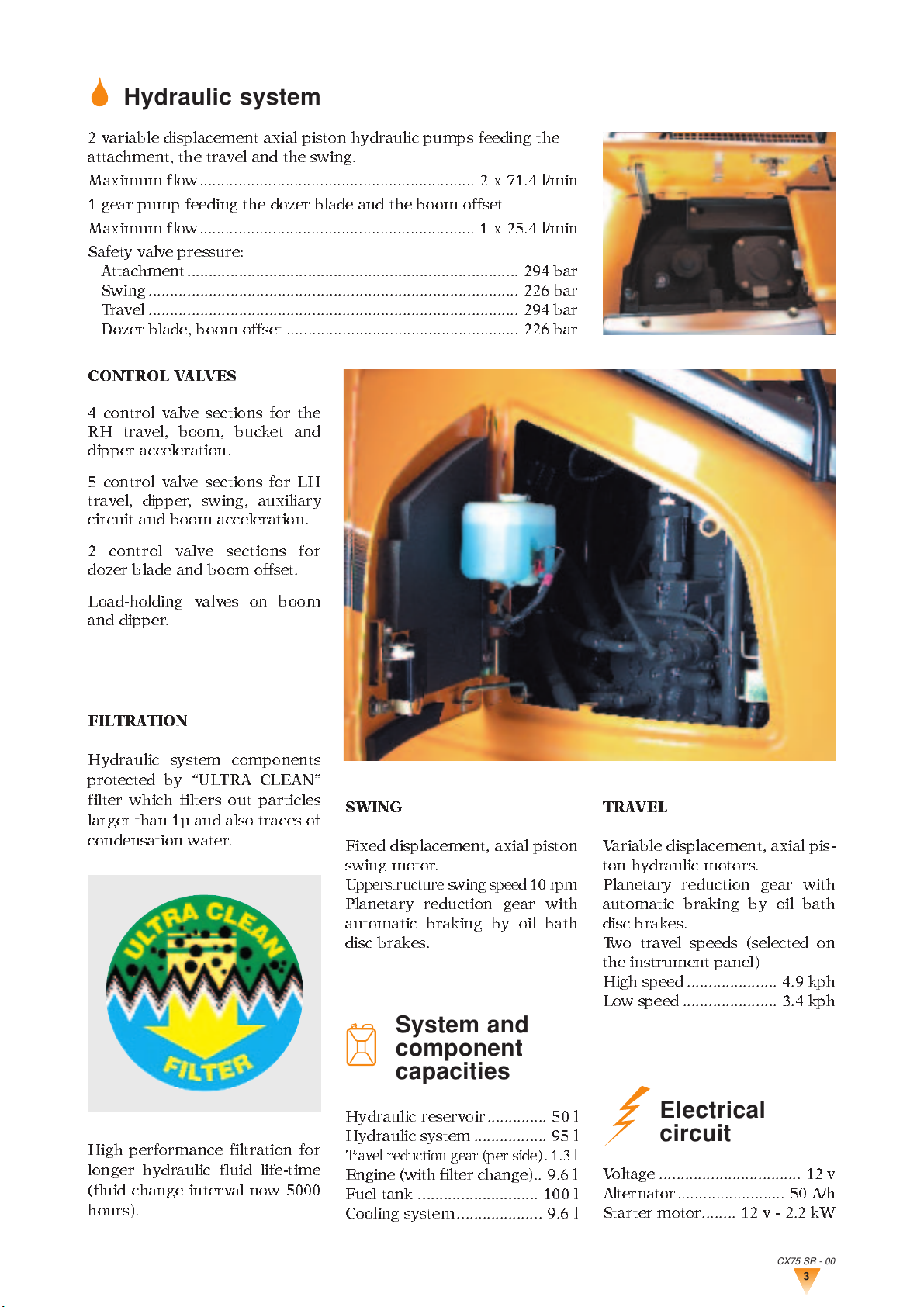

Hydraulic system
2 variable displacement axial piston hydraulic pumps feeding the
attachment, the travel and the swing.
Maximum flow................................................................ 2 x 71.4 l/min
1 gear pump feeding the dozer blade and the boom offset
Maximum flow................................................................ 1 x 25.4 l/min
Safety valve pressure:
Attachment............................................................................. 294 bar
Swing ...................................................................................... 226 bar
Travel ...................................................................................... 294 bar
Dozer blade, boom offset ...................................................... 226 bar
Electrical
circuit
Voltage ................................. 12 v
Alternator......................... 50 A/h
Starter motor........ 12v-2.2kW
System and
component
capacities
Hydraulic reservoir.............. 50 l
Hydraulic system ................. 95 l
Travel reduction gear (per side) . 1.3 l
Engine (with filter change).. 9.6 l
Fuel tank ............................ 100 l
Cooling system.................... 9.6 l
SWING
Fixed displacement, axial piston
swing motor.
Upperstructure swing speed 10 rpm
Planetary reduction gear with
automatic braking by oil bath
disc brakes.
TRAVEL
Variable displacement, axial pis-
ton hydraulic motors.
Planetary reduction gear with
automatic braking by oil bath
disc brakes.
Tw o travel speeds (selected on
the instrument panel)
High speed ..................... 4.9 kph
Low speed ...................... 3.4 kph
Page 4
CX75 SR - 00
4
Attachments
To meet user requirements,
CASE "short radius" crawler
excavators are suitable for every
type of work-site.
These machines are mainly used
on the following types of work:
•
Construction and maintenan-
ce of high speed roads and
urban streets.
•
Construction in residential
areas.
•
Demolition.
•
Forestry work.
•
Machine hire companies.
To provide best possible profita-
bility in the various sorts of
work encountered, machine
configuration needs to be able to
be changed quickly and easily:
of implement, using supple-
mentary hydraulic functions
(swing, tool orientation, etc.)
•
Reduced maintenance costs
using EMS (Easy Maintenance
System) which is standard on
the boom foot and head lin-
kages. This system, which is
also used on the heavy CX
machines, provides a conside-
rable reduction in maintenan-
ce intervals (every 1000 h).

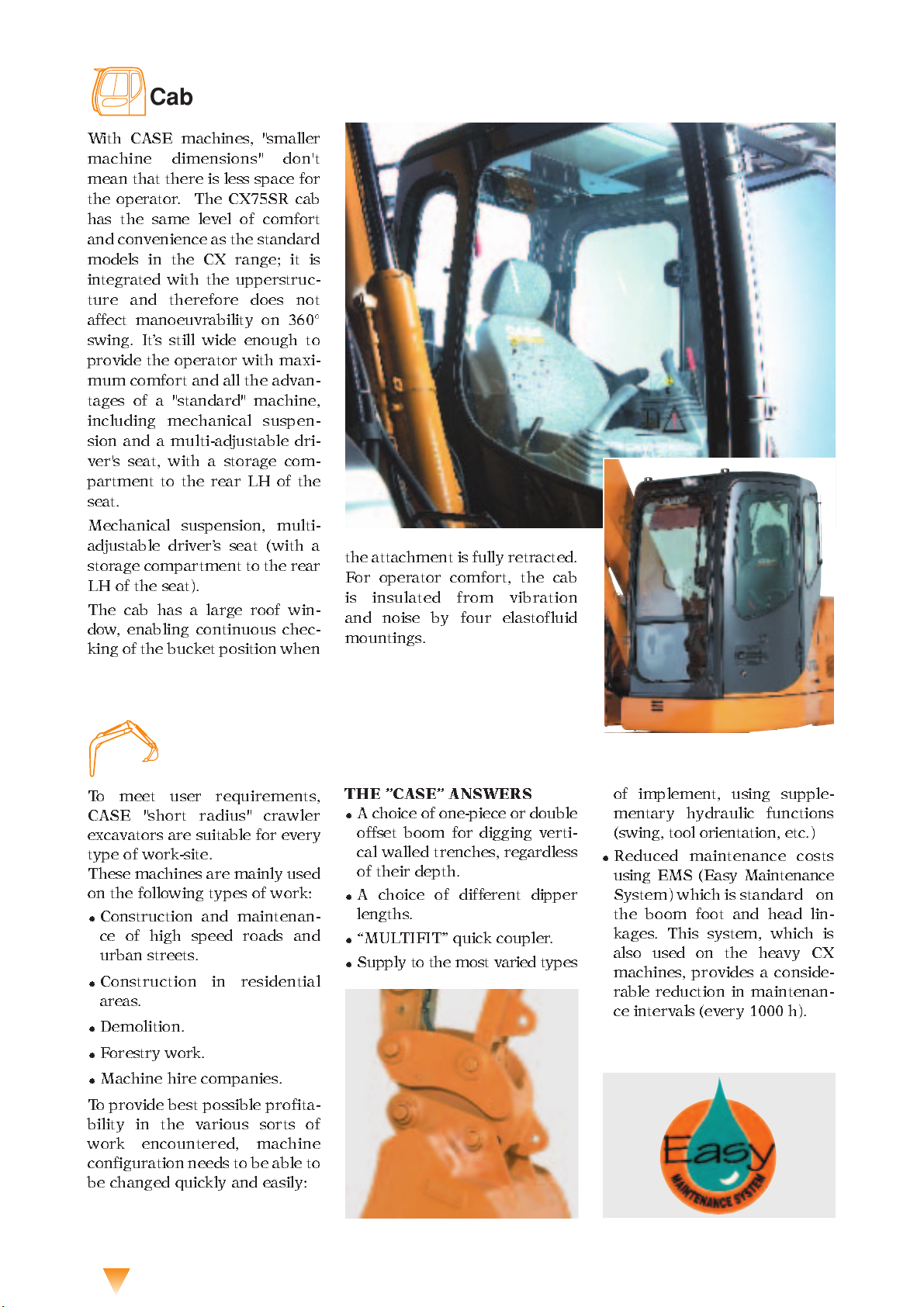

Cab
With CASE machines, "smaller
machine dimensions" don't
mean that there is less space for
the operator. The CX75SR cab
has the same level of comfort
and convenience as the standard
models in the CX range; it is
integrated with the upperstruc-
ture and therefore does not
affect manoeuvrability on 360°
swing. It’s still wide enough to
provide the operator with maxi-
mum comfort and all the advan-
tages of a "standard" machine,
including mechanical suspen-
sion and a multi-adjustable dri-
ver's seat, with a storage com-
partment to the rear LH of the
seat.
Mechanical suspension, multi-
adjustable driver’s seat (with a
storage compartment to the rear
LH of the seat).
The cab has a large roof win-
dow , enabling continuous chec-
king of the bucket position when
THE ”CASE” ANSWERS
•
A choice of one-piece or double
offset boom for digging verti-
cal walled trenches, regardless
of their depth.
•
A choice of diffe ren t dipper
lengths.
•
“MULTIFIT” quick coupler .
•
Supply to the most varied types
the attachment is fully retracted.
For operator comfort, the cab
is insulated from vibration
and noise by four elastofluid
mountings.
Page 5
CX75 SR - 00
5

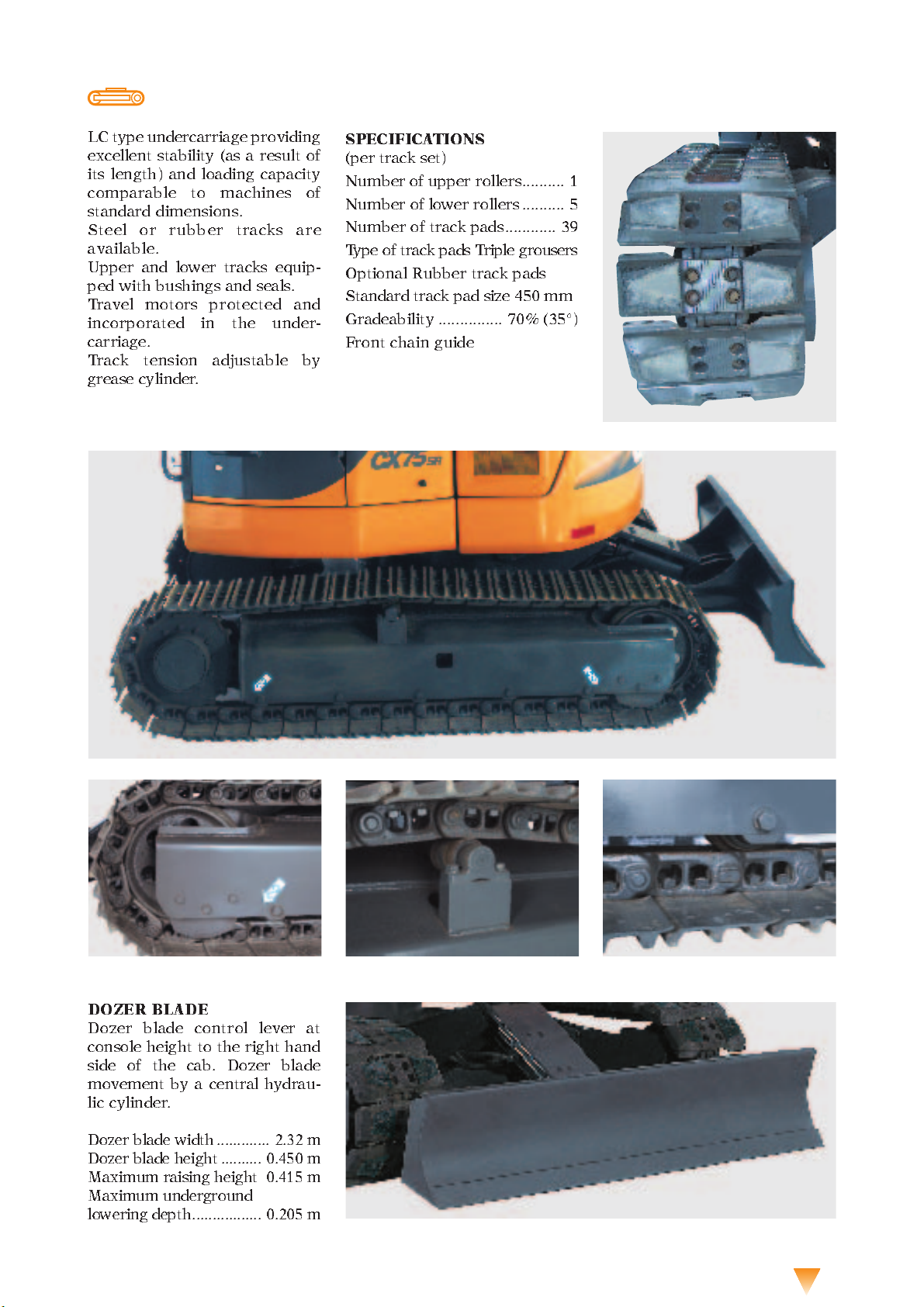

Undercarriage
LC type undercarriage providing
excellent stability (as a result of
its length) and loading capacity
comparable to machines of
standard dimensions.
Steel or rubber tracks are
available.
Upper and lower tracks equip-
ped with bushings and seals.
Travel motors protected and
incorporated in the under-
carriage.
Track tension adjustable by
grease cylinder .
DOZER BLADE
Dozer blade control lever at
console height to the right hand
side of the cab. Dozer blade
movement by a central hydrau-
lic cylinder.
Dozer blade width ............. 2.32 m
Dozer blade height .......... 0.450 m
Maximum raising height 0.415 m
Maximum underground
lowering depth................. 0.205 m
SPECIFICATIONS
(per track set)
Number of upper rollers.......... 1
Number of lower rollers .......... 5
Number of track pads............ 39
Type of track pads Triple grousers
Optional Rubber track pads
Standard track pad size 450 mm
Gradeability ............... 70% (35°)
Front chain guide
Page 6
CX75 SR - 00
6

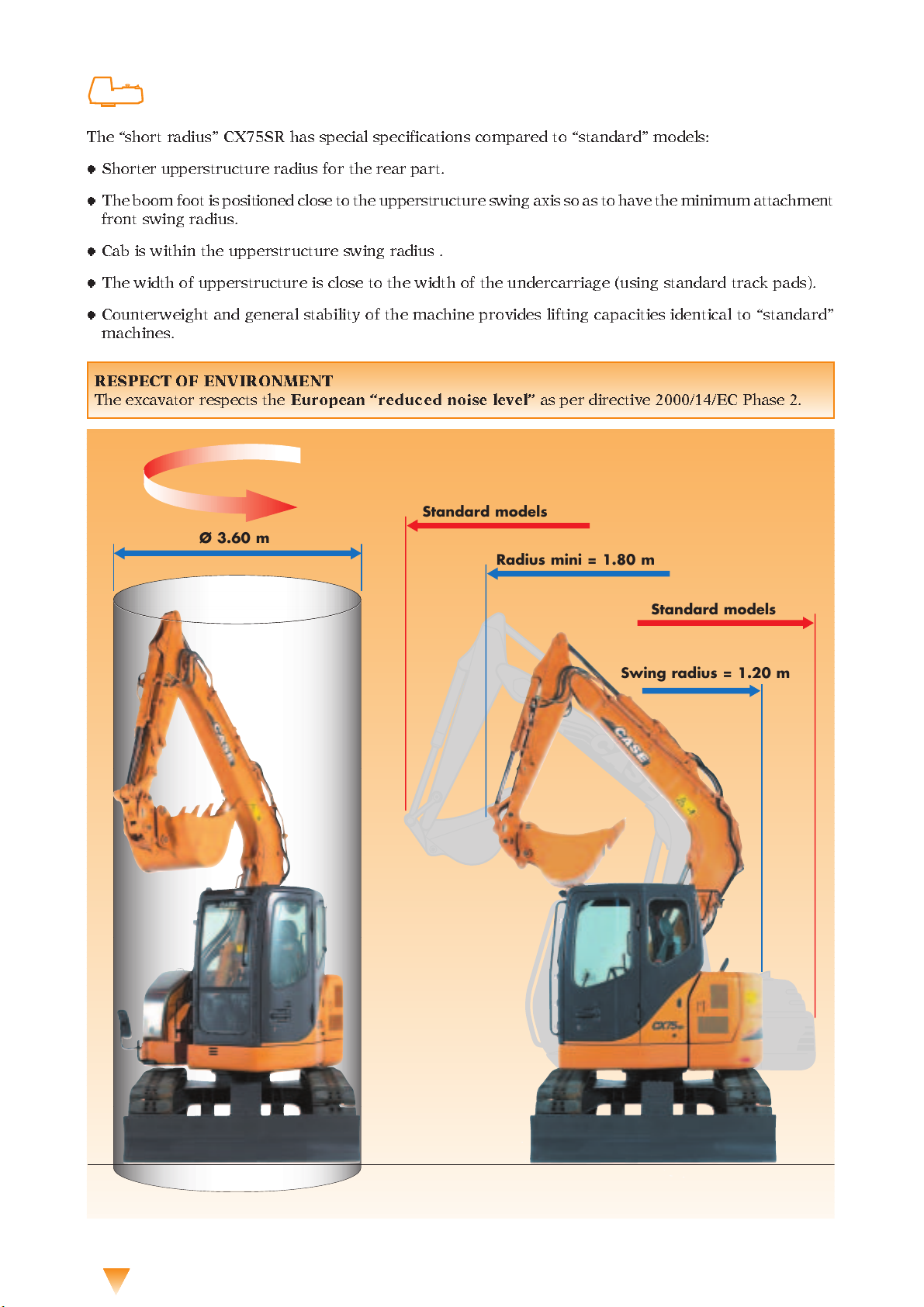

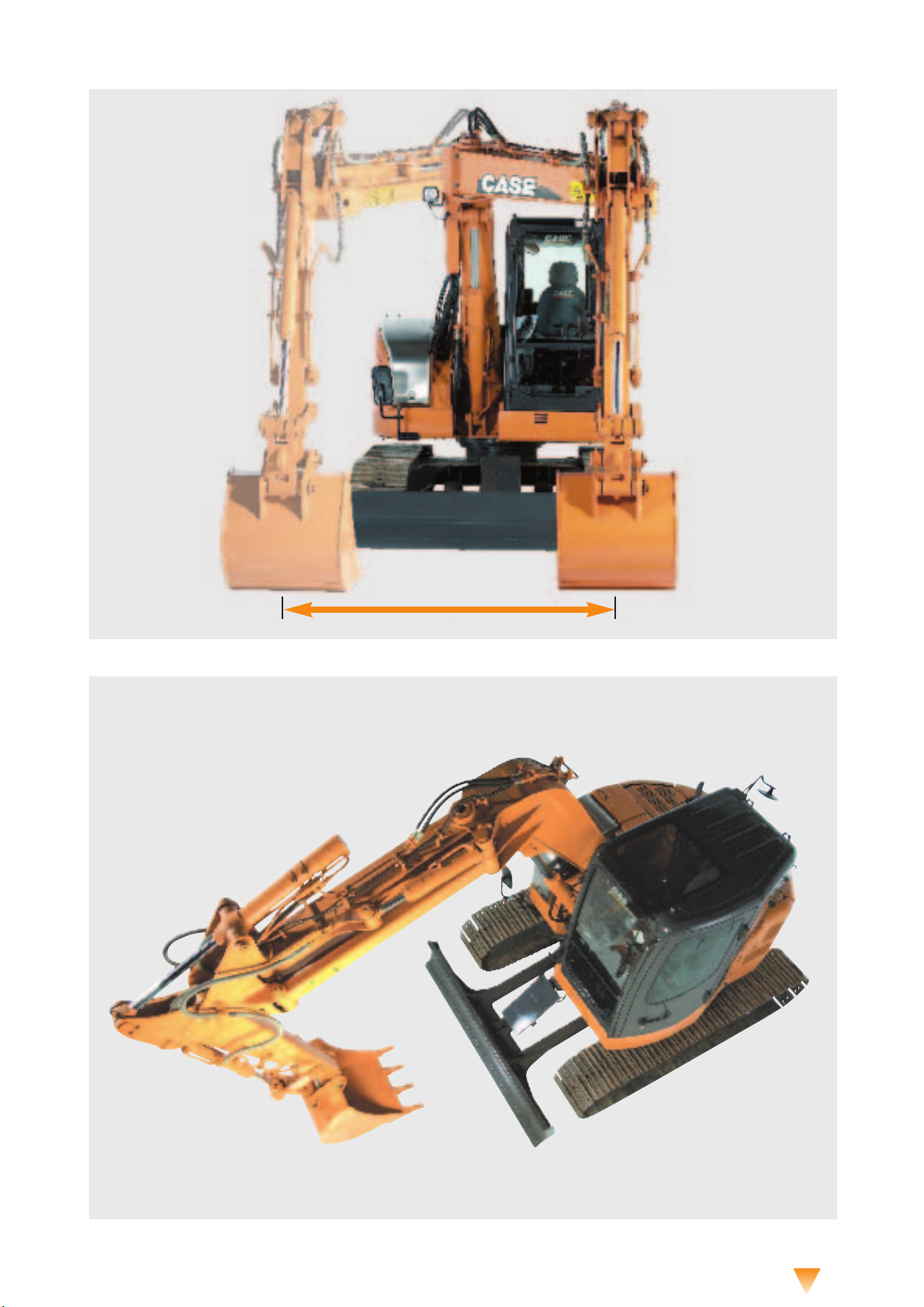

Upperstructure
The “short radius” CX75SR has special specifications compared to “standard” models:
•
Shorter upperstructure radius for the rear part.
•
The boom foot is positioned close to the upperstructure swing axis so as to have the minimum attachment
front swing radius.
•
Cab is within the upperstructure swing radius .
•
The width of upperstructure is close to the width of the undercarriage (using standard track pads).
•
Counterweight and general stability of the machine provides lifting capacities identical to “standard”
machines.
Standard models
Standard models
Radius mini = 1.80 m
Swing radius = 1.20 m
Ø3.60 m
RESPECT OF ENVIRONMENT
The excavator respects the
European “reduced noise level”
as per directive 2000/14/EC Phase 2.
Page 7
CX75 SR - 00
7
CX75
SR
2,70 m
2,97 m
2,23 m
R=1,21 m
5,97 m
1,16 m
1,07 m
1,87 m
0,45 m
2,32 m
0,36 m
2,21 m
2,85 m
3,28 m
4,55 m
2,70 m
2,70 m* / 2,95 m**
2,23 m
R=1,21 m
5,92 m* / 5,91 m**
1,16 m
1,07 m
1,87 m
0,45 m
2,32 m
0,36 m
2,21 m
2,85 m
3,28 m
4,49 m
CX75
SR
Weight and ground pressure
Buckets
General purpose
SAE capacity Litres 110 130 140 160 24 0 310 360
Width mm 300 350 400 450 600 750 850
Weight kg 117 125 138 145 170 200 220
Other types of bucket on application.
Shoes 450 mm - bucket Weight Ground
operator and full fuel tank (kg) Pressure (bar)
Monobloc boom - 1.70 m dipper 7660 0.34
Offset boom and 1.75 m dipper 8060 0.36

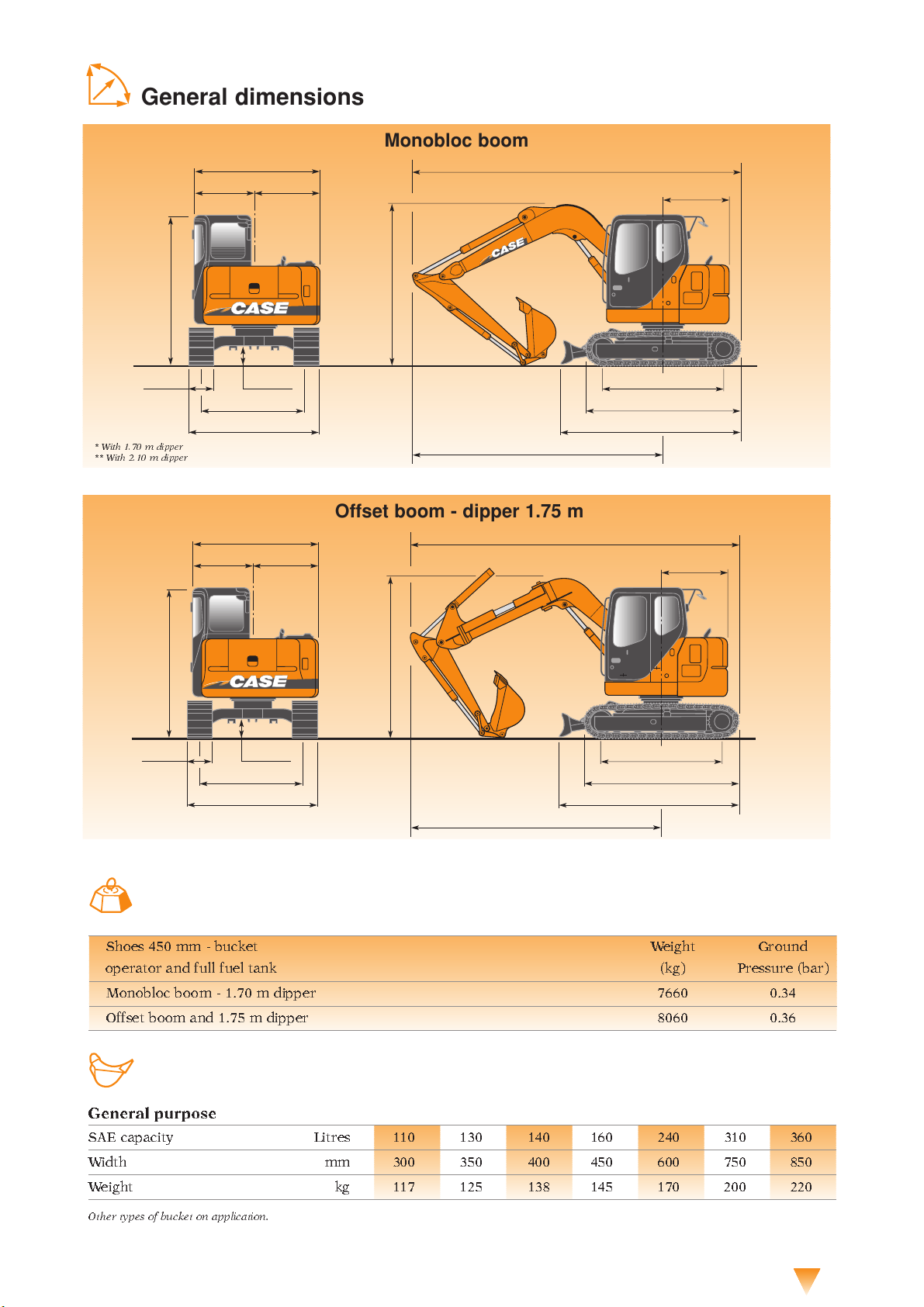

General dimensions
Monobloc boom
Offset boom - dipper 1.75 m
*With 1.70 m dipper
** With 2.10 m dipper
Page 8
CX75 SR - 00
8
dipper :
1.70 m 2.10 m
A
Maximum digging reach 6.50 m 6.90 m
B
Maximum digging reach at ground level 6.40 m 6.75 m
C
Maximum digging depth 4.15 m 4.55 m
D
Digging depth 2.44 m (8‘) level bottom 3.80 m 4.25 m
E
Maxi dump height 5.25 m 5.55 m
F
Overall reach height 7.35 m 7.60 m
G
Minimum swing radius 1.80 m 2.10 m
H
Ver tical straight wall dig depth 3.65 m 4.10 m
Digging force 3830 daN 3300 daN
Breakout force 5690 daN 5690 daN

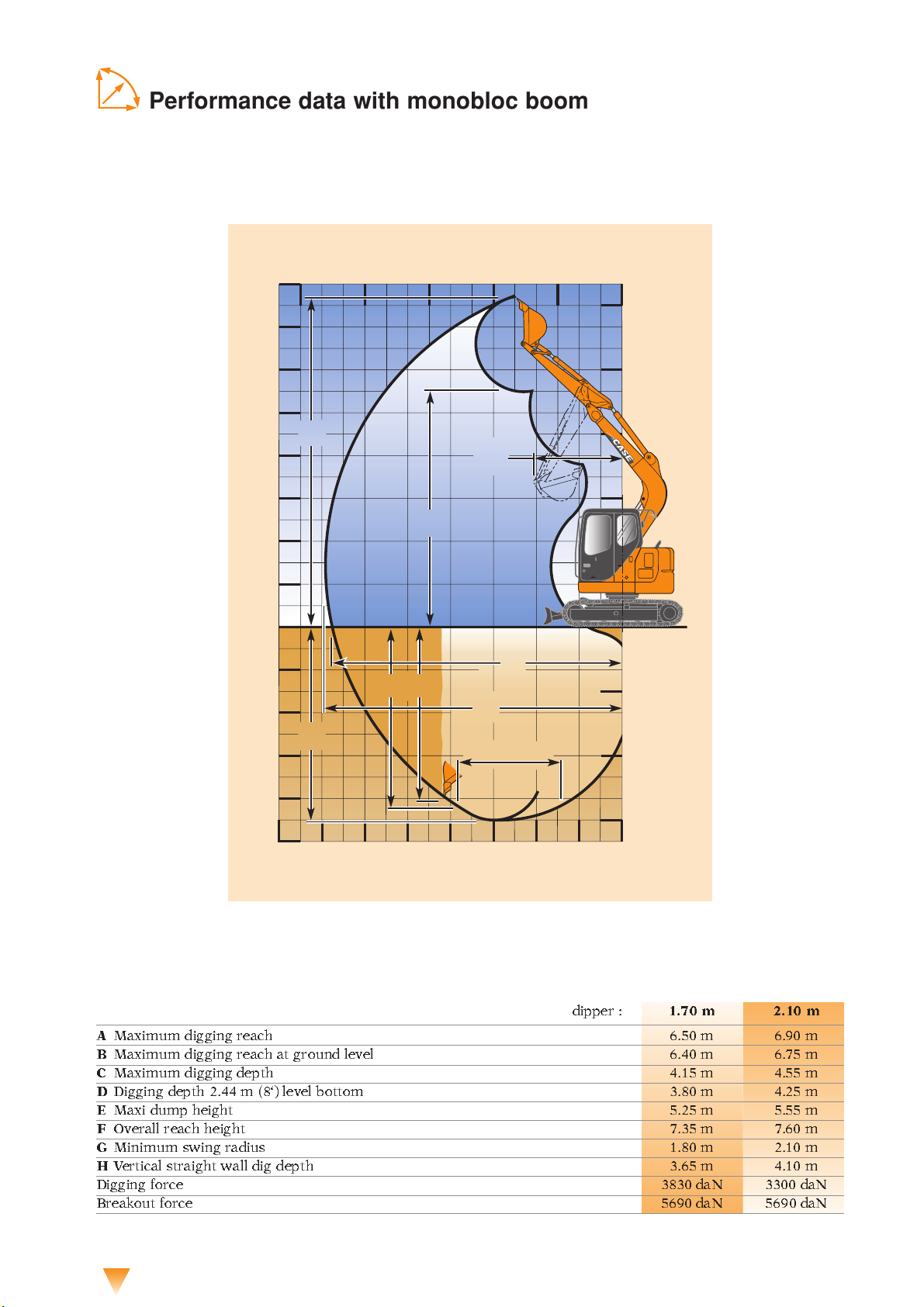

Performance data with monobloc boom
8m
7m
6m
5m
4m
3m
2m
1m
0
1m
2m
F
D
H
E
A
G
B
5'10'15'20'25'
0
25'
20'
15'
CX75
SR
5'
3m
C
4m
5m
2.44 m
10'
15'
01m2m3m4m5m6m7m8m
Page 9
CX75 SR - 00
9
Maximum working range (zero offset)
Trench with vertical walls (maximum offset)

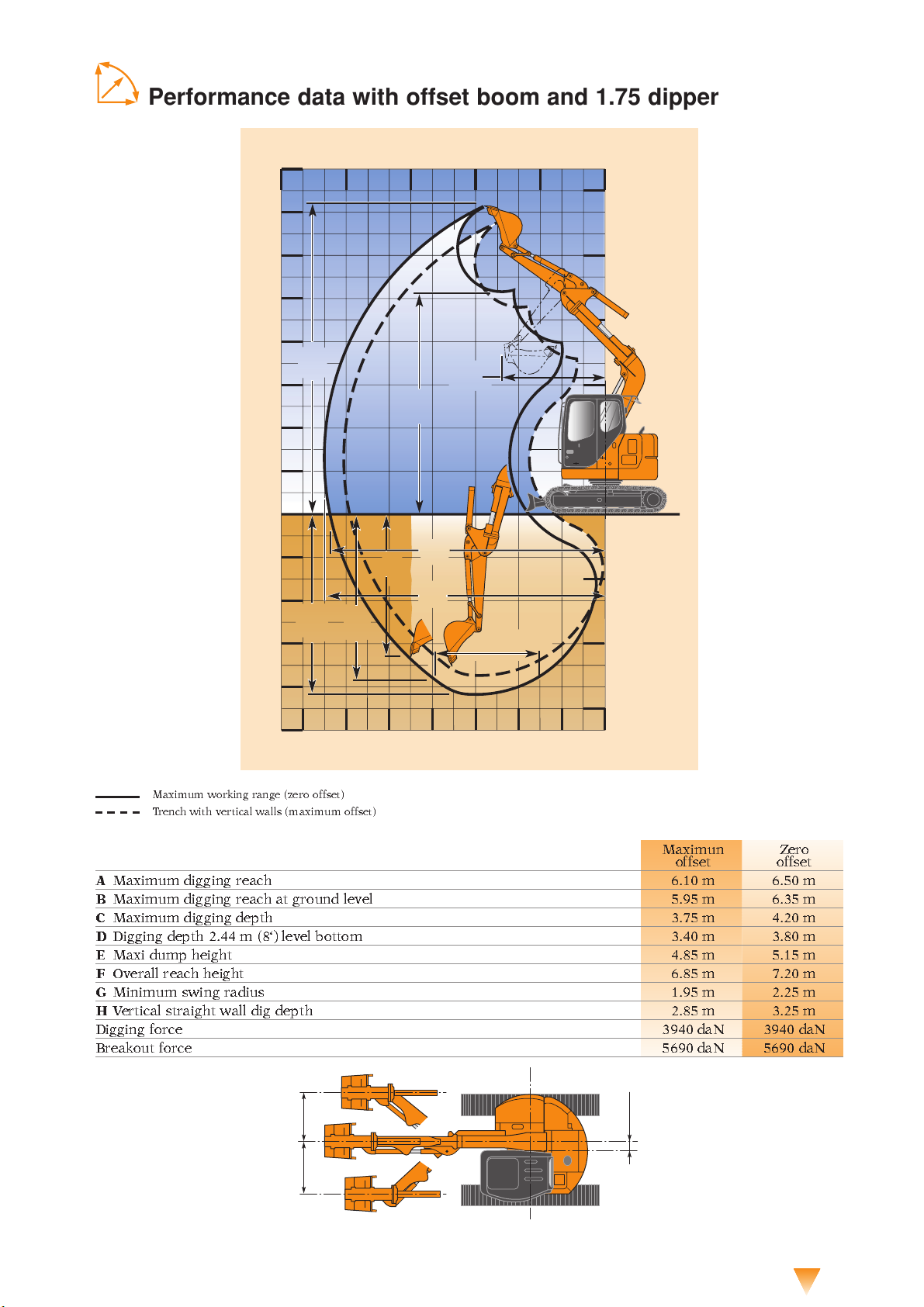

Performance data with offset boom and 1.75 dipper
Maximun Zero
offset offset
A
Maximum digging reach 6.10 m 6.50 m
B
Maximum digging reach at ground level 5.95 m 6.35 m
C
Maximum digging depth 3.75 m 4.20 m
D
Digging depth 2.44 m (8‘) level bottom 3.40 m 3.80 m
E
Maxi dump height 4.85 m 5.15 m
F
Overall reach height 6.85 m 7.20 m
G
Minimum swing radius 1.95 m 2.25 m
H
Ver tical straight wall dig depth 2.85 m 3.25 m
Digging force 3940 daN 3940 daN
Breakout force 5690 daN 5690 daN
8m
7m
6m
5m
4m
3m
2m
1m
0
1m
2m
F
H
E
B
A
G
5'10'15'20'25'
0
25'
20'
15'
CX75
SR
5'
C
3m
D
4m
5m
2.44 m
10'
15'
01m2m3m4m5m6m7m
1,00 m1,10 m
0,185 m
Page 10
CX75 SR - 00
10

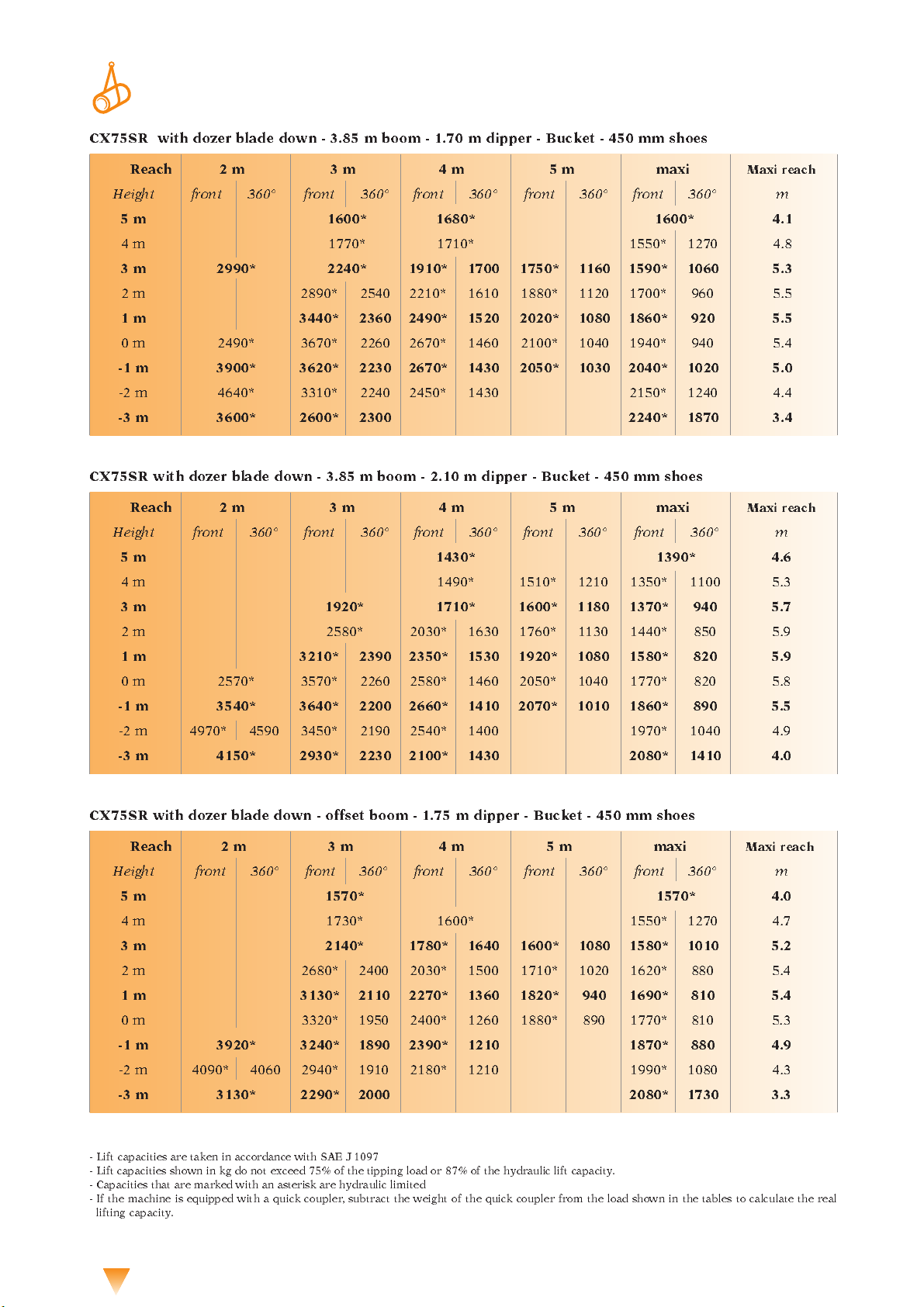

Lifting capacity
- Lift capacities are taken in accordance with SAE J 1097
- Lift capacities shown in kg do not exceed 75% of the tipping load or 87% of the hydraulic lift capacity.
- Capacities that are marked with an asterisk are hydraulic limited
-Ifthe machine is equipped with a quick coupler, subtract the weight of the quick coupler from the load shown in the tables to calculate the real
lifting capacity.
CX75SR with dozer blade down - 3.85 m boom - 1.70 m dipper - Bucket - 450 mm shoes
CX75SR with dozer blade down - 3.85 m boom - 2.10 m dipper - Bucket - 450 mm shoes
CX75SR with dozer blade down - offset boom - 1.75 m dipper - Bucket - 450 mm shoes
Reach 2 m 3 m 4 m 5 m maxi
Maxi reach
Height front 360° front 360° front 360° front 360° front 360° m
5m 1600* 1680* 1600* 4.1
4m 1770* 1710* 1550* 1270 4.8
3m 2990* 2240* 1910* 1700 1750* 1160 1590* 1060 5.3
2m 2890* 2540 2210* 1610 1880* 1120 1700* 960 5.5
1m 3440* 2360 2490* 1520 2020* 1080 1860* 920 5.5
0m 2490* 3670* 2260 2670* 1460 2100* 1040 1940* 940 5.4
-1 m 3900* 3620* 2230 2670* 1430 2050* 1030 2040* 1020 5.0
-2 m 4640* 3310* 2240 2450* 1430 2150* 1240 4.4
-3 m 3600* 2600* 2300 2240* 1870 3.4
Reach 2 m 3 m 4 m 5 m maxi
Maxi reach
Height front 360° front 360° front 3 60° front 360° front 360° m
5m 1430* 1390* 4.6
4m 1490* 1510* 1210 1350* 1100 5.3
3m 1920* 1710* 1600* 1180 1370* 940 5.7
2m 2580* 2030* 1630 1760* 1130 1440* 850 5.9
1m 3210* 2390 2350* 1530 1920* 1080 1580* 820 5.9
0m 2570* 3570* 2260 2580* 1460 2050* 1040 1770* 820 5.8
-1 m 3540* 3640* 2200 2660* 1410 2070* 1010 1860* 890 5.5
-2 m 4970* 4590 3450* 2190 2540* 1400 1970* 1040 4.9
-3 m 4150* 2930* 2230 2100* 1430 2080* 1410 4.0
Reach 2 m 3 m 4 m 5 m maxi
Maxi reach
Height f ront 360° front 360° front 360° front 360° front 360° m
5m 1570* 1570* 4.0
4m 1730* 1600* 1550* 1270 4.7
3m 2140* 1780* 1640 1600* 1080 1580* 1010 5.2
2m 2680* 2400 2030* 1500 1710* 1020 1620* 880 5.4
1m 3130* 2110 2270* 1360 1820* 940 1690* 810 5.4
0m 3320* 1950 2400* 1260 1880* 890 1770* 810 5.3
-1 m 3920* 3240* 1890 2390* 1210 1870* 88 0 4.9
-2 m 4090* 4060 2940* 1910 2180* 1210 1990* 1080 4.3
-3 m 3130* 2290* 2000 2080* 1730 3.3
Page 11
CX75 SR - 00
11
2.10 m

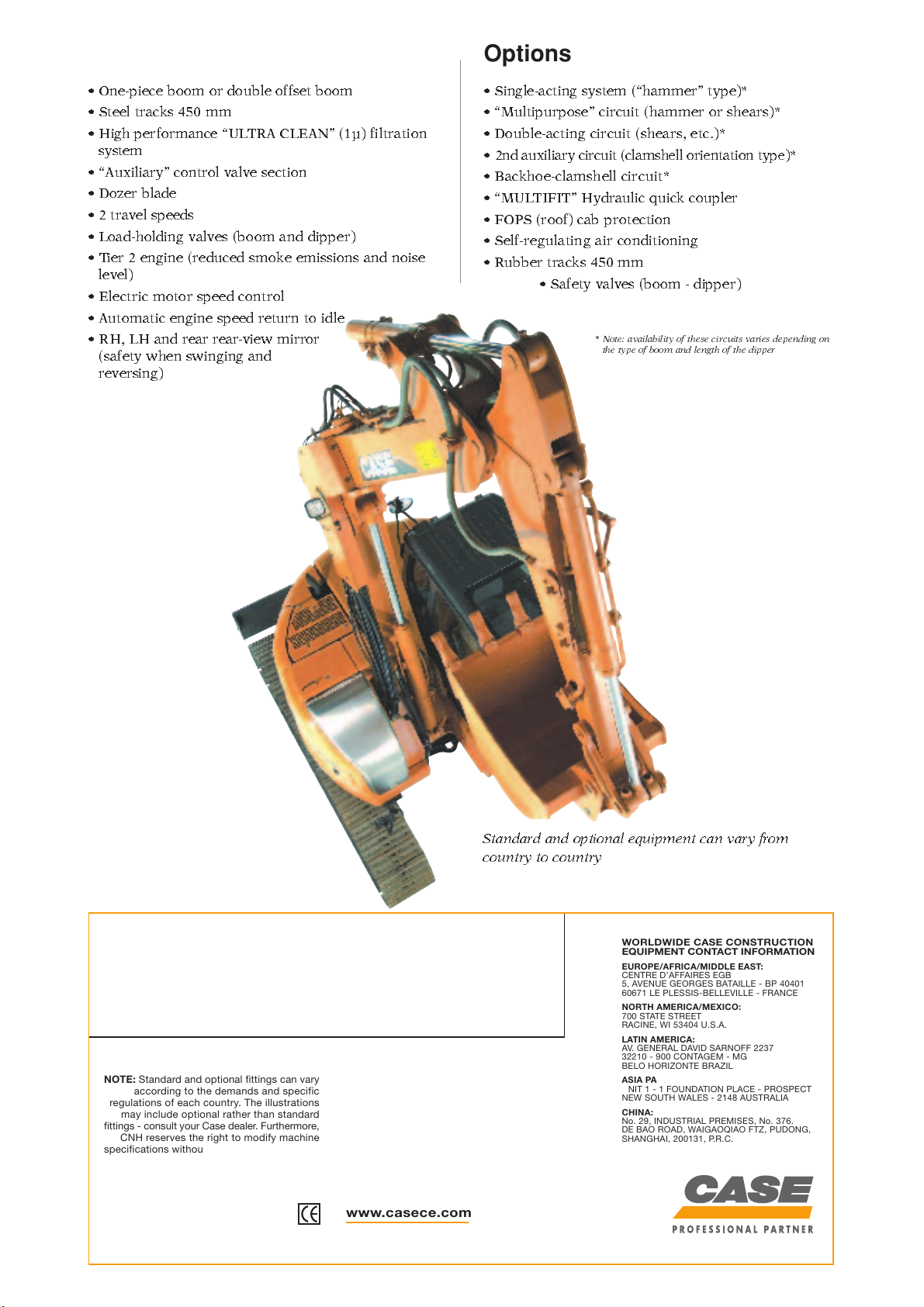

Page 12
Standard equipment
• One-piece boom or double offset boom
• Steel tracks 450 mm
• High performance “ULTRA CLEAN” (1µ) filtration
system
• “Auxiliary” control valve section
• Dozer blade
•2travel speeds
• Load-holding valves (boom and dipper)
•Tier 2 engine (reduced smoke emissions and noise
level)
• Electric motor speed control
• Automatic engine speed return to idle
• RH, LH and rear rear-view mirror
(safety when swinging and
reversing)
Options
• Single-acting system (“hammer” type)*
• “Multipurpose” circuit (hammer or shears)*
• Double-acting circuit (shears, etc.)*
•
2nd auxiliary circuit (clamshell orientation type)*
• Backhoe-clamshell circuit*
• “MULTIFIT” Hydraulic quick coupler
• FOPS (roof) cab protection
• Self-regulating air conditioning
• Rubber tracks 450 mm
• Safety valves (boom - dipper)
* Note: availability of these circuits varies depending on
the type of boom and length of the dipper
Standard and optional equipment can vary from
country to country
www.casece.com
WORLDWIDE CASE CONSTRUCTION
EQUIPMENT CONTACT INFORMATION
EUROPE/AFRICA/MIDDLE EAST:
CENTRE D’AFFAIRES EGB
5, AVENUE GEORGES BATAILLE - BP 40401
60671 LE PLESSIS-BELLEVILLE - FRANCE
NORTH AMERICA/MEXICO:
700 STATE STREET
RACINE, WI 53404 U.S.A.
LATIN AMERICA:
AV. GENERAL DAVID SARNOFF 2237
32210 - 900 CONTAGEM - MG
BELO HORIZONTE BRAZIL
ASIA PACIFIC:
UNIT 1 - 1 FOUNDATION PLACE - PROSPECT
NEW SOUTH WALES - 2148 AUSTRALIA
CHINA:
No. 29, INDUSTRIAL PREMISES, No. 376.
DE BAO ROAD, WAIGAOQIAO FTZ, PUDONG,
SHANGHAI, 200131, P.R.C.
NOTE: Standard and optional fittings can vary
according to the demands and specific
regulations of each country. The illustrations
may include optional rather than standard
fittings - consult your Case dealer. Furthermore,
CNH reserves the right to modify machine
specifications without incurring any obligation
relating to such changes.
Conforms to directive 98/37/CE
CNH UK Ltd.
Armstrong House
The Finningley Estate
Hayfield Lane
Doncaster
DN9 3XA
Fax +44 (0)1302 802126
Form No. 26051038GB - Printed in Italy - LEADER Firenze - 03/06
Loading...
