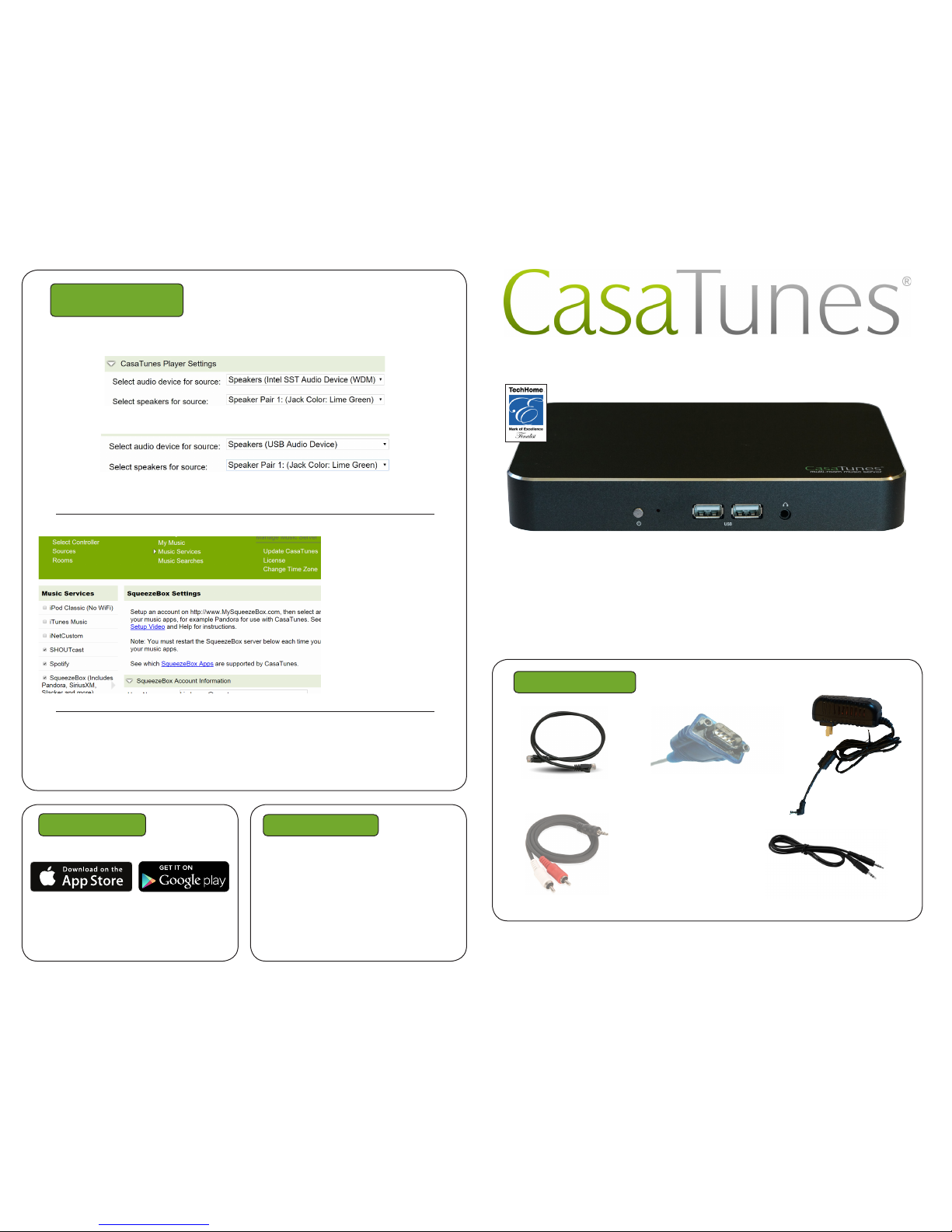

Page 1
For any Leviton source input that CasaTunes supplies a music stream, pick CasaTunes
Media Player as the Source type and configure the first stream as shown:
Configure the second stream (CT-2 only) as shown.
For other source inputs, select a source type from the pull down menu or choose
“Unsupported Source”.
Included Items
Audio Cables
Qty 1 (CT-1) or 2
(CT-2) each type
Power Adapter
Qty 1
Enable all of the music
services you are interested in.
Some music services
require setting up
SqueezeBox. Follow the
directions in CasaSetup.
Some music services require paid accounts, as
noted in CasaSetup.
Now, name all of your sources and rooms and set your Time Zone and Update settings.
Check Hide box for any Sources or Rooms not used. Click on Advanced Settings and
use the Project Information page to create a backup of the project.
Quick Start Guide: CasaTunes CT-1&2 for Leviton
Need Help?
Control
Use our control apps.
OR
Go to http://CasaServer/CasaTunes on any
PC, or http://CasaServer.local/CasaTunes
on any Mac connected to the network
Check out the videos at
http://www.YouTube.com/CasaTunes
Check out our Tech Notes at
http://www.CasaTunes.com/guides
For live help, email us at
[email protected] or phone us at
888-855-2272
Network Cable Qty 1
Serial Cable Qty 1
Not used for Leviton
Use this guide only when using CasaTunes to
stream to and control Leviton Hi-Fi 2 systems.
CasaTunes Setup
(Cont)
3.5mm to 3.5mm
3.5mm to RCA
Not used for
Leviton

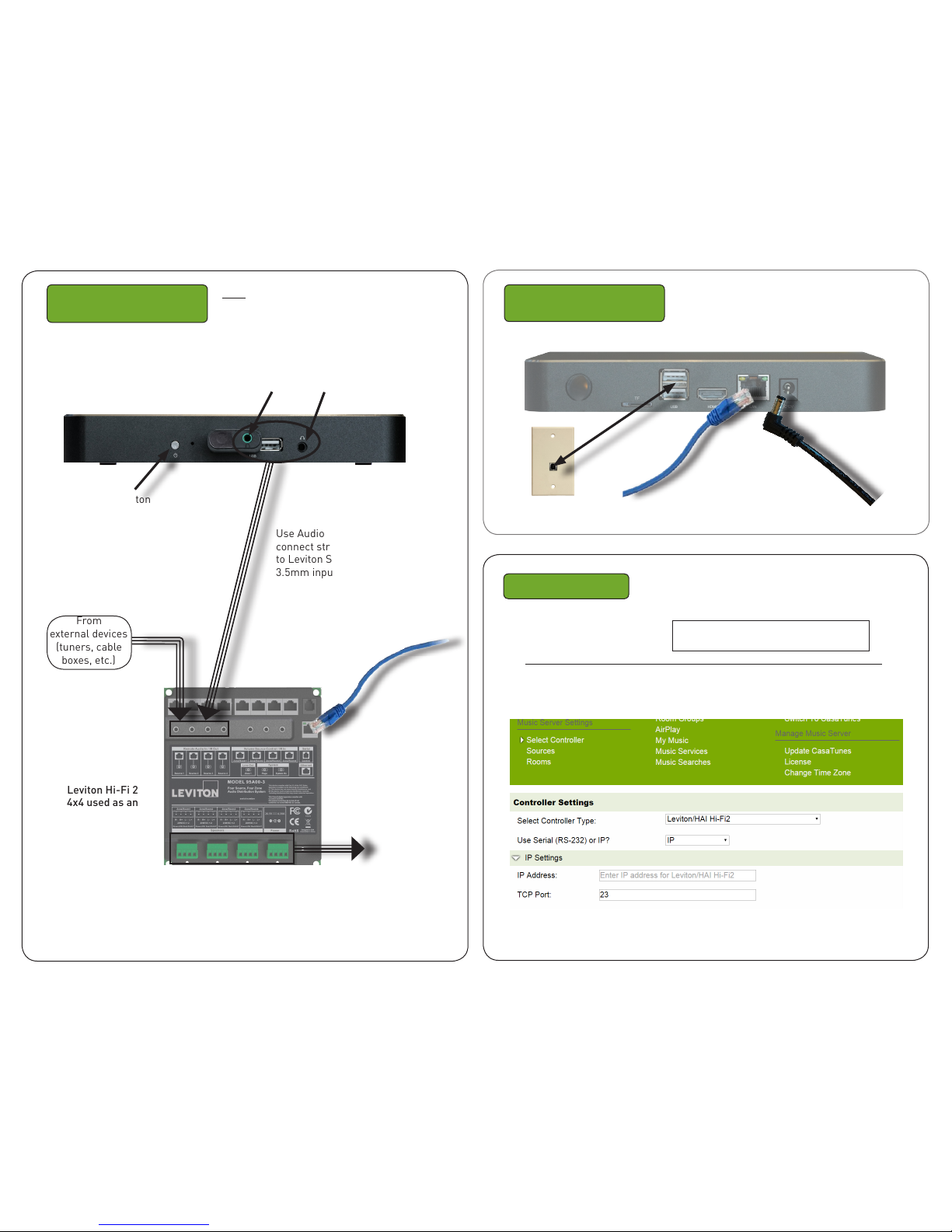

Page 2
Use Audio Cables to
connect stream outputs
to Leviton System’s
3.5mm inputs
Connect CasaTunes
to Leviton Hi-Fi2
Connect to LAN
and Power
Network Cable
CasaTunes Setup
Open any browser on the
LAN and go to CasaSetup:
Audio outputs:
2nd 1st
CT-2 CT-1&2
Turn on the system at this time.
PC: http://CasaServer/CasaSetup
Mac: http://CasaServer.local/CasaSetup
Use CasaSetup to select the Leviton Hi-Fi 2. Select IP and enter the IP address
that the Hi-Fi 2 is using. Leave the TCP Port number to the default setting.
Although you may use serial control, it requires a special serial cable from Leviton.
After clicking on Save, the Sources and Rooms refer to the source inputs and zone
or room outputs of the Leviton system you are controlling. (continued on back page).
To
Speakers
Leviton Hi-Fi 2
4x4 used as an
example
From
external devices
(tuners, cable
boxes, etc.)
Network Cable
To LAN
Power Cable included
with Hi-Fi 2
Power
Cable
Keypad Hub (Opt)
Used with opt. Keypads
Power Button
Note: A detailed CasaTunes Technical Reference
and Installation Guide can be found at www.
CasaTunes.com/guides, under Owner’s Manuals
