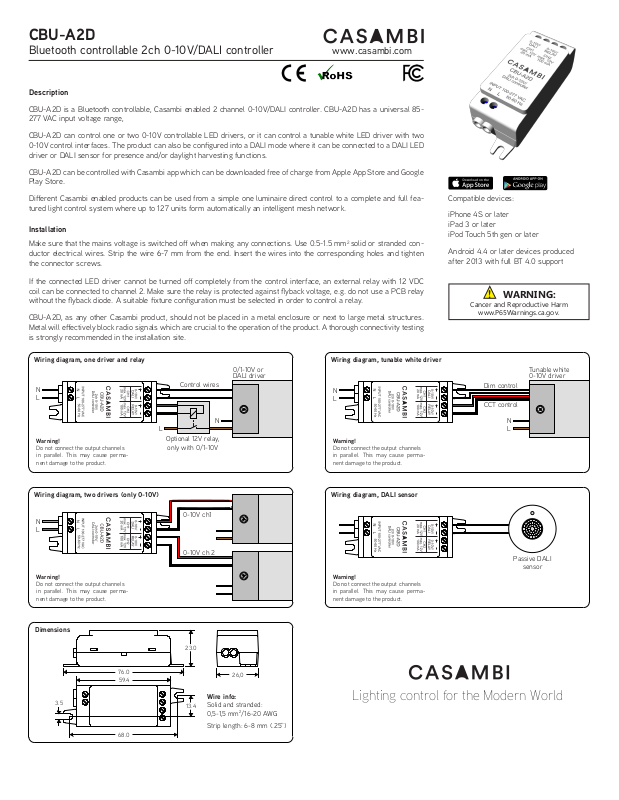

Casambi Technologies CBUA2D User Guide
CBU-A2D
Bluetooth controllable 2ch 0-10V/DALI controller
Description
CBU-A2D is a Bluetooth controllable, Casambi enabled 2 channel 0-10V/DALI controller. CBU-A2D has a universal 85277 VAC input voltage range,
CBU-A2D can control one or two 0-10V controllable LED drivers, or it can control a tunable white LED driver with two
0-10V control interfaces. The product can also be congured into a DALI mode where it can be connected to a DALI LED
driver or DALI sensor for presence and/or daylight harvesting functions.
CBU-A2D can be controlled with Casambi app which can be downloaded free of charge from Apple App Store and Google
Play Store.
Dierent Casambi enabled products can be used from a simple one luminaire direct control to a complete and full featured light control system where up to 127 units form automatically an intelligent mesh network.
Installation
Make sure that the mains voltage is switched o when making any connections. Use 0.5-1.5 mm2 solid or stranded conductor electrical wires. Strip the wire 6-7 mm from the end. Insert the wires into the corresponding holes and tighten
the connector screws.
If the connected LED driver cannot be turned o completely from the control interface, an external relay with 12 VDC
coil can be connected to channel 2. Make sure the relay is protected against yback voltage, e.g. do not use a PCB relay
without the yback diode. A suitable xture conguration must be selected in order to control a relay.
CBU-A2D, as any other Casambi product, should not be placed in a metal enclosure or next to large metal structures.
Metal will eectively block radio signals which are crucial to the operation of the product. A thorough connectivity testing
is strongly recommended in the installation site.
www.casambi.com
Compatible devices:
iPhone 4S or later
iPad 3 or later
iPod Touch 5th gen or later
Android 4.4 or later devices produced
after 2013 with full BT 4.0 support
!
Cancer and Reproductive Harm
WARNING:
www.P65Warnings.ca.gov.
Wiring diagram, one driver and relay
N
L
Warning!
Do not connect the output channels
in parallel. This may cause permanent damage to the product.
Wiring diagram, two drivers (only 0-10V)
N
L
Warning!
Do not connect the output channels
in parallel. This may cause permanent damage to the product.
Dimensions
Control wires
L
Optional 12V relay,
only with 0/1-10V
0-10V ch1
0-10V ch 2
23.0
N
0/1-10V or
DALI driver
0-10V
0-10V
Wiring diagram, tunable white driver
N
L
Warning!
Do not connect the output channels
in parallel. This may cause permanent damage to the product.
Wiring diagram, DALI sensor
0-10V driver 10-10V driver 2
Warning!
Do not connect the output channels
in parallel. This may cause permanent damage to the product.
Dim control
CCT control
Tunable white
0-10V driver
N
L
Passive DALI
sensor
76.0
59. 4
3.5
68.0
13.4
26,0
Wire info:
Solid and stranded:
0,5-1,5 mm2/16-20 AWG
Strip length: 6-8 mm (.25”)
Lighting control for the Modern World
Technical data
Input
Voltage range: 85-277 VAC
Frequency: 50-60 Hz
Max. mains current: 25 mA
No-load standby power: < 0,5 W
Channel 1 output
Output voltage, 0-10V 0-10 VDC, max. 7 mA (sinking)
Output voltage, DALI 12 VDC, max. 20 mA (sourcing)
Maximum number of drivers: 1
Channel 2 output
Output voltage, 0-10V: 0-10 VDC, max. 7 mA (sinking)
Output voltage, relay control: 2 VDC, max. 100 mA (sourcing)
Maximum number of drivers: 1
Radio transceiver
Operating frequencies: 2,4...2,483 Ghz
Maximum output power: -4 dBm
Operating conditions
Ambient temperature, ta: -20...+45°C (-4...+113°F)
Max. case temperature, tc: +70 °C (+158°F)
Storage temperature: -25...+70 °C (-13...+158°F)
Max. relative humidity: 0...80%, non-cond.
Connectors
Wire range, solid & stranded: 0,5-1,5 mm2 / 16-20 AWG
Wire strip length: 6-7 mm (.25”)
Tightening torque: 0,4 Nm/4 Kgf.cm/2,6 Lb-In
Mechanical data
Dimensions: 76,0 x 26,0 x 23,0 mm
3.0 x 1.0 x 0.9 inch
Weight: TBD
Degree of protection: IP20 (indoor use only)
Protection class: Built-in Class II
FCC ID: 2ALA3-CBUA2D
IC: 22496-CBUA2D
UL: TBD
Range
The range between two CBU-A2D units or between a CBU-A2D and a smart phone can vary a lot depending on obstacles and surrounding material. In open air the range
between two CBU-A2Ds can be in excess of 200 ft, but if the unit is encapsulated into a metal structure, the range can be only few feet. Therefore, thorough testing is
highly suggested.
Casambi uses mesh network technology so each CBU-A2D acts also as a repeater. When testing the network, it is important to test that each unit can be controlled from
any point of the network covered area.
Compliance Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Radiation Exposure Statement for FCC
This device complies with FCC radiation exposure limits for an uncontrolled environment. This device shall be installed and operated with a minimum distance of 8” (20cm)
between users or bystanders and the device.
Warning
Changes or modications not expressly approved by Casambi Technologies Oy could void the user’s authority to operate the equipment.
FCC Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Radiation Exposure Statement for Canada
This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions:
(1) This device may not cause interference
(2) This device must accept any interference, including interference that may cause undesired operation of the device.
This equipment is exempt from the routine RF exposure evaluation requirements of RSS-102. This equipment should be installed and operated with a minimum distance
of 20 cm between the antenna and the user or bystanders.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes:
(1) l’appareil ne doit pas produire de brouillage;
(2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.
Ce matériel n’est pas sujet à l’évaluation habituelle d’exposition RF selon RSS102. Ce matériel devrait être installé et exploité en gardant une distance minimale de 20 cm
entre l’antenne et l’utilisateur ou les spectateurs.
Information in this document is subject to change.
CBU-A2D User Guide v0.8
Bertel Jungin aukio 1 E, 02600 Espoo, Finland
Casambi Technologies Oy
Copyright Casambi Technologies Oy 2019.
