Casablanca Fan Company 59113 User Manual

Download

Table of Contents

30 inches

7 feet

Ladder

To register your fan, please visit:

www.CasablancaFanCo.com/register

Save your receipt for proof of purchase.

Congratulations on purchasing your new Casablanca® ceiling fan! It will provide comfort and performance in

your home or ofce for many years. This installation and

operation manual contains complete instructions for

installing and operating your fan.

We are proud of our work and appreciate the opportunity to supply you with the best ceiling fan available anywhere

in the world.

Decorative Arms

What to Expect with

Your Installation

www.CasablancaFanCo.com

Tools Needed

PAG E

WiringDownrod

Mounting Options

PAG E

Wall Control

Ceiling Bracket

PAG E

1.888.227.2178

PAG E

Canopy

Blades

Switch Housing

PAG E

Light Kit

PAG E

M8521-01 • 10/30/14 • © Casablanca Fan Company

Operation

PAG E

Maintenance

& Cleaning

Troubleshooting

PAG E

What to Expect with Your Installation

If you are unfamiliar with wiring, use a

qualied electrician.

Must be able to secure the fan to building structure or

fan-rated outlet box

You may need a

friend to help you.

Know your wiring

30 inches

from blade tip to nearest wall or obstruction

from bottom

edge of blade

Assess location

Standard Downrod

for ceilings 8-10 feet high

7 feet

to the oor

www.CasablancaFanCo.com

1.888.227.2178

Read and Save These Instructions

This product conforms to UL Standard 507.

WARNINGS

w.1 - To reduce the risk of re, electrical shock, or personal

injury, mount fan directly from building structure and/or an

outlet box marked acceptable for fan support of 70 lbs (31.8 kg) and use the mounting screws provided with the outlet box.

w.2 - To avoid possible electrical shock, before installing or

servicing your fan, disconnect the power by turning off the circuit breakers to the outlet box and associated wall switch

location. If you cannot lock the circuit breakers in the off

position, securely fasten a prominent warning device, such as a

tag, to the service panel.

w.3 - To reduce the risk of re, electrical shock, or motor damage, use only Casablanca Solid State Speed Controls.

w.4 - To reduce the risk of personal injury, do not bend the blade

brackets when installing the blade brackets, balancing the blades,

or cleaning the fan. Do not insert foreign objects in between rotating fan blades.

CAUTIONS

Check box to see fan weight

Ceiling angles greater

than 34° will require an Angled Mounting Kit. See page 4 for details.

Assess ceiling angle

Longer Downrod

for ceilings 10 feet or higher

Select a downrod length

M8521-01 • 10/30/14 • © Casablanca Fan Company

c.1 - All wiring must be in accordance with national and local electrical codes ANSI/NFPA 70. If you are unfamiliar with wiring, use a qualied electrician.

c.2 - Use only Casablanca replacement parts.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions may cause harmful interference to radio communications.

Tools Needed

www.CasablancaFanCo.com

1.888.227.2178

Ladder

Allen Wrench

(included)

Pliers Wire Strippers

Power Drill

(optional)

If mounting to a support structure, you will also need these tools.

9/64” Drill Bit

(optional)

M8521-01 • 10/30/14 • © Casablanca Fan Company

Screwdrivers

CEILING

Mounting Options

www.CasablancaFanCo.com

1.888.227.2178

OPTION

If you have a at ceiling:

WALL

Hang your fan by a standard downrod (included).

Standard Mounting

Support Structure

OPTION

If you have an angled ceiling:

1. You will need a longer downrod (sold separately).

2. If your ceiling angle is greater than 34°, you will also need an Angled Mounting Kit (sold separately).

Use the three steps below to determine if your ceiling angle is greater than 34°

Angled Mounting

Standard Mounting Style

Ceiling

Outlet Box

(required)

Angled Mounting Style

Ceiling

Outlet Box

(required)

FOLD

on dotted line

34°

Guide Touches

BOTH Ceiling & Wall

You need ONLY

a Longer

Downrod

*most common

2 3

PLACE

against wall

Guide Touches

but NOT Ceiling

You need BOTH

a Longer

Downrod &

an Angled

Mounting Kit

SLIDE

toward ceiling

Wall

to hang the fan from a at ceiling.

M8521-01 • 10/30/14 • © Casablanca Fan Company

Use Standard Mounting

Use Angled Mounting

to hang the fan from a

vaulted or angled ceiling.

Ceiling Bracket

Turn Power

OFF

For angled ceilings, point

opening toward peak.

www.CasablancaFanCo.com

1.888.227.2178

Make sure all four bumpers are

still attached.

Refer to warning w.1 on pg. 2

If you are unable to do this,

call Technical Support at

1-888-227-2178.

M8521-01 • 10/30/14 • © Casablanca Fan Company

Use wood screws

(included) when securing

to support structure with approved electrical outlet

box. Drill 9/64” pilot holes

in support structure to aid in securing ceiling bracket

with hardware found in

the hardware bag.

Use machine screws

(provided with outlet

box) when securing to

existing ceiling fan-rated

outlet box. Make sure

it is securely installed

and is acceptable for fan

support of 31.8 kg (70 lbs)

or less.

To avoid possible electrical shock, before

installing your fan, disconnect the power by turning off the circuit breakers to the outlet

box associated with the wall switch location.

Decorative Arms

Screw

Holes

www.CasablancaFanCo.com

1.888.227.2178

Install both decorative arms to the

decorative cup using decorative arm screws

found in the hardware bag.

Align the screw holes on the decorative arms

with the screw holes on the side of the fan.

M8521-01 • 10/30/14 • © Casablanca Fan Company

Install the decorative screws through the holes

in the decorative arms into the fan. HAND

TIGHTEN to avoid damaging the nish.

Downrod

www.CasablancaFanCo.com

1.888.227.2178

Standard Downrod

for ceilings 8-10’ high

Option 1

Included

(pre-assembled)

Longer Downrod

for angled ceilings or

Option 2

ceilings 10’ or

higher

skip to next page

If you need a different downrod length follow these steps:

Steps 1-5 to remove standard downrod pipe

1 2 3 4 5

Slide

678910

Sold Separately

Steps 6-10 to reassemble with new pipe

M8521-01 • 10/30/14 • © Casablanca Fan Company

Downrod (continued)

www.CasablancaFanCo.com

1.888.227.2178

Remove the pre-installed

setscrew so that the downrod

can be inserted.

Thread the downrod through

the decorative arm cup and

into the fan. Hand tighten the

downrod (at least 4-5 full turns)

until it stops.

8”

M8521-01 • 10/30/14 • © Casablanca Fan Company

3/8”

8”

(not to scale)

The wires can be cut, but

leave at least 8” extending

from the top of the downrod.

Tighten the setscrew

with pliers. DO NOT

HAND TIGHTEN.

3/8”

If the setscrew is not tightened

securely, the fan may fall.

Downrod (continued)

DO NOT PICK THE FAN UP BY THE

www.CasablancaFanCo.com

1.888.227.2178

Put the wires and downrod through the canopy.

Let the canopy sit loosely on top of the fan.

CANOPY OR WIRES. Place the downrod

ball into the slot in the ceiling bracket.

M8521-01 • 10/30/14 • © Casablanca Fan Company

Wiring

Place the receiver on top of the downrod

Receiver

Note: To connect the wires, hold

the bare metal leads together and place a wire connector over them,

then twist clockwise until tight.

www.CasablancaFanCo.com

1.888.227.2178

assembly as shown.

Refer to CAUTION c.1 on pg. 2

Using an orange wire connector

from the hardware bag:

Connect the 3 grounding wires (green, green/yellow stripe, or bare

copper) coming from the ceiling, downrod, and ceiling bracket.

Turn the splices upward and push them carefully back through the hanger bracket

into the outlet box. Spread the wires apart, with the grounded wires on one side of

the outlet box and the ungrounded wires on the other side of the outlet box.

M8521-01 • 10/30/14 • © Casablanca Fan Company

green/yellow

stripe (grounding)

green/yellow stripe

green/yellow

stripe

Wiring (continued)

www.CasablancaFanCo.com

1.888.227.2178

Using the wire connectors from the

remote control hardware bag:

• Connect the white wire from the

receiver (marked “common out”) to the white wire from fan.

• Connect the black wire from the

receiver (marked “fan out”) to the black wire from the fan.

• Connect the blue wire from the

receiver (marked ”light out”) to the blue wire from the fan.

The red wire from the receiver will not be used, it has a pre-installed wire terminator.

white (common out)

white

black (fan out)

blue (light out)

black

blue

Using an orange wire connector from

white (grounded) white (neutral in)

black (ungrounded)

the hardware bag:

• Connect the black wire

(ungrounded) from the ceiling to

the black wire from the receiver

(marked “live in”).

• Connect the white wire (grounded)

black (live in)

from the ceiling to the white wire from the receiver (marked “neutral

in” or “common in”).

Refer to CAUTION c.1 on pg. 2

Turn the splices upward and push them carefully back through the hanger bracket

into the outlet box. Spread the wires apart, with the grounded wires on one side of

the outlet box and the ungrounded wires on the other side of the outlet box.

M8521-01 • 10/30/14 • © Casablanca Fan Company

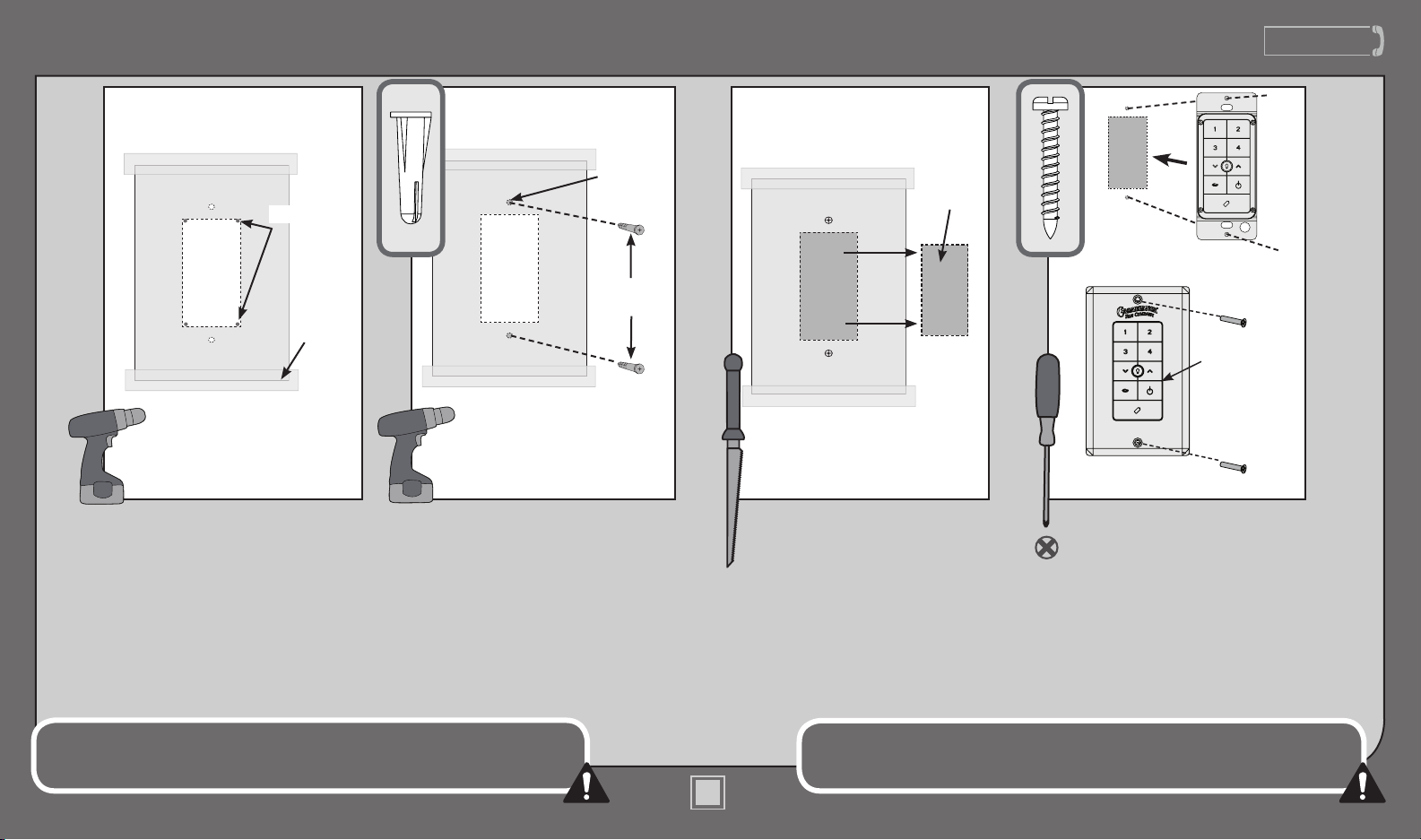

Wall Control

Template

Drill Holes

Painter’s

Tape

Template

Screw

Cut-Out

Drywall

Anchors

Template

Drywall

www.CasablancaFanCo.com

Before

Cover Plate

After

1.888.227.2178

1. Tape the provided wall control template with painter’s tape at the desired installation area.

2. Drill holes inside the four corners of the template.

Note: Make sure the wall control template is level before

proceeding to the next step.

If you are using a outlet box for wall control installation, the wires coming from the wall

control must be grounded using the attached green wire. If not placed in an outlet box, cap

the green wire coming from the wall control with an included wire nut.

1. Using a 9/64 drill bit, drill a hole in each screw cut-out on the wall control template.

2. Using a hammer, tap a drywall

anchor found in the wall control hardware bag into each hole

until the drywall anchor is ush with the wall.

M8521-01 • 10/30/14 • © Casablanca Fan Company

1. Using a drywall punch saw,

cut out the interior shape of the template using one of the four drilled corners as a

starting point.

2. Remove the template and the cut-out section of drywall.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following

conditions: (1) this device may not cause harmful interference, and (2) this device must accept

any interference received, including interference that may cause undesired operation.

1. Insert the wall control into the dry wall cut out.

2. Align the screw holes in the wall control with the drywall anchors.

3. Install the cover plate using

a Phillips Head screwdriver to secure the two cover plate screws found in the wall control hardware bag through the wall control and into the drywall

anchors.

Canopy

Screw

Holes

www.CasablancaFanCo.com

1.888.227.2178

Position the canopy so that, when

lifted into place, the canopy ts into

the hanging bracket as shown.

Lift the canopy into place so that

the screw holes are aligned.

M8521-01 • 10/30/14 • © Casablanca Fan Company

Install the two canopy screws

found in the hardware bag.

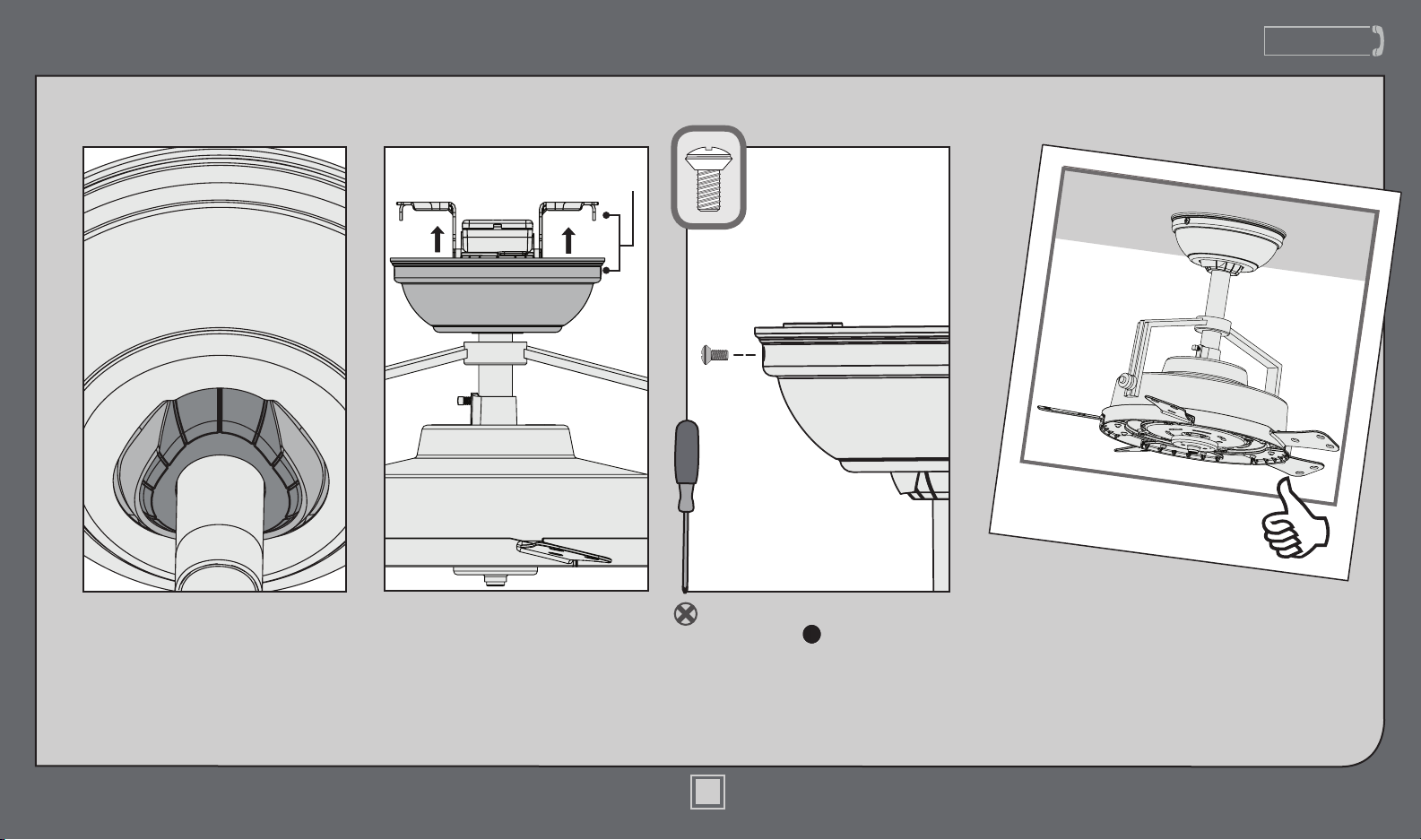

Blades

Install each blade using the blade nuts,

Your blades are shielded with Dust

Armor® which is a nanotechnology

coating that repels dust. For cleaning

the fan, use soft brushes or cloths to

prevent scratching. Cleaning agents

may damage the nishes.

www.CasablancaFanCo.com

1.888.227.2178

found in the hardware bag, and the blade

assembly screws, found in the hardware

bag. Secure the blade to a blade iron using the

included Allen wrench.

M8521-01 • 10/30/14 • © Casablanca Fan Company

Switch Housing

www.CasablancaFanCo.com

1.888.227.2178

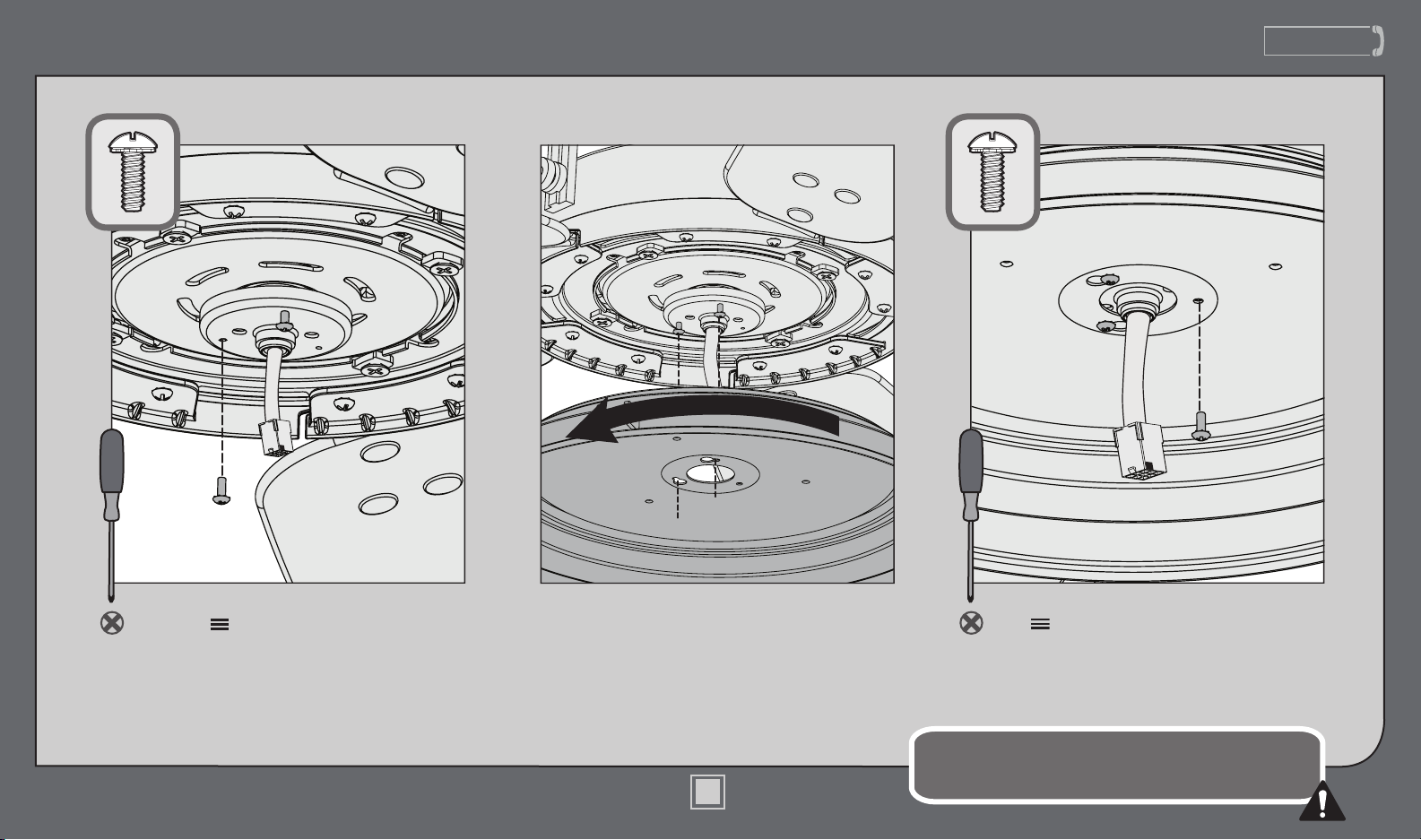

Screw two housing assembly screws

from the hardware bag halfway into

the motor housing. It does not matter

which two screw holes you choose.

Feed the wire plug through the center

hole of the upper switch housing, then

wrap keyhole slots around the screws and

twist counterclockwise.

M8521-01 • 10/30/14 • © Casablanca Fan Company

Insert the third screw, found in

the hardware bag, into place and then

tighten all three screws.

Make sure the upper switch housing is securely attached to

the mounting plate. Failure to properly secure all 3 assembly screws could result in the switch housing xture falling.

Light Kit

www.CasablancaFanCo.com

Bulb

1.888.227.2178

Connect the plugs from the upper and

lower switch housings. Make sure to line up

the colored markings on the connectors.

Note: In compliance with US federal energy regulations, this ceiling

fan contains a device that restricts its light output. Exceeding the

wattage limit marked on the MAX wattage sticker afxed to the

light socket(s) may result in re hazard or improper operation.

Raise the lower switch housing to the

bottom of the upper switch housing. Install

all three switch housing screws found in

the hardware bag.

Install a halogen bulb in each socket. When

necessary, replace with bulbs of the same

type and wattage.

Make sure the lower switch housing is securely attached to

the upper switch housing. Failure to properly secure all three assembly screws could result in the light xture falling.

Light Kit (Continued)

Notch

www.CasablancaFanCo.com

CONGRATULATIONS!

YOU’RE DONE!

1.888.227.2178

Carefully place the globe into the globe

ring. Support both the globe and the

globe ring during installation.

Carefully raise the globe assembly and

align the hammers on the globe ring with

the notches on the fan. Press all three

hammers into their respective notches.

See next page for fan operation instructions.

Operation

Battery

Holder

Battery Door

Battery

Turn Power

www.CasablancaFanCo.com

1.888.227.2178

Before operating the wall control, press on the

battery door to eject it. Unscrew the battery

holder. Insert the battery, found in the control

hardware bag, with the positive (+) side facing

downward. Reinstall the battery holder and

reinsert the battery door into the wall control.

The remote transmitter should already be paired

to the receiver and ready to use.

Note: If your need to pair your remote, turn fan

power off and back on at the circuit breaker.

Within three minutes, press and hold both the

Fan Off button and the 4 button for four seconds to pair the remote. To prevent faulty operation,

please disconnect power from all other ceiling

fans within range while pairing.

Operation (continued)

www.CasablancaFanCo.com

1.888.227.2178

Fan

Speed

Lights

Down

Reverse

Battery

Holder

(Low)

(High)

Quickly press the up or down arrow

to turn the lights off and on. Hold

the up or down arrow to raise or

dim the light level. The reverse

button changes the direction that

the blades turn. The power button

turns the fan off and on.

Fan Speed

Lights Up

Fan Power

Reverse

Button

(a)

(b)

The reverse button on the wall

control changes the air ow

pattern. In warm weather, use

(a) downward air ow pattern.

In cold weather, use (b) upward

air ow pattern.

The Safe-Exit Program gives you about thirty seconds of light when you turn the lights off to exit the room before the

lights go out. To use Safe-Exit:

• Press the fan power button off for at least three seconds to

initiate the Safe-Exit Mode.

• The lights will ash for visual conrmation.

• The lights will stay on 50% brightness for 20 seconds and then begin to dim. After a total

of 30 seconds, the lights will be

completely off.

Maintenance & Cleaning

www.CasablancaFanCo.com

1.888.227.2178

Turn Power

OFF

Be sure to turn off

power to the fan

before performing

any maintenance or

relamping.

Remove the bulbs and replace them with bulbs

of the same type and wattage. Reinstall the globe.

Note: In compliance with US federal energy regulations, this ceiling

fan contains a device that restricts its light output. Exceeding the

wattage limit marked on the MAX wattage sticker afxed to the

light socket(s) may result in re hazard or improper operation.

Globe

Changing the bulbs - carefully release the hammers holding the the globe to the fan.

Cleaning the fan - use soft brushes or cloths to prevent scratching. Cleaning

products may damage the nishes.

Troubleshooting

www.CasablancaFanCo.com

1.888.227.2178

Fan doesn’t work

• Press a fan speed button (1-4).

• Check the circuit breaker to ensure

the power is turned on.

• Check the wall control battery.

• Make sure that you have paired

the wall control.

• Make sure the blades spin freely.

• Turn off power from the circuit breaker, then loosen the canopy and check all the connections according to the wiring diagram

on pages 10-11.

Remote doesn’t work

• Install a fresh battery in the wall

control.

• Make sure you have paired the

remote.

Noisy Operation

• Tighten the blade screws until they are snug.

• Check to see if any of the blades

are cracked. If so, replace all of the blades.

Lights dim when turned on or do not turn on at all.

• Make sure the wattage of the

light bulbs installed matches the

specications on the light sockets (see page 20 for instructions on changing the bulbs).

If you have multiple remotes or multiple remote-controlled fans installed on the same circuit breaker

and you are experiencing interference or faulty operation of your remote controls, please go to www.CasablancaFanCo.com/FAQs and click “How do I properly install

multiple remote-controlled fans?” for

information on how to correct this

issue.

Excessive wobbling

• Tighten all blade screws until they are snug.

• Turn the power off, support the fan carefully, and check that the

hanger ball is properly seated.

• Use the provided balancing kit and instructions to balance the

fan.

AUTHORIZED SERVICE

CENTERS

For the most updated list of

Casablanca Authorized Service

Centers, visit

www.CasablancaFanCo.com or call toll free 1-888-227-2178.

Casablanca Fan Company 59113 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
