Casablanca Fan DRTT1003 Owner Manual

Download

Table of Contents

Ladder

30 inches

7 feet

www.CasablancaFanCo.com

1.888.227.2178

What to Expect with

Your Installation

Downrod

Light Kit

Preparation

PAG E

Wiring

PAG E

Wall Control

Mounting Options

Canopy

Maintenance

& Cleaning

Ceiling Bracket

PAG E

Blade

PAG E

Troubleshooting

PAG E

What to Expect with Your Installation

If you are unfamiliar with wiring, use a

qualied electrician.

Must be able to secure the fan to building structure or fan-rated outlet box

You may need a friend to help you.

Check box to see

fan weight

Know your wiring

Ceiling angles greater than 34° will require an

Angled Mounting Kit. See page 4 for details.

Assess ceiling angle

30 inches

from blade tip to

nearest wall or

obstruction

7 feet

from bottom

edge of blade

to the oor

Assess location

Standard Downrod

Longer Downrod

for angled ceilings or high ceilings

Select a downrod length

www.CasablancaFanCo.com

1.888.227.2178

Read and Save These Instructions

This product conforms to UL Standard 507.

WARNINGS

w.1 - To reduce the risk of re, electrical shock, or personal injury, mount fan directly from building structure and/or an outlet box marked acceptable for fan support of 70 lbs (31.8 kg) and use the mounting screws provided with the outlet box.

w.2 - To avoid possible electrical shock, before installing or servicing your fan, disconnect the power by turning off the circuit breakers to the outlet box and associated wall switch location. If you cannot lock the circuit breakers in the off position, securely fasten a prominent warning device, such as a tag, to the service panel.

w.3 - To reduce the risk of re, electrical shock, or motor damage, use only Hunter Solid State Speed Controls.

w.4 - To reduce the risk of personal injury, do not bend the blade brackets when installing the blade brackets, balancing the blades, or cleaning the fan. Do not insert foreign objects in between rotating fan blades.

CAUTIONS

c.1 - All wiring must be in accordance with national and local electrical codes ANSI/NFPA 70. If you are unfamiliar with wiring, use a qualied electrician.

c.2 - Use only Casablanca replacement parts.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Caution: modications not approved by the party responsible for compliance

could void user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Preparation

Tools Needed

IMPORTANT

www.CasablancaFanCo.com

1.888.227.2178

Ladder

Screwdrivers

Pliers Wire Strippers

Power Drill

(optional)

If mounting to a support structure, you

will also need these tools.

9/64” Drill Bit

(optional)

Remove the shipping blocks from

the motor. Discard the screws.

Note: Some fans will have a

shipping ring instead of shipping

blocks. Please remove the ring and

discard the screws.

Do not discard the hardware

bags or mix parts from different

bags. Make note of the symbol

printed on each hardware

bag. The symbols can be used

to identify the appropriate

hardware for each step.

CEILING

Mounting Options

www.CasablancaFanCo.com

1.888.227.2178

OPTION

If you have a at ceiling:

WALL

Hang your fan by a standard downrod (included).

Standard Mounting

Support Structure

OPTION

If you have an angled ceiling:

1. You will need a longer downrod (sold separately).

2. If your ceiling angle is greater than 34°, you will also need an Angled Mounting Kit (sold separately).

Use the three steps below to determine if your ceiling angle is greater than 34°

Angled Mounting

Standard Mounting Style

Ceiling

Outlet Box

(required)

Angled Mounting Style

Ceiling

Outlet Box

(required)

FOLD

on dotted line

34°

Guide Touches

BOTH Ceiling & Wall

You need ONLY

a Longer

Downrod

*most common

2 3

PLACE

against wall

Guide Touches

but NOT Ceiling

You need BOTH

a Longer

Downrod &

an Angled

Mounting Kit

SLIDE

toward ceiling

Wall

Use Standard Mounting

or Low-Prole Mounting

to hang the fan from a at ceiling.

Use Angled Mounting

to hang the fan from a

vaulted or angled ceiling.

Ceiling Bracket

Turn Power

OFF

For angled ceilings, point

opening toward peak.

www.CasablancaFanCo.com

1.888.227.2178

Make sure all four bumpers are

still attached.

Refer to warning w.1 on pg. 2

If you are unable to do this,

call Technical Support at

1-888-277-2178.

Use wood screws

(included) when securing

to support structure with approved electrical outlet box. Drill 9/64” pilot holes in support structure to aid in securing ceiling bracket

with hardware found in

the hardware bag.

Use machine screws

(provided with outlet

box) when securing to

existing ceiling fan-rated

outlet box. Make sure it is securely installed

and is acceptable for fan

support of 31.8 kg (70 lbs)

or less.

To avoid possible electrical shock, before installing your fan, disconnect the power by turning off the circuit breakers to the outlet

box associated with the wall switch location.

Downrod

www.CasablancaFanCo.com

1.888.227.2178

Standard Downrod

Option 1

Shorter Downrod

for fans installed close to ceiling

Option 2

Included

(pre-assembled)

Longer Downrod

for angled ceilings or

Option 3

high ceilings

skip to next page

If you need a different downrod length follow these steps:

Steps 1-5 to remove standard downrod pipe

1 2 3 4 5

Slide

678910

Included

Sold Separately

Steps 6-10 to reassemble with new pipe

Downrod (continued)

www.CasablancaFanCo.com

1.888.227.2178

KEEP!

Remove the pre-installed

setscrew so that the downrod

can be inserted.

Slide the adapter cover onto the

downrod (for standard mount only),

then hand tighten the downrod at

least 4-5 full turns until it stops.

8”

3/8”

8”

(not to scale)

The wires can be cut,

but leave at least 8”

extending from the top

of the downrod.

Raise the adapter cover.

Tighten the setscrew

with pliers. DO NOT

HAND TIGHTEN. Lower

the adapter cover.

3/8”

If the setscrew is not tightened securely, the fan may fall.

Downrod (continued)

DO NOT PICK THE FAN UP BY THE

Put the wires and downrod through the

canopy. Let the canopy sit loosely on top

www.CasablancaFanCo.com

1.888.227.2178

of the fan.

CANOPY OR WIRES. Place the downrod

ball into the slot in the ceiling bracket.

Wiring: Single Switch

www.CasablancaFanCo.com

1.888.227.2178

Have a single switch?

Follow these steps:

Connect the white (grounded) wire from the ceiling to the white wire from the fan.

Connect the black wire (ungrounded) from the ceiling to the black wire from the fan.

Grounded

White

Ungrounded

Black

Cap the blue wire from the fan. You will not need it for single switch wiring.

Blue

Grounding

Green/Yellow Stripe

Dual Switch Instructions

Connect the three grounding wires (green, green/yellow stripe, or bare copper) coming from the ceiling, downrod, and hanging bracket.

Note: To connect the wires,

hold the bare metal leads together and place a wire

connector over them, then

twist clockwise until tight.

Refer to CAUTION c.1 on pg. 2

Turn the splices upward and push them carefully back through the hanger bracket

into the outlet box. Spread the wires apart, with the grounded wires on one side of

the outlet box and the ungrounded wires on the other side of the outlet box.

Wiring: Dual Switch

Have dual switches?

Follow these steps:

Connect the white (grounded) wire from the ceiling to the white wire from the fan.

Connect the black wire (ungrounded) from the ceiling to the black wire from the fan.

White

Ungrounded

Black

Grounded

Ungrounded (light)

Grounded

Grounding

Green/Yellow Stripe

www.CasablancaFanCo.com

Connect the three grounding wires (green, green/yellow stripe, or bare copper) coming from the ceiling, downrod, and hanging bracket.

1.888.227.2178

Refer to CAUTION c.1 on pg. 2

Connect the second ungrounded (light) wire from the celing to the blue wire from the fan.

Blue

Note: To connect the wires,

hold the bare metal leads together and place a wire

connector over them, then

twist clockwise until tight.

Turn the splices upward and push them carefully back through the hanger bracket

into the outlet box. Spread the wires apart, with the grounded wires on one side of

the outlet box and the ungrounded wires on the other side of the outlet box.

Canopy

Screw

Holes

www.CasablancaFanCo.com

1.888.227.2178

Position the canopy so that, when

lifted into place, the canopy ts into

the hanging bracket as shown.

Lift the canopy into place so that

the screw holes are aligned.

Insert the two canopy screws

found in the hardware bag.

Blades

www.CasablancaFanCo.com

1.888.227.2178

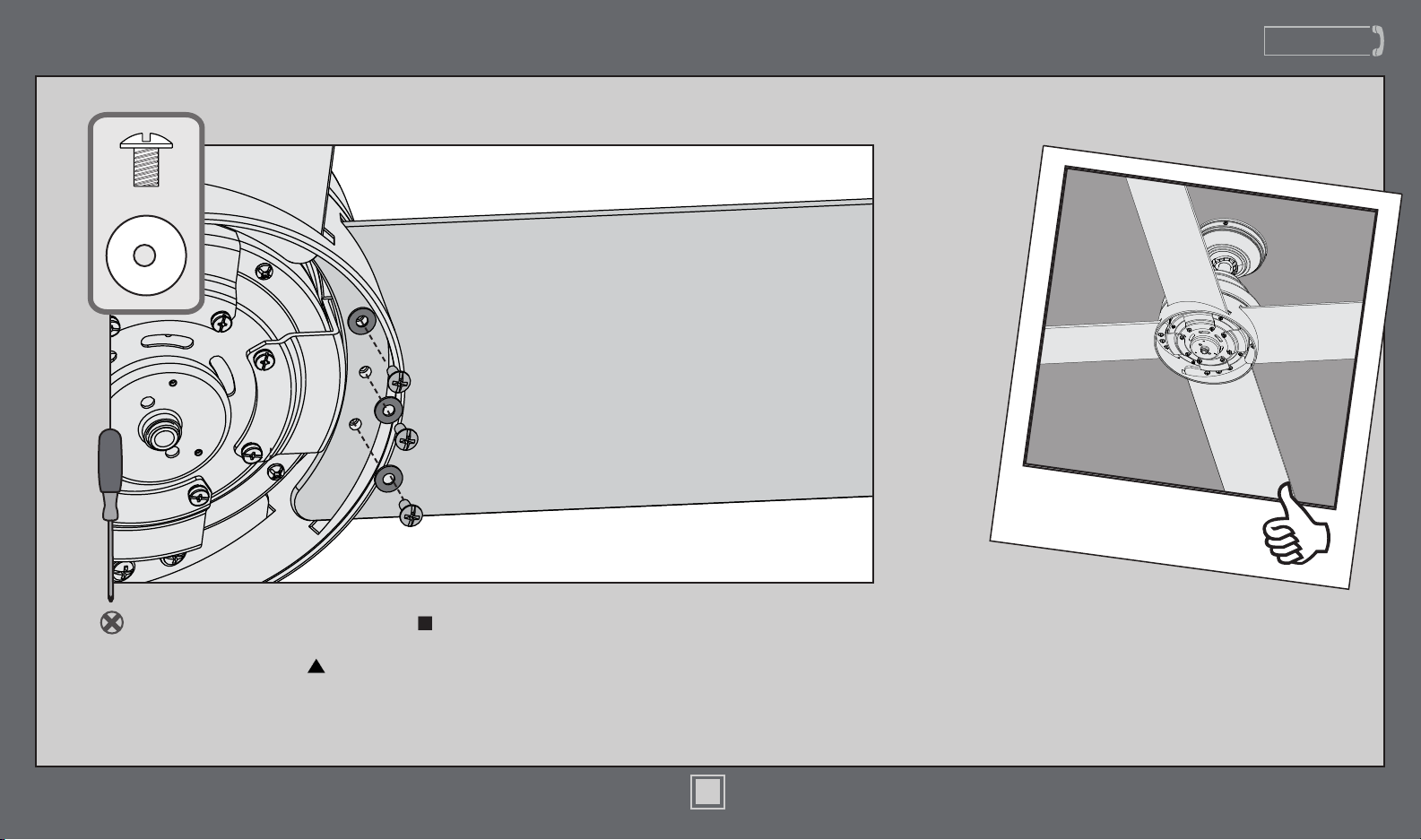

Attach each blade to the motor using

three blade washers, found in the

hardware bag, and three blade assembly

screws, found in the hardware bag.

Light Kit

www.CasablancaFanCo.com

1.888.227.2178

Screw two switch housing assembly

screws, found in the hardware

bag, halfway into the mounting

plate on the bottom of the motor

housing. It does not matter which

two screw holes you choose.

Feed the two single-pin connectors

through the center hole of the upper

switch housing, then wrap the keyhole

slots around the screws and twist

counterclockwise.

Make sure the upper switch housing is securely attached to the mounting plate. Failure to properly secure all 3 assembly screws could result in the switch housing xture falling.

Light Kit (continued)

www.CasablancaFanCo.com

1.888.227.2178

Insert the third screw, found in the

hardware bag, into place and then tighten

all three screws.

Raise the LED assembly to the trim ring. Align the screw holes in the LED assembly with the screw holes in the

trim ring.

Light Kit (continued)

www.CasablancaFanCo.com

1.888.227.2178

Screw two light kit assembly screws,

found in the hardware bag,

through the LED assembly and into

the trim ring.

Connect the single-pin connectors from the

LED assembly to the connectors from the fan.

Connect the white wires together. Connect the blue and black wires together. Tuck the

excess wiring above the LED assembly.

Raise cap to the LED assembly. Align the notches on the sides of the cap with the

screw holes in the LED assembly.

Light Kit (continued)

WARNING

GLASS FALL HAZARD

To prevent SERIOUS INJURY or DEATH, make sure that glass is properly secured.

Tab

Notch

www.CasablancaFanCo.com

CONGRATULATIONS!

YOU’RE DONE!

1.888.227.2178

Install the two light kit assembly screws

which can be found in the hardware bag.

Position the notches in the outer rim of

the globe so they line up with the three tabs

on the inside rim of the housing. Carefully lift

the globe up inside the housing as far as it

will go, then rotate the globe clockwise until

it is held tightly in place by the tabs.

NOTE: Check to ensure proper engagement

See next page for fan operation instructions.

Wall Control For Single Switch

If you have a dual switch setup, go to page 18 for dual switch installation instructions.

Turning oﬀ the power

Ensure the power is OFF at the outlet box and wall switch location before proceeding with installation.

Turn Power

OFF

Installing the baery

To access the baery compartment, slide the baery door up.

Replace the used baery with two AAA baeries when needed.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following

conditions: (1) this device may not cause harmful interference, and (2) this device must accept

any interference received, including interference that may cause undesired operation.

Battery Door

Installing the Wall Plate Bracket

Snap the Wall Control into the Wall Plate Bracket.

Wiring the Wall Control

1. Connect the grounding wire from the wall control to the ground control from the switch box using the provided wire nuts.

2. Connect the “LIVE IN” from the switch box to the “~VAC” from the wall control using the provided wire nuts.

3. Connect the “LIVE OUT” from the switch box to the “FAN” out from the wall control using the provided wire nuts.

4. Push all wires into the switch box.

www.CasablancaFanCo.com

1.888.227.2178

Wall Control For Single Switch

www.CasablancaFanCo.com

1.888.227.2178

Installing the Wall Control

Install the longer screws through the slots in the wall control into the switch box screw holes.

Installing the Wall Plate

Push the wall plate onto the Wall Plate Bracket. It should snap into place.

Turning on the power

IMPORTANT

Turn Power

Reference the included remote function card for information on how to use your wall control!

Wall Control For Dual Switches

www.CasablancaFanCo.com

1.888.227.2178

To install the Casablanca Wall Control into a dual switch location, you will need a wall plate with both a standard switch and rocker switch cut-out (sold separately).

If you are unfamiliar or uncomfortable with wiring, please contact a qualiﬁed electrician.

(Sold Separately)

Installing the baery

To access the baery compartment, slide the baery door up.

Replace the used baery with two AAA baeries when needed.

Battery Door

Verify which switch controls the fan light.

1. Turn on power for the fan.

2. Push both existing wall switches to the on position.

3. Press the Fan and Light buon on the Casablanca Wall Control.

4. Your fan’s light and fan should be on.

5. Push each of your existing wall switches into the oﬀ position one at a time to determine which switch controls the Light.

6. The Light switch will not be replaced when installing the Casablanca Wall Control. You may ﬁnd it helpful to mark the Light switch with a pencil or some other non-permanent mark.

IMPORTANT

Turn oﬀ the power

Ensure the power is OFF at the outlet box and wall switch location before proceeding with installation.

Turn Power

OFF

Wall Control For Dual Switches

www.CasablancaFanCo.com

1.888.227.2178

Remove the existing wall plate

Remove the existing wall plate. Save the screws. You will need them for the existing, marked light switch.

Remove the Casablanca Wall

Control frame.

Remove the frame from the Casablanca Wall Control. You will not need it for the dual switch installation process.

Wiring the Casablanca Wall

Control

1. Connect the grounding wire from the wall control to the ground control from the switch box using the provided wire nuts.

2. Connect the “LIVE IN” from the switch box to the “~VAC” from the wall control using the provided wire nuts.

3. Connect the “LIVE OUT” from the switch box to the “FAN” out from the wall control using the provided wire nuts.

4. Push all wires into the switch box.

Install the Wall Plate

Install the wall plate that ﬁts your setup (sold separately).

1. Use the screws you saved to reinstall into the light switch.

2. Use the screws included

Installation complete

The existing light switch still controls the light on/oﬀ.

Turn on the power

IMPORTANT

Reference the included remote function card for information on how to use your wall control!

Turn Power

Wall Control

www.CasablancaFanCo.com

1.888.227.2178

KEYPRESS KEYPRESS

LIGHTFUNCTIONS FANFUNCTIONS

FUNCTION FUNCTION

Light On/Off

Light Dimming Control

Long Press

Long Press Long Press

Light High

Light Low

Dimming Mode On/Off

Long Press

Fan On/Off

Fan Speed Control

Fan High

Fan Low

Fan Reverse

Fan Updraft

Fan Downdraft

Power On/Off

Long Press

Pair Function

Reset

(For WiFi enabled fans ONLY)

Maintenance & Cleaning

Turn Power

OFF

Be sure to turn off

power to the fan

before performing

any maintenance.

www.CasablancaFanCo.com

1.888.227.2178

Cleaning the fan - use soft brushes or cloths

to prevent scratching. Cleaning products may

damage the nishes.

Troubleshooting

www.CasablancaFanCo.com

1.888.227.2178

Fan doesn’t work

• Press a fan speed button (up or down arrow.

• Check the circuit breaker to ensure the power is turned on.

• Check the wall control battery.

• Make sure the blades spin freely.

• Turn off power from the circuit

breaker, then loosen the canopy and check all the connections according to the wiring diagram on pages 9, 10, and 18.

Excessive wobbling

• Turn the power off, support the fan carefully, and check that the hanger ball is properly seated.

• Use the provided balancing kit and instructions to balance the fan.

Fan keeps spinning after power is turned off

• The blades may take a few minutes to come to a complete stop. The powerful Casablanca motor combined with the unique blade design on this fan allows for great air movement, but this may cause the blades to keep spinning for longer than expected after power is turned off.

Remote does not work

• Make sure the battery is installed correctly.

• Install a new battery.

• If the remote still does not

work, you may need to pair your remote. To prevent faulty

operation, please disconnect power (at the wall switch, breaker, or fan) from all other ceiling fans within range while pairing. To pair: cycle power

to the fan by turning power off and back on at the wall switch (or circuit breaker if necessary). Within three minutes, press and hold both the Fan and Light button for four seconds to pair the remote. If applicable, the fan will turn on and the lights will ash and stay on to indicate successful pairing.

LED lights will not dim

• To enable dimming, you must rst set your remote to Dimming Mode. To toggle Dimming Mode on or off, long press the up and down button together.

AUTHORIZED SERVICE

CENTERS

For the most updated list of Casablanca Authorized Service Centers, visit www.CasablancaFanCo.com or call toll free 1-888-227-2178.

Troubleshooting (continued)

www.CasablancaFanCo.com

1.888.227.2178

Installing Multiple Fans with Independently Operating Remote Controls

To install multiple fans with independently operating remote controls, there is no need to perform any pairing procedures. Each set of receiver/transmitter is already paired. Simply

install each receiver into a fan and use the appropriate transmitter to operate each fan.

If your remote is not working, see the “Remote does not work” section on the previous page.

Installing Multiple Fans Operating on a Single Remote Control

To have multiple fans operated by a single remote control, you must pair the transmitter to each

additional receiver. The receiver that shipped with your fan is already paired to the transmitter.

Note: To prevent faulty operation, you MUST disconnect power (at the wall switch,

breaker, or fan) from all other ceiling fans within range while pairing each fan.

For each additional fan, ensure that a compatible receiver is installed. Disconnect power from all

other fans while pairing. To pair: cycle power to the fan by turning power off and back on at

the wall switch (or circuit breaker if necessary). Within three minutes, press and hold both

the Fan and Light button for four seconds to pair/unpair the remote. If applicable, the fan

will turn on and the lights will ash and stay on to indicate successful pairing.

Installing One Fan Operating on Multiple Remote Controls

To have multiple remote controls operate one fan, you must pair each additional transmitter

to the receiver in the fan. The transmitter that shipped with your fan is already paired.

Note: To prevent faulty operation, please disconnect power (at the wall switch,

breaker, or fan) from all other ceiling fans within range while pairing.

For each additional transmitter, cycle power to the fan by turning power off and back on at

the wall switch (or circuit breaker if necessary). Within three minutes, press and hold both

the Fan and Light button for four seconds to pair the remote. If applicable, the fan will

turn on and the lights will ash and stay on to indicate successful pairing.

“Unpairing” Procedure for Faulty Operation of Remote Controls

If a transmitter is mistakenly operating a fan, you need to “unpair” the transmitter from that

fan’s receiver. The “unpairing” procedure is the same as the pairing procedure.

Note: To prevent faulty operation, you MUST disconnect power (at the wall switch,

breaker, or fan) from all other ceiling fans within range while “unpairing” a fan.

Disconnect power from all other fans while “unpairing.” Then, cycle power to the fan you

wish to “unpair” by turning power off and back on at the wall switch (or circuit breaker if

necessary). Within three minutes, press and hold both the Fan and Light button button for four seconds to “unpair” the remote. If applicable, the fan will turn off and the lights

will ash and turn off to indicate successful “unpairing.”

Casablanca Fan DRTT1003 Owner Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
