Congratulations on purchasing your new Casablanca® ceiling fan! It will provide comfort and performance in your home

or ofce for many years. This installation

and operation manual contains complete instructions for installing and operating

your fan.

We are proud of our work and appreciate the opportunity to supply you with the best ceiling fan available anywhere in the

world.

To register your fan, please visit:

www.CasablancaFanCo.com/register

Save your receipt for proof of purchase.

Wiring

What to Expect with

Your Installation

Downrod

Canopy

Tools Needed

PAG E

Switch Housing &

Light Kit

PAG E

Remote Control

Ceiling Options

PAG E

Operation,

Maintenance &

Cleaning

Blades

Ceiling Bracket

PAG E

Hang Fan

PAG E

Troubleshooting

PAG E

What to Expect with Your Installation

If you are unfamiliar with wiring, use a

qualied electrician.

Must be able to secure the fan to building structure or fan-rated outlet box

You may need a

friend to help you.

Know your wiring

30 inches

from blade tip to nearest wall or obstruction

From bottom

edge of blade

Assess location

Standard Downrod

for ceilings 8-10 feet high

7 feet

to the oor

www.CasablancaFanCo.com

1.888.227.2178

Read and Save These Instructions

This product conforms to UL Standard 507.

WARNINGS

w.1 - To reduce the risk of re, electrical shock, or personal

injury, mount fan directly from building structure and/or an

outlet box marked acceptable for fan support of 70 lbs (31.8 kg) and use the mounting screws provided with the outlet box.

w.2 - To avoid possible electrical shock, before installing or

servicing your fan, disconnect the power by turning off the circuit breakers to the outlet box and associated wall switch

location. If you cannot lock the circuit breakers in the off

position, securely fasten a prominent warning device, such as a

tag, to the service panel.

w.3 - To reduce the risk of re, electrical shock, or motor damage, use only Casablanca Solid State Speed Controls.

w.4 - To reduce the risk of personal injury, do not bend the blade

brackets when installing the blade brackets, balancing the blades,

or cleaning the fan. Do not insert foreign objects in between rotating fan blades.

CAUTIONS

Check box to see fan weight

Ceilings that are more than 34° will require an

angled mounting kit. See page 3 for details.

Assess ceiling angle

Shorter Downrod

for fans installed close to ceiling

Longer Downrod

for ceilings 10 feet or higher

Select a downrod length

c.1 - All wiring must be in accordance with national and local electrical codes ANSI/NFPA 70. If you are unfamiliar with wiring, use a qualied electrician.

c.2 - Use only Casablanca replacement parts.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions may cause harmful interference to radio communications.

Tools Needed

www.CasablancaFanCo.com

1.888.227.2178

Ladder

Pliers Wire Strippers

Power Drill

(optional)

If mounting to a support structure, you will also need these tools.

9/64” Drill Bit

(optional)

Screwdrivers

CEILING

Ceiling Options

www.CasablancaFanCo.com

1.888.227.2178

OPTION

If you have a at ceiling:

WALL

Hang your fan by a standard downrod (included).

Standard Mounting

Support Structure

OPTION

If you have an angled ceiling:

1. You will need a longer downrod (sold separately).

2. If your ceiling angle is greater than 34°, you will also need an Angled Mounting Kit (sold separately).

Use the three steps below to determine if your ceiling angle is greater than 34°

Angled Mounting

Standard Mounting Style

Ceiling

Outlet Box

(required)

Angled Mounting Style

Ceiling

Outlet Box

(required)

FOLD

on dotted line

34°

Guide Touches

BOTH Ceiling & Wall

You need ONLY

a Longer

Downrod

*most common

2 3

PLACE

against wall

Guide Touches

but NOT Ceiling

You need BOTH

a Longer

Downrod &

an Angled

Mounting Kit

SLIDE

toward ceiling

Wall

Use Standard Mounting

or Low-Prole Mounting

to hang the fan from a at ceiling.

Use Angled Mounting

to hang the fan from a

vaulted or angled ceiling.

Ceiling Bracket

Turn Power

OFF

For angled ceilings, point

opening toward peak.

www.CasablancaFanCo.com

1.888.227.2178

Make sure all four bumpers are

still attached.

Refer to warning w.1 on pg. 2

If you are unable to do this,

call Technical Support at

1-888-227-2178.

Use wood screws

(included) when securing

to support structure with approved electrical outlet

box. Drill 9/64” pilot holes

in support structure to aid in securing ceiling bracket

with hardware found in

the hardware bag.

Use machine screws

(provided with outlet

box) when securing to

existing ceiling fan-rated

outlet box. Make sure

it is securely installed

and is acceptable for fan

support of 31.8 kg (70 lbs)

or less.

To avoid possible electrical shock, before

installing your fan, disconnect the power by turning off the circuit breakers to the outlet

box associated with the wall switch location.

Downrod

www.CasablancaFanCo.com

1.888.227.2178

Standard Downrod

for ceilings 8-10’ high

For Standard MountFor Low Prole

Shorter Downrod

for fans installed close to ceiling

Included

(pre-assembled)

Longer Downrod

for angled ceilings or

ceilings 10’ or

higher

For Standard Mount

skip to next page

If you need a different downrod length follow these steps:

Steps 1-5 to remove standard downrod pipe

1 2 3 4 5

Slide

678910

Sold Separately

Steps 6-10 to reassemble with new pipe

Downrod (continued)

www.CasablancaFanCo.com

1.888.227.2178

KEEP!

Remove the pre-installed

setscrew so that the downrod

can be inserted.

Slide the adapter cover onto the

downrod (for standard mount only),

then hand tighten the downrod at

least 4-5 full turns until it stops.

8”

3/8”

8”

(not to scale)

The wires can be cut,

but leave at least 8”

extending from the top

of the downrod.

Raise the adapter cover.

Tighten the setscrew

with pliers. DO NOT

HAND TIGHTEN. Lower

the adapter cover.

3/8”

If the setscrew is not tightened

securely, the fan may fall.

Switch Housing & Light Kit

www.CasablancaFanCo.com

1.888.227.2178

Screw two housing assembly screws

from the hardware bag halfway into

the motor housing. It does not matter

which two screw holes you choose.

Feed the wire plug through the center

hole of the upper switch housing, then

wrap keyhole slots around the screws and

twist counterclockwise.

Insert the third screw, found in

the hardware bag, into place and

then tighten all three screws.

Make sure the upper switch housing is securely

attached to the mounting plate. Failure to properly

secure all 3 assembly screws could result in the

switch housing xture falling.

Switch Housing & Light Kit (continued)

www.CasablancaFanCo.com

1.888.227.2178

Partially install two of the switch housing

screws found in the bag. Connect

the plugs from the upper and lower

switch housings. Make sure to line up the

colored markings on the connectors.

Align the keyhole slots in the light kit

housing with the housing assembly

screws. Make sure all the wires from the

fan and the light kit are snug inside the

center of the light kit, not pinched in

between the upper switch housing and

the light kit or hanging out of the sides.

Turn the light kit clockwise until the

housing assembly screws are rmly

situated in the narrow end of the keyhole

slots. Install the remaining screw into the

housing. Tighten all three screws securely.

Switch Housing & Light Kit (continued)

www.CasablancaFanCo.com

1.888.227.2178

When necessary, replace with bulbs of the

same type and wattage.

Lower the glass into the light cage.Install a bulb into each of the sockets.

Partially install the six light cage screws,

found in the hardware bag, into the

light cage.

Make sure the light kit is securely attached to the upper switch

housing. Failure to properly secure all 3 assembly screws could result in the light kit falling.

Switch Housing & Light Kit (continued)

www.CasablancaFanCo.com

1.888.227.2178

Align the partially installed screws in

the light cage with the keyhole slots

in the light trim ring. Lower the fan

onto the light cage. Engage all six

screws into the keyhole slots.

Ensure all six light kit screws

are engaged with the light trim

ring. Rotate the light trim ring

counterclockwise to lock the light

cage into place.

Tighten all six light kit screws.

Rotate the blade irons as needed.

Blades

Insert grommets found in the hardware

www.CasablancaFanCo.com

1.888.227.2178

bag into the holes in the blades, then

secure each blade to a blade iron with

screws found in the hardware bag.

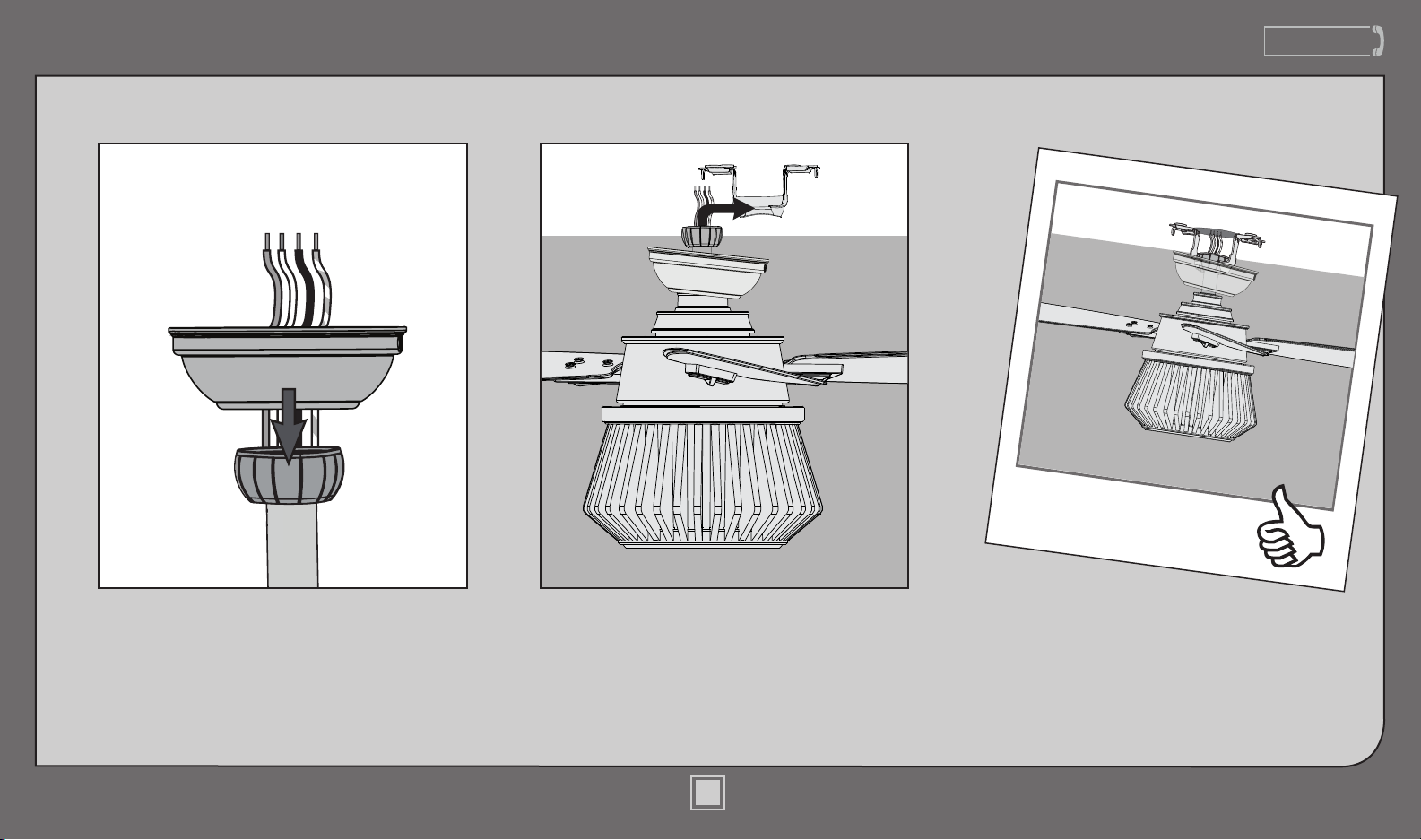

Hang Fan

Put the wires and downrod through the

canopy. Let the canopy sit loosely on top

DO NOT PICK THE FAN UP BY THE

www.CasablancaFanCo.com

1.888.227.2178

of the fan.

CANOPY OR WIRES. Place the downrod

ball into the slot in the ceiling bracket.

Wiring

Place the receiver on top of the downrod

Receiver

Note: If using the optional Low

Prole canopy, you may need to

carefully tilt the fan assembly at an

angle while connecting the wires.

Be sure to tilt the fan AWAY from

the opening in the ceiling bracket

and ensure the fan does not fall.

www.CasablancaFanCo.com

1.888.227.2178

assembly as shown.

Refer to CAUTION c.1 on pg. 2

Using an orange wire connector

from the hardware bag:

Connect the 3 grounding wires

(green, green/yellow stripe, or bare copper) coming from the ceiling, downrod, and ceiling bracket.

Note: To connect the wires, hold

the bare metal leads together and place a wire connector over them,

then twist clockwise until tight.

Turn the splices upward and push them carefully back through the hanger bracket into the outlet box. Spread the wires apart, with the grounded wires on one side of

the outlet box and the ungrounded wires on the other side of the outlet box.

green/yellow

stripe (grounding)

green/yellow stripe

green/yellow

stripe

Wiring (continued)

www.CasablancaFanCo.com

1.888.227.2178

Using the orange wire connectors from the remote control hardware bag:

• Connect the yellow wire from the receiver to the black wire

from the fan.

• Connect the blue wire from the receiver to the blue wire (or

possibly black with white stripe

wire) from the fan.

Refer to CAUTION c.1 on pg. 2

yellow

black

blue

Using the orange wire connectors

black

(ungrounded)

white (grounded)

from the hardware bag:

• Connect the black (ungrounded)

wire from the ceiling to the black

wire from the receiver.

white

blue

• Connect the white (grounded)

wire from the ceiling to both the white wire from the receiver and

black

the white wire from the fan.

Turn the splices upward and push them carefully back through the hanger bracket into the outlet box. Spread the wires apart, with the grounded wires on one side of

the outlet box and the ungrounded wires on the other side of the outlet box.

Canopy

Screw

Holes

www.CasablancaFanCo.com

1.888.227.2178

Position the canopy so that, when

lifted into place, the canopy ts into

the hanging bracket as shown.

Lift the canopy place so that the

screw holes are aligned.

Insert the two canopy screws

found in the hardware bag.

Remote Control

Battery Door

Turn Power

www.CasablancaFanCo.com

1.888.227.2178

Phillips Head Screw

To access the battery compartment, remove

the small Phillips head screw that secures the

battery door to the transmitter assembly. The

battery should be installed with the positive

(+) side up. Replace with a CR2032 battery

when necessary.

The remote transmitter is already paired

to the receiver and ready to use.

Note: If you would like to operate

multiple fans or multiple remotes,

or if your remote is not working,

please see the Troubleshooting

section at the end of this manual.

CONGRATULATIONS!

YOU’RE DONE!

See next page for fan operation instructions.

Operation, Maintenance & Cleaning

www.CasablancaFanCo.com

1.888.227.2178

The Fan Off button found on the right side of

the transmitter turns the fan off.

Buttons 1 through 4 turn on the fan and

control the speed.

• (1) Extra Low

• (2) Low

• (3) Medium

• (4) High

The up arrow and down arrow buttons control the

lights on the fan. Quickly press and release the up

or down arrow to turn the lights off and on. Hold

the up or down arrow to raise or dim the light level.

Dimming Mode: To enable dimming, you must

rst set your remote to Dimming Mode. To toggle

Dimming Mode on or off, hold down the Fan Off

button while pressing the Light Down arrow twice.

Move the reverse switch to opposite

position to change the direction of

airow. The fan must be running to

use the reversing feature.

Operation, Maintenance & Cleaning (continued)

Post

www.CasablancaFanCo.com

1.888.227.2178

Safe-Exit

The Safe-Exit Program gives you about thirty seconds of light when you turn the lights off to exit the room before the lights go out. To use Safe-Exit:

• Press the Fan Off button for at least three seconds to initiate the Safe-Exit Mode.

• The lights will ash for visual conrmation.

• The lights will stay on 50% brightness for 15 seconds and then begin to dim. After a total of 30 seconds, the lights will be completely off.

For cleaning the fan, use soft brushes or

cloths to prevent scratching. Cleaning

products may damage the nishes.

Your Universal Remote comes with a wall

plate that has two posts on which to mount

your transmitter when not in use.

Troubleshooting

www.CasablancaFanCo.com

1.888.227.2178

Fan doesn’t work

• Press a fan speed button (1-4).

• Push the motor reversing switch rmly left or right to ensure that it is engaged.

• Check the circuit breaker to ensure the power is turned on.

• Make sure the remote control battery is working.

• Make sure the blades spin freely.

• Turn off power from the circuit

breaker, then loosen the canopy and check all the connections according to the wiring diagram

on pages 10-11.

• Check the plug connections in the switch housing.

Excessive wobbling

• Tighten all of the blade and

blade iron screws until they

are snug.

• Turn the power off, support

the fan carefully, and check that the hanger ball is

properly seated.

• Use the provided balancing

kit and instructions to balance

the fan.

Noisy Operation

• Tighten the blade and blade iron screws until they are snug.

• Check to see if any of the blades are cracked. If so, replace all of the blades.

Remote does not work

• Make sure the battery is installed correctly.

• Install a new battery.

• If the remote still does not

work, you may need to pair

your remote. To prevent faulty operation, please disconnect power (at the wall switch, breaker, or fan) from all other ceiling fans within range while pairing. To pair: cycle power

to the fan by turning power off and back on at the wall switch

(or circuit breaker if necessary).

Within three minutes, press and

hold both the Fan Off button and

the 4 button for four seconds to

pair the remote. If applicable, the

fan will turn on and the lights

will ash and stay on to indicate successful pairing.

AUTHORIZED SERVICE

CENTERS

For the most updated list of

Casablanca Authorized Service Centers, visit

www.CasablancaFanCo.com or call toll free 1-888-227-2178.

LED lights will not dim

• To enable dimming, you must rst set your remote to Dimming Mode. To toggle Dimming Mode on or off, hold down the Fan Off button while pressing the Light Down arrow twice.

Troubleshooting (continued)

www.CasablancaFanCo.com

1.888.227.2178

Installing Multiple Fans with Independently Operating Remote Controls

To install multiple fans with independently operating remote controls, there is no need to

perform any pairing procedures. Each set of receiver/transmitter is already paired. Simply

install each receiver into a fan and use the appropriate transmitter to operate each fan.

If your remote is not working, see the “Remote does not work” section on the previous page.

Installing Multiple Fans Operating on a Single Remote Control

To have multiple fans operated by a single remote control, you must pair the transmitter to each

additional receiver. The receiver that shipped with your fan is already paired to the transmitter.

Note: To prevent faulty operation, you MUST disconnect power (at the wall switch,

breaker, or fan) from all other ceiling fans within range while pairing each fan.

For each additional fan, ensure that a compatible receiver is installed. Disconnect power from all

other fans while pairing. To pair: cycle power to the fan by turning power off and back on at

the wall switch (or circuit breaker if necessary). Within three minutes, press and hold both

the Fan Off button and the 4 button for four seconds to pair the remote. If applicable, the

fan will turn on and the lights will ash and stay on to indicate successful pairing.

Installing One Fan Operating on Multiple Remote Controls

To have multiple remote controls operate one fan, you must pair each additional transmitter

to the receiver in the fan. The transmitter that shipped with your fan is already paired.

Note: To prevent faulty operation, please disconnect power (at the wall switch,

breaker, or fan) from all other ceiling fans within range while pairing.

For each additional transmitter, cycle power to the fan by turning power off and back on at the wall switch (or circuit breaker if necessary). Within three minutes, press and hold both the Fan Off button and the 4 button for four seconds to pair the remote. If applicable, the

fan will turn on and the lights will ash and stay on to indicate successful pairing.

“Unpairing” Procedure for Faulty Operation of Remote Controls

If a transmitter is mistakenly operating a fan, you need to “unpair” the transmitter from that

fan’s receiver. The “unpairing” procedure is the same as the pairing procedure.

Note: To prevent faulty operation, you MUST disconnect power (at the wall switch,

breaker, or fan) from all other ceiling fans within range while “unpairing” a fan.

Disconnect power from all other fans while “unpairing.” Then, cycle power to the fan you

wish to “unpair” by turning power off and back on at the wall switch (or circuit breaker

if necessary). Within three minutes, press and hold both the Fan Off button and the 4

button for four seconds to “unpair” the remote. If applicable, the fan will turn off and the

lights will ash and turn off to indicate successful “unpairing.”

Casablanca Fan CFC2924 Owner Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
