Casablanca Capistrano Indoor Ceiling Fan Owner's Manual

CAPISTRANO

OWNERS MANUAL

CONTENTS

INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

MOUNTING RECOMMENDATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

PREPARATION INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

FAN INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

CONTROL FEATURES:

3-SPEED OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

READ AND SAVE THESE INSTRUCTIONS

SAFETY FIRST

Safety and the proper operation of your Casablanca fan both require a thorough knowledge of the
product and proper installation; therefore, before attempting to install and operate your Casablanca
fan, read this owner’s manual completely and carefully. Retain this manual for future reference.

CAUTION: T o av oid possible electrical shock, make certain that electricity is turned o ff
at the circuit breaker or fuse box before attempting any installation procedure.

BEFORE YOU START

• All wiring must be in accord ance with th e Nati onal Electri c Code ANSI/NFPA 70-1993 and the appropriate local electri cal

codes. The N ati on al Electri c Cod e requir es proper grounding as a precaution again st electri cal sh ock. A qu alified electri­cian should be consulted if you are unsure.

• This fan is design ed to be in stalled on an e xisting electri cal outlet bo x. Th e outlet box m ust be UL Listed f or ceilin g f an
installations , if it is not, a n ew box must be in stalled. Casablan ca extensi on poles are available f or sloped or high ceilin g
installations.

• This ceiling fan requires a grounded electrical supply of 120 VAC, 60 Hz and a minimum 15 amp circuit. The maximum
current requirement for the fan with light fixture is 3.8 amps. The fan uses about 1 amp or 100 watts. Maximum light
current is 2.8 amps or 340 watts of lighting.

• Where wire n uts are employed , be sur e all bare wir es are within th e conn ectors. Wh en in stalling th e canopy hatch, m ak e
sure all wires are within the canopy and that no wires are being pinched.

For best performance and for your warranty to be valid,

use only genuine Casablanca blades, light fixtures, and accessories.

• The blades in each pack are m atched for equal
weight to assure smooth fan operation. If
more than one fan is being installed, be
careful not to mix blades from different
cartons.

• Inspect the contents of your carton for
possible shipping or handling damage and
report any such damage directly to your
authorized Casablanca dealer.

• It is always a good id ea to have an assistant
to help with the installation.

• When cleaning, painting, or working near
your fan, be very careful of th e fan and blades.
Always turn the power OFF to the ceiling f an
before servicin g it, working on it, or replacing
light bulbs.

• Never insert anything into the path of the
fan blades while the fan is in operation.

• Never install a fan over a pool or spa.

• Never operate a fan that has been damaged
in any way . Contact Casablanca Fan Compan y
by calling 1-800-759-FANS (3267), or contact
your local authorized Casablanca dealer for
assistance in obtaining service.

P/N 4643010 REV.A P/D MAR98PDG

SAFE USE

FUSE BOX

(REMOVE FUSE FOR THE

CIRCUIT YOU WILL BE

WORKING ON)

CIRCUIT BREAKER

(TRIP BREAKER FOR THE

CIRCUIT YOU WILL BE

WORKING ON)

18″

70″

84″

1

MOUNTING RECOMMENDATIONS

Before moun ting your Casablan ca f an, read th e following helpful recommend ation s . The locati on o f th e fan, air cir culation,
and fan size are all important factors to consider before installation.

Location

Ceiling fans have pr actical uses in alm ost every r oom in your h om e . W e sugg est you f ollow th ese m ount­ing recommendations as you decide where to install your Casablanca fan.

• For safety reasons, the fan blades must be a minimum of 7′ above the floor.

• Do not locate the fan in a doorway or above a swinging door.

• In any installation, the tips of the blades must be at least 18″ from the wall in order to provide
sufficient clearance for the blades.

• In bedrooms, fans work best when mounted above the foot of the bed.

• Over pool tables, be sure to provide plenty of clearance to avoid damage from pool cues.

• In low ceiling locations, our optional low ceiling adaptor (LCS) - available at
extra cost can be used to gain 3

1

/2″ (not applicable to Stealth series).

• In kitchens be sure to allow for open cupboard doors to clear the fan blades.

• Do not install a fan close to, or over, a pool or spa. High humidity combined
with corrosive gases will destroy the finish and warp the blades.

Fan Size

Variable f an speed capability permits the use o f a full-size 52″ f an even in
smaller rooms. For very large rooms, two fans may be needed.

SLOPED CEILING INSTALLATIONS

Suggested Extension Pole Lengths

Ceiling Height

8′

8′ 6″

9′

9′ 6″

10′
11′
12′
13′
14′

Pole Length

Standard
Standard

6″
12″
12″
18″
24″
36″
48″

EXTENSION

POLE

MAXIMUM

HANG-TRU®

ANGLE 32º

BLADES MUST BE A

MINIMUM OF 7′

ABOVE THE FLOOR

32°

When to Use Extension Poles

For best performance and best appear ance,
an extension pole should be used with
your Casablanca fan when installing on
high (cathedral) ceilings or sloped ceil­ings. Casablanca offers standard poles in
increments of 6″ up to 5′. Custom poles
are available in lengths up to 10′. See your
Authorized Casablanca Dealer f or details.

Note: Fan may wobble or vibrate if
pole length is not long enough and
inside blade is too close to downslope
or side wall. Extending pole length
will usually solve problem.

Calculation of 32°

Use the tear-off Ceiling Angle Template card inserted in the
back of this manual, it provides you with a simple ‘go’ or
‘no-go’ for installing your fan on a sloped ceiling.

2

EXAMPLE 1

This slope is less than 32°.
It is OK to install your fan.

EXAMPLE 2

This slope is 32°.
This is the maximum slope that
will allow the fan to hang straight
down. It is OK to install your fan.

EXAMPLE 3

This slope is more than 32°.
Your fan will not hang straight down,
an adaptor is necessary.
Contact you local Authorized
Casablanca Dealer in regards to
purchasing a 'Slope Ceiling Adaptor'.

7′ MINIMUM

EXAMPLE 1

This slope is less than 32˚.
It is OK to install your fan.

EXAMPLE 2

This slope is 32˚. This is the maximum
slope that will allow the fan to hang
straight down. It is OK to install your
fan.

EXAMPLE 3

This slope is more than 32˚.
Your fan will n ot han g str ai ght d own, an
adaptor is necessary. Contact your local
Authorized Casablanca Dealer in regards
to purchasing a “Slope Ceiling Adaptor.”

CAPISTRANO

Casablanca

PREPARATION INSTRUCTIONS

Unpacking: Before assembling and installing your ceiling fan, remove all parts from the shipping cartons and check them
against the parts listed here. Before discarding packaging material, be certain that all parts have been removed.

PERMA•LOCK™ HARDWARE

LOCKING BOLT

(MOTOR COUPLING)

FAN PREPARATION

IMPORTANT SAFETY INFORMATION!

BEFORE STARTING THE INSTALLATION OF YOUR CEILING FAN,

INSTALL THE THREADED DOWNROD INTO THE MOTOR COUPLING AND

LOCK THE ASSEMBLY

Prepare for fan installation as follows:
Step A. Route the wires from the motor through the

Perma•Lock™ downrod and ball assembly, keeping the wires
to one side of the cross pin.

NOTE: The downrod has a tapered thread
that is designed to lock completely when
correctly installed.

Step B. Thread the downrod into the motor coupling until it
stops turning, this will take at least four an d a half full turns.
Step C. Securely tighten the locking bolt to ensure safe op­eration of your fan.

CAUTION: Failur e to fully lock in the down­rod before securely tightening the locking
bolt may cause the fan to fall during nor­mal operation!

LOCKING

BOLT

GROUND

WIRE

TAPERED

THREAD

DOWNROD & BALL

ASSEMBLY

MOTOR

WIRES

DOWNROD

&

BALL

ASSEMBLY

MOTOR

COUPLING

CROSSBAR

MOUNTING

BRACKET

Installing a New Ceiling Fixture Outlet Box

If you do not have an existin g fixture located where you wish
to place your Casablanca fan, an approved ceiling fixture
outlet box must be installed and wired.

Warning: T o reduce the risk of fire , electrical shock,
or personal injury, mount to outlet box marked
acceptable for ceiling fan support using the mount­ing hardware provided with the outlet box.

CEILING HARDWARE

WIRE NUT (4)

GETTING STARTED

Using Existing Ceiling Fixture Outlet Box

After turning the power OFF at its source (eith er circuit breaker
or fuse box), lower the old fixture an d disconnect the wiring.
Check the ceiling fixture outlet box to be sure that it is
marked ‘Approved for ceiling f an mounting’. If it is n ot, a new
box must be installed.

ADDITIONAL HARDWARE

1″ x 8-32 ROUNDED
HEAD SCREW (2)

1

2

/4″ x 8-32 ROUNDED

HEAD SCREW (2)

FLAT WASHER (2)

3

CAPISTRANO

Casablanca

CROSSBAR MOUNTING BRACKET INSTALLATION

Proceed with installation as follow s:
Step 1. Route the wires from th e ceilin g outlet bo x thr ough

the crossbar mountin g bracket center h ole. Attach th e bracket,
with ground wire an d ridges d own, to the ceiling fixtur e out­let box with the moun ting hard ware includ ed with the outlet
box.
Tighten the scr ews firmly by hand only, being careful not to
bend the bracket by over tightening.

CEILING FAN

APPROVED

OUTLET BOX

CEILING
WIRING

RIDGE

SIDE

DOWN

CAUTION: To reduce the risk of
personal injury, use only the
mounting hardware pr ovided with
the approved outlet bo x to install
the crossbar mounting bracket.

CANOPY

HATCH

CROSSBAR

MOUNTING

BRACKET

FLAT

WASHER

CANOPY HARDWARE

CANOPY LOCK WASHER (4)

CANOPY

CANOPY INSTALLATION

GREEN

GROUND

WIRE

OUTLET BOX

MOUNTING

HARDWARE

CANOPY SCREW (4)

Step 2. Attach the canopy to th e crossbar moun t-

ing bracket with three of the 8-32 x 2

1

/4″ long

canopy screws and canopy lock washers.
Tighten the screw firmly by hand only.

Note: On sloped ceilings, align the
canopy opening towards the top or
room peak.

4

CROSSBAR MOUNTING

BRACKET INSTALLED

CANOPY

CANOPY LOCK

WASHERS

CANOPY
SCREWS

Step 3. To hang the fan body in the
canopy , h old the f an body firmly and in­sert the ball into the canopy opening.
Check that no wires were pinched. Ro­tate the fan body until the slot in the
ball fits into the pin opposite th e canopy
opening.

CAPISTRANO

Casablanca

HANGING THE FAN

Fan Hanging Weight

is 24 lbs

Note: Independent control of the
light fixture using a W-8/W-811 re­quires an additional independent
power wire run from the wall switch
to the fan. See Page 10 for wiring.

CAPPED

BLUE

D1-OPTION

WIRE ON

3-SPEED ONLY

FOR INDEPENDENT

W-8 LIGHT

CONTROL

CANOPY ELECTRICAL CONNECTIONS

Step 4a. Attach the fan wires to the ceiling fixture outlet

box wiring by placing th e bare en ds of th e wir es sid e by sid e
and then securing with a wir e nut. Test that the connecti on
is secure by pulling on the wire nut. Connect in this order:

Step 4b.

• GREEN leads from mountin g plate and fan to GROUND con­ductor of power source. Secure with wire nut.

• WHITE wire from fan to white NEUTRAL wire in ceiling
fixture outlet box. Secure with wire nut.

• BLUE wire and BLACK power wir e from fan to BLA CK power
wire in ceiling outlet box. Secure with wire nut.

BALL

SLOT

PIN

WIRE NUT

2 BLACK WIRES

2 WHITE WIRES

CANOPY HATCH INSTALLATION

Step 5. Tuck the wires into the canopy

with the wire nuts pointed upwards, so
that the WHITE and BLACK wires are on
opposite sides of th e canopy and all wires
are clear of the canopy opening.

Step 6. Install canopy hatch with the last
canopy screw and lock wash er . To do this ,
tilt the fan body away from the hatch
opening.
Using the scr ewdriver , tighten th e screws
firmly by hand only.

Step 7. Straighten the fan, then check
to ensure that ther e is no m ovemen t be­tween the canopy and ceilin g or Hang-Tru
ball and top support shaft.

CANOPY

HATCH

LOCK

WASHER

Note: Write down the
Serial Number and the
model number for future
reference.

CANOPY

SCREW

3 GREEN WIRES

TILT THE

FAN TO

INSTALL

LAST

CANOPY

SCREW

5

CAPISTRANO

Casablanca

INSTALLING THE BLADE/BLADE HOLDER TO FAN MOTOR

Step 8. To r each the blad e holder m ountin g

holes in the fan motor the dummy switch
housing must be removed.
Take out the two 5-32 X 9/32” screws secur­ing the dummy switch h ousing and remove.
Put the two (2) screws aside for the mo­ment, they will be used in Step 15 to in stall
the switch housing after the blades are in­stalled.
The dummy switch housin g is used only when
shipping the fan.

Note: Save these two screws–they
will be used in Step 15!

PREPARATION

DUMMY

SWITCH HOUSING

MOUNT SCREW

5-32 X

(2)

9

/32”

DUMMY
SWITCH

HOUSING

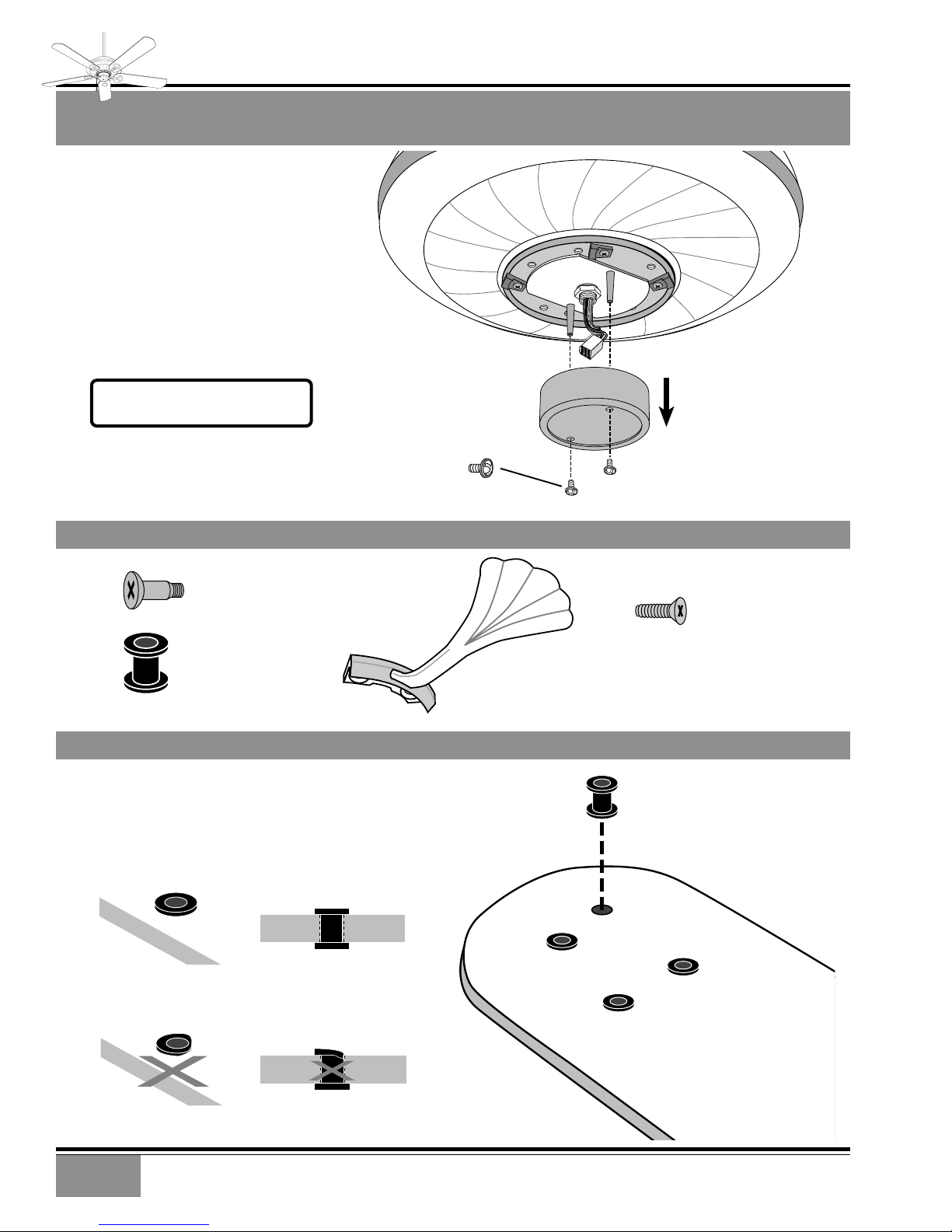

BLADE & BLADE HOLDER HARDWARE

BLADE SCREW

(4 PER BLADE)

RUBBER GROMMET

(4 PER BLADE)

RUBBER GROMMET INSTALLATION

Step 9. Insert a rubber grommet thr ough

each blade hole of every blade. Inspect
both sides of the blade to assure that
the lips of the gr ommet are fully engaged .

CORRECT INSTALLATION

BLADE HOLDER

SCREW

(2 PER BLADE)

BLADE

HOLDER

INCORRECT INSTALLATION

6

Step 10. Attach each blade to a blade
holder securing it with the four blade
screws provided.
Using the screwdriver, tighten securely
by hand only.

CAPISTRANO

Casablanca

BLADE INSTALLATION

BLADE SCREW

(4 PER BLADE)

BLADE

BLADE

HOLDER

REMOVE SHIPPING BLOCKS

Step 11. On the flywheel rem ove the five

shipping blocks by unscrewin g the screws.
Set these screws aside for installing the
blades in Step 12.

Discard the five shipping blocks.

Note: Save these five screws, they
will be used in Step 12!

BLADE/BLADE HOLDER INSTALLATION

Step 12. Using the five screws removed in

Step 11, and the five additi onal screws from
the pack, attach each blade/blade h older as­sembly to the motor.

Using the screwdriver, tighten securely by
hand only.

SHIPPING

BLOCKS

7

CAPISTRANO

Casablanca

COMPLETING INSTALLATION

SWITCH HOUSING

AND

CAP

ASSEMBLY

Step 13. Locate the switch housing/cap

assembly and remove th e two 8-32 X 3/8″
screws holding the cap onto the switch
housing.

Note: Save these two screws–they
will be used in Step 18!

CONNECTING THE SWITCH HOUSING ASSEMBLY

Step 14. Hold the switch housing up to

the fan and connect the motor plug to
the switch housing socket. The connec­tor is keyed to ensure corr ect installation.

PREPARATION

SWITCH

HOUSING

PULL CHAIN

SWITCH

SWITCH HOUSING

MOUNT SCREW

(REMOVED IN STEP 8)

5-32 X

(2)

9

/32″

SWITCH HOUSING

CONNECTOR

(SOCKET)

REVERSE

SWITCH

CAP

CAP SCREW

3

8-32 X

/8″

(2)

Note: Do not force the connectors–
check that they are orientated so
the keying will match!

SWITCH

HOUSING

CONNECTOR

(SOCKET)

MOTOR

CONNECTOR

(PLUG)

8

INSTALLING THE SWITCH HOUSING ASSEMBLY

Step 15. Line up the two inner clear-

ance holes in the cap with the two
threaded holes in the switch mounting
plate standoffs.

CAUTION! Before continuing to the
next step check that a wire or com­ponent inside the switch housing
will not be pinched as it is installed.

CAPISTRANO

Casablanca

Step 16. Use the two (2) 5-32 X
screws removed in Step 8 to install the
switch housing assembly.
Tighten securely by hand only.

Step 17. Line up the two clearan ce holes
in the cap with the two threaded holes
on the raised rim of th e switch housing.
Press the cap onto th e switch housing to
seat the guide pins into the alignment
holes of the switch housing.

9

/32″

SWITCH HOUSING

MOUNT SCREW

5-32 X

(2)

9

/32″

INSTALLING THE CAP

Step 18. Using the two (2) 8-32 X 3/8″

screws removed in Step 13, install the
cap onto the switch housing.
Tighten securely by hand only.

CAP SCREW
8-32 X

(2)

3

/8″

9

3-SPEED ♦ W-4/W-411 WALL CONTROL OF THE FAN

• The W-4 allows the ch oice of four
(4) different speed settings .

• No light fixture is used.

• Set the FAN pull chain switch to
the HIGH speed setting.

• No changes in household or fan
wiring are required.

• The fan may be turned ON an d OFF
by the W-4 wall control.

CAUTION! Failure to set the pull-chain
speed to HIGH can result in faulty
operation of the fan and damage to
the W-4/W-411 wall control. To con­firm fan is set to HIGH: Turn W-4/
W-411 fan speed switch to 'HI' - set
fastest fan speed with pull chain.

R

W-4/W-411
WALL CONTROL

3-SPEED ♦ W-8/W-811 WALL CONTROL OF THE FAN & LIGHT(S)

• The fan may be turned ON an d OFF
by the W-8/W-811 wall control.

• The lights m ay be turned ON and
OFF by the W-8/W-811 and the
intensity adjusted from low to
high.

• The fan must be supplied with two
independent 120V AC supply
wires.

• Set the FAN pull chain switch to
the HIGH speed setting.

• Turn the lights ON at the fan.

• The W-8/W-811 allows the choi ce
of four (4) different speed set­tings.

CAUTION! Failure to set the pull-chain
speed to HIGH can result in faulty
operation of the fan and damage to
the W-8/W-811 wall control. To con­firm fan is set to HIGH: Turn W-8/
W-811 fan speed switch to 'HI'—set
fastest fan speed with pull chain.

W-8/W-811
WALL CONTROL

10

3-SPEED ♦ OPERATION

Pull-chain switches on the fan control the fan and lights.
Using the fan control pull-chain switch: Fan off at start.

First pull: fan ON, low speed
Second pull: medium speed
Third pull: high speed
Fourth pull: fan OFF

Using the opti onal light pull-chain switch: Ligh t off at start.

First pull: light ON
Second pull: light OFF

Direction of blad e rotation is contr olled by the reverse slid e
switch on the side of the switch housing.
No changes in household wiring are required.

3-SPEED ♦ OPTIONAL LIGHT FIXTURE INSTALLATION

NOTE: If a separate circuit is used to control the lights from a wall
control, the BLUE D1-Option wire in the canopy should be connected
to that switch leg with the BLACK fan power wire.

1. Refer to light kit instructions to assemble and attach your light
kit correctly.

2. Remove the two 8-32 screws from the switch housing cap.

3. Remove the plug from switch housing.

4. Install pull-chain switch and finger tighten collar on switch.

5. Connect one wire from pull-chain switch to the BLUE D1-Option
wire. Secure splice with a wire nut.

6. Connect other wire from pull-chain switch to BLACK wire from
light kit. Secure splice with a wire nut.

7. Connect WHITE wire from switch h ousing to WHITE wire fr om light
kit. Secure splice with a wire nut.

8. At the canopy, connect the BLACK and BLUE wires.

FAN & SPEED

CONTROL

PULL CHAIN SWITCH

REVERSE

SWITCH

SWITCH

HOUSING

COLLAR

3-SPEED ♦ OPTIONAL WALL CONTROL

The W-4/W-411 wall control provides four-speed control of fan from a convenient wall
location. The W-4 is desi gn ed to r eplace a stan d ard wall switch and will fit wall boxes with
a depth of 2" or greater. Not for use with single pull-chain fan/light option wiring.

To install a W-4/W-411 wall control in place of an existing wall switch, follow the instruc­tions on the W-4/W-411 package.

Note: No rewiring is required if the fan is replacing an existing light fixture.

Operation of the fan from the wall switch is simple:

1. Turn knob to obtain desired speed setting.

CAUTION! Failure to set the pull-chain speed to HIGH can r esult in f aulty operation o f
the fan and damage to the W-4/W-411 w all control. T o confirm fan is set to HIGH: T urn
W-4/W-411 fan speed switch to 'HI'—set fastest fan speed with pull chain.

3-SPEED ♦ OPTIONAL WALL CONTROL

The W-8/W-811 wall control provides separate control of fan and light with two separate
knobs from a convenient wall location. The W-8/W-811 is designed to replace a standard
wall switch and wall boxes with a depth of 2" or greater. Requires two hot leads from wall
box to ceiling wiring box.

To install a W-8/W-811 wall control in place of an existing wall switch, follow the instruc­tions on the W-8/W-811 package.

Operation of the fan from the wall switch is simple:

1. Turn the upper knob to the desired fan speed.

2. Turn the lower knob to the desired light setting.

CAUTION! Failure to set the pull-chain speed to HIGH can r esult in f aulty operation o f
the fan and damage to the W-8/W-811 w all control. T o confirm fan is set to HIGH: T urn
W-8 fan speed switch to 'HI' - set fastest fan speed with pull chain.

R

W-4/W-411

W-14/W-1411

LO

W-8/W-811

W-18/W-1811

11

TROUBLESHOOTING

Before Requesting Service: Please follow this troubleshooting guide before contacting your dealer for assistance.

Caring for Finishes: For cleaning, a soft brush or lint-free cloth

should be used to prevent scratching the finish. A vacuum cleaner
brush nozzle can remove heavi er dust. Surf ace smud ges or an accu­mulation of dirt and dust can easily be removed by using a mild
detergent and slightly dampened soft cloth. An antistatic agent
may be used, but never use abrasive cleaning agents. These will
damage the finish. Painted and high-gloss blades may be cleaned
in the same manner.
Blades: Wood finish blades sh ould be cleaned with a furniture pol­ishing cloth. Occasionally, a light coat of furniture polish may be
applied for added protection and beauty.

Never Lubricate this Fan!

The precision motor at the heart of your Casablanca fan features
sealed bearings that are lubricated for life. Do not attempt to oil
the motor.

Changing Light Bulbs

Be sure to turn power to the fan OFF at the wall switch or circuit
breaker befor e chan ging light bulbs. Replace bulbs with same type
as removed from the fixtur e. Each f an is rated for a maximum TOTAL
wattage of lighting.
Exceeding the rated maximum allowable wattage for the fan will
burn out the fan electronics module and void the warranty.

PROBLEM POSSIBLE REMEDIES..

FAN WILL NOT START Check main circuit fuses, circuit breakers, or wall switch position.

Check all wire connections, making sure the power is turned off during this inspection.
Check that reverse switch is not set in center of throw.

FAN WOBBLES OR SHAKES Be sure canopy pin is properly set into the slot on the ball.
EXCESSIVELY Check the screws holding the blade holders to the flywheel (or direct drive motor). Tighten as necessary.

Check that bladeholders have not been bent during installation.

FAN NOISY DURING Check and tighten light fixture retaining screws, glass shade screws and/or the light bulb(s) as neccessary.
OPERATION Tighten the blade to bladeholder screws.

Tighten canopy screws and mounting plate assembly.
Check and tighten blade holders to flywheel (or direct drive motor).
Make sure all screws in the motor housing are snug, but not overly tight.
Check that the wire nuts inside the canopy and switch housing are not touching the metal parts or have
fallen off the wire splices. Tighten or adjust as necessary.

BREAK-IN PERIOD Let fan run at high speed for two (2) hours
DOES NOT RUN ON If new, “break-in” may be required - run at higher speed for several days

LOW SPEED

FAN RUNS SLOWLY IN EITHER DIRECTION IF ROTATION IS STARTED BY HAND; WILL NOT REVERSE: Defective reverse switch; defective
capacitor; or open motor winding: Replace reverse switch assembly; replace PCB assembly; or replace motor unit.

FAN WILL NOT OPERATE AT PROPER SPEEDS OR WILL NOT OPERATE AT ANY SPEED: Defective three-speed pull-chain switch assembly; or
defective capacitor: Replace three-speed pull-chain switch assembly; or replace PCB assembly.

3-SPEED

12

761 CORPORATE C ENTER D RIVE • P OMONA, CA 91768 • 800-759-FANS (3267)

©COPYRIGHT 1998 CASABLANCA F AN C OMPANY • U.S. PATENT P ENDING

14

P RINTED IN ROC
