SW -1S / 1C Series

Simple Weighing Scale

OWNER’S MANUAL

Page 2

CONTENTS

PRECAUTIONS 4 PREFACE 6 NAMES AND FUNCTIONS 6 OPERATIONS 8

1. Simple Weighing Mode 8

2. Weighing with Tare 8

3. Changing Unit of Weight 9

4. Hold Function (SW-1S only) 9

Comparator Function (SW-1C only) 10

6. Counting Function (SW-1C only) 11

7. Auto-Power Off Function 13

BATTERY MAINTENACE 14 ERROR MESSAGE 14 SPECIFICATIONS 15

Page 3

For consistent and accurate reading, maintain periodical check by your CAS authorized dealer.

Avoid sudden shock to the scale. Internal mechanism could be damaged.

Take the battery out when scale is not in use for long time. Leakage from the batteries is hazardous.

Place the scale on firm and temperature consistent environment.

Keep the scale away from other electromagnetic generating devices. This may interfere with accurate reading.

Grab on the bottom of the scale when moving. Do not hold by the platter.

By adjusting 4 corners of the scale, set the scale even using the built in scale leveling indicator.

Attention

Do not disassemble the scale. When any damage or defect occurs, contact your CAS authorized dealer immediately for proper repair.

Do not overload beyond the maximum weight limit.

Do not pull the plug by its cord when unplugging. Damaged cord could cause electric shock or fire.

To prevent from fire occurring, Do not place or use the scale near flammable or corrosive gas.

Avoid placing the scale near heater or in direct sunlight.

Scale must be grounded to minimize electricity static. This will minimize defect or electric shock.

Use proper Adapter. Incorrect adapter could damage the scale.

Insert plug firmly to wall outlet to prevent electric shock.

To reduce electric shock or incorrect reading, Do not spill water on the scale or place it in humid condition.

Warning

PRECAUTIONS

Precautions when installing the scale. To ensure that you get the most from your scale, please follow these instruction.

Make sure to plug your scale into the proper power outlet. For maximum performance, plug into a power outlet 30 minutes before the usage for warm up.

Page 4

PREFACE

NAMES AND FUNCTIONS

Thank you for purchasing CAS SW-1S/ 1C Series. These series have been designed with CAS reliability, under rigid quality control and with outstanding performance. Your specialty departments can enjoy these high quality reliable CAS products. We believe that your needs will be satisfied and you will have proper reliability. This manual will help you with proper operation and care of the SW-1S/ 1C Series. Please keep it handy for future reference.

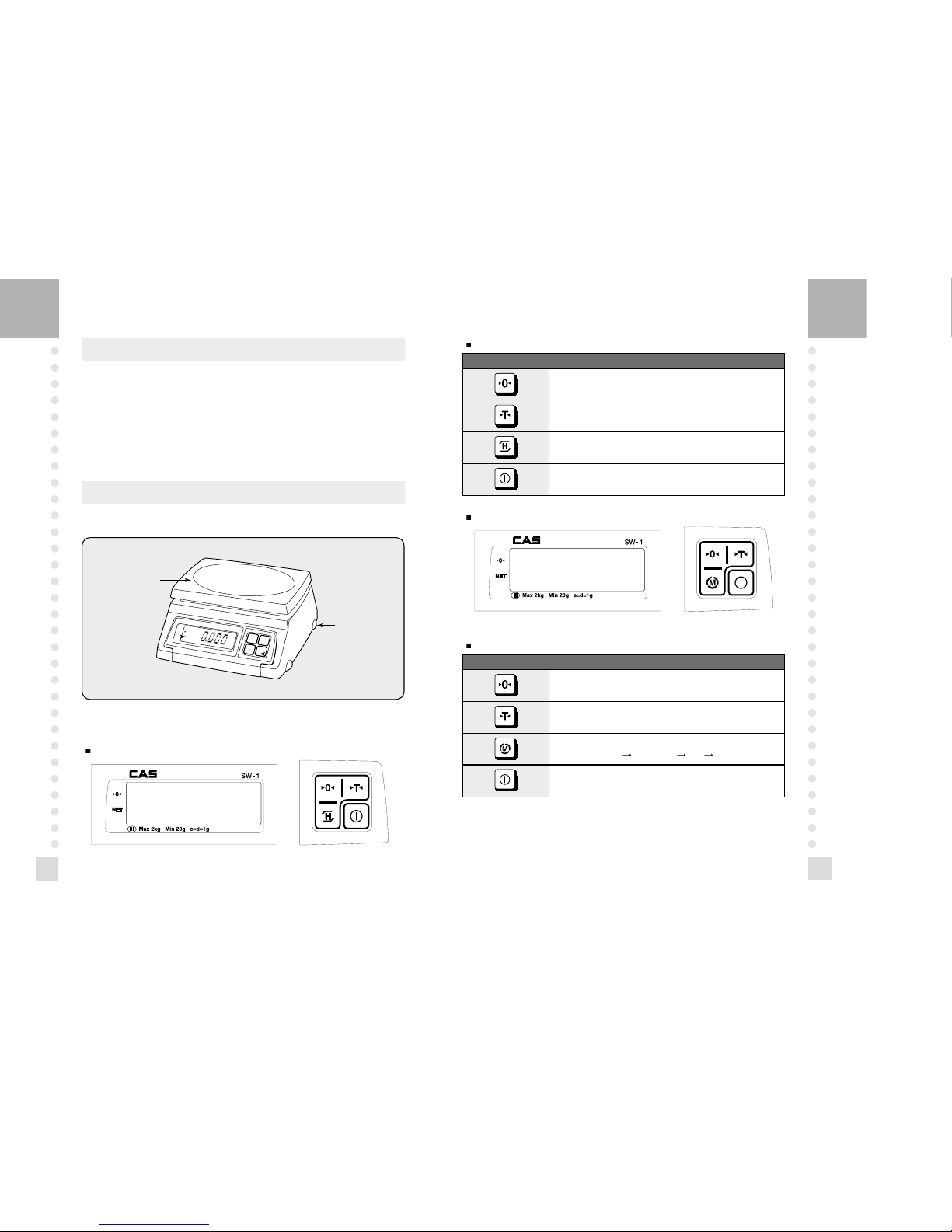

OVERALL VIEW

PLATTER

DISPLAY

ADJUSTING BOLT

KEYBOARD

KEY FUNCTIONS

SW-1C

Used to set the zero point.

Used to input or cancel the weight of tare.

Used to make the weight of commodity stable. This weight is average value.

Used to turn on and off the scale.

KEYS FUNCTIONS

KEY FUNCTIONS

Used to set the zero point.

Used to input or cancel the weight of tare.

Used to change the unit of weight, and shown as following sequence on the display. [Kg] [WL on or off] [PCS] [Kg]

Used to turn on and off the scale.

KEYS FUNCTIONS

DISPLAY & KEYBOARD

SW-1S

Page 5

3. Changing Unit of Weight (kg, lb, oz)

Press the key first. Holding it, press the key in the simple weighing

mode. The display shows the "UnIt" shortly and then you may select

kg, lb, or

oz as the unit of weight.

4. Hold Function (SW-1S only)

When the weight is unstable, press the key.

Display will show the

"HOLD" for a few seconds.

Then the display will show the average weight.

Remove the commodity from the platter, or press

key again to exit from

"HOLD" mode.

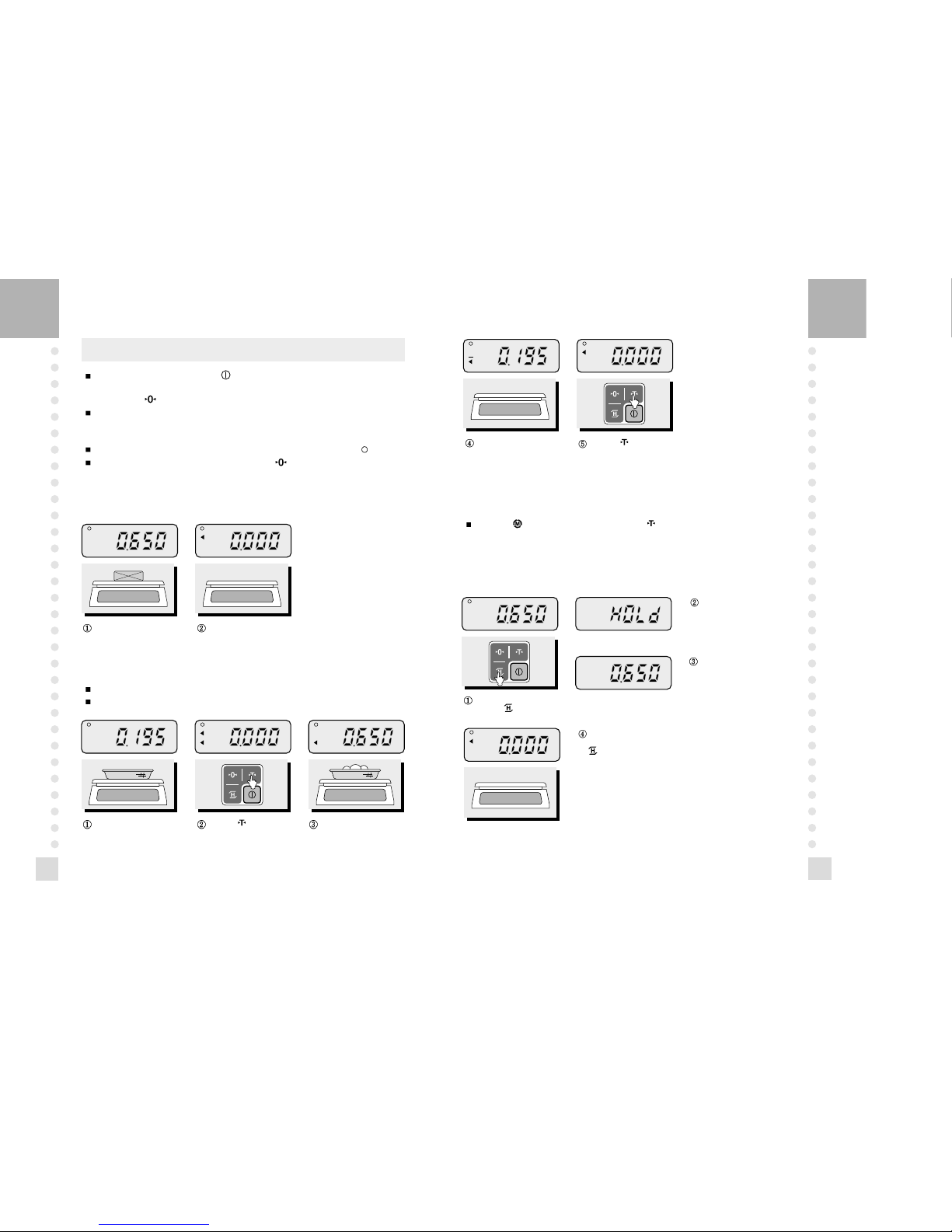

1. Simple Weighing Mode

Place a commodity on the platter.

Remove the commodity from the platter.

2. Weighing with Tare

TARE means the weight of container being used for a commodity. TARE key function is to subtract the weight of the container from full weight loaded.

kg kg

Place a container on the platter.

Press the key.

Place a commodity into the container, then the display will show only the weight of the commodity.

kg kg kg

Remove container and commodity, then the display will show the weight of the container with "-" symbol.

Press the key, then display will show the "0.000".

kg kg

OPERATIONS

Turn on the display by pressing key. Then, the display will show all the segments and count up "0" to "9". You may stop this automatic counting by pressing the key.

When you turn on the display, make sure that platter is empty. Otherwise,

display will show "Err", an error of initial zero range. Please refer to

"ERROR MESSAGE" section for more information on page 14. When the weight becomes stable the display shows the stable sign ( ) on. You may need to make it "0.000" by pressing key unless the display

indicate "0.000" under the empty platter.

Page 6

Press key once to set up the low limit. The display shows "0.000" and the first number flashes.

Press the key until the display shows "WL OFF". "WL OFF" means that comparator function is not activated.

Press key to activate this function. The display shows "WL ON".

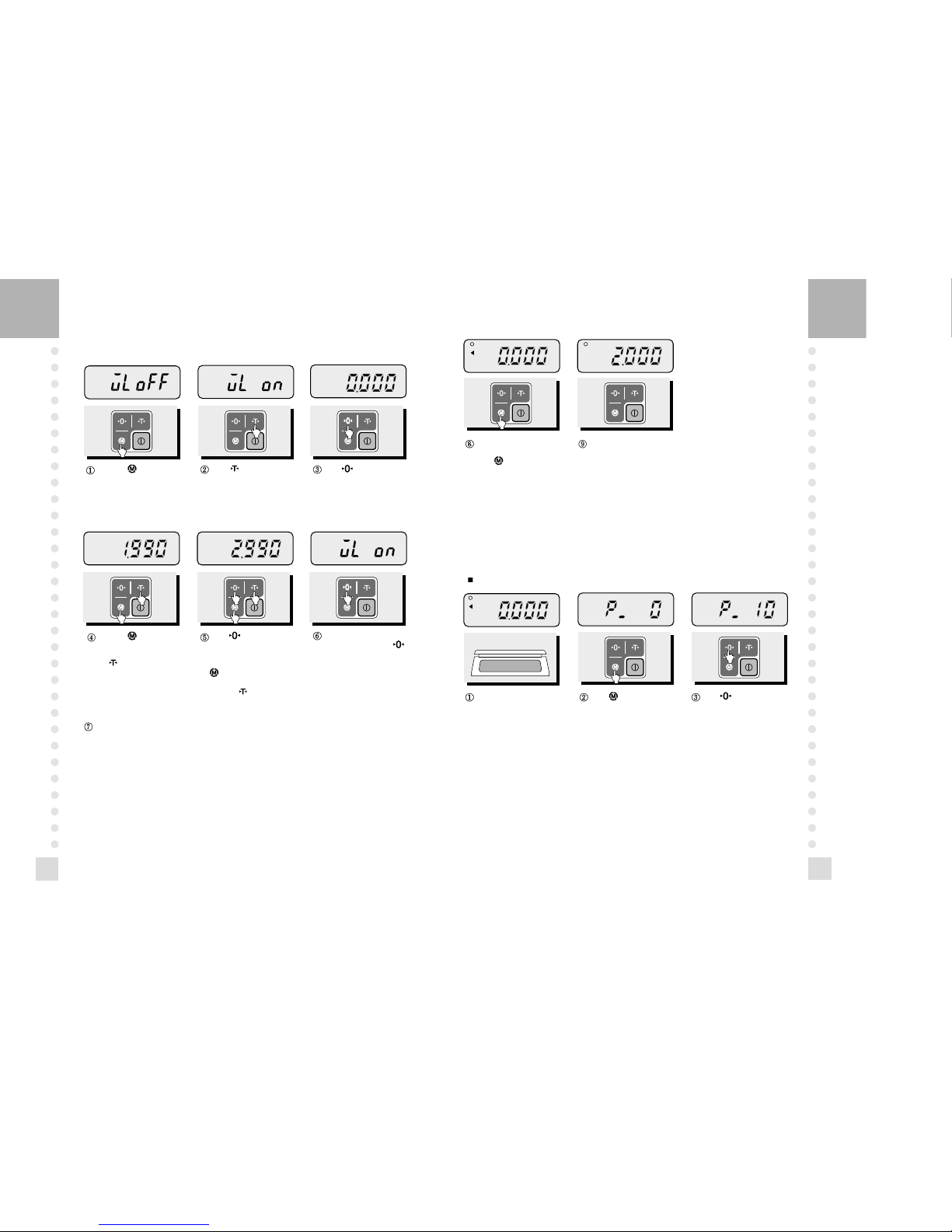

5. Comparator Function - HI / LOW Limit Setting (SW-1C only)

Press the key to have number increase. To move flash to next digit, press the key.

Press key to set up HIGH limit. The display shows "0.000" and you can change these numbers by pressing

key. If you want to move to next digit you can go by pressing key.

If you set up HIGH limit you can go out by pressing key, and you can see "ENd" message shortly and "WL on" message on the display.

LO HI

If you set up HIGH limit and LOW limit incorrectly, "Err" will be shown on the display. Then you may need to set it up again. For example, LOW LIMIT=2.990 kg and HIGH LIMIT=1.990 kg this is incorrect setting because HIGH limit is lower than the LOW limit. When HIGH and LOW limit are set as the same or above maximum capacity it still shows "Err" message.

If you want to go back to the simple weighing mode just press key twice.

Suppose that the HIGH limit and LOW limit are set up as 2.990kg and 1,990kg respectively. If the weight loaded is 2kg between HIGH and LOW limit the display shows "OK" and the scale continues to beep slowly. If the weight loaded is above

2.990kg, HIGH limit, the scale continues to beep rapidly.

kg kg

6. Counting Function (SW-1C only)

Counting without Tare

Initial display as above.

Press key twice to go to sample unit selection mode.

Press key to select the number of sample unit. You can select 10, 20, 30, 40, 50,60, 70, 80, 90, 100, 200, 300,400, or 500 as a sample unit.

pcs pcs

Page 7

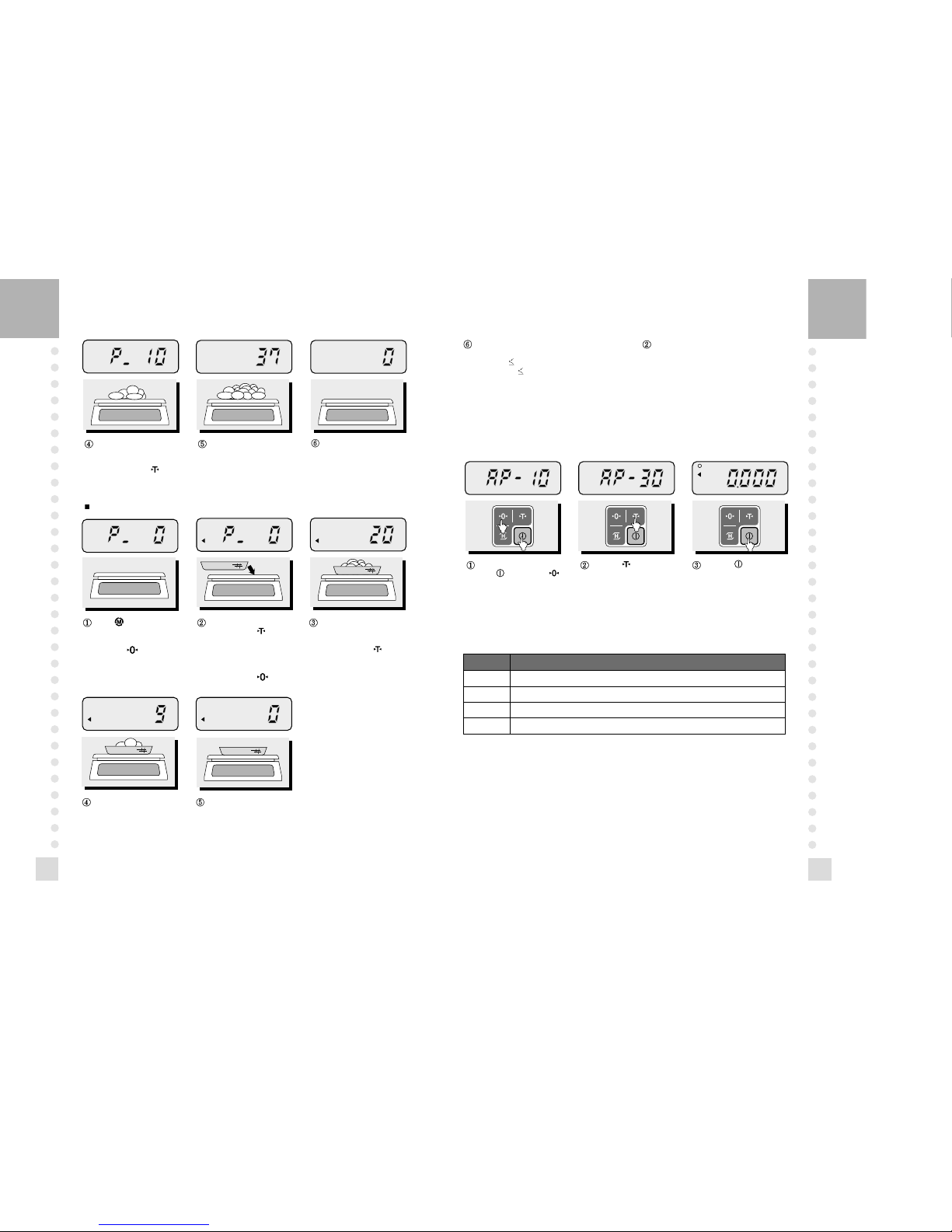

7. How to Set Auto Power Off

Auto-Power off function is to automatically power off as time is set. This function is helpful to save battery, which is not in use. The following is the setting procedure of Auto-power off.

When the scale is turned off press key, holding key. Then you will see the "AP-10".(If you have set this before,display will show previous value.)

Press the key until the display shows the "AP-x0" that you wish to take. (Refer to TABLE 1.)

Press the key, and then the scale saves what you programmed and shows all the segments, counting up "0" to "9".

DISPLAY FUNCTION

AP- 00 This function does not automatically power off. AP- 10 This function does automatically power off when the scale is not in use for 10 minutes.

AP- 20 This function does automatically power off when the scale is not in use for 20 minutes. AP- 30 This function does automatically power off when the scale is not in use for 30 minutes.

TABLE 1.

Put all of commodities you wish to count, and then count the number on display.

Remove all of commodities from the scale.

pcs pcs

Counting with Tare

Press key twice to go to sample unit selection mode. "PCS" is shown on the display, then press key to select the number of sample unit.

Put the container on the scale and press key to set weight of tare.You can

select 10, 20, 30, 40, 50, 60, 70, 80, 90, 100,200, 300,400, or 500 as a sample unit, by pressing key.

If the number of selected sample unit is 20, please put 20 sample units on the scale.Then press key to set unit weight.

pcspcs

pcs

If you select "P_10" as a sample unit, then please put 10 sample units on the scale. Then press key to set sample units.

Put all of commodities you wish to count, and then check the number of pieces on display.

Remove all of commodities from the scale.

pcs pcs pcs

When you try to set the number of sample unit at the stage the display may show "LACK" message shortly. The result of counting may be incorrect in the following cases. a.unit weight 1/2

e *

weight loaded 2% of maximum weighting capacity.

*"e" value may be various on capacity of product model. Please refer to "SPECIFICATION" on page 15. For example, a product model which capacity is 2.000kg has 1g as "e" value

Page 8

SPECIFICATIONS (SW-1S/1C)

MODEL

Capacity / e

Internal Resolution External Resolution Display Symbols

Keys

Functions

Dimensions

Platter size Weight Power

Battery Life

Operating Temperature Option

SW1S/1C- 02 SW1S/1C-05 SW1S/1C-10 SW1S/1C-20

2kg/O.O01kg 5kg /0.002kg 10kg/0.005kg 20kg/0.01kg 5 lb/0.002 lb 10 lb/0.005lb 20 lb/0.01lb 30 lb/0.02 lb

80oz/0.05oz 160oz/0.1oz 400oz/0.2oz 800oz/0.5oz

1/20,000 1/25,000 1/20,000 1/20,000

1/2,000 1/2,500 1/2,000 1/2,000

110

35[mm]/43"13.8

5 digit LCD

STABLE, ZERO, TARE, HI/OK/LO, PCS, g, kg, lb, oz, Low Battery

HI/OK/LO & PCS (SW-1C only)

ZERO, TARE, HOLD(SW-1S only), MODE(SW-1C only), POWER

Weighing

Hold Function (SW-1S only)

Counting-Counting SampleRange : 10~100,200,300,400,500 (SW-1C only)

Weight Comparison Function : hi, ok, low(SW-1C only)

Weight Unit Conversion Function : kg, lb, oz

260(W)

287(D) 137(H)[mm]/

102(W)

113(D) 54(H)[inch]

230(W)

190(D)[mm]/90.55(W) 74.80(D)[inch]

2.8kg

1.5V

6 units (D size Battery) or 9V Adapter

Approx. 800hours (Manganese battery)/

1600hours (Alkaline at 20

°C/68°F

)

10°C 40°C / 14°F 104°F

9V Adapter 300mA, Rear Display , Stainless Tray

Notice: Specifications are subject to change for improvement

without notice.

ERROR MESSAGE

An error of the initial zero range

Problems on Analog Module

Overload on the platter

Unstable conditions of scale

Set the platter empty. Try to turn OFF and ON the scale.

Call your CAS dealer if still problems. Remove it from the platter

Do not put somthing exceeding maximum capacity on the platter

Make the scale stable conditions

ERROR REASONS SOLUTIONS

Err

Init

OFL

UNStA

BATTERY MAINTENACE

LOW BATTERY WARNING

When the battery is low the display shows the "BAT" sign. You can replace the battery new one. If you still use the scale without replacing the battery the scale may provide incorrect result on measurement.
