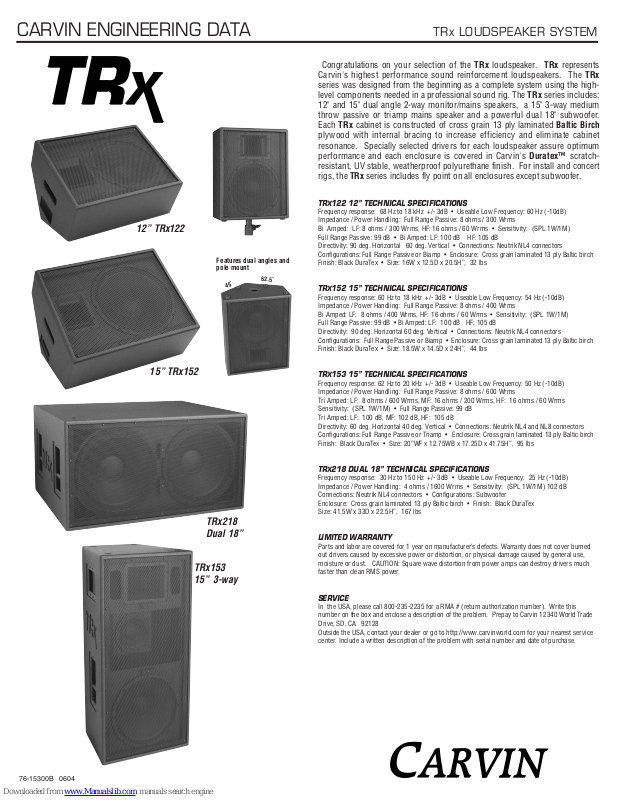

Congratulations on your selection of the TRx loudspeaker. TRx represents
Carvin's highest performance sound reinforcement loudspeakers. The TRx
series was designed from the beginning as a complete system using the highlevel components needed in a professional sound rig. The TRx series includes:
12" and 15" dual angle 2-way monitor/mains speakers, a 15" 3-way medium
throw passive or triamp mains speaker and a powerful dual 18" subwoofer.
Each TRx cabinet is constructed of cross grain 13 ply laminated Baltic Birch
plywood with internal bracing to increase efficiency and eliminate cabinet
resonance. Specially selected drivers for each loudspeaker assure optimum
performance and each enclosure is covered in Carvin's Duratex™ scratch-
resistant, UV stable, weatherproof polyurethane finish. For install and concert
rigs, the TRx series includes fly point on all enclosures except subwoofer.
12” TRx122
76-15300B 0604
15” TRx152
TRx153
15” 3-way
45˚
62.5˚
Features dual angles and
pole mount
TRx218
Dual 18”
CARVIN ENGINEERING DATA TRx LOUDSPEAKER SYSTEM
Frequency response: 68 Hz to 18 kHz +/- 3dB • Useable Low Frequency: 60 Hz (-10dB)
Impedance / Power Handling: Full Range Passive: 8 ohms / 300 Wrms
Bi Amped: LF: 8 ohms / 300 Wrms, HF: 16 ohms / 60 Wrms • Sensitivity: (SPL 1W/1M)
Full Range Passive: 99 dB • Bi Amped: LF: 100 dB HF: 105 dB
Directivity: 90 deg. Horizontal 60 deg. Vertical • Connections: Neutrik NL4 connectors
Configurations: Full Range Passive or Biamp • Enclosure: Cross grain laminated 13 ply Baltic birch
Finish: Black DuraTex • Size: 16W x 12.5D x 20.5H”, 32 lbs
Frequency response: 60 Hz to 18 kHz +/- 3dB • Useable Low Frequency: 54 Hz (-10dB)
Impedance / Power Handling: Full Range Passive: 8 ohms / 400 Wrms
Bi Amped: LF: 8 ohms / 400 Wrms, HF: 16 ohms / 60 Wrms • Sensitivity: (SPL 1W/1M)
Full Range Passive: 99 dB • Bi Amped: LF: 100 dB HF: 105 dB
Directivity: 90 deg. Horizontal 60 deg. Vertical • Connections: Neutrik NL4 connectors
Configurations: Full Range Passive or Biamp • Enclosure: Cross grain laminated 13 ply Baltic birch
Finish: Black DuraTex • Size: 18.5W x 14.5D x 24H”, 44 lbs
Frequency response: 62 Hz to 20 kHz +/- 3dB • Useable Low Frequency: 50 Hz (-10dB)
Impedance / Power Handling: Full Range Passive: 8 ohms / 600 Wrms
Tri Amped: LF: 8 ohms / 600 Wrms, MF: 16 ohms / 200 Wrms, HF: 16 ohms / 60 Wrms
Sensitivity: (SPL 1W/1M) • Full Range Passive: 99 dB
Tri Amped: LF: 100 dB, MF: 102 dB, HF: 105 dB
Directivity: 60 deg. Horizontal 40 deg. Vertical • Connections: Neutrik NL4 and NL8 connectors
Configurations: Full Range Passive or Triamp • Enclosure: Cross grain laminated 13 ply Baltic birch
Finish: Black DuraTex • Size: 20”WF x 12.75WB x 17.25D x 41.75H”, 95 lbs
Frequency response: 30 Hz to 150 Hz +/- 3dB • Useable Low Frequency: 25 Hz (-10dB)
Impedance / Power Handling: 4 ohms / 1600 Wrms • Sensitivity: (SPL 1W/1M) 102 dB
Connections: Neutrik NL4 connectors • Configurations: Subwoofer
Enclosure: Cross grain laminated 13 ply Baltic birch • Finish: Black DuraTex
Size: 41.5W x 33D x 22.5H”, 167 lbs
Parts and labor are covered for 1 year on manufacturer’s defects. Warranty does not cover burned
out drivers caused by excessive power or distortion, or physical damage caused by general use,
moisture or dust. CAUTION: Square wave distortion from power amps can destroy drivers much
faster than clean RMS power.
In the USA, please call 800-235-2235 for a RMA # (return authorization number). Write this
number on the box and enclose a description of the problem. Prepay to Carvin 12340 World Trade
Drive, SD, CA 92128
Outside the USA, contact your dealer or go to http://www.carvinworld.com for your nearest service
center. Include a written description of the problem with serial number and date of purchase.
TRX152 15” TECHNICAL SPECIFICATIONS
TR
X
153 15” TECHNICAL SPECIFICATIONS
TR
X
218 DUAL 18” TECHNICAL SPECIFICATIONS
LIMITED WARRANTY
SERVICE
TR
X
122 12” TECHNICAL SPECIFICATIONS
Page 2
CHOOSING THE CORRECT AMPLIFICATION
TRx Loudspeakers are designed to be used with professional power
amplifiers capable of producing the correct power into equivalent
speaker loads. Care should be taken to avoid amplifier clipping. Due
to the fact that music signals have a high peak-to-average “crest”
factor, a lesser power amplifier driven into clipping is more likely to
damage a speaker than a higher power amplifier used within its
ratings. When an amplifier is over driven, its output waveform is
clipped or squared off reducing the crest factor. If an amplifier is
extremely over driven, the output waveform can approach that of
a square wave. Under these extreme conditions, an amplifier is
capable of producing far more power than its un-distorted rated
power output. The use of amplifiers with outputs greater than
those recommended is discouraged.
Carvin recommends an amplifier capable of producing at least the
power rating of the speaker up to 1.5 times the power rating of the
speaker. (See TECHNICAL SPECIFICATIONS).
Always turn on the amplifiers after the mixer and control systems
have been powered on. This will eliminate power peaks due to switch
on surges which can damage loudspeakers. When powering down the
system, reverse the sequence and switch off the power amplifiers first.
4-WAY ACTIVE AND PASSIVE SYSTEMS
TRx153-44
Passive 4-way system with sub rack
Package contains
• Four TRx153 • Four TRx218
• One TRx1MAIN Rack • One TRx2SUB Rack
Tri-amp plus Sub 4-way system
Package contains
• Four TRx153 • Four TRx218
• Two TRx2SUB Rack • One TRx3TRI Rack
TRx153-44T
TRx153-22
Passive 4-way system
Package contains
• Two TRx153 • Two TRx218
• One TRx1MAIN Rack
TRx153-22T
Tri-amp plus Sub 4-way system
Package contains
• Two TRx153 • Two TRx218
• One TRx2SUB Rack • One TRx3TRI Rack
SP8250
250 ft. 12ga 8 conductor speaker wire
SP8
NL8 Speakon™ connector 8-pin
Choose from passive 4 way and active Tri-amp plus sub 4-way systems with amps, cables and racks. All you need
is to add your choice of mixing console.
TRx1MAIN Rack
• Two DCM2000 Amps
• One DCM2570 Amp
• One XC3000 Crossover
• Four SP50 Speakon cables
• Two SP10 Speakon cables
• Four XLR8
• One 12 space RW12 rack w/ casters
TRx2SUB Rack
• Two DCM2000 Amps
• One XC3000 Crossover
• Two SP50 Speakon cables
• Two XLR8
• One 12 space RW12 rack w/ casters
TRx3TRI Rack
• One DCM600 Amp
• One DCM1500 Amp
• One DCM2570 Amp
• One XC3000 Crossover
• Six XLR8 cables
• One SP8250 8 conductor wire spool
• Six SP8 (NL8) • 8 SP1 (NL4)
• One 12 space RW12 rack w/ casters
The XC3000 crossover or “drive racks” are reccommended for controlling the TRx “main” system.
Page 3
1
2
3
4
5
2
1
Full Range mode
Biamp mode
1
2
1. NL4 INPUT
Used when using external crossover to deliver only subwoofer frequencies.
(TRx218 does not have an internal passive crossover).
2. NL4 THROUGH
This jack is wired in parrallel with the input jack for daisy chaining additional
enclosures.
1. FULL RANGE PASSIVE/TRIAMP SWITCHES
Slide switches to FULL RANGE PASSIVE position when using a single amplifier delivering a full range signal.
(The internal passive crossover network divides the signals and delivers to the appropriate drivers.)
Slide switches to TRI AMP position when using external active crossover and multiple amplifiers in a tri amp
configuration. (TRI AMP position bypasses internal passive crossover network.)
2. NL4 FULL RANGE INPUT
Use this input when using a single amplifier delivering a full range signal. (The internal passive crossover
network divides the signals and delivers to the appropriate drivers). Ensure switches are in FULL RANGE
PASSIVE position.
3. NL4 FULL RANGE THROUGH
This jack is wired in parrallel with the full range input jack for daisy chaining additional enclosures.
4. NL8 TRIAMP INPUT
Use this input when using external active crossover and multiple amplifiers in a tri amp configuration.
Ensure switches are in TRI AMP position.
5. NL8 TRIAMP THROUGH
This jack is wired in parrallel with the tri amp input jack for daisy chaining additional enclosures.
1&2. NL4 INPUT JACK
These jacks are wired in parallel and serve as a full range input or a biamped input depending upon switch selection (must remove front grille and woofer to change
from full range to biamp mode, see figure C.

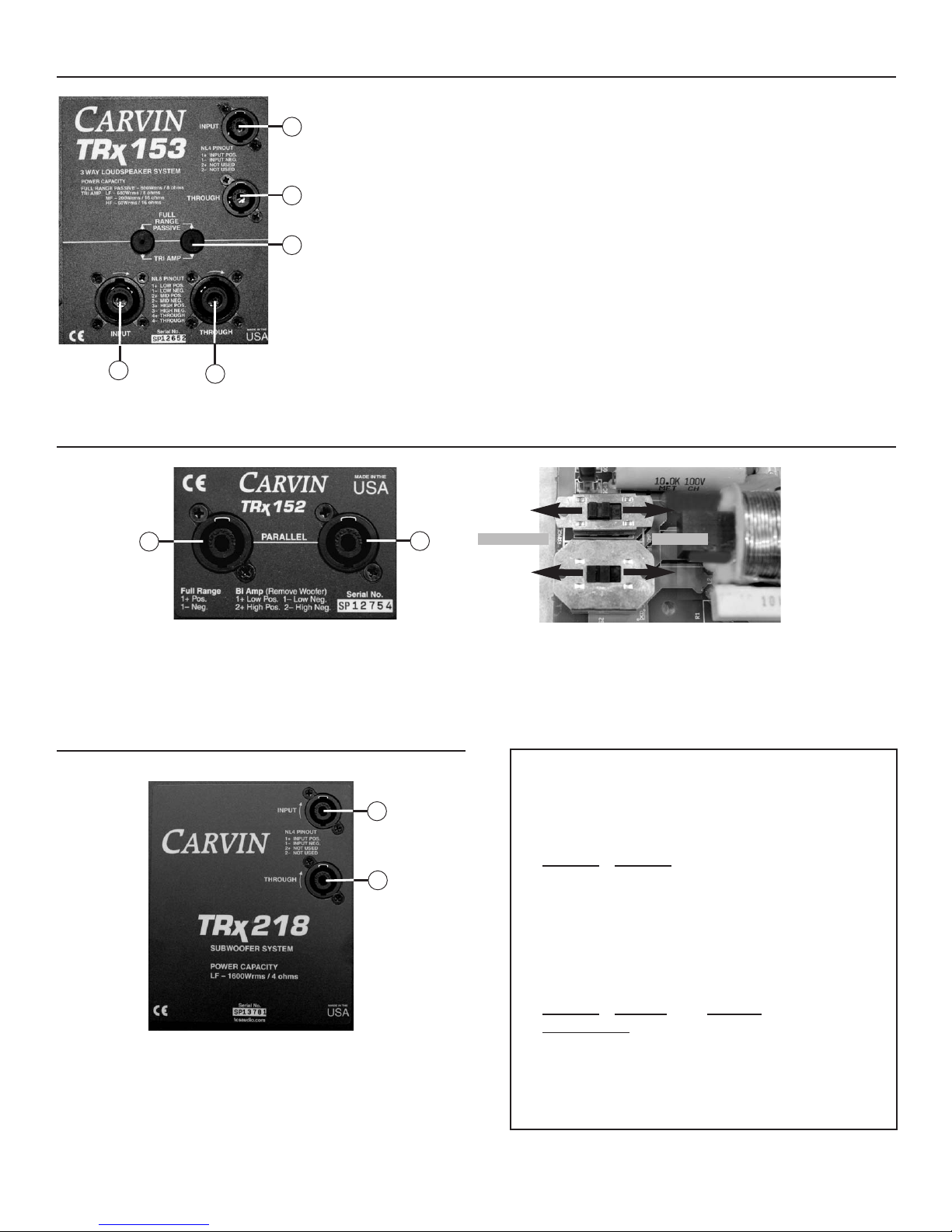

TRx 153 Connection Plate
TRx 122 & TRx 152 Connection Plate
TRx 218 Connection Plate
CONNECTING TRX
The rear panels of the the TRx loudspeakers are fitted with
Neutrik Speakon NL8 or NL4 connectors. All connectors are
wired in parallel.
NL8 pin Tri-amp
1+ Low Positive
1– Low Negative
2+ Mid Positive
2– Mid Negative
3+ High Positive
3- High Negative
4+ Through
4– Through
NL4 pin Bi-amp Passive
Subwoofers
1+ Low Positive Positive Input Positive Input
1– Low Negative Negative Input Negative Input
2+ High Positive Through Through
2– High Negative Through Through
Page 4

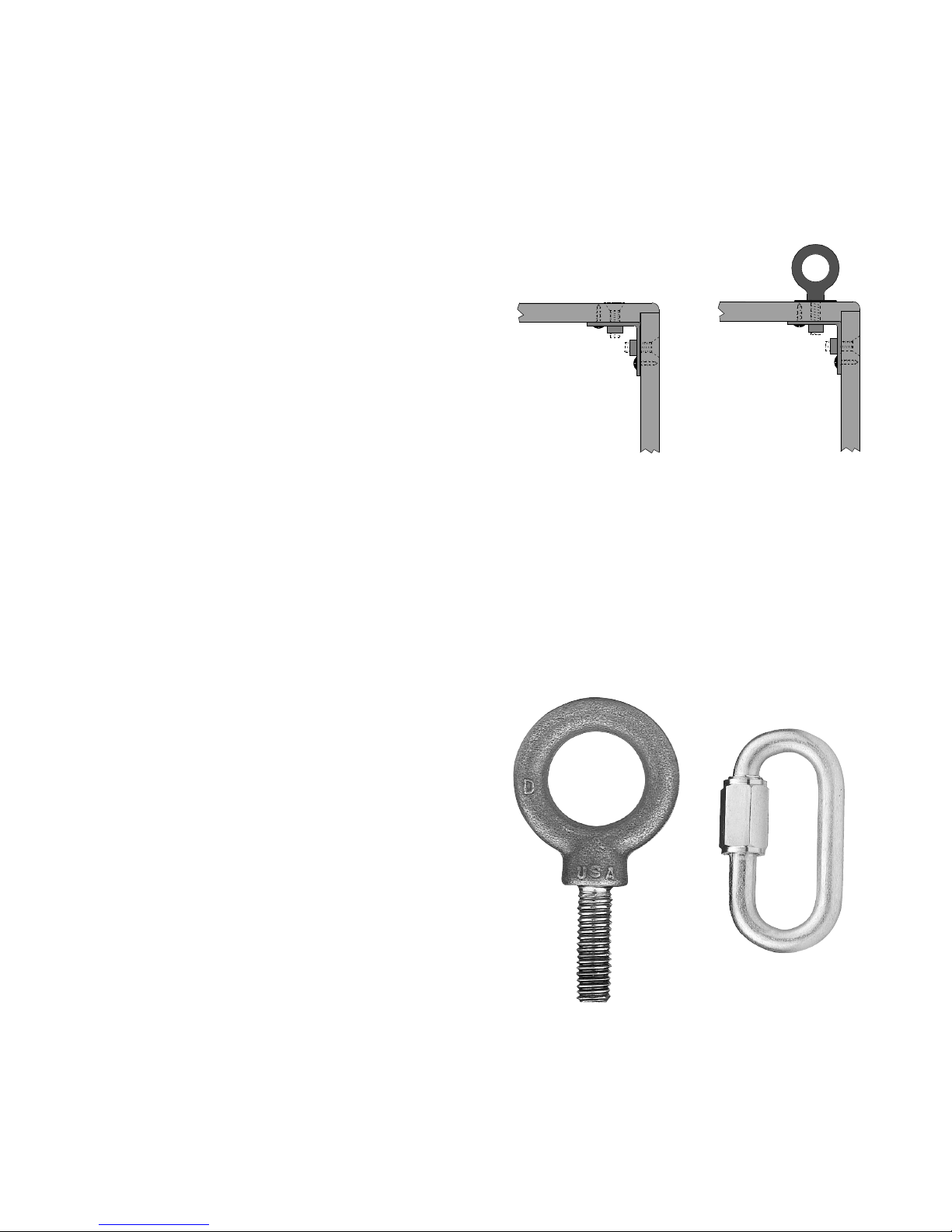

TCSHK10
3/8-16 forged steel eyebolt with
washer WLL=1600 lbs.
TCSHK15
3/8-16 forged steel quicklink
connector WLL=2000 lbs.
RIGGING ACCESSORIES
Carvin offers the 3/8” forged steel eyebolts & washers (model number
TCSHK10), the forged steel Quicklink™ connectors (model number
TCSHK15).
Visit www.atm-fly-ware.com for more rigging information and hardware.
IMPORTANT NOTE
The mounting/rigging points of the TRx loudspeakers must
either be used for mounting hardware (eyebolts) or “plugged”
with the hex-socket screws provided. There are two reasons for
this. When suspending the loudspeaker from one end, the
screws in the mounting/rigging points on the other end transfer
the load through the internal steel bracing to the bottom surface
of th enclosure for structural support. Also if they are not
“plugged”, the holes can create air leaks compromising the low
frequency performance of the enclosure.
Cutaway view of TRx cabinet showing rigging points.
RECOMENDED CROSSOVER FREQUENCIES
Low/Mid Mid/High
TRx153 400Hz - 700Hz 2.5kHz - 4kHz
Low/High
TRx152 1.75kHz - 3kHz
TRx122 1.75kHz - 3kHz
Low
TRx218 80Hz - 100Hz
De-Rating:
Using the mounting points at an angle will de-rate
the “WLL” (working load limit) for each point. Each point
mounted at an angle should be de-rated according to the following
formula.
“WLL”=cosine(angle) x 500
angle = degrees form vertical pull
500 = WLL for each TRx mounting point @ vertical pull
WARNING – Never exceed the “WLL” throughout the
suspension system.
FLYING AND STACKING INFORMATION
Prior to suspending or stacking any TRx Audio loudspeaker
systems, it is essential that the user be familiar with overhead
suspension and stacking techniques, load ratings, and safety
considerations.
SUSPENSION
TRx series loudspeakers are fitted with captive 3/8”-16 threaded nuts
for suspending or permanent installation. Each captive nut has a WLL of
500 lbs. (226 kg.).
Note: Working Load limits are based on vertical pull or 0°, for derating please
see derating note below.
DANGER:
1) Hardware found at your local hardware store should not be
used as it may not be rated for this application.
2) Mounting or rigging loudspeakers is a serious endeavor, always
seek the advice of qualified experts.
3) Never use the handles for suspending the loudspeaker, they are
not designed or rated for this purpose.
4) Improper installations may result in damage, injury or death.
CAUTION: All hardware used for overhead suspension should
be designed and used with a minimum 5:1 design factor. This is
the ratio between the structural failure point and the loading to be
applied to the component. Periodically inspect and maintain all
rigging points on the loudspeaker and all suspension hardware.
NOTICE: The user assumes liability for proper design,
installation and use of rigging systems.
STACKING
Ensure that the floor, stage or soundwings are level and solid. Be
cautious of outdoor windy conditions, speaker stacks could topple
over in high wind conditions or be accidentally pushed or bumped
over by over zealous crowds. Loudspeakers producing very high
spl (especially subwoofers) can shift from their original position.
Ensure the feet of the loudspeakers are locked into the feet cups
of the speaker below. Place frictional material between the floor
and the loudspeaker.
Loading...
