INSTRUCTION
MANUAL
CARPLAY/ANDROID AUTO INTEGRATION FOR
BMW NBT & NBT-EVO ID4 HEAD UNIT
Model No. VI-BM-24C
MCU Ver. 120010
CP-SW Ver. 20190701-v1.10.15
Manual Ver. 1.0
Date Jul. 25, 2019
www.icartizan.com
CONTENT
Compatibility ................................................................................................ 4
Features ....................................................................................................... 5
Package Components ................................................................................... 6
Connection Diagram ..................................................................................... 7
Dip Setting.................................................................................................... 8
Operation Instruction ................................................................................... 9
How to switch from original to add on interface ..................................... 9
Shortcuts ................................................................................................ 9
Add on module UI .................................................................................10
Settings .................................................................................................11
Apple CarPlay ........................................................................................12
Android Auto .........................................................................................13
2
www.icartizan.com
WARNING
In order to protect the driving safety and avoid break the traffic law; please DO NOT operate the
interface while driving.
The reversing surveillance function just is used in reversing assistance. Please check the entire
surroundings while reversing.
All steps of installation should be done by the well-trained specialist.
During installation, the ignition key should be taken off and after all installation finished, connect
power cable last.
Please DO NOT plug or pull the connected cables in the state of power-on, in order to avoid
damaged monitor or accessory.
Install wiring in a manner in which cables will not come in contact with metal parts. The wiring
may be damaged by contact with metal parts, resulting in fire and shocks. Avoid all contact with
hot surfaces when wiring the main unit. High temperatures may damage wiring, causing shorts,
arcing and fires.
Please DO NOT put the product in the damp environment or water, in order to avoid electric
shock, damaged and fire accident caused by a short circuit.
Kindly check all components are in the box when receiving the product. If anything missing,
inform to the supplier/manufacturer.
Start the engine before loading, check the interface whether have function displayed, key control
whether correct, the vehicle interface whether having a scratch. Please give the feedback to the
supplier/manufacturer if there have any questions.
Please note that put the disassembled automotive components in a good way on the installation
process, avoid scratching the instrument panel, the leftovers of connecting cables need to
handle and DO NOT leave it in the car. The connecting plug must be insulated in order to short
circuit.
The cables should be connected in a good way, the vehicle installation space is a little small,
so reduce space usage as far as possible. There should be a good plan about connect cables,
avoid affecting the active component of connecting, such as control components of turning the
steering wheel, throttle and brake pedal. There need to be fastened after connecting cables in
case of a drop.
3
COMPATIBILITY
Make Models Years Original system
www.icartizan.com
1 series
2 series
3 series
4 series
BMW
5 series
6 series
7 series
X1
X3
X4
X5
2013-2017
NBT (high-cic) &
NBT-EVO ID4
6.5/8.8/10.25 inch
4+2pin LVDS
connector
X6
MINI Cooper 2013-2015
4
www.icartizan.com
FEATURES
Integrated 2 in 1 module supports Apple CarPlay and Android Auto
Support USB HD video and lossless music playback (APE, WAV, FLAC, MP3, WMA,
etc.)
Offers 2 video in for front and rear view camera
Support PDC (Parking Distance Control) and FPG (Flexible Parking Guidelines)
Supply pure 12V power to the front/rear view camera
Display front view automatically after shifting from “R” gear, also support setting
the duration
Adjustable left/right driving layout on CarPlay
VGA input for specific 360 panoramic system, offers a clearer picture
Operate by iDrive joystick and steering wheel buttons
Support OEM microphone
Support further software update
CarPlay Android
Auto
USB
multimedia
FPG PDC F/R view
camera
Software
update
5
PACKAGE COMPONENTS
26 mm
www.icartizan.com
101 mm
141 mm
Main unit
Quadlock power harness
Optional components:
External microphone 3.5mm AUX cable
(Designed for car without factory
microphone)
6
LVDS cable USB/MIC cable
(Connect to factory AUX port if the head
unit integrates MOST fiber optic)

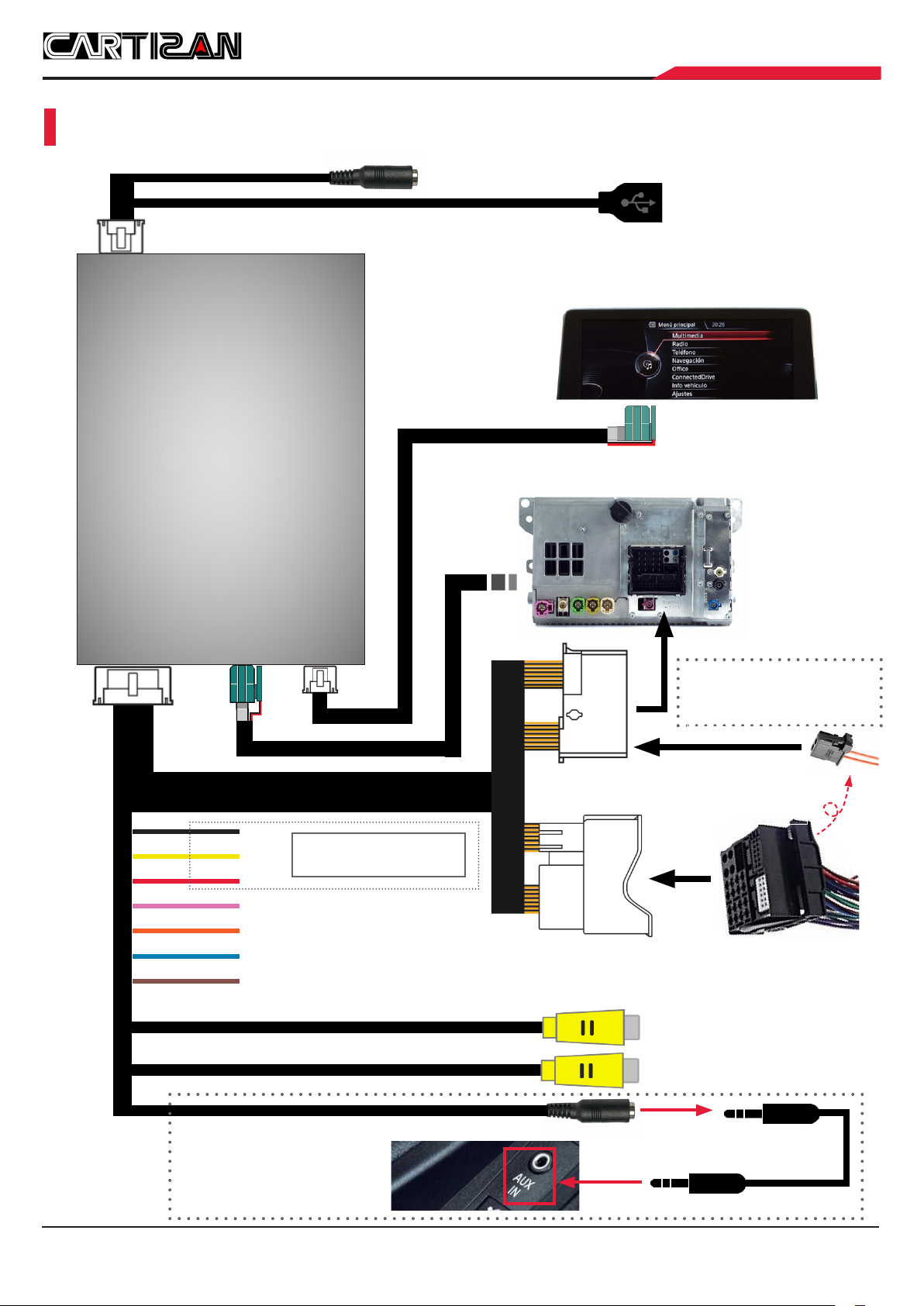

CONNECTION DIAGRAM
USB TFVGA
Connect external MIC
Provided 6pin
LVDS cable
www.icartizan.com
Connect phone/USB stick
OEM screen
POWER LVDS 2 LVDS 1
GND
B+
ACC
Left-Det, N/A
Right-Det, N/A
CAMERA-12V, Supply 12V power for front & rear camera
REVERSE, connect to reversing light if CAMERA-12V cable does not output 12V
Supply power for external
video device
OEM 6pin
LVDS cable
OEM head unit
Move fiber optic cable to the
provided quadlock connector,
then plug into the head unit
OEM quadlock
connector
NOTE! Connect to factory
AUX port with 3.5mm
AUX cable if the head unit
integrates MOST fiber optic
REAR-CVBS, rear camera input
FRONT-CVBS, front camera input
Audio out
3.5mm AUX cable
7
DIP SETTING
OFF
ON
PIN ON OFF
www.icartizan.com
1
2 Disable 360 panoramic Enable 360 panoramic
3 CVBS VGA
4
5
6
7 Original rear camera or none Aftermarket rear camera
8 External microphone Original microphone
(full screen reversing camera)
If you use aftermarket camera and
the image does not display, set this
Disable PDC,
(split reversing screen with PDC)
dip to ON
Selection of OEM screen size
Enable PDC
Default
5 6 Screen size
OFF OFF 8.8 or 10.25 inch
ON OFF 6.5 inch (default)
ON ON 6.5 inch (alternative)
OFF ON Reserved
NOTE! Please disconnect and reconnect interface's power for effective after changing
any DIP setting.
8
www.icartizan.com
OPERATION INSTRUCTION

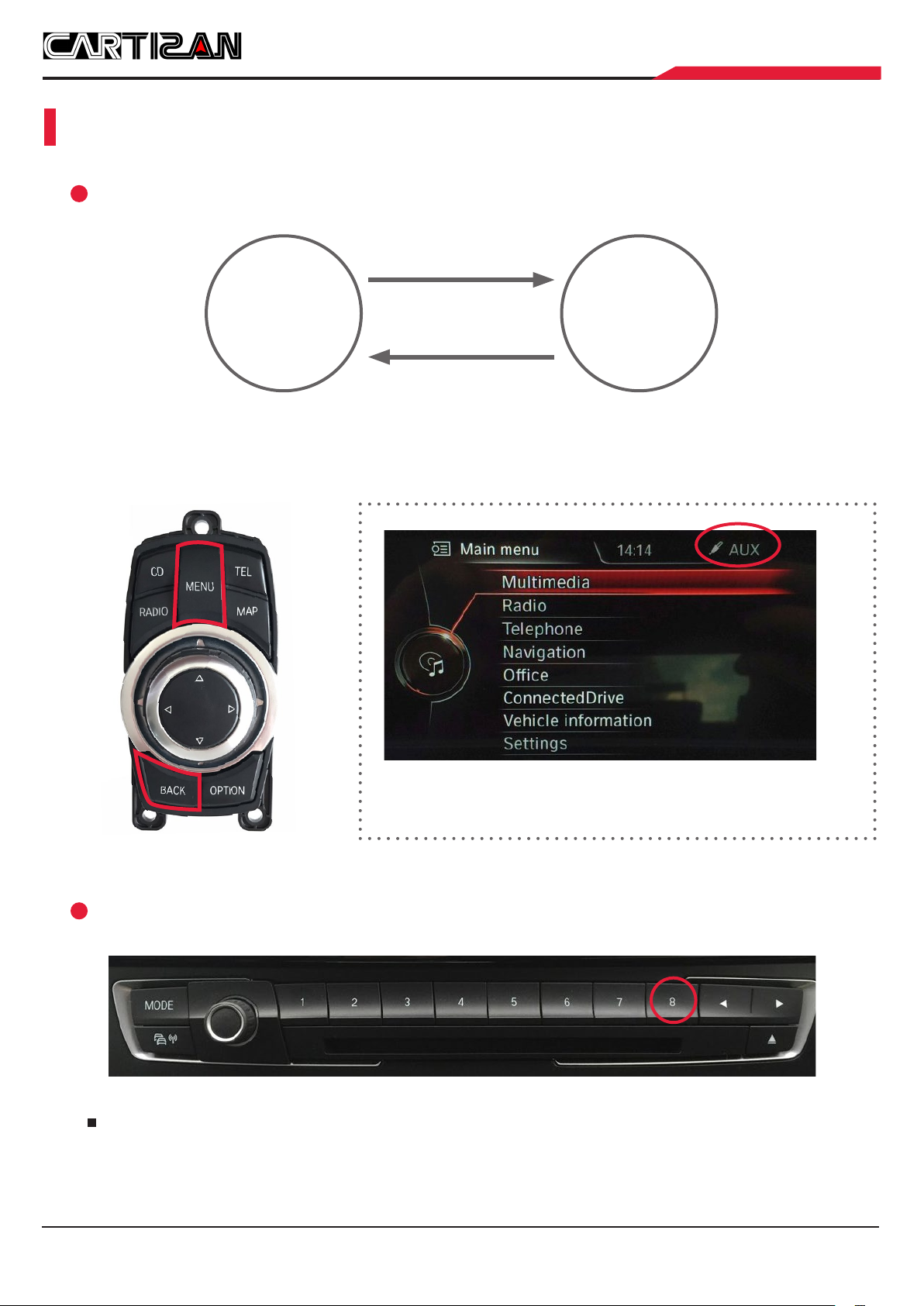

HOW TO SWITCH FROM ORIGINAL TO ADD ON INTERFACE
ADD ON
OEM UI
INTERFACE
Press and hold "MENU" or "BACK" button on iDrive controller for 3S to
switch menu. It will also switch to add on interface automatically after
plugging a mobile phone or USB stick.
NOTE! Make sure source switch to “AUX” mode on original
car stereo for audio transmission before using the integration.
SHORTCUTS
Set audio source to AUX in the "Multimedia", then press and hold #8 to program
it as an AUX input shortcut. Every time the #8 is pressed, it will switch to add on
interface while also changing the audio source to AUX.
9
www.icartizan.com
Press and hold "OPTION" for 3S
to display front view camera
ADD ON MODULE UI
Press and hold "MODE" on
steering wheel for 10S will
reboot the interface
10
Apple
CarPlay
Android
Auto
USB
multimedia
Back to
Settings
factory menu
www.icartizan.com
SETTINGS
Auto Phone Connect ON: CarPlay or Android Auto will start automatically
after connecting your iPhone or Android smartphone.
Driver Position Left/Right: Left/right driving mode on CarPlay.
Front Camera Time: Automatic front view display time, 0 means disable
front view, 10s max.
MCU version
CP software version
11
www.icartizan.com
APPLE CARPLAY
NOTE! Please disconnect iPhone's bluetooth before using Apple CarPlay.
Back to add on main menu
Press: enter
Scroll: move cursor
12
Previous
track
Back
Next track
Press and hold
to activate Siri
Hang up
Click: accept calling
Long press: activate Siri
ANDROID AUTO
Move cursor
to A area
www.icartizan.com
A area
B area
move cursor between A
and B area
Move cursor
to A area/
Open sub
menu of
upper left
Back/Move
cursor to B
area
Move cursor
to B area
NOTE!
Make sure smartphone connect
to original car stereo Bluetooth
(tick CALL AUDIO, uncheck
MEDIA AUDIO) for phone call
Activate
Google
Assistant
Press and hold to
activate Google
Assistant
Hang up
Click: accept calling
Long press: activate Google
Assistant
audio delivering when using
Android Auto.
13
www.icartizan.com
®
Copyright © Cartizan. All rights reserved
.
