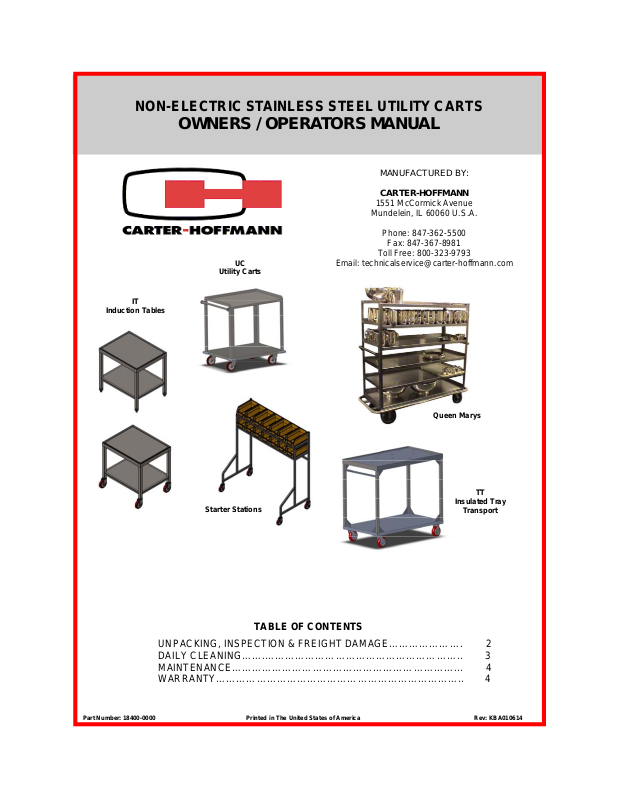

NON-ELECTRIC STAINLESS STEEL UTILITY CARTS

OWNERS / OPERATORS MANUAL

IT

Induction Tables

UC

Utility Carts

MANUFACTURED BY:

CARTER-HOFFMANN

1551 McCormick Avenue

Mundelein, IL 60060 U.S.A.

Phone: [phone]

Fax: [phone]

Toll Free: 800-323-9793

Email: [e-mail]

Queen Marys

TT

Starter Stations

TABLE OF CONTENTS

Insulated Tray

Transport

UNPACKING, INSPECTION & FREIGHT DAMAGE…………………. 2
DAILY CLEANING…….………………………………………………….. 3
MAINTENANCE…………………………………………………………... 4
WARRANTY……………………………………………………………….. 4

Part Number: 18400-0000 Printed in The United States of America Rev: KBA010614

UNPACKING AND INSPECTION

This appliance
should be
thoroughly

cleaned prior to use.
See the CLEANING

INSTRUCTIONS in
this manual.

NOTE: DO NOT discard
the carton or other
packing materials until
you have inspected the
appliance for hidden
damage and checked it
for proper operation.

1. Remove the cabinet from shipping carton, ensuring that all pack­ing materials and protective plastic has been removed from the
unit.

2. Inspect all components for completeness and condition.

3. If any freight damage is present, a freight claim must be filed im­mediately with the shipping company.

4. Freight damage is not covered under warranty.

5. Check to insure all components are included: cabinet, instruction
packet and additional accessories.

6. Read operation instructions completely.

7. Appliance should be thoroughly cleaned before use. See
CLEANING INSTRUCTIONS in this manual.

Refer to SHIPPING

DAMAGE CLAIM
PROCEDURE on

bottom of this page.

FREIGHT DAMAGE PROCEDURE

NOTE: For your protection, please note that equipment in this shipment was carefully inspected

and packaged by skilled personnel before leaving the factory. Upon acceptance of this shipment,
the transportation company assumes full responsibility for its safe delivery.

IF SHIPMENT ARRIVES DAMAGED:

1. VISIBLE LOSS OR DAMAGE: Be certain that any visible loss or damage is noted on the freight
bill or express receipt, and that the note of loss or damage is signed by the delivery person.

2. FILE CLAIM FOR DAMAGE IMMEDIATELY: Regardless of the extent of damage. Contact
your dealer immediately.

3. CONCEALED DAMAGE: If damage is unnoticed until the merchandise is unpacked, notify the
transportation company or carrier immediately, and then file a “CONCEALED DAMAGE” claim
with them. This should be done within fifteen (15) days from the date the delivery was made to
you. Be sure to retain the container for inspection.

Carter-Hoffmann cannot assume liability for damage or loss incurred in transit, freight damage is
not covered under warranty. We will, however, at your request, supply you with the necessary
documents to support your claim.

2

DAILY CLEANING PROCEDURES

CAUTION: Beware

of sharp edges with
sheet metal during

cleaning process.

1. Vinyl trim should be washed with a chlorine-free detergent and
water. Rinse thoroughly with clear water and allow to dry. Nev­er use abrasive cleaners, waxes, car polish, or substances
containing strong aromatic solvents or alcohol. Use of direct
steam/hot water cleaning at temperatures above 190°F (88°C)

CAUTION: Do not

use steel wool pads

as they will result in
rusting from the ferrous metal
in the pads.

may result in bubbling or loosening of vinyl adhesive.

2. If the cart is a TT series Stacking Tray Transport cart, remove
tray strap prior to cleaning.

3. If the cart is a SS Starter Station, remove the plastic bins prior
to cleaning. These may be cleaned separately with warm
soapy water and rinsed thoroughly with clear water. Allow to
dry before reinstalling.

4. To clean stainless steel surfaces use only cleansers, deter­gents, degreasers, or sanitizers that are certified to be
“chloride-free” and “phosphate-free”. DO NOT exceed recom­mended concentrations or mixing ratios. After cleaning and
sanitizing, rinse all exposed surfaces thoroughly with large
amounts of clear water. Wipe off any standing liquid or residue
from all horizontal surfaces, in corners, or near edges.

5. Wipe dry with a clean soft cloth.

CAUTION:

Cleansers, detergents, degreasers, sanitizers, or bleaching agents that contain chlorides or phos­phates will cause permanent damage to stainless steel products. The damage appears a s pits,
eruptions, voids, small holes, cracks, severe discoloration, or dulling of the metal finish. Water with
high chloride content can also damage stainless steel. If unsure of your water quality, we recom­mend you have it tested.

Use of cleaning agents that are not recommended for stainless steel may cause permanent dam­age to the cabinet. THIS DAMAGE IS PERMANENT, COSTLY TO REPAIR AND IS NOT COV-

ERED BY THE WARRANTY.

RECOMMENDED TIPS FOR CLEANING STAINLESS STEEL

Purpose Frequency Cleaning Agent Method of Application

Routine Cleaning Daily Soap, ammonia detergent & water Sponge with cloth, rinse with clear water and

Smears/fingerprints As Needed Stainless steel cleaner or similar

Stubborn spots & stains Daily

As Needed

Hard water spots Daily

As Needed

products

Any chloride-free or phosphate-free
cleaner

Vinegar Swab with cloth. Rise with water & wipe dry.

wipe dry
Rub with cloth as directed on package. Rub in

direction of stainless steel grain. Do not use on
vinyl trim.

Apply with damp sponge or cloth. Rub in direc­tion of stainless steel grain. Rinse thoroughly.
Do not use on vinyl trim.

3

MAINTENANCE

CAUTION:

Do not move cabinet

unless door is secure­ly closed. Serious damage to
hinges and door may result if
bumped into tables, walls, or
other equipment when the
doors are open.

CASTERS

Some cabinets may have caster bearings that are equipped with
Zerk grease fittings so that they may be easily lubricated with a
grease gun. Lubricate bearings at least once every six months.
Lubrication will be required more often if cabinet is cleaned with a
hot water or steam cleaning system. Casters with special sealed
bearings are recommended for frequent cart wash or steam clean­ing systems.

LATCHES & HINGES

Make sure all joints remain sealed and door latches do not stick. If
necessary, use WD-40, silicone spray, graphite or other commer­cial lubricants for aluminum products, to keep door latches & hing­es from sticking. Do not use oil.

FOR CABINETS WITH PERIMETER BUMPERS

Vinyl which has been dislodged from the channel due to severe
bumping or scraping can be pried back into place with a common
screwdriver.

CARTER-HOFFMANN WARRANTY

Carter-Hoffmann warrants to the initial purchaser
option, repair or replace, during the warranty period set forth below, any part of such products made nec essary
due to a
itself during the warranty period under

This warranty applies only to original equipment owned and possessed by the initial purchaser and the warranty
period begins on the date of original shipment from the Carter-Hoffmann fact ory and extends as fol lo ws: to com­ponent parts and labor for one year; to refrigeration compressor unit for one year (limited to replacement of the
unit only-not to include the labor for removal, repair or replacement)
be performed, unless otherwise authorized in writing by Carter-Hoffmann, at its factory. All parts or components to be re­paired or replaced under this warranty are to be shipped prepaid to Carter-Hoffmann, with reimbursement credit for such part
or component to be given if found by Carter-Hoffmann to be defective.

Carter-Hoffmann neither makes nor assumes and does not authorize a ny other person to make or assume an y
obligation or liability in connection with its products ot her than that covered in this warranty. This warranty ap­plies only within the continental United States and Canada. In Alaska and Hawaii, this warranty applies onl y to
and is limited to the supply of replacement parts.

defect in material or workmanship which is present

normal use and service.

of its standa rd Carter Line Products that Carter-Hoffmann will, at its

when the product leaves its factory and which

. Repair or replacement under this warranty will

manifests

ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE IS HERE­BY SPECIFICALLY DISCLAIMED BY CARTER-HOFFMANN. There are no warranties, express or implied,
which extend beyond the description on the face thereof.

This warranty does not cover and Carter-Hoffmann shall not under any circumstances be liab le for any inci­dental, consequential or other damages (such as injury to persons or prop erty, loss of time, inconvenience, los s
of use, loss of business or profits, or other matters not specifically covered) arisin g in c onn ection with the use of,
inability to use, or failure of these products.

Note: Due to our continuous process of product improvement and innovation, all listed specifications subj ect to
change.

4

WARRANTY EXCLUSIONS AND LIMITATIONS
