Carter-Hoffmann FSH50, FSH63, FSHM54, FSC50, FSC63 Operation Manual

Carter-Hoffmann

Since

1947,

Foodservice Equipment That Delivers!

NOTE:

SEPTEMBER

1997

Equipment Manual

1551 McCormick Ave. Mundelein, IL
60060 Phone: [phone]
Fax: [phone]

Toll Free Service:1 [phone]

This equipment has been
designed and manufactured to
meet all applicable health and
safety codes and will give years
of dependable service if used
properly. All carts should be

thoroughly cleaned before using.

for Quick Serve™
Models FSH50, FSH63, FSHM54,
FSC50, FSC63, FSFI35

Printed in U.S.A.
18400-3034
SN/97P0842

TABLE OF CONTENTS
CLEANING PROCEDURES 2
ELECTRICAL REQUIREMENTS,
OPERATING INSTRUCTIONS,
REPLACEMENT PARTS

FOR FSC50, FSC63 3
FOR FSFI35 4
FOR FSHM54 5

FOR FSH50, FSH63 6
CABINET MAINTENANCE 7
WARRANTY 8

Turn off power, unplug cabinet and allow to reach room temperature

Cleaning

Procedures

WARNING damage to the electrical components will result.

1. After all food products and containers have been removed from the cabinet, turn the power switch to "OFF" and allow the
cabinet to reach room temperature.

2. If applicable, vinyl trim or laminate should be washed with a chlorine-free detergent and water. Rinse thoroughly with clear
water and allow to dry. Never use abrasive cleaners, waxes, car polish, or substances containing strong aromatic solvents or
alcohol. Caution: When using solvents, it is essential that proper precautionary measures be observed. Refer to solvent
manufacturer's instructions. Use of direct steam/hot water cleaning at temperatures above 190°F may result in "bubbling" or
loosening of vinyl adhesive.

3. To clean stainless steel surfaces use only cleansers, detergents, degreasers, or sanitizers that are certified to be "chloride­free" and "phosphate-free," and cleansers, degreasers, or sanitizers only in the recommended concentrations. DO NOT
exceed recommended concentrations or mixing ratios. After cleaning and sanitizing, rinse all exposed surfaces thoroughly
with large amounts of clean, clear water. Wipe off any standing liquid or residue from all surfaces, corners, or near edges.

CAUTION

metal finish. Water with high chloride content can also damage stainless steel. If unsure
of your water quality, we recommend you have it tested. THIS DAMAGE IS PERMANENT,
COSTLY TO REPAIR, AND IS NOT COVERED BY THE WARRANTY.

before cleaning. The built-in heater/cooling systems should not be
exposed to direct contact with water or cleaning sprays. Permanent

Cleansers, detergents, degreasers, sanitizers, or bleaching agents that
contain chlorides or phosphates will cause permanent damage to
stainless steel products. The damage appears as pits, eruptions,
voids, small holes, cracks, severe discoloration, or dulling of the

RECOMMENDED "TIPS" FOR CLEANING STAINLESS STEEL

Purpose Frequency Cleaning Agent Method of Application

Routine Daily Soap, ammonia detergent Sponge with cloth, rinse with clear water and wipe dry.
cleaning
Smears/ As Needed Stainless steel cleaner Rub with cloth as directed on package. Rub in direction
fingerprints
Stubborn Daily Any chloride-free Apply with damp sponge or cloth. Rub in direction of polish
spots and As Needed or phosphate-free lines. Rinse thoroughly after use, especially if cleaner

stains
Hard water Daily Vinegar Swab with cloth. Rinse with water and wipe dry.
spots As Needed

CAUTION: Do not use steel wool pads as they will result in rusting from the ferrous metal in the pads.

and water

or similar products of grain of stainless steel. Do not use on vinyl trim.

cleaner contains chlorine bleach. Do not use on vinyl trim.

2

For Model FSC50 and FSC63

Electrical

Operating

Replacement Pa

rts

Operates on 15 AMP, 120 volts, 60 HZ, 1 PH, requires NEMA 5-15R receptacle.

Requirements

Instructions

Contact factory with your model and
serial number for replacement cabinet

components.

Use only
(OEM)
original

WARNING equipment
manufacturer replacement parts.
Using unauthorized parts may
cause serious injury. Replacement
parts should be installed by a
qualified service technician.

The Carter-Hoffmann Quick Serve™ Refrigerated Server is designed to hold
prepackaged food and beverages at or below serving temperatures of 40°F.
The unit will continue to chill the contents, with the top lids removed, during
serving.

1. To access On/Off switch, remove the shorter bottom louvered panel by
twisting screws 1/4 turn, and pivoting up panel. The reverse is followed
for reinstallation.

2. Turn unit on. The thermostat, also located in this area, is pre-set at the
factory. Replace louvered panel and let unit pre-cool for 60 minutes.

3. After pre-cool, open lids and stack loaded baskets of prepackaged food
or beverage in unit.

4. Close lids until serving.

Part Number
16090-0880 Securing Locking Assembly (FSC50)
16090-0849 Securing Locking Assembly (FSC63)
18606-0647 NEMA 5-15 Plug
18616-0083 Dial Thermometer
16002-0004 Complete Slide-In Refrigeration Assembly
18600-0080 Thermostat
18612-5000 Condensing Unit
18614-0050 Accumulator
18614-0062 Filter Drier
18602-0101 Double Pole On/Off Switch
18602-0102 Single Pole On/Off Switch
11000-0881 Wiring Diagram

Description

3

For Model FSFI35

Electrical

Operating

4

Requirements

Operates on 15AMP, 120 volts, 60 HZ, 1 PH, requires NEMA5-15R receptacle.

Instructions

Replacement Parts

Contact factory with your model and
serial number for replacement cabinet
components.

Use only
(OEM)

original

WARNING equipment
manufacturer replacement parts.
Using unauthorized parts may
cause serious injury. Replacement
parts should be installed by a
qualified service technician.

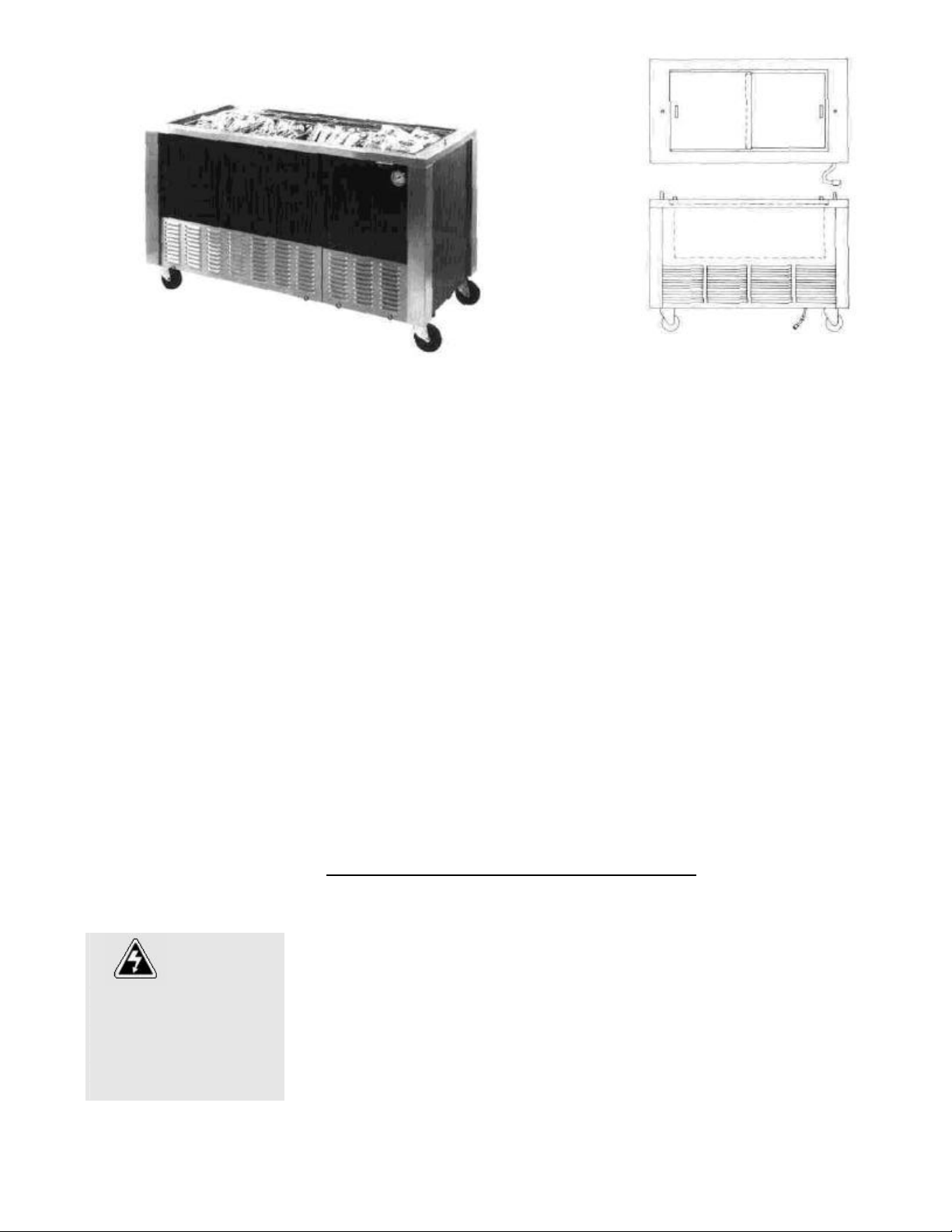

The Carter-Hoffmann Quick Serve™ Freezer Server is designed to hold
prepackaged food at serving temperatures to 0°F.

1. Plug unit in.

2. Turn unit on through access door in louvered panel and let pre-cool for
60 minutes.

3. After pre-cool, open lids and stack frozen food in unit. Close lids until
serving. NOTE: Be sure tub drain plug is in place before loading.

4. To access thermostat, remove bottom louvered panel by removing two
(2) lower screws, pulling out, and dropping panel (the reverse is
followed for reinstallation). The thermostat is pre-set at the factory.

Part Number
16090-0842 Security Locking Assembly
18602-0025 On/Off Toggle Switch
18606-0647 NEMA 5-15P Plug

Description

For Model

FSHM54

Electrical

Part Number

Description

Requirements
Operating

Instructions

Replacement Parts

Contact factory with your model and

serial number for replacement cabinet

components.

Use only
(OEM)
original

WARNING equipment
manufacturer replacement parts.
Using unauthorized parts may
cause serious injury. Replacement
parts should be installed by a
qualified service technician.

Individual branch circuit 30 AMP, 120 volts, 60 HZ, 1 PH, requires NEMA 5­30R receptacle.

The Carter-Hoffmann Quick Serve™ Heated Display Merchandiser is designed
to provide a heated display environment for prepackaged and/or wrapped
foods. The lower base unit provides storage space for top sliding lids used on
the FSH and FSC series cabinets.

1. Temperature setting and On/Off switches are located in the lower unit
behind the right door.

2. Adjust temperature setting to 3.

3. Use the convection heat lower unit to warm display area. Turn on switch
labeled "BASE"

4. For french fries or similar unwrapped foods, load unit and turn on infrared
lamps (switch labeled "LAMPS").

NOTE: Be sure to turn off the convection (BASE) heat when lamps are in use

to prevent overheating of food. In most applications, the infrared lamps

18600-0046
18606-0648
18614-0320
18614-0321
18600-0010
18608-0010
18602-0030
18606-0579
18612-0109
18601-0042
18616-0084
18602-0101
11000-0874

should be on food only 45 minutes to an hour.

N/C 300°F Hi Limit (Auto Reset)
NEMA 5-30P Plug
Motor
Motor Fan Blade
Thermostat
Thermostat Knob
On/Off Switch
NEMA L5-15P Plug
Box Element (120 Volt, 900 Watt)
Porcelain Socket
Hot Food Thermometer
On/Off Switch for Display
Wiring Diagram

5

For Model FSH50, FSH63

Electrical

Individual branch circuit 30AMP,

120

volts,

60

HZ, 1 PH, requires NEMA 5

-

30R

NOTE:

Replacement Parts

Part Number

Description

receptacle.

Requirements

Operating
Instructions

Product must be in a single layer within
each basket. Stack baskets to the tot) of
the unit.

Contact factory with your model and
serial number for replacement cabinet
components.

Use Only

(OEM)

original
WARNING equipment
manufacturer replacement parts.
Using unauthorized parts may
cause serious injury. Replacement
parts should be installed by a
qualified service technician.

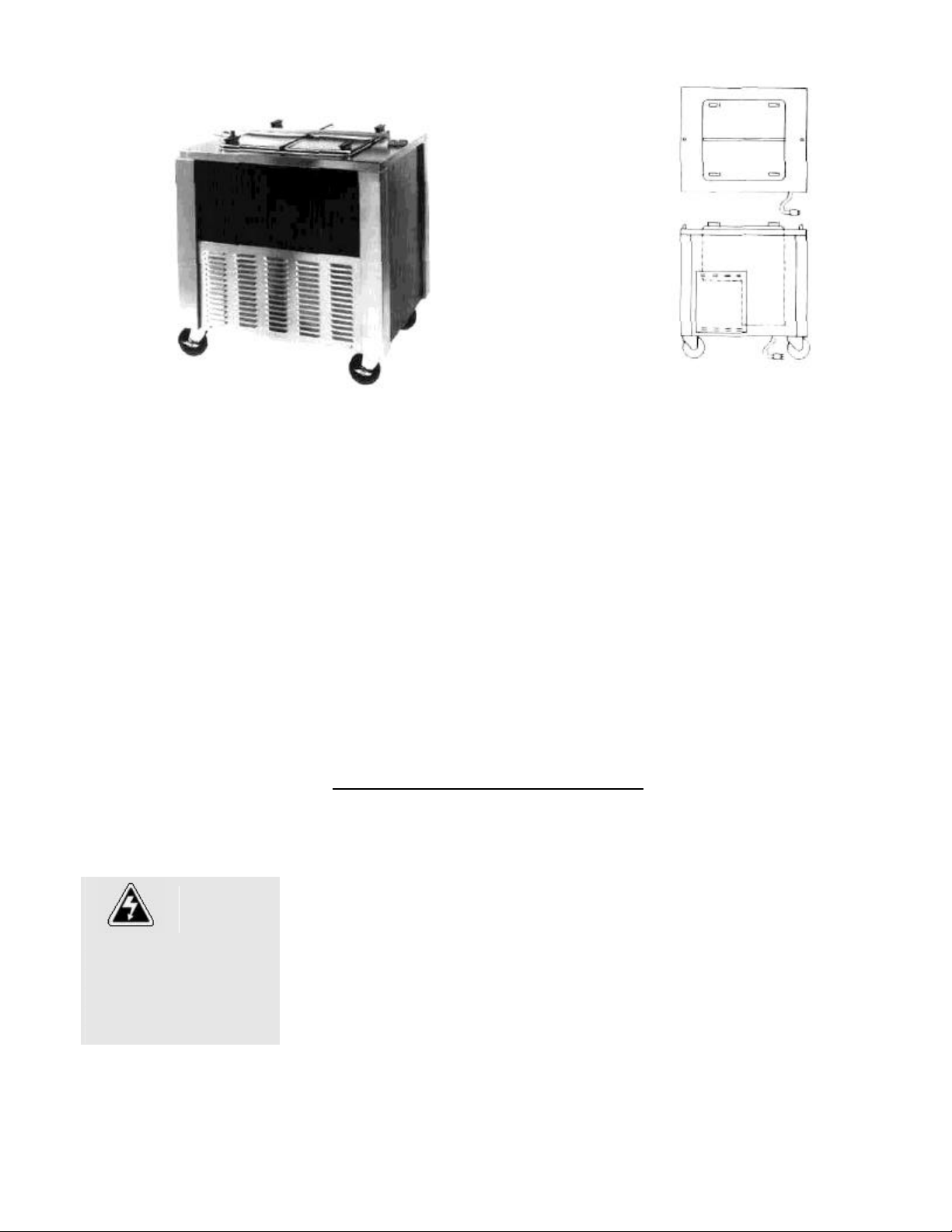

The Carter-Hoffmann Quick Serve™ Heated Server is designed to rethermalize
and hold prepackaged food from 40°F to 150°F in VA to 2 hours and retain an
elevated temperature for 30 minutes with top lids open or removed during
serving
Due to various conditions such as extremely low cafeteria room temperatures,
concentration and placement of food, and high frequency of lid opening, the
retherm period may be extended.

1. Open top lids and place one layer of 2" baskets inverted (upside down) on
the bottom to obtain optimum air flow during rethermalization. Close lids for
preheat.

2. To access controls, remove shorter bottom louvered panel by twisting
screws 1/4 turn, and pivoting up panel. The reverse is followed for
reinstallation of panel.

3. Set temperature knob at "5" and turn "ON" unit. Replace louvered panel and
let unit preheat for 20 minutes.

4. After preheat, open lids and stack loaded baskets of prepackaged food in a
single layer on inverted empty baskets. Close lids.

5. Allow approximately 1 1/2 to 2 hours to retherm chilled contents to a serving
temperature of 150°F.

6. Remove or open lids just prior to serving.

16090-0880 Security Locking Assembly (FSH50)
16090-0849 Security Locking Assembly (FSH63)
18606-0648 NEMA 5-30P Plug
18616-0010 Dial Thermometer
27080-1025 Complete Slide-In Heater
18600-0010 Thermostat
18602-0102 On/Off Switch
18608-0010 Thermostat Knob
18600-0046 N/C 300°F Hi-Limit (Auto Reset)
18612-0084 Finstrip Heater
18614-0320 Motor
18614-0321 Motor Fan Blade
18601-1150 Pilot Light
11000-0880 Wiring Diagram

6

Cabinet

Maintenance

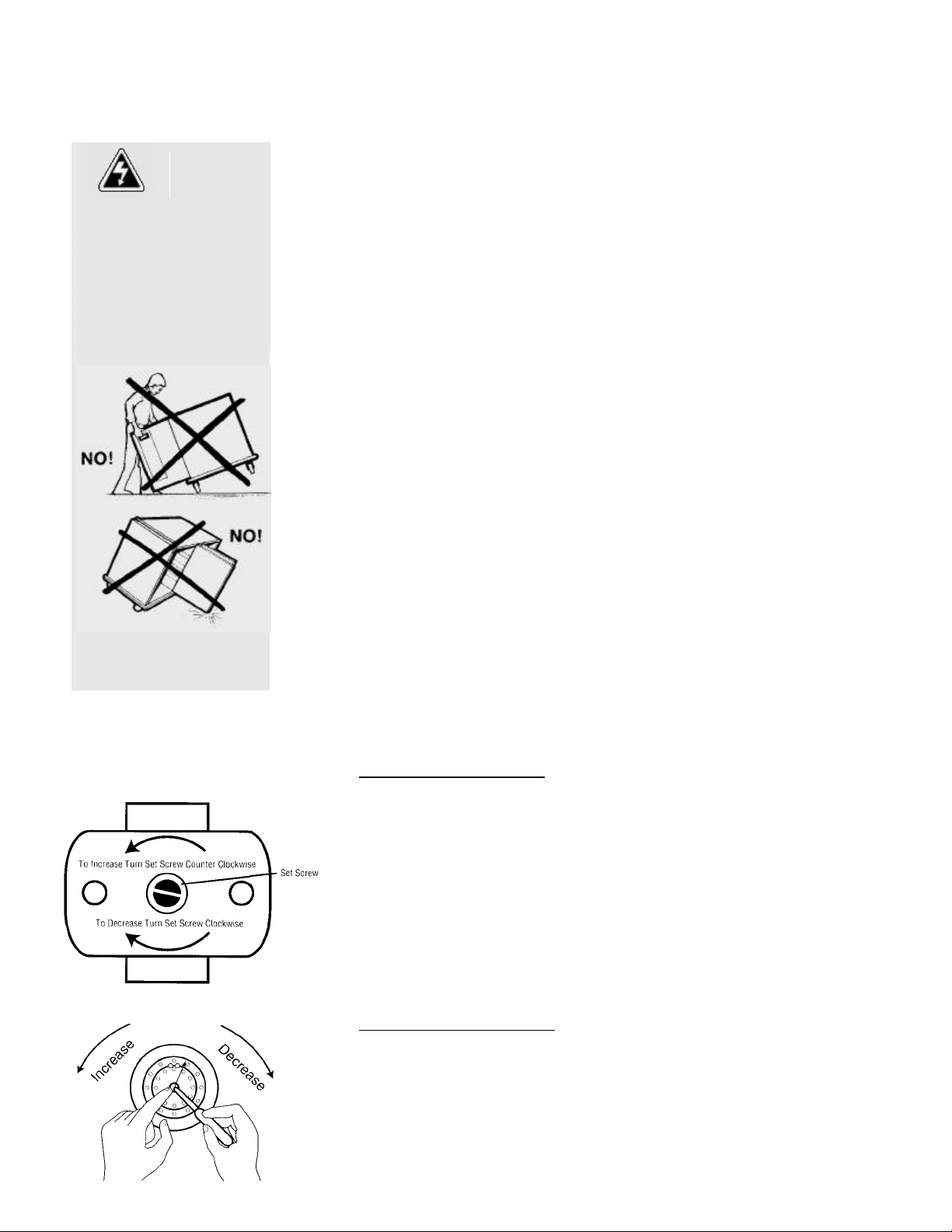

WARNING
Never move cart unless all
doors are securely closed,
serious damage to hinges
and doors may result if
bumped into tables, walls,
or other equipment when
doors are open.

1. Casters...Caster bearings are equipped with Zerk grease fittings so that they may
be easily lubricated with a grease gun. Lubricate bearings at least once every six
months. Lubrication will be required more frequently if carts are cleaned with hot
water or steam cleaning system. (Casters with special Delrin™ bearings are
recommended for frequent cart wash with steam cleaning systems or high pressure
hose.)

2. Latches...Check frequently to insure that all door latches are secure. Latches may
become "sticky" due to residue buildup from daily use and cleaning procedures.
Lubricate latches once every six (6) months or when needed with WD40, silicone
spray, graphite or other commercial lubricant for stainless steel products. Do not
use oil.

3. Doors...Never tip carts forward on open doors to drain water during or after
washing. This can cause serious damage to hinges, doors, and latches.

Calibrations

forFSHM54, FSH50, and FSH63

A] THERMOSTAT CALIBRATION_____________

If additional heat range is required in the heating unit , unplug unit, remove
thermostat knob, insert small straight blade screwdriver into opening and turn limit
control set screw counterclockwise (not clockwise) one full turn. Replace
thermostat knob and turn clockwise to reach new maximum temperature. Repeat
this until desired temperature is reached. Each 1/4 turn of the calibration set screw
will raise the element heating capacity by approximately 25T -35T.

If a reduction of heat is desired, turn limit control set screw clockwise one full turn.
Hold the door open allowing unit to cool until inside temperature is below the
temperature desired. Close the door and allow unit to rise to new maximum
temperature. Repeat this until desired temperature is reached.

B] THERMOMETER CALIBRATION___________

Place an oven thermometer in the center of the cabinet. Turn heater on; turn
thermostat to maximum setting and wait approximately 45 minutes. Open the door
and check inside thermometer temperature. If recalibration is required, pry the
plastic cover off the dial body and with a small flat blade screwdriver insert into the
pointer as shown. Carefully turn the pointer with your finger to the correct setting.
Be careful not to bend the pointer, it is very fragile.

7

Carter-Hoffmann

Carter

-

Hoffmann Corporation ("CARTER

-

HOFFMANN") warrants to the initial

Since 1947

,

Foodservice Equipment Th

at Delivers

!

Corporation
Warranty:

purchaser of its standard Carter line Products that CAKTEK-HOFFMANN will, at its
option, repair or replace, during the warranty period set forth below, any part of such
products made necessary due to a defect in material or workmanship which is present
when the product leaves its factory and which manifests itself during the warranty period
under normal use and service.

This warranty applies only to original equipment owned and possessed by the initial
purchaser and the warranty period begins on the date of original shipment from the
CAKTEK-HOPFMANN factory and extends as follows: to electrical and refrigeration

components/or one year; to electrical and refrigeration labor for 120 days;
to refrigeration compressor unit for 1 year (limited to replacement of the unit only—not
to include labor for removal, repair or replacement), and to all other component parts
and labor for 12 months.

Repair or replacements under this warranty will he performed, unless otherwise
authorized in writing by CARTER-HOFFMANN, at its factory. All parts or components
to he repaired or replaced under this warranty are to he shipped prepaid to CAKTEK­HOFFMANN, with reimbursement credit for such part or component to he given if found
by CARTER-HOPFMANN to he defective.

CAKTEK-HOFFMANN neither makes nor assumes and does not authorize any other
person to make or assume any obligation or liability in connection with its products other
than that covered in this warranty. This warranty applies only within the continental
United States and Canada. In Alaska and Hawaii, this w'arranty applies only to and is
limited to the supply of replacement parts.

Warranty
Exclusions And
Limitations:

Any implied warranty of merchantability or fitness for a particular purpose is hereby
specifically disclaimed by Carter-Hoffmann Corporation. There are no warranties,
expressed or implied, which extend beyond the description on the face hereof.

This warranty does not cover and CARTER-HOFFMANN shall not under any circum­stances he liable for any incidental, consequential or other damages (such as injury to
persons or property, loss of time, inconvenience, loss of use, loss of business or profits, or
other matters not specifically covered) arising in connection with the use of, inability to

use, or failure of these products.

Specifications subject to change through product improvement and innovation.

Printed in U.S.A.

1551 McCormick Avenue, Mundelein, Illinois 60060 SEPTEMBER 1997

Tel. [phone] • Fax No. [phone] 18400-3034

SN/97P0842
