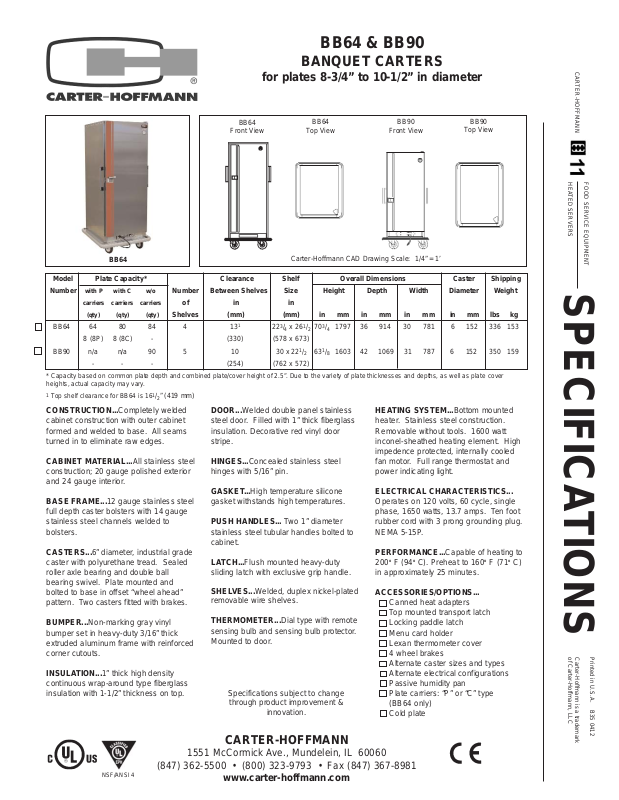

SPECIFICATIONS
Printed in U.S.A. B35 0412
Carter-Hoffmann is a trademark
of Carter-Hoffmann, LLC
BB64 & BB90
BANQUET CARTERS
for plates 8-3/4” to 10-1/2” in diameter
CONSTRUCTION...Completely welded
cabinet construction with outer cabinet
formed and welded to base. All seams
turned in to eliminate raw edges.
CABINET MATERIAL...All stainless steel
construction; 20 gauge polished exterior
and 24 gauge interior.
BASE FRAME...12 gauge stainless steel
full depth caster bolsters with 14 gauge
stainless steel channels welded to
bolsters.
CASTERS...6” diameter, industrial grade
caster with polyurethane tread. Sealed
roller axle bearing and double ball
bearing swivel. Plate mounted and
bolted to base in offset “wheel ahead”
pattern. Two casters fitted with brakes.
BUMPER...Non-marking gray vinyl
bumper set in heavy-duty 3/16” thick
extruded aluminum frame with reinforced
corner cutouts.
INSULATION...1” thick high density
continuous wrap-around type fiberglass
insulation with 1-1/2” thickness on top.
DOOR...Welded double panel stainless
steel door. Filled with 1” thick fiberglass
insulation. Decorative red vinyl door
stripe.
HINGES...Concealed stainless steel
hinges with 5/16” pin.
GASKET...High temperature silicone
gasket withstands high temperatures.
PUSH HANDLES... Two 1” diameter
stainless steel tubular handles bolted to
cabinet.
LATCH...Flush mounted heavy-duty
sliding latch with exclusive grip handle.
SHELVES...Welded, duplex nickel-plated
removable wire shelves.
THERMOMETER...Dial type with remote
sensing bulb and sensing bulb protector.
Mounted to door.
HEATING SYSTEM...Bottom mounted
heater. Stainless steel construction.
Removable without tools. 1600 watt
inconel-sheathed heating element. High
impedence protected, internally cooled
fan motor. Full range thermostat and
power indicating light.
ELECTRICAL CHARACTERISTICS...
Operates on 120 volts, 60 cycle, single
phase, 1650 watts, 13.7 amps. Ten foot
rubber cord with 3 prong grounding plug.
NEMA 5-15P.
PERFORMANCE...Capable of heating to
200OF (94OC). Preheat to 160OF (71OC)
in approximately 25 minutes.
ACCESSORIES/OPTIONS...
Canned heat adapters
Top mounted transport latch
Locking paddle latch
Menu card holder
Lexan thermometer cover
4 wheel brakes
Alternate caster sizes and types
Alternate electrical configurations
Passive humidity pan
Plate carriers: “P” or “C” type
(BB64 only)
Cold plate
Model Plate Capacity* Clearance Shelf Overall Dimensions Caster Shipping
Number
with P with C w/o Number Between Shelves Size Height Depth Width Diameter Weight
carriers carriers carriers of in in
(qty) (qty) (qty) Shelves (mm) (mm) in mm in mm in mm in mm lbs kg
BB64 64 80 84 4 13
1
223/4x 261/2703/41797 36 914 30 781 6 152 336 153
8 (8P) 8 (8C) - (330) (578 x 673)
BB90 n/a n/a 90 5 10 30 x 22
1
/2631/81603 42 1069 31 787 6 152 350 159
- - - (254) (762 x 572)
Carter-Hoffmann CAD Drawing Scale: 1/4” = 1’
BB90
Top View
BB64
Top View
BB90
Front View
* Capacity based on common plate depth and combined plate/cover height of 2.5”. Due to the variety of plate thicknesses and depths, as well as plate cover
heights, actual capacity may vary.
1
Top shelf clearance for BB64 is 16
1
/2” (419 mm)
BB64
FOOD SERVICE EQUIPMENT
HEATED SERVERS
CARTER-HOFFMANN
NSF/ANSI 4
CARTER-HOFFMANN
1551 McCormick Ave., Mundelein, IL 60060
(847) 362-5500 • (800) 323-9793 • Fax (847) 367-8981
www.carter-hoffmann.com
Specifications subject to change
through product improvement &
innovation.
BB64
Front View
Page 2
BB64 & BB90
CLASSIC CARTER
TM
BANQUET CARTERS
FEATURES & BENEFITS
1551 McCormick Avenue, Mundelein, Illinois 60060
Tel. (847)362-5500
.
(800)323-9793
.
Fax (847)367-8981
www.carter-hoffmann.com
Since 1947, Foodservice Equipment That Delivers!
COMPLETELY WELDED
TURNED-IN SEAM
CONSTRUCTION... Adds rigidity
and stregth to entire cabinet for
long life and eliminates raw
edges for ease of cleaning and
safety.
POLYURETHANE TREAD CASTERS
WITH SEALED ROLLER BEARING...
Long lasting and easy rolling for
maximum load and minimum
maintenance.
SPACE-SAVING DESIGN...
Upright design of cabinets uses
vertical space for smaller
footprint. BB64: Stack plates two
deep. BB90: Stack plates three
deep.
HIGH PERFORMANCE
HEATER... Blower system for
fast heat up, recovery and even
heat distribution throughout
cabinet. Unit is removable
without tools for easy cleaning.
CONCEALED
STAINLESS STEEL
HINGE WITH 5/16” PIN...
Keeps doors properly
aligned and withstands
rugged use.
HEAVY-DUTY NONMARKING BUMPER... Set in
3/16” thick extruded
aluminum frame with
reinforced corner cut-outs.
Protects doorways, walls and
cart from damage.
OFFSET “WHEEL AHEAD”
PATTERN... Only one wheel can pass
over uneven surfaces at a time for easy
handling and steering.
FLUSH-MOUNTED SLIDING
DOOR LATCH WITH GRIP
HANDLE... Designed for
transport applications. Door
remains closed during
transport. Flush design
protects cart from damage.
HEAVY-DUTY STAINLESS
STEEL BASE FRAME... 12
gauge caster bolsters with
perimeter frame for rugged use
and added durability.
DOUBLE WALL STAINLESS
STEEL CABINET... Strongest,
most durable materials for long
life. High density fiberglass for
maximum heat retention.
BB90
NSF/ANSI 4
