SPECIFICATIONS
Printed in U.S.A. E72 1212
Carter-Hoffmann is a trademark
of Carter-Hoffmann LLC
HL2 Series
hotLOGIX HEATED HOLDING & PROOFING CABINETS
(non-insulated aluminum with mechanical controls)
CONSTRUCTION...Welded & riveted single
wall, non-insulated cabinet construction with
cabinet welded to base.
CABINET MATERIAL...All aluminum interior
and exterior double wall, insulated
construction; .063 aluminum exterior with 2V
finish. Base frame:.125 natural aluminum
CASTERS...5” diameter casters with rubber
tread. Four swivel casters. Two casters fitted
with brakes.
DOOR...Single panel tempered glass door
set in extruded aluminum frame. Field
reversible. Drip trough at base of door.
High temperature santoprene gasket
mounted to door.
DRIP TROUGH... Full width aluminum drip
trough with 1/2” diameter drain located in
center. Located at base of cabinet.
Includes plastic catch pan.
HINGES...Adjustable edge mount hinges
with chrome plate finish.
LATCH...Heavy-duty edge mount latch with
magnetic catch.
TRAY RACK ASSEMBLIES... Universal
wire slides at fixed spacing of 3”.
Assemblies removable. Hold 18”x26” sheet
pans, 12”x20” steam table pans, 2/1 or 1/2
G/N pans.
THERMOMETER...Digital thermometer with
remote sensing bulb and sensing bulb
protector. Displays temperature in one
degree increments.
CONTROLS...Dial type controls. One dial
for heat and one dial for humidity level. Set
temperature dial at 3 and humidity dial at 7+
for proofing (approximate temperature of
85
O
-100OF and 90-95% humidity).
WATER RESERVOIR...Bottom mounted
stainless steel water reservoir is part of
heater assembly. Element mounted below
pan to provide active humidification. Manual
fill. Capacity 2.5 quarts.
HEAT & HUMIDITY SYSTEM...Bottom
mounted heater with one 1700 watt coiled
incoloy-sheathed heating element. High
impedence protected fan motor. Water
reservoir with 350 watt element affixed to
bottom. Blower fan circulates air and
humidity. Full range thermostat and on/off
switch with power indicating light. Separate
dial controls for heat and humidity.
ELECTRICAL CHARACTERISTICS...
Operates on 120 volts, 60 cycle, single
phase, 2100 watts, 17.5 amps. Eight foot
rubber cord with 3 prong grounding plug.
NEMA 5-20P. See low wattage options
below.
PERFORMANCE...Capable of heating to
190
O
F (88OC). Preheat to 160OF (71OC) in
approximately 20 minutes. 95% maximum
relative humidity. Low wattage options will
affect cabinet performance.
ACCESSORIES/OPTIONS...
Menu card holder (solid door units only)
Solid aluminum door with black anodized finish on
interior and exterior
Adjustable universal tray slides for 12”x20” and
18”x26” pans; 3” spacing
Fixed angle slides for 18”x26” sheet pans
Low wattage: 120v, 1550 w, 13 A, NEMA 5-15P
CSA low wattage: 120v, 1400w, 12A, NEMA 5-15P
Dutch doors (HL2-18 only)
Model Pan/Tray Capacity Spacing Inside Working Overall Dimensions Caster Shipping
Number Height Height Depth Width Diameter Weight
12”x20” 18”x26” in mm in mm in mm in mm in mm in mm lbs kg
HL2-5 10 5 3 76 15
5
/
16
389 31
5
/
8
803 29
1
/
2
749 24
11
/
16
627 5 127 99 45
HL2-8 16 8 3 76 24
5
/
16
634 40
5
/
8
1032 29
1
/
2
749 24
11
/
16
627 5 127 137 62
HL2-14 28 14 3 76 44 1118 58
5
/
8
1489 29
1
/
2
749 24
11
/
16
627 5 127 155 70
HL2-18 36 18 3 76 54
1
/
2
1384 70
5
/
8
1780 29
1
/
2
749 24
11
/
16
627 5 127 198 90
FOOD SERVICE EQUIPMENT
HUMIDIFIED HOLDING CABINETS
CARTER-HOFFMANN
HL2-18

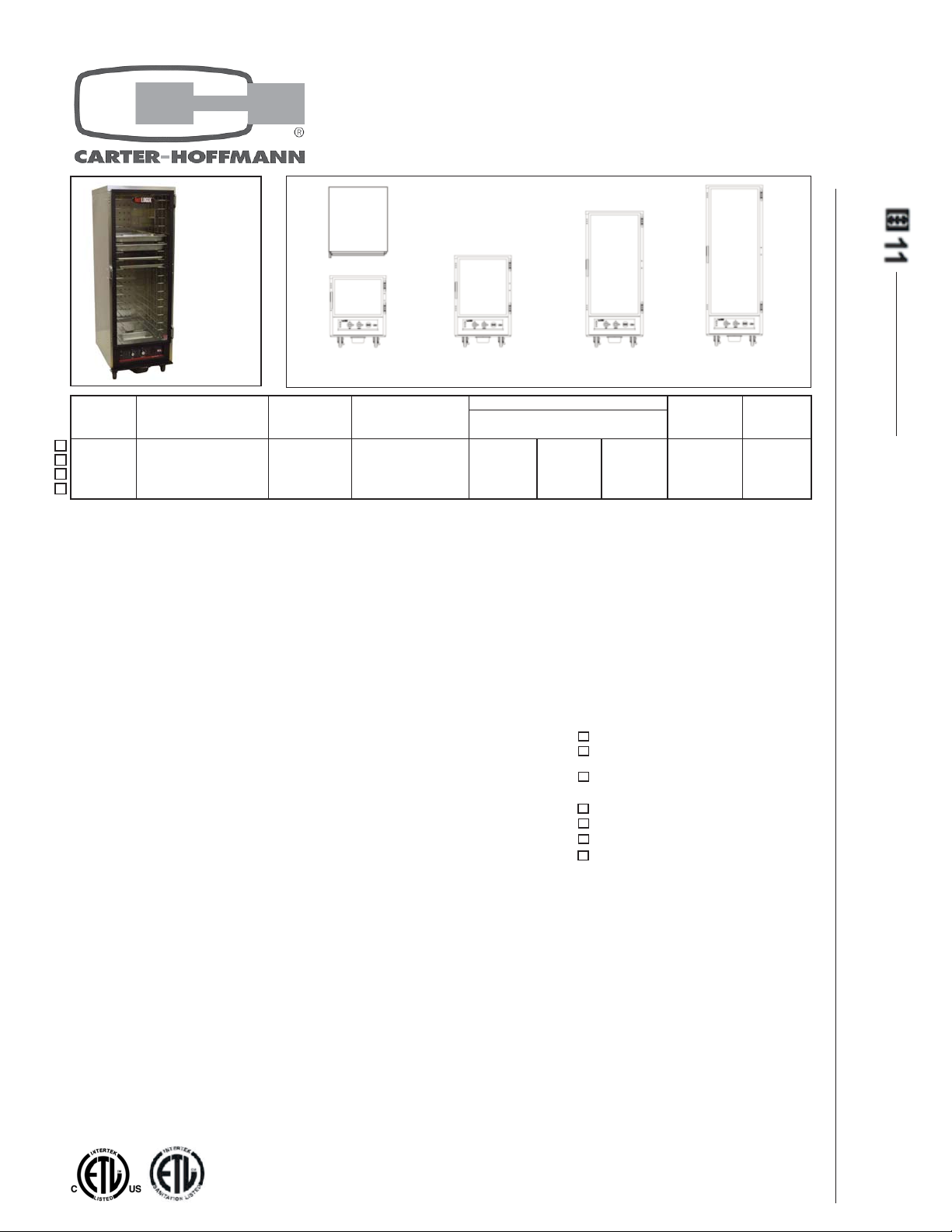

Carter-Hoffmann CAD Drawing
Scale: 1/4” = 1’
CARTER-HOFFMANN
1551 McCormick Ave., Mundelein, IL 60060
(847) 362-5500 • (800) 323-9793 • Fax (847) 367-8981
www.carter-hoffmann.com
HL2-5
Front View
HL2-8
Front View
HL2-14
Front View
HL2-18
Front View
All Models
Top View
Specifications subject to change through product improvement & innovation.
Page 2
HL2 Series Series
hotLOGIX HUMIDIFIED HOLDING & PROOFING CABINETS
(non-insulated aluminum with mechanical controls)
Since 1947, Foodservice Equipment That Delivers!
EASY-TO-USE DIAL CONTROLS... From proofing to
holding, control heat and humidity with separate
analog dials and master on/off switch. Temperature
range of 85OF to 190OF. Easy to read digital
thermometer and recessed control dials, angled for
easier reach. Proofing and holding capability in single
cabinet. Cabinet can be operated without humidity.
FIELD REVERSIBLE DOOR(S)...
Wobble-free single pane tempered
glass door for easy viewing of
cabinet contents, with magnetic
door latch and heavy-duty hinges.
Full perimeter santoprene gasket
attached to door for best seal.
DRIP TROUGH... Located at base
of cabinet to catch condensation.
Drain hole in center. Plastic drip
pan below trough (provided) to
catch condensation.
FEATURES & BENEFITS
1551 McCormick Avenue, Mundelein, Illinois 60060
Tel. (847)362-5500
.
(800)323-9793
.
Fax (847)367-8981
www.carter-hoffmann.com
HL2-18
(full size cabinet)
PRECISION ENGINEERED
ACTIVE HEAT & HUMIDITY
SYSTEM... Heat duct provides
even and efficient heating
throughout the entire cabinet for
safe and consistent results. Quick
heat and humidity recovery.
Proofing and holding can be
accomplished in one cabinet. Unit
provides full power to both heating
and humidity elements regardless
of whether you are holding or
proofing.
FOUR SIZES... HL2 series
cabinets are available in undercounter, 1/2 size, 3/4 size and full
size.
PAN SLIDES... Universal
wire slides at fixed spacing
of 3”. Assemblies
removable. Hold 18”x26”
sheet pans, 12”x20” steam
table pans, 2/1 or 1/2 G/N
pans. Adjustable universal
stainless steel pan slides or
fixed angle pan slides are
optional.
Optional stainless
steel adjustable
universal slides
Standard fixed
universal wire slides
Optional fixed
angle slides
