Specifications subject to change through product improvement & innovation.
SPECIFICATIONS
Printed in U.S.A. M10 0909
Carter-Hoffmann is a trademark
of Carter-Hoffmann LLC.

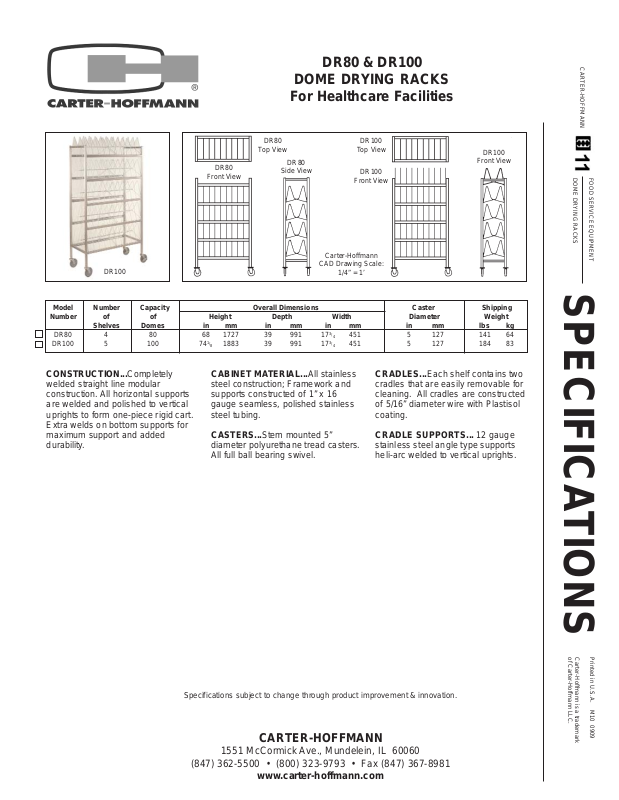

DR80 & DR100
DOME DRYING RACKS
For Healthcare Facilities
CONSTRUCTION...Completely
welded straight line modular
construction. All horizontal supports
are welded and polished to vertical
uprights to form one-piece rigid cart.
Extra welds on bottom supports for
maximum support and added
durability.
CABINET MATERIAL...All stainless
steel construction; Framework and
supports constructed of 1” x 16
gauge seamless, polished stainless
steel tubing.
CASTERS...Stem mounted 5”
diameter polyurethane tread casters.
All full ball bearing swivel.
CRADLES...Each shelf contains two
cradles that are easily removable for
cleaning. All cradles are constructed
of 5/16” diameter wire with Plastisol
coating.
CRADLE SUPPORTS... 12 gauge
stainless steel angle type supports
heli-arc welded to vertical uprights.
Model Number Capacity Overall Dimensions Caster Shipping
Number of of Height Depth Width Diameter Weight
Shelves Domes in mm in mm in mm in mm lbs kg
DR80 4 80 68 1727 39 991 17
3
/
4
451 5 127 141 64
DR100 5 100 74
1
/
8
1883 39 991 17
3
/
4
451 5 127 184 83
FOOD SERVICE EQUIPMENT
DOME DRYING RACKS
CARTER-HOFFMANN
DR100
CARTER-HOFFMANN
1551 McCormick Ave., Mundelein, IL 60060
(847) 362-5500 • (800) 323-9793 • Fax (847) 367-8981
www.carter-hoffmann.com
Carter-Hoffmann
CAD Drawing Scale:
1/4” = 1’
DR80
Top View
DR80
Front View
DR80
Side View
DR100
Top View
DR100
Front View
DR100
Front View
SPECIFICATIONS
Printed in U.S.A. M10 0909
Carter-Hoffmann is a trademark
of Carter-Hoffmann LLC
TS35 & TS70
TRAY STARTER STATIONS
for Tray Make-Up Systems
CARTER-HOFFMANN
1551 McCormick Ave., Mundelein, IL 60060
(847) 362-5500 • (800) 323-9793 • Fax (847) 367-8981
www.carter-hoffmann.com
FOOD SERVICE EQUIPMENT
TRAY STARTER STATIONS
CARTER-HOFFMANN
Specifications subject to change through product improvement & innovation.
CONSTRUCTION...Completely
welded straight line modular
construction. All horizontal supports
are welded and polished to vertical
uprights to form one-piece rigid cart.
Extra welds on bottom supports for
maximum support and added
durability.
CABINET MATERIAL...All stainless
steel construction; Framework and
supports constructed of 1” x 16
gauge seamless, polished stainless
steel tubing.
UPPER SHELF... Constructed of 16
gauge polished stainless steel and
welded to uprights.
LOWER SUPPORTS... All stainless
steel supports welded to uprights.
Accommodate fractional 12”x20”
pans for silverware and condiments.
CASTERS...Stem mounted 4”
diameter casters with resilient tread.
All with full ball bearing swivel.
Model Dimensions Overall Dimensions Caster Shipping
Number Upper Lower Pan Height Depth Width Diameter Weight
Shelf Support in mm in mm in mm in mm lbs kg
TS35 17” x 36” 12” x 32” 60 1524 27 686 36 915 4 102 190 86
TS70 17” x 69
1
/
2
” 12” x 65
1
/
2
” 60 1524 27 686 69
1
/
2
1766 4 102 260 118
TS70
