Carson Industries 1220 User Manual
1220

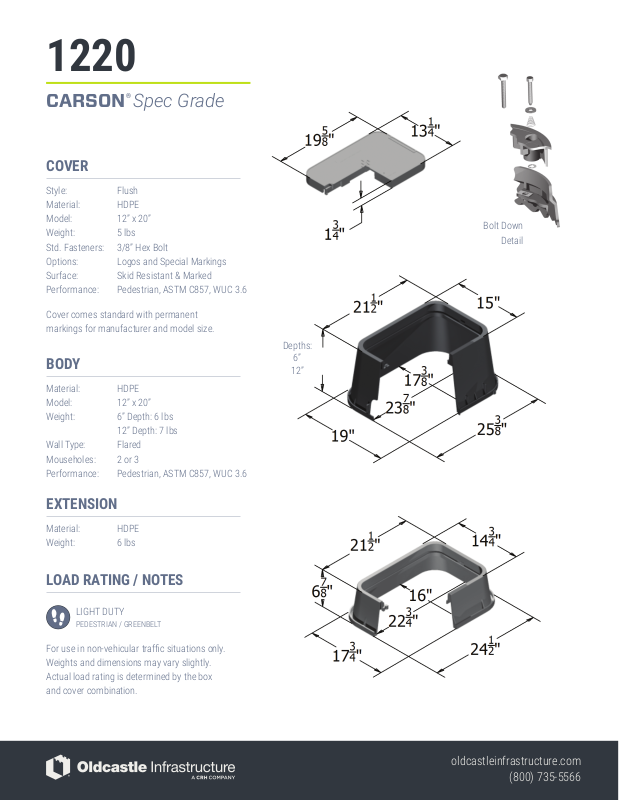

CARSON® Spec Grade
COVER
Style:
Material:
Model:
Weight:
Std. Fasteners:
Options:
Surface:
Performance:
Cover comes standard with permanent
markings for manufacturer and model size.
Flush
HDPE
12” x 20”
5 lbs
3/8” Hex Bolt
Logos and Special Markings
Skid Resistant & Marked
Pedestrian, ASTM C857, WUC 3.6
BODY
Material:
Model:
Weight:
Wall Type:
Mouseholes:
Performance:
HDPE
12” x 20”
6” Depth: 6 lbs
12” Depth: 7 lbs
Flared
2 or 3
Pedestrian, ASTM C857, WUC 3.6
Bolt Down
Detail
Depths:
6”
12”
EXTENSION
Material:
Weight:
HDPE
6 lbs
LOAD RATING / NOTES
LIGHT DUTY
PEDESTRIAN / GREENBELT
For use in non-vehicular trafc situations only.
Weights and dimensions may vary slightly.
Actual load rating is determined by the box
and cover combination.
oldcastleinfrastructure.com
(800) 735-5566
1220
CARSON® Spec Grade
COVER OPTIONS
HDPE, T-Cover Solid
HDPE, Flush Solid
HDPE, Flush with Plastic Reader Door
HDPE, Flush with Cast Iron Reader Door
HDPE, Flush Hinged with Adapter Ring
COLOR OPTIONS
Cover: Black, Green, Gray, Tan, Purple, Blue
Body: Black, Green, Gray, Tan, Purple, Blue
Extension: Black, Green, Tan, Purple, Blue
FASTENER OPTIONS
Hex Head Bolt (A)
Penta Head Bolt (B)
Penta Head Coil Thread Bolt (B)
Oldcastle Vandal Resistant Bolt (C)
Captive Bolt Retainer
Drop-N-Lock™
L Bolt
(requires factory installed ring)
A
Coil Thread Bolt Retainer
(for standard thread)
Flush SolidT-Cover Solid
Reader Door DetailHinged Cover
B CStandard Thread
Drop-N-Lock
(T-Cover only)
ADD ON OPTIONS
AMR Friendly Solutions
Touch Read Hole
Metal Locating Plate
EMS Marker
WARNING: Cancer - www.P65Warnings.ca.gov
All information contained on this sheet is current at the time of publication.
Oldcastle reserves the right to discontinue or update product information without notice.
L Bolt Detail
EMS Marker
Revision 11/30/18
© 2018 Oldcastle Infrastructure
