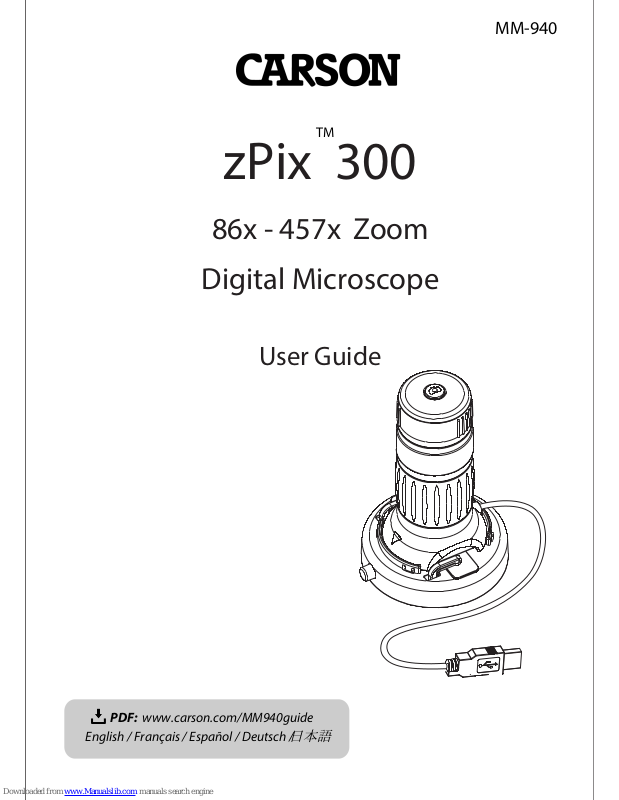

Page 1
MM-940
TM
zPix 300
86
x - 457x Zoom
Digital Microscope
User Guide
PDF: www.carson.com/MM940guide
English / Français / Español / Deutsch /
日本語
Page 2
4
4
5
6
7
8
9
9
10
10
10
10
Table of Contents
Important information.................................................
Product description....................................................
Computer requirements & software installation......................
Package contents......................................................
Product overview
.................................................
Getting started..........................................................
Assembling the product.........................................
Connecting the device...........................................
Starting the xploview software................................................
Windows based PC...........................................
Mac OS based PC.............................................
.......................................................
Product specification
2
Page 3
3
Focusing..............................................................
Zooming............................................................................
System settings menu .....
Device setup ..... .....
Timed shot setup .....
Movie setup ..... ......
Save setting ..... ......
Language setting .....
Advanced settings .....
Saved files ..... .....
............... ..... .
Warning
..... ..............
Using the xploview software.............................................
........................ ..............
........................ ..................
........................ .................
........................ ..................
........................ ..................
........................ .................
........................ ...............
........................ .................... .....
Full screen ........ ........................ ......
........................ ........................
11
12
13
14
15
15
15
15
15
16
16
17
17
18
18
19
Care and maintenance.........................................................
Warranty description.............................................................
Warranty procedure..............................................................
Page 4
Important information
Please read this instruction manual carefully before using this
product, and retain this instruction for future reference.
Improvements and changes to this text necessitated by
typographical errors, or improvements to the software and/or
equipments may be made at any time without notice.
Product description
This product is a USB powered device which features an
effective magnification of 86x to 457x on a 21" computer
monitor.
Snapshot of the specimens can be captured using the shutter
button located on the top of the device. Video recording is
also available.
Compatible with Mac and PC.
This item can be used with applications that support the viewing
of USB video devices (these applications are not included).
USB 2.0 / 3.0 required. No batteries required.
4
Page 5
Computer requirements &
Software Installation
5
Go to www.carson.com/software to download the
latest software and corresponding software
installation guide for the MM-940. The computer
requirements (operating system, etc.) may be
different depending on the software version.
Page 6
Package contents
1.
Digital Microscope
2.
Blank specimen slides
3.
Prepared slide with cotton swatch
4.
Tweezers
5.
Dropper
x1
x3
x1
x1
x1
6
1
2
3
4
5
Page 7
Product overview
1. Shutter button
2. Focusing ring
3. Zooming ring
4. LED illumination
5. Specimen stage
6. Specimen slide releasing button
7. USB cable
7
1
2
3
5
6
4
7
Page 8
Product specification
Connection type
USB 2.0 / 3.0
Effective*
magnification
21" monitor - 86x - 457x
Effective viewing area
4.96mm x 3.72mm
0.93mm x 0.70mm (5.3x zoom)
(without zoom)
Illumination
Optics
Sensor
Sensor resolution
Size
Weight
Four LED array
5.3x zoom lens system
CMOS
85.5 x 80 x 130.4mmmm mm
220 grams
8
1600 x 1200 pixels (UXGA)
*Please note that the effective magnification is a combination
of the optical system and a high powered digital zoom.
Page 9
Getting started
Assembling the product
Insert a specimen slide into the specimen stage as shown,
and place the device on the specimen stage.
9
1
2
Page 10
The xploview software can be launched by double clicking
the xploview icon from the desktop, or from the start menu
(Start > All Programs > xploview).
Mac OS based PC
The xploview software can be launched by double clicking
the xploview icon from the Applications menu.
10
Connecting the device
Connect the device to the computer using the USB cable
provided.
When the device is connected to the computer for the first
time, a driver will automatically be installed by Windows or
Mac OS. This process could take up to a few minutes.
Starting the xploview software
Windows based PC
Page 11
Focusing
Adjust the focus of the
image manually by
rotating the focusing ring.
11
Focusing ring
Page 12
Zooming
Zoom in or out of the
image manually by
rotating the zooming ring.
12
Zooming ring
Page 13
Using the xploview software
The following buttons are available:
Clicking this will open the system
settings menu (see next section).
Clicking this will activate or deactivate
the video recording feature.
Clicking this will show the copyright and
version information of the application
software.
Clicking this will shut down the
application software.
Clicking this will capture the on
screen image of the device.
Clicking this will activate or deactivate
the timed shot feature. When activated,
images will be captured at a regular
interval.
13
Page 14
System settings menu
The first time the xploview software is started, the
default settings will be loaded, you may change these
settings manually in the system settings menu.
14
Page 15
15
Device setup
If the image captured by the Digital Microscope was not
displayed by default, you can change this by selecting it
from the "Device" drop-down menu.
The resolution of images you capture can be changed from
the "Resolution" drop-down menu.
Timed shot setup
The frequency and duration of automatic images capture can
be adjusted under this option.
Movie setup
The resolution of videos you record can be changed from
the "Resolution" menu. You can also set a maximum file
size for each video.
Save setting
The default location for captured images or videos can be
changed under this option.
Language setting
The language of the xploview software can be changed under
this option.
Page 16
16
Advanced settings
By clicking the "More..." button on the right of the system
settings menu, you will be able to manually adjust all of the
image settings. Note that the settings available may be
different, depending on your operating system.
Saved files
With the xploview application software opened, you can
locate the saved files folder by clicking the "More..." button
located on the left of the main software window.
Page 17
17
Full screen
To activate the full screen mode, click the full screen button
located on the bottom right hand corner of the xploview
application software window.
To exit full screen mode, either double click on the screen, or
press the “Esc” button on the keyboard.
Care and maintenance
Keep the device dry and protect it from water or vapour.
Do not leave your device in a place with an extreme high
or low temperature.
Do not touch the device with a wet hand as it may damage
the device, or cause an electric shock to the user.
Do not use or store the device in dusty, dirty areas as its
moving parts may be damaged.
Do not use harsh chemicals, cleaning solvents or strong
detergents to clean the device. Wipe it with a soft cloth
slightly dampened in a mild soap-and-water solution.
Page 18
18
Warning
Do not place lighted Digital Microscope upon the eye, doing
so may cause permanent eye damage.
Do not attempt to open or dismantle the Digital Microscope.
CARSON ONE YEAR LIMITED WARRANTY
This Carson product is warranted to be free from defects
in material and workmanship for a period of one year
from date of purchase. During this period Carson will, at
its option and without charge, either repair any part or
assembly of parts found to be defective in material or
workmanship, or replace this Carson product with a
Carson product of comparable value and condition,
subject to the limitations and exclusions noted herein.
This warranty extends to the original purchaser only and
is not assignable or transferable. It shall not apply to any
product that has been subject to misuse, abuse,
negligence or accident, or to any defects or damage
directly or indirectly caused by the use of unauthorized
replacement parts and/or service performed by
unauthorized personnel.
This warranty gives you specific legal rights, and you
may also have other rights which could vary from state
to state. Some states do not allow limitations on the life
of an implied warranty and/or do not allow excluding or
limiting incidental or consequential damages. If so, the
above limitations or exclusions may not apply to you.
Page 19
WARRANTY PROCEDURE
Call or write for authorization. Before returning any
product for a warranty claim, a Return Authorization
(RA) number must be obtained. No merchandise will
be accepted without an RA, and failure to obtain an
RA will prevent or delay processing of the warranty
claim. To obtain an RA call 631-963-5000, or write to
Carson Warranty Service, 2070 5th Ave.,
Ronkonkoma NY 11779 with a description of the
problem. Include your name, address and telephone
number.
Package the return carefully. Shippers will not
reimburse for damages due to insufficient packaging,
even if the merchandise is insured. Print the RA
number prominently on the top of the package.
Prepay shipping. Insure the package. Send it to
Carson Warranty Service, 2070 5th Ave.,
Ronkonkoma NY 11779. Merchandise must be
shipped prepaid. Carson will not accept merchandise
C.O.D.
19
MM-940 / ©2017-R1
