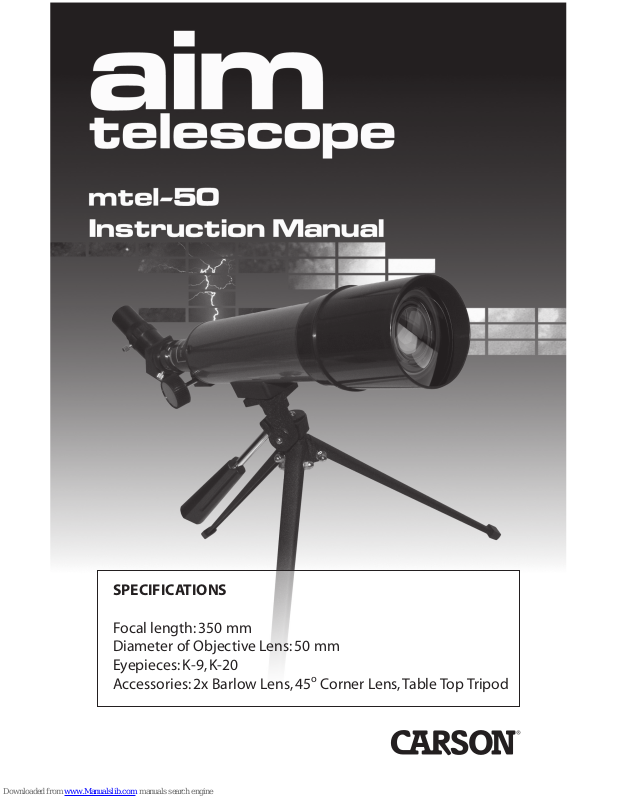

Carson AIM MTEL-50 Instruction Manual

SPECIFICATIONS

Focal length: 350 mm
Diameter of Objective Lens: 50 mm
Eyepieces: K-9, K-20
Accessories: 2x Barlow Lens, 45o Corner Lens, Table Top Tripod

VISUAL KEY

1. Main Tube

2. Diagonal Prism

3. Diagonal Prism Holding Screw

4. Eyepiece Lens

5. Eyepiece Holding Screw

6. Tripod Holder

7. Tripod Platform

8. Tripod Securing Screw

9. Focus Wheel

10. Mount Adjustment Handle

11. Tripod Leg

VISUAL KEY DIAGRAM

mtel-50 Instruction Manual

Take the tripod out of the pouch and extend the legs (11).
Put the tripod holder (6) of the main tube (1) on to the tripod plat­form (7) and tighten it together with the tripod securing screw (8),
make sure the tube is placed in the right direction as shown in the
Take the tripod out of the pouch and extend the legs (11).
Put the tripod holder (6) of the main tube (1) on to the tripod plat­form (7) and tighten it together with the tripod securing screw (8),
make sure the tube is placed in the right direction as shown in the
diagram.

Place the diagonal prism (2) to the tube (use the chrome end) and
tighten with the holding screw (3). Place the eyepiece with the
lowest magnification (K-20) into the prism and tighten the screw
(5). Loosen the mount adjustment handle to adjust the direction
where you want to focus, then adjust the focus wheel (9) to get a
clear and sharp view.

Changing the eyepiece will change the power or magnification
(see the EYEPIECE CHART ON NEXT PAGE).
Focus re-adjustment may be required.

Using the 2x Barlow will double the magnification or power.
The Barlow is placed between the telescope and the eyepiece.

Please note that the Barlow lens can not be used in
conjunction with the diagonal prism. (see diagram below)

2x BARLOW

mtel-50 Instruction Manual

ASSEMBLY

MAGNIFICATION

USE 2x BARLOW

Always keep your eyepiece lens in the pouch. Use lens cloth or
soft and lintless cloth when cleaning or wiping the lenses. Never
attempt to clean the telescope internally or take it apart.

Avoid sudden temperature fluctuations likely to cause any
dampness in the air to condense on the telescope's lens.
If this phenomenon occurs, place the lens at a moderate distance
away from a heat source and let the dampness evaporate away
progressively.

Warning: To avoid any eye injury never look directly into another
optical instrument through the telescope and never observe the
sun with unprotected eyes!

This product is designed and intended for ages 13 years and older.

Eyepiece Power Power with 2x Barlow
K-20 18x 36x
K-9 40x 80x

mtel-50 Instruction Manual

EYEPIECE CHART AND THEORETICAL POWER LIMITS

HOW TO CARE FOR YOUR TELESCOPE
