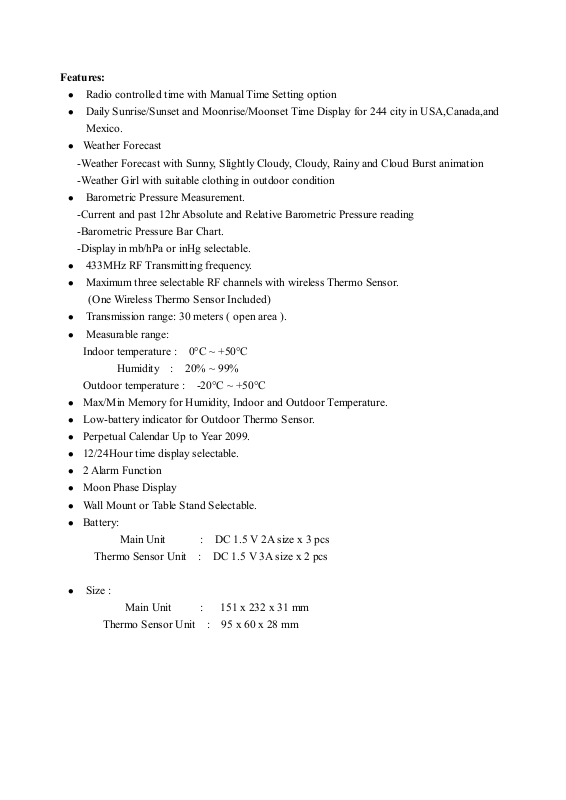

Features:
l Radio controlled time with Manual Time Setting option
l Daily Sunrise/Sunset and Moonrise/Moonset Time Display for 244 city in USA,Canada,and
Mexico.
l Weather Forecast
-Weather Forecast with Sunny, Slightly Cloudy, Cloudy, Rainy and Cloud Burst animation
-Weather Girl with suitable clothing in outdoor condition
l Barometric Pressure Measurement.
-Current and past 12hr Absolute and Relative Barometric Pressure reading
-Barometric Pressure Bar Chart.
-Display in mb/hPa or inHg selectable.
l 433MHz RF Transmitting frequency.
l Maximum three selectable RF channels with wireless Thermo Sensor.
(One Wireless Thermo Sensor Included)
l Transmission range: 30 meters ( open area ).
l Measurable range:
Indoor temperature : 0°C ~ +50°C
Humidity : 20% ~ 99%
Outdoor temperature : -20°C ~ +50°C
l Max/Min Memory for Humidity, Indoor and Outdoor Temperature.
l Low-battery indicator for Outdoor Thermo Sensor.
l Perpetual Calendar Up to Year 2099.
l 12/24Hour time display selectable.
l 2 Alarm Function
l Moon Phase Display
l Wall Mount or Table Stand Selectable.
l Battery:
Main Unit : DC 1.5 V 2A size x 3 pcs
Thermo Sensor Unit : DC 1.5 V 3A size x 2 pcs
l Size :
Main Unit : 151 x 232 x 31 mm
Thermo Sensor Unit : 95 x 60 x 28 mm
Page 2
Main Unit Appearance
Part A- LCD
A1: Outdoor Temperature Trend A2: Comfort Icon
Page 3
A3: Indoor Temperature/Humidity A4: Radio Control Icon
A5: Time Zone A6: Radio Controlled Time
Date, Month & Week A8: Outdoor Temperature Moonrise Time
A9: Selected Channel A10: Barometric Pressure Trend
arometric Pressure Bar Graph
A7:
A11: Weather Forecast A12: B
A13: Weather Girl A14: Past Hour(Pressure History)
A15: Absolute/ Relative Barometric Pressure Reading A16: Moon phase
A17: Moonrise/Moonset A18: Time Selected Country
A19 : Sunrise/Sunset Time
Part B- Button
B1: “SUN/MOON” Button B2: “+ /(12/24)” Button
B3: ” MODE” Button B4: ” - / ” Button
B5: “ALARM ON/OFF” Button B6: “CHANNEL” Button
B7: “HISTORY/ WEATHER”Button B8: “▲(UP) / °C/ °F”Button
B9: “▼(DOWN)”Button B10: “Relative /Absolute”Button
B11: “MAX/MIN ” Button B12:”RESET” Button
Part C- Structure
C1: Wall Mount Hole C2: Battery Compartment
C3:. Stand
Thermo Sensor Unit Appearance.
Page 4
D1: Transmission Indication LED D2: Outdoor Temperature
D3: Wall Mount Hole D4: Channel Select Switch
D5: Battery Compartment D6: °C/°F” button
D7: “TX” button D8: Stand
Set Up:
Ÿ Insert batteries.
Ÿ Use a pin to press the RESET (B12) button
Weather Forecast Function:
l After Batteries inserted, or holding “WEATHER” button (B7) for 3 seconds, Weather Icon
(A11) blinks. Enter the current weather condition by pressing “▲“ (B8) or “▼“ (B9) buttons.
Press “WEATHER” button (B7) to confirm the setting. The weather forecast may not be
accurate if the current weather condition entered is not correct.
l The current weather status should be entered again if the altitude of the weather station is
changed. ( Barometric pressure is lower at higher altitude location. Therefore, altitude change
will affect the weather forecast) The weather station will start the first forecast at 6 hours
after the current weather status is entered
l Totally 5 different weather condition in the weather forecast.
“ ” means Sunny .
Page 5
“ ” means Slightly Cloudy.
“ ” means Cloudy.
“ ” means Rainy
“ ” means Cloudburst.
“ ” is shown if the weather forecast is Rainy or Cloudburst and outdoor temperature (any
channel) is under 0°C.
l If there is any inconsistency of weather forecast between Local Weather Station and this unit,
the Local Weather Station's forecast should prevail. We will not held responsible for any
trouble that may come up due to wrong forecasting from this unit.
l The trend pointer (LCD A10) indicates the trend of the barometric pressure.
“ ” indicates the barometric pressure trend is increasing.
“ ” indicates the barometric pressure trend is steady.
“ ” indicates the barometric pressure trend is decreasing.
Barometric Pressure Reading
l Press “Absolute/Relative” button (B10) for three seconds to select Absolute or Relative
pressure display. “Abs” is shown for Absolute pressure, “Rel” is shown for Relative pressure.
l Absolute pressure is the actual pressure measured by the Main Unit.
l Relative pressure can be adjusted to sea level’s pressure by holding “Absolute/Relative” button
Page 6
(B10) for 3 seconds. Press “ ▲“ (B8) or “▼“ (B9) key to adjust, press “Absolute/Relative”
button (B8) to confirm. Check the Local Weather Station for Sea Level pressure.
l Press “ HISTORY” button (B7) to view the past 12 hours Barometric Pressure history.
The hour is indicated on LCD (A14).
Press “HISTORY” button (B7)
l Press “ HISTORY” button (B7) to view the past 12 hour Barometric Pressure history.
The hour is indicated on the LCD.

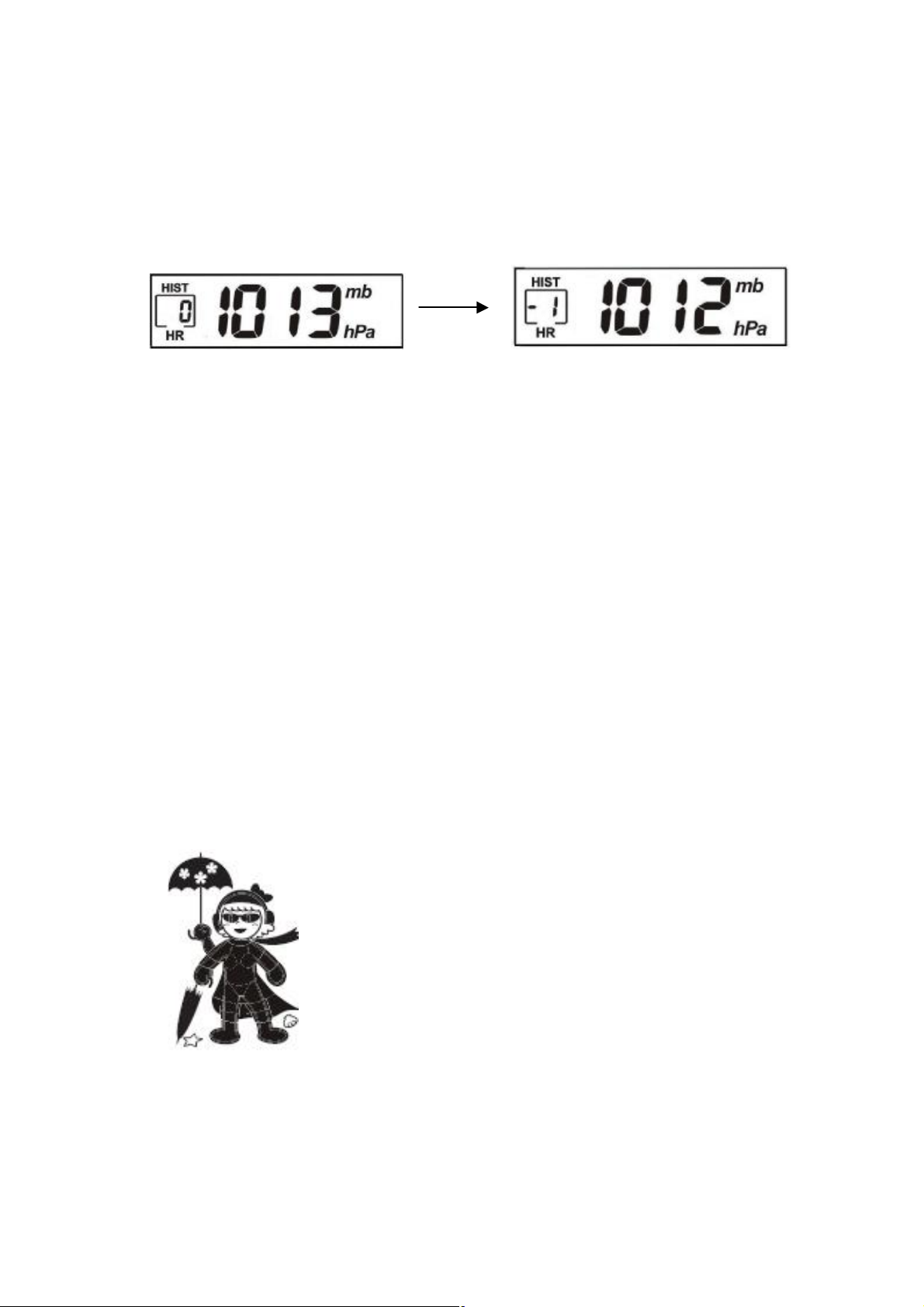

0 HR = Current Barometric Pressure Reading
-1HR = Barometric Pressure Reading in 1 hour ago
-2HR = Barometric Pressure Reading in 2 hour ago ……..etc
l Hold “▲” button (B8) for three seconds to select the unit for Barometric Pressure Meter in
inHg or mb / hPa.
Barometric Pressure Trend Bar graph.
l The Barometric Pressure Reading at –2hr, -4hr, -8hr and –12hr is recorded and shown on
Barometric Pressure Bar Graph (A12). The Graph is displayed in both hPa and inHg.
Weather Girl.
l Weather Girl (A13) shows different clothing under different weather condition and Outdoor
temperature (according to the lowest channel). This is to remind you to wear suitable clothes or
take an umbrella with you before go to outdoor area.
l If there is no Thermo Sensor is registered in the main unit, LCD shows :
Thermometer:
l Press “°C /°F” button (B8) to select Temperature to be displayed in Celsius mode or Fahrenheit
mode.
Page 7
l If the temperature is out of the measurable range, LL.L ( beyond the minimum temperature) or
HH.H (beyond the maximum temperature) will be shown on the LCD.
Maximum/Minimum Temperature/Humidity recording function:
l Press “MAX/MIN” button (B11) to show the maximum or minimum of indoor/outdoor
Temperature/Humidity.
“ ” is shown on the LCD if maximum Temperature/Humidity is shown.
“ ” is shown on the LCD if minimum Temperature/Humidity is shown.
Ÿ Hold “MAX/MIN” button (B11) for 3 seconds to clear the recorded maximum and minimum
reading.
Outdoor Thermo Sensor Unit Registration Procedure:
l The main unit automatically starts receiving transmission from Outdoor Thermo Sensor after
Weather condition setting. Outdoor temperature digits (A8) blinks.
l Insert the batteries in the Thermo Sensor Unit. The sensor unit automatically transmit
temperature to the main unit. ( Battery compartment (D5) of thermo sensor is located behind
the back cover, unscrews to open.)
l For having more than one external transmitter (Maximum3), select the Channel, CH1, CH2 or
CH3 to ensure each sensor is transmitting at difference channel before inserting batteries. The
channel select switch (D4) is at the back of the thermo sensor unit.
l Press “TX“ button (D7) on the thermo sensor unit to transmit temperature to the main unit
manually. The main unit gives a “beep” sound if it received the temperature.
Display Outdoor Temperature :
l Press “CHANNEL” button (B6) to view the 3 Channels’ temperature. The sequence is shown
as follow:
Press Press Press
“CHANNEL” button “CHANNEL” button “CHANNEL” button
Display the three
channels alternatively
l Hold “ CHANNEL” (B6) button for 3 seconds to cancel unused channel. It will automatically
register a new channel again if a new channel is received.
If there is no temperature displayed in existing channel ( “ - - . –“ is displayed on the LCD ),
hold “CHANNEL” button (B6) for 3 seconds to cancel that channel and receive the channel
again (“Beep” sound can be heard.) Then, press “ TX “ button (D7) on the thermo sensor unit
Page 8
to transmit signal to the main unit manually
l The trend pointer displayed (A1) indicates the trend of the outdoor temperature.
“ ” indicates the outdoor temperature is increasing.
“ ” indicates the outdoor temperature is steady.
“ ” indicates the outdoor temperature is decreasing.
l Press “ °C /°F” button (D6), on the Thermo Sensor unit, to select Temperature to be displayed
in Celsius mode or Fahrenheit mode.
Radio Controlled Clock:
l At 2 minutes after batteries inserted, the clock automatically starts scanning the WWVB time
signal.
“ ” flashes indicate now is receiving WWVB signal
“ ” turns on indicate signal received successfully
If reception fail, scanning stops ( “ ” disappear on the LCD ) and repeats again at next hour.
Totally four reception will be tried after starting. Each reception takes about 10 minutes.
l The clock automatically scans the time signal at 2.00 a.m. everyday to maintain accurate
timing. If reception fail,, scanning stops ( “ ” on the LCD disappear ) and repeats again at
3.00 a.m. 4.00a.m. and 5.00a.m.
l The clock can be set to scans the time signal manually by holding “ ” button (B4) for 3
seconds. If receptions fail, scanning stops. ( “ ” on the LCD disappear ).
l Hold “ ” button (B4) for 3 seconds or enter Time Setting to stop scanning WWVB time
signal.
l Buttons will not function while scanning for WWVB time signal unless they are well received
or stopped manually.
l “DST” shown on the LCD if it is in Daylight Saving Time Mode
Manual Time Setting:
l Hold “ MODE” button (B3) for 3 seconds to enter Clock/Calendar setting Mode .
l Press “+” (B2) or “-” (B4) buttons to adjust the setting and press “MODE” button (B3) to
confirm each setting.
l The setting sequence is shown as follow:
Page 9
Hour, Minutes, Second, Year, Month, Day, Country and City.
12/24 Hour Display mode:
Ÿ Press “12/24” button (B2) to select 12 or 24 hours mode.
2 Daily Alarm Function:
l Press “ MODE” button (B3) to select to view:
Time Alarm Time1 (“ “ Shown) Alarm Time 2 (“ “ Shown)
l When viewing Alarm Time 1 or Alarm Time 2, hold “MODE” button (B3) for 3 seconds to
enter that Alarm Time setting. Press “ +” (B2) or “-” (B4) buttons to adjust the alarm time.
Press “MODE” button (B3) to confirm each setting.
l When viewing Alarm Time 1 or Alarm Time 2, press “ALARM ON/OFF” button (B5) to
switch that alarm ON or OFF.
l Press “MODE”(B3), “+”(B2), “-“(B4) or “SUN/MOON” (B4) button to stop the alarm.
Sunrise/Sunset and Moonrise/Moonset Time Display Function:
l After setting the Calendar, Local Country and City in the Time Setting Mode, the Main Unit
calculates the Sunrise/Sunset and Moonrise/Moonset. The Sunrise/Sunset and
Moonrise/Moonset time digits blinks duing the calculation.
l Press “SUN/MOON” button (B1) to display the Sun Hours of the selected day.
l Hold “SUN/MOON” button for (B1) 3 seconds to enter Sunrise/Sunset and Moonrise/Moonset
Time Quick Checking Mode. Location digits (A18) blinks
l Enter “Country”, “City”, “Year”, “Month” and “Day” which you would like to check
l Press “+” (B2) and “-“ (B4) button to adjust and press “SUN/MOON” button (B1) to confirm
setting.
l The Sunrise/Sunset and Moonrise/Moonset time digits blinks duing the calculation. After
Calculation, Sunrise/Sunset and Moonrise/Moonset time is shown. The location digits (A18)
keep blinking to indicate the Main Unit is still in Quick Checking Mode. Press “SUN/MOON”
button (B4), or after 15 seconds, to return to normal mode.
l If moonrise or moonset occur at next day, then“MOONRISE +1” or “MOONSET +1” will be
displayed
l If there is no moonrise or moonset occur on someday, “ “ will be displayed on the
LCD
l The Sunrise/Sunset and Moonrise/Moonset time display is just for reference only. For exact
Sunrise/Sunset and Moonrise/Moonset time, please refer to your Local Weather Station.
Page 10
Moon Phase Display
The Moon Phase (A16) of each day is shown on the LCD.

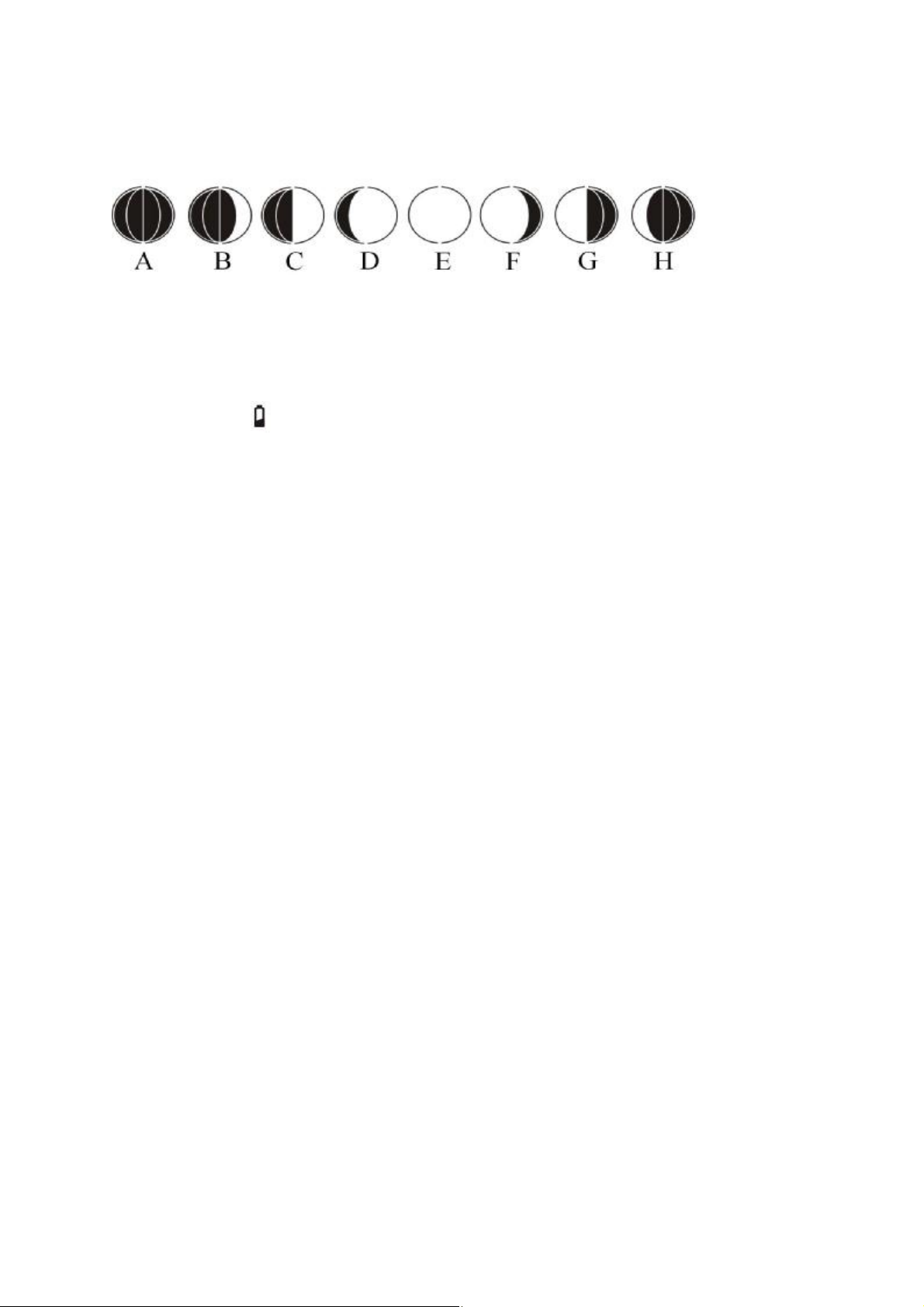

A: New Moon B: Waxing Crescent C: First Quarter
D: Waxing Gibbous E: Full Moon F: Waning Gibbous
G: Last Quarter H: Waning Crescent
Low batteries indicator:
Low battery icon “ “appear at particular channel indicating that Thermal Sensor Unit of the
channel is in low battery status. The batteries should be replaced.
Note:
l Use a pin to press the reset button(B12) if the Unit does not work properly.
l Avoid placing the clock near interference sources/metal frames such as computer or TV sets.
l The clock loses its time information when the battery is removed.
l Buttons will not function while scanning for WWVB time signal or thermo sensor’s signal
unless they are well received or stopped manually.
l All Setting Mode will automatically exit in 15 seconds without any adjustment.
FCC Disclaimer
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
Warning: Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
The users manual or instruction manual for an unintentional or unintentional radiator
shall caution the user that changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
Note: This equipment has been tsted and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
Page 11
and used in accordance with the instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
l Reorient or relocate the receiving antenna.
l Increase the separation between the equipment and receiver.
l Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
l Consult the dealer or an experienced radio/TV technician for help.
Countries and Cities
There are USA,Canada and Mexico countries can be choosen from the Time Setting
Mode. They are listed in the following table.
USA USA
Alaska AK
Anchorage ANC
Fairbanks FAI
Juneau JNU
Nome OME
Alabama AL
Birmingham BHM
Gadsden GAD
Montgomery MGM
Mobile MOB
Arkansas AR
Fort Smith FSM
Little Rock LIT
Texarkana TXK
Arizona AZ
Iowa IA
Waterloo ALO
Des Moines DSM
Davenport DVN
Sioux City SUX
Idaho ID
Boise BOI
Gibbonsville GIB
Pocatello PIH
Sandpoint SZT
Illinois IL
Champaign CMI
Chicago ORD
Springfield SPI
Indiana IN
Evansville EVV
Mississippi MS
Greenwood GWO
Huntsville HUV
Jackson JAN
Tupelo TUP
Montana MT
Billings BIL
Ft. Peck FTP
Great Falls GFT
Helena HLN
Sidney SDY
Whitefish WTF
North Carolina NC
Asheville AVL
Charlotte CLT
Fayetteville FAY
Flagstaff FLG
Phoenix PHX
Tucson TUS
Yuma YUM
California CA
Terre Haute HUF
Indianapolis IND
South Bend SBN
Kansas KS
Dodge City DDC
Wilmington ILM
Winston-Salem INT
Williamston MCZ
Raleigh RDU
North Dakota ND
Page 12
Bakersfield BFL
Wichita K32
Bismarck BIS
Blythe BLH
Eureka EKA
Fresno FAT
Fort Bragg FTB
Los Angeles LAX
Redding ROD
Sacramento SAC
San Diego SAN
San Bernardino SBD
San Francisco SFO
Colorado CO
Denver DEN
Durango DRO
Fort Collins FNL
Grand Junction GJT
Burlington ITR
Pueblo PUB
Kansas City KCK
Wakeeney OH1
Topeka TOP
Kentucky KY
Frankfort FFT
Lexington LEX
Louisville LOU
Louisiana LA
Baton Rouge BTR
Lake Charles CWF
Natchitoches IER
New Orleans NEW
Shreveport SHV
Massachusetts MA
Boston BOS
Maryland MD
Baltimore BWI
Bowbells BWB
Fargo FAR
Grand Forks GFK
Nebraska NE
Grand Island GRI
Lincoin LNK
Omaha OMA
Sidney SNY
Valentine VTN
New Hampshire NH
Concord CON
New Jersey NJ
Newark EWR
Trenton TTN
New Mexico NM
Albuquerque ABQ
Magdalene MAG
Connecticut CT
Hartford HFD
District of Columbia DC
Washington DCA
Delaware DE
Dover 0N5
Florida FLG
Key West EYW
Jacksonville JAX
Miami MIA
Orlando ORL
Pensacola PNS
Tallahassee TLH
Tampa TPA
Georgia GA
Albany ABY
Augusta AGS
Maine ME
Augusta AUG
Bangor BGR
Caribou CAR
Portland PWM
Michigan MIA
Kalamazoo AZO
Detroit DET
Flint FNT
Lansing LAN
Rogers City PZQ
Marquette SAW
Traverse City TVC
Minnesota MN
Albert Lea AEL
Bemidji BJI
Duluth DLH
Roswell ROW
Raton RTN
Santa Fe SAF
Nevada NV
Austin AIN
Carson City CXP
Ely ELY
Las Vegas LAS
Wells LWL
Reno RNO
New York NY
Albany ALB
Buffalo BUF
New York City JFK
Lake Placid LKP
Syracuse SYR
Ohio OH
Atlanta ATL
Columbus CSG
Macon MAC
Savanna SAV
Hawaii HI
Grand Protage GPO
International Falls INL
St. Paul STP
Missouri MO
Jefferson City JEF
Cleveland CLE
Columbus CMH
Cincinnati ISZ
Toledo TOL
Youngstown YNG
Page 13
Honolulu HNL
Kansas City MKC
Oklahoma OK
Hilo ITO
Kahului OGC
Waimea WAI
Oregon OR
Burns BNO
Eugene EUG
Medford MFR
Portland PDX
Salem SLE
Pennsylvania PA
Harrisburg CXY
Philadelphia PHL
Pittsburgh PIT
Scranton SCR
Memphis MPH
Poplar Bluff POF
Springfield SGF
St. Louis STL
Utah UT
Saline SAL
St. George SGU
Salt Lake City SLC
Thompson TSN
Virginia VA
Vienna DON
Lynchburg LYH
Norfolk ORF
Richmond RIC
Roanoke ROA
Boise City 17K
Lawton LAW
Oklahoma City OKC
Tulsa TUL
West Virginia WV
Charleston CRW
Wheeling HLG
Wyoming WY
Buffalo BYG
Casper CPR
Cheyenne CYS
Little America LAA
West Yellowstone WYE
Canada
Calgary CAL
CAN
Puerto Rico PR
San Juan SJU
Rhode Island RI
Providence PVD
South Carolina SCR
Charleston CHS
Columbia CUB
Greenville GMU
South Dakota SD
Sioux Falls FSD
Pierre PIR
Rapid City RAP
Tennessee TN
Nashville BNA
Chattanooga CHA
Knoxville DKX
Memphis MFR
Vermont VT
Burlington BTV
Montpelier MPR
Washington WA
Aberdeen ABE
Walla Walla ALW
Kettle Falls KTF
Mount Vernon MVN
Olympia OLM
Seattle SEA
Spokane SFF
Tonasket TON
Yakima YKM
Wisconsin WI
Wausau AUW
Green Bay GRB
La Crosse LSE
Charlotte Town CHT
Edmonton EDM
Fredericton FRE
Halifax HAL
Montreal MON
Ottawa OTT
Quebec QUE
Regina REG
Sudbury SUD
Thunder Bay THU
Toronto TOR
Vancouver VAN
Whitehorse WHI
Winnipeg WIN
Yellowknife YEL
Mexico
Chihuahua CHH
MEX
Texas TX
Abilene ABI
Amarillo AMA
Austin AUS
Brownsville BRO
Madison MSN
Milwaukee MWC
Spooner SSQ
Durango DUR
Guadalupe GUA
Hermosillo HER
Mexico City MEC
Page 14
Dallas/Ft. Worth DFW
El Paso ELP
Houston HOU
Laredo LRD
Odessa ODO
San Antonio SAT
Loading...
