52C and 52P
52C
SERIES
SERIES
OWNER’S MANUAL
PACKAGED TERMINAL AIR CONDITIONERS
AND HEAT PUMPS
7,000-15,000 Btuh
CONTENTS
GENERAL
UNIT INSPECTION
FRONT PANEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
ELECTRICAL DATA
ALL UNITS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
VOLTAGE SUPPLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
INST ALLATION
CHASSIS INSTALLAT ION . . . . . . . . . . . . . . . . . . . . . . 5
WALL THERMOSTAT INSTALLATION . . . . . . . . . . . 7
OPERATION
COMFORT CONTROLS. . . . . . . . . . . . . . . . . . . . . . . . . 8
OPERATING CONTROLS . . . . . . . . . . . . . . . . . . . . . . . 9
OPERATING MODES. . . . . . . . . . . . . . . . . . . . . . . . . . . 9
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .2,3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-7
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8,9
Page
CARE AND MAINTENANCE
INDOOR-AIR INLET FILTERS . . . . . . . . . . . . . . . . . .10
EXTERNAL PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
INTERNAL PAR TS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
PREVENTATIVE MAINTENANCE
TROUBLESHOOTING
ACCESSORIES
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
. . . . . . . . . . . . . . . . . . . . . . . . . . .13
. . . . . . . . . . . . . . . . . 10,11
. . . . . . . . . . . . . . . .12
1•800•894•6449 (in USA and Canada)
For Service/Technical Assistance
1•800•830•8600 (Mexico)
Page
Page 2
GENERAL
Thank you for choosing Carrier! You can feel confident
in your selection because the same pride in craftsmanship and engineering knowledge that goes into Carrier
equipment at the Astrodome in Texas, the Sistine
Chapel in Rome, the US Capitol Hall of Congress, and
thousands of other installations worldwide has gone
into the construction of this unit.
The Carrier package terminal air conditioners and
heat pumps provide a high standard of quality in performance, workmanship, durability and appearance as
they heat and cool the occupied air space year round.
This manual provides information for ease of installation, operation and maintenance of the 52C and 52P
units. The following units are covered in this manual
(see Figure 1 for additional unit information):
52CE 60 Hz cooling with electric heat units
52CQ 60 Hz cooling, electric heat, and heat pump units
52PE 60 Hz cooling with electric heat u nits
52PQ 60 Hz cooling, electric heat, and heat pump units
52PC 60 Hz cooling only units
All models are designed for through-the-wall installation. Separate installation instructions are included
MODEL 52PQA312301AA
SERIAL 3701X11520
DATE OF MFG. 09/12/2001
VOLT RANGE 187-253
VOLTS 230/208
PH 1
MIN CKT AMPACITY 19.3
R-22 OZ 34
DESIGN PSIG 350 HIGH SIDE, 150 LOW SIDE
BTU/HR 12,100/12,000
AMPS 4.8/5.3
WATTS 1100/1100
EER 11.0/10.9
COMP
FAN
MOTOR
BTU/HR 10,800/10,700
AMPS 15.6/14.5
WATTS 3570/2997
COP 3.2/3.2
HEATER
BTU/HR
USE
TIME DELAY FUSE
OR HACR TYPE
CIRCUIT BREAKER
HZ
COOLING
6.1
RLA
29
LRA
0.75
FLA
1/8
HP
HEATING
AMPS 14.8/13.7
WATTS 3400/2850
WATER
STEAM
CANADIAN INSTALLATION
AMP
20
MAX FUSE
60
AMP AMP
20
MAX BREAKER
20
with all accessory components. See Accessories section
on page 14 for complete listing of accessories.
UNIT INSPECTION
Examine unit for damage incurred during shipment.
File a claim immediately with the transit company if
damage is found.
The data information plate (Figure 1) lists the model
number, voltage ranges, and other important electrical
information about this product. Reading and understanding this material is important for proper use of
this unit. To access the information plate, the front
panel must be removed; see Figure 2.

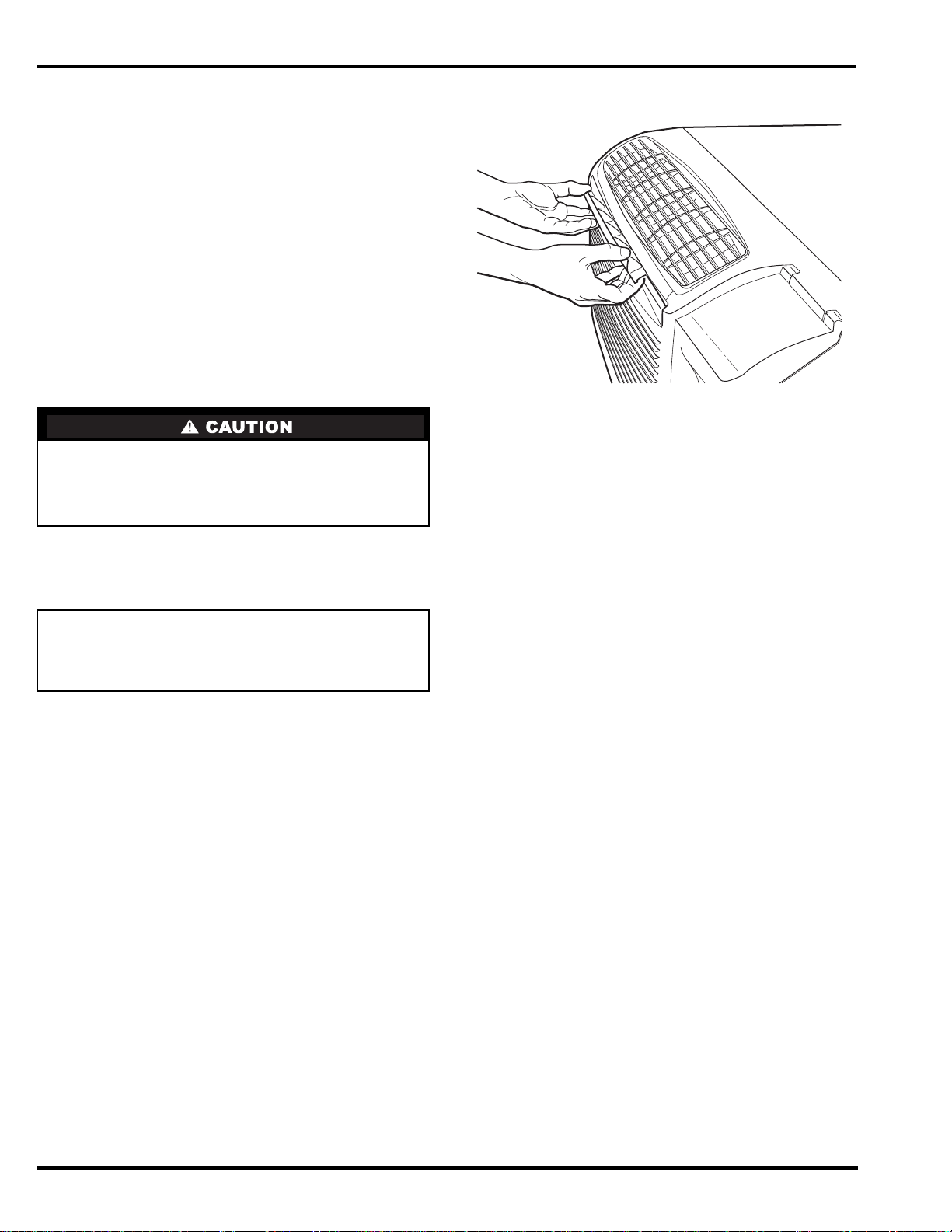

FRONT PANEL
To remove the front panel:
1. Grasp panel firmly near bottom of both sides.
2. Pull panel forward then upward to release magnetic latches and partition hooks.
NOTE: Front panel may be secured to chassi s wi th
2 screws located behind indoor air inlet filters. In order
to remove these screws, the filters must be removed
first. Refer to page 10 in this manual for instructions on
removing indoo r air in l et fi lt er s.
IMPORTANT: The front panel has to be off the unit
to complete future checks and installation procedures. Do not reinstall front panel at t his time.
Using Figures 1 and 3 as reference, verify that the
packaged terminal product ordered will operate properly in your facility. If you do not understand the information given or have questions about the product,
please call your local dealer or distributor.

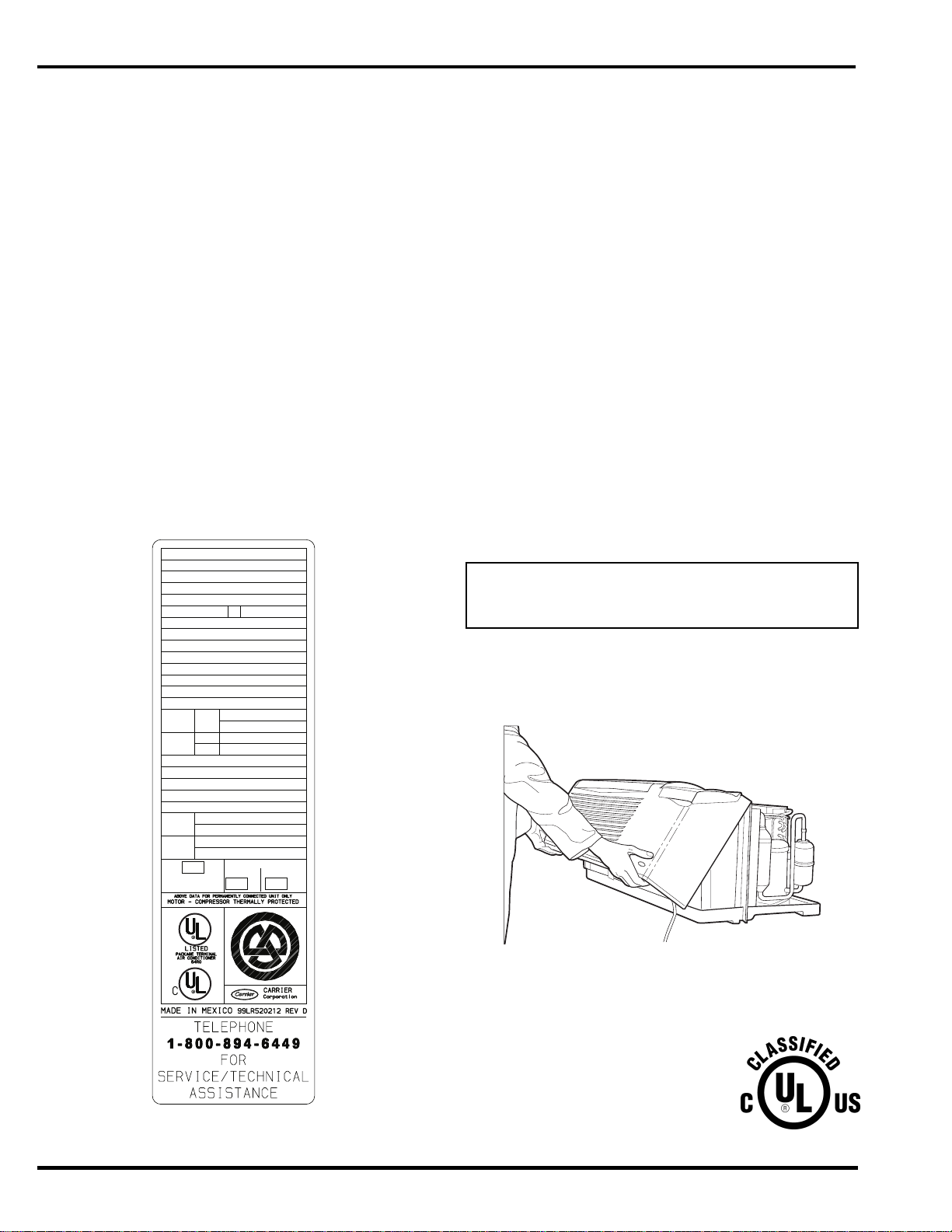

FIGURE 1 — SAMPLE DATA INFORMATION PLATE
FIGURE 2 — REMOVING FRONT PANEL
Replacement Package Terminal Air Conditioner,
CLASSIFIED BY UNDERWRITERS LABORATORIES INC., AS TO ELECTRIC
SHOCK, FIRE AND CASUALTY
HAZARDS ONLY. FOR FIELD
INSTALLATION WIT H EXISTING
WALL SLEEVES, OUTDOOR LOUVERS, AND INDOOR PANELS AS
SPECIFIED ON THE PRODUCT.
2
Page 3
52 PE A 3 12 3 0 1 AA
TOP PARTITION
DISCHARGE
DECK
ENGAGEMENT
HOLE
FRONT PANEL
SLOT
Series Designation
PTAC (Packaged Terminal Air Conditioner)
Comfort Series
CE – Cooling with Electric Heat
CQ – Heat Pump
Premier Series
PC – Cooling Only
PE – Cooling with Electric Heat
PQ – Heat Pump
Latest Revision
A – Z
Electric Heater Size
2 – 2.3 kW
3 – 3.4 kW
5 – 5.0 kW
Cooling Capacity (nominal)
07 – 7,000 Btuh
09 – 9,000 Btuh
12 – 12,000 Btuh
15 – 15,000 Btuh
FIGURE 3 — MODEL NUMBER NOMENCLATURE

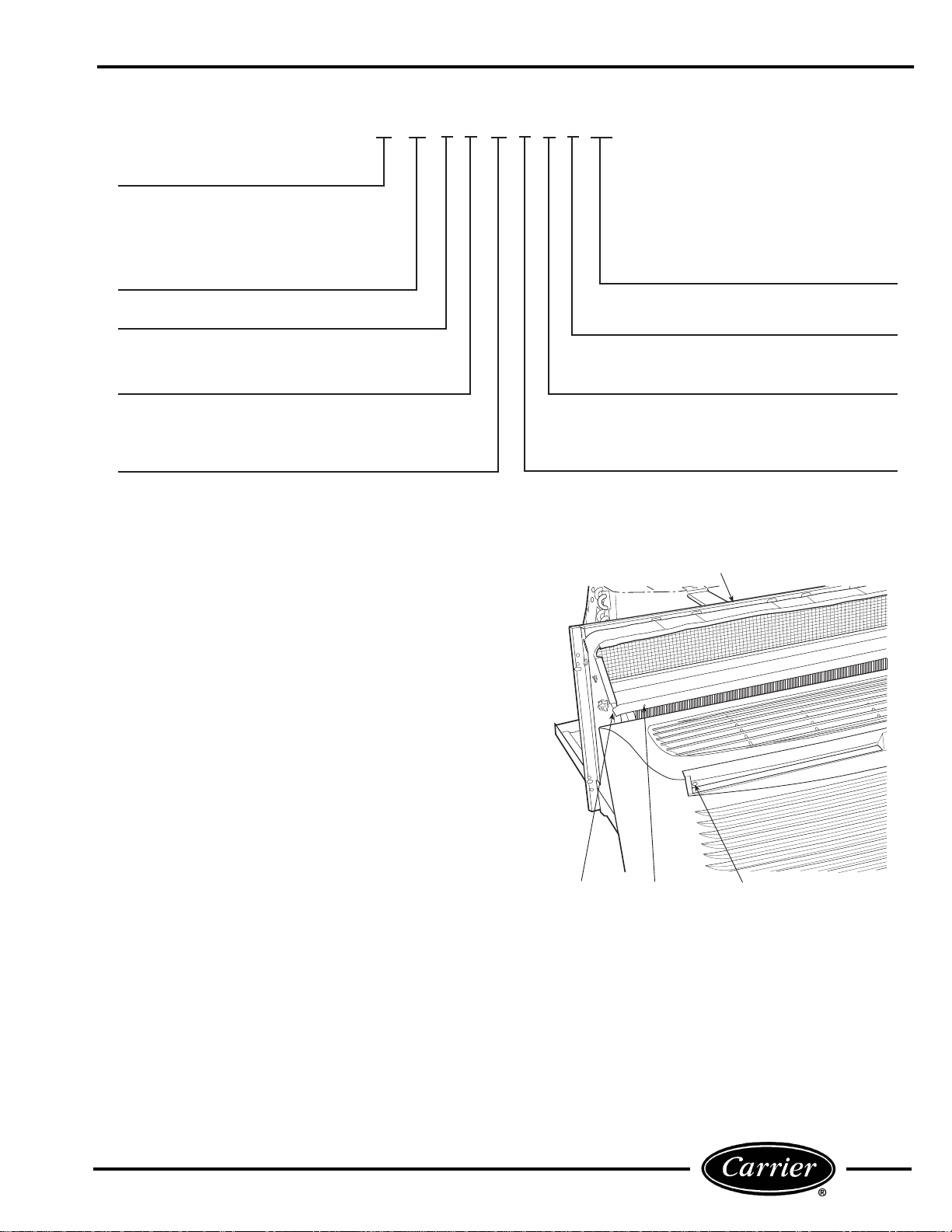

To install the front panel follow the procedure outlined
below:
1. Firmly grasp bottom of front panel on both sides.
2. Hold front panel at a 45 degree angle to unit. Be
sure front panel is centered with front of unit.
3. Connect top of front panel to partition rail on top
of unit.
4. Gently lower front panel onto chassis, ensuring
service cord is positioned through front panel slot.
NOTE: Magnets on bottom of front panel will secure
front panel to unit.
To install locking feature on front panel be sure front
panel is already installed on unit and follow the steps
below:
1
NOTE: Two field-supplied no. 8,
/2 in. sheet metal
screws are required to secure front panel to chassis.
1. Remove bot h indoor ai r inlet fi lters to ex pose fron t
panel engagement holes. See Figure 4.
2. Secure front panel to chassis by attaching the
field-supplied screws into engagement holes. Do
not over tighten.
3. Replace both indoor air inlet filters.
NOTE: Front panel alignment may have to be
adjusted slightly to line with chassis.
Chassis Options
AA – Standard
CP – Corrosion Protection
RC – Wall Thermostat Control (Not available
on cooling only units)
RP – Wall Thermostat Control with
Corrosion Protection (Not available on
cooling only units)
Packaging
1 – Domestic
Non-Performance
Changes 0-9
Electrical Data
3 – 230/208-v, 60 Hz
4 – 265-v, 60 Hz
FIGURE 4 — FRONT PANEL INSTALLATION
WITH LOCKING FEATURE
3
Page 4

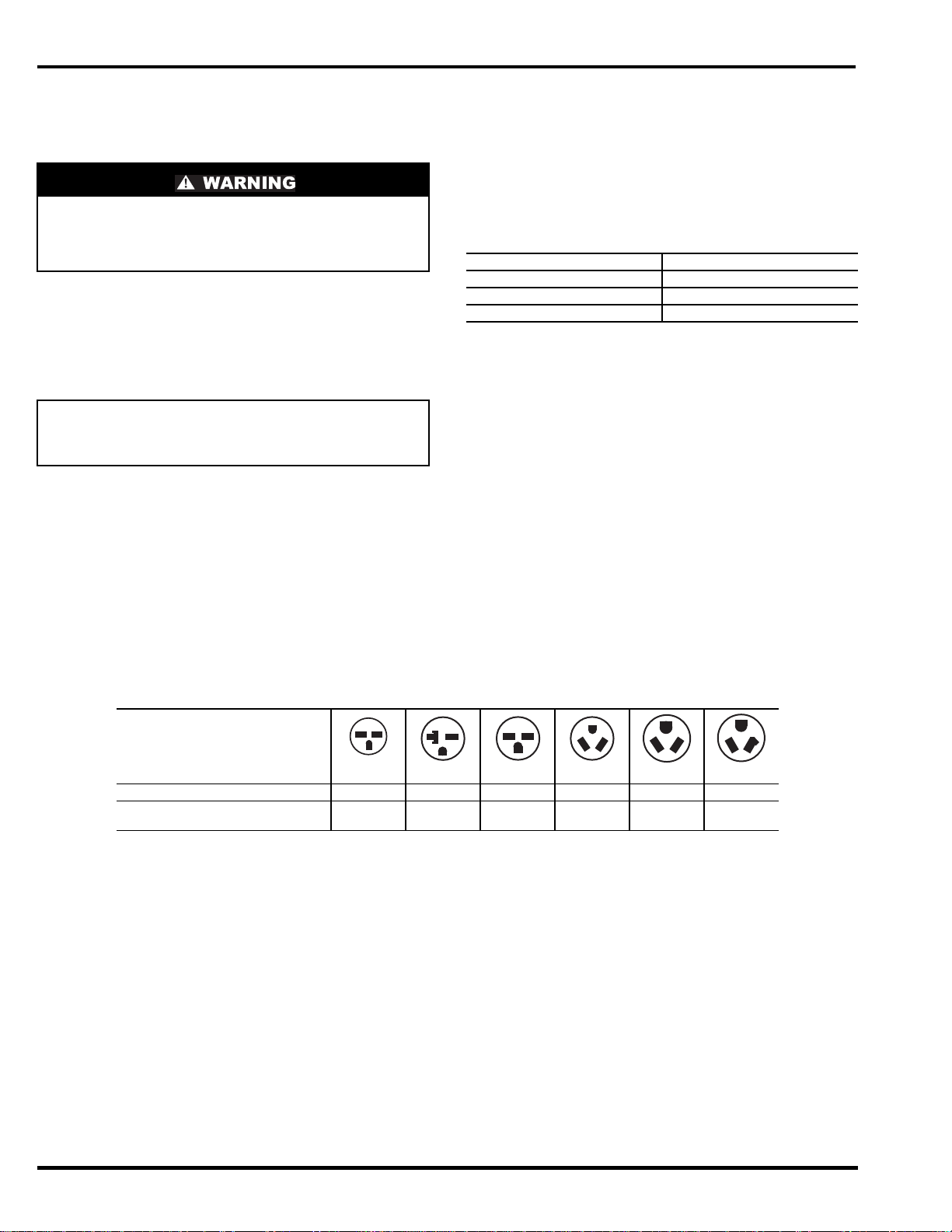

ELECTRICAL DATA
ELECTRICAL SHOCK HAZARD
DO NOT alter cord or plug, and DO NOT use an
extension cord. Personal injury or damage to the
unit may result.
Be sure that your outlet matches the appropriate
blade configuration of the supplied plug and that it is
within reach of the service cord. A hardwire kit is
available as an accessory to change cord-connected
units to hardwired units. (See Accessories table on
page 14.)
GROUNDING
■
— For safety and protection, the unit
is grounded through the service cord plug or through
separate ground wire provided on hardwired units. Be
sure that the branch circuit or general purpose outlet
is grounded.
TABLE 1 — SUGGESTED BRANCH CIRCUIT
WIRE SIZES*
NAMEPLATE AMPS AWG WIRE SIZE†
7.0 to 12
12.1 to 16
16.1 to 24
LEGEND
AWG —
*Single circuit from main box.
†Based on copper wire at 60 C temperature rating.
American Wire Gage
14
12
10
IMPORTANT: All standard cord-connected 265-v
units will require a field-installed electr ical subbase accessory.
ALL UNITS
WIRE SIZE —
■
Table 1 and install a single branch circuit. All wiring
must comply with local and national codes. All units
are designed to operate off single branch circuits only.
NOTE: Use copper conductors only.
Use recommended wire size given in
TABLE 2 — RECEPTACLES AND FUSE TYPES — 250,265 VOLTS
RECEPTACLE
15 Amps 20 Amps 30 Amps 15 Amps 20 Amps 30 Amps
RATED VOLTS
TIME-DELAY TYPE
FUSE (or HACR Circuit Breaker)
LEGEND
HACR —
*May be used for 15-amp applications if fused for 15 amp.
Heating, Air Conditioning, Refrigeration
250 250 250 265 265 265
15 20* 30 15 20 30
VOLTAGE SUPPLY
Check voltage supply a t outlet. For satisfactory results, the voltage range must always be within the
ranges found on the data information plate
(Figure 1).
CORD-CONNECTED UNITS
■
supplied outlet must match the plug for the standard
208/230-v units and be within reach of the service
cord. The standard cord-connected 265-v units require
an accessory electrical subbase for operation. See
Accessories table, page 14, for subbase selection. Refer
to Table 2 for proper receptacle and fuse type.
— The 250-v field-
4
Page 5
INSTALLATION
FOAM STRIP
OR BAFFLE
FOAM STRIP
OR BAFFLE

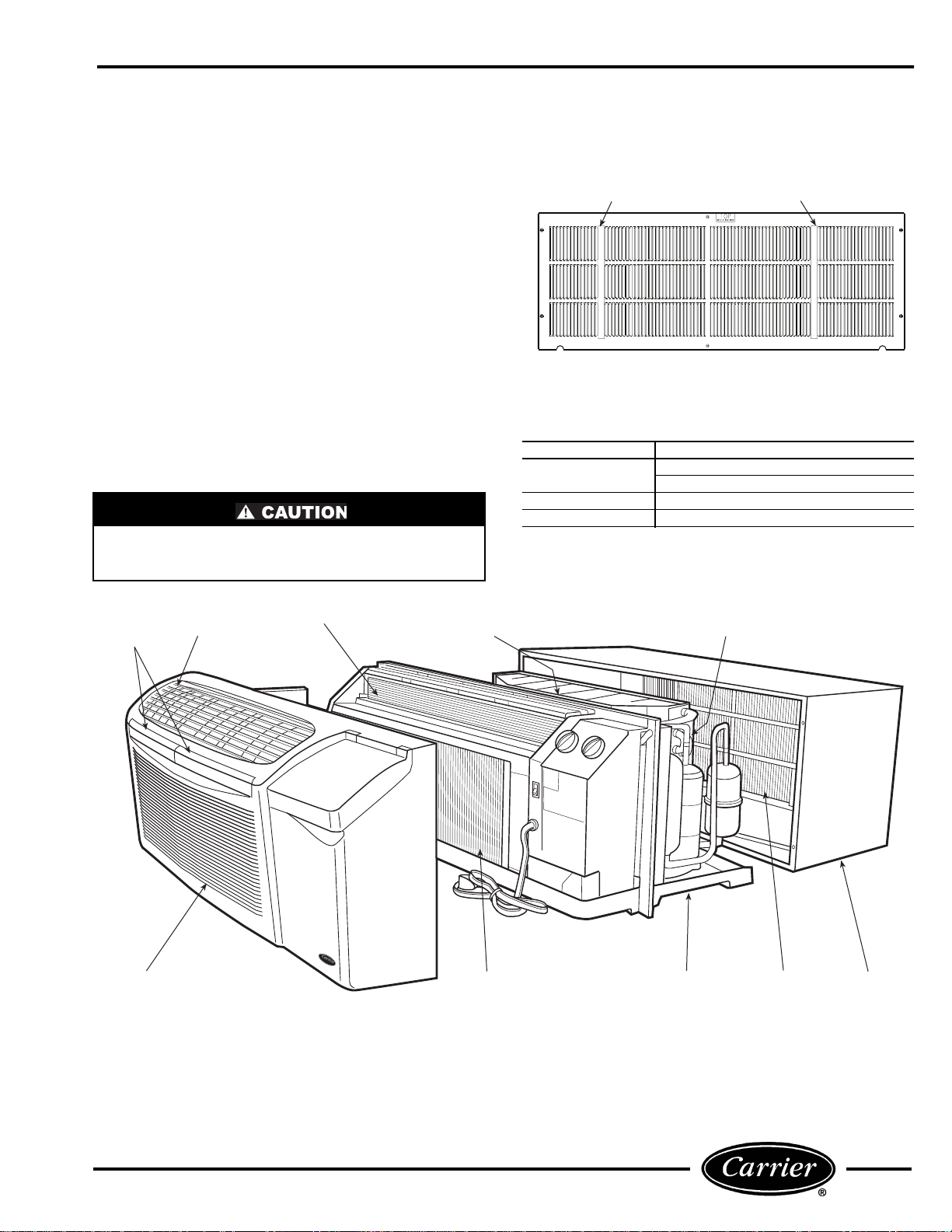

CHASSIS INSTALLATION
Units are shipped without a sleeve. In applications
where unit is a replacement, it is recommended that a
Carrier sleeve be used. The 52C and 52P units can
retrofit General Electric, Amana and Trane sleeve s/
grilles (be sure outdoor grille is installed on the
sleeve). A retrofit kit with instructions is included
with every unit. See Table 3 for details. Carrier Corporation must approve any other retrofit application. In
deep-wall applications, if an existing grille is used on
an outdoor wall opening, do not install an additional
outdoor grille on unit sleeve.
Be sure that the foam strips and/ or baffles provide a
good seal between the grille and condenser coil tube
sheets. These foam strips or baffles provide a barrier
to separate condenser air from the major components
(compressor and fan motor). See Figures 5 to 8.
NOTE: Inspect wall sleeve for any damage or deterioration before installing chassis.
If baffles are not installed properly, loss of performance and premature damage to the major components can result.
FIGURE 5 — OUTDOOR GRILLE
TABLE 3 — RETROFIT WALL SLEEVES
MANUFACTURER* WALL SLEEVE PART NUMBER
General Electric
Amana Metal Sleeve WS900B
Trane Metal Sleeve SLV149
*Retrofit kit is
not
needed for Carrier or Bryant applications.
Metal Sleeve RAB71
Plastic Sleeve RAB77
INDOOR-AIR
INLET
FILTERS
FRONT
PANEL
DISCHARGE
GRILLE
WIRE SCREEN
OUTDOOR
ORIFICE
INDOOR
COIL

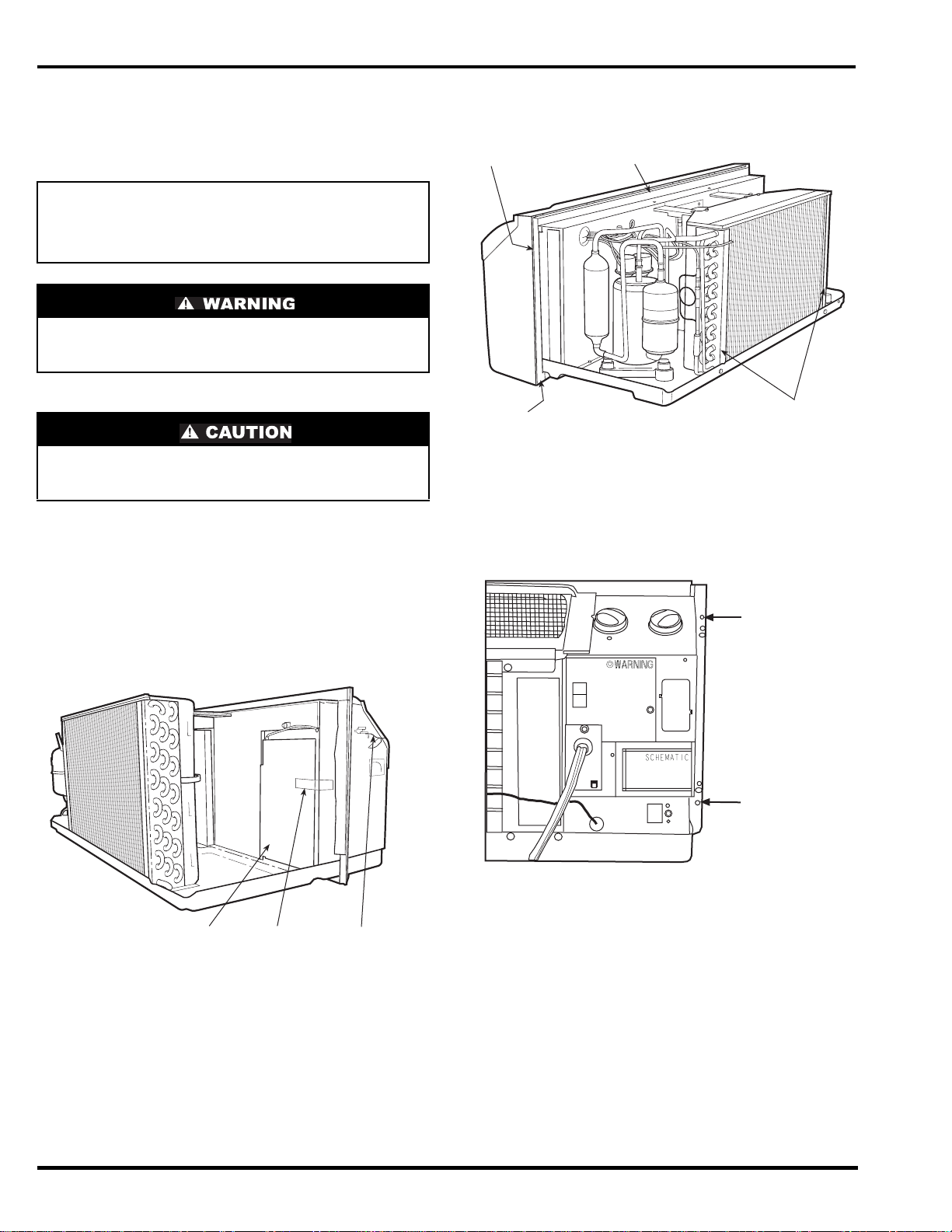

FIGURE 6 — UNIT COMPONENTS
COIL TUBE
SHEETS
BASEPAN
OUTDOOR
GRILLE
WALL
SLEEVE
5
Page 6
INSTALL CHASSIS IN SLEEVE (See Figures 6 to 9)
■
1. Inspect foam gasket s (top, bottom, both sides) on
chassis. Replace foam gaskets if torn or miss ing.
IMPORTANT: The gaskets comb ine with the sleeve
face to create a weather barrier. If the chassis is
installed in a non-Carrier sleeve, this weather barrier may not be effective.
Chassis weighs up to 150 lbs. For personal protection, seek help when lifting the unit. Lift unit by
holding unit basepan.
SIDE
GASKET
TOP
GASKET

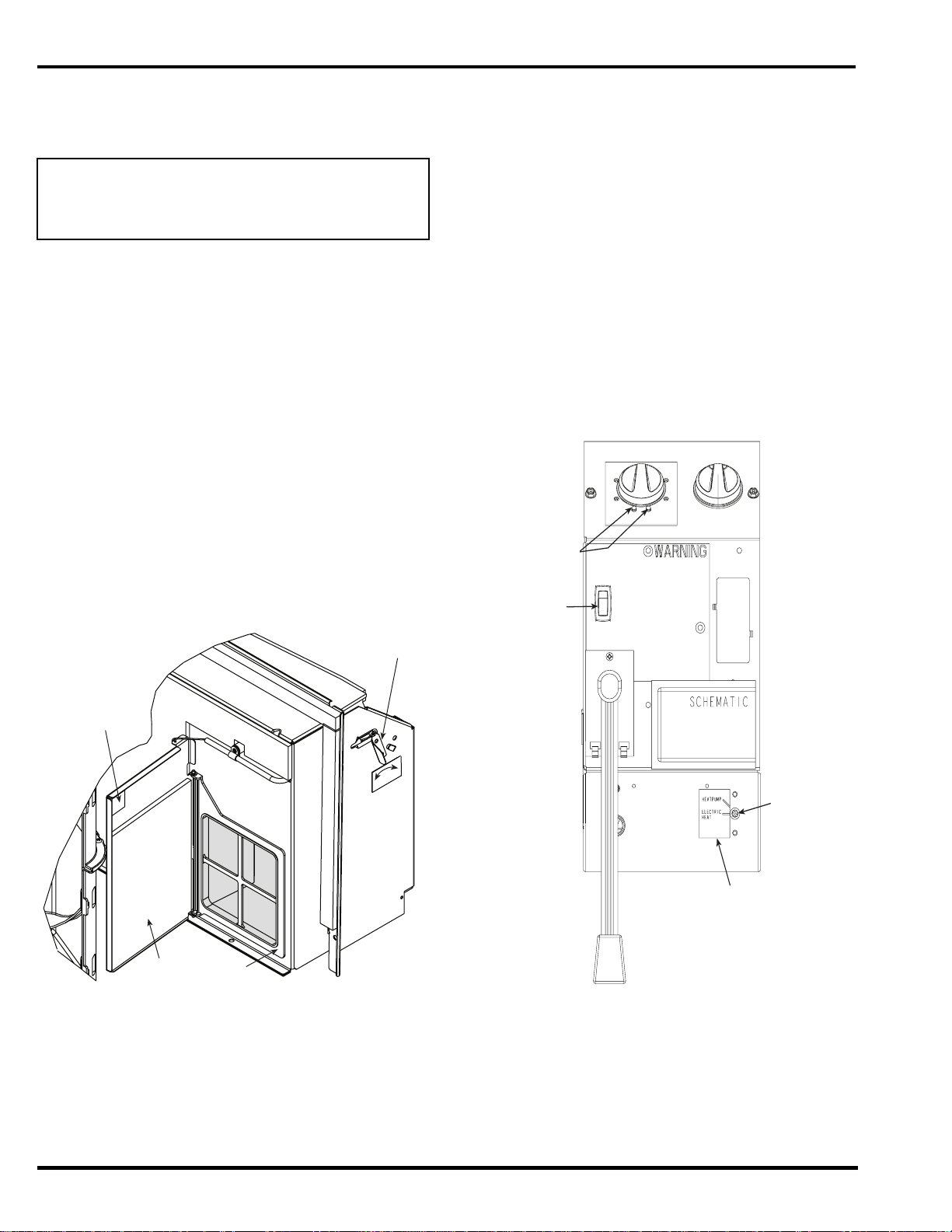

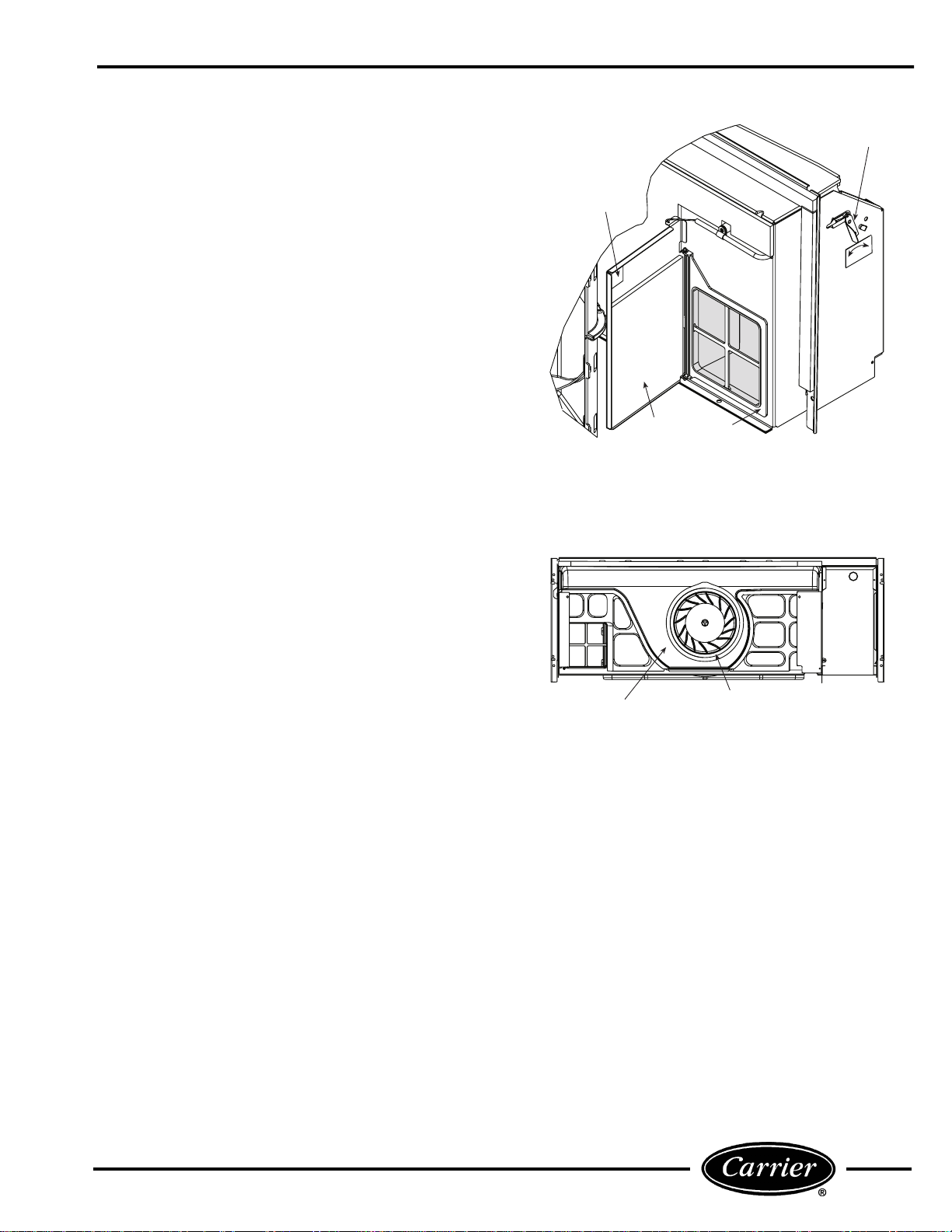

2. Remove shipping tape from vent door. See Figure 7.
Failure to remove shipping tape will prevent fresh
air vent door from opening and may result in damage to the vent door cable.
3. Lift chassis level with wall sleeve.
4. Slide chassis into wall sleeve until foam gaskets
rest firmly against front of wall sleeve.
3
5. Screw chassis to wall sleeve with four 1
/4-in. long
screws taped to the control box. Screw holes are
located on both sides of the mo unting angles of th e
chassis. Use only the top and bottom screw holes
on each side. See Figure 9.
BOTTOM
GASKET
FIGURE 8 — UNIT GASKETS
AND TUBE SHEETS
TOP SCREW HOLE
BOTTOM SCREW
HOLE
COIL TUBE
SHEETS
VENT
DOOR
SHIPPING
TAPE
VENT DOOR
CABLE
FIGURE 7 — LOCATION OF SHIPPING TAPE
ON VENT DOOR
FIGURE 9 — CHASSIS MOUNTING
6
Page 7

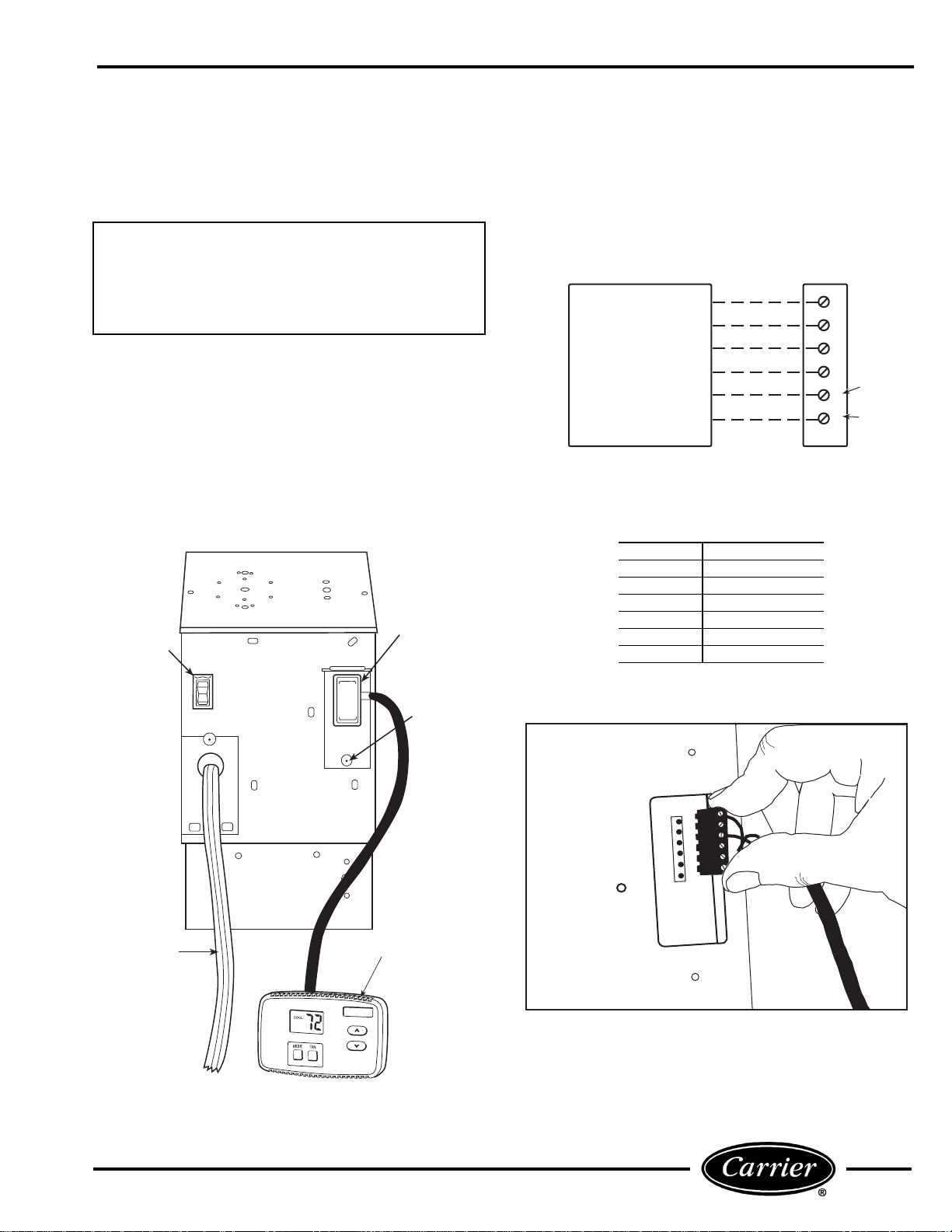

WALL THERMOSTAT INSTALLATION
TYPICAL
WALL
THERMOSTAT
R
G
Y
W
O
C
TERMINAL
BLOCK
SEE
NOTE #1
SEE
NOTE #2
The following instructions apply to RC and RP units
only.
NOTE: Carrier thermostats are recommended. See
Accessories section.
IMPORTANT: Only trained, qualified personnel
and service mechanics should install electrical
accessories on Carrier 52C and 52P series products
per Carrier’s installation instructions. Please contact your local electrical contractor, dealer, or distributor for assistance.
INSTALL THERMOSTAT —
■
units.
1. Check to be sure power to unit is disconnected.
2. Remove terminal board cover from control box
cover by removing screw (see Figure 10).
NOTE: Terminal connector can be removed and replaced to simplify thermostat wiring.
3. Connect wires from terminals on the thermostat
to terminals on chassis terminal board connector.
See Figures 11 and 12.
FAN
SWITCH
All remote control
TERMINAL
COVER
4. Reinstall cover.
5. Set desired fan speed using fan switch (unit will
operate only at selected speed).
6. Restore power to unit.
NOTE: Refer to thermostat installation instructions
for details on installing thermostat.
NOTES:
1. Use terminal “O” for heat pump connection only.
2. Terminal C (common) typically is only required for digital thermostats.
3. See table below for terminal descriptions.
TERMINAL DESIGNATION
R
G
Y
W
O
C
24 VAC
Fan
Compressor
Electric Heat
Reversing Valve
Common
HI
LO
SCREW
POWER
CORD
FIGURE 10 — CONTROL BOX TERMINAL COVER
THERMOSTAT
FIGURE 11 — WIRING CONNECTIONS
R
G
Y
W
O
C
FIGURE 12 — TERMINAL CONNECTOR
REMOVAL AND REPLACEMENT
7
Page 8
OPERATION
IMPORTANT: When unit is first started, high
humidity conditions can cause condens ation to form
on discharge grille. Keep doors and windows closed.
Room humidity decreases and moisture evaporates.
COMFORT CONTROLS
ADJUST AIRFLOW DIRECTION
■
air grille is mounted on the front panel so that the air
discharges forward. If upward discharge is required,
remove the grille by removing screws on back of front
panel. Rotate grille 180 degrees and reinstall on the
front panel.
ADJUST VENT —
■
The vent handle is on the left
side of the unit. Turn handle to open or close vent.
Vent will remain in last desired position until handle
is turned again. Magnet will ensure positive closure.
See Figure 13.
SETTING TEMPERATURE LIMITS
■
perature limits on the unit provides the user a
restricted range of temperature control. See Figure 14.
NOTE: This adjustment is optional and is not applicable to remote control units.
— The discharge
— Setting tem-
The temperature limits are factory set to full range,
which is 60 F to 90 F. To set restricted rotation of the
temperature control knob:
1. Remove front panel.
2. Remove temperature control knob to expo se temperature limiter.
3. Remove standoff pins from the 60 F and 90 F indicator holes.
4. Replace standoff pin in hole for desired minimum
temperature.
5. Replace standoff pin in hole for de sired ma ximum
temperature.
6. Reinstall temperature control knob.
7. Reinstall front panel.
NOTE: Temperature indicators stamped on temperature limiter are approx imate and represent degrees F.
75
70
65
60
90
TEMPERATURE
CONTROL
STANDOFF
PINS
FAN CYCLE
SWITCH
80
85
CON
CYC
MAGNET
VENT
DOOR
VENT
FILTER
FIGURE 13 — VENT DOOR
VENT HANDLE
CLOSE
OPEN
SET
SCREW
OUTDOOR
THERMOSTAT
(HEAT PUMP
UNITS ONLY)
FIGURE 14 — OPERATING CONTROLS
8
Page 9
OPERATING CONTROLS
The following controls are located on the front of the
control box door, under fron t panel. To obtain access t o
operating controls, remove the unit front panel as
shown on page 2. See Figure 14.
FAN CYCLE SWITCH
■
units.) This allows the fan to operate in two modes:
CON (Continuous)
run continuously, circulating air even when the temperature setting has been satisfied. This switch helps
to maintain the room temperature closer to the thermostat setting. Use this switch position when maximum comfort is desired. This is the factory default
setting.
CYC (Cycle)
— This setting allows the fan to cycle on
and off with the compressor during heating or cooling.
The fan stops when the temperature setting is satisfied. This results in longer unit off-time and wider
variations in room temperature and humidity.
OUTDOOR THERMOSTAT (52 CQ and 52PQ HEAT
■
PUMP UNITS ONLY)
factory setting (in the heat pump position), the unit
will operate in the reverse cycle heating mode. See
Fig. 14. When the temperat ure of the outdoor coil
reaches 20° F (approximately 35° F outdoor air temperature), the compressor will shut down. The electric
heater remains on until the temperature of the outdoor coil reaches 35° F (approximately 45° F outdoor
air temperature); then the electric heater is shut off
and the compressor is energized.
— (Not available on RC or RP
— This setting allows the fan to
— If the setscrew is left at the
To set unit to operate in electric heat mode only, turn
the setscrew to the electric heat position. See Fig. 14.
IMPORTANT: If setscrew on standard heat pump
unit is set to electric heat mode operation, the compressor is disabled for both heating and cooling
operations. If setscrew on heat pump unit with wall
thermostat control is set to electric heat mode
operation, the compressor will be disabled only for
heating operation.
OPERATING MODES
(See Figures 15
and 16.)
OUTSIDE AIR
■
— To bring outside air into occupied
space, turn the vent handle to the full open position.
See Figure 13.
OFF
■
— The OFF mode terminates unit operation.
FAN
■
— The FAN mode will circulate air in the space
at high speed and at high or low speed for cool ing onl y
models.
HIGH HEAT OR HIGH COOL
■
— Select mode and
rotate tempera tu r e kn ob to d esir e d com fo rt l eve l . Th is
function provides maximum heating or cooling, and is
recommended to raise or lower the room temperature
quickly.
LOW HEAT OR LOW COOL
■
— Select mode and
rotate tempera tu r e kn ob to d esir e d com fo rt l eve l . Th is
function provides minimum heating or cooling with
maximum dehumidification and quietest operation.
NOTE: 52C and 52P wall thermostat units have a
blank plate. See Figure 16.

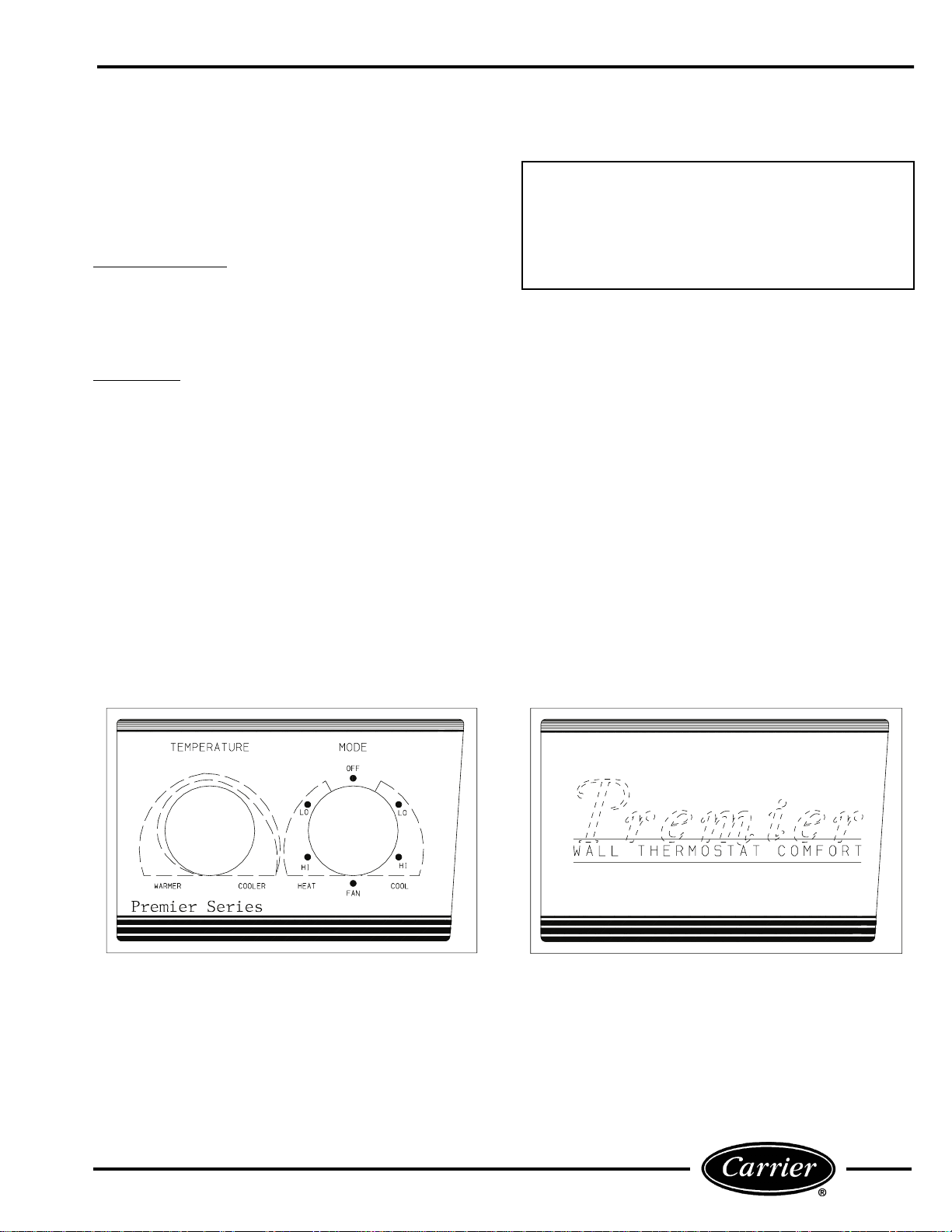

FIGURE 15 — 52P UNIT CONTROLS SHOWN
FIGURE 16 — 52P UNIT WITH
WALL THERMOSTAT CONTROL SHOWN
(Blank Plate)
9
Page 10
CARE AND MAINTENANCE
In order to maintain proper performance of your packaged terminal air conditioner or heat pump, it is very
important that the fan and outdoor coil, the blower
wheel, blower scroll, electric heater, and all drain passages are thoroughly cleaned at least once per year.
Carrier recommends that as a minimum, the cleaning
should be conducted prior to the start of each heating
season. The air inlet filters should be cleaned every
month.
Depending on local condition s, more freq uent clean ing
of the unit may be required to ensure optimum performance and long operating life. Examples of these special conditions include areas where construction dust
or heavy airborne dirt is found, or environments that
promote the growth of fungus.
Some local conditions and environments can cause
fungi to grow inside the air conditioner, especially
on indoor blower section. Dried fungi, dirt and ot her
foreign material are fire hazards. Be sure to clean
unit according to the instructions that follow.
INDOOR-AIR INLET FILTERS
INDOOR-AIR INLET FILTERS
■
once each month.
should be cleaned
FIGURE 17 — INDOOR-AIR INLET
FILTER REMOVAL
IMPORTANT: Filters may become clogged if not
cleaned properly. Clogged filters will restrict airflow which may lead to severe component damage
and efficiency loss.
CLEANING INDOOR-AIR INLET FILTER
■
interchangeable air filters are located on the bac kside
of the front panel. Each can be removed and cleaned
one at a time. To remove and clean the filter, follow
the steps below:
1. Grasp filter with both hands.
2. Gently pull the filter up and away from the unit.
See Figures 6 and 17.
3. To clean filter, use a vacuum or soft bristle brush
with a small amount of mild detergent.
NOTE: If detergent is used, remove any detergent
residual with a gentle stream of clean water.
4. Allow filters to air dry.
5. Re-insert dry filters back into front panel.
Additional filters are available in multi-packs. Refer to
Accessories section.
— Two
10
Page 11
EXTERNAL PARTS
SCROLL
BLOWER
WHEEL
VENT
DOOR
VENT
FILTER
MAGNET
OPEN
C
L
O
S
E
VENT HANDLE
EXTERNAL PARTS
■
include the polymer sleeve and
grilles. The sleeve manufacturer recommends cleaning
the surface, including the grilles, with household
detergent and water.
INTERNAL PARTS
INTERNAL PARTS
■
during the year. The outdoor vent filter should be
cleaned at least once during a cooling or heating
season.
Internal parts that should be cleaned include the following (see Figures 6, 18, and 19):
• Outdoor vent filter
•Basepan
• Outdoor orifice and fan
• Indoor and outdoor refrigeration coils
• Indoor blower wheel
• Wire screen
• Scroll
• Wall sleeve internal surfaces
• Outdoor grille
should be clea ned at least once
FIGURE 18 — OUTDOOR VENT FI LTER
(Left Side of Chassis)
FIGURE 19 — BLOWER WHEEL AND SCROLL
11
Page 12
PREVENTATIVE
MAINTENANCE
Preventative maintenance is essential to proper unit
operation, efficiency and longevity. To assure equipment operates properly it must be properly maintained. Equipment operation should be checked and
verified several times during each year.
During regular unit inspection and maintenance, fo llow the guidelines below:
• Wash both sides of outdoor coil
• Wash base pan and outdoor vent filter
• Wash the indoor coil
• Clean the blow er wheel and front panel
• Clean or install new indoor-air inlet filter(s)
• Ensure knobs are secure and operable
• Inspect cord and receptacle
• Secure electrical connections
• Ensure front panel is properl y mounted and not
damaged
• Ensure wall sleeve is installed properly
• Ensure heat and cool cycles operate properly
12
Page 13
TROUBLESHOOTING
POSSIBLE CAUSES SOLUTIONS
UNIT DOES NOT START
•
Unit may have become unplugged
•
Fuse may have blown
•
Circuit breaker may have been tripped
•
Unit mode dial may be set to the OFF position
UNIT NOT COOLING/HEATING ROOM
•
Unit air discharge section is blocked
•
Temperature setting is not high or low enough
•
Unit air filters are dirty
•
Room is excessively hot or cold when unit is started
•
Vent door left open
UNIT MAKING NOISES
WATER DRIPPING OUTSIDE
WATER DRIPPING INSIDE
•
Wall sleeve is not installed level
ICE OR FROST FORMS ON INDOOR COIL
•
Low outdoor temperature
•
Dirty filters
•
Check that plug is securely in wall receptacle.
•
Replace the fuse. See Note 1.
•
Reset circuit breaker. See Note 1.
•
Switch mode dial to an operating mode.
•
Make sure that curtains, blinds or furniture are not restricting or
blocking unit airflow.
•
Reset to a lower or higher temperature setting.
•
Remove and clean filters.
•
Allow sufficient amount of time for unit to heat or cool the room.
Start heating or cooling early before outdoor temperature, cooking
heat or gatherings of people make room uncomfortable.
•
Close vent door.
•
Clicking, gurgling and whooshing noises are normal during operation of
unit.
•
If a drain kit has not been installed, condensation run-off during
very hot and humid weather is normal. See Note 2. If a drain kit
has been installed and is connected to a drain system, check
gaskets and fittings around drain for leaks and plugs.
•
Wall sleeve must be installed level for proper drainage of condensation.
Check that installation is level and make any necessary adjustments.
•
When outdoor temperature is approximately 55 F or below, frost
may form on the indoor coil when unit is in Cooling mode. Switch
unit to FAN operation until ice or frost melts.
•
Remove and clean filters.
NOTES:
1. If circuit breaker is tripped or fuse is blown more than once, contact a qualified electrician.
2. If unit is installed where condensation drainage could drip in an undesirable location, an
accessory drain kit should be installed and connected to drain system.
13
Page 14
ACCESSORIES
ACCESSORY FORM NUMBER PART NUMBER DESCRIPTION
Wall Sleeves
Exterior Grilles†
Subbase
Subbase
Field-Installed
Kits
Electrical
Connections
Condensate
Drain Kit
Wall
Thermostats
Wall Thermostat
Interface
Retrofit Kit
Replacement
Filters
Energy
Management
Locking Security
Control Door
Lateral Duct Kit
Air/Curtain
Deflector
*Extended metal wall sleeve also available in 26 in. and 28 in. depth.
†Custom colors are also available.
52S-48SI WALL-SLEEVE-1PK Non-Insulated Plastic Wall Sleeve, 1 per pack
52S-50SI SLEEVE-STEEL-1PK Insulated Metal Wall Sleeve, 1 per pack
52S-49SI* SLEEVE-EXT24-1PK Extended Metal Wall Sleeve for Deep Wall Applications (24 in. deep), 1 per pack
52C,P-12SI FR-SLEEVE-EXT Friedrich wall sleeve extension to retrofit Carrier PTAC unit into Friedrich 11
52S-59SI GRILLE-ALU-STAMP Stamped Aluminum Exterior Grille, Clear Finish
52S-58SI GRILLE-PLA-BROWN Plastic Architectural Rear Grille, Brown
52S-60SI GRILLE-ALU-CLEAR Aluminum Architectural Exterior Grille, Clear Finish
52C,P-1SI SUBBASE-NON-ELEC Non-electrical Subbase
52C,P-2SI SUBBASE-230V-15A Electrical subbase with factory-installed 208/230V, 15 amp receptacle
52C,P-3SI SUBBASE-HARDWIRE Electrical subbase with factory-installed hardwire kit (230/208V and 265V)
52C,P-4SI SUBBASE-SWITCH Field-Installable Switch kit for an electrical subbase
52C,P-5SI SUBBASE-FUSE-15A Field-Installed Fuse Kit (15 amp) for electrical subbase
52C,P-11SI HARDWIRE-KIT-1PK Permanent power connection to the unit (includes 36" of flexible conduit and unit-mounted
52C,P-19SI CONDUIT-INTF-4PK Interface kit for field-supplied conduit to provide permanent power connection (230/208V and 265V) to
52S-53SI DRAIN-KIT-4PK Attaches to wall sleeve for controlled internal or external disposal of condensate 4 per pack
N/A HH01AD045 Electro-mechanical Wall Thermostat (Heat/Cool and Heat Pump)
52C,P-7SI RC-FIELDKIT230HC Field-installed wall thermostat retrofit kit to convert a standard 230V Heat/Cool unit to an
N/A TSTAT-COVER-6X7 Clear plastic locking thermostat cover prevents unauthorized access to thermostat. Cover for use with
N/A TSTAT-COVER-7X10 Clear plastic locking thermostat cover prevents unauthorized access to thermostat. Cover for use with
N/A AIR-FILTER-10PK Replacement air filters in package of 10
52C,P-10SI EM-KIT Allows unit to be tur ned on and off from a remote location (includes freeze guard protection)
52C,P-13SI SECURITY-DOOR Key-locking security door to prevent access to heating and cooling controls
52C,P-14SI LATERAL-DUCT Ductwork to allow one unit to heat and cool two rooms (plenum plus extension duct and registers)
52C,P-9SI DEFLECTOR-1PK Lateral air deflector, with individually adjustable louvers, to enhance air circulation, 1 per pack
N/A CURTDFL-52CP-1PK Curtain deflector for 52C and 52P models — prevents curtains from blowing into discharge air stream.
WALL-SLEEVE-9PK Non-Insulated Plastic Wall Sleeve, 9 per pack
SLEEVE-INSUL-1PK Insulated Plastic Wall Sleeve, 1 per pack
sleeve. 1 per pack
GRILLE-PLA-BEIGE Plastic Architectural Rear Grille, Beige
GRILLE-ALU-WHITE Aluminum Architectural Exterior Grille, White
GRILLE-ALU-BRONZ Aluminum Architectural Exterior Grille, Light Bronze
GRILLE-ALU-MBRNZ Aluminum Architectural Exterior Grille, Medium Bronze
GRILLE-ALU-BROWN Aluminum Architectural Exterior Grille, Brown (Dark Bronze)
GRILLE-ALU-BEIGE Aluminum Architectural Exterior Grille, Beige
GRILLE-ALU-ALPIN Aluminum Architectural Exterior Grille, Alpine (matches Carrier Wall Sleeve)
GRILLE-ALU-PEACH Aluminum Architectural Exterior Grille, Peach
GRILLE-ALU-MELON Aluminum Architectural Exterior Grille, Melon
GRILLE-ALU-LGREY Aluminum Architectural Exterior Grille, Light Grey
GRILLE-ALU-SGREY Aluminum Architectural Exterior Grille, Slate Gray
GRILLE-ALU-RDBRK Aluminum Architectural Exterior Grille, Red Brick
GRILLE-ALU-BLUE Aluminum Architectural Exterior Grille, Blue
GRILLE-ALU-GREEN Aluminum Architectural Exterior Grille, Green
SUBBASE-230V-20A Electrical subbase with factory-installed 208/230V, 20 amp receptacle
SUBBASE-230V-30A Electrical subbase with factory-installed 208/230V, 30 amp receptacle
SUBBASE-265V-15A Electrical subbase with factory-installed 265V, 15 amp receptacle
SUBBASE-265V-20A Electrical subbase with factory-installed 265V, 20 amp receptacle
SUBBASE-265V-30A Electrical subbase with factory-installed 265V, 30 amp receptacle
SUBBASE-FUSE-20A Field-Installed Fuse Kit (20 amp) for electrical subbase
SUBBASE-FUSE-30A Field-Installed Fuse Kit (30 amp) for electrical subbase
connector, 230/208V and 265V) 1 per pack
the unit. Kit includes Molex connector for easy connect/disconnect. 4 per pack
TSTATCCBPC01-B Value Series Electronic Thermostat w/Digital display (Heat/Cool Models)
TSTATCCBPH01-B Value Series Electronic Thermostat w/Digital display (Heat Pump Models)
TSTATCCPAC01-B 7-Day Programmable Electronic Thermostat (Heat/Cool Models)
TSTATCCPHP01-B 7-Day Programmable Electronic Thermostat (Heat Pump Models)
RC-FIELDKIT230HP Field-installed wall thermostat retrofit kit to convert a standard 230V Heat Pump unit to an
RC-FIELDKIT265HC Field-installed wall thermostat retrofit kit to convert a standard 265V Heat/Cool unit to an
RC-FIELDKIT265HP Field-installed wall thermostat retrofit kit to convert a standard 265V Heat Pump unit to a
RC unit. Wall thermostat sold separately (can be used to convert a cool only unit to RC).
RC unit. Wall thermostat sold separately.
RC unit. Wall thermostat sold separately (can be used to convert a cool only unit to RC).
RC unit. Wall thermostat sold separately.
non-programmable and electro-mechanical thermostats. Outside dimensions: 6
1 per pack
programmable thermostats. Outside dimensions: 7
1 per pack.
NOTE: Curtain deflector for previous models are also available. Contact Carrier Representative.
1
/4" x 93/4" x 33/8". 1 per pack
1
/2" deep (T Series) wall
1
/2" x 71/2" x 215/16".
14
Page 15
CLEANING REQUIRED PRIOR TO WARRANTY REPAIR.
normal maintenance as outlined in the owner’s manual.
installation.
tion. This is the responsibility of the installer.
or any other damages due to the inadequacy or interruption of electrical
services.
unauthorized alteration, improper servicing or operation.
environment, or other conditions beyond the control of CARRIER.
EXCEPTION TO CORROSIVE ENVIRONMENT IN ABOVE PARAGRAPH —
Packaged terminal units (52 Series) built with corrosion protection are exempt
from the exclusion — “Corrosive Environment.” The unit model number is
identified on the nameplate with a CP suffix.
plied or designated by CARRIER and which are specifically covered under
this warranty.
and Canada.
responsibility of the selling dealer or the authorized Room Air Conditioner
service station.
MERCIAL DAMAGE OF ANY NATURE WHATSOEVER. Some states do not
allow the exclusion or limitation of incidental or consequential damages, so
the above limitation or exclusion may not apply to you.
1.
2. Standard maintenance, cleaning or damage resulting from failure to perform
3. Instruction on methods of control and use of air conditioning unit after initial
4. Damage or repairs needed as a consequence of faulty installation or applica-
5. Failure to start due to voltage conditions, blown fuses, open circuit breakers
6. Damage or repairs needed as a consequence of any misapplication, abuse,
CARRIER WILL NOT BE RESPONSIBLE FOR:
7. Damage as a result of floods, winds, fires, lightning, accidents, corrosive
8. Reimbursement for replacement parts or repair services which are not sup-
9. CARRIER products installed outside the continental U.S.A., Alaska, Hawaii
10. Shipping damage or damage as a result of transporting the unit. This is the
11. ANY SPECIAL, INDIRECT OR CONSEQUENTIAL PROPERTY OR COM-
12. Warranty coverage of accessory items (wall thermostats, wall sleeves, etc.).
NOTE: Service and Maintenance items excluded in this warranty may be covered by
a separate service agreement through the seller at time of purchase.
Carrier
Packaged Terminal
Air Conditioner Warranty
During the first year after purchase, CARRIER
FULL ONE-YEAR WARRANTY —
ALL IMPLIED WARRANTIES (INCLUDING
During the second through fifth years after date of origi-
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
During the second through fifth years after date of original pur-
will, through its authorized independent servicing dealers or service stations*, and
free of charge to the user or subsequent users, repair or replace any parts which
are defective in material or workmanship. The replacement part can be a new or
remanufactured part as provided at CARRIER’S sole option.
FULL EXTENDED FOUR-YEAR WARRANTY ON SEALED REFRIGERATION
SYSTEM ONLY —
chase, CARRIER will, through its authorized servicing dealers and service stations*
and free of charge to the end user or subsequent users, repair or replace the
compressor, condenser, evaporator or connecting tubing if defective in material or
workmanship. This includes system refrigeration charge. The replacement part can
be new or a remanufactured part as provided at CARRIER’S sole option.
LIMITED EXTENDED FOUR-YEAR WARRANTY ON NON-SEALED REFRIGER-
ATION SYSTEM ONLY —
nal purchase, Carrier will, through its authorized ser vicing dealers and service
stations and free of charge to the end user or subsequent users, repair or replace
any non-sealed system part (motor, solenoid, thermistor, thermostat, relays, switch,
capacitor, overload, drain valve, bulb heater, fan, stator) if defective in material or
workmanship. The replacement part can be new or a remanufactured part at
CARRIER’S sole option. THIS LIMITED WARRANTY DOES NOT INCLUDE
LABOR, user is responsible for labor, including cost of diagnosis of problem,
removal and transportation of the air conditioner to and from the ser vice center, and
reinstallation charges necessary to accomplish repair.
LIMITATION OF WARRANTIES —
IMPLIED WARRANTIES OF MERCHANTABILITY) ARE HEREBY LIMITED IN
DURATION TO THE PERIOD FOR WHICH EACH LIMITED WARRANTY IS GIVEN
AND APPLIES. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG
AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY
TO YOU. THE EXPRESSED WARRANTIES MADE IN THIS WARRANTY ARE
EXCLUSIVE AND MAY NOT BE ALTERED, ENLARGED, OR CHANGED BY ANY
DISTRIBUTOR, DEALER, OR OTHER PERSON WHATSOEVER.
ALL WORK UNDER THE TERMS OF THIS WARRANTY SHALL BE PERFORMED
DURING NORMAL WORKING HOURS. ALL REPLACEMENT PARTS, WHETHER
NEW OR REMANUFACTURED, ASSUME AS THEIR WARRANTY PERIOD ONLY
THE REMAINING TIME PERIOD OF THIS WARRANTY.
*Authorized independent dealers or service stations are registered with Carrier Air Conditioning through its distributor organization.
Catalog No. 530-122 (Rev. 3/02)
15
Page 16
Copyright 2002 Carrier Corporation
Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations.
Book 1 4
Tab 9a 11a
PC 132 Catalog No. 535-20038 Pr inted in Mexico Form 52C,P-1SO Pg 16 2-02 Replaces: 52C-1SI
52P-1SO
Loading...
