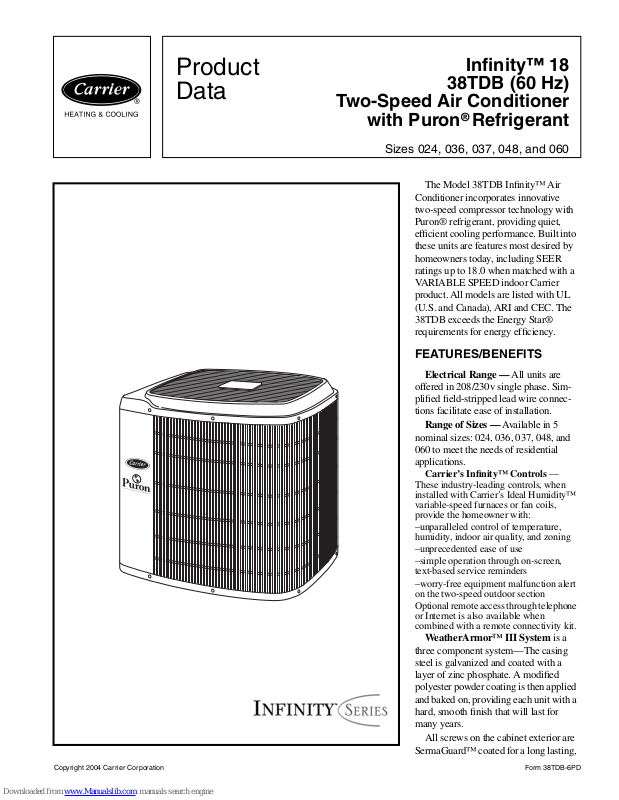

Product Data
Infinity™ 18
38TDB (60 Hz)
Two-Speed Air Conditioner
with Puron
Sizes 024, 036, 037, 048, and 060
The Model 38TDB Infinity™ Air Conditioner incorporates innovative two-speed compressor technology with Puron® refrigerant, providing quiet, efficient cooling performance. Built into these units are features most desired by homeowners today, including SEER ratings up to 18.0 when matched with a VARIABLE SPEED indoor Carrier product. All models are listed with UL (U.S. and Canada), ARI and CEC. The 38TDB exceeds the Energy Star® requirements for energy efficiency.
FEATURES/BENEFITS
®
Refrigerant
Electrical Range — All units are
offered in 208/230v single phase. Sim­plified field-stripped lead wire connec­tions facilitate ease of installation.
Range of Sizes — Available in 5
nominal sizes: 024, 036, 037, 048, and 060 to meet the needs of residential applications.
Carrier’s Infinity™ Controls —
These industry-leading controls, when installed with Carrier’s Ideal Humidity™ variable-speed furnaces or fan coils, provide the homeowner with:
–unparalleled control of temperature, humidity, indoor air quality, and zoning
–unprecedented ease of use –simple operation through on-screen,
text-based service reminders –worry-free equipment malfunction alert
on the two-speed outdoor section Optional remote access through telephone
or Internet is also available when combined with a remote connectivity kit.
WeatherArmor™ III System is a
three component system—The casing steel is galvanized and coated with a layer of zinc phosphate. A modified polyester powder coating is then applied and baked on, providing each unit with a hard, smooth finish that will last for many years.
All screws on the cabinet exterior are SermaGuard™ coated for a long lasting,
Copyright 2004 Carrier Corporation Form 38TDB-6PD
Page 2
rust-resistant, quality appearance.
The coil is protected by an enhanced WeatherArmor™ heavy duty inlet grille. Constructed of a coated steel wire grid and with spacing of 3/8 in., the guard helps to protect the coil from inclement weather, vandalism and incidental damage. It provides protection while not restricting airflow and maintain­ing ease of coil inspection and cleaning.
Unit Design — The coil incorporates
copper tubing and enhanced, aluminum fins for optimum heat transfer. Hot con­denser air and sound are discharged ver­tically and away from adjacent patio areas and foliage. Polymer spacers raise the coil in a heat pump style basepan for easy removal of water, dirt, and debris.
An electronic ECM condenser fan (037 only) motor provides multi-speed operation and enhanced low-speed effi­ciencies and sound levels.
Auto-reset high- and low-pressure switches continuously monitor system operation.
A compressor crankcase heater, ener­gized during the compressor off cycle, helps to provide reliable starting.
Application Versatility — This unit
can be combined with a wide variety of evaporator coils and fan coils to provide quiet, dependable comfort. Unit can be installed on a roof or at ground level on a slab.
External Service Valves — Both
service valves are brass, back seating type
with sweat connections. Valves are exter­nally located so refrigerant connections can be made quickly and easily. Each valve has a service port for ease of check­ing operating refrigerant pressures.
Easy Serviceability — Removal of
access panel and control box cover provides easy access to all electrical con­trols and compressor. Removal of top provides access to fan motor and coil.
A self-diagnostic indicator on the electronic control board informs the ser­vice technician of the failed component.
Compressor Protection — The com-
pressor is protected with internal over­loads. An internal pressure relief valve provides high-pressure protection to the refrigerant system.
Standard Features — An electronic
control eliminates excessive wiring. A compressor sound hood and discharge muffler provide improved sound levels as well as sound quality.
Important — When selecting an
indoor blower section to be installed with the two-speed unit, variable speed indoor blower technology is recom­mended. Some 5-speed tap PSC motor products can be applied but detailed engineering of the total system static pressure is required. Very few 4-speed tap PSC indoor motor products can be installed with the two-speed unit. It is important to match CFM for high-speed capacity and low-speed capacity as stated in the combination rating tables. To derive all the benefits of improved
room humidity and temperature control, lower noise levels, and maximum energy savings, it is recommended that you use variable speed indoor blower technologies. See product data digest for CFM requirements for low-speed capac­ity and high-speed capacity operation.
If your CFM is higher than the required CFM for low-speed capacity operation, you may have little latent heat removal, resulting in lower comfort lev­els in high humidity climates. If your climate is hot with little to no humidity, this mode of operation may be desired.
Compressor Start Assist — Capaci-
tor and relay.
Expansion Valve — This unit must
be installed with a Puron-refrigerant TXV on the indoor coil. The FV4 indoor fan coils and the CK5P indoor furnace coils come factory equipped with a bi­flow balance port Puron-refrigerant TXV. When installed in this application, no further change is required. If any other indoor fan coil or furnace coil is used, an accessory bi-flow, balance port TXV must be installed. See accessory list in this publication for correct part number. A Puron refrigerant, hard shut off, balance port TXV is shipped only with the 037 size for field installation.
Limited Warranty — Five-year
limited warranty on all parts and a ten­year limited warranty on the compressor parts. Refer to warranty certificate for specific details.
Model number nomenclature
38TDB 036 3 0 1
18 SEER 2-Speed Air Conditioner Packaging
Nominal Capacity
024 — 24,000 Btuh 036 — 36,000 Btuh 037 — 37,000 Btuh 048 — 48,000 Btuh 060 — 60,000 Btuh
T
O
D
E
A
I
R
F
I
I
T
A
R
S
E
C
C
O
R
A
M
I
R
E
C
P
R
O
Y
L
N
U
R
D
Y
A
T
I
T
I
T
I
N
C
I
O
N
G
A
N
U
F
I
N
W
U
G
I
N
T
A
H
M
E
T
Q
N
U
E
I
P
M
A
0
R
1
I
2
S
D
T
A
R
N
A
D
CERTIFICATION APPLIES
ONLY WHEN THE
COMPLETE SYSTEM
IS LISTED WITH ARI.
*Refer to the combination ratings in the Product Data Digest for system combinations meeting ENERGY STAR® efficiency standards.
2
As an ENERGY STAR
*
Corporation has determined that this product meets the ENERGY STAR guidelines for energy efficiency.
®
Partner, Carrier
®
Series
Electrical
3 — 208/230-1
REGISTERED QUALITY SYSTEM
Page 3
Physical data
UNIT SIZE - SERIES 024-30 036-30 037-30 048-30 060-31 OPERATING WEIGHT (Lb) REFRIGERANT
Cooling Control Charge (Lb)
CONDENSER FAN
Air Discharge
Air Qty (CFM) Motor HP Motor RPM CONDENSER COIL
Face Area (Sq Ft) Fins per in. Rows Circuits VALVE CONNECT. (In. ID)
Vapor
Liquid REFRIG TUBES* (In. OD)
Vapor
Liquid LONG LINE REFRIGERANT TUBES (In. OD)
Vapor
Liquid
NOTE: See unit installation instructions for proper installation.
* Tube sizes are for runs up to 50 ft horizontal and/or 20 ft vertical differential. Standard long line–up to 175 ft. †High speed
171 228 276 266 311
Puron® (R-410A)
TXV
6.0 8.9 12.3 11.5 13.1 Propeller Type, Direct Drive
Vertical
1500 2500 2750† 3000 3100
1/15 1/8 1/5 1/5 1/5
825 825 840† 825 825
Copper Tube, Aluminum Plate Fin
10.8 18.2 18.2 18.2 18.2 25 25 20 20 20
11222
2/1 3/1 4/1 5/1 5/1
Sweat
5/8 3/4 7/8 7/8 7/8
3/8
5/8 3/4 7/8 7/8 1-1/8
3/8
3/4 7/8 7/8 7/8 1-1/8
3/8
Accessories
ORDERING NO. DESCRIPTION KAACF0801MED KSASF0101AAA KSATX0201PUR KSATX0301PUR KSATX0401PUR KSATX0501PUR
THERMOSTAT DESCRIPTION
TSTATCCPRH01-B
TSTATCCP2S01-B
TSTATCCN2S01-B TSTATXXSEN01-B
TSTATXXNBP01
TSTATXXPBP01 TSTATXXCNV10
INFINITY™* CONTROLS DESCRIPTION
SYSTXCCUID01 SYSTXCCUIZ01 SYSTXCC4ZC01
SYSTXCCSMS01
SYSTXCCRRS01
SYSTXCCSAM01
SYSTXCCNIM01‡‡
SYSTXXXBPU01
* When applied with Carrier’s IdealHumidity™ series 58MVP, 58CV(A,X) and FE Indoor Models.
‡‡Must be installed in Dual-Fuel Infinity system applications.
Coastal Filter — Sizes 024-060 Support Feet (4) Bi-flow Balance Port TXV (Hard Shut Off)-Size 024 Bi-flow Balance Port TXV (Hard Shut Off)-Size 036 Bi-flow Balance Port TXV (Hard Shut Off)-Size 048 Bi-flow Balance Port TXV (Hard Shut Off)-Size 060
Carrier Thermidistat™ Control — Non-Programmable/Programmable Thermostat with Humidity Control (For use in Dual Fuel, AC, HP, and 2S applications. Includes Outdoor Air Temperature Sensor.)
Carrier Thermostat, Auto Changeover, 7-Day Programmable, °F/°C, 2-Stage Heat/2-Stage Cool in AC Mode, 3-Stage Heat/2-Stage Cool in HP mode
Carrier Thermostat, Auto Changeover, Non-Programmable, °F/°C, 2-Stage Heat/2-Stage Cool in AC Mode, 3-Stage Heat/2-Stage Cool in HP mode
Outdoor Temperature Sensor Backplate for Non-Programmable Thermostat Backplate for Programmable Thermostat Thermostat Conversion Kit (4 to 5 Wire) — 10 Pack
Infinity Control Deluxe 7-Day Programmable (Wall-mounted system control.)
Infinity Control Deluxe Zoning 7-Day Programmable (Wall-mounted control for a multi-zone system.)
Z O
Infinity 4-Zone Damper Control Module (Wall-mounted control for a four-zone system.)
N
Infinity Smart Sensor (Optional wall control used to monitor temperature and/or fan control in an
I
individual zone.)
N G
Infinity Remote Room Sensor (Monitors temperature in an individual zone.) Infinity System Access Module (Hardware for wireless access and control via phone or internet.) Infinity Network Interface Module (Connects Heat Recovery and Energy Recovery Ventilators or older two-
speed outdoor models to system.) Decorative Back Plate for Infinity Control (Decorative wall plate.)
3
Page 4
1.
2.
3.
14
15
11
12
16
Accessory Description and Usage (Listed Alphabetically)
Coastal Filter
A mesh screen inserted under the top cover and inside the base pan to protect the condenser coil from salt damage without restricting airflow.
Usage Guideline:
Outdoor Air Temperature Sensor
A device that allows the temperature at a remote location (outdoors) to be displayed at the thermostat.
Usage Guideline:
Support Feet
Four stick-on plastic feet that raise the unit 4 in. above the mounting pad. This allows sand, dirt, and other debris to be flushed from the unit base, minimizing corrosion.
Usage Guideline:
4. Thermostatic Expansion Valve (TXV)
A modulating, flow-control valve that meters refrigerant liquid flow rate into the evaporator in response to the superheat of the refrigerant gas leaving the evap­orator. Kit includes valve, adapter tubes, and external equalizer tube.
NOTE:
Furnace coils and variable-speed fan coils designed for Puron refrigerant are factory supplied with balanced-port Puron-refrigerant TXV.
Usage Guideline:
Suggested in geographic areas where salt damage could occur.
Suggested in all Carrier programmable thermostats.
Suggested in the following applications:
Coastal installations. Windy areas or where debris is normally circulating. Rooftop installations. For improved sound ratings.
A balanced-port TXV specifically designed for Puron refrigerant is required for all installations.
Electrical data
UNIT SIZE-
SERIES V/PH
024-30 036-30 037-30 048-30 060-31
* Permissible limits of the voltage range at which unit will operate sat-
isfactorily.
† If wire is applied at ambient greater than 30°C (86°F), consult Table
310-16 of the NEC (ANSI/NFPA 70). The ampacity of nonmetallic­sheathed cable (NM), trade name ROMEX, shall be that of 60°C (140°F) conductors, per the NEC (ANSI/NFPA 70) Article 336-26. If other than uncoated (non-plated), 60 or 75°C (140 or 167°F) insula­tion, copper wire (solid wire for 10 AWG and smaller, stranded wire for larger than 10 AWG) is used, consult applicable tables of the NEC (ANSI/NFPA 70).
‡ Length shown is as measured 1 way along wire path between unit
and service panel for voltage drop not to exceed 2%.
** Time-delay fuse.
208/230-1 253 187
OPER VOLTS* COMPR
64.0 10.6 0.5 13.8 14/14 57/55 20
166.0 14.1 0.8 18.4 14/14 43/41 30
66.0 14.1 0.5 18.1 14/14 44/42 30
96.0 19.9 1.1 26.0 10/10 77/73 40
130.0 26.3 1.1 34.0 8/10 91/56 50
CHARGING SUBCOOLING* (TXV-TYPE EXPANSION DEVICE)
UNIT SIZE HIGH
024 036 037 048 060
*Charge in high speed only.
MIN
FAN FLA MCA
FLA — Full Load Amps LRA — Locked Rotor Amps MCA — Minimum Circuit Amps RLA — Rated Load Amps
NOTES: 1. Control circuit is 24-v on all units and requires external
power source.
2. Copper wire must be used from service disconnect to unit.
3. All motors and compressors contain internal overload pro­tection.
WIRE
SIZE†
60°C/75°C
MAX
LENGTH
(Ft)‡
60°C/75°C
MAX FUSE** OR
CKT BKR
AMPSMax Min LRA RLA
UNIT SIZE
024 036 037 048 060
*Sound levels at high and low speeds are equivalent. NOTE: Tested in accordance with ARI standard 270.95. (Not listed with ARI.)
STANDARD
RATING*
72 44.4 59.9 58.3 62.0 55.2 51.5 42.9 72 52.4 63.4 59.3 64.0 55.2 52.0 44.9 74 51.4 61.9 62.3 68.5 55.7 51.5 44.9 75 53.9 60.9 61.8 71.5 60.7 54.0 46.9 76 54.4 59.9 59.3 62.0 60.7 55.5 47.9
125 250 500 1000 2000 4000 8000
4
A-WEIGHTED SOUND POWER (dBA)
TYPICAL OCTAVE BAND SPECTRUM (without tone adjustment)
Page 5
Dimensions
M
A02207
B
PANEL
ACCESS
MINIMUM
DIMENSIONS
MOUNTING PAD
"
4
/
1
1
"
16
/
3
4
N
"
4
/
3
1
IN. DIA KNOCKOUT
8
IN. DIA HOLE WITH
/
1
8
/
1
FIELD POWER SUPPLY CONN
7
AND
1
3
"
2
/ 2
IN. DIA KNOCKOUT
8
/ 1
A
G
F
"
2
/
1
10
IN. DIA HOLE
8
/
FIELD CONTROL SUPPLY
7
CONN
IN. DIA.
8
/
3
LIQUID LINE
CONN
"
16
/
9
1
°F.
C
AIR DISCHARGE
DIA VAPOR LINE CONN
UNIT DIMENSIONS
DIMENSIONS (IN.)
H
K
E
D
IN. DIA TIEDOWN
8
/
3
KNOCKOUTS (2)
PLACES IN BASEPAN
L
C
16
/
3
8
on one side, 12 in. on remaining side, and 24 in. between units for proper airflow.
Minimum outdoor operating ambient in cooling mode is 55°F max 1252.3.Series designation is the 13th position of the unit model number.4.Center of gravity .
1. Allow 30 in. clearance to service side of unit, 48 in. above unit, 6 in.
NOTES:
AIR IN
L
AIR
DISCHARGE
AIR IN
AIR IN
AIR DISCHARGE
ABCDEFGHKLMN
SIZE SERIES
UNIT
024 030 33-13/16 22-1/2 27-1/2 2-13/16 6-15/16 21-1/2 27-7/8 5/8 11 14 12-1/2 2-3/8 20 x 27
036 030 39-13/16 30 34-15/16 4 9-3/4 27-1/2 33-7/8 3/4 17 19-3/4 17-1/4 2-15/16 26 x 32
037 030 39-13/16 30 34-15/16 4 9-3/4 27-1/2 33-7/8 7/8 16-3/4 19-1/2 17 2-15/16 26 x 32
048 030 39-13/16 30 34-15/16 4 9-3/4 27-1/2 33-7/8 7/8 16-3/4 19-1/2 17 2-15/16 26 x 32
060 031 39-13/16 30 34-15/16 4 9-3/4 27-1/2 33-7/8 7/8 16-1/2 19 16-3/4 2-15/16 26 x 32
5
Page 6
Combination ratings
UNIT SIZE
024-30
See notes on pg.18.
INDOOR
SECTION
*FV4BNF003 735 440 24,000 12,000 15.00 11.70 CC5A/CD5AA024 885 475 23,600 11,400 12.25 10.05 CC5A/CD5AA030 900 520 24,000 11,400 12.35 10.15 CC5A/CD5AA036 900 475 24,000 11,600 12.50 10.35
CC5A/CD5AW024 885 475 23,600 11,400 12.25 10.05 CC5A/CD5AW030 900 475 24,000 11,400 12.40 10.15 CC5A/CD5AW036 900 475 24,000 11,600 12.50 10.35
CE3AA024 885 475 23,800 11,400 12.35 10.10 CE3AA030 900 475 24,000 11,400 12.50 10.20 CE3AA036 900 475 24,000 11,600 12.50 10.25 CF5AA024 885 475 23,800 11,400 12.35 10.10 CF5AA036 900 475 24,000 11,600 12.50 10.30 CK3BA024 900 475 24,000 11,600 12.50 10.15 CK3BA030 900 475 24,000 11,600 12.50 10.20
CK3BA036 900 475 24,000 11,800 13.00 10.55 CK5A/CK5BA024 900 475 24,000 11,600 12.50 10.15 CK5A/CK5BA030 900 475 24,000 11,600 12.50 10.20 CK5A/CK5BA036 900 475 24,000 11,800 13.00 10.55 CK5A/CK5BT036 900 475 24,000 11,800 13.00 10.55
CK5A/CK5BW024 900 475 24,000 11,600 12.50 10.15 CK5A/CK5BW030 900 475 24,000 11,600 12.50 10.20 CK5A/CK5BW036 900 475 24,000 11,800 13.00 10.55
CK5PA024 900 475 24,000 11,600 12.50 10.15
CK5PA030 900 475 24,000 11,600 12.50 10.20
CK5PA036 900 475 24,000 11,800 13.00 10.55
CK5PT036 900 475 24,000 11,800 13.00 10.55
CK5PW024 900 475 24,000 11,600 12.50 10.15 CK5PW030 900 475 24,000 11,600 12.50 10.20
CK5PW036 900 475 24,000 11,800 13.00 10.55 FE4ANF002 735 440 24,000 11,800 14.85 11.50 FE4ANF003 735 440 24,000 12,000 15.00 11.70
FK4DNF001 735 440 24,000 11,800 14.50 11.40
FV4BNF002 735 440 24,000 11,800 14.85 11.50
40FKB/FK4DNF002 735 440 24,000 11,800 14.85 11.50 40FKB/FK4DNF003 735 440 24,000 12,000 15.00 11.70
CC5A/CD5AA024 700 525 23,000 11,800 14.00 11.00 CC5A/CD5AA030 700 525 23,400 11,800 14.00 11.25
CC5A/CD5AA036 700 525 24,000 12,000 14.50 11.50 CC5A/CD5AW024 700 525 23,200 11,800 14.00 11.10 CC5A/CD5AW030 700 525 23,400 11,800 14.00 11.25
CE3AA024 700 525 23,400 11,800 14.00 11.10 CE3AA030 700 525 23,800 12,000 14.50 11.30 CE3AA036 700 525 24,000 12,000 14.50 11.40 CK3BA024 700 525 23,600 12,000 14.50 11.30 CK3BA030 700 525 23,800 12,000 14.50 11.40
CK3BA036 700 525 24,000 12,000 14.50 11.55 CK5A/CK5BA024 700 525 24,000 12,000 14.50 11.45 CK5A/CK5BA030 700 525 24,000 12,000 14.50 11.50 CK5A/CK5BA036 700 525 24,000 12,000 14.50 11.55 CK5A/CK5BT036 700 525 24,000 12,000 14.50 11.55
CK5A/CK5BW024 700 525 24,000 12,000 14.50 11.45 CK5A/CK5BW030 700 525 24,000 12,000 14.50 11.50
CK5PA024 700 525 24,000 12,000 14.50 11.45
CK5PA030 700 525 24,000 12,000 14.50 11.50
CK5PA036 700 525 24,000 12,000 14.50 11.55
CK5PT036 700 525 24,000 12,000 14.50 11.55
CK5PW024 700 525 24,000 12,000 14.50 11.45 CK5PW030 700 525 24,000 12,000 14.50 11.50
CC5A/CD5AA024 700 525 23,200 11,800 14.00 11.10 CC5A/CD5AA030 700 525 23,600 11,800 14.50 11.30 CC5A/CD5AA036 700 525 24,000 12,000 14.50 11.60
CC5A/CD5AW024 700 525 23,200 11,800 14.00 11.15 CC5A/CD5AW030 700 525 23,600 11,800 14.50 11.30 CC5A/CD5AW036 700 525 24,000 12,000 14.50 11.60
CE3AA024 700 525 23,400 11,800 14.00 11.15
CE3AA030 700 525 23,800 12,000 14.50 11.40
CE3AA036 700 525 24,000 12,000 14.50 11.50
CK3BA024 700 525 23,600 12,000 14.50 11.40
CK3BA030 700 525 23,800 12,000 14.50 11.45
CK3BA036 700 525 24,000 12,000 15.00 11.65 CK5A/CK5BA024 700 525 24,000 12,000 14.50 11.50 CK5A/CK5BA030 700 525 24,000 12,000 14.50 11.55 CK5A/CK5BA036 700 525 24,000 12,000 15.00 11.65 CK5A/CK5BT036 700 525 24,000 12,000 15.00 11.65
CK5A/CK5BW024 700 525 24,000 12,000 14.50 11.55 CK5A/CK5BW030 700 525 24,000 12,000 14.50 11.60 CK5A/CK5BW036 700 525 24,000 12,000 15.00 11.65
CK5PA024 700 525 24,000 12,000 14.50 11.50
CK5PA030 700 525 24,000 12,000 14.50 11.55
CK5PA036 700 525 24,000 12,000 15.00 11.65
CK5PT036 700 525 24,000 12,000 15.00 11.65
*
INDOOR AIR CFM TOTAL CAPACITY BTUH
SEER EERHigh Low High Low
COILS + 58CV(A,X)070-12 VARIABLE-SPEED FURNACE
COILS + 58CV(A,X)090-16 VARIABLE-SPEED FURNACE
6
Page 7
Combination ratings (cont.)
UNIT SIZE
024-30
036-30
See notes on pg.18.
INDOOR
SECTION
CK5PW024 700 525 24,000 12,000 14.50 11.55 CK5PW030 700 525 24,000 12,000 14.50 11.60 CK5PW036 700 525 24,000 12,000 15.00 11.65
CC5A/CD5AW036 700 525 24,000 12,000 14.50 11.45
CE3AA024 700 525 23,200 11,800 14.00 10.95 CE3AA030 700 525 23,600 11,800 14.50 11.20 CE3AA036 700 525 23,800 12,000 14.50 11.30
CK5A/CK5BW036 700 525 24,000 12,000 14.50 11.45
CK5PW036 700 525 24,000 12,000 14.50 11.45
CC5A/CD5AA024 700 525 22,800 11,600 14.00 10.95 CC5A/CD5AA030 700 525 23,200 11,800 14.00 11.15
CC5A/CD5AA036 700 525 24,000 12,000 14.50 11.45 CC5A/CD5AW024 700 525 23,000 11,600 14.00 11.00 CC5A/CD5AW030 700 525 23,200 11,800 14.00 11.15 CC5A/CD5AW036 700 525 24,000 12,000 14.50 11.45
CE3AA024 700 525 23,200 11,800 14.00 11.00 CE3AA030 700 525 23,400 11,800 14.50 11.20 CE3AA036 700 525 23,800 12,000 14.50 11.35 CK3BA024 700 525 23,400 12,000 14.50 11.25 CK3BA030 700 525 23,600 12,000 14.50 11.30
CK3BA036 700 525 24,000 12,000 14.50 11.45 CK5A/CK5BA024 700 525 23,400 11,800 14.00 11.10 CK5A/CK5BA030 700 525 23,600 12,000 14.50 11.20 CK5A/CK5BA036 700 525 24,000 12,000 14.50 11.50 CK5A/CK5BT036 700 525 24,000 12,000 14.50 11.50
CK5A/CK5BW024 700 525 23,400 11,800 14.00 11.15 CK5A/CK5BW030 700 525 23,600 12,000 14.50 11.25 CK5A/CK5BW036 700 525 24,000 12,000 14.50 11.50
CK5PA024 700 525 23,400 11,800 14.00 11.10
CK5PA030 700 525 23,600 12,000 14.50 11.20
CK5PA036 700 525 24,000 12,000 14.50 11.50
CK5PT036 700 525 24,000 12,000 14.50 11.50
CK5PW024 700 525 23,400 11,800 14.00 11.15 CK5PW030 700 525 23,600 12,000 14.50 11.25 CK5PW036 700 525 24,000 12,000 14.50 11.50
CC5A/CD5AA036 700 525 24,000 12,000 14.50 11.40
CC5A/CD5AW024 700 525 23,000 11,800 14.00 11.00 CC5A/CD5AW030 700 525 23,400 11,800 14.00 11.15 CC5A/CD5AW036 700 525 24,000 12,000 14.50 11.40
CE3AA024 700 525 23,200 11,800 14.00 11.00
CE3AA030 700 525 23,600 11,800 14.50 11.20
CE3AA036 700 525 23,800 12,000 14.50 11.30
CK3BA024 700 525 23,400 12,000 14.50 11.20
CK3BA030 700 525 23,600 12,000 14.50 11.30
CK3BA036 700 525 24,000 12,000 14.50 11.45 CK5A/CK5BA036 700 525 24,000 12,000 14.50 11.45 CK5A/CK5BT036 700 525 24,000 12,000 14.50 11.45
CK5A/CK5BW024 700 525 23,400 11,800 14.00 11.10 CK5A/CK5BW030 700 525 23,600 12,000 14.50 11.25 CK5A/CK5BW036 700 525 24,000 12,000 14.50 11.45
CK5PA036 700 525 24,000 12,000 14.50 11.45
CK5PT036 700 525 24,000 12,000 14.50 11.45
CK5PW024 700 525 23,400 11,800 14.00 11.10 CK5PW030 700 525 23,600 12,000 14.50 11.25 CK5PW036 700 525 24,000 12,000 14.50 11.45
*FV4BNB006 1100 660 36,000 18,000 16.50 12.25 CC5A/CD5AA036 1300 720 34,800 17,400 13.50 10.50 CC5A/CD5AA042 1300 720 34,800 17,400 13.50 10.50 CC5A/CD5AC048 1280 720 34,400 17,200 13.00 10.40
CC5A/CD5AW036 1300 720 34,800 17,400 13.50 10.50 CC5A/CD5AW042 1280 720 34,400 17,200 13.50 10.45 CC5A/CD5AW048 1300 720 34,800 17,400 13.50 10.50
CD5AA048 1300 720 34,800 17,400 13.50 10.55 CE3AA036 1280 720 34,200 17,200 13.00 10.40 CE3AA042 1300 720 35,000 17,400 13.50 10.55 CE3AA048 1300 720 35,200 17,400 13.50 10.60 CF5AA036 1280 720 34,600 17,400 13.50 10.45 CF5AA048 1300 720 35,000 17,400 13.50 10.55 CK3BA036 1300 720 34,800 17,600 13.50 10.50 CK3BA042 1300 720 34,800 17,600 13.50 10.50
CK3BA048 1300 720 35,000 17,600 13.50 10.55 CK5A/CK5BA036 1300 720 34,800 17,600 13.50 10.50 CK5A/CK5BA042 1300 720 34,800 17,600 13.50 10.50 CK5A/CK5BA048 1300 720 35,000 17,600 13.50 10.60 CK5A/CK5BE042 1300 720 35,000 17,600 13.50 10.60 CK5A/CK5BT036 1300 720 34,800 17,600 13.50 10.50 CK5A/CK5BT042 1300 720 34,800 17,600 13.50 10.50 CK5A/CK5BT048 1300 720 35,000 17,600 13.50 10.60
CK5A/CK5BW036 1300 720 35,000 17,800 13.00 10.45 CK5A/CK5BW048 1300 720 35,000 17,600 13.50 10.60
CK5PA036 1300 720 34,800 17,600 13.50 10.50
INDOOR AIR CFM TOTAL CAPACITY BTUH
SEER EERHigh Low High Low
,
COILS + 58MVP040-14 VARIABLE-SPEED FURNACE
COILS + 58MVP060-14 VARIABLE-SPEED FURNACE
COILS + 58MVP080-14 VARIABLE-SPEED FURNACE
,
7
Page 8
Combination ratings (cont.)
UNIT SIZE
036-30
See notes on pg.18.
INDOOR
SECTION
CK5PA042 1300 720 34,800 17,600 13.50 10.50 CK5PA048 1300 720 35,000 17,600 13.50 10.60 CK5PE042 1300 720 35,000 17,600 13.50 10.60 CK5PT036 1300 720 34,800 17,600 13.50 10.50 CK5PT042 1300 720 34,800 17,600 13.50 10.50
CK5PT048 1300 720 35,000 17,600 13.50 10.60 CK5PW036 1300 720 35,000 17,800 13.00 10.45 CK5PW048 1300 720 35,000 17,600 13.50 10.60
FE4ANB006 1100 660 36,000 18,000 16.50 12.25
FE4ANF002 1100 660 34,200 17,800 15.00 10.95 FE4ANF003 1100 660 34,600 17,800 15.50 11.50 FE4ANF005 1100 660 36,000 18,000 16.00 11.95
FK4DNF001 1100 660 33,800 17,600 15.00 10.85
FV4BNF002 1100 660 34,200 17,800 15.00 10.95 FV4BNF003 1100 660 34,600 17,800 15.50 11.50
FV4BNF005 1100 660 36,000 18,000 16.00 11.95 40FKB/FK4DNB006 1100 660 36,000 18,000 16.50 12.25 40FKB/FK4DNF002 1100 660 34,200 17,800 15.00 10.95 40FKB/FK4DNF003 1100 660 34,600 17,800 15.50 11.50 40FKB/FK4DNF005 1100 660 36,000 18,000 16.00 11.95
CC5A/CD5AA036 1050 700 34,000 17,800 15.50 11.15
CE3AA036 1050 700 33,400 17,600 15.00 11.05
CK3BA036 1050 700 34,000 17,800 15.50 11.20 CK5A/CK5BA036 1050 700 34,000 17,800 15.50 11.20 CK5A/CK5BT036 1050 700 34,000 17,800 15.50 11.20
CK5PA036 1050 700 34,000 17,800 15.50 11.20
CK5PT036 1050 700 34,000 17,800 15.50 11.20
CC5A/CD5AA036 1050 700 34,000 17,800 15.50 11.35 CC5A/CD5AA042 1050 700 34,000 17,800 15.50 11.45 CC5A/CD5AC048 1050 700 33,800 17,800 15.50 11.35
CC5A/CD5AW036 1050 700 34,000 17,800 15.50 11.40
CD5AA048 1050 700 34,200 17,800 15.50 11.50
CE3AA036 1050 700 33,600 17,600 15.50 11.20
CE3AA042 1050 700 34,200 17,800 15.50 11.45
CE3AA048 1050 700 34,400 18,000 15.50 11.55
CK3BA036 1050 700 34,200 18,000 15.50 11.40
CK3BA042 1050 700 34,200 18,000 15.50 11.40
CK3BA048 1050 700 34,400 18,000 16.00 11.60 CK5A/CK5BA036 1050 700 34,200 18,000 15.50 11.35 CK5A/CK5BA042 1050 700 34,200 18,000 15.50 11.45 CK5A/CK5BA048 1050 700 34,400 18,000 16.00 11.55 CK5A/CK5BE042 1050 700 34,400 18,000 15.50 11.50 CK5A/CK5BT036 1050 700 34,200 18,000 15.50 11.35 CK5A/CK5BT042 1050 700 34,200 18,000 15.50 11.45 CK5A/CK5BT048 1050 700 34,400 18,000 16.00 11.55
CK5A/CK5BW036 1050 700 34,200 18,000 15.50 11.45
CK5PA036 1050 700 34,200 18,000 15.50 11.35
CK5PA042 1050 700 34,200 18,000 15.50 11.45
CK5PA048 1050 700 34,400 18,000 16.00 11.55
CK5PE042 1050 700 34,400 18,000 15.50 11.50
CK5PT036 1050 700 34,200 18,000 15.50 11.35
CK5PT042 1050 700 34,200 18,000 15.50 11.45
CK5PT048 1050 700 34,400 18,000 16.00 11.55
CK5PW036 1050 700 34,200 18,000 15.50 11.45
CC5A/CD5AA036 1050 700 34,000 17,800 15.50 11.45 CC5A/CD5AA042 1050 700 34,200 17,800 15.50 11.55 CC5A/CD5AC048 1050 700 33,800 17,800 15.50 11.45
CC5A/CD5AW036 1050 700 34,000 17,800 15.50 11.55 CC5A/CD5AW042 1050 700 34,200 17,800 15.50 11.60 CC5A/CD5AW048 1050 700 34,200 17,800 16.00 11.65
CD5AA048 1050 700 34,200 17,800 15.50 11.65
CE3AA036 1050 700 33,600 17,600 15.50 11.30
CE3AA042 1050 700 34,400 17,800 15.50 11.60
CE3AA048 1050 700 34,400 18,000 16.00 11.65
CK3BA036 1050 700 34,200 18,000 15.50 11.50
CK3BA042 1050 700 34,200 18,000 15.50 11.55
CK3BA048 1050 700 34,600 18,000 16.00 11.70 CK5A/CK5BA036 1050 700 34,200 18,000 15.50 11.45 CK5A/CK5BA042 1050 700 34,200 18,000 15.50 11.55 CK5A/CK5BA048 1050 700 34,600 18,000 16.00 11.70 CK5A/CK5BE042 1050 700 34,400 18,000 16.00 11.60 CK5A/CK5BT036 1050 700 34,200 18,000 15.50 11.45 CK5A/CK5BT042 1050 700 34,200 18,000 15.50 11.55 CK5A/CK5BT048 1050 700 34,600 18,000 16.00 11.70
CK5A/CK5BW036 1050 700 34,200 18,000 15.50 11.55 CK5A/CK5BW048 1050 700 34,600 18,000 16.00 11.75
CK5PA036 1050 700 34,200 18,000 15.50 11.45
CK5PA042 1050 700 34,200 18,000 15.50 11.55
CK5PA048 1050 700 34,600 18,000 16.00 11.70
CK5PE042 1050 700 34,400 18,000 16.00 11.60
INDOOR AIR CFM TOTAL CAPACITY BTUH
SEER EERHigh Low High Low
COILS + 58CV(A,X)070-12 VARIABLE-SPEED FURNACE
COILS + 58CV(A,X)090-16 VARIABLE-SPEED FURNACE
COILS + 58CV(A,X)110-22 VARIABLE-SPEED FURNACE
8
Page 9
Combination ratings (cont.)
UNIT SIZE
036-30
See notes on pg.18.
INDOOR
SECTION
CK5PT036 1050 700 34,200 18,000 15.50 11.45 CK5PT042 1050 700 34,200 18,000 15.50 11.55
CK5PT048 1050 700 34,600 18,000 16.00 11.70 CK5PW036 1050 700 34,200 18,000 15.50 11.55 CK5PW048 1050 700 34,600 18,000 16.00 11.75
CC5A/CD5AA042 1050 700 34,000 17,800 15.50 11.50
CC5A/CD5AC048 1050 700 33,800 17,800 15.50 11.40 CC5A/CD5AW036 1050 700 34,000 17,800 15.50 11.45 CC5A/CD5AW042 1050 700 34,200 17,800 15.50 11.60 CC5A/CD5AW048 1050 700 34,200 17,800 16.00 11.60
CD5AA048 1050 700 34,200 17,800 15.50 11.60 CE3AA036 1050 700 33,600 17,600 15.50 11.25 CE3AA042 1050 700 34,200 17,800 15.50 11.50 CE3AA048 1050 700 34,400 18,000 15.50 11.60 CK3BA036 1050 700 34,200 18,000 15.50 11.45 CK3BA042 1050 700 34,200 18,000 15.50 11.45
CK3BA048 1050 700 34,400 18,000 16.00 11.65 CK5A/CK5BA042 1050 700 34,200 18,000 15.50 11.50 CK5A/CK5BA048 1050 700 34,400 18,000 16.00 11.65 CK5A/CK5BT042 1050 700 34,200 18,000 15.50 11.50 CK5A/CK5BT048 1050 700 34,400 18,000 16.00 11.65
CK5A/CK5BW036 1050 700 34,200 18,000 15.50 11.50 CK5A/CK5BW048 1050 700 34,600 18,000 16.00 11.70
CK5PA042 1050 700 34,200 18,000 15.50 11.50
CK5PA048 1050 700 34,400 18,000 16.00 11.65
CK5PT042 1050 700 34,200 18,000 15.50 11.50
CK5PT048 1050 700 34,400 18,000 16.00 11.65
CK5PW036 1050 700 34,200 18,000 15.50 11.50 CK5PW048 1050 700 34,600 18,000 16.00 11.70
CC5A/CD5AA042 1050 700 34,200 17,800 15.50 11.60 CC5A/CD5AC048 1050 700 33,800 17,800 15.50 11.50
CC5A/CD5AW036 1050 700 34,200 17,800 15.50 11.55 CC5A/CD5AW042 1050 700 34,200 17,800 16.00 11.70 CC5A/CD5AW048 1050 700 34,200 17,800 16.00 11.70
CD5AA048 1050 700 34,400 17,800 16.00 11.70
CE3AA036 1050 700 33,600 17,600 15.50 11.30
CE3AA042 1050 700 34,400 17,800 15.50 11.60
CE3AA048 1050 700 34,600 18,000 16.00 11.70
CK3BA036 1050 700 34,200 18,000 15.50 11.50
CK3BA042 1050 700 34,200 18,000 16.00 11.55
CK3BA048 1050 700 34,600 18,000 16.00 11.75 CK5A/CK5BA042 1050 700 34,200 18,000 16.00 11.55 CK5A/CK5BA048 1050 700 34,600 18,000 16.00 11.75 CK5A/CK5BT042 1050 700 34,200 18,000 16.00 11.55 CK5A/CK5BT048 1050 700 34,600 18,000 16.00 11.75
CK5A/CK5BW036 1050 700 34,200 18,000 15.50 11.55 CK5A/CK5BW048 1050 700 34,600 18,000 16.00 11.80
CK5PA042 1050 700 34,200 18,000 16.00 11.55
CK5PA048 1050 700 34,600 18,000 16.00 11.75
CK5PT042 1050 700 34,200 18,000 16.00 11.55
CK5PT048 1050 700 34,600 18,000 16.00 11.75
CK5PW036 1050 700 34,200 18,000 15.50 11.55 CK5PW048 1050 700 34,600 18,000 16.00 11.80
CC5A/CD5AA042 1050 700 33,600 17,800 15.50 11.10 CC5A/CD5AC048 1050 700 33,200 17,600 15.00 11.00
CC5A/CD5AW036 1050 700 33,600 17,800 15.50 11.05 CC5A/CD5AW042 1050 700 33,000 17,600 15.00 11.00 CC5A/CD5AW048 1050 700 33,800 17,800 15.50 11.15
CD5AA048 1050 700 33,800 17,800 15.50 11.15
CE3AA036 1050 700 33,200 17,600 15.00 10.90
CE3AA042 1050 700 33,800 17,800 15.50 11.10
CE3AA048 1050 700 34,000 17,800 15.50 11.20
CK3BA042 1050 700 33,800 17,800 15.50 11.10
CK3BA048 1050 700 34,000 18,000 15.50 11.25 CK5A/CK5BA042 1050 700 33,800 17,800 15.50 11.10 CK5A/CK5BA048 1050 700 34,000 18,000 15.50 11.20 CK5A/CK5BT042 1050 700 33,800 17,800 15.50 11.10 CK5A/CK5BT048 1050 700 34,000 18,000 15.50 11.20
CK5A/CK5BW036 1050 700 33,800 17,800 15.50 11.10 CK5A/CK5BW048 1050 700 34,000 18,000 15.50 11.30
CK5PA042 1050 700 33,800 17,800 15.50 11.10
CK5PA048 1050 700 34,000 18,000 15.50 11.20
CK5PT042 1050 700 33,800 17,800 15.50 11.10
CK5PT048 1050 700 34,000 18,000 15.50 11.25
CK5PW036 1050 700 33,800 17,800 15.50 11.10 CK5PW048 1050 700 34,000 18,000 15.50 11.30
CC5A/CD5AA036 1050 700 33,600 17,600 15.50 11.15 CC5A/CD5AA042 1050 700 33,800 17,800 15.50 11.25 CC5A/CD5AC048 1050 700 33,400 17,600 15.50 11.15
INDOOR AIR CFM TOTAL CAPACITY BTUH
SEER EERHigh Low High Low
COILS + 58CV(A,X)135-22 VARIABLE-SPEED FURNACE
COILS + 58CV(A,X)155-22 VARIABLE-SPEED FURNACE
COILS + 58MVP040-14 VARIABLE-SPEED FURNACE
COILS + 58MVP060-14 VARIABLE-SPEED FURNACE
9
Page 10
Combination ratings (cont.)
UNIT SIZE
036-30
See notes on pg.18.
INDOOR
SECTION
CC5A/CD5AW036 1050 700 33,800 17,800 15.50 11.20
CD5AA048 1050 700 33,800 17,800 15.50 11.30 CE3AA036 1050 700 33,200 17,600 15.00 11.05 CE3AA042 1050 700 34,000 17,800 15.50 11.30 CE3AA048 1050 700 34,200 17,800 15.50 11.35 CK3BA036 1050 700 33,800 17,800 15.50 11.20 CK3BA042 1050 700 33,800 17,800 15.50 11.25
CK3BA048 1050 700 34,200 18,000 15.50 11.40 CK5A/CK5BA036 1050 700 33,800 17,800 15.50 11.20 CK5A/CK5BA042 1050 700 33,800 17,800 15.50 11.25 CK5A/CK5BA048 1050 700 34,200 18,000 15.50 11.40 CK5A/CK5BE042 1050 700 34,200 17,800 15.50 11.30 CK5A/CK5BT036 1050 700 33,800 17,800 15.50 11.20 CK5A/CK5BT042 1050 700 33,800 17,800 15.50 11.25 CK5A/CK5BT048 1050 700 34,200 18,000 15.50 11.40
CK5A/CK5BW036 1050 700 33,800 17,800 15.50 11.25
CK5PA036 1050 700 33,800 17,800 15.50 11.20
CK5PA042 1050 700 33,800 17,800 15.50 11.25
CK5PA048 1050 700 34,200 18,000 15.50 11.40
CK5PE042 1050 700 34,200 17,800 15.50 11.30
CK5PT036 1050 700 33,800 17,800 15.50 11.20
CK5PT042 1050 700 33,800 17,800 15.50 11.25
CK5PT048 1050 700 34,200 18,000 15.50 11.40
CK5PW036 1050 700 33,800 17,800 15.50 11.25
CC5A/CD5AA036 1050 700 33,600 17,800 15.00 10.95 CC5A/CD5AA042 1050 700 33,600 17,800 15.50 11.05 CC5A/CD5AC048 1050 700 33,200 17,600 15.00 10.95
CC5A/CD5AW036 1050 700 33,600 17,800 15.50 11.00 CC5A/CD5AW042 1050 700 33,000 17,600 15.00 10.95 CC5A/CD5AW048 1050 700 33,800 17,800 15.50 11.15
CD5AA048 1050 700 33,800 17,800 15.50 11.10
CE3AA036 1050 700 33,200 17,600 15.00 10.85
CE3AA042 1050 700 33,800 17,800 15.50 11.10
CE3AA048 1050 700 34,000 17,800 15.50 11.15
CK3BA036 1050 700 33,800 17,800 15.50 11.00
CK3BA042 1050 700 33,800 17,800 15.50 11.05
CK3BA048 1050 700 34,000 18,000 15.50 11.20 CK5A/CK5BA036 1050 700 33,600 17,800 15.50 11.00 CK5A/CK5BA042 1050 700 33,800 17,800 15.50 11.05 CK5A/CK5BA048 1050 700 34,000 18,000 15.50 11.20 CK5A/CK5BE042 1050 700 34,000 18,000 15.50 11.10 CK5A/CK5BT036 1050 700 33,600 17,800 15.50 11.00 CK5A/CK5BT042 1050 700 33,800 17,800 15.50 11.05 CK5A/CK5BT048 1050 700 34,000 18,000 15.50 11.20
CK5A/CK5BW036 1050 700 33,800 17,800 15.50 11.05 CK5A/CK5BW048 1050 700 34,000 18,000 15.50 11.25
CK5PA036 1050 700 33,800 17,800 15.50 11.00
CK5PA042 1050 700 33,800 17,800 15.50 11.05
CK5PA048 1050 700 34,000 18,000 15.50 11.20
CK5PE042 1050 700 34,000 18,000 15.50 11.10
CK5PT036 1050 700 33,800 17,800 15.50 11.00
CK5PT042 1050 700 33,800 17,800 15.50 11.05
CK5PT048 1050 700 34,000 18,000 15.50 11.20
CK5PW036 1050 700 33,800 17,800 15.50 11.05 CK5PW048 1050 700 34,000 18,000 15.50 11.25
CC5A/CD5AA036 1050 700 33,600 17,800 15.50 11.15 CC5A/CD5AA042 1050 700 33,800 17,800 15.50 11.20 CC5A/CD5AC048 1050 700 33,400 17,600 15.00 11.10
CC5A/CD5AW036 1050 700 33,800 17,800 15.50 11.20 CC5A/CD5AW042 1050 700 33,200 17,600 15.50 11.10 CC5A/CD5AW048 1050 700 33,800 17,800 15.50 11.25
CD5AA048 1050 700 33,800 17,800 15.50 11.25
CE3AA036 1050 700 33,200 17,600 15.00 11.00
CE3AA042 1050 700 34,000 17,800 15.50 11.25
CE3AA048 1050 700 34,200 17,800 15.50 11.30
CK3BA036 1050 700 33,800 17,800 15.50 11.15
CK3BA042 1050 700 33,800 17,800 15.50 11.20
CK3BA048 1050 700 34,200 18,000 15.50 11.35 CK5A/CK5BA036 1050 700 33,800 17,800 15.50 11.15 CK5A/CK5BA042 1050 700 33,800 17,800 15.50 11.20 CK5A/CK5BA048 1050 700 34,200 18,000 15.50 11.35 CK5A/CK5BE042 1050 700 34,200 18,000 15.50 11.30 CK5A/CK5BT036 1050 700 33,800 17,800 15.50 11.15 CK5A/CK5BT042 1050 700 33,800 17,800 15.50 11.20 CK5A/CK5BT048 1050 700 34,200 18,000 15.50 11.35
CK5A/CK5BW036 1050 700 33,800 17,800 15.50 11.20 CK5A/CK5BW048 1050 700 34,200 18,000 15.50 11.35
CK5PA036 1050 700 33,800 17,800 15.50 11.15
CK5PA042 1050 700 33,800 17,800 15.50 11.20
CK5PA048 1050 700 34,200 18,000 15.50 11.35
CK5PE042 1050 700 34,200 18,000 15.50 11.30
CK5PT036 1050 700 33,800 17,800 15.50 11.15
CK5PT042 1050 700 33,800 17,800 15.50 11.20
INDOOR AIR CFM TOTAL CAPACITY BTUH
SEER EERHigh Low High Low
COILS + 58MVP080-14 VARIABLE-SPEED FURNACE
COILS + 58MVP080-20 VARIABLE-SPEED FURNACE
10
Page 11
Combination ratings (cont.)
UNIT SIZE
036-30
037-30
See notes on pg.18.
INDOOR
SECTION
CK5PT048 1050 700 34,200 18,000 15.50 11.35 CK5PW036 1050 700 33,800 17,800 15.50 11.20 CK5PW048 1050 700 34,200 18,000 15.50 11.35
CC5A/CD5AA036 1050 700 33,800 17,800 15.50 11.15 CC5A/CD5AA042 1050 700 33,800 17,800 15.50 11.25
CC5A/CD5AC048 1050 700 33,400 17,600 15.50 11.15 CC5A/CD5AW036 1050 700 33,800 17,800 15.50 11.20 CC5A/CD5AW042 1050 700 33,200 17,600 15.50 11.10 CC5A/CD5AW048 1050 700 33,800 17,800 15.50 11.30
CD5AA048 1050 700 34,000 17,800 15.50 11.30 CE3AA036 1050 700 33,400 17,600 15.00 11.05 CE3AA042 1050 700 34,000 17,800 15.50 11.30 CE3AA048 1050 700 34,200 17,800 15.50 11.35 CK3BA036 1050 700 33,800 17,800 15.50 11.20 CK3BA042 1050 700 34,000 17,800 15.50 11.25
CK3BA048 1050 700 34,200 18,000 15.50 11.40 CK5A/CK5BA036 1050 700 33,800 17,800 15.50 11.20 CK5A/CK5BA042 1050 700 34,000 17,800 15.50 11.25 CK5A/CK5BA048 1050 700 34,200 18,000 15.50 11.40 CK5A/CK5BE042 1050 700 34,200 18,000 15.50 11.30 CK5A/CK5BT036 1050 700 33,800 17,800 15.50 11.20 CK5A/CK5BT042 1050 700 34,000 17,800 15.50 11.25 CK5A/CK5BT048 1050 700 34,200 18,000 15.50 11.40
CK5A/CK5BW036 1050 700 34,000 17,800 15.50 11.25 CK5A/CK5BW048 1050 700 34,200 18,000 15.50 11.40
CK5PA036 1050 700 33,800 17,800 15.50 11.20
CK5PA042 1050 700 34,000 17,800 15.50 11.25
CK5PA048 1050 700 34,200 18,000 15.50 11.40
CK5PE042 1050 700 34,200 18,000 15.50 11.30
CK5PT036 1050 700 33,800 17,800 15.50 11.20
CK5PT042 1050 700 34,000 17,800 15.50 11.25
CK5PT048 1050 700 34,200 18,000 15.50 11.40
CK5PW036 1050 700 34,000 17,800 15.50 11.25 CK5PW048 1050 700 34,200 18,000 15.50 11.40
CC5A/CD5AA042 1050 700 33,800 17,600 15.50 11.25 CC5A/CD5AC048 1050 700 33,400 17,600 15.00 11.20
CC5A/CD5AW036 1050 700 33,600 17,600 15.50 11.25 CC5A/CD5AW042 1050 700 33,200 17,600 15.50 11.20 CC5A/CD5AW048 1050 700 33,800 17,800 15.50 11.35
CD5AA048 1050 700 33,800 17,800 15.50 11.35
CE3AA036 1050 700 33,200 17,600 15.00 11.05
CE3AA042 1050 700 34,000 17,800 15.50 11.30
CE3AA048 1050 700 34,000 17,800 15.50 11.35
CK3BA042 1050 700 33,800 17,800 15.50 11.30
CK3BA048 1050 700 34,200 17,800 15.50 11.45 CK5A/CK5BA042 1050 700 33,800 17,800 15.50 11.30 CK5A/CK5BA048 1050 700 34,200 17,800 15.50 11.45 CK5A/CK5BT042 1050 700 33,800 17,800 15.50 11.30 CK5A/CK5BT048 1050 700 34,200 17,800 15.50 11.45
CK5A/CK5BW036 1050 700 33,800 17,800 15.50 11.30 CK5A/CK5BW048 1050 700 34,200 17,800 15.50 11.50
CK5PA042 1050 700 33,800 17,800 15.50 11.30
CK5PA048 1050 700 34,200 17,800 15.50 11.45
CK5PT042 1050 700 33,800 17,800 15.50 11.30
CK5PT048 1050 700 34,200 17,800 15.50 11.45
CK5PW036 1050 700 33,800 17,800 15.50 11.30 CK5PW048 1050 700 34,200 17,800 15.50 11.50
*FV4BNB006 1100 660 37,000 18,000 18.00 13.15 CC5A/CD5AA036 1310 720 35,800 17,400 14.50 11.30 CC5A/CD5AA042 1310 720 35,800 17,400 14.50 11.30 CC5A/CD5AC048 1310 720 35,200 17,200 14.00 11.15
CC5A/CD5AW036 1310 720 35,800 17,400 14.50 11.30 CC5A/CD5AW042 1310 720 35,400 17,200 14.00 11.20 CC5A/CD5AW048 1310 720 35,800 17,400 14.50 11.30
CD5AA048 1310 720 35,800 17,400 14.50 11.30 CE3AA036 1310 720 35,200 17,200 14.00 11.15 CE3AA042 1310 720 36,000 17,400 14.50 11.35 CE3AA048 1310 720 36,000 17,400 14.50 11.45 CF5AA036 1310 720 35,600 17,200 14.00 11.25 CF5AA048 1310 720 36,000 17,400 14.50 11.35 CK3BA036 1310 720 35,800 17,400 14.50 11.35 CK3BA042 1310 720 35,800 17,400 14.50 11.35
CK3BA048 1310 720 36,000 17,600 14.50 11.40 CK5A/CK5BA036 1310 720 35,800 17,400 14.50 11.35 CK5A/CK5BA042 1310 720 35,800 17,400 14.50 11.35 CK5A/CK5BA048 1310 720 36,000 17,600 14.50 11.40 CK5A/CK5BE042 1310 720 36,000 17,600 14.50 11.40 CK5A/CK5BT036 1310 720 35,800 17,400 14.50 11.35 CK5A/CK5BT042 1310 720 35,800 17,400 14.50 11.35 CK5A/CK5BT048 1310 720 36,000 17,600 14.50 11.40
CK5A/CK5BW036 1310 720 35,800 17,400 14.50 11.35 CK5A/CK5BW048 1310 720 36,000 17,600 14.50 11.40
CK5PA036 1310 720 35,800 17,400 14.50 11.35
CK5PA042 1310 720 35,800 17,400 14.50 11.35
CK5PA048 1310 720 36,000 17,600 14.50 11.40
INDOOR AIR CFM TOTAL CAPACITY BTUH
SEER EERHigh Low High Low
COILS + 58MVP100-20 VARIABLE-SPEED FURNACE
COILS + 58MVP120-20 VARIABLE-SPEED FURNACE
11
Page 12
Combination ratings (cont.)
UNIT SIZE
037-30
See notes on pg.18.
INDOOR
SECTION
CK5PE042 1310 720 36,000 17,600 14.50 11.40 CK5PT036 1310 720 35,800 17,400 14.50 11.35 CK5PT042 1310 720 35,800 17,400 14.50 11.35
CK5PT048 1310 720 36,000 17,600 14.50 11.40 CK5PW036 1310 720 35,800 17,400 14.50 11.35 CK5PW048 1310 720 36,000 17,600 14.50 11.40
FE4ANB006 1100 660 37,000 18,000 18.00 13.15
FE4ANF002 1100 660 35,200 17,600 16.50 11.75 FE4ANF003 1100 660 35,600 17,800 17.00 12.35 FE4ANF005 1100 660 37,000 18,000 17.50 12.85
FK4DNF001 1100 660 34,600 17,600 16.00 11.60
FV4BNF002 1100 660 35,200 17,600 16.50 11.75 FV4BNF003 1100 660 35,600 17,800 17.00 12.35
FV4BNF005 1100 660 37,000 18,000 17.50 12.85 40FKB/FK4DNB006 1100 660 37,000 18,000 18.00 13.15 40FKB/FK4DNF002 1100 660 35,200 17,600 16.50 11.75 40FKB/FK4DNF003 1100 660 35,600 17,800 17.00 12.35 40FKB/FK4DNF005 1100 660 37,000 18,000 17.50 12.85
CE3AA036 1050 700 34,400 17,600 16.50 11.75
CK3BA036 1050 700 35,000 17,800 16.50 11.95 CK5A/CK5BA036 1050 700 35,000 17,800 16.50 11.90 CK5A/CK5BT036 1050 700 35,000 17,800 16.50 11.90
CK5PA036 1050 700 35,000 17,800 16.50 11.90
CK5PT036 1050 700 35,000 17,800 16.50 11.90
CC5A/CD5AA036 1050 700 35,000 17,800 16.50 12.10 CC5A/CD5AA042 1050 700 35,000 17,800 17.00 12.20 CC5A/CD5AC048 1050 700 34,600 17,600 16.50 12.10
CC5A/CD5AW036 1050 700 35,000 17,800 17.00 12.20
CD5AA048 1050 700 35,200 17,800 17.00 12.30
CE3AA036 1050 700 34,600 17,600 16.50 11.95
CE3AA042 1050 700 35,200 17,800 17.00 12.25
CE3AA048 1050 700 35,400 17,800 17.00 12.30
CK3BA036 1050 700 35,200 17,800 17.00 12.15
CK3BA042 1050 700 35,200 17,800 17.00 12.20
CK3BA048 1050 700 35,400 18,000 17.00 12.40 CK5A/CK5BA036 1050 700 35,200 17,800 17.00 12.15 CK5A/CK5BA042 1050 700 35,200 17,800 17.00 12.20 CK5A/CK5BA048 1050 700 35,400 18,000 17.00 12.35 CK5A/CK5BE042 1050 700 35,400 18,000 17.00 12.30 CK5A/CK5BT036 1050 700 35,200 17,800 17.00 12.15 CK5A/CK5BT042 1050 700 35,200 17,800 17.00 12.20 CK5A/CK5BT048 1050 700 35,400 18,000 17.00 12.35
CK5A/CK5BW036 1050 700 35,200 17,800 17.00 12.20
CK5PA036 1050 700 35,200 17,800 17.00 12.15
CK5PA042 1050 700 35,200 17,800 17.00 12.20
CK5PA048 1050 700 35,400 18,000 17.00 12.35
CK5PE042 1050 700 35,400 18,000 17.00 12.30
CK5PT036 1050 700 35,200 17,800 17.00 12.15
CK5PT042 1050 700 35,200 17,800 17.00 12.20
CK5PT048 1050 700 35,400 18,000 17.00 12.35
CK5PW036 1050 700 35,200 17,800 17.00 12.20
CC5A/CD5AA036 1050 700 35,000 17,800 16.50 12.20 CC5A/CD5AA042 1050 700 35,000 17,800 17.00 12.30 CC5A/CD5AC048 1050 700 34,600 17,600 16.50 12.25
CC5A/CD5AW036 1050 700 35,000 17,800 17.00 12.30 CC5A/CD5AW042 1050 700 35,200 17,800 17.00 12.40 CC5A/CD5AW048 1050 700 35,200 17,800 17.00 12.45
CD5AA048 1050 700 35,200 17,800 17.00 12.45
CE3AA036 1050 700 34,600 17,600 16.50 12.05
CE3AA042 1050 700 35,200 17,800 17.00 12.35
CE3AA048 1050 700 36,000 18,000 17.00 12.60
CK3BA036 1050 700 35,200 17,800 17.00 12.25
CK3BA042 1050 700 35,200 17,800 17.00 12.30
CK3BA048 1050 700 35,400 18,000 17.00 12.50 CK5A/CK5BA036 1050 700 35,200 17,800 17.00 12.25 CK5A/CK5BA042 1050 700 35,200 17,800 17.00 12.30 CK5A/CK5BA048 1050 700 35,400 18,000 17.00 12.50 CK5A/CK5BE042 1050 700 35,400 18,000 17.00 12.40 CK5A/CK5BT036 1050 700 35,200 17,800 17.00 12.25 CK5A/CK5BT042 1050 700 35,200 17,800 17.00 12.30 CK5A/CK5BT048 1050 700 35,400 18,000 17.00 12.50
CK5A/CK5BW036 1050 700 35,200 17,800 17.00 12.30 CK5A/CK5BW048 1050 700 35,600 18,000 17.00 12.55
CK5PA036 1050 700 35,200 17,800 17.00 12.25
CK5PA042 1050 700 35,200 17,800 17.00 12.30
CK5PA048 1050 700 35,400 18,000 17.00 12.50
CK5PE042 1050 700 35,400 18,000 17.00 12.40
CK5PT036 1050 700 35,200 17,800 17.00 12.25
CK5PT042 1050 700 35,200 17,800 17.00 12.30
CK5PT048 1050 700 35,400 18,000 17.00 12.50
CK5PW036 1050 700 35,200 17,800 17.00 12.30
INDOOR AIR CFM TOTAL CAPACITY BTUH
SEER EERHigh Low High Low
COILS + 58CV(A,X)070-12 VARIABLE-SPEED FURNACE
COILS + 58CV(A,X)090-16 VARIABLE-SPEED FURNACE
COILS + 58CV(A,X)110-22 VARIABLE-SPEED FURNACE
12
Page 13
Combination ratings (cont.)
UNIT SIZE
037-30
See notes on pg.18.
INDOOR
SECTION
CK5PW048 1050 700 35,600 18,000 17.00 12.55
CC5A/CD5AA042 1050 700 35,000 17,800 17.00 12.25
CC5A/CD5AC048 1050 700 34,600 17,600 16.50 12.20 CC5A/CD5AW036 1050 700 35,000 17,800 17.00 12.25 CC5A/CD5AW042 1050 700 35,200 17,800 17.00 12.40 CC5A/CD5AW048 1050 700 35,200 17,800 17.00 12.40
CD5AA048 1050 700 35,200 17,800 17.00 12.40 CE3AA036 1050 700 34,600 17,600 16.50 12.00 CE3AA042 1050 700 35,200 17,800 17.00 12.30 CE3AA048 1050 700 35,400 17,800 17.00 12.40 CK3BA036 1050 700 35,200 17,800 17.00 12.20 CK3BA042 1050 700 35,200 17,800 17.00 12.25
CK3BA048 1050 700 35,400 18,000 17.00 12.45 CK5A/CK5BA042 1050 700 35,200 17,800 17.00 12.25 CK5A/CK5BA048 1050 700 35,400 18,000 17.00 12.45 CK5A/CK5BT042 1050 700 35,200 17,800 17.00 12.25 CK5A/CK5BT048 1050 700 35,400 18,000 17.00 12.45
CK5A/CK5BW036 1050 700 35,200 17,800 17.00 12.25 CK5A/CK5BW048 1050 700 35,600 18,000 17.00 12.50
CK5PA042 1050 700 35,200 17,800 17.00 12.25
CK5PA048 1050 700 35,400 18,000 17.00 12.45
CK5PT042 1050 700 35,200 17,800 17.00 12.25
CK5PT048 1050 700 35,400 18,000 17.00 12.45
CK5PW036 1050 700 35,200 17,800 17.00 12.25 CK5PW048 1050 700 35,600 18,000 17.00 12.50
CC5A/CD5AA042 1050 700 35,000 17,800 17.00 12.35 CC5A/CD5AC048 1050 700 34,800 17,600 17.00 12.30
CC5A/CD5AW036 1050 700 35,000 17,800 17.00 12.35 CC5A/CD5AW042 1050 700 35,200 17,800 17.00 12.50 CC5A/CD5AW048 1050 700 35,200 17,800 17.00 12.50
CD5AA048 1050 700 35,200 17,800 17.00 12.50
CE3AA036 1050 700 34,600 17,600 16.50 12.05
CE3AA042 1050 700 35,400 17,800 17.00 12.40
CE3AA048 1050 700 35,400 17,800 17.00 12.50
CK3BA036 1050 700 35,200 17,800 17.00 12.30
CK3BA042 1050 700 35,200 17,800 17.00 12.35
CK3BA048 1050 700 35,600 18,000 17.00 12.60 CK5A/CK5BA042 1050 700 35,200 17,800 17.00 12.35 CK5A/CK5BA048 1050 700 35,600 18,000 17.00 12.55 CK5A/CK5BT042 1050 700 35,200 17,800 17.00 12.35 CK5A/CK5BT048 1050 700 35,600 18,000 17.00 12.55
CK5A/CK5BW036 1050 700 35,200 17,800 17.00 12.35 CK5A/CK5BW048 1050 700 35,600 18,000 17.00 12.60
CK5PA042 1050 700 35,200 17,800 17.00 12.35
CK5PA048 1050 700 35,600 18,000 17.00 12.55
CK5PT042 1050 700 35,200 17,800 17.00 12.35
CK5PT048 1050 700 35,600 18,000 17.00 12.55
CK5PW036 1050 700 35,200 17,800 17.00 12.35 CK5PW048 1050 700 35,600 18,000 17.00 12.60
CC5A/CD5AA042 1050 700 34,600 17,600 16.50 11.80 CC5A/CD5AC048 1050 700 34,200 17,600 16.50 11.75
CC5A/CD5AW036 1050 700 34,600 17,600 16.50 11.80 CC5A/CD5AW042 1050 700 34,000 17,400 16.50 11.70 CC5A/CD5AW048 1050 700 34,800 17,600 16.50 11.90
CD5AA048 1050 700 34,800 17,600 16.50 11.90
CE3AA036 1050 700 34,000 17,400 16.00 11.60
CE3AA042 1050 700 34,800 17,600 16.70 11.85
CE3AA048 1050 700 35,000 17,800 16.50 11.90
CK3BA042 1050 700 34,800 17,800 16.50 11.80
CK3BA048 1050 700 35,000 17,800 16.50 12.00 CK5A/CK5BA042 1050 700 34,800 17,800 16.50 11.80 CK5A/CK5BA048 1050 700 35,000 17,800 16.50 11.95 CK5A/CK5BT042 1050 700 34,800 17,800 16.50 11.80 CK5A/CK5BT048 1050 700 35,000 17,800 16.50 11.95
CK5A/CK5BW036 1050 700 34,800 17,800 16.50 11.80 CK5A/CK5BW048 1050 700 35,000 17,800 16.50 12.05
CK5PA042 1050 700 34,800 17,800 16.50 11.80
CK5PA048 1050 700 35,000 17,800 16.50 11.95
CK5PT042 1050 700 34,800 17,800 16.50 11.80
CK5PT048 1050 700 35,000 17,800 16.50 11.95
CK5PW036 1050 700 34,800 17,800 16.50 11.80 CK5PW048 1050 700 35,000 17,800 16.50 12.05
CC5A/CD5AA036 1050 700 34,600 17,600 16.50 11.90 CC5A/CD5AA042 1050 700 34,600 17,600 16.50 12.00 CC5A/CD5AC048 1050 700 34,400 17,600 16.50 11.90
CC5A/CD5AW036 1050 700 34,600 17,600 16.50 11.95
CD5AA048 1050 700 34,800 17,600 16.50 12.10
CE3AA036 1050 700 34,200 17,400 16.50 11.75
CE3AA042 1050 700 34,800 17,600 16.50 12.05
INDOOR AIR CFM TOTAL CAPACITY BTUH
SEER EERHigh Low High Low
COILS + 58CV(A,X)135-22 VARIABLE-SPEED FURNACE
COILS + 58CV(A,X)155-22 VARIABLE-SPEED FURNACE
COILS + 58MVP040-14 VARIABLE-SPEED FURNACE
COILS + 58MVP060-14 VARIABLE-SPEED FURNACE
13
Page 14
Combination ratings (cont.)
UNIT SIZE
037-30
See notes on pg.18.
INDOOR
SECTION
CE3AA048 1050 700 35,000 17,600 16.50 12.10 CK3BA036 1050 700 34,800 17,600 16.50 11.95 CK3BA042 1050 700 34,800 17,800 16.50 12.00
CK3BA048 1050 700 35,000 17,800 17.00 12.15 CK5A/CK5BA036 1050 700 34,800 17,800 16.50 11.90 CK5A/CK5BA042 1050 700 34,800 17,800 16.50 12.00 CK5A/CK5BA048 1050 700 35,000 17,800 17.00 12.15 CK5A/CK5BE042 1050 700 35,000 17,800 16.50 12.05 CK5A/CK5BT036 1050 700 34,800 17,800 16.50 11.90 CK5A/CK5BT042 1050 700 34,800 17,800 16.50 12.00 CK5A/CK5BT048 1050 700 35,000 17,800 17.00 12.15
CK5A/CK5BW036 1050 700 34,800 17,800 16.50 12.00
CK5PA036 1050 700 34,800 17,800 16.50 11.90
CK5PA042 1050 700 34,800 17,800 16.50 12.00
CK5PA048 1050 700 35,200 17,800 17.00 12.15
CK5PE042 1050 700 35,000 17,800 16.50 12.05
CK5PT036 1050 700 34,800 17,600 16.50 11.90
CK5PT042 1050 700 34,800 17,800 16.50 12.00
CK5PT048 1050 700 35,200 17,800 17.00 12.15
CK5PW036 1050 700 34,800 17,600 16.50 11.95
CC5A/CD5AA036 1050 700 34,400 17,600 16.50 11.70 CC5A/CD5AA042 1050 700 34,600 17,600 16.50 11.75 CC5A/CD5AC048 1050 700 34,200 17,600 16.50 11.70
CC5A/CD5AW036 1050 700 34,600 17,600 16.50 11.75 CC5A/CD5AW042 1050 700 34,000 17,400 16.50 11.65 CC5A/CD5AW048 1050 700 34,600 17,600 16.50 11.90
CD5AA048 1050 700 34,800 17,600 16.50 11.90
CE3AA036 1050 700 34,000 17,400 16.00 11.55
CE3AA042 1050 700 34,800 17,600 16.50 11.80
CE3AA048 1050 700 34,800 17,800 16.50 11.85
CK3BA036 1050 700 34,600 17,800 16.50 11.70
CK3BA042 1050 700 34,600 17,800 16.50 11.75
CK3BA048 1050 700 35,000 17,800 16.50 11.95 CK5A/CK5BA036 1050 700 34,600 17,800 16.50 11.70 CK5A/CK5BA042 1050 700 34,600 17,800 16.50 11.75 CK5A/CK5BA048 1050 700 35,000 17,800 16.50 11.95 CK5A/CK5BE042 1050 700 35,000 17,800 16.50 11.85 CK5A/CK5BT036 1050 700 34,600 17,800 16.50 11.70 CK5A/CK5BT042 1050 700 34,600 17,800 16.50 11.75 CK5A/CK5BT048 1050 700 35,000 17,800 16.50 11.95
CK5A/CK5BW036 1050 700 34,600 17,800 16.50 11.75 CK5A/CK5BW048 1050 700 35,000 17,800 16.50 12.00
CK5PA036 1050 700 34,600 17,800 16.50 11.70
CK5PA042 1050 700 34,600 17,800 16.50 11.75
CK5PA048 1050 700 35,000 17,800 16.50 11.95
CK5PE042 1050 700 35,000 17,800 16.50 11.85
CK5PT036 1050 700 34,600 17,800 16.50 11.70
CK5PT042 1050 700 34,600 17,800 16.50 11.75
CK5PT048 1050 700 35,000 17,800 16.50 11.95
CK5PW036 1050 700 34,600 17,800 16.50 11.75 CK5PW048 1050 700 35,000 17,800 16.50 12.00
CC5A/CD5AA036 1050 700 34,600 17,600 16.50 11.85 CC5A/CD5AA042 1050 700 34,600 17,600 16.50 11.95 CC5A/CD5AC048 1050 700 34,200 17,600 16.50 11.85
CC5A/CD5AW036 1050 700 34,600 17,600 16.50 11.90 CC5A/CD5AW042 1050 700 34,200 17,600 16.50 11.80 CC5A/CD5AW048 1050 700 34,800 17,600 16.50 12.00
CD5AA048 1050 700 34,800 17,600 16.50 12.00
CE3AA036 1050 700 34,200 17,400 16.00 11.70
CE3AA042 1050 700 34,800 17,600 16.50 12.00
CE3AA048 1050 700 35,000 17,800 16.50 12.05
CK3BA036 1050 700 34,800 17,800 16.50 11.90
CK3BA042 1050 700 34,800 17,800 16.50 11.95
CK3BA048 1050 700 35,000 17,800 17.00 12.10 CK5A/CK5BA036 1050 700 34,800 17,800 16.50 11.90 CK5A/CK5BA042 1050 700 34,800 17,800 16.50 11.95 CK5A/CK5BA048 1050 700 35,000 17,800 16.50 12.10 CK5A/CK5BE042 1050 700 35,000 17,800 16.50 12.05 CK5A/CK5BT036 1050 700 34,800 17,800 16.50 11.90 CK5A/CK5BT042 1050 700 34,800 17,800 16.50 11.95 CK5A/CK5BT048 1050 700 35,000 17,800 16.50 12.10
CK5A/CK5BW036 1050 700 34,800 17,800 16.50 11.95 CK5A/CK5BW048 1050 700 35,200 17,800 17.00 12.10
CK5PA036 1050 700 34,800 17,800 16.50 11.90
CK5PA042 1050 700 34,800 17,800 16.50 11.95
CK5PA048 1050 700 35,200 17,800 16.50 12.10
CK5PE042 1050 700 35,000 17,800 16.50 12.05
CK5PT036 1050 700 34,800 17,800 16.50 11.90
CK5PT042 1050 700 34,800 17,800 16.50 11.95
CK5PT048 1050 700 35,200 17,800 16.50 12.10
CK5PW036 1050 700 34,800 17,800 16.50 11.95 CK5PW048 1050 700 35,200 17,800 17.00 12.10
INDOOR AIR CFM TOTAL CAPACITY BTUH
SEER EERHigh Low High Low
COILS + 58MVP080-14 VARIABLE-SPEED FURNACE
COILS + 58MVP080-20 VARIABLE-SPEED FURNACE
14
Page 15
Combination ratings (cont.)
UNIT SIZE
037-30
048-30
See notes on pg.18.
INDOOR
SECTION
CC5A/CD5AA036 1050 700 34,600 17,600 16.50 11.90 CC5A/CD5AA042 1050 700 34,800 17,600 16.50 12.00
CC5A/CD5AC048 1050 700 34,400 17,600 16.50 11.90 CC5A/CD5AW036 1050 700 34,800 17,600 16.50 11.95 CC5A/CD5AW042 1050 700 34,200 17,600 16.50 11.85 CC5A/CD5AW048 1050 700 34,800 17,800 16.50 12.10
CD5AA048 1050 700 34,800 17,800 16.50 12.10 CE3AA036 1050 700 34,200 17,400 16.50 11.75 CE3AA042 1050 700 35,000 17,800 16.50 12.05 CE3AA048 1050 700 35,200 17,800 16.50 12.10 CK3BA036 1050 700 34,800 17,800 16.50 11.95 CK3BA042 1050 700 34,800 17,800 16.50 12.00
CK3BA048 1050 700 35,200 17,800 17.00 12.15 CK5A/CK5BA036 1050 700 34,800 17,800 16.50 11.95 CK5A/CK5BA042 1050 700 34,800 17,800 16.50 12.00 CK5A/CK5BA048 1050 700 35,200 17,800 17.00 12.15 CK5A/CK5BE042 1050 700 35,200 17,800 16.50 12.05 CK5A/CK5BT036 1050 700 34,800 17,800 16.50 11.95 CK5A/CK5BT042 1050 700 34,800 17,800 16.50 12.00 CK5A/CK5BT048 1050 700 35,200 17,800 17.00 12.15
CK5A/CK5BW036 1050 700 34,800 17,800 16.50 12.00 CK5A/CK5BW048 1050 700 35,200 17,800 17.00 12.20
CK5PA036 1050 700 34,800 17,800 16.50 11.95
CK5PA042 1050 700 34,800 17,800 16.50 12.00
CK5PA048 1050 700 35,200 17,800 17.00 12.15
CK5PE042 1050 700 35,000 17,800 16.50 12.10
CK5PT036 1050 700 34,800 17,800 16.50 11.95
CK5PT042 1050 700 34,800 17,800 16.50 12.00
CK5PT048 1050 700 35,200 17,800 17.00 12.15
CK5PW036 1050 700 34,800 17,800 16.50 12.00 CK5PW048 1050 700 35,200 17,800 17.00 12.20
CC5A/CD5AA042 1050 700 34,600 17,600 16.50 12.05 CC5A/CD5AC048 1050 700 34,200 17,400 16.50 11.95
CC5A/CD5AW036 1050 700 34,600 17,600 16.50 12.00 CC5A/CD5AW042 1050 700 34,200 17,400 16.50 11.95 CC5A/CD5AW048 1050 700 34,800 17,600 16.50 12.15
CD5AA048 1050 700 34,800 17,600 16.50 12.15
CE3AA036 1050 700 34,200 17,400 16.50 11.80
CE3AA042 1050 700 34,800 17,600 16.50 12.05
CE3AA048 1050 700 35,000 17,600 16.50 12.15
CK3BA042 1050 700 34,800 17,600 16.50 12.00
CK3BA048 1050 700 35,000 17,800 17.00 12.20 CK5A/CK5BA042 1050 700 34,800 17,600 16.50 12.05 CK5A/CK5BA048 1050 700 35,000 17,800 17.00 12.20 CK5A/CK5BT042 1050 700 34,800 17,600 16.50 12.05 CK5A/CK5BT048 1050 700 35,000 17,800 17.00 12.20
CK5A/CK5BW036 1050 700 34,800 17,600 16.50 12.05 CK5A/CK5BW048 1050 700 35,200 17,800 17.00 12.25
CK5PA042 1050 700 34,800 17,600 16.50 12.05
CK5PA048 1050 700 35,200 17,800 17.00 12.20
CK5PT042 1050 700 34,800 17,600 16.50 12.05
CK5PT048 1050 700 35,200 17,800 17.00 12.20
CK5PW036 1050 700 34,800 17,600 16.50 12.05 CK5PW048 1050 700 35,200 17,800 17.00 12.25
*FV4BNB006 1470 880 47,500 26,000 15.00 11.55 CC5A/CD5AA060 1700 985 45,500 26,000 13.00 10.30 CC5A/CD5AA060 1700 985 45,500 26,000 13.00 10.30 CC5A/CD5AC048 1665 985 44,500 25,800 12.50 10.15
CC5A/CD5AW048 1700 985 45,500 26,000 13.00 10.30 CC5A/CD5AW060 1740 985 46,500 26,000 13.00 10.50
CD5AA048 1700 985 45,500 26,000 13.00 10.30 CE3AA048 1700 985 45,500 26,000 13.00 10.30 CE3AA060 1740 985 46,500 26,000 13.00 10.50 CK3BA048 1700 985 45,500 26,000 13.00 10.30
CK3BA060 1740 985 46,500 26,000 13.00 10.50 CK5A/CK5BA048 1700 985 45,500 26,000 13.00 10.30 CK5A/CK5BA060 1740 985 46,500 26,000 13.00 10.50 CK5A/CK5BT048 1700 985 45,500 26,000 13.00 10.30 CK5A/CK5BT060 1740 985 46,500 26,000 13.00 10.50
CK5A/CK5BW048 1700 985 45,500 26,000 13.00 10.30
CK5A/CK5BX060 1750 985 47,500 26,000 13.45 10.60
CK5PA048 1700 985 45,500 26,000 13.00 10.30
CK5PA060 1740 985 46,500 26,000 13.00 10.50
CK5PT048 1700 985 45,500 26,000 13.00 10.30
CK5PT060 1740 985 46,500 26,000 13.00 10.50
CK5PW048 1700 985 45,500 26,000 13.00 10.30
CK5PX060 1750 985 47,500 26,000 13.45 10.60
FE4ANB006 1470 880 47,500 26,000 15.00 11.55 FE4ANF005 1470 880 47,000 26,000 15.00 11.15
FV4BNF005 1470 880 47,000 26,000 15.00 11.15 40FKB/FK4DNB006 1470 880 47,500 26,000 15.00 11.55 40FKB/FK4DNF005 1470 880 47,000 26,000 15.00 11.15
INDOOR AIR CFM TOTAL CAPACITY BTUH
SEER EERHigh Low High Low
COILS + 58MVP100-20 VARIABLE-SPEED FURNACE
COILS + 58MVP120-20 VARIABLE-SPEED FURNACE
15
Page 16
Combination ratings (cont.)
UNIT SIZE
048-30
See notes on pg.18.
INDOOR
SECTION
CC5A/CD5AC048 1400 875 43,500 25,800 14.50 10.60
CD5AA048 1400 875 44,500 26,000 14.50 10.80 CE3AA048 1400 875 44,500 26,000 14.50 10.75
CK3BA048 1400 875 44,500 26,000 14.50 10.80 CK5A/CK5BA048 1400 875 44,500 26,000 14.50 10.80 CK5A/CK5BT048 1400 875 44,500 26,000 14.50 10.80
CK5PA048 1400 875 44,500 26,000 14.50 10.80
CK5PT048 1400 875 44,500 26,000 14.50 10.80
CC5A/CD5AA060 1400 875 44,500 26,000 14.50 11.05 CC5A/CD5AC048 1400 875 44,000 25,800 14.50 10.85
CC5A/CD5AW048 1400 875 44,500 26,000 14.50 11.05
CD5AA048 1400 875 44,500 26,000 14.50 11.00
CE3AA048 1400 875 44,500 26,000 14.50 10.95
CE3AA060 1400 875 46,000 26,000 15.00 11.30
CK3BA048 1400 875 44,500 26,000 14.50 11.05
CK3BA060 1400 875 46,000 26,000 15.00 11.35 CK5A/CK5BA048 1400 875 44,500 26,000 14.50 11.00 CK5A/CK5BA060 1400 875 46,000 26,000 15.00 11.35 CK5A/CK5BT048 1400 875 44,500 26,000 14.50 11.00 CK5A/CK5BT060 1400 875 46,000 26,000 15.00 11.35
CK5A/CK5BW048 1400 875 45,000 26,000 14.50 11.10
CK5A/CK5BX060 1400 875 46,000 26,000 15.00 11.45
CK5PA048 1400 875 44,500 26,000 14.50 11.00
CK5PA060 1400 875 46,000 26,000 15.00 11.35
CK5PT048 1400 875 44,500 26,000 14.50 11.00
CK5PT060 1400 875 46,000 26,000 15.00 11.35
CK5PW048 1400 875 45,000 26,000 14.50 11.10
CK5PX060 1400 875 46,000 26,000 15.00 11.45
CC5A/CD5AA060 1400 875 44,500 26,000 14.50 11.00 CC5A/CD5AC048 1400 875 44,000 25,800 14.50 10.80
CC5A/CD5AW048 1400 875 44,500 26,000 14.80 11.00 CC5A/CD5AW060 1400 875 46,000 26,000 15.00 11.30
CD5AA048 1400 875 44,500 26,000 14.50 10.95
CE3AA048 1400 875 44,500 26,000 14.50 10.90
CE3AA060 1400 875 46,000 26,000 15.00 11.25
CK3BA048 1400 875 44,500 26,000 14.50 11.00
CK3BA060 1400 875 46,000 26,000 15.00 11.30 CK5A/CK5BA048 1400 875 44,500 26,000 14.50 10.95 CK5A/CK5BA060 1400 875 46,000 26,000 15.00 11.30 CK5A/CK5BT048 1400 875 44,500 26,000 14.50 10.95 CK5A/CK5BT060 1400 875 46,000 26,000 15.00 11.30
CK5A/CK5BW048 1400 875 45,000 26,000 14.50 11.05
CK5A/CK5BX060 1400 875 46,000 26,000 15.00 11.40
CK5PA048 1400 875 44,500 26,000 14.50 10.95
CK5PA060 1400 875 46,000 26,000 15.00 11.30
CK5PT048 1400 875 44,500 26,000 14.50 10.95
CK5PT060 1400 875 46,000 26,000 15.00 11.30
CK5PW048 1400 875 45,000 26,000 14.50 11.05
CK5PX060 1400 875 46,000 26,000 15.00 11.40
CC5A/CD5AA060 1400 875 44,500 26,000 14.50 11.10 CC5A/CD5AC048 1400 875 44,000 25,800 14.50 10.85
CC5A/CD5AW048 1400 875 44,500 26,000 14.50 11.10 CC5A/CD5AW060 1400 875 46,000 26,000 15.00 11.35
CD5AA048 1400 875 44,500 26,000 14.50 11.05
CE3AA048 1400 875 44,500 26,000 14.50 11.00
CE3AA060 1400 875 46,000 26,000 15.00 11.35
CK3BA048 1400 875 45,000 26,000 15.00 11.10
CK3BA060 1400 875 46,000 26,000 15.00 11.35 CK5A/CK5BA048 1400 875 45,000 26,000 15.00 11.05 CK5A/CK5BA060 1400 875 46,000 26,000 15.00 11.40 CK5A/CK5BT048 1400 875 45,000 26,000 15.00 11.05 CK5A/CK5BT060 1400 875 46,000 26,000 15.00 11.40
CK5A/CK5BW048 1400 875 45,000 26,000 15.00 11.15
CK5A/CK5BX060 1400 875 46,500 26,000 15.00 11.50
CK5PA048 1400 875 45,000 26,000 15.00 11.05
CK5PA060 1400 875 46,000 26,000 15.00 11.35
CK5PT048 1400 875 45,000 26,000 15.00 11.05
CK5PT060 1400 875 46,000 26,000 15.00 11.40
CK5PW048 1400 875 45,000 26,000 15.00 11.15
CK5PX060 1400 875 46,500 26,000 15.00 11.50
CC5A/CD5AA060 1400 875 44,000 25,800 14.00 10.60 CC5A/CD5AC048 1400 875 43,000 25,600 13.50 10.40
CC5A/CD5AW048 1400 875 44,000 25,800 14.00 10.55
CD5AA048 1400 875 44,000 25,800 14.00 10.55
CD5PX060 1400 875 46,000 26,000 14.50 10.90
CE3AA048 1400 875 44,500 26,000 14.00 10.55
INDOOR AIR CFM TOTAL CAPACITY BTUH
SEER EERHigh Low High Low
COILS + 58CV(A,X)090-16 VARIABLE-SPEED FURNACE
COILS + 58CV(A,X)110-22 VARIABLE-SPEED FURNACE
COILS + 58CV(A,X)135-22 VARIABLE-SPEED FURNACE
COILS + 58CV(A,X)155-22 VARIABLE-SPEED FURNACE
COILS + 58MVP080-20 VARIABLE-SPEED FURNACE
16
Page 17
Combination ratings (cont.)
UNIT SIZE
048-30
060-31
See notes on pg.18.
INDOOR
SECTION
CE3AA060 1400 875 45,500 26,000 14.50 10.85 CK3BA048 1400 875 44,000 26,000 14.00 10.60
CK3BA060 1400 875 45,500 26,000 14.50 10.80 CK5A/CK5BA048 1400 875 44,000 26,000 14.00 10.55 CK5A/CK5BA060 1400 875 45,500 26,000 14.50 10.80 CK5A/CK5BT048 1400 875 44,000 26,000 14.00 10.55 CK5A/CK5BT060 1400 875 45,500 26,000 14.50 10.80
CK5A/CK5BW048 1400 875 44,000 26,000 14.00 10.65
CK5A/CK5BX060 1400 875 46,000 26,000 14.50 10.95
CK5PA048 1400 875 44,000 26,000 14.00 10.55
CK5PA060 1400 875 45,500 26,000 14.50 10.80
CK5PT048 1400 875 44,000 26,000 14.00 10.55
CK5PT060 1400 875 45,500 26,000 14.50 10.80
CK5PW048 1400 875 44,000 26,000 14.00 10.65
CK5PX060 1400 875 46,000 26,000 14.50 10.95
CC5A/CD5AA060 1400 875 44,000 25,800 14.00 10.65 CC5A/CD5AC048 1400 875 43,500 25,600 14.00 10.45
CC5A/CD5AW048 1400 875 44,000 25,800 14.00 10.65
CD5AA048 1400 875 44,000 25,800 14.00 10.60
CD5PX060 1400 875 46,000 26,000 14.50 10.95
CE3AA048 1400 875 44,500 26,000 14.00 10.65
CE3AA060 1400 875 45,500 26,000 14.50 10.90
CK3BA048 1400 875 44,500 26,000 14.00 10.65
CK3BA060 1400 875 45,500 26,000 14.50 10.90 CK5A/CK5BA048 1400 875 44,500 26,000 14.00 10.65 CK5A/CK5BA060 1400 875 45,500 26,000 14.50 10.90 CK5A/CK5BT048 1400 875 44,500 26,000 14.00 10.65 CK5A/CK5BT060 1400 875 45,500 26,000 14.50 10.90
CK5A/CK5BW048 1400 875 44,500 26,000 14.00 10.70
CK5A/CK5BX060 1400 875 46,000 26,000 14.50 11.00
CK5PA048 1400 875 44,500 26,000 14.00 10.65
CK5PA060 1400 875 45,500 26,000 14.50 10.90
CK5PT048 1400 875 44,500 26,000 14.00 10.65
CK5PT060 1400 875 45,500 26,000 14.50 10.90
CK5PW048 1400 875 44,500 26,000 14.00 10.70
CK5PX060 1400 875 46,000 26,000 14.50 11.00
CC5A/CD5AA060 1400 875 44,000 25,800 14.00 10.70 CC5A/CD5AC048 1400 875 43,500 25,400 14.00 10.50
CC5A/CD5AW048 1400 875 44,000 25,800 14.00 10.65
CD5AA048 1400 875 44,000 25,800 14.00 10.65
CD5PX060 1400 875 46,000 26,000 14.50 11.00
CE3AA048 1400 875 44,500 26,000 14.00 10.65
CE3AA060 1400 875 45,500 26,000 14.50 10.95
CK3BA048 1400 875 44,000 26,000 14.00 10.70
CK3BA060 1400 875 45,500 26,000 14.50 10.95 CK5A/CK5BA048 1400 875 44,000 26,000 14.00 10.65 CK5A/CK5BA060 1400 875 45,500 26,000 14.50 10.95 CK5A/CK5BT048 1400 875 44,000 26,000 14.00 10.65 CK5A/CK5BT060 1400 875 45,500 26,000 14.50 10.95
CK5A/CK5BW048 1400 875 44,500 26,000 14.00 10.75
CK5A/CK5BX060 1400 875 46,000 26,000 14.50 11.05
CK5PA048 1400 875 44,000 26,000 14.00 10.65
CK5PA060 1400 875 45,500 26,000 14.50 10.95
CK5PT048 1400 875 44,000 26,000 14.00 10.65
CK5PT060 1400 875 45,500 26,000 14.50 10.95
CK5PW048 1400 875 44,500 26,000 14.00 10.75
CK5PX060 1400 875 46,000 26,000 14.50 11.05
*FV4BNB006 1835 1100 60,000 30,000 15.00 10.55
CC5A/CD5AA060 2250 1185 58,000 28,400 13.00 9.95
CC5A/CD5AW060 2175 1185 59,500 28,800 13.00 9.95
CE3AA060 2250 1185 60,000 29,200 13.00 10.00
CK3BA060 2175 1185 58,500 29,000 13.00 9.80 CK5A/CK5BA060 2175 1185 58,500 29,000 13.00 9.85 CK5A/CK5BT060 2175 1185 58,500 29,000 13.00 9.80 CK5A/CK5BX060 2250 1185 60,000 29,400 13.20 10.00
CK5PA060 2175 1185 58,500 29,000 13.00 9.85
CK5PT060 2175 1185 58,500 29,000 13.00 9.85
CK5PX060 2250 1185 60,000 29,400 13.20 10.00
FE4ANB006 1835 1100 60,000 30,000 15.00 10.55
40FKB/FK4DNB006 1835 1100 60,000 30,000 15.00 10.55
CE3AA060 1750 1050 58,500 29,200 14.50 10.45
CK3BA060 1750 1050 58,000 29,400 14.50 10.40 CK5A/CK5BA060 1750 1050 58,000 29,400 14.50 10.40 CK5A/CK5BT060 1750 1050 58,000 29,400 14.50 10.40 CK5A/CK5BX060 1750 1050 59,000 29,600 15.00 10.55
CK5PA060 1750 1050 58,000 29,400 14.50 10.40
CK5PT060 1750 1050 58,000 29,400 14.50 10.40
CK5PX060 1750 1050 59,000 29,600 15.00 10.55
CC5A/CD5AA060 1750 1050 58,000 29,200 14.50 10.30
CC5A/CD5AW060 1750 1050 58,000 29,200 14.50 10.40
INDOOR AIR CFM TOTAL CAPACITY BTUH
SEER EERHigh Low High Low
COILS + 58MVP100-20 VARIABLE-SPEED FURNACE
COILS + 58MVP120-20 VARIABLE-SPEED FURNACE
COILS + 58CV(A,X)110-22 VARIABLE-SPEED FURNACE
COILS + 58CV(A,X)135-22 VARIABLE-SPEED FURNACE
17
Page 18
Combination ratings (cont.)
UNIT SIZE
060-31
INDOOR
SECTION
CE3AA060 1750 1050 58,500 29,200 14.50 10.40
CK3BA060 1750 1050 58,000 29,400 14.50 10.35 CK5A/CK5BA060 1750 1050 58,000 29,400 14.50 10.40 CK5A/CK5BT060 1750 1050 58,000 29,400 14.50 10.40 CK5A/CK5BX060 1750 1050 59,000 29,600 15.00 10.50
CK5PA060 1750 1050 58,000 29,400 14.50 10.40
CK5PT060 1750 1050 58,000 29,400 14.50 10.40
CK5PX060 1750 1050 59,000 29,600 15.00 10.50
CC5A/CD5AA060 1750 1050 58,000 29,200 14.50 10.40
CC5A/CD5AW060 1750 1050 58,000 29,200 14.50 10.45
CE3AA060 1750 1050 58,500 29,200 14.50 10.50
CK3BA060 1750 1050 58,000 29,400 14.50 10.45 CK5A/CK5BA060 1750 1050 58,000 29,400 14.50 10.45 CK5A/CK5BT060 1750 1050 58,000 29,400 14.50 10.45 CK5A/CK5BX060 1750 1050 59,500 29,600 15.00 10.60
CK5PA060 1750 1050 58,000 29,400 14.50 10.45
CK5PT060 1750 1050 58,000 29,400 14.50 10.45
CK5PX060 1750 1050 59,500 29,600 15.00 10.60
CC5A/CD5AA060 1750 1050 55,500 28,200 13.50 9.45
CD5PX060 1750 1050 58,000 29,200 14.00 9.75
CE3AA060 1750 1050 57,500 29,000 14.00 9.75
CK3BA060 1750 1050 57,000 29,000 14.00 9.70 CK5A/CK5BA060 1750 1050 57,000 29,000 14.00 9.70 CK5A/CK5BT060 1750 1050 57,000 29,000 14.00 9.70 CK5A/CK5BX060 1750 1050 58,000 29,200 14.00 9.80
CK5PA060 1750 1050 57,000 29,000 14.00 9.70
CK5PT060 1750 1050 57,000 29,000 14.00 9.70
CK5PX060 1750 1050 58,000 29,200 14.00 9.80
CC5A/CD5AA060 1750 1050 55,500 28,200 13.50 9.55
CD5PX060 1750 1050 58,000 29,200 14.00 9.85
CE3AA060 1750 1050 57,500 29,000 14.00 9.85
CK3BA060 1750 1050 57,000 29,000 14.00 9.80 CK5A/CK5BA060 1750 1050 57,000 29,000 14.00 9.85 CK5A/CK5BT060 1750 1050 57,000 29,000 14.00 9.85 CK5A/CK5BX060 1750 1050 58,500 29,400 14.00 9.95
CK5PA060 1750 1050 57,000 29,000 14.00 9.85
CK5PT060 1750 1050 57,000 29,000 14.00 9.85
CK5PX060 1750 1050 58,500 29,400 14.00 9.95
CC5A/CD5AA060 1750 1050 55,500 28,200 13.50 9.65
CD5PX060 1750 1050 58,000 29,200 14.00 9.95
CE3AA060 1750 1050 57,500 29,000 14.00 9.95
CK3BA060 1750 1050 57,000 29,000 14.00 9.90 CK5A/CK5BA060 1750 1050 57,000 29,000 14.00 9.90 CK5A/CK5BT060 1750 1050 57,000 29,000 14.00 9.90 CK5A/CK5BX060 1750 1050 58,500 29,200 14.00 10.05
CK5PA060 1750 1050 57,000 29,000 14.00 9.90
CK5PT060 1750 1050 57,000 29,000 14.00 9.90
CK5PX060 1750 1050 58,500 29,200 14.00 10.05
INDOOR AIR CFM TOTAL CAPACITY BTUH
SEER EERHigh Low High Low
COILS + 58CV(A,X)155-22 VARIABLE-SPEED FURNACE
COILS + 58MVP080-20 VARIABLE-SPEED FURNACE
COILS + 58MVP100-20 VARIABLE-SPEED FURNACE
COILS + 58MVP120-20 VARIABLE-SPEED FURNACE
* Tested combination.
EER — Energy Efficiency Ratio SEER — Seasonal Energy Efficiency Ratio NOTES: 1. Ratings are net values reflecting the effects of circulating fan motor heat. Supplemental electric heat is not included.
2. Tested outdoor/indoor combinations have been tested in accordance with DOE test procedures for central air conditioners. Ratings for other combinations are determined under DOE computer simulation procedures.
3. Determine actual CFM values obtainable for your system by referring to fan performance data in fan coil or furnace coil literature.
4. Application of capillary tube coils is not recommended.
18
Page 19
Detailed cooling capacities*
EVAPORATOR
AIR
CFM EWB
75 85 95 105 115 125
Capacity
MBtuh†
Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡
Total
System
kW**
Capacity
MBtuh†
CONDENSER ENTERING AIR TEMPERATURES °F
Tot al
System
kW**
Capacity
MBtuh†
Tot al
System
kW**
Capacity
MBtuh†
Total
System
kW**
Capacity
MBtuh†
Total
System
kW**
38TDB024-30 Outdoor Section With FV4BNF003 Indoor Section - High Speed
72 29.76 14.87 1.78 27.81 14.05 1.91 25.82 13.24 2.04 23.82 12.45 2.16 21.77 11.66 2.28 19.62 10.86 2.39 67 26.74 17.46 1.74 24.91 16.63 1.86 23.07 15.82 1.98 21.24 15.03 2.10 19.34 14.23 2.21 17.40 13.43 2.31
600
63†† 24.54 16.81 1.71 22.83 15.98 1.82 21.11 15.18 1.94 19.35 14.36 2.05 17.58 13.57 2.14 15.79 12.79 2.24
62 23.95 20.00 1.70 22.24 19.17 1.81 20.53 18.34 1.92 18.82 17.50 2.03 17.10 16.62 2.13 15.50 15.50 2.22 57 21.78 21.78 1.66 20.56 20.56 1.78 19.33 19.33 1.89 18.08 18.08 2.01 16.81 16.81 2.12 15.50 15.50 2.22 72 30.82 15.67 1.83 28.72 14.82 1.96 26.61 13.99 2.09 24.49 13.18 2.22 22.30 12.36 2.34 20.03 11.53 2.45 67 27.70 18.67 1.79 25.75 17.82 1.91 23.81 16.98 2.03 21.84 16.16 2.15 19.83 15.33 2.26 17.78 14.51 2.36
700
63†† 25.44 17.96 1.76 23.63 17.11 1.87 21.78 16.27 1.99 19.90 15.43 2.10 18.03 14.61 2.20 16.14 13.80 2.29
62 24.81 21.62 1.75 22.99 20.73 1.86 21.20 19.84 1.98 19.38 18.88 2.09 17.69 17.69 2.19 16.27 16.27 2.30 57 23.08 23.08 1.72 21.77 21.77 1.84 20.43 20.43 1.96 19.07 19.07 2.08 17.69 17.69 2.19 16.28 16.28 2.30 72 31.61 16.39 1.87 29.41 15.52 2.01 27.21 14.68 2.14 24.96 13.84 2.27 22.68 13.00 2.38 20.33 12.15 2.50 67 28.43 19.79 1.83 26.40 18.92 1.96 24.35 18.06 2.08 22.28 17.21 2.20 20.18 16.37 2.31 18.05 15.51 2.41
800
63†† 26.14 19.02 1.80 24.22 18.15 1.92 22.27 17.28 2.04 20.32 16.42 2.15 18.37 15.58 2.25 16.38 14.70 2.34
62 25.47 23.09 1.79 23.60 22.15 1.91 21.71 21.13 2.02 19.90 19.90 2.14 18.41 18.41 2.25 16.89 16.89 2.36 57 24.18 24.18 1.77 22.76 22.76 1.89 21.35 21.35 2.02 19.90 19.90 2.14 18.42 18.42 2.25 16.90 16.90 2.36 72 32.25 17.07 1.91 30.00 16.20 2.05 27.67 15.33 2.18 25.33 14.47 2.31 22.98 13.62 2.43 20.55 12.76 2.55 67 29.04 20.87 1.88 26.93 19.98 2.00 24.77 19.10 2.13 22.62 18.23 2.25 20.46 17.36 2.36 18.24 16.44 2.46
900
63†† 26.72 20.05 1.84 24.69 19.14 1.96 22.67 18.26 2.08 20.66 17.39 2.19 18.60 16.48 2.30 16.57 15.54 2.39
62 26.04 24.47 1.84 24.09 23.42 1.95 22.19 22.19 2.07 20.63 20.63 2.20 19.06 19.06 2.31 17.43 17.43 2.43 57 25.15 25.15 1.82 23.68 23.68 1.95 22.16 22.16 2.07 20.64 20.64 2.20 19.06 19.06 2.31 17.44 17.44 2.43
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
CC5A/CD5AA 024 0.98 1.12
030 1.00 1.12 CC5A/CD5AA 024 0.96 1.02 036 1.00 1.13 030 0.98 1.02
CC5A/CD5AW 024 0.98 1.12 036 1.00 1.02
030 1.00 1.12 CC5A/CD5AW 024 0.97 1.02 036 1.00 1.13 030 0.98 1.02
CE3AA 024 0.99 1.12 CE3AA 024 0.98 1.03
030 1.00 1.13 030 0.99 1.03 036 1.00 1.14 036 1.00 1.03
CF5AA 024 0.99 1.12 CK3BA 024 0.98 1.02
036 1.00 1.13 030 0.99 1.02
CK3BA 024 1.00 1.12 036 1.00 1.01
030 1.00 1.13 CK5A/CK5BA 024 1.00 1.02 036 1.00 1.13 030 1.00 1.02
CK5A/CK5BA 024 1.00 1.12 036 1.00 1.01
030 1.00 1.13 CK5A/CK5BT 036 1.00 1.01 036 1.00 1.14 CK5A/CK5BW 024 1.00 1.02
CK5A/CK5BT 036 1.00 1.14 030 1.00 1.02
CK5A/CK5BW 024 1.00 1.12 CK5PA 024 1.00 1.02
030 1.00 1.13 030 1.00 1.02 036 1.00 1.14 036 1.00 1.01
CK5PA 024 1.00 1.12 CK5PT 036 1.00 1.01
030 1.00 1.13 CK5PW 024 1.00 1.02 036 1.00 1.14 030 1.00 1.02
CK5PT 036 1.00 1.14
CK5PW 024 1.00 1.12 CC5A/CD5AA 024 0.97 1.02
030 1.00 1.13 030 0.98 1.02 036 1.00 1.14 036 1.00 1.01
FE4ANF 002 1.00 1.01 CC5A/CD5AW 024 0.97 1.01
003 1.00 1.00 030 0.98 1.02
FK4DNF 001 1.00 1.01 036 1.00 1.01 FV4BNF 002 1.00 1.01 CE3AA 024 0.98 1.02
003 1.00 1.00 030 0.99 1.02
40FKB/FK4DNF 002 1.00 1.01 036 1.00 1.02
003 1.00 1.00 —— —
High Speed
Capacity Power Capacity Power
Indoor
Section Size
COILS + 58CV(A,X)070-12 VARIABLE SPEED FURNACE
COILS + 58CV(A,X)090-16 VARIABLE SPEED FURNACE
See notes on pg. 55.
High Speed
Capacity
MBtuh†
Total
System
kW**
19
Page 20
Detailed cooling capacities*
EVAPORATOR
AIR
CFM EWB
75 85 95 105 115 125
Capacity
MBtuh†
Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡
Total
System
kW**
Capacity
MBtuh†
CONDENSER ENTERING AIR TEMPERATURES °F
Total
System
kW**
Capacity
MBtuh†
Tot al
System
kW**
Capacity
MBtuh†
Total
System
kW**
Capacity
MBtuh†
Total
System
kW**
38TDB024-30 Outdoor Section With FV4BNF003 Indoor Section - High Speed continued
72 29.76 14.87 1.78 27.81 14.05 1.91 25.82 13.24 2.04 23.82 12.45 2.16 21.77 11.66 2.28 19.62 10.86 2.39 67 26.74 17.46 1.74 24.91 16.63 1.86 23.07 15.82 1.98 21.24 15.03 2.10 19.34 14.23 2.21 17.40 13.43 2.31
600
63†† 24.54 16.81 1.71 22.83 15.98 1.82 21.11 15.18 1.94 19.35 14.36 2.05 17.58 13.57 2.14 15.79 12.79 2.24
62 23.95 20.00 1.70 22.24 19.17 1.81 20.53 18.34 1.92 18.82 17.50 2.03 17.10 16.62 2.13 15.50 15.50 2.22 57 21.78 21.78 1.66 20.56 20.56 1.78 19.33 19.33 1.89 18.08 18.08 2.01 16.81 16.81 2.12 15.50 15.50 2.22 72 30.82 15.67 1.83 28.72 14.82 1.96 26.61 13.99 2.09 24.49 13.18 2.22 22.30 12.36 2.34 20.03 11.53 2.45 67 27.70 18.67 1.79 25.75 17.82 1.91 23.81 16.98 2.03 21.84 16.16 2.15 19.83 15.33 2.26 17.78 14.51 2.36
700
63†† 25.44 17.96 1.76 23.63 17.11 1.87 21.78 16.27 1.99 19.90 15.43 2.10 18.03 14.61 2.20 16.14 13.80 2.29
62 24.81 21.62 1.75 22.99 20.73 1.86 21.20 19.84 1.98 19.38 18.88 2.09 17.69 17.69 2.19 16.27 16.27 2.30 57 23.08 23.08 1.72 21.77 21.77 1.84 20.43 20.43 1.96 19.07 19.07 2.08 17.69 17.69 2.19 16.28 16.28 2.30 72 31.61 16.39 1.87 29.41 15.52 2.01 27.21 14.68 2.14 24.96 13.84 2.27 22.68 13.00 2.38 20.33 12.15 2.50 67 28.43 19.79 1.83 26.40 18.92 1.96 24.35 18.06 2.08 22.28 17.21 2.20 20.18 16.37 2.31 18.05 15.51 2.41
800
63†† 26.14 19.02 1.80 24.22 18.15 1.92 22.27 17.28 2.04 20.32 16.42 2.15 18.37 15.58 2.25 16.38 14.70 2.34
62 25.47 23.09 1.79 23.60 22.15 1.91 21.71 21.13 2.02 19.90 19.90 2.14 18.41 18.41 2.25 16.89 16.89 2.36 57 24.18 24.18 1.77 22.76 22.76 1.89 21.35 21.35 2.02 19.90 19.90 2.14 18.42 18.42 2.25 16.90 16.90 2.36 72 32.25 17.07 1.91 30.00 16.20 2.05 27.67 15.33 2.18 25.33 14.47 2.31 22.98 13.62 2.43 20.55 12.76 2.55 67 29.04 20.87 1.88 26.93 19.98 2.00 24.77 19.10 2.13 22.62 18.23 2.25 20.46 17.36 2.36 18.24 16.44 2.46
900
63†† 26.72 20.05 1.84 24.69 19.14 1.96 22.67 18.26 2.08 20.66 17.39 2.19 18.60 16.48 2.30 16.57 15.54 2.39
62 26.04 24.47 1.84 24.09 23.42 1.95 22.19 22.19 2.07 20.63 20.63 2.20 19.06 19.06 2.31 17.43 17.43 2.43 57 25.15 25.15 1.82 23.68 23.68 1.95 22.16 22.16 2.07 20.64 20.64 2.20 19.06 19.06 2.31 17.44 17.44 2.43
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size CK3BA 024 0.98 1.01 CK5A/CK5BA 024 0.98 1.03
030 0.99 1.01 030 0.98 1.03 036 1.00 1.01 036 1.00 1.02
CK5A/CK5BA 024 1.00 1.02 CK5A/CK5BT 036 1.00 1.02
030 1.00 1.01 CK5A/CK5BW 024 0.98 1.03 036 1.00 1.01 030 0.98 1.02
CK5A/CK5BT 036 1.00 1.01 036 1.00 1.02
CK5A/CK5BW 024 1.00 1.01 CK5PA 024 0.98 1.03
030 1.00 1.01 030 0.98 1.03 036 1.00 1.00 036 1.00 1.02
CK5PA 024 1.00 1.02 CK5PT 036 1.00 1.02
030 1.00 1.01 CK5PW 024 0.98 1.03 036 1.00 1.01 030 0.98 1.02
CK5PT 036 1.00 1.01 036 1.00 1.02
CK5PW 024 1.00 1.01
030 1.00 1.01 CC5A/CD5AA 036 1.00 1.03 036 1.00 1.00 CC5A/CD5AW 024 0.96 1.02
COILS + 58MVP040-14 VARIABLE SPEED FURNACE 030 0.98 1.03
CC5A/CD5AW 036 1.00 1.02 036 1.00 1.02
CE3AA 024 0.97 1.03 CE3AA 024 0.97 1.03
030 0.98 1.03 030 0.98 1.03 036 0.99 1.03 036 0.99 1.03
CK5A/CK5BW 036 1.00 1.02 CK3BA 024 0.98 1.02
CK5PW 036 1.00 1.02 030 0.98 1.02
COILS + 58MVP060-14 VARIABLE SPEED FURNACE 036 1.00 1.02
CC5A/CD5AA 024 0.95 1.02 CK5A/CK5BA 036 1.00 1.02
030 0.97 1.01 CK5A/CK5BT 036 1.00 1.02 036 1.00 1.02 CK5A/CK5BW 024 0.98 1.03
CC5A/CD5AW 024 0.96 1.02 030 0.98 1.03
030 0.97 1.01 036 1.00 1.02 036 1.00 1.02 CK5PA 036 1.00 1.02
CE3AA 024 0.97 1.03 CK5PT 036 1.00 1.02
030 0.98 1.02 CK5PW 024 0.98 1.03 036 0.99 1.02 030 0.98 1.03
CK3BA 024 0.98 1.01 036 1.00 1.02
030 0.98 1.02 —— — 036 1.00 1.02
High Speed
Capacity Power Capacity Power
Indoor
Section Size
COILS + 58MVP080-14 VARIABLE SPEED FURNACE
See notes on pg. 55.
High Speed
Capacity
MBtuh†
Total
System
kW**
20
Page 21
Detailed cooling capacities*
EVAPORATOR
AIR
CFM EWB
75 85 95 105 115 125
Capacity
MBtuh†
Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡
Total
System
kW**
Capacity
MBtuh†
CONDENSER ENTERING AIR TEMPERATURES °F
Total
System
kW**
Capacity
MBtuh†
Total
System
kW**
Capacity
MBtuh†
Total
System
kW**
Capacity
MBtuh†
Tot al
System
kW**
38TDB024-30 Outdoor Section With FV4BNF003 Indoor Section - Low Speed
72 15.33 8.11 0.78 14.37 7.75 0.88 13.35 7.36 0.97 12.27 6.96 1.04 11.13 6.55 1.11 9.95 6.14 1.16 67 13.75 9.88 0.80 12.83 9.49 0.89 11.85 9.09 0.96 10.82 8.68 1.03 9.75 8.26 1.08 8.66 7.83 1.13
400
63†† 12.62 9.48 0.81 11.73 9.09 0.89 10.78 8.67 0.96 9.79 8.25 1.01 8.79 7.82 1.06 7.78 7.38 1.10
62 12.30 11.60 0.81 11.42 11.17 0.89 10.59 10.59 0.95 9.85 9.85 1.01 9.09 9.09 1.07 8.30 8.30 1.12 57 11.96 11.96 0.81 11.29 11.29 0.89 10.59 10.59 0.95 9.85 9.85 1.01 9.09 9.09 1.07 8.30 8.30 1.12 72 15.87 8.83 0.80 14.86 8.46 0.91 13.78 8.07 1.00 12.62 7.66 1.08 11.42 7.24 1.15 10.17 6.81 1.20 67 14.25 11.02 0.82 13.28 10.64 0.92 12.23 10.22 1.00 11.13 9.78 1.06 10.01 9.32 1.12 8.89 8.80 1.17
500
63†† 13.10 10.57 0.84 12.14 10.15 0.92 11.12 9.72 0.99 10.08 9.27 1.05 9.03 8.78 1.10 8.07 8.07 1.15
62 12.87 12.87 0.84 12.14 12.14 0.92 11.36 11.36 0.99 10.56 10.56 1.06 9.71 9.71 1.12 8.84 8.84 1.17 57 12.88 12.88 0.84 12.14 12.14 0.92 11.37 11.37 0.99 10.56 10.56 1.06 9.72 9.72 1.12 8.85 8.85 1.17 72 16.21 9.48 0.83 15.16 9.11 0.93 14.02 8.71 1.03 12.83 8.30 1.11 11.58 7.87 1.18 10.29 7.44 1.24 67 14.56 12.08 0.85 13.53 11.67 0.95 12.45 11.22 1.03 11.32 10.74 1.10 10.19 10.19 1.16 9.23 9.23 1.22
600
63†† 13.37 11.54 0.86 12.38 11.11 0.95 11.33 10.64 1.02 10.27 10.11 1.09 9.31 9.31 1.14 8.40 8.40 1.19
62 13.55 13.55 0.86 12.77 12.77 0.95 11.95 11.95 1.03 11.07 11.07 1.10 10.17 10.17 1.16 9.24 9.24 1.22 57 13.55 13.55 0.86 12.77 12.77 0.95 11.95 11.95 1.03 11.08 11.08 1.10 10.18 10.18 1.16 9.24 9.24 1.22 72 16.41 10.08 0.85 15.33 9.70 0.96 14.17 9.30 1.06 12.95 8.89 1.14 11.66 8.46 1.22 10.34 8.02 1.28 67 14.74 13.03 0.88 13.70 12.59 0.97 12.60 12.10 1.06 11.48 11.48 1.13 10.51 10.51 1.20 9.52 9.52 1.26
700
63†† 13.55 12.41 0.89 12.54 11.94 0.98 11.49 11.38 1.06 10.53 10.53 1.12 9.61 9.58 1.18 8.64 8.64 1.23
62 14.07 14.07 0.88 13.25 13.25 0.98 12.38 12.38 1.06 11.47 11.47 1.13 10.52 10.52 1.20 9.52 9.52 1.26 57 14.07 14.07 0.88 13.26 13.26 0.98 12.38 12.38 1.06 11.47 11.47 1.13 10.52 10.52 1.20 9.52 9.52 1.26 72 16.54 10.63 0.88 15.44 10.26 0.99 14.25 9.86 1.09 13.01 9.44 1.18 11.70 9.01 1.25 10.33 8.54 1.31 67 14.86 13.87 0.90 13.81 13.38 1.00 12.73 12.73 1.09 11.77 11.77 1.17 10.76 10.76 1.24 9.73 9.73 1.30
800
63†† 13.67 13.17 0.92 12.65 12.65 1.01 11.73 11.73 1.09 10.78 10.78 1.16 9.81 9.81 1.22 8.81 8.81 1.27
62 14.47 14.47 0.91 13.62 13.62 1.01 12.72 12.72 1.09 11.77 11.77 1.17 10.77 10.77 1.24 9.73 9.73 1.30 57 14.47 14.47 0.91 13.63 13.63 1.01 12.73 12.73 1.09 11.78 11.78 1.17 10.77 10.77 1.24 9.73 9.73 1.30
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
CC5A/CD5AA 024 0.95 1.16 FV4BNF 002 0.98 1.01
030 0.95 1.17 003 1.00 1.00 036 0.97 1.16 40FKB/FK4DNF 002 0.98 1.01
CC5A/CD5AW 024 0.95 1.16 003 1.00 1.00
030 0.95 1.16 036 0.97 1.16 CC5A/CD5AA 024 0.98 1.04
CE3AA 024 0.95 1.16 030 0.98 1.02
030 0.95 1.16 036 1.00 1.01 036 0.98 1.16 CC5A/CD5AW 024 0.98 1.03
CF5AA 024 0.95 1.16 030 0.98 1.02
036 0.97 1.16 CE3AA 024 0.98 1.03
CK3BA 024 0.97 1.16 030 1.00 1.03
030 0.97 1.16 036 1.00 1.02 036 0.98 1.16 CK3BA 024 1.00 1.02
CK5A/CK5BA 024 0.97 1.16 030 1.00 1.02
030 0.97 1.16 036 1.00 1.01 036 0.98 1.16 CK5A/CK5BA 024 1.00 1.02
CK5A/CK5BT 036 0.98 1.16 030 1.00 1.02
CK5A/CK5BW 024 0.97 1.16 036 1.00 1.01
030 0.97 1.16 CK5A/CK5BT 036 1.00 1.01 036 0.98 1.16 CK5A/CK5BW 024 1.00 1.02
CK5PA 024 0.97 1.16 030 1.00 1.01
030 0.97 1.16 CK5PA 024 1.00 1.02 036 0.98 1.16 030 1.00 1.02
CK5PT 036 0.98 1.16 036 1.00 1.01
CK5PW 024 0.97 1.16 CK5PT 036 1.00 1.01
030 0.97 1.16 CK5PW 024 1.00 1.02 036 0.98 1.16 030 1.00 1.01
FE4ANF 002 1.00 1.01
003 1.00 1.00 CC5A/CD5AA 024 0.98 1.03
FK4DNF 001 0.98 1.01 030 0.98 1.01
—— — 036 1.00 1.01
Low Speed
Capacity Power Capacity Power
Indoor
Section Size
COILS + 58CV(A,X)070-12 VARIABLE SPEED FURNACE
COILS + 58CV(A,X)090-16 VARIABLE SPEED FURNACE
See notes on pg. 55.
Low Speed
Capacity
MBtuh†
Tot al
System
kW**
21
Page 22
Detailed cooling capacities*
EVAPORATOR
AIR
CFM EWB
75 85 95 105 115 125
Capacity
MBtuh†
Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡
Total
System
kW**
Capacity
MBtuh†
CONDENSER ENTERING AIR TEMPERATURES °F
Total
System
kW**
Capacity
MBtuh†
Total
System
kW**
Capacity
MBtuh†
Total
System
kW**
Capacity
MBtuh†
Tot al
System
kW**
38TDB024-30 Outdoor Section With FV4BNF003 Indoor Section - Low Speed continued
72 15.33 8.11 0.78 14.37 7.75 0.88 13.35 7.36 0.97 12.27 6.96 1.04 11.13 6.55 1.11 9.95 6.14 1.16 67 13.75 9.88 0.80 12.83 9.49 0.89 11.85 9.09 0.96 10.82 8.68 1.03 9.75 8.26 1.08 8.66 7.83 1.13
400
63†† 12.62 9.48 0.81 11.73 9.09 0.89 10.78 8.67 0.96 9.79 8.25 1.01 8.79 7.82 1.06 7.78 7.38 1.10
62 12.30 11.60 0.81 11.42 11.17 0.89 10.59 10.59 0.95 9.85 9.85 1.01 9.09 9.09 1.07 8.30 8.30 1.12 57 11.96 11.96 0.81 11.29 11.29 0.89 10.59 10.59 0.95 9.85 9.85 1.01 9.09 9.09 1.07 8.30 8.30 1.12 72 15.87 8.83 0.80 14.86 8.46 0.91 13.78 8.07 1.00 12.62 7.66 1.08 11.42 7.24 1.15 10.17 6.81 1.20 67 14.25 11.02 0.82 13.28 10.64 0.92 12.23 10.22 1.00 11.13 9.78 1.06 10.01 9.32 1.12 8.89 8.80 1.17
500
63†† 13.10 10.57 0.84 12.14 10.15 0.92 11.12 9.72 0.99 10.08 9.27 1.05 9.03 8.78 1.10 8.07 8.07 1.15
62 12.87 12.87 0.84 12.14 12.14 0.92 11.36 11.36 0.99 10.56 10.56 1.06 9.71 9.71 1.12 8.84 8.84 1.17 57 12.88 12.88 0.84 12.14 12.14 0.92 11.37 11.37 0.99 10.56 10.56 1.06 9.72 9.72 1.12 8.85 8.85 1.17 72 16.21 9.48 0.83 15.16 9.11 0.93 14.02 8.71 1.03 12.83 8.30 1.11 11.58 7.87 1.18 10.29 7.44 1.24 67 14.56 12.08 0.85 13.53 11.67 0.95 12.45 11.22 1.03 11.32 10.74 1.10 10.19 10.19 1.16 9.23 9.23 1.22
600
63†† 13.37 11.54 0.86 12.38 11.11 0.95 11.33 10.64 1.02 10.27 10.11 1.09 9.31 9.31 1.14 8.40 8.40 1.19
62 13.55 13.55 0.86 12.77 12.77 0.95 11.95 11.95 1.03 11.07 11.07 1.10 10.17 10.17 1.16 9.24 9.24 1.22 57 13.55 13.55 0.86 12.77 12.77 0.95 11.95 11.95 1.03 11.08 11.08 1.10 10.18 10.18 1.16 9.24 9.24 1.22 72 16.41 10.08 0.85 15.33 9.70 0.96 14.17 9.30 1.06 12.95 8.89 1.14 11.66 8.46 1.22 10.34 8.02 1.28 67 14.74 13.03 0.88 13.70 12.59 0.97 12.60 12.10 1.06 11.48 11.48 1.13 10.51 10.51 1.20 9.52 9.52 1.26
700
63†† 13.55 12.41 0.89 12.54 11.94 0.98 11.49 11.38 1.06 10.53 10.53 1.12 9.61 9.58 1.18 8.64 8.64 1.23
62 14.07 14.07 0.88 13.25 13.25 0.98 12.38 12.38 1.06 11.47 11.47 1.13 10.52 10.52 1.20 9.52 9.52 1.26 57 14.07 14.07 0.88 13.26 13.26 0.98 12.38 12.38 1.06 11.47 11.47 1.13 10.52 10.52 1.20 9.52 9.52 1.26 72 16.54 10.63 0.88 15.44 10.26 0.99 14.25 9.86 1.09 13.01 9.44 1.18 11.70 9.01 1.25 10.33 8.54 1.31 67 14.86 13.87 0.90 13.81 13.38 1.00 12.73 12.73 1.09 11.77 11.77 1.17 10.76 10.76 1.24 9.73 9.73 1.30
800
63†† 13.67 13.17 0.92 12.65 12.65 1.01 11.73 11.73 1.09 10.78 10.78 1.16 9.81 9.81 1.22 8.81 8.81 1.27
62 14.47 14.47 0.91 13.62 13.62 1.01 12.72 12.72 1.09 11.77 11.77 1.17 10.77 10.77 1.24 9.73 9.73 1.30 57 14.47 14.47 0.91 13.63 13.63 1.01 12.73 12.73 1.09 11.78 11.78 1.17 10.77 10.77 1.24 9.73 9.73 1.30
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
CC5A/CD5AW 024 0.98 1.03
030 0.98 1.01 CC5A/CD5AA 024 0.97 1.02 036 1.00 1.01 030 0.98 1.02
CE3AA 024 0.98 1.03 036 1.00 1.01
030 1.00 1.03 CC5A/CD5AW 024 0.97 1.01 036 1.00 1.02 030 0.98 1.02
CK3BA 024 1.00 1.02 036 1.00 1.01
030 1.00 1.02 CE3AA 024 0.98 1.03 036 1.00 1.01 030 0.98 1.01
CK5A/CK5BA 024 1.00 1.02 036 1.00 1.02
030 1.00 1.01 CK3BA 024 1.00 1.02 036 1.00 1.01 030 1.00 1.02
CK5A/CK5BT 036 1.00 1.01 036 1.00 1.01
CK5A/CK5BW 024 1.00 1.01 CK5A/CK5BA 024 0.98 1.02
030 1.00 1.01 030 1.00 1.03 036 1.00 1.00 036 1.00 1.01
CK5PA 024 1.00 1.02 CK5A/CK5BT 036 1.00 1.01
030 1.00 1.01 CK5A/CK5BW 024 0.98 1.02 036 1.00 1.01 030 1.00 1.02
CK5PT 036 1.00 1.01 036 1.00 1.01
CK5PW 024 1.00 1.01 CK5PA 024 0.98 1.02
030 1.00 1.01 030 1.00 1.03 036 1.00 1.00 036 1.00 1.01
COILS + 58MVP040-14 VARIABLE SPEED FURNACE CK5PT 036 1.00 1.01
CC5A/CD5AW 036 1.00 1.01 CK5PW 024 0.98 1.02
CE3AA 024 0.98 1.03 030 1.00 1.02
030 0.98 1.01 036 1.00 1.01 036 1.00 1.02
CK5A/CK5BW 036 1.00 1.01 CC5A/CD5AA 036 1.00 1.01
CK5PW 036 1.00 1.01 —— —
Low Speed
Capacity Power Capacity Power
Indoor
Section Size
COILS + 58MVP060-14 VARIABLE SPEED FURNACE
COILS + 58MVP080-14 VARIABLE SPEED FURNACE
See notes on pg. 55.
Low Speed
Capacity
MBtuh†
Tot al
System
kW**
22
Page 23
Detailed cooling capacities*
EVAPORATOR
AIR
CFM EWB
75 85 95 105 115 125
Capacity
MBtuh†
Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡
Total
System
kW**
Capacity
MBtuh†
CONDENSER ENTERING AIR TEMPERATURES °F
Total
System
kW**
Capacity
MBtuh†
Tot al
System
kW**
Capacity
MBtuh†
Total
System
kW**
Capacity
MBtuh†
Tot al
System
kW**
Capacity
MBtuh†
38TDB024-30 Outdoor Section With FV4BNF003 Indoor Section - Low Speed continued
72 15.33 8.11 0.78 14.37 7.75 0.88 13.35 7.36 0.97 12.27 6.96 1.04 11.13 6.55 1.11 9.95 6.14 1.16 67 13.75 9.88 0.80 12.83 9.49 0.89 11.85 9.09 0.96 10.82 8.68 1.03 9.75 8.26 1.08 8.66 7.83 1.13
400
63†† 12.62 9.48 0.81 11.73 9.09 0.89 10.78 8.67 0.96 9.79 8.25 1.01 8.79 7.82 1.06 7.78 7.38 1.10
62 12.30 11.60 0.81 11.42 11.17 0.89 10.59 10.59 0.95 9.85 9.85 1.01 9.09 9.09 1.07 8.30 8.30 1.12 57 11.96 11.96 0.81 11.29 11.29 0.89 10.59 10.59 0.95 9.85 9.85 1.01 9.09 9.09 1.07 8.30 8.30 1.12 72 15.87 8.83 0.80 14.86 8.46 0.91 13.78 8.07 1.00 12.62 7.66 1.08 11.42 7.24 1.15 10.17 6.81 1.20 67 14.25 11.02 0.82 13.28 10.64 0.92 12.23 10.22 1.00 11.13 9.78 1.06 10.01 9.32 1.12 8.89 8.80 1.17
500
63†† 13.10 10.57 0.84 12.14 10.15 0.92 11.12 9.72 0.99 10.08 9.27 1.05 9.03 8.78 1.10 8.07 8.07 1.15
62 12.87 12.87 0.84 12.14 12.14 0.92 11.36 11.36 0.99 10.56 10.56 1.06 9.71 9.71 1.12 8.84 8.84 1.17 57 12.88 12.88 0.84 12.14 12.14 0.92 11.37 11.37 0.99 10.56 10.56 1.06 9.72 9.72 1.12 8.85 8.85 1.17 72 16.21 9.48 0.83 15.16 9.11 0.93 14.02 8.71 1.03 12.83 8.30 1.11 11.58 7.87 1.18 10.29 7.44 1.24 67 14.56 12.08 0.85 13.53 11.67 0.95 12.45 11.22 1.03 11.32 10.74 1.10 10.19 10.19 1.16 9.23 9.23 1.22
600
63†† 13.37 11.54 0.86 12.38 11.11 0.95 11.33 10.64 1.02 10.27 10.11 1.09 9.31 9.31 1.14 8.40 8.40 1.19
62 13.55 13.55 0.86 12.77 12.77 0.95 11.95 11.95 1.03 11.07 11.07 1.10 10.17 10.17 1.16 9.24 9.24 1.22 57 13.55 13.55 0.86 12.77 12.77 0.95 11.95 11.95 1.03 11.08 11.08 1.10 10.18 10.18 1.16 9.24 9.24 1.22 72 16.41 10.08 0.85 15.33 9.70 0.96 14.17 9.30 1.06 12.95 8.89 1.14 11.66 8.46 1.22 10.34 8.02 1.28 67 14.74 13.03 0.88 13.70 12.59 0.97 12.60 12.10 1.06 11.48 11.48 1.13 10.51 10.51 1.20 9.52 9.52 1.26
700
63†† 13.55 12.41 0.89 12.54 11.94 0.98 11.49 11.38 1.06 10.53 10.53 1.12 9.61 9.58 1.18 8.64 8.64 1.23
62 14.07 14.07 0.88 13.25 13.25 0.98 12.38 12.38 1.06 11.47 11.47 1.13 10.52 10.52 1.20 9.52 9.52 1.26 57 14.07 14.07 0.88 13.26 13.26 0.98 12.38 12.38 1.06 11.47 11.47 1.13 10.52 10.52 1.20 9.52 9.52 1.26 72 16.54 10.63 0.88 15.44 10.26 0.99 14.25 9.86 1.09 13.01 9.44 1.18 11.70 9.01 1.25 10.33 8.54 1.31 67 14.86 13.87 0.90 13.81 13.38 1.00 12.73 12.73 1.09 11.77 11.77 1.17 10.76 10.76 1.24 9.73 9.73 1.30
800
63†† 13.67 13.17 0.92 12.65 12.65 1.01 11.73 11.73 1.09 10.78 10.78 1.16 9.81 9.81 1.22 8.81 8.81 1.27
62 14.47 14.47 0.91 13.62 13.62 1.01 12.72 12.72 1.09 11.77 11.77 1.17 10.77 10.77 1.24 9.73 9.73 1.30 57 14.47 14.47 0.91 13.63 13.63 1.01 12.73 12.73 1.09 11.78 11.78 1.17 10.77 10.77 1.24 9.73 9.73 1.30
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
CC5A/CD5AW 024 0.98 1.03 CK5A/CK5BT 036 1.00 1.01
030 0.98 1.02 CK5A/CK5BW 024 0.98 1.01 036 1.00 1.01 030 1.00 1.02
CE3AA 024 0.98 1.03 036 1.00 1.01
030 0.98 1.01 CK5PA 036 1.00 1.01 036 1.00 1.02 CK5PT 036 1.00 1.01
CK3BA 024 1.00 1.02 CK5PW 024 0.98 1.01
030 1.00 1.02 030 1.00 1.02 036 1.00 1.01 036 1.00 1.01
CK5A/CK5BA 036 1.00 1.01 —— —
Low Speed
Capacity Power Capacity Power
Indoor
Section Size
See notes on pg. 55.
Low Speed
Total
System
kW**
23
Page 24
Detailed cooling capacities* continued
EVAPORATOR
AIR
CFM EWB
75 85 95 105 115 125
Capacity
MBtuh†
Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡
Total
System
kW**
Capacity
MBtuh†
CONDENSER ENTERING AIR TEMPERATURES °F
Total
System
kW**
Capacity
MBtuh†
Tot al
System
kW**
Capacity
MBtuh†
Total
System
kW**
Capacity
MBtuh†
Total
System
kW**
38TDB036-30 Outdoor Section With FV4BNB006 Indoor Section - High Speed
72 44.40 22.40 2.48 41.61 21.24 2.70 38.88 20.15 2.91 36.23 19.12 3.13 33.56 18.10 3.34 30.98 17.14 3.54 67 39.76 26.44 2.45 37.19 25.29 2.65 34.67 24.20 2.85 32.22 23.16 3.06 29.79 22.15 3.25 27.47 21.20 3.44
900
63†† 36.46 25.42 2.42 34.07 24.29 2.62 31.73 23.20 2.81 29.40 22.15 3.00 27.15 21.15 3.18 25.00 20.21 3.37
62 35.56 30.45 2.41 33.18 29.29 2.60 30.89 28.17 2.79 28.63 27.05 2.98 26.46 25.90 3.17 24.53 24.53 3.35 57 32.82 32.82 2.38 31.13 31.13 2.57 29.43 29.43 2.76 27.79 27.79 2.96 26.13 26.13 3.16 24.53 24.53 3.35 72 45.93 23.64 2.54 42.96 22.47 2.76 40.08 21.36 2.98 37.20 20.27 3.20 34.39 19.22 3.41 31.66 18.22 3.61
1050
1200
1350
See notes on pg. 55.
67 41.13 28.34 2.51 38.40 27.16 2.72 35.73 26.04 2.92 33.09 24.94 3.13 30.52 23.90 3.32 28.07 22.92 3.52
63†† 37.75 27.23 2.48 35.19 26.05 2.68 32.65 24.91 2.87 30.19 23.82 3.07 27.82 22.79 3.26 25.54 21.81 3.44
62 36.76 32.95 2.47 34.27 31.71 2.67 31.82 30.46 2.86 29.46 29.17 3.06 27.46 27.46 3.25 25.74 25.74 3.45 57 34.75 34.75 2.46 32.88 32.88 2.65 31.08 31.08 2.85 29.24 29.24 3.05 27.47 27.47 3.25 25.75 25.75 3.45 72 47.16 24.83 2.59 44.08 23.65 2.82 40.98 22.48 3.04 37.97 21.37 3.26 35.03 20.30 3.48 32.19 19.27 3.68 67 42.25 30.17 2.57 39.38 28.97 2.78 36.53 27.80 2.98 33.76 26.67 3.20 31.08 25.60 3.39 28.53 24.56 3.59
63†† 38.78 28.96 2.54 36.03 27.73 2.74 33.38 26.56 2.94 30.81 25.45 3.14 28.33 24.36 3.33 25.93 23.30 3.51
62 37.79 35.30 2.54 35.15 33.92 2.74 32.59 32.59 2.93 30.52 30.52 3.13 28.63 28.63 3.34 26.77 26.77 3.54 57 36.42 36.42 2.52 34.46 34.46 2.73 32.47 32.47 2.93 30.53 30.53 3.13 28.64 28.64 3.34 26.77 26.77 3.54 72 48.17 25.96 2.65 44.89 24.73 2.88 41.68 23.54 3.10 38.55 22.40 3.33 35.53 21.31 3.54 32.56 20.27 3.75 67 43.16 31.92 2.62 40.10 30.67 2.84 37.15 29.47 3.05 34.27 28.32 3.26 31.51 27.18 3.46 28.85 26.06 3.65
63†† 39.55 30.58 2.60 36.70 29.33 2.80 33.94 28.14 3.00 31.28 26.97 3.20 28.67 25.80 3.39 26.23 24.66 3.58
62 38.61 37.39 2.59 35.89 35.89 2.80 33.66 33.66 3.00 31.62 31.62 3.21 29.59 29.59 3.41 27.63 27.63 3.62 57 37.91 37.91 2.59 35.76 35.76 2.79 33.67 33.67 3.00 31.64 31.64 3.21 29.60 29.60 3.41 27.64 27.64 3.62
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
CC5A/CD5AA 036 0.97 1.11 FK4DNF 001 0.94 1.05
042 0.97 1.11 FV4BNB 006 1.00 1.00
CC5A/CD5AC 048 0.96 1.11 FV4BNF 002 0.95 1.05
CC5A/CD5AW 036 0.97 1.11 003 0.96 1.01
042 0.96 1.11 005 1.00 1.01 048 0.97 1.11 40FKB/FK4DNB 006 1.00 1.00
CD5AA 048 0.97 1.11 40FKB/FK4DNF 002 0.95 1.05 CE3AA 036 0.95 1.11 003 0.96 1.01
042 0.97 1.11 005 1.00 1.01 048 0.98 1.11
CF5AA 036 0.96 1.11 CC5A/CD5AA 036 0.94 1.04
048 0.97 1.11 CE3AA 036 0.93 1.03
CK3BA 036 0.97 1.11 CK3BA 036 0.94 1.03
042 0.97 1.11 CK5A/CK5BA 036 0.94 1.03 048 0.97 1.11 CK5A/CK5BT 036 0.94 1.03
CK5A/CK5BA 036 0.97 1.11 CK5PA 036 0.94 1.03
042 0.97 1.11 CK5PT 036 0.94 1.03 048 0.97 1.11
CK5A/CK5BE 042 0.97 1.11 CC5A/CD5AA 036 0.94 1.02 CK5A/CK5BT 036 0.97 1.11 042 0.94 1.01
042 0.97 1.11 CC5A/CD5AC 048 0.94 1.01 048 0.97 1.11 CC5A/CD5AW 036 0.94 1.01
CK5A/CK5BW 036 0.97 1.12 CD5AA 048 0.95 1.01
048 0.97 1.11 CE3AA 036 0.93 1.02
CK5PA 036 0.97 1.11 042 0.95 1.01
042 0.97 1.11 048 0.96 1.01 048 0.97 1.11 CK3BA 036 0.95 1.02
CK5PE 042 0.97 1.11 042 0.95 1.02
CK5PT 036 0.97 1.11 048 0.96 1.01
042 0.97 1.11 CK5A/CK5BA 036 0.95 1.02 048 0.97 1.11 042 0.95 1.02
CK5PW 036 0.97 1.12 048 0.96 1.01
048 0.97 1.11 CK5A/CK5BE 042 0.96 1.02
FE4ANB 006 1.00 1.00 CK5A/CK5BT 036 0.95 1.02 FE4ANF 002 0.95 1.05 042 0.95 1.02
003 0.96 1.01 048 0.96 1.01 005 1.00 1.01 CK5A/CK5BW 036 0.95 1.02
High Speed
Capacity Power Capacity Power
Indoor
Section Size
COILS + 58CV(A,X)070-12 VARIABLE SPEED FURNACE
COILS + 58CV(A,X)090-16 VARIABLE SPEED FURNACE
High Speed
Capacity
MBtuh†
Total
System
kW**
24
Page 25
Detailed cooling capacities* continued
EVAPORATOR
AIR
CFM EWB
75 85 95 105 115 125
Capacity
MBtuh†
Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡
Total
System
kW**
Capacity
MBtuh†
CONDENSER ENTERING AIR TEMPERATURES °F
Tot al
System
kW**
Capacity
MBtuh†
Total
System
kW**
Capacity
MBtuh†
Total
System
kW**
Capacity
MBtuh†
Tot al
System
kW**
38TDB036-30 Outdoor Section With FV4BNB006 Indoor Section - High Speed continued
72 44.40 22.40 2.48 41.61 21.24 2.70 38.88 20.15 2.91 36.23 19.12 3.13 33.56 18.10 3.34 30.98 17.14 3.54 67 39.76 26.44 2.45 37.19 25.29 2.65 34.67 24.20 2.85 32.22 23.16 3.06 29.79 22.15 3.25 27.47 21.20 3.44
900
63†† 36.46 25.42 2.42 34.07 24.29 2.62 31.73 23.20 2.81 29.40 22.15 3.00 27.15 21.15 3.18 25.00 20.21 3.37
62 35.56 30.45 2.41 33.18 29.29 2.60 30.89 28.17 2.79 28.63 27.05 2.98 26.46 25.90 3.17 24.53 24.53 3.35 57 32.82 32.82 2.38 31.13 31.13 2.57 29.43 29.43 2.76 27.79 27.79 2.96 26.13 26.13 3.16 24.53 24.53 3.35 72 45.93 23.64 2.54 42.96 22.47 2.76 40.08 21.36 2.98 37.20 20.27 3.20 34.39 19.22 3.41 31.66 18.22 3.61 67 41.13 28.34 2.51 38.40 27.16 2.72 35.73 26.04 2.92 33.09 24.94 3.13 30.52 23.90 3.32 28.07 22.92 3.52
1050
63†† 37.75 27.23 2.48 35.19 26.05 2.68 32.65 24.91 2.87 30.19 23.82 3.07 27.82 22.79 3.26 25.54 21.81 3.44
62 36.76 32.95 2.47 34.27 31.71 2.67 31.82 30.46 2.86 29.46 29.17 3.06 27.46 27.46 3.25 25.74 25.74 3.45 57 34.75 34.75 2.46 32.88 32.88 2.65 31.08 31.08 2.85 29.24 29.24 3.05 27.47 27.47 3.25 25.75 25.75 3.45 72 47.16 24.83 2.59 44.08 23.65 2.82 40.98 22.48 3.04 37.97 21.37 3.26 35.03 20.30 3.48 32.19 19.27 3.68 67 42.25 30.17 2.57 39.38 28.97 2.78 36.53 27.80 2.98 33.76 26.67 3.20 31.08 25.60 3.39 28.53 24.56 3.59
1200
63†† 38.78 28.96 2.54 36.03 27.73 2.74 33.38 26.56 2.94 30.81 25.45 3.14 28.33 24.36 3.33 25.93 23.30 3.51
62 37.79 35.30 2.54 35.15 33.92 2.74 32.59 32.59 2.93 30.52 30.52 3.13 28.63 28.63 3.34 26.77 26.77 3.54 57 36.42 36.42 2.52 34.46 34.46 2.73 32.47 32.47 2.93 30.53 30.53 3.13 28.64 28.64 3.34 26.77 26.77 3.54 72 48.17 25.96 2.65 44.89 24.73 2.88 41.68 23.54 3.10 38.55 22.40 3.33 35.53 21.31 3.54 32.56 20.27 3.75 67 43.16 31.92 2.62 40.10 30.67 2.84 37.15 29.47 3.05 34.27 28.32 3.26 31.51 27.18 3.46 28.85 26.06 3.65
1350
63†† 39.55 30.58 2.60 36.70 29.33 2.80 33.94 28.14 3.00 31.28 26.97 3.20 28.67 25.80 3.39 26.23 24.66 3.58
62 38.61 37.39 2.59 35.89 35.89 2.80 33.66 33.66 3.00 31.62 31.62 3.21 29.59 29.59 3.41 27.63 27.63 3.62 57 37.91 37.91 2.59 35.76 35.76 2.79 33.67 33.67 3.00 31.64 31.64 3.21 29.60 29.60 3.41 27.64 27.64 3.62
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
CK5PA 036 0.95 1.02 CK5PT 036 0.95 1.01
042 0.95 1.02 042 0.95 1.01 048 0.96 1.01 048 0.96 1.01
CK5PE 042 0.96 1.02 CK5PW 036 0.95 1.01 CK5PT 036 0.95 1.02 048 0.96 1.00
042 0.95 1.02 048 0.96 1.01 CC5A/CD5AA 042 0.94 1.01
CK5PW 036 0.95 1.02 CC5A/CD5AC 048 0.94 1.01
COILS + 58CV(A,X)110-22 VARIABLE SPEED FURNACE CC5A/CD5AW 036 0.94 1.01
CC5A/CD5AA 036 0.94 1.01 042 0.95 1.00
042 0.95 1.01 048 0.95 1.00
CC5A/CD5AC 048 0.94 1.00 CD5AA 048 0.95 1.00
CC5A/CD5AW 036 0.94 1.00 CE3AA 036 0.93 1.02
042 0.95 1.00 042 0.95 1.01 048 0.95 1.00 048 0.96 1.01
CD5AA 048 0.95 1.00 CK3BA 036 0.95 1.02
CE3AA 036 0.93 1.01 042 0.95 1.01
042 0.96 1.01 048 0.96 1.00 048 0.96 1.00 CK5A/CK5BA 042 0.95 1.01
CK3BA 036 0.95 1.01 048 0.96 1.01
042 0.95 1.01 CK5A/CK5BT 042 0.95 1.01 048 0.96 1.00 048 0.96 1.01
CK5A/CK5BA 036 0.95 1.01 CK5A/CK5BW 036 0.95 1.01
042 0.95 1.01 048 0.96 1.00 048 0.96 1.01 CK5PA 042 0.95 1.01
CK5A/CK5BE 042 0.96 1.01 048 0.96 1.00 CK5A/CK5BT 036 0.95 1.01 CK5PT 042 0.95 1.01
042 0.95 1.01 048 0.96 1.01 048 0.96 1.01 CK5PW 036 0.95 1.01
CK5A/CK5BW 036 0.95 1.01 048 0.96 1.00
048 0.96 1.00
CK5PA 036 0.95 1.01 CC5A/CD5AA 042 0.95 1.00
042 0.95 1.01 CC5A/CD5AC 048 0.94 1.00 048 0.96 1.01 CC5A/CD5AW 036 0.95 1.01
CK5PE 042 0.96 1.01 042 0.95 0.99
—— — 048 0.95 0.99
High Speed
Capacity Power Capacity Power
Indoor
Section Size
COILS + 58CV(A,X)135-22 VARIABLE SPEED FURNACE
COILS + 58CV(A,X)155-22 VARIABLE SPEED FURNACE
See notes on pg. 55.
High Speed
Capacity
MBtuh†
Total
System
kW**
25
Page 26
Detailed cooling capacities* continued
EVAPORATOR
AIR
CFM EWB
75 85 95 105 115 125
Capacity
MBtuh†
Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡
Total
System
kW**
Capacity
MBtuh†
CONDENSER ENTERING AIR TEMPERATURES °F
Total
System
kW**
Capacity
MBtuh†
Tot al
System
kW**
Capacity
MBtuh†
Total
System
kW**
Capacity
MBtuh†
Total
System
kW**
38TDB036-30 Outdoor Section With FV4BNB006 Indoor Section - High Speed continued
72 44.40 22.40 2.48 41.61 21.24 2.70 38.88 20.15 2.91 36.23 19.12 3.13 33.56 18.10 3.34 30.98 17.14 3.54 67 39.76 26.44 2.45 37.19 25.29 2.65 34.67 24.20 2.85 32.22 23.16 3.06 29.79 22.15 3.25 27.47 21.20 3.44
900
63†† 36.46 25.42 2.42 34.07 24.29 2.62 31.73 23.20 2.81 29.40 22.15 3.00 27.15 21.15 3.18 25.00 20.21 3.37
62 35.56 30.45 2.41 33.18 29.29 2.60 30.89 28.17 2.79 28.63 27.05 2.98 26.46 25.90 3.17 24.53 24.53 3.35 57 32.82 32.82 2.38 31.13 31.13 2.57 29.43 29.43 2.76 27.79 27.79 2.96 26.13 26.13 3.16 24.53 24.53 3.35 72 45.93 23.64 2.54 42.96 22.47 2.76 40.08 21.36 2.98 37.20 20.27 3.20 34.39 19.22 3.41 31.66 18.22 3.61
1050
1200
1350
See notes on pg. 55.
67 41.13 28.34 2.51 38.40 27.16 2.72 35.73 26.04 2.92 33.09 24.94 3.13 30.52 23.90 3.32 28.07 22.92 3.52
63†† 37.75 27.23 2.48 35.19 26.05 2.68 32.65 24.91 2.87 30.19 23.82 3.07 27.82 22.79 3.26 25.54 21.81 3.44
62 36.76 32.95 2.47 34.27 31.71 2.67 31.82 30.46 2.86 29.46 29.17 3.06 27.46 27.46 3.25 25.74 25.74 3.45 57 34.75 34.75 2.46 32.88 32.88 2.65 31.08 31.08 2.85 29.24 29.24 3.05 27.47 27.47 3.25 25.75 25.75 3.45 72 47.16 24.83 2.59 44.08 23.65 2.82 40.98 22.48 3.04 37.97 21.37 3.26 35.03 20.30 3.48 32.19 19.27 3.68 67 42.25 30.17 2.57 39.38 28.97 2.78 36.53 27.80 2.98 33.76 26.67 3.20 31.08 25.60 3.39 28.53 24.56 3.59
63†† 38.78 28.96 2.54 36.03 27.73 2.74 33.38 26.56 2.94 30.81 25.45 3.14 28.33 24.36 3.33 25.93 23.30 3.51
62 37.79 35.30 2.54 35.15 33.92 2.74 32.59 32.59 2.93 30.52 30.52 3.13 28.63 28.63 3.34 26.77 26.77 3.54 57 36.42 36.42 2.52 34.46 34.46 2.73 32.47 32.47 2.93 30.53 30.53 3.13 28.64 28.64 3.34 26.77 26.77 3.54 72 48.17 25.96 2.65 44.89 24.73 2.88 41.68 23.54 3.10 38.55 22.40 3.33 35.53 21.31 3.54 32.56 20.27 3.75 67 43.16 31.92 2.62 40.10 30.67 2.84 37.15 29.47 3.05 34.27 28.32 3.26 31.51 27.18 3.46 28.85 26.06 3.65
63†† 39.55 30.58 2.60 36.70 29.33 2.80 33.94 28.14 3.00 31.28 26.97 3.20 28.67 25.80 3.39 26.23 24.66 3.58
62 38.61 37.39 2.59 35.89 35.89 2.80 33.66 33.66 3.00 31.62 31.62 3.21 29.59 29.59 3.41 27.63 27.63 3.62 57 37.91 37.91 2.59 35.76 35.76 2.79 33.67 33.67 3.00 31.64 31.64 3.21 29.60 29.60 3.41 27.64 27.64 3.62
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
CD5AA 048 0.96 1.00 CK5A/CK5BW 036 0.94 1.04 CE3AA 036 0.93 1.01 048 0.94 1.02
042 0.96 1.01 CK5PA 042 0.94 1.04 048 0.96 1.01 048 0.94 1.03
CK3BA 036 0.95 1.01 CK5PT 042 0.94 1.04
042 0.95 1.01 048 0.94 1.03 048 0.96 1.00 CK5PW 036 0.94 1.04
CK5A/CK5BA 042 0.95 1.00 048 0.94 1.02
048 0.96 1.00
CK5A/CK5BT 042 0.95 1.00 CC5A/CD5AA 036 0.93 1.02
048 0.96 1.00 042 0.94 1.02
CK5A/CK5BW 036 0.95 1.00 CC5A/CD5AC 048 0.93 1.02
048 0.96 1.00 CC5A/CD5AW 036 0.94 1.02
CK5PA 042 0.95 1.00 CD5AA 048 0.94 1.02
048 0.96 1.00 CE3AA 036 0.92 1.02
CK5PT 042 0.95 1.00 042 0.94 1.02
048 0.96 1.00 048 0.95 1.03
CK5PW 036 0.95 1.00 CK3BA 036 0.94 1.03
048 0.96 1.00 042 0.94 1.02
COILS + 58MVP040-14 VARIABLE SPEED FURNACE 048 0.95 1.02 CC5A/CD5AA 042 0.93 1.03 CK5A/CK5BA 036 0.94 1.03 CC5A/CD5AC 048 0.92 1.03 042 0.94 1.02
CC5A/CD5AW 036 0.93 1.03 048 0.95 1.02
042 0.92 1.02 CK5A/CK5BE 042 0.95 1.03 048 0.94 1.03 CK5A/CK5BT 036 0.94 1.03
CD5AA 048 0.94 1.03 042 0.94 1.02 CE3AA 036 0.92 1.04 048 0.95 1.02
042 0.94 1.03 CK5A/CK5BW 036 0.94 1.02 048 0.94 1.03 CK5PA 036 0.94 1.03
CK3BA 042 0.94 1.04 042 0.94 1.02
048 0.94 1.03 048 0.95 1.02
CK5A/CK5BA 042 0.94 1.04 CK5PE 042 0.95 1.03
048 0.94 1.03 CK5PT 036 0.94 1.03
CK5A/CK5BT 042 0.94 1.04 042 0.94 1.02
048 0.94 1.03 048 0.95 1.02
High Speed
Capacity Power Capacity Power
Indoor
Section Size
COILS + 58MVP060-14 VARIABLE SPEED FURNACE
High Speed
Capacity
MBtuh†
Total
System
kW**
26
Page 27
Detailed cooling capacities* continued
EVAPORATOR
AIR
CFM EWB
75 85 95 105 115 125
Capacity
MBtuh†
Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡
Total
System
kW**
Capacity
MBtuh†
CONDENSER ENTERING AIR TEMPERATURES °F
Total
System
kW**
Capacity
MBtuh†
Tot al
System
kW**
Capacity
MBtuh†
Total
System
kW**
Capacity
MBtuh†
Tot al
System
kW**
38TDB036-30 Outdoor Section With FV4BNB006 Indoor Section - High Speed continued
72 44.40 22.40 2.48 41.61 21.24 2.70 38.88 20.15 2.91 36.23 19.12 3.13 33.56 18.10 3.34 30.98 17.14 3.54 67 39.76 26.44 2.45 37.19 25.29 2.65 34.67 24.20 2.85 32.22 23.16 3.06 29.79 22.15 3.25 27.47 21.20 3.44
900
63†† 36.46 25.42 2.42 34.07 24.29 2.62 31.73 23.20 2.81 29.40 22.15 3.00 27.15 21.15 3.18 25.00 20.21 3.37
62 35.56 30.45 2.41 33.18 29.29 2.60 30.89 28.17 2.79 28.63 27.05 2.98 26.46 25.90 3.17 24.53 24.53 3.35 57 32.82 32.82 2.38 31.13 31.13 2.57 29.43 29.43 2.76 27.79 27.79 2.96 26.13 26.13 3.16 24.53 24.53 3.35 72 45.93 23.64 2.54 42.96 22.47 2.76 40.08 21.36 2.98 37.20 20.27 3.20 34.39 19.22 3.41 31.66 18.22 3.61 67 41.13 28.34 2.51 38.40 27.16 2.72 35.73 26.04 2.92 33.09 24.94 3.13 30.52 23.90 3.32 28.07 22.92 3.52
1050
63†† 37.75 27.23 2.48 35.19 26.05 2.68 32.65 24.91 2.87 30.19 23.82 3.07 27.82 22.79 3.26 25.54 21.81 3.44
62 36.76 32.95 2.47 34.27 31.71 2.67 31.82 30.46 2.86 29.46 29.17 3.06 27.46 27.46 3.25 25.74 25.74 3.45 57 34.75 34.75 2.46 32.88 32.88 2.65 31.08 31.08 2.85 29.24 29.24 3.05 27.47 27.47 3.25 25.75 25.75 3.45 72 47.16 24.83 2.59 44.08 23.65 2.82 40.98 22.48 3.04 37.97 21.37 3.26 35.03 20.30 3.48 32.19 19.27 3.68 67 42.25 30.17 2.57 39.38 28.97 2.78 36.53 27.80 2.98 33.76 26.67 3.20 31.08 25.60 3.39 28.53 24.56 3.59
1200
63†† 38.78 28.96 2.54 36.03 27.73 2.74 33.38 26.56 2.94 30.81 25.45 3.14 28.33 24.36 3.33 25.93 23.30 3.51
62 37.79 35.30 2.54 35.15 33.92 2.74 32.59 32.59 2.93 30.52 30.52 3.13 28.63 28.63 3.34 26.77 26.77 3.54 57 36.42 36.42 2.52 34.46 34.46 2.73 32.47 32.47 2.93 30.53 30.53 3.13 28.64 28.64 3.34 26.77 26.77 3.54 72 48.17 25.96 2.65 44.89 24.73 2.88 41.68 23.54 3.10 38.55 22.40 3.33 35.53 21.31 3.54 32.56 20.27 3.75 67 43.16 31.92 2.62 40.10 30.67 2.84 37.15 29.47 3.05 34.27 28.32 3.26 31.51 27.18 3.46 28.85 26.06 3.65
1350
63†† 39.55 30.58 2.60 36.70 29.33 2.80 33.94 28.14 3.00 31.28 26.97 3.20 28.67 25.80 3.39 26.23 24.66 3.58
62 38.61 37.39 2.59 35.89 35.89 2.80 33.66 33.66 3.00 31.62 31.62 3.21 29.59 29.59 3.41 27.63 27.63 3.62 57 37.91 37.91 2.59 35.76 35.76 2.79 33.67 33.67 3.00 31.64 31.64 3.21 29.60 29.60 3.41 27.64 27.64 3.62
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size CK5PW 036 0.94 1.02 CC5A/CD5AC 048 0.93 1.02
COILS + 58MVP080-14 VARIABLE SPEED FURNACE CC5A/CD5AW 036 0.94 1.03
CC5A/CD5AA 036 0.93 1.04 042 0.92 1.02
042 0.93 1.03 048 0.94 1.02
CC5A/CD5AC 048 0.92 1.03 CD5AA 048 0.94 1.02
CC5A/CD5AW 036 0.93 1.04 CE3AA 036 0.92 1.03
042 0.92 1.02 042 0.94 1.03 048 0.94 1.03 048 0.95 1.03
CD5AA 048 0.94 1.03 CK3BA 036 0.94 1.03 CE3AA 036 0.92 1.04 042 0.94 1.02
042 0.94 1.04 048 0.95 1.03 048 0.94 1.04 CK5A/CK5BA 036 0.94 1.03
CK3BA 036 0.94 1.04 042 0.94 1.02
042 0.94 1.04 048 0.95 1.03 048 0.94 1.03 CK5A/CK5BE 042 0.95 1.03
CK5A/CK5BA 036 0.93 1.04 CK5A/CK5BT 036 0.94 1.03
042 0.94 1.04 042 0.94 1.02 048 0.94 1.03 048 0.95 1.03
CK5A/CK5BE 042 0.94 1.04 CK5A/CK5BW 036 0.94 1.02 CK5A/CK5BT 036 0.93 1.04 048 0.95 1.02
042 0.94 1.04 CK5PA 036 0.94 1.03 048 0.94 1.03 042 0.94 1.02
CK5A/CK5BW 036 0.94 1.04 048 0.95 1.03
048 0.94 1.03 CK5PE 042 0.95 1.03
CK5PA 036 0.94 1.05 CK5PT 036 0.94 1.03
042 0.94 1.04 042 0.94 1.02 048 0.94 1.03 048 0.95 1.03
CK5PE 042 0.94 1.04 CK5PW 036 0.94 1.02 CK5PT 036 0.94 1.05 048 0.95 1.02
042 0.94 1.04 048 0.94 1.03 CC5A/CD5AA 036 0.94 1.03
CK5PW 036 0.94 1.04 042 0.94 1.02
048 0.94 1.03 CC5A/CD5AC 048 0.93 1.02
COILS + 58MVP080-20 VARIABLE SPEED FURNACE CC5A/CD5AW 036 0.94 1.02
CC5A/CD5AA 036 0.93 1.03 042 0.92 1.01
042 0.94 1.03 048 0.94 1.02
High Speed
Capacity Power Capacity Power
Indoor
Section Size
COILS + 58MVP100-20 VARIABLE SPEED FURNACE
See notes on pg. 55.
High Speed
Capacity
MBtuh†
Total
System
kW**
27
Page 28
Detailed cooling capacities* continued
EVAPORATOR
AIR
CFM EWB
75 85 95 105 115 125
Capacity
MBtuh†
Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡
Total
System
kW**
Capacity
MBtuh†
CONDENSER ENTERING AIR TEMPERATURES °F
Total
System
kW**
Capacity
MBtuh†
Total
System
kW**
Capacity
MBtuh†
Total
System
kW**
Capacity
MBtuh†
Tot al
System
kW**
38TDB036-30 Outdoor Section With FV4BNB006 Indoor Section - High Speed continued
72 44.40 22.40 2.48 41.61 21.24 2.70 38.88 20.15 2.91 36.23 19.12 3.13 33.56 18.10 3.34 30.98 17.14 3.54 67 39.76 26.44 2.45 37.19 25.29 2.65 34.67 24.20 2.85 32.22 23.16 3.06 29.79 22.15 3.25 27.47 21.20 3.44
900
63†† 36.46 25.42 2.42 34.07 24.29 2.62 31.73 23.20 2.81 29.40 22.15 3.00 27.15 21.15 3.18 25.00 20.21 3.37
62 35.56 30.45 2.41 33.18 29.29 2.60 30.89 28.17 2.79 28.63 27.05 2.98 26.46 25.90 3.17 24.53 24.53 3.35 57 32.82 32.82 2.38 31.13 31.13 2.57 29.43 29.43 2.76 27.79 27.79 2.96 26.13 26.13 3.16 24.53 24.53 3.35 72 45.93 23.64 2.54 42.96 22.47 2.76 40.08 21.36 2.98 37.20 20.27 3.20 34.39 19.22 3.41 31.66 18.22 3.61
1050
1200
1350
See notes on pg. 55.
67 41.13 28.34 2.51 38.40 27.16 2.72 35.73 26.04 2.92 33.09 24.94 3.13 30.52 23.90 3.32 28.07 22.92 3.52
63†† 37.75 27.23 2.48 35.19 26.05 2.68 32.65 24.91 2.87 30.19 23.82 3.07 27.82 22.79 3.26 25.54 21.81 3.44
62 36.76 32.95 2.47 34.27 31.71 2.67 31.82 30.46 2.86 29.46 29.17 3.06 27.46 27.46 3.25 25.74 25.74 3.45 57 34.75 34.75 2.46 32.88 32.88 2.65 31.08 31.08 2.85 29.24 29.24 3.05 27.47 27.47 3.25 25.75 25.75 3.45 72 47.16 24.83 2.59 44.08 23.65 2.82 40.98 22.48 3.04 37.97 21.37 3.26 35.03 20.30 3.48 32.19 19.27 3.68 67 42.25 30.17 2.57 39.38 28.97 2.78 36.53 27.80 2.98 33.76 26.67 3.20 31.08 25.60 3.39 28.53 24.56 3.59
63†† 38.78 28.96 2.54 36.03 27.73 2.74 33.38 26.56 2.94 30.81 25.45 3.14 28.33 24.36 3.33 25.93 23.30 3.51
62 37.79 35.30 2.54 35.15 33.92 2.74 32.59 32.59 2.93 30.52 30.52 3.13 28.63 28.63 3.34 26.77 26.77 3.54 57 36.42 36.42 2.52 34.46 34.46 2.73 32.47 32.47 2.93 30.53 30.53 3.13 28.64 28.64 3.34 26.77 26.77 3.54 72 48.17 25.96 2.65 44.89 24.73 2.88 41.68 23.54 3.10 38.55 22.40 3.33 35.53 21.31 3.54 32.56 20.27 3.75 67 43.16 31.92 2.62 40.10 30.67 2.84 37.15 29.47 3.05 34.27 28.32 3.26 31.51 27.18 3.46 28.85 26.06 3.65
63†† 39.55 30.58 2.60 36.70 29.33 2.80 33.94 28.14 3.00 31.28 26.97 3.20 28.67 25.80 3.39 26.23 24.66 3.58
62 38.61 37.39 2.59 35.89 35.89 2.80 33.66 33.66 3.00 31.62 31.62 3.21 29.59 29.59 3.41 27.63 27.63 3.62 57 37.91 37.91 2.59 35.76 35.76 2.79 33.67 33.67 3.00 31.64 31.64 3.21 29.60 29.60 3.41 27.64 27.64 3.62
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size CD5AA 048 0.94 1.02 CE3AA 036 0.93 1.03 CC5A/CD5AA 042 0.94 1.02
042 0.94 1.02 CC5A/CD5AC 048 0.93 1.01 048 0.95 1.03 CC5A/CD5AW 036 0.93 1.01
CK3BA 036 0.94 1.03 042 0.92 1.01
042 0.94 1.03 048 0.94 1.01 048 0.95 1.02 CD5AA 048 0.94 1.01
CK5A/CK5BA 036 0.94 1.03 CE3AA 036 0.92 1.02
042 0.94 1.03 042 0.94 1.02 048 0.95 1.02 048 0.94 1.02
CK5A/CK5BE 042 0.95 1.03 CK3BA 042 0.94 1.02 CK5A/CK5BT 036 0.94 1.03 048 0.95 1.02
042 0.94 1.03 CK5A/CK5BA 042 0.94 1.02 048 0.95 1.02 048 0.95 1.02
CK5A/CK5BW 036 0.94 1.03 CK5A/CK5BT 042 0.94 1.02
048 0.95 1.02 048 0.95 1.02
CK5PA 036 0.94 1.03 CK5A/CK5BW 036 0.94 1.02
042 0.94 1.03 048 0.95 1.01 048 0.95 1.02 CK5PA 042 0.94 1.02
CK5PE 042 0.95 1.03 048 0.95 1.02 CK5PT 036 0.94 1.03 CK5PT 042 0.94 1.02
042 0.94 1.03 048 0.95 1.02 048 0.95 1.02 CK5PW 036 0.94 1.02
CK5PW 036 0.94 1.03 048 0.95 1.01
048 0.95 1.02 —— —
High Speed
Capacity Power Capacity Power
Indoor
Section Size
COILS + 58MVP120-20 VARIABLE SPEED FURNACE
High Speed
Capacity
MBtuh†
Total
System
kW**
28
Page 29
Detailed cooling capacities* continued
EVAPORATOR
AIR
CFM EWB
75 85 95 105 115 125
Capacity
MBtuh†
Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡
Total
System
kW**
Capacity
MBtuh†
CONDENSER ENTERING AIR TEMPERATURES °F
Tot al
System
kW**
Capacity
MBtuh†
Total
System
kW**
Capacity
MBtuh†
Total
System
kW**
Capacity
MBtuh†
Tot al
System
kW**
38TDB036-30 Outdoor Section With FV4BNB006 Indoor Section - Low Speed
72 23.55 13.07 1.12 21.93 12.48 1.19 20.25 11.87 1.26 18.53 11.26 1.33 16.77 10.65 1.39 15.25 10.13 1.43 67 21.08 16.27 1.12 19.56 15.66 1.18 17.98 15.03 1.25 16.36 14.39 1.31 14.74 13.73 1.37 13.39 13.14 1.40
650
63†† 19.35 15.58 1.11 17.88 14.95 1.17 16.38 14.31 1.23 14.87 13.65 1.29 13.36 12.97 1.35 12.19 12.19 1.38
62 19.03 19.03 1.11 17.91 17.91 1.17 16.75 16.75 1.24 15.57 15.57 1.30 14.33 14.33 1.36 13.28 13.28 1.40 57 19.03 19.03 1.11 17.91 17.91 1.17 16.75 16.75 1.24 15.57 15.57 1.30 14.34 14.34 1.36 13.28 13.28 1.40 72 24.26 14.41 1.18 22.52 13.80 1.25 20.73 13.18 1.32 18.92 12.55 1.39 17.07 11.93 1.45 15.47 11.39 1.49 67 21.69 18.40 1.17 20.06 17.74 1.24 18.40 17.05 1.30 16.74 16.31 1.37 15.21 15.21 1.43 14.03 14.03 1.47
825
63†† 19.90 17.55 1.16 18.35 16.87 1.23 16.79 16.15 1.29 15.26 15.26 1.35 13.94 13.94 1.41 12.81 12.81 1.45
62 20.38 20.38 1.17 19.16 19.16 1.24 17.87 17.87 1.30 16.55 16.55 1.36 15.21 15.21 1.43 14.04 14.04 1.47 57 20.38 20.38 1.17 19.16 19.16 1.24 17.87 17.87 1.30 16.56 16.56 1.36 15.22 15.22 1.43 14.04 14.04 1.47 72 24.64 15.63 1.23 22.83 15.01 1.31 20.98 14.38 1.38 19.10 13.74 1.44 17.19 13.11 1.51 15.52 12.54 1.54 67 22.03 20.27 1.23 20.36 19.53 1.30 18.69 18.69 1.36 17.25 17.25 1.43 15.79 15.79 1.49 14.53 14.53 1.53
1000
63†† 20.22 19.26 1.22 18.66 18.43 1.29 17.21 17.21 1.35 15.83 15.83 1.41 14.43 14.43 1.48 13.23 13.23 1.51
62 21.35 21.35 1.22 20.02 20.02 1.29 18.66 18.66 1.36 17.25 17.25 1.43 15.80 15.80 1.49 14.54 14.54 1.53 57 21.36 21.36 1.22 20.02 20.02 1.29 18.66 18.66 1.36 17.26 17.26 1.43 15.80 15.80 1.49 14.54 14.54 1.53 72 24.85 16.79 1.29 23.00 16.16 1.36 21.10 15.52 1.43 19.17 14.88 1.50 17.20 14.20 1.57 15.49 13.59 1.60 67 22.29 21.87 1.28 20.70 20.70 1.35 19.26 19.26 1.42 17.76 17.76 1.49 16.23 16.23 1.56 14.90 14.90 1.59
1175
63†† 20.51 20.51 1.27 19.13 19.13 1.34 17.71 17.71 1.41 16.26 16.26 1.47 14.79 14.79 1.54 13.51 13.51 1.57
62 22.10 22.10 1.28 20.70 20.70 1.35 19.26 19.26 1.42 17.76 17.76 1.49 16.23 16.23 1.56 14.91 14.91 1.59 57 22.11 22.11 1.28 20.71 20.71 1.35 19.26 19.26 1.42 17.77 17.77 1.49 16.24 16.24 1.56 14.91 14.91 1.59 72 24.97 17.90 1.34 23.07 17.26 1.42 21.13 16.61 1.49 19.15 15.93 1.55 17.15 15.20 1.62 15.43 14.52 1.65 67 22.68 22.68 1.34 21.22 21.22 1.41 19.70 19.70 1.48 18.14 18.14 1.55 16.55 16.55 1.62 15.15 15.15 1.65
1350
63†† 20.99 20.99 1.33 19.55 19.55 1.40 18.08 18.08 1.47 16.58 16.58 1.53 15.03 15.03 1.60 13.70 13.70 1.63
62 22.69 22.69 1.34 21.22 21.22 1.41 19.70 19.70 1.48 18.15 18.15 1.55 16.56 16.56 1.62 15.15 15.15 1.65 57 22.70 22.70 1.34 21.23 21.23 1.41 19.70 19.70 1.48 18.15 18.15 1.55 16.56 16.56 1.62 15.16 15.16 1.65
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
CC5A/CD5AA 036 0.97 1.18 FE4ANB 006 1.00 1.00
042 0.97 1.18 FE4ANF 002 0.99 1.04
CC5A/CD5AC 048 0.96 1.18 003 0.99 1.01
CC5A/CD5AW 036 0.97 1.18 005 1.00 1.02
042 0.96 1.18 FK4DNF 001 0.98 1.04 048 0.97 1.18 FV4BNB 006 1.00 1.00
CD5AA 048 0.97 1.18 FV4BNF 002 0.99 1.04
CE3AA 036 0.96 1.18 003 0.99 1.01
042 0.97 1.18 005 1.00 1.02 048 0.97 1.18 40FKB/FK4DNB 006 1.00 1.00
CF5AA 036 0.97 1.18 40FKB/FK4DNF 002 0.99 1.04
048 0.97 1.18 003 0.99 1.01
CK3BA 036 0.98 1.18 005 1.00 1.02
042 0.98 1.18 048 0.98 1.18 CC5A/CD5AA 036 0.99 1.05
CK5A/CK5BA 036 0.98 1.18 CE3AA 036 0.98 1.05
042 0.98 1.18 CK3BA 036 0.99 1.05 048 0.98 1.18 CK5A/CK5BA 036 0.99 1.05
CK5A/CK5BE 042 0.98 1.18 CK5A/CK5BT 036 0.99 1.05 CK5A/CK5BT 036 0.98 1.18 CK5PA 036 0.99 1.05
042 0.98 1.18 CK5PT 036 0.99 1.05 048 0.98 1.18
CK5A/CK5BW 036 0.99 1.22 CC5A/CD5AA 036 0.99 1.04
048 0.98 1.18 042 0.99 1.04
CK5PA 036 0.98 1.18 CC5A/CD5AC 048 0.99 1.04
042 0.98 1.18 CC5A/CD5AW 036 0.99 1.04 048 0.98 1.18 CD5AA 048 0.99 1.03
CK5PE 042 0.98 1.18 CE3AA 036 0.98 1.04 CK5PT 036 0.98 1.18 042 0.99 1.04
042 0.98 1.18 048 1.00 1.05 048 0.98 1.18 CK3BA 036 1.00 1.05
CK5PW 036 0.99 1.22 042 1.00 1.05
048 0.98 1.18 048 1.00 1.04
Low Speed
Capacity Power Capacity Power
Indoor
Section Size
COILS + 58CV(A,X)070-12 VARIABLE SPEED FURNACE
COILS + 58CV(A,X)090-16 VARIABLE SPEED FURNACE
See notes on pg. 55.
Low Speed
Capacity
MBtuh†
Total
System
kW**
29
Page 30
Detailed cooling capacities* continued
EVAPORATOR
AIR
CFM EWB
75 85 95 105 115 125
Capacity
MBtuh†
Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡
Total
System
kW**
Capacity
MBtuh†
CONDENSER ENTERING AIR TEMPERATURES °F
Total
System
kW**
Capacity
MBtuh†
Total
System
kW**
Capacity
MBtuh†
Total
System
kW**
Capacity
MBtuh†
Tot al
System
kW**
38TDB036-30 Outdoor Section With FV4BNB006 Indoor Section - Low Speed continued
72 23.55 13.07 1.12 21.93 12.48 1.19 20.25 11.87 1.26 18.53 11.26 1.33 16.77 10.65 1.39 15.25 10.13 1.43 67 21.08 16.27 1.12 19.56 15.66 1.18 17.98 15.03 1.25 16.36 14.39 1.31 14.74 13.73 1.37 13.39 13.14 1.40
650
63†† 19.35 15.58 1.11 17.88 14.95 1.17 16.38 14.31 1.23 14.87 13.65 1.29 13.36 12.97 1.35 12.19 12.19 1.38
62 19.03 19.03 1.11 17.91 17.91 1.17 16.75 16.75 1.24 15.57 15.57 1.30 14.33 14.33 1.36 13.28 13.28 1.40 57 19.03 19.03 1.11 17.91 17.91 1.17 16.75 16.75 1.24 15.57 15.57 1.30 14.34 14.34 1.36 13.28 13.28 1.40 72 24.26 14.41 1.18 22.52 13.80 1.25 20.73 13.18 1.32 18.92 12.55 1.39 17.07 11.93 1.45 15.47 11.39 1.49 67 21.69 18.40 1.17 20.06 17.74 1.24 18.40 17.05 1.30 16.74 16.31 1.37 15.21 15.21 1.43 14.03 14.03 1.47
825
63†† 19.90 17.55 1.16 18.35 16.87 1.23 16.79 16.15 1.29 15.26 15.26 1.35 13.94 13.94 1.41 12.81 12.81 1.45
62 20.38 20.38 1.17 19.16 19.16 1.24 17.87 17.87 1.30 16.55 16.55 1.36 15.21 15.21 1.43 14.04 14.04 1.47 57 20.38 20.38 1.17 19.16 19.16 1.24 17.87 17.87 1.30 16.56 16.56 1.36 15.22 15.22 1.43 14.04 14.04 1.47 72 24.64 15.63 1.23 22.83 15.01 1.31 20.98 14.38 1.38 19.10 13.74 1.44 17.19 13.11 1.51 15.52 12.54 1.54
1000
1175
1350
See notes on pg. 55.
67 22.03 20.27 1.23 20.36 19.53 1.30 18.69 18.69 1.36 17.25 17.25 1.43 15.79 15.79 1.49 14.53 14.53 1.53
63†† 20.22 19.26 1.22 18.66 18.43 1.29 17.21 17.21 1.35 15.83 15.83 1.41 14.43 14.43 1.48 13.23 13.23 1.51
62 21.35 21.35 1.22 20.02 20.02 1.29 18.66 18.66 1.36 17.25 17.25 1.43 15.80 15.80 1.49 14.54 14.54 1.53 57 21.36 21.36 1.22 20.02 20.02 1.29 18.66 18.66 1.36 17.26 17.26 1.43 15.80 15.80 1.49 14.54 14.54 1.53 72 24.85 16.79 1.29 23.00 16.16 1.36 21.10 15.52 1.43 19.17 14.88 1.50 17.20 14.20 1.57 15.49 13.59 1.60 67 22.29 21.87 1.28 20.70 20.70 1.35 19.26 19.26 1.42 17.76 17.76 1.49 16.23 16.23 1.56 14.90 14.90 1.59
63†† 20.51 20.51 1.27 19.13 19.13 1.34 17.71 17.71 1.41 16.26 16.26 1.47 14.79 14.79 1.54 13.51 13.51 1.57
62 22.10 22.10 1.28 20.70 20.70 1.35 19.26 19.26 1.42 17.76 17.76 1.49 16.23 16.23 1.56 14.91 14.91 1.59 57 22.11 22.11 1.28 20.71 20.71 1.35 19.26 19.26 1.42 17.77 17.77 1.49 16.24 16.24 1.56 14.91 14.91 1.59 72 24.97 17.90 1.34 23.07 17.26 1.42 21.13 16.61 1.49 19.15 15.93 1.55 17.15 15.20 1.62 15.43 14.52 1.65 67 22.68 22.68 1.34 21.22 21.22 1.41 19.70 19.70 1.48 18.14 18.14 1.55 16.55 16.55 1.62 15.15 15.15 1.65
63†† 20.99 20.99 1.33 19.55 19.55 1.40 18.08 18.08 1.47 16.58 16.58 1.53 15.03 15.03 1.60 13.70 13.70 1.63
62 22.69 22.69 1.34 21.22 21.22 1.41 19.70 19.70 1.48 18.15 18.15 1.55 16.56 16.56 1.62 15.15 15.15 1.65 57 22.70 22.70 1.34 21.23 21.23 1.41 19.70 19.70 1.48 18.15 18.15 1.55 16.56 16.56 1.62 15.16 15.16 1.65
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
CK5A/CK5BA 036 1.00 1.05 CK5A/CK5BA 036 1.00 1.05
042 1.00 1.05 042 1.00 1.05 048 1.00 1.04 048 1.00 1.04
CK5A/CK5BE 042 1.00 1.04 CK5A/CK5BE 042 1.00 1.04 CK5A/CK5BT 036 1.00 1.05 CK5A/CK5BT 036 1.00 1.05
042 1.00 1.05 042 1.00 1.05 048 1.00 1.04 048 1.00 1.04
CK5A/CK5BW 036 1.00 1.05 CK5A/CK5BW 036 1.00 1.05
CK5PA 036 1.00 1.05 048 1.00 1.04
042 1.00 1.05 CK5PA 036 1.00 1.05 048 1.00 1.04 042 1.00 1.05
CK5PE 042 1.00 1.04 048 1.00 1.04 CK5PT 036 1.00 1.05 CK5PE 042 1.00 1.04
042 1.00 1.05 CK5PT 036 1.00 1.05 048 1.00 1.04 042 1.00 1.05
CK5PW 036 1.00 1.05 048 1.00 1.04
COILS + 58CV(A,X)110-22 VARIABLE SPEED FURNACE CK5PW 036 1.00 1.05
CC5A/CD5AA 036 0.99 1.04 048 1.00 1.04
042 0.99 1.04
CC5A/CD5AC 048 0.99 1.05 CC5A/CD5AA 042 0.99 1.04 CC5A/CD5AW 036 0.99 1.04 CC5A/CD5AC 048 0.99 1.05
042 0.99 1.04 CC5A/CD5AW 036 0.99 1.04 048 0.99 1.03 042 0.99 1.03
CD5AA 048 0.99 1.04 048 0.99 1.03 CE3AA 036 0.98 1.04 CD5AA 048 0.99 1.03
042 0.99 1.04 CE3AA 036 0.98 1.04 048 1.00 1.05 042 0.99 1.04
CK3BA 036 1.00 1.05 048 1.00 1.05
042 1.00 1.05 CK3BA 036 1.00 1.05 048 1.00 1.04 042 1.00 1.05
—— — 048 1.00 1.04
Low Speed
Capacity Power Capacity Power
Indoor
Section Size
COILS + 58CV(A,X)135-22 VARIABLE SPEED FURNACE
Low Speed
Capacity
MBtuh†
Total
System
kW**
30
Page 31
Detailed cooling capacities* continued
EVAPORATOR
AIR
CFM EWB
75 85 95 105 115 125
Capacity
MBtuh†
Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡
Total
System
kW**
Capacity
MBtuh†
CONDENSER ENTERING AIR TEMPERATURES °F
Tot al
System
kW**
Capacity
MBtuh†
Total
System
kW**
Capacity
MBtuh†
Total
System
kW**
Capacity
MBtuh†
Tot al
System
kW**
38TDB036-30 Outdoor Section With FV4BNB006 Indoor Section - Low Speed continued
72 23.55 13.07 1.12 21.93 12.48 1.19 20.25 11.87 1.26 18.53 11.26 1.33 16.77 10.65 1.39 15.25 10.13 1.43 67 21.08 16.27 1.12 19.56 15.66 1.18 17.98 15.03 1.25 16.36 14.39 1.31 14.74 13.73 1.37 13.39 13.14 1.40
650
63†† 19.35 15.58 1.11 17.88 14.95 1.17 16.38 14.31 1.23 14.87 13.65 1.29 13.36 12.97 1.35 12.19 12.19 1.38
62 19.03 19.03 1.11 17.91 17.91 1.17 16.75 16.75 1.24 15.57 15.57 1.30 14.33 14.33 1.36 13.28 13.28 1.40 57 19.03 19.03 1.11 17.91 17.91 1.17 16.75 16.75 1.24 15.57 15.57 1.30 14.34 14.34 1.36 13.28 13.28 1.40 72 24.26 14.41 1.18 22.52 13.80 1.25 20.73 13.18 1.32 18.92 12.55 1.39 17.07 11.93 1.45 15.47 11.39 1.49 67 21.69 18.40 1.17 20.06 17.74 1.24 18.40 17.05 1.30 16.74 16.31 1.37 15.21 15.21 1.43 14.03 14.03 1.47
825
63†† 19.90 17.55 1.16 18.35 16.87 1.23 16.79 16.15 1.29 15.26 15.26 1.35 13.94 13.94 1.41 12.81 12.81 1.45
62 20.38 20.38 1.17 19.16 19.16 1.24 17.87 17.87 1.30 16.55 16.55 1.36 15.21 15.21 1.43 14.04 14.04 1.47 57 20.38 20.38 1.17 19.16 19.16 1.24 17.87 17.87 1.30 16.56 16.56 1.36 15.22 15.22 1.43 14.04 14.04 1.47 72 24.64 15.63 1.23 22.83 15.01 1.31 20.98 14.38 1.38 19.10 13.74 1.44 17.19 13.11 1.51 15.52 12.54 1.54 67 22.03 20.27 1.23 20.36 19.53 1.30 18.69 18.69 1.36 17.25 17.25 1.43 15.79 15.79 1.49 14.53 14.53 1.53
1000
63†† 20.22 19.26 1.22 18.66 18.43 1.29 17.21 17.21 1.35 15.83 15.83 1.41 14.43 14.43 1.48 13.23 13.23 1.51
62 21.35 21.35 1.22 20.02 20.02 1.29 18.66 18.66 1.36 17.25 17.25 1.43 15.80 15.80 1.49 14.54 14.54 1.53 57 21.36 21.36 1.22 20.02 20.02 1.29 18.66 18.66 1.36 17.26 17.26 1.43 15.80 15.80 1.49 14.54 14.54 1.53 72 24.85 16.79 1.29 23.00 16.16 1.36 21.10 15.52 1.43 19.17 14.88 1.50 17.20 14.20 1.57 15.49 13.59 1.60 67 22.29 21.87 1.28 20.70 20.70 1.35 19.26 19.26 1.42 17.76 17.76 1.49 16.23 16.23 1.56 14.90 14.90 1.59
1175
63†† 20.51 20.51 1.27 19.13 19.13 1.34 17.71 17.71 1.41 16.26 16.26 1.47 14.79 14.79 1.54 13.51 13.51 1.57
62 22.10 22.10 1.28 20.70 20.70 1.35 19.26 19.26 1.42 17.76 17.76 1.49 16.23 16.23 1.56 14.91 14.91 1.59 57 22.11 22.11 1.28 20.71 20.71 1.35 19.26 19.26 1.42 17.77 17.77 1.49 16.24 16.24 1.56 14.91 14.91 1.59 72 24.97 17.90 1.34 23.07 17.26 1.42 21.13 16.61 1.49 19.15 15.93 1.55 17.15 15.20 1.62 15.43 14.52 1.65 67 22.68 22.68 1.34 21.22 21.22 1.41 19.70 19.70 1.48 18.14 18.14 1.55 16.55 16.55 1.62 15.15 15.15 1.65
1350
63†† 20.99 20.99 1.33 19.55 19.55 1.40 18.08 18.08 1.47 16.58 16.58 1.53 15.03 15.03 1.60 13.70 13.70 1.63
62 22.69 22.69 1.34 21.22 21.22 1.41 19.70 19.70 1.48 18.15 18.15 1.55 16.56 16.56 1.62 15.15 15.15 1.65 57 22.70 22.70 1.34 21.23 21.23 1.41 19.70 19.70 1.48 18.15 18.15 1.55 16.56 16.56 1.62 15.16 15.16 1.65
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
CK5A/CK5BA 042 1.00 1.05 CK5PA 042 1.00 1.04
048 1.00 1.04 048 1.00 1.04
CK5A/CK5BT 042 1.00 1.05 CK5PT 042 1.00 1.04
048 1.00 1.04 048 1.00 1.04
CK5A/CK5BW 036 1.00 1.05 CK5PW 036 1.00 1.05
048 1.00 1.04 048 1.00 1.03
CK5PA 042 1.00 1.05
048 1.00 1.04 CC5A/CD5AA 042 0.99 1.05
CK5PT 042 1.00 1.05 CC5A/CD5AC 048 0.98 1.05
048 1.00 1.04 CC5A/CD5AW 036 0.99 1.06
CK5PW 036 1.00 1.05 042 0.98 1.05
048 1.00 1.04 048 0.99 1.05
COILS + 58CV(A,X)155-22 VARIABLE SPEED FURNACE CD5AA 048 0.99 1.05 CC5A/CD5AA 042 0.99 1.04 CE3AA 036 0.98 1.06 CC5A/CD5AC 048 0.99 1.04 042 0.99 1.05
CC5A/CD5AW 036 0.99 1.04 048 0.99 1.05
042 0.99 1.03 CK3BA 042 0.99 1.05 048 0.99 1.03 048 1.00 1.05
CD5AA 048 0.99 1.03 CK5A/CK5BA 042 0.99 1.05
CE3AA 036 0.98 1.04 048 1.00 1.05
042 0.99 1.04 CK5A/CK5BT 042 0.99 1.05 048 1.00 1.04 048 1.00 1.05
CK3BA 036 1.00 1.05 CK5A/CK5BW 036 0.99 1.05
042 1.00 1.04 048 1.00 1.05 048 1.00 1.04 CK5PA 042 0.99 1.05
CK5A/CK5BA 042 1.00 1.04 048 1.00 1.05
048 1.00 1.04 CK5PT 042 0.99 1.05
CK5A/CK5BT 042 1.00 1.04 048 1.00 1.05
048 1.00 1.04 CK5PW 036 0.99 1.05
CK5A/CK5BW 036 1.00 1.05 048 1.00 1.05
048 1.00 1.03 —— —
Low Speed
Capacity Power Capacity Power
Indoor
Section Size
COILS + 58MVP040-14 VARIABLE SPEED FURNACE
See notes on pg. 55.
Low Speed
Capacity
MBtuh†
Total
System
kW**
31
Page 32
Detailed cooling capacities* continued
EVAPORATOR
AIR
CFM EWB
75 85 95 105 115 125
Capacity
MBtuh†
Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡
Total
System
kW**
Capacity
MBtuh†
CONDENSER ENTERING AIR TEMPERATURES °F
Total
System
kW**
Capacity
MBtuh†
Tot al
System
kW**
Capacity
MBtuh†
Total
System
kW**
Capacity
MBtuh†
Total
System
kW**
38TDB036-30 Outdoor Section With FV4BNB006 Indoor Section - Low Speed continued
72 23.55 13.07 1.12 21.93 12.48 1.19 20.25 11.87 1.26 18.53 11.26 1.33 16.77 10.65 1.39 15.25 10.13 1.43 67 21.08 16.27 1.12 19.56 15.66 1.18 17.98 15.03 1.25 16.36 14.39 1.31 14.74 13.73 1.37 13.39 13.14 1.40
650
63†† 19.35 15.58 1.11 17.88 14.95 1.17 16.38 14.31 1.23 14.87 13.65 1.29 13.36 12.97 1.35 12.19 12.19 1.38
62 19.03 19.03 1.11 17.91 17.91 1.17 16.75 16.75 1.24 15.57 15.57 1.30 14.33 14.33 1.36 13.28 13.28 1.40 57 19.03 19.03 1.11 17.91 17.91 1.17 16.75 16.75 1.24 15.57 15.57 1.30 14.34 14.34 1.36 13.28 13.28 1.40 72 24.26 14.41 1.18 22.52 13.80 1.25 20.73 13.18 1.32 18.92 12.55 1.39 17.07 11.93 1.45 15.47 11.39 1.49 67 21.69 18.40 1.17 20.06 17.74 1.24 18.40 17.05 1.30 16.74 16.31 1.37 15.21 15.21 1.43 14.03 14.03 1.47
825
63†† 19.90 17.55 1.16 18.35 16.87 1.23 16.79 16.15 1.29 15.26 15.26 1.35 13.94 13.94 1.41 12.81 12.81 1.45
62 20.38 20.38 1.17 19.16 19.16 1.24 17.87 17.87 1.30 16.55 16.55 1.36 15.21 15.21 1.43 14.04 14.04 1.47 57 20.38 20.38 1.17 19.16 19.16 1.24 17.87 17.87 1.30 16.56 16.56 1.36 15.22 15.22 1.43 14.04 14.04 1.47 72 24.64 15.63 1.23 22.83 15.01 1.31 20.98 14.38 1.38 19.10 13.74 1.44 17.19 13.11 1.51 15.52 12.54 1.54
1000
1175
1350
See notes on pg. 55.
67 22.03 20.27 1.23 20.36 19.53 1.30 18.69 18.69 1.36 17.25 17.25 1.43 15.79 15.79 1.49 14.53 14.53 1.53
63†† 20.22 19.26 1.22 18.66 18.43 1.29 17.21 17.21 1.35 15.83 15.83 1.41 14.43 14.43 1.48 13.23 13.23 1.51
62 21.35 21.35 1.22 20.02 20.02 1.29 18.66 18.66 1.36 17.25 17.25 1.43 15.80 15.80 1.49 14.54 14.54 1.53 57 21.36 21.36 1.22 20.02 20.02 1.29 18.66 18.66 1.36 17.26 17.26 1.43 15.80 15.80 1.49 14.54 14.54 1.53 72 24.85 16.79 1.29 23.00 16.16 1.36 21.10 15.52 1.43 19.17 14.88 1.50 17.20 14.20 1.57 15.49 13.59 1.60 67 22.29 21.87 1.28 20.70 20.70 1.35 19.26 19.26 1.42 17.76 17.76 1.49 16.23 16.23 1.56 14.90 14.90 1.59
63†† 20.51 20.51 1.27 19.13 19.13 1.34 17.71 17.71 1.41 16.26 16.26 1.47 14.79 14.79 1.54 13.51 13.51 1.57
62 22.10 22.10 1.28 20.70 20.70 1.35 19.26 19.26 1.42 17.76 17.76 1.49 16.23 16.23 1.56 14.91 14.91 1.59 57 22.11 22.11 1.28 20.71 20.71 1.35 19.26 19.26 1.42 17.77 17.77 1.49 16.24 16.24 1.56 14.91 14.91 1.59 72 24.97 17.90 1.34 23.07 17.26 1.42 21.13 16.61 1.49 19.15 15.93 1.55 17.15 15.20 1.62 15.43 14.52 1.65 67 22.68 22.68 1.34 21.22 21.22 1.41 19.70 19.70 1.48 18.14 18.14 1.55 16.55 16.55 1.62 15.15 15.15 1.65
63†† 20.99 20.99 1.33 19.55 19.55 1.40 18.08 18.08 1.47 16.58 16.58 1.53 15.03 15.03 1.60 13.70 13.70 1.63
62 22.69 22.69 1.34 21.22 21.22 1.41 19.70 19.70 1.48 18.15 18.15 1.55 16.56 16.56 1.62 15.15 15.15 1.65 57 22.70 22.70 1.34 21.23 21.23 1.41 19.70 19.70 1.48 18.15 18.15 1.55 16.56 16.56 1.62 15.16 15.16 1.65
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
COILS + 58MVP060-14 VARIABLE SPEED FURNACE CC5A/CD5AC 048 0.98 1.05
CC5A/CD5AA 036 0.98 1.04 CC5A/CD5AW 036 0.99 1.06
042 0.99 1.05 042 0.98 1.05
CC5A/CD5AC 048 0.98 1.04 048 0.99 1.05
CC5A/CD5AW 036 0.99 1.05 CD5AA 048 0.99 1.05
CD5AA 048 0.99 1.04 CE3AA 036 0.98 1.06 CE3AA 036 0.98 1.05 042 0.99 1.05
042 0.99 1.05 048 0.99 1.05 048 0.99 1.04 CK3BA 036 0.99 1.06
CK3BA 036 0.99 1.05 042 0.99 1.05
042 0.99 1.05 048 1.00 1.05 048 1.00 1.05 CK5A/CK5BA 036 0.99 1.05
CK5A/CK5BA 036 0.99 1.05 042 0.99 1.05
042 0.99 1.05 048 1.00 1.05 048 1.00 1.05 CK5A/CK5BE 042 1.00 1.06
CK5A/CK5BE 042 0.99 1.04 CK5A/CK5BT 036 0.99 1.05 CK5A/CK5BT 036 0.99 1.05 042 0.99 1.05
042 0.99 1.05 048 1.00 1.05 048 1.00 1.05 CK5A/CK5BW 036 0.99 1.05
CK5A/CK5BW 036 0.99 1.05 048 1.00 1.05
CK5PA 036 0.99 1.05 CK5PA 036 0.99 1.05
042 0.99 1.05 042 0.99 1.05 048 1.00 1.05 048 1.00 1.05
CK5PE 042 0.99 1.04 CK5PE 042 1.00 1.06 CK5PT 036 0.99 1.05 CK5PT 036 0.99 1.05
042 0.99 1.05 042 0.99 1.05 048 1.00 1.05 048 1.00 1.05
CK5PW 036 0.99 1.05 CK5PW 036 0.99 1.05
COILS + 58MVP080-14 VARIABLE SPEED FURNACE 048 1.00 1.05
CC5A/CD5AA 036 0.99 1.06
042 0.99 1.05 CC5A/CD5AA 036 0.99 1.06
—— — 042 0.99 1.05
Low Speed
Capacity Power Capacity Power
Indoor
Section Size
COILS + 58MVP080-20 VARIABLE SPEED FURNACE
Low Speed
Capacity
MBtuh†
Total
System
kW**
32
Page 33
Detailed cooling capacities* continued
EVAPORATOR
AIR
CFM EWB
75 85 95 105 115 125
Capacity
MBtuh†
Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡
Total
System
kW**
Capacity
MBtuh†
CONDENSER ENTERING AIR TEMPERATURES °F
Total
System
kW**
Capacity
MBtuh†
Tot al
System
kW**
Capacity
MBtuh†
Total
System
kW**
Capacity
MBtuh†
Tot al
System
kW**
38TDB036-30 Outdoor Section With FV4BNB006 Indoor Section - Low Speed continued
72 23.55 13.07 1.12 21.93 12.48 1.19 20.25 11.87 1.26 18.53 11.26 1.33 16.77 10.65 1.39 15.25 10.13 1.43 67 21.08 16.27 1.12 19.56 15.66 1.18 17.98 15.03 1.25 16.36 14.39 1.31 14.74 13.73 1.37 13.39 13.14 1.40
650
63†† 19.35 15.58 1.11 17.88 14.95 1.17 16.38 14.31 1.23 14.87 13.65 1.29 13.36 12.97 1.35 12.19 12.19 1.38
62 19.03 19.03 1.11 17.91 17.91 1.17 16.75 16.75 1.24 15.57 15.57 1.30 14.33 14.33 1.36 13.28 13.28 1.40 57 19.03 19.03 1.11 17.91 17.91 1.17 16.75 16.75 1.24 15.57 15.57 1.30 14.34 14.34 1.36 13.28 13.28 1.40 72 24.26 14.41 1.18 22.52 13.80 1.25 20.73 13.18 1.32 18.92 12.55 1.39 17.07 11.93 1.45 15.47 11.39 1.49 67 21.69 18.40 1.17 20.06 17.74 1.24 18.40 17.05 1.30 16.74 16.31 1.37 15.21 15.21 1.43 14.03 14.03 1.47
825
63†† 19.90 17.55 1.16 18.35 16.87 1.23 16.79 16.15 1.29 15.26 15.26 1.35 13.94 13.94 1.41 12.81 12.81 1.45
62 20.38 20.38 1.17 19.16 19.16 1.24 17.87 17.87 1.30 16.55 16.55 1.36 15.21 15.21 1.43 14.04 14.04 1.47 57 20.38 20.38 1.17 19.16 19.16 1.24 17.87 17.87 1.30 16.56 16.56 1.36 15.22 15.22 1.43 14.04 14.04 1.47 72 24.64 15.63 1.23 22.83 15.01 1.31 20.98 14.38 1.38 19.10 13.74 1.44 17.19 13.11 1.51 15.52 12.54 1.54 67 22.03 20.27 1.23 20.36 19.53 1.30 18.69 18.69 1.36 17.25 17.25 1.43 15.79 15.79 1.49 14.53 14.53 1.53
1000
63†† 20.22 19.26 1.22 18.66 18.43 1.29 17.21 17.21 1.35 15.83 15.83 1.41 14.43 14.43 1.48 13.23 13.23 1.51
62 21.35 21.35 1.22 20.02 20.02 1.29 18.66 18.66 1.36 17.25 17.25 1.43 15.80 15.80 1.49 14.54 14.54 1.53 57 21.36 21.36 1.22 20.02 20.02 1.29 18.66 18.66 1.36 17.26 17.26 1.43 15.80 15.80 1.49 14.54 14.54 1.53 72 24.85 16.79 1.29 23.00 16.16 1.36 21.10 15.52 1.43 19.17 14.88 1.50 17.20 14.20 1.57 15.49 13.59 1.60 67 22.29 21.87 1.28 20.70 20.70 1.35 19.26 19.26 1.42 17.76 17.76 1.49 16.23 16.23 1.56 14.90 14.90 1.59
1175
63†† 20.51 20.51 1.27 19.13 19.13 1.34 17.71 17.71 1.41 16.26 16.26 1.47 14.79 14.79 1.54 13.51 13.51 1.57
62 22.10 22.10 1.28 20.70 20.70 1.35 19.26 19.26 1.42 17.76 17.76 1.49 16.23 16.23 1.56 14.91 14.91 1.59 57 22.11 22.11 1.28 20.71 20.71 1.35 19.26 19.26 1.42 17.77 17.77 1.49 16.24 16.24 1.56 14.91 14.91 1.59 72 24.97 17.90 1.34 23.07 17.26 1.42 21.13 16.61 1.49 19.15 15.93 1.55 17.15 15.20 1.62 15.43 14.52 1.65 67 22.68 22.68 1.34 21.22 21.22 1.41 19.70 19.70 1.48 18.14 18.14 1.55 16.55 16.55 1.62 15.15 15.15 1.65
1350
63†† 20.99 20.99 1.33 19.55 19.55 1.40 18.08 18.08 1.47 16.58 16.58 1.53 15.03 15.03 1.60 13.70 13.70 1.63
62 22.69 22.69 1.34 21.22 21.22 1.41 19.70 19.70 1.48 18.15 18.15 1.55 16.56 16.56 1.62 15.15 15.15 1.65 57 22.70 22.70 1.34 21.23 21.23 1.41 19.70 19.70 1.48 18.15 18.15 1.55 16.56 16.56 1.62 15.16 15.16 1.65
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size CC5A/CD5AC 048 0.98 1.04 CC5A/CD5AW 036 0.99 1.05 CC5A/CD5AA 036 0.99 1.05
042 0.98 1.04 042 0.99 1.05 048 0.99 1.05 CC5A/CD5AC 048 0.98 1.04
CD5AA 048 0.99 1.05 CC5A/CD5AW 036 0.99 1.05 CE3AA 036 0.98 1.05 042 0.98 1.04
042 0.99 1.05 048 0.99 1.04 048 0.99 1.05 CD5AA 048 0.99 1.04
CK3BA 036 0.99 1.05 CE3AA 036 0.98 1.05
042 0.99 1.05 042 0.99 1.05 048 1.00 1.05 048 0.99 1.04
CK5A/CK5BA 036 0.99 1.05 CK3BA 036 0.99 1.05
042 0.99 1.05 042 0.99 1.05 048 1.00 1.05 048 1.00 1.05
CK5A/CK5BE 042 1.00 1.05 CK5A/CK5BA 036 0.99 1.05 CK5A/CK5BT 036 0.99 1.05 042 0.99 1.05
042 0.99 1.05 048 1.00 1.05 048 1.00 1.05 CK5A/CK5BE 042 1.00 1.05
CK5A/CK5BW 036 0.99 1.05 CK5A/CK5BT 036 0.99 1.05
048 1.00 1.05 042 0.99 1.05
CK5PA 036 0.99 1.05 048 1.00 1.05
042 0.99 1.05 CK5A/CK5BW 036 0.99 1.05 048 1.00 1.05 048 1.00 1.05
CK5PE 042 1.00 1.05 CK5PA 036 0.99 1.05 CK5PT 036 0.99 1.05 042 0.99 1.05
042 0.99 1.05 048 1.00 1.05 048 1.00 1.05 CK5PE 042 1.00 1.05
CK5PW 036 0.99 1.05 CK5PT 036 0.99 1.05
048 1.00 1.05 042 0.99 1.05
—— — 048 1.00 1.05
Low Speed
Capacity Power Capacity Power
Indoor
Section Size
COILS + 58MVP100-20 VARIABLE SPEED FURNACE
See notes on pg. 55.
Low Speed
Capacity
MBtuh†
Total
System
kW**
33
Page 34
Detailed cooling capacities* continued
EVAPORATOR
AIR
CFM EWB
75 85 95 105 115 125
Capacity
MBtuh†
Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡
Total
System
kW**
Capacity
MBtuh†
CONDENSER ENTERING AIR TEMPERATURES °F
Total
System
kW**
Capacity
MBtuh†
Tot al
System
kW**
Capacity
MBtuh†
Total
System
kW**
Capacity
MBtuh†
Total
System
kW**
38TDB036-30 Outdoor Section With FV4BNB006 Indoor Section - Low Speed continued
72 23.55 13.07 1.12 21.93 12.48 1.19 20.25 11.87 1.26 18.53 11.26 1.33 16.77 10.65 1.39 15.25 10.13 1.43 67 21.08 16.27 1.12 19.56 15.66 1.18 17.98 15.03 1.25 16.36 14.39 1.31 14.74 13.73 1.37 13.39 13.14 1.40
650
63†† 19.35 15.58 1.11 17.88 14.95 1.17 16.38 14.31 1.23 14.87 13.65 1.29 13.36 12.97 1.35 12.19 12.19 1.38
62 19.03 19.03 1.11 17.91 17.91 1.17 16.75 16.75 1.24 15.57 15.57 1.30 14.33 14.33 1.36 13.28 13.28 1.40 57 19.03 19.03 1.11 17.91 17.91 1.17 16.75 16.75 1.24 15.57 15.57 1.30 14.34 14.34 1.36 13.28 13.28 1.40 72 24.26 14.41 1.18 22.52 13.80 1.25 20.73 13.18 1.32 18.92 12.55 1.39 17.07 11.93 1.45 15.47 11.39 1.49 67 21.69 18.40 1.17 20.06 17.74 1.24 18.40 17.05 1.30 16.74 16.31 1.37 15.21 15.21 1.43 14.03 14.03 1.47
825
63†† 19.90 17.55 1.16 18.35 16.87 1.23 16.79 16.15 1.29 15.26 15.26 1.35 13.94 13.94 1.41 12.81 12.81 1.45
62 20.38 20.38 1.17 19.16 19.16 1.24 17.87 17.87 1.30 16.55 16.55 1.36 15.21 15.21 1.43 14.04 14.04 1.47 57 20.38 20.38 1.17 19.16 19.16 1.24 17.87 17.87 1.30 16.56 16.56 1.36 15.22 15.22 1.43 14.04 14.04 1.47 72 24.64 15.63 1.23 22.83 15.01 1.31 20.98 14.38 1.38 19.10 13.74 1.44 17.19 13.11 1.51 15.52 12.54 1.54
1000
1175
1350
See notes on pg. 55.
67 22.03 20.27 1.23 20.36 19.53 1.30 18.69 18.69 1.36 17.25 17.25 1.43 15.79 15.79 1.49 14.53 14.53 1.53
63†† 20.22 19.26 1.22 18.66 18.43 1.29 17.21 17.21 1.35 15.83 15.83 1.41 14.43 14.43 1.48 13.23 13.23 1.51
62 21.35 21.35 1.22 20.02 20.02 1.29 18.66 18.66 1.36 17.25 17.25 1.43 15.80 15.80 1.49 14.54 14.54 1.53 57 21.36 21.36 1.22 20.02 20.02 1.29 18.66 18.66 1.36 17.26 17.26 1.43 15.80 15.80 1.49 14.54 14.54 1.53 72 24.85 16.79 1.29 23.00 16.16 1.36 21.10 15.52 1.43 19.17 14.88 1.50 17.20 14.20 1.57 15.49 13.59 1.60 67 22.29 21.87 1.28 20.70 20.70 1.35 19.26 19.26 1.42 17.76 17.76 1.49 16.23 16.23 1.56 14.90 14.90 1.59
63†† 20.51 20.51 1.27 19.13 19.13 1.34 17.71 17.71 1.41 16.26 16.26 1.47 14.79 14.79 1.54 13.51 13.51 1.57
62 22.10 22.10 1.28 20.70 20.70 1.35 19.26 19.26 1.42 17.76 17.76 1.49 16.23 16.23 1.56 14.91 14.91 1.59 57 22.11 22.11 1.28 20.71 20.71 1.35 19.26 19.26 1.42 17.77 17.77 1.49 16.24 16.24 1.56 14.91 14.91 1.59 72 24.97 17.90 1.34 23.07 17.26 1.42 21.13 16.61 1.49 19.15 15.93 1.55 17.15 15.20 1.62 15.43 14.52 1.65 67 22.68 22.68 1.34 21.22 21.22 1.41 19.70 19.70 1.48 18.14 18.14 1.55 16.55 16.55 1.62 15.15 15.15 1.65
63†† 20.99 20.99 1.33 19.55 19.55 1.40 18.08 18.08 1.47 16.58 16.58 1.53 15.03 15.03 1.60 13.70 13.70 1.63
62 22.69 22.69 1.34 21.22 21.22 1.41 19.70 19.70 1.48 18.15 18.15 1.55 16.56 16.56 1.62 15.15 15.15 1.65 57 22.70 22.70 1.34 21.23 21.23 1.41 19.70 19.70 1.48 18.15 18.15 1.55 16.56 16.56 1.62 15.16 15.16 1.65
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size CK5PW 036 0.99 1.05 CK5A/CK5BA 042 0.99 1.05
048 1.00 1.05 048 0.99 1.04
COILS + 58MVP120-20 VARIABLE SPEED FURNACE CK5A/CK5BT 042 0.99 1.05
CC5A/CD5AA 042 0.98 1.04 048 0.99 1.04 CC5A/CD5AC 048 0.98 1.05 CK5A/CK5BW 036 0.99 1.05
CC5A/CD5AW 036 0.98 1.04 048 0.99 1.04
042 0.98 1.05 CK5PA 042 0.99 1.05 048 0.99 1.05 048 0.99 1.04
CD5AA 048 0.99 1.05 CK5PT 042 0.99 1.05 CE3AA 036 0.98 1.06 048 0.99 1.04
042 0.99 1.05 CK5PW 036 0.99 1.05 048 0.99 1.05 048 0.99 1.04
CK3BA 042 0.99 1.05 —— —
048 0.99 1.04
Low Speed
Capacity Power Capacity Power
Indoor
Section Size
Low Speed
Capacity
MBtuh†
Total
System
kW**
34
Page 35
kW**Detailed cooling capacities* continued
EVAPORATOR
AIR
CFM EWB
75 85 95 105 115 125
Capacity
MBtuh
Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡
Total
System
kW**
Capacity
MBtuh
CONDENSER ENTERING AIR TEMPERATURES °F
Tot al
System
kW**
Capacity
MBtuh
Total
System
kW**
Capacity
MBtuh
Total
System
kW**
Capacity
MBtuh
Tot al
System
kW**
38TDB037-30 Outdoor Section With FV4BNB006 Indoor Section - High Speed
72
45.66 22.91 2.26 42.60 21.67 2.54 39.48 20.44 2.81 36.28 19.20 3.06 33.02 17.97 3.33 29.60 16.71 3.58
67
900
1000
1100
1200
1300
CC5A/CD5AA 036 0.97 1.11 FE4ANB 006 1.00 1.00
CC5A/CD5AC 048 0.95 1.11 003 0.96 1.01
CC5A/CD5AW 036 0.97 1.11 005 1.00 1.01
CK5A/CK5BA 036 0.97 1.11 CK3BA 036 0.95 1.04
CK5A/CK5BE 042 0.97 1.11 CK5PA 036 0.95 1.04 CK5A/CK5BT 036 0.97 1.11 CK5PT 036 0.95 1.04
CK5A/CK5BW 036 0.97 1.11 042 0.95 1.02
See notes on pg. 55.
41.15 27.15 2.27 38.37 25.91 2.53 35.54 24.68 2.77 32.67 23.46 3.01 29.73 22.25 3.26 26.68 21.02 3.49
63††
37.96 26.23 2.26 35.36 25.00 2.51 32.73 23.78 2.74 30.10 22.58 2.96 27.43 21.40 3.20 24.62 20.18 3.42
62
36.99 31.30 2.26 34.49 30.08 2.50 31.92 28.86 2.73 29.35 27.66 2.95 26.78 26.45 3.18 24.50 24.50 3.42
57
34.27 34.27 2.25 32.41 32.41 2.48 30.56 30.56 2.71 28.64 28.64 2.94 26.64 26.64 3.18 24.50 24.50 3.42
72
46.87 23.89 2.28 43.63 22.61 2.56 40.34 21.33 2.83 37.00 20.07 3.09 33.61 18.82 3.36 30.03 17.53 3.61
67
42.28 28.62 2.28 39.33 27.34 2.54 36.34 26.07 2.80 33.33 24.82 3.04 30.29 23.59 3.29 27.08 22.31 3.52
63††
39.02 27.63 2.28 36.25 26.35 2.53 33.50 25.10 2.76 30.75 23.88 2.99 27.93 22.65 3.23 25.01 21.40 3.45
62
38.06 33.27 2.28 35.37 31.99 2.52 32.68 30.73 2.76 30.03 29.48 2.98 27.67 27.67 3.22 25.35 25.35 3.46
57
35.85 35.85 2.27 33.87 33.87 2.51 31.87 31.87 2.75 29.80 29.80 2.98 27.67 27.67 3.22 25.35 25.35 3.46
72
47.88 24.81 2.29 44.47 23.49 2.58 41.05 22.20 2.85 37.59 20.92 3.11 34.07 19.64 3.38 30.37 18.33 3.63
67
43.22 30.03 2.30 40.11 28.71 2.56 37.00 27.42 2.82 33.88 26.14 3.06 30.72 24.88 3.31 27.41 23.58 3.55
63††
39.88 28.96 2.29 37.00 27.65 2.55 34.14 26.38 2.79 31.27 25.12 3.02 28.34 23.86 3.25 25.33 22.59 3.48
62
38.93 35.16 2.29 36.12 33.83 2.54 33.36 32.52 2.78 30.85 30.85 3.01 28.54 28.54 3.26 26.11 26.11 3.51
57
37.27 37.27 2.29 35.17 35.17 2.54 33.02 33.02 2.77 30.85 30.85 3.01 28.54 28.54 3.26 26.11 26.11 3.51
72
48.68 25.68 2.30 45.16 24.35 2.59 41.64 23.04 2.87 38.11 21.75 3.14 34.45 20.44 3.40 30.65 19.11 3.66
67
43.98 31.38 2.31 40.76 30.04 2.58 37.55 28.73 2.84 34.35 27.44 3.09 31.06 26.14 3.34 27.68 24.81 3.57
63††
40.61 30.25 2.31 37.63 28.92 2.56 34.69 27.62 2.81 31.69 26.33 3.04 28.68 25.05 3.28 25.59 23.74 3.50
62
39.68 36.98 2.31 36.79 35.61 2.56 34.06 34.06 2.80 31.74 31.74 3.05 29.35 29.35 3.30 26.76 26.76 3.55
57
38.56 38.56 2.31 36.32 36.32 2.56 34.06 34.06 2.80 31.74 31.74 3.05 29.35 29.35 3.30 26.76 26.76 3.55
72
49.38 26.52 2.31 45.76 25.17 2.61 42.15 23.85 2.89 38.49 22.53 3.15 34.75 21.21 3.42 30.88 19.87 3.68
67
44.63 32.70 2.32 41.32 31.34 2.60 38.04 30.01 2.86 34.72 28.69 3.11 31.36 27.37 3.36 27.91 26.01 3.60
63††
41.24 31.50 2.32 38.19 30.15 2.58 35.12 28.82 2.83 32.05 27.51 3.06 28.97 26.20 3.30 25.84 24.85 3.53
62
40.34 38.73 2.32 37.42 37.26 2.58 35.01 35.01 2.83 32.54 32.54 3.07 30.04 30.04 3.33 27.32 27.32 3.58
57
39.70 39.70 2.32 37.35 37.35 2.58 35.03 35.03 2.83 32.54 32.54 3.07 30.04 30.04 3.33 27.33 27.33 3.58 Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
042 0.97 1.11 FE4ANF 002 0.95 1.05
042 0.96 1.11 FK4DNF 001 0.94 1.05 048 0.97 1.11 FV4BNB 006 1.00 1.00
CD5AA 048 0.97 1.11 FV4BNF 002 0.95 1.05
CE3AA 036 0.95 1.11 003 0.96 1.01
042 0.97 1.11 005 1.00 1.01 048 0.97 1.11 40FKB/FK4DNB 006 1.00 1.00
CF5AA 036 0.96 1.11 40FKB/FK4DNF 002 0.95 1.05
048 0.97 1.11 003 0.96 1.01
CK3BA 036 0.97 1.11 005 1.00 1.01
042 0.97 1.11 048 0.97 1.11 CE3AA 036 0.93 1.04
042 0.97 1.11 CK5A/CK5BA 036 0.95 1.04 048 0.97 1.11 CK5A/CK5BT 036 0.95 1.04
042 0.97 1.11 048 0.97 1.11 CC5A/CD5AA 036 0.95 1.03
048 0.97 1.11 CC5A/CD5AC 048 0.94 1.01
CK5PA 036 0.97 1.11 CC5A/CD5AW 036 0.95 1.02
042 0.97 1.11 CD5AA 048 0.95 1.02 048 0.97 1.11 CE3AA 036 0.94 1.03
CK5PE 042 0.97 1.11 042 0.95 1.02 CK5PT 036 0.97 1.11 048 0.96 1.02
042 0.97 1.11 CK3BA 036 0.95 1.03 048 0.97 1.11 042 0.95 1.03
CK5PW 036 0.97 1.11 048 0.96 1.02
048 0.97 1.11 —— —
High Speed
Capacity Power Capacity Power
Indoor
Section Size
COILS + 58CV(A,X)070-12 VARIABLE SPEED FURNACE
COILS + 58CV(A,X)090-16 VARIABLE SPEED FURNACE
High Speed
Capacity
MBtuh
Total
System
kW**
35
Page 36
Detailed cooling capacities* continued
EVAPORATOR
AIR
CFM EWB
75 85 95 105 115 125
Capacity
MBtuh
Total Sens‡ Total
Total
System
kW**
Capacity
MBtuh
SensS Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡
CONDENSER ENTERING AIR TEMPERATURES °F
Total
System
kW**
Capacity
MBtuh
Tot al
System
kW**
Capacity
MBtuh
Total
System
kW**
Capacity
MBtuh
Total
System
kW**
38TDB037-30 Outdoor Section With FV4BNB006 Indoor Section - High Speed continued
72
45.66 22.91 2.26 42.60 21.67 2.54 39.48 20.44 2.81 36.28 19.20 3.06 33.02 17.97 3.33 29.60 16.71 3.58
67
900
1000
1100
1200
1300
CK5A/CK5BA 036 0.95 1.03 CK5A/CK5BA 036 0.95 1.02
CK5A/CK5BE 042 0.96 1.02 CK5A/CK5BE 042 0.96 1.01 CK5A/CK5BT 036 0.95 1.03 CK5A/CK5BT 036 0.95 1.02
CK5A/CK5BW 036 0.95 1.02 CK5A/CK5BW 036 0.95 1.01
CC5A/CD5AA 036 0.95 1.02 048 0.96 1.01
CC5A/CD5AC 048 0.94 1.00 CC5A/CD5AA 042 0.95 1.01
CC5A/CD5AW 036 0.95 1.01 CC5A/CD5AC 048 0.94 1.01
See notes on pg. 55.
41.15 27.15 2.27 38.37 25.91 2.53 35.54 24.68 2.77 32.67 23.46 3.01 29.73 22.25 3.26 26.68 21.02 3.49
63††
37.96 26.23 2.26 35.36 25.00 2.51 32.73 23.78 2.74 30.10 22.58 2.96 27.43 21.40 3.20 24.62 20.18 3.42
62
36.99 31.30 2.26 34.49 30.08 2.50 31.92 28.86 2.73 29.35 27.66 2.95 26.78 26.45 3.18 24.50 24.50 3.42
57
34.27 34.27 2.25 32.41 32.41 2.48 30.56 30.56 2.71 28.64 28.64 2.94 26.64 26.64 3.18 24.50 24.50 3.42
72
46.87 23.89 2.28 43.63 22.61 2.56 40.34 21.33 2.83 37.00 20.07 3.09 33.61 18.82 3.36 30.03 17.53 3.61
67
42.28 28.62 2.28 39.33 27.34 2.54 36.34 26.07 2.80 33.33 24.82 3.04 30.29 23.59 3.29 27.08 22.31 3.52
63††
39.02 27.63 2.28 36.25 26.35 2.53 33.50 25.10 2.76 30.75 23.88 2.99 27.93 22.65 3.23 25.01 21.40 3.45
62
38.06 33.27 2.28 35.37 31.99 2.52 32.68 30.73 2.76 30.03 29.48 2.98 27.67 27.67 3.22 25.35 25.35 3.46
57
35.85 35.85 2.27 33.87 33.87 2.51 31.87 31.87 2.75 29.80 29.80 2.98 27.67 27.67 3.22 25.35 25.35 3.46
72
47.88 24.81 2.29 44.47 23.49 2.58 41.05 22.20 2.85 37.59 20.92 3.11 34.07 19.64 3.38 30.37 18.33 3.63
67
43.22 30.03 2.30 40.11 28.71 2.56 37.00 27.42 2.82 33.88 26.14 3.06 30.72 24.88 3.31 27.41 23.58 3.55
63††
39.88 28.96 2.29 37.00 27.65 2.55 34.14 26.38 2.79 31.27 25.12 3.02 28.34 23.86 3.25 25.33 22.59 3.48
62
38.93 35.16 2.29 36.12 33.83 2.54 33.36 32.52 2.78 30.85 30.85 3.01 28.54 28.54 3.26 26.11 26.11 3.51
57
37.27 37.27 2.29 35.17 35.17 2.54 33.02 33.02 2.77 30.85 30.85 3.01 28.54 28.54 3.26 26.11 26.11 3.51
72
48.68 25.68 2.30 45.16 24.35 2.59 41.64 23.04 2.87 38.11 21.75 3.14 34.45 20.44 3.40 30.65 19.11 3.66
67
43.98 31.38 2.31 40.76 30.04 2.58 37.55 28.73 2.84 34.35 27.44 3.09 31.06 26.14 3.34 27.68 24.81 3.57
63††
40.61 30.25 2.31 37.63 28.92 2.56 34.69 27.62 2.81 31.69 26.33 3.04 28.68 25.05 3.28 25.59 23.74 3.50
62
39.68 36.98 2.31 36.79 35.61 2.56 34.06 34.06 2.80 31.74 31.74 3.05 29.35 29.35 3.30 26.76 26.76 3.55
57
38.56 38.56 2.31 36.32 36.32 2.56 34.06 34.06 2.80 31.74 31.74 3.05 29.35 29.35 3.30 26.76 26.76 3.55
72
49.38 26.52 2.31 45.76 25.17 2.61 42.15 23.85 2.89 38.49 22.53 3.15 34.75 21.21 3.42 30.88 19.87 3.68
67
44.63 32.70 2.32 41.32 31.34 2.60 38.04 30.01 2.86 34.72 28.69 3.11 31.36 27.37 3.36 27.91 26.01 3.60
63††
41.24 31.50 2.32 38.19 30.15 2.58 35.12 28.82 2.83 32.05 27.51 3.06 28.97 26.20 3.30 25.84 24.85 3.53
62
40.34 38.73 2.32 37.42 37.26 2.58 35.01 35.01 2.83 32.54 32.54 3.07 30.04 30.04 3.33 27.32 27.32 3.58
57
39.70 39.70 2.32 37.35 37.35 2.58 35.03 35.03 2.83 32.54 32.54 3.07 30.04 30.04 3.33 27.33 27.33 3.58 Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
042 0.95 1.02 042 0.95 1.01 048 0.96 1.02 048 0.96 1.01
042 0.95 1.02 042 0.95 1.01 048 0.96 1.02 048 0.96 1.01
CK5PA 036 0.95 1.03 048 0.96 1.01
042 0.95 1.02 CK5PA 036 0.95 1.02 048 0.96 1.02 042 0.95 1.01
CK5PE 042 0.96 1.02 048 0.96 1.01 CK5PT 036 0.95 1.03 CK5PE 042 0.96 1.01
042 0.95 1.02 CK5PT 036 0.95 1.02 048 0.96 1.02 042 0.95 1.01
CK5PW 036 0.95 1.02 048 0.96 1.01
COILS + 58CV(A,X)110-22 VARIABLE SPEED FURNACE CK5PW 036 0.95 1.01
042 0.95 1.01
042 0.95 1.01 CC5A/CD5AW 036 0.95 1.01 048 0.95 1.00 042 0.95 1.01
CD5AA 048 0.95 1.01 048 0.95 1.01 CE3AA 036 0.94 1.02 CD5AA 048 0.95 1.01
042 0.95 1.01 CE3AA 036 0.94 1.03 048 0.97 1.02 042 0.95 1.02
CK3BA 036 0.95 1.02 048 0.96 1.02
042 0.95 1.02 CK3BA 036 0.95 1.02 048 0.96 1.00 042 0.95 1.02
—— — 048 0.96 1.01
High Speed
Capacity Power Capacity Power
Indoor
Section Size
COILS + 58CV(A,X)135-22 VARIABLE SPEED FURNACE
High Speed
Capacity
MBtuh
Total
System
kW**
36
Page 37
Detailed cooling capacities* continued
EVAPORATOR
AIR
CFM EWB
75 85 95 105 115 125
Capacity
MBtuh
Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡
Total
System
kW**
Capacity
MBtuh
CONDENSER ENTERING AIR TEMPERATURES °F
Total
System
kW**
Capacity
MBtuh
Tot al
System
kW**
Capacity
MBtuh
Total
System
kW**
Capacity
MBtuh
Tot al
System
kW**
38TDB037-30 Outdoor Section With FV4BNB006 Indoor Section - High Speed continued
72
45.66 22.91 2.26 42.60 21.67 2.54 39.48 20.44 2.81 36.28 19.20 3.06 33.02 17.97 3.33 29.60 16.71 3.58
67
900
1000
1100
1200
1300
CK5A/CK5BA 042 0.95 1.02 CK5PA 042 0.95 1.01
CK5A/CK5BT 042 0.95 1.02 CK5PT 042 0.95 1.01
CK5A/CK5BW 036 0.95 1.02 CK5PW 036 0.95 1.01
CC5A/CD5AA 042 0.95 1.00 CE3AA 036 0.92 1.04 CC5A/CD5AC 048 0.94 1.00 042 0.94 1.04 CC5A/CD5AW 036 0.95 1.01 048 0.95 1.04
CK5A/CK5BA 042 0.95 1.01 048 0.95 1.04
CK5A/CK5BT 042 0.95 1.01 048 0.95 1.04
CK5A/CK5BW 036 0.95 1.01 048 0.95 1.03
See notes on pg. 55.
41.15 27.15 2.27 38.37 25.91 2.53 35.54 24.68 2.77 32.67 23.46 3.01 29.73 22.25 3.26 26.68 21.02 3.49
63††
37.96 26.23 2.26 35.36 25.00 2.51 32.73 23.78 2.74 30.10 22.58 2.96 27.43 21.40 3.20 24.62 20.18 3.42
62
36.99 31.30 2.26 34.49 30.08 2.50 31.92 28.86 2.73 29.35 27.66 2.95 26.78 26.45 3.18 24.50 24.50 3.42
57
34.27 34.27 2.25 32.41 32.41 2.48 30.56 30.56 2.71 28.64 28.64 2.94 26.64 26.64 3.18 24.50 24.50 3.42
72
46.87 23.89 2.28 43.63 22.61 2.56 40.34 21.33 2.83 37.00 20.07 3.09 33.61 18.82 3.36 30.03 17.53 3.61
67
42.28 28.62 2.28 39.33 27.34 2.54 36.34 26.07 2.80 33.33 24.82 3.04 30.29 23.59 3.29 27.08 22.31 3.52
63††
39.02 27.63 2.28 36.25 26.35 2.53 33.50 25.10 2.76 30.75 23.88 2.99 27.93 22.65 3.23 25.01 21.40 3.45
62
38.06 33.27 2.28 35.37 31.99 2.52 32.68 30.73 2.76 30.03 29.48 2.98 27.67 27.67 3.22 25.35 25.35 3.46
57
35.85 35.85 2.27 33.87 33.87 2.51 31.87 31.87 2.75 29.80 29.80 2.98 27.67 27.67 3.22 25.35 25.35 3.46
72
47.88 24.81 2.29 44.47 23.49 2.58 41.05 22.20 2.85 37.59 20.92 3.11 34.07 19.64 3.38 30.37 18.33 3.63
67
43.22 30.03 2.30 40.11 28.71 2.56 37.00 27.42 2.82 33.88 26.14 3.06 30.72 24.88 3.31 27.41 23.58 3.55
63††
39.88 28.96 2.29 37.00 27.65 2.55 34.14 26.38 2.79 31.27 25.12 3.02 28.34 23.86 3.25 25.33 22.59 3.48
62
38.93 35.16 2.29 36.12 33.83 2.54 33.36 32.52 2.78 30.85 30.85 3.01 28.54 28.54 3.26 26.11 26.11 3.51
57
37.27 37.27 2.29 35.17 35.17 2.54 33.02 33.02 2.77 30.85 30.85 3.01 28.54 28.54 3.26 26.11 26.11 3.51
72
48.68 25.68 2.30 45.16 24.35 2.59 41.64 23.04 2.87 38.11 21.75 3.14 34.45 20.44 3.40 30.65 19.11 3.66
67
43.98 31.38 2.31 40.76 30.04 2.58 37.55 28.73 2.84 34.35 27.44 3.09 31.06 26.14 3.34 27.68 24.81 3.57
63††
40.61 30.25 2.31 37.63 28.92 2.56 34.69 27.62 2.81 31.69 26.33 3.04 28.68 25.05 3.28 25.59 23.74 3.50
62
39.68 36.98 2.31 36.79 35.61 2.56 34.06 34.06 2.80 31.74 31.74 3.05 29.35 29.35 3.30 26.76 26.76 3.55
57
38.56 38.56 2.31 36.32 36.32 2.56 34.06 34.06 2.80 31.74 31.74 3.05 29.35 29.35 3.30 26.76 26.76 3.55
72
49.38 26.52 2.31 45.76 25.17 2.61 42.15 23.85 2.89 38.49 22.53 3.15 34.75 21.21 3.42 30.88 19.87 3.68
67
44.63 32.70 2.32 41.32 31.34 2.60 38.04 30.01 2.86 34.72 28.69 3.11 31.36 27.37 3.36 27.91 26.01 3.60
63††
41.24 31.50 2.32 38.19 30.15 2.58 35.12 28.82 2.83 32.05 27.51 3.06 28.97 26.20 3.30 25.84 24.85 3.53
62
40.34 38.73 2.32 37.42 37.26 2.58 35.01 35.01 2.83 32.54 32.54 3.07 30.04 30.04 3.33 27.32 27.32 3.58
57
39.70 39.70 2.32 37.35 37.35 2.58 35.03 35.03 2.83 32.54 32.54 3.07 30.04 30.04 3.33 27.33 27.33 3.58 Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
048 0.96 1.01 048 0.96 1.01
048 0.96 1.01 048 0.96 1.01
048 0.96 1.01 048 0.96 1.00
CK5PA 042 0.95 1.02
048 0.96 1.01 CC5A/CD5AA 042 0.94 1.04
CK5PT 042 0.95 1.02 CC5A/CD5AC 048 0.92 1.04
048 0.96 1.01 CC5A/CD5AW 036 0.94 1.04
CK5PW 036 0.95 1.02 042 0.92 1.03
048 0.96 1.01 048 0.94 1.04
COILS + 58CV(A,X)155-22 VARIABLE SPEED FURNACE CD5AA 048 0.94 1.04
042 0.95 1.00 CK3BA 042 0.94 1.05 048 0.95 1.00 048 0.95 1.04
CD5AA 048 0.95 1.00 CK5A/CK5BA 042 0.94 1.05 CE3AA 036 0.94 1.02 048 0.95 1.04
042 0.96 1.01 CK5A/CK5BT 042 0.94 1.05 048 0.96 1.01 048 0.95 1.04
CK3BA 036 0.95 1.02 CK5A/CK5BW 036 0.94 1.05
042 0.95 1.01 048 0.95 1.03 048 0.96 1.00 CK5PA 042 0.94 1.05
048 0.96 1.01 CK5PT 042 0.94 1.05
048 0.96 1.01 CK5PW 036 0.94 1.05
048 0.96 1.00 —— —
High Speed
Capacity Power Capacity Power
Indoor
Section Size
COILS + 58MVP040-14 VARIABLE SPEED FURNACE
High Speed
Capacity
MBtuh
Total
System
kW**
37
Page 38
Detailed cooling capacities* continued
EVAPORATOR
AIR
CFM EWB
75 85 95 105 115 125
Capacity
MBtuh
Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡
Total
System
kW**
Capacity
MBtuh
CONDENSER ENTERING AIR TEMPERATURES °F
Total
System
kW**
Capacity
MBtuh
Tot al
System
kW**
Capacity
MBtuh
Total
System
kW**
Capacity
MBtuh
Total
System
kW**
Capacity
MBtuh
38TDB037-30 Outdoor Section With FV4BNB006 Indoor Section - High Speed continued
72
45.66 22.91 2.26 42.60 21.67 2.54 39.48 20.44 2.81 36.28 19.20 3.06 33.02 17.97 3.33 29.60 16.71 3.58
67
900
1000
1100
1200
1300
CC5A/CD5AA 036 0.94 1.03 CC5A/CD5AW 036 0.94 1.05
CC5A/CD5AC 048 0.93 1.03 048 0.94 1.03
CC5A/CD5AW 036 0.94 1.03 CD5AA 048 0.94 1.04
CK5A/CK5BA 036 0.94 1.04 042 0.94 1.04
CK5A/CK5BE 042 0.95 1.03 CK5A/CK5BT 036 0.94 1.05 CK5A/CK5BT 036 0.94 1.04 042 0.94 1.04
CK5A/CK5BW 036 0.94 1.03 048 0.95 1.04
CC5A/CD5AA 036 0.93 1.05 —— —
See notes on pg. 55.
41.15 27.15 2.27 38.37 25.91 2.53 35.54 24.68 2.77 32.67 23.46 3.01 29.73 22.25 3.26 26.68 21.02 3.49
63††
37.96 26.23 2.26 35.36 25.00 2.51 32.73 23.78 2.74 30.10 22.58 2.96 27.43 21.40 3.20 24.62 20.18 3.42
62
36.99 31.30 2.26 34.49 30.08 2.50 31.92 28.86 2.73 29.35 27.66 2.95 26.78 26.45 3.18 24.50 24.50 3.42
57
34.27 34.27 2.25 32.41 32.41 2.48 30.56 30.56 2.71 28.64 28.64 2.94 26.64 26.64 3.18 24.50 24.50 3.42
72
46.87 23.89 2.28 43.63 22.61 2.56 40.34 21.33 2.83 37.00 20.07 3.09 33.61 18.82 3.36 30.03 17.53 3.61
67
42.28 28.62 2.28 39.33 27.34 2.54 36.34 26.07 2.80 33.33 24.82 3.04 30.29 23.59 3.29 27.08 22.31 3.52
63††
39.02 27.63 2.28 36.25 26.35 2.53 33.50 25.10 2.76 30.75 23.88 2.99 27.93 22.65 3.23 25.01 21.40 3.45
62
38.06 33.27 2.28 35.37 31.99 2.52 32.68 30.73 2.76 30.03 29.48 2.98 27.67 27.67 3.22 25.35 25.35 3.46
57
35.85 35.85 2.27 33.87 33.87 2.51 31.87 31.87 2.75 29.80 29.80 2.98 27.67 27.67 3.22 25.35 25.35 3.46
72
47.88 24.81 2.29 44.47 23.49 2.58 41.05 22.20 2.85 37.59 20.92 3.11 34.07 19.64 3.38 30.37 18.33 3.63
67
43.22 30.03 2.30 40.11 28.71 2.56 37.00 27.42 2.82 33.88 26.14 3.06 30.72 24.88 3.31 27.41 23.58 3.55
63††
39.88 28.96 2.29 37.00 27.65 2.55 34.14 26.38 2.79 31.27 25.12 3.02 28.34 23.86 3.25 25.33 22.59 3.48
62
38.93 35.16 2.29 36.12 33.83 2.54 33.36 32.52 2.78 30.85 30.85 3.01 28.54 28.54 3.26 26.11 26.11 3.51
57
37.27 37.27 2.29 35.17 35.17 2.54 33.02 33.02 2.77 30.85 30.85 3.01 28.54 28.54 3.26 26.11 26.11 3.51
72
48.68 25.68 2.30 45.16 24.35 2.59 41.64 23.04 2.87 38.11 21.75 3.14 34.45 20.44 3.40 30.65 19.11 3.66
67
43.98 31.38 2.31 40.76 30.04 2.58 37.55 28.73 2.84 34.35 27.44 3.09 31.06 26.14 3.34 27.68 24.81 3.57
63††
40.61 30.25 2.31 37.63 28.92 2.56 34.69 27.62 2.81 31.69 26.33 3.04 28.68 25.05 3.28 25.59 23.74 3.50
62
39.68 36.98 2.31 36.79 35.61 2.56 34.06 34.06 2.80 31.74 31.74 3.05 29.35 29.35 3.30 26.76 26.76 3.55
57
38.56 38.56 2.31 36.32 36.32 2.56 34.06 34.06 2.80 31.74 31.74 3.05 29.35 29.35 3.30 26.76 26.76 3.55
72
49.38 26.52 2.31 45.76 25.17 2.61 42.15 23.85 2.89 38.49 22.53 3.15 34.75 21.21 3.42 30.88 19.87 3.68
67
44.63 32.70 2.32 41.32 31.34 2.60 38.04 30.01 2.86 34.72 28.69 3.11 31.36 27.37 3.36 27.91 26.01 3.60
63††
41.24 31.50 2.32 38.19 30.15 2.58 35.12 28.82 2.83 32.05 27.51 3.06 28.97 26.20 3.30 25.84 24.85 3.53
62
40.34 38.73 2.32 37.42 37.26 2.58 35.01 35.01 2.83 32.54 32.54 3.07 30.04 30.04 3.33 27.32 27.32 3.58
57
39.70 39.70 2.32 37.35 37.35 2.58 35.03 35.03 2.83 32.54 32.54 3.07 30.04 30.04 3.33 27.33 27.33 3.58 Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
COILS + 58MVP060-14 VARIABLE SPEED FURNACE CC5A/CD5AC 048 0.92 1.04
042 0.94 1.03 042 0.92 1.03
CD5AA 048 0.94 1.02 CE3AA 036 0.92 1.05 CE3AA 036 0.92 1.03 042 0.94 1.05
042 0.94 1.03 048 0.94 1.04 048 0.95 1.03 CK3BA 036 0.94 1.05
CK3BA 036 0.94 1.04 042 0.94 1.04
042 0.94 1.03 048 0.95 1.04 048 0.95 1.02 CK5A/CK5BA 036 0.94 1.05
042 0.94 1.03 048 0.95 1.04 048 0.95 1.02 CK5A/CK5BE 042 0.95 1.05
042 0.94 1.03 048 0.95 1.04 048 0.95 1.02 CK5A/CK5BW 036 0.94 1.04
CK5PA 036 0.94 1.04 CK5PA 036 0.94 1.05
042 0.94 1.03 042 0.94 1.04 048 0.95 1.03 048 0.95 1.04
CK5PE 042 0.95 1.03 CK5PE 042 0.95 1.05 CK5PT 036 0.94 1.04 CK5PT 036 0.94 1.05
042 0.94 1.03 042 0.94 1.04 048 0.95 1.03 048 0.95 1.04
CK5PW 036 0.94 1.03 CK5PW 036 0.94 1.04
COILS + 58MVP080-14 VARIABLE SPEED FURNACE 048 0.95 1.04
042 0.94 1.04
High Speed
Capacity Power Capacity Power
Indoor
Section Size
High Speed
Total
System
kW**
38
Page 39
Detailed cooling capacities* continued
EVAPORATOR
AIR
CFM EWB
75 85 95 105 115 125
Capacity
MBtuh
Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡
Total
System
kW**
Capacity
MBtuh
CONDENSER ENTERING AIR TEMPERATURES °F
Total
System
kW**
Capacity
MBtuh
Tot al
System
kW**
Capacity
MBtuh
Total
System
kW**
Capacity
MBtuh
Tot al
System
kW**
38TDB037-30 Outdoor Section With FV4BNB006 Indoor Section - High Speed continued
72
45.66 22.91 2.26 42.60 21.67 2.54 39.48 20.44 2.81 36.28 19.20 3.06 33.02 17.97 3.33 29.60 16.71 3.58
67
900
1000
1100
1200
1300
CC5A/CD5AA 036 0.94 1.04 048 0.95 1.03
CC5A/CD5AC 048 0.92 1.03 CC5A/CD5AA 036 0.94 1.03 CC5A/CD5AW 036 0.94 1.03 042 0.94 1.03
CK5A/CK5BA 036 0.94 1.04 042 0.94 1.03
CK5A/CK5BE 042 0.95 1.03 042 0.94 1.03 CK5A/CK5BT 036 0.94 1.04 048 0.95 1.03
CK5A/CK5BW 036 0.94 1.03 042 0.94 1.03
See notes on pg. 55.
41.15 27.15 2.27 38.37 25.91 2.53 35.54 24.68 2.77 32.67 23.46 3.01 29.73 22.25 3.26 26.68 21.02 3.49
63††
37.96 26.23 2.26 35.36 25.00 2.51 32.73 23.78 2.74 30.10 22.58 2.96 27.43 21.40 3.20 24.62 20.18 3.42
62
36.99 31.30 2.26 34.49 30.08 2.50 31.92 28.86 2.73 29.35 27.66 2.95 26.78 26.45 3.18 24.50 24.50 3.42
57
34.27 34.27 2.25 32.41 32.41 2.48 30.56 30.56 2.71 28.64 28.64 2.94 26.64 26.64 3.18 24.50 24.50 3.42
72
46.87 23.89 2.28 43.63 22.61 2.56 40.34 21.33 2.83 37.00 20.07 3.09 33.61 18.82 3.36 30.03 17.53 3.61
67
42.28 28.62 2.28 39.33 27.34 2.54 36.34 26.07 2.80 33.33 24.82 3.04 30.29 23.59 3.29 27.08 22.31 3.52
63††
39.02 27.63 2.28 36.25 26.35 2.53 33.50 25.10 2.76 30.75 23.88 2.99 27.93 22.65 3.23 25.01 21.40 3.45
62
38.06 33.27 2.28 35.37 31.99 2.52 32.68 30.73 2.76 30.03 29.48 2.98 27.67 27.67 3.22 25.35 25.35 3.46
57
35.85 35.85 2.27 33.87 33.87 2.51 31.87 31.87 2.75 29.80 29.80 2.98 27.67 27.67 3.22 25.35 25.35 3.46
72
47.88 24.81 2.29 44.47 23.49 2.58 41.05 22.20 2.85 37.59 20.92 3.11 34.07 19.64 3.38 30.37 18.33 3.63
67
43.22 30.03 2.30 40.11 28.71 2.56 37.00 27.42 2.82 33.88 26.14 3.06 30.72 24.88 3.31 27.41 23.58 3.55
63††
39.88 28.96 2.29 37.00 27.65 2.55 34.14 26.38 2.79 31.27 25.12 3.02 28.34 23.86 3.25 25.33 22.59 3.48
62
38.93 35.16 2.29 36.12 33.83 2.54 33.36 32.52 2.78 30.85 30.85 3.01 28.54 28.54 3.26 26.11 26.11 3.51
57
37.27 37.27 2.29 35.17 35.17 2.54 33.02 33.02 2.77 30.85 30.85 3.01 28.54 28.54 3.26 26.11 26.11 3.51
72
48.68 25.68 2.30 45.16 24.35 2.59 41.64 23.04 2.87 38.11 21.75 3.14 34.45 20.44 3.40 30.65 19.11 3.66
67
43.98 31.38 2.31 40.76 30.04 2.58 37.55 28.73 2.84 34.35 27.44 3.09 31.06 26.14 3.34 27.68 24.81 3.57
63††
40.61 30.25 2.31 37.63 28.92 2.56 34.69 27.62 2.81 31.69 26.33 3.04 28.68 25.05 3.28 25.59 23.74 3.50
62
39.68 36.98 2.31 36.79 35.61 2.56 34.06 34.06 2.80 31.74 31.74 3.05 29.35 29.35 3.30 26.76 26.76 3.55
57
38.56 38.56 2.31 36.32 36.32 2.56 34.06 34.06 2.80 31.74 31.74 3.05 29.35 29.35 3.30 26.76 26.76 3.55
72
49.38 26.52 2.31 45.76 25.17 2.61 42.15 23.85 2.89 38.49 22.53 3.15 34.75 21.21 3.42 30.88 19.87 3.68
67
44.63 32.70 2.32 41.32 31.34 2.60 38.04 30.01 2.86 34.72 28.69 3.11 31.36 27.37 3.36 27.91 26.01 3.60
63††
41.24 31.50 2.32 38.19 30.15 2.58 35.12 28.82 2.83 32.05 27.51 3.06 28.97 26.20 3.30 25.84 24.85 3.53
62
40.34 38.73 2.32 37.42 37.26 2.58 35.01 35.01 2.83 32.54 32.54 3.07 30.04 30.04 3.33 27.32 27.32 3.58
57
39.70 39.70 2.32 37.35 37.35 2.58 35.03 35.03 2.83 32.54 32.54 3.07 30.04 30.04 3.33 27.33 27.33 3.58 Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
COILS + 58MVP080-20 VARIABLE SPEED FURNACE CK5PW 036 0.94 1.03
042 0.94 1.03
042 0.92 1.03 CC5A/CD5AC 048 0.93 1.03 048 0.94 1.03 CC5A/CD5AW 036 0.94 1.03
CD5AA 048 0.94 1.03 042 0.92 1.02 CE3AA 036 0.92 1.04 048 0.94 1.02
042 0.94 1.03 CD5AA 048 0.94 1.02 048 0.95 1.03 CE3AA 036 0.92 1.03
CK3BA 036 0.94 1.04 042 0.95 1.03
042 0.94 1.03 048 0.95 1.03 048 0.95 1.03 CK3BA 036 0.94 1.03
042 0.94 1.03 048 0.95 1.03 048 0.95 1.03 CK5A/CK5BA 036 0.94 1.04
042 0.94 1.03 CK5A/CK5BE 042 0.95 1.04 048 0.95 1.03 CK5A/CK5BT 036 0.94 1.04
048 0.95 1.03 048 0.95 1.03
CK5PA 036 0.94 1.04 CK5A/CK5BW 036 0.94 1.03
042 0.94 1.03 048 0.95 1.03 048 0.95 1.03 CK5PA 036 0.94 1.03
CK5PE 042 0.95 1.03 042 0.94 1.03 CK5PT 036 0.94 1.04 048 0.95 1.03
042 0.94 1.03 CK5PE 042 0.95 1.03 048 0.95 1.03 —— —
High Speed
Capacity Power Capacity Power
Indoor
Section Size
COILS + 58MVP100-20 VARIABLE SPEED FURNACE
High Speed
Capacity
MBtuh
Total
System
kW**
39
Page 40
Detailed cooling capacities* continued
EVAPORATOR
AIR
CFM EWB
75 85 95 105 115 125
Capacity
MBtuh
Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡
Total
System
kW**
Capacity
MBtuh
CONDENSER ENTERING AIR TEMPERATURES °F
Total
System
kW**
Capacity
MBtuh
Tot al
System
kW**
Capacity
MBtuh
Total
System
kW**
Capacity
MBtuh
Total
System
kW**
38TDB037-30 Outdoor Section With FV4BNB006 Indoor Section - High Speed continued
72
45.66 22.91 2.26 42.60 21.67 2.54 39.48 20.44 2.81 36.28 19.20 3.06 33.02 17.97 3.33 29.60 16.71 3.58
67
900
1000
1100
1200
1300
CC5A/CD5AA 042 0.94 1.02 CK5A/CK5BW 036 0.94 1.03 CC5A/CD5AC 048 0.92 1.02 048 0.95 1.02
CC5A/CD5AW 036 0.94 1.02 CK5PA 042 0.94 1.03
See notes on pg. 55.
41.15 27.15 2.27 38.37 25.91 2.53 35.54 24.68 2.77 32.67 23.46 3.01 29.73 22.25 3.26 26.68 21.02 3.49
63††
37.96 26.23 2.26 35.36 25.00 2.51 32.73 23.78 2.74 30.10 22.58 2.96 27.43 21.40 3.20 24.62 20.18 3.42
62
36.99 31.30 2.26 34.49 30.08 2.50 31.92 28.86 2.73 29.35 27.66 2.95 26.78 26.45 3.18 24.50 24.50 3.42
57
34.27 34.27 2.25 32.41 32.41 2.48 30.56 30.56 2.71 28.64 28.64 2.94 26.64 26.64 3.18 24.50 24.50 3.42
72
46.87 23.89 2.28 43.63 22.61 2.56 40.34 21.33 2.83 37.00 20.07 3.09 33.61 18.82 3.36 30.03 17.53 3.61
67
42.28 28.62 2.28 39.33 27.34 2.54 36.34 26.07 2.80 33.33 24.82 3.04 30.29 23.59 3.29 27.08 22.31 3.52
63††
39.02 27.63 2.28 36.25 26.35 2.53 33.50 25.10 2.76 30.75 23.88 2.99 27.93 22.65 3.23 25.01 21.40 3.45
62
38.06 33.27 2.28 35.37 31.99 2.52 32.68 30.73 2.76 30.03 29.48 2.98 27.67 27.67 3.22 25.35 25.35 3.46
57
35.85 35.85 2.27 33.87 33.87 2.51 31.87 31.87 2.75 29.80 29.80 2.98 27.67 27.67 3.22 25.35 25.35 3.46
72
47.88 24.81 2.29 44.47 23.49 2.58 41.05 22.20 2.85 37.59 20.92 3.11 34.07 19.64 3.38 30.37 18.33 3.63
67
43.22 30.03 2.30 40.11 28.71 2.56 37.00 27.42 2.82 33.88 26.14 3.06 30.72 24.88 3.31 27.41 23.58 3.55
63††
39.88 28.96 2.29 37.00 27.65 2.55 34.14 26.38 2.79 31.27 25.12 3.02 28.34 23.86 3.25 25.33 22.59 3.48
62
38.93 35.16 2.29 36.12 33.83 2.54 33.36 32.52 2.78 30.85 30.85 3.01 28.54 28.54 3.26 26.11 26.11 3.51
57
37.27 37.27 2.29 35.17 35.17 2.54 33.02 33.02 2.77 30.85 30.85 3.01 28.54 28.54 3.26 26.11 26.11 3.51
72
48.68 25.68 2.30 45.16 24.35 2.59 41.64 23.04 2.87 38.11 21.75 3.14 34.45 20.44 3.40 30.65 19.11 3.66
67
43.98 31.38 2.31 40.76 30.04 2.58 37.55 28.73 2.84 34.35 27.44 3.09 31.06 26.14 3.34 27.68 24.81 3.57
63††
40.61 30.25 2.31 37.63 28.92 2.56 34.69 27.62 2.81 31.69 26.33 3.04 28.68 25.05 3.28 25.59 23.74 3.50
62
39.68 36.98 2.31 36.79 35.61 2.56 34.06 34.06 2.80 31.74 31.74 3.05 29.35 29.35 3.30 26.76 26.76 3.55
57
38.56 38.56 2.31 36.32 36.32 2.56 34.06 34.06 2.80 31.74 31.74 3.05 29.35 29.35 3.30 26.76 26.76 3.55
72
49.38 26.52 2.31 45.76 25.17 2.61 42.15 23.85 2.89 38.49 22.53 3.15 34.75 21.21 3.42 30.88 19.87 3.68
67
44.63 32.70 2.32 41.32 31.34 2.60 38.04 30.01 2.86 34.72 28.69 3.11 31.36 27.37 3.36 27.91 26.01 3.60
63††
41.24 31.50 2.32 38.19 30.15 2.58 35.12 28.82 2.83 32.05 27.51 3.06 28.97 26.20 3.30 25.84 24.85 3.53
62
40.34 38.73 2.32 37.42 37.26 2.58 35.01 35.01 2.83 32.54 32.54 3.07 30.04 30.04 3.33 27.32 27.32 3.58
57
39.70 39.70 2.32 37.35 37.35 2.58 35.03 35.03 2.83 32.54 32.54 3.07 30.04 30.04 3.33 27.33 27.33 3.58 Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
CK5PT 036 0.94 1.03 CK3BA 042 0.94 1.03
042 0.94 1.03 048 0.95 1.02 048 0.95 1.03 CK5A/CK5BA 042 0.94 1.03
CK5PW 036 0.94 1.03 048 0.95 1.02
048 0.95 1.03 CK5A/CK5BT 042 0.94 1.03
COILS + 58MVP120-20 VARIABLE SPEED FURNACE 048 0.95 1.02
042 0.92 1.02 048 0.95 1.02 048 0.94 1.02 CK5PT 042 0.94 1.03
CD5AA 048 0.94 1.02 048 0.95 1.02 CE3AA 036 0.92 1.03 CK5PW 036 0.94 1.03
042 0.94 1.02 048 0.95 1.02 048 0.95 1.02 —— —
High Speed
Capacity Power Capacity Power
Indoor
Section Size
High Speed
Capacity
MBtuh
Total
System
kW**
40
Page 41
Detailed cooling capacities* continued
EVAPORATOR
AIR
CFM EWB
75 85 95 105 115 125
Capacity
MBtuh
Total Sens Total Sens Total Sens Total Sens Total Sens Total Sens
Total
System
kW**
Capacity
MBtuh
CONDENSER ENTERING AIR TEMPERATURES °F
Total
System
kW**
Capacity
MBtuh
Total
System
kW**
Capacity
MBtuh
Total
System
kW**
Capacity
MBtuh
Total
System
kW**
38TDB037-30 Outdoor Section With FV4BNB006 Indoor Section - Low Speed
72
22.88 12.31 1.03 21.42 11.77 1.11 19.89 11.21 1.19 18.30 10.64 1.27 16.66 10.06 1.35 14.95 9.47 1.42
67
600
650
700
750
800
CC5A/CD5AA 036 0.97 1.19 FE4ANB 006 1.00 1.00
CC5A/CD5AC 048 0.96 1.19 003 0.99 1.01
CC5A/CD5AW 036 0.97 1.19 005 1.00 1.02
CK5A/CK5BA 036 0.97 1.19 CK3BA 036 0.99 1.06
CK5A/CK5BE 042 0.97 1.19 CK5PA 036 0.99 1.06 CK5A/CK5BT 036 0.97 1.19 CK5PT 036 0.99 1.06
CK5A/CK5BW 036 0.97 1.19 042 0.99 1.04
See notes on pg. 55.
20.51 15.15 1.03 19.14 14.59 1.10 17.71 14.01 1.18 16.23 13.43 1.25 14.71 12.84 1.32 13.14 12.24 1.39
63††
18.87 14.55 1.02 17.55 13.98 1.09 16.19 13.39 1.17 14.80 12.81 1.24 13.38 12.21 1.30 11.91 11.61 1.37
62
18.38 17.96 1.02 17.21 17.21 1.09 16.17 16.17 1.17 15.11 15.11 1.24 13.98 13.98 1.31 12.80 12.80 1.39
57
18.20 18.20 1.02 17.21 17.21 1.09 16.17 16.17 1.17 15.10 15.10 1.24 13.98 13.98 1.31 12.80 12.80 1.39
72
23.25 12.77 1.03 21.74 12.21 1.11 20.17 11.65 1.19 18.54 11.07 1.28 16.86 10.49 1.35 15.11 9.89 1.43
67
20.84 15.85 1.03 19.42 15.27 1.10 17.96 14.69 1.18 16.45 14.10 1.26 14.89 13.50 1.33 13.30 12.89 1.40
63††
19.16 15.21 1.03 17.82 14.62 1.10 16.43 14.03 1.17 15.01 13.44 1.24 13.55 12.84 1.31 12.11 12.11 1.38
62
18.77 18.77 1.02 17.73 17.73 1.10 16.66 16.66 1.17 15.55 15.55 1.25 14.37 14.37 1.32 13.15 13.15 1.40
57
18.77 18.77 1.02 17.73 17.73 1.10 16.66 16.66 1.17 15.55 15.55 1.25 14.37 14.37 1.32 13.15 13.15 1.40
72
23.56 13.21 1.04 22.00 12.65 1.12 20.40 12.08 1.20 18.75 11.50 1.28 17.04 10.90 1.36 15.25 10.30 1.44
67
21.12 16.53 1.03 19.67 15.95 1.11 18.17 15.36 1.19 16.63 14.77 1.26 15.05 14.16 1.34 13.47 13.47 1.41
63††
19.42 15.85 1.03 18.05 15.26 1.10 16.63 14.66 1.18 15.18 14.06 1.25 13.70 13.44 1.32 12.38 12.38 1.39
62
19.28 19.28 1.03 18.21 18.21 1.10 17.11 17.11 1.18 15.94 15.94 1.26 14.73 14.73 1.33 13.47 13.47 1.41
57
19.28 19.28 1.03 18.21 18.21 1.10 17.11 17.11 1.18 15.94 15.94 1.26 14.73 14.73 1.33 13.37 13.47 1.41
72
23.82 13.64 1.04 22.24 13.07 1.12 20.61 12.50 1.20 18.93 11.91 1.29 17.19 11.32 1.36 15.37 10.70 1.44
67
21.36 17.19 1.04 19.88 16.61 1.11 18.36 16.02 1.19 16.80 15.42 1.27 15.20 14.80 1.34 13.75 13.75 1.42
63††
19.65 16.48 1.03 18.25 15.89 1.11 16.81 15.28 1.18 15.34 14.67 1.26 13.90 13.90 1.32 12.63 12.63 1.40
62
19.76 19.76 1.03 18.66 18.66 1.11 17.51 17.51 1.19 16.31 16.31 1.26 15.06 15.06 1.34 13.75 13.75 1.42
57
19.76 19.75 1.03 18.65 18.65 1.11 17.51 17.51 1.19 16.31 16.31 1.26 15.06 15.06 1.34 13.75 13.75 1.42
72
24.05 14.06 1.05 22.45 13.49 1.12 20.79 12.92 1.21 19.08 12.33 1.29 17.32 11.72 1.37 15.47 11.10 1.45
67
21.57 17.86 1.04 20.07 17.27 1.12 18.53 16.67 1.20 16.95 16.06 1.28 15.37 15.37 1.35 14.00 14.00 1.43
63††
19.86 17.10 1.04 18.43 16.50 1.11 16.98 15.89 1.19 15.48 15.27 1.26 14.16 14.16 1.33 12.85 12.85 1.40
62
20.20 20.20 1.04 19.07 19.07 1.11 17.87 17.87 1.19 16.64 16.64 1.27 15.37 15.37 1.35 14.00 14.00 1.43
57
20.20 20.20 1.04 19.06 19.06 1.11 17.87 17.87 1.19 16.64 16.64 1.27 15.36 15.36 1.35 14.00 14.00 1.43 Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
042 0.97 1.19 FE4ANF 002 0.98 1.04
042 0.96 1.19 FK4DNF 001 0.98 1.04 048 0.97 1.19 FV4BNB 006 1.00 1.00
CD5AA 048 0.97 1.19 FV4BNF 002 0.98 1.04 CE3AA 036 0.96 1.19 003 0.99 1.01
042 0.97 1.19 005 1.00 1.02 048 0.97 1.19 40FKB/FK4DNB 006 1.00 1.00
CF5AA 036 0.96 1.19 40FKB/FK4DNF 002 0.98 1.04
048 0.97 1.19 003 0.99 1.01
CK3BA 036 0.97 1.19 005 1.00 1.02
042 0.97 1.19 048 0.98 1.19 CE3AA 036 0.98 1.06
042 0.97 1.19 CK5A/CK5BA 036 0.99 1.06 048 0.97 1.19 CK5A/CK5BT 036 0.99 1.06
042 0.97 1.19 048 0.97 1.19 CC5A/CD5AA 036 0.99 1.05
048 0.97 1.19 CC5A/CD5AC 048 0.98 1.04
CK5PA 036 0.97 1.19 CC5A/CD5AW 036 0.99 1.04
042 0.97 1.19 CD5AA 048 0.99 1.04 048 0.97 1.19 CE3AA 036 0.98 1.04
CK5PE 042 0.97 1.19 042 0.99 1.04 CK5PT 036 0.97 1.19 048 0.99 1.04
042 0.97 1.19 CK3BA 036 0.99 1.04 048 0.97 1.19 042 0.99 1.04
CK5PW 036 0.97 1.19 048 1.00 1.04
048 0.97 1.19 —— —
Low Speed
Capacity Power Capacity Power
Indoor
Section Size
COILS + 58CV(A,X)070-12 VARIABLE SPEED FURNACE
COILS + 58CV(A,X)090-16 VARIABLE SPEED FURNACE
Low Speed
Capacity
MBtuh
Total
System
kW**
41
Page 42
Detailed cooling capacities* continued
EVAPORATOR
AIR
CFM EWB
75 85 95 105 115 125
Capacity
MBtuh
Total Sens Total Sens Total Sens Total Sens Total Sens Total Sens
Total
System
kW**
Capacity
MBtuh
CONDENSER ENTERING AIR TEMPERATURES °F
Total
System
kW**
Capacity
MBtuh
Tot al
System
kW**
Capacity
MBtuh
Total
System
kW**
Capacity
MBtuh
Total
System
kW**
38TDB037-30 Outdoor Section With FV4BNB006 Indoor Section - Low Speed continued
72
22.88 12.31 1.03 21.42 11.77 1.11 19.89 11.21 1.19 18.30 10.64 1.27 16.66 10.06 1.35 14.95 9.47 1.42
67
600
650
700
750
800
CK5A/CK5BA 036 0.99 1.04 CK5A/CK5BA 036 0.99 1.05
CK5A/CK5BE 042 1.00 1.05 CK5A/CK5BE 042 1.00 1.05 CK5A/CK5BT 036 0.99 1.04 CK5A/CK5BT 036 0.99 1.05
CK5A/CK5BW 036 0.99 1.04 CK5A/CK5BW 036 0.99 1.04
CC5A/CD5AA 036 0.99 1.05 048 1.00 1.04
CC5A/CD5AC 048 0.98 1.04 CC5A/CD5AA 042 0.99 1.04
CC5A/CD5AW 036 0.99 1.05 CC5A/CD5AC 048 0.98 1.04
See notes on pg. 55.
20.51 15.15 1.03 19.14 14.59 1.10 17.71 14.01 1.18 16.23 13.43 1.25 14.71 12.84 1.32 13.14 12.24 1.39
63††
18.87 14.55 1.02 17.55 13.98 1.09 16.19 13.39 1.17 14.80 12.81 1.24 13.38 12.21 1.30 11.91 11.61 1.37
62
18.38 17.96 1.02 17.21 17.21 1.09 16.17 16.17 1.17 15.11 15.11 1.24 13.98 13.98 1.31 12.80 12.80 1.39
57
18.20 18.20 1.02 17.21 17.21 1.09 16.17 16.17 1.17 15.10 15.10 1.24 13.98 13.98 1.31 12.80 12.80 1.39
72
23.25 12.77 1.03 21.74 12.21 1.11 20.17 11.65 1.19 18.54 11.07 1.28 16.86 10.49 1.35 15.11 9.89 1.43
67
20.84 15.85 1.03 19.42 15.27 1.10 17.96 14.69 1.18 16.45 14.10 1.26 14.89 13.50 1.33 13.30 12.89 1.40
63††
19.16 15.21 1.03 17.82 14.62 1.10 16.43 14.03 1.17 15.01 13.44 1.24 13.55 12.84 1.31 12.11 12.11 1.38
62
18.77 18.77 1.02 17.73 17.73 1.10 16.66 16.66 1.17 15.55 15.55 1.25 14.37 14.37 1.32 13.15 13.15 1.40
57
18.77 18.77 1.02 17.73 17.73 1.10 16.66 16.66 1.17 15.55 15.55 1.25 14.37 14.37 1.32 13.15 13.15 1.40
72
23.56 13.21 1.04 22.00 12.65 1.12 20.40 12.08 1.20 18.75 11.50 1.28 17.04 10.90 1.36 15.25 10.30 1.44
67
21.12 16.53 1.03 19.67 15.95 1.11 18.17 15.36 1.19 16.63 14.77 1.26 15.05 14.16 1.34 13.47 13.47 1.41
63††
19.42 15.85 1.03 18.05 15.26 1.10 16.63 14.66 1.18 15.18 14.06 1.25 13.70 13.44 1.32 12.38 12.38 1.39
62
19.28 19.28 1.03 18.21 18.21 1.10 17.11 17.11 1.18 15.94 15.94 1.26 14.73 14.73 1.33 13.47 13.47 1.41
57
19.28 19.28 1.03 18.21 18.21 1.10 17.11 17.11 1.18 15.94 15.94 1.26 14.73 14.73 1.33 13.37 13.47 1.41
72
23.82 13.64 1.04 22.24 13.07 1.12 20.61 12.50 1.20 18.93 11.91 1.29 17.19 11.32 1.36 15.37 10.70 1.44
67
21.36 17.19 1.04 19.88 16.61 1.11 18.36 16.02 1.19 16.80 15.42 1.27 15.20 14.80 1.34 13.75 13.75 1.42
63††
19.65 16.48 1.03 18.25 15.89 1.11 16.81 15.28 1.18 15.34 14.67 1.26 13.90 13.90 1.32 12.63 12.63 1.40
62
19.76 19.76 1.03 18.66 18.66 1.11 17.51 17.51 1.19 16.31 16.31 1.26 15.06 15.06 1.34 13.75 13.75 1.42
57
19.76 19.75 1.03 18.65 18.65 1.11 17.51 17.51 1.19 16.31 16.31 1.26 15.06 15.06 1.34 13.75 13.75 1.42
72
24.05 14.06 1.05 22.45 13.49 1.12 20.79 12.92 1.21 19.08 12.33 1.29 17.32 11.72 1.37 15.47 11.10 1.45
67
21.57 17.86 1.04 20.07 17.27 1.12 18.53 16.67 1.20 16.95 16.06 1.28 15.37 15.37 1.35 14.00 14.00 1.43
63††
19.86 17.10 1.04 18.43 16.50 1.11 16.98 15.89 1.19 15.48 15.27 1.26 14.16 14.16 1.33 12.85 12.85 1.40
62
20.20 20.20 1.04 19.07 19.07 1.11 17.87 17.87 1.19 16.64 16.64 1.27 15.37 15.37 1.35 14.00 14.00 1.43
57
20.20 20.20 1.04 19.06 19.06 1.11 17.87 17.87 1.19 16.64 16.64 1.27 15.36 15.36 1.35 14.00 14.00 1.43 Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
042 0.99 1.04 042 0.99 1.04 048 1.00 1.04 048 1.00 1.04
042 0.99 1.04 042 0.99 1.04 048 1.00 1.04 048 1.00 1.04
CK5PA 036 0.99 1.04 048 1.00 1.04
042 0.99 1.04 CK5PA 036 0.99 1.05 048 1.00 1.04 042 0.99 1.04
CK5PE 042 1.00 1.05 048 1.00 1.04 CK5PT 036 0.99 1.04 CK5PE 042 1.00 1.05
042 0.99 1.04 CK5PT 036 0.99 1.05 048 1.00 1.04 042 0.99 1.04
CK5PW 036 0.99 1.04 048 1.00 1.04
COILS + 58CV(A,X)110-22 VARIABLE SPEED FURNACE CK5PW 036 0.99 1.04
042 0.99 1.04
042 0.99 1.04 CC5A/CD5AW 036 0.99 1.05 048 0.99 1.04 042 0.99 1.04
CD5AA 048 0.99 1.04 048 0.99 1.04 CE3AA 036 0.98 1.05 CD5AA 048 0.99 1.04
042 0.99 1.04 CE3AA 036 0.98 1.05 048 1.00 1.04 042 0.99 1.04
CK3BA 036 0.99 1.04 048 0.99 1.03
042 0.99 1.04 CK3BA 036 0.99 1.05 048 1.00 1.04 042 0.99 1.04
—— — 048 1.00 1.04
Low Speed
Capacity Power Capacity Power
Indoor
Section Size
COILS + 58CV(A,X)135-22 VARIABLE SPEED FURNACE
Low Speed
Capacity
MBtuh
Total
System
kW**
42
Page 43
Detailed cooling capacities* continued
EVAPORATOR
AIR
CFM EWB
75 85 95 105 115 125
Capacity
MBtuh
Total Sens Total Sens Total Sens Total Sens Total Sens Total Sens
Total
System
kW**
Capacity
MBtuh
CONDENSER ENTERING AIR TEMPERATURES °F
Total
System
kW**
Capacity
MBtuh
Tot al
System
kW**
Capacity
MBtuh
Total
System
kW**
Capacity
MBtuh
Tot al
System
kW**
38TDB037-30 Outdoor Section With FV4BNB006 Indoor Section - Low Speed continued
72
22.88 12.31 1.03 21.42 11.77 1.11 19.89 11.21 1.19 18.30 10.64 1.27 16.66 10.06 1.35 14.95 9.47 1.42
67
600
650
700
750
800
CK5A/CK5BA 042 0.99 1.04 CK5PA 042 0.99 1.04
CK5A/CK5BT 042 0.99 1.04 CK5PT 042 0.99 1.04
CK5A/CK5BW 036 0.99 1.04 CK5PW 036 0.99 1.04
CC5A/CD5AA 042 0.99 1.04 CE3AA 036 0.97 1.05 CC5A/CD5AC 048 0.98 1.04 042 0.98 1.05 CC5A/CD5AW 036 0.99 1.04 048 0.99 1.05
CK5A/CK5BA 042 0.99 1.04 048 0.99 1.05
CK5A/CK5BT 042 0.99 1.04 048 0.99 1.05
CK5A/CK5BW 036 0.99 1.04 048 0.99 1.04
See notes on pg. 55.
20.51 15.15 1.03 19.14 14.59 1.10 17.71 14.01 1.18 16.23 13.43 1.25 14.71 12.84 1.32 13.14 12.24 1.39
63††
18.87 14.55 1.02 17.55 13.98 1.09 16.19 13.39 1.17 14.80 12.81 1.24 13.38 12.21 1.30 11.91 11.61 1.37
62
18.38 17.96 1.02 17.21 17.21 1.09 16.17 16.17 1.17 15.11 15.11 1.24 13.98 13.98 1.31 12.80 12.80 1.39
57
18.20 18.20 1.02 17.21 17.21 1.09 16.17 16.17 1.17 15.10 15.10 1.24 13.98 13.98 1.31 12.80 12.80 1.39
72
23.25 12.77 1.03 21.74 12.21 1.11 20.17 11.65 1.19 18.54 11.07 1.28 16.86 10.49 1.35 15.11 9.89 1.43
67
20.84 15.85 1.03 19.42 15.27 1.10 17.96 14.69 1.18 16.45 14.10 1.26 14.89 13.50 1.33 13.30 12.89 1.40
63††
19.16 15.21 1.03 17.82 14.62 1.10 16.43 14.03 1.17 15.01 13.44 1.24 13.55 12.84 1.31 12.11 12.11 1.38
62
18.77 18.77 1.02 17.73 17.73 1.10 16.66 16.66 1.17 15.55 15.55 1.25 14.37 14.37 1.32 13.15 13.15 1.40
57
18.77 18.77 1.02 17.73 17.73 1.10 16.66 16.66 1.17 15.55 15.55 1.25 14.37 14.37 1.32 13.15 13.15 1.40
72
23.56 13.21 1.04 22.00 12.65 1.12 20.40 12.08 1.20 18.75 11.50 1.28 17.04 10.90 1.36 15.25 10.30 1.44
67
21.12 16.53 1.03 19.67 15.95 1.11 18.17 15.36 1.19 16.63 14.77 1.26 15.05 14.16 1.34 13.47 13.47 1.41
63††
19.42 15.85 1.03 18.05 15.26 1.10 16.63 14.66 1.18 15.18 14.06 1.25 13.70 13.44 1.32 12.38 12.38 1.39
62
19.28 19.28 1.03 18.21 18.21 1.10 17.11 17.11 1.18 15.94 15.94 1.26 14.73 14.73 1.33 13.47 13.47 1.41
57
19.28 19.28 1.03 18.21 18.21 1.10 17.11 17.11 1.18 15.94 15.94 1.26 14.73 14.73 1.33 13.37 13.47 1.41
72
23.82 13.64 1.04 22.24 13.07 1.12 20.61 12.50 1.20 18.93 11.91 1.29 17.19 11.32 1.36 15.37 10.70 1.44
67
21.36 17.19 1.04 19.88 16.61 1.11 18.36 16.02 1.19 16.80 15.42 1.27 15.20 14.80 1.34 13.75 13.75 1.42
63††
19.65 16.48 1.03 18.25 15.89 1.11 16.81 15.28 1.18 15.34 14.67 1.26 13.90 13.90 1.32 12.63 12.63 1.40
62
19.76 19.76 1.03 18.66 18.66 1.11 17.51 17.51 1.19 16.31 16.31 1.26 15.06 15.06 1.34 13.75 13.75 1.42
57
19.76 19.75 1.03 18.65 18.65 1.11 17.51 17.51 1.19 16.31 16.31 1.26 15.06 15.06 1.34 13.75 13.75 1.42
72
24.05 14.06 1.05 22.45 13.49 1.12 20.79 12.92 1.21 19.08 12.33 1.29 17.32 11.72 1.37 15.47 11.10 1.45
67
21.57 17.86 1.04 20.07 17.27 1.12 18.53 16.67 1.20 16.95 16.06 1.28 15.37 15.37 1.35 14.00 14.00 1.43
63††
19.86 17.10 1.04 18.43 16.50 1.11 16.98 15.89 1.19 15.48 15.27 1.26 14.16 14.16 1.33 12.85 12.85 1.40
62
20.20 20.20 1.04 19.07 19.07 1.11 17.87 17.87 1.19 16.64 16.64 1.27 15.37 15.37 1.35 14.00 14.00 1.43
57
20.20 20.20 1.04 19.06 19.06 1.11 17.87 17.87 1.19 16.64 16.64 1.27 15.36 15.36 1.35 14.00 14.00 1.43 Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
048 1.00 1.04 048 1.00 1.04
048 1.00 1.04 048 1.00 1.04
048 1.00 1.04 048 1.00 1.04
CK5PA 042 0.99 1.04
048 1.00 1.04 CC5A/CD5AA 042 0.98 1.05
CK5PT 042 0.99 1.04 CC5A/CD5AC 048 0.98 1.05
048 1.00 1.04 CC5A/CD5AW 036 0.98 1.05
CK5PW 036 0.99 1.04 042 0.97 1.04
048 1.00 1.04 048 0.98 1.04
COILS + 58CV(A,X)155-22 VARIABLE SPEED FURNACE CD5AA 048 0.98 1.04
042 0.99 1.03 CK3BA 042 0.99 1.06 048 0.99 1.03 048 0.99 1.05
CD5AA 048 0.99 1.03 CK5A/CK5BA 042 0.99 1.06 CE3AA 036 0.98 1.04 048 0.99 1.05
042 0.99 1.04 CK5A/CK5BT 042 0.99 1.06 048 0.99 1.03 048 0.99 1.05
CK3BA 036 0.99 1.04 CK5A/CK5BW 036 0.99 1.06
042 0.99 1.04 048 0.99 1.04 048 1.00 1.04 CK5PA 042 0.99 1.06
048 1.00 1.04 CK5PT 042 0.99 1.06
048 1.00 1.04 CK5PW 036 0.99 1.06
048 1.00 1.04 —— —
Low Speed
Capacity Power Capacity Power
Indoor
Section Size
COILS + 58MVP040-14 VARIABLE SPEED FURNACE
Low Speed
Capacity
MBtuh
Total
System
kW**
43
Page 44
Detailed cooling capacities* continued
EVAPORATOR
AIR
CFM EWB
75 85 95 105 115 125
Capacity
MBtuh
Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡
Total
System
kW**
Capacity
MBtuh
CONDENSER ENTERING AIR TEMPERATURES °F
Total
System
kW**
Capacity
MBtuh
Tot al
System
kW**
Capacity
MBtuh
Total
System
kW**
Capacity
MBtuh
Total
System
kW**
Capacity
MBtuh
38TDB037-30 Outdoor Section With FV4BNB006 Indoor Section - Low Speed continued
72
22.88 12.31 1.03 21.42 11.77 1.11 19.89 11.21 1.19 18.30 10.64 1.27 16.66 10.06 1.35 14.95 9.47 1.42
67
600
650
700
750
800
CC5A/CD5AA 036 0.98 1.05 CC5A/CD5AW 036 0.98 1.05
CC5A/CD5AC 048 0.98 1.05 048 0.98 1.04
CC5A/CD5AW 036 0.98 1.04 CD5AA 048 0.98 1.04
CK5A/CK5BA 036 0.99 1.05 042 0.99 1.06
CK5A/CK5BE 042 0.99 1.05 CK5A/CK5BT 036 0.99 1.06 CK5A/CK5BT 036 0.99 1.05 042 0.99 1.06
CK5A/CK5BW 036 0.99 1.05 048 0.99 1.04
CC5A/CD5AA 036 0.98 1.05 —— —
See notes on pg. 55.
20.51 15.15 1.03 19.14 14.59 1.10 17.71 14.01 1.18 16.23 13.43 1.25 14.71 12.84 1.32 13.14 12.24 1.39
63††
18.87 14.55 1.02 17.55 13.98 1.09 16.19 13.39 1.17 14.80 12.81 1.24 13.38 12.21 1.30 11.91 11.61 1.37
62
18.38 17.96 1.02 17.21 17.21 1.09 16.17 16.17 1.17 15.11 15.11 1.24 13.98 13.98 1.31 12.80 12.80 1.39
57
18.20 18.20 1.02 17.21 17.21 1.09 16.17 16.17 1.17 15.10 15.10 1.24 13.98 13.98 1.31 12.80 12.80 1.39
72
23.25 12.77 1.03 21.74 12.21 1.11 20.17 11.65 1.19 18.54 11.07 1.28 16.86 10.49 1.35 15.11 9.89 1.43
67
20.84 15.85 1.03 19.42 15.27 1.10 17.96 14.69 1.18 16.45 14.10 1.26 14.89 13.50 1.33 13.30 12.89 1.40
63††
19.16 15.21 1.03 17.82 14.62 1.10 16.43 14.03 1.17 15.01 13.44 1.24 13.55 12.84 1.31 12.11 12.11 1.38
62
18.77 18.77 1.02 17.73 17.73 1.10 16.66 16.66 1.17 15.55 15.55 1.25 14.37 14.37 1.32 13.15 13.15 1.40
57
18.77 18.77 1.02 17.73 17.73 1.10 16.66 16.66 1.17 15.55 15.55 1.25 14.37 14.37 1.32 13.15 13.15 1.40
72
23.56 13.21 1.04 22.00 12.65 1.12 20.40 12.08 1.20 18.75 11.50 1.28 17.04 10.90 1.36 15.25 10.30 1.44
67
21.12 16.53 1.03 19.67 15.95 1.11 18.17 15.36 1.19 16.63 14.77 1.26 15.05 14.16 1.34 13.47 13.47 1.41
63††
19.42 15.85 1.03 18.05 15.26 1.10 16.63 14.66 1.18 15.18 14.06 1.25 13.70 13.44 1.32 12.38 12.38 1.39
62
19.28 19.28 1.03 18.21 18.21 1.10 17.11 17.11 1.18 15.94 15.94 1.26 14.73 14.73 1.33 13.47 13.47 1.41
57
19.28 19.28 1.03 18.21 18.21 1.10 17.11 17.11 1.18 15.94 15.94 1.26 14.73 14.73 1.33 13.37 13.47 1.41
72
23.82 13.64 1.04 22.24 13.07 1.12 20.61 12.50 1.20 18.93 11.91 1.29 17.19 11.32 1.36 15.37 10.70 1.44
67
21.36 17.19 1.04 19.88 16.61 1.11 18.36 16.02 1.19 16.80 15.42 1.27 15.20 14.80 1.34 13.75 13.75 1.42
63††
19.65 16.48 1.03 18.25 15.89 1.11 16.81 15.28 1.18 15.34 14.67 1.26 13.90 13.90 1.32 12.63 12.63 1.40
62
19.76 19.76 1.03 18.66 18.66 1.11 17.51 17.51 1.19 16.31 16.31 1.26 15.06 15.06 1.34 13.75 13.75 1.42
57
19.76 19.75 1.03 18.65 18.65 1.11 17.51 17.51 1.19 16.31 16.31 1.26 15.06 15.06 1.34 13.75 13.75 1.42
72
24.05 14.06 1.05 22.45 13.49 1.12 20.79 12.92 1.21 19.08 12.33 1.29 17.32 11.72 1.37 15.47 11.10 1.45
67
21.57 17.86 1.04 20.07 17.27 1.12 18.53 16.67 1.20 16.95 16.06 1.28 15.37 15.37 1.35 14.00 14.00 1.43
63††
19.86 17.10 1.04 18.43 16.50 1.11 16.98 15.89 1.19 15.48 15.27 1.26 14.16 14.16 1.33 12.85 12.85 1.40
62
20.20 20.20 1.04 19.07 19.07 1.11 17.87 17.87 1.19 16.64 16.64 1.27 15.37 15.37 1.35 14.00 14.00 1.43
57
20.20 20.20 1.04 19.06 19.06 1.11 17.87 17.87 1.19 16.64 16.64 1.27 15.36 15.36 1.35 14.00 14.00 1.43 Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
COILS + 58MVP060-14 VARIABLE SPEED FURNACE CC5A/CD5AC 048 0.98 1.05
042 0.98 1.04 042 0.97 1.04
CD5AA 048 0.98 1.04 CE3AA 036 0.97 1.05 CE3AA 036 0.97 1.05 042 0.98 1.05
042 0.98 1.04 048 0.99 1.05 048 0.98 1.04 CK3BA 036 0.99 1.06
CK3BA 036 0.98 1.04 042 0.99 1.06
042 0.99 1.05 048 0.99 1.05 048 0.99 1.04 CK5A/CK5BA 036 0.99 1.06
042 0.99 1.05 048 0.99 1.05 048 0.99 1.04 CK5A/CK5BE 042 0.99 1.05
042 0.99 1.05 048 0.99 1.05 048 0.99 1.04 CK5A/CK5BW 036 0.99 1.06
CK5PA 036 0.99 1.05 CK5PA 036 0.99 1.06
042 0.99 1.05 042 0.99 1.06 048 0.99 1.04 048 0.99 1.05
CK5PE 042 0.99 1.04 CK5PE 042 0.99 1.05 CK5PT 036 0.98 1.04 CK5PT 036 0.99 1.06
042 0.99 1.05 042 0.99 1.06 048 0.99 1.04 048 0.99 1.05
CK5PW 036 0.98 1.04 CK5PW 036 0.99 1.06
COILS + 58MVP080-14 VARIABLE SPEED FURNACE 048 0.99 1.04
042 0.98 1.05
Low Speed
Capacity Power Capacity Power
Indoor
Section Size
Low Speed
Total
System
kW**
44
Page 45
Detailed cooling capacities* continued
EVAPORATOR
AIR
CFM EWB
75 85 95 105 115 125
Capacity
MBtuh
Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡
Total
System
kW**
Capacity
MBtuh
CONDENSER ENTERING AIR TEMPERATURES °F
Total
System
kW**
Capacity
MBtuh
Tot al
System
kW**
Capacity
MBtuh
Total
System
kW**
Capacity
MBtuh
Tot al
System
kW**
38TDB037-30 Outdoor Section With FV4BNB006 Indoor Section - Low Speed continued
72
22.88 12.31 1.03 21.42 11.77 1.11 19.89 11.21 1.19 18.30 10.64 1.27 16.66 10.06 1.35 14.95 9.47 1.42
67
600
650
700
750
800
CC5A/CD5AA 036 0.98 1.05 048 0.99 1.04
CC5A/CD5AC 048 0.98 1.05 CC5A/CD5AA 036 0.98 1.05 CC5A/CD5AW 036 0.98 1.04 042 0.98 1.04
CK5A/CK5BA 036 0.99 1.06 042 0.99 1.05
CK5A/CK5BE 042 0.99 1.05 042 0.99 1.05 CK5A/CK5BT 036 0.99 1.06 048 0.99 1.04
CK5A/CK5BW 036 0.99 1.05 042 0.99 1.05
See notes on pg. 55.
20.51 15.15 1.03 19.14 14.59 1.10 17.71 14.01 1.18 16.23 13.43 1.25 14.71 12.84 1.32 13.14 12.24 1.39
63††
18.87 14.55 1.02 17.55 13.98 1.09 16.19 13.39 1.17 14.80 12.81 1.24 13.38 12.21 1.30 11.91 11.61 1.37
62
18.38 17.96 1.02 17.21 17.21 1.09 16.17 16.17 1.17 15.11 15.11 1.24 13.98 13.98 1.31 12.80 12.80 1.39
57
18.20 18.20 1.02 17.21 17.21 1.09 16.17 16.17 1.17 15.10 15.10 1.24 13.98 13.98 1.31 12.80 12.80 1.39
72
23.25 12.77 1.03 21.74 12.21 1.11 20.17 11.65 1.19 18.54 11.07 1.28 16.86 10.49 1.35 15.11 9.89 1.43
67
20.84 15.85 1.03 19.42 15.27 1.10 17.96 14.69 1.18 16.45 14.10 1.26 14.89 13.50 1.33 13.30 12.89 1.40
63††
19.16 15.21 1.03 17.82 14.62 1.10 16.43 14.03 1.17 15.01 13.44 1.24 13.55 12.84 1.31 12.11 12.11 1.38
62
18.77 18.77 1.02 17.73 17.73 1.10 16.66 16.66 1.17 15.55 15.55 1.25 14.37 14.37 1.32 13.15 13.15 1.40
57
18.77 18.77 1.02 17.73 17.73 1.10 16.66 16.66 1.17 15.55 15.55 1.25 14.37 14.37 1.32 13.15 13.15 1.40
72
23.56 13.21 1.04 22.00 12.65 1.12 20.40 12.08 1.20 18.75 11.50 1.28 17.04 10.90 1.36 15.25 10.30 1.44
67
21.12 16.53 1.03 19.67 15.95 1.11 18.17 15.36 1.19 16.63 14.77 1.26 15.05 14.16 1.34 13.47 13.47 1.41
63††
19.42 15.85 1.03 18.05 15.26 1.10 16.63 14.66 1.18 15.18 14.06 1.25 13.70 13.44 1.32 12.38 12.38 1.39
62
19.28 19.28 1.03 18.21 18.21 1.10 17.11 17.11 1.18 15.94 15.94 1.26 14.73 14.73 1.33 13.47 13.47 1.41
57
19.28 19.28 1.03 18.21 18.21 1.10 17.11 17.11 1.18 15.94 15.94 1.26 14.73 14.73 1.33 13.37 13.47 1.41
72
23.82 13.64 1.04 22.24 13.07 1.12 20.61 12.50 1.20 18.93 11.91 1.29 17.19 11.32 1.36 15.37 10.70 1.44
67
21.36 17.19 1.04 19.88 16.61 1.11 18.36 16.02 1.19 16.80 15.42 1.27 15.20 14.80 1.34 13.75 13.75 1.42
63††
19.65 16.48 1.03 18.25 15.89 1.11 16.81 15.28 1.18 15.34 14.67 1.26 13.90 13.90 1.32 12.63 12.63 1.40
62
19.76 19.76 1.03 18.66 18.66 1.11 17.51 17.51 1.19 16.31 16.31 1.26 15.06 15.06 1.34 13.75 13.75 1.42
57
19.76 19.75 1.03 18.65 18.65 1.11 17.51 17.51 1.19 16.31 16.31 1.26 15.06 15.06 1.34 13.75 13.75 1.42
72
24.05 14.06 1.05 22.45 13.49 1.12 20.79 12.92 1.21 19.08 12.33 1.29 17.32 11.72 1.37 15.47 11.10 1.45
67
21.57 17.86 1.04 20.07 17.27 1.12 18.53 16.67 1.20 16.95 16.06 1.28 15.37 15.37 1.35 14.00 14.00 1.43
63††
19.86 17.10 1.04 18.43 16.50 1.11 16.98 15.89 1.19 15.48 15.27 1.26 14.16 14.16 1.33 12.85 12.85 1.40
62
20.20 20.20 1.04 19.07 19.07 1.11 17.87 17.87 1.19 16.64 16.64 1.27 15.37 15.37 1.35 14.00 14.00 1.43
57
20.20 20.20 1.04 19.06 19.06 1.11 17.87 17.87 1.19 16.64 16.64 1.27 15.36 15.36 1.35 14.00 14.00 1.43 Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
COILS + 58MVP080-20 VARIABLE SPEED FURNACE CK5PW 036 0.99 1.05
042 0.98 1.04
042 0.98 1.05 CC5A/CD5AC 048 0.98 1.05 048 0.98 1.04 CC5A/CD5AW 036 0.98 1.04
CD5AA 048 0.98 1.04 042 0.98 1.05 CE3AA 036 0.97 1.05 048 0.99 1.05
042 0.98 1.04 CD5AA 048 0.99 1.05 048 0.99 1.05 CE3AA 036 0.97 1.05
CK3BA 036 0.99 1.06 042 0.99 1.05
042 0.99 1.05 048 0.99 1.05 048 0.99 1.04 CK3BA 036 0.99 1.06
042 0.99 1.05 048 0.99 1.04 048 0.99 1.04 CK5A/CK5BA 036 0.99 1.06
042 0.99 1.05 CK5A/CK5BE 042 0.99 1.05 048 0.99 1.04 CK5A/CK5BT 036 0.99 1.06
048 0.99 1.04 048 0.99 1.04
CK5PA 036 0.99 1.06 CK5A/CK5BW 036 0.99 1.05
042 0.99 1.05 048 0.99 1.04 048 0.99 1.04 CK5PA 036 0.99 1.06
CK5PE 042 0.99 1.05 042 0.99 1.05 CK5PT 036 0.99 1.06 048 0.99 1.04
042 0.99 1.05 CK5PE 042 0.99 1.05 048 0.99 1.04 —— —
Low Speed
Capacity Power Capacity Power
Indoor
Section Size
COILS + 58MVP100-20 VARIABLE SPEED FURNACE
Low Speed
Capacity
MBtuh
Total
System
kW**
45
Page 46
Detailed cooling capacities* continued
EVAPORATOR
AIR
CFM EWB
75 85 95 105 115 125
Capacity
MBtuh
Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡
Total
System
kW**
Capacity
MBtuh
CONDENSER ENTERING AIR TEMPERATURES °F
Total
System
kW**
Capacity
MBtuh
Tot al
System
kW**
Capacity
MBtuh
Total
System
kW**
Capacity
MBtuh
Total
System
kW**
38TDB037-30 Outdoor Section With FV4BNB006 Indoor Section - Low Speed continued
72
22.88 12.31 1.03 21.42 11.77 1.11 19.89 11.21 1.19 18.30 10.64 1.27 16.66 10.06 1.35 14.95 9.47 1.42
67
600
650
700
750
800
CC5A/CD5AA 042 0.98 1.04 CK5A/CK5BW 036 0.98 1.05 CC5A/CD5AC 048 0.97 1.04 048 0.99 1.04
CC5A/CD5AW 036 0.98 1.05 CK5PA 042 0.98 1.04
See notes on pg. 55.
20.51 15.15 1.03 19.14 14.59 1.10 17.71 14.01 1.18 16.23 13.43 1.25 14.71 12.84 1.32 13.14 12.24 1.39
63††
18.87 14.55 1.02 17.55 13.98 1.09 16.19 13.39 1.17 14.80 12.81 1.24 13.38 12.21 1.30 11.91 11.61 1.37
62
18.38 17.96 1.02 17.21 17.21 1.09 16.17 16.17 1.17 15.11 15.11 1.24 13.98 13.98 1.31 12.80 12.80 1.39
57
18.20 18.20 1.02 17.21 17.21 1.09 16.17 16.17 1.17 15.10 15.10 1.24 13.98 13.98 1.31 12.80 12.80 1.39
72
23.25 12.77 1.03 21.74 12.21 1.11 20.17 11.65 1.19 18.54 11.07 1.28 16.86 10.49 1.35 15.11 9.89 1.43
67
20.84 15.85 1.03 19.42 15.27 1.10 17.96 14.69 1.18 16.45 14.10 1.26 14.89 13.50 1.33 13.30 12.89 1.40
63††
19.16 15.21 1.03 17.82 14.62 1.10 16.43 14.03 1.17 15.01 13.44 1.24 13.55 12.84 1.31 12.11 12.11 1.38
62
18.77 18.77 1.02 17.73 17.73 1.10 16.66 16.66 1.17 15.55 15.55 1.25 14.37 14.37 1.32 13.15 13.15 1.40
57
18.77 18.77 1.02 17.73 17.73 1.10 16.66 16.66 1.17 15.55 15.55 1.25 14.37 14.37 1.32 13.15 13.15 1.40
72
23.56 13.21 1.04 22.00 12.65 1.12 20.40 12.08 1.20 18.75 11.50 1.28 17.04 10.90 1.36 15.25 10.30 1.44
67
21.12 16.53 1.03 19.67 15.95 1.11 18.17 15.36 1.19 16.63 14.77 1.26 15.05 14.16 1.34 13.47 13.47 1.41
63††
19.42 15.85 1.03 18.05 15.26 1.10 16.63 14.66 1.18 15.18 14.06 1.25 13.70 13.44 1.32 12.38 12.38 1.39
62
19.28 19.28 1.03 18.21 18.21 1.10 17.11 17.11 1.18 15.94 15.94 1.26 14.73 14.73 1.33 13.47 13.47 1.41
57
19.28 19.28 1.03 18.21 18.21 1.10 17.11 17.11 1.18 15.94 15.94 1.26 14.73 14.73 1.33 13.37 13.47 1.41
72
23.82 13.64 1.04 22.24 13.07 1.12 20.61 12.50 1.20 18.93 11.91 1.29 17.19 11.32 1.36 15.37 10.70 1.44
67
21.36 17.19 1.04 19.88 16.61 1.11 18.36 16.02 1.19 16.80 15.42 1.27 15.20 14.80 1.34 13.75 13.75 1.42
63††
19.65 16.48 1.03 18.25 15.89 1.11 16.81 15.28 1.18 15.34 14.67 1.26 13.90 13.90 1.32 12.63 12.63 1.40
62
19.76 19.76 1.03 18.66 18.66 1.11 17.51 17.51 1.19 16.31 16.31 1.26 15.06 15.06 1.34 13.75 13.75 1.42
57
19.76 19.75 1.03 18.65 18.65 1.11 17.51 17.51 1.19 16.31 16.31 1.26 15.06 15.06 1.34 13.75 13.75 1.42
72
24.05 14.06 1.05 22.45 13.49 1.12 20.79 12.92 1.21 19.08 12.33 1.29 17.32 11.72 1.37 15.47 11.10 1.45
67
21.57 17.86 1.04 20.07 17.27 1.12 18.53 16.67 1.20 16.95 16.06 1.28 15.37 15.37 1.35 14.00 14.00 1.43
63††
19.86 17.10 1.04 18.43 16.50 1.11 16.98 15.89 1.19 15.48 15.27 1.26 14.16 14.16 1.33 12.85 12.85 1.40
62
20.20 20.20 1.04 19.07 19.07 1.11 17.87 17.87 1.19 16.64 16.64 1.27 15.37 15.37 1.35 14.00 14.00 1.43
57
20.20 20.20 1.04 19.06 19.06 1.11 17.87 17.87 1.19 16.64 16.64 1.27 15.36 15.36 1.35 14.00 14.00 1.43 Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
CK5PT 036 0.99 1.06 CK3BA 042 0.98 1.05
042 0.99 1.05 048 0.99 1.04 048 0.99 1.04 CK5A/CK5BA 042 0.98 1.05
CK5PW 036 0.99 1.05 048 0.99 1.05
048 0.99 1.04 CK5A/CK5BT 042 0.98 1.05
COILS + 58MVP120-20 VARIABLE SPEED FURNACE 048 0.99 1.05
042 0.97 1.04 048 0.99 1.04 048 0.98 1.04 CK5PT 042 0.98 1.04
CD5AA 048 0.98 1.04 048 0.99 1.04 CE3AA 036 0.97 1.05 CK5PW 036 0.98 1.04
042 0.98 1.05 048 0.99 1.04 048 0.98 1.04 —— —
Low Speed
Capacity Power Capacity Power
Indoor
Section Size
Low Speed
Capacity
MBtuh
Total
System
kW**
46
Page 47
Detailed cooling capacities* continued
EVAPORATOR
AIR
CFM EWB
75 85 95 105 115 125
Capacity
MBtuh†
Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡
Total
System
kW**
Capacity
MBtuh†
CONDENSER ENTERING AIR TEMPERATURES °F
Tot al
System
kW**
Capacity
MBtuh†
Total
System
kW**
Capacity
MBtuh†
Total
System
kW**
Capacity
MBtuh†
Tot al
System
kW**
38TDB048-30 Outdoor Section With FV4BNB006 Indoor Section - High Speed
72 57.22 28.68 3.61 54.16 27.40 3.85 50.97 26.11 4.09 47.71 24.81 4.34 44.41 23.51 4.59 41.03 22.22 4.83 67 51.61 33.83 3.51 48.73 32.53 3.74 45.76 31.21 3.97 42.75 29.90 4.21 39.71 28.60 4.45 36.49 27.25 4.69
1200
63†† 47.58 32.67 3.44 44.83 31.34 3.66 42.05 30.02 3.88 39.26 28.72 4.11 36.32 27.38 4.33 33.28 26.03 4.56
62 46.50 38.95 3.42 43.78 37.62 3.64 41.03 36.29 3.85 38.23 34.91 4.08 35.38 33.48 4.30 32.43 31.87 4.53 57 42.41 42.41 3.34 40.44 40.44 3.56 38.48 38.48 3.78 36.40 36.40 4.02 34.28 34.28 4.26 32.05 32.05 4.52 72 59.13 30.16 3.72 55.81 28.83 3.96 52.44 27.50 4.20 49.05 26.18 4.45 45.55 24.85 4.70 41.90 23.48 4.95 67 53.31 36.07 3.62 50.23 34.72 3.85 47.11 33.37 4.08 43.96 32.04 4.32 40.67 30.67 4.56 37.30 29.29 4.80
1400
63†† 49.14 34.78 3.54 46.25 33.42 3.77 43.33 32.07 3.99 40.29 30.70 4.22 37.20 29.32 4.44 34.04 27.94 4.67
62 48.01 41.95 3.53 45.12 40.54 3.74 42.21 39.08 3.96 39.28 37.57 4.19 36.20 36.20 4.41 33.55 33.55 4.66 57 44.72 44.72 3.47 42.63 42.63 3.69 40.45 40.45 3.91 38.26 38.26 4.16 35.96 35.96 4.40 33.58 33.58 4.65 72 60.63 31.55 3.81 57.16 30.19 4.06 53.68 28.84 4.30 50.10 27.49 4.56 46.40 26.11 4.80 42.63 24.72 5.06 67 54.68 38.22 3.72 51.46 36.84 3.95 48.23 35.48 4.18 44.85 34.08 4.42 41.43 32.68 4.66 37.93 31.28 4.90
1600
63†† 50.42 36.81 3.64 47.41 35.43 3.87 44.27 34.02 4.08 41.10 32.61 4.32 37.90 31.21 4.54 34.64 29.81 4.78
62 49.20 44.78 3.62 46.20 43.24 3.84 43.19 41.63 4.06 40.08 40.08 4.29 37.40 37.40 4.53 34.90 34.90 4.79 57 46.79 46.79 3.58 44.51 44.51 3.81 42.23 42.23 4.04 39.86 39.86 4.28 37.41 37.41 4.53 34.91 34.91 4.79 72 61.82 32.84 3.91 58.26 31.46 4.15 54.63 30.09 4.40 50.87 28.69 4.65 47.06 27.29 4.90 43.19 25.89 5.15 67 55.77 40.25 3.81 52.47 38.86 4.05 49.03 37.44 4.27 45.54 36.02 4.52 42.00 34.60 4.76 38.40 33.14 5.00
1800
63†† 51.47 38.74 3.74 48.25 37.28 3.96 45.01 35.86 4.18 41.73 34.43 4.41 38.44 33.01 4.64 35.00 31.47 4.87
62 50.18 47.33 3.71 47.11 45.64 3.94 43.94 43.94 4.16 41.19 41.19 4.40 38.67 38.67 4.65 35.98 35.98 4.91 57 48.52 48.52 3.68 46.16 46.16 3.92 43.72 43.72 4.15 41.21 41.21 4.40 38.69 38.69 4.65 36.01 36.01 4.91
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
CC5A/CD5AA 060 0.96 1.07 CE3AA 048 0.94 1.01
060 0.96 1.07 CK3BA 048 0.94 1.00
CC5A/CD5AC 048 0.94 1.06 CK5A/CK5BA 048 0.94 1.00
CC5A/CD5AW 048 0.96 1.07 CK5A/CK5BT 048 0.94 1.00
060 0.98 1.08 CK5PA 048 0.94 1.00
CD5AA 048 0.96 1.07 CK5PT 048 0.94 1.00
CE3AA 048 0.96 1.07
060 0.98 1.08 CC5A/CD5AA 060 0.94 0.98
CK3BA 048 0.96 1.07 CC5A/CD5AC 048 0.93 0.99
060 0.98 1.08 CC5A/CD5AW 048 0.94 0.98
CK5A/CK5BA 048 0.96 1.07 CD5AA 048 0.94 0.98
060 0.98 1.08 CE3AA 048 0.94 0.99
CK5A/CK5BT 048 0.96 1.07 060 0.97 0.99
060 0.98 1.08 CK3BA 048 0.94 0.98
CK5A/CK5BW 048 0.96 1.07 060 0.97 0.99
CK5A/CK5BX 060 1.00 1.08 CK5A/CK5BA 048 0.94 0.98
CK5PA 048 0.96 1.07 060 0.97 0.99
060 0.98 1.08 CK5A/CK5BT 048 0.94 0.98
CK5PT 048 0.96 1.07 060 0.97 0.99
060 0.98 1.08 CK5A/CK5BW 048 0.95 0.98
CK5PW 048 0.96 1.07 CK5A/CK5BX 060 0.97 0.98
CK5PX 060 1.00 1.08 CK5PA 048 0.94 0.98 FE4ANB 006 1.00 1.00 060 0.97 0.99 FE4ANF 005 0.99 1.02 CK5PT 048 0.94 0.98 FV4BNB 006 1.00 1.00 060 0.97 0.99 FV4BNF 005 0.99 1.02 CK5PW 048 0.95 0.98
40FKB/FK4DNB 006 1.00 1.00 CK5PX 060 0.97 0.98 40FKB/FK4DNF 005 0.99 1.02
COILS + 58CV(A,X)090-16 VARIABLE SPEED FURNACE CC5A/CD5AA 060 0.94 0.98
CC5A/CD5AC 048 0.92 1.00 CC5A/CD5AC 048 0.93 0.99
CD5AA 048 0.94 1.00 —— —
High Speed
Capacity Power Capacity Power
Indoor
Section Size
COILS + 58CV(A,X)110-22 VARIABLE SPEED FURNACE
COILS + 58CV(A,X)135-22 VARIABLE SPEED FURNACE
See notes on pg. 55.
High Speed
Capacity
MBtuh†
Total
System
kW**
47
Page 48
Detailed cooling capacities* continued
EVAPORATOR
AIR
CFM EWB
75 85 95 105 115 125
Capacity
MBtuh†
Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡
Total
System
kW**
Capacity
MBtuh†
CONDENSER ENTERING AIR TEMPERATURES °F
Total
System
kW**
Capacity
MBtuh†
Tot al
System
kW**
Capacity
MBtuh†
Total
System
kW**
Capacity
MBtuh†
Total
System
kW**
38TDB048-30 Outdoor Section With FV4BNB006 Indoor Section - High Speed continued
72 57.22 28.68 3.61 54.16 27.40 3.85 50.97 26.11 4.09 47.71 24.81 4.34 44.41 23.51 4.59 41.03 22.22 4.83
1200
1400
1600
1800
See notes on pg. 55.
67 51.61 33.83 3.51 48.73 32.53 3.74 45.76 31.21 3.97 42.75 29.90 4.21 39.71 28.60 4.45 36.49 27.25 4.69
63†† 47.58 32.67 3.44 44.83 31.34 3.66 42.05 30.02 3.88 39.26 28.72 4.11 36.32 27.38 4.33 33.28 26.03 4.56
62 46.50 38.95 3.42 43.78 37.62 3.64 41.03 36.29 3.85 38.23 34.91 4.08 35.38 33.48 4.30 32.43 31.87 4.53 57 42.41 42.41 3.34 40.44 40.44 3.56 38.48 38.48 3.78 36.40 36.40 4.02 34.28 34.28 4.26 32.05 32.05 4.52 72 59.13 30.16 3.72 55.81 28.83 3.96 52.44 27.50 4.20 49.05 26.18 4.45 45.55 24.85 4.70 41.90 23.48 4.95 67 53.31 36.07 3.62 50.23 34.72 3.85 47.11 33.37 4.08 43.96 32.04 4.32 40.67 30.67 4.56 37.30 29.29 4.80
63†† 49.14 34.78 3.54 46.25 33.42 3.77 43.33 32.07 3.99 40.29 30.70 4.22 37.20 29.32 4.44 34.04 27.94 4.67
62 48.01 41.95 3.53 45.12 40.54 3.74 42.21 39.08 3.96 39.28 37.57 4.19 36.20 36.20 4.41 33.55 33.55 4.66 57 44.72 44.72 3.47 42.63 42.63 3.69 40.45 40.45 3.91 38.26 38.26 4.16 35.96 35.96 4.40 33.58 33.58 4.65 72 60.63 31.55 3.81 57.16 30.19 4.06 53.68 28.84 4.30 50.10 27.49 4.56 46.40 26.11 4.80 42.63 24.72 5.06 67 54.68 38.22 3.72 51.46 36.84 3.95 48.23 35.48 4.18 44.85 34.08 4.42 41.43 32.68 4.66 37.93 31.28 4.90
63†† 50.42 36.81 3.64 47.41 35.43 3.87 44.27 34.02 4.08 41.10 32.61 4.32 37.90 31.21 4.54 34.64 29.81 4.78
62 49.20 44.78 3.62 46.20 43.24 3.84 43.19 41.63 4.06 40.08 40.08 4.29 37.40 37.40 4.53 34.90 34.90 4.79 57 46.79 46.79 3.58 44.51 44.51 3.81 42.23 42.23 4.04 39.86 39.86 4.28 37.41 37.41 4.53 34.91 34.91 4.79 72 61.82 32.84 3.91 58.26 31.46 4.15 54.63 30.09 4.40 50.87 28.69 4.65 47.06 27.29 4.90 43.19 25.89 5.15 67 55.77 40.25 3.81 52.47 38.86 4.05 49.03 37.44 4.27 45.54 36.02 4.52 42.00 34.60 4.76 38.40 33.14 5.00
63†† 51.47 38.74 3.74 48.25 37.28 3.96 45.01 35.86 4.18 41.73 34.43 4.41 38.44 33.01 4.64 35.00 31.47 4.87
62 50.18 47.33 3.71 47.11 45.64 3.94 43.94 43.94 4.16 41.19 41.19 4.40 38.67 38.67 4.65 35.98 35.98 4.91 57 48.52 48.52 3.68 46.16 46.16 3.92 43.72 43.72 4.15 41.21 41.21 4.40 38.69 38.69 4.65 36.01 36.01 4.91
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
CC5A/CD5AW 048 0.94 0.98 CK5A/CK5BA 048 0.95 0.99
060 0.97 0.99 060 0.97 0.98
CD5AA 048 0.94 0.99 CK5A/CK5BT 048 0.95 0.99 CE3AA 048 0.94 0.99 060 0.97 0.98
060 0.97 0.99 CK5A/CK5BW 048 0.95 0.98
CK3BA 048 0.94 0.98 CK5A/CK5BX 060 0.98 0.98
060 0.97 0.99 CK5PA 048 0.95 0.99
CK5A/CK5BA 048 0.94 0.99 060 0.97 0.98
060 0.97 0.99 CK5PT 048 0.95 0.99
CK5A/CK5BT 048 0.94 0.99 060 0.97 0.98
060 0.97 0.99 CK5PW 048 0.95 0.98
CK5A/CK5BW 048 0.95 0.99 CK5PX 060 0.98 0.98
CK5A/CK5BX 060 0.97 0.98
CK5PA 048 0.94 0.99 CC5A/CD5AA 060 0.93 1.01
060 0.97 0.99 CC5A/CD5AC 048 0.91 1.01
CK5PT 048 0.94 0.99 CC5A/CD5AW 048 0.93 1.01
060 0.97 0.99 CD5AA 048 0.93 1.01
CK5PW 048 0.95 0.99 CD5PX 060 0.97 1.03
CK5PX 060 0.97 0.98 CE3AA 048 0.94 1.02
COILS + 58CV(A,X)155-22 VARIABLE SPEED FURNACE 060 0.96 1.02 CC5A/CD5AA 060 0.94 0.97 CK3BA 048 0.93 1.01 CC5A/CD5AC 048 0.93 0.98 060 0.96 1.02
CC5A/CD5AW 048 0.94 0.98 CK5A/CK5BA 048 0.93 1.01
060 0.97 0.98 060 0.96 1.02
CD5AA 048 0.94 0.98 CK5A/CK5BT 048 0.93 1.01
CE3AA 048 0.94 0.98 060 0.96 1.02
060 0.97 0.99 CK5A/CK5BW 048 0.93 1.01
CK3BA 048 0.95 0.99 CK5A/CK5BX 060 0.97 1.02
060 0.97 0.98 CK5PA 048 0.93 1.01
—— — 060 0.96 1.02
High Speed
Capacity Power Capacity Power
Indoor
Section Size
COILS + 58MVP080-20 VARIABLE SPEED FURNACE
High Speed
Capacity
MBtuh†
Total
System
kW**
48
Page 49
Detailed cooling capacities* continued
EVAPORATOR
AIR
CFM EWB
75 85 95 105 115 125
Capacity
MBtuh†
Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡
Total
System
kW**
Capacity
MBtuh†
CONDENSER ENTERING AIR TEMPERATURES °F
Total
System
kW**
Capacity
MBtuh†
Tot al
System
kW**
Capacity
MBtuh†
Total
System
kW**
Capacity
MBtuh†
Tot al
System
kW**
38TDB048-30 Outdoor Section With FV4BNB006 Indoor Section - High Speed continued
72 57.22 28.68 3.61 54.16 27.40 3.85 50.97 26.11 4.09 47.71 24.81 4.34 44.41 23.51 4.59 41.03 22.22 4.83 67 51.61 33.83 3.51 48.73 32.53 3.74 45.76 31.21 3.97 42.75 29.90 4.21 39.71 28.60 4.45 36.49 27.25 4.69
1200
63†† 47.58 32.67 3.44 44.83 31.34 3.66 42.05 30.02 3.88 39.26 28.72 4.11 36.32 27.38 4.33 33.28 26.03 4.56
62 46.50 38.95 3.42 43.78 37.62 3.64 41.03 36.29 3.85 38.23 34.91 4.08 35.38 33.48 4.30 32.43 31.87 4.53 57 42.41 42.41 3.34 40.44 40.44 3.56 38.48 38.48 3.78 36.40 36.40 4.02 34.28 34.28 4.26 32.05 32.05 4.52 72 59.13 30.16 3.72 55.81 28.83 3.96 52.44 27.50 4.20 49.05 26.18 4.45 45.55 24.85 4.70 41.90 23.48 4.95 67 53.31 36.07 3.62 50.23 34.72 3.85 47.11 33.37 4.08 43.96 32.04 4.32 40.67 30.67 4.56 37.30 29.29 4.80
1400
63†† 49.14 34.78 3.54 46.25 33.42 3.77 43.33 32.07 3.99 40.29 30.70 4.22 37.20 29.32 4.44 34.04 27.94 4.67
62 48.01 41.95 3.53 45.12 40.54 3.74 42.21 39.08 3.96 39.28 37.57 4.19 36.20 36.20 4.41 33.55 33.55 4.66 57 44.72 44.72 3.47 42.63 42.63 3.69 40.45 40.45 3.91 38.26 38.26 4.16 35.96 35.96 4.40 33.58 33.58 4.65 72 60.63 31.55 3.81 57.16 30.19 4.06 53.68 28.84 4.30 50.10 27.49 4.56 46.40 26.11 4.80 42.63 24.72 5.06 67 54.68 38.22 3.72 51.46 36.84 3.95 48.23 35.48 4.18 44.85 34.08 4.42 41.43 32.68 4.66 37.93 31.28 4.90
1600
63†† 50.42 36.81 3.64 47.41 35.43 3.87 44.27 34.02 4.08 41.10 32.61 4.32 37.90 31.21 4.54 34.64 29.81 4.78
62 49.20 44.78 3.62 46.20 43.24 3.84 43.19 41.63 4.06 40.08 40.08 4.29 37.40 37.40 4.53 34.90 34.90 4.79 57 46.79 46.79 3.58 44.51 44.51 3.81 42.23 42.23 4.04 39.86 39.86 4.28 37.41 37.41 4.53 34.91 34.91 4.79 72 61.82 32.84 3.91 58.26 31.46 4.15 54.63 30.09 4.40 50.87 28.69 4.65 47.06 27.29 4.90 43.19 25.89 5.15 67 55.77 40.25 3.81 52.47 38.86 4.05 49.03 37.44 4.27 45.54 36.02 4.52 42.00 34.60 4.76 38.40 33.14 5.00
1800
63†† 51.47 38.74 3.74 48.25 37.28 3.96 45.01 35.86 4.18 41.73 34.43 4.41 38.44 33.01 4.64 35.00 31.47 4.87
62 50.18 47.33 3.71 47.11 45.64 3.94 43.94 43.94 4.16 41.19 41.19 4.40 38.67 38.67 4.65 35.98 35.98 4.91 57 48.52 48.52 3.68 46.16 46.16 3.92 43.72 43.72 4.15 41.21 41.21 4.40 38.69 38.69 4.65 36.01 36.01 4.91
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
CK5PT 048 0.93 1.01 CK5PW 048 0.94 1.01
060 0.96 1.02 CK5PX 060 0.97 1.01
CK5PW 048 0.93 1.01
CK5PX 060 0.97 1.02 CC5A/CD5AA 060 0.93 1.00
COILS + 58MVP100-20 VARIABLE SPEED FURNACE CC5A/CD5AC 048 0.92 1.01 CC5A/CD5AA 060 0.93 1.00 CC5A/CD5AW 048 0.93 1.00 CC5A/CD5AC 048 0.92 1.01 CD5AA 048 0.93 1.01 CC5A/CD5AW 048 0.93 1.01 CD5PX 060 0.97 1.02
CD5AA 048 0.93 1.01 CE3AA 048 0.94 1.01 CD5PX 060 0.97 1.02 060 0.96 1.01 CE3AA 048 0.94 1.02 CK3BA 048 0.93 1.00
060 0.96 1.01 060 0.96 1.01
CK3BA 048 0.94 1.02 CK5A/CK5BA 048 0.93 1.00
060 0.96 1.02 060 0.96 1.01
CK5A/CK5BA 048 0.94 1.02 CK5A/CK5BT 048 0.93 1.00
060 0.96 1.02 060 0.96 1.01
CK5A/CK5BT 048 0.94 1.02 CK5A/CK5BW 048 0.94 1.01
060 0.96 1.02 CK5A/CK5BX 060 0.97 1.01
CK5A/CK5BW 048 0.94 1.01 CK5PA 048 0.93 1.00
CK5A/CK5BX 060 0.97 1.01 060 0.96 1.01
CK5PA 048 0.94 1.02 CK5PT 048 0.93 1.00
060 0.96 1.02 060 0.96 1.01
CK5PT 048 0.94 1.02 CK5PW 048 0.94 1.01
060 0.96 1.02 CK5PX 060 0.97 1.01
See notes on pg. 55.
High Speed
Capacity Power Capacity Power
Indoor
Section Size
COILS + 58MVP120-20 VARIABLE SPEED FURNACE
High Speed
Capacity
MBtuh†
Total
System
kW**
49
Page 50
Detailed cooling capacities* continued
EVAPORATOR
AIR
CFM EWB
75 85 95 105 115 125
Capacity
MBtuh†
Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡
Total
System
kW**
Capacity
MBtuh†
CONDENSER ENTERING AIR TEMPERATURES °F
Total
System
kW**
Capacity
MBtuh†
Tot al
System
kW**
Capacity
MBtuh†
Total
System
kW**
Capacity
MBtuh†
Total
System
kW**
38TDB048-30 Outdoor Section With FV4BNB006 Indoor Section - Low Speed
72 33.20 17.39 1.69 31.09 16.58 1.85 28.98 15.78 2.01 26.86 14.99 2.16 24.72 14.20 2.32 22.51 13.40 2.48 67 29.79 21.09 1.68 27.83 20.26 1.83 25.89 19.46 1.98 23.94 18.67 2.13 21.98 17.88 2.28 19.94 17.07 2.43
850
63†† 27.35 20.25 1.67 25.53 19.43 1.82 23.71 18.63 1.96 21.90 17.84 2.10 20.04 17.04 2.24 18.15 16.22 2.39
62 26.67 24.71 1.67 24.88 23.82 1.81 23.14 22.88 1.95 21.61 21.61 2.10 20.19 20.19 2.25 18.72 18.72 2.40 57 25.68 25.68 1.67 24.33 24.33 1.81 22.97 22.97 1.95 21.62 21.62 2.10 20.19 20.19 2.25 18.73 18.73 2.40 72 34.46 18.94 1.76 32.18 18.09 1.93 29.92 17.26 2.09 27.65 16.44 2.25 25.33 15.62 2.41 22.98 14.79 2.57
1075
1300
1525
1750
See notes on pg. 55.
67 30.91 23.51 1.76 28.81 22.66 1.92 26.73 21.83 2.07 24.61 20.99 2.22 22.49 20.12 2.37 20.34 19.20 2.52
63†† 28.40 22.54 1.75 26.44 21.68 1.90 24.46 20.83 2.05 22.48 19.97 2.19 20.51 19.09 2.33 18.53 18.12 2.48
62 27.72 27.72 1.75 26.13 26.13 1.90 24.60 24.60 2.05 23.06 23.06 2.20 21.51 21.51 2.35 19.85 19.85 2.51 57 27.63 27.63 1.75 26.14 26.14 1.90 24.61 24.61 2.05 23.07 23.07 2.20 21.51 21.51 2.35 19.86 19.86 2.51 72 35.27 20.30 1.84 32.88 19.44 2.01 30.48 18.58 2.17 28.08 17.73 2.33 25.66 16.89 2.50 23.21 16.05 2.66 67 31.63 25.72 1.84 29.42 24.85 2.00 27.18 23.93 2.15 24.97 22.99 2.30 22.79 21.98 2.45 20.65 20.65 2.61
63†† 29.06 24.59 1.83 26.94 23.68 1.98 24.86 22.74 2.13 22.81 21.77 2.27 20.78 20.78 2.42 19.01 19.01 2.58
62 29.09 29.09 1.83 27.44 27.44 1.98 25.79 25.79 2.14 24.13 24.13 2.29 22.41 22.41 2.45 20.65 20.65 2.61 57 29.10 29.10 1.83 27.45 27.45 1.98 25.80 25.80 2.14 24.14 24.14 2.29 22.42 22.42 2.45 20.65 20.65 2.61 72 35.83 21.59 1.92 33.31 20.69 2.09 30.82 19.81 2.25 28.33 18.95 2.41 25.84 18.09 2.58 23.31 17.23 2.74 67 32.09 27.78 1.91 29.76 26.81 2.07 27.47 25.79 2.23 25.23 24.67 2.38 23.13 23.13 2.54 21.25 21.25 2.71
63†† 29.44 26.47 1.91 27.27 25.46 2.06 25.14 24.39 2.21 23.10 23.10 2.35 21.32 21.32 2.51 19.50 19.50 2.67
62 30.26 30.26 1.91 28.51 28.51 2.07 26.74 26.74 2.22 24.95 24.95 2.38 23.13 23.13 2.54 21.26 21.26 2.71 57 30.27 30.27 1.91 28.52 28.52 2.07 26.75 26.75 2.22 24.96 24.96 2.38 23.14 23.14 2.54 21.27 21.27 2.71 72 36.18 22.79 1.99 33.59 21.88 2.16 31.02 21.00 2.33 28.47 20.12 2.49 25.91 19.25 2.66 23.33 18.38 2.82 67 32.38 29.64 1.99 30.00 28.54 2.15 27.70 27.32 2.31 25.59 25.59 2.46 23.69 23.69 2.63 21.70 21.70 2.79
63†† 29.71 28.13 1.98 27.52 26.95 2.14 25.43 25.43 2.29 23.61 23.61 2.44 21.77 21.77 2.60 19.87 19.87 2.76
62 31.22 31.22 1.99 29.36 29.36 2.15 27.48 27.48 2.31 25.60 25.60 2.46 23.70 23.70 2.63 21.70 21.70 2.79 57 31.22 31.22 1.99 29.37 29.37 2.15 27.49 27.49 2.31 25.61 25.61 2.46 23.71 23.71 2.63 21.71 21.71 2.79
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
CC5A/CD5AA 060 1.00 1.13 CE3AA 048 1.00 1.04
060 1.00 1.13 CK3BA 048 1.00 1.03
CC5A/CD5AC 048 0.99 1.13 CK5A/CK5BA 048 1.00 1.03
CC5A/CD5AW 048 1.00 1.13 CK5A/CK5BT 048 1.00 1.03
060 1.00 1.13 CK5PA 048 1.00 1.03 CD5AA 048 1.00 1.13 CK5PT 048 1.00 1.03 CE3AA 048 1.00 1.13
060 1.00 1.13 CC5A/CD5AA 060 1.00 1.03 CK3BA 048 1.00 1.13 CC5A/CD5AC 048 0.99 1.04
060 1.00 1.13 CC5A/CD5AW 048 1.00 1.03
CK5A/CK5BA 048 1.00 1.13 CD5AA 048 1.00 1.03
060 1.00 1.13 CE3AA 048 1.00 1.03
CK5A/CK5BT 048 1.00 1.13 060 1.00 1.01
060 1.00 1.13 CK3BA 048 1.00 1.02
CK5A/CK5BW 048 1.00 1.13 060 1.00 1.01
CK5A/CK5BX 060 1.00 1.13 CK5A/CK5BA 048 1.00 1.02
CK5PA 048 1.00 1.13 060 1.00 1.00
060 1.00 1.13 CK5A/CK5BT 048 1.00 1.02
CK5PT 048 1.00 1.13 060 1.00 1.00
060 1.00 1.13 CK5A/CK5BW 048 1.00 1.02 CK5PW 048 1.00 1.13 CK5A/CK5BX 060 1.00 1.00 CK5PX 060 1.00 1.13 CK5PA 048 1.00 1.02
FE4ANB 006 1.00 1.00 060 1.00 1.00 FE4ANF 005 1.00 1.00 CK5PT 048 1.00 1.02 FV4BNB 006 1.00 1.00 060 1.00 1.00
FV4BNF 005 1.00 1.00 CK5PW 048 1.00 1.02 40FKB/FK4DNB 006 1.00 1.00 CK5PX 060 1.00 1.00 40FKB/FK4DNF 005 1.00 1.00
COILS + 58CV(A,X)090-16 VARIABLE SPEED FURNACE CC5A/CD5AA 060 1.00 1.03
CC5A/CD5AC 048 0.99 1.04 CC5A/CD5AC 048 0.99 1.04
CD5AA 048 1.00 1.03 —— —
Low Speed
Capacity Power Capacity Power
Indoor
Section Size
COILS + 58CV(A,X)110-22 VARIABLE SPEED FURNACE
COILS + 58CV(A,X)135-22 VARIABLE SPEED FURNACE
Low Speed
Capacity
MBtuh†
Total
System
kW**
50
Page 51
Detailed cooling capacities* continued
EVAPORATOR
AIR
CFM EWB
75 85 95 105 115 125
Capacity
MBtuh†
Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡
Total
System
kW**
Capacity
MBtuh†
CONDENSER ENTERING AIR TEMPERATURES °F
Tot al
System
kW**
Capacity
MBtuh†
Total
System
kW**
Capacity
MBtuh†
Total
System
kW**
Capacity
MBtuh†
Tot al
System
kW**
38TDB048-30 Outdoor Section With FV4BNB006 Indoor Section - Low Speed continued
72 33.20 17.39 1.69 31.09 16.58 1.85 28.98 15.78 2.01 26.86 14.99 2.16 24.72 14.20 2.32 22.51 13.40 2.48 67 29.79 21.09 1.68 27.83 20.26 1.83 25.89 19.46 1.98 23.94 18.67 2.13 21.98 17.88 2.28 19.94 17.07 2.43
850
63†† 27.35 20.25 1.67 25.53 19.43 1.82 23.71 18.63 1.96 21.90 17.84 2.10 20.04 17.04 2.24 18.15 16.22 2.39
62 26.67 24.71 1.67 24.88 23.82 1.81 23.14 22.88 1.95 21.61 21.61 2.10 20.19 20.19 2.25 18.72 18.72 2.40 57 25.68 25.68 1.67 24.33 24.33 1.81 22.97 22.97 1.95 21.62 21.62 2.10 20.19 20.19 2.25 18.73 18.73 2.40 72 34.46 18.94 1.76 32.18 18.09 1.93 29.92 17.26 2.09 27.65 16.44 2.25 25.33 15.62 2.41 22.98 14.79 2.57 67 30.91 23.51 1.76 28.81 22.66 1.92 26.73 21.83 2.07 24.61 20.99 2.22 22.49 20.12 2.37 20.34 19.20 2.52
1075
63†† 28.40 22.54 1.75 26.44 21.68 1.90 24.46 20.83 2.05 22.48 19.97 2.19 20.51 19.09 2.33 18.53 18.12 2.48
62 27.72 27.72 1.75 26.13 26.13 1.90 24.60 24.60 2.05 23.06 23.06 2.20 21.51 21.51 2.35 19.85 19.85 2.51 57 27.63 27.63 1.75 26.14 26.14 1.90 24.61 24.61 2.05 23.07 23.07 2.20 21.51 21.51 2.35 19.86 19.86 2.51 72 35.27 20.30 1.84 32.88 19.44 2.01 30.48 18.58 2.17 28.08 17.73 2.33 25.66 16.89 2.50 23.21 16.05 2.66 67 31.63 25.72 1.84 29.42 24.85 2.00 27.18 23.93 2.15 24.97 22.99 2.30 22.79 21.98 2.45 20.65 20.65 2.61
1300
63†† 29.06 24.59 1.83 26.94 23.68 1.98 24.86 22.74 2.13 22.81 21.77 2.27 20.78 20.78 2.42 19.01 19.01 2.58
62 29.09 29.09 1.83 27.44 27.44 1.98 25.79 25.79 2.14 24.13 24.13 2.29 22.41 22.41 2.45 20.65 20.65 2.61 57 29.10 29.10 1.83 27.45 27.45 1.98 25.80 25.80 2.14 24.14 24.14 2.29 22.42 22.42 2.45 20.65 20.65 2.61 72 35.83 21.59 1.92 33.31 20.69 2.09 30.82 19.81 2.25 28.33 18.95 2.41 25.84 18.09 2.58 23.31 17.23 2.74 67 32.09 27.78 1.91 29.76 26.81 2.07 27.47 25.79 2.23 25.23 24.67 2.38 23.13 23.13 2.54 21.25 21.25 2.71
1525
63†† 29.44 26.47 1.91 27.27 25.46 2.06 25.14 24.39 2.21 23.10 23.10 2.35 21.32 21.32 2.51 19.50 19.50 2.67
62 30.26 30.26 1.91 28.51 28.51 2.07 26.74 26.74 2.22 24.95 24.95 2.38 23.13 23.13 2.54 21.26 21.26 2.71 57 30.27 30.27 1.91 28.52 28.52 2.07 26.75 26.75 2.22 24.96 24.96 2.38 23.14 23.14 2.54 21.27 21.27 2.71 72 36.18 22.79 1.99 33.59 21.88 2.16 31.02 21.00 2.33 28.47 20.12 2.49 25.91 19.25 2.66 23.33 18.38 2.82 67 32.38 29.64 1.99 30.00 28.54 2.15 27.70 27.32 2.31 25.59 25.59 2.46 23.69 23.69 2.63 21.70 21.70 2.79
1750
63†† 29.71 28.13 1.98 27.52 26.95 2.14 25.43 25.43 2.29 23.61 23.61 2.44 21.77 21.77 2.60 19.87 19.87 2.76
62 31.22 31.22 1.99 29.36 29.36 2.15 27.48 27.48 2.31 25.60 25.60 2.46 23.70 23.70 2.63 21.70 21.70 2.79 57 31.22 31.22 1.99 29.37 29.37 2.15 27.49 27.49 2.31 25.61 25.61 2.46 23.71 23.71 2.63 21.71 21.71 2.79
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
CC5A/CD5AW 048 1.00 1.03 CK5A/CK5BA 048 1.00 1.02
060 1.00 1.01 060 1.00 1.00
CD5AA 048 1.00 1.03 CK5A/CK5BT 048 1.00 1.02
CE3AA 048 1.00 1.03 060 1.00 1.00
060 1.00 1.01 CK5A/CK5BW 048 1.00 1.02
CK3BA 048 1.00 1.02 CK5A/CK5BX 060 1.00 0.99
060 1.00 1.01 CK5PA 048 1.00 1.02
CK5A/CK5BA 048 1.00 1.02 060 1.00 1.00
060 1.00 1.00 CK5PT 048 1.00 1.02
CK5A/CK5BT 048 1.00 1.02 060 1.00 1.00
060 1.00 1.00 CK5PW 048 1.00 1.02
CK5A/CK5BW 048 1.00 1.02 CK5PX 060 1.00 0.99
CK5A/CK5BX 060 1.00 1.00
CK5PA 048 1.00 1.02 CC5A/CD5AA 060 0.99 1.07
060 1.00 1.00 CC5A/CD5AC 048 0.98 1.07
CK5PT 048 1.00 1.02 CC5A/CD5AW 048 0.99 1.07
060 1.00 1.00 CD5AA 048 0.99 1.07
CK5PW 048 1.00 1.02 CD5PX 060 1.00 1.04
CK5PX 060 1.00 1.00 CE3AA 048 1.00 1.07
COILS + 58CV(A,X)155-22 VARIABLE SPEED FURNACE 060 1.00 1.06 CC5A/CD5AA 060 1.00 1.02 CK3BA 048 1.00 1.07 CC5A/CD5AC 048 0.99 1.03 060 1.00 1.05
CC5A/CD5AW 048 1.00 1.02 CK5A/CK5BA 048 1.00 1.07
060 1.00 1.01 060 1.00 1.05
CD5AA 048 1.00 1.03 CK5A/CK5BT 048 1.00 1.07
CE3AA 048 1.00 1.03 060 1.00 1.05
060 1.00 1.01 CK5A/CK5BW 048 1.00 1.07
CK3BA 048 1.00 1.02 CK5A/CK5BX 060 1.00 1.04
060 1.00 1.00 CK5PA 048 1.00 1.07
—— — 060 1.00 1.05
Low Speed
Capacity Power Capacity Power
Indoor
Section Size
COILS + 58MVP080-20 VARIABLE SPEED FURNACE
See notes on pg. 55.
Low Speed
Capacity
MBtuh†
Total
System
kW**
51
Page 52
Detailed cooling capacities* continued
EVAPORATOR
AIR
CFM EWB
75 85 95 105 115 125
Capacity
MBtuh†
Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡
Total
System
kW**
Capacity
MBtuh†
CONDENSER ENTERING AIR TEMPERATURES °F
Total
System
kW**
Capacity
MBtuh†
Tot al
System
kW**
Capacity
MBtuh†
Total
System
kW**
Capacity
MBtuh†
Total
System
kW**
38TDB048-30 Outdoor Section With FV4BNB006 Indoor Section - Low Speed continued
72 33.20 17.39 1.69 31.09 16.58 1.85 28.98 15.78 2.01 26.86 14.99 2.16 24.72 14.20 2.32 22.51 13.40 2.48 67 29.79 21.09 1.68 27.83 20.26 1.83 25.89 19.46 1.98 23.94 18.67 2.13 21.98 17.88 2.28 19.94 17.07 2.43
850
63†† 27.35 20.25 1.67 25.53 19.43 1.82 23.71 18.63 1.96 21.90 17.84 2.10 20.04 17.04 2.24 18.15 16.22 2.39
62 26.67 24.71 1.67 24.88 23.82 1.81 23.14 22.88 1.95 21.61 21.61 2.10 20.19 20.19 2.25 18.72 18.72 2.40 57 25.68 25.68 1.67 24.33 24.33 1.81 22.97 22.97 1.95 21.62 21.62 2.10 20.19 20.19 2.25 18.73 18.73 2.40 72 34.46 18.94 1.76 32.18 18.09 1.93 29.92 17.26 2.09 27.65 16.44 2.25 25.33 15.62 2.41 22.98 14.79 2.57
1075
1300
1525
1750
See notes on pg. 55.
67 30.91 23.51 1.76 28.81 22.66 1.92 26.73 21.83 2.07 24.61 20.99 2.22 22.49 20.12 2.37 20.34 19.20 2.52
63†† 28.40 22.54 1.75 26.44 21.68 1.90 24.46 20.83 2.05 22.48 19.97 2.19 20.51 19.09 2.33 18.53 18.12 2.48
62 27.72 27.72 1.75 26.13 26.13 1.90 24.60 24.60 2.05 23.06 23.06 2.20 21.51 21.51 2.35 19.85 19.85 2.51 57 27.63 27.63 1.75 26.14 26.14 1.90 24.61 24.61 2.05 23.07 23.07 2.20 21.51 21.51 2.35 19.86 19.86 2.51 72 35.27 20.30 1.84 32.88 19.44 2.01 30.48 18.58 2.17 28.08 17.73 2.33 25.66 16.89 2.50 23.21 16.05 2.66 67 31.63 25.72 1.84 29.42 24.85 2.00 27.18 23.93 2.15 24.97 22.99 2.30 22.79 21.98 2.45 20.65 20.65 2.61
63†† 29.06 24.59 1.83 26.94 23.68 1.98 24.86 22.74 2.13 22.81 21.77 2.27 20.78 20.78 2.42 19.01 19.01 2.58
62 29.09 29.09 1.83 27.44 27.44 1.98 25.79 25.79 2.14 24.13 24.13 2.29 22.41 22.41 2.45 20.65 20.65 2.61 57 29.10 29.10 1.83 27.45 27.45 1.98 25.80 25.80 2.14 24.14 24.14 2.29 22.42 22.42 2.45 20.65 20.65 2.61 72 35.83 21.59 1.92 33.31 20.69 2.09 30.82 19.81 2.25 28.33 18.95 2.41 25.84 18.09 2.58 23.31 17.23 2.74 67 32.09 27.78 1.91 29.76 26.81 2.07 27.47 25.79 2.23 25.23 24.67 2.38 23.13 23.13 2.54 21.25 21.25 2.71
63†† 29.44 26.47 1.91 27.27 25.46 2.06 25.14 24.39 2.21 23.10 23.10 2.35 21.32 21.32 2.51 19.50 19.50 2.67
62 30.26 30.26 1.91 28.51 28.51 2.07 26.74 26.74 2.22 24.95 24.95 2.38 23.13 23.13 2.54 21.26 21.26 2.71 57 30.27 30.27 1.91 28.52 28.52 2.07 26.75 26.75 2.22 24.96 24.96 2.38 23.14 23.14 2.54 21.27 21.27 2.71 72 36.18 22.79 1.99 33.59 21.88 2.16 31.02 21.00 2.33 28.47 20.12 2.49 25.91 19.25 2.66 23.33 18.38 2.82 67 32.38 29.64 1.99 30.00 28.54 2.15 27.70 27.32 2.31 25.59 25.59 2.46 23.69 23.69 2.63 21.70 21.70 2.79
63†† 29.71 28.13 1.98 27.52 26.95 2.14 25.43 25.43 2.29 23.61 23.61 2.44 21.77 21.77 2.60 19.87 19.87 2.76
62 31.22 31.22 1.99 29.36 29.36 2.15 27.48 27.48 2.31 25.60 25.60 2.46 23.70 23.70 2.63 21.70 21.70 2.79 57 31.22 31.22 1.99 29.37 29.37 2.15 27.49 27.49 2.31 25.61 25.61 2.46 23.71 23.71 2.63 21.71 21.71 2.79
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
CK5PT 048 1.00 1.07 CK5PW 048 1.00 1.06
060 1.00 1.05 CK5PX 060 1.00 1.04
CK5PW 048 1.00 1.07
CK5PX 060 1.00 1.04 CC5A/CD5AA 060 0.99 1.06
COILS + 58MVP100-20 VARIABLE SPEED FURNACE CC5A/CD5AC 048 0.98 1.06 CC5A/CD5AA 060 0.99 1.06 CC5A/CD5AW 048 0.99 1.06 CC5A/CD5AC 048 0.98 1.07 CD5AA 048 0.99 1.06
CC5A/CD5AW 048 0.99 1.06 CD5PX 060 1.00 1.03
CD5AA 048 0.99 1.06 CE3AA 048 1.00 1.07 CD5PX 060 1.00 1.03 060 1.00 1.05 CE3AA 048 1.00 1.07 CK3BA 048 1.00 1.06
060 1.00 1.05 060 1.00 1.04
CK3BA 048 1.00 1.06 CK5A/CK5BA 048 1.00 1.06
060 1.00 1.04 060 1.00 1.04
CK5A/CK5BA 048 1.00 1.06 CK5A/CK5BT 048 1.00 1.06
060 1.00 1.04 060 1.00 1.04
CK5A/CK5BT 048 1.00 1.06 CK5A/CK5BW 048 1.00 1.06
060 1.00 1.04 CK5A/CK5BX 060 1.00 1.04
CK5A/CK5BW 048 1.00 1.06 CK5PA 048 1.00 1.06
CK5A/CK5BX 060 1.00 1.04 060 1.00 1.04
CK5PA 048 1.00 1.06 CK5PT 048 1.00 1.06
060 1.00 1.04 060 1.00 1.04
CK5PT 048 1.00 1.06 CK5PW 048 1.00 1.06
060 1.00 1.04 CK5PX 060 1.00 1.04
Low Speed
Capacity Power Capacity Power
Indoor
Section Size
COILS + 58MVP120-20 VARIABLE SPEED FURNACE
Low Speed
Capacity
MBtuh†
Total
System
kW**
52
Page 53
Detailed cooling capacities* continued
EVAPORATOR
AIR
CFM EWB
75 85 95 105 115 125
Capacity
MBtuh†
Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡
Total
System
kW**
Capacity
MBtuh†
38TDB060-31 Outdoor Section With FV4BNB006 Indoor Section - High Speed
72 70.57 35.24 4.71 67.58 33.98 5.21 64.12 32.55 5.67 60.37 31.03 6.07 56.37 29.44 6.43 52.15 27.79 6.75 67 64.01 41.58 4.64 61.07 40.23 5.09 57.74 38.73 5.50 54.16 37.14 5.86 50.39 35.51 6.18 46.39 33.80 6.47
1500
63†† 59.28 40.29 4.59 56.35 38.86 4.99 53.13 37.31 5.37 49.72 35.69 5.70 46.05 34.00 5.98 42.25 32.27 6.23
62 57.98 47.86 4.57 55.08 46.42 4.97 51.89 44.85 5.33 48.47 43.20 5.65 44.88 41.43 5.93 41.13 39.53 6.17 57 52.71 52.71 4.49 50.50 50.50 4.85 48.13 48.13 5.21 45.60 45.60 5.53 42.92 42.92 5.83 40.18 40.18 6.12 72 72.87 37.01 4.81 69.65 35.70 5.34 66.05 34.26 5.81 62.14 32.72 6.23 57.97 31.10 6.60 53.44 29.38 6.92 67 66.11 44.28 4.76 62.98 42.89 5.22 59.52 41.37 5.65 55.80 39.77 6.03 51.80 38.08 6.35 47.56 36.32 6.64
1750
63†† 61.19 42.83 4.70 58.15 41.38 5.13 54.82 39.82 5.52 51.18 38.15 5.86 47.31 36.40 6.15 43.33 34.63 6.40
62 59.88 51.49 4.69 56.84 50.02 5.10 53.47 48.38 5.48 49.92 46.59 5.81 46.11 44.59 6.10 42.26 42.26 6.36 57 55.52 55.52 4.63 53.25 53.25 5.03 50.70 50.70 5.40 47.99 47.99 5.73 45.16 45.16 6.05 42.15 42.15 6.35 72 74.58 38.60 4.93 71.29 37.30 5.46 67.58 35.85 5.95 63.54 34.29 6.37 59.12 32.61 6.74 54.43 30.87 7.07 67 67.71 46.79 4.87 64.50 45.40 5.35 60.94 43.87 5.79 57.03 42.22 6.17 52.86 40.50 6.50 48.46 38.70 6.79
2000
63†† 62.73 45.22 4.82 59.62 43.77 5.26 56.09 42.16 5.66 52.29 40.45 6.00 48.28 38.67 6.30 44.17 36.87 6.56
62 61.34 54.90 4.80 58.18 53.33 5.23 54.75 51.57 5.63 51.02 49.55 5.96 47.18 47.18 6.26 43.92 43.92 6.55 57 58.02 58.02 4.76 55.57 55.57 5.18 52.91 52.91 5.57 50.10 50.10 5.92 47.05 47.05 6.25 43.91 43.91 6.56 72 75.99 40.13 5.03 72.65 38.83 5.57 68.85 37.37 6.08 64.59 35.77 6.50 60.04 34.06 6.88 55.22 32.29 7.21 67 69.03 49.23 4.98 65.77 47.83 5.47 62.05 46.27 5.92 57.99 44.59 6.30 53.69 42.84 6.64 49.16 41.02 6.94
2250
63†† 64.02 47.53 4.93 60.73 46.03 5.38 57.08 44.40 5.79 53.18 42.67 6.14 49.06 40.87 6.44 44.76 39.00 6.71
62 62.52 58.04 4.91 59.34 56.37 5.36 55.76 54.38 5.75 52.02 52.02 6.10 48.70 48.70 6.43 45.39 45.39 6.75 57 60.12 60.12 4.88 57.61 57.61 5.32 54.88 54.88 5.73 51.87 51.87 6.09 48.72 48.72 6.43 45.41 45.41 6.75
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size CC5A/CD5AA 060 0.97 1.04 CK5A/CK5BT 060 0.97 0.97 CC5A/CD5AW 060 0.99 1.04 CK5A/CK5BX 060 0.99 0.99
CE3AA 060 1.00 1.05 CK5PA 060 0.97 0.97 CK3BA 060 0.98 1.04 CK5PT 060 0.97 0.97
CK5A/CK5BA 060 0.98 1.04 CK5PX 060 0.99 0.99
CK5A/CK5BT 060 0.98 1.04 CK5A/CK5BX 060 1.00 1.05 CC5A/CD5AA 060 0.93 1.03
CK5PA 060 0.98 1.04 CD5PX 060 0.97 1.05 CK5PT 060 0.98 1.04 CE3AA 060 0.96 1.04
CK5PX 060 1.00 1.05 CK3BA 060 0.95 1.03 FE4ANB 006 1.00 1.00 CK5A/CK5BA 060 0.95 1.03 FV4BNB 006 1.00 1.00 CK5A/CK5BT 060 0.95 1.03
40FKB/FK4DNB 006 1.00 1.00 CK5A/CK5BX 060 0.97 1.04
COILS + 58CV(A,X)110-22 VARIABLE SPEED FURNACE CK5PA 060 0.95 1.03
CE3AA 060 0.98 0.98 CK5PT 060 0.95 1.03
CK3BA 060 0.97 0.98 CK5PX 060 0.97 1.04
CK5A/CK5BA 060 0.97 0.98
CK5A/CK5BT 060 0.97 0.98 CC5A/CD5AA 060 0.93 1.02 CK5A/CK5BX 060 0.98 0.98 CD5PX 060 0.97 1.03
CK5PA 060 0.97 0.98 CE3AA 060 0.96 1.02
CK5PT 060 0.97 0.98 CK3BA 060 0.95 1.02
CK5PX 060 0.98 0.98 CK5A/CK5BA 060 0.95 1.02
COILS + 58CV(A,X)135-22 VARIABLE SPEED FURNACE CK5A/CK5BT 060 0.95 1.02
CC5A/CD5AA 060 0.97 0.99 CK5A/CK5BX 060 0.98 1.03 CC5A/CD5AW 060 0.97 0.98 CK5PA 060 0.95 1.02
CE3AA 060 0.98 0.99 CK5PT 060 0.95 1.02
CK3BA 060 0.97 0.98 CK5PX 060 0.98 1.03
CK5A/CK5BA 060 0.97 0.98
CK5A/CK5BT 060 0.97 0.98 CC5A/CD5AA 060 0.93 1.01 CK5A/CK5BX 060 0.98 0.99 CD5PX 060 0.97 1.02
CK5PA 060 0.97 0.98 CE3AA 060 0.96 1.01
CK5PT 060 0.97 0.98 CK3BA 060 0.95 1.01
CK5PX 060 0.98 0.99 CK5A/CK5BA 060 0.95 1.01
COILS + 58CV(A,X)155-22 VARIABLE SPEED FURNACE CK5A/CK5BT 060 0.95 1.01
CC5A/CD5AA 060 0.97 0.98 CK5A/CK5BX 060 0.98 1.02 CC5A/CD5AW 060 0.97 0.97 CK5PA 060 0.95 1.01
CE3AA 060 0.98 0.98 CK5PT 060 0.95 1.01
CK3BA 060 0.97 0.97 CK5PX 060 0.98 1.02
CK5A/CK5BA 060 0.97 0.97 —— —
See notes on pg. 55.
Capacity Power Capacity Power
CONDENSER ENTERING AIR TEMPERATURES °F
Total
System
kW**
High Speed
Capacity
MBtuh†
Tot al
System
kW**
Capacity
MBtuh†
Indoor
Section Size
COILS + 58MVP080-20 VARIABLE SPEED FURNACE
COILS + 58MVP100-20 VARIABLE SPEED FURNACE
COILS + 58MVP120-20 VARIABLE SPEED FURNACE
Total
System
kW**
Capacity
MBtuh†
Tot al
System
kW**
High Speed
Capacity
MBtuh†
Total
System
kW**
53
Page 54
Detailed cooling capacities* continued
EVAPORATOR
AIR
CFM EWB
75 85 95 105 115 125
Capacity
MBtuh†
Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡
Total
System
kW**
Capacity
MBtuh†
CONDENSER ENTERING AIR TEMPERATURES °F
Total
System
kW**
Capacity
MBtuh†
Total
System
kW**
Capacity
MBtuh†
Total
System
kW**
Capacity
MBtuh†
Tot al
System
kW**
38TDB060-31 Outdoor Section With FV4BNB006 Indoor Section - Low Speed
72 39.76 21.24 1.94 36.67 20.07 2.10 33.65 18.94 2.25 30.65 17.85 2.39 27.67 16.78 2.54 24.69 15.73 2.67
1050
1350
1650
1950
2250
See notes on pg. 55.
67 35.45 25.93 1.92 32.63 24.76 2.07 29.85 23.64 2.21 27.10 22.54 2.35 24.38 21.45 2.48 21.68 20.35 2.61
63†† 32.40 24.81 1.91 29.77 23.65 2.05 27.16 22.51 2.18 24.60 21.41 2.31 22.09 20.32 2.43 19.61 19.16 2.55
62 31.56 30.45 1.91 29.05 29.05 2.04 27.06 27.06 2.18 25.10 25.10 2.32 23.15 23.15 2.46 21.12 21.12 2.59 57 30.98 30.98 1.90 29.02 29.02 2.04 27.07 27.07 2.18 25.11 25.11 2.32 23.15 23.15 2.46 21.12 21.12 2.59 72 41.34 23.37 2.04 38.00 22.15 2.21 34.69 20.96 2.36 31.46 19.81 2.51 28.27 18.69 2.65 25.12 17.61 2.79 67 36.86 29.31 2.03 33.78 28.08 2.18 30.73 26.86 2.33 27.79 25.63 2.46 24.94 24.33 2.60 22.40 22.40 2.73
63†† 33.67 27.97 2.02 30.76 26.72 2.16 27.94 25.47 2.30 25.23 24.21 2.42 22.66 22.66 2.56 20.48 20.48 2.69
62 33.52 33.52 2.02 31.28 31.28 2.17 29.08 29.08 2.31 26.87 26.87 2.45 24.66 24.66 2.59 22.41 22.41 2.73 57 33.53 33.53 2.02 31.29 31.29 2.17 29.09 29.09 2.31 26.88 26.88 2.45 24.66 24.66 2.59 22.41 22.41 2.74 72 42.29 25.25 2.15 38.72 23.97 2.31 35.25 22.74 2.47 31.87 21.55 2.62 28.54 20.40 2.77 25.27 19.28 2.90 67 37.66 32.34 2.14 34.38 30.98 2.29 31.22 29.58 2.44 28.19 28.19 2.57 25.69 25.69 2.72 23.23 23.23 2.86
63†† 34.36 30.74 2.12 31.32 29.34 2.27 28.41 27.85 2.41 25.82 25.82 2.54 23.50 23.50 2.68 21.16 21.16 2.81
62 35.35 35.35 2.13 32.94 32.94 2.28 30.50 30.50 2.43 28.09 28.09 2.57 25.70 25.70 2.72 23.23 23.23 2.86 57 35.36 35.36 2.13 32.95 32.95 2.28 30.51 30.51 2.43 28.10 28.10 2.57 25.70 25.70 2.72 23.24 23.24 2.86 72 42.84 26.94 2.25 39.14 25.63 2.42 35.54 24.36 2.58 32.05 23.15 2.73 28.63 21.98 2.87 25.24 20.80 3.01 67 38.12 34.99 2.24 34.77 33.42 2.40 31.61 31.61 2.55 28.99 28.99 2.69 26.40 26.40 2.84 23.80 23.80 2.98
63†† 34.80 33.11 2.23 31.66 31.65 2.38 29.03 29.03 2.52 26.55 26.55 2.66 24.09 24.09 2.80 21.61 21.61 2.94
62 36.78 36.78 2.24 34.15 34.15 2.39 31.56 31.56 2.55 29.00 29.00 2.69 26.41 26.41 2.84 23.81 23.81 2.98 57 36.79 36.79 2.24 34.16 34.16 2.39 31.57 31.57 2.55 29.01 29.01 2.69 26.42 26.42 2.84 23.81 23.81 2.98 72 43.19 28.56 2.35 39.39 27.23 2.52 35.69 25.94 2.68 32.11 24.70 2.83 28.60 23.49 2.98 25.12 22.18 3.12 67 38.48 37.30 2.34 35.16 35.16 2.50 32.40 32.40 2.66 29.66 29.66 2.81 26.94 26.94 2.96 24.21 24.21 3.10
63†† 35.14 35.14 2.33 32.36 32.36 2.49 29.70 29.70 2.63 27.10 27.10 2.77 24.52 24.52 2.92 21.88 21.88 3.05
62 37.91 37.91 2.34 35.14 35.14 2.50 32.41 32.41 2.66 29.68 29.68 2.81 26.96 26.96 2.96 24.22 24.22 3.10 57 37.93 37.93 2.34 35.15 35.15 2.50 32.43 32.43 2.66 29.68 29.68 2.81 26.96 26.96 2.96 24.23 24.23 3.10
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size CC5A/CD5AA 060 0.95 1.14 CK5PT 060 0.98 0.99 CC5A/CD5AW 060 0.96 1.14 CK5PX 060 0.99 0.99
CE3AA 060 0.97 1.14
CK3BA 060 0.97 1.14 CC5A/CD5AA 060 0.97 0.99 CK5A/CK5BA 060 0.97 1.14 CC5A/CD5AW 060 0.97 0.99 CK5A/CK5BT 060 0.97 1.14 CE3AA 060 0.97 0.99 CK5A/CK5BX 060 0.98 1.14 CK3BA 060 0.98 0.99
CK5PA 060 0.97 1.14 CK5A/CK5BA 060 0.98 0.99 CK5PT 060 0.97 1.14 CK5A/CK5BT 060 0.98 0.99
CK5PX 060 0.98 1.14 CK5A/CK5BX 060 0.99 0.99 FE4ANB 006 1.00 1.00 CK5PA 060 0.98 0.99 FV4BNB 006 1.00 1.00 CK5PT 060 0.98 0.99
40FKB/FK4DNB 006 1.00 1.00 CK5PX 060 0.99 0.99
COILS + 58CV(A,X)110-22 VARIABLE SPEED FURNACE COILS + 58MVP080-20 VARIABLE SPEED FURNACE
CE3AA 060 0.97 1.00 CC5A/CD5AA 060 0.94 1.02
CK3BA 060 0.98 1.00 CD5PX 060 0.97 1.03 CK5A/CK5BA 060 0.98 1.00 CE3AA 060 0.97 1.03 CK5A/CK5BT 060 0.98 1.00 CK3BA 060 0.97 1.03 CK5A/CK5BX 060 0.99 1.00 CK5A/CK5BA 060 0.97 1.02
CK5PA 060 0.98 1.00 CK5A/CK5BT 060 0.97 1.02 CK5PT 060 0.98 1.00 CK5A/CK5BX 060 0.97 1.03 CK5PX 060 0.99 1.00 CK5PA 060 0.97 1.02
COILS + 58CV(A,X)135-22 VARIABLE SPEED FURNACE CK5PT 060 0.97 1.02 CC5A/CD5AA 060 0.97 1.00 CK5PX 060 0.97 1.03 CC5A/CD5AW 060 0.97 1.00
CE3AA 060 0.97 0.99 CC5A/CD5AA 060 0.94 1.02
CK3BA 060 0.98 1.00 CD5PX 060 0.97 1.02 CK5A/CK5BA 060 0.98 0.99 CE3AA 060 0.97 1.02 CK5A/CK5BT 060 0.98 0.99 CK3BA 060 0.97 1.02 CK5A/CK5BX 060 0.99 0.99 CK5A/CK5BA 060 0.97 1.02
CK5PA 060 0.98 0.99 —— —
Low Speed
Capacity Power Capacity Power
Indoor
Section Size
COILS + 58CV(A,X)155-22 VARIABLE SPEED FURNACE
COILS + 58MVP100-20 VARIABLE SPEED FURNACE
Low Speed
Capacity
MBtuh†
Total
System
kW**
54
Page 55
Detailed cooling capacities* continued
EVAPORATOR
AIR
CFM EWB
75 85 95 105 115 125
Capacity
MBtuh†
Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡
Total
System
kW**
Capacity
MBtuh†
CONDENSER ENTERING AIR TEMPERATURES °F
Total
System
kW**
Capacity
MBtuh†
Tot al
System
kW**
Capacity
MBtuh†
Total
System
kW**
Capacity
MBtuh†
Tot al
System
kW**
Capacity
MBtuh†
System
38TDB060-31 Outdoor Section With FV4BNB006 Indoor Section - Low Speed continued
72 39.76 21.24 1.94 36.67 20.07 2.10 33.65 18.94 2.25 30.65 17.85 2.39 27.67 16.78 2.54 24.69 15.73 2.67 67 35.45 25.93 1.92 32.63 24.76 2.07 29.85 23.64 2.21 27.10 22.54 2.35 24.38 21.45 2.48 21.68 20.35 2.61
1050
63†† 32.40 24.81 1.91 29.77 23.65 2.05 27.16 22.51 2.18 24.60 21.41 2.31 22.09 20.32 2.43 19.61 19.16 2.55
62 31.56 30.45 1.91 29.05 29.05 2.04 27.06 27.06 2.18 25.10 25.10 2.32 23.15 23.15 2.46 21.12 21.12 2.59 57 30.98 30.98 1.90 29.02 29.02 2.04 27.07 27.07 2.18 25.11 25.11 2.32 23.15 23.15 2.46 21.12 21.12 2.59 72 41.34 23.37 2.04 38.00 22.15 2.21 34.69 20.96 2.36 31.46 19.81 2.51 28.27 18.69 2.65 25.12 17.61 2.79 67 36.86 29.31 2.03 33.78 28.08 2.18 30.73 26.86 2.33 27.79 25.63 2.46 24.94 24.33 2.60 22.40 22.40 2.73
1350
63†† 33.67 27.97 2.02 30.76 26.72 2.16 27.94 25.47 2.30 25.23 24.21 2.42 22.66 22.66 2.56 20.48 20.48 2.69
62 33.52 33.52 2.02 31.28 31.28 2.17 29.08 29.08 2.31 26.87 26.87 2.45 24.66 24.66 2.59 22.41 22.41 2.73 57 33.53 33.53 2.02 31.29 31.29 2.17 29.09 29.09 2.31 26.88 26.88 2.45 24.66 24.66 2.59 22.41 22.41 2.74 72 42.29 25.25 2.15 38.72 23.97 2.31 35.25 22.74 2.47 31.87 21.55 2.62 28.54 20.40 2.77 25.27 19.28 2.90 67 37.66 32.34 2.14 34.38 30.98 2.29 31.22 29.58 2.44 28.19 28.19 2.57 25.69 25.69 2.72 23.23 23.23 2.86
1650
63†† 34.36 30.74 2.12 31.32 29.34 2.27 28.41 27.85 2.41 25.82 25.82 2.54 23.50 23.50 2.68 21.16 21.16 2.81
62 35.35 35.35 2.13 32.94 32.94 2.28 30.50 30.50 2.43 28.09 28.09 2.57 25.70 25.70 2.72 23.23 23.23 2.86 57 35.36 35.36 2.13 32.95 32.95 2.28 30.51 30.51 2.43 28.10 28.10 2.57 25.70 25.70 2.72 23.24 23.24 2.86 72 42.84 26.94 2.25 39.14 25.63 2.42 35.54 24.36 2.58 32.05 23.15 2.73 28.63 21.98 2.87 25.24 20.80 3.01 67 38.12 34.99 2.24 34.77 33.42 2.40 31.61 31.61 2.55 28.99 28.99 2.69 26.40 26.40 2.84 23.80 23.80 2.98
1950
63†† 34.80 33.11 2.23 31.66 31.65 2.38 29.03 29.03 2.52 26.55 26.55 2.66 24.09 24.09 2.80 21.61 21.61 2.94
62 36.78 36.78 2.24 34.15 34.15 2.39 31.56 31.56 2.55 29.00 29.00 2.69 26.41 26.41 2.84 23.81 23.81 2.98 57 36.79 36.79 2.24 34.16 34.16 2.39 31.57 31.57 2.55 29.01 29.01 2.69 26.42 26.42 2.84 23.81 23.81 2.98 72 43.19 28.56 2.35 39.39 27.23 2.52 35.69 25.94 2.68 32.11 24.70 2.83 28.60 23.49 2.98 25.12 22.18 3.12 67 38.48 37.30 2.34 35.16 35.16 2.50 32.40 32.40 2.66 29.66 29.66 2.81 26.94 26.94 2.96 24.21 24.21 3.10
2250
63†† 35.14 35.14 2.33 32.36 32.36 2.49 29.70 29.70 2.63 27.10 27.10 2.77 24.52 24.52 2.92 21.88 21.88 3.05
62 37.91 37.91 2.34 35.14 35.14 2.50 32.41 32.41 2.66 29.68 29.68 2.81 26.96 26.96 2.96 24.22 24.22 3.10 57 37.93 37.93 2.34 35.15 35.15 2.50 32.43 32.43 2.66 29.68 29.68 2.81 26.96 26.96 2.96 24.23 24.23 3.10
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size CK5A/CK5BT 060 0.97 1.02 CE3AA 060 0.97 1.02 CK5A/CK5BX 060 0.98 1.03 CK3BA 060 0.97 1.02
CK5PA 060 0.97 1.02 CK5A/CK5BA 060 0.97 1.01 CK5PT 060 0.97 1.02 CK5A/CK5BT 060 0.97 1.01 CK5PX 060 0.98 1.03 CK5A/CK5BX 060 0.97 1.01
COILS + 58MVP120-20 VARIABLE SPEED FURNACE CK5PA 060 0.97 1.01
CC5A/CD5AA 060 0.94 1.01 CK5PT 060 0.97 1.01
CD5PX 060 0.97 1.01 CK5PX 060 0.97 1.01
Low Speed
Capacity Power Capacity Power
Indoor
Section Size
NOTE: When the required data fall between the published data, interpolation may be performed. Extrapolation is not an acceptable practice.
* Detailed cooling capacities are based on indoor and outdoor unit at the same elevation per ARI standard 210/240-94. If additional tubing length
and/or indoor unit is located above outdoor unit, a slight variation in capacity may occur.
† Total and sensible capacities are net capacities. Blower motor heat has been subtracted. ‡ Sensible capacities shown are based on 80°F (27 °C) entering air at the indoor coil. For sensible capacities at other than 80°F (27°C), deduct
835 Btuh (0.245 kW**) per 1,000 CFM (480 L/S) of indoor coil air for each degree below 80°F (27°C), or add 835 Btuh (0.245 kW**) per 1,000 CFM (480 L/S) of indoor coil air per degree above 80°F (27°C).
** Unit kW** is total of indoor and outdoor unit kilowatts.
†† At TVA conditions (75 edb-63 ewb). All other indoor air temperatures are at 80 edb.
Low Speed
Total
kW**
System Design
1. Intended for outdoor installation with free-air inlet and outlet. Outdoor fan external static pressure available is less than 0.01-in. wc.
2. Minimum outdoor operating air temperature is 55°F (12.8°C).
3. Low-ambient operation accessory is not available.
4. Maximum outdoor operating air temperature is 125°F (51.7°C).
5. For reliable operation, unit should be level in all horizontal planes.
6. Maximum elevation of indoor coil above or below base of outdoor unit is; indoor coil above–50 ft, indoor coil below–150 ft.
7. For interconnecting refrigerant tube lengths greater than 50 ft and/or 20 ft vertical differential, consult Application Guideline and Service Manual— Air Conditioners and Heat Pumps Using Puron® Refrigerant.
8. If any refrigerant tubing is buried, provide a minimum 6-in. vertical rise to the valve connections at the unit. Refrigerant tubing lengths up to 36 in. may be buried without further consideration. Do not bury lines over 36 in.
9. Use only copper wire for electric connection at unit. Aluminum and clad aluminum are not acceptable for the type of connector provided.
10. Use with hard shutoff, balance port TXV. If factory-supplied TXV (Thermostatic Expansion Valve) is provided, it must be installed. If it is not provided from the factory and is required for the application, use only the approved TXV listed in the Accessory Section of this literature.
11. Do not apply capillary tube indoor coils to these units.
12. Factory-supplied filter drier must be installed.
55
Page 56
Guide specifications
GENERAL
System Description
Outdoor-mounted, air-cooled, split-system air conditioner unit suitable for ground or rooftop installation. Unit consists of a hermetic compressor, an air-cooled coil, propeller-type condenser fan, and a control box. Unit will discharge supply air upward as shown on contract drawings. Unit will be used in a refrigeration circuit to match up to a packaged fan coil or coil unit.
Quality Assurance
Unit will be rated in accordance with the latest edition of ARI Standard 210.
Unit will be certified for capacity and efficiency, and listed in the latest ARI directory.
Unit construction will comply with latest edition of ANSI/ ASHRAE and with NEC.
Unit will be constructed in accordance with UL standards and will carry the UL label of approval. Unit will have c-UL approval.
Unit cabinet will be capable of withstanding Federal Test Method Standard No. 141 (Method 6061) 500-hr salt spray test.
Air-cooled condenser coils will be leak tested at 250 psig and pressure tested at 450 psig.
Unit constructed in ISO9001 approved facility.
Delivery, Storage, and Handling
Unit will be shipped as single package only and is stored and handled per unit manufacturer’s recommendations.
Warranty (for inclusion by specifying engineer)
U.S. and Canada only.
PRODUCTS
Equipment
Factory assembled, single piece, air-cooled air conditioner unit. Contained within the unit enclosure is all factory wiring, piping, controls, compressor, refrigerant charge Puron®, and special features required prior to field start-up.
Refrigerant
Refrigerant will be Puron HFC refrigerant with zero ozone depletion potential. Puron is approved under the EPA’s Significant New Alternatives Policy (SNAP) Program.
Unit Cabinet
Unit cabinet will be constructed of galvanized steel, bonderized, and coated with a powder coat paint.
F
ans
Condenser fan will be direct-drive propeller type, discharging air upward.
Air-Cooled, Split-System
Air Conditioner
38TDB
2 to 5 Tons Nominal
Condenser fan motor will be totally enclosed, 1-phase type
with class B insulation and permanently lubricated bearings.
Motor shaft will be corrosion resistant. Fan blades will be statically and dynamically balanced. Condenser fan opening will be equipped with PVC-coated
steel wire safety guards.
Compressor
Compressor will be hermetically sealed. Compressor will be mounted on rubber vibration isolators.
Condenser Coil
Condenser coil will be air cooled.
Coil will be constructed of aluminum fins mechanically bonded to copper tubes which are then cleaned, dehydrated, and sealed.
Refrigeration Components
Refrigeration circuit components will include liquid-line shutoff valve with sweat connections, vapor-line shutoff valve with sweat connections, system charge of refrigerant Puron® (R-410A), and compressor oil.
Unit will be equipped with factory supplied high pressure switch, low pressure switch, and filter drier for Puron refrigerant.
Operating Characteristics
The capacity of the unit will meet or exceed _____ Btuh at a suction temperature of _____ °F. The power consumption at full load will not exceed _____ kW**.
Combination of the unit and the evaporator or fan coil unit will have a total net cooling capacity of _____ Btuh or greater at conditions of _____ CFM entering air temperature at the evaporator at _____ °F wet bulb and _____ °F dry bulb, and air entering the unit at _____ °F.
The system will have a SEER of _____ Btuh/watt or greater at DOE conditions.
Electrical Requirements
Nominal unit electrical characteristics will be _____ v, single phase, 60 hz. The unit will be capable of satisfactory operation within voltage limits of _____ v to _____ v.
Unit electrical power will be single point connection.
Control circuit will be 24v.
Special Features
Refer to section of this literature identifying accessories and descriptions for specific features and available enhancements.
Copyright 2004 Carrier Corporation • Indianapolis, IN 46231 01-04
Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations.
Book 1 2 4 Page 56 Catalog No. 523-80081 Printed in U.S.A. PC 101 Form 38TDB-6PD
Tab 3a 1a 2a
Replaces: 38TDB-5PD
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
