INFINITY ICS. MODEL 58MVC
DIRECT VENT 4-WAY MULTIPOISE
MODULATING CONDENSING GAS FURNACE
WITH IDEALCOMFORT IDEALHUMIDITY
Owner’s Manual
NOTE TO INSTALLER:
THIS MANUAL MUST BE LEFT WITH THE EQUIPMENT
USER,
USER: Please read all instructions in the manual and retain all
manuals for future reference.
^ WARNING
EIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly could result in
injury, death, or property damage.
Do not store or use gasoline or other flammable vapors and
liquids in the vicinity of this or any other appliance,
WHAT TO DO IF YOU SMELL GAS
-Do not try to light any appliance,
-Do not touch any electrical switch; do not use any
phone in your building,
-Leave the building immediately,
-Immediately call your gas supplier from a neighbor’s
phone. Follow the gas supplier’s instructions,
-If you cannot reach your gas supplier, call the fire
department.
Installation and service must be performed by a qualified
installer, service agency or the gas supplier.
^ WARNING
CARBON MONOXIDE POISONING HAZARD
Failure to follow this warning could result in personal
injury and/or death.
Carbon Monoxide is invisible, odorless, and toxic! Carrier
Heating and Cooling Systems recommends a carbon
monoxide alarm in your home, even if you do not own a
gas appliance. Locate the carbon monoxide alarm in the
living area of your home and away from gas appliances and
doorways to attached garages. Follow the alarm
manufacturer’s instruction included with the alarm.
Turn to the Experts"
Do not use this furnace if any part has been under water, A
flood-damaged furnace is extremely dangerous. Attempts to
use the furnace can result in fire or explosion, A qualified
service agency should be contacted to inspect the furnace
and to replace all gas controls, control system parts,
electrical parts that have been wet or the furnace if deemed
necessary.
TABLE OF CONTENTS
WELCOME TO A NEW GENERATION OF COMFORT , , , 2
FURNACE COMPONENTS
SAFETY CONSIDERATIONS
BEFORE STARTING YOUR FURNACE......................................4
STARTING AND SHUTTING DOWN YOUR FURNACE , , 3
Steps for Starting Your Furnace
Shutting Down Your Furnace ........................................7
PERFORMING ROUTINE MAINTENANCE
Filtering Out Trouble
COMBUSTION AREA AND VENT SYSTEM
Heading South for the Winter
A CHECK-UP CHECKLIST...........................................................12
BEFORE YOU REOUEST A SERVICE CALL ...........................13
INSTALLATION DATA................................................................14
...........................................................
......................................................
...................................
..............................
......................................................
...........................
.......................................
3
4
5
7
8
10
11
WELCOME TO A NEW GENERATION OF COMFORT
Congratulations! In light of rising energy costs, the Infinity ICS
Gas-Fired, Modulating Condensing Furnace is among the wisest
investment today’s homeowner can make.
Your new furnace is truly a triumph of technology in home
heating. A revolutionary design employs two heat exchangers to
maximize the amount of heat from the fuel consumed. In fact,
your new furnace is so efficient, up to 93 %* of the heat generated
during combustion is captured and delivered inside your home.
That is more than a 33%* increase in heating efficiency over
conventional furnaces.
These are among the most energy-efficient furnaces you can buy
today. They also are among the safest and most dependable. We
are proud of the technological advances incorporated into the
design of these furnaces. With only minimal care, your new
furnace will deliver many years of money-saving home comfort
and enjoyment. Spend just a few minutes with this manual to
learn the operation of your new furnace and the small amount of
maintenance it takes to help keep it operating at peak efficiency
year after year.
*The output capacity and any representations of efficiency for this furnace
are based on standard U.S. Department of Energy test procedures.
Iz1
Fig. 1 - Infinity ICS Variable Capacity Furnace
ENERGY STAR
As an ENERGY STAR
Partner, Carrier Corp.
has determined that this
product meets the
ENERGY STAR®
guidelines for energy
efficiency.
FURNACE COMPONENTS
Fig. 2 - Model 58MVC Furnace
1, Combustion-air intake connection to ensure contaminant-
free air (right or left side).
2, Burner sight glass for viewing burner flame,
3, Burner assembly (inside). Operates with energy-saving
inshot burners and hot surface igniter for safe, dependable
heating.
4, Redundant gas valve. Safe and efficient. Features f gas
control with 2 internal shutoff valves and one throttling
valve.
3, Vent outlet. Uses PVC pipe to carry flue gas from the
furnace’s combustion system (right or left side).
6, Inducer motor. Pulls hot flue gases through the heat
exchangers, maintaining negative pressure for added safety,
7, Blower access panel safety interlock switch,
8, Air filter and retainer (location in furnace may vary).
9, Condensate drain connection. Collects moisture condensed
from burned gases for disposal into home drain system,
(Location in furnace varies.)
10, Fleavy-duty blower. Circulates air across the heat
exchangers to transfer heat into the home.
If, Everlastic™ Secondary condensing heat exchanger (inside).
Wrings out more heat through condensation. Constructed
with polypropylene-laminated steel to ensure durability,
12, Primary serpentine heat exchanger (inside). Stretches fuel
dollars with the S-shaped heat-flow design. Solid
construction of corrosion-resistant aluminized steel means
reliability,
13, Furnace control board,
14, 3-amp fuse provides electrical and component protection.
13, Light emitting diode (LED) on furnace control board. Status
code light is for diagnosing furnace operation and service
requirements,
16, Pressure switches ensure adequate flow of flue gas through
furnace and out vent system,
17, Rollout switch (manual reset) to prevent overtemperature,
18, Junction box for 113-v electrical power supply, (May be
located on right or left side)
19, Transformer (24v) behind furnace control board provides
low-voltage power to furnace control board and thermostat.
SAFETY CONSIDERATIONS
Recognize safety information. This is the safety-alert symbol
^ . When you see this symbol on the furnace and in instructions
or manuals, be alert to the potential for personal injury.
Understand the signal words: DANGER, WARNING, and
CAUTION. DANGER identifies the most serious hazards which
will result in severe personal injury or death. WARNING signifies
hazards which could result in personal injury or death.
CAUTION is used to identify unsafe practices which may result
in minor personal injury or product and property damage, NOTE
is used to highlight suggestions which will result in enhanced
installation, reliability or operation.
To minimize the possibility of serious personal injury, fire,
furnace damage, or improper operation; carefully follow these
safety rules:
• Your gas furnace uses air from outside the home for
combustion and vents flue gas to the outdoors. It is not
to be installed using indoor air for combustion. The
vent pipe must terminate outside the structure and must
not be obstructed in any way. The air-intake pipe must
terminate outside the structure or in a well ventilated
area that is isolated from the living space and the garage
(e.g. well ventilated attic or crawlspace). Do not block
or obstruct air openings on furnace or spaces around
furnace.
Fig. 4 - Combustible Materials
Do not cover the furnace, store trash or debris near it, or
in any way block the flow of fresh air to the unit,
A furnace installed in an attic or other insulated space
must be kept free and clear of insulating material.
Examine the furnace area when the furnace is installed
or when insulation is added. Some materials may be
combustible.
This furnace contains SAFETY DEVICES which must
be MANUALLY RESET. If the furnace is left
unattended for an extended period of time, have it
checked periodically for proper operation. This
precaution will prevent problems associated with no
heat, such as frozen water pipes, etc. See “Before You
Request a Service Call” section in this manual.
Keep the area around your furnace clear and free of
combustible materials, gasoline, and other flammable
liquids and vapors.
^ WARNING
FIRE OR EXPLOSION HAZARD
Failure to follow this warning could result in personal
injury/death or property damage.
Do not keep combustible materials, gasoline, and other
flammable liquids or vapors around your furnace.
^ WARNING
FIRE AND UNIT OPERATION HAZARD
Failure to follow this warning could result in personal
injury/death or property damage.
For proper and safe operation the furnace needs air for
combustion and ventilation. Do not block or obstruct the
openings on the furnace, air openings to the area in which the
furnace is installed, and the space around the furnace.
BEFORE STARTING YOUR FURNACE
Examine the furnace installation monthly to determine that:
1, All flue gas carrying areas external to the furnace (i.e,
chimney, vent connector) are clear and free of obstructions,
2, The vent connector is in place, slopes upward and is
physically sound without holes or excessive corrosion.
3, The return-air duct connection(s) is physically sound, is
sealed to the furnace casing, and terminates outside the space
containing the furnace,
4, The physical support of the furnace is sound without sagging
cracks, gaps, etc. around the base,
3, There are no obvious signs of deterioration of the furnace.
^ WARNING
FIRE AND EXPLOSION HAZARD
Failure to follow this warning could result in personal
injury/death or property damage.
Should the gas supply fail to shut off or if overheating
occurs, turn off the manual gas valve to the furnace
BEFORE turning off the electrical supply, (See Fig. 8.)
• CHECK AIR FILTER: Before attempting to start
your furnace, be sure the furnace filter is clean and in
place. See “Performing Routine Maintenance” section
in this manual. Then proceed as follows:
Steps For Starting Your Furnace
f. Set your room thermostat to the lowest temperature setting.
(See Fig. 7.)
2, Close the external manual gas valve. (See Fig. 8.)
Fig. 5 - Burner Flame
6, The burner flames are in good adjustment, (See Fig. 3.)
STARTING AND SHUTTING DOWN YOUR FURNACE
Instead of a continuously burning pilot flame which wastes
valuable energy, your furnace uses an automatic, hot surface
ignition system to light the burners each time the thermostat starts
your furnace. Follow these important safeguards:
• Never attempt to manually light the burners with a
match or other source of flame.
Fig. 6 - Do Not Light Burner with Match
Read and follow the operating instructions on inside of
main furnace door, especially the item that reads as
follows:
Wait 3 minutes to clear out any gas. Then smell for gas,
including near the floor. If you smell gas, STOP!
Follow “B” in the safety information above on this
furnace label. If you don’t smell gas, go to the next
step.
If a suspected malfunction occurs with your gas control
system, such as the burners do not light when they
should, refer to the shutdown procedures on inside of
main furnace door, or in the “Shutting Down Your
Furnace” section and call your dealer as soon as
possible.
Fig. 7 - Lowest Temperature Setting
Fig. 8 - Close Valve

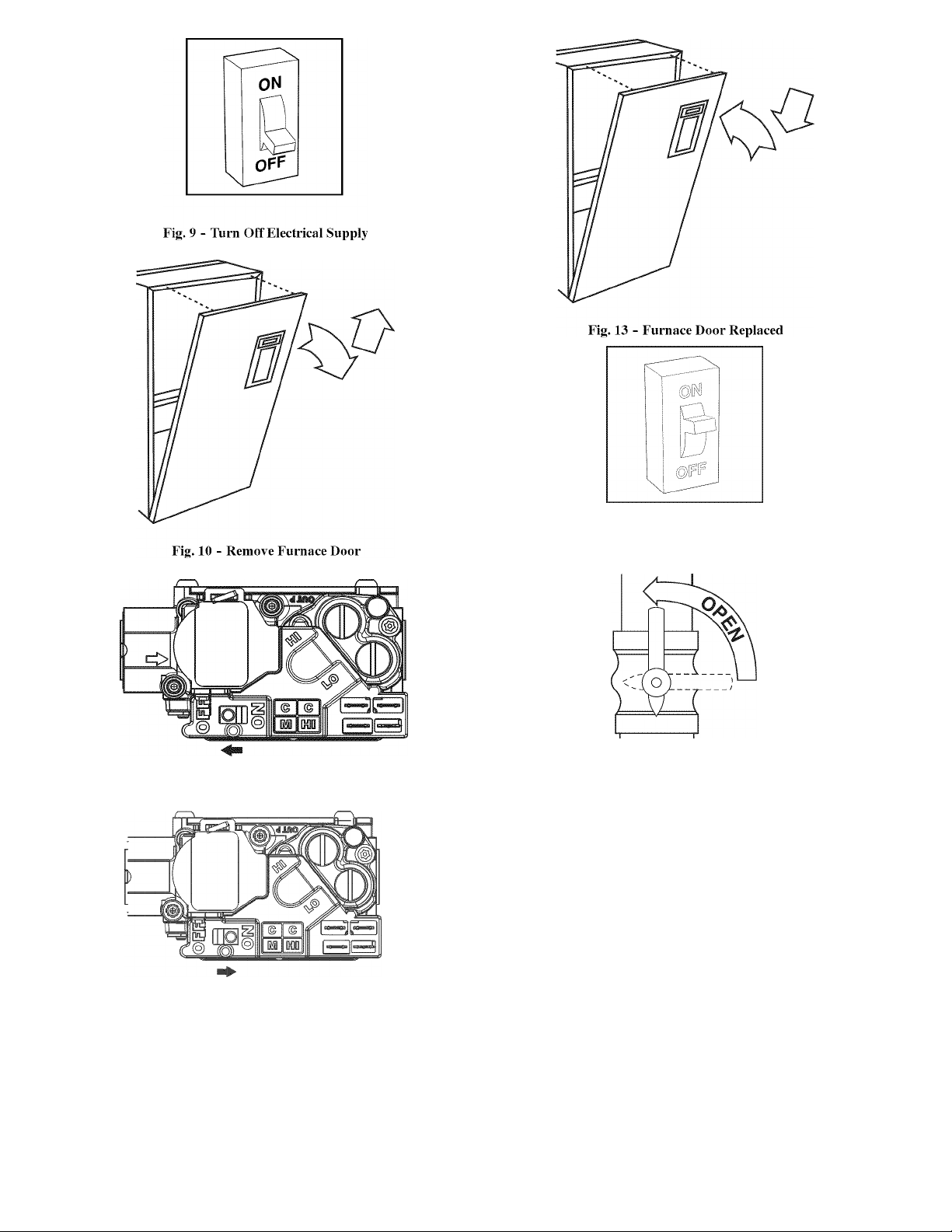

3, Turn OFF electrical supply to the furnace, (See Fig. 9.)
4, Remove main furnace door. (See Fig. 10.)
3, The gas valve will have a control switch to turn off and on.
Turn the control switch on the gas control to the OFF
position and wait 3 minutes, (See Fig. 11.) Then smell for
gas, including near the floor. If you smell gas, STOP! Follow
“B” on furnace label. If you don’t smell gas, go to next step.
6, After waiting 3 minutes, turn the control switch on the gas
control to the ON position, (See Fig. 12.)
Fig. 11 - Control Switch to OFF
Fig. 12 - Control Switch to ON
Fig. 14 - Turn On Electrical Supply
Fig. 15 - Open Valve
7. Replace main furnace door. (See Fig. 13.)
8. Turn ON the electrical supply to the furnace and wait 1
minute. (See Fig. 14.)
9. Open the external manual gas valve. (See Fig. 13.)
10. Set the room thermostat to a temperature slightly above the
room temperature. This will automatically signal the furnace
to start.
11. When the furnace receives the start signal, the inducer is
started. When the pressure switch senses that there is suf
ficient combustion air, the hot surface igniter is energized.
After the hot surface igniter is heated for 17 seconds, the gas
valve permits gas to flow to the main burners. After ignition
and a time delay of about 30 sec, the furnace blower will start.
Variable-capacity furnaces start at medium speed until the
control makes the necessary adjustments to operate the
blower at either the low-, medium-, or high-heat speed.
NOTE: If the burners fail to ignite after 4 attempts, the furnace
control system will lock out. If lockout occurs, main burners fail
to light, or blower does not come on, shut down the furnace and
call your dealer for service.
12, Set your thermostat to the temperature that satisfies your
comfort requirements.
SUGGESTION: Setting the thermostat back a few degrees
and compensating for the difference with warmer clothing
can make a big difference in your fuel consumption. The few
degrees at the top of your thermostat “comfort level” are the
most costly degrees to obtain.
When the room temperature drops below the temperature selected
on the thermostat, the furnace will switch on automatically.
When the room temperature reaches the temperature selected on
the thermostat, the furnace will be switched off automatically.
Some thermostats have a FAN mode with 2 selections: AUTO
and ON, When set on AUTO, the furnace blower cycles on and
off. In the ON mode, the furnace blower runs continuously.
Continuous fan keeps the temperature level in your home more
evenly balanced. It also permits the indoor air to be continuously
filtered. With the unique feature Fan On Plus™ , the blower speed
can be increased or decreased if desired due to change of seasons,
large gatherings in your home, etc. Simply change your FAN
from ON to OFF for f to 3 seconds (or AUTO depending on
your thermostat), and then return to ON. The blower will switch
to the next higher speed. There are at least 3 speeds to choose
from. If the blower is running on its highest speed, a request to
change will direct the blower to return to its lowest speed.
If you own an Evolution Control, simply push the “fan” button
to change the fan speed.
SHUTTING DOWN YOUR FURNACE
Fig. 18 - Control Switch to OFF
3, Replace the main furnace door. (See Fig. 13.)
6, If the furnace is being shut down because of a malfunction,
call your dealer as soon as possible.
Fig. 16 - Lowest Temperature Setting
Should you ever need to shut down your furnace for service or
maintenance, you will need to turn the furnace off. The following
procedures must be followed:
1, Set your room thermostat to the lowest temperature setting.
(See Fig. 16.)
2, Turn off electrical supply to the furnace, (See Fig. 17.)
3, Remove main furnace door. (See Fig. 10.)
4, Turn the switch on the gas control to the OFF position, (See
Fig. 18.)
A CAUTION
UNIT AND PROPERTY DAMAGE
Failure to follow this caution may result in damage to the
furnace and other property damage.
Furnace is not to be installed, operated, and then turned off
and left turned off in an unoccupied structure during winter.
(See “Heading South for the Winter” procedures in
maintenance section on page 12).
PERFORMING ROUTINE MAINTENANCE
NOTE: The qualified installer or agency must use only
factory-authorized replacement parts, kits, and accessories when
modifying this product.
Installing and servicing heating equipment can be hazardous due
to gas and electrical components.
Only trained and qualified personnel should install, repair, or
service heating equipment. Untrained personnel can perform
basic maintenance functions such as cleaning and replacing air
filters.
All other operations must be performed by trained and qualified
service agency personnel. Observe safety precautions in this
manual, on tags, and on labels attached to the furnace, and other
safety precautions that may apply.
With proper maintenance and care, your furnace will operate
economically and dependably. Instructions for basic maintenance
are found on this and the following pages. However, before
beginning maintenance, follow these safety precautions:
^ WARNING
ELECTRICAL SHOCK HAZARD
Failure to follow this warning could result in personal
injury/death.
Turn off electrical power supply to your furnace before
removing the access doors to service or perform
maintenance.
▲ CAUTION
CUT HAZARD
Failure to follow this caution may result in minor personal
injury.
Although special care has been taken to minimize sharp
edges, be extremely careful when handling parts or reaching
into the furnace.
Filtering Out Trouble
▲ CAUTION
UNIT PERFORMANCE HAZARD
Failure to follow this caution may result in product damage.
Never operate your furnace without a filter in place. Doing
so may damage the furnace blower motor. An
accumulation of dust and lint on internal parts of your
furnace can cause a loss of efficiency.
A dirty air filter will cause a loss of airflow in your duct system.
When excessive loss of airflow occurs, the furnace may cycle on
its safety controls. If this condition is left unattended, the furnace
will eventually lock out. It is recommended that the furnace air
filter be checked every 3 or 4 weeks and cleaned if necessary.
If installed with factory-specified disposable media filter, check
or replace filter before each heating and cooling season. Replace
disposable media filter at least once a year.
The air filter is normally located in the blower compartment or
in the factory-supplied filter cabinet attached to the side or
bottom of the furnace casing. If air filter has been installed in
another location, contact your dealer for instructions. To inspect,
clean, and/or replace the air filter(s), follow these steps:
1, Turn off electrical supply to furnace, (See Fig. 17.)
2, Remove door/access panel.
a. Air Filters Located in Blower Compartment
(1.) Remove main furnace door. (See Fig. 19.)
(2.) Remove blower access panel. (See Fig. 20.)
NOTE: It will be necessary to remove 2 screws
b. Air Filters Located in Filter Cabinet
Remove filter cabinet door. (See Fig. 21 and 22.)
NOTE: It will be necessary to remove 1 thumbscrew
3, Remove air filter from furnace,
a. Air Filters Located in Blower Compartment Bottom:
(1.) Slide filter retainer sideways until it is free of
latch. (See Fig. 23.)
(2.) Slide air filter out of furnace. (See Fig. 24.)
b. Air Filters Located in Blower Compartment Side:
(1.) Remove filter retainer from latch, (See Fig. 23.)
(2.) Gently remove air filter and carefully turn the
dirty side up (if dirty) to avoid spilling dirt from
the filter. (See Fig. 26.)
c. Air Filter Located in Filter Cabinet:
Slide air filter out of furnace. Keep dirty side up (if dirty)
to avoid spilling dirt, (See Fig. 27 and 28.)
4, Inspect the filter. If torn, replace it,
NOTE: If washable filter that was shipped with the furnace has
been replaced by:
-Factory specified disposable media filter: Do not clean. If dirty,
replace only with media filter having the same part number and
size. Install with airflow direction arrow pointing towards blower.
-Electronic air cleaner (EAC): Refer to EAC Owner’s Manual
for maintenance information.
Fig. 19 - Remove Furnace Door
Fig. 22 - Removing Bottom Filter Cabinet Door Fig. 25 - Removing Filter Retainer from Latch
Fig. 23 - Sliding Filter Retainer Sideways Fig. 26 - Removing Air Filter
Fig. 24 - Slide Air Filter Out of Furnace
Fig. 28 - Slide Bottom Filter Out of Furnace
Fig. 30 - Furnace Door Replaced
supplied. Use the filter tables and compare your furnace size with
the proper filter size.
FURNACE AIR FILTER TABLE
FURNACE
CASING
WIDTH
IN (mm)
* Factory-provided with the furnace. Fiiters may be fieid modified by
cutting fiiter materiai and support rods (3) in fiiters.
t Upfiow oniy. Aiternate sizes and additionai fiiters may be ordered from
your deaier.
AIR FILTER LOCATED IN BLOWER COMPARTMENT
FILTER SIZE - IN (mm)
Side Returnt* Bottom Return*
17-1/2
(445)
21 (533)
24-1/2
(622)
FILTER CABINET
HEIGHT
IN (mm)
16 (406)
20 (508)
24 (610)
(1) 16X25X3/4
(406X635X19)
(1) 16X25X3/4
(406X635X19)
(1 or 2) 16X25 X
3/4
(406X635X19)
AIR FILTER LOCATED IN FILTER CABINET
FILTER
SIZE
IN (mm)
(1) 16x25x3/4*
(406X635X19)
(1) 20x25x3/4*
(508X635X19)
or
(1) 20x25x4-5/16
(508X635X110)
(1) 24x25x3/4*
(610X635X19)
or
(1) 24x25x4-5/16
(610X635X110)
(1) 16X25X3/4
(406X635X19)
1) 20 X 25 X 3/4
(508X635X19)
(1) 24X25X3/4
(610X635X19)
FILTER
TYPE
Washable
Washable
Washable
FILTER
TYPE
Washable
Washable
Washable
Fig. 31 - Replace Side Filter Cabinet Door
3, If washable filter, wash filter (if dirty) in sink, bathtub, or
outside with a garden hose. Always use cold tap water. A
mild liquid detergent may be used if necessary. Spray water
through filter in the opposite direction of airflow. Allow
filter to dry.
6, Reinstall clean air filter.
7, Reinstall filter retainer (for blower compartment locations
only).
8, Replace blower access panel and main furnace door (Fig. 29
and 30.) or filter cabinet door. (Fig. 3f and 32.)
9, Turn on electrical supply to furnace.
If your furnace air filter needs to be replaced, be sure to use a
factory-authorized filter of the same size that was originally
^ WARNING
PERSONAL INJURY HAZARD
Failure to follow this warning could result in personal
injury.
Use care when cutting support rods in filters to protect
against flying pieces and sharp rod ends. Wear safety
glasses, gloves, and appropriate protective clothing.
10
COMBUSTION AREA AND VENT SYSTEM
Visually inspect the combustion area and vent system before each
heating season. Make sure that all PVC pipes leading into the
combustion area and vent are free from any cracks and sags.
^ WARNING
CARBON MONOXIDE POISONING HAZARD
Failure to follow this warning could result in personal
injury or death.
If holes are found in the pipes or if any portion has
become disconnected, toxic fumes can escape into your
home, DO NOT OPERATE YOUR FURNACE, Call
your dealer for service.
Check the combustion-air intake and vent pipe on the outside of
your home for blockage.
When dirt, soot, scale, or rust is allowed to build up, your furnace
can suffer a loss of efficiency and perform improperly.
Accumulations on the main burners can result in firing out of
normal sequence. This delayed ignition creates an alarmingly
loud sound.
A CAUTION
Fig. 33 - Remove Burner Enclosure Front
UNIT OPERATION HAZARD
Failure to follow this caution may result in property
damage.
If your furnace makes an especially loud noise when the
main burners light, shut down your furnace and call your
dealer.
To inspect the combustion area and vent system, you will need
a flashlight. Refer to Fig, 3 and proceed as follows:
^ WARNING
CARBON MONOXIDE POISONING HAZARD
Failure to follow this warning could result in personal
injury or death.
If dirt, rust, soot, or scale accumulations are found, call
your dealer. Do not operate your furnace.
f. Turn off the gas and electrical supplies to the furnace and
remove the main furnace door, (See Fig, 8, 9, and 10,)
2, Remove burner enclosure front, (See Fig, 33,)
Inspect the gas burners, igniter area, and remainder of furnace for
dirt, rust, soot, or scale,
3, Inspect the combustion-air and vent PVC pipes for sags,
holes, cracks, water leaks, blockage or disconnections.
Horizontal portions of pipes must slope downward toward
furnace,
4, Reinstall burner enclosure front,
3, If your furnace is free of the above conditions, replace main
furnace door and turn on electrical and gas supplies to the
furnace, (See Fig, 13, 14, and 13,)
6, Start the furnace and observe its operation. Watch the burner
flames to see if they are clear blue, almost transparent, (See
Fig, 34,) If you observe a suspected malfunction, or the
burner flames are not clear blue, call your dealer.
Fig. 34 - Burner Flame
HEADING SOUTH FOR THE WINTER? DON’T FORGET YOUR FURNACE!
^ CAUTION
UNIT AND PROPERTY DAMAGE HAZARD
Failure to follow this caution may result in damage to the
furnace and other property damage.
If the furnace is installed in an unconditioned space where
the ambient temperatures may be 32°F (0°C) or lower,
freeze protection measures must be taken to prevent minor
property or product damage.
A. CAUTION
UNIT COMPONENT DAMAGE HAZARD
Failure to follow this caution may result in damage to the
furnace and other property damage.
Do not use ethylene glycol (Prestone II antifreeze coolant or
equivalent). Failure of plastic components may occur.
Since the furnace uses a condensing heat exchanger, some water
will accumulate in the unit as a result of the heat transfer process.
Therefore, once it has been operated, it cannot be turned off and
left off for an extended period of time when temperatures will
reach 32°F (0°C) or lower unless winterized. Follow these
procedures to winterize your furnace:
1, Obtain propylene glycol (RV/swimming pool antifreeze or
equivalent).
2, Turn off electrical supply to the furnace, (See Fig. 17.)
11
Fig. 35 - Upper Inducer Housing Drain
Connection Cap
3, Remove main furnace door. (See Fig. 19.)
4. Remove upper inducer housing drain connection cap. (See
Fig. 33.)
3. Connect field-supplied 1/2-in. ID tube to upper inducer
housing drain connection.
6. Insert field-supplied funnel into tube.
7. Pour 1 quart of antifreeze into funnel/tube. Antifreeze
should run through inducer housing, overfill condensate
trap, and flow into open field drain. (See Fig. 36.)
Fig. 36 - Pour Antifreeze
8. Remove funnel and tube from inducer housing and replace
drain connection cap and clamp.
9. Replace main furnace door. (See Fig. 30.)
10. Propylene glycol need not be removed before restarting
furnace.
A CAUTION
UNIT AND PROPERTY DAMAGE HAZARD
Failure to follow this warning could result in damage to
unit components.
This furnace is designed for continuous return-air
minimum temperature of 60°F (13.6°C) db or intermittent
operation down to 33°F (12.8°C) db, such as when used
with a night setback thermostat. Return-air temperature
must not exceed 83°F (29.4°C) db.
If you choose to leave your furnace on during extended absences
do not set your thermostat lower than the limits shown in the
Caution box above.
To protect your property from damage from potential problems
due to unintended interruptions in utility services or other events,
it is recommended that you either winterize your plumbing
system or have someone check on your house regularly while
you are away.
Your dealer or a licensed plumber can give you additional advice
about winterizing your plumbing system.
A CHECK-UP CHECKLIST
Your furnace represents an important investment in your family’s
comfort and your home’s value. To keep it performing properly
and to prevent future problems, have a trained service specialist
give your furnace a professional check-up annually. The
following checklist can be used as a guideline to proper service:
• Inspect all flue gas passages, burners, heat exchangers,
coupling box(es), and inducer assembly.
• Inspect all combustion-air and vent piping inside
structure and vent pipe termination outside the
structure.
• Check gas pipes leading to and inside your furnace for
leaks.
• Inspect and clean the blower motor and wheel.
NOTE: The inducer and blower motors are pre-lubricated and
require no additional lubrication. These motors can be identified
by the absence of oil ports on each end of the motor.
• Inspect and change or clean air filters(s), if necessary.
• Inspect all supply- and return-air ducts for
obstructions, air leaks, and insulation. Remedy any
problem when necessary.
• Inspect the return-air duct connections(s) at the furnace
to ensure it is physically sound, sealed to the furnace
casing, and terminates outside the space containing the
furnace.
• Inspect electrical wiring, connections, and components
for loose connections.
• Perform an operational checkout to determine whether
your furnace is working properly and if it requires
adjustments.
• Inspect all condensate drain tubes and condensate trap
assembly for leaks. The condensate removal system
should be cleaned annually by a qualified service
agency. Refer to the Service and Maintenance
Instructions for further information.
• Examine the physical support of the furnace. Support
should be sound with no cracks, sagging, gaps, etc.
around the base.
• Check furnace for any obvious signs of deterioration.
f2
BEFORE YOU REQUEST A SERVICE CALL
If your furnace is not operating or not performing properly, you
may save the expense of a service call by checking a few things
yourself before calling for service.
For Insufficient Airflow:
• Check for dirty air filter(s).
• Check for blocked return-air or supply-air grilles
throughout your home. Ensure they are open and
unobstructed.
If problem still exists, call your dealer for service.
If Furnace Fails to Operate:
Follow this checklist step by step, advancing to the next step only
if furnace fails to start,
• Check thermostat for proper temperature. Is thermostat
set above room temperature?
• Is thermostat set on HEAT?
• Check fuses and circuit breakers. Is electrical supply
on?
• Is manual shutoff valve in gas supply pipe in open
position? (Follow start-up procedures if you open gas
valve,)
NOTE: Turn off electrical supply before continuing with
checklist,
• Is control switch on gas valve in ON position? (Follow
startup procedures if you must reset switch to ON
position,)
• Check manual reset flame rollout switch located on the
burner box. If furnace has experienced high
temperature conditions, this switch will shut off the
furnace. Reset it by pushing the button on the switch. If
it trips again, shut down the furnace and call for
service. See “Shutting Down Your Furnace” section in
this manual,
• Check for obstructions around the vent termination
outside the structure.
If the furnace still fails to operate, call your service representative.
For your convenience, record the furnace product and serial
numbers on back page. Should you ever require service, you will
have ready access to the information needed by your service
representative.
This furnace has a light-emitting-diode (FED) status code
display to aid the installer, service technician, or homeowner
while installing or servicing the unit. The FED code can be seen
by removing the main furnace door and viewing the FED
through the view port in the blower access panel, (See Fig, 2,)
13
NOTE TO EQUIPMENT OWNER:
For your convenience, please record the model and serial numbers of your new equipment in the spaces
provided. This information, along with the installation data and dealer contact information will be helpful
should your system require maintenance or service.
FURNACE
Model #_
Serial #
AIR CONDITIONER OR HEAT PUMP
Model #_________________________________
Serial #
_________________________________
INDOOR COIL (Furnace Coll or Fan Coll)
Model #_________________________________
Serial #
This manual must be left with the equipment owner.
INSTALLATION INFORMATION:
Date Installed
DEALERSHIP CONTACT INFORMATION:
Company Name__________________________
Address_
Phone Number
Technician Name
NOTE TO INSTALLER:
Turn to the Experts“
TO OBTAIN INFORMATION ON PARTS: Consult your installing dealer or classified section of your local telephone directory under the
“Heating Equipment” or “Air Conditioning Contractors & Systems” heading 'ior dealer listing by brand name.
Have available the Model No.. Series Letter, & Serial No. of your equipment to ensure correct replacement part.
Copyright 2008 Carrier Corporation Printed in the U.S.A, Edition Date: 12/08
Manufacturer reserves the right to change, at any time, specifications and design without notice and without obligation. Replaces: OM58-124
14
Catalog No: OM58-128
Loading...
