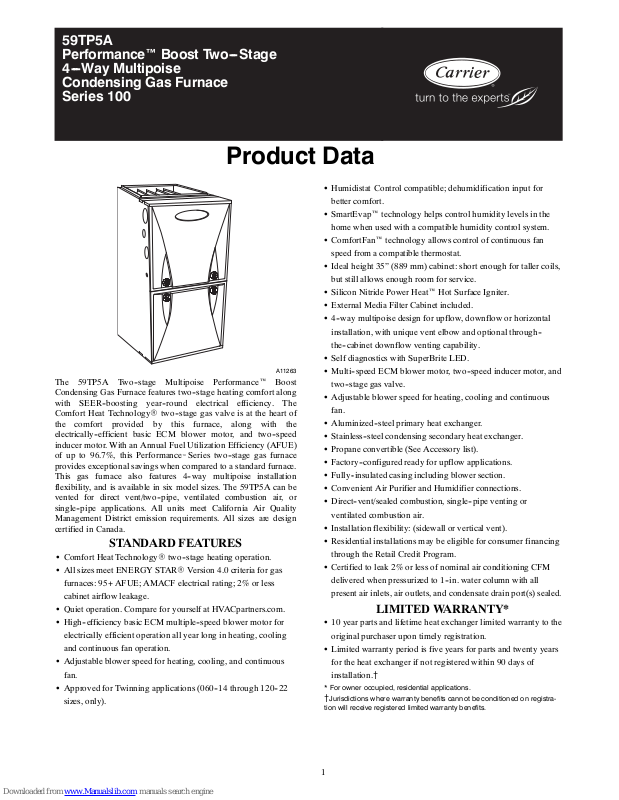

59TP5A Performance™ Boost Two---Stage 4 --- W a y M u l t i p o i s e Condensing Gas Furnace Series 100

Product Data

A11263

The 59TP5A Two--stage Multipoise Performance™ Boost Condensing Gas Furnace features two--stage heating comfort along with SEER--boosting year--round electrical efficiency. The Comfort Heat TechnologyR two--stage gas valve is at the heart of the comfort provided by this furnace, along with the electrically--efficient basic ECM blower motor, and two--speed inducer motor. With an Annual Fuel Utilization Efficiency (AFUE) of up to 96.7%, this Performance provides exceptional savings when compared to a standard furnace. This gas furnace also features 4--way multipoise installation flexibility, and is available in six model sizes. The 59TP5A can be vented for direct vent/two--pipe, ventilated combustion air, or single--pipe applications. All units meet California Air Quality Management District emission requirements. All sizes are design certified in Canada.

STANDARD FEATURES

S Comfort Heat TechnologyR two--stage heating operation. S All sizes meet ENERGY STARR Version 4.0 criteria for gas

furnaces: 95+ AFUE; AMACF electrical rating; 2% or less cabinet airflow leakage.

S Quiet operation. Compare for yourself at HVACpartners.com. S High--efficiency basic ECM multiple--speed blower motor for

electrically efficient operation all year long in heating, cooling and continuous fan operation.

S Adjustable blower speed for heating, cooling, and continuous

fan.

S Approved for Twinning applications (060--14 through 120--22

sizes, only).

™ Series two--stage gas furnace

S Humidistat Control compatible; dehumidification input for

better comfort.

S SmartEvap™ technology helps control humidity levels in the

home when used with a compatible humidity control system.

S ComfortFan™ technology allows control of continuousfan

speed from a compatible thermostat.

S Ideal height 35” (889 mm) cabinet: short enough for taller coils,

but still allows enough room for service.

S Silicon Nitride Power Heat™ Hot Surface Igniter. S External Media Filter Cabinet included. S 4--way multipoise design for upflow, downflow or horizontal

installation, with unique vent elbow and optional through-the--cabinet downflow venting capability.

S Self diagnostics with SuperBrite LED. S Multi--speed ECM blower motor, two--speed inducer motor, and

two--stage gas valve.

S Adjustable blower speed for heating, cooling and continuous

fan.

S Aluminized--steel primary heat exchanger. S Stainless--steel condensing secondary heat exchanger. S Propane convertible (See Accessory list). S Factory--configured ready forupflow applications. S Fully--insulated casing including blower section. S Convenient Air Purifier and Humidifier connections. S Direct--vent/sealed combustion, single--pipe venting or

ventilated combustion air.

S Installation flexibility: (sidewall or vertical vent). S Residential installations may be eligible for consumer financing

through the Retail Credit Program.

S Certified to leak 2% or less of nominal air conditioning CFM

delivered when pressurized to 1--in. water column with all present air inlets, air outlets, and condensate drain port(s) sealed.

LIMITED WARRANTY*

S 10 year parts and lifetimeheat exchanger limited warranty to the

original purchaser upon timely registration.

S Limited warranty period is five years for parts and twenty years

for the heat exchanger if not registered within 90 days of installation.{

* For owner occupied, r esidential applications.

{Jurisdictions where warranty benefits cannot be conditioned on registra-

tion will receive registered limited warranty benefits.

Page 2

CASING

DIMENSIONS

SAP ORDERING

NO.

59TP5A040E14--10 35 30 14.2 39,000 25,000 96.5% 590 695 0.10 385-925 1/2 - 5 16 125 59TP5A060E17--14 35 30 17.5 58,000 38,000 96.3% 785 1000 0.12 530-1505 3/4 - 5 16 146 59TP5A080E17--16 35 30 17.5 78,000 50,000 96.2% 1095 1360 0.15 920-1610 3/4 - 5 16 156 59TP5A080E17--20 35 30 21.0 78,000 51,000 96.7% 1055 1360 0.15 795-2015 1-5 20 161 59TP5A100E21--20 35 30 21.0 97,000 63,000 96.1% 1325 1700 0.20 1105-2110 1-5 20 171 59TP5A120E24--22 35 30 24.5 117,000 76,000 96.7% 1610 2125 0.20 1385-2055 1-5 24 195

† Capacity in accordance with DOE test procedures. See rating plate.

‡ Heating CFM at factory default blower motor heating tap settings.

ESP --- External Static Pressure

(IN.)

H D W High Low AFUE

RATED HEATING

† (BTUH)

OUTPUT

HEATING AIRFLOW

CFM‡

(Low

Heating)

(High

Heating)

CFM

High

Heating

ESP

COOLING

CFM

@0.5ESP

MOTOR

HP-SPEED

MEDIA

CABINET

SUPPLIED

(IN.)

APPROX.

SHIP

WT (LB)

FEATURES AND BENEFITS

Comfort Heat TechnologyR feature — This feature with

Adaptive Control is a proprietary function that promotes homeowner comfort through two stages of heating. This Carrier furnace offers a patented algorithm that continually monitors and adjusts furnace operation by looking at both current and past conditions to determine the most effective stage of heating and the

59TP5A

amount of time to run each stage, every cycle. SmartEvapt Technology — When paired with a compatible

thermostat, this dehumidification feature overrides the cooling blower off-delay when there is a call for dehumidification. By deactivating the blower off-delay, SmartEvap technology prevents condensate that remains on the coil after a dehumidification cycle from re-humidifying throughout the home. This results in reduced humidity and a more comfortable indoor environment for the homeowner.

Unlike competitive systems, SmartEvap technology only overrides the cooling blower off--delay when humidity control is needed. Once humidity is back in control, SmartEvap re-enables the energy-saving cooling blower off-delay.

ComfortFant Technology — Sometimes the constant fan setting on a standard furnace system can actually reduce homeowner comfort by providing too much or too little air! Comfort Fan technology improves comfort all year long by allowing the homeowner to select the continuous fan speed of their choice using a compatible thermostat.

HYBRID HEATR Dual Fuel System — This system can provide more control over your monthly energy bills by automatically selecting the most economical method of heating. With HYBRID HEAT components, our system automatically switches between the gas furnace and the electric heat pump as outside temperatures change to maintain greater efficiency and comfort than with any traditional single-source heating system. The heat pump also delivers high-efficiency cooling in the summer.

Power Heatt Igniter — Carrier’s unique SiN igniter is not only physically robust but it is also electrically robust. It is capable of running at line voltage and does not require complex voltage regulators as do other brands. This unique feature further enhances the gas furnace reliability and continues Carrier’s tradition of technology leadership and innovation in providing a reliable and durable product.

Performancet ECM Blower Motor — This basic ECM, or electronically commutated motor, can provide an efficiency enhancement for select Carrier air conditioner or heat pump systems. It uses less electrical power than its PSC counterpart and also has a wider range of speeds

Reliable Heat Exchanger Design — The aluminized steel, clamshell primary heat exchanger was re--engineered to achieve greater efficiency out of a smaller size. The first two passes of the heat exchanger are based on the current 80% product, a design with more than ten years of field-proven performance and success. These innovations, paired with the continuation of a crimped,

no-weld seam create an efficient, robust design for this essential component.

The condensing heat exchanger, a stainless steel fin and tube design, is positioned in the furnace to extract additional heat. Stainless steel coupling box componentry between heat exchangers has exceptional corrosion resistance in both natural gas and propane applications.

Media Filter Cabinet — Enhanced indoor air quality in the home is made easier with our media filter cabinet—a standard accessory on all deluxe furnaces. When installed as a part of the system, this cabinet allows for easy and convenient addition of a Carrier high efficiency air filter.

4-Way Multipoise Design — One model for all applications – there is no need to stock special downflow or horizontal models when one unit will do it all. The new heat exchanger design allows these units to achieve the certified AFUE in all positions.

Direct or Single-pipe Venting, or Optional Ventilated Combustion Air — This furnace can be installed as a 2-pipe

(Direct Vent) furnace, in an optional ventilated combustion air application, or in single-pipe, non-direct vent applications. This provides added flexibility to meet diverse installation needs.

Sealed Combustion System — This furnace brings in combustion air from outside the furnace, which results in especially quiet operation. By sealing the entire combustion vestibule, the entire furnace can be made quieter, not just the burners.

Insulated Casing — Foil-faced insulation in the heat exchanger section of the casing minimizes heat loss. The acoustical insulation in the blower compartment reduces air and motor noise for quiet operation.

Monoport Burners — The burners are specially designed and finely tuned for smooth, quiet combustion and economical operation.

Bottom Closure — Factory-installed for side return; easily removable for bottom return. The multi-use bottom closure can also serve for roll-out protection in horizontal applications, and act as the bottom closure for the optional return air base accessory.

Blower Access Panel Switch — Automatically shuts off 115-v power to furnace whenever blower access panel is opened.

Quality Registration — Our furnaces are engineered and manufactured under an ISO 9001 registered quality system.

Certifications—This furnace is CSA (AGA and CGA) design certified for use with natural and propane gases. The furnace is factory--shipped for use with natural gas. A CSA listed gas conversion kit is required to convert furnace for use with propane gas. The efficiency is GAMA efficiency rating certified. This furnace meets California Air Quality Management District emission requirements.

Page 3

SPECIFICATIONS

Heating Capacity and Efficiency 040-10 060-14 080-16 080-20 100-20 120-22

High

Input

Output

Efficiency AFUE % (ICS) 96.5 96.3 96.2 96.7 96.1 96.7

Certified Temperature Rise Range ºF (ºC)

Airflow Capacity and Blower Data 040-10 060-14 080-16 080-20 100-20 120-22

Certified External Static Pressure (in. w.c.)

Airflow Delivery

@ Rated ESP (CFM)

Cooling Capacity (tons) @ 400, 350 CFM/ton

Direct-Drive Motor Type Electronically Commutated Motor (ECM) Direct-Drive Motor HP 1/2 3/4 3/4 1 1 1 Motor Full Load Amps 6.8 8.4 8.4 10.9 10.9 10.9 RPM Range 600 - 1200 Speed Selections 5 Blower Wheel Dia x Width in. 11 x 7 11 x 8 11 x 8 11 x 10 11 x 10 11 x 11

Air Filtration System

Filter Used for Certified Watt Data

Heat Low

Heat High

Heat Low

Heat

(BTUH) 40,000 60,000 80,000 80,000 100,000 120,000

(BTUH) 26,000 39,000 52,000 52,000 65,000 78,000

(BTUH) 39,000 58,000 78,000 78,000 97,000 117,000

(BTUH) 25,000 38,000 50,000 51,000 63,000 76,000

High Heat

Low Heat

Heating 0.10 0.12 0.15 0.15 0.20 0.20 Cooling 0.5 0.5 0.5 0.5 0.5 0.5

High Heat 695 1000 1360 1360 1700 2125

Low Heat 590 785 1095 1055 1325 1610

Cooling 925 1505 1610 2015 2110 2055 400 CFM/ton 2 3.5 4 5 5 5 350 CFM/ton

40 - 70

(22 - 39)

30 - 60

(17 - 33)

2.5 4 4.5 5.5 6 6

KGAWF1606UFR KGAWF1306UFR KGAWF1306UFR KGAWF1406UFR KGAWF1406UFR KGAWF1506UFR

40 - 70

(22 - 39)

30 - 60

(17 - 33)

40 - 70

(22 - 39)

30 - 60

(17 - 33)

Factory Supplied Media Cabinet

Field Supplied Filter

40 - 70

(22 - 39)

30 - 60

(17 - 33)

40 - 70

(22 - 39)

30 - 60

(17 - 33)

40 - 70

(22 - 39)

30 - 60

(17 - 33)

59TP5A

Electrical Data 040-10 060-14 080-16 080-20 100-20 120-22

Input Voltage Volts-Hertz-

Operating Voltage Range Min-Max 104-127 Maximum Input Amps Amps 7.5 9.2 9.2 11.7 11.8 11.8 Unit Ampacity Amps 10.3 12.4 12.4 15.5 15.6 15.6 Minimum Wire Size AWG 14 14 14 12 12 12

Maximum Wire Length @ Minimum Wire Size

Maximum Fuse/Ckt Bkr (Time-Delay Type Recommended)

Transformer Capacity (24vac output) 40 VA External Control Power

Available

Controls 040-10 060-14 080-16 080-20 100-20 120-22

Gas Connection Size 1/2" - NPT Burners (Monoport) 2 3 4 4 5 6

Gas Valve (Redundant)

Gas Conversion Kit - Natural to Propane KGANP51012SP Gas Conversion Kit - Propane to Natural KGAPN43012SP Manufactured (Mobile) Home Kit not approved for MH use Ignition Device Silicon Nitride Limit Control 165 180 170 200 180 160 Heating Blower Control (Heating Off-Delay) Adjustable: 90, 120, 150, 180 seconds Cooling Blower Control (Time Delay Relay) 90 seconds Communication System none Thermostat Connections Com 24V, R, W/W1, G, Y/Y2, DHUM, Y1, W2 Accessory Connections EAC (115vac); HUM (24vac); 1-stg AC (via Y/Y2)

Phase

Feet 36 29 29 37 36 36

(M) (11.0) (8.8) (8.8) (11.3) (11.0) (11.0)

Amps 15 15 15 20 20 20

Heating 24.3 VA

Cooling 34.6 VA

Manufacturer White Rogers

Minimum Inlet Gas pressure

(in. wc)

Maximum Inlet

Gas pressure

(in. wc)

115-60-1

4.5

13.6

Page 4

59TP5A

1 - 2

Family

Htg. Stages Tier

S - Single Stage T - Two Stage M - Modulating

OPERATING INSTRUCTIONS NOT SHOWN (LOCATED ON MAIN FURNACE DOOR, SEE OPERATING INSTRUCTIONS INSIDE DOOR FIGURE).

C - Comfort P - Performance N - Infinity

MANUAL RESET ROLLOUT SWITCH

GAS VALVE

ELECTRICAL JUNCTION BOX (IF REQUIRED, LOCATION MAY VARY)

FLAME SENSOR

MODEL NUMBER NOMENCLATURE

Effy.

0 --- 90 AFUE 3 --- 93 AFUE 5 --- 95 AFUE 6 --- 96 AFUE 7 --- 97 AFUE

Major Series

Not all familes have these models.

7 - 9

Htg. Cap.

040

040=40,000 BTU 060=60,000 BTU 080=80,000 BTU 100=100,000 BTU 120=120,000 BTU

Motor

S - Standard E - Energy Efficient V - Variable Speed

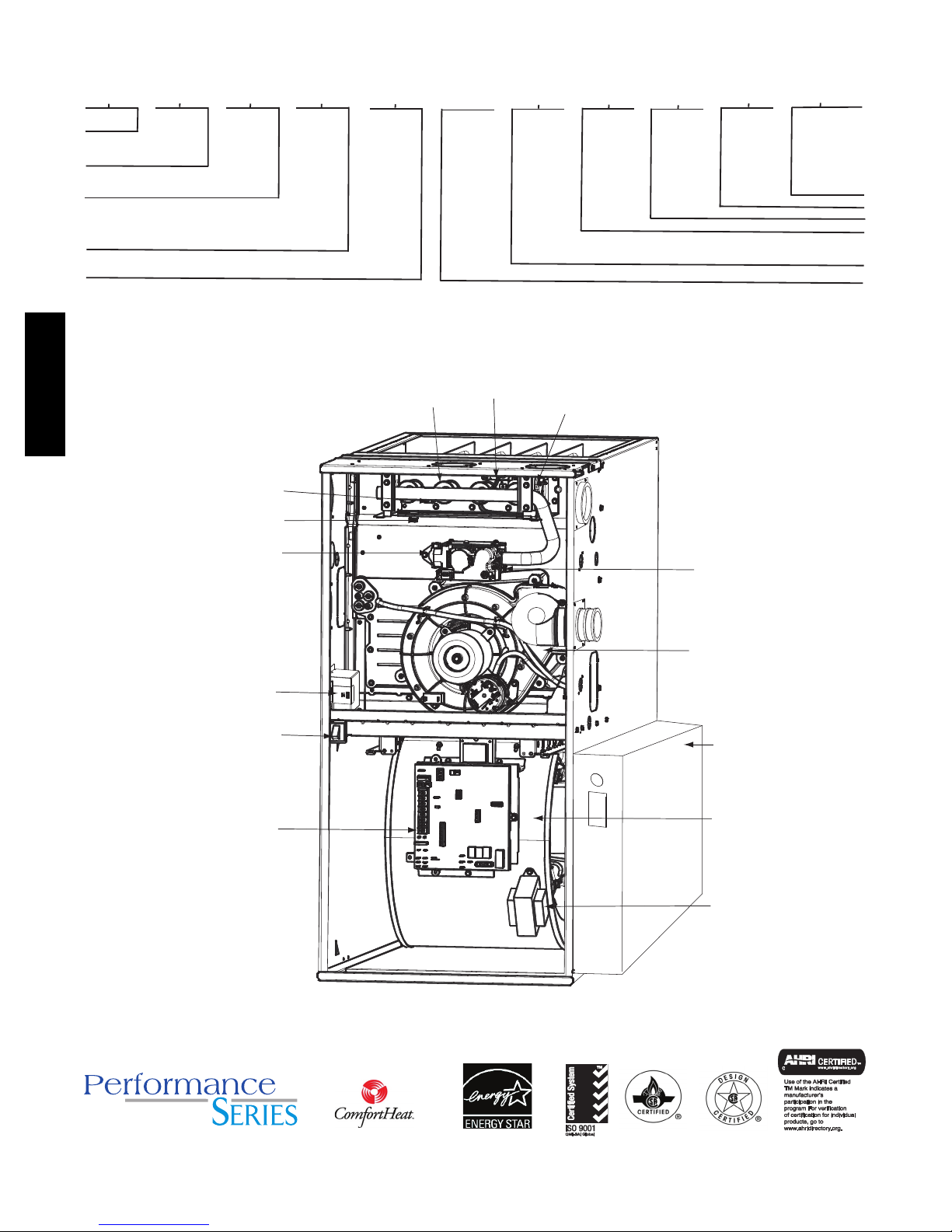

FURNACE COMPONENTS

HOT SURFACE

GAS BURNER

IGNITER

MANUAL RESET ROLLOUT SWITCH

11 - 12

Width

14 - 14.2” 17 - 17.5” 21 - 21.0” 24 - 24.5”

Voltage

Minor Series

MAIN LIMIT SWITCH

(BEHIND GAS VALVE)

INDUCER MOTOR ASSEMBLY

15 - 16 Airflow

08 - 800 CFM 10 - 1000 CFM 12 - 1200 CFM 14 - 1400 CFM 16 - 1600 CFM 18 - 1800 CFM 20 - 2000 CFM 22 - 2200 CFM

A11158

BLOWER DOOR SAFETY SWITCH

FURNACE CONTROL BOARD

RATING PLATE NOT SHOWN

(LOCATED ON BLOWER DOOR)

REPRESENTATIVE DRAWING ONLY, SOME MODELS MAY VARY IN APPEARANCE.

MEDIA CABINET

BLOWER AND MOTOR

CAPACITOR/ POWER CHOKE (IF USED)

A11408

Page 5

ACCESSORIES

ying

Vent Kit - Through the Cabinet

Vent Terminal - Concentric

Vent Terminal Bracket

2-in.

3-in.

2-in.

3-in.

Condensate Drainage Accessories

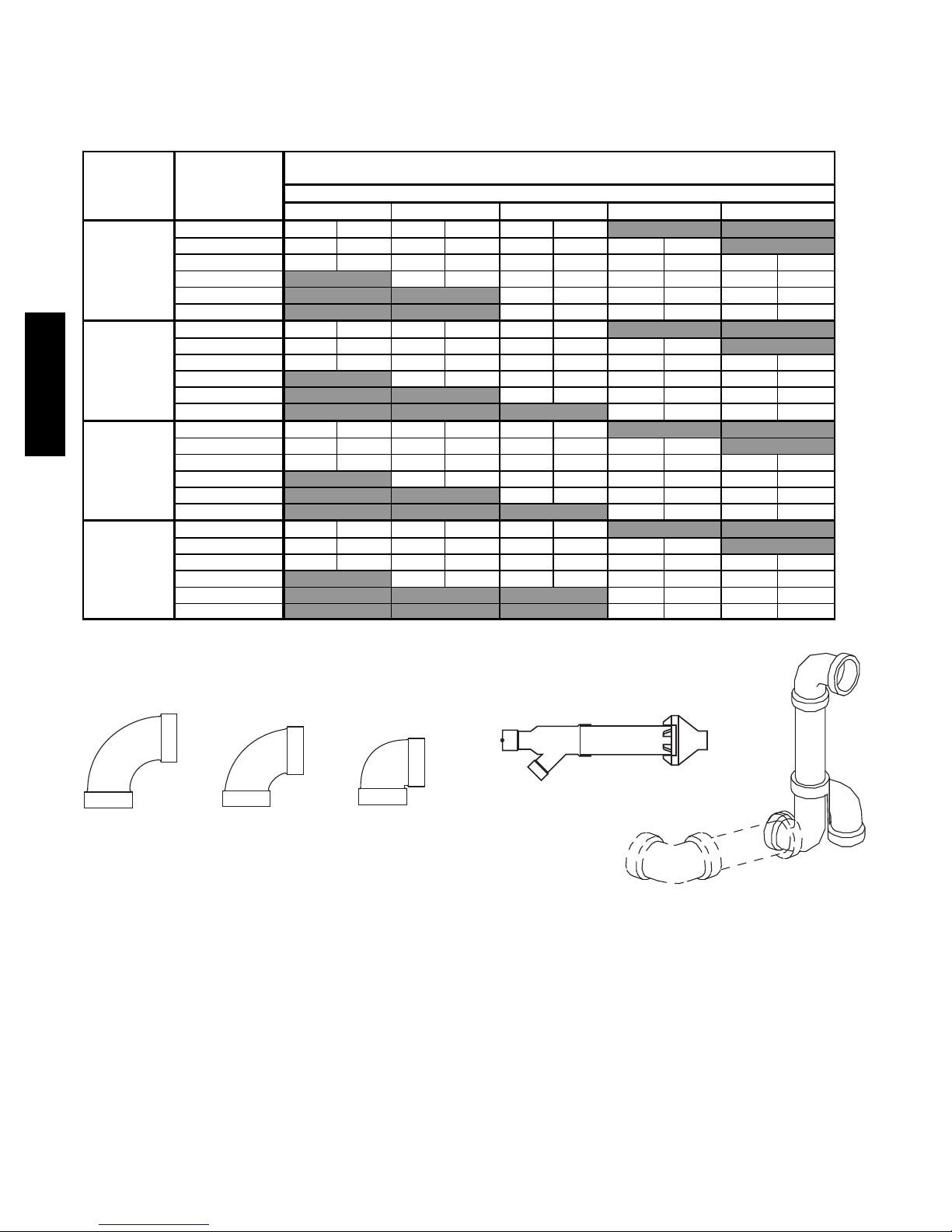

Venting Accessories

Freeze Protect Kit - Heat Patch for Drain Trap

CPVC to PVC Drain Adapter - 1/2-in. CPVC to 3/4-in. PVC

Horizontal Trap Grommet for Direct Vent Applications

Freeze Protect Kit - Heat Tape

Condensate Neutralizer Kit

Ductwork Adapter Accessories

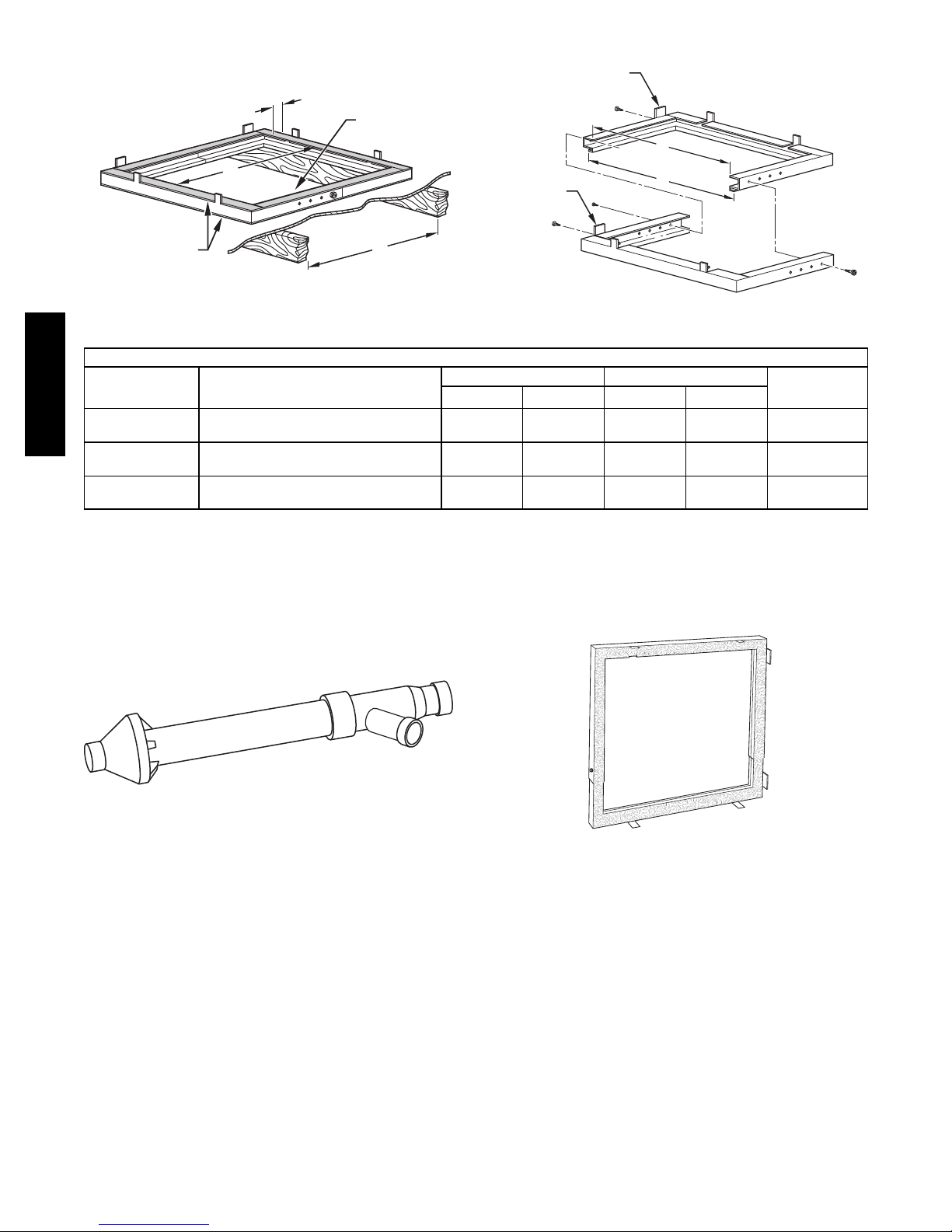

Furnace Base Kit for Combustible Floors

Coil Adapters Kits - Painted

Return Air Base (Upflow applications) - Painted

IAQ Device Duct Adapters (side return) - Painted

No Offset Single Offsett Double Offset

14.2-in. wide

17.5-in. wide 21-in. wide

24.5-in. wide

20-in IAQ to 16-in side return 24-in IAQ to 16-in side return

Gas Conversion Accessories

Gas Cnv Kit - Nat to LP; Two-stage Gas Cnv Kit - LP to Nat; Two-stage

Gas Orifice Kit

#42 Natural Gas #43 Natural Gas #44 Natural Gas #45 Natural Gas #46 Natural Gas #47 Natural Gas #48 Natural Gas

#54 LP #55 LP #56 LP

1.25 mm LP

1.30 mm LP

Control Accessories

Twinning Kit

Comfort Zone II: 8-Zone System Kit

Comfort Zone II: 4-Zone System Kit Comfort Zone II: 2-Zone System Kit

edge™ Programmable Relative Humidity Thermostat

edge™ Programmable Thermostat (HP or AC) / (AC only)

edge™ ExP® Card for Programmable Thermostats

edge™ Non-Programmable Relative Humidity Thermostat

edge™ Non-Programmable Thermostat (HP or AC) / (AC only)

IAQ Accessories

Filter Pack (6 pack) - Washable

EZ-Flex Filter

EZ-Flex Filter with End Caps

Cartridge Media Filter

Carrier Performance Air Purifier

Carrier Performance Air Purifier Replacement Filter

16 x 25 x 1 24 x 25 x 1

16-in. 20-in. 24-in. 16-in. 20-in. 24-in. 16-in. 20-in.

24.in. 16 x 25 20 x 25 16 x 25 20 x 25

Notes:

1. CSA requires that a termination kit be used. See latest PD for pipe and kit size selection. The qualified installer or agency must use only factory-authorized

kits when modif

2. Not for use with Concentric Vent Termination Kits.

these furnaces.

3. Last 2 digits of Part Number indicate filter size.

4. Last 2 digits of Part Number indicate orifice size.

5. Choose IAQ/filter assembly appropriate for the designed system airflow and static pressure. Use optional IAQ Device Duct Adapters as required.

6. Available from Replacement Components group.

7. Kit coming soon. Expected availability 2Q2012.

Part Number Used With Notes

KGAVT0701CVT See Venting Tables 1 KGAVT0801CVT See Venting Tables 1 KGAVT0101BRA See Venting Tables 1, 2 KGAVT0201BRA See Venting Tables 1, 2

Part Number Used With Notes

KGACK0101HCK All DV Horizontal -

Part Number Used With Notes

KGARP0301B14 14.2" Wi de Furnaces 7 KGARP0301B17 17.5" Wi de Furnaces 7 KGARP0301B21 21" Wi de Furnaces 7

KGARP0301B24 24.5" Wi de Furnaces 7 KGAAD0101MEC 20"x25" IAQ Devices 7 KGAAD0201MEC 24"x25" IAQ Devices 7

Part Number Used With Notes

KGANP51012SP All

KGAPN43012SP All

KGAHA0150N42 All 4, 6

KGAHA0250N43 All 4, 6

KGAHA0650P54 All 4, 6

KGAHA0850P56 All 4, 6

KGAHA5750125 All 4, 6

KGAHA5750130 All 4, 6

Part Number Used With Notes

KGATW0701HSI

-PT

060-14, 080-16, 080-20, 100-16,

100-20, 120-22

Part Number Used With Notes

EXPXXFIL0016 EZXCAB- -1016 3, 5 EXPXXFIL0020 EZXCAB- -1020 3, 5

EXPXXFIL0024 EZXCAB- -1024 3, 5 EXPXXUNV0016 EZXCAB--1016 3, 5 EXPXXUNV0020 EZXCAB--1020 3, 5 EXPXXUNV0024 EZXCAB--1024 3, 5

FILXXCAR0016 F ILCABXL1016 3, 5 FILXXCAR0020 F ILCABXL1020 3, 5 FILXXCAR0024 F ILCABXL2024 3, 5

PGAPXX1625 Up to 1600 CFM 5, 7

PGAPXX2025 Up to 2000 CFM 5, 7 PGAPAXXCAR1625 GAPAAXCC1625 5, 7 PGAPAXXCAR2025 GAPAAXCC2025 5, 7

1llACVB1010CDAGK

7llAPFC1020THAGK

-llAPFC1010THAGK

-llACVP0110DAAGK

6llA1000-809P

-llALLA1020BSAGK

-llALLA1010ADAGK

-llALLA1020ADAGK

-llALLA1030ADAGK

4llA44N0530AHAGK 4llA54N0540AHAGK 4llA64N0550AHAGK 4llA74N0551AHAGK 4llA84N0561AHAGK

4llA55P0570AHAG

-llAB-10TIK8CCENOZ

-llAB-10TIK4CCENOZ

-llAB-10TIK2CCENOZ

-llAA-10HRP-PT

-llA10CAP-PT/10PHP-PT

-llAPXE

-llA10HRN-PT

-llA10CAN-CT/10PHN-PT

5llARFU6031FWAGK 5llARFU6051FWAGK

59TP5A

Page 6

AIR DELIVERY -- CFM (BOTTOM RETURN WITH FILTER)

UNIT SIZE

RETURN-AIR

CONNECTION

SPEED

TAPS

2, 3

0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0

Gray 1120 1080 1030 980 925 875 820 760 690 630

Yellow 880 845 810 780 740 710 680 640 615 570

040 ---10 SIDE/BOTTOM

Blue 695 665 620 575 535 495 455 420 370 280

Orange 640 595 540 495 460 420 370 310 260 230

Red 570 525 475 425 385 330 255 220 -

Gray 1720 1670 1620 1565 1505 1440 1375 1295 1220 1135

Yellow 1325 1285 1255 1220 1185 1145 1115 1075 1040 1000

060 ---14 SIDE/BOTTOM

Blue 1010 970 925 875 835 785 745 690 660 620

Orange 1160 1115 1080 1045 1000 960 920 875 840 785

Red 785 715 655 595 530 490 435 385 340 285

Gray 1810 1770 1720 1665 1610 1540 1475 1400 1315 1235

Yellow 1535 1500 1475 1435 1405 1370 1340 1310 1245 1160

080 ---16 SIDE/BOTTOM

Blue 1380 1340 1305 1270 1240 1200 1165 1130 1090 1050

Orange 1180 1130 1095 1060 1015 975 935 895 850 800

Red 1100 1045 1010 970 920 885 845 790 745 690

Gray 2290 2225 2155 2090 2015 1930 1845 1750 1640 1515

Yellow 1810 1760 1725 1685 1640 1600 1555 1520 1480 1415

Blue 1385 1340 1285 1240 1200 1140 1090 1050 995 950

Orange 1560 1520 1475 1430 1385 1335 1295 1240 1200 1150

Red 1055 985 910 860 795 750 680 615 565 495

080 ---20

59TP5A

BOTTOM or

TWO-SIDES

4, 5

Gray 2340 2295 2250 2195 2110 2030 1935 1835 1725 1605

Yellow 1950 1900 1855 1800 1755 1705 1655 1605 1560 1485

Blue 1750 1700 1650 1605 1555 1500 1455 1395 1350 1300

Orange 1570 1520 1460 1410 1350 1300 1240 1195 1140 1095

100 ---20

BOTTOM or

TWO-SIDES

4, 5

Red 1350 1280 1225 1155 1105 1045 1000 950 895 830

Gray 2275 2230 2185 2130 2055 1950 1825 1710 1610 1500

120 ---22

NOTE:

1. A filter is required for each return--- air inlet. Airflow performance includes a 3/4--- in. (19 mm) washable filter media such as contained in a factory--- au thor ized accessory filter rack. See accessory list. To determine airflow performance without this filter, assume an additional 0.1 in. w.c. available external static pressure.

2. ADJUST THE BLOWER SPEED TAPS AS NECESSARY FOR THE PROPER AIR TEMPERATURE RISE FOR EACH INSTALLATION.

3. Shaded areas indicate that this airflow range is BELOW THE RANGE ALLOWED FOR HIGH ---STAGE HEATING OPERATION. THESE AIRFLOW RANGES

MAY ONLY BE USED FOR LOW ---STAGE HEAT OR COOLING.

4. Airflows over 1800 CFM require bottom return, two---side return, or bottom and side return. A minimum filter size of 20” x 25” (508 x 635 mm) is required.

5. For upflow applications, air entering from one side into both the side of the furnace and a return air base counts as a side and bottom return.

6. The “---” entry indicates an unstable operating condition.

BOTTOM or

TWO-SIDES

4, 5

Yellow 1875 1820 1770 1720 1660 1600 1550 1505 1450 1390

Blue 2170 2125 2075 2025 1975 1900 1790 1695 1590 1470

Orange

Red

1475 1420 1350 1280 1215 1165 1105 1050 995 930

1625 1565 1505 1445 1385 1325 1275 1225 1170 1130

EXTERNAL STATIC PRESSURE (IN.W.C.)

Page 7

MAXIMUM ALLOWABLE EXPOSED VENT LENGTHS INSULATION TABLE -- FT. / M

Two St a ge

Furnace Hi gh

Heat Input

40000*

Winter Design

Te m p ° F (° C )

20 (-10)

0 (-20)

-20 (-30)

-40 (-40)

Pipe

Length in

Ft. & M

Ft. 40.0 35.0 35.0 N/A N/A 50.0 104.0 94.0 N/A N/A 50.0 122.0 110.0 N/A N/A

M 12.2 10.7 10.7 N/A N/A 15.2 31.7 28.7 N/A N/A 15.2 37.2 33.5 N/A N/A

Ft. 19.0 14.0 12.0 N/A N/A 50.0 61.0 54.0 N/A N/A 50.0 74.0 65.0 N/A N/A

M 5.8 4.3 3.7 N/ A N/A 15.2 18.6 16.5 N/A N/A 15.2 22.6 19.8 N/A N/A

Ft. 9.0 3.0 1.0 N/A N/A 50.0 41.0 35.0 N/A N/A 50.0 51.0 43.0 N/A N/A

M 2.7 0.9 0.3 N/ A N/A 15.2 12.5 10.7 N/A N/A 15.2 15.5 13.1 N/A N/A

Ft. 3.0 0.0 0.0 N/A N/A 39.0 29.0 23.0 N/A N/A 48.0 37.0 30.0 N/A N/A

M 0.9 0.0 0.0 N/ A N/A 11.9 8.8 7.0 N/A N/A 14.6 11.3 9.1 N/A N/A

No Insulation 3/8-in. (9.5 mm) 1/2-in. (12.7 mm)

Pipe Diameter-inches (mm) Pipe Diameter-inches (mm) Pipe Diameter-inches (mm)

1.5 2.0 2.5 3.0 4.0 1.5 2.0 2.5 3.0 4.0 1.5 2.0 2.5 3.0 4.0

(38) (51) (64) (76) (102) (38) (51) (64) (76) (102) (38) (51) (64) (76) (102)

60000

80000

100000

20 (-10)

0 (-20)

-20 (-30)

-40 (-40)

20 (-10)

0 (-20)

-20 (-30)

-40 (-40)

20 (-10)

0 (-20)

-20 (-30)

-40 (-40)

Ft. 30.0 51.0 51.0 45.0 N/A 30.0 135.0 138.0 120.0 N/A 30.0 135.0 162.0 141.0 N/A

M 9.1 15.5 15.5 13.7 N/A 9.1 41.1 42.1 36.6 N/A 9.1 41.1 49.4 43.0 N/A

Ft. 30.0 24.0 23.0 16.0 N/A 30.0 93.0 82.0 69.0 N/A 30.0 111.0 98.0 83.0 N/A

M 9.1 7.3 7.0 4.9 N/A 9.1 28.3 25.0 21.0 N/A 9.1 33.8 29.9 25.3 N/A

Ft. 18.0 11.0 9.0 1.0 N/A 30.0 65.0 56.0 44.0 N/A 30.0 79.0 68.0 55.0 N/A

M 5.5 3.4 2.7 0.3 N/A 9.1 19.8 17.1 13.4 N/A 9.1 24.1 20.7 16.8 N/A

Ft. 10.0 3.0 0.0 0.0 N/A 30.0 48.0 40.0 29.0 N/A 30.0 59.0 50.0 38.0 N/A

M 3.0 0.9 0.0 0.0 N/A 9.1 14.6 12.2 8.8 N/A 9.1 18.0 15.2 11.6 N/A

Ft. 20.0 64.0 64.0 56.0 47.0 20.0 70.0 173.0 150.0 125.0 20.0 70.0 175.0 177.0 147.0

M 6.1 19.5 19.5 17.1 14.3 6.1 21.3 52.7 45.7 38.1 6.1 21.3 53.3 53.9 44.8

Ft. 20.0 32.0 30.0 22.0 11.0 20.0 70.0 104.0 87.0 67.0 20.0 70.0 124.0 104.0 82.0

M 6.1 9.8 9.1 6.7 3.4 6.1 21.3 31.7 26.5 20.4 6.1 21.3 37.8 31.7 25.0

Ft. 20.0 17.0 14.0 6.0 0.0 20.0 70.0 71.0 57.0 40.0 20.0 70.0 86.0 71.0 52.0

M 6.1 5.2 4.3 1.8 0.0 6.1 21.3 21.6 17.4 12.2 6.1 21.3 26.2 21.6 15.8

Ft. 15.0 7.0 5.0 0.0 0.0 20.0 61.0 52.0 40.0 24.0 20.0 70.0 64.0 50.0 33.0

M 4.6 2.1 1.5 0.0 0.0 6.1 18.6 15.8 12.2 7.3 6.1 21.3 19.5 15.2 10.1

Ft. N/A 25.0 79.0 70.0 59.0 N/A 25.0 110.0 186.0 155.0 N/A 25.0 110.0 219.0 182.0

M N/A 7.6 24.1 21.3 18.0 N/A 7.6 33.5 56.7 47.2 N/A 7.6 33.5 66.8 55.5

Ft. N/A 25.0 40.0 31.0 19.0 N/A 25.0 110.0 109.0 86.0 N/A 25.0 110.0 131.0 104.0

M N/A 7.6 12.2 9.4 5.8 N/A 7.6 33.5 33.2 26.2 N/A 7.6 33.5 39.9 31.7

Ft. N/A 23.0 21.0 13.0 0.0 N/A 25.0 91.0 74.0 54.0 N/A 25.0 110.0 90.0 68.0

M N/A 7.0 6.4 4.0 0.0 N/A 7.6 27.7 22.6 16.5 N/A 7.6 33.5 27.4 20.7

Ft. N/A 13.0 10.0 1.0 0.0 N/A 25.0 68.0 53.0 35.0 N/A 25.0 83.0 66.0 46.0

M N/A 4.0 3.0 0.3 0.0 N/A 7.6 20.7 16.2 10.7 N/A 7.6 25.3 20.1 14.0

59TP5A

20 (-10)

0 (-20)

120000

-20 (-30)

-40 (-40)

* Not all families have these models. * Pipe length (ft) specified for maximum pipe lengths located in unconditioned spaces. Pipes located in unconditioned space cannot exceed total allowable pipe

length calculated from Table 1 or 3.

† Insulation thickness based on R value of 3.5 per in.

Ft. N/A N/A 15.0 85.0 73.0 N/A N/A 15.0 100.0 190.0 N/A N/A 15.0 100.0 224.0

M N/A N/A 4.6 25.9 22.3 N/A N/A 4.6 30.5 57.9 N/A N/A 4.6 30.5 68.3

Ft. N/A N/A 15.0 41.0 29.0 N/A N/A 15.0 100.0 109.0 N/A N/A 15.0 100.0 131.0

M N/A N/A 4.6 12.5 8.8 N/A N/A 4.6 30.5 33.2 N/A N/A 4.6 30.5 39.9

Ft. N/A N/A 15.0 20.0 7.0 N/A N/A 15.0 94.0 71.0 N/A N/A 15.0 114.0 88.0

M N/A N/A 4.6 6.1 2.1 N/A N/A 4.6 28.7 21.6 N/A N/A 4.6 34.7 26.8

Ft. N/A N/A 15.0 7.0 0.0 N/A N/A 15.0 69.0 48.0 N/A N/A 15.0 85.0 62.0

M N/A N/A 4.6 2.1 0.0 N/A N/A 4.6 21.0 14.6 N/A N/A 4.6 25.9 18.9

Page 8

MAXIMUM EQUIVALENT VENT LENGTH -- FT. (M)

NOTE: Maximum Equivalent Vent Length (MEVL) includes standard and concentric vent termination and does NOT include elbows.

Use Table 2 - Deductions from Maximum Equivalent Vent Length to determine allowable vent length for each application.

Table 1 – Maximum Equivalent Vent Length -- Ft. (M)

0 to 4500 Ft. (0 to 1370 M) Altitude

Unit Size

Altitude

FT (M)

0 to 2000

(0 to 610)

2001 to 3000

(610 to 914)

59TP5A

3001 to 4000 (914 to 1219)

4001 to 4500

(1219 to

1370)

NOTES: See notes at end of venting tables.

See Table 3 for altitudes over 4500 ft. (1370 M)

BTU/Hr

40,000

60,000 30 (9.1) 135 (41.1) 235 (71.6) 265 (80.8) NA

80,000 20 (6.1) 70 (21.3) 175 (53.3) 235 (71.6) 265 (80.8) 100,000 NA 25 (7.6) 110 (33.5) 235 (71.6) 265 (80.8) 120,000 NA NA 15 (4.6) 100 (30.5) 250 (76.2)

140,000

40,000 45 (13.7) 198 (60.4) 232 (70.7) NA NA

60,000 27 (8.2) 127 (38.7) 222 (67.7) 250 (76.2) NA

80,000 17 (5.2) 64 (19.5) 165 (50.3) 222 (67.7) 249 (75.9) 100,000 NA 22 (6.7) 104 (31.7) 223 (68.0) 250 (76.2) 120,000 NA NA 11 (3.4) 93 (28.3) 237 (72.2)

140,000

40,000 39 (11.9) 184 (56.1) 214 (65.2) NA NA

60,000 23 (7.0) 119 (36.3) 210 (64.0) 235 (71.6) NA

80,000 15 (4.6) 59 (18.0) 155 (47.2) 210 (64.0) 232 (70.7) 100,000 NA 19 (5.8) 98 (29.9) 211 (64.3) 236 (71.9) 120,000 NA NA 8 (2.4) 86 (26.2) 224 (68.3)

140,000

40,000 36 (11.0) 177 (53.9) 205 (62.5) NA NA

60,000 21 (6.4) 115 (35.1) 204 (62.2) 228 (69.5) NA

80,000 14 (4.3) 56 (17.1) 150 (45.7) 202 (61.6) 224 (68.3) 100,000 NA 17 (5.2) 94 (28.7) 205 (62.5) 229 (69.8) 120,000 NA NA NA 83 (25.3) 217 (66.1)

140,000

50 (15.2) 210 (64.0) 250 (76.2) NA

NA NA 10 (3.0) 90 (27.4) 210 (64.0)

NA NA NA 80 (24.4) 185 (56.4)

NA NA NA 79 (24.1) 158 (48.2)

NA NA NA 69 (21.0) 146 (44.5)

DIRECT VENT (2-PIPE) AND NON-DIRECT VENT (1-PIPE)

Vent Pipe Diameter (in.)

1-1/2 2 2-1/2 3 4

Long

ELBOW CONFIGURATIONS VENT TERMINAL CONFIGURATIONS

Concentric

Medium

Mitered

Standard

A11580

Page 9

MAXIMUM EQUIVALENT VENT LENGTH -- FT. (M) (CONTINUED)

Table 2 – Deductionsfrom Maximum Equivalent Vent Length -- Ft. (M)

Pipe Diameter (in): 1-1/2 2 2-1/2 3 4

Mitered 90º Elbow 8 (2.4) 8 (2.4) 8 (2.4) 8 (2.4) 8 (2.4)

Medium Radius 90º Elbow 5 (1.5) 5 (1.5) 5 (1.5) 5 (1.5) 5 (1.5)

Long Radius 90º Elbow 3 (0.9) 3 (0.9) 3 (0.9) 3 (0.9) 3 (0.9)

Mitered 45º Elbow 4 (1.2) 4 (1.2) 4 (1.2) 4 (1.2) 4 (1.2)

Medium Radius 45º Elbow 2.5 (0.8) 2.5 (0.8) 2.5 (0.8) 2.5 (0.8) 2.5 (0.8)

Long Radius 45º Elbow 1.5 (0.5) 1.5 (0.5) 1.5 (0.5) 1.5 (0.5) 1.5 (0.5)

Tee 16 (4.9) 16 (4.9) 16 (4.9) 16 (4.9) 16 (4.9)

Concentric Vent Termination NA 0 (0.0) NA 0 (0.0) NA

Standard Vent Termination 0 (0.0) 0 (0.0) 0 (0.0) 0 (0.0) 0 (0.0)

Venting System Length Calculations

The maximum length for each vent pipe (inlet or exhaust) equals the Maximum Equivalent Vent Length (MEVL) from Table 1 or Table 3 minus the number of elbows multiplied by the deduction for each elbow in Table 2.

Standard vent terminations and concentric vent terminations count for zero deductions. See Vent Manufacturers’ data for equivalent lengths of flexible vent piping. DO NOT ASSUME that one foot of flexible vent pipe is equivalent to one foot of standard PVC vent pipe.

Example

A direct--vent 60,000 Btuh furnace installed at 2100 ft. (640 M) with 2--in.(51 mm) vent piping. Venting system includes, FOR EACH PIPE, (3) 90_ long radius elbows, (2) 45_ long radius elbows and a concentric vent kit.

Maximum Equivalent Vent Length = 127 ft. (From Table 1)

Deduct (3) 90 long radius 3 x 3 ft. = - 9 ft. (From Table 2) Deduct (2) 45 long radius 2 x 1.5 ft. = - 3 ft. (From Table 2) No deduction for Concentric Vent Kit 0 ft. = - 0 ft. (From Table 2)

Maximum Vent Length = 115 ft. For EACH vent or inlet pipe

59TP5A

Page 10

MAXIMUM EQUIVALENT VENT LENGTH -- FT. (M) (CONTINUED)

NOTE: Maximum Equivalent Vent Length (MEVL) includes standard and concentric vent termination and does NOT include elbows.

Use Table 2 - Deductions from Maximum Equivalent Vent Length to determine allowable vent length for each application.

Table 3 – Maximum Equivalent Vent Length -- Ft. (M)

4501 to 10,000 Ft. (0 to 1370 M) Altitude

Altitude

FT (M)

Unit Size

1-1/2 2 2-1/2 3 4

40,000 33 (10.1) 171 (52.1) 196 (59.7)

4501 to 5000

(1370 to

1524)

60,000 20 (6.1) 111 (33.8) 198 (60.4) 221 (67.4) NA

80,000 13 (4.0) 54 (16.5) 146 (44.5) 195 (59.4) 216 (65.8) 100,000 NA 16 (4.9) 91 (27.7) 200 (61.0) 222 (67.7) 120,000 NA NA NA 80 (24.4) 211 (64.3)

140,000

NA NA NA 60 (18.3) 134 (40.8)

40,000 27 (8.2) 158 (48.2) 179 (54.6) NA NA

5001 to 6000

(1524 to

1829)

59TP5A

6001 to 7000

(1829 to

2134)

60,000 16 (4.9) 103 (31.4) 186 (56.7) 207 (63.1) NA

80,000 11 (3.4) 49 (14.9) 137 (41.8) 183 (55.8) 200 (61.0) 100,000 NA 12 (3.7) 85 (25.9) 188 (57.3) 208 (63.4) 120,000 NA NA NA 74 (22.6) 199 (60.7)

140,000

NA NA NA 50 (15.2) 109 (33.2) 40,000 21 (6.4) 145 (44.2) 162 (49.4) NA NA 60,000 13 (4.0) 96 (29.3) 174 (53.0) 194 (59.1) NA 80,000 NA 44 (13.4) 120 (36.6) 171 (52.1) 185 (56.4)

100,000 NA 10 (3.0) 79 (24.1) 178 (54.3) 195 (59.4) 120,000 NA NA NA 68 (20.7) 187 (57.0)

140,000

NA NA NA 41 (12.5) 87 (26.5) 40,000 15 (4.6) 133 (40.5) 146 (44.5) NA NA

7001 to 8000

(2134 to

2438)

60,000 10 (3.0) 89 (27.1) 163 (49.7) 181 (55.2) NA 80,000 NA 40 (12.2) 120 (36.6) 159 (48.5) 170 (51.8)

100,000 NA NA 73 (22.3) 167 (50.9) 182 (55.5) 120,000 NA NA NA 62 (18.9) 175 (53.3)

140,000

NA NA NA 32 (9.8) 63 (19.2) 40,000 10 (3.0) 121 (36.9) 130 (39.6) NA NA

8001 to 9000

(2438 to

2743)

60,000 7 (2.1) 82 (25.0) 152 (46.3) 168 (51.2) NA 80,000 NA 35 (10.7) 111 (33.8) 148 (45.1) 156 (47.5)

100,000 NA NA 67 (20.4) 157 (47.9) 170 (51.8) 120,000 NA NA NA 56 (17.1) 164 (50.0)

140,000

NA NA NA 23 (7.0) 42 (12.8) 40,000 5 (1.5) 110 (33.5) 115 (35.1) NA NA

9001 to

10,000

(2743 to

3048)

NOTES:

1. Use only the vent pipe sizes shown for each furnace. It is NOT necessary to choose the smallest diameter pipe possible for venting.

2. NA --- Not allowed. Pressure switch will not cl ose, or flame disturbance may result.

3. Total equivalent vent lengths under 10’ for 40,000 BTU H furnaces from 0 to 2000 ft. (0 to 610 M) above sea level require use of an outlet choke plate .

Failure to use an outlet choke when required may result in flame disturbance or flame sense lockout.

4. Not all furnace families include 140,000 BTUH input models.

5. Vent sizing for Canadian installations over 4500 ft (1370 M) above sea level are subject to acceptance by local authorities having jurisdiction.

6. Size both the combustion air and vent pipe independently, then use the larger size for both pipes.

7. Assume the two 45_ elbows equal one 90_ elbow. Wide radius elbows are desirable and may be required in some cases.

8. Elbow and pipe sections within the furnace casing and at the vent termination should not be included in vent length or elbow count.

9. The minimum pipe length is 5 ft. (1.5 M) linear feet (meter s) for all applications.

10. Use 3 --- in. (76 mm) diameter vent termination kit for installations requiring 4 ---in. (102 mm) diameter pipe.

60,000 NA 76 (23.2) 142 (43.3) 156 (47.5) NA 80,000 NA 31 (9.4) 103 (31.4) 137 (41.8) 142 (43.3)

100,000 NA NA 62 (18.9) 147 (44.8) 157 (47.9) 120,000 NA NA NA 51 (15.5) 153 (46.6)

140,000

NA NA NA 16 (4.9) 20 (6.1)

DIRECT VENT (2-PIPE) AND SINGLE-PIPE

Vent Pipe Diameter (in.)

Page 11

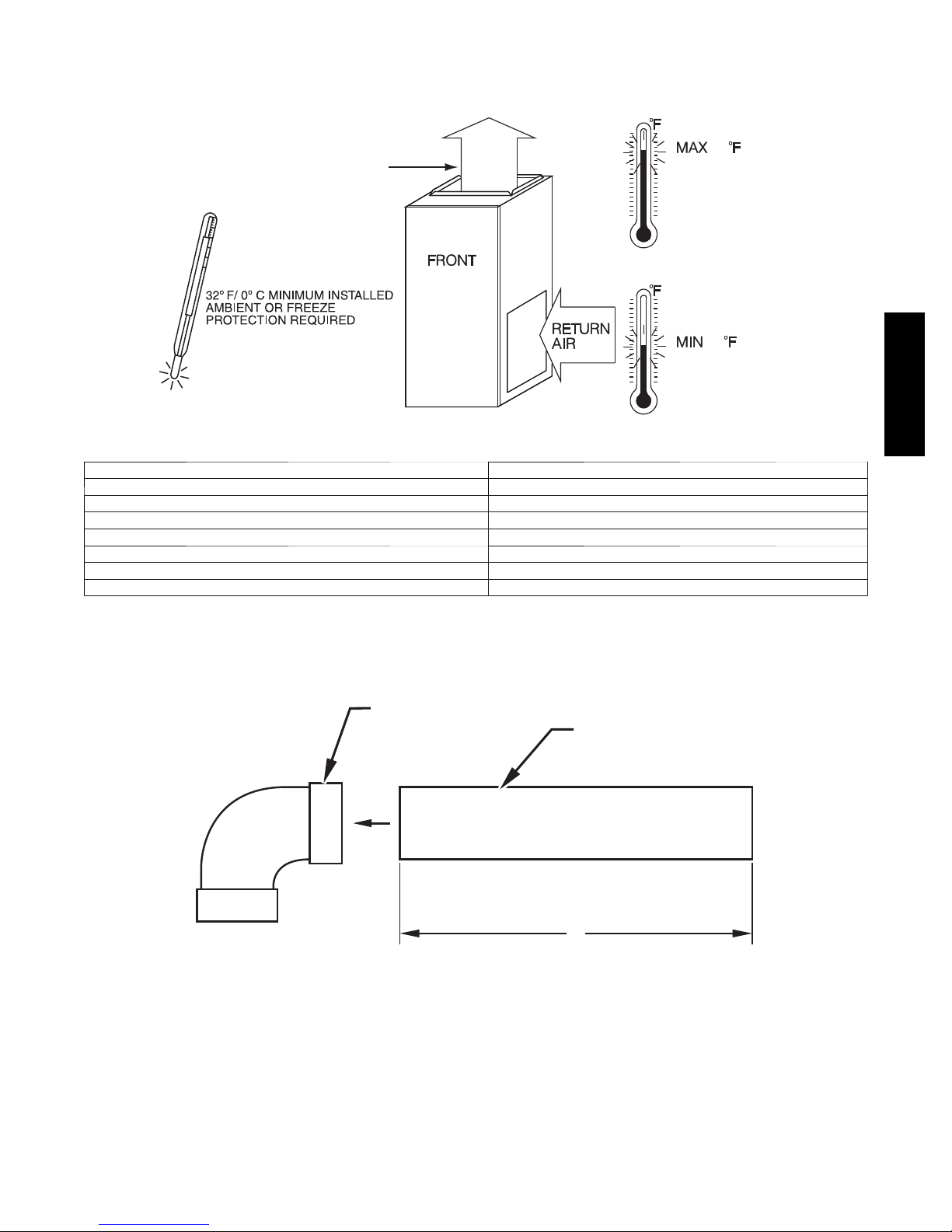

RETURN AIR TEMPERATURE

This furnace is designed for continuous return--air minimum temperature of 60_F(15_C) db or intermittent operation down to 55_F(13_C) db such as when used with a night setback thermometer. Return--air temperature must not exceed 80_F(27_C) db. Failure to follow these return air limits may affect reliability of heat exchangers, motors and controls.

80 / 27˚C

SUPPLY AIR

/ 16˚C

A10490

MINIMUM CLEARANCES TO COMBUSTIBLE MATERIALS

POSITION CLEARANCE

Rear 0(0mm)

Front (Combustion air openings in furnace and in structure) 1in.(25mm)

Required for service *24 in. (610 mm)

All Sides of Supply Plenum 1in.(25mm)

Sides 0(0mm)

Ve n t 0(0mm)

* Recommended

Top of Furnace 1in. (25mm)

59TP5A

COMBUSTION--AIR PIPE FOR NON--DIRECT (1--PIPE) VENT APPLICATION

FIELD-SUPPLIED 2-IN. (51 mm) DIA. TIGHT RADIUS PVC 90° ELBOW

FIELD-SUPPLIED 2-IN. (51 mm) DIA. PVC PIPE

12” (300 mm) Minimum

A11487

Page 12

DOWNFLOW SUBBASE

LOCATING

TAB

11/

4-IN. TYP

PLENUM OPENING

LOCATING

TAB

FACTORY-SUPPLIED

FIELD-INSTALLED

INSULATION

A97427

Assembled

DIMENSIONS (IN. / MM)

FURNACE

CASING WIDTH

59TP5A

17---1/2 (444.5)

21 (533.4)

24---1/2 (622.3)

*The plenum should be constructed 1/4---in. (6 mm) smaller in width and depth than the plenum dimensions shown above.

FURNACE IN DOWNFLOW

APPLICATION

Furnace with or without Cased Coil

Assembly or Coil Box

Furnace with or without Cased Coil

Assembly or Coil Box

Furnace with or without Cased Coil

Assembly or Coil Box

PLENUM OPENING* FLOOR OPENING

A B C D

15---1/8

(384.2)

18---5/8

(396.4)

22---1/8

(562.0)

19 (482.6)

16---3/4

(425.5)

20---1/4

(514.4)

23---3/4

(603.3)

Disassembled

20---3/8

(517.5)

20---3/8

(517.5)

20---3/8

(517.5)

A88207

HOLE NO. FOR

WIDTH

ADJUSTMENT

Concentric Vent Kit

A concentric vent kit allows vent and combustion--air pipes to terminate through a single exit in a roof or side wall. One pipe runs inside the other allowing venting through the inner pipe and combustion air to be drawn in through the outer pipe.

A93086

Downflow Subbase

A88202

One base fits all furnace sizes. The base is designed to be installed between the furnace and a combustible floor when no coil box is used or when a coil box other than a Carrier cased coil is used. It is CSA design certified for use with Carrier branded furnaces when installed in downflow applications.

Page 13

23-5/8"

(600mm)

23-3/8”

(594mm)

MEDIA FILTER CABINET

25-5/8"

(651mm)

24-1/4”

(616mm)

Opening with Flanges Bent

23-1/8”

(588mm)

Opening

B Opening

Furnace Side

23-3/4”

(603mm)

Centerline Screw Slots

BLOWER

DOOR

SWITCH

BLK

WHT

GND

115-VOLT FIELD-

SUPPLIED

FUSED

DISCONNECT

BLK

WHT

JUNCTION BOX

FIVE

WIRE

THREE-WIRE

HEATING-

ONLY

FURNACE

(146mm)

Media Filter

Cabinet

16" (406mm)

20" (508mm) 24" (610mm)

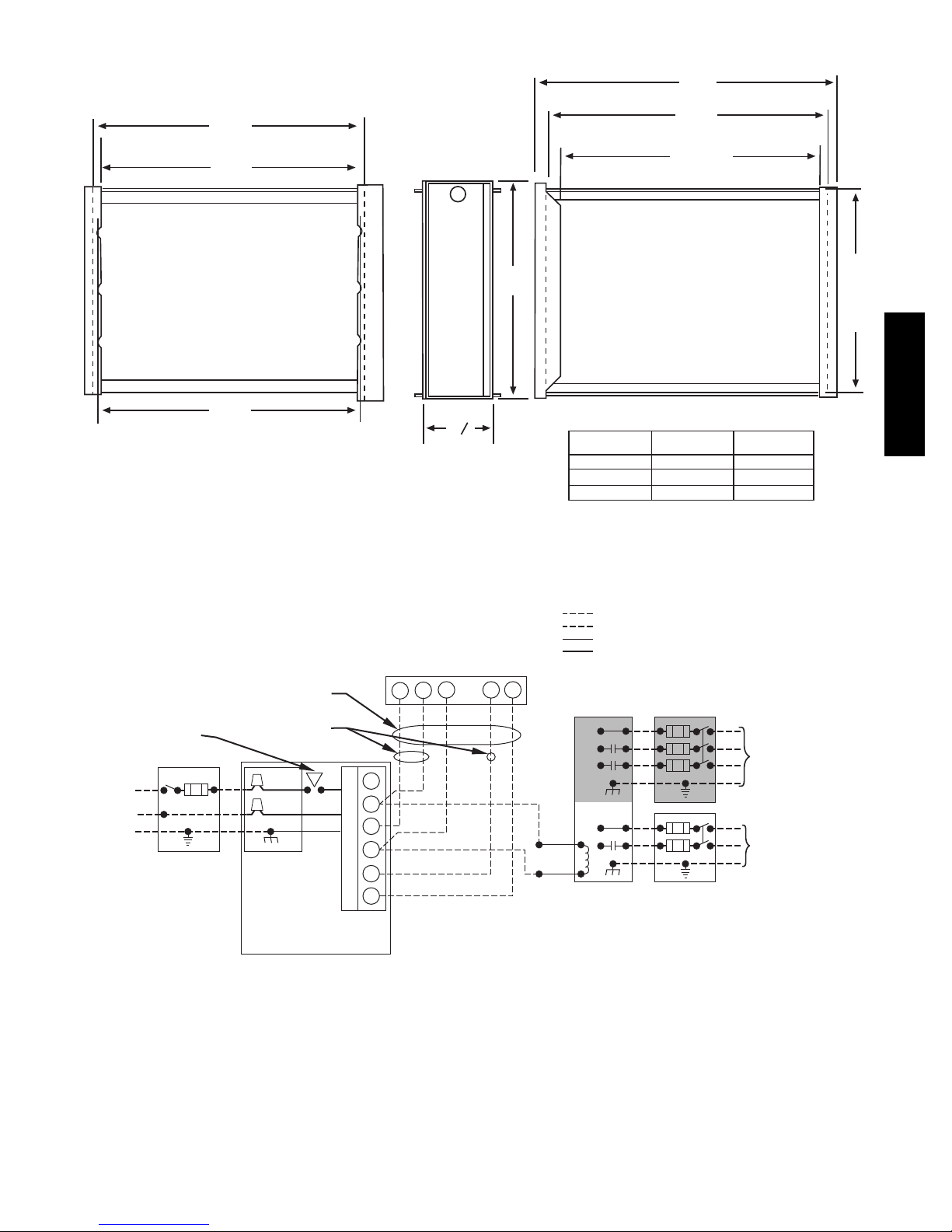

TYPICAL WIRING SCHEMATIC

COM

O N

W/W1

Y/Y2

R O

24-VOLT

TERMINAL

BLOCK

NOTE 2

WCY RG

NOTE 1

NOTES: 1.

Connect Y/Y2-terminal as shown for proper operation. Some thermostats require a "C" terminal connection as shown.

2. If any of the original wire, as supplied, must be replaced, use

3. same type or equivalent wire.

1-STAGE THERMOSTAT TERMINALS

CONDENSING

UNIT

Duct Side

A 17" (432mm) 21" (533mm) 25" (635mm)

B 16" (406mm) 20" (508mm)

24" (610mm)

FIELD 24-VOLT WIRING FIELD 115-, 208/230-, 460-VOLT WIRING FACTORY 24-VOLT WIRING FACTORY 115-VOLT WIRING

FIELD-SUPPLIED

FUSED DISCONNECT

208/230- OR 460-VOLT THREE PHASE

208/230VOLT SINGLE

GND

PHASE

59TP5A

A11456

A11401

Page 14

59TP5A

DIMENSIONAL DRAWING

A11590

Page 15

GUIDE SPECIFICATIONS

General

System Description

Furnish a ______________________ 4--way multipoise two--stage gas--fired condensing furnace for use with natural gas or propane (factory-- authorized conversion kit required for propane); furnish cold air return plenum; furnish external media cabinet for use with accessory media filter or standard filter.

Quality Assurance

Unit will be designed, tested and constructed to the current ANSI Z

21.47/CSA 2.3 design standard for gas--fired central furnaces. Unit will be third party certified by CSA to the current ANSI Z

21.47/CSA 2.3 design standard for gas--fired central furnaces. Unit will carry the CSA Blue StarR and Blue FlameR labels. Unit efficiency testing will be performed per the current DOE test procedure as listed in the Federal Register.

Unit will be certified for capacity and efficiency and listed in the latest AHRI Consumer’s Directory of Certified Efficiency Ratings.

Unit will carry the current Federal Trade Commission Energy Guide efficiency label.

Delivery, Storage, and Handling

Unit will be shipped as single package only and is stored and handled per unit manufacturer’s recommendations.

Warranty (for inclusion by specifying engineer)

U.S. and Canada only. Warranty certificate available upon request.

Equipment

Blower Wheel and ECM Blower Motor Galvanized blower wheel shall be centrifugal type, statically and

dynamically balanced. Blower motor of ECM type shall be permanently lubricated with sealed ball bearings, of _______hp, and have multiple speeds from 600--1200 RPM operating only when 24--VAC motor inputs are provided. Blower motor shall be direct drive and soft mounted to the blower scroll to reduce vibration transmission.

Filters Furnace shall have reusable--type filters. Filter shall be ______ in.

(mm) X ________ in. (mm). An accessory highly efficient Media Filter is available as an option. _____________ Media Filter.

Casing Casing shall be of .030 in. thickness minimum, pre--painted

galvanized steel. Draft Inducer Draft inducer motor shall be two--speed design.

Motor

Primary Heat Primary heat exchangers shall be 3--Pass corrosion--resistant

aluminized steel of fold--and--crimp sectional design and applied operating under negative pressure.

Secondary Heat Secondary heat exchangers shall be of a stainless steel

flow--through of fin--and--tube design and applied operating under negative pressure.

Controls Controls shall include a micro--processor--based integrated

electronic control board with at least 16 service troubleshooting codes displayed via diagnostic flashing LED light on the control, a self--test feature that checks all major functions of the furnace, and a replaceable automotive--type circuit protection fuse. Multiple operational settings available including low heat, high heat, low cooling, high cooling and continuous fan. Continuous fan speed may be adjusted from the thermostat. Cooling airflow will be selectable between 325 and 400 CFM per ton of air conditioning. Features will also include temporary reduced airflow in the cooling mode for improved dehumidification when a TP--PRH edgeR is selected as the thermostat.

Exchangers

Operating Characteristics

Heating capacity shall be _________________ Btuh input; ______________ Btuh output capacity.

Fuel Gas Efficiency shall be __________ AFUE. Air delivery shall be ________________ cfm minimum at 0.50 in.

W.C. external static pressure. Dimensions shall be: depth_________in. (mm); width

__________in. (mm); height___________in. (mm) (casing only). Height shall be _________in. (mm) with A/C coil and _________________in. (mm) overall with plenum.

Electrical Requirements

Electrical supply shall be 115 volts, 60 Hz, single--phase (nominal). Minimum wire size shall be ________AWG; maximum fuse size of HACR--type designated circuit breaker shall be _________ amps.

Special Features

Refer to section of the product data identifying accessories and descriptions for specific features and available enhancements.

59TP5A

Page 16

59TP5A

Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.

Catalog No: 59TP5A---03PD

Replaces: 59TP5A--- 02PD
