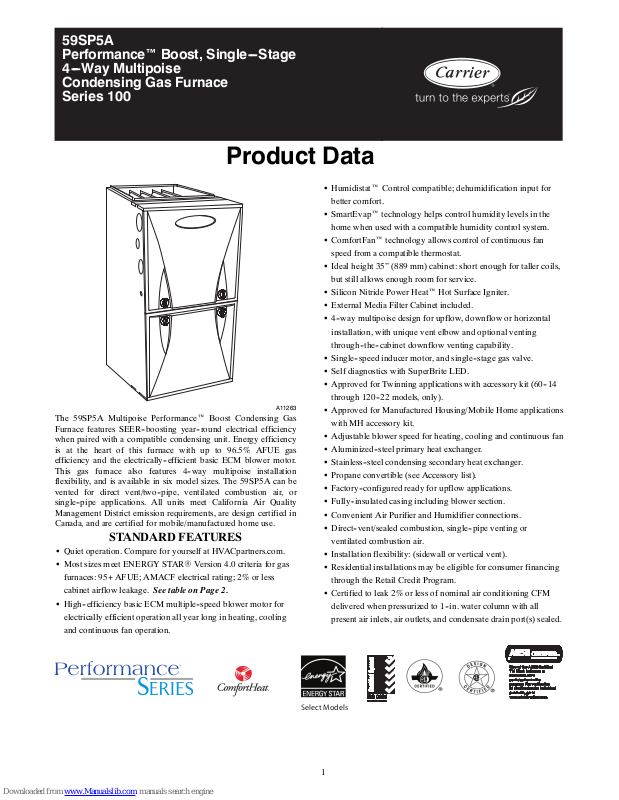

59SP5A
Performance™ Boost, Single---Stage
4 --- W a y M u l t i p o i s e
Condensing Gas Furnace
Series 100
Product Data
A11263
The 59SP5A Multipoise Performance Boost Condensing Gas
Furnace features SEER--boosting year--round electrical efficiency
when paired with a compatible condensing unit. Energy efficiency
is at the heart of this furnace with up to 96.5% AFUE gas
efficiency and the electrically--efficient basic ECM blower motor.
This gas furnace also features 4--way multipoise installation
flexibility, and is available in six model sizes. The 59SP5A can be
vented for direct vent/two--pipe, ventilated combustion air, or
single--pipe applications. All units meet California Air Quality
Management District emission requirements, are design certified in
Canada, and are certified for mobile/manufactured home use.
STANDARD FEATURES
S Quiet operation. Compare for yourself at HVACpartners.com.
S Most sizes meet ENERGY STARR Version 4.0 criteria for gas
furnaces: 95+ AFUE; AMACF electrical rating; 2% or less
cabinet airflow leakage. See table on Page 2.
S High--efficiency basic ECM multiple--speed blower motor for
electrically efficient operation all year long in heating, cooling
and continuous fan operation.
S Humidistat Control compatible; dehumidification input for
better comfort.
S SmartEvap technology helps control humidity levels in the
home when used with a compatible humidity control system.
S ComfortFan technology allows control of continuousfan
speed from a compatible thermostat.
S Ideal height 35” (889 mm) cabinet: short enough for taller coils,
but still allows enough room for service.
S Silicon Nitride Power Heat Hot Surface Igniter.
S External Media Filter Cabinet included.
S 4--way multipoise design for upflow, downflow or horizontal
installation, with unique vent elbow and optional venting
through--the--cabinet downflow venting capability.
S Single--speed inducer motor, and single--stage gas valve.
S Self diagnostics with SuperBrite LED.
S Approved for Twinning applications with accessory kit (60--14
through 120--22 models, only).
S Approved for Manufactured Housing/Mobile Home applications
with MH accessory kit.
S Adjustable blower speed for heating, cooling and continuous fan
S Aluminized--steel primary heat exchanger.
S Stainless--steel condensing secondary heat exchanger.
S Propane convertible (see Accessory list).
S Factory--configured ready for upflow applications.
S Fully--insulated casing including blower section.
S Convenient Air Purifier and Humidifier connections.
S Direct--vent/sealed combustion, single--pipe venting or
ventilated combustion air.
S Installation flexibility: (sidewall or vertical vent).
S Residential installations may be eligible for consumer financing
through the Retail Credit Program.
S Certified to leak 2% or less of nominal air conditioning CFM
delivered when pressurized to 1--in. water column with all
present air inlets, air outlets, and condensate drain port(s) sealed.
TM
Select Models
1
Page 2
CASING
SAP ORDERING NO.
59SP5A040E14--10 35 29.5 14.2 39,000 96.5% 695 0.1 925 1/2 - 5 16
59SP5A040E17--12 35 29.5 17.5 39,000 96.5% 705 0.1 1085 1/2 - 5 16
59SP5A060E14--12 35 29.5 14.2 58,000 95.5% 940 0.12 1090 1/2 - 5 16
59SP5A060E17--14 35 29.5 17.5 58,000 96.5% 1000 0.12 1505 3/4 - 5 16
59SP5A080E17--16 35 29.5 17.5 78,000 96.5% 1360 0.15 1610 3/4 - 5 16
59SP5A080E21--20 35 29.5 21.0 78,000 96.5% 1360 0.15 2015 1-5 20
59SP5A100E21--20 35 29.5 21.0 97,000 96.3% - 1700 0.2 2110 1-5 20
59SP5A120E24--22 35 29.5 24.0 117,000 96.5% - 2125 0.2 2055 1-5 24
† Capacity in accordance with DOE test procedures. Ratings are position dependent. See rating plate.
‡ Heating CFM at factory default blower motor heating tap settings.
ESP --- External Static Pressure
Meets ENERGY STAR criteria
DIMENSIONS (IN.)
H D W BTUH AFUE
RATED HEATING OUTPUT† HEATING AIRFLOW
ENERGY
STAR
HEATING
CFM
HEATING ESP
(in. W.C.)
COOLING CFM
@0.5ESP
(in. W.C.)
MOTOR
HP
SPEED
FEATURES AND BENEFITS
MEDIA
CABINET
SUPPLIED
(IN.)
SmartEvapt Technology — When paired with a compatible
thermostat, this dehumidification feature overrides the cooling
blower off-delay when there is a call for dehumidification. By
deactivating the blower off-delay, SmartEvap technology prevents
condensate that remains on the coil after a dehumidification cycle
from re-humidifying throughout the home. This results in reduced
59SP5A
humidity and a more comfortable indoor environment for the
homeowner.
Unlike competitive systems, SmartEvap technology only overrides
the cooling blower off--delay when humidity control is needed.
Once humidity is back in control, SmartEvap re-enables the
energy-saving cooling blower off-delay.
ComfortFant Technology —Sometimes the constant fan setting
on a standard furnace system can actually reduce homeowner
comfort by providing too much or too little air! Comfort Fan
technology improves comfort all year long by allowing the
homeowner to select the continuous fan speed of their choice using
a compatible thermostat.
HYBRID HEATR Dual Fuel System — This system can provide
more control over your monthly energy bills by automatically
selecting the most economical method of heating. With HYBRID
HEAT components, our system automatically switches between the
gas furnace and the electric heat pump as outside temperatures
change to maintain greater efficiency and comfort than with any
traditional single-source heating system. The heat pump also
delivers high-efficiency cooling in the summer.
Power Heatt Igniter — Carrier’s unique SiN igniter is not only
physically robust but it is also electrically robust. It is capable of
running at line voltage and does not require complex voltage
regulators as do other brands. This unique feature further enhances
the gas furnace reliability and continues Carrier’s tradition of
technology leadership and innovation in providing a reliable and
durable product.
Performancet ECM Blower Motor — This basic ECM, or
electronically commutated motor, can provide an efficiency
enhancement for select Carrier air conditioner or heat pump
systems. It uses less electrical power than its PSC counterpart and
also has a wider range of speeds
Reliable Heat Exchanger Design — The aluminized steel, clam
shell primary heat exchanger was re--engineered to achieve greater
efficiency out of a smaller size. The first two passes of the heat
exchanger are based on the current 80% product, a design with
more than ten years of field-proven performance and success.
These innovations, paired with the continuation of a crimped,
no-weld seam create an efficient, robust design for this essential
component.
The condensing heat exchanger, a stainless steel fin and tube
design, is positioned in the furnace to extract additional heat.
Stainless steel coupling box componentry between heat exchangers
has exceptional corrosion resistance in both natural gas and
propane applications.
Media Filter Cabinet — Enhanced indoor air quality in the home
is made easier with our media filter cabinet—a standard accessory
on all deluxe furnaces. When installed as a part of the system, this
cabinet allows for easy and convenient addition of a Carrier high
efficiency air filter.
4-Way Multipoise Design — One model for all applications –
there is no need to stock special downflow or horizontal models
when one unit will do it all. The new heat exchanger design allows
these units to achieve the certified AFUE in all positions.
Direct or Single-pipe Venting, or Optional Ventilated
Combustion Air — This furnace can be installed as a 2-pipe
(Direct Vent) furnace, in an optional ventilated combustion air
application, or in single-pipe, non-direct vent applications. This
provides added flexibility to meet diverse installation needs.
Sealed Combustion System — This furnace brings in combustion
air from outside the furnace, which results in especially quiet
operation. By sealing the entire combustion vestibule, the entire
furnace can be made quieter, not just the burners.
Insulated Casing — Foil-faced insulation in the heat exchanger
section of the casing minimizes heat loss. The acoustical insulation
in the blower compartment reduces air and motor noise for quiet
operation.
Monoport Burners — The burners are specially designed and
finely tuned for smooth, quiet combustion and economical
operation.
Bottom Closure — Factory-installed for side return; easily
removable for bottom return. The multi-use bottom closure can
also serve for roll-out protection in horizontal applications, and act
as the bottom closure for the optional return air base accessory.
Blower Access Panel Switch — Automatically shuts off 115-v
power to furnace whenever blower access panel is opened.
Quality Registration — Our furnaces are engineered and
manufactured under an ISO 9001 registered quality system.
Certifications — This furnace is CSA (AGA and CGA) design
certified for use with natural and propane gases. The furnace is
factory--shipped for use with natural gas. A CSA listed gas
conversion kit is required to convert furnace for use with propane
gas. The efficiency is AHRI efficiency rating certified. This furnace
meets California Air Quality Management District emission
requirements.
2
Page 3
SPECIFICATIONS
Heating Capacity and Efficiency 040-10 040-12 060-12 060-14 080-16 080-20 100-20 120-22
Input High Heat (BTUH) 40,000 40,000 60,000 60,000 80,000 80,000 100,000 120,000
Output High Heat (BTUH) 39,000 39,000 58,000 58,000 78,000 78,000 97,000 117,000
Certified Temperature
Rise Range ºF (ºC)
Airflow Capacity a nd Blower Data 040-10 040-12 060-12 060-14 080-16 080-20 100-20 120-22
Rated External Static
Pressure (in. w.c.)
Airflow Delivery
@RatedESP(CFM)
Cooling C ap acity (tons)
@ 400, 350 CF M/ton
Direct-Drive Motor Type Electronically Commutated Motor (ECM)
Direct-Drive Motor HP 1/2 1/2 1/2 3/4 3/4 1 1 1
Motor Full Load Amps 6.8 6.8 6.8 8.4 8.4 10.9 10.9 10.9
RPM Range 600 - 1200
Speed Selections 5
Blower Wheel Dia x Width in. 11 x 7 11 x 8 11 x 7 11 x 8 11 x 8 11 x 10 11 x 10 11 x 11
Air Filtration System
Filter Used for Certified Watt Data KGAWF1506UFR
Electrical Data 040-10 040-12 060-12 060-14 080-16 080-20 100-20 120-22
Input Voltage Volts-Hertz-Phase 115-60-1
Operating Voltage Range Min-Max 104-127
Maximum Input Amps Amp s 7.4 7.4 7.5 9.1 9.1 11.6 11.7 11.7
Unit Ampacity Amps 10.3 10.3 10.4 12.4 12.4 15.5 15.6 15.6
Minimum Wire Size AWG 14 14 14 14 14 12 12 12
Maximum Wire Length
@ Minimum Wire Size
Maximum Fuse/Ckt Bkr
(Time-Delay Type Recommended)
Transfomer Capacity (24vac output) 40 VA
External Control Power
Available
High Heat
Heating 0.10 0.10 0.12 0.12 0.15 0.15 0.20 0.20
Cooling 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5
High Heat 695 705 940 1000 1360 1360 1700 2125
Cooling 925 1085 1090 1505 1610 2015 2110 2055
CFM/ton 2 2.5 2.5 3.5 4 5 5 5
CFM/ton 2.5 3 3 4 4.5 5.5 6 6
Heating 27.9 VA
Cooling 34.6 VA
40 - 70
(22 - 39)
Feet 36 36 35 30 30 37 36 36
(M) (11.0) (11.0) (10.7) (9.1) (9.1) (11.3) (11.0) (11.0)
Amps 15 15 15 15 15 20 20 20
40 - 70
(22 - 39)
45 - 75
(25 - 42)
40 - 70
(22 - 39)
Factory Supplied Media Cabinet
FieldSuppliedFilter
40 - 70
(22 - 39)
40 - 70
(22 - 39)
40 - 70
(22 - 39)
40 - 70
(22 - 39)
59SP5A
Controls 040-10 040-12 060-12 060-14 080-16 080-20 100-20 120-22
Gas Connection Size 1/2” - NPT
Burners (Monoport) 2 2 3 3 4 4 5 6
Gas Valve (Redundant) Manufacturer White Rodgers
Minimum Inlet Gas pressure (in. wc) 4.5
Maximum Inlet Gas pressure (in. wc) 13.6
Gas Conversion Kit - Natural to Propane KGANP50011SP
Gas Conversion Kit - Propane to Natural KGAPN42011SP
Manufactured (Mobile) Home Kit KGAMH0601KIT
Ignition Device Silicon Nitride
Limit Control 165 180 165 180 170 200 180 160
Heating Blower Control (Heating Off-Delay) Adjustable: 90, 120, 150, 180 seconds
Cooling Blower Control (Time Delay Relay) 90 seconds
Communication System none
Thermostat Connections Com24V,R,W,G,Y/Y2,DHUM,Y1
Accessory Connections EAC (115vac); HUM (24vac); 1-stg AC (via Y/Y2)
* See Accessory List for part numbers available.
3
Page 4
1 - 2
Family
59
Family
3
Htg. Stages Tier
T
S - Single Stage
T - Two Stage
M - Modulating
4
N
C - Comfort
P - Performance
N - Infinity
MODEL NUMBER NOMENCLATURE
Example of Model Number
5
Base Effy.
6
0 - +90 AFUE
2 - +92 AFUE
3 - +93 AFUE
5 - +95 AFUE
6 - +96 AFUE
7 - +97 AFUE
6
Major Series
A
Major Series
Not all familes have these models.
7 - 9
Htg. Cap.
060
040=40,000 BTU
060=60,000 BTU
080=80,000 BTU
100=100,000 BTU
120=120,000 BTU
140=140,000 BTU
10
Motor
V
S - Standard
E - Energy Efficient
V - Variable Speed
11 - 12
Width
14 - 14.2”
17 - 17.5”
21 - 21.0”
24 - 24.5”
13
Voltage
17
--
Voltage
14
Minor Series
--
Minor Series
15 - 16
Airflow
14
08 - 800 CFM
10 - 1000 CFM
12 - 1200 CFM
14 - 1400 CFM
16 - 1600 CFM
18 - 1800 CFM
20 - 2000 CFM
22 - 2200 CFM
A12373
59SP5A
FLAME
SENSOR
MANUAL RESET
ROLLOUT SWITCH
GAS VALVE
OPERATING INSTRUCTIONS
NOT SHOWN (LOCATED ON
MAIN FURNACE DOOR, SEE
OPERATING INSTRUCTIONS
INSIDE DOOR FIGURE).
ELECTRICAL JUNCTION
BOX (IF REQUIRED,
LOCATION MAY VARY)
BLOWER DOOR
SAFETY SWITCH

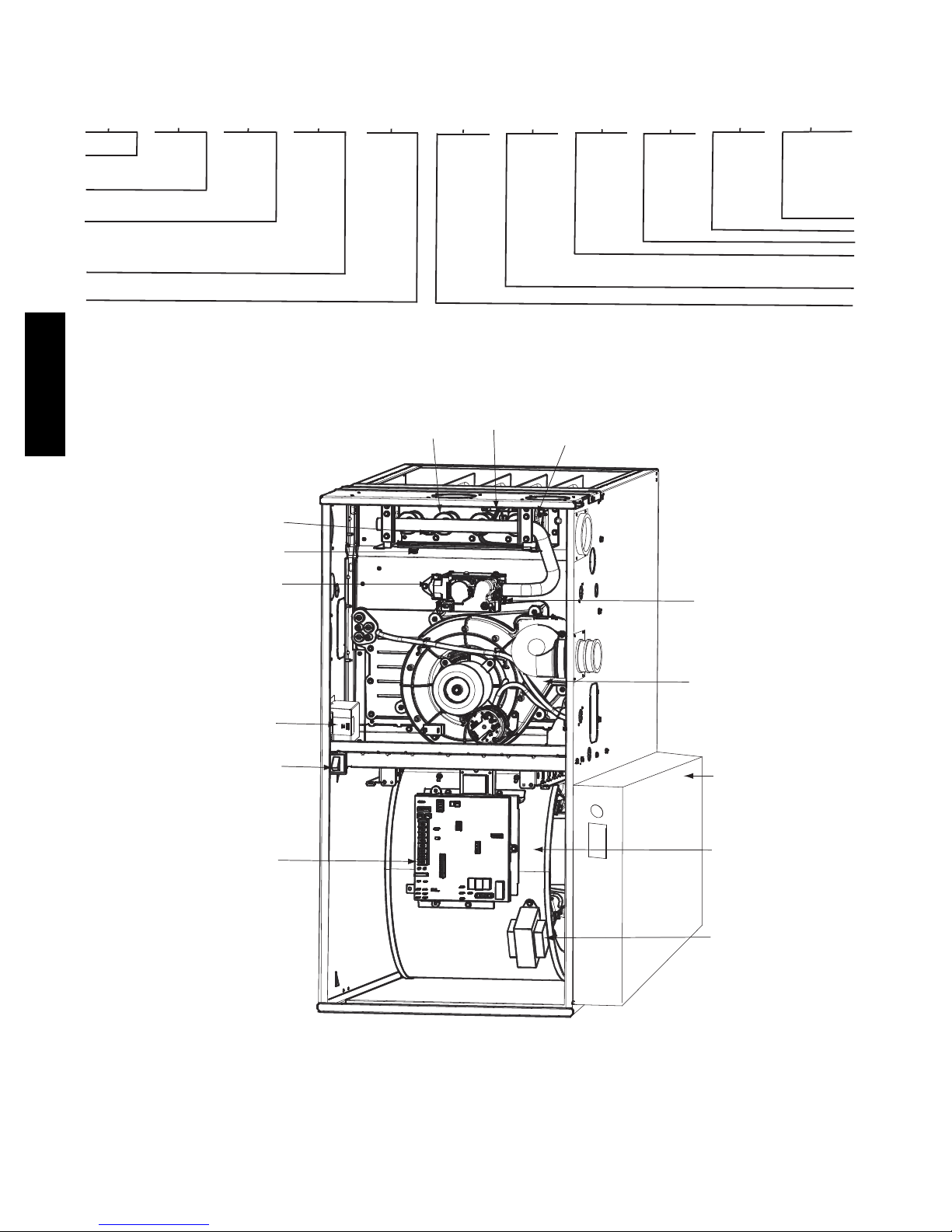

FURNACE COMPONENTS
HOT SURFACE
GAS BURNER
IGNITER
MANUAL RESET
ROLLOUT SWITCH
MAIN LIMIT SWITCH
(BEHIND GAS VALVE)
INDUCER MOTOR
ASSEMBLY
MEDIA CABINET
FURNACE
CONTROL
BOARD
RATING PLATE NOT SHOWN
(LOCATED ON BLOWER DOOR)
REPRESENTATIVE DRAWING ONLY, SOME MODELS MAY VARY IN APPEARANCE.
BLOWER AND
MOTOR
CAPACITOR/
POWER CHOKE
(IF USED)
A11408
4
Page 5
ACCESSORIES
Venting Accessories
Vent Kit - Through the Cabinet KGADC0101BVC D D D D D D D D
Vent Terminal - Concentric - 2” (51 mm) KGAVT0701CVT
Vent Terminal - Concentric - 3” (76 mm) KGAVT0801CVT
Vent Terminal Bracket - 2” (51 mm) KGAVT0101BRA
Vent Terminal Bracket - 3” (76 mm) KGAVT0201BRA
Vent Kit --- Rubber Coupling KGAAC0101RVC See Venting Tables
Condensate Drainage Accessories
Freeze Protect Kit - Heat Tape KGAHT0101CFP D D D D D D D D
CPVC to PVC Drain Adapters - 1/2” CPVC to
3/4” PVC
Horizontal Trap Grommet - Direct Vent KGACK0101HCK All DV Horizontal
Condensate Neutralizer Kit P908---0001 D D D D D D D D
External Trap Kit KGAET0201ETK D D D D D D D D
Ductwork Adapter Accessories
Furnace Base Kit for Combustible Floors KGASB0201ALL D D D D D D D D
Coil Adapter Kits --- No Offset KGADA0101ALL D D D D D D D D
Coil Adapter Kits --- Single Offset KGADA0201ALL D D D D D D D D
Coil Adapter Kits --- Double Offset KGADA0301ALL D D D D D D D D
Return Air Base (Upflow Applications) 14.0---in.
wide
Return Air Base (Upflow Applications) 17.5---in.
wide
Return Air Base (Upflow Applications) 21.0---in.
wide
Return Air Base (Upflow Applications) 24.5---in.
wide
IAQ Device Duct Adapters 20.0--- in. IAQ to 16 in.
Side Return
IAQ Device Duct Adapters 24.0--- in. IAQ to 16 in.
Side Return
Gas Conversion Accessories
Mobile Home Kit KGAMH0601KIT D D D D D D D D
Gas Conversion Kit - Nat to LP KGANP50011SP D D D D D D D D
Gas Conversion Kit - LP to Nat KGAPN42011SP D D D D D D D D
GasOrificeKit-#42(NatGas) LH32DB207 D D D D D D D D
GasOrificeKit-#43(NatGas) LH32DB202 D D D D D D D D
GasOrificeKit-#44(NatGas) LH32DB200 D D D D D D D D
GasOrificeKit-#45(NatGas) LH32DB205 D D D D D D D D
GasOrificeKit-#46(NatGas) LH32DB208 D D D D D D D D
GasOrificeKit-#47(NatGas) LH32DB078 D D D D D D D D
GasOrificeKit-#48(NatGas) LH32DB076 D D D D D D D D
Gas Orifice Kit - #54 (LP) LH32DB203 D D D D D D D D
Gas Orifice Kit - #55 (LP) LH32DB201 D D D D D D D D
Gas Orifice Kit - #56 (LP) LH32DB206 D D D D D D D D
Gas Orifice Kit - 1.25mm (LP) LH32DB209 D D D D D D D D
Gas Orifice Kit - 1.30mm (LP) LH32DB210 D D D D D D D D
Control Accessories
Twinning Kit KGATW0701HSI D D D D D
IAQ Accessories
Filter Pack (6 pack) --- Washable - 16x25x1
(406x635x25 mm)
Filter Pack (6 pack) --- Washable - 24x25x1
(610x635x25 mm)
EZ-Flex Filter - 16” (406 mm) EXPXXFIL0016 Use with EZXCAB ---1016
EZ-Flex Filter - 20” (508 mm) EXPXXFIL0020 Use with EZXCAB ---1020
EZ-Flex Filter - 24” (610 mm) EXPXXFIL0024 Use with EZXCAB ---1024
EZ-Flex Filter with End Caps - 16” (406 mm) EXPXXUNV0016 Use with EZXCAB ---1016
EZ-Flex Filter with End Caps - 20” (508 mm) EXPXXUNV0020 Use with EZXCAB ---1020
EZ-Flex Filter with End Caps - 24” (610 mm) EXPXXUNV0024 Use with EZXCAB ---1024
Cartridge Media Filter - 16” (406 mm) FILXXCAR0016 Use with FILCABXL --- 1016
Cartridge Media Filter - 20” (508 mm) FILXXCAR0020 Use with FILCABXL --- 1020
Cartridge Media Filter - 24” (610 mm) FILXXCAR0024 Use with FILCABXL --- 1024
Carrier Performance Air Purifier - 16x25
(508x635 mm)
Carrier Performance Air Purifier - 20x25
(508x635 mm)
Carrier Performance Air Purifier Repl Filter 16x25 (406x635 mm)
Carrier Performance Air Purifier Repl. Filter 20x25 (508x635 mm)
D = Used with the mod el furnace
DESCRIPTION PART N UMBER 040 --10 060 -- 12 040-- 12 060 --14 080-16 080-20 100-20 120-22
See Venting Tables
KGAAD0110PVC D D D D D D D D
KGARP0301B14 D D
KGARP0301B17 D D D
KGARP0301B21 D D
KGARP0301B24 D
KGAAD0101MEC 20”x25” IAQ Devices
KGAAD0201MEC 24”x25” IAQ Devices
KGAWF1306UFR D D D D D D D D
KGAWF1506UFR D D D D D D D D
PGAPXX1625 Up to 1600 CFM
PGAPXX2025 Up to 2000 CFM
PGAPAXXCAR1625 GAPAAXCC1625
PGAPAXXCAR2025 GAPAAXCC2025
59SP5A
5
Page 6
AIR DELIVERY -- CFM (BOTTOM RETURN WITH FILTER)
UNIT
SIZE
RETURN-AIR
CONNECTION
SPEED
TAPS
2, 3
0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0
Gray 1120 1080 1030 980 925 875 820 760 690 630
Yellow 880 845 810 780 740 710 680 640 615 570
040 --- 10 SIDE/BOTTOM
Blue 695 665 620 575 535 495 455 420 370 280
Orange 640 595 540 495 460 420 370 310 260 230
Red 570 525 475 425 385 330 255 220 -
Gray 1255 1220 1175 1130 1085 1040 990 940 880 825
Yellow 940 905 870 840 805 770 735 695 665 630
040 --- 12 SIDE/BOTTOM
Blue 705 670 630 575 540 500 455 410 380 325
Orange 580 535 480 425 380 335 290 235 -
Red 555 485 425 375 330 280 215 -
Gray 1265 1225 1185 1140 1090 1030 975 920 850 760
Yellow 1115 1085 1060 1030 1000 970 930 880 810 715
060 --- 12 SIDE/BOTTOM
Orange 1000 970 940 910 880 845 815 770 735 695
Blue 945 915 885 855 820 785 745 705 675 635
Red 770 740 700 660 620 575 540 500 455 415
Gray 1720 1670 1620 1565 1505 1440 1375 1295 1220 1135
Yellow 1325 1285 1255 1220 1185 1145 1115 1075 1040 1000
060 --- 14 SIDE/BOTTOM
59SP5A
Blue 1010 970 925 875 835 785 745 690 660 620
Orange 1160 1115 1080 1045 1000 960 920 875 840 785
Red 785 715 655 595 530 490 435 385 340 285
Gray 1810 1770 1720 1665 1610 1540 1475 1400 1315 1235
Yellow 1535 1500 1475 1435 1405 1370 1340 1310 1245 1160
080 --- 16 SIDE/BOTTOM
Blue 1380 1340 1305 1270 1240 1200 1165 1130 1090 1050
Orange 1180 1130 1095 1060 1015 975 935 895 850 800
Red 1100 1045 1010 970 920 885 845 790 745 690
Gray 2290 2225 2155 2090 2015 1930 1845 1750 1640 1515
Yellow 1810 1760 1725 1685 1640 1600 1555 1520 1480 1415
Blue 1385 1340 1285 1240 1200 1140 1090 1050 995 950
Orange 1560 1520 1475 1430 1385 1335 1295 1240 1200 1150
080 --- 20
BOTTOM or
TWO-SIDES
4, 5
Red 1055 985 910 860 795 750 680 615 565 495
Gray 2340 2295 2250 2195 2110 2030 1935 1835 1725 1605
Yellow 1950 1900 1855 1800 1755 1705 1655 1605 1560 1485
Blue 1750 1700 1650 1605 1555 1500 1455 1395 1350 1300
Orange 1570 1520 1460 1410 1350 1300 1240 1195 1140 1095
100 --- 20
BOTTOM or
TWO-SIDES
4, 5
Red 1350 1280 1225 1155 1105 1045 1000 950 895 830
Gray 2275 2230 2185 2130 2055 1950 1825 1710 1610 1500
120 --- 22
NOTE:
1. A filter is required for each return---air inlet. Airflow performance includes a 3/4 --- in. (19 mm) washable filter media such as contained in a factory---authorized accessory filter rack. See accessory list. To determine airflow performance without this filter, assume an additional 0.1 in. w.c. available external static
pressure.
2. ADJUST THE BLOWER SPEED TAPS AS NECESSARY FOR THE PROPER AIR TEMPERATURE RISE FOR EACH INSTALLATION.
3. Shaded areas indicate that this airflow range is BELOW THE RANGE ALLOWED FOR HEATING OPERATION. THESE AIRFLOW RANGES MAY ONLY BE
USED FOR COOLING.
4. Airflows over 1800 CFM require bottom return, two--- side return, or bottom and side return. A minimum filter size of 20” x 25” (508 x 635 mm) is required.
5. For upflow applications, air entering from one side into both the side of the furnace and a return air base counts as a side and bottom return.
6. The “---” entry indicates an unstable operating condition.
BOTTOM or
TWO-SIDES
4, 5
Yellow 1875 1820 1770 1720 1660 1600 1550 1505 1450 1390
Blue 2170 2125 2075 2025 1975 1900 1790 1695 1590 1470
3
Orange
Red
1475 1420 1350 1280 1215 1165 1105 1050 995 930
3
1625 1565 1505 1445 1385 1325 1275 1225 1170 1130
EXTERNAL STATIC PRESSURE (IN.W.C.)
6
6
6
6
-
6
-
6
-
6
-
6
Page 7
MAXIMUM EQUIVALENT VENT LENGTH -- FT. (M)
Table 1 – Maximum Equivalent Vent Length -- Ft. (M)
0 to 4500 Ft. (0 to 1370 M) Altitude
NOTE: Maximum Equivalent Vent Length (MEVL) includes standard and concentric vent termination and does NOT include elbows.
Use Table 2 - Deductions from Maximum Equivalent Vent Length to determine allowable vent length for each application.
Unit Size
Altitude
FT (M)
0 to 2000
(0 to 610)
2001 to 3000
(610 to 914)
3001 to 4000
(914 to 1219)
4001 to 4500
(1219 to 1370)
NOTES: See notes at end of venting tables.
See Table 3 for altitudes over 4500 ft. (1370 M)
BTU/Hr
3
40,000
60,000 30 (9.1) 135 (41.1) 235 (71.6) 265 (80.8) NA
80,000 20 (6.1) 70 (21.3) 175 (53.3) 235 (71.6) 265 (80.8)
100,000 NA 25 (7.6) 110 (33.5) 235 (71.6) 265 (80.8)
120,000 NA NA 15 (4.6) 100 (30.5) 250 (76.2)
4
140,000
40,000 45 (13.7) 198 (60.4) 232 (70.7) NA NA
60,000 27 (8.2) 127 (38.7) 222 (67.7) 250 (76.2) NA
80,000 17 (5.2) 64 (19.5) 165 (50.3) 222 (67.7) 249 (75.9)
100,000 NA 22 (6.7) 104 (31.7) 223 (68.0) 250 (76.2)
120,000 NA NA 11 (3.4) 93 (28.3) 237 (72.2)
4
140,000
40,000 39 (11.9) 184 (56.1) 214 (65.2) NA NA
60,000 23 (7.0) 119 (36.3) 210 (64.0) 235 (71.6) NA
80,000 15 (4.6) 59 (18.0) 155 (47.2) 210 (64.0) 232 (70.7)
100,000 NA 19 (5.8) 98 (29.9) 211 (64.3) 236 (71.9)
120,000 NA NA 8 (2.4) 86 (26.2) 224 (68.3)
4
140,000
40,000 36 (11.0) 177 (53.9) 205 (62.5) NA NA
60,000 21 (6.4) 115 (35.1) 204 (62.2) 228 (69.5) NA
80,000 14 (4.3) 56 (17.1) 150 (45.7) 202 (61.6) 224 (68.3)
100,000 NA 17 (5.2) 94 (28.7) 205 (62.5) 229 (69.8)
120,000 NA NA NA 83 (25.3) 217 (66.1)
4
140,000
1-1/2 2 2-1/2 3 4
50 (15.2) 210 (64.0) 250 (76.2) NA
NA NA 10 (3.0) 90 (27.4) 210 (64.0)
NA NA NA 80 (24.4) 185 (56.4)
NA NA NA 79 (24.1) 158 (48.2)
NA NA NA 69 (21.0) 146 (44.5)
DIRECT VENT (2-PIPE) AND NON-DIRECT VENT (1-PIPE)
Vent Pipe Diameter (in.)
1
2
NA
59SP5A

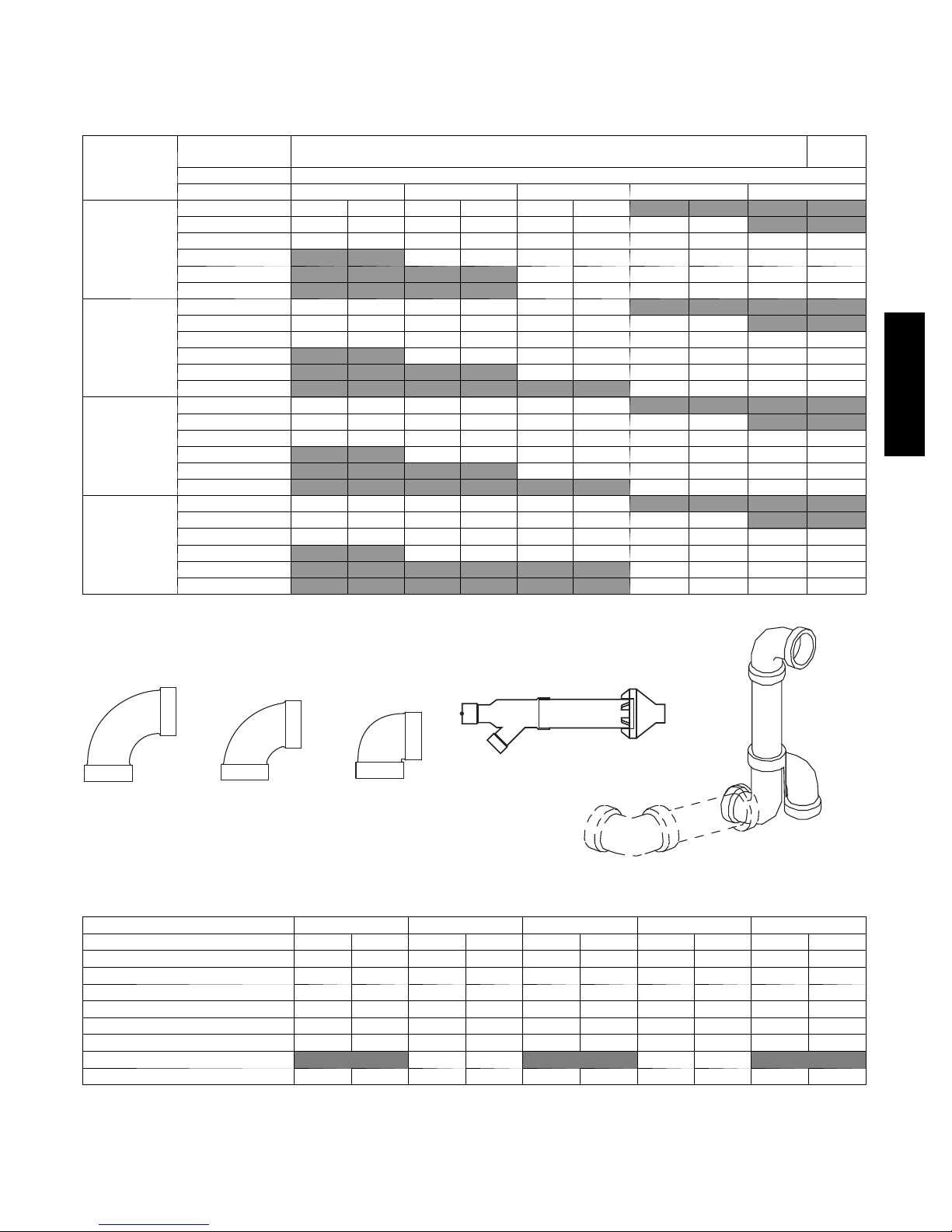

ELBOW CONFIGURATIONS
VENT TERMINAL CONFIGURATIONS
Concentric
Long
Medium
Mitered
Standard 2-in., 3-in., or
optional 4-in. termination.
A13110
Table 2 – Deductions from Maximum Equivalent Vent Length -- Ft. (M)
Pipe Diameter (in): 1-1/2 2 2-1/2 3 4
Mitered 90º Elbow 8 (2.4) 8 (2.4) 8 (2.4) 8 (2.4) 8 (2.4)
Medium Radius 90º Elbow 5 (1.5) 5 (1.5) 5 (1.5) 5 (1.5) 5 (1.5)
Long Radius 90º Elbow 3 (0.9) 3 (0.9) 3 (0.9) 3 (0.9) 3 (0.9)
Mitered 45º Elbow 4 (1.2) 4 (1.2) 4 (1.2) 4 (1.2) 4 (1.2)
Medium Radius 45º Elbow 2.5 (0.8) 2.5 (0.8) 2.5 (0.8) 2.5 (0.8) 2.5 (0.8)
Long Radius 45º Elbow 1.5 (0.5) 1.5 (0.5) 1.5 (0.5) 1.5 (0.5) 1.5 (0.5)
Tee 16 (4.9) 16 (4.9) 16 (4.9) 16 (4.9) 16 (4.9)
Concentric Vent Termination NA 0 (0.0) NA 0 (0.0) NA
Standard Vent Termination 0 (0.0) 0 (0.0) 0 (0.0) 0 (0.0) 0 (0.0)
7
Page 8
Venting System Length Calculations
The Total Equivalent Vent Length (TEVL) for EACH combustion air or vent pipe equals the length of the venting system, plus the equivalent
length of elbows used in the venting system from Table 2.
Standard vent terminations or factory accessory concentric vent terminations count for zero deduction.
See vent system manufacturer’s data for equivalent lengths of flexible vent pipe or other termination systems. DO NOT ASSUME that one
foot of flexible vent pipe equals one foot of straight PVC/ABS DWV vent pipe.
Compare the Total Equivalent Vent Length to the Maximum Equivalent Vent Lengths in Tables 1 and 3.
Example 1
A direct--vent 60,000 Btuh furnace installed at 2100 ft. (640 M). Venting system includes, FOR EACH PIPE, 100 feet (30 M) of vent pipe,
95 feet (28 M) of combustion air inlet pipe, (3) 90_ long radius elbows, (2) 45_ long radius elbows and a factory accessory concentric vent
kit.
Can this application use 2--in. (50 mm ND) PVC/ABS DWV vent piping?
Measure the required linear length of air inlet and vent pipe; insert the
longest of the two here:
Add equiv length of (3) 90º long-radius elbows
(use the highest number of elbows for either the
vent or inlet pipe)
Add equiv length of (2) 45º long-radius elbows
(use the highest number of elbows for either the
59SP5A
vent or inlet pipe)
Add equiv length of vent termination 0ft. From Table 2
Add correction for flexible vent pipe, if any 0ft.
Total Equivalent Vent Length (TEVL) 112 ft. Add all of the above lines
Maximum Equivalent Vent Length (MEVL) 127 ft. For 2” pipe from Table 1
Is TEVL less than MEVL? YES Therefore, 2” pipe may be used
3 x 3ft = 9ft. From Table 2
2 x 1.5 ft = 3ft. From Table 2
100 ft
Use length of the longer of the vent
or air inlet piping system
From Vent Manufacturer’s instructions;
zero for PVC/ABS DWV
Example 2
A direct--vent 60,000 Btuh furnace installed at 2100 ft. (640 M) Venting system includes, FOR EACH PIPE, 100 feet (30 M) of vent pipe,
95 feet (28 M) of combustion air inlet pipe, (3) 90_ long radius elbows, and a polypropylene concentric vent kit. Also includes 20 feet (6.1
M) of flexible polypropylene vent pipe, included within the 100 feet (30 M) of vent pipe.
Assume that one meter of flexible 60 mm or 80 mm polypropylene pipe equals 1.8 meters of PVC/ABS pipe. VERIFY FROM VENT
MANUFACTURER’S INSTRUCTIONS.
Can this application use 60 mm (O.D.) polypropylene vent piping? If not what size piping can be used?
Measure the required linear length of air inlet and vent pipe; insert the
longest of the two here:
Add equiv length of (3) 90º long-radius elbows
(use the highest number of elbows for either the
vent or inlet pipe)
Add equiv length of (2) 45º long-radius elbows
(use the highest number of elbows for either the
vent or inlet pipe)
Add equiv length of vent termination 9M x 3ft/M = 18 ft. From Vent Manufacturer’s instructions
Add correction for flexible vent pipe, if any 1.8 x 20 ft = 36 ft. From Vent Manufacturer’s instructions
Total Equivalent Vent Length (TEVL) 163 ft. Add all of the above lines
3 x 3ft = 9ft. From Vent Manufacturer’s instructions
0 x = 0ft. From Vent Manufacturer’s instructions
100 ft
Use length of the longer of the vent
or air inlet piping system
Maximum Equivalent Vent Length (MEVL) 127 ft. For 2” pipe from Table 1
Is TEVL less than MEVL? NO
Maximum Equivalent Vent Length (MEVL) 250 ft. For 3” pipe from Table 1
Is TEVL less than MEVL? YES Therefore, 80 mm pipe may be used
Therefore, 60mm pipe may NOT be used;
try 80 mm
8
Page 9
MAXIMUM EQUIVALENT VENT LENGTH -- FT. (M) (CONTINUED)
Table 3 – Maximum Equivalent Vent Length -- Ft. (M)
4501 to 10,000 Ft. (0 to 1370 M) Altitude
NOTE: Maximum Equivalent Vent Length (MEVL) includes standard and concentric vent termination and does NOT include elbows.
Use Table 2 - Deductions from Maximum Equivalent Vent Length to determine allowable vent length for each application.
Altitude
FT (M)
5
Unit Size
1-1/2 2 2-1/2 3 4
40,000 33 (10.1) 171 (52.1) 196 (59.7)
60,000 20 (6.1) 111 (33.8) 198 (60.4) 221 (67.4) NA
4501 to 5000
(1370 to 1524)
80,000 13 (4.0) 54 (16.5) 146 (44.5) 195 (59.4) 216 (65.8)
100,000 NA 16 (4.9) 91 (27.7) 200 (61.0) 222 (67.7)
120,000 NA NA NA 80 (24.4) 211 (64.3)
4
140,000
NA NA NA 60 (18.3) 134 (40.8)
40,000 27 (8.2) 158 (48.2) 179 (54.6) NA NA
60,000 16 (4.9) 103 (31.4) 186 (56.7) 207 (63.1) NA
5001 to 6000
(1524 to 1829)
80,000 11 (3.4) 49 (14.9) 137 (41.8) 183 (55.8) 200 (61.0)
100,000 NA 12 (3.7) 85 (25.9) 188 (57.3) 208 (63.4)
120,000 NA NA NA 74 (22.6) 199 (60.7)
4
140,000
NA NA NA 50 (15.2) 109 (33.2)
40,000 21 (6.4) 145 (44.2) 162 (49.4) NA NA
60,000 13 (4.0) 96 (29.3) 174 (53.0) 194 (59.1) NA
6001 to 7000
(1829 to 2134)
80,000 NA 44 (13.4) 120 (36.6) 171 (52.1) 185 (56.4)
100,000 NA 10 (3.0) 79 (24.1) 178 (54.3) 195 (59.4)
120,000 NA NA NA 68 (20.7) 187 (57.0)
4
140,000
NA NA NA 41 (12.5) 87 (26.5)
40,000 15 (4.6) 133 (40.5) 146 (44.5) NA NA
60,000 10 (3.0) 89 (27.1) 163 (49.7) 181 (55.2) NA
7001 to 8000
(2134 to 2438)
80,000 NA 40 (12.2) 120 (36.6) 159 (48.5) 170 (51.8)
100,000 NA NA 73 (22.3) 167 (50.9) 182 (55.5)
120,000 NA NA NA 62 (18.9) 175 (53.3)
4
140,000
NA NA NA 32 (9.8) 63 (19.2)
40,000 10 (3.0) 121 (36.9) 130 (39.6) NA NA
60,000 7 (2.1) 82 (25.0) 152 (46.3) 168 (51.2) NA
8001 to 9000
(2438 to 2743)
80,000 NA 35 (10.7) 111 (33.8) 148 (45.1) 156 (47.5)
100,000 NA NA 67 (20.4) 157 (47.9) 170 (51.8)
120,000 NA NA NA 56 (17.1) 164 (50.0)
4
140,000
NA NA NA 23 (7.0) 42 (12.8)
40,000 5 (1.5) 110 (33.5) 115 (35.1) NA NA
60,000 NA 76 (23.2) 142 (43.3) 156 (47.5) NA
9001 to 10,000
(2743 to 3048)
80,000 NA 31 (9.4) 103 (31.4) 137 (41.8) 142 (43.3)
100,000 NA NA 62 (18.9) 147 (44.8) 157 (47.9)
120,000 NA NA NA 51 (15.5) 153 (46.6)
4
140,000
NOTES:
1. Use only the vent pipe sizes shown for each furnace. It is NOT necessary to choose the smallest diameter pipe possible for venting.
2. NA --- Not allowed. Pressure switch will not close, or flame disturbance may result.
3. Total equivalent vent lengths under 10’ f or 40,000 BTUH furnaces from 0 to 2000 ft. (0 to 610 M) above sea level require use of an outlet choke plate .
Failure to use an outlet choke when required may result in flame disturbance or flame sense lockout.
4. Not all furnace families inclu de 140,000 BTUH input models.
5. Vent sizing for Canadian installations over 4500 ft (1370 M) above sea level are subject to acceptance by local authorities having j urisdiction.
6. Size both the combusti on air and vent pipe independently, then us e the larger size for both pipes.
7. Assume the two 45_ elbows equal one 90_ elbow. Wide radius elbows are desirable and may be required in some cases.
8. Elbow and pipe sections within the furnace casing and at the vent termination should not be included in vent length or elbow count.
9. The minimum pipe length is 5 ft. (1.5 M) linear feet (meters) for all applications.
10. Use 3 ---in. (76 mm) diameter vent termination kit for installations requiring 4--- in. (102 mm) diameter pipe.
NA NA NA 16 (4.9) 20 (6.1)
DIRECT VENT (2-PIPE) AND SINGLE-PIPE
Vent Pipe Diameter (in.)
1
NA
2
NA
59SP5A
9
Page 10
MAXIMUM ALLOWABLE EXPOSED VENT LENGTHS INSULATION TABLE -- FT. (M)
Maximum Length of Uninsulated and Insulated Vent Pipe-Ft (M)
Single Stage
Furnace
Input
40000
Winter Design
Te mp ° F ( ° C )
20 (-10)
0 (-20)
-20 (-30)
-40 (-40)
Pipe
Length in
Ft. & M
11/2 2 21/2 3 4 11/2 2 21/2 3 4 11/2 2 21/2 3 4
Ft. 48 42 42 N/A N/A 50 122 111 N/A N/A 50 144 130 N/A N/A
M 14.6 12.8 12.8 N/A N/A 15.2 37.2 33.8 N/A N/A 15.2 43.9 39.6 N/A N/A
Ft. 25 19 17 N/A N/A 50 75 66 N/A N/A 50 90 79 N/A N/A
M 7.6 5.8 5.2 N/A N/A 15.2 22.9 20.1 N/A N/A 15.2 27.4 24.1 N/A N/A
Ft. 14 7 5 N/A N/A 50 52 45 N/A N/A 50 64 55 N/A N/A
M 4.3 2.1 1.5 N/A N/A 15.2 15.8 13.7 N/A N/A 15.2 19.5 16.8 N/A N/A
Ft. 7 0 0 N/A N/A 50 38 31 N/A N/A 50 48 40 N/A N/A
M 2.1 0.0 0.0 N/A N/A 15.2 11.6 9.4 N/A N/ A 15.2 14.6 12.2 N/A N/A
No Insulation 3/8-in. (9.5 mm) Insulation 1/2-in. (12.7 mm) Insulation
Pipe Diameter-inches (mm) Pipe Diameter-inches (mm) Pipe Diameter-inches (mm)
(38) (51) (64) (76) (102) (38) (51) (64) (76) (102) (38) (51) (64) (76) (102)
59SP5A
60000
80000
100000
20 (-10)
0 (-20)
-20 (-30)
-40 (-40)
20 (-10)
0 (-20)
-20 (-30)
-40 (-40)
20 (-10)
0 (-20)
-20 (-30)
-40 (-40)
Ft. 30 61 61 54 N/A 30 135 163 142 N/A 30 135 191 166 N/A
M 9.1 18.6 18.6 16.5 N/ A 9.1 41.1 49.7 43.3 N/A 9.1 41.1 58.2 50.6 N/A
Ft. 30 31 30 23 N/A 30 113 100 85 N/A 30 135 120 101 N/A
M 9.1 9.4 9.1 7.0 N/A 9.1 34.4 30.5 25.9 N/A 9.1 41.1 36.6 30.8 N/A
Ft. 24 17 15 7 N/A 30 81 70 57 N/ A 30 98 85 70 N/A
M 7.3 5.2 4.6 2.1 N/A 9.1 24.7 21.3 17.4 N/A 9.1 29.9 25.9 21.3 N/A
Ft. 15 8 5 0 N/A 30 61 52 40 N/A 30 75 64 51 N/A
M 4.6 2.4 1.5 0.0 N/A 9.1 18.6 15.8 12.2 N/A 9.1 22.9 19.5 15.5 N/A
Ft. 20 70 78 70 60 20 70 175 183 154 20 70 175 215 181
M 6.1 21.3 23.8 21.3 18.3 6.1 21.3 53.3 55.8 46.9 6.1 21.3 53.3 65.5 55.2
Ft. 20 42 41 33 21 20 70 132 111 89 20 70 157 133 107
M 6.1 12.8 12.5 10.1 6.4 6.1 21.3 40.2 33.8 27.1 6.1 21.3 47.9 40.5 32.6
Ft. 20 25 23 14 1 20 70 94 77 57 20 70 113 94 71
M 6.1 7.6 7.0 4.3 0.3 6.1 21.3 28.7 23.5 17.4 6.1 21.3 34.4 28.7 21.6
Ft. 20 14 12 3 0 20 70 71 56 38 20 70 86 70 50
M 6.1 4.3 3.7 0.9 0.0 6.1 21.3 21.6 17.1 11.6 6.1 21.3 26.2 21.3 15.2
Ft. N/A 25 99 89 78 N/A 25 110 233 265 N/A 25 110 235 229
M N/A 7.6 30.2 27.1 23.8 N/ A 7.6 33.5 71.0 80.8 N/A 7.6 33.5 71.6 69.8
Ft. N/A 25 55 46 33 N/A 25 110 145 117 N/A 25 110 173 140
M N/A 7.6 16.8 14.0 10.1 N/ A 7.6 33.5 44.2 35.7 N/A 7.6 33.5 52.7 42.7
Ft. N/A 25 34 24 11 N/A 25 110 103 79 N/A 25 110 124 97
M N/A 7.6 10.4 7.3 3.4 N/A 7.6 33.5 31.4 24.1 N/A 7.6 33.5 37.8 29.6
Ft. N/A 23 20 11 0 N/A 25 95 77 55 N/A 25 110 94 70
M N/A 7.0 6.1 3.4 0.0 N/A 7.6 29.0 23.5 16.8 N/A 7.6 33.5 28.7 21.3
20 (-10)
0 (-20)
120000
-20 (-30)
-40 (-40)
20 (-10)
0 (-20)
140000
-20 (-30)
-40 (-40)
*Not all families have these models.
Ft. N/A N/A 15 99 86 N/ A N/A 15 100 219 N/A N/A 15 100 250
M N/A N/A 4.6 30.2 26.2 N/A N/A 4.6 30.5 66.8 N/A N/A 4.6 30.5 76.2
Ft. N/A N/A 15 51 38 N/ A N/A 15 100 130 N/A N/A 15 100 156
M N/A N/A 4.6 15.5 11.6 N/A N/A 4.6 30.5 39.6 N/A N/A 4.6 30.5 47.5
Ft. N/A N/A 15 28 14 N/ A N/A 15 100 88 N/A N/A 15 100 108
M N/A N/A 4.6 8.5 4.3 N/A N/A 4.6 30.5 26.8 N/A N/A 4.6 30.5 32.9
Ft. N/A N/A 15 14 0 N/A N/A 15 85 62 N/A N/A 15 100 79
M N/A N/A 4.6 4.3 0.0 N/A N/A 4.6 25.9 18.9 N/A N/A 4.6 30.5 24.1
Ft. N/A N/A 10 90 99 N/ A N/A 10 90 210 N/A N/A 10 90 210
M N/A N/A 3.0 27.4 30.2 N/A N/A 3.0 27.4 64.0 N/A N/A 3.0 27.4 64.0
Ft. N/A N/A 10 61 47 N/ A N/A 10 90 153 N/A N/A 10 90 183
M N/A N/A 3.0 18.6 14.3 N/A N/A 3.0 27.4 46.6 N/A N/A 3.0 27.4 55.8
Ft. N/A N/A 10 35 21 N/ A N/A 10 90 104 N/A N/A 10 90 128
M N/A N/A 3.0 10.7 6.4 N/A N/A 3.0 27.4 31.7 N/A N/A 3.0 27.4 39.0
Ft. N/A N/A 10 20 NA N/A N/A 10 90 75 N/A N/A 10 90 94
M N/A N/A 3.0 6.1 NA N/A N/ A 3.0 27.4 22.9 N/A N/A 3.0 27.4 28.7
10
Page 11
RETURN AIR TEMPERATURE

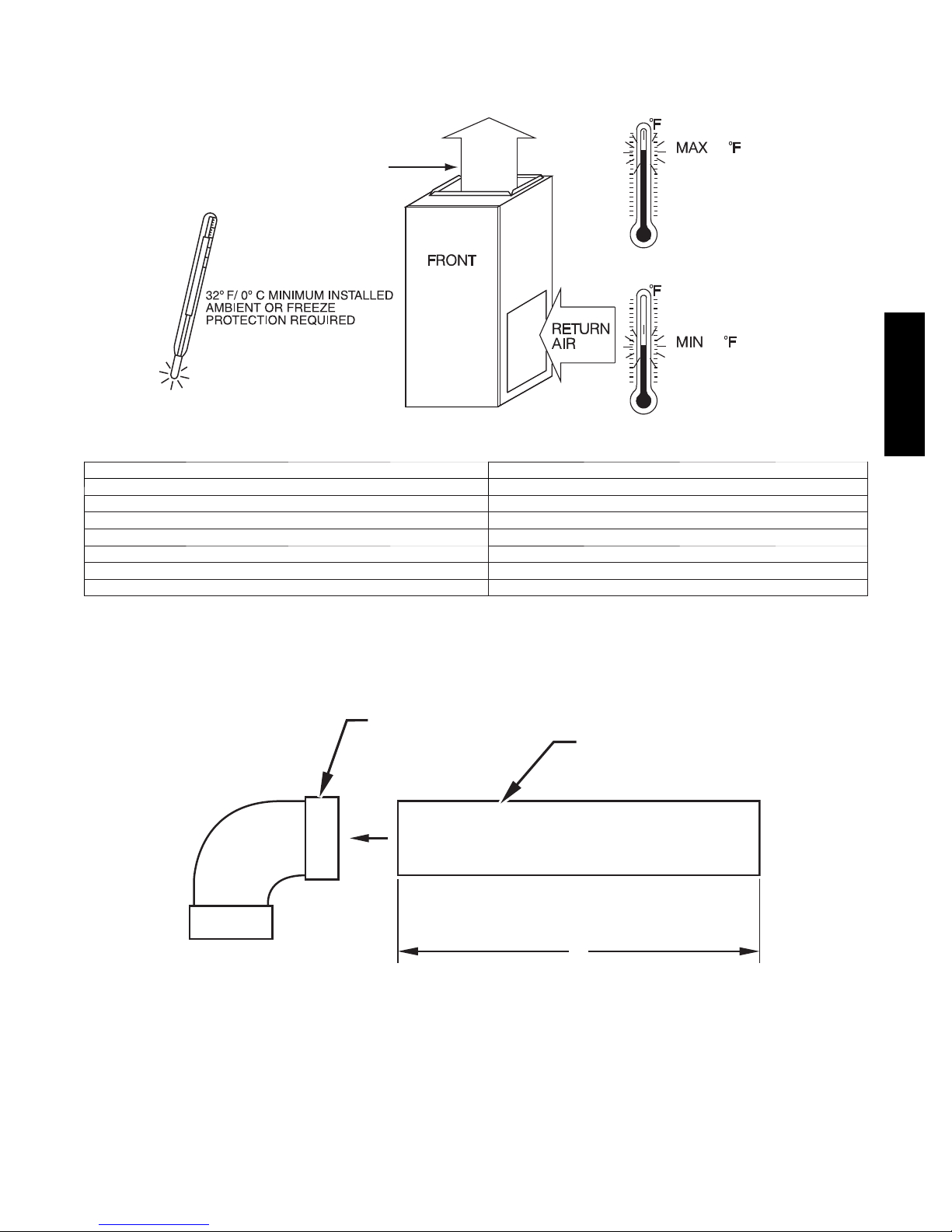

This furnace is designed for continuous return--air minimum temperature of 60_F(15_C) db or intermittent operation down to 55_F(13_C)
db such as when used with a night setback thermometer. Return--air temperature must not exceed 80_F(27_C) db. Failure to follow these
return air limits may affect reliability of heat exchangers, motors and controls.
80 / 27˚C
SUPPLY AIR
60
/ 16˚C
A10490
MINIMUM CLEARANCES TO COMBUSTIBLE MATERIALS
POSITION CLEARANCE
Rear 0(0mm)
Front (Combustion air openings in furnace and in structure) 1in.(25mm)
Required for service** 24 in. (610 mm)*
All Sides of Supply Plenum** 1in.(25mm)
Sides 0(0mm)
Ve n t 0(0mm)
* Recommended
**Consult your local building codes
Top of Furnace 1in. (25mm)
59SP5A
COMBUSTION--AIR PIPE FOR NON--DIRECT (1--PIPE) VENT APPLICATION
FIELD-SUPPLIED
2-IN. (51 mm) DIA.
MITERED RADIUS
PVC 90° ELBOW
12” (300 mm) MINIMUM
NOTE: See Installation Instructions for specific venting configurations.
FIELD-SUPPLIED
2-IN. (51 mm) DIA.
PVC PIPE
A12376
11
Page 12
DOWNFLOW SUBBASE
LOCATING
TAB
11/
4-IN. TYP
PLENUM
OPENING
A
LOCATING
TAB
B
4
3
D
2
1
FACTORY-SUPPLIED
FIELD-INSTALLED
INSULATION
C
A97427
Assembled
DIMENSIONS (IN. / MM)
FURNACE
CASING WIDTH
59SP5A
14--- 3/16 (360)
17--- 1/2 (445)
21 (533)
24--- 1/2 (622)
*The plenum should be constructed 1/4 --- in. (6 mm) smaller in width and depth than the plenum dimensions shown above.
FURNACE IN DOWNFLOW
APPLICATION
Furnace with or without Cased Coil
Assembly or Coil Box
Furnace with or without Cased Coil
Assembly or Coil Box
Furnace with or without Cased Coil
Assembly or Coil Box
Furnace with or without Cased Coil
Assembly or Coil Box
PLENUM OPENING* FLOOR OPENING
A B C D
11--- 3/16
(322)
15--- 1/8
(384)
18--- 5/8
(396)
22--- 1/8
(562)
19 (483)
19 (483)
19 (483)
19 (483)
13--- 7/16
(341)
16--- 3/4
(426)
20--- 1/4
(514)
23--- 3/4
(603)
Disassembled
20--- 5/8
(600)
20--- 5/8
(600)
20--- 5/8
(600)
20--- 5/8
(600)
1
2
3
4
A88207
HOLE NO. FOR
WIDTH
ADJUSTMENT
4
3
2
1
Concentric Vent Kit
A concentric vent kit allows vent and combustion--air pipes to
terminate through a single exit in a roof or side wall. One pipe
runs inside the other allowing venting through the inner pipe and
combustion air to be drawn in through the outer pipe.
A93086
Downflow Subbase
A88202
One base fits all furnace sizes. The base is designed to be installed
between the furnace and a combustible floor when no coil box is
used or when a coil box other than a Carriercased coil is used. It is
CSA design certified for use with Carrier branded furnaces when
installed in downflow applications.
12
Page 13
23-5/8"
(600mm)
23-3/8”
(594mm)
MEDIA FILTER CABINET
A
25-5/8"
(651mm)
24-1/4”
(616mm)
Opening with Flanges Bent
23-1/8”
(588mm)
Opening
B Opening
Furnace Side
Duct Side
23-3/4”
(603mm)
Centerline Screw Slots
3
"
5
4
(146mm)
Media Filter
Cabinet
16" (406mm)
20" (508mm)
24" (610mm)
A
17" (432mm)
21" (533mm)
25" (635mm)
NOTE: Media cabinet is matched to the bottom opening on furnace. May also be used for side return.

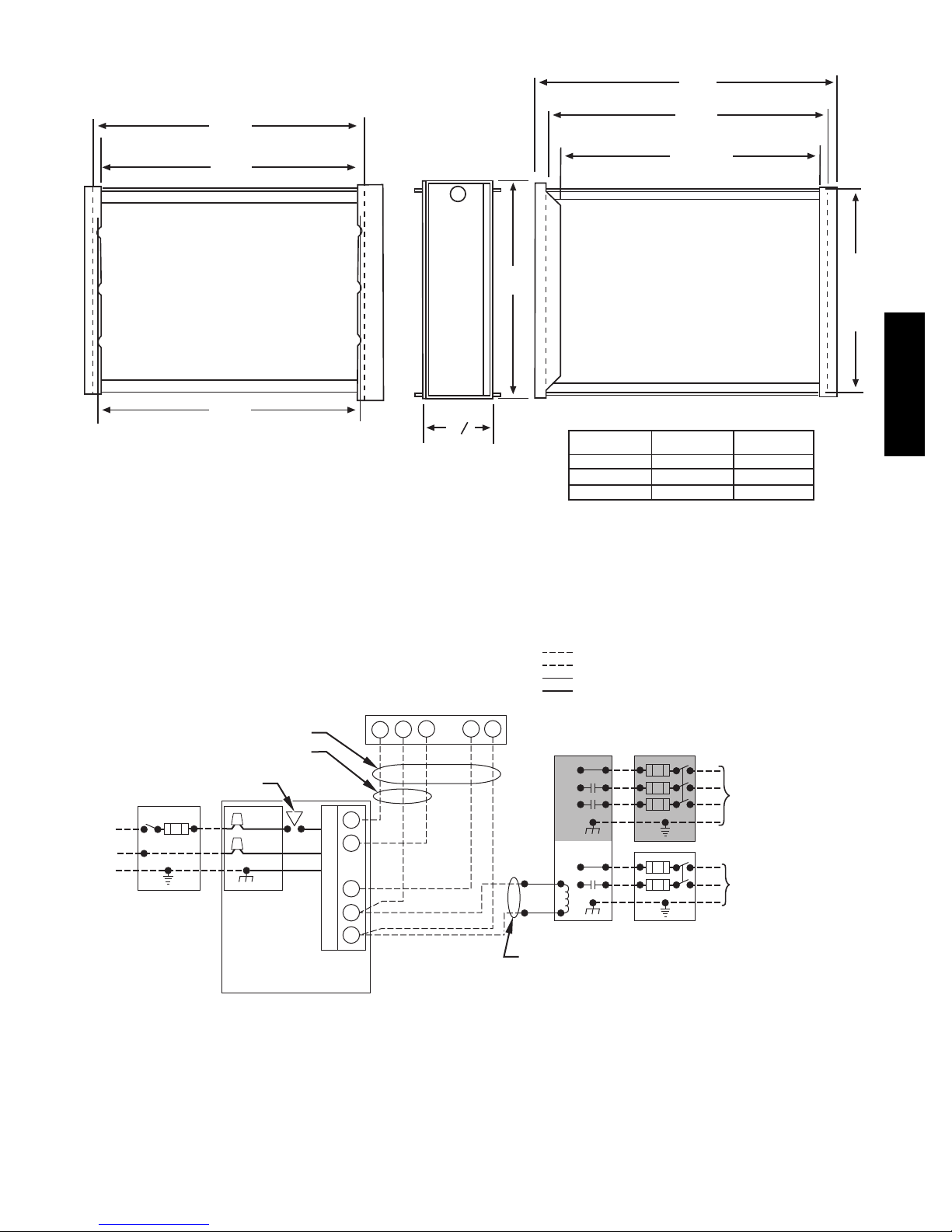

TYPICAL WIRING SCHEMATIC
FIELD 24-V WIRING
FIELD 115-, 208/230-, 460-V WIRING
FACTORY 24-V WIRING
FACTORY 115-V WIRING
FIVE WIRE
THREE-WIRE
HEATING-ONLY
BLOWER DOOR SWITCH
BLK
WHT
115-V FIELD-
SUPPLIED
BLK
WHT
GND
AUXILIARY
J-BOX
DISCONNECT
GND
FURNACE
NOTE 2
W
C
R
O
N
T
G
R
O
COM
L
Y
24-V
TERMINAL
BLOCK
WCR GY
NOTE 1
NOTES: Connect Y-terminal in furnace as shown for proper blower operation.
1.
Some thermostats require a "C" terminal connection as shown.
2.
If any of the original wire, as supplied, must be replaced, use
3.
same type or equivalent wire.
THERMOSTAT
TERMINALS
CONDENSING
UNIT
TWO
WIRE
FIELD-SUPPLIED
DISCONNECT
GND
B
16" (406mm)
20" (508mm)
24" (610mm)
208/230- OR
460-V
THREE
PHASE
208/230-V
SINGLE
PHASE
59SP5A
A12428
A11387
13
Page 14
59SP5A
29 1/2
[749.3]

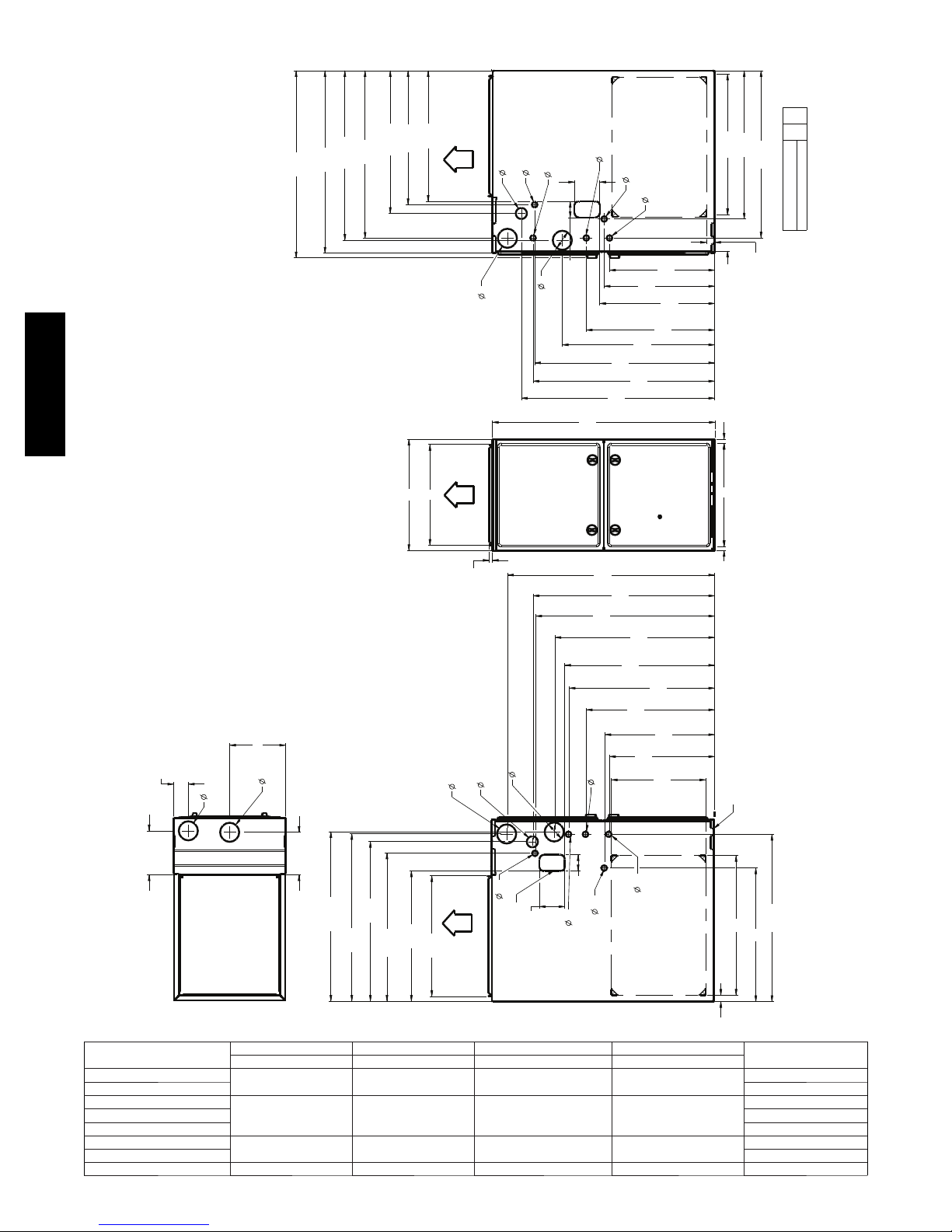

DIMENSIONAL DRAWING
20 5/8
[522.7]
21 1/16
[535.8]
[557.4]
21 15/16
26 3/8
[669.9]
[678.1]
28 3/4
[730.5]
26 11/16
AIR FLOW
3
[76.2]
1 3/4
[44.5]
AIR INTAKE
7/8
GAS CONN
[22.2]
E
REV
1
SHT
23 3/8
7/8
[22.2] POWER CONN
[63.5]
SIDE INLET
7/8
[101.6]
[889.0]
28 3/8
[720.4]
[757]
29 13/16
[22.2]
28 5/8
17 7/16
24
[726.9]
7/8
[22.2]
[442.3]
[609.7]
THERMOSTAT ENTRY
[420.9]
16 9/16
[458.6]
18 1/16
20 1/4
[513.9]
4
35
7/8
[22.2]
2 1/2
3
[76.2 ]
21 5/8
[549.5]
BOTTOM INLET
6 1/16
[154.0]
11/16
[17.5]
[592.0]
1 5/16
[668.8]
26 5/16
[33.3]
SD5024-4
2
PART NUMBER
NEXT SHEET
B
A
NOTES:
1. Doors may vary by model.
2. Minimum return-air openings at furnace, based on metal duct. If ex duct is used,
see ex duct manufacturer's recommendations for equivalent diameters.
a. For 800 CFM-16-in. (406 mm) round or 14 1/2 x 12-in. (368 x 305 mm) rectangle.
b. For 1200 CFM-20-in. (508 mm) round or 14 1/2 x 19 1/2-in. (368 x 495 mm) rectangle.
c. For 1600 CFM-22-in. (559 mm) round or 14 1/2 x 22 1/16-in. (368 x 560mm) rectangle.
d. Return air above 1800 CFM at 0.5 in. w.c. ESP on 24.5" casing, requires one of the following
congurations: 2 sides, 1 side and a bottom or bottom only. See Air Delivery table in this
document for specic use to allow for sucient airow to the furnace.
3. Vent and Combustion air pipes through blower compartment must
use accessory “Vent Kit - Through the Cabinet”. See accessory list for
current part number.
D
[58.4]
6 15/16
[176.1]
2 3/10
3
[76.2]
VENT
3
[76.2]
AIR INTAKE
[170.1]
6 11/16
TOP VIEW
[678.1]
26 11/16
26 3/8
[670.0]
25 1/8
[638.7]
23 5/16
[592.9]
20 5/8
[522.7]
19 1/8
OUTLET WIDTH
3
[76.2]
AIR INTAKE
[485.8]
AIR FLOW
5/8
[15.8]
1 3/4
AIR FLOW
[44.5]
GAS CONN
3
[76.2]
VENT
7/8
[22.2]
4
[101.6]
CONDENSATE DRAIN TRAP
LOCATION
2 1/2
7/8
[22.2]
32 5/8
[829.5]
28 5/8
[715.9]
28 3/16
7/8
[22.2] POWER CONN
[63.5]
7/8
[22.2]
[726.4]
25 3/16
[595.6]
23 7/16
20 1/4
[513.9]
16 9/16
7/8
SIDE INLET
[639.1]
[581.9]
22 15/16
[439.2]
17 5/16
[420.9]
[376.3]
14 13/16
[22.2]
THERMOSTAT ENTRY
C
WIDTH
BOTTOM RETURN
NOTE: ALL DIMENSIONS IN INCH [MM]
11/16
[17.5]
SEE NOTE #3
[668.8]
22
26 5/16
21
[534.0]
[558.3] (BOTH SIDES)
[25.4]
1 (BOTH SIDES)
59SP5
FURNACE SIZE
040--- 10
060--- 12 130.5 (59.2)
A B C D
CABINET WIDTH OUTLET WIDTH BOT TOM INLET WIDTH AIR INTAKE
14--- 3/ 16 (361) 12--- 1/2 (319) 12--- 9/ 16 (322) 7--- 1/8 (181)
040--- 12
060--- 14 141.0 (64.0)
17--- 1/ 2 (445) 15 --- 7/8 (403) 16 (406) 8--- 3/ 4 (222)
080--- 16 145.0 (65.8)
080--- 20
100--- 20 156.5 (71.0)
21 (533) 19 --- 3/8 (492) 19 --- 1/2 (495) 10--- 1/2 (267)
120--- 22 24---1/2 (622) 22 --- 7/8 (581) 23 (584) 12--- 1/ 4 (311) 189.5 (86.0)
14
SHIP WT.
LB (KG)
120.0 (54.4)
131.0 (59.4)
155.5 (70.5)
A12267
Page 15
GUIDE SPECIFICATIONS
General
System Description
Furnish a ______________________ 4--way multipoise gas--fired
condensing furnace for use with natural gas or propane (factory-authorized conversion kit required for propane); furnish external
media cabinet for use with accessory media filter or standard filter.
Quality Assurance
Unit will be designed, tested and constructed to the current ANSI Z
21.47/CSA 2.3 design standard for gas--fired central furnaces.
Unit will be third party certified by CSA to the current ANSI Z
21.47/CSA 2.3 design standard for gas--fired central furnaces. Unit
will carry the CSA Blue StarR and Blue FlameR labels. Unit
efficiency testing will be performed per the current DOE test
procedure as listed in the Federal Register.
Unit will be certified for capacity and efficiency and listed in the
latest AHRI Consumer’s Directory of Certified Efficiency Ratings.
Unit will carry the current Federal Trade Commission Energy
Guide efficiency label.
Delivery, Storage, and Handling
Unit will be shipped as single package only and is stored and
handled per unit manufacturer’s recommendations.
Warranty (for inclusion by specifying engineer)
U.S. and Canada only. Warranty certificate available upon request.
Equipment
Blower Wheel and ECM Blower Motor
Galvanized blower wheel shall be centrifugal type, statically and
dynamically balanced. Blower motor of ECM type shall be
permanently lubricated with sealed ball bearings, of _______hp,
and have multiple speeds from 600--1200 RPM operating only
when 24--VAC motor inputs are provided. Blower motor shall be
direct drive and soft mounted to the blower housing to reduce
vibration transmission.
Filters
Furnace shall have reusable--type filters. Filter shall be ______ in.
(mm) X ________ in. (mm). An accessory highly efficient Media
Filter is available as an option. _____________ Media Filter.
Casing
Casing shall be of .030 in. thickness minimum, pre--painted
galvanized steel.
Draft Inducer
Draft inducer motor shall be single--speed PSC design.
Motor
Primary Heat
Primary heat exchangers shall be 3--Pass corrosion--resistant
aluminized steel of fold--and--crimp sectional design and applied
operating under negative pressure.
Secondary Heat
Secondary heat exchangers shall be of a stainless steel
flow--through of fin--and--tube design and applied operating under
negative pressure.
Controls
Controls shall include a micro--processor--based integrated
electronic control board with at least 16 service troubleshooting
codes displayed via diagnostic flashing LED light on the control, a
self--test feature that checks all major functions of the furnace, and
a replaceable automotive--type circuit protection fuse. Multiple
operational settings available, including blower speeds for high
heat, low cooling, high cooling and continuous fan. Continuous
fan speed may be adjusted from the thermostat. Features will also
include temporary reduced airflow in the cooling mode for
improved dehumidification when a TP--PRH edgeRis selected as
the thermostat.
Exchangers
Exchangers
Operating Characteristics
Heating capacity shall be _________________ Btuh input;
______________ Btuh output capacity.
Fuel Gas Efficiency shall be __________AFUE.
Air delivery shall be ________________ cfm minimum at 0.50 in.
W.C. external static pressure.
Dimensions shall be: depth_________in. (mm); width
__________in. (mm); height___________in. (mm) (casing only).
Height shall be_________in. (mm) with A/C coil and
_________________in. (mm) overall with plenum.
Electrical Requirements
Electrical supply shall be 115 volts, 60 Hz, single--phase (nominal).
Minimum wire size shall be ________AWG; maximum fuse size
of HACR--type designated circuit breaker shall be _________
amps.
Special Features
Refer to section of the product data identifying accessories and
descriptions for specific features and available enhancements.
59SP5A
15
Page 16
59SP5A
Copyright 2013 Carrier Corp. S 7310 W. Morris St. S Indianapolis, IN 46231 . Edition Date: 05/13
Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
Catalog No: 59SP5A---05PD
Replaces: 59SP5A --- 04PD
16
Loading...
