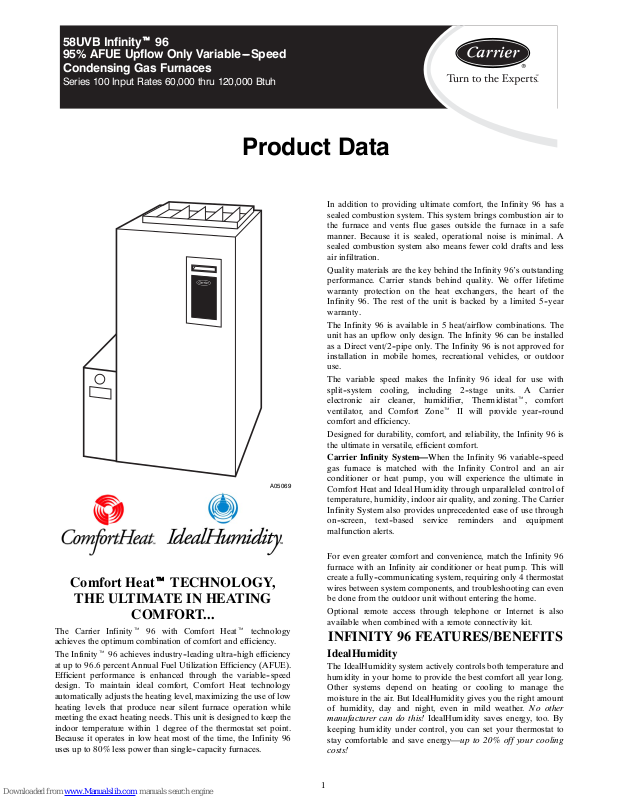

Carrier 58UVB100F10020, 58UVB060F10014, 58UVB120F10020, 58UVB080F10014, 58UVB080F10020 Product Data

Page 1

58UVB Infinityt 96 95% AFUE Upflow Only Variable---Speed Condensing Gas Furnaces

Series 100 Input Rates 60,000 thru 120,000 Btuh

Product Data

A05069

In addition to providing ultimate comfort, the Infinity 96 has a sealed combustion system. This system brings combustion air to the furnace and vents flue gases outside the furnace in a safe manner. Because it is sealed, operational noise is minimal. A sealed combustion system also means fewer cold drafts and less air infiltration.

Quality materials are the key behind the Infinity 96’s outstanding performance. Carrier stands behind quality. We offer lifetime warranty protection on the heat exchangers, the heart of the Infinity 96. The rest of the unit is backed by a limited 5--year warranty.

The Infinity 96 is available in 5 heat/airflow combinations. The unit has an upflow only design. The Infinity 96 can be installed as a Direct vent/2--pipe only. The Infinity 96 is not approved for installation in mobile homes, recreational vehicles, or outdoor use.

The variable speed makes the Infinity 96 ideal for use with split--system cooling, including 2--stage units. A Carrier electronic air cleaner, humidifier, Thermidistatt, comfort ventilator, and Comfort Zonet II will provide year-- round comfort and efficiency.

Designed for durability, comfort, and reliability, the Infinity 96 is the ultimate in versatile, efficient comfort.

Carrier Infinity System—When the Infinity 96 variable--speed gas furnace is matched with the Infinity Control and an air conditioner or heat pump, you will experience the ultimate in Comfort Heat and Ideal Humidity through unparalleled control of temperature, humidity, indoor air quality, and zoning. The Carrier Infinity System also provides unprecedented ease of use through on--screen, text--based service reminders and equipment malfunction alerts.

Comfort Heatt TECHNOLOGY,

THE ULTIMATE IN HEATING

COMFORT...

The Carrier Infinityt 96 with Comfort Heatt technology achieves the optimum combination of comfort and efficiency.

The Infinityt 96 achieves industry--leading ultra--high efficiency at up to 96.6 percent Annual Fuel Utilization Efficiency (AFUE). Efficient performance is enhanced through the variable--speed design. To maintain ideal comfort, Comfort Heat technology automatically adjusts the heating level, maximizing the use of low heating levels that produce near silent furnace operation while meeting the exact heating needs. This unit is designed to keep the indoor temperature within 1 degree of the thermostat set point. Because it operates in low heat most of the time, the Infinity 96 uses up to 80% less power than single--capacity furnaces.

For even greater comfort and convenience, match the Infinity 96 furnace with an Infinity air conditioner or heat pump. This will create a fully-- communicating system, requiring only 4 thermostat wires between system components, and troubleshooting can even be done from the outdoor unit without entering the home.

Optional remote access through telephone or Internet is also available when combined with a remote connectivity kit.

INFINITY 96 FEATURES/BENEFITS

IdealHumidity

The IdealHumidity system actively controls both temperature and humidity in your home to provide the best comfort all year long. Other systems depend on heating or cooling to manage the moisture in the air. But IdealHumidity gives you the right amount of humidity, day and night, even in mild weather. No other manufacturer can do this! IdealHumidity saves energy, too. By keeping humidity under control, you can set your thermostat to stay comfortable and save energy—up to 20% off your cooling

costs!

Page 2

Comfort Heat

On the coldest days of the year, the Infinity 96 Furnace has the capacity to heat your home. On moderate days when less heat is required, this furnace will regulate itself to a lower capacity—providing a comfortable home and minimizing operating costs.

The patented algorithm adjusts the low--heat operating time to match the indoor conditions.

Reliable Heat Exchanger Design

The primary heat exchanger is made of aluminized steel for corrosion resistance. The patented Serpentufft condensing heat exchanger cells are laminated with polypropylene for greater resistance to corrosion and epoxy coated externally to prevent oxidation. This breakthrough in heating technology helps extend the life of the furnace for years of dependable performance. The heat exchanger is positioned in the furnace to extract additional heat. Stainless steel 409 heat exchanger assembly has better corrosion resistance in natural gas and propane applications.

Power Heatt Igniter

58UVB

Carrier’s unique SiN igniter is not only physically robust but it is also electrically robust. It is capable of running at line voltage and does not require complex voltage regulators as do other brands. This unique feature further enhances the reliability of Infinity 96 gas furnace and continues Carrier’s tradition of technology leadership and innovation in providing a reliable and durable product.

ComfortFant

Improves comfort all year long by allowing you to select the continuous fan speed right at the thermostat.

SmartEvapt

Allows your system to reduce summertime humidity levels by nearly 10% cover standard systems.

Media Filter Cabinet

Enhanced indoor air quality in your home is made easier with our media filter cabinet—a standard accessory on all deluxe furnaces. When installed as a part of your system, this cabinet allows for easy and convenient addition of a Carrier high--efficiency air filter.

ComfortHeatt Control Center

The microprocessor control center features state-- of--the--art combustion, temperature, and airflow control to maximize comfort while operating at peak efficiency.

Combustion control is obtained by taking the appropriate inducer motor RPM readings when the low--and high--fire pressure switches are made. Using this information, the microprocessor main--information, the microprocessor maintains a consistent air--to--fuel ratio independent of vent sizing and conditions.

The first cycle after power reset provides 16 minutes of low heat before switching to high heat unless the room thermostat has been satisfied. Subsequent thermostat cycles provide anywhere from 0 to 16 minutes of low heat depending on the length of the previous thermostat cycle.

Airflow control is accomplished by using a technique involving the microprocessor and blower motor. The static load on the air

delivery system is measured each heating cycle. The microprocessor then uses this information to deliver correct airflow independent of variations in system restrictions. (For example, dirty filter or zone damper changes during a cycle.)

A special dehumidification function allows direct input from a thermidistat or humidistat. This input adjusts system airflow for greater humidity removal and increased cooling comfort during summer months.

Warranty

The Infinity 96 heat exchangers come with a Limited Warranty for lifetime of original owner in single family residence; 20 years in other residential and commercial applications. Five--year limited warranty on entire units. Contact your dealer for details.

Direct Venting

The Infinity 96 should be installed as a 2--pipe (direct vent) furnace.

Electronic Variable--Speed Motors

ECM Motors (Electronically Commutated Motor) provide variable--speed operation to optimize comfort levels in the home year round. They are also more economical to operate than standard motors.

Sealed Combustion System

Infinity 96 brings in combustion air from outside the furnace, which results in especially quiet operation.

Insulation

Foil--faced insulation in heat exchanger section of the casing minimizes heat loss.

Insulated Blower Compartment

The acoustical insulation reduces air and motor noise for quiet operation.

Monoport Burners

The burners are finely turned for smooth, quiet combustion and economical operation.

Bottom Closure

Factory--installed for side return; easily removable for bottom return.

Blower Access Panel Switch

Automatically shuts off 115--V power to furnace whenever blower access panel is opened.

Quality Registration

The Infinity 96 is engineered and manufactured under an ISO 9001 registered quality system.

Certifications

The Infinity 96, Model 58UVB units are CSA (AGA and CGA) design certified for use with natural and propane gases. The furnace is factory-- shipped for use with natural gas. A CSA listed gas conversion kit is required to convert furnace for use with propane gas. The efficiency is GAMA efficiency rating certified. The Infinity 96 meets California Air Quality Management District emission requirements.

Page 3

3 4

15 17

11 12

A02287

NOTES:

1. The 58UVB Furnace is built for use with natural gas. The furnace can be converted for propane gas with a factory---au thorized and listed accessory conversion kit.

2. Control location and actual controls may be different than shown above.

58UVB

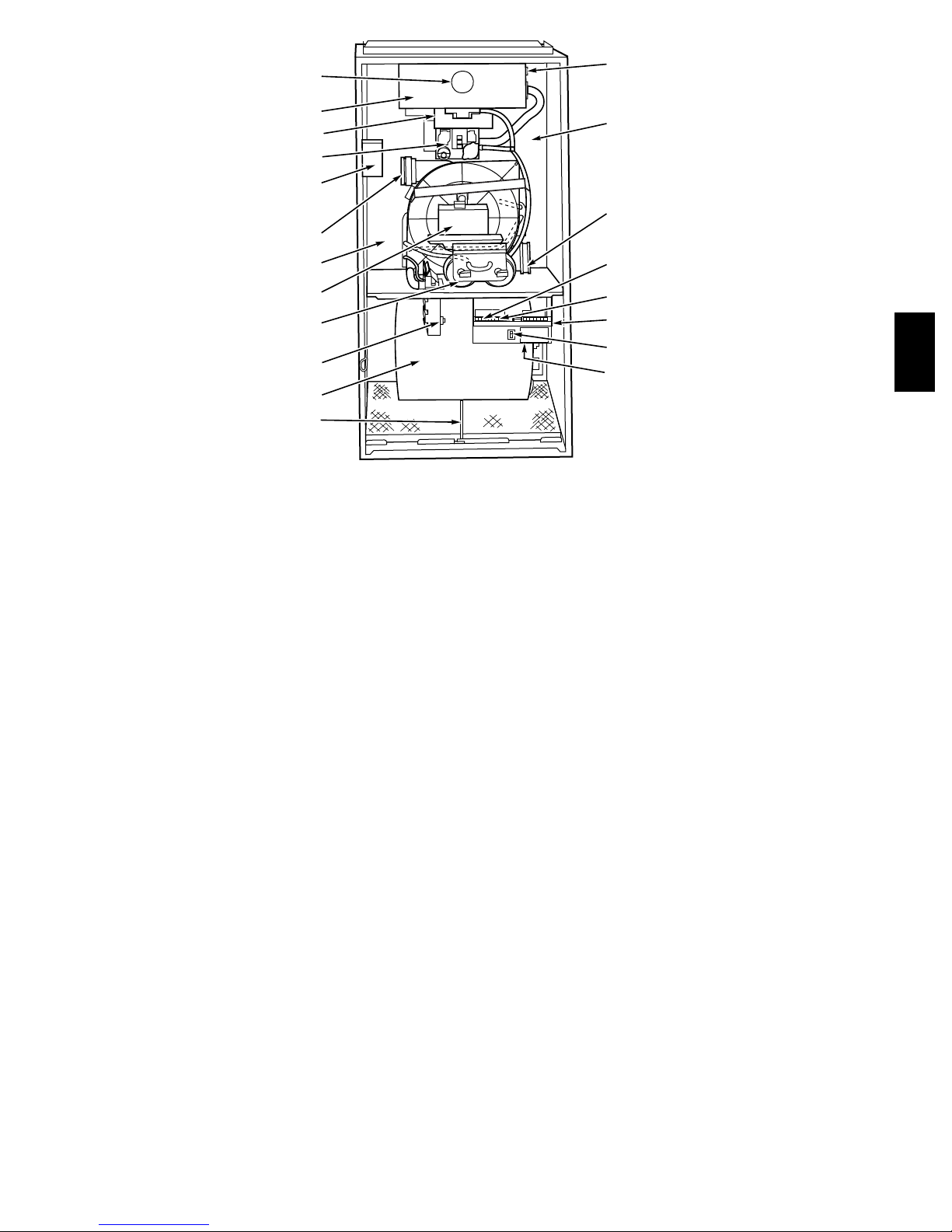

1. Burner sight glass for viewing burner flame.

2. Burner assembly (inside). Operates with energy saving, inshot burners and hot surface igniter for safe, dependable heating.

3. Combustion--air intake connection to ensure contaminate-free air (right or left side).

4. Redundant 2--stage gas valve. Safe, efficient. Features one gas control with two internal shutoff valves.

5. Junction box for 115--v electrical power supply.

6. Vent outlet. Uses PVC pipe to carry vent gases from the furnaces’s combustion system (right or left side).

7. Secondary condensing heat exchanger (inside). Wrings out more heat through condensation. Constructed with patented polypropylene--laminated steel to ensure durability.

8. Pressure switches ensure adequate flow of flue products through furnace and out vent system.

9. Inducer motor. Pulls hot flue gases through the heat exchangers, maintaining negative pressure for added safety.

10. Condensate drain connection. Collects moisture condensed during combustion process.

11. Heavy--duty blower. Circulates air across the heat exchangers to transfer heat into the home.

12. Air filter and retainer. May be used for side return application.

13. Rollout switch (manual reset) to prevent overtemperature.

14. Primary serpentine heat exchanger (inside). Stretches fuel dollars with the S--shaped heat flow design. Solid construction of corrosion--resistant aluminized steel means reliability.

15. Three--amp fuse provides electrical and component protection.

16. Light emitting diodes (LEDs) on control center . Code lights are for diagnosing furnace operation and service requirements.

17. Comfort Heat Control center.

18. Blower access panel safety interlock switch.

19. Transformer (24v) behind control center provides low-voltage power to furnace control center and thermostat.

Page 4

MODEL NUMBER NOMENCLATURE

Deluxe Upflow only V a r i a b l e --- S p e e d D i r e c t --- V e n t ( 2 --- P i pe ) a n d Condensing Gas Furnace

Input Rates

060 --- 60,000 B tuh 080 --- 80,000 B tuh 100 --- 100,000 B tuh 120 --- 120,000 B tuh

58UVB

060

Media Filter Cabinet included

100

Series

Cooling Airflow

(400 CFM per 12,000 Btuh) 14 --- 1400 CFM 20--- 2000CFM

58UVB

CARRIER ACCESSORIES

UNIT SIZE

DESCRIPTION PAR T NO.

060---14 080--- 14 080---20 100--- 20 120 --- 20

Vent Termination Kit (Bracket Only for 2 Pipes)

Concentric Termination Kit (Single Exit)

Condensate Freeze Protection Kit KGAHT0101CFP X X X X X

Germicidal Air Purifier Model GAPA X X X X X

2---in. — KGAVT0101BRA 3---in. — KGAVT0201BRA

2---in. — KGAVT0501CVT 3---in. — KGAVT0601CVT

X X X X X

Condensate Neutralizer Kit (obtained thru RCD)

P908---0001

X X X X X

Electronic Air Cleaner Model EACA X X X X X

Mechanical Air Cleaner

Model FILCAB or EZXCAB

X X X X X

Humidifier Model HUM X X X X X

Heat Recovery Ventilator Model HRV X X X X X

Energy Recovery Ventilator Model ERV X X X X X

UV Lights Model UVL X X X X X

E Z F l e x M e d ia F i lt e r w i t h e n d c a p s --- 1 6 --- i n . ( 9 p a c k ) EXPXXLMC0016 X

E Z F l e x M e d ia F i lt e r w i t h e n d c a p s --- 2 0 --- i n . ( 9 p a c k ) EXPXXLMC0020 X X X

E Z F l e x M e d ia F i lt e r w i t h e n d c a p s --- 2 4 --- i n . ( 6 p a c k ) EXPXXLMC0024 X

R e p l a c e me n t E Z F l e x F i l te r --- 1 6 --- i n . ( 1 0 p a ck ) EXPXXFIL0016 X

R e p l a c e me n t E Z F l e x F i l te r --- 2 0 --- i n . ( 1 0 p a ck ) EXPXXFIL0020 X X X

R e p l a c e me n t E Z F l e x F i l te r --- 2 4 --- i n . ( 1 0 p a ck ) EXPXXFIL0024 X

E x t er i o r F i l t er R ac k --- U n i v e r sa l , 1 --- i n . ( a d j u st a b le f r om 1 4 --- i n . t o 2 4 --- i n .) w i th f i lt e r

Unframed Filter 1--- in. — 16 x 25

Unframed Filter 1--- in. — 20 x 25

Unframed Filter 1--- in. — 24 x 25

KGAFR0301ALL KGAFR0306ALL (6 pack)

KGAWF1301UFR KGAWF1306UFR (6 pack)

KGAWF1401UFR KGAWF1406UFR (6 pack)

KGAWF1501UFR KGAWF1506UFR (6 pack)

X X X X

X S S S

X X X

Page 5

CARRIER ACCESSORIES CONTINUED

UNIT SIZE

DESCRIPTION PAR T NO.

060---14 080--- 14 080---20 100--- 20 120 --- 20

N a t u r a l --- To --- P r o p a n e G a s C on v e rs i o n K i t ( S i n g l e K i t )* KGANP4101ALL X X X X X

P r o p a n e --- T o --- N a t ur a l G a s C on v e rs i o n K i t ( S i n g l e K i t ) KGAPN3401ALL X X X X X

ECM Motor Simulator (replaces the ECM motor to aid trouble shooting)

Door Gasket Kit KGBAC0110DGK X X X X X

Advanced Product Monitor (software and hardware to link pc laptop to control board)

ECM Control Replacement Module --- 1/2 HP HK44EA120 X X

ECM Control Replacement Module --- 1 HP HK52EA120 X X X

Gas Orifice Kit Size 42 (Qty 50) KGAHA0150N42

Gas Orifice Kit Size 43 (Qty 50) KGAHA0250N43

Gas Orifice Kit Size 44 (Qty 50) KGAHA0350N44

Gas Orifice Kit Size 45 (Qty 50) KGAHA0450N45

Gas Orifice Kit Size 46 (Qty 50) KGAHA0550N46

Gas Orifice Kit Size 47 (Qty 50) KGAHA1550N47

Gas Orifice Kit Size 48 (Qty 50) KGAHA850N48

Gas Orifice Kit Size 54 (Qty 50)

Gas Orifice Kit Size 55 (Qty 50)

Gas Orifice Kit Size 56 (Qty 50)

Gas Orifice Kit Size 1.25mm (Qty 50)

Gas Orifice Kit Size 1.30mm (Qty 50)

* Factory---authorized and field--- installed. Gas conversion kits are CSA (AGA/CGA) recognized. S 16 x 25 filters suitable for side return on all furnace sizes.

KGASD0201FMS X X X X X

KGAFP0201APM X X X X X

See Installation Instructions for model, altitude, and heat value usages.

KGAHA0850P54

KGAHA0750P55

KGAHA0850P56

KGAHA05750125

KGAHA5750130

58UVB

Page 6

THERMOSTAT AND ZONING CONTROL OPTIONS

NON---PROGRAMMABLE THERMOSTAT SELECTION

TSTATCCNAC01---C

TSTATCCNHP01---C* For use with 1 speed Air Conditioner --- _F/_C, Auto Changeover

TSTATCCN2S01--- C* For use with 2 speed Air Conditioner --- _F/_C, Auto Changeover

TSTATCCPRH01---B{ F o r m u l ti --- us e / s t a g e c on f i g u r at i o n s --- _F/_C, Auto Changeover

* Model HP & 2 Stage thermostat must be field converted to air conditioner operation.

{ Thermidistat is versatile and can be configured for multiple use and stagin g. It must be configured for each specific application.

PROGRAMMABLE THERMOSTAT SELECTION

TSTATCCPAC01--- B

For use with 1 speed Air Conditioner --- _F/_C, Auto Changeover

For use with 1 speed Air Conditioner --- _F/_C, Auto Changeover, 7---Day Programmable

TSTATCCPHP01---B*

TSTATCCP2S01---B*

58UVB

TSTATCCSAC01

TSTATCCPDF01--- B{

TSTATCCPRH01---B}

SYSTXCCUID01 --- A

* Model HP & 2 Stage thermostat must be field converted to air conditioner operation.

{ Hybrid Heat™ thermostat is used with furnace and heat pump application.

} Ther midistat can be configured for multipl e use and staging. It must be con figured for each specific application.

ZONING CONTROL SELECTION

ZONECC3Z(AC/HP)01 WeatherMaker Two--- Zone Kit

ZONECC2KIT01---B C o m f o r t Z o n e I I --- B 2 --- Z o n e K i t

ZONECC4KIT01---B C o m f o r t Z o n e I I --- B 4 --- Z o n e K i t

ZONECC8KIT01---B C o m f o r t Z o n e I I --- B 8 --- Z o n e K i t

SYSTXCCUIZ01- -- A Infinity Zone User Interface

SYSTXCCRRS01 Infinity Remote Room Sensor

SYSTXCCSMS01 Infinity Smart Sensor

SYSTXCC4ZC01 Infinity 4 --- Zone Damper C ontrol

For use with 1 speed Air Conditioner --- _F/_C, Auto Changeover, 7---Day Programmable

For use with 2 speed Air Conditioner --- _F/_C, Auto Changeover, 7---Day Programmable

For use with 1 speed Air Conditioner --- _F/_C, Auto Changeover, 5---2 Programmable

F o r u s e w i th m u lt i --- s t a g e a p p l i c at i o n s --- _F/_C, Auto Changeover, 7--- Day Programmable

F o r m u l ti --- us e / st a g e c o n f i g u r a ti o n s --- _F/_C, Auto Changeover 7--- Day Programmable

Page 7

MODEL PLUG

(

CONNECTOR

SW1 SETUP

SWITCHES AND

BLOWER OFF-

DELAY

AIR CONDITIONING

(A/C) AIRFLOW

SETUP SWITCHES

24-V THERMOSTAT

TERMINALS

STATUS AND COMM

LED LIGHTS

3-AMP FUSE

TRANSFORMER 24-VAC

CONNECTIONS

115-VAC (L2) NEUTRAL

CONNECTIONS

COMMUNICATION

CONNECTOR

PL1 Ð LOW VOLTAGE MAIN

HARNESS CONNECTOR

CONTINUOUS FAN

(CF) AIRFLOW

SETUP SWITCHES

EAC-1 TERMINAL

115-VAC 1.0 AMP MAX.)

FUTURE

APPLICATIONS

115-VAC (L1) LINE

VOLTAGE CONNECTIONS

HUMIDIFIER

TERMINAL (24-VAC

0.5 AMP MAX.

ACRDJ Ð AIR CONDITIONING RELAY DISABLE

JUMPER

FLASH

UPGRADE

CONNECTOR

(FACTORY

ONLY)

PL3 ÐECM BLOWER

HARNESS

CONNECTOR

PL2 Ð HOT SURFACE IGNITER & INDUCER MOTOR CONNECTOR

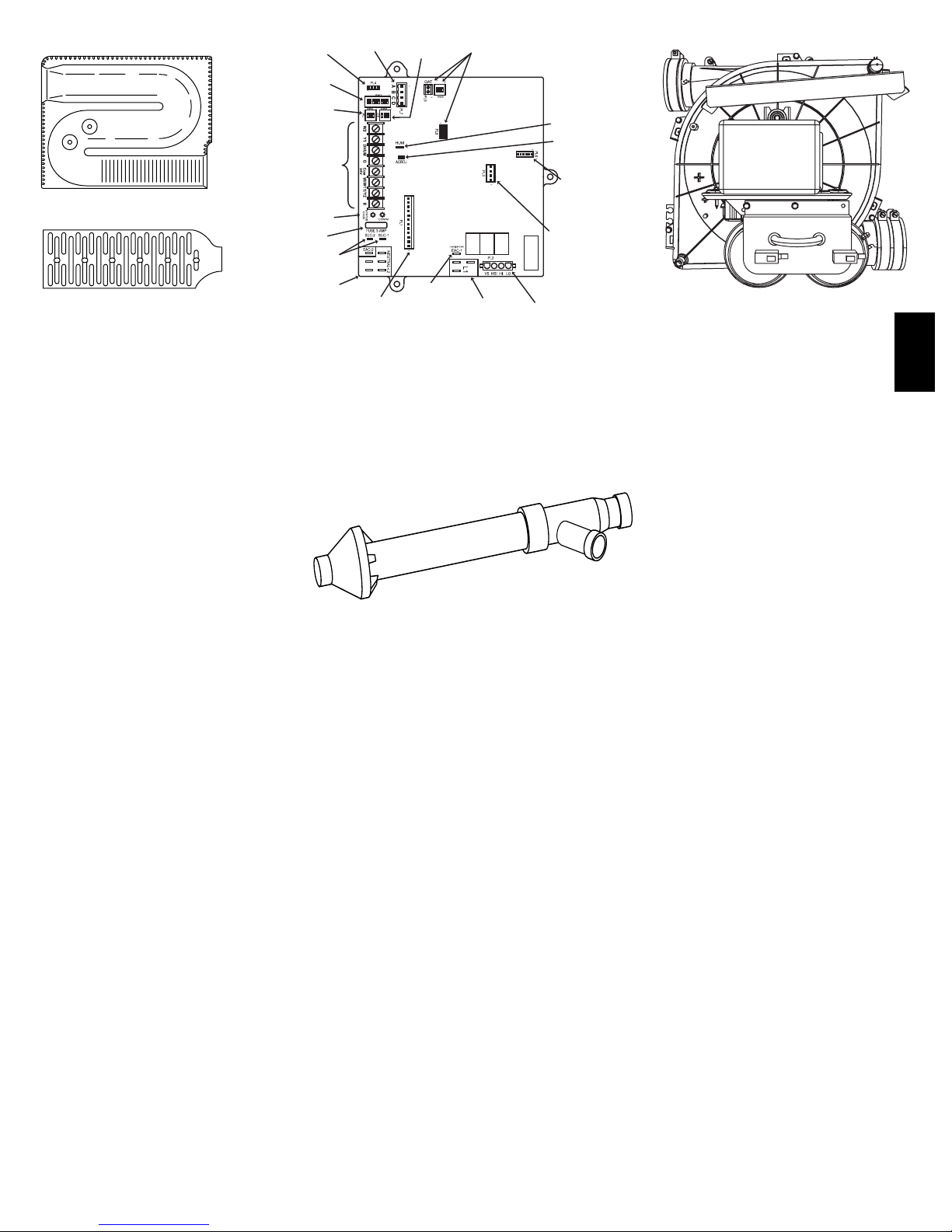

Heat Exchangers

A92505

A02278

Control Center

A93086

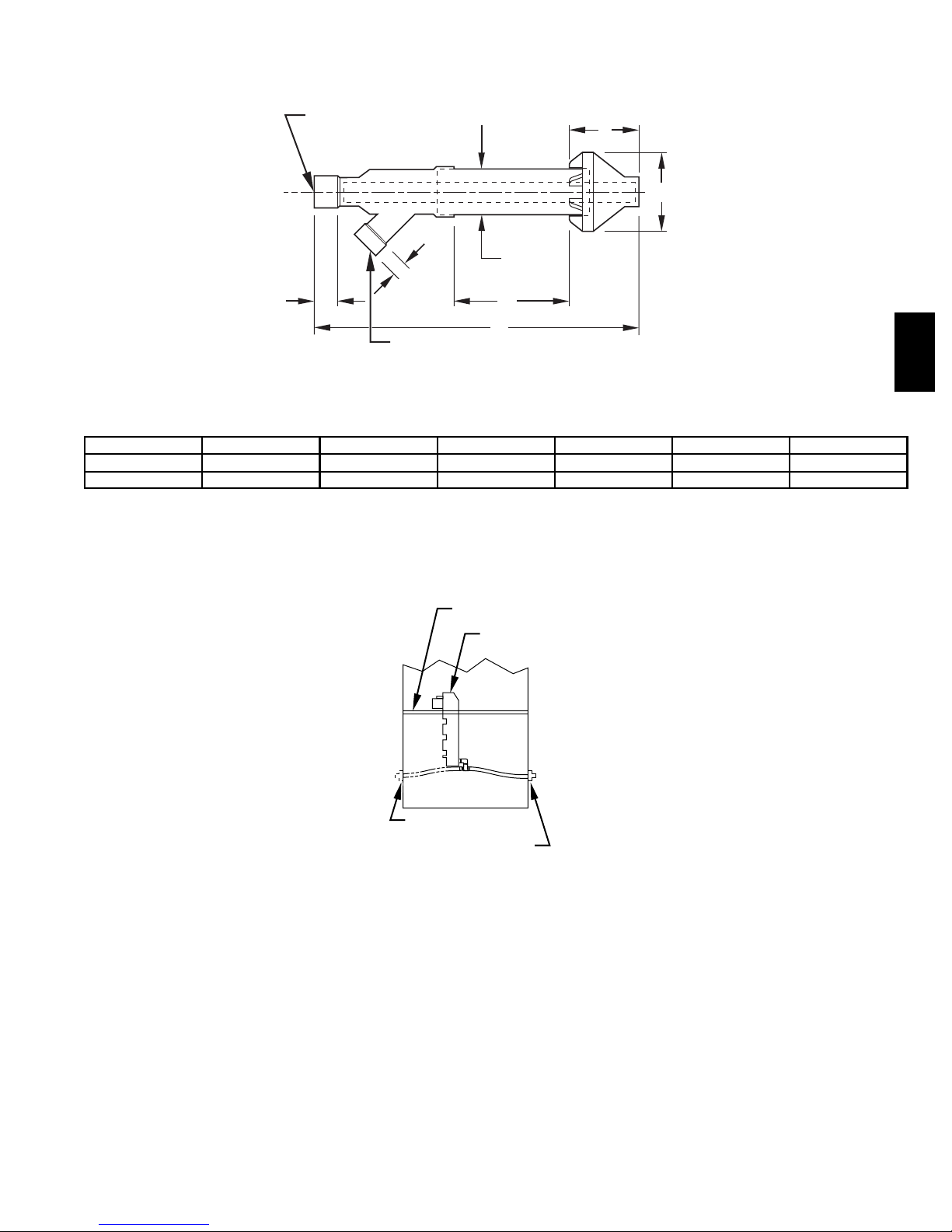

Concentric Vent (Direct Vent/2-- Pipe Only)

A concentric vent kit allows vent and combustion--air pipes to terminate through a single exit in a roof or side wall.

One pipe runs inside the other allowing venting through the inner pipe and combustion air to be drawn in through the outer pipe.

Inducer Assembly

A02286

58UVB

Page 8

A04336

A97152

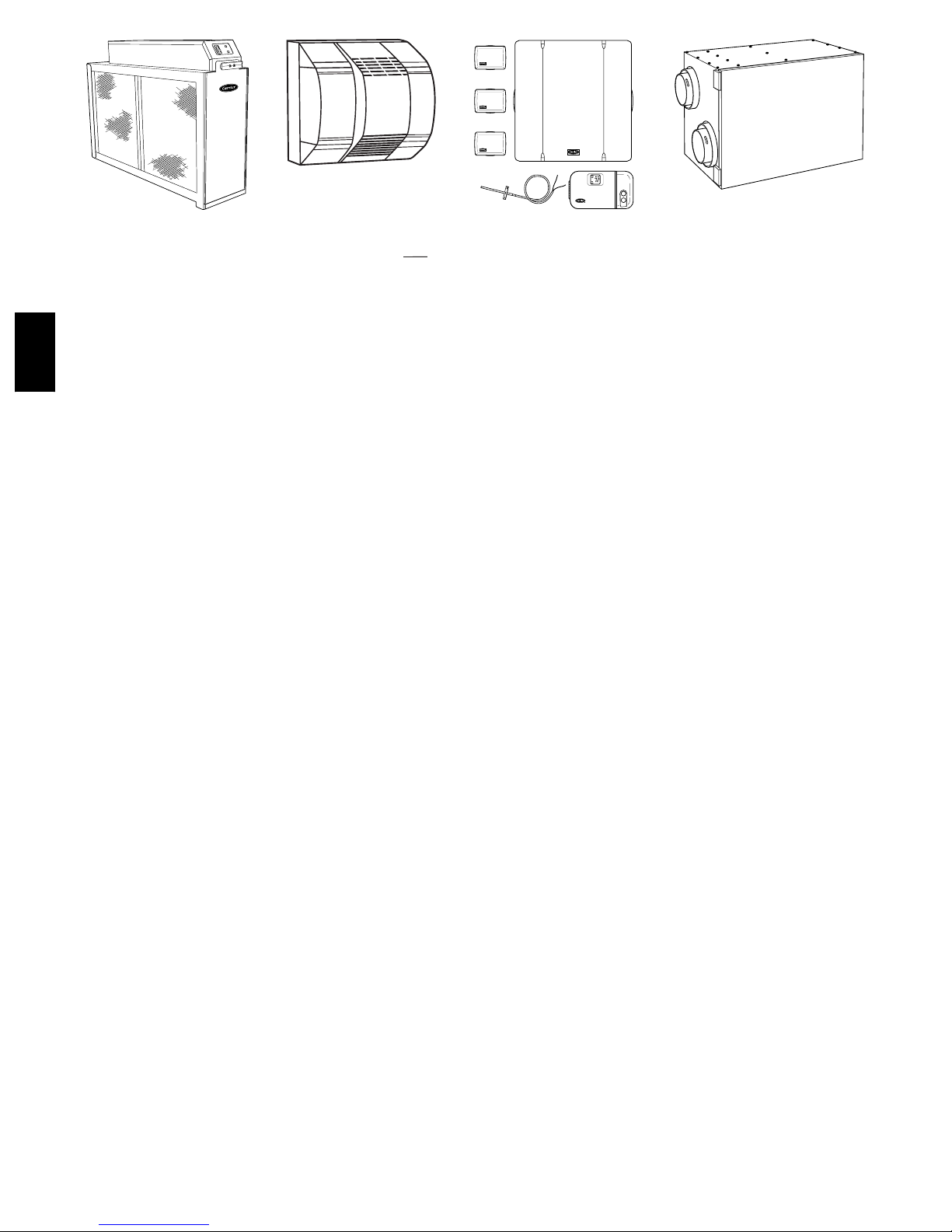

Electronic or Mechanical

Air Cleaner

Cleans the air of smoke, dirt, and many pollens commonly found. Saves decorating and cleaning expenses by keeping carpets, furniture, and

58UVB

drapes cleaner.

Electronic Air Cleaner is shown.

Humidifier

By adding moisture to winter dry air, a Carrier humidifier can often improve comfort and keeps woodwork, wallpaper, and paint in better condition.

A01484

Moisturizing household air also helps to retain normal body heat and provides comfort at lower temperature.

Controls: Thermostats

and Zoning

Available in programmable and non--programmable models, Carrier thermostats maintain a constant, comfortable temperature level in the home.

For the ultimate in home comfort, Carrier’s 2--, 4--, or 8--zone systems allow temperature control of individual “zones” of the

A97432

Energy/Heat Recovery

Ventilator

Carrier’s energy or heat recovery ventilators exhaust stale indoor air and provide fresh outdoor air to the home while minimizing heat loss and humidity level. Especially useful for today’s tighter constructed houses.

Energy recovery ventilator is shown.

home. This is accomplished through a series of electronic dampers and remote room sensors. The 4--zone system is shown.

Page 9

ISO 9001:2000

ama

MEETS DOE RESIDENTIAL CONSERVATION SERVICES PROGRAM STANDARDS. Before purchasing this appliance, read important energy cost and efficiency

REGISTERED

REGISTERED QUALITY SYSTEM

These products are engineered and manufactured under an ISO 9001 registered quality system.

CERTIFIED

As an ENERGY STAR Partner,Carrier Corporation has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

information available from your retailer.

PHYSICAL DATA

UNIT SIZE

DESCRIPTION

060---14 080---14 080---20 100---20 120---20

Direct--- Drive Motor Hp (ECM) 1/2 1/2 1 1 1

Motor Full Load Amps 7.7 7.7 12.8 12.8 12.8

RPM (Nominal)—Speeds Variable 250 — 1300

Blower Wheel Diameter X Width (in.) 10 X 7 11 X 10 11 X 10 11 X 10 11 X 10

Filter Size (in.) Nominal A (Washable) (1) 16 X 25 X 1 (1) 20 X 25 X 1 (1) 20 X 25 X 1 (1) 20 X 25 X 1 (1) 24 X 25 X 1

Shipping Weight (lb) 170 182 204 203 234

Limit Control SPST

Heating Blower Control (Off Delay) Selectable 90, 120, 150, or 180 SEC Intervals

Burners (Monoport) 3 4 4 5 6

Gas Connection Size 1 / 2 --- i n . N P T

Gas Valve (Redundant) Manufacturer Minimum Inlet Pressure (in. wc) Maximum Inlet Pressure (in. wc)

Ignition Device H o t S u rf a c e --- S i N

W h ite --- R o d g e r s

4.5 (Natural Gas)

13.6 (Natural Gas)

58UVB

Page 10

PERFORMANCE DATA

DESCRIPTION

UNIT SIZE

060---14 080---14 080---20 100---20 120---20

Certified Temp Rise Range (_F)

Certified Ext Static Pressure (ESP) (in. wc)

Airflow CFM*

Output Capacity Btuh} (ICS)

AFUE%}

58UVB

Input Btuh**

* Airflow shown is for bottom only return ---air supply with factory--- supplied 1---in. washable filter(s). For air delivery above 1800 CFM, see Air Delivery table for

other options.

{ Low heat CFM when low ---heat rise adjustment switch (SW1 --- 3) on furnace control is used. } AFUE and capacity in accordance with U.S. Government DOE test procedures.

** Gas input ratings are certified for elevations to 2000 ft. For elevations above 2000 ft, reduce ratings 2% for each 1000 ft above sea level. In Canada, derate

the unit 5% for elevations from 2000 to 4500 ft above sea level.

Low 40—70 40—70 40—70 40—70 40—70

High 35—65 40—70 35—65 45—75 45—75

Heating 0.12 0.15 0.15 0.20 0.20

Cooling 0.50 0.50 0.50 0.50 0.50

Heating Low 670 (735{) 910 (1000{) 870 (955{) 1060 (1165{) 1345 (1480{)

Heating High 1055 1390 1500 1525 1880

Cooling (Max) 1400 1395 1990 2000 2100

Low 37,000 50,000 50,000 63,000 75,000

High 56,000 75,000 75,000 94,000 113,000

95.0 95.0 95.0 95.0 95.0

Low 39,000 52,000 52,000 65,000 78,000

High 60,000 80,000 80,000 100,000 120,000

Page 11

AIR DELIVERY -- CFM (BOTTOM RETURN WITH FILTER)*

UNIT SIZE

060---14 †† Low Heat 690† 0---0.50 670 685 690 690 690

080---14# †† Low Heat 910† 0 --- 0.50 910 910 910 910 910 910 910 910 895 880

080---20# †† Low Heat 870† 0 --- 0.50 870 870 870 870 870

OPERATING

MODE

High Heat 1065 0 --- 1 . 0 1055 1065 1065 1065 1065 1065 1065 1065 1060 1050 1 --- 1 / 2 --- To n A / C

††

Cooling 2 --- To n A / C

††

Cooling 2 --- 1 / 2 --- To n A / C

Cooling 3 --- To n A / C

Cooling 3 --- 1 / 2 --- To n A / C

Cooling Maximum 1400 0 --- 1.0 1400 1400 1400 1400 1400 1400 1400 1400 1385 1345

High Heat 1390 0 --- 1 . 0 1390 1390 1390 1390 1390 1355 1300 1250 1200 1155 1 --- 1 / 2 --- To n A / C

††

Cooling 2 --- To n A / C

††

Cooling 2 --- 1 / 2 --- To n A / C

Cooling 3 --- To n A / C

Cooling 3 --- 1 / 2 --- To n A / C

Cooling Maximum 1400 0---1.0‡ 1400 1400 1400 1400 1395 1355 1315 1275 1230 1190

High Heat 1500 0 --- 1 . 0 1500 1500 1500 1500 1500 1500 1500 1495 1485 1480 2 --- To n A / C

††

Cooling 2 --- 1 / 2 --- To n A / C

††

Cooling 3 --- To n A / C

Cooling 3 --- 1 / 2 --- To n A / C

Cooling 4 --- To n A / C

Cooling 5 --- To n A / C

Cooling Maximum 2000 0 --- 1.0 2000 2000 2000 2000 1990 1975 1950 1925 1900 1865

CFM

AIRFLOW

SETTING

525 0---0.50‡ 525 525 510 495 465

700 0---0.50‡ 700 700 695 680 680

875 0---1.0‡ 850 870 875 875 870 860 845 825 810 805

1050 0 --- 1 . 0 1050 1050 1050 1050 1050 1050 1050 1050 1050 1050

1225 0 --- 1 . 0 1210 1220 1225 1225 1225 1225 1225 1225 1215 1195

525 0---0.50‡ 525 525 515 505 485

700 0---0.50‡ 700 700 695 695 700

875 0---1.0‡ 840 855 875 875 875 875 870 855 850 850

1050 0---1.0‡ 1050 1050 1050 1050 1050 1050 1045 1045 1040 1030

1225 0---1.0‡ 1225 1225 1225 1225 1225 1225 1225 1225 1225 1195

700 0---0.50‡ 700 670 665 665 655

875 0---0.50‡ 875 875 875 875 875

1050 0---1.0‡ 1050 1050 1050 1045 1050 1050 1045 1045 1045 1035

1225 0---1.0‡ 1215 1220 1220 1220 1225 1225 1225 1225 1225 1220

1400 0---1.0‡ 1370 1385 1385 1395 1395 1395 1395 1400 1395 1390

1750 0 --- 1 . 0 1750 1750 1750 1750 1750 1750 1745 1740 1735 1725

EXTERNAL

STATIC

PRESSURE

RANGE*

0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0

EXTERNAL STATIC PRESSURE (ESP)

58UVB

Page 12

AIR DELIVERY -- CFM (BOTTOM RETURN WITH FILTER)* CONTINUED

UNIT SIZE

100---20# Low Heat 1110† 0 --- 1 . 0 1060 1075 1080 1095 1110 1110 1110 1110 1110 1110

120---20 Low Heat 1380† 0 --- 1 . 0 1345 1365 1380 1380 1380 1380 1380 1375 1360 1355

58UVB

* Actual external static pressure (ESP) can be determined by using the fan laws (CFM2proportional to ESP); such as, a system with 1750 CFM at 0.5 ESP

would operate at high---heating airflow of 1500 CFM at 0.37 ESP and low --- heating airflow of 705 CFM at 0.08 ESP.

{ Low heat CFM when low ---heat rise adjustment switch (SW1 ---3) and comfort/efficiency adjustment switch (SW1--- 4) on control center are OFF. } Ductwork must be sized for high ---heating CFM within the operational range of ESP. {{ Operation within the blank areas of the chart is not recommended because high ---heat operation will be above 1.0 ESP.

# All airflows for 21 in. casing size furnaces are 5% less on side return only installations.

OPERATING

MODE

High Heat 1525 0 --- 1 . 0 1525 1525 1525 1525 1520 1515 1515 1515 1515 1515 2 --- To n A / C

††

Cooling 2 --- 1 / 2 --- To n A / C

††

Cooling 3 --- To n A / C

Cooling 3 --- 1 / 2 --- To n A / C

Cooling 4 --- To n A / C

Cooling 5 --- To n A / C

Cooling Maximum 2000 0 --- 1.0 2000 2000 2000 2000 2000 2000 1985 1965 1940 1910

High Heat 1885 0 --- 1 . 0 1875 1880 1885 1885 1885 1885 1885 1885 1880 1870 2 --- To n A / C

††

Cooling 2 --- 1 / 2 --- To n A / C

††

Cooling 3 --- To n A / C

Cooling 3 --- 1 / 2 --- To n A / C

Cooling 4 --- To n A / C

Cooling 5 --- To n A / C

Cooling 6 --- To n A / C

Cooling Maximum 2100 0 --- 1.0 2100 2100 2100 2100 2100 2095 2075 2040 1975 1910

CFM

AIRFLOW

SETTING

700 0---0.50‡ 700 700 700 690 685

875 0---0.50‡ 865 875 870 870 875

1050 0---1.0‡ 1035 1045 1050 1045 1050 1050 1050 1050 1050 1045

1225 0---1.0‡ 1180 1195 1215 1225 1225 1225 1225 1225 1225 1225

1400 0---1.0‡ 1400 1400 1400 1400 1400 1400 1400 1395 1375 1365

1750 0 --- 1 . 0 1740 1745 1750 1750 1750 1750 1750 1750 1750 1740

700 0---0.50‡ 700 700 700 700 695

875 0---0.50‡ 875 875 875 870 870

1050 0---1.0‡ 1035 1040 1050 1050 1050 1050 1050 1025 1005 1000

1225 0---1.0‡ 1205 1210 1225 1225 1225 1225 1225 1225 1220 1215

1400 0---1.0‡ 1390 1400 1400 1400 1400 1400 1395 1385 1370 1360

1750 0---1.0‡ 1745 1740 1745 1745 1745 1745 1745 1740 1730 1715

2100 0 --- 1 . 0 2100 2100 2100 2100 2100 2095 2075 2040 1975 1910

EXTERNAL

STATIC

PRESSURE

RANGE*

0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0

EXTERNAL STATIC PRESSURE (ESP)

Page 13

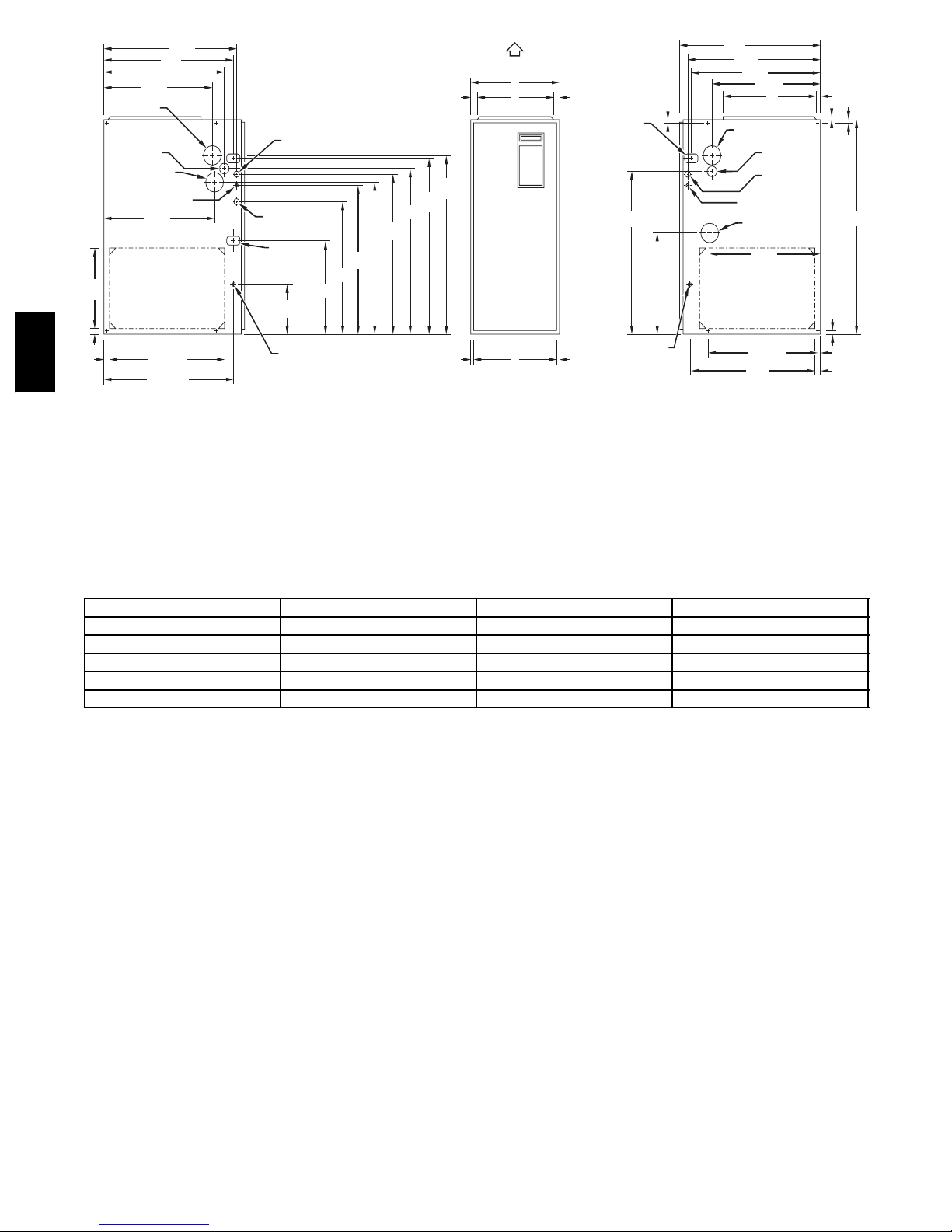

DIMENSIONS

CONCENTRIC VENT (DIRECT VENT/2 ---PIPE ONLY) (ALL MODEL SIZES)

B IN. DIA PVC VENT/EXHAUST

C IN. DIA

13/

B IN. DIA PVC

INTAKE/COMBUSTION AIR

Dimensions (in.)

KIT PART NO. A* B C D{ E F

KGAVT0501CVT 33 --- 3/8 2 3 --- 1 / 2 16--- 5/8 6 --- 1 / 4 5 --- 3 / 4 KGAVT0601CVT 38 --- 7/8 3 4 --- 1 / 2 21--- 1/8 7 --- 3 / 8 6 --- 1 / 2

* Dimension A will change proportionally as dimension D is lengthened or shortened. { Dimension D may be lengthened to 60 in. maximum. Dimension D may also be shorten ed by cutting the pipes provided in the kit to 12 in. minimum.

CONDENSATE TRAP

BLOWER SHELF

CONDENSATE TRAP (INSIDE)

A97110

58UVB

ALTERNATE DRAIN TUBE LOCATION

CONDENSATE TRAP

DRAIN TUBE LOCATION

UPFLOW APPLICATIONS

A06450

Page 14

⁄2"

TYP

2615⁄16"

⁄4"

⁄2"

⁄16"

-IN. COMBUSTION-

AIR CONN

⁄2

-IN. DIA

GAS CONN

-IN. VENT CONN

⁄2-IN. DIA THERMOSTAT

2211⁄16"

ENTRY

SIDE INLET

⁄8-IN. DIA

POWER CONN

⁄8-IN. DIA

ACCESSORY POWER ENTRY

CONDENSATE DRAIN TRAP LOCATION (ALTERNATE UPFLOW)

97⁄16"

TYP

175⁄16"

⁄2"

AIRFLO

⁄16"

OUTLET

⁄4"

TYP

⁄8"

TYP

⁄16"

TYP

⁄8"

⁄16"

TYP

⁄2"

⁄16"

ALTERNATE

⁄2

-IN. DIA GAS CONN

301⁄2"

⁄16"

TYP

⁄4"

⁄16"

261⁄4"

⁄16"

OUTLET

2-IN. COMBUSTIONAIR CONN

⁄2-IN. DIA

GAS CONN

⁄8-IN. DIA

POWER CONN

⁄2-IN. DIA

THERMOSTAT ENTRY

2-IN. VENT CONN

⁄16"

SIDE INLET

⁄16"

⁄8"

⁄16"

⁄8

⁄4"

" E

58UVB

⁄4" TYP

SIDE INLET

⁄16" TYP

CONDENSATE DRAIN LOCATION (UPFLOW)

NOTES: 1. Minimum return-air openings at furnace, based on metal duct. If flex duct is used,

2. Minimum return-air opening at furnace:

UNIT SIZE A D E

060---14 17---1/2 15---7/8 16

080---14 21 19 --- 3/8 19 --- 1/2

080---20 21 19 --- 3/8 19 --- 1/2

100---20 21 19 --- 3/8 19 --- 1/2

120---20 24---1/2 22---7/8 23

* These dimensions reflect the wider casing for the 96.6% AFUE furnace.

⁄16"

INLET

CONDENSATE

DRAIN LOCATION

⁄16"

(UPFLOW)

see flex duct manufacturer’s recommendations for equivalent diameters.

a. For 800 CFM–16-in. round or 14 b. For 1200 CFM–20-in. round or 141/ 2 x 191/ 2-in. rectangle. c. For 1600 CFM–22-in. round or 141/ 2 x 231/ 4-in. rectangle. d. For airflow requirements above 1800 CFM, see Air Delivery table in Product Data

literature for specific use of single side inlets. The use of both side inlets, a combination of 1 side and the bottom, or the bottom only will ensure adequate return air openings for airflow requirements above 1800 CFM at 0.5

/ 2 x 12-in. rectangle.

.C. ESP.

Dimensions (in.)

BOTT

221⁄4" TYP

⁄16"

OM INLET

A06451

⁄16"

A06451

Page 15

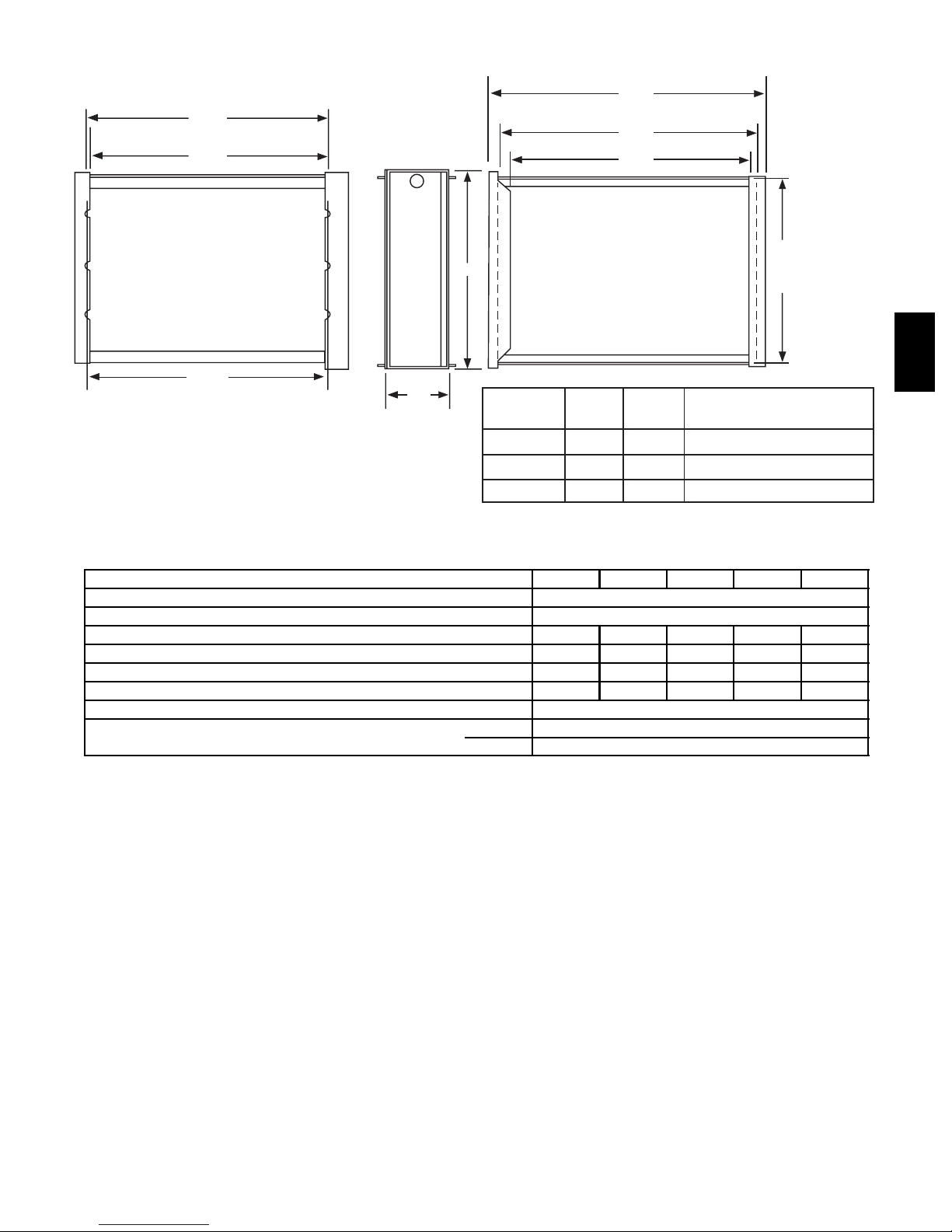

MEDIA FILTER CABINET

Opening with Flanges Bent

Opening

gninepO B

(In.)

Duct Side

(In.)

Shipped With Sizes

060-14

080-14

120-20

Furnace Side

Centerline Screw Slots

Media

Filter Cabinet

(In.)

16 17 16

20 21 20

24 25 24

ELECTRICAL DATA

UNIT SIZE 060 ---14 080--- 14 080 ---20 100 ---20 120 ---20

U n i t Vo lts --- H e r t z --- Ph a s e 1 1 5 --- 6 0 --- 1

Operating Voltage Range (Min --- Max)* 104---127

Maximum Unit Amps 8.9 8.9 13.8 13.8 13.8

Minimum Wire Size 14 14 12 12 12 Maxium Wire Length (ft){ 31 31 32 32 32 Maximum Fuse or Ckt Brk (Amps)} 15 15 20 20 20

Transformer (24v) 40va

External Control Power Available Heating 25va

Cooling 34va

* Permissible limits of the voltage range at which the un it will operate satisfactorily.

{ Length shown is as measured 1 way along wire path between unit and service panel for maximum 2% voltage drop. } Time---delay type is recommended.

58UVB

A06493

Page 16

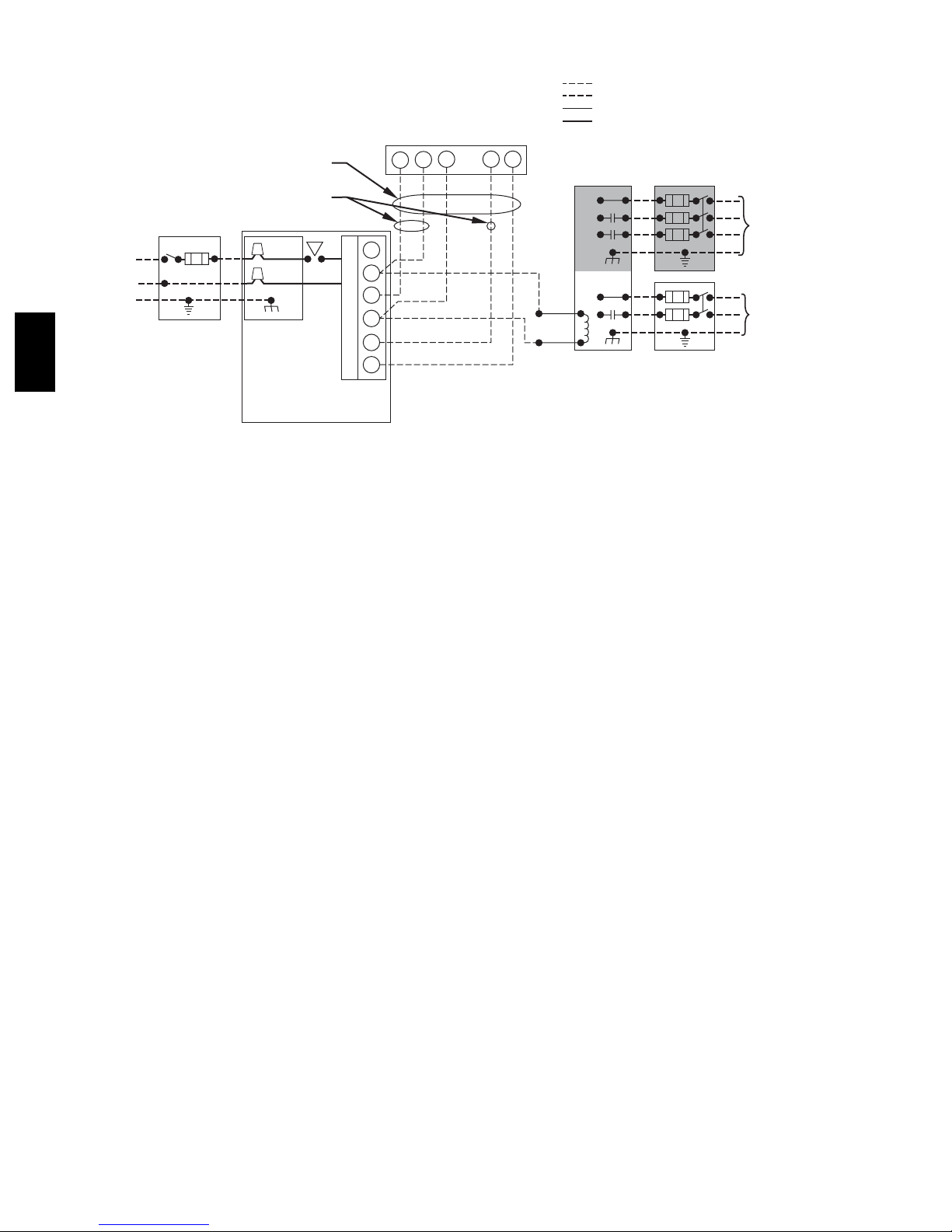

TYPICAL WIRI NG SCHEMATIC

FIVE

WIRE

THREE-WIRE

HEATING-

ONLY

BLK

WHT

115-VOLT FIELD-

SUPPLIED

FUSED

58UVB

DISCONNECT

GND

BLK

WHT

JUNCTION BOX

CONTROL

FURNACE

BOX

24-VOLT

TERMINAL

BLOCK

NOTE 2

WC Y RG

COM

W/W1

NOTE 1

Y/Y2

NOTES: 1.

FIELD 24-VOLT WIRING FIELD 115-, 208/230-, 460-VOLT WIRING FACTORY 24-VOLT WIRING FACTORY 115-VOLT WIRING

1-STAGE THERMOSTAT TERMINALS

CONDENSING

UNIT

Connect Y/Y2-terminal as shown for proper operation.

Some thermostats require a "C" terminal connection as shown.

If any of the original wire, as supplied, must be replaced, use same type or equivalent wire.

FIELD-SUPPLIED

FUSED DISCONNECT

GND

A95236

208/230- OR 460-VOLT THREE PHASE

208/230VOLT SINGLE PHASE

A95236

Page 17

COMBUSTION--AIR AND VENT PIPING FOR DIRECT VENT/2--PIPE (ALL SIZES)

Maximum Allowable Pipe Length (ft)

ALTITUDE

0 to 2000

ALTITUDE

2001 to 3000

ALTITUDE

3001 to 4000

ALTITUDE

4001 to 5000}

ALTITUDE

5001 to 6000}

See notes on page 19.

UNIT SIZE

(BTUH)

60,000

80,000

100,000

120,000

UNIT SIZE

(BTUH)

60,000

80,000

100,000

120,000

UNIT SIZE

(BTUH)

60,000

80,000

100,000

120,000

UNIT SIZE

(BTUH)

60,000

80,000

100,000

120,000

UNIT SIZE

(BTUH)

60,000

80,000

100,000

120,000

TERMINATION

TYPE

2 --- P i p e o r 2 --- i n .

Concentric

2 --- P i p e o r 2 --- i n .

Concentric

2 --- P i p e o r 2 --- i n .

Concentric

2 Pipe or 3 --- in.

Concentric

TERMINATION

TYPE

2 --- P i p e o r 2 --- i n .

Concentric

2 --- P i p e o r 2 --- i n .

Concentric

2 --- P i p e o r 2 --- i n .

Concentric

2 Pipe or 3 --- in.

Concentric

TERMINATION

TYPE

2 --- P i p e o r 2 --- i n .

Concentric

2 --- P i p e o r 2 --- i n .

Concentric

2 --- P i p e o r 2 --- i n .

Concentric

2 Pipe or 3 --- in.

Concentric

TERMINATION

TYPE

2 --- P i p e o r 2 --- i n .

Concentric

2 --- P i p e o r 2 --- i n .

Concentric

2 --- P i p e o r 2 --- i n .

Concentric

2 Pipe or 3 --- in.

Concentric

TERMINATION

2 --- P i p e o r 2 --- i n .

Concentric

2 --- P i p e o r 2 --- i n .

Concentric

2 --- P i p e o r 2 --- i n .

Concentric

2 Pipe or 3 --- in.

Concentric

PIPE DIA (IN.)*

1 --- 1 / 2 50 45 40 35 30 25

2 70 70 70 70 70 70

1 --- 1 / 2 30 25 20 15 10 5

2 70 70 70 70 70 70

2 45 40 35 30 25 20

2 --- 1 / 2 70 70 70 70 70 70

2 --- 1 / 2 10 N/A N/A N/A N/A N/A

3onedisk 35 30 15 N/A N/A N/A

3{ one disk 70 70 70 70 70 70

PIPE DIA (IN.)*

1 --- 1 / 2 45 40 35 30 25 20

2 70 70 70 70 70 70

1 --- 1 / 2 26 21 16 11 6 N/A

2 70 70 70 70 70 70

2 40 35 30 25 20 15

2 --- 1 / 2 70 70 70 70 70 70

3onedisk 31 26 12 N/A N/A N/A

3{ one disk 63 62 62 61 61 61

PIPE DIA (IN.)*

1 --- 1 / 2 42 37 32 27 22 17

2 70 70 70 70 70 70

1 --- 1 / 2 25 20 15 10 5 N/A

2 70 70 70 70 70 70

2 38 33 28 23 18 13

2 --- 1 / 2 70 70 70 70 70 70

3onedisk 29 24 10 N/A N/A N/A

3{ one disk 59 59 58 57 57 56

PIPE DIA (IN.)*

1 --- 1 / 2 40 35 30 25 20 15

2 70 70 70 70 70 70

1 --- 1 / 2 23 18 13 8 N/A N/A

2 70 70 70 70 70 68

2 36 31 26 21 16 11

2 --- 1 / 2 70 70 70 70 70 70

3{ one disk 56 55 54 53 52 52

PIPE DIA (IN.)*

1 --- 1 / 2 37 32 27 22 17 12

2 70 70 70 70 70 70

1 --- 1 / 2 22 17 12 7 N/A N/A

2 70 70 70 70 68 63

2 33 28 23 18 13 8

2 --- 1 / 2 70 70 70 70 70 70

3{ one disk 53 52 50 49 48 47

1 2 3 4 5 6

NUMBER OF 90_ ELBOWS

58UVB

Page 18

COMBUSTION--AIR AND VENT PIPING FOR DIRECT VENT/2--PIPE (ALL SIZES) CONTINUED

Maximum Allowable Pipe Length (ft)

ALTITUDE

6001 to 7000}

ALTITUDE

58UVB

7001 to 8000}

ALTITUDE

8001 to 9000}

ALTITUDE

9001 to 10000}

* Disk usage--- Unless otherwise stated, use perforated disk assembly (factory ---supplied in loose parts bag).

{ Wide radius elbow. } Vent sizing for Canadian installations over 4500 ft (1370m) above sea level are subject to acceptance by the local authorities having jurisdiction.

N/A ---Not Allowed; pressure switch will not make.

NOTES:

1. Do not use pipe size greater than those specified in table or incomplete combustion, flame disturbance, or flame sense lockout may occur.

2. Size both the combustion ---air and vent pipe independently, determine the smallest diameter allowed by th e table for each pipe, then use the larger diameter for both pipes.

3. Assume two 45_ elbows equal one 90_ elbow. Long radius elbows are desirable and may be required in some cases.

4. Elbows and pipe sections within the furnace casing and at the vent termination should not be included in vent length or elbow count.

5. The minimum pipe length is 5 ft for all applications.

UNIT SIZE

(BTUH)

60,000

80,000

100,000

120,000

UNIT SIZE

(BTUH)

60,000

80,000

100,000

120,000

UNIT SIZE

(BTUH)

60,000

80,000

100,000

120,000

UNIT SIZE

(BTUH)

60,000

80,000

100,000

120,000

TERMINATION

TYPE

2 --- P i p e o r 2 --- i n .

Concentric

2 --- P i p e o r 2 --- i n .

Concentric

2 --- P i p e o r 2 --- i n .

Concentric

2 Pipe or 3 --- in.

Concentric

TERMINATION

TYPE

2 --- P i p e o r 2 --- i n .

Concentric

2 --- P i p e o r 2 --- i n .

Concentric

2 --- P i p e o r 2 --- i n .

Concentric

2 Pipe or 3 --- in.

Concentric

TERMINATION

TYPE

2 --- P i p e o r 2 --- i n .

Concentric

2 --- P i p e o r 2 --- i n .

Concentric

2 --- P i p e o r 2 --- i n .

Concentric

2 Pipe or 3 --- in.

Concentric

TERMINATION

TYPE

2 --- P i p e o r 2 --- i n .

Concentric

2 --- P i p e o r 2 --- i n .

Concentric

2 --- P i p e o r 2 --- i n .

Concentric

2 Pipe or 3 --- in.

Concentric

PIPE DIA (IN.)*

1 --- 1 / 2 35 30 25 20 15 10

2 70 70 68 67 66 64

1 --- 1 / 2 20 15 10 5 N/A N/A

2 70 70 68 67 62 57

2 31 26 21 16 11 6

2 --- 1 / 2 70 70 68 67 66 64

3{ one disk 49 48 47 45 44 43

PIPE DIA (IN.)*

1 --- 1 / 2 32 27 22 17 12 7

2 66 65 63 62 60 59

1 --- 1 / 2 18 13 8 N/A N/A N/A

2 66 65 63 62 57 52

2 29 24 19 14 9 N/A

2 --- 1 / 2 66 65 63 62 60 59

3{ one disk 46 44 43 41 40 38

PIPE DIA (IN.)*

1 --- 1 / 2 30 25 20 15 10 5

2 62 60 58 56 55 53

1 --- 1 / 2 17 12 7 N/A N/A N/A

2 62 60 58 56 51 46

2 27 22 17 12 7 N/A

2 --- 1 / 2 62 60 58 56 55 53

3{ one disk 43 41 39 37 35 34

PIPE DIA (IN.)*

1 --- 1 / 2 27 22 17 12 7 N/A

2 57 55 53 51 49 47

1 --- 1 / 2 15 10 5 N/A N/A N/A

2 57 55 53 51 46 41

2 24 19 14 9 N/A N/A

2 --- 1 / 2 57 55 53 51 49 47

3{ one disk 39 37 35 33 31 29

1 2 3 4 5 6

NUMBER OF 90_ ELBOWS

Page 19

Maximum Allowable Exposed Vent Pipe Length (ft) With Insulation in Winter Design Temperature

Ambient*

UNIT SIZE

060---14

080---14 080---20

100---20

120---20

* Pipe length (ft) specified for maximum vent pipe lengths located in unconditioned spaces. Vent pipes located in unconditioned space cannot exceed the total

allowablepipelengthasspecifiedintheMaximumAllowablePipeLengthtable.

{ Insulation thickness based on R valu e of 3.5 per in.

WINTER DESIGN

TEMP _F

20 2 30 55 61 70 70

0 2 16 33 38 46 53

--- 2 0 2 9 23 26 33 38

20 2 37 65 70 70 70

0 2 20 39 45 55 63

--- 2 0 2 11 27 31 39 45

20 2 --- 1 / 2 41 70 70 70 70

0 2 --- 1 / 2 21 42 48 59 68

--- 2 0 2 --- 1 / 2 11 28 33 41 49

20 3 49 70 70 70 70

0 3 26 51 58 70 70

--- 2 0 3 15 35 40 50 59

MAX PIPE DIA (IN.)

INSULATION THICKNESS (IN.){

0 3/8 1/2 3/4 1

58UVB

Page 20

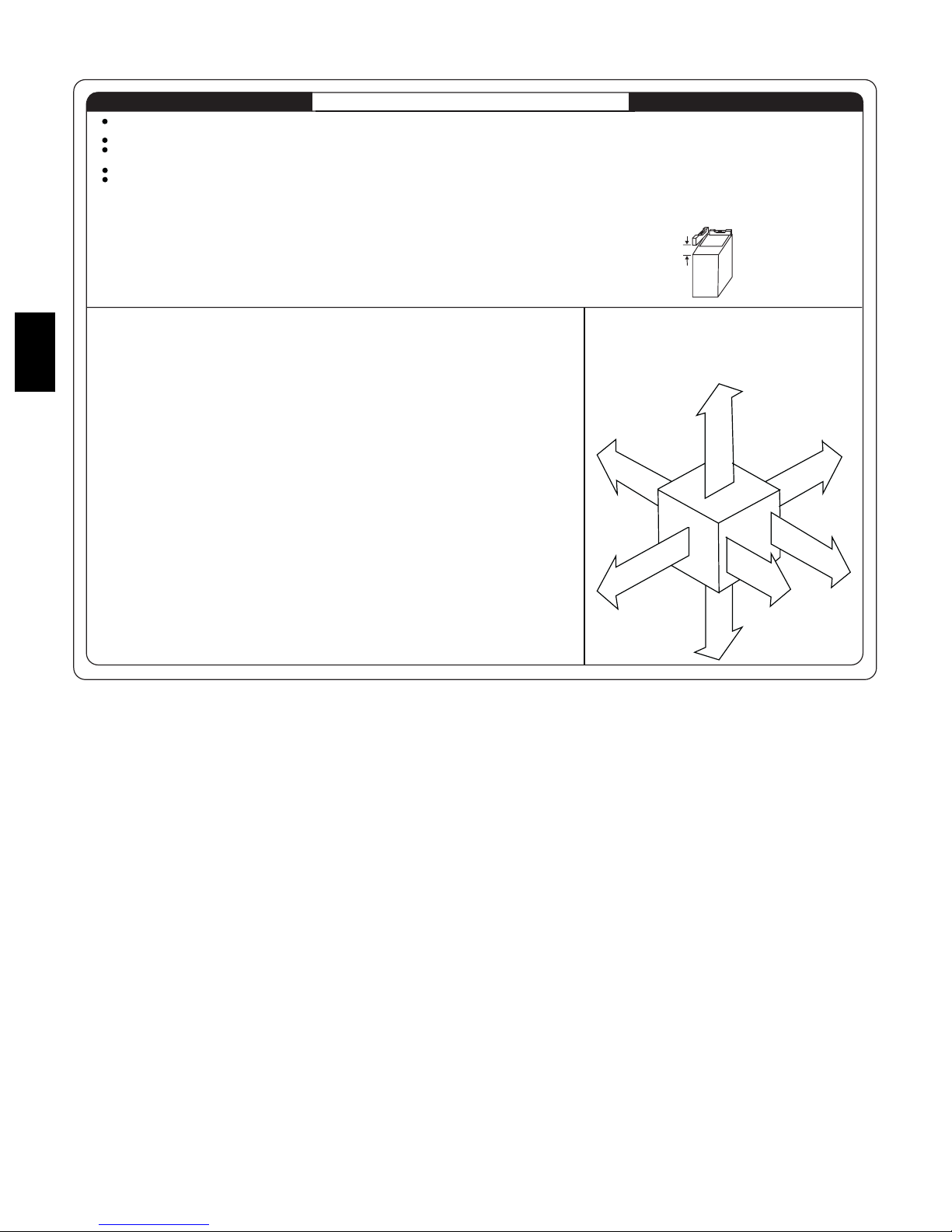

CLEARANCE TO COMBUSTIBLES

INSTALLATION

This forced ai r furnace is equipped for use with natur al gas at altit udes 0 - 10, 000 ft ( 0 - 3,050m), except 140 si ze furnaces are only approved for al titudes 0 - 7,000 ft . (0 - 2,135m). An accessor y kit, supplied by the manufacturer , shall be used to convert to propane gas use or may be requi red for some n atural gas applications. This furnace i s for i ndoor inst allation in a buil ding constr ucted on si te. This furnace may be i nstalled in a manufact ured (mob ile) home when stated on r ating plat e and using factory authori zed kit. This f urnace may be i nstalled on combustible flooring in alcove or closet at This furnace r equires a speci al venti ng system. Refe r to the install ation ins tructions for part s list and method of installation. This furnace is for use with schedule-40 PVC, PVC-DWV, CPVC, or ABS-DWV pipe, and must not be vented in common with other gas-f ired appli ances. Constr uction thro ugh which vent /air i ntake pipes may be installed i s maximum 24 inches (600 mm), mini mum 3/4 i nches (19 mm) t hickness (includi ng roofing materials) .

Upflow and downf low applicat ions, fur nace must be i nstalled level, or pitched wi thin 1/2" of level.

See Installation Manual for IMPORTANT unit support details on horizontal applications.

Minimum Inches Clearance To Combustible Construction

LEVEL (0")

1/2" MAX

UPFLOW

FRONT

as described below.

MINIMUM INCHES CLEARANCE TO COMBUSTIBLE CONSTRUCTION

This f urnace is approved for UPFLOW installation only.

UPFLOW POSITIONS:

Mimimum front clearance for service 30 inches (762mm).

58UVB

Clearance in inches.

TOP/PLENU

BOTTOM

ﬂ

MIN

Vent clearance to

combustibles 0".

A06514

Page 21

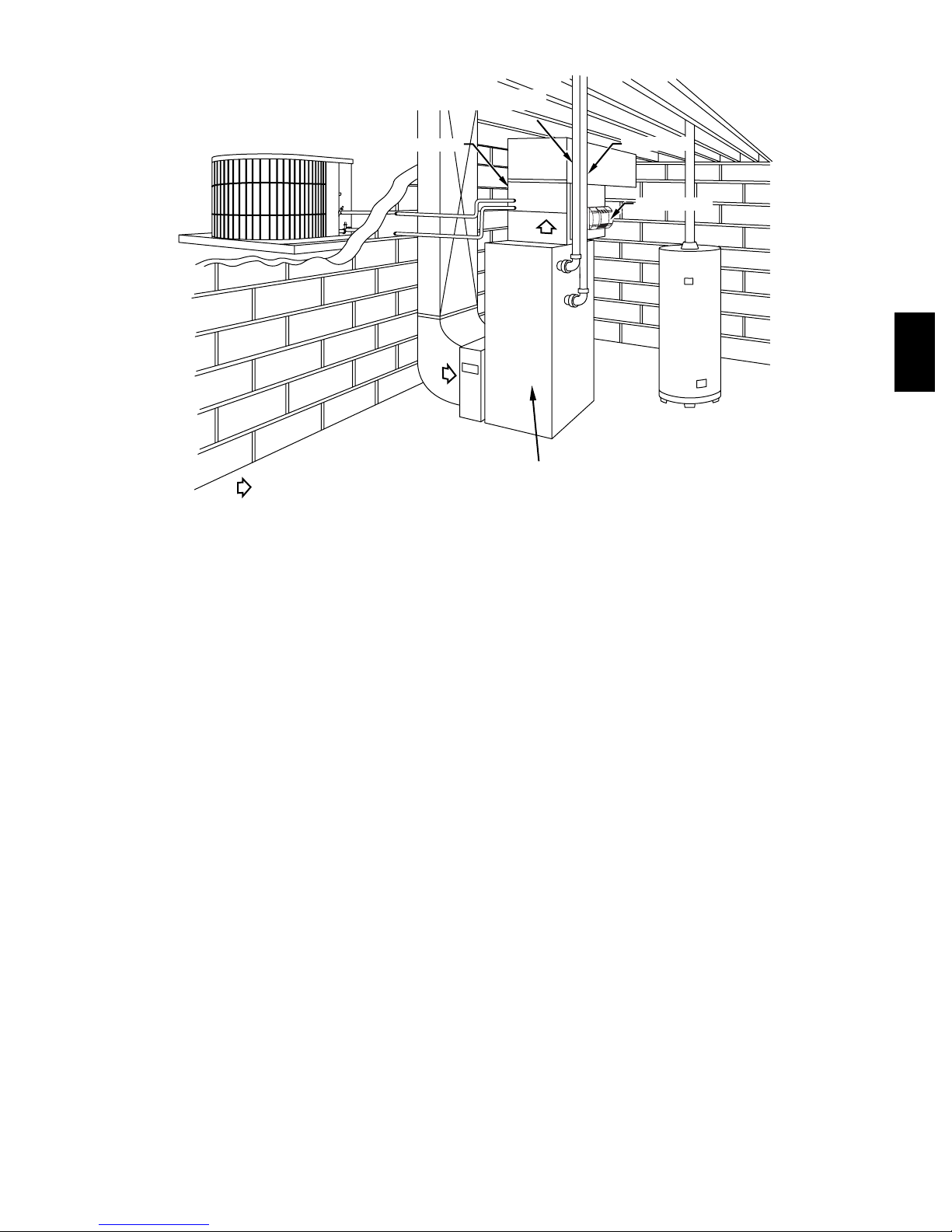

TYPICAL INSTALLATIONS

COMBUSTION AIR PIPE

OUTDOOR UNIT

AIRFLOW

A/C COIL

ELECTRONIC AIR CLEANER

VENT PIPE

HUMIDIFIER

58UVB

GAS-FIRED WATER HEATER

FRONT OF FURNACE

A06511

Page 22

GUIDE SPECIFICATIONS

General

System Description

Furnish a ______________________ (upflow) gas--fired condensing furnace for use with natural gas or propane (factory-authorized conversion kit required for propane); furnish cold air return plenum; furnish external media cabinet for use with accessory media filter or standard filter.

Quality Assurance

Unit will be designed, tested and constructed to the current ANSI Z 21.47/CSA 2.3 design standard for gas--fired central furnaces.

Unit will be third party certified by CSA to the current ANSI Z

21.47/CSA 2.3 design standard for gas--fired central furnaces. Unit will carry the CSA Blue StarR and Blue FlameR labels. Unit efficiency testing will be performed per the current DOE test procedure as listed in the Federal Register.

58UVB

Unit will be certified for capacity and efficiency and listed in the latest GAMA Consumer’s Directory of Certified Efficiency Ratings.

Unit will carry the current Federal Trade Commission Energy Guide efficiency label.

Delivery, Storage, and Handling

Unit will be shipped as single package only and is stored and handled per unit manufacturer’s recommendations.

Warranty (for inclusion by specifying engineer)

U.S. and Canada only. Warranty certificate available upon request.

Equipment

Blower Wheel and ECM Blower

Galvanized blower wheel shall be centrifugal type, statically and dynamically balanced. Blower motor of ECM type shall be permanently lubricated with sealed ball bearings, of _______hp, and have infinitely variable speed from 300 --1300 RPM operating only when 24--VAC motor inputs are provided. Blower motor shall be direct drive and soft mounted to the blower scroll to reduce vibration transmission.

Filters

Furnace shall have reusable--type filters. Filter shall be ______ in. (X) ________ in. An accessory highly efficient Media Filter is available as an option. _____________ Media Filter.

Casing Casing shall be of .030 in. thickness minimum, pre--painted

galvanized steel.

Motor

Infinity 96

Two--Stage/Variable Speed Gas Furnace

58UVB

ECM Inducer ECM Inducer motor shall be variable speed design, soft mounted

to assembly to reduce vibration transmission.

Primary Heat Exchangers Primary heat exchangers shall be 3--Pass 20 gauge corrosion--

resistant aluminized steel of fold--and--crimp sectional design and applied operating under negative pressure.

Secondary Heat

Secondary heat exchangers shall be of a flow--through design having a patented interior laminate coating of polypropylene for greater corrosion resistance with fold--and--crimp design and applied operating under negative pressure.

Controls

Controls shall include a micro-- processor--based integrated electronic control board with at least 16 service troubleshooting codes displayed via diagnostic flashing LED light on the control, a self--test feature that checks all major functions of the furnace, and a replaceable automotive--type circuit protection fuse. Multiple operational settings available, including separate blower speeds for low heat, high heat, low cooling, high cooling and continuous fan. Continuous fan speed may be adjusted from the thermostat. Cooling airflow will be selectable between 350 or 400 CFM per ton of air conditioning. Features will also include temporary reduced airflow in the cooling mode for improved dehumidification when an Infinity Control or Thermidistat is selected as the thermostat.

Motor

Exchangers

Operating Characteristics

Heating capacity shall be _________________ Btuh input; ______________ Btuh output capacity.

Fuel Gas Efficiency shall be 95% AFUE. Air delivery shall be ________________ cfm minimum at 0.50

in. wc. external static pressure. Dimensions shall be: depth_________in.; width __________in.;

height___________in. (casing only). Height shall be _________in. with A/C coil and _________________in. overall with plenum.

Electrical Requirements

Electrical supply shall be 115 volts, 60 Hz, single--phase (nominal). Minimum wire size shall be ________AWG; maximum fuse size of HACR--type designated circuit breaker shall be _________ amps.

Special Features

Refer to section of the product data identifying accessories and descriptions for specific features and available enhancements.

Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.

Printed in U.S.A. Edition date: 09/06

Catalog No:58UVB--- 1PD

Replaces:NEW
