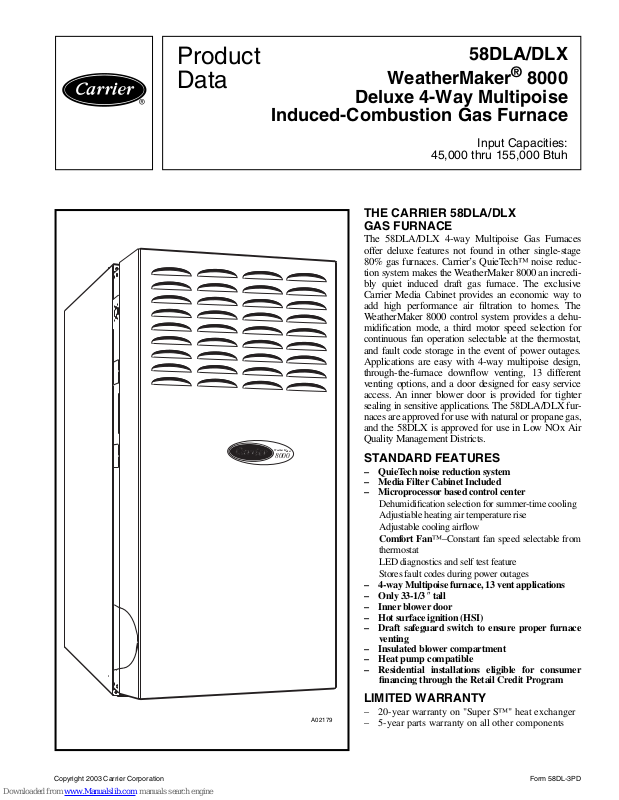

Product Data

58DLA/DLX

WeatherMaker

8000

Deluxe 4-Way Multipoise

Induced-Combustion Gas Furnace

Input Capacities:

45,000 thru 155,000 Btuh

THE CARRIER 58DLA/DLX GAS FURNACE

The 58DLA/DLX 4-way Multipoise Gas Furnaces offer deluxe features not found in other single-stage 80% gas furnaces. Carrier’s QuieTech™ noise reduction system makes the WeatherMaker 8000 an incredibly quiet induced draft gas furnace. The exclusive Carrier Media Cabinet provides an economic way to add high performance air ﬁltration to homes. The WeatherMaker 8000 control system provides a dehumidiﬁcation mode, a third motor speed selection for continuous fan operation selectable at the thermostat, and fault code storage in the event of power outages. Applications are easy with 4-way multipoise design, through-the-furnace downﬂow venting, 13 different venting options, and a door designed for easy service access. An inner blower door is provided for tighter sealing in sensitive applications. The 58DLA/DLX furnaces are approved for use with natural or propane gas, and the 58DLX is approved for use in Low NOx Air

eather

Maker

000

Quality Management Districts.

STANDARD FEATURES

– QuieTech noise reduction system –Media Filter Cabinet Included –Microprocessor based control center

Dehumidiﬁcation selection for summer-time cooling Adjustiable heating air temperature rise Adjustable cooling airﬂow

Comfort Fan ™–Constant fan speed selectable from

thermostat LED diagnostics and self test feature Stores fault codes during power outages

– 4-way Multipoise furnace, 13 vent applications – Only 33-1/3  tall

– Inner blower door – Hot surface ignition (HSI) – Draft safeguard switch to ensure proper furnace

venting – Insulated blower compartment –Heat pump compatible – Residential installations eligible for consumer

ﬁnancing through the Retail Credit Program

A02179

LIMITED WARRANTY

– 20-year warranty on "Super S™" heat exchanger – 5-year parts warranty on all other components

Page 2

BLOWER OFF-DELAY

90 150

TEST/TWIN

HUM

0.5 AMP@24VAC

PLT 1

120 180

PLT

Y1 DHUM G COM W/W1 Y/Y2 R

24V

STATUS CODE LED

FUSE 3-AMP

SEC-2 SEC-1

EAC-2 L2

NUETRAL

BLW

COOL HEAT

A02169

SPARE-1 SPARE-2

A02169

1-AMP@

FAN

EAC-1

115V AC

PR-1

PL2 1

A02215

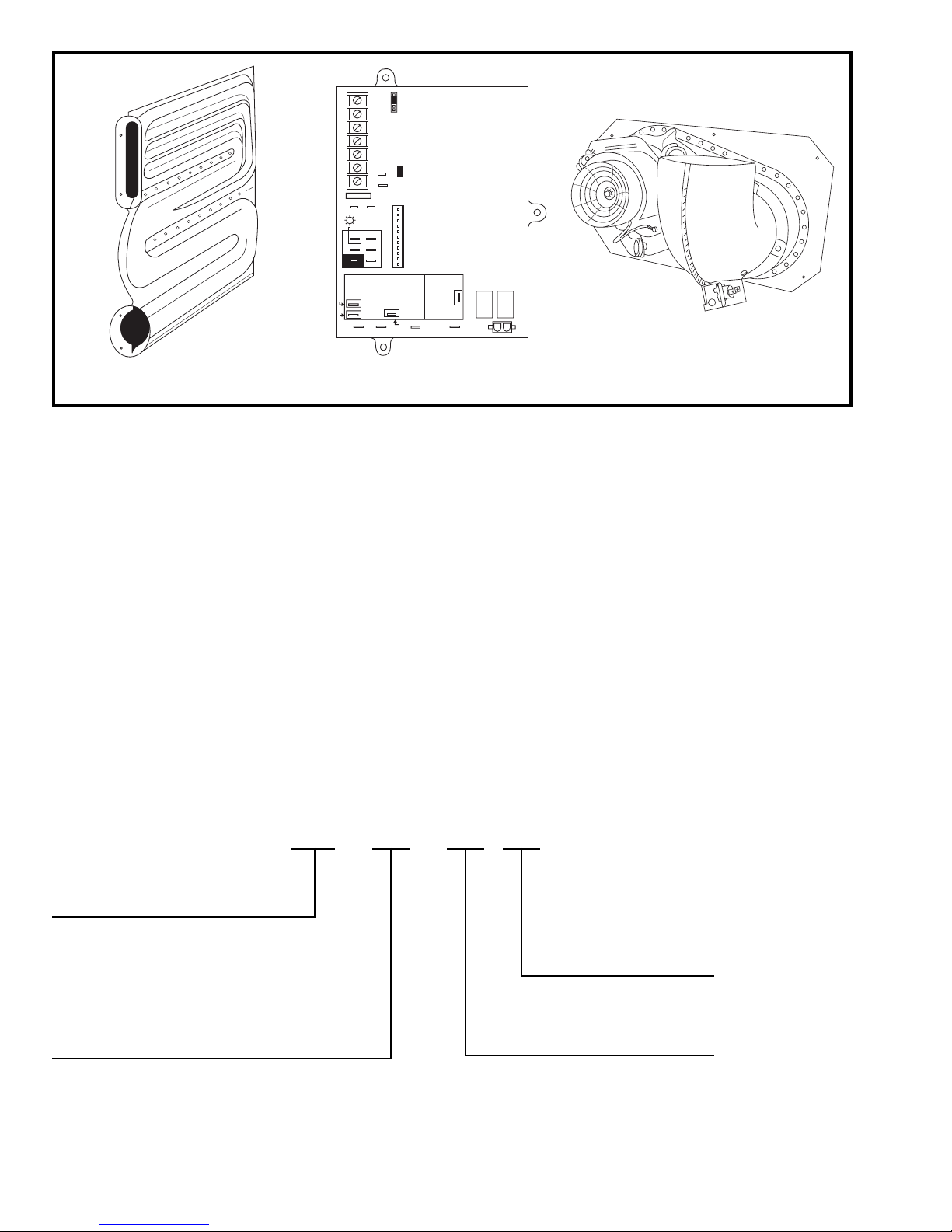

HEAT EXCHANGER CONTROL BOARD INDUCER BLOWER

A02170

Model number nomenclature

58DLA 045

58DLA Deluxe 4-Way Multipoise 58DLX Low NOx version

Input Capacity

045 — 44,000 Btuh 110 — 110,000 Btuh 070 — 66,000 Btuh 135 — 132,000 Btuh 090 — 88,000 Btuh 155 — 154,000 Btuh

100 08

Nominal Cooling Size (Airflow at .5 e.s.p.) (400 CFM per 12,000 Btuh) 08 — 800 CFM 12 — 1200 CFM 14 — 1400 CFM 16 — 1600 CFM 20 — 2000 CFM 22 — 2200 CFM

Series Number

Page 3

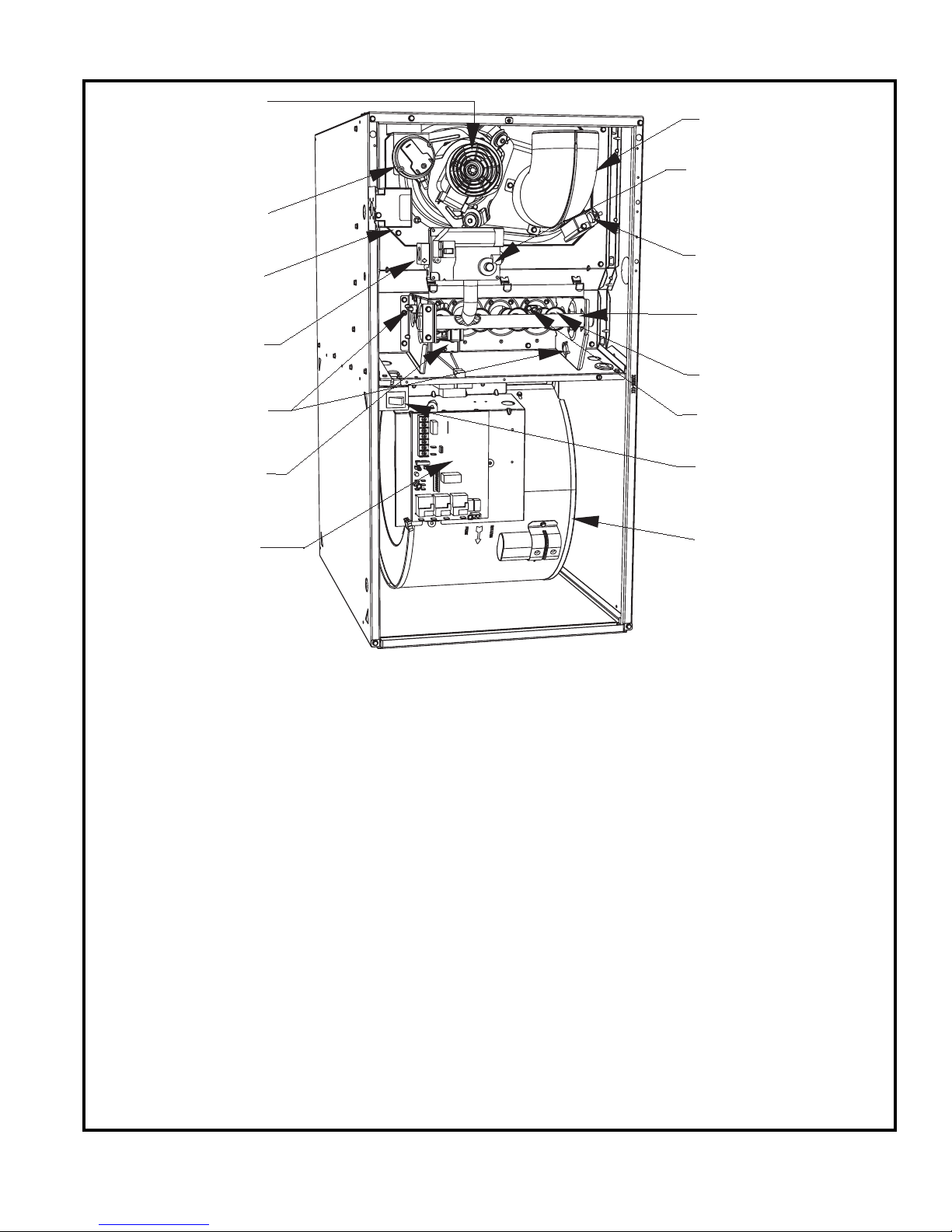

FURNACE COMPONENTS

INDUCER MOTOR

ASSEMBLY

PRESSURE

SWITCH

FLUE

COLLECTOR

BOX

GAS VALVE

MANUAL RESET

LIMIT SWITCHES

HOT SURFACE

IGNITER

CONTROL

VENT ELBOW

MAIN LIMIT SWITCH (BEHIND GAS VALVE)

DRAFT SAFEGUARD SWITCH

GAS MANIFOLD

GAS BURNER

FLAME SENSOR

BLOWER DOOR SAFETY SWITCH

BLOWER AND MOTOR

RATING PLATE

NOT SHOWN

(LOCATED ON

BLOWER DOOR)

NOTE: The 58DLA/DLX Furnaces are factory shipped for use with natural gas. These furnaces can be field-converted for

propane gas with a factory-authorized and listed accessory conversion kit.

*Elbow may be turned to a different position, depending

on type of installation

A03059

Page 4

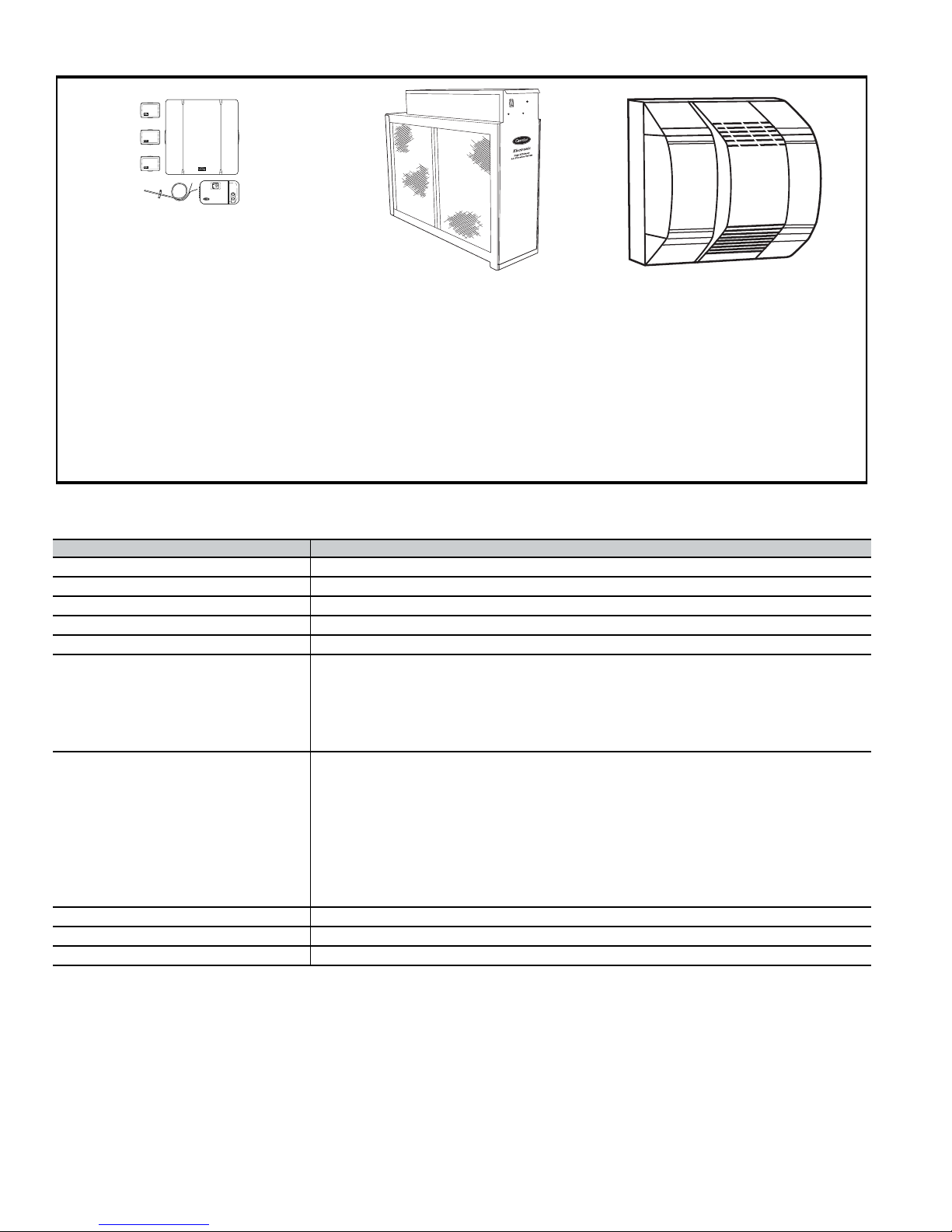

Carrier accessories*

CONTROLS:

A97432

THERMOSTATS

Available in programmable and non-programmable models, Carrier thermostats maintain a constant, comfortable temperature level in the home.

For the ultimate in home comfort, Carrier’s 2, 4, and 8-zone systems allow temperature control of individual “zones” of the home. This is accomplished through a series of electronic dampers and remote room sensors. The 4-zone system is shown.

Accessories

ELECTRONIC AIR CLEANER (EAC) Model EACA MECHANICAL AIR CLEANER Models EZXCAB, FILCAB HUMIDIFIER Model HUM HEAT RECOVERY VENTILATOR Model HRV ENERGY RECOVERY VENTILATOR Model ERV

THERMOSTAT - NON-PROGRAMMABLE

Auto Changeover, 7-Day Programmable, °F/°C, 1-Stage Heat/1-Stage Cool-TSTATCCPAC01-B Auto Changeover, 7-Day Programmable, °F/°C, 2-Stage Heat/1-Stage Cool - TSTATCCPHP01-B Auto Changeover, 7-Day Programmable, °F/°C, 2-Stage Heat/1-Stage Cool - TSTATCCP2S01-B

THERMOSTAT - PROGRAMMABLE

with Humidity Control (For use in Dual Fuel, AC, HP, and 2S applications, includes Outdoor Air

ZONING - 2 ZONE ZONE CC2KIT01-B, ZONE KIT2ZCAR ZONING - 4 ZONE ZONECC4KIT01-B ZONING - 8 ZONE ZONECC8KIT01-B

MECHANICAL

OR ELECTRONIC

AIR CLEANER

Cleans the air of smoke, dirt, and many pollens commonly found. Saves decorating and cleaning expenses by keeping carpets, furniture, and drapes cleaner.

Electronic air cleaner is shown.

Auto Changeover, °F/°C

Auto Changeover, °F/°C, 2-Stage Heat/1-Stage Cool - TSTATCCNHP01-B

Auto Changeover, °F/°C, 2-Stage Heat/2-Stage Cool - TSTATCCN2S01-B

in AC Mode, 3-Stage Heat/2-Stage Cool in HP Mode

Air Conditioner, 1-Stage Heat/1-Stage Cool, Manual Changeover, °F/°C - TSTATCCBAC01

in AC Mode, 3-Stage Heat/2-Stage Cool in HP Mode

Dual Fuel Thermostat Includes Outdoor Air Temperature Sensor -TSTATCCPDF01-B

Thermidistat Control - Non-Programmable/Programmable Thermostat -TSTATCCPRH01 -B

AND ZONING

C02019

MODEL HUMCCLFP

HUMIDIFIER

By adding moisture to winter-dry air, a Carrier humidifier can often improve comfort and keep furniture, rugs, and draperies in better condition. Moisturizing household air also helps to retain normal body heat and provides comfort at lowertemperatures.

, 1-Stage Heat/1-Stage Cool - TSTATCCNAC01-B

Temperature Sensor)

A01484

Page 5

Carrier Accessories*

DESCRIPTION

EZ Flex Media Filter with end caps – 16 in. (9 pack)

EZ Flex Media Filter with end caps – 20 in. (9 pack)

EZ Flex Media Filter with end caps – 24 in. (6 pack)

Replacement EZ Flex Filter – 16 in. (10 pack)

Replacement EZ Flex Filter – 20 in. (10 pack)

Replacement EZ Flex Filter – 24 in. (10 pack)

–

Exterior Filter Rack inch (adjustable from 14" to 24") with filter

Unframed filter, one inch – 16x25 KGAWF1301UFR

Unframed filter, one inch – 20x25 KGAWF1401UFR

Unframed filter, one inch – 24x25 KGAWF1501UFR

Twinning Kit KGATW0601HSI XXXXXXXXXX X X X X Combustible Floor Base (not

required when evaporator coil case is used)

Downflow Vent Guard (not required when vent is routed through cabinet)

universal, one

PART NO. 045-

EXPXXUNV0016 XXXXXX X

EXPXXUNV0020 X X X X X

EXPXXUNV0024 XX

EXPXXFIL0016 XXXXXX X

EXPXXFIL0020 X X X X X

EXPXXFIL0024 XX

KGAFR0301ALL KGAFR0306ALL (6-pack)

KGAWF1306UFR (6-pack)

KGAWF1406UFR (6 pack)

KGAWF1506UFR (6 pack)

KGASB0201ALL XXXXXXXXXX X X X X

KGAVG0101DFG XXXXXXXXXX X X X X

045-

070-

090-

110-

135-

XXXXXXXXXX X X X X

XXXXXXSSXS S S S S

XX XX X

155-

Vent Extension Kit (may be used when vent is routed through cabinet in downflow)

Chimney Adapter Kit - 4 inch vent KGACA02014FC XXXXXXXXXX X Chimney Adapter Kit - 5 inch vent KGACA02015FC XXX Natural-to-Propane Gas

Conversion Kit (Single Kit)* Propane-to-Natural Gas

Conversion Kit (Single Kit) Gas Orifice Kit (Qty 50) Size 42 KGAHA0150N42 Gas Orifice Kit (Qty 50) Size 43 KGAHA0250N43 Gas Orifice Kit (Oty 50) Size 44 KGAHA0350N44 Gas Orifice Kit (Oty 50) Size 45 KGAHA0450N45 Gas Orifice Kit (Oty 50) Size 46 KGAHA0550N46 Gas Orifice Kit (Oty 50) Size 47 KGAHA1550N47 Gas Orifice Kit (Oty 50) Size 48 KGAHA1850N48 Gas Orifice Kit (Oty 50) Size 54 KGAHA0850P54 Gas Orifice Kit (Oty 50) Size 55 KGAHA0750P55 Gas Orifice Kit (Oty 50) Size 56 KGAHA0850P56 Gas Orifice Kit (Oty 50)1.25 mm KGAHA5750125 Gas Orifice Kit (Oty 50)1.30mw KGAHA5750130

KGAVE0101DNH

KGANP2901ALL

KGAPN2301ALL

XXXXXXXXXX X X X X

See Installation Instructions for model,

altitude, and heat value usages.

* Factory-authorized and field installed. Gas conversion kits are A.G.A./C.G.A. recognized.

S 16 x 25 filters suitable for side return on all furnace sizes.

Page 6



Physical data

045 070 090

UNIT SIZE

OUTPUT CAPACITY BTUH*

(Nonweatherized ICS) †

INPUT BTUH*

AFUE%* Nonweatherized ICS CERTIFIED TEMP RISE RANGE (°F)

CERTIFIED EXT STATIC PRESSURE

AIRFLOW CFM‡

LIMIT CONTROL HEATING BLOWER CONTROL BURNERS (Monoport) GAS CONNECTION SIZE GAS VALVE (Redundant) Manufacturer

Minimum Inlet Pressure (In. wc) Maximum Inlet Pressure (In. wc)

IGNITION DEVICE

* Gas input ratings are certified for elevations to 2000 ft. For elevations above 2000 ft, reduce ratings 4% for each 1000 ft above sea level. Refer to National

Fuel Gas Code Table F4 or furnace Installation Instructions. In Canada, derate the unit 10% for elevations 2000 to 4500 ft above sea level. † Capacity in accordance with U.S. Government DOE test procedures. ‡ Airflow shown is for bottom only return-air supply. For air delivery above 1800 CFM, see Air Delivery Table for other options. A filter is required for each

return-air supply. An airflow reduction of up to 7% may occur when using a Carrier 4-5/15

ICS — Isolated Combustion System N/A-Not Applicable

58DLX Upflow; all 58DLA 58DLX Downflow/Horizontal 58DLX Upflow; all 58DLA 58DLX Downflow/Horizontal

Heating Cooling Heating Cooling

08 12 08 12 16 14 16

35,000 36,000 53,000 54,000 53,000 71,000 71,000 34,000 34,000 51,000 51,000 51,000 68,000 68,000 44,000 44,000 66,000 66,000 66,000 88,000 88,000 42,000 42,000 63,000 63,000 63,000 84,000 84,000

80.0 80.0 80.0 80.0 80.0 80.0 80.0

30–60 20–50 40–70 30–60 25–55 40–70 30–60

0.10 0.10 0.12 0.12 0.12 0.15 0.15

0.50 0.50 0.50 0.50 0.50 0.50 0.50 920 1250 720 1195 1450 1375 1505 845 1160 900 1200 1530 1385 1720

SPST

Solid-State Time Operation

2233344

1/2-in. NPT

White-Rodgers

4.5 (Natural Gas)

13.6 (Natural Gas) Hot Surface

high efficiency media filter.

Blower performance data

UNIT SIZE DIRECT-DRIVE MOTOR Hp (PSC) MOTOR FULL LOAD AMPS

RPM (Nominal) – SPEEDS BLOWER WHEEL DIAMETER  WIDTHS (In.)

045 070 090

08 12 08 12 16 14 16

1/5 1/3 1/5 1/3 1/2 1/3 1/2

2.9 5.2 2.9 5.2 7.9 5.2 7.9

1075-3 1075-4 1075-3 1075-4 1075-4 1075-4 1075-4

10 x 6 10 x 6 10 x 6 10 x 6 11 x 8 10 x 8 10 x 10

Page 7



Physical data

090 110 135 155

UNIT SIZE

OUTPUT CAPACITY BTUH*

(Nonweatherized ICS) †

INPUT BTUH*

AFUE%* Nonweatherized ICS CERTIFIED TEMP RISE RANGE (°F)

CERTIFIED EXT STATIC

PRESSURE

AIRFLOW CFM‡

LIMIT CONTROL HEATING BLOWER CONTROL BURNERS (Monoport) GAS CONNECTION SIZE GAS VALVE (Redundant) Manufacturer

Minimum Inlet Pressure (In. wc) Maximum Inlet Pressure (In. wc)

IGNITION DEVICE

* Gas input ratings are certified for elevations to 2000 ft. For elevations above 2000 ft, reduce ratings 4% for each 1000 ft above sea level. Refer to National

Fuel Gas code Table F4 or furnace Installation Instructions. In Canada, derate the unit 10% for elevations 2000 to 4500 ft above sea level. † Capacity in accordance with U.S. Government DOE test procedures. ‡ Airflow shown is for bottom only return-air supply. For air delivery above 1800 CFM, see Air Delivery Table for other options. A filter is required for each

return-air supply. An airflow reduction of up to 7% may occur when using a Carrier 4-5/15

ICS — Isolated Combustion System N/A-Not Applicable

58DLX Upflow; all 58DLA 58DLX Downflow/Horizontal 58DLX Upflow; all 58DLA 58DLX Downflow/Horizontal

Heating Cooling Heating Cooling

20 12 16 22 16 22 20

71,000 89,000 89,000 89,000 107,000 107,000 125,000 68,000 85,000 85,000 85,000 102,000 102,000 119,000 88,000 110,000 110,000 110,000 132,000 132,000 154,000 84,000 105,000 105,000 105,000 126,000 126,000 147,000

80.0 80.0 80.0 80.0 80.0 80.0 80.0

25–55 50–80 40–70 30–60 50–80 40–70 45–75

0.15 0.20 0.20 0.20 0.20 0.20 0.20

0.50 0.50 0.50 0.80 0.50 0.50 0.50 1990 1335 1515 1900 1525 1850 1790 2025 1355 1680 2220 1710 2110 2230

SPST

Solid-State Time Operation

4555667

1/2-in. NPT

White-Rodgers

4.5 (Natural Gas)

13.6 (Natural Gas) Hot Surface

high efficiency media filter.

Blower performance data

UNIT SIZE DIRECT-DRIVE MOTOR Hp (PSC) MOTOR FULL LOAD AMPS

RPM (Nominal) – SPEEDS BLOWER WHEEL DIAMETER  WIDTHS (In.)

PSC-Permanent Split Capacitor

090 110 135 155

20 12 16 22 16 22 20

3/4 1/3 1/2 3/4 1/2 3/4 3/4

11.1 5.2 7.9 11.1 7.9 11.1 11.1

1075-4 1075-4 1075-4 1075-4 1075-4 1075-4 1075-4

11 x 11 10 x 8 10 x 10 11 x 11 10 x 10 11 x 11 11 x 11

Page 8

SEE NOTES: 1,2,4,7,8,9

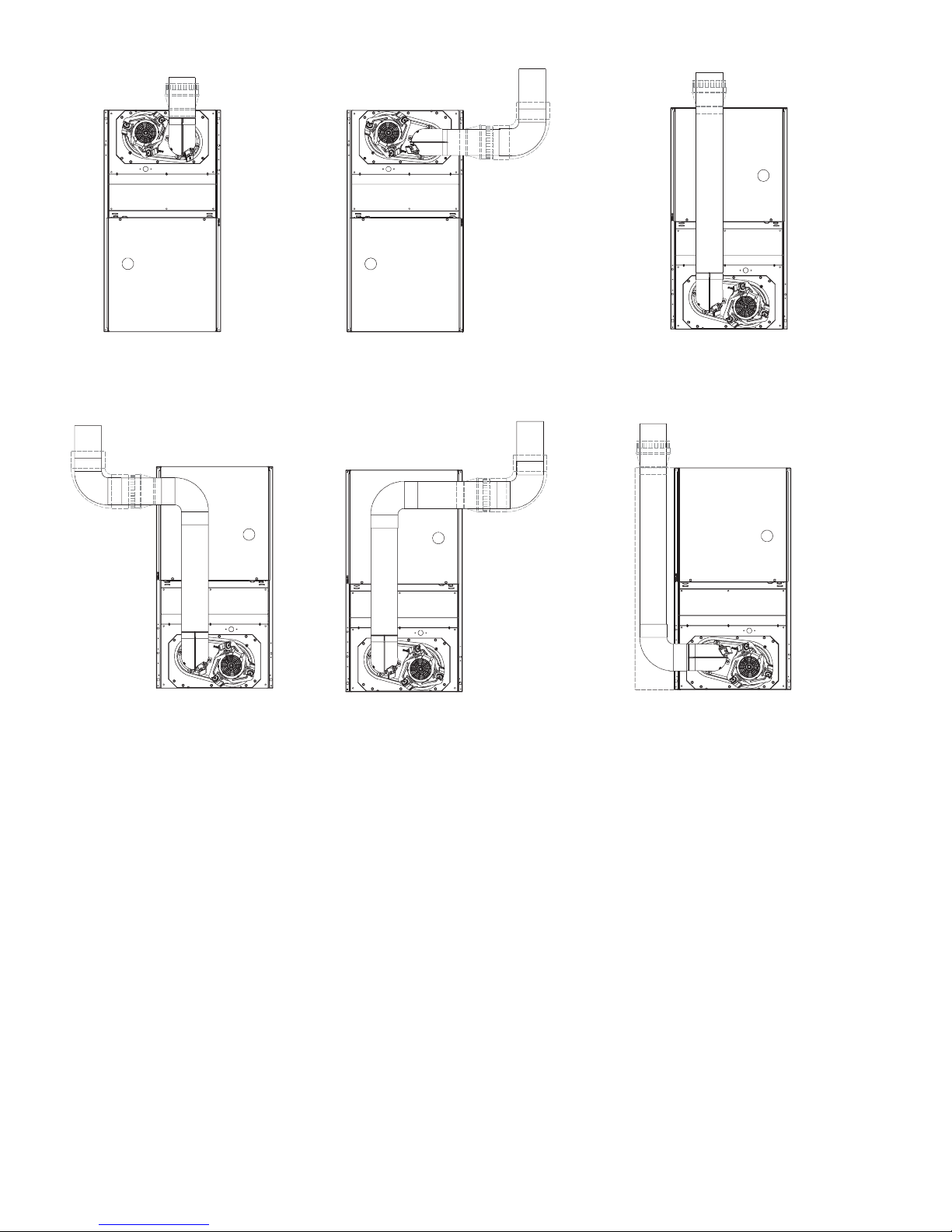

UPFLOW

SEE NOTES:1,2,3,4,5,7,8,9

DOWNFLOW

A02058

A02060

SEE NOTES: 1,2,3,4,7,8,9

UPFLOW

A02059

SEE NOTES: 1,2,3,4,5,7,8,9

DOWNFLOW

A02063

SEE NOTES: 1,2,4,5,7,8,9

DOWNFLOW

SEE NOTES: 1,2,4,5,6,7,8,9

DOWNFLOW

Venting Notes

1. For common vent, vent connector sizing and vent material: United States, latest edition of the National Fuel Gas Code (NFGC), ANSI Z223.1/NFPA 54. In Canada, latest edition of the National Standards of Canada, Natural Gas and Propane Installation Code (NSCNGPIC), CSA B149.1-00.

2. Immediately increase to 5-inch vent connector outside furnace casing when 5-inch vent connector required, refer to Note 1.

3. Side outlet vent for upflow and downflow installations must use Type B vent immediately after exiting the furnace, except when KGAVG0101DFG is used in downflow position.

4. Type B vent where required, refer to Note 1.

5. 4" single wall vent must be used inside furnace casing and the KGAVG0101DFG Downflow Vent Guard Kit.

6. Accessory Downflow Vent Guard Kit, KGAVG0101DFG required in downflow installations with bottom vent configuration.

7. Chimney Adapter Kit required for exterior masonry chimney applications. Refer to Chimney Adapter Kit, KGACA02014FC and KGACA02015FC for sizing and complete application details.

8. Secure vent connector to furnace elbow with (2) corrosion-resistant sheet metal screws, space approximately 180

apart.

9. Secure all other single wall vent connector joints with (3) corrosion-resistant screws spaced approximately

120

apart. Secure Type B vent connectors per vent connector manufacturer's recommendations.

A02061

A02062

Page 9

SEE NOTES: 1,2,4,5,7,8,9

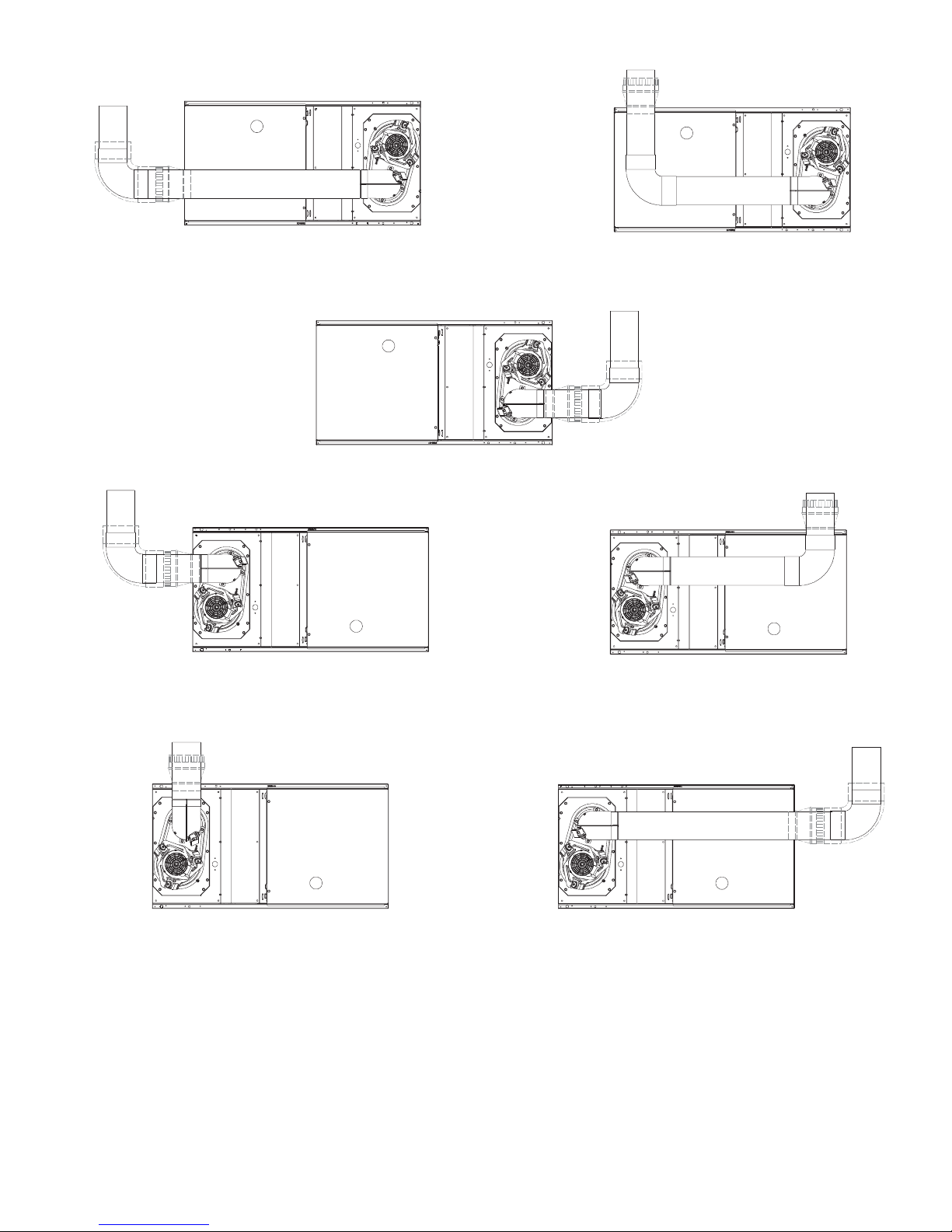

HORIZONTAL RIGHT

SEE NOTES: 1,2,4,7,8,9

HORIZONTAL LEFT

A02068

SEE NOTES: 1,2,4,7,8,9

HORIZONTAL RIGHT

A02064

A02069

SEE NOTES: 1,2,4,5,7,8,9

HORIZONTAL RIGHT

SEE NOTES: 1,2,4,5,7,8,9

HORIZONTAL LEFT

A02070

A02065

SEE NOTES: 1,2,4,5,7,8,9

HORIZONTAL LEFT

A02066

SEE NOTES: 1,2,4,5,7,8,9

HORIZONTAL LEFT

A02067

Page 10

AIR DELIVERY—CFM (With Filter) *

UNIT SIZE

045-08

045-12

070-08

070-12

070-16

090-14

090-16

090-20

110-12

110-16

RETURN-AIR

SUPPLY

Bottom

1 Side(s)

Bottom

1 Side(s)

Low

Bottom

1 Side(s)

Bottom

1 Side(s)

Bottom

1 Side(s)

Bottom

1 Side(s)

Bottom

1 Side(s)

Bottom

Only

Both Sides or

1 Side & Bottom

1 Side Only

Bottom

1 Side(s)

Bottom

1 Side(s)

SPEED

High

Med-High

Med-Low

High

Med-High

Med-Low

1085

High

Med-High

Med-Low

High

Med-High

Med-Low

Low

High

Med-High

Med-Low

Low

High

Med-High

Med-Low

Low

High

Med-High

Med-Low

Low

High

Med-High

Med-Low

Low

High

Med-High

Med-Low

Low

High

Med-High

Med-Low

Low

High

Med-High

Med-Low

Low

High

Med-High

Med-Low

Low

0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0

1085

920 820

1450 1360 1250 1055

1030

835 725

1425 1320 1200 1040

1805 1630 1460 1275

1650 1515 1385 1205

2060 1790 1505 1225

2405 2225 2020 1810

2530 2285 1995 1770

2475 2260 1950 1730

1625 1510 1360 1195

2035 1745 1530 1270

1035

875 775

1375 1300 1210 1035

1010

815 700

1375 1280 1175 1030

1740 1585 1420 1250

1600 1485 1360 1180

1985 1765 1505 1225

2310 2155 1955 1765

2450 2215 1945 1740

2395 2190 1910 1695

1575 1470 1335 1180

1965 1710 1515 1265

*A filter is required for each return-air supply. Airflow performance includes 1'' washable filter media such as contained in factory-authorized accessory

filter rack. To determine airflow performance without this fitler, assume an additional .1 available external static pressure.

-Indicates unstable operating conditions.

EXTERNAL STATIC PRESSURE (In. wc)

975 830 730

1305 1240 1160 1035

980 790 675

1320 1240 1145 1010

1670 1530 1385 1225

1535 1440 1320 1160

1915 1715 1480 1220

2220 2080 1880 1715

2365 2150 1900 1700

2300 2110 1855 1650

1515 1415 1295 1155

1880 1650 1470 1235

915 770 680

1225 1175 1100

990 945

760 645

1265 1205 1105

985

1600 1470 1325 1195

1465 1380 1260 1120

1820 1645 1440 1195

2130 1995 1805 1645

2270 2075 1840 1645

2200 2035 1795 1600

1445 1355 1250 1115

1790 1560 1400 1195

845 710 620

1145 1115 1040

945 900

720 600

1200 1140 1050

945

1530 1405 1280 1155

1385 1300 1195 1065

1720 1560 1375 1155

2025 1895 1730 1565

2165 1985 1770 1575

2090 1940 1730 1535

1355 1285 1180 1065

1680 1450 1310 1130

1050 1040

1125 1075

1445 1330 1220 1105

1285 1220 1120 1005

1610 1470 1300 1085

1920 1785 1630 1480

2065 1890 1685 1505

1985 1845 1650 1470

1260 1185 1100

1495 1340 1215 1055

770 640 555

965 885

845 675 555

990 895

980

675 555 470

955 950 885 810

775 610 475

1035

995 920 845

1360 1255 1155 1050

1175 1115 1025

925

1490 1345 1190

985

1790 1675 1535 1390

1940 1780 1600 1415

1865 1735 1555 1385

1165 1070

985 860

1365 1205 1095

970

565 440 360

845 850 790 715

680 490 390

940 905 840 765

1280 1170 1080

980

1055

990 915 810

1340 1195 1045

870

1660 1565 1420 1280

1805 1660 1480 1325

1730 1620 1445 1285

990 890 810 740

1215 1090

990 875

390 250 190

705 725 670 715

490 375 300

830 790 725 655

1180 1080

995 910

895 830 710 630

1135 1010

890 735

1530 1420 1275 1145

1670 1525 1350 1190

1585 1475 1310 1165

785 725 670 605

1075

955 830 720

195

510 575 520 435

335 265

655 620 555 505

1075

990 910 835

645 600 565 510

925 820 740 620

1350 1260 1135 1005

1505 1360 1180 1040

1425 1325 1150 1000

595 530 475 410

875 750 670 600

— —

—

Page 11

AIR DELIVERY—CFM (With Filter) * (Continued)

UNIT SIZE

110-22

135-16

135-22

155-20

RETURN-AIR

SUPPLY

Bottom

Only

Both Sides or

1 Side & Bottom

1 Side Only

Bottom

1 Side(s)

Bottom

Only

Both Sides or

1 Side & Bottom

1 Side Only

Bottom

Only

Both Sides or

1 Side & Bottom

1 Side Only

SPEED

High

Med-High

Med-Low

Low

High

Med-High

Med-Low

Low

High

Med-High

Med-Low

Low

High

Med-High

Med-Low

Low

High

Med-High

Med-Low

Low

High

Med-High

Med-Low

Low

High

Med-High

Med-Low

Low

High

Med-High

Med-Low

Low

High

Med-High

High

Med-High

0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0

2530 2230 1920 1640

2235 1920 1640

2540 2125 1790 1515

2090 1790 1545 1325

2485 2195 1880 1640

2180 1880 1640

2320 2125 1845 1640

2465 2115 1800 1570

2155

2140

2470 2205 1900 1650

—

— 2200 1900 1650

2495 2120 1795 1535

2010 1755 1525 1320

2400 2150 1850 1635

— 2145 1850 1635

2250 2065 1825 1620

2430 2105 1790 1565

— 2135

— 2095

*A filter is required for each return-air supply. Airflow performance includes 1'' washable filter media such as contained in factory-authorized accessory

filter rack. To determine airflow performance without this fitler, assume an additional .1 available external static pressure.

-Indicates unstable operating conditions.

EXTERNAL STATIC PRESSURE (In. wc)

2400 2165 1880 1635

2415 2155 1880 1635

2430 2105 1790 1522

1930 1705 1500 1295

2310 2090 1820 1615

2385 2060 1820 1615

2155 1995 1765 1580

2375 2075 1770 1551

2375 2095

2260 2040

2320 2110 1845 1510

2350 2100 1845 1610

2355 2060 1765 1490

1835 1640 1450 1265

2215 2000 1780 1585

2305 2010 1780 1585

2055 1910 1710 1540

2305 2030 1735 1525

2285 2040

2180 1975

2220 2035 1795 1575

2250 2040 1795 1575

2265 2010 1720 1445

1710 1550 1380 1210

2110 1920 1715 1530

2195 1945 1715 1530

1970 1815 1650 1485

2230 1980 1695 1495

2200 1975

2085 1890

2115 1950 1730 1520

2145 1955 1730 1520

2175 1940 1650 1390

1590 1465 1315 1150

2000 1825 1635 1465

2085 1865 1635 1465

1855 1710 1570 1410

2110 1910 1640 1445

2105 1895

1975 1810

2000 1855 1650 1455

2015 1850 1650 1455

2065 1840 1585 1315

1470 1360 1215

995

1880 1720 1540 1370

1960 1765 1540 1370

1725 1610 1475 1330

2000 1830 1570 1370

1995 1790

1865 1705

1865 1740 1555 1375

1875 1740 1555 1375

1935 1730 1500 1225

1335 1210 1005

865

1725 1565 1415 1255

1825 1660 1415 1255

1600 1490 1370 1220

1865 1725 1465 1270

1870 1685

1740 1595

1730 1615 1460 1285

1715 1595 1460 1285

1785 1615 1390 1120

1025

945 855 745

1535 1405 1290 1150

1670 1515 1290 1150

1450 1340 1240 1080

1725 1590 1345 1175

1730 1550

1605 1480

1590 1485 1340 1170

1560 1470 1340 1170

1650 1485 1280 1120

835 785 670 540

1355 1255 1160 1040

1465 1325 1160 1040

1280 1175 1100

960

1545 1425 1225 1070

1570 1400

1455 1325

Page 12

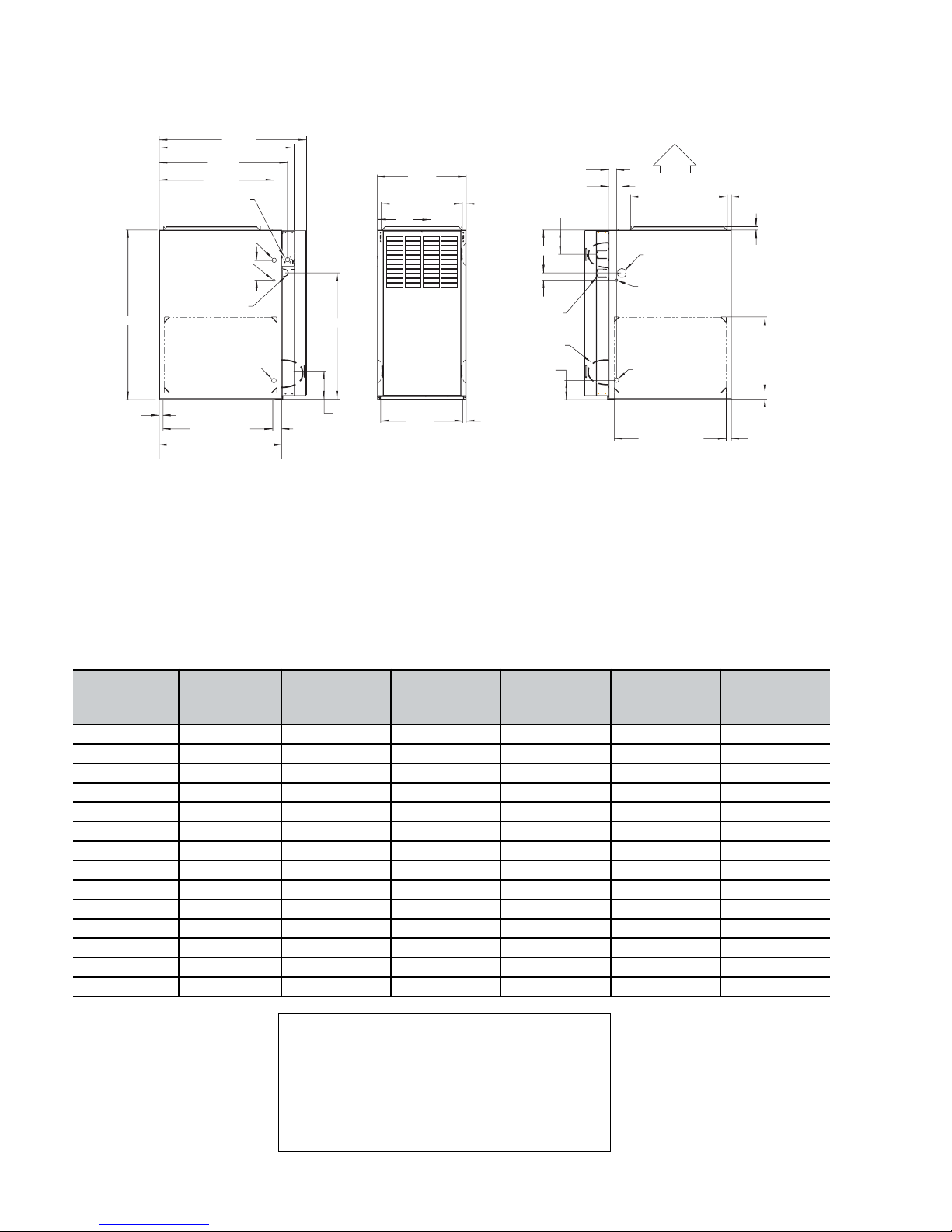

Dimensions

26-1/8"

(VENT CONNECTION)

25-1/4"

22-9/16"

JUNCTION BOX LOCATION

ACCESSORY

1/2" DIA THERMOSTAT

WIRE ENTRY

3-15/16"

LEFT HAND GAS

33-5/16"

7/8" DIA. ACCESSORY

28-7/8"

7/8" DIA

ENTRY

24-7/8"

13/16 "

JUNCTION BOX

LOCATION (TYP)

5 PLACES (TYP)

1-9/16"

2-9/16"

4-13/16"

8-7/16"

1-7/16"

ALTERNATE

VENT OUTLET

3-3/4"

AIRFLOW

19"

OUTLET

1-1/2" DIA. RIGHT HAND GAS ENTRY

1/2" DIA. THERMOSTAT WIRE ENTRY

7/8" DIA. ACCESSORY

13/16 "

11/16 "

14-7 /8"

11/16 "

21-5 /8"

BOTTOM INLET

24"

(CASING)

1-11/16"

5-1/2"

11/16 "

22-1/16"

SIDE INLET

A03060

NOTES: 1. Two additional 7/8-in. dia. knockouts are located in the top plate.

2. Minimum return-air openings at furnace, based on metal duct. If flex duct is used, see flex duct manufacturer’s recommendations for equivalent diameters.

3. Minimum return-air opening at furnace. a. For 800 CFM-16-in. round or 14-1/2 x 12-in. rectangle. b. For 1200 CFM-20-in. round or 14-1/2 x 19-1/3 in. rectangle. c. For 1600 CFM-22-in. round or 14-1/2 x 22-1/16-in. rectangle. d. For airflow requirements above 1800 CFM, see Air Delivery table in Product Data literature for specific use of single side inlets. The use of both side inlets, a combination of 1 side and the bottom, or the bottom of single side inlets. The use of both side inlets, a combination of 1 side and the bottom, or the bottom only will ensure adequate return air openings for airflow requirements above 1800 CFM.

VENT

CONNECTION

SIZE

(see notes 1 & 2)

APPROXIMATE

58DLA/DLX

UNIT SIZE

045-08 045-12 070-08 070-12 070-16 090-14

(CABINET

WIDTH)

(SUPPLY

WIDTH)

(BOTTOM

RETURN WIDTH)

(TOP VENT

OUTLET)

14-3/16 12-9/16 12-11/16 9-5/16 4 104 14-3/16 12-9/16 12-11/16 9-5/16 4 107 14-3/16 12-9/16 12-11/16 9-5/16 4 111 14-3/16 12-9/16 12-11/16 9-5/16 4 115

17-1/2 15-7/8 16-1/8 11-9/16 4 126 17-1/2 15-7/8 16-1/8 11-9/16 4 127

090-16 21 19-3/8 19-1/2 13-5/16 4 140 090-20 21 19-3/8 19-1/2 13-5/16 4 146 110-12 17-1/2 15-7/8 16-1/8 11-9/16 4 135 110-16 21 19-3/8 19-1/2 13-51/6 4 146 110-22 21 19-3/8 19-1/2 13-5/16 4 152 135-16 21 19-3/8 19-1/2 13-5/16 4 (note 1) 149 135-22 24-1/2 22-7/8 23 15-1/16 4 (note 1) 163 155-20 24-1/2 22-7/8 23 15-1/16 4 (note 1) 170

1-1/4"

SHIPPING

WT (LB)

1) 135 and 155 size furnaces require fiveinch vents. Use a 4-5 inch vent adapter between furnace and vent stack.

2) See Installation Instructions for complete installation requirements.

Page 13

INSTALLATION

MINIMUM INCHES CLEARANCE TO COMBUSTIBLE CONSTRUCTION

DISTANCE MINIMALE EN POUCES AUX CONSTRUCTIONS COMBUSTIBLES

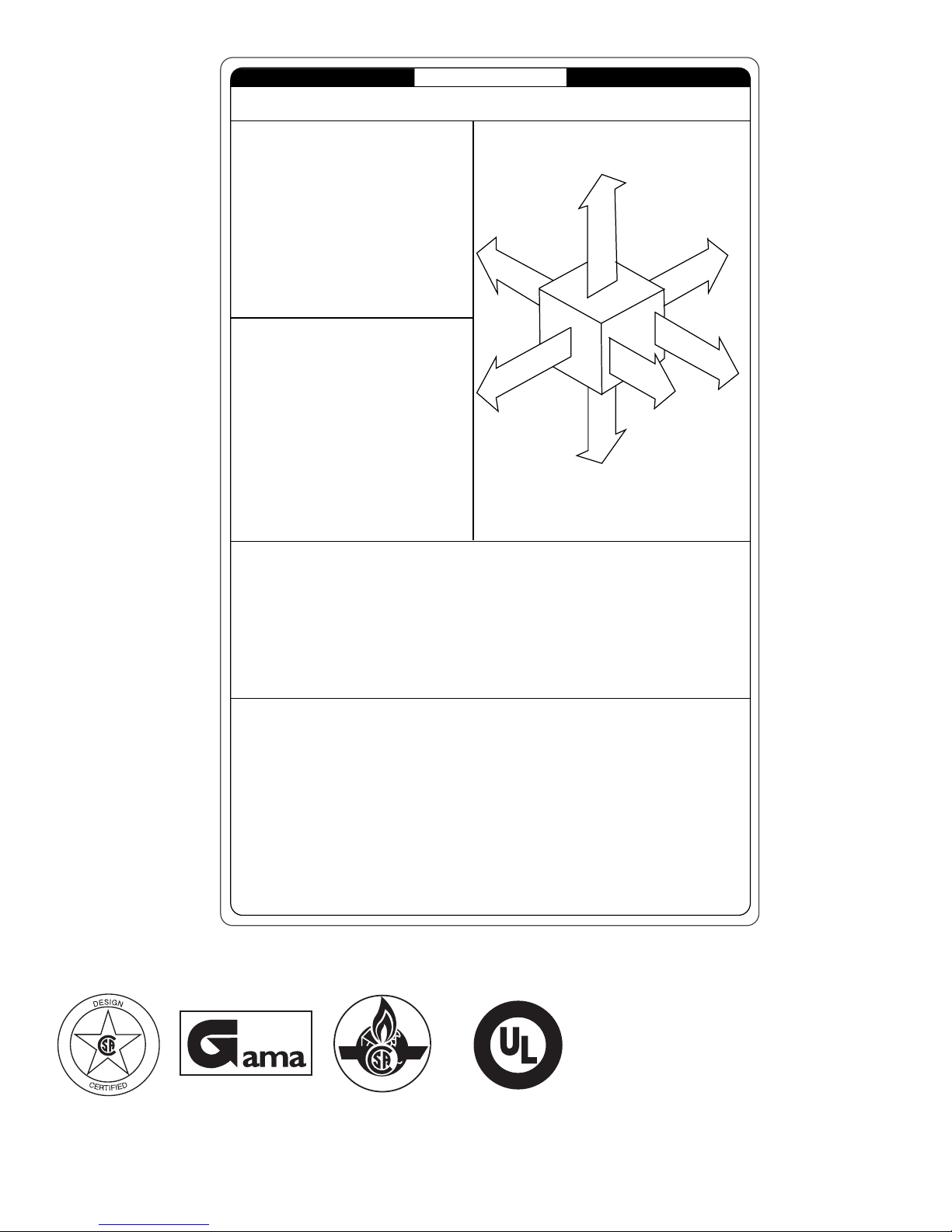

This forced air furnace is equipped for use with

natural gas at altitudes 0-10,000 ft (0-3,050m).

An accessory kit, supplied by the manufacturer,shall be used to convert to propane gas use or may be required for some natural gas applicati ons.

This furnace is for indoor installation in a building constructed on site.

This furnace may be installed on combustible flooring in alcove or closet at minimum clearance as indicated by the diagram from combustible mat erial .

This furnace may be used with a Type B-1 Vent and may be vented in common with other gasfired appliances.

Cette fournaise à air pulsé est équipée pour utilisation avec gaz naturel et altitudes comprises entre 0-3,050m (0-10,000 pi).

Utiliser une trousse de conversion, fournie par le fabricant, pour passer au gaz propane ou pour certaines installations au gaz naturel.

This furnace is approved for UPFLOW, DOWNFLOW, and HORIZONTAL install ations.

Cette fournaise est approuvée pour l´installation HORIZONTALE et la circulation d´air VERS LE HAUT et VERS LE BAS.

Clear ance arrows do not change with furnace orientation.

Les fléches de dégagement

l´orientation de la fournaise.

TOP / PLE NUM

DESSUS / CHAMBRE D’AIR

Cette fournaise est prévue pour être installée dans un bâtiment construit sur place.

Cette fournaise peut être installée sur un plancher combustible dans une alcôve ou dans un garde-robe en respectant le minimum d'espace libre des matériaux combustibles, tel qu'indiqué sur le diagramme..

Cette fournaise peut être utilisée avec un conduit d´évacuation de Type B-1 ou connectée au conduit commun d´autres appareils à gaz..

Vent Clearance to combustibles:

For Single Wall vents 6 inches (6 po). For Type B-1 vent type 1 inch (1 po).

Dégagement de l´évent avec combustibles:

Pour conduit d´évacuation à paroi simple 6 po (6 inches). Pour conduit d´évacuation de Type B-1 1 po (1 inch).

BOTTOM

†

DESSOUS

MINIMUM INCHES CLEARANCE TO COMBUSTIBLE CONSTRUCTION

DOWNFLOW POSITIONS:

Installation on non-combustible floors only.

†

For Installation on combustible flooring only when installed on special base, Part No. KGASB0201ALL,

Coil Assembly, Part No. CD5 or CK5, or Coil Casing, Part No. KCAKC.

18 inches front clearance required for alcove.

Indicates supply or return sides when furnace is in the horizontal position. Line contact only permissible

between lines formed by intersections of the Top and two Sides of the furnace jacket, and building joists, studs or framing.

DÉGAGEMENT MINIMUM EN POUCES AVEC ÉLÉMENTS

DE CONSTRUCTION COMBUSTIBLES

POUR LA POSITION COURANT DESCENDANT:

Pour l´installation sur plancher non combustible seulement.

†

Pour l´installation sur un plancher combustible seulement quand on utilise la base spéciale, pièce

n KGASB0201ALL, l´ensemble serpentin, pièce n CD5 ou CK5, ou le carter de serpentin, pièce

n KCAKC.

Dans une alcôve, on doit maintenir un dégagement à l´avant de 18 po (450 mm).

La position indiquée concerne le côté d´entrée ou de retour quand la fournaise est dans la

position horizontale.

Le contact n´est permis qu´entre les lignes formées par les intersections du dessus et des

deux côtés de la chemise de la fournaise et les solives, montant sous cadre de charpente.

327590-101 REV. B

ne changent pas avec

MIN

Clear ance in inches Dégagement (po).

30"

MIN

EFFICIENCY RATING CERTIFIED

CERTIFIED

REGISTERED QUALITY SYSTEM

MEETS DOE RESIDENTIAL CONSERVATION SERVICES PROGRAM STANDARDS.

Before purchasing this appliance, read important energy cost and efficiency information available from your retailer.

Page 14

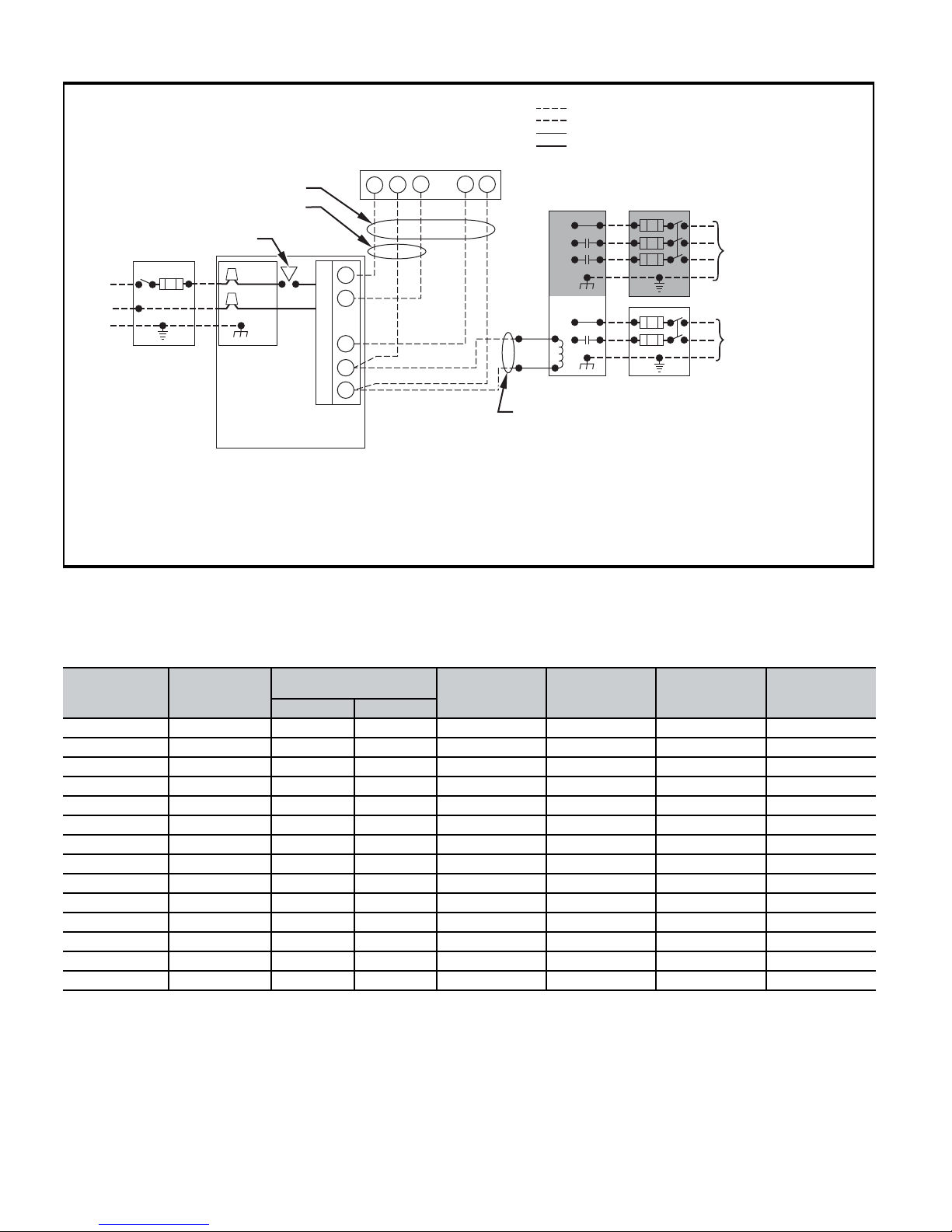

Typical wiring schematic

FIVE WIRE

THREE-WIRE

HEATING-ONLY

BLOWER DOOR SWITCH

BLK

WHT

115-V FIELD-

SUPPLIED

BLK

WHT

GND

AUXILIARY J-BOX

DISCONNECT

GND

FURNACE

NOTE 2

C O N T R O

24-V

TERMINAL

BLOCK

WCR GY

COM

Y/Y2

NOTE 1

NOTES: Connect Y-terminal in furnace as shown for proper blower operation.

FIELD 24-V WIRING FIELD 115-, 208/230-, 460-V WIRING FACTORY 24-V WIRING FACTORY 115-V WIRING

THERMOSTAT TERMINALS

FIELD-SUPPLIED DISCONNECT

208/230- OR 460-V THREE PHASE

208/230-V SINGLE PHASE

GND

CONDENSING UNIT

TWO WIRE

Some thermostats require a "C" terminal connection as shown.

If any of the original wire, as supplied, must be replaced, use same type or equivalent wire.

A99440

Electrical data

OPERATING

UNIT SIZE

045-08 115-60-1 127 104 5.6 47 15 14 045-12 115-60-1 127 104 7.0 39 15 14 070-08 115-60-1 127 104 5.0 52 15 14 070-12 115-60-1 127 104 6.7 40 15 14 070-16 115-60-1 127 104 9.4 29 15 14 090-14 115-60-1 127 104 8.1 34 15 14 090-16 115-60-1 127 104 9.8 28 15 14 090-20 115-60-1 127 104 13.6 32 20 12 110-12 115-60-1 127 104 8.1 34 15 14 110-16 115-60-1 127 104 10.0 28 15 14 110-22 115-60-1 127 104 13.6 32 20 12 135-16 115-60-1 127 104 10.0 28 15 14 135-22 115-60-1 127 104 14.4 30 20 12 155-20 115-60-1 127 104 15.0 29 20 12

VOLTS HERTZ-

PHASE

VOLTAGE RANGE

Maximum* Minimum*

MAXIMUM

UNIT AMPS

* Permissible limits of the voltage range at which unit operates satisfactorily.

Time-delay type is recommended.

† Length shown is as measured 1 way along wire path between unit and service panel for maximum 2 percent voltage drop.

MAXIMUM

WIRE

LENGTH (FT)‡

MAXIMUM

FUSE OR CKT

BKR AMPS†

MINIMUM

WIRE GAGE

Page 15

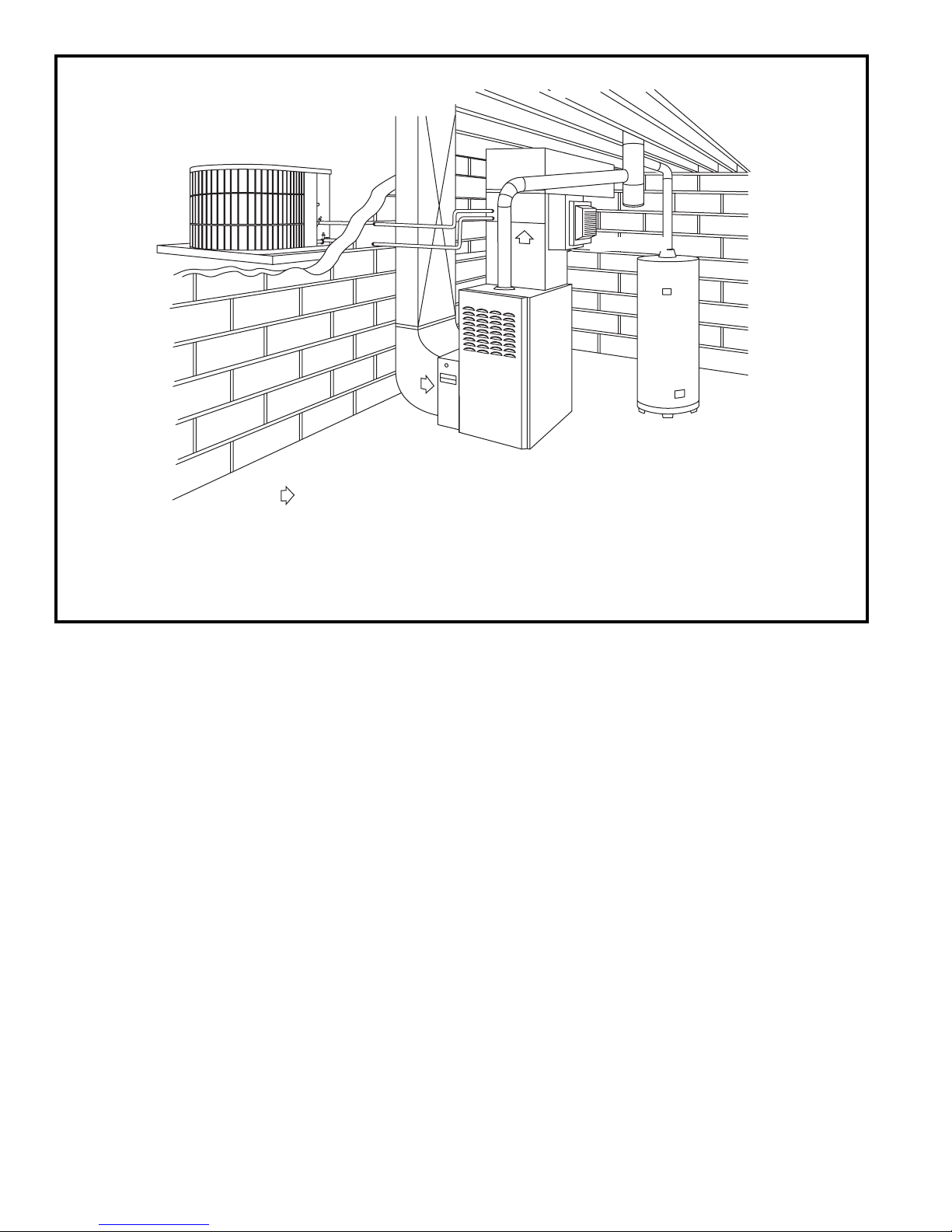

CONDENSING UNIT

AIRFLOW

ELECTRONIC AIR CLEANER

HUMIDIFIER

GAS-FIRED WATER HEATER

A02184

Page 16

Carrier Corporation • Indianapolis, IN 46231 4-03

Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations.

Book 1 4 Page 16 Catalog No. 525-80036 Printed in U.S.A. PC 101 Form 58DL-3PD Tab 6a 8a

Replaces: 58DL-2PD
