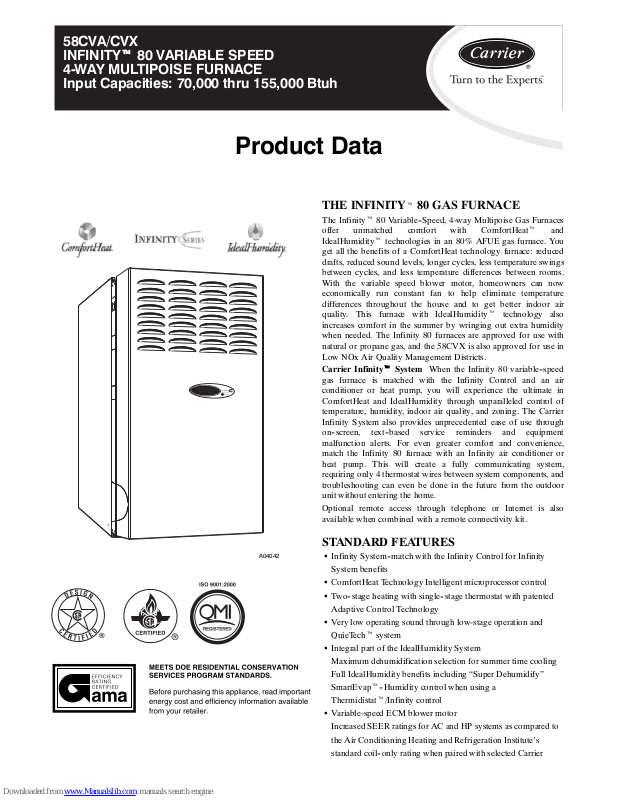

58CVA/CVX INFINITYt 80 VARIABLE SPEED 4-WAY MULTIPOISE FURN AC E Input Capacities: 70,000 thru 155,000 Btuh

Product Data

THE INFINITYt 80 GAS FURNACE

The Infinityt 80 Variable--Speed, 4-way Multipoise Gas Furnaces offer unmatched comfort with ComfortHeatt and IdealHumidityt technologies in an 80% AFUE gas furnace. You get all the benefits of a ComfortHeat technology furnace: reduced drafts, reduced sound levels, longer cycles, less temperature swings between cycles, and less temperature differences between rooms. With the variable speed blower motor, homeowners can now economically run constant fan to help eliminate temperature differences throughout the house and to get better indoor air quality. This furnace with IdealHumidityt technology also increases comfort in the summer by wringing out extra humidity when needed. The Infinity 80 furnaces are approved for use with natural or propane gas, and the 58CVX is also approved for use in Low NOx Air Quality Management Districts.

Carrier Infinityt System When the Infinity 80 variable--speed

NFINITY

IdealHumidity

gas furnace is matched with the Infinity Control and an air conditioner or heat pump, you will experience the ultimate in ComfortHeat and IdealHumidity through unparalleled control of temperature, humidity, indoor air quality, and zoning. The Carrier Infinity System also provides unprecedented ease of use through on--screen, text--based service reminders and equipment malfunction alerts. For even greater comfort and convenience, match the Infinity 80 furnace with an Infinity air conditioner or heat pump. This will create a fully communicating system, requiring only 4 thermostat wires between system components, and troubleshooting can even be done in the future from the outdoor unit without entering the home.

Optional remote access through telephone or Internet is also available when combined with a remote connectivity kit.

A04042

STANDARD FEATURES

S Infinity System--match with the Infinity Control for Infinity

System benefits

S ComfortHeat Technology Intelligent microprocessor control S Two-- stage heating with single--stage thermostat with patented

Adaptive Control Technology

S Very low operating sound through low-stage operation and

QuieTecht system

S Integral part of the IdealHumidity System

Maximum dehumidification selection for summer time cooling

Full IdealHumidity benefits including “Super Dehumidify” SmartEvapt--Humidity control when using a Thermidistatt/Infinity control

S Variable-speed ECM blower motor

Increased SEER ratings for AC and HP systems as compared to

the Air Conditioning Heating and Refrigeration Institute’s

standard coil--only rating when paired with selected Carrier

Page 2

evaporator coils.

Perfectly matches CFM to cooling system at all static points

S Comfort Fant--Up to 12 cooling airflow selections from

thermostat with a wide range of capability

S High-- Efficiency Media Filtration Cabinet included S Microprocessor based control center

LED diagnostics and self test feature

Stores fault codes during power outages

Adjustable heating air temperature rise

Adjustable cooling airflow

Dehumidification selection for summer-time cooling

58CVA/CVX

S 4-way Multipoise furnace, 13 vent applications S Compact design -- only 33-1/3 in. (847 mm) tall S Power Heatt Igniter S Draft Safeguard switch to ensure proper furnace venting S Insulated blower compartment S Inner door for tighter sealing S HYBRID HEATr Dual Fuel System compatible S All models are chimney friendly when used with accessory vent

kit

S Residential installations eligible for consumer financing through

the Retail Credit Program

A02169 A02170

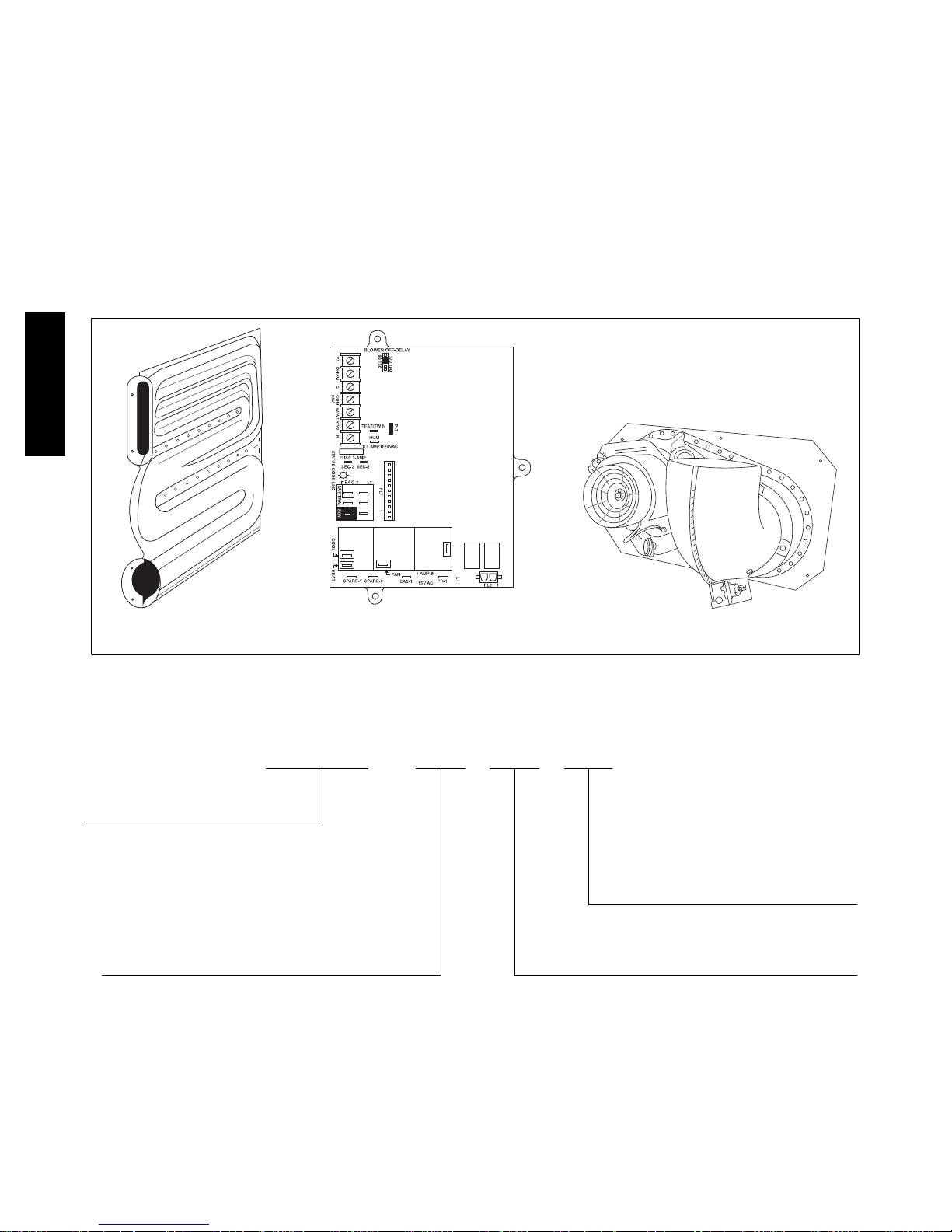

HEAT EXCHANGER

CONTROL B

A02215

OARD INDUCER BLOWER

MODEL NUMBER NOMENCLATURE

58CVA 070 100 12

58CVA Variable Speed 4-Way Multipoi se Nominal Cooling Size

58CVX Low NOx Version (Airflow at .5 ESP.)

(400 CFM per 12,000 Btuh) 12---1200 CFM 16---1600 CFM 20---2000 CFM 22---2200 CFM

Input Capacity

070--- 66,000 Btuh 135--- 132,000 Btuh

090--- 88,000 Btuh 155--- 154,000 Btuh

110--- 110,000 Btuh Series Number

Page 3

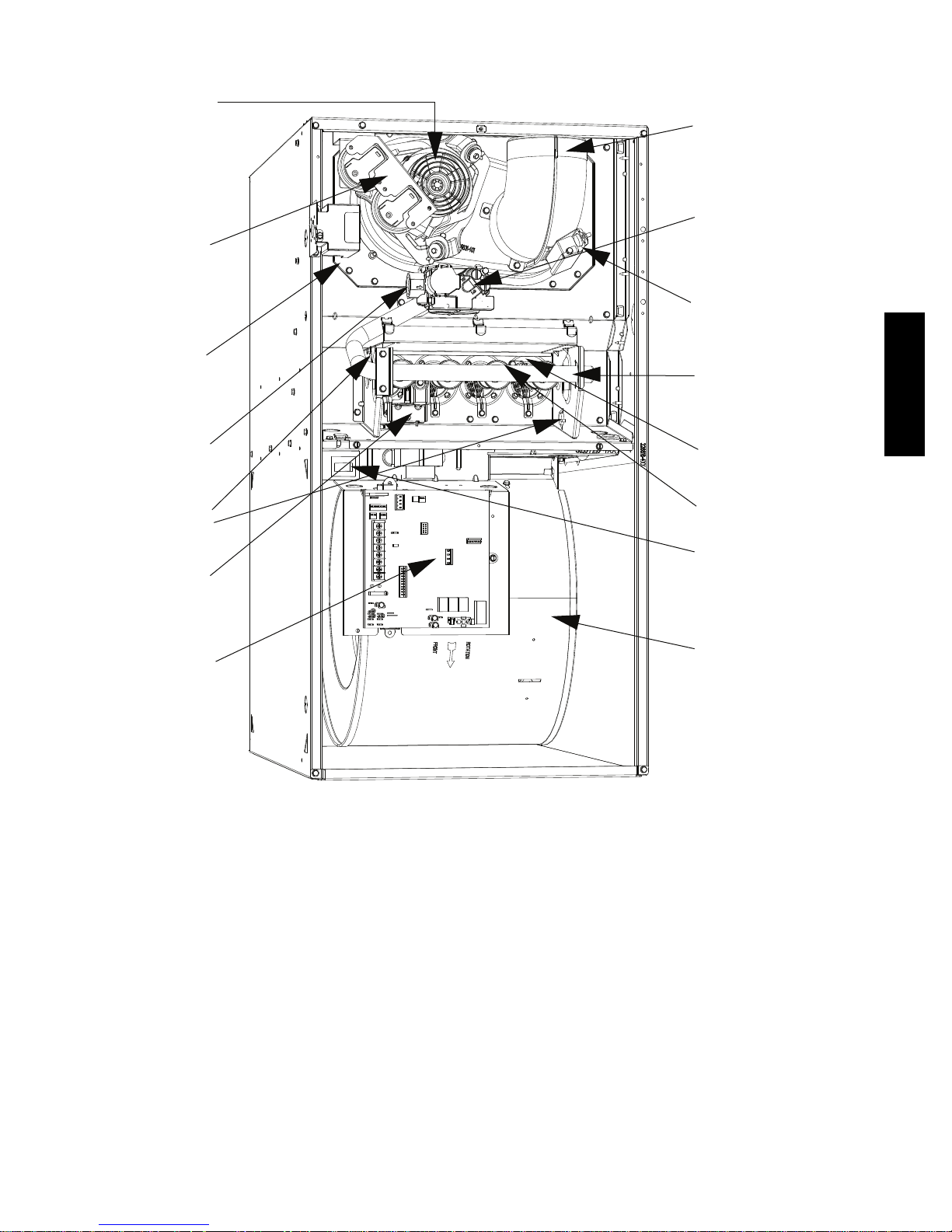

FURNACE COMPONENTS

INDUCER MOTOR

ASSEMBLY

PRESSURE

SWITCHES

FLUE

COLLECTOR

BOX

GAS VALVE

VENT ELBOW*

MAIN LIMIT SWITCH (BEHIND GAS VALVE)

DRAFT SAFEGUARD SWITCH

GAS MANIFOLD

58CVA/CVX

GAS BURNER

MANUAL RESET

FLAME SENSOR

LIMIT SWITCHES

BLOWER DOOR

HOT SURFACE

SAFETY SWITCH

IGNITER

BLOWER AND

CONTROL

MOTOR

RATING PLATE

NOT SHOWN

(LOCATED ON

BLOWER DOOR)

*Elbow may be turned to a dierent position, depending on type of installation.

NOTE: The 58CVA/CVX furnaces are factory shipped for use with natural gas. These furnaces can be field--converted for propane gas with a factory--authorized and listed accessory conversion kit.

A04137

Page 4

CARRIER ACCESSORIES

A03149

CONTROLS:

THERMOSTATS

AND ZONING

Available in programmable and non-programmable models, Carrier thermostats maintain a constant, comfortable

58CVA/CVX

temperature level in the home. For the ultimate in home comfort, Carrier’s

2, 4, and 8-zone systems allow temperature control of individual “zones” of the home. This is accomplished through a series of electronic dampers and remote room sensors. Infinityt Control shown.

MECHANICAL

OR ELECTRONIC

AIR CLEANER

Cleans the air of smoke, dirt, and many pollens commonly found. Saves decorating and cleaning expenses by keeping carpets, furniture, and drapes cleaner.

Electronic air cleaner is shown.

C04008

MODEL HUMCCLFP

HUMIDIFIER

By adding moisture to winter-dry air, a Carrier humidifier can often improve comfort and keep furniture, rugs, and draperies in better condition. Moisturizing household air also helps to retain normal body heat and provides comfort at lower temperatures.

A01484

Page 5

CARRIER ACCESSORIES

DESCRIPTION

ELECTRONIC AIR CLEANER (EAC) Model EACB

MECHANICAL AIR CLEANER Models EZXCAB, FILCAB

HUMIDIFIER Model HUM

HEAT RECOVERY VENTILATOR Model HRV

ENERGY RECOVERY VENTILATOR Model ERV

UV LIGHTS Model UVL

Fo r u s e w i t h 1 - s p e e d A i r C o n d i t i o n e r --- d e g . F / C , A u t o C h a n g e o v e r --- T P --- N A C , T C --- N A C

T H E R M O S T A T --NON-PROGRAMMABLE

T H E R M O S T A T --PROGRAMMABLE

ZONING CONTROL

Fo r u s e w i t h 1 - s p e e d H e a t P u m p --- d e g . F / C , A u t o C h a n g e o v e r --- T P --- N H P, T C --- N H P *

Fo r u s e w i t h 2 - s p e e d A i r C o n d i t i o n e r --- d e g . F / C , A u t o C h a n g e o v e r --- T P --- N R H *

For use with multi-use / stage configurations --- deg. F/C, Auto Changeover/Temperature and Humidity C o n t r o l --- T P --- P R H {

For use with 1-speed Air Conditioner --- deg. F/C, Auto Changeover, 7-Day Programmable --T P --- PA C

For use with 1-speed Heat Pump --- deg. F/C, Auto Changeover, 7-Day Programmable --TP ---PHP*

For use with 2-speed Air Conditioner --- deg. F/C, Auto Changeover, 7-Day Programmable --T P --- P R H *

Fo r u s e w i t h 1 - s p e e d A i r C o n d i t i o n e r --- d e g . F / C , 5 --- 2 D a y P r o g r a m m a b l e --- T P --- P A C

Fo r u s e w i t h m u l t i - s t a g e a p p l i c a t i o n s --- d e g . F / C , A u t o C h a n g e o v e r, 7 - D a y P r o g r a m m a b l e --- T C --- P H P }

For multi-use / stage configurations --- deg. F/C, Auto Changeover, 7-Day Programmable/Temperature and H u m i d i t y C o n t r o l --- T P --- P R H {

Comfort™ Series 3-Zone Kit --- ZONECC3ZAC01, ZONECC3ZHP01

2 Performance™ Series ComfortZone™ II Zoning/Temperature and Humidity Control --- ZONECC2KIT01 --- B

4 Performance™ Series ComfortZone™ II Zoning/Temperature and Humidity Control --- ZONECC4KIT01 --- B

8 Performance™ Series ComfortZone™ II Zoning/Temperature and Humidity Control --- ZONECC8KIT01 --- B

Infinityt Control Deluxe 7-Day Programmable (Wall-mounted system control.) --- SYSTXCCUID01

Infinityt Control Deluxe Z oning 7-Day Programmable (Wall-mounted control for a

multi-zone system.) --- SYSTXCCUIZ01

Infinityt 4-Zone Damper Control Module (Wall-mounted for a 4-zone system.) --- SYSTXCC4ZC02

Infinityt Smart Sensor (Optional wall control used to monitor temperature and/or fan control in

an individual zone.) --- SYSTXCCSMS01

Infinityt Remote Room Sensor (Monitors temperature in an individual zone.) --- SYSTXCCRRS01

Infinityt System Access Module (Hardware for wireless access and control via phone or internet.) ---

SYSTXCCSAM01

Infinityt Network Interface Module (Connects Heat Recovery and Energy Recovery Ventilators or older

two-speed outdoor models t o system.) --- SYSTCCNIM01††

Decorative Back Plate for Infinity Control (Decorative wall plate.) SYSTXXXBPU01

58CVA/CVX

* Model HP and 2S thermostat must be field converted to air condition er operation.

† T hermidistat Control can be configured for multiple use and staging, it mu st be configured for each specific application. } Du al Fuel thermostat is used with furnace and heat pump application.

When applied with Carrier’s IdealHumidity™ series 58CVA/CVX and FE Indoor Models

** †† Must be installed in Dual --- Fuel Infinity system applications

Page 6

CARRIER ACCESSORIES

DESCRIPTION PAR T NO . 070---12 090---16 110---20 135--- 22 155 --- 22

FILCCCAR0016 X X

Cartridge Media Filter

EZ Flex Media Filter with End Caps

Replacement EZ Flex Filter Media

External Bottom Return Filter Rack

External Side Return Filter Rack KGAFR0801SRE X X X X X

58CVA/CVX

Unframed Filter 3/4-in. (19 mm)

Flue Extension KGAFE0112UPH X X X X X

Combustible Floor Base KGASB0201ALL X X X X X

Downflow Vent Guard KGAVG0101DFG X X X X X

Vent Extension Kit KGAVE0101DNH X X X X X

Chimney Adapter Kit KGACA02014FC X X X

Chimney Adapter Kit KGACA02015FC X X

Natural-to-Propane Conversion Kit* KGANP4601ALL X X X X X

Propane-to-Natural Conversion Kit KGAPN3901ALL X X X X X

Label Kit KGALB0101KIT X X X X X

Air Leakage Kit (Qty 10) KGBA C0110DGK X X X X X

ECM Motor Simulator KGASD0301FMS X X X X X

Advanced Product Monitor KGAFP0301APM X X X X X

Gas Orifice Kit (Qty 50)

FILCCCAR0020 X

FILCCCAR0024 X X

EXPXXUNV0016 X X

EXPXXUNV0020 X

EXPXXUNV0024 X X

EXPXXFIL0016 X X

EXPXXFIL0020 X

EXPXXFIL0024 X X

KBAFR0401B14 X

KGAFR0501B17 X

KGAFR0601B21 X

KGAFR0701B24 X X

KGAWF1301UFR† S S

KGAWF1401UFR S

KGAWF1501UFR S S

KGAWF1306UFR† X X

KGAWF1406UFR X

KGAWF1506UFR X X

KGAHA0150N42

KGAHA0250N43

(factory supplied)

KGAHA0350N44

KGAHA0450N45

KGAHA0550N46

KGAHA1550N47

KGAHA1650N48

KGAHA0650P54

KGAHA0750P55

KGAHA0850P56

KGAHA5750125

KGAHA5750130

See Installation Instructions for model,

altitude, and heat value usages.

* Fact o ry- aut ho rized and field installed. Fuel convers ion kits are AGA/CGA recognized . † Suitable for Side Return Filter Rack (KGAFR0801SRE)

X = Accessory S= Standard

Page 7

PHYSICAL DATA

UNIT SIZE 070-12 090-16 110-20 135-22 155-22

All 58CVA; 58CVX Upflow High 54,000 71,000 89,000 107,000 125,000

OUTPUT CAPACITY BTUH* (Nonweatherized ICS) †

INPUT BTUH*

SHIPPING WEIGHT - -- LB (KG) 127 (58) 151 (68) 162 (73) 177 (80) 183 (83)

CERTIFIED TEMP RISE RANGE --- ° F (° C)

CERTIFIED EXT STATIC PRESSURE IN. WC

AIRFLOW CFM‡

AFUE%* Nonweatherized IC S 80.0 80.0 80.0 80.0 80.0

LIMIT CONTROL SPST

HEATING BLOWER CONTROL Solid-State T ime Operation

BURNERS (Monoport) 2 2 3 3 3 4 4

GAS CONNECTION SIZE 1 / 2 --- i n . N P T

GAS VALVE (Redundant) Manufacturer White-Rodgers

Minimum Inlet Pressure (In. wc) 4.5 (Natural Gas)

Maximum Inlet Pressure (In. wc) 13.6 (Natural Gas)

IGNITION DEVICE Hot Surface

58CVX Downflow/Horizontal High 51,000 68,000 85,000 102,000 119,000

58CVX Upflow; all 58CVA High 66,000 88,000 110,000 132,000 154,000

58CVX Downflow/Horizontal HIgh 63,000 84,000 105,000 126,000 147,000

Heating High 0.12 0.15 0.20 0.20 0.20

Cooling Low 0.5 0.5 0.5 0.5 0.5

Heating---High/Low 1180/735 1210/ 985 1475/1320 1915/1700 1970/1715

Cooling 1225 1400 2095 2100 2095

Low 35,000 47,000 59,000 70,000 82,000

Low 43,500 58,000 72,500 87,000 101,500

High 30 ---60

( 1 7 --- 3 3 )

Low 30 ---60

( 1 7 --- 3 3 )

40---70

( 2 2 --- 3 9 )

30---60

( 1 7 --- 3 3 )

40---70

( 2 2 --- 3 9 )

25---55

( 1 4 --- 3 0 )

40---70

( 2 2 --- 3 9 )

25---55

( 1 4 --- 3 0 )

45---75

( 2 5 --- 4 2 )

30---60

( 1 7 --- 3 3 )

58CVA/CVX

* Gas input ratings ar e certified for elevations to 2000 ft. (610 M). In USA, for elevations above 2000 ft. (610 M), reduce ratings 4 percent for each 1000 ft. (305

M) above sea l evel. Refer to National Fuel Gas Code NFPA 54/ANSI Z223.1 ---2006 Table F.1 (d) or furnace Installation Instructions. In Cana da, derate the

unit 10 percent for elevations 2000 to 4500 ft. (610 to 1372 M) above sea level. † Capacity in accordance with U.S. Government DOE test procedures. ‡ Airflow shown is for bottom only return---air supply in comfort mode (as shipped). For air delivery above 1800 CFM, see Air Delivery Table for other options.

A filter is required for each return-air supply. ICS — Isolated Combustion System

BLOWER PERFORMANCE DATA

UNIT SIZE 070-12 090-16 110-20 135-22 155-22

DIRECT --- DRIVE MOTOR Hp (PSC) 1/2 1/2 1 1 1

MOTOR FULL LOAD AMPS 7.7 7.7 12.8 12.8 12.8

RPM (Nominal) 300-1300 300-1300 300-1300 300-1300 300-1300

BLOWER WHEEL DIAMETER X WIDTHS --- IN. (MM)

ECM --- Electronically Commutated Motor, Variable Speed

10 x 6

(254 x 152)

10 x 8

(254 x 203)

11 x 10

(279 x 254)

11 x 11

(279 x 279)

11 x 11

(279 x 279)

Page 8

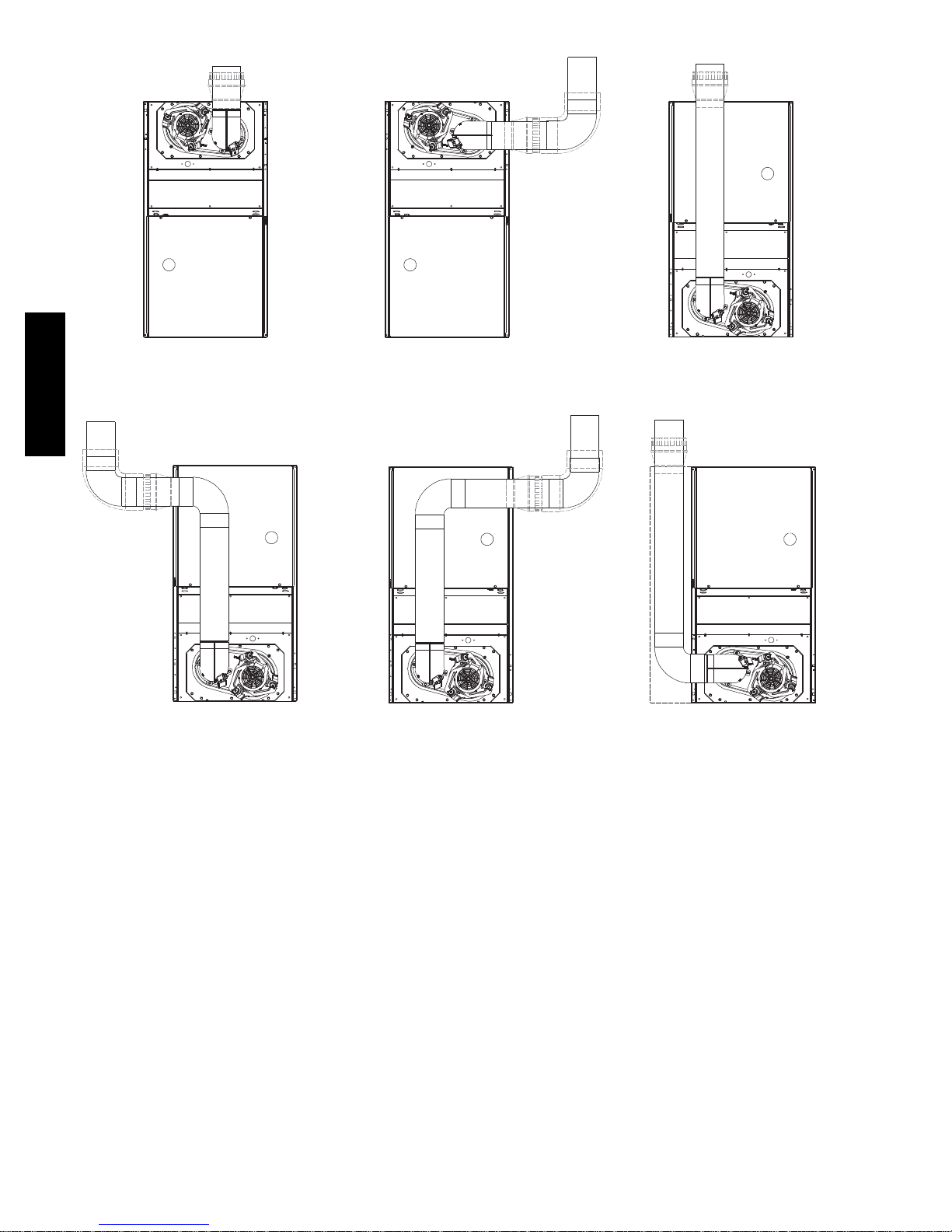

SEE NOTES: 1,2,4,7,8,9

UPFLOW

A02058

SEE NOTES: 1,2,3,4,7,8,9

UPFLOW

SEE NOTES: 1,2,4,5,7,8,9

DOWNFLOW

A02059 A02061

58CVA/CVX

SEE NOTES:1,2,3,4,5,7,8,9

DOWNFLOW

A02060 A02063

Venting Notes

1. For common vent, vent connector sizing and vent material: United States, latest edition of the National Fuel Gas Code (NFGC), ANSI Z223.1/NFPA 54. In Canada, latest edition of the National Standards of Canada, Natural Gas and Propane Installation Code (NSCNGPIC), CSA B149.1.

2. Immediately increase to 5-in. (127 mm) vent connector outside furnace casing when 5-in. (127 mm) vent connector required, refer to Note 1.

3. Side outlet vent for upflow and downflow installations must use Type B vent immediately after exiting the furnace, except when KGAVG0101DFG is used in downflow position.

4. Type B vent where required, refer to Note 1.

5. 4 ---in. (102 mm) single wall vent must be used inside furnace casing and the KGAVG0101DFG Downflow Vent Guard Kit.

6. Accessory Downflow Vent Guard Kit, KGAVG0101DFG required in downflow installations with bottom vent configuration.

7. Chimney Adapter Kit required for exterior masonry chimney applications. Refer to Chimney Adapter Kit, KGACA02014FC and KGACA02015FC for sizing and complete application details.

8. Secure vent connector to furnace elbow with (2) corrosion-resistant sheet metal screws, space approximately 180° apart.

9. Secure all other single wall vent connector joints with (3) corrosion-resistant screws spaced approximately 120° apart. Secure Type B vent connectors per vent connector manufacturer’s recommendations.

SEE NOTES: 1,2,3,4,5,7,8,9

DOWNFLOW

SEE NOTES: 1,2,4,5,6,7,8,9

DOWNFLOW

A02062

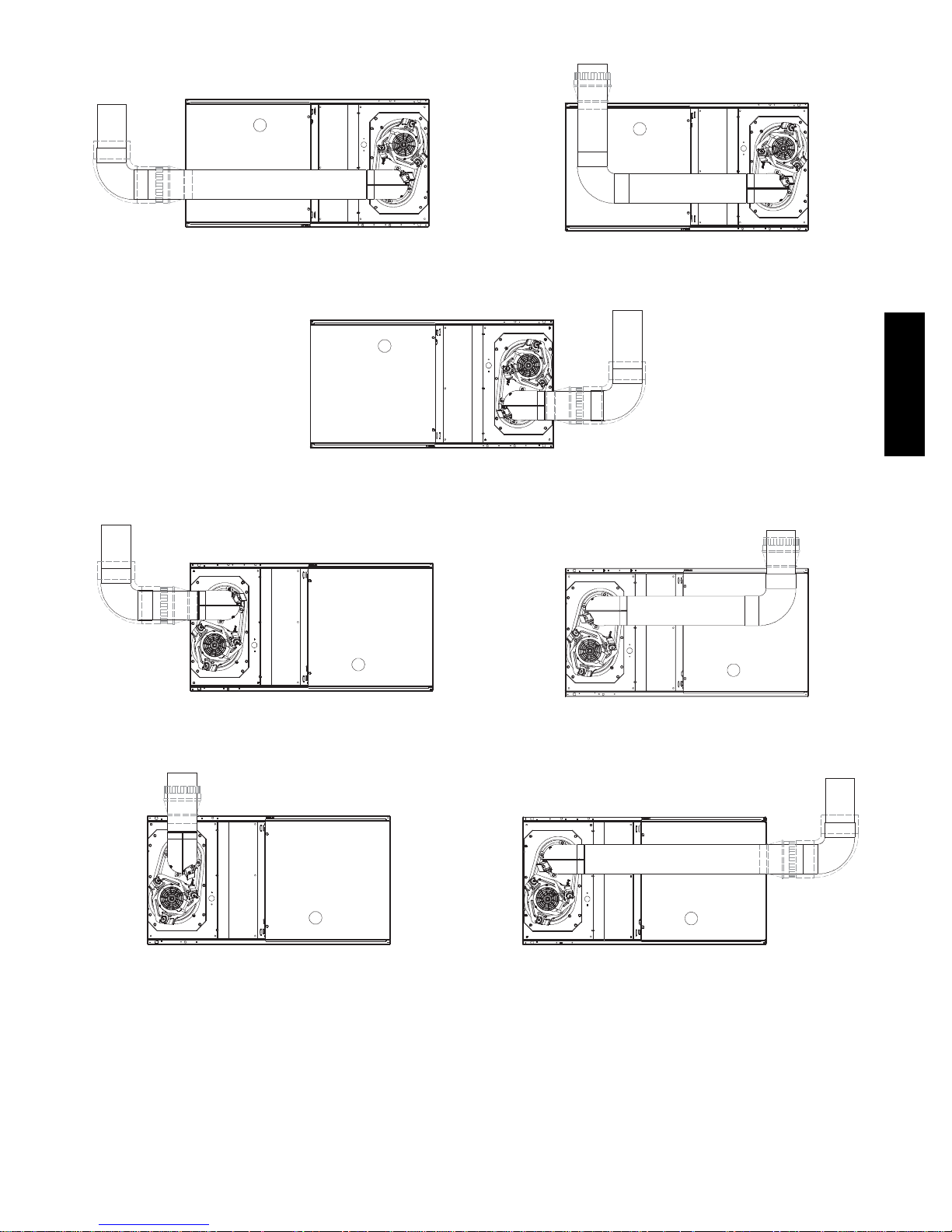

Page 9

SEE NOTES: 1,2,4,5,7,8,9

HORIZONTAL RIGHT

A02068

SEE NOTES: 1,2,4,7,8,9

HORIZONTAL RIGHT

SEE NOTES: 1,2,4,5,7,8,9

HORIZONTAL RIGHT

A02069

A02070

58CVA/CVX

SEE NOTES: 1,2,4,7,8,9

HORIZONTAL LEFT

SEE NOTES: 1,2,4,5,7,8,9

HORIZONTAL LEFT

A02066

A02064

SEE NOTES: 1,2,4,5,7,8,9

HORIZONTAL LEFT

SEE NOTES: 1,2,4,5,7,8,9

HORIZONTAL LEFT

A02065

A02067

Page 10

AIR DELIVERY -- CFM (With Filter)*

CFM

Unit Size Operating Mode

070---12 AIRFLOW (CFM)

†† Low Heat 735 (615)† 0---0.50 735 735 735 735 725

†† 1 --- 1 / 2 --- T o n C o o l i n g 525 0---0.50‡ 515 500 500 490 485 †† 2 --- To n A / C C o o l i n g 700 0 --- 0.50‡ 690 680 675 680 675

090---16

†† 1 --- 1 / 2 --- T o n A / C C o o l i n g 525 0 --- 0.50‡ 525 520 525 495 475 †† 2 --- To n A / C C o o l i n g 700 0 --- 0.50‡ 680 680 680 675 670

110---20***

58CVA/CVX

†† 2 --- To n A / C C o o l i n g 700 0 --- 0.50‡ 700 700 700 700 700 †† 2 --- 1 / 2 --- T o n A / C C o o l i n g 875 0 --- 0.50‡ 875 875 875 875 875 †† 3 --- To n A / C C o o l i n g 1050 0---0.50‡ 1050 1050 1050 1050 1050

135---22

†† 2 --- To n A / C C o o l i n g 700 0 --- 0.50‡ 700 700 700 700 665 †† 2 --- 1 / 2 --- T o n A / C C o o l i n g 875 0 --- 0.50‡ 870 870 865 865 865 †† 3 --- To n A / C C o o l i n g 1050 0---0.50‡ 1010 1030 1050 1050 1050

155---22

†† 2 --- To n A / C C o o l i n g 700 0 --- 0.50‡ 700 700 700 700 680 †† 2 --- 1 / 2 --- T o n A / C C o o l i n g 875 0 --- 0.50‡ 865 875 875 865 865 †† 3 --- To n A / C C o o l i n g 1050 0---0.50‡ 1015 1020 1035 1045 1050

*Actual external static pressure (ESP) can be determined by using the fan laws (CFM 2 proportional to ESP); such as, a system with 1180 CFM

High Heat 1180 (1060)† 0 --- 1 . 0 1160 1165 1175 1180 1180 1180 1180 1180 1180 1175

2 --- 1 / 2 --- T o n A / C C o o l i n g 875 0 ---1.0‡ 875 875 875 870 865 855 850 835 825 820

3 --- To n A / C C o o l i n g 1050 0 --- 1.0‡ 1050 1050 1050 1050 1050 1050 1045 1035 1020 1000

3 --- 1 / 2 --- T o n A / C C o o l i n g 1225 0 --- 1 . 0 1220 1225 1225 1225 1225 1220 1205 1190 1185 1170

Maximum 1400 0 --- 1 . 0 1395 1400 1400 1400 1395 1385 1370 1340 1300 1245

Low Heat 985 (825)† 0 --- 1 . 0 950 970 985 985 985 985 985 985 985 980 High Heat 1210 (1090)† 0 --- 1 . 0 1190 1205 1210 1210 1210 1210 1210 1210 1210 1200

2 --- 1 / 2 --- T o n A / C C o o l i n g 875 0 ---1.0‡ 815 845 845 855 850 850 845 835 820 805

3 --- To n A / C C o o l i n g 1050 0 --- 1.0‡ 1005 1005 1015 1035 1040 1040 1035 1030 1025 1010

3 --- 1 / 2 --- T o n A / C C o o l i n g 1225 0 --- 1 . 0 1190 1200 1200 1205 1205 1215 1205 1200 1185 1170

4 --- To n A / C C o o l i n g 1400 0 --- 1 . 0 1350 1370 1390 1390 1400 1390 1380 1380 1360 1340

Maximum 1600 0 --- 1 . 0 1595 1600 1600 1600 1595 1555 1505 1465 1430 1390

Low Heat 1320 (1110)† 0 --- 1 . 0 1275 1295 1315 1320 1320 1320 1320 1320 1320 1315 High Heat 1475 (1330)† 0 --- 1 . 0 1460 1465 1475 1475 1475 1475 1475 1475 1465 1465

3 --- 1 / 2 --- T o n A / C C o o l i n g 1225 0 ---1.0‡ 1225 1225 1225 1225 1225 1225 1225 1225 1225 1225

4 --- To n A / C C o o l i n g 1400 0 --- 1.0‡ 1400 1400 1400 1400 1400 1400 1400 1400 1400 1400 5 --- To n A / C C o o l i n g 1750 0 --- 1.0‡ 1750 1750 1750 1750 1750 1750 1750 1750 1740 1725 6 --- To n A / C C o o l i n g 2100 0 --- 1 . 0 2100 2100 2100 2100 2090 2075 2055 2040 2005 1970

Maximum 2200 0 --- 1 . 0 2200 2190 2190 2180 2155 2145 2125 2100 2080 2020

Low Heat 1700 (1430)† 0 --- 1 . 0 1700 1700 1700 1700 1700 1695 1700 1695 1685 1670 High Heat 1915 (1725)† 0 --- 1 . 0 1900 1905 1915 1915 1915 1915 1915 1915 1915 1915

3 --- 1 / 2 --- T o n A / C C o o l i n g 1225 0 ---1.0‡ 1155 1180 1200 1210 1220 1225 1225 1225 1225 1225

4 --- To n A / C C o o l i n g 1400 0 --- 1.0‡ 1395 1400 1400 1400 1400 1400 1400 1390 1375 1355 5 --- To n A / C C o o l i n g 1750 0 --- 1.0‡ 1740 1750 1750 1750 1735 1740 1735 1730 1715 1700 6 --- To n A / C C o o l i n g 2100 0 --- 1 . 0 2075 2085 2090 2100 2100 2100 2090 2080 2055 2025

Maximum 2200 0 --- 1 . 0 2180 2195 2200 2200 2200 2200 2185 2165 2140 2095

Low Heat 1715 (1440)† 0 --- 1 . 0 1715 1715 1715 1715 1715 1705 1710 1705 1705 1695 High Heat 1970 (1775)† 0 --- 1 . 0 1955 1965 1965 1970 1970 1970 1970 1970 1970 1960

3 --- 1 / 2 --- T o n A / C C o o l i n g 1225 0 ---1.0‡ 1160 1185 1215 1225 1225 1225 1225 1225 1225 1225

4 --- To n A / C C o o l i n g 1400 0 --- 1.0‡ 1385 1400 1400 1400 1400 1400 1395 1395 1380 1360 5 --- To n A / C C o o l i n g 1750 0 --- 1.0‡ 1745 1750 1750 1750 1745 1740 1745 1745 1740 1735 6 --- To n A / C C o o l i n g 2100 0 --- 1 . 0 2055 2070 2080 2085 2095 2100 2100 2100 2090 2065

Maximum 2200 0 --- 1 . 0 2175 2190 2200 2200 2200 2200 2200 2200 2180 2160

Airflow Setting

External

Static

Pressure

Range* (in. wc)

0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1

at 0.5 ESP would operate at cooling airflow of 1050 CFM at 0.4 ESP and low--- heating airflow of 735 CFM at 0.19 ESP.

{Comfort airflow values are shown in parenthesis. Comfort airflow is selected when the low ---heat rise adjustment switch (SW1--- 3) is OFF and

the comfort/efficiency switch (SW1 --- 4) is ON.

}Ductwork must be sized for high --- heating CFM within the operational range of ESP.

**Wattage data provided is for the circulating blower with bottom return and does not include draft inducer, accessories, or gas controls.

{{Operation within the blank areas of the chart is not recommended because high ---heat operation will be above 1.0 ESP.

***All airflows on 110 size furnace are 5% less on side return only installations.

External Static Pressure (ESP) (IN WC)

Page 11

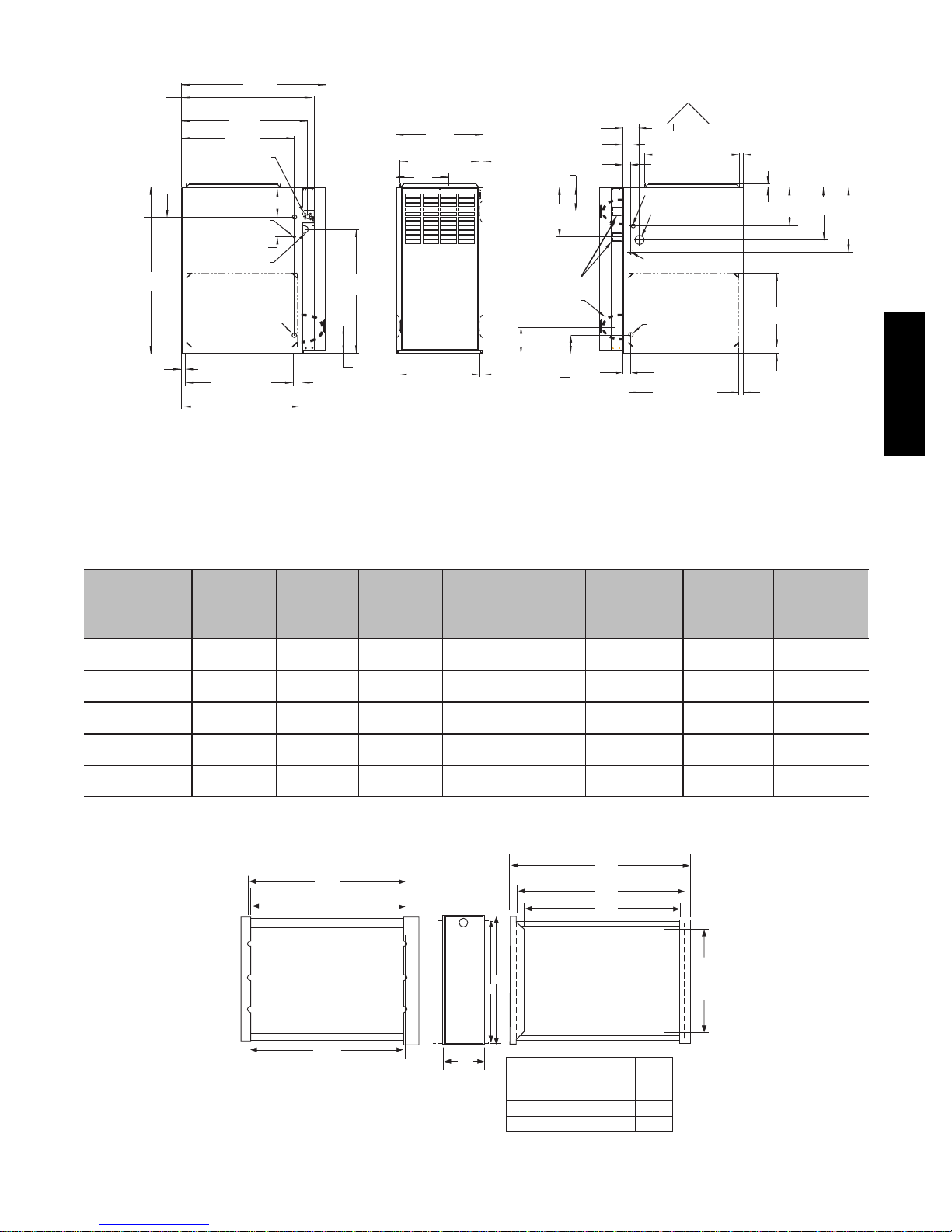

DIMENSIONS

(

(664mm)

26-1/8"

(FLUE COLLAR)

5-15/16"

(22mm)

7/8" DI A

(135mm)

33-5/16"

(846mm)

1/2" (13 mm) DIA. THERMOSTAT WIRE ENTRY

ACCESSORY

(733mm)

28-7/8"

(641mm)

25-1/4"

22-9/16"

(573mm)

JUNCTION BOX LOCATION

3-15/16" (84mm) LEFT HAND GAS

ENTRY

7/8" (22mm) DIA. ACCESSORY

24-7/8"

(632mm)

13/16"

(21mm)

4-13/16"

(122mm)

8-9/16"

(217mm)

ALTERNAT E

JUNCTION BOX

LOCATIONS (TYP)

VENT OUTLE T

5 PLACES (TYP)

(140mm)

5-1/2"

2-7/16" (62mm) 1-5/16" (33mm)

1-1/8"

(29mm)

AIRFLOW

19"

(483mm)

OUTLE T

1/2" DIA. K.O.THERMOSTAT WIRE ENTRY

7/8" DIA. K.O. WIRE ENTRY

(22mm)

(13mm)

1-3/4" DIA.RIGHT HAND GAS ENTRY

7/8" DIA. ACCESSORY

(44mm)

13/16"

(21mm)

11/16"

(17mm)

14-7/8"

(378mm)

7-3/4"

(197mm)

9-5/8"

(244mm)

11-1/2"

(292mm)

11/16"

(17mm)

(549mm)

21-5/8"

BOTTOM INLE T

24"

CASING

610mm)

1-11/16" (43mm)

5-1/2"

(140mm)

11/16"

(17mm)

3-3/4"

(95mm)

1-1/2"

(560mm) 22-1/16"

SIDE INLE T

(38mm)

1-1/4"

(32mm)

(25mm)

A04037

NOTES:

1. Two additional 7/8 - -- in. (22 mm) diameter holes are located in the top plate.

2. Minimum return--- air openings at furnace, based on metal duct. If flex duct is used, see flex duct manufacturer’s recommendations for equivalent diameters. a. For 800 CFM --- 16 ---in. (406 mm) round or 14 1/2 x 12 ---in. (368 x 305 mm) r ectangle. b. For 1200 CFM --- 20 ---in. (508 mm) roun d or 14 1/2 x 19 1/2 --- in. (368 x 495 mm) rectangle. c. For 1600 CFM --- 22 ---in. (559 mm) roun d or 14 1/2 x 22 1/16 --- in. (368 x 560mm) rectangle. d. For airflow requirements above 1800 CFM, see Air Del ivery table in Product Data literature for specific use of single side inlets. The use of both sideinlets,a combination of 1 side and the bottom, or the bottom only will ensur e adequate return air openings for airflow requirements above 1800 CFM.

FURNACE SIZE

070---12

090---16

110---20 21 ( 533)

135---22

155---22

CABINET

WIDTH

IN. ( mm)

14---3/16

(360)

17---1/2

(445)

24---1/2

(622)

24---1/2

(622)

SUPPLY---

AIR WIDTH

IN. ( mm)

12---9/16

(319)

15---7/8

(403)

19---3/8

(492)

22---7/8

(581)

22---7/8

(581)

RETURN---

AIR WIDTH

IN. ( mm)

12---11/16

(322)

16---1/8

(410)

19---1/2

(495)

CENTER LINE TOP AND

BOTTOM FLUE

COLLAR

FLUE

COLLAR*

IN. ( mm)

SHIPPING

WT.

LB (KG)

IN. ( mm)

9---5/16 (237) 4 (102) 127 (58) 16 (406)

11---9/16 (294) 4 ( 102) 151 (68) 16 (406)

13---5/16 (338) 4 ( 102) 163 (74) 20 (508)

23 (584) 15--- 1/16 (383) 4 (102)† 177 (80) 24 (610)

23 (584) 15--- 1/16 (383) 4 (102)† 183 (83) 24 (610)

FILTER MEDIA

CABINET

SIZE

IN. ( mm)

*5 in. or 6 in. (127 or 152 mm) vent connector may be required in some cases. {5 in. (127 mm) or larger vent is required. Use a 4 --- 5 (102---127 mm) or 4 ---6 in. (102 ---152 mm) vent adapter between furnace an d vent connector.

58CVA/CVX

(600 mm)

(594 mm)

Furnace Side

(603 mm)

Centerline Screw Slots

(146 mm)

Media/ Filter Cabinet

16" (406 mm) 17" (432) 16

20" (508 mm) 21" (533) 20

24" (610 mm) 25" (635) 24

(651 mm)

(622 mm)

With Flanges Bent Out

Opening

(587 mm)

Duct Side

AB C

4"(413) 15" (381)

4"(514) 19" (483)

4"(616) 23" (584)

with Flanges Bent In

C Opening

Page 12

58CVA/CVX

A08471

Page 13

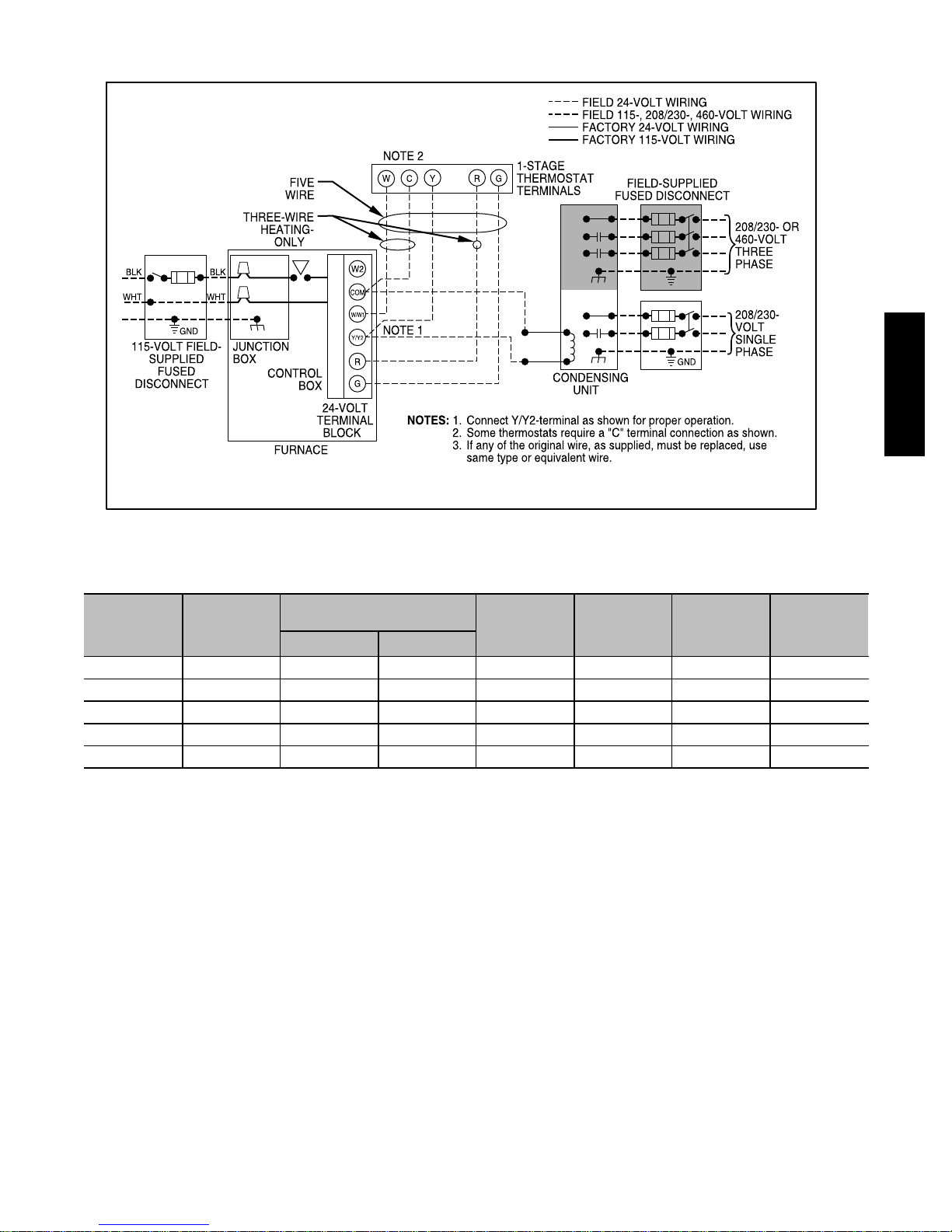

TYPICAL WIRING SCHEMATIC

58CVA/CVX

A95236

ELECTRICAL DATA

OPERATING

UNIT SIZE

070-12 115-60-1 127 104 9.0 30 (9.1) 15 14

090-16 115-60-1 127 104 9.6 29 (8.8) 15 14

110-20 115-60-1 127 104 15.1 29 (8.8) 20 12

135-22 115-60-1 127 104 14.9 30 (9.1) 20 12

155-22 115-60-1 127 104 15.0 29 (8.8) 20 12

* Permissible limits of the voltage range at wh ich unit oper ates satisfactorily. † Time ---delay type is recommended. ‡ Length shown is as measured one way along wire path between un it and service panel for maximum 2 percent voltage drop.

VOLTS HERTZ

PHASE

VOL TAGE RANGE

Maximum* Minimum*

MAXIMUM

UNIT AMPS

MAXIMUM

WIRE

LENGTH

FT (M)‡

MAXIMUM

FUSE OR CKT

BKR AMPS†

MINIMUM

WIRE GAGE

Page 14

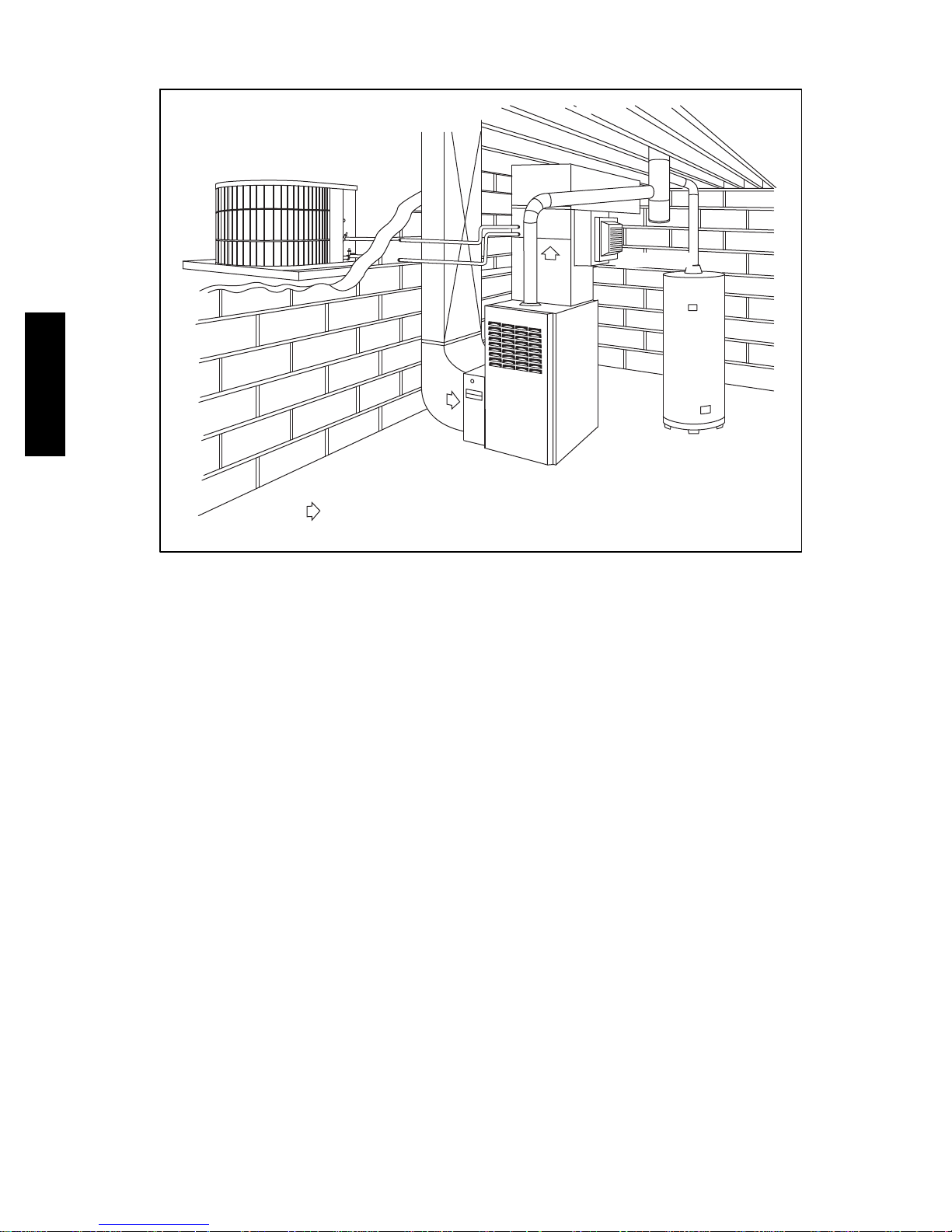

TYPICAL INST ALLATION

58CVA/CVX

CONDENSING UNIT

ELECTRONIC AIR CLEANER

HUMIDIFIER

GAS-FIRED WATER HEATER

AIRFLOW

A02184

Page 15

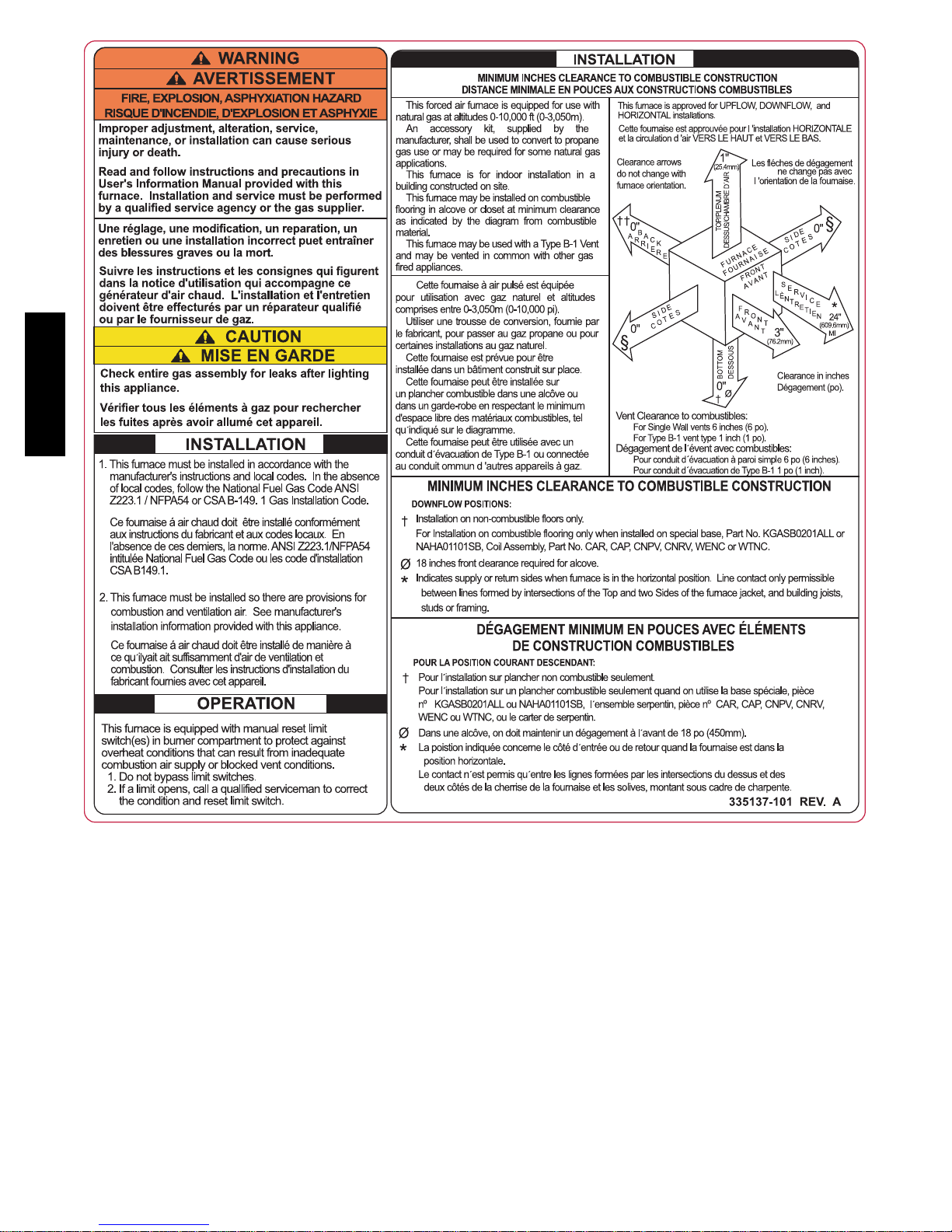

58CVA/CVX

Page 16

GUIDE SPECIFICATIONS

Gas Furnace 58CVA/CVX General

SYSTEM DESCRIPTION

Furnish a _________________ Variable speed gas-fired furnace for use with natural gas or propane (factory authorized conversion kit requi red for propane); furnish cold air return plenum; furnish external medial cabinet for use with accessory media filter or standard filter.

QUALITY

ASSURANCE

Unit will be designed, tested and constructed to the current ANSI Z 21.47/CSA 2.3 design standard for gas-fired central furnaces. Unit will be 3rd party certified by CSA to the curre nt ANSI Z 21.47/CSA 2.3 design standard for gas-fired central furnaces.

Unit will carry the CSA Blue StarR and Blue FlameR labels.

Unit efficiency testing will be performed per the current DOE test procedure as listed in the Federal Register.

58CVA/CVX

Unit will be certified for capacity and efficiency and listed in the latest GAMA Consumer’s Directory of Certified Efficiency Ratings.

Unit shall carry the current Federal Trade Commission Energy Guide efficiency label.

DELIVERY, STORAGE AND

HANDLING

Unit shall be shipped a s single package only and is stored and handled pe r unit manufacturer’s recommendations.

WARRANTY (for inclusion by specifying

engineer)

U.S. and Canada only. Warranty certificate available upon request.

Products

EQUIPMENT

Components shall include: slow-opening two-stage dual fuel gas valve to reduce ignition noise, regulate gas flow, with electric switch gas shut-off; flame proving sensor, hot surface igniter, dual pressure switch assembly, flame rollout switch, ICM blower and two speed inducer assembly, 40va transformer; low-voltage (heating) (heating/cooling) thermostat.

Blower Wheel and ECM Blower Motor

Galvanized blower wheel shall be centrifugal type, statically and dynamically balanced. Blower motor of variable speed ECM type shall be permanently lubricated with sealed ball bearings, of _______hp, and supplies delivers requested airflow CFM as defined by signals received from EZ-SELECT airflow control when 24V motor inputs are provided. Blower motor shall be direct drive and soft mounted to the blower scroll to reduce variation transmission.

Filters

Furnace may have reusable-type filters. Filter shall be _______ in. (mm) (x) _______in. (mm) An accessory high efficiency Media Filter is available as an option. _______________ Media Filter.

Casing

Casing shall be of .030 in. (.76 mm) thickness

minimum, pre-painted galvanized steel.

Two Speed Inducer Motor

Two Speed Inducer motor shall be soft mounted to

reduce vibration transmission.

Flame Rollout Switch

Flame Rollout Switch shall be factory installed near burner area to further reduce the possibility of a stuck gas valve or failed inducer motor.

Heat Exchangers

Heat exchangers shall be a 4-Pass 20 gage corrosion resistant aluminized steel of fold--and--crimp sectional design when applied operating under nega tive pre ssure.

Controls

Control shall include a micro-processor based integrated electronic control board with at least 11 service troubleshooting codes displayed via diagnostic flashing LED light on the control, a self-test feature that checks all major functions of the furnace within one minute, and a replaceable automotive-type circuit protection fuse. Multiple operational settings available with the EZ-SELECT fan control, including, separate blower speeds for low heat, high heat, low cooling, high cooling and continuous fan. Continuous fan speed may be adjusted from the thermostat. Cooling airflow will be selectable between 350 or 400 CFM per ton of air conditioning. Features will also include temporary reduced airflow in the cooling mode for improved dehumidification when an Infinityt Control or Thermidistatt is selected as the thermostat.

OPERATING

CHARACTERISTICS

Heating Capacity shall be ________ Btuh input; ________ Btuh output capacity.

Fuel Gas Efficiency shall be 80% AFUE.

Air delivery sha ll be ___________ cfm minimum at

0.50 in. wc external static pressure.

Dimensions shall be: depth __________ in. (mm); width _________ in; height_________in. (mm) (casing only). Height shall be_________in. (mm) with A/C coil and _____________in. (mm) overall with plenum.

ELECTRICAL

REQUIREMENTS

Electrical supply shall be 115 volts, 60 Hz, single--phase (nominal). Minimum wire size shall be_________AWG; maximum fuse size or circuit breaker shall be __________Amps.

SPECIAL FEA

TURES

Refer to section of the product data sheet identifying accessories and descriptions for specific features and available enhancements.

Manufacturer reserves the right to change, at any time, s pecifications and designs without notice and without obligations.

Catalog No: 58CV --- 5PD

Replaces: 58CV--- 4PD
