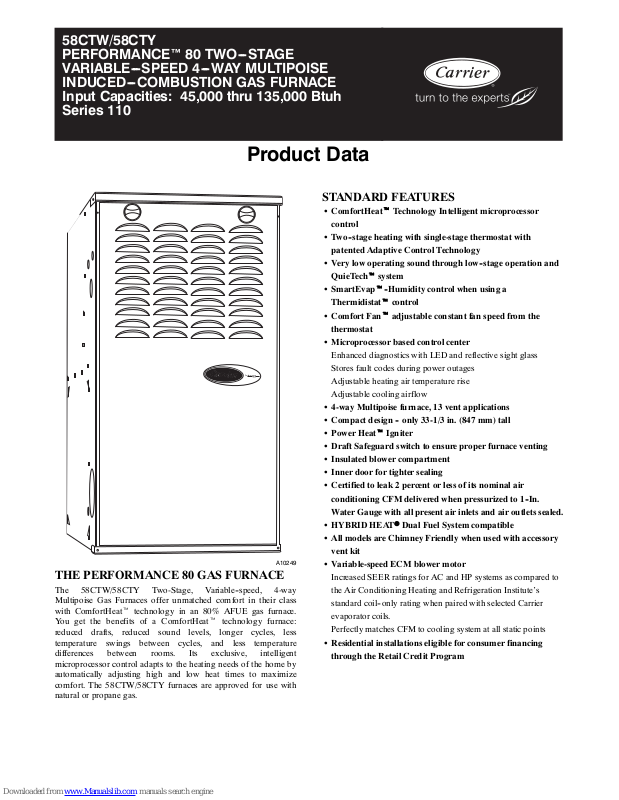

Carrier 58CTW, 58CTY Product Data

Page 1

58CTW/58CTY PERFORMANCE™ 80 TWO---ST AG E V A R I A B L E --- S P E E D 4 --- W A Y M U LT I P O I S E INDUCED---COMBUSTION GAS FURNACE Input Capacities: 45,000 thru 135, 000 Btuh Series 110

Product Data

Performance

A10249

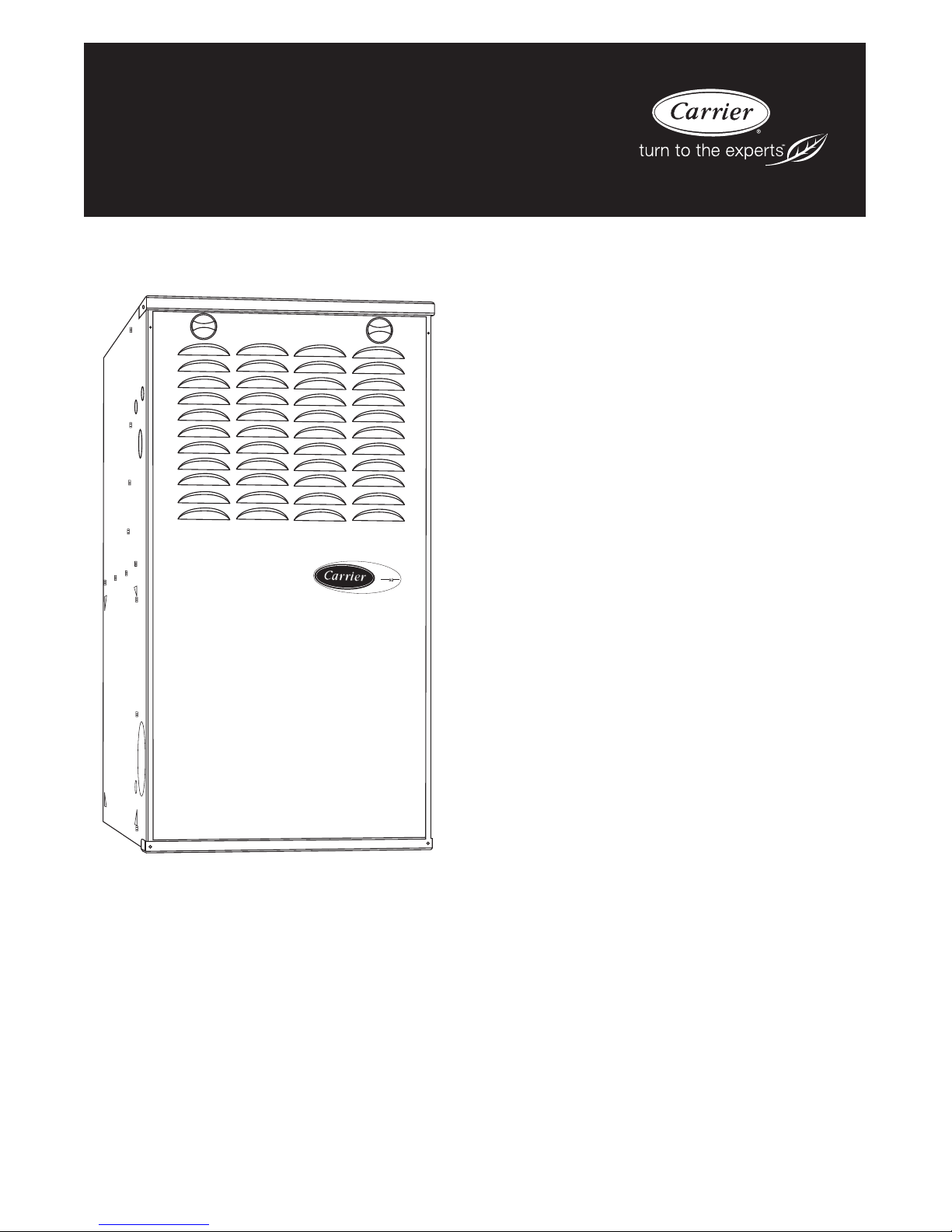

THE PERFORMANCE 80 GAS FURNACE

The 58CTW/58CTY Two-Stage, Variable--speed, 4-way Multipoise Gas Furnaces offer unmatched comfort in their class with ComfortHeatt technology in an 80% AFUE gas furnace. You get the benefits of a ComfortHeatt technology furnace: reduced drafts, reduced sound levels, longer cycles, less temperature swings between cycles, and less temperature differences between rooms. Its exclusive, intelligent microprocessor control adapts to the heating needs of the home by automatically adjusting high and low heat times to maximize comfort. The 58CTW/58CTY furnaces are approved for use with natural or propane gas.

STANDARD FEATURES

S ComfortHeatt Technology Intelligent microprocessor

control

S Two--stage heating with single-stage thermostat with

patented Adaptive Control Technology

S Very low operating sound through low--stage operation and

QuieTecht system

S SmartEvapt--Humidity control when using a

Thermidistatt control

S Comfort Fant adjustable constant fan speed from the

thermostat

S Microprocessor based control center

Enhanced diagnostics with LED and reflective sight glass Stores fault codes during power outages Adjustable heating air temperature rise Adjustable cooling airflow

S 4-way Multipoise furnace, 13 vent applications S Compact design -- only 33-1/3 in. (847 mm) tall S Power Heatt Igniter S Draft Safeguard switch to ensure proper furnace venting S Insulated blower compartment S Inner door for tighter sealing S Certified to leak 2 percent or less of its nominal air

conditioning CFM delivered when pressurized to 1--In. Water Gauge with all present air inlets and airoutlets sealed.

S HYBRID HEATr Dual Fuel System compatible S All models are Chimney Friendly when used with accessory

vent kit

S Variable-speed ECM blower motor

Increased SEER ratings for AC and HP systems as compared to the Air Conditioning Heating and Refrigeration Institute’s standard coil--only rating when paired with selected Carrier evaporator coils. Perfectly matches CFM to cooling system at all static points

S Residential installations eligible for consumer financing

through the Retail Credit Program

Page 2

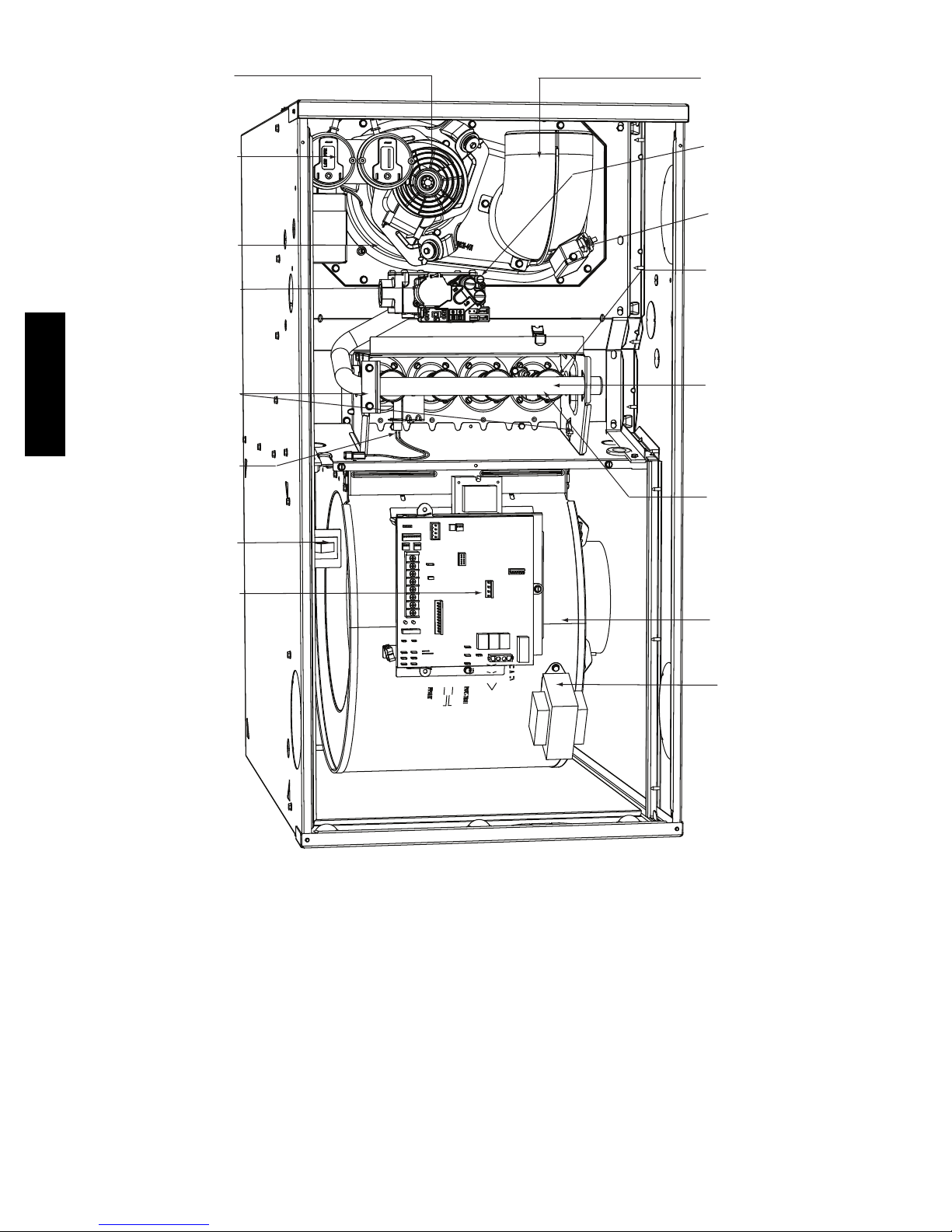

FURNACE COMPONENTS

INDUCER MOTOR

ASSEMBLY

VENT ELBOW

58CTW/CTY

PRESSURE

SWITCHES

FLUE COLLECTOR

BOX

GAS VALVE

MANUAL RESET

LIMIT SWITCHES

HOT SURFACE

IGNITOR

BLOWER DOOR

SAFETY SWITCH

FURNACE CONTROL

BOARD

MAIN LIMIT SWITCH (BEHIND GAS VALVE)

BLOCKED VENT SWITCH

FLAME SENSOR

GAS MANIFOLD

GAS BURNER

BLOWER AND MOTOR

CAPACITOR/ POWER CHOKE

A10312

NOTE: The 58CTW/58CTY Furnaces are factory shipped for use with natural gas. These furnaces can be field-converted for propane gas with a factory-authorized and listed accessory conversion kit.

Page 3

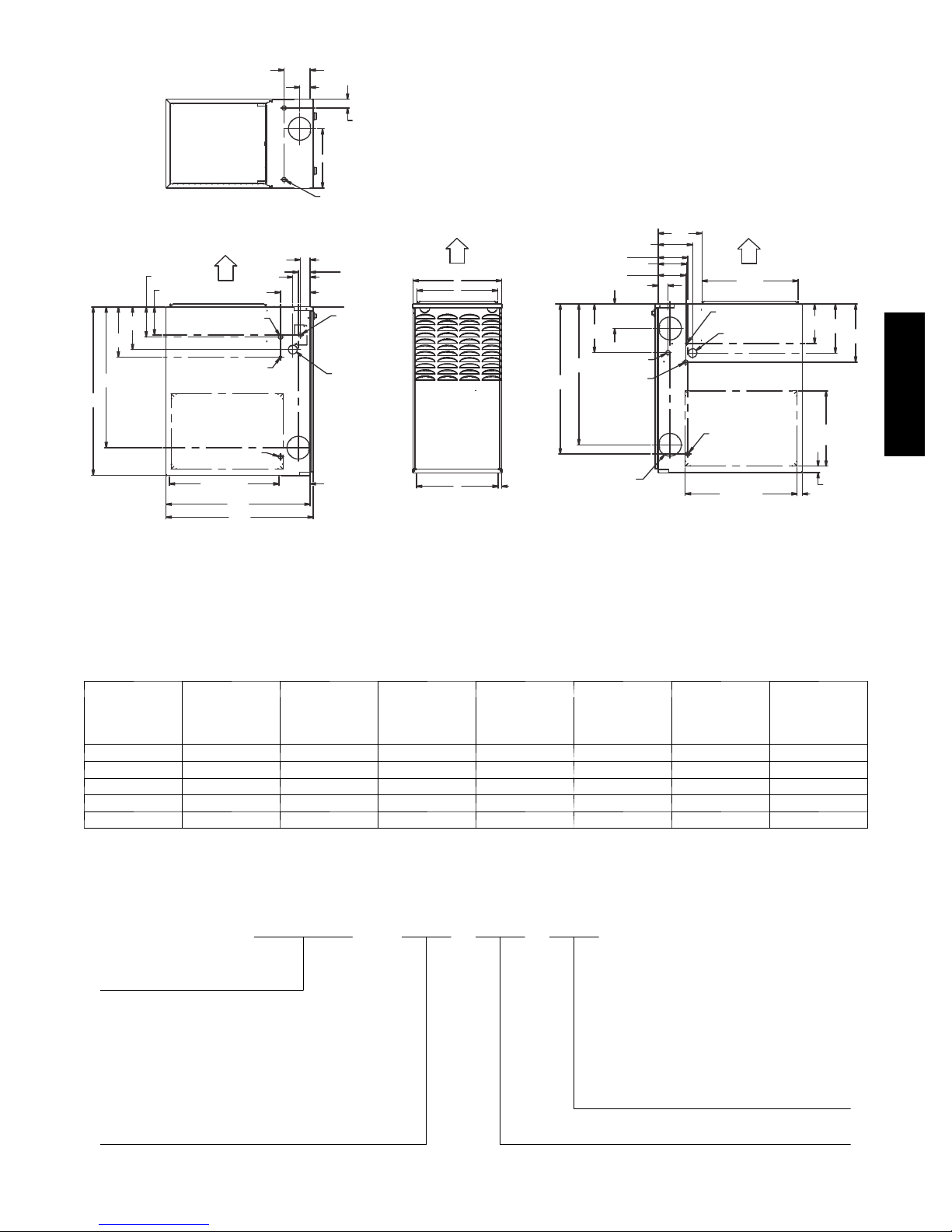

DIMENSIONS

[736.9]

Ø7/8 [22.2]

ACCESSORY

5 15/16 [150.7]

28.39

[721.2]

Ø7/8 [22.2]

ACCESSORY

14 7/8 [337.3]

(BOTH SIDES)

Ø7/8 [22.2] ACCESSORY

Ø7/8

[22.2]

ACCESSORY

Ø1 3/4 [44.5] GAS ENTRY

Ø1/2 [12.7] THERMOSTAT WIRE ENTRY

22 1/16

[560]

SIDE INLET

(BOTH SIDES)

11 7/16 [290.7]

9 11/16 [245.4]

[197.8]

7 13/16

Ø7/8

[22.2]

J.BOX PROVISION

Ø7/8 [22.2] JUNCTION BOX LOCATION

Ø1 3/4 [44.5] GAS ENTRY

1 15/16 [49.2]

[25.4]

1 1/4 [31.8]

29 9/16 [750.7]

1 15/16

[49.2]

5 5/8

[143.3]

5 7/16

[138.5]

6 13/16

[172.3]

Ø1/2

[12.7]

THERMOSTAT WIRE ENTRY

[481.7]

OUTLET

21.6

[549.5]

BOTTOM INLET

33 1/4

[843.9]

9 9/16 [243.3]

3/4

[19.1]

5 7/8 [148.5]

3 7/16 [86.8]

9 7/8

[250.7]

27 3/4 [704.7]

2 5/16 [59]

FRONT OF CASING

TOP OF CASING

4 13/16 [122.2]

27 3/4 [704.7]

5 7/8

[148.5]

8 5/8 [219]

5 1/2 [140.3]

8 7/16 [213.5]

FRONT OF CASING

TOP OF CASING

6.1

[155.7]

2 1/16 [51.6]

5.1

[130.5]

1.7 [43.5]

Ø7/8 [22.2] ACCESSORY (2)

AIR FLOW

BOTTOM RETURN

WIDTH

AIR FLOW

KNOCK OUTS FOR VENTING(5 PLACES)

5.1

[130.5]

2 1/16 [51.6]

1.7 [43.5]

Ø7/8 [22.2] ACCESSORY (2)

FRONT OF CASING

8 5/8 [219]

6 13/16

FRONT OF CASING

1 15/16 [49.2]

5 15/16 [150.7]

5 1/2 [140.3]

8 7/16

[213.5]

9 7/8

[250.7]

27 3/4 [704.7]

33 1/4

[843.9]

NOTES:

1. Two additional 7/8---in. (22 mm) diameter holes are located in the top plate.

2. Minimum return--- air openings at furnace, based on metal duct. If flex duct is used, see flex duct manufacturer’s recommendations for equivalent diameters.

AIR FLOW

ACCESSORY

THERMOSTAT WIRE ENTRY

ACCESSORY

21.6

[549.5]

BOTTOM INLET

28.39

[721.2]

[736.9]

Ø7/8

[22.2]

Ø7/8

[22.2]

Ø1/2

[12.7]

6.1

[155.7]

3 7/16 [86.8]

5 7/8 [148.5]

2 5/16 [59]

TOP OF CASING

Ø7/8 [22.2] JUNCTION BOX LOCATION

Ø1 3/4 [44.5] GAS ENTRY

AIR FLOW

BOTTOM RETURN

WIDTH

TOP OF CASING

3/4

[19.1]

29 9/16 [750.7]

27 3/4 [704.7]

KNOCK OUTS FOR VENTING(5 PLACES)

a. For 800 CFM---16---in. (406 mm) round or 14 1/2 x 12 ---in. (368 x 305 mm) rectangle.

b. For 1200 CFM---20 ---in. (508 mm) round or 14 1/2 x 19 1/2 ---in. (368 x 495 mm) rectangle.

c. For 1600 CFM---22 ---in. (559 mm) round or 14 1/2 x 22 1/16 ---in. (368 x 560mm) rectangle.

d. For airflow requirements above 1800 CFM, see Air D elivery table in Product Data literature for specific use of single side inlets. The use of both sideinlets,

a combination of 1 side an d the bottom, or the bottom only will ensure adequate return air openings for airflow requirements above 1800 CFM.

[148.5]

5 7/16

[138.5]

4 13/16 [122.2]

9 9/16 [243.3]

J.BOX PROVISION

ACCESSORY

5 7/8

[172.3]

[143.3]

1 15/16

[49.2]

Ø7/8

[22.2]

Ø7/8

[22.2]

5 5/8

AIR FLOW

[481.7]

OUTLET

Ø1/2 [12.7] THERMOSTAT WIRE ENTRY

Ø1 3/4 [44.5] GAS ENTRY

Ø7/8 [22.2] ACCESSORY

22 1/16

[560]

SIDE INLET

(BOTH SIDES)

7 13/16

[197.8]

14 7/8 [337.3]

(BOTH SIDES)

[25.4]

9 11/16 [245.4]

1 1/4 [31.8]

11 7/16 [290.7]

A10270

58CTW/CTY

A B C D

FURNACE

SIZE

CABINET

WIDTH

OUTLET

WIDTH

045--- 12 14-3/16 (360) 12-9/16 (319) 9-5/16 (237) 12--- 11/16 (322) 4 (102) 107 (49) 16 (406) 070--- 16 17 --- 1/2 (445) 15-7/8 (403) 11-9/16 (294) 16 (406) 4 (102) 126 (57) 16 (406) 090--- 16 21 (533) 19-3/8 (492) 13-5/16 (338) 19 --- 1/2 (495) 4 (102) 140 (64) 20 (506) 110--- 22 21 (533) 19-3/8 (492) 13-5/16 (338) 19 --- 1/2 (495) 4 (102) 152 (69) 20 (506) 135--- 22 24-1/2 (622) 22-7/8 (581 15-1/16 (383) 23 (584) 4 (102) 163 (74) 24 (610)

*135 size furnaces require a 5 or 6---in. (127 or 152 mm) vent. Use a vent adapter between furnace and ven t stack. See Installation Instructions for complete install ation requiremen ts.

EXAMPLE OF MODEL NUMBER NOMENCLATURE

58CTW 045 100 08

58CTW Two-Stage 4-Way Multipoise

Input Capacity 16--- 1600 CFM

045--- 44,000 Btuh 110---110,000 Btuh 22--- 2200 CFM

070--- 66,000 Btuh 135---132,000 Btuh 100

090--- 88,000 Btuh Series Number

BOTTOM FLUE

TOP AND

COLLAR

BOTTOM

INLET WIDTH

VENT

CONNECTION

SIZE

Nominal Cooling Size (Airflow at .5 e.s.p.) (400 CFM per 12,000 Btuh) 12--- 1200 CFM

SHIP WT. LB

(KG)

ACCESSORY FILTE R MEDIA CABINET SIZE

Page 4

SPECIFICATIONS

UNIT SIZE 045 -- 12 070 -- 16 090 -- 16 110 --22 135 --22

RATINGS AND PERFORMANCE

Input Btuh* Nonweatherized ICS

Output Capacity (Btuh)† Nonweatherized ICS

AFUE† 80.0 80.0 80.0 80.0 80.0

Certified Temperature Rise Range -- - °F (°C)

Certified External Static Pressure Heat/Cool 0.10/0.50 0.12/0.50 0.15/0.50 0.20/0.50 0.20/0.50

Airflow CFM‡

58CTW/CTY

ELECTRICAL

U n i t V o l t s --- He r t z --- P h a s e 115-60-1

Operating Voltage Range Min-Max 104-127

Maximum Unit Amps 8.0 9.6 10.2 13.0 13.0

Maximum Wire Length (Measure 1 Way in Ft. (M)) 34 (10.4) 28 (8.5) 27 (8.2) 34 (10.4) 34 (10.4)

Minimum Wire Size 14 12

MaximumFuseorCktBkrSize(Amps)** 15 20

Transformer (24v) 40va

External Control Heating 12va

Power Available Cooling 35va

Air Conditioning Blower Relay Standard

CONTROLS

Limit Control SPST

Heating Blower Control Solid-State Time Operation

Burners (Monoport) 2 3 4 5 6

Gas Connection Size 1/2-in. NPT

GAS CONTROLS

Gas Valve (Redundant)

Ignition Device Hot Surface

Factory-installed orifice Size 43

BLOWER DATA

Direct-Drive Motor HP (ECM) 1/2 3/4 3/4 1 1

Motor Full Load Amps 6.8 8.4 8.4 10.9 10.9

RPM (Nominal) 1200

Blower Wheel Diameter x Width --- In. (mm) 10 x 6

* Gas input ratings are certified for elevations to 2000 ft. (610 M). For elevations above 2000 ft. (610 M), reduce ratings 4 percent for each 1000 ft. (305M)

above sea level. Refer to National Fuel Gas Code NFPA 54/ANSI Z223.1--- 2012 Table F.4 or furnace installation instructions. † Capacity in accordance with U.S. Government DOE test procedures. ‡ Airflow shown is for bottom only return-air supply for the as-shipped speed tap. For air delivery above 1800 CFM, see Air Delivery table for other options. A

filter is required for each return-air supply. An airflow reduction of up to 7 percent may occur when using the factory-specified 4-5/16 in. (110 mm) wide, high

efficiency media filter. ** Time ---delay type is recommended. ICS Isolated Combustion System

All 58CTW; 58CTY Upflow

All 58CTY Downflow/ Horizontal

All 58CTW; 58CTY Upflow

All 58CTY Downflow/ Horizontal

Heating High/Low 820/725 1570/1045 1265/1030 1555/1295 1865/1640

Mfr. White-Rodgers

Min. inlet pressure (In. W.C.) 4.5 (Natural Gas)

Max. inlet pressure (In. W.C.) 13.6 (Natural Gas)

High 44,000 66,000 88,000 110,000 132,000

Low 29,000 43,500 58,000 72,500 87,000

High 42,000 63,000 84,000 105,000 126,000

Low 29,000 43,000 58,000 72,500 87,000

High 35,000 53,000 71.000 89,000 107,000

Low 23,000 35,000 47,000 59,000 70,000

High 34,000 51,000 68.000 85,000 102,000

Low 23,000 35,000 47,000 59,000 70,000

High 30-60

( 1 7 --- 33 )

Low 20-50

( 1 1 --- 28 )

Cooling 1175 1685 1770 2230 2290

(254x152)

25-55

( 1 4 --- 30 )

15-45

( 8 --- 2 5 )

11 x 8

(279x203)

30-60

( 1 7 --- 33 )

25-55

( 1 4 --- 30 )

10 x 10

(254x254)

30-60

( 1 7 --- 33 )

20-50

( 1 1 --- 28 )

11 x 11

(279x279)

40-70

( 2 2 --- 39 )

25-55

( 1 4 --- 30 )

11 x 11

(279x279)

Page 5

CARRIER ACCESSORIES

58CTW/58CTY DESCRIPTION PART NO. 045-12 070-16 090-16 110-22 135-22

FILCABXL0016 X X

Media Filter Cabinet

Cartridge Media Filter

EZ Flex Media Filter with E nd Caps

Replacement EZ Flex Filter Media

External Bottom Return Filter Rack

External Side Return Filter Rack KGAFR0201A LL X X X X X

Unframed Filter 3/4-in. (19 mm)

Flue Extension KGAFE0112UPH X X X X X

Combustible Floor Base KGASB0201ALL X X X X X

Downflow Vent Guard KGBVG0101DFG X X X X X

Vent Extensio n Kit KGAVE0101DNH X X X X X

Chimney Adapter Kit

Natural-to-Propane Conversion Kit* KGCNP5201VSP X X X X X

Propane-to-Natural Conversion Kit KGCPN4401VSP X X X X X

T w inning Kit KGATW0801HSI X X X

Gas Orifice

* Factory-authorize d and field installed. Fuel conversi on kits are C SA (formerly AG A/CGA) rec o g nized. † Suitable for Side Return Filter Rack X = Accessory S=Standard

FILCABXL0020 X X

FILCABXL0024 X

FILCCCAR0016 X X

FILCCCAR0020 X X

FILCCCAR0024 X

EXPXXUNV0016 X X

EXPXXUNV0020 X X

EXPXXUNV0024 X

EXPXXFIL0016 X X

EXPXXFIL0020 X X

EXPXXFIL0024 X

KGBFR0401B14 X

KGBFR0501B17 X

KGBFR0601B21 X X

KGBFR0701B24 X

KGAWF1306UFR† X X

KGAWF1406UFR X X

KGAWF1506UFR X

KGACA02014FC X X X X

KGACA02015FC X

LH32DB207

LH32DB202

LH32DB200

LH32DB205

LH32DB208

LH32DB078

LH32DB076

LH32DB203

LH32DB201

LH32DB206

LH32DB209

LH32DB210

See Installation Instruc t ions for mod el , altitud e, and heat value usages

58CTW/CTY

Page 6

CARRIER ACCESSORIES

Accessories

ELECTRONIC AIR CLEANER (EAC) Model EACB

MECHANICAL AIR CLEANER Models EZXCAB, FILCAB

HUMIDIFIER Model HUM

HEAT RECOVERY VENTILATOR Model HRV

ENERGY RECOVERY VENTILATOR Model ERV

Fo r u s e w i t h 1 --- sp e e d A i r C o n d i t i o n e r --- d e g . F / C , A u t o C h a n g e o v e r --- TP --- N A C , T C --- N A C

T H E R M O S T A T --NON---PROGRAMMABLE

T H E R M O S T A T --PROGRAMMABLE

58CTW/CTY

* Model HP and 2S thermostat must be field converted to air conditioner operation. † Thermidistat Control can be configured for multiple use and staging, it must be configured for each specific application.

Fo r u s e w i t h 1 --- sp e e d H e a t P u m p --- de g . F / C , A u t o C h a n g e o v e r --- T P --- N H P, T C --- NH P *

Fo r u s e w i t h 2 --- sp e e d A i r C o n d i t i o n e r --- d e g . F / C , A u t o C h a n g e o v e r --- TP --- N R H *

For use with multi --- use / stage configurations --- deg. F/C, Auto Changeover/Temperature and Humidity control

--- T P --- P R H †

Fo r u s e w i t h 1 --- sp e e d A i r C o n d i t i o n e r --- d e g . F / C , A u t o C h a n g e o v e r, 7 --- Da y P r o g r a m m a b l e --- TP --- PA C

Fo r u s e w i t h 1 --- sp e e d H e a t P u m p --- de g . F / C , A u t o C h a n g e o v e r, 7 --- D a y P r o g r a m m a b l e --- T P --- P H P *

Fo r u s e w i t h 2 --- sp e e d A i r c o n d i t i o n e r --- d e g . F / C , A u t o C h a n g e o v e r, 7 --- Da y P r o g r a m m a b l e --- TP --- P R H *

Fo r u s e w i t h 1 --- sp e e d A i r C o n d i t i o n e r --- d e g . F / C , 5 --- 2 Da y P r o g r a m m a b l e --- TP --- PA C

Fo r u s e w i t h m u l t i --- s t a g e a p p l i c a t i o n s --- de g . F / C , A u t o C h a n g e o v e r, 7 --- D a y P r o g r a m m a b l e --- T C --- P R H †

Fo r m u l t i --- u s e / s t a g e c o n f i g u r a t i o n s --- de g . F / C , A u t o C h a n g e o v e r, 7 --- Da y P r o g r a m m a b l e / Te m p e r a t u r e a n d H u m i d i t y C o n t r o l --- T P --- P R H †

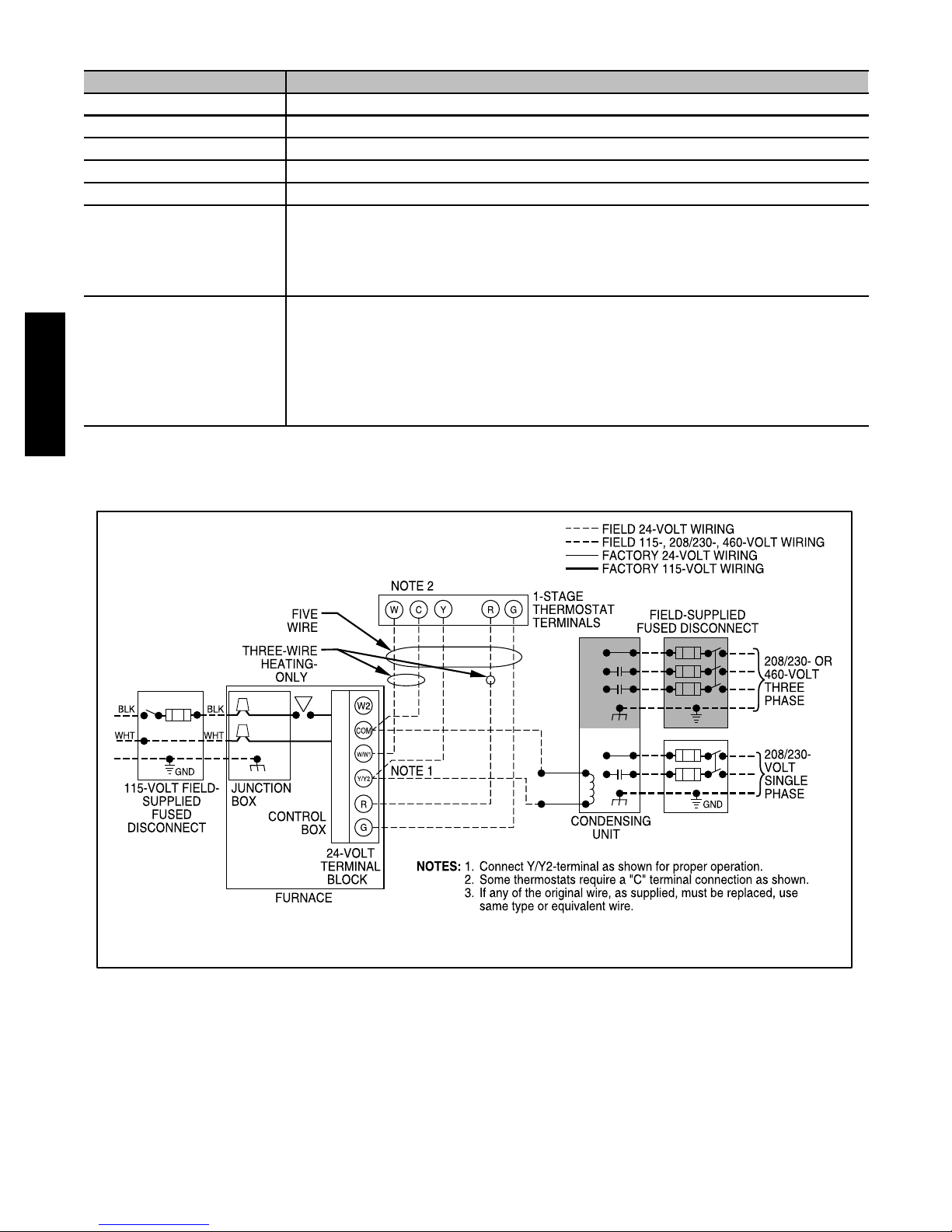

TYPICAL WIRING SCHEMATIC

A95236

Page 7

SEE NOTES: 1,2,4,7,8,9

UPFLOW

A02058

SEE NOTES: 1,2,3,4,7,8,9

UPFLOW

SEE NOTES: 1,2,4,5,7,8,9

DOWNFLOW

A02059 A02061

58CTW/CTY

SEE NOTES:1,2,3,4,5,7,8,9

DOWNFLOW

A02060 A02063

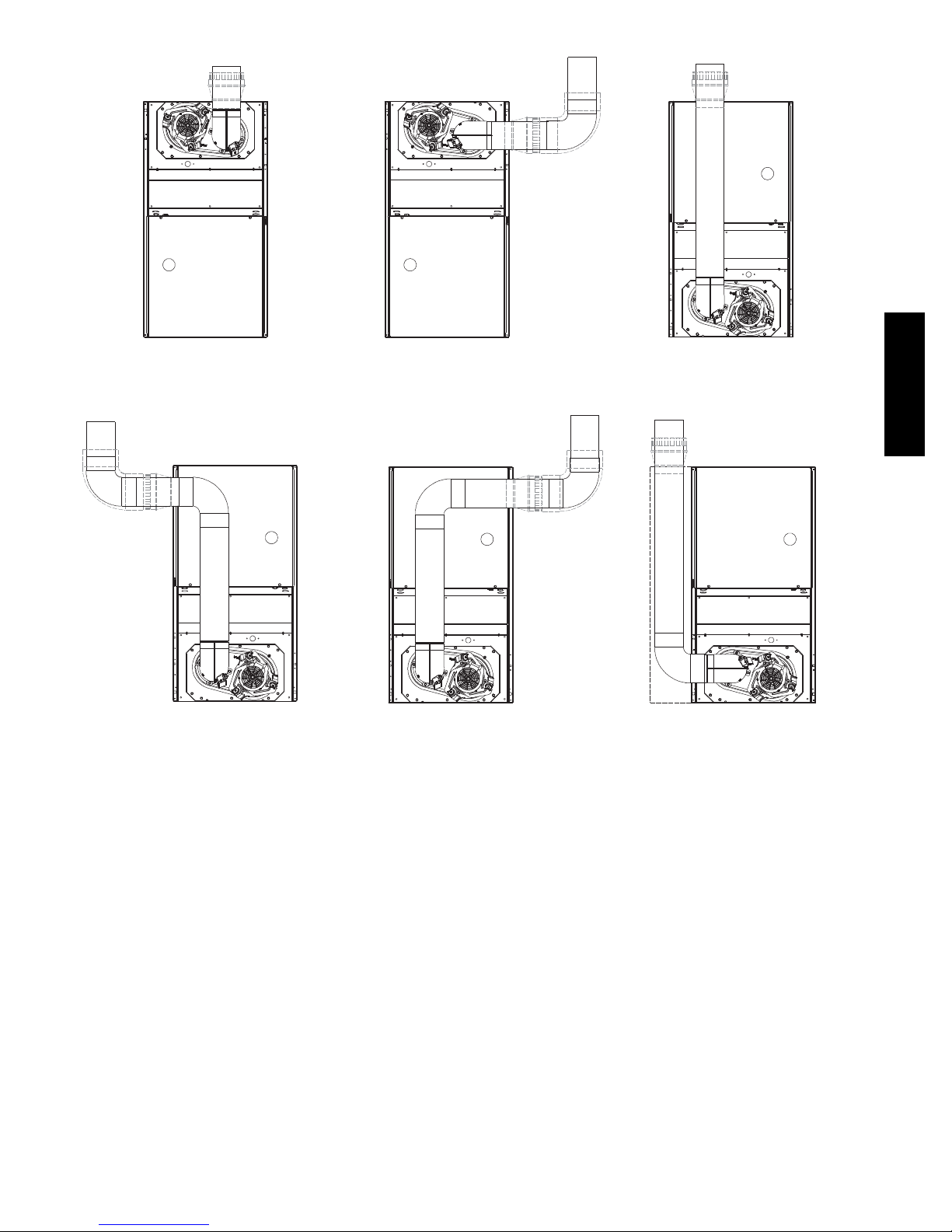

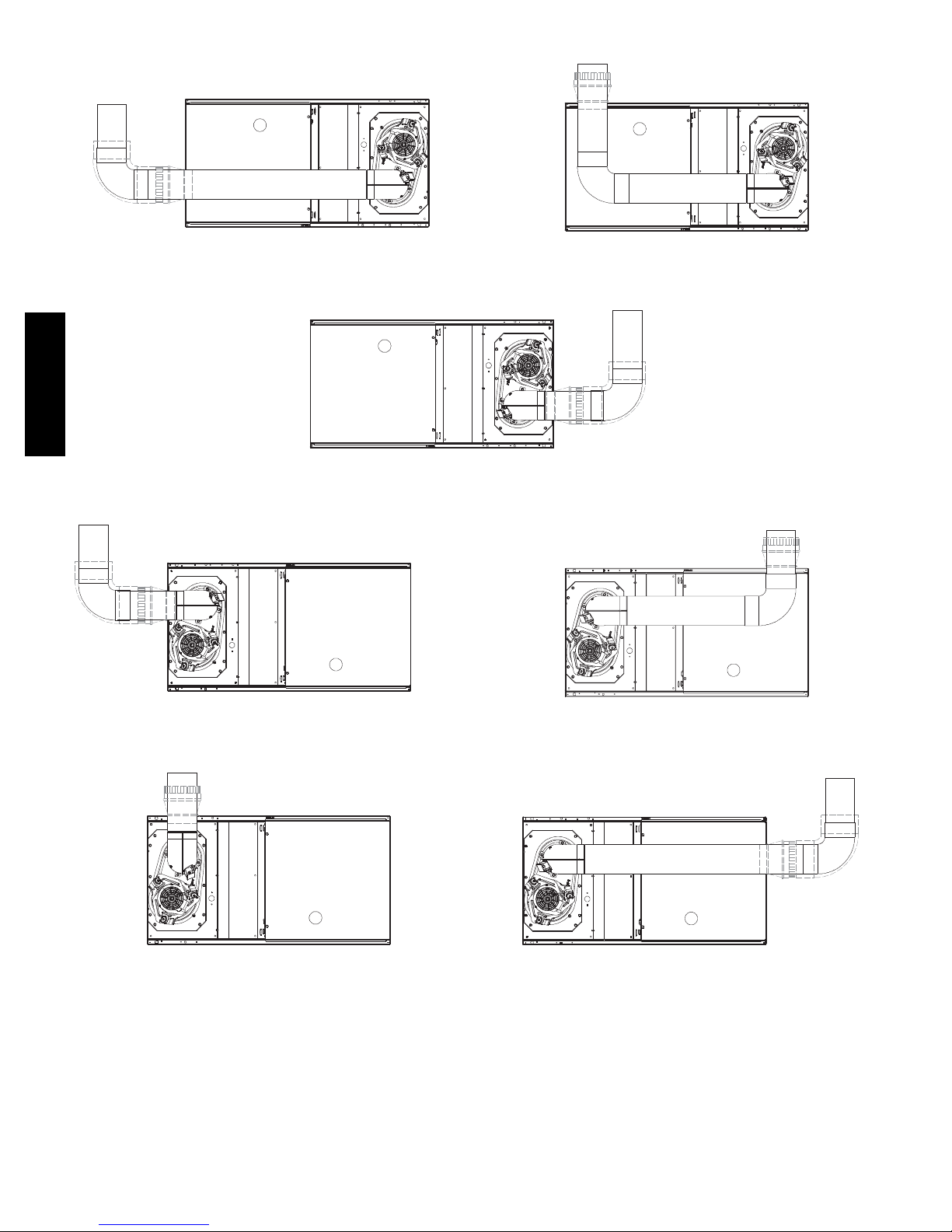

Venting Notes

1. For common vent, vent connector sizing and vent material: United States, latest edition of the National Fuel Gas Code (NFGC), ANSI Z223.1/NFPA 54.

2. Immediately increase to 5-in. (127 mm) vent connector outside furnace casing when 5-in. (127 mm) vent connector required, refer to Note 1.

3. Side outlet vent for upflow and downflow installations must use Type B vent immediately after exiting the furnace, except when Downflow Vent Guard is used in downflow position.

4. Type B vent where required, refer to Note 1.

5. 4--- in. (102 mm) single wall vent must be used inside furnace casing and the Downflow Vent Guard Kit.

6. Accessory Downflow Vent Guard Kit, required in downflow installations with bottom vent configuration.

7. Chimney Adapter Kit required for exterior masonry chimney applications. Refer to Chimney Adapter Kits for sizing and complete application details.

8. Secure vent connector to furnace elbow with (2) corrosion-resistant sheet metal screws, space approximately 180° apart.

9. Secure all other single wall vent connector joints with (3) corrosion-resistant screws spaced approximately 120° apart. Secure Type B vent connectors per vent connector manufacturer’s recommendations.

SEE NOTES: 1,2,3,4,5,7,8,9

DOWNFLOW

SEE NOTES: 1,2,4,5,6,7,8,9

DOWNFLOW

A02062

Page 8

58CTW/CTY

SEE NOTES: 1,2,4,5,7,8,9

HORIZONTAL RIGHT

A02068

SEE NOTES: 1,2,4,7,8,9

HORIZONTAL RIGHT

SEE NOTES: 1,2,4,5,7,8,9

HORIZONTAL RIGHT

A02069

A02070

SEE NOTES: 1,2,4,7,8,9

HORIZONTAL LEFT

SEE NOTES: 1,2,4,5,7,8,9

HORIZONTAL LEFT

A02066

A02064

SEE NOTES: 1,2,4,5,7,8,9

HORIZONTAL LEFT

SEE NOTES: 1,2,4,5,7,8,9

HORIZONTAL LEFT

A02065

A02067

Page 9

AIR DELIVERY—CFM (With Filter)*

COOLING4AND HEATING AIR DELIVERY - CFM (Bottom Return5With Filter)

(SW1-5 and SW2-2 set to OFF, except as indicated. See notes 1 and 2.)

Unit Size

045-12

Unit Size

070-16

Unit Size

090-16

Cooling Switch Settings External Static Pressure (ESP)

SW2-8 SW2-7 SW2-6 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0

OFF OFF OFF 1190 1140 1100 1065 1020 985 905 800 665 525

OFF OFF ON 620 560 520 455 410 355 305 255 See note 4

OFF ON OFF 795 755 705 670 615 585 530 490 440 405

OFF ON ON 1020 955 930 890 840 805 755 715 645 490

ON OFF OFF 1190 1140 1100 1065 1020 985 905 800 665 525

ON OFF ON 1455 1390 1325 1255 1175 1085 1000 880 755 575

ON ON OFF 1455 1390 1325 1255 1175 1085 1000 880 755 575

ON ON ON 1455 1390 1325 1255 1175 1085 1000 880 755 575

Maximum Clg Airflow

High Heat Airflow

Low Heat Airflow

1455 1390 1325 1255 1175 1085 1000 880 755 575

915 860 825 790 735 700 650 610 550 450

780 730 685 635 585 545 495 450 400 370

Cooling Switch Settings External Static Pressure (ESP)

SW2-8 SW2-7 SW2-6 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0

OFF OFF OFF 1615 1570 1530 1490 1450 1405 1365 1325 1280 1210

OFF OFF ON 640 See note 4

OFF ON OFF 840 775 700 640 See note 4

OFF ON ON 1045 980 920 860 805 750 690 640 See note 4

ON OFF OFF 1220 1175 1120 1075 1025 970 925 875 820 775

ON OFF ON 1390 1335 1290 1245 1200 1155 1105 1055 1015 970

ON ON OFF 1615 1570 1530 1490 1450 1405 1365 1325 1280 1210

ON ON ON 1890 1850 1810 1750 1685 1615 1545 1475 1395 1275

Maximum Clg Airflow

High Heat Airflow

Low Heat Airflow

1890 1850 1810 1750 1685 1615 1545 1475 1395 1275

1540 1490 1450 1410 1365 1320 1275 1235 1190 1140

1370 1320 1275 1225 1180 1135 1085 1040 995 950

Cooling Switch Settings External Static Pressure (ESP)

SW2-8 SW2-7 SW2-6 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0

OFF OFF OFF 1625 1580 1535 1490 1445 1390 1325 1215 1070 910

OFF OFF ON 555 See note 4

OFF ON OFF 845 770 670 595 See note 4

OFF ON ON 1010 950 880 790 725 670 580 See note 4

ON OFF OFF 1210 1155 1105 1035 970 910 850 800 730 660

ON OFF ON 1405 1360 1305 1255 1185 1130 1070 1015 960 875

ON ON OFF 1625 1580 1535 1490 1445 1390 1325 1215 1070 910

ON ON ON 2095 2010 1935 1855 1770 1675 1540 1300 1120 940

Maximum Clg Airflow

High Heat Airflow

Low Heat Airflow

2095 2010 1935 1855 1770 1675 1540 1300 1120 940

1735 1685 1630 1580 1520 1455 1375 1235 1085 915

780 730 685 635 585 545 495 450 400 370

58CTW/CTY

Page 10

AIR DELIVERY—CFM (With Filter)* (Continued)

Cooling Switch Settings External Static Pressure (ESP)

SW2-8 SW2-7 SW2-6 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0

OFF OFF OFF 2055 2000 1950 1900 1840 1790 1740 1675 1625 1565

OFF OFF ON 855 755 See note 4

OFF ON OFF 1060 985 875 800 700 See note 4

OFF ON ON 1250 1180 1095 1025 925 860 775 715 See note 4

ON OFF OFF 1445 1380 1320 1235 1175 1100 1035 955 900 825

ON OFF ON 1685 1630 1560 1505 1445 1375 1320 1265 1195 1140

ON ON OFF 2055 2000 1950 1900 1840 1790 1740 1675 1625 1565

ON ON ON 2465 2415 2365 2305 2230 2140 2045 1925 1805 1655

Maximum Clg Airflow

High Heat Airflow

Low Heat Airflow

Cooling Switch Settings External Static Pressure (ESP)

SW2-8 SW2-7 SW2-6 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0

OFF OFF OFF 2040 1985 1930 1880 1830 1775 1715 1660 1595 1510

OFF OFF ON 850 740 See note 4

OFF ON OFF 1040 960 865 755 See note 4

OFF ON ON 1245 1170 1080 1005 920 835 750 See note 4

ON OFF OFF 1450 1385 1305 1245 1180 1085 1015 935 880 805

ON OFF ON 1670 1605 1540 1480 1425 1350 1280 1220 1135 1070

ON ON OFF 2040 1985 1930 1880 1830 1775 1715 1660 1595 1510

ON ON ON 2520 2455 2405 2350 2290 2195 2090 1965 1815 1615

Maximum Clg Airflow

High Heat Airflow

Low Heat Airflow

2465 2415 2365 2305 2230 2140 2045 1925 1805 1655

2105 2055 2005 1955 1895 1850 1795 1735 1665 1580

1740 1685 1620 1560 1505 1440 1385 1325 1260 1205

2520 2455 2405 2350 2290 2195 2090 1965 1815 1615

2260 2205 2150 2100 2045 1985 1925 1855 1745 1600

2005 1950 1895 1845 1790 1735 1675 1620 1550 1475

58CTW/CTY

Unit Size

110-22

Unit Size

135-22

1. Nominal 350 CFM/ton cooling airflow is delivered with SW1-5 and SW2-2 set to OFF.

Set both SW1-5 and SW2-2 to ON for +7% airflow (nominal 370 CFM/ton). Set SW1-5 to ON and SW2-2 to OFF for +15% airflow (nominal 400 CFM/ton). Set SW2-2 to ON and SW1-5 to OFF for -7% airflow (nominal 325 CFM/ton).

2. Maximum cooling airflow is achieved when switches SW2-6, SW2-7, SW2-8 and SW1-5 are set to ON, and SW2-2 is set to OFF.

3. All heating CFM's are when low heat rise adjustment switch (SW1-3) and comfort/efficiency adjustment switch (SW1-4) are both set to

OFF

4. Ductwork must be sized for high-heating CFM within the operational range of ESP. Operation within the blank areas of the chart is not

recommended because high-heat operation will be above 1.0 ESP.

5. All airflows on 21" casing size furnaces are 5% less on side return only installations.

6. Side returns for 24.5" casing sizes require two sides, or side and bottom, to allow sufficient airflow at the return of the furnace.

Page 11

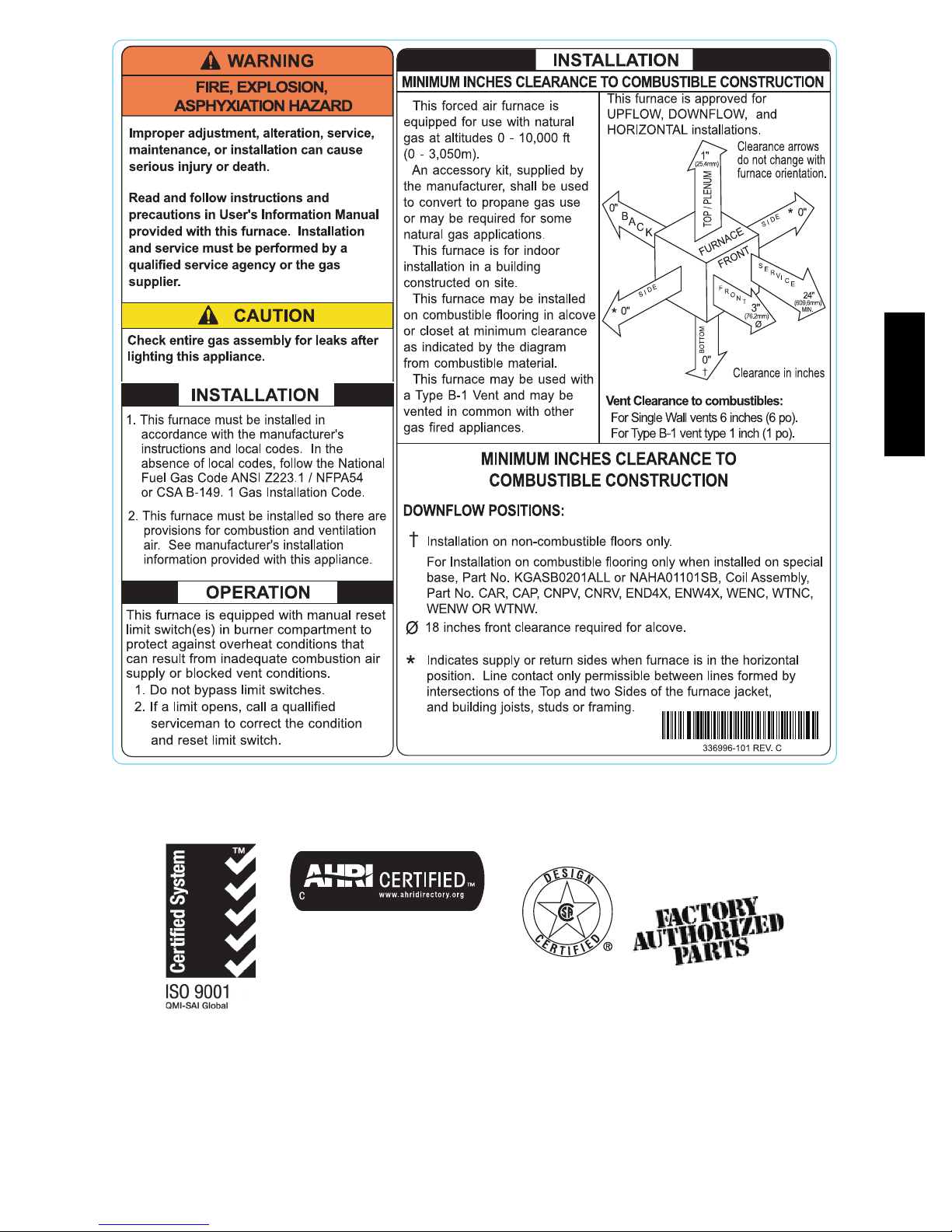

A10269

58CTW/CTY

Use of the AHRI Certified TM Mark indicates a manufacturer’s participation in the program. For verification of certification for individual products, go to www.ahridirectory.org.

Always Ask For

Page 12

GUIDE SPECIFICATIONS

Gas Furnace 58CTW/58CTY General

SYSTEM DESCRIPTION

Furnish a _________________ fixed capacity gas-fired furnace for use with natural gas or propane (factory authorized conversion kit required for propane); furnish cold air return plenum.

QUALITY ASSURANCE

Unit will be designed, tested and constructed to the current ANSI Z

21.47/CSA 2.3 design standard for gas--fired central furnaces. Unit will be 3rd party certified by CSA to the current ANSI Z

21.47/CSA 2.3 design standard for gas--fired central furnaces. Unit will carry the CSA Blue StarR label. Unit efficiency testing will be performed per the current DOE test

procedure as listed in the Federal Register. Unit will be certified for capacity and efficiency and listed in the

latest AHRI Consumer’s Directory of Certified Efficiency Ratings. Unit shall carry the current Federal Trade Commission Energy

58CTW/CTY

Guide efficiency label.

DELIVERY, STORAGE AND HANDLING

Unit shall be shipped as single package only and is stored and handled per unit manufacturer’s recommendations.

WARRANTY (for inclusion by specifying engineer)

U.S. only. Warranty certificate available upon request.

Products

EQUIPMENT

Components shall include: slow-opening two stage gas valve to reduce ignition noise, regulate gas flow, with electric switch gas shut-off; flame proving sensor, hot surface igniter, pressure switch assembly, flame rollout switch, blower and inducer assembly, 40va transformer; low-voltage (heating) (heating/cooling) thermostat.

Blower Wheel and Blower

Galvanized blower wheel shall be centrifugal type, statically and dynamically balanced. Blower motor of ECM type shall be permanently lubricated with sealed bearings, of _______hp, and shall be multiple-speed direct drive. Blower motor shall be soft mounted to the blower scroll to reduce vibration transmission.

Filters

Furnace may have reusable--type filters. Filter shall be _______ (x) _______in. (mm). An accessory high efficiency Media Filter is available as an option. _______________ Media Filter.

Motor

Casing

Casing shall be of .030 in. (.76 mm) thickness minimum, pre-painted steel.

Two Speed Inducer

Two Speed Inducer motor shall be soft mounted to reduce vibration transmission.

Draft Safeguard

Draft Safeguard Switch (blocked vent safeguard) shall be factory installed to reduce the possibility of vent gas infiltration due to a blocked or restricted vent pipe.

Exchangers

Heat

Heat exchangers shall be a 4-Pass 20 gage aluminized steel of fold--and--crimp sectional design when applied operating under negative pressure.

ols

Contr

Control shall include a micro--processor based integrated electronic control board with at least 11 service troubleshooting codes displayed via diagnostic flashing enhanced LED light on the control, a self--test feature that checks all major functions of the furnace within one minute, and a replaceable automotive-type circuit protection fuse. Multiple operational settings available including, separate blower speeds for low heat, high heat, low cooling, high cooling and continuous fan. Continuous fan speed may be adjusted from the thermostat. Cooling airflow will be selectable between 350 or 400 CFM per ton of air conditioning. Features will also include temporary reduced airflow in the cooling mode for improved dehumidification when a control or Thermidistatt is selected as the thermostat.

Motor

Switch

OPERATING CHARACTERISTICS

Heating Capacity shall be ________ Btuh input; ________ Btuh output capacity.

Fuel Gas Efficiency shall be 80% AFUE. Air delivery shall be ___________ CFM minimum at 0.50 in.

W.C. external static pressure. Dimensions shall be: depth __________ in. (mm); width

_________ in. (mm); height_________in. (mm). (casing only). Height shall be_________in. (mm). with A/C coil and _____________in. (mm) overall with plenum.

ELECTRICAL REQUIREMENTS

Electrical supply shall be 115 volts, 60 Hz, single--phase (nominal). Minimum wire size shall be_________AWG; maximum fuse size or circuit breaker shall be __________Amps.

SPECIAL FEATURES

Refer to section of the product data sheet identifying accessories and descriptions for specific features and available enhancements.

Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.

Catalog No: 58CTW --- 03PD

Replaces: 58CTW--- 02PD
