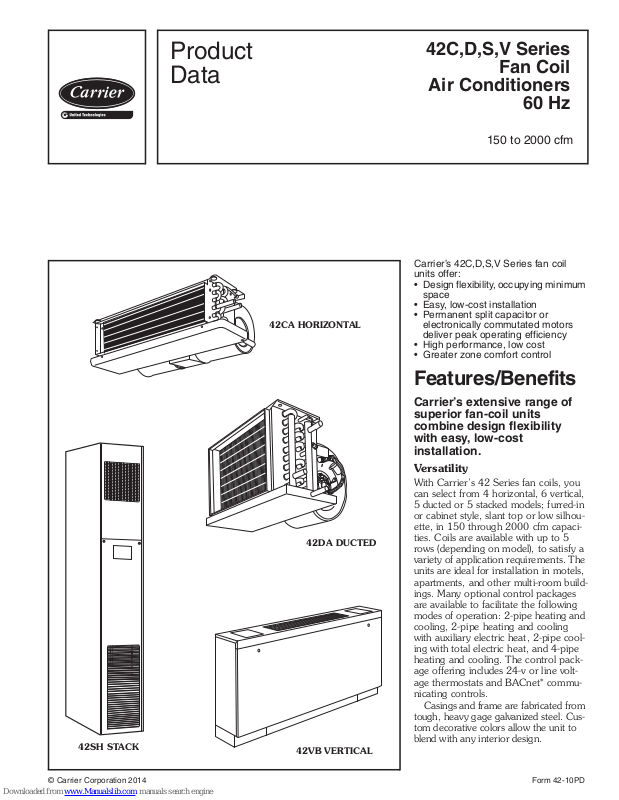

Carrier 42CA, 42V, 42CE, 42CG, 42CK Product Data

Product Data

42CA HORIZONTAL

42C,D,S,V Series

Fan Coil

Air Conditioners

60 Hz

150 to 2000 cfm

Carrier’s 42C,D,S,V Series fan coil units offer:

• Design flexibility, occupying minimum space

• Easy, low-cost installation

• Permanent split capacitor or electronically commutated motors deliver peak operating efficiency

• High performance, low cost

• Greater zone comfort control

42SH STACK

42DA DUCTED

42VB VERTICAL

Features/Benefits

Carrier’s extensive range of superior fan-coil units combine design flexibility with easy, low-cost installation.

Versatility

With Carrier’s 42 Series fan coils, you can select from 4 horizontal, 6 vertical, 5 ducted or 5 stacked models; furred-in or cabinet style, slant top or low silhouette, in 150 through 2000 cfm capacities. Coils are available with up to 5 rows (depending on model), to satisfy a variety of application requirements. The units are ideal for installation in motels, apartments, and other multi-room buildings. Many optional control packages are available to facilitate the following modes of operation: 2-pipe heating and cooling, 2-pipe heating and cooling with auxiliary electric heat, 2-pipe cooling with total electric heat, and 4-pipe heating and cooling. The control package offering includes 24-v or line voltage thermostats and BACnet* communicating controls.

Casings and frame are fabricated from tough, heavy gage galvanized steel. Custom decorative colors allow the unit to blend with any interior design.

Features/Benefits (cont)

Page

Model Number Nomenclature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

AHRI Capacity Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Physical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Base Unit Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39-54

Accessory Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55,56

Performance Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57-63

Electrical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64,65

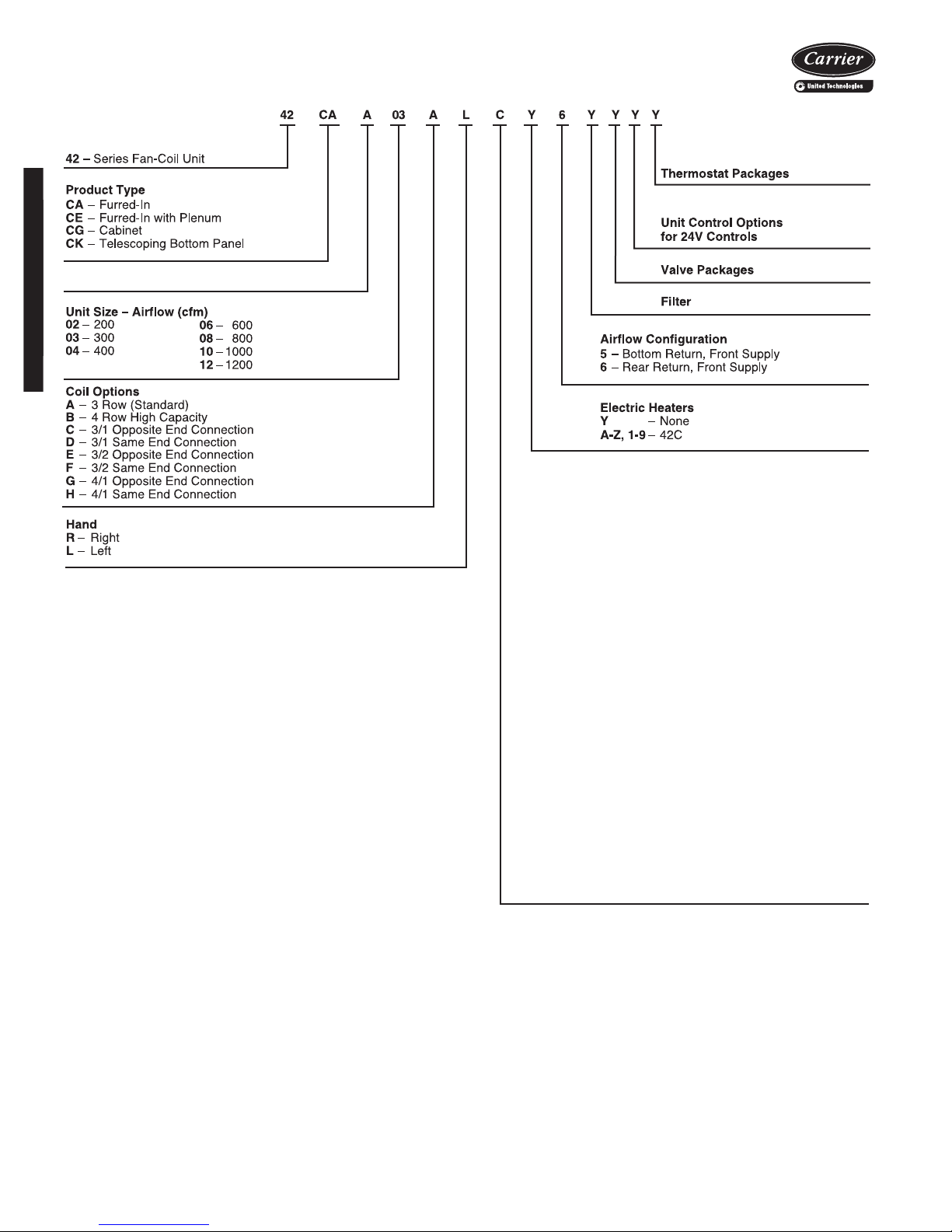

Model Number Nomenclature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

AHRI Capacity Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Physical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Base Unit Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69-79

Accessory Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80-82

Performance Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Electrical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84-86

Model Number Nomenclature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

AHRI Capacity Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

Physical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

Base Unit Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89-93

Accessory Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94,95

Performance Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96-99

Electrical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100-102

Model Number Nomenclature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

AHRI Capacity Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104

Physical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104

Base Unit Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105-112

Accessory Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113-117

Performance Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118-125

Electrical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126,127

Low-cost installation and operation

Each unit is designed to occupy a minimum space. No complex system controls are required for Carrier fan coil units. Piping, drain, and wiring connections are readily accessible and mounting holes and slots are predrilled to save installation time and field labor expense.

42 Series quality reduces service and maintenance expenses

All coils are factory leak tested at 300 psig air pressure with coil

submerged in water. Condensate drain pans are available in stainless steel or heavy gage galvanized steel constructions, along with optional condensate overflow switches complying to the latest building codes. A variety of insulation types are available for energy savings, sound absorption and indoor air quality (IAQ) preservation.

Efficient operation

Blower wheels are centrifugal-type, forward curved, double width, and double inlet sized for maximum efficiency.

Quiet, dependable performance

All units are built to operate unobtrusively with quiet motors and fans. In ad-

1

dition, insulation is used to line the cabinet.

/2-in. thick sound-absorbing,

42C Series horizontal, 42V Series vertical units

Carrier room fan coil units operate at exceptionally low sound levels. A generous amount of insulation absorbs operating sound and rugged, rigid construction ensures vibration free operation at all fan speeds.

Economical, three-speed fans deliver just the right amount of conditioned air for your comfort needs at any load, and each unit can be shut off when not in use. Optional electronically commutated motors deliver peak operating efficiency. By choosing Carrier units, you can match your application with a wide range of custom-designed options and accessories, including electric heat. Filters are cleanable or throwaway type.

Carrier room fan-coil units provide unsurpassed year-round comfort.

2

42D ducted units

A drip lip (removable drain pan extension) is available for field installation on ceiling models 42DA,DC,DE and DF. The drip lip is recommended for all ceiling models when a valve package is installed.

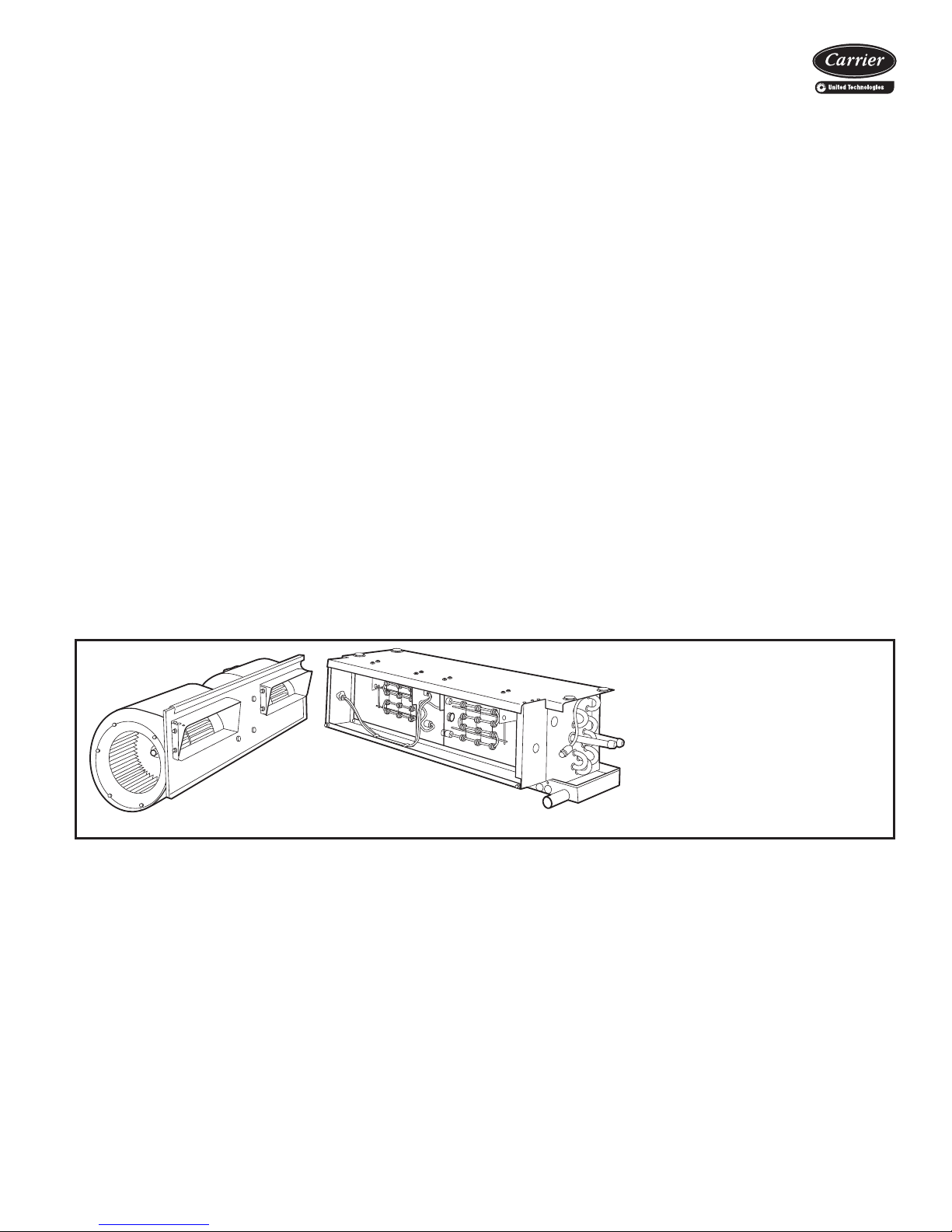

Motor/blower assembly can be easily removed from the unit for ease of service. Removing this assembly provides clear access to the entering air face of the coil, making coil cleaning a relatively simple matter. Removable panels make access to components and connections easy.

42S stacked units

Each Carrier stack unit comes factory equipped with insulated supply, return, and drain risers. The design of the 42S units allows them to be set one on top of the other in a vertical column rising floor to floor up the building. Each riser has a 3-in. belled section at the top, so the riser piping can be connected by only one sweat connection per riser. Field-installed couplings or internal pipe connections are not needed.

Each stack unit is constructed of 18-gage galvanized steel and factory pre-wired with all control, motor, and optional electric heat wiring conveniently terminating in a single, accessible junction box. Each stack unit requires only one field power connection.

Field-mounted accessories, such as the 3-speed switch/thermostat package for furred-in units, are equipped with a pre-wired quick disconnect plug for easy installation.

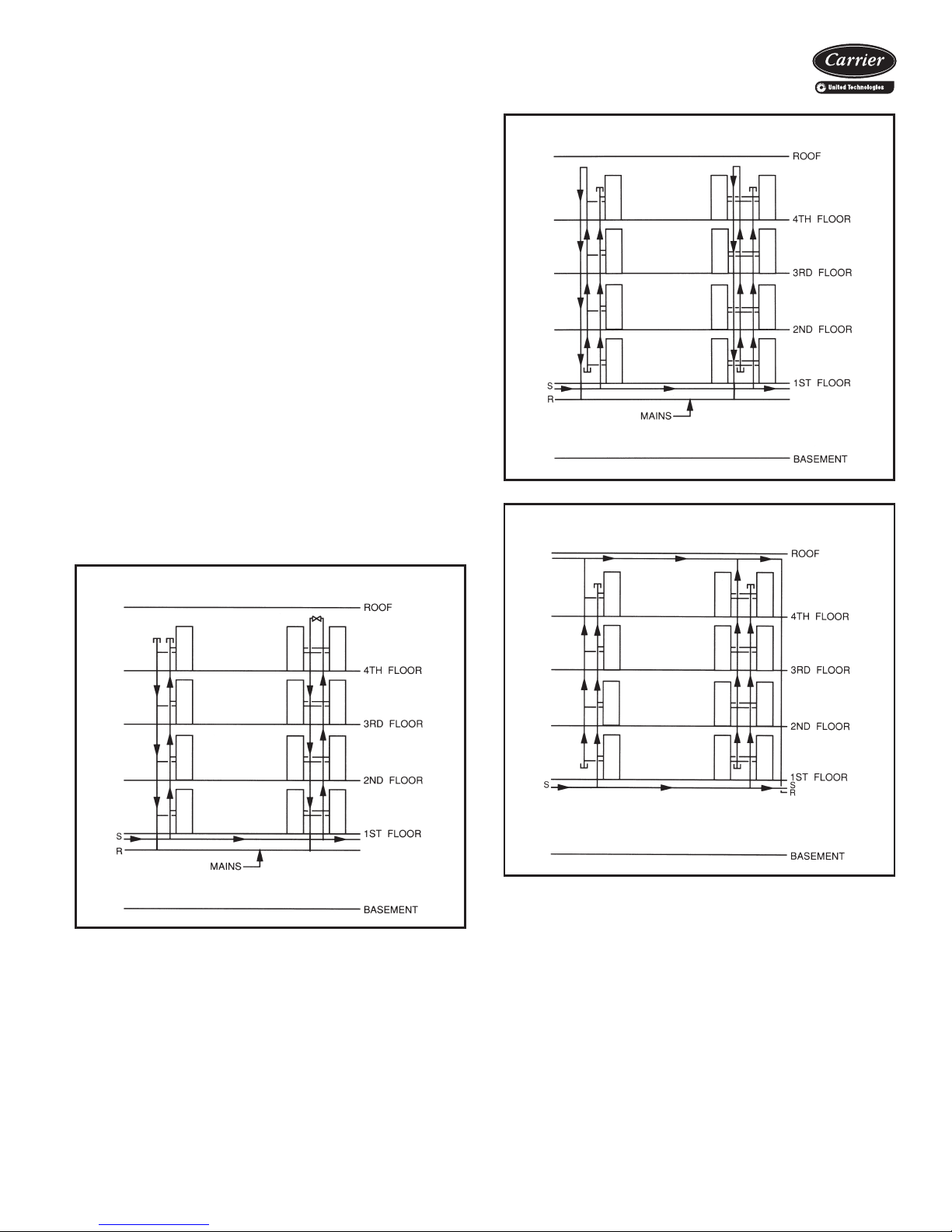

The riser size for the stack units can be specified to match building requirements so that cutting, sorting, and handling of the risers is not necessary. All units arrive tagged as specified by the customer for efficient delivery to the correct building location.

Units can be loaded onto delivery trucks so that they can be off-loaded in the proper installation sequence.

The 42SG furred-in-stack is a single unit, designed for concealed applications in corners or along room walls. The return-air grille is removable to allow access for servicing major components.

The 42SG is also available in master/slave unit pairs, shipped individually and installed and piped together in the field. The master unit includes risers with stub out for field piping connections to the slave unit which has no risers of its own.

The 42SJ back-to-back furred-in stack is designed for installation in the separation wall between 2 rooms. The unit consists of 2 units piped to a set of common risers. Each unit has its own valves and controls. The return-air

grille is removable to allow access for servicing major components.

The 42SH cabinet stack unit is designed for applications where concealed installations are not possible or practical. This model features a doubledeflection supply-air grille and an integral return-air grille access panel. Controls are normally mounted on the unit but may also be remote wall mounted.

The 42SU universal furred-in stack is designed for easy field configuration utilizing laser cut knockouts. Riser, drain, supply, and outside-air knockouts have been strategically located on the unit for field configuration. Prior to unit installation, all risers are shipped separately from the units for pre-installation and testing purposes.

The 42SM mega furred-in stack unit is designed for applications requiring units with increased capacity. The 42SM is designed to deliver 1400 to 2000 CFM at 0.5 in. ESP (external static pressure). Although usually installed in a small mechanical closet, the unit also features an optional decorative return air panel to allow for a classic high-rise type application. The unit’s high static capability will easily handle high-efficiency air filters and decorative supply grilles, while the modular design provides quiet operation.

* Sponsored by ASHRAE (American Society of Heating, Refrigerating, and Air-Conditioning Engineers).

3

Features/Benefits (cont)

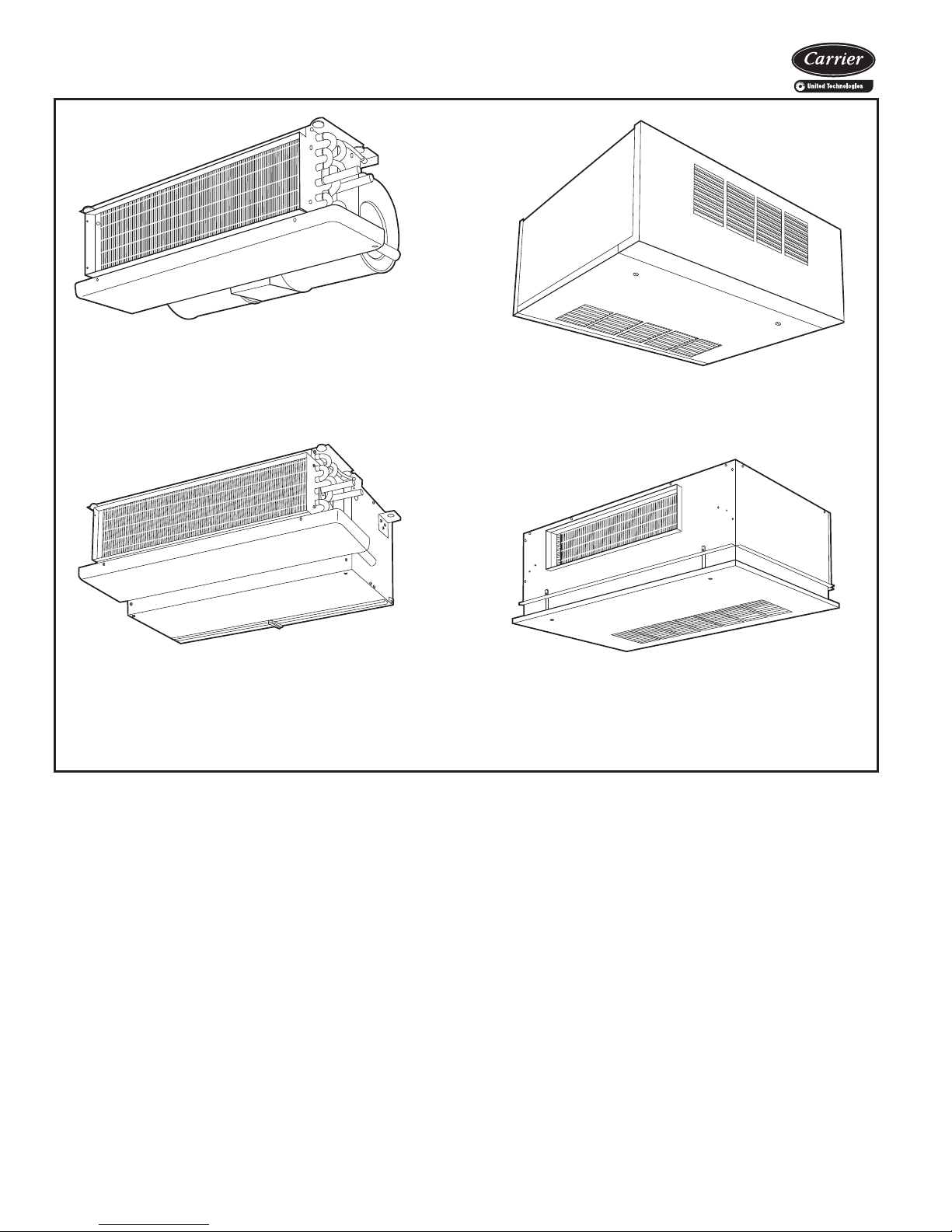

42CA

Furred-in ceiling model with low silhouette. (200-1200 cfm)

42CG

Cabinet model for under-ceiling mount with bottom or rear stamped louver return air grille. (200-1200 cfm)

42CE

Furred-in ceiling model with factory-installed plenum. (200-1200 cfm)

42CK

Cabinet model with telescoping flip-down panel and stamped louver bottom return or duct collar rear return. (200-1200 cfm)

4

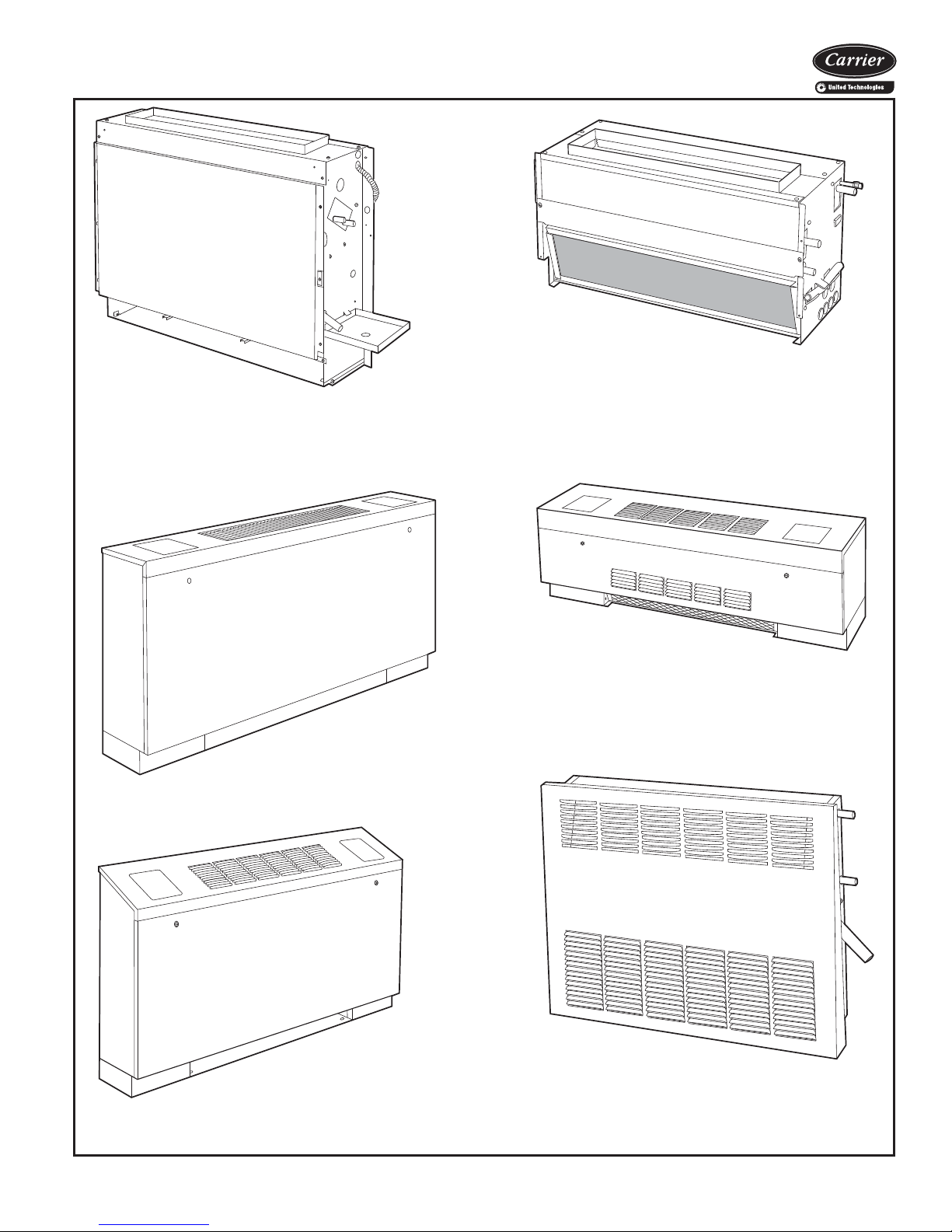

42VA

Furred-in model for under-the-window applications with top or front discharge. (200-1200 cfm)

42VF

Cabinet model with slant top and top or front discharge. (200-1200 cfm)

42VC

Furred-in lowboy model for concealed underthe-window applications. (200-600 cfm)

42VE

Cabinet lowboy model with stamped louver discharge grille and 2 control access doors. (200-600 cfm)

42VG

Furred-in wall model. Available with a 10-in. valve compartment extension. (150 and 300 cfm)

42VB

Cabinet model with top or front discharge. (200-1200 cfm)

5

Features/Benefits (cont)

42-68d

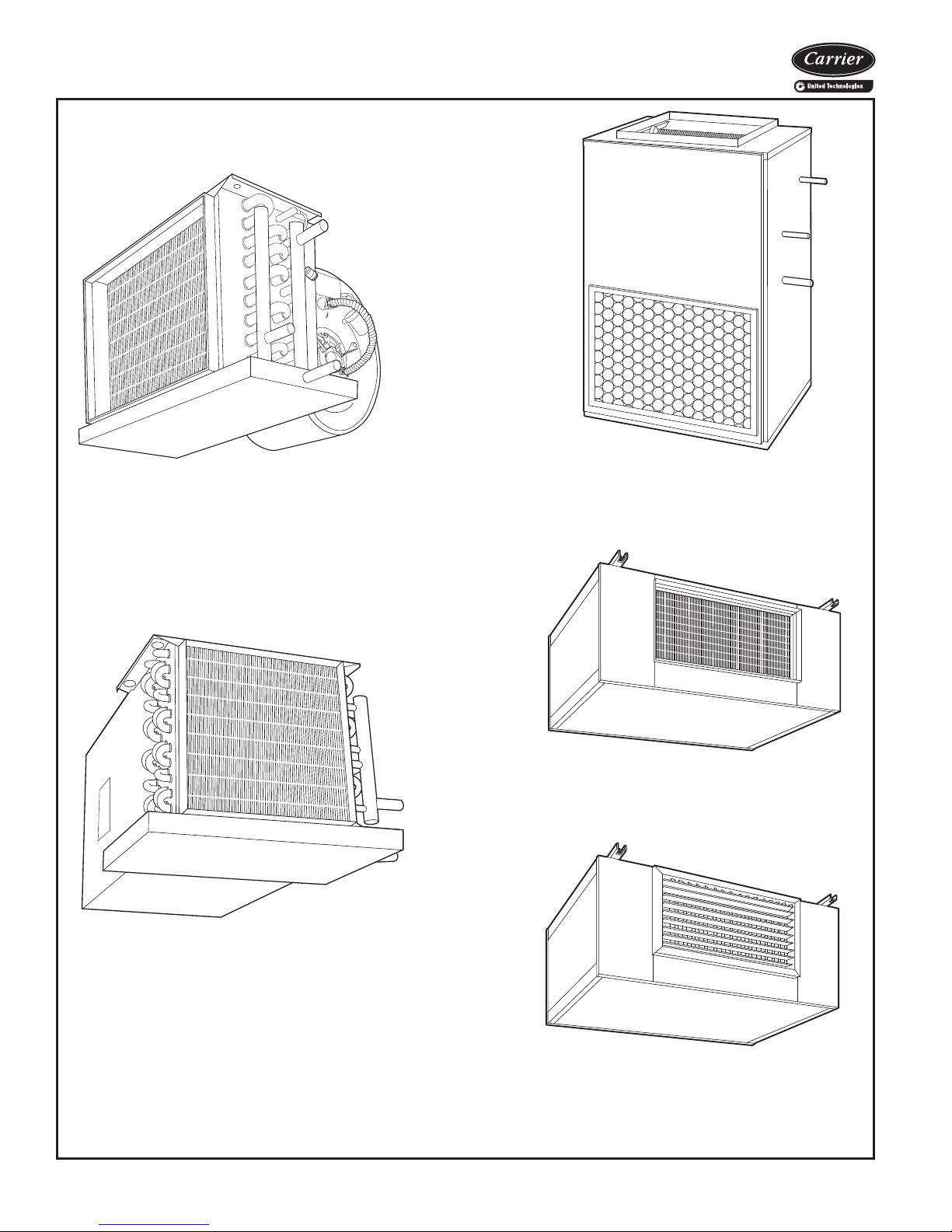

42DA

Furred-in model for installation in the ceiling or over the closet.

(600-2000 cfm)

42DD

Vertical model with galvanized casing. Commonly for closet installation.

(600-2000 cfm)

42DE

Ceiling model with galvanized casing. (600-2000 cfm)

42DC

Furred-in ceiling model with factory-installed insulated plenum.

(600-2000 cfm)

6

42DF

Exposed-ceiling cabinet model with integral double-deflection discharge grille and a bar-type return-air grille.

(600-2000 cfm)

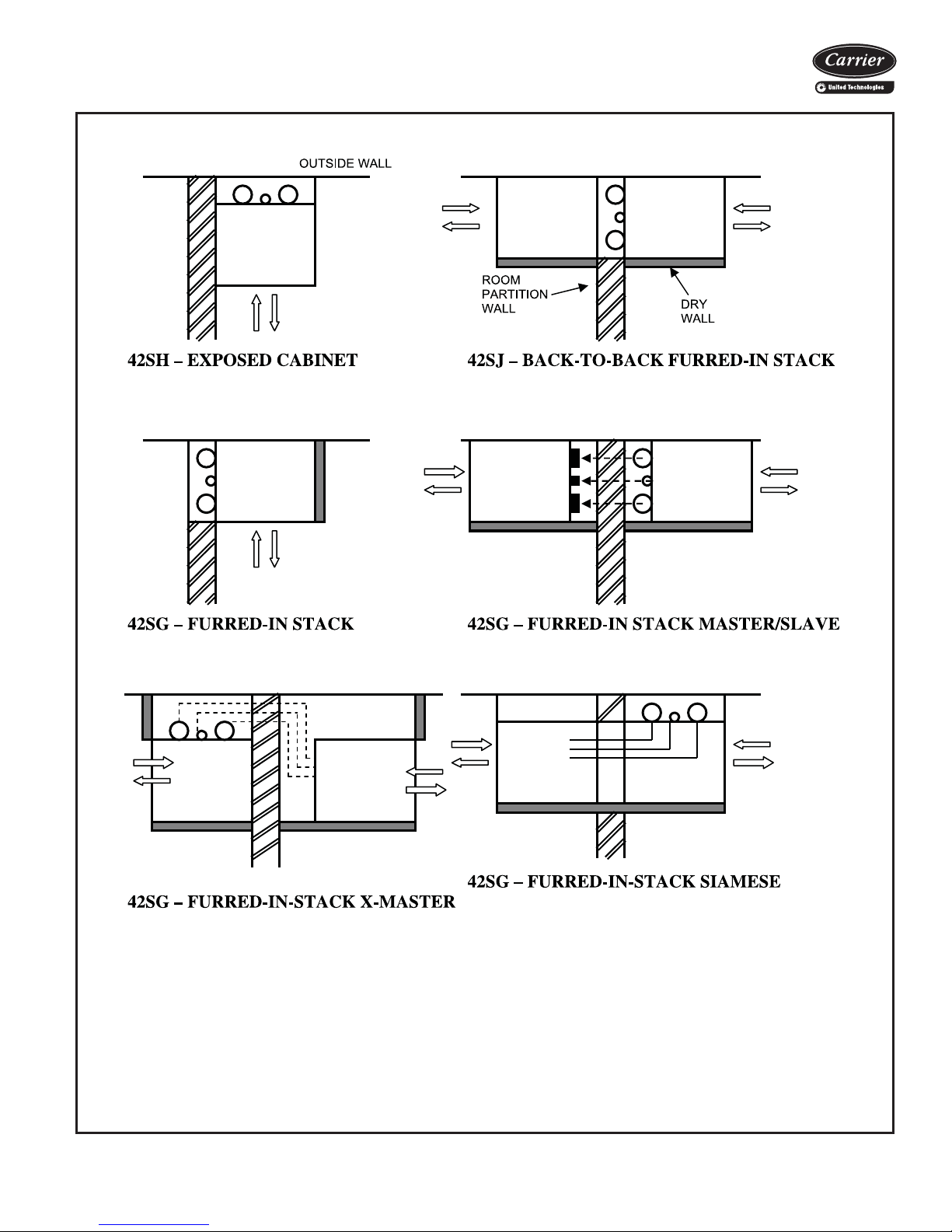

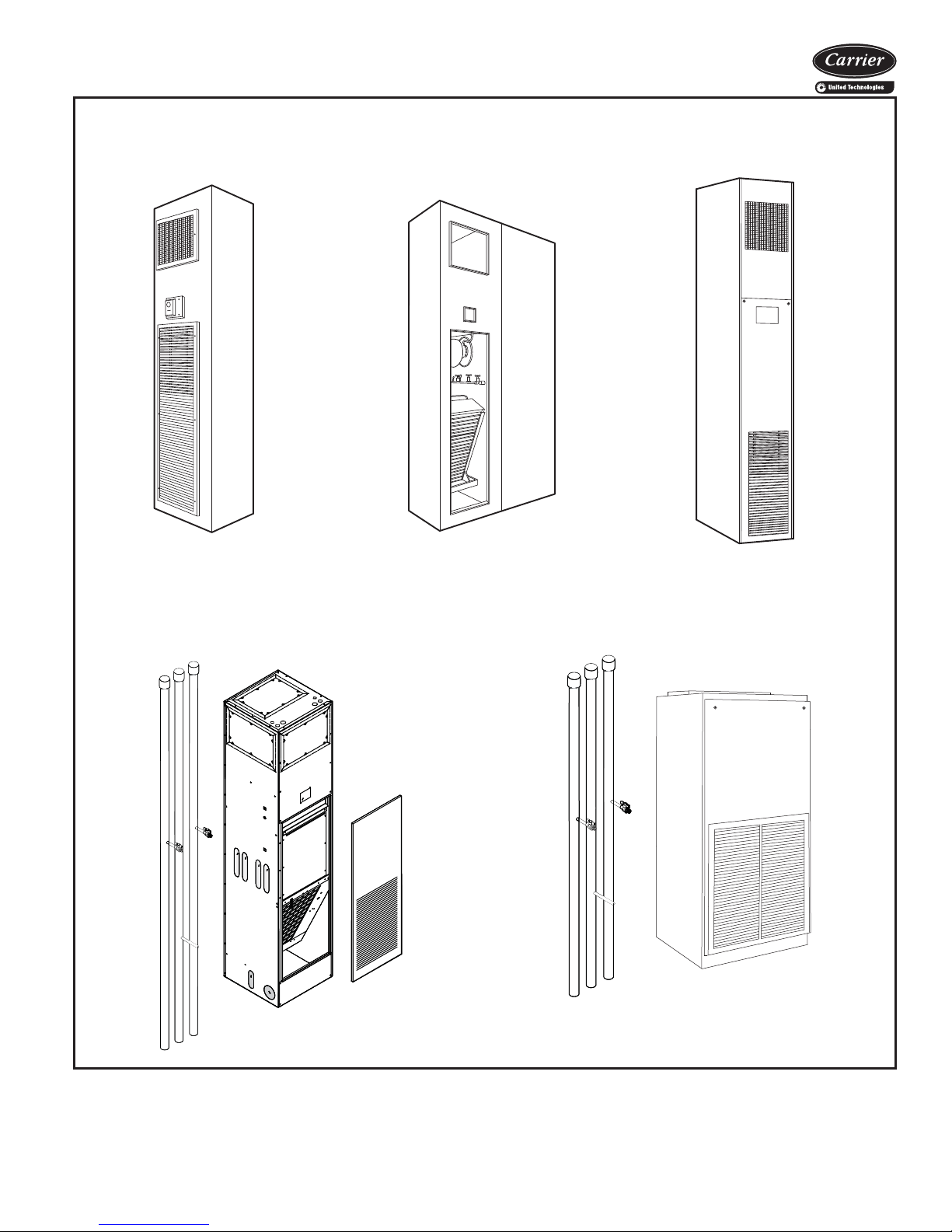

42SG — Furred-in-stack

(300-1200 cfm)

42-100d

42SJ — Back-to-back furred-in stack

(300-1200 cfm)

42SH — Cabinet stack

(300-1200 cfm)

42SU — Universal furred-in-stack

(300-1200 cfm)

a42-4148

42SM — Mega furred-in-stack

(1400-2000 cfm)

a42-4260

7

Options

AVAILABLE OPTIONS

OPTIONS OR STANDARD FEATURES*

AIR VENT Automatic Air Vent XXXXXXXXXXXXXXX X X X X Manual Air Vent Std Std Std Std Std Std Std Std Std Std Std Std Std Std Std Std Std Std Std Std CABINET CHANGES Front Panel, 18 Gage Std Std Std Std Std Std Std Std Std Std Std Std Std Std Std Std Std Std Std Std Extended Cabinet Height XX Valve Compartment Extension, 10 in. X COILS 2-Row (Cooling Only) XXXX StdStdStd 3-Row (2-Row Cooling, 1-Row Heating) XX 3-Row (Cooling/Heating Only) Std Std Std Std Std Std Std X X X X X X X Std Std Std Std X 4-Row (3-Row Cooling, 1-Row Heating) XXXXXXX XXXXXXXXXX 4-Row (Cooling/Heating Only) X X X X X X X Std Std Std Std Std X X X X Std 5-Row (Cooling/Heating Only) X 5-Row (4-Row Cooling, 1-Row Heating) XXXXXXX XXXXXXXXXX 5-Row (3-Row Cooling, 2-Row Heating) XXXXXXX XXXXXXXXXX 6-Row (4-Row Cooling, 2-Row Heating) XXXXX 6-Row (Cooling/Heating Only) XXXXX 7-Row (6-Row Cooling, 1-Row Heating) XXXX 8-Row (6-Row Cooling, 2-Row Heating) XXXX 10 FPI Std Std Std Std Std Std Std Std Std Std Std Std 12 FPI Std Std Std 14 FPI Std Std Std Std Std Stainless Steel Coil Wrapper XXXXXXXXXXXXXXX X X X DAMPERS 25% Motorized Damper ETO ETO ETO ETO 5 x 7 Manual Sliding Damper XXX 4 in. Opening Assembly with Sliding

Damper 6 in. Opening with Manual Sliding

Damper Outside-Air Knockouts Std Outdoor-Air Connection ETO ETO ETO X X ETO ETO ETO ETO DECORATIVE COLORS See Carrier Paint Selector Guide ETO ETO ETO ETO ETO ETO ETO ETO DISCHARGE GRILLES Stamped Discharge Std Std Std Std Std Std Double Deflection, Factory-Installed† XXXXX Std Double Deflection, Shipped Loose† X Std Std Std X X DRAIN PANS Standard Drain Pan, Closed-Cell Foam

on Inside Extended Drain Pan XX XX Stainless Steel Standard Drain Pan XXXXXXXXXXXXXXX X X X XStd Stainless Steel Extended Drain Pan XX XX Tell-Tale Only XXXX XXXX Drip Lip Only XXXX XXXX Tell-Tell and Drip Lip XXXX XXXX DUCT COLLAR Discharge Std Std Std Std Std Std Std Std Std Std Std Std Discharge Knockouts Std ELECTRIC HEATERS Nichrome Wire Strip Heater XXXXXXX XXXXXXXXXX Sheath Type Heater XX

EC — Electronically Commutated ETO — Engineered to Order PSC — Permanent Split Capacitor

Std — Standard

LEGEND *All options are factory-installed unless noted as shipped loose.

X — Available as Options

Ceiling — Horizontal Vertical Floor Ducted — Horizontal Stack — Vertical CA CE CG CK VA VB VF VC VE VG DA DC DE DF DD SG SH SJ SU SM

Std Std Std Std Std Std Std Std Std Std Std Std Std Std Std Std Std Std

UNIT SERIES — 42

XXX

†Standard grille is steel; option is available as steel or aluminum. **Registered trademark of Johns Manville.

X

8

AVAILABLE OPTIONS (cont)

OPTIONS OR STANDARD FEATURES*

FILTERS 1-in. Permanent Filters XXXXXXXX XX X X X X 1-in. Throwaway Filters StdStdStdStdStdStdStdStdStd StdStdStdStd Std Std Std Std Std 1-in. MERV 7 Pleated XX X 1-in. MERV 8 Pleated XXXXXX X X X X X 1-in. MERV 13 Pleated XXX X 2-in. MERV 8 Pleated XXX 2-in. MERV 13 Pleated XXX LEVELING LEGS XXXXX X INSULATION Foil Faced Insulation XXXXXXXXXXXXXXX X X X X Fiberglass Insulation Std Std Std Std Std Std Std Std Std Std Std Std Std Std Std Std Std Std Std Std Closed Cell Insulation XXXXXXXXX Exact-O-Kote ETO ETO ETO ETO ETO ETO ETO ETO ETO ETO ETO ETO ETO ETO ETO ETO MOTORS - PSC 120-1-60, 3-Speed Std Std Std Std Std Std Std Std Std Std Std Std Std Std Std Std Std Std Std Std 208-1-60, 3-Speed XXXXXXXXX XXXXX X X X X X 230-1-60, 3-Speed XXXXXXXXX XXXXX X X X X X 277-1-60, 3-Speed XXXXXXXXX XXXXX X X X X X 220-1-50, 3-Speed XXXXXXXXX XXXXX X X X MOTORS - EC 120-1-60, 3-Constant Torque XXXXXXXXX XXXXX X X X X X 208-1-60, 3-Constant Torque XXXXXXXXX XXXXX X X X X X 230-1-60, 3-Constant Torque XXXXXXXXX XXXXX X X X X X 277-1-60, 3-Constant Torque XXXXXXXXX XXXXX X X X X X 220-1-50, 3-Constant Torque XXXXXXXXX XXXXX X X X X X MOTOR QUICK-DISCONNECT PLUG Std Std Std Std Std Std Std Std Std Std Std Std Std Std Std Std Std Std Std INTEGRAL THERMAL OVERLOAD

PROTECTION RETURN AIR GRILLE, Shipped Loose Stamped Return Grille Std Std X X Std Std Std Std Std Std X Hinged Panel Std TAMPERPROOF LOCKS (Camloc**) Access Panels Std Std Std Std Std Std Std Std Std Std Std Std Control Access Doors XX X VALVE PACKAGES XXXXXXXXXXXXXXX X X X X X WIRING PACKAGES XXXXXXXXXXXXXXX X X X X X

LEGEND *All options are factory-installed unless noted as shipped loose.

EC — Electronically Commutated

ETO — Engineered to Order

PSC — Permanent Split Capacitor

Std — Standard

X — Available as Options

Ceiling — Horizontal Vertical Floor Ducted — Horizontal Stack — Vertical CA CE CG CK VA VB VF VC VE VG DA DC DE DF DD SG SH SJ SU SM

Std Std Std Std Std Std Std Std Std Std Std Std Std Std Std Std Std Std Std Std

UNIT SERIES — 42

†Standard grille is steel; option is available as steel or aluminum. ***Registered trademark of Johns Manville.

9

Options (cont)

Factory-installed options

Coils — Choice of a 2-pipe or 4-pipe system with the fol-

lowing chilled/hot water coil configurations:

42DA, DC,

UNIT

——

42VA,VB,

VC,VE,VF

only

42VA,VB,

VF only

42VA,VB,

VF only

42VA,VB,

VF only

42VA,VB,

VF only

42VC,VE

only

42VA,VB,

VF only

42VA,VB,

VF only

42VA,VB,

VF only

COIL CONFIGURATION

2-Row Coil •ETOETO—

3-Row Coil

4-Row Coil

5-Row Coil — — 42SM only —

6-Row Coil — • ——

8-Row Coil* — ETO ——

Opposite End Coil Connections

3/1

3/2

4/1

4/2 — • ——

6/1

6/2

Same End Coil Connections

2/1

3/1

3/2

4/1

4/2 — • ——

6/1

6/2

Cu/Cu Coil Special Option*

LEGEND

•Available

— Not Available ETO Engineer to Order

*Needs quote control.

42C 42D 42S 42V

•••

—

DE,DF only

—

DE,DF only

———

•••

—

DE,DF only

—

DE,DF only

ETO ETO ETO ETO

Seismic Compliance Options — Several models have been tested and approved for installations requiring IBC or OSHPD seismic certification. See the following tables for approved models and options.

Condensate overflow switch — This switch shuts down the unit when the water level in the drain pan reaches an unsafe level. Building code changes in many locales now require this type of device.

Decorative colors — A wide variety of colors (Champagne Beige, Toffee Brown, Ermine Grey, and Polar White) are available to match any interior décor. Select a desired color from a paint chip chart, Catalog number 842-011, or provide paint chip for matching. Standard color is now Arctic White; the other colors require a special quote. Optional or custom colors will only be quoted by the factory if the volume is significant enough to use the minimum quantity of paint required by the painting vendor. Therefore, the optional or custom color will not be available on small quantities of units. As an alternative, units

can be coated with primer by the factory to allow for field painting.

Decorative colors may be applied to:

• Cabinet of 42VB, VF, VE, VG

• Cabinet of 42CG

• Panels of 42SH

• Bottom panels of 42CK

• Cabinet of 42DF Electric heaters — Coils are of high grade single-phase,

nichrome resistance wire, insulated by ceramic insulators in plated steel brackets. Heater sizes available are shown in the application data section for the respective units. Not available on 42VG units.

Filters — Each unit (except the 42CA, DA units) includes a non-woven synthetic throwaway filter sized for low velocity and maximum efficiency. The standard option will filter both return and outside air. For optional filters, please refer to available option table on pages 8 and 9.

Fusing — Incoming power fusing, as well as blower motor and control sub-fusing for units that use electric heat. The blower motor and control sub-fusing (single power source wiring) is required when single source power with electric heat is specified.

Manual air vents — Each standard coil includes a manual air vent to allow venting at the coil if necessary for quick, complete air elimination.

Motors — Three-speed PSC (permanent split capacitor) motors are offered as standard, providing the ability to adjust airflow to meet varying load conditions. High-static PSC motors are available as an option for applications requiring higher external static capability. ECM (electronically commutated) motors are optional on all units except 42VG. ECM motors offer programmable features, low sound, and increased energy efficiency. Refer to the application data section for more information on ECM control methods.

Outside-air opening/damper — Damper is adjustable from 0 to 25% and provides ventilation air to unit. (Manual/motorized damper available on 42SG, SH, SJ, SM units.)

Service switches — Concealed service switches are available for use by maintenance and service personnel to shut off the power while working on the unit.

Single power source connection — Factory-installed junction box allows use of single power source for motor and heater when they are of the same voltage.

Stamped toe space return-air grille — The return-air grille is available as a factory-installed option for 42VB and 42VF units.

Tamperproof Camloc fasteners (Allen head) —

Camloc fasteners are installed on the access panels and are available for all cabinet model units.

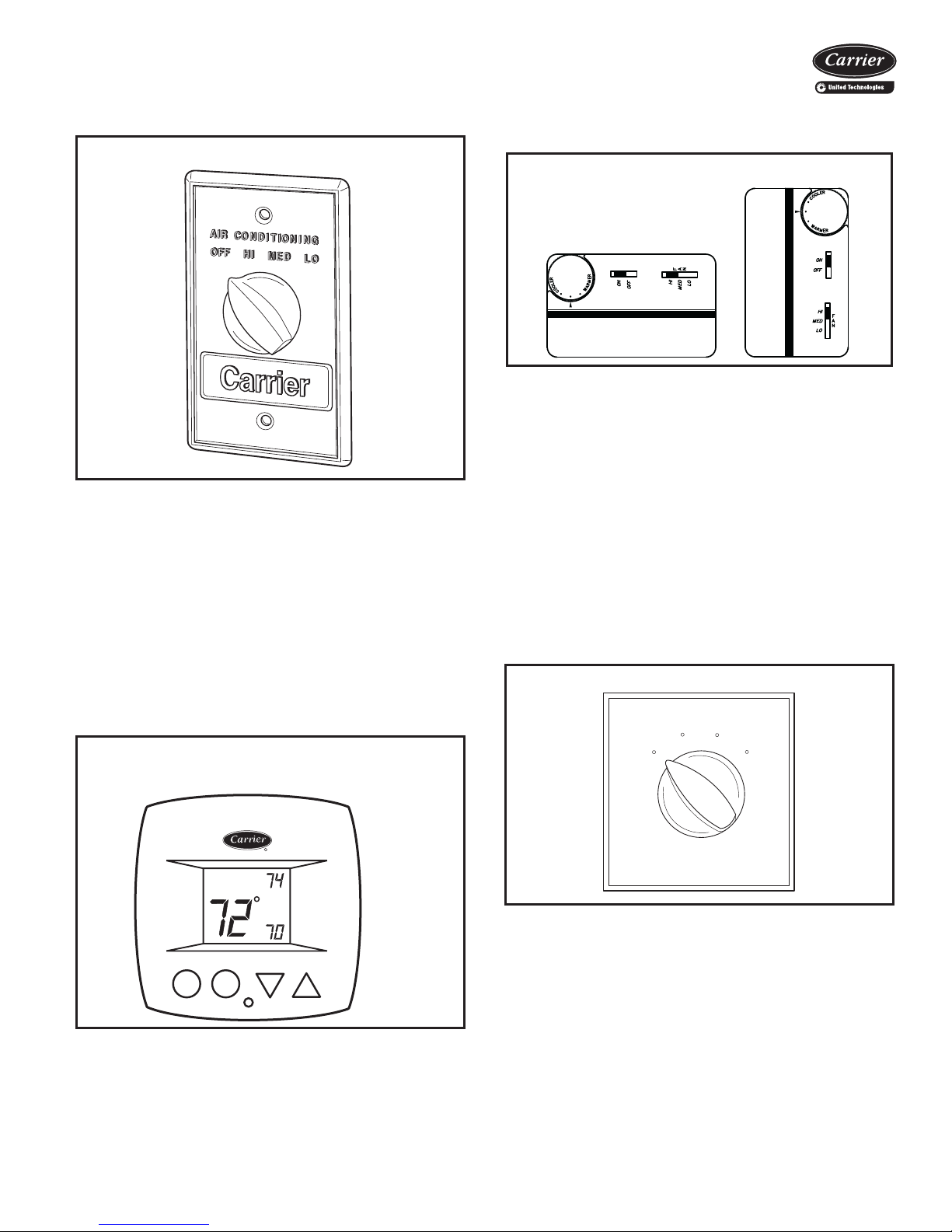

Thermostat control packages — We offer a variety of control devices to meet the most basic to the most demanding operating logic. All of our control schemes utilize 3-speed fan control to modulate cooling output, maximize the percentage of latent heat removal, and to further reduce the sound level when maximum cooling and

10

heating performance is not required. The standard thermostat control option is line voltage except on 42SU and

are available on the 42V Series units. For thermostat con-

trol package options refer to pages 13-16. 42SM, which include a low voltage control package as standard. Unit-mounted line voltage and 24-v thermostats

42C SEISMIC COMPLIANCE OPTION COMPATIBILITY CHART

OPTION DESCRIPTION

2-Pipe Hydronic Coil

Configurations

4-Pipe Hydronic Coil

Configuration

Electric Heat All electric heat options I I I/O I/O

Service Switches All service switch options I I I/O I/O

Coil Options

PSC Motors 115V, 208V, 230V, 277V, Single Phase, 60 Hz I I I/O I/O

Control Packages

Individual Valves and

Valve Packages

Filters

Drain Pan

Cabinet Insulation

LEGEND

I — International Building Code (IBC) Compliance O — Office of Statewide Health Planning and Development (OSHPD)

Pre-Approved (OSP-0229-10)

2-Row Coil I I I/O I/O 3-Row Coil I I I/O I/O 4-Row or 5-Row Coil I I I/O I/O 2/1 or 2/2 Split Coil I I I/O I/O 3/1, 3/2, or 4/1 Split Coil I I I/O I/O

Stainless steel coil wrapper I I I/O I/O Coil air vents (manual or automatic) I I I/O I/O Coil drains I I I/O I/O

All control package options EXCEPT Fan Coil Open and CCN Controllers (Digit 16 cannot be W or Z)

All valve options EXCEPT modulating valves and valve packages containing modulating valves

1-inch throwaway or permanent washable NA I I/O I/O 1-inch pleated MERV 8 NA I I/O I/O Standard drain pan I I I/O I/O Stainless steel drain pan I I I/O I/O Tell-Tale I I I/O I/O Drip Lip I I I/O I/O Extended main drain pan (galvanized or stain-

less steel) Condensate overflow switch (option 26-A) I I I/O I/O Standard Tuf-Skin fiberglass insulation I I I/O I/O Foil-faced fiberglass insulation I I I/O I/O

42CA 42CE 42CG 42CK

III/OI/O

NOTES:

1. Seismic compliance option includes factory-supplied, fieldinstalled isolation hanger and seismic restraints required for a given unit.

2. Direct expansion (DX) coils and steam coils are not compatible with seismic compliance option.

3. Electonically commutated motors (ECM) are not compatible with seismic compliance option.

UNIT

11

42D SEISMIC COMPLIANCE OPTION COMPATIBILITY CHART

OPTION DESCRIPTION

UNIT

42DA 42DC 42DE 42DF 42DD

2-Pipe Hydronic Coil

Configurations

3-Row Coil I I I/O I/O I/O 4-Row or 5-Row Coil I I I/O I/O I/O 6-Row Coil I I I/O I/O I/O 7-Row or 8-Row Coil I I I/O I/O N/A

4-Pipe Hydronic Coil

Configuration

3/1, 3/2 or 4/1 Split Coil I I I/O I/O I/O 4/2 Split Coil I I I/O I/O I/O 6/1 or 6/2 Split Coil I I I/O I/O N/A

Electric Heat All electric heat options I I I/O I/O I/O

Service Switches All service switch options I I I/O I/O I/O

Coil Options

Stainless steel coil wrapper I I I/O I/O I/O Coil air vents (manual or automatic) I I I/O I/O I/O Coil drains I I I/O I/O I/O

PSC Motors 115V, 208V, 230V, 277V, Single Phase, 60 Hz I I I/O I/O I/O

Control Packages

All control package options EXCEPT Fan Coil Open and CCN Controllers (Digit 16 cannot be W or Z)

I I I/O I/O I/O

Individual Valves and

Valve Packages

All valve options EXCEPT modulating valves and valve packages containing modulating valves

I I I/O I/O I/O

Filters

1-inch throwaway or permanent washable NA I I/O I/O I/O 1-inch pleated MERV 8 NA I I/O I/O I/O

Drain Pan

Standard drain pan I I I/O I/O I/O Stainless steel drain pan I I I/O I/O I/O Tell-Tale I I I/O I/O I/O Drip Lip I I I/O I/O I/O Extended main drain pan (galvanized or stain-

less steel)

I I I/O I/O I/O

Condensate overflow switch (option 26-A) I I I/O I/O I/O

Cabinet Insulation

Standard Tuf-Skin fiberglass insulation I I I/O I/O I/O Foil-faced fiberglass insulation I I I/O I/O I/O

LEGEND

I — International Building Code (IBC) Compliance O — Office of Statewide Health Planning and Development (OSHPD)

Pre-Approved (OSP-0229-10)

NOTES:

1. For Horizontal Units (42DA, DC, DE, DF) - Seismic compliance option includes factory-supplied, field-installed isolation hanger and seismic restraints required for a given unit.

2. For Vertical Unit (42DD) - Seismic compliance option offers hard mounting or isolated mounting. For hard mounting, expansion anchors with all brackets is factory supplied, field installed. For isolated mounting, required isolation mounting system is factory provided, field installed.

3. Direct expansion (DX) coils and steam coils are not compatible with seismic compliance option.

4. Electronically commutated motors (ECM) are not compatible with seismic compliance option.

Options (cont)

Field-installed accessories

Automatic air vents — Automatic air vents have fiber

washers which allow air in the pipes to pass through, automatically bleeding the system, and eliminating the need to manually remove air from the system. When wet, washers swell and seal the system.

Drip lips (removable drain extension) — Drip lips are frequently used when valves are added after unit installation and space limitations will not permit use of an extended drain pan. The drip lip is placed on the end of the drain pan and is pitched toward the pan to ensure proper drainage. The drip lip gives positive control of condensate from valves and controls.

Panels, frames, and grilles — Panels, frames, and grilles on the 42S Series units can be chosen in a wide variety of combinations to suit room decorating requirements and allow access to the unit for maintenance. Discharge grilles are double deflection type, aluminum finish or

12

painted. Return-air access panels containing return-air grilles are available in five different types as illustrated on pages 114 and 115.

PA NE L

NO.

Standard, 18-gage galvanized steel. Coated with baked-on

1

Arctic White enamel finish. Attached to unit with fasteners.

18-gage galvanized steel. Coated with baked-on Arctic White

2

enamel finish. Includes access door for concealed unitmounted controls.

Bar-type extruded aluminum with frame matching double

3

deflection supply grille. Fastens to wall and unit with 1 long screws.

4

18-gage galvanized steel. Coated with baked-on Arctic White

and

enamel finish. Frame mounted on sheetrock with screws.

5

Panel mounted in frame with

All Each panel provides access to all internal components.

PANELS, FRAMES AND GRILLES

DESCRIPTION

1

/4 turn fasteners.

1

/4 turn

1

/2 in.

Return-air grilles — Stamped-type return-air grilles are standard on 42CG,CK,VE,VG,SG,SH,SJ,SU units and optional on 42VB,VF,SM units. Anodized aluminum hinged bar-type grilles are installed on 42DF units.

Risers — The 42S Series units can accommodate (supply and return) and 1-in. (drain) to 2

1

/2-in. riser sizes in

3

/4-in.

2-pipe systems. For other applications, such as reverse return risers or 4-pipe systems, it may be necessary to accommodate the additional risers.

Condensate drains are available in sizes down to 1-in. for greater cost economy. Riser size-reducers are factory-installed on 42SG, SJ, and SH. For risers over 119-in. long, extension pieces can be furnished for field installation.

NOTE: Risers for the 42SU,SM units are shipped separately for field installation and testing before the unit is installed.

Riser expansion — The 42S Series units are built to accommodate modest expansion of the external riser. This only allows for expansion between the unit and the riser. This allowance for movement within the unit is not intended to replace necessary riser expansion compensation devices that the consulting engineer may deem advisable for the external riser system. External riser expansion/contraction compensation and anchoring are the responsibility of the consulting engineer and the installing contractor.

Risers material and insulation — The 42S Series unit supply, return, and drain risers can be furnished in type M or L copper. All factory-furnished risers are insulated with flexible closed foam insulation in

1

/2-in. or 3/4-in. thick-

ness. Discharge grilles — Two types of double deflection dis-

charge grilles are available for 42CG, VB, VF, VE units; an integral steel grille painted to match the unit or a separate unpainted anodized aluminum grille. Optional discharge air grilles for 42S Series units are suitable for sidewall application, and available in clear anodized aluminum or Arctic

White finish. The aluminum discharge grilles are suitable for air dry field painting. The discharge grille frame and blades are 6063 extruded aluminum alloy with 200-R1 satin anodized finish. The frame has a typical wall thickness of 0.050-in. and is separated from the blades with injection-molded nylon bushings. This method of assembly minimizes corrosion and vibration. The frame mounting holes are dimpled, allowing for a counter-sunk fastener head appearance. All blades are airfoil in design, individually adjustable and spaced

3

/4-in. on center. At the outer edge of the frame is a specifically engineered channel which retains an extruded flexible vinyl bulb gasket that produces a positive air seal at the mounting surface, minimizing smudging. An optional opposed blade damper is screwdriver operated through the face of the unit and has the same extruded aluminum construction and injectionmolded nylon bushings. The unit achieves an effective area of 80% with the blades set at a 0 degree pattern, thus eliminating high velocity and pressure drop at the grille face. Wider deflection with reduced throw may be achieved at the 22 and 45 degree blade settings with slightly increased sound levels.

Tell-tale drain pan — A secondary drain connection is located above the primary drain to act as a “tell-tale” in the event that the primary drain becomes obstructed. They can be applied to either the main drain pan or an extended main drain pan. This option is only available on the 42C and 42DA, DC, DE, DF units.

Thermostats control packages — The standard thermostat control option is line voltage except for 42SU and 42SM units. Wall-mounted line voltage and 24-v thermostats are available on the 42 Series fan coil units. For thermostat control packages options refer to pages 14-16.

Trim strips — Strips are available for use with partially recessed vertical 42VA units and 42S series units only.

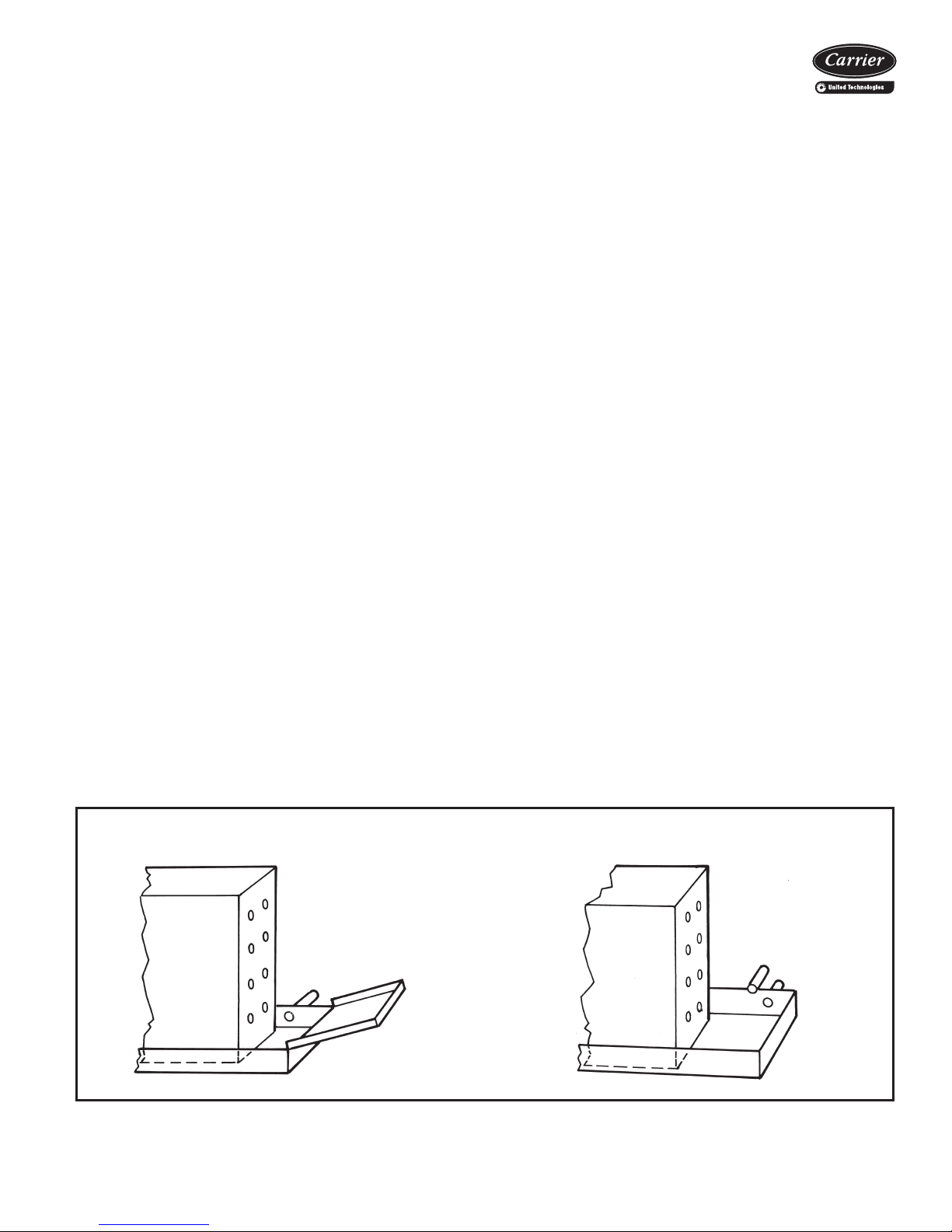

DRIP LIP

(Horizontal Unit)

a42-258

“TELL-TALE” DRAIN PAN

(Horizontal Unit)

a42-259

13

Controls

Use the Control Selection Guide table to make sure that all necessary components are provided for and that the components are compatible with the required control system.

NOTE: When thermostatic fan control is selected or when unit outside-air dampers are used, unit-mounted thermostats are not recommended as their use will result in poor room temperature sensing.

CONTROL SELECTION GUIDE

SYSTEM DESCRIPTION THERMOSTAT

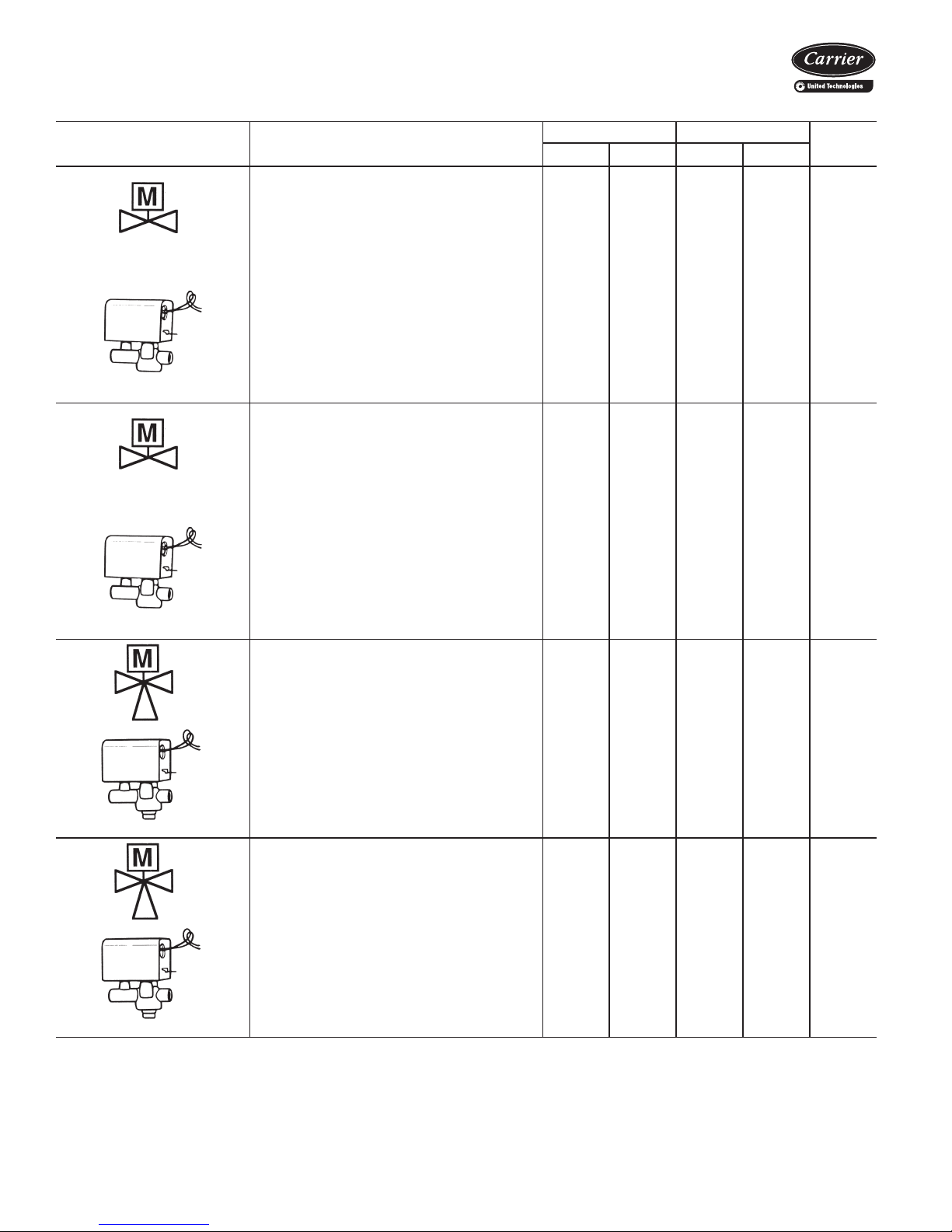

Fan Control (2-pipe)

TwoPosition Electric Valves (2-pipe)

2-PIPE HEATING-COOLING*

TwoPosition Electric Valve with Auxiliary Electric Heat (2-pipe)

TwoPosition Electric

ELECTRIC HEAT

Valve with Total Electric Heat (2-pipe)

TwoPosition Electric Valves

4-PIPE

(4-pipe)

LEGEND

N.C. — Normally Closed

*If system is HEATING-ONLY or COOLING-ONLY, no changeover or bypass is required. NOTE: Unit-mounted thermostats are not recommended with either fan-cycle control or applications with outside-air dampers.

Fan manually cycled None None None 3-Speed switch Not recommended for

Thermostat cycles valve open or closed.

Thermostat cycles valve open or closed. Mode automatically switched by changeover sensing water temp.

Thermostat cycles valve open or closed. Thermostat activates electric heater. Heater cannot turn on if hot water is in coil.

Thermostat cycles valve open or closed.Thermostat activates electric heater.

Thermostat cycles cooling valve open or closed. Thermostat cycles heating valve open or closed.

Wall or unit mounted includes heat-cool switch.

Wall or unit mounted. Heating/cooling Thermostat

Wall or unit mounted. Sequenced heating and cooling.

CHANGEOVER

ON

SUPPLY PIPE

None Motorized (N.C.)

Yes Motorized (N.C.)

Ye s . Two Required.

None Motorized (N.C.)

VALVE

3-way or 2-way, no bypass required.

3-way or 2-way

Motorized 3-way or 2-way

3-way or 2-way, no bypass required

3-way or 2-way (requires 2 valves)

FAN

SWITCH

Thermostat has integral 3-speed switch

NOTES

high humidity application

Valve packages with belled end(s) for field soldering to coil.

14

Remote-mounted controls

OFF

HI

MED

LO

Optional remote-mounted line-voltage thermostat

3-SPEED SWITCH

Wall mounted 3-speed switch — This switch has 4

positions: OFF, HIGH, MEDIUM, and LOW. Switch has auxiliary contact that is energized when switch is in HIGH, MEDIUM or LOW position.

Some of the options common with the 3-speed switch are:

1. Unit-mounted switch on furred-in vertical model. (Available as special order on horizontal models.)

2. Switch without OFF position.

3. Key-operated switch.

Optional remote-mounted thermostat or unitmounted 24-v thermostat

LINE VOLTAGE T155 THERMOSTAT

Line voltage T155 thermostat — Features 50 to 90 F

temperature range, manual 3-speed fan control, mount is a standard 2 x 4 in. box, 4-pipe, 2-pipe and autochangeover applications. Available in vertical or horizontal styles.

Unit-mounted controls

Line voltage controls by others — Unit supplied with

wiring for valve cycle operation, including changeover sensors (as required) for use with field-installed line voltage thermostats.

24-v controls by others — Unit supplied with factoryinstalled 24-v transformer, 3-speed relay board, and aquastat (as required) for use with field-installed low voltage controls.

3-SPEED SWITCH

24-V DEBONAIR® THERMOSTAT

R

COOL

AUTO

HEAT

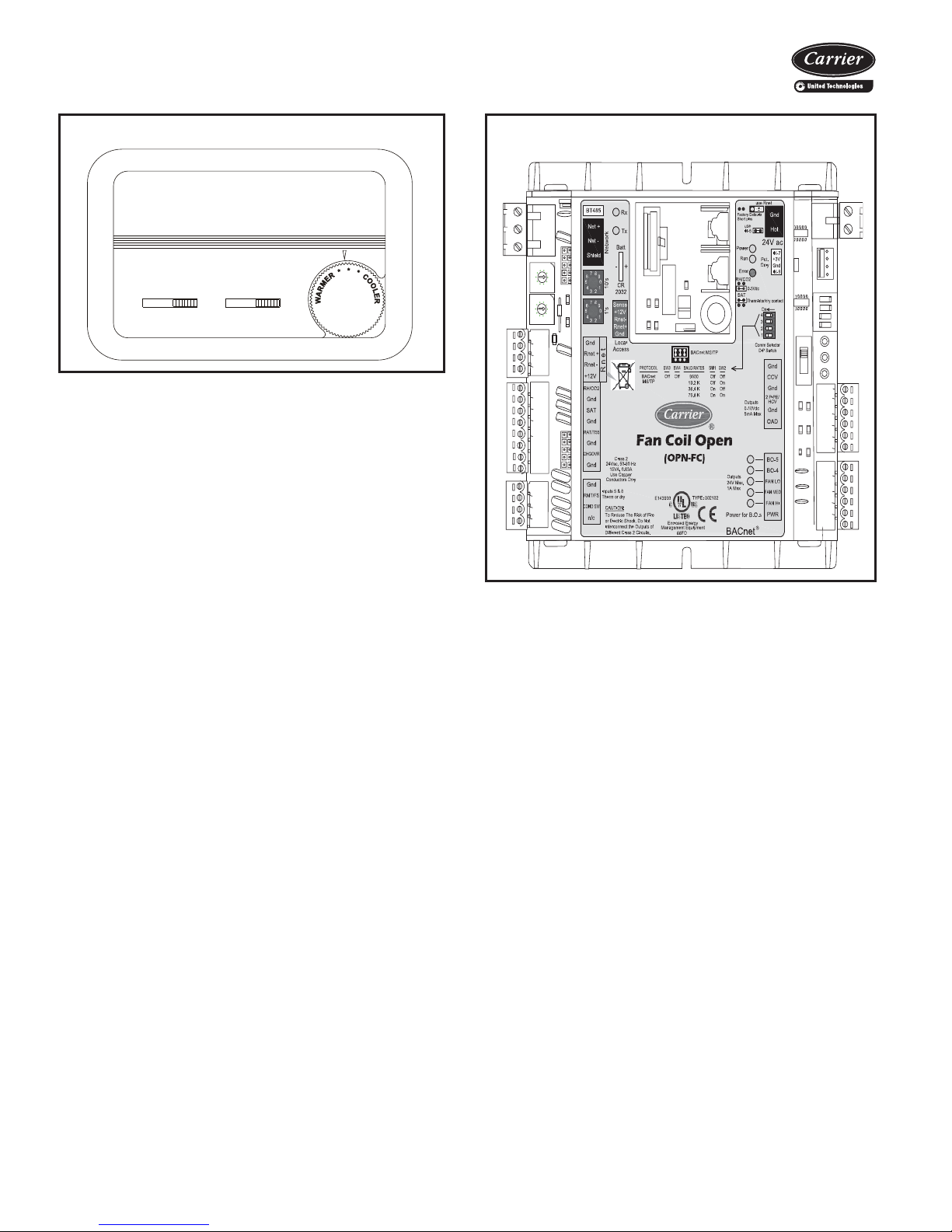

24-v Debonair thermostat — Features large Thermoglow™ display, Neverlost™ memory, ExactFit locking cover, Smart Fan™ dynamic fan speed control, 4-pipe, 2-pipe automatic changeover applications with adjustable dead band. Programmable and non-programmable models available.

Unit-mounted 3-speed switch — Switch has OFF, HIGH, MED and LOW positions. Switch is also equipped with auxiliary connection energized when switch is in HIGH, MED or LOW position.

15

Controls (cont)

FAN

LO MED HI OFF ON

T156 THERMOSTAT

a42-4192

Line voltage T156 thermostat — Includes thermostat for 2-pipe or 4-pipe system and manual 3-speed fan control. The special combination allows for the fan coil unit to have control for the valve cycle only. This thermostat is only available for unit-mounted line voltage applications.

Integrated Direct Digital Controls (DDC)

Fan Coil Open controller — The factory-mounted con-

troller continuously monitors and regulates the fan coil operation with reliability and precision. This advanced controller features a sophisticated, factory engineered control program that provides optimum performance and energy efficiency. The fan coil open controller also features plugand-play connectively to Carrier’s i-Vu tem. For added flexibility, the fan coil controller is capable of stand alone operation, or can be integrated with any Building Automation System (BAS) utilizing BACnet protocol. Application features include built-in advance control routines for zone level humidity control, zone level demand ventilation (ASHRAE 62) and automatic fan speed control based on demand. System benefits include demand limiting for maximum energy saving, and compatability with i-Vu control system tenant billing for tracking tenants after hours energy usage. Hardware features include onboard hardware clock, remote occupancy input, and support for space temperature thermistor sensor for stand alone operation.

®

Open control sys-

FAN COIL OPEN (OPN-FC)

FAN COIL OPEN CONTROLLER

8

7

9

6

0

5

1

4

2

3

8

7

9

6

0

5

1

4

2

3

16

Automatic changeover (Summer-Winter switch) —

G

G2/(W)

G3/(Y)

COM

FAN

(VALVE)

(COOL)

HI

(HEAT)

MED

LO

The automatic-changeover thermostat sensor is a 10,000ohm thermister (33ZCSENCHG) in a moistureproof and dust-proof enclosure. Cable and temperature sensing element are hermetically sealed in a polypropylene enclosure with epoxy resin. Device clamps on coil supply pipe with end snap-on clip.

The set point temperatures are factory set. When water temperature rises above 80 F (approximately), the sensor switches to the winter cycle. When water temperature drops below approximately 70 F, the sensor switches to the summer cycle. Switch reset is automatic.

Fan coil control relay board — The fan coil relay board is used in conjunction with the Debonair thermostat or a controller or the Fan Coil Open controller to regulate a single-speed or multispeed fan. The fan coil relay board can also be used to connect the fan coil controller to a line voltage valve actuator.

The fan coil relay board is factory shipped as a PC board with four

1

/2-in. stand-offs attached for field mounting.

NOTE: One fan coil relay board is used for each application. Fan coils with two or more fan motors use a fan coil relay board for each fan motor. A maximum of three fan coil relay boards can be wired to one fan coil control.

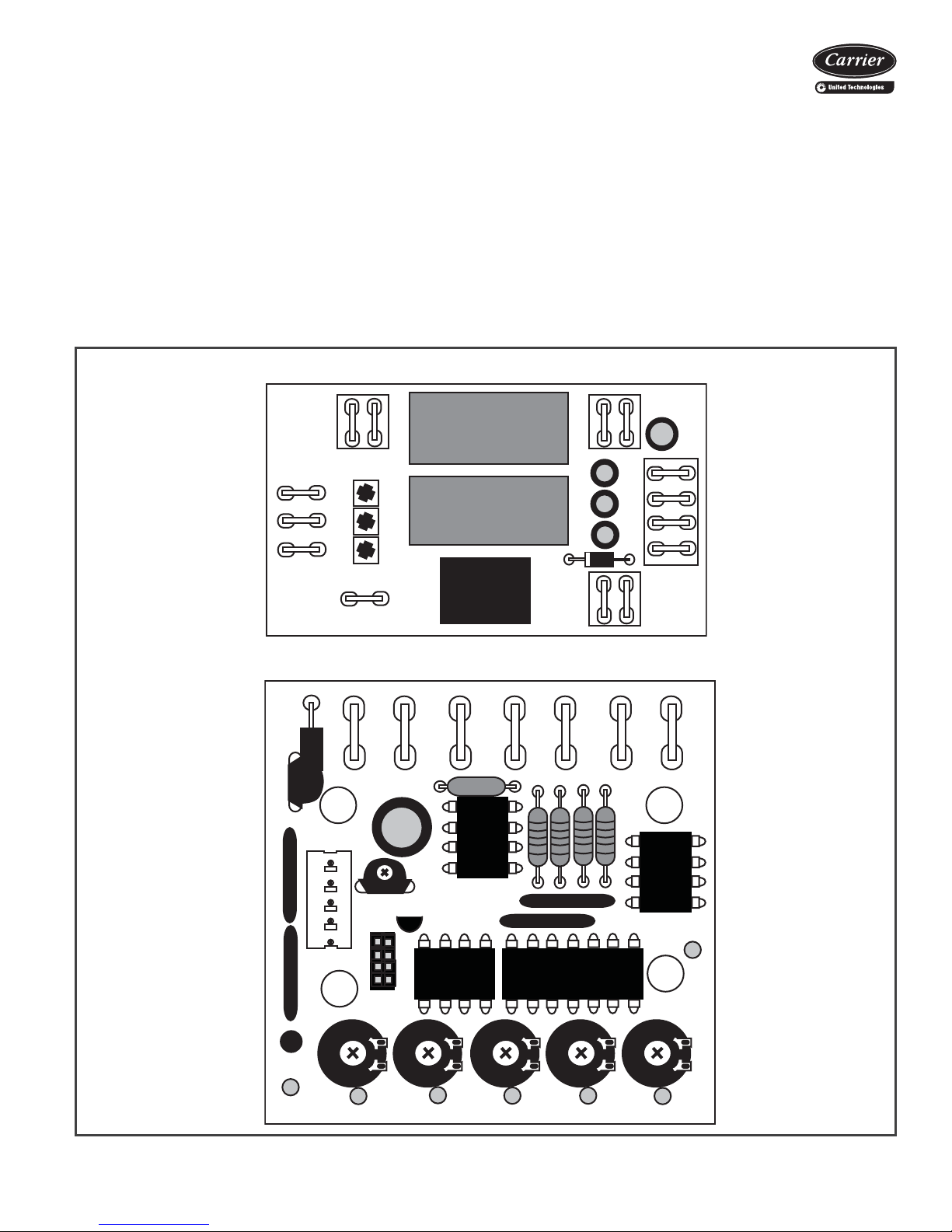

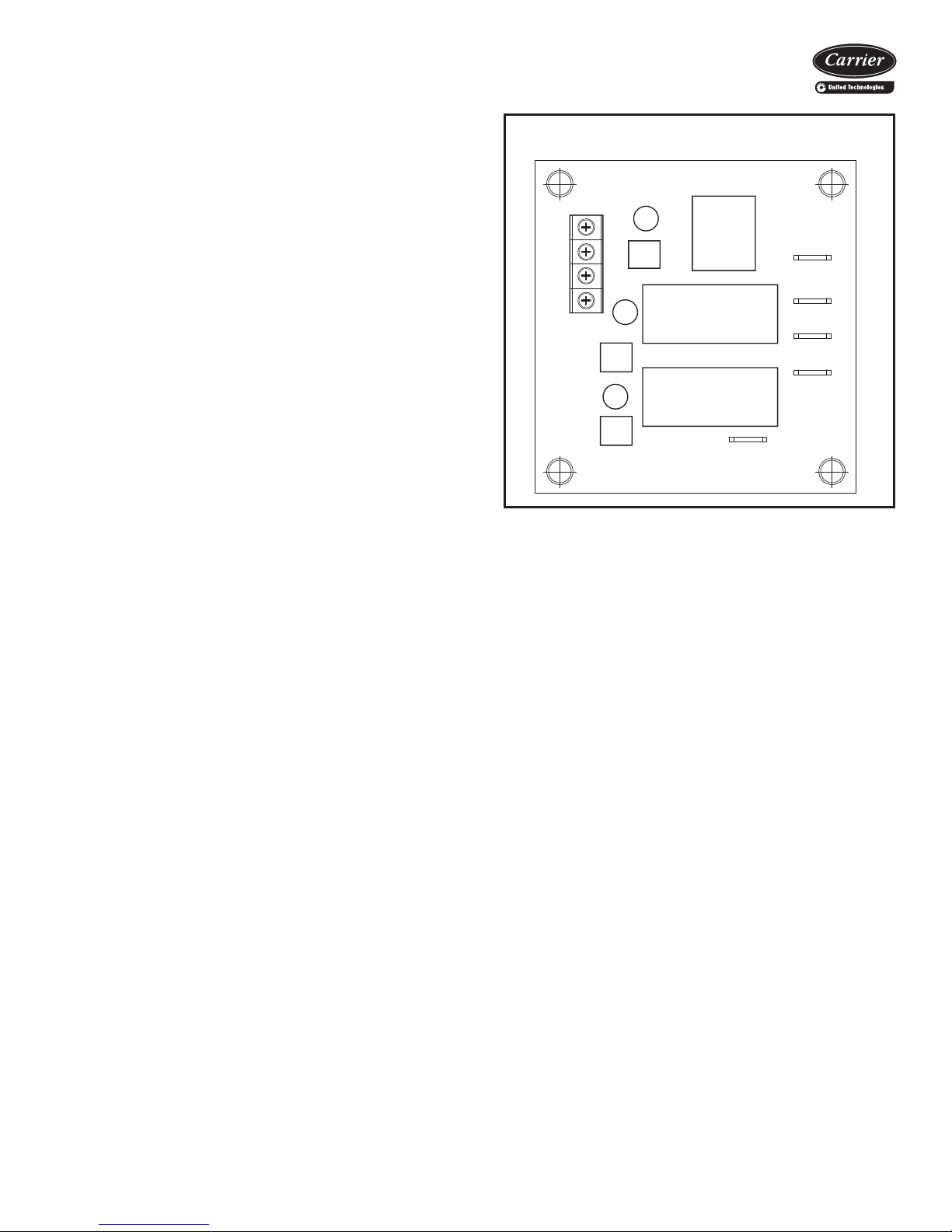

FAN COIL CONTROL RELAY BOARD

a42-4186

17

Selection procedure

Refer to the Carrier Electronic Selection Program for information to determine unit sizing for your needs.

Application data

Basic definitions

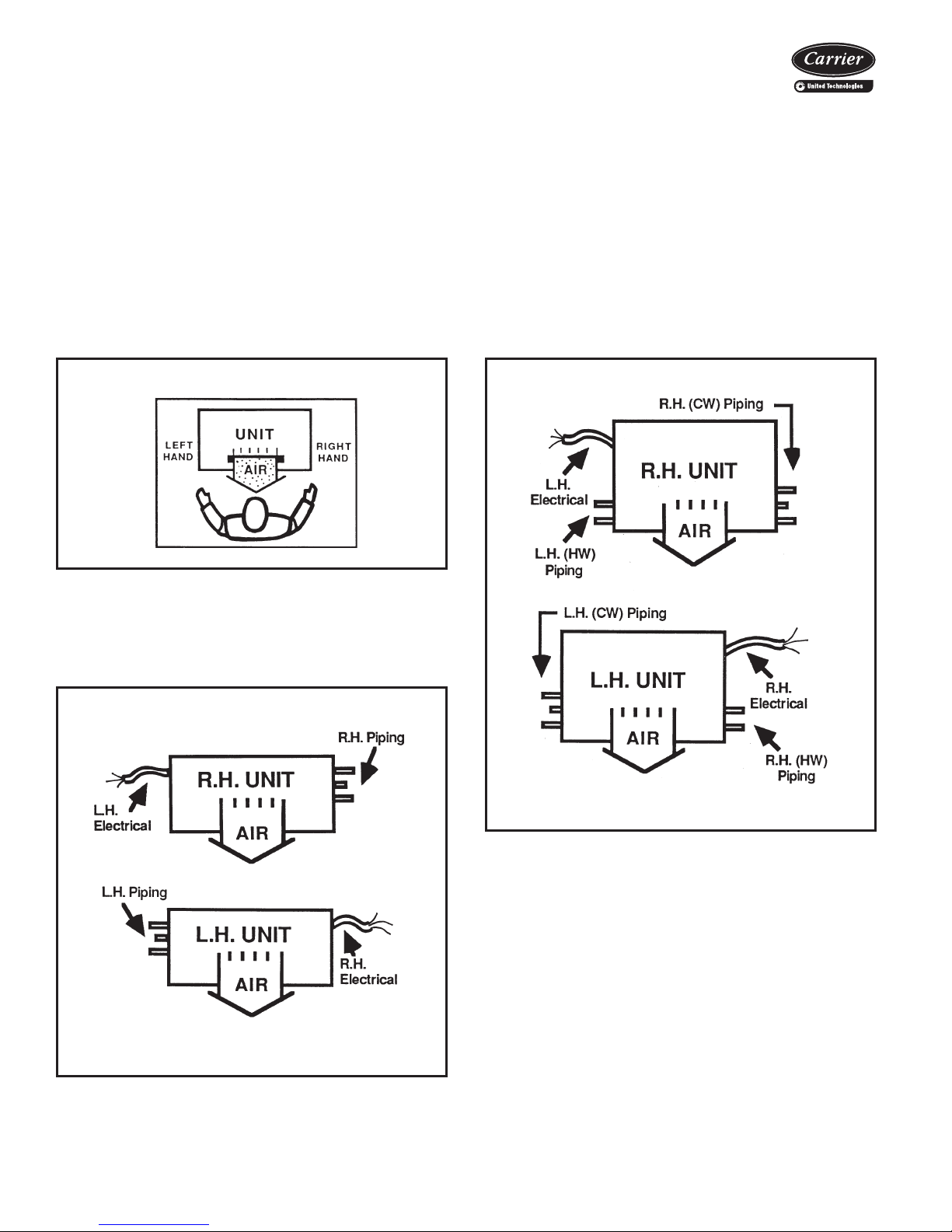

Unit hand — When facing the supply air outlet from the

front of the unit (air blowing in your face), your right hand will be the right hand side of the unit and your left hand the left hand side of the unit.

Opposite end connection (4-pipe option) — Hot water (HW) piping connections and electrical will be on the end (side) opposite the chilled water (CW) and drain connections.

UNIT HAND

Same end connection (2 pipe or 4 pipe) — All piping

connections are on the same end (side) of the unit. Controls and electrical connection will be on the end (side) opposite the piping connection.

Standard 2-pipe units will be the same end connection.

SAME END CONNECTION

OPPOSITE END CONNECTION

NOTE: Chilled water piping determines the hand of the unit.

NOTE: Piping determines the hand of the unit.

18

Application data (cont)

System piping

The following diagrams show some common methods used to pipe the 42S Series units. Only the 2-pipe systems are shown; however, the methods would be the same for 4-pipe systems.

System 1, the “direct return” system, is the most common. It is economical to install since it supplies and returns the water for a riser column from the same location, at the top or the bottom of a building. This type of riser arrangement does require more attention to individual unit water flow balancing. The risers are normally capped at the end as shown in the diagrams.

System 2, the “reverse return” system, is used to minimize the requirement for individual unit balancing. This system is usually referred to as the self-balancing system. The arrangement of the risers allows the water flow for each unit in a column to be equalized. In the reverse return system both the supply and return mains are located at the top or the bottom of a building requiring an additional return riser to be furnished in the units.

System 3, the “common reverse return” system, typically has the supply and return mains located remotely from each other — such as one at the top and one at the bottom of a building. This eliminates the need for a reverse return riser in the units.

SYSTEM 2 — REVERSE RETURN

SYSTEM 3 — COMMON REVERSE RETURN

SYSTEM 1 — DIRECT RETURN

19

Application data (cont)

Risers (42S units)

Riser diameter is an important consideration in the design of stack series systems. Standard units can accommodate

3

/4-in. to 21/2-in. riser sizes in 2-pipe systems. For other applications, such as reverse return risers or 4-pipe systems, it may be necessary to accommodate the additional risers.

Riser size is based on the water flow needed for a given tier of units. Unit risers are sized according to the diameter and length requirements as specified by the customer. To determine riser size, water velocity should be limited to 5 to 8 ft per second. Thus, if 10 units are to be stacked vertically with each unit requiring 3 gpm, the maximum flow in the risers is 30 gpm. Through 1 ity of 7.5 ft per second. The maximum flow rate of 30 gpm occurs only at the supply and return points. As the water moves upward, the flow in the supply riser is reduced

1

/4 in. risers, this is a veloc-

MAXIMUM RISER DIAMETER DIAGRAM

by 3 gpm per floor, so that after 3 floors, the total flow is 21 gpm and riser size can be reduced to one inch. See the Main Riser Pressure Drops chart on page 125.

Condensate drains are available in sizes down to 1 in. for

greater first cost economy.

Riser size-reducers are factory installed and caps are pro-

vided at customer request except for 42SU units.

For risers of over 119 in. length, extension pieces can

be furnished for field installation.

Typical arrangements

Typical arrangement applications for each model type are shown on page 21. The fan coil units feature almost an unlimited number of arrangements to meet the needs of new construction, renovation, or reconstruction. Consult the factory for the arrangement (standard or special) to meet your particular need.

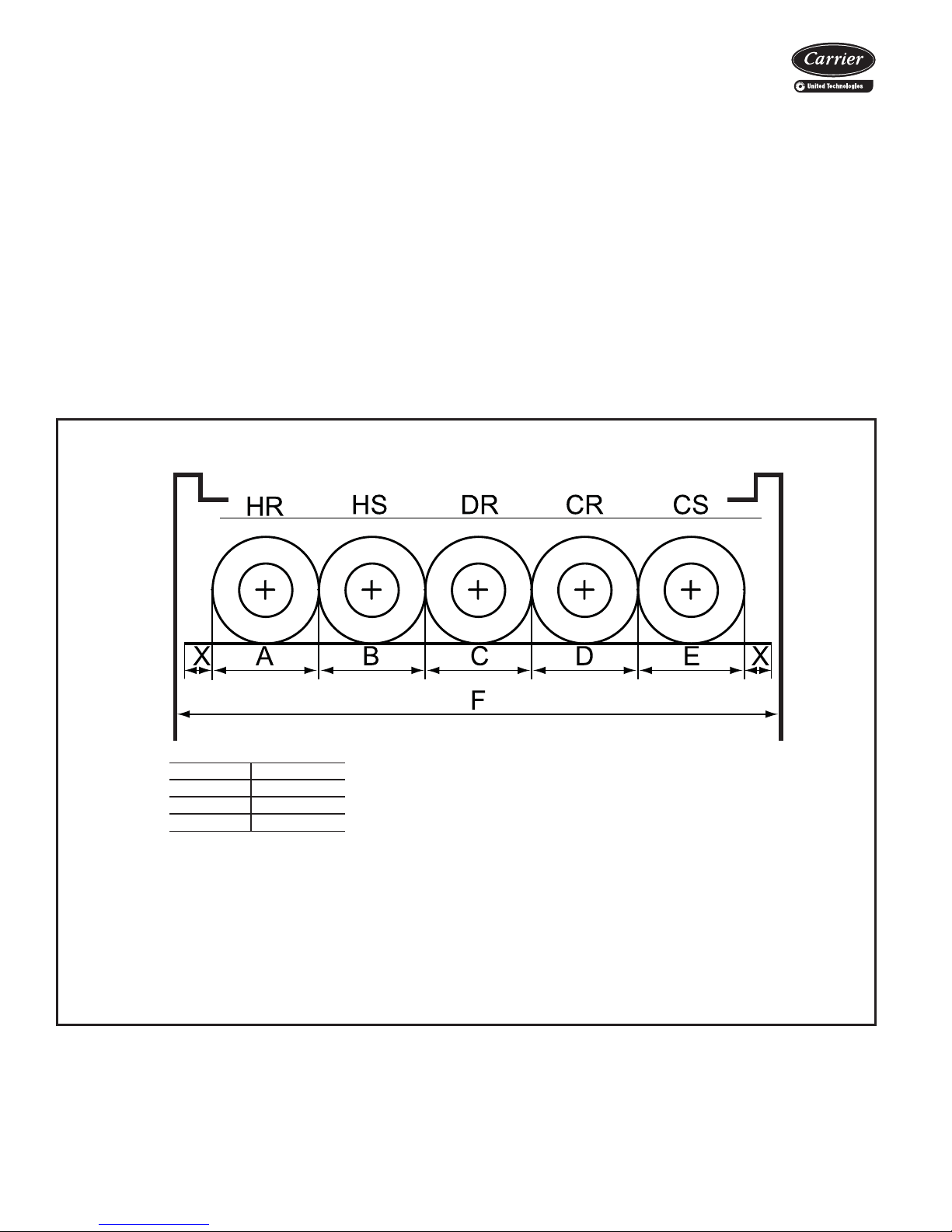

UNIT SIZE F DIMENSION

03,04 17 in. 06,08 20 in. 10,12 24 in.

LEGEND

CR — Cold Water Return CS — Cold Water Supply DR — Drain HR — Hot Water Return HS — Hot Water Supply

NOTES:

1. The F dimension is determined by the following formula: X + A + B + C + D + E + X = F (where X =

2. The largest diameter riser in each tier must be able to fit in the smallest size cabinet and not exceed the F dimension.

3. For unit sizes 14-20, contact application engineering.

7

/16 in.)

20

a42-3986

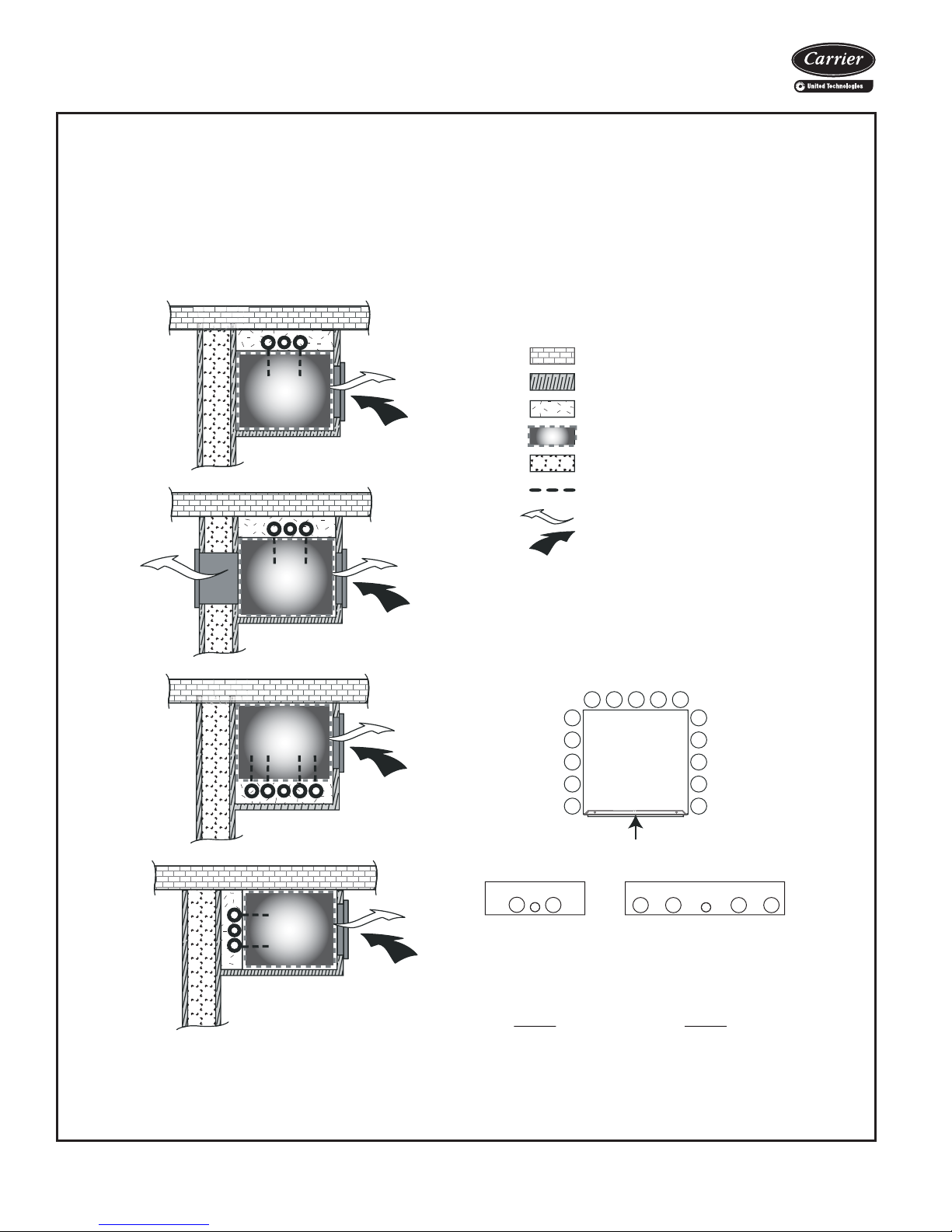

TYPICAL ARRANGEMENT APPLICATIONS

a42-3987

21

Application data (cont)

42SU ARRANGEMENT OPTIONS

One of the unique traits of the Universal Stack (42SU) is the variety of possible unit arrangements. The best unit design configuration can be selected by choosing from numerous unit arrangement options that utilize knockout designs while conserving floor space and reducing installation costs.

Below are just a few pictorials of the many arrangement possibilities of the 42SU fan coil system. NOTE: Risers ship separately. Units are field connected to risers using factory furnished flex hoses.

LEGEND

Exterior Wall

oom B

R

42SU

Room A

42SU

Room ARoom B

42SU

Room ARoom B

Field Sheetrock

Separation or Utility Chase

Universal Stack Unit

Partition (or Separation) Wall

Hoses for Field Installation

Supply Air

Return Air

The Supply, Return, and Drain risers (2-pipe or 4-pipe applications) can be oriented on any of three sides of the unit.

HR CRDHS CS

42SU

Cabinet

HR CRDHS CS

HR

HS

D

CR

CS

42SU

Room ARoom B

a42-4261

22

R

S

D

R=Return D= Drain S = Suppl

y

2-pipe

a42-4261

HR

ir

D

Return A

HR = Hot Water Return HS = Hot Water Supply D=Drain CR = Cold Water Return CS = Cold Water Suppl

4-pipe

CRHSCS

y

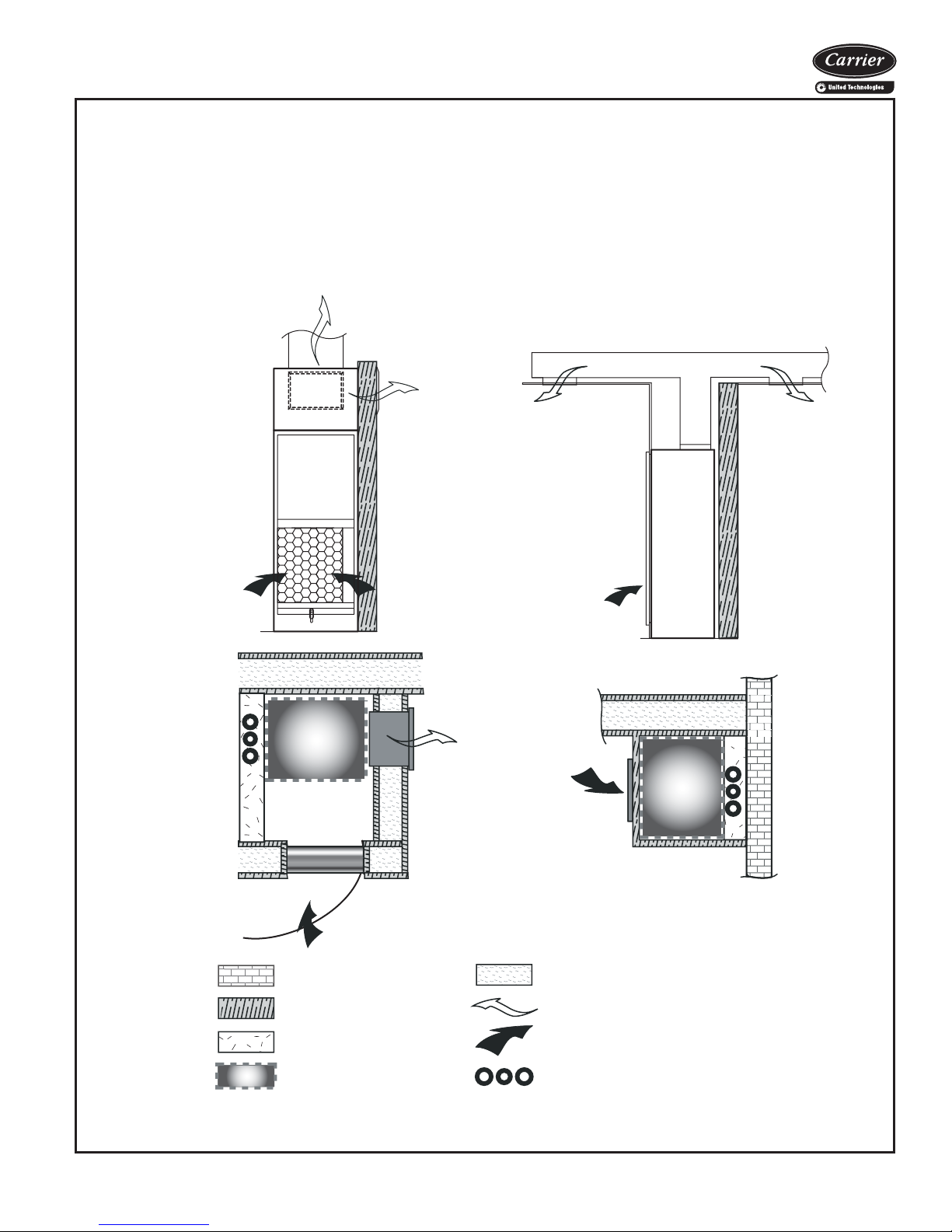

42SM UNIT CONFIGURATION OPTIONS

Mega Stack units (42SM) are designed to be installed either in a small mechanical closet or furred in with drywall adhered directly to the cabinet. One of the unique traits of the 42SM unit is its optional discharge plenum. The discharge plenum is a factory-installed option that adds 22-in. to the unit height and provides multiple air duct or supply-air grille connections.

The designer is afforded the luxury of specifying a single unit, which can duct to multiple spaces, direct discharge to a single space, or provide a combination of the two. If necessary, the plenum can be added or removed in the field to accommodate design changes.

Below are a few of the many arrangement possibilities of the 42SM fan coil system.

Equipment installed in closet with ducted and direct discharge

Furred in with

ducted discharge

42SM

LEGEND

Exterior Wall

Field Sheetrock

Partition (or Separation) Wall

Supply Air

a42-4262

Separation or Utility Chase

Mega Stack Unit

NOTE: Risers ship separately. Units should be field connected using factory furnished flex hoses.

Return Air

Field Installed Risers

42SM

a42-4262

23

Application data (cont)

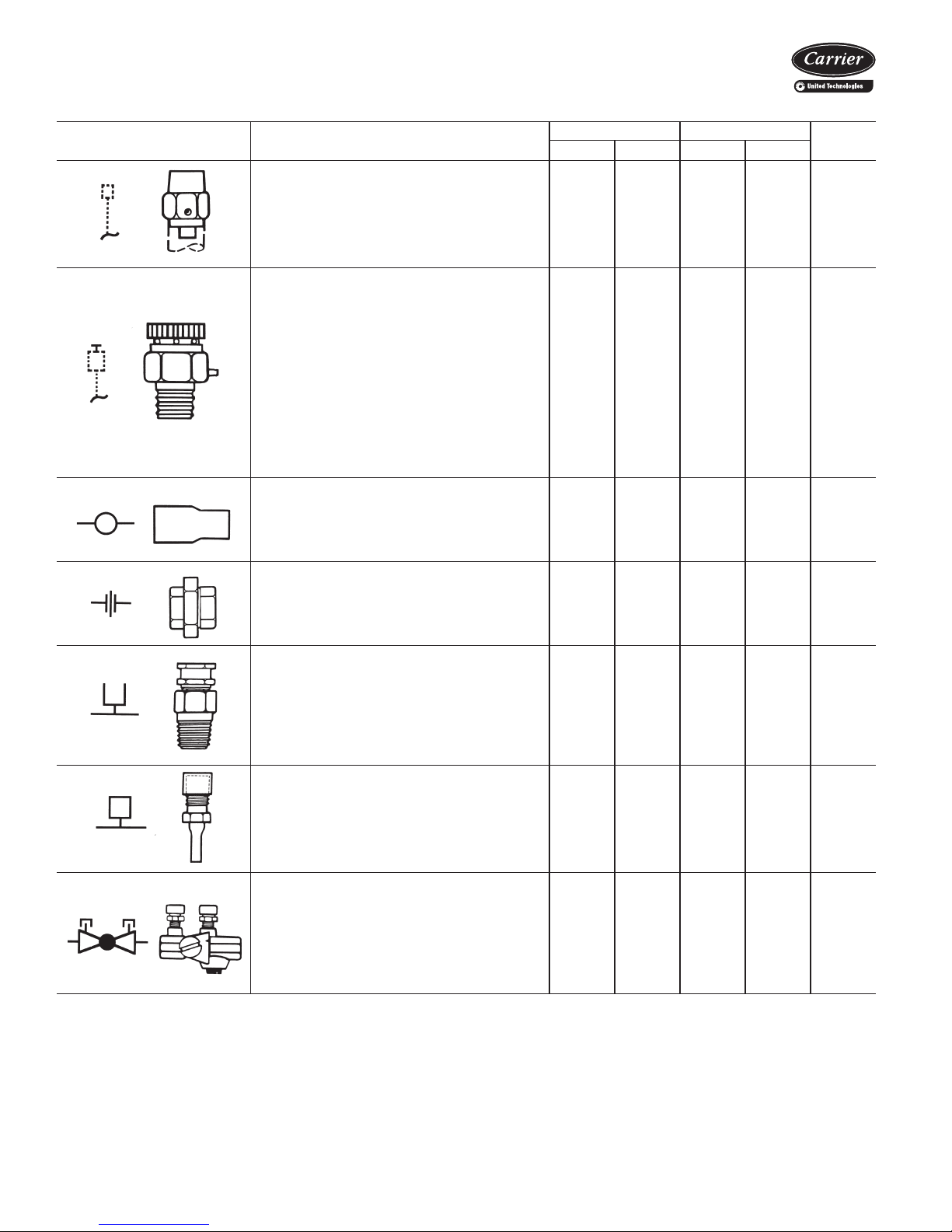

PIPING COMPONENTS

SYMBOL/SKETCH DESCRIPTION

MANUAL AIR VENT: Threaded brass needle

valve with screwdriver slot for adjustment. Application — Body brazed into high point of

heating and cooling coils for bleeding air from coil. Standard item on all hydronic coils (not used on steam or DX coils). Should not be used in lieu of main system air vents.

AUTOMATIC AIR VENT: Nickel plated brass valve, fiber-disc type, with positive shut-off ballcheck and quick vent feature via knurled vent screw.

Application — Optional replacement for manual air vent. Automatically passes minute quantities of air through the fiber discs which expand upon contact with water, completely sealing the valve. As air accumulates, the fiber discs dry and shrink, repeating the cycle. Not recommended for removing large quantities of air encountered during initial start-up or subsequent draining and refilling. Should not be used in lieu of main system air vents.

SWAGE: Copper tube end expanded to accept a copper tube of the same size for factory or field brazing.

Application — Used where possible for all tubing joints for best joint integrity.

UNION: Combination wrought copper/cast brass union assembly, solder by solder.

Application — Used for quick connect (and disconnect) of valve package components to minimize field labor and facilitate servicing of unit.

INSERTION TEST PORT: Brass body valve for acceptance of test probe (up to diameter).

Application — Installed on one (or both) sides of the coil to allow for temperature or pressure sensing. Used for close tolerance water balancing and service analysis.

PRESSURE TEST PORT: Brass body vice access fitting with removable depressor type core.

Application — Installed on both sides of the coil to allow for pressure sensing. Attach pressure gages to facilitate close tolerance water balancing.

CIRCUIT SETTER: Variable water flow balancing valve with manual adjustment knob, pointer, percent-open scale, memory stop and integral pressure read-out ports.

Application — Used for close tolerance water flow balancing. Positive shut-off ball valve feature allows usage as combination balancing and shut-off valve.

LEGEND

Cv — Coefficient of Velocity DX — Direct Expansion ETO— Engineering to Order

*Check all system component pressure ratings (coils, values, pumps,

etc.) with manufacturer and any applicable local or national piping codes prior to specifying system pressure rating.

1

/8 in.

1

/4 ser-

CV FACTOR RATING*

1

/

2

3

/

4

PSI F

STEAM

USE

N/A N/A 400 100 NO

N/A N/A 125 240 NO

N/A N/A 300 200 YES

N/A N/A 250 250 NO

N/A N/A 400 210 NO

2.12 3.9 300 250 NO

24

PIPING COMPONENTS (cont)

a42-4282

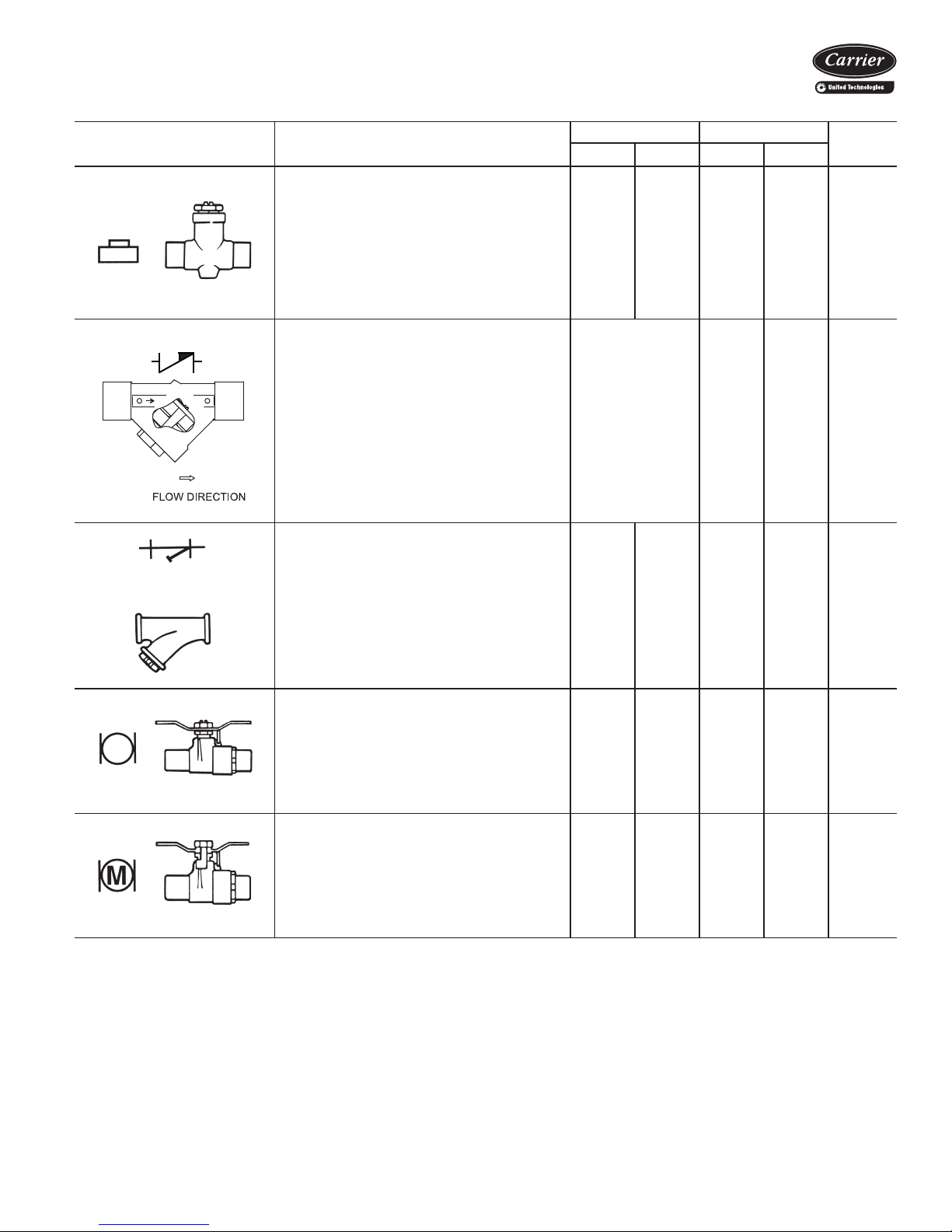

SYMBOL/SKETCH DESCRIPTION

BALANCE VALVE: Variable water flow man-

ual balancing valve with screwdriver slot adjustment screw.

Application — Often used in conjunction with test port fittings for water flow balancing. Balance by temperature differential or coil pressure drop (check specifications for service fittings required if balancing by pressure drop). May be used in 3-way valve bypass line to permit equal flow balancing.

FIXED FLOW VALVE: Flexible orifice type (non-adjustable).

Application — Used for water flow balancing. Valve automatically adjusts the flow to within 10% of set point.

STRAINER: Y-type body with 20 mesh stainless steel screen.

Application — Used for removal of small particles from system water during normal system operation. Should not be used in lieu of main system strainers. Strainer screen may have to be removed during initial high pressure system flushing during start-up. Screen should be removed and cleaned per normal maintenance schedule (provisions for strainer blow-down not provided).

BALL VALVE: Manual balance and shut-off valve.

Application — Used for unit isolation and water flow balancing. Without memory stop feature water balance point must be marked by installer (if necessary). Check specifications for service fittings required when used for water balancing.

BALL VALVE WITH MEMORY STOP:

Manual balance and shut-off valve. Application — Used for unit isolation and water

flow balancing. The adjustable memory stop feature allows return to the balance point after shut-off. Check specifications for service fittings required when used for water balancing.

LEGEND

Cv — Coefficient of Velocity DX — Direct Expansion ETO — Engineering to Order

*Check all system component pressure ratings (coils, values, pumps,

etc.) with manufacturer and any applicable local or national piping codes prior to specifying system pressure rating.

FACTOR RATING*

C

V

1

/

2

3

/

4

PSI F

4 14 300 250 NO

Valve orifice size determines C

V

factor. The orifice of these fixed flow valves changes as flow is regulated. As the water pressure increases, the

600 220 NO

orifice size decreases, thereby automatically limiting the flow rate to the specified gpm (±10%).

9.0

Clean

19.0

Clean

400 150 N/A

14.2 28.6 600 350 YES

14.2 28.6 600 350 N/A

STEAM

USE

25

Application data (cont)

PIPING COMPONENTS (cont)

SYMBOL/SKETCH DESCRIPTION

2-WAY MOTORIZED VALVE (25 PSI close off differential pressure): Electric 2-position

flow control valve (open/closed). Normally closed body with manual override lever. Installed in supply line to unit.

Application — All standard control and valve packages are based upon normally closed valves (valve electrically powered open and closed by spring return when electric power removed). Manual override lever allows valve to be placed in the open position for secondary (unit) flushing, constant water flow prior to start-up, etc. Manual override is automatically disengaged when valve is electrically activated. Consult factory for normally open

valve applications.

2-WAY MOTORIZED VALVE (150 PSI close off differential pressure): Electric 2-position

flow control valve (open/closed). Normally closed body with manual override lever. Installed in supply line to unit.

Application — All standard control and valve packages are based upon normally closed valves (valve electrically powered open and closed by spring return when electric power removed). Manual override lever allows valve to be placed in the open position for secondary (unit) flushing, constant water flow prior to start-up, etc. Manual override is automatically disengaged when valve is electrically activated. Consult factory for normally open

valve applications.

3-WAY MOTORIZED VALVE (25 PSI close off differential pressure): Electric

2-position flow control valve (closed to coil/ open to bypass or open to coil/closed to bypass). Normally closed with manual override lever. Installed in supply line to unit.

Application — Same comments as 2-way motorized valve except with manual override lever engaged the valve is open to both ports and water flow will take the path of least resistance through the valve package (not necessarily 100% through the coil).

FACTOR RATING*

C

V

1

/

2

3

/

4

PSI F

STEAM

USE

YES

3.5 3.5 300 200

15

PSI

MAX.

4.9 10.3 300 240 NO

4.0 4.0 300 200 N/A

3-WAY MOTORIZED VALVE (150 PSI close off differential pressure): Electric

2-position flow control valve (closed to coil/ open to bypass or open to coil/closed to bypass). Normally closed with manual override lever. Installed in supply line to unit.

Application — Same comments as 2-way motorized valve except with manual override lever engaged the valve is open to both ports and water flow will take the path of least resistance through the valve package (not necessarily 100% through the coil).

LEGEND

Cv — Coefficient of Velocity DX — Direct Expansion ETO — Engineering to Order

*Check all system component pressure ratings (coils, values, pumps,

etc.) with manufacturer and any applicable local or national piping codes prior to specifying system pressure rating.

26

4.9 4.9 300 240 N/A

PIPING COMPONENTS (cont)

SYMBOL/SKETCH DESCRIPTION

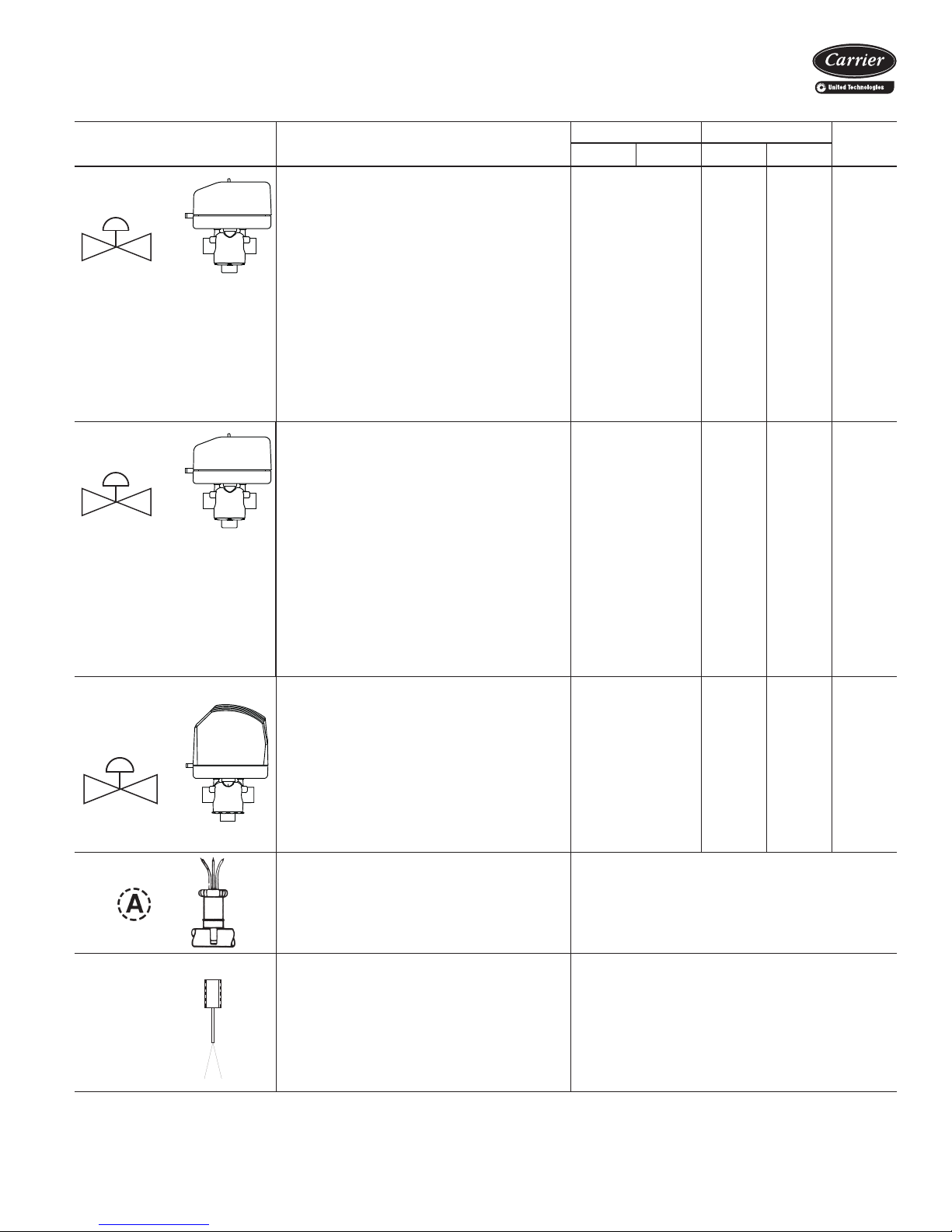

MODULATING VALVE (Optional) (Non-Spring Return, Floating Point Actuator): Modulating valves are designed to con-

trol the flow in the circuit by making incremental adjustments to the flow path within the valve.

Application — To control fluid flow in fan coil units.

On the 42DD,SG,SJ,SH commercial fan coil models, the factory provided modulating valve has application restrictions. In these models, the valve packages are located in the airstream, downstream of the coil. Due to the ambient temperature limitations of the modulating valves, the valves can only be used in the units listed above with 2-pipe cooling only systems.

MODULATING VALVE (Optional) (Non-Spring Return, Proportional Type Actuator): Modulating valves are designed to

control the flow in the circuit by making incremental adjustments to the flow path within the valve.

Application — To control fluid flow in fan coil units.

On the 42DD,SG,SJ,SH commercial fan coil models, the factory provided modulating valve has application restrictions. In these models, the valve packages are located in the airstream, downstream of the coil. Due to the ambient temperature limitations of the modulating valves, the valves can only be used in the units listed above with 2-pipe cooling only systems.

MODULATING VALVE (Requires ETO) (Spring Return): Modulating valves are

designed to control the flow in the circuit by making incremental adjustments to the flow path within the valve. Application — Same comments as non-spring return except when powered, the actuator moves to the desired position, at the same time tensing the spring return system. When power is removed for more than two minutes the spring returns the actuator to the normal position.

AQUASTAT: Water temperature sensing electrical switch. (Line Voltage Controls)

Application — Clips directly on nominal

1

size

/2 in. or 3/4 in. copper tubing for water temperature sensing. Must be correctly located for proper control operation.

FACTOR RATING*

C

V

1

/

2

3

/

4

PSI F

4.0 300 200 N/A

4.0

300 200

STEAM

USE

N/A

CHANGEOVER SENSOR: Water temperature sensor thermistor.

Application — Sensor shall clamp on the outside diameter of the pipe. Sensor plate shall bend to allow its radius to be adjusted to fit the pipe. Sensor shall be secured to the pipe with mounting clamp. Insulate the mounting location of sensor on the pipe.

LEGEND *Check all system component pressure ratings (coils, values, pumps,

Cv — Coefficient of Velocity DX — Direct Expansion ETO — Engineering to Order

etc.) with manufacturer and any applicable local or national piping codes prior to specifying system pressure rating.

27

a42-213tf

Application data (cont)

Valve packages

There are limitations on physical size of pneumatic valves, quantity and type of matching components, and required control interface. See Symbols and Placement of Valves diagram.

Consult factory before ordering any special valve pack-

age components that are not covered in this book.

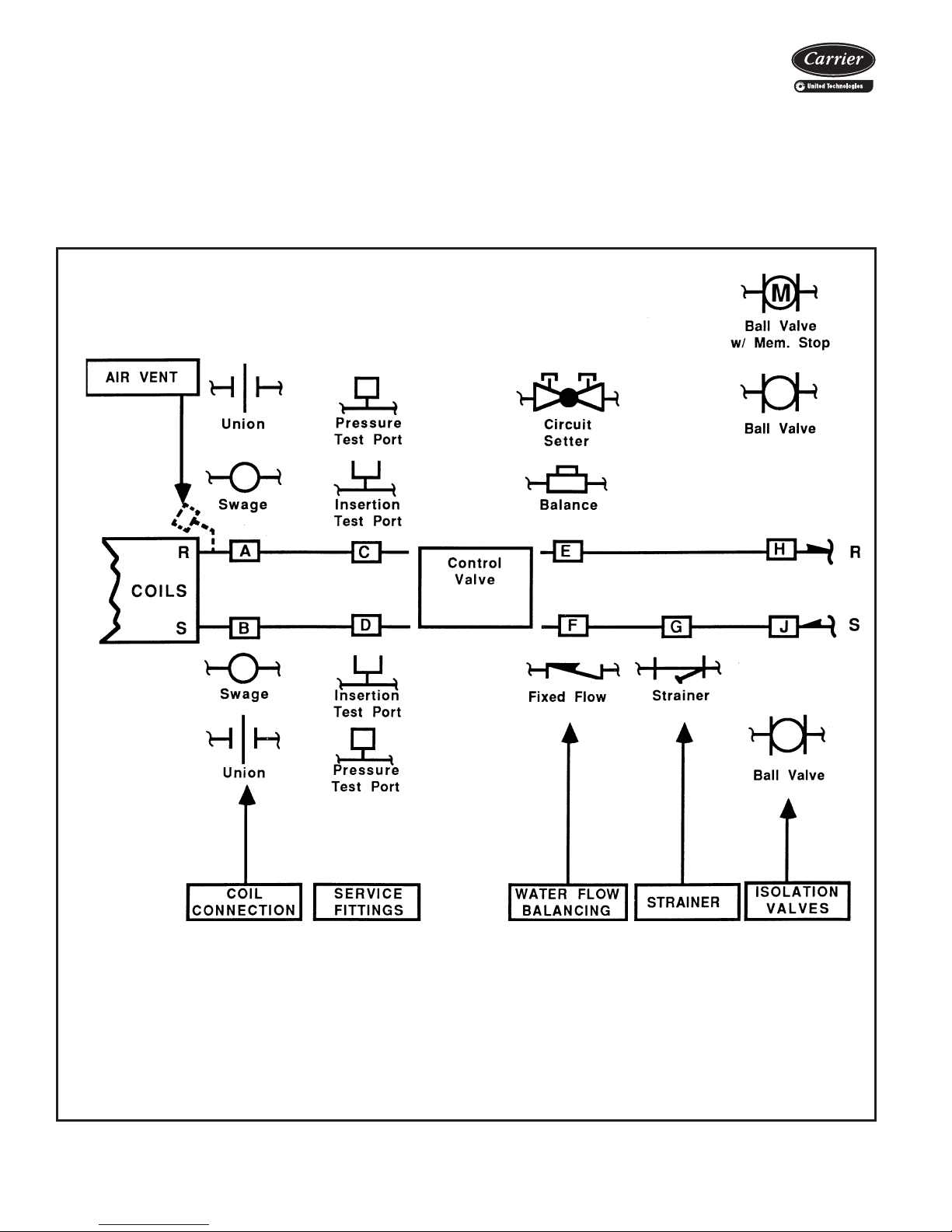

SYMBOLS AND PLACEMENT OF VALVES

Valve packages are shipped with the units or in unit cartons. Valve packages include belled ends for field soldering to coil connections.

All factory-furnished cooling valve packages are arranged to position as much of the package as possible over an auxiliary drain pan or drip lip. This helps minimize field piping insulation requirements.

a42-4222

Coil Connections (Positions A & B) — When isolation valve only is added to supply or return line, the isolation valve will be factory brazed to the coil stub-out. Addition of any other component or connection to the supply or return line will change the respective coil connection(s).

Service Fittings (Positions C & D) — Optional fittings for attaching pressure/temperature sensing devices to obtain pressure drop or temperature differential across coil. Used with ball valve or balance valve where extremely accurate water flow balancing is required.

Water Flow Balancing (Positions E, F, & H) — Only one device per total valve package to be used for balancing water flow through the coil. When isolation valve (ball valve or ball valve with memory stop at position H) is used for water flow balancing, do not specify additional balancing device at position E or F. When balancing device is specified at position E or F, isolation valve does not require balancing feature at position H (with a 3-way motorized valve, a bypass balancing valve may be specified in the bypass line to permit equal flow balancing).

Strainer (Position G) — Does not include blow down fitting and should not be used in lieu of main piping strainers. Isolation Valves (Positions H & J) — Normally requires one each on supply and return line (see exception under circuit setter). When

position H is used for balancing (ball valve or ball valve with memory stop), check specifications for service valve requirements.

28

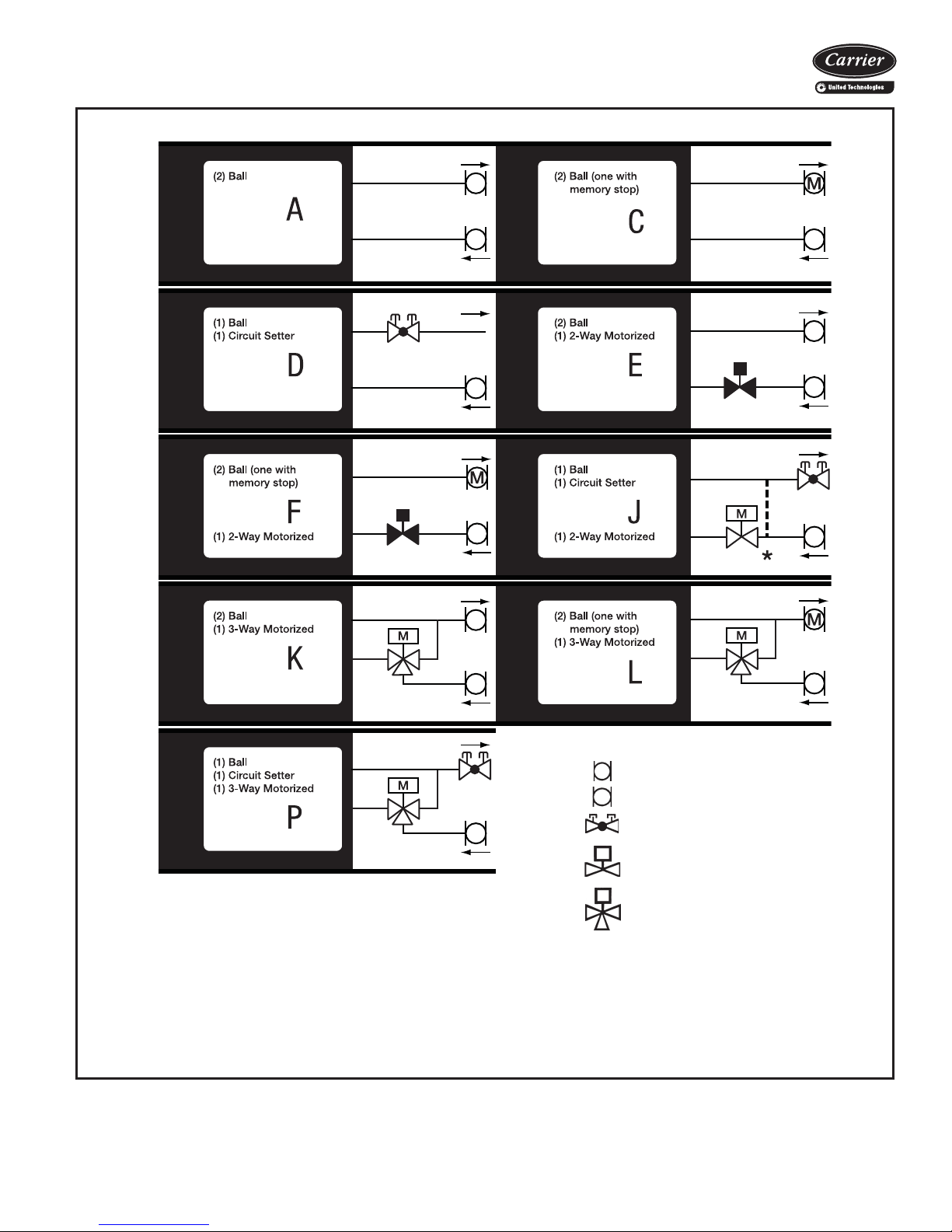

VALVE PACKAGE ARRANGEMENTS

a42-3988

LEGEND

Ball Valve

M

Ball Valve with Memory Stop

Circuit Setter

M

Motorized 2-Way Valve

M

Motorized 3-Way Valve

*When aquastat is used for automatic changeover, bypass is required as

indicated by dashed line.

NOTES:

1. Packages factory furnished and field installed (except 42S units).

2. Valves are

3. If an automatic flow control valve is added, it will be located on supply line between shutoff valve and coil (or motorized control valve, if supplied).

4. Packages 17-A,C,D,E,F,J,K,L, and P are listed on current price pages.

5. Modulating control valve is installed in return line (not shown).

5

/8-in. ODS unless otherwise specified.

29

Application data (cont)

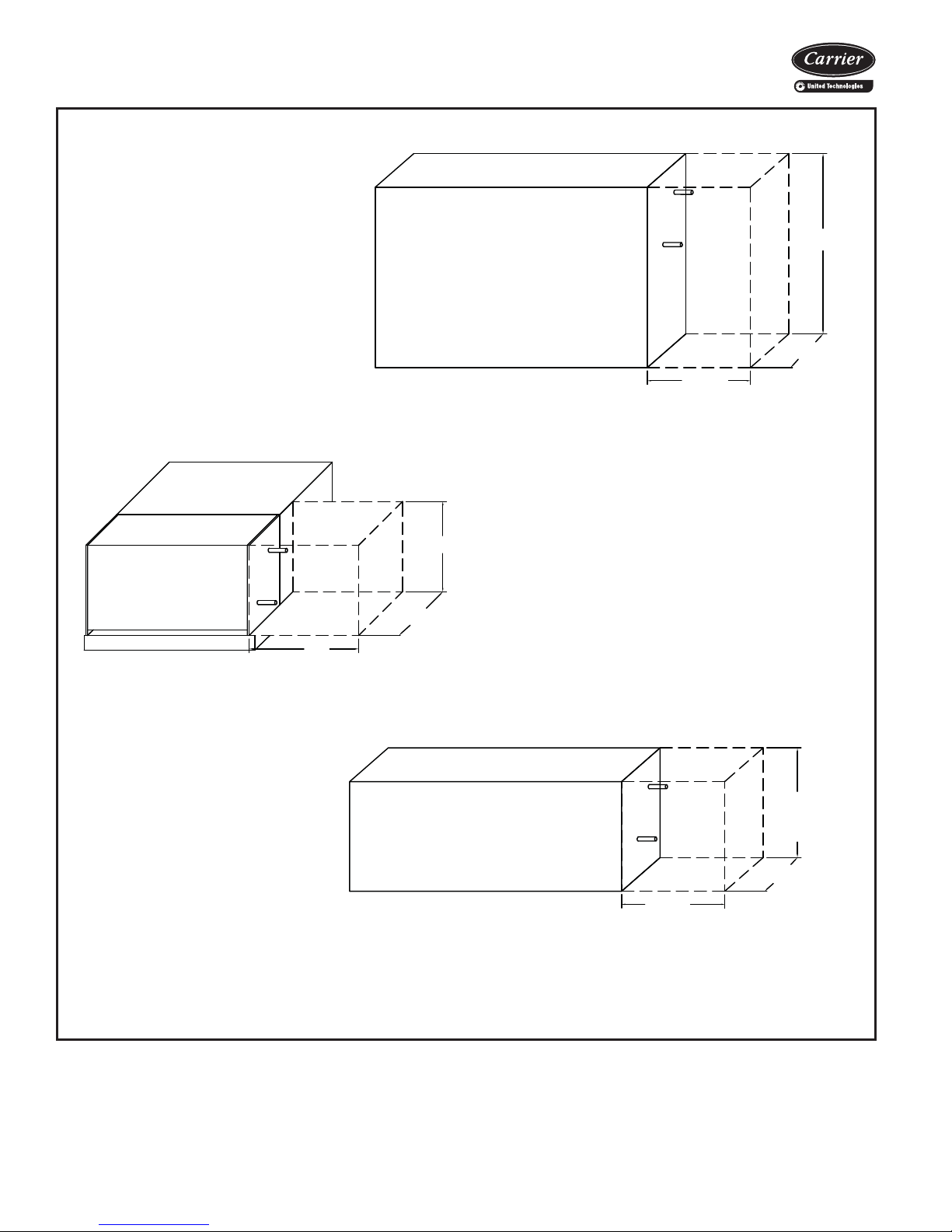

VALVE PACKAGE SPACING RECOMMENDATIONS

PLENUM

CABINET

42VAA (SEE NOTE 3)

25"

VALV E

PACKAGE

AREA

9-1/4"

9-1/2"

COIL

VALV E

PACKAGE

AREA

DRAIN PAN

42CEA, DCA (SEE NOTES 1, 2)

NOTES:

1. Valve package dimensions on ceiling models are based on a 4-pipe unit with (1) 3-way control valve, (1) ball valve, and (1) circuit setter.

2. Coil height dimensions on 42CEA and 42DCA are provided in the physical data section of the product data.

3. Valve package dimensions on floor units are based on the valve package space provided on the exposed floor models.

4. Height of the 42VCA is 16 on coil and electric heat selection.

3

/8 in. depending

24"

HEIGHT OF COIL

18"

CABINET

42VCA (SEE NOTES 3, 4)

VALV E

PACKAGE

AREA

9-1/2"

A42-4263

14-3/8"

(SEE

NOTE 4)

12-1/4"

30

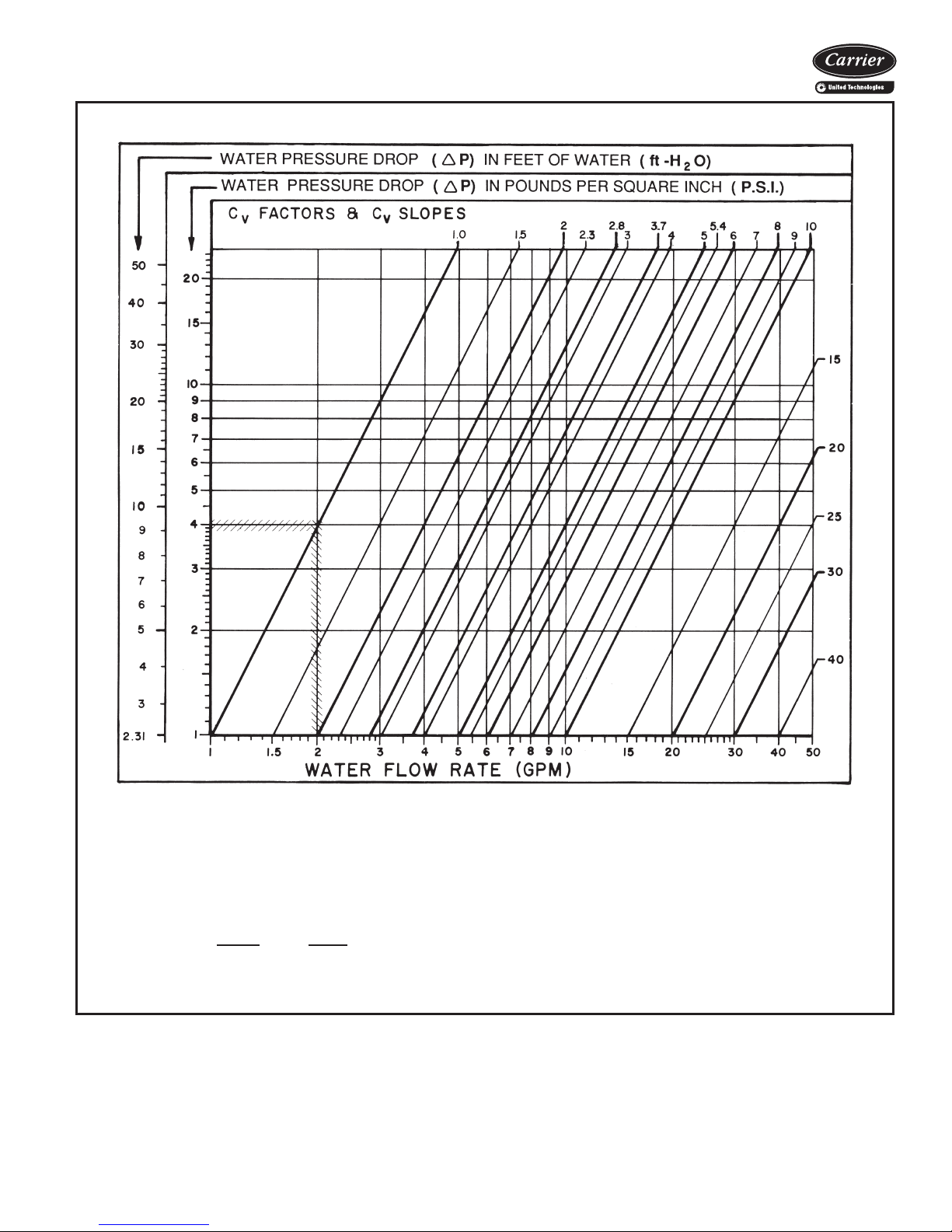

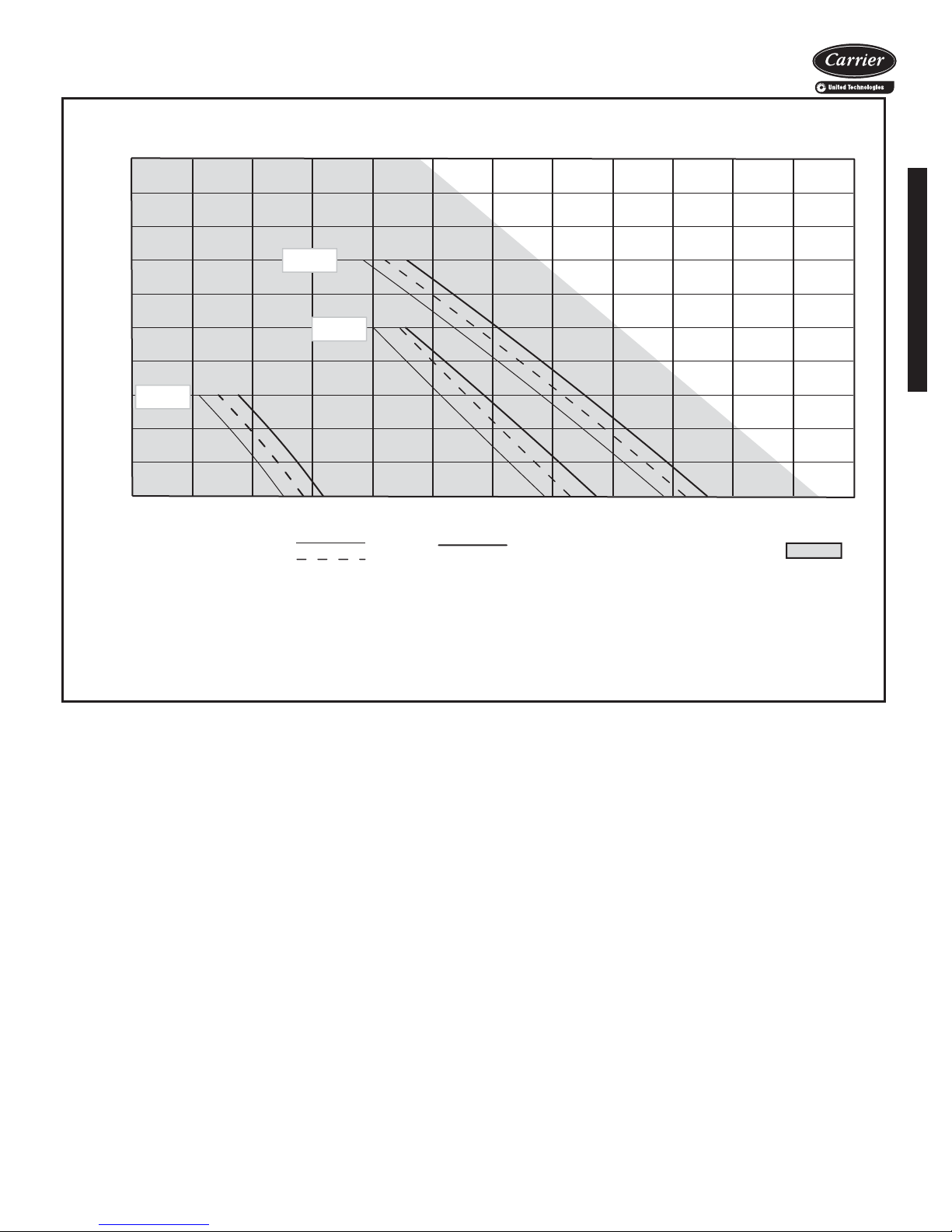

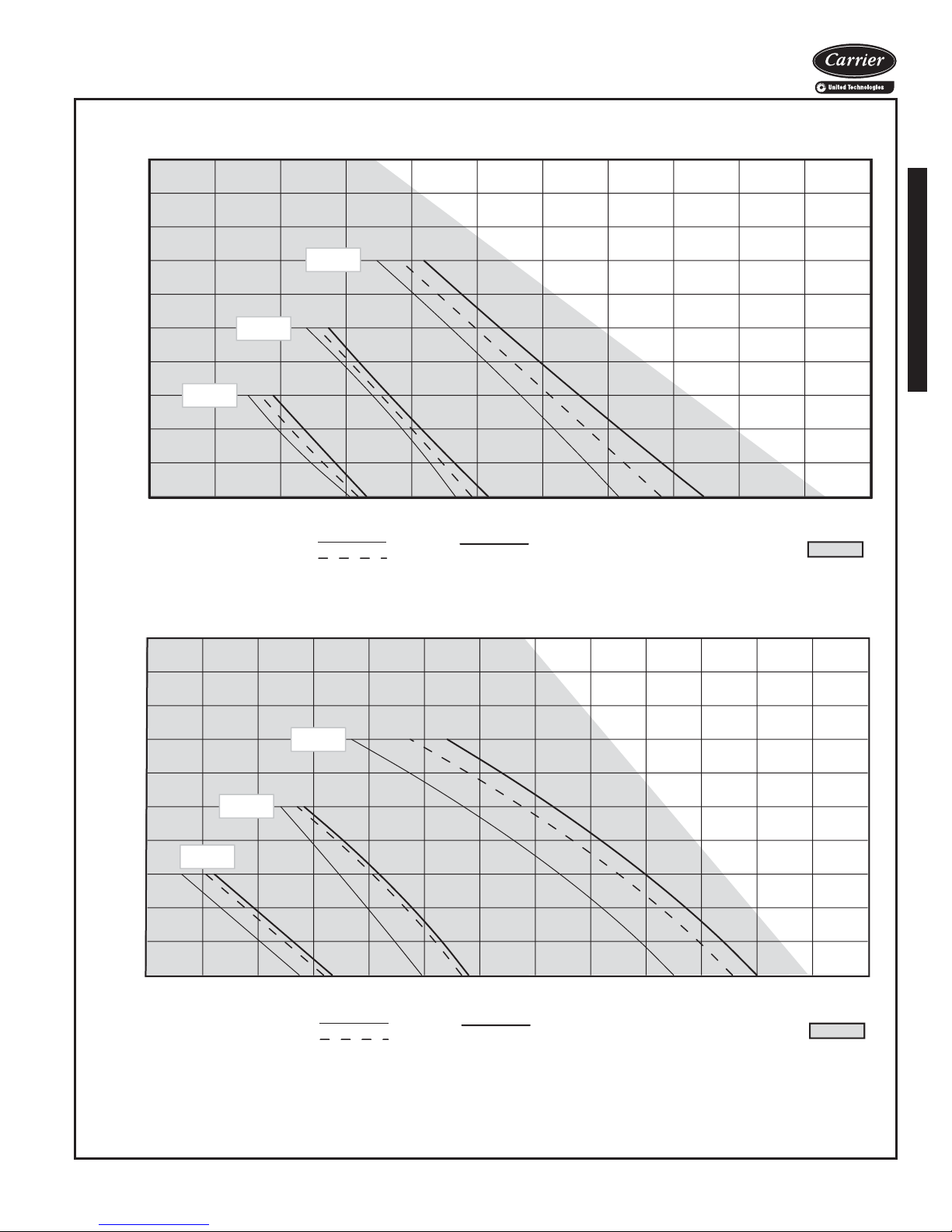

Cv FACTOR VS WATER PRESSURE DROP

CV FACTO R :

The flow rate in gallons per minute (gpm) through a piping component when the pressure drop ('P) in pounds per square inch (psi) across the component is 1.0 (psi).

Pressure drop (ft-H

O) = 2.31 x psi (pressure drop)

2

GRAPH EXAMPLE:

'P for 2.0 gpm through a component with a C

FORMULA EXAMPLE:

'P (ft-H

O) =

2

(gpm)

(C

v

2

)

x 2.31 =

(2.0) (1.0)

2

TOTAL PRESSURE DROP is the Sum of the pressure drop of all piping and components in the water flow path.

of 1.0 is 4.0 psi x 2.31 = 9.24 ft-H2O

V

2

x 2.31 = 9.24 ft-H2O

2

31

Application data (cont)

ENTHALPY AT SATURATION

TEMPERATURE

(F)

40 15.230 60 26.46 41 15.697 61 27.15 42 16.172 62 27.85 43 16.657 63 28.57 44 17.149 64 29.31 45 17.650 65 30.06 46 18.161 66 30.83 47 18.680 67 31.62 48 19.211 68 32.42 49 19.751 69 33.25 50 20.301 70 34.09 51 20.862 71 34.95 52 21.436 72 35.83 53 22.020 73 36.74 54 22.615 74 37.66 55 23.22 75 38.61 56 23.84 76 39.57 57 24.48 77 40.57 58 25.12 78 41.58 59 25.78 79 42.62

ENTHALPY AT

SATURATION

(Btu per lb

of dry air)

ALTITUDE COOLING CORRECTION FACTORS

ELEVATION (ft) TOTAL HEAT SENSIBLE HEAT

Sea Level 1.00 1.00

1000 .990 .960 2000 .980 .930 3000 .970 .896 4000 .960 .864 5000 .940 .830 6000 .930 .800 7000 .920 .770 8000 .910 .750 9000 .900 .730

TEMPERATURE

(F)

80 43.69

ENTHALPY AT

SATURATION

(Btu per lb

of dry air)

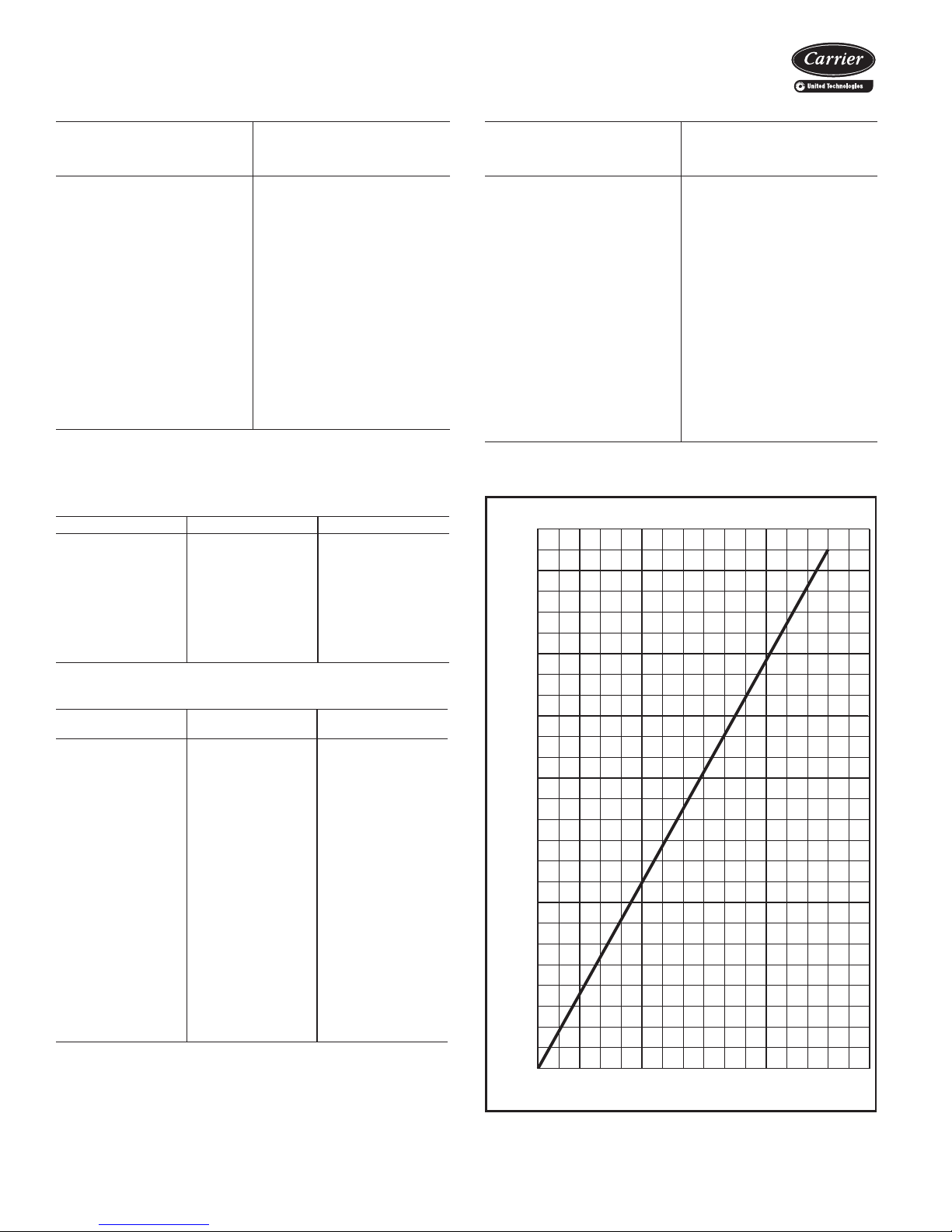

THERMAL EXPANSION OF COPPER RISERS

300

275

250

AIRFLOW CORRECTION FACTORS

CFM RATIO

(Actual/Base)

1.40 1.25 1.26

1.35 1.22 1.23

1.30 1.19 1.20

1.25 1.16 1.17

1.20 1.13 1.14

1.15 1.10 1.11

1.10 1.07 1.08

1.05 1.04 1.04

1.00 1.00 1.00

0.95 0.97 0.97

0.90 0.94 0.93

0.85 0.90 0.89

0.80 0.86 0.85

0.75 0.82 0.81

0.70 0.78 0.77

0.65 0.74 0.72

0.60 0.70 0.67

0.55 0.66 0.62

0.50 0.62 0.57

0.45 0.58 0.52

0.40 0.53 0.47

0.35 0.48 0.42

0.30 0.43 0.38

0.25 0.38 0.33

LEGEND

CFM — Cubic Feet per Minute Cs — Sensible Airflow Correction Factor Ct — Total Airflow Correction Factor

TOTAL (Ct) SENSIBLE (Cs)

225

200

175

150

125

100

75

MAXIMUM WATER TEMPERATURE DIFFERENCES (ºF)

50

25

0

.000 .005 .030.025.020.015.010 .035

EXPANSION (INCHES PER FOOT)

32

Electric heat

Electric heaters are available for installation on Carrier fan coil units in the following applications.

Total electric heat — This system provides complete heating during the heating season; no boiler is required. Heating and cooling are now available on an individual basis throughout the year with a 2-pipe system.

Chilled water is used for cooling and the electric heater is used for heating. Individual room controls can be supplied for either manual or automatic changeover.

Auxiliary electric heat — This system is used for heating between seasons or during the cooling season when chilled water is being circulated. Individual room controls are supplied to provide electric heat only when chilled water is being circulated through the system. Water flow through the unit is shut off when the heater is turned on.

During the winter heating season, heating is provided by hot water circulated through the system. A changeover device locks out the electric heat when the hot water is circulated.

Heater construction

Strip heaters are used with Model 42C ceiling units,

Model 42D ducted units, Model 42S stack units and Model 42V (except 42VC and VE).

These heaters consist of coils of the highest grade resistance wire, insulated by ceramic insulators on plated steel brackets. High limit thermal cutouts protect the unit in the event of airflow loss.

All heaters except those used in 42S stack units are positioned on the incoming (preheat) side of the unit coil. On 42S stack units, the strip heater is located in the fan discharge on the leaving side of the coil.

Sheath heaters are used with Model 42VC and 42VE vertical units. There heaters consist of the highest grade resistance wire, centered in a

1

/2 in. diameter copper plated steel sheath. The wire is insulated from the sheath by magnesium oxide powder packed around it. To increase the heater surface exposed to air, a 1

1

/4 in. OD fin of copper plated steel is wound around the sheath in a spiral that makes 5 turns per linear inch. Sheath and fin are permanently bounded together by copper brazing. The heaters are positioned on the leaving (rehead) side of the unit coil.

Heater electrical data

1. Load voltage may be 120, 208, 240 or 277 volts. For

unit size and kW limitations, refer to the specific unit catalogs.

2. All heaters are single stage and single phase except for

42SM, which offers 2-stage electric heaters.

3. Unless a single power-source option is selected, the

electric heat units require 2 separate power sources. With the single power-source option, only one line circuit need be brought into the unit. Fuse protection is added to the motor/control circuit to protect these components. This is separate from the field-furnished total unit overcurrent protection.

MODEL 42C CEILING UNIT WITH ELECTRIC STRIP HEATER

33

Application data (cont)

42C SERIES

HEATER ELECTRICAL DATA

HEATER

VOLTAGE

120

208

240,277

HEATER

VOLTAGE

120

208,

240

277

NOTE: All heaters are single-stage and single-phase. Contact your Carrier representative for heater availability for 220-1-50 units.

CAPACITY

kW

10.0 34,150 *

kW

1.0 3,415 ****

1.5 5,123 * * *

2.0 6,830 * * *

3.0 10,245 * * * *

1.0 3,415 ****

1.5 5,123 * * *

2.0 6,830 * * *

3.0 10,245 * * * *

4.0 13,660 * * *

1.0 3,415 ****

1.5 5,123 * * *

2.0 6,830 * * *

3.0 10,245 * * * *

4.0 13,660 * * *

5.0 17,075 * *

6.0 20,490 *

(Btuh)

0.5 1,708 * *

1.0 3,415 *****

1.5 5,123 *****

2.0 6,830 *******

3.0 10,245 ******

0.5 1,708 * *

1.0 3,415 *****

1.5 5,123 *****

2.0 6,830 *******

3.0 10,245 ******

4.0 13,660 ****

5.0 17,075 ****

6.0 20,490 ****

8.0 27,320 * *

0.5 1,708 * *

1.0 3,415 * * *

1.5 5,123 * * *

2.0 6,830 *******

3.0 10,245 ******

4.0 13,660 ****

5.0 17,075 ****

6.0 20,490 ****

8.0 27,320 * *

CAPACITY

(Btuh)

02 03 04 06 08 10 12

42V SERIES

02 03 04 06 08 10 12

UNIT SIZE

42D SERIES

HEATER

VOLTAGE

120

208, 240,

277

NOTE: All heaters are single-stage and single-phase.

HEATER

VO LTAGE

120

208

240

277

NOTES:

1. Contact your Carrier representative for heater availability on 42SU unit quick ship program.

2. 12 kW heater only available with 277V heater voltage.

CAPACITY

kW

(Btuh)

2.0 6,830 * * *

3.0 10,245 * * *

2.0 6,830 * * *

3.0 10,245 * * *

4.0 13,660 * * * * * * * *

5.0 17,075 * * * * * * *

6.0 20,490 * * * * * * *

7.0 23,905 * * * * * *

8.0 27,320 * * * * *

9.0 30,735 * * * * *

10.0 34,150 * * * *

12.0 40,980 * * *

14.0 47,810 *

kW

03 04 06 08 10 12 14 16 20

1.0******

1.5******

2.0******

3.0******

1.0******

1.5******

2.0******

3.0******

4.0 ********

5.0 ****

6.0 *******

8.0 ******

1.0******

1.5******

2.0******

3.0******

4.0 ********

5.0 ****

6.0 *******

8.0 ******

10.0 *****

1.0******

1.5******

2.0******

3.0******

4.0 ********

5.0 ****

6.0 *******

8.0 ******

10.0 *****

12.0 * * *

06 08 10 12 14 16 18 20

42S SERIES

UNIT SIZE

34

ECM motor control methods

L2

LOW

MED

HIGH

VR1

VR2

VR3

K1

K2

K3

LOW

MED

HIGH

COM

C1

C2

C3

CR1

There are three main control methods to control the speed of electronically commutated motor (ECM) for desirable airflow for a given application.

3-discrete speed input, potentiometer field speed adjustment — This method uses the ECM with potenti-

ometer field adjustment. The relay board will have three main circuits for HI, MEDIUM, and LOW speed. Each of these speeds can be adjusted by potentiometer to any value in the motor’s operating range. This will allow the customization of air flow on each speed of the fan coil unit to better suit any requirements.

3-DISCRETE SPEED INPUT

4-discrete speed input, potentiometer field speed adjustment, solid state (only with 24-v controls by other option) — This is the same as 3-discrete speed in-

put but with additional fourth speed. All 4 speeds can be adjusted by potentiometer to any value in the motor’s operating range.

Control method no. 3 — ECM variable speed (only with 24-v controls by other option) — This method

requires 0 to 10-v signal for fan speed. It has no predetermined fan speeds and will ramp the motor fan speed according to the controller used on the fan coil unit. All ECM motor packages use a constant torque operating mode. An ETO request is required for pricing and availability of constant airflow operation.

4-DISCRETE SPEED INPUT

Neutral

24Vac

EVO/ECM

45pd-51

Status

Com

Flo0

FloCom

Flo1

Flo3Flo2

Flo4

+5V

Flo4

35

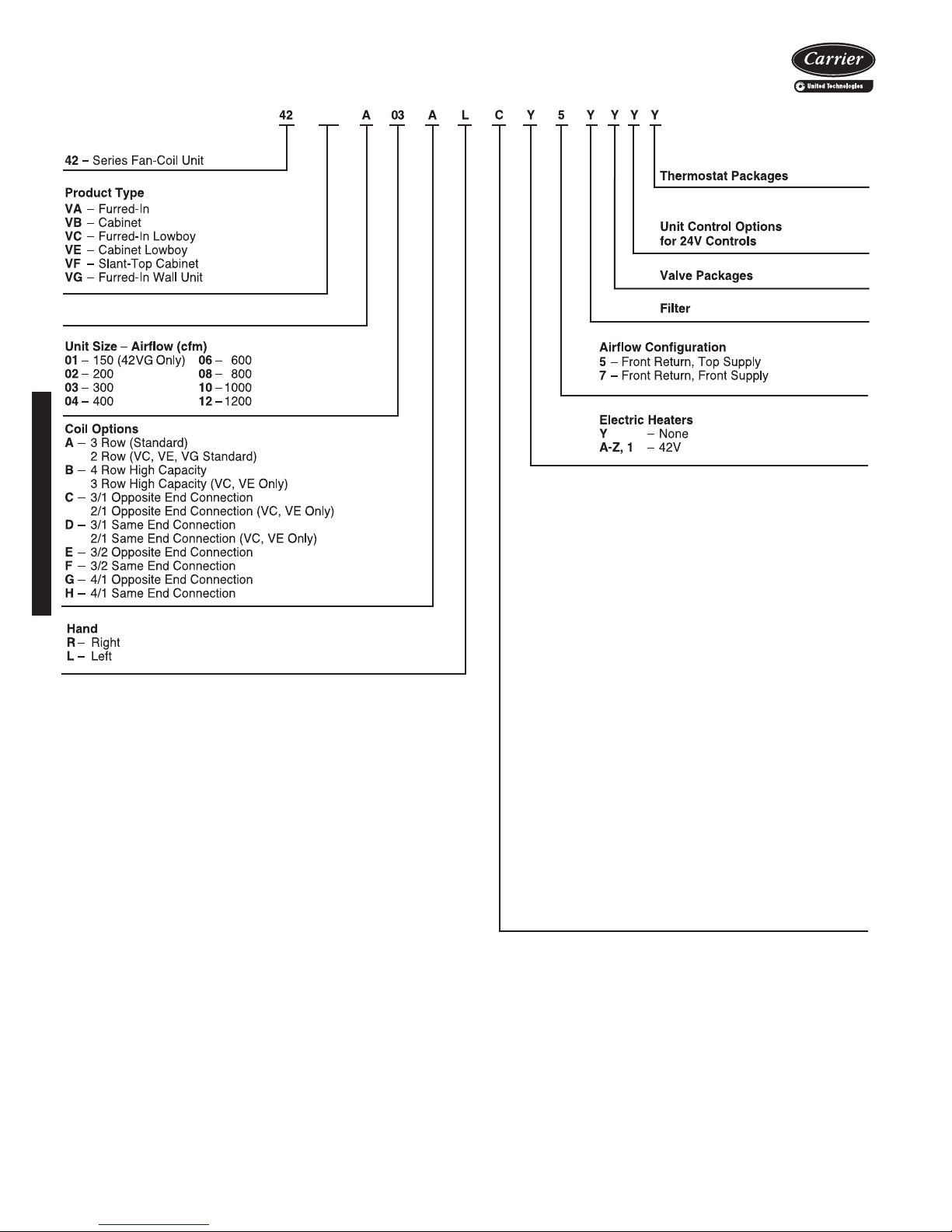

Model number nomenclature

42C Series Units

Design Series (A or B*)

* Model 42CG only. † Contact Application Engineering for data on the 50 Hz motor.

a42-4374

Motor Options 1 – 120-v High-Static Permanent Split Capacitor (HSPSC) 2 – 208/1/60 HSPSC 3 – 230/1/60 HSPSC 4 – 277/1/60 HSPSC A – 120-v Electonically Commutated Motor (ECM)

with Control Option 1

B – 120-v ECM with Control Option 2 C – 120-v Permanent Split Capacitor (PSC) (Standard) D – 208/1/60 PSC E – 230/1/60 PSC F – 277/1/60 PSC G – 120-v ECM with Control Option 3 H – 208-v ECM with Control Option 1 J – 208-v ECM with Control Option 2 K – 208-v ECM with Control Option 3 L – 230-v ECM with Control Option 1 M – 230-v ECM with Control Option 2 N – 230-v ECM with Control Option 3 P – 277-v ECM with Control Option 1 Q – 277-v ECM with Control Option 3 R – 277-v ECM with Control Option 2 V – 220/1/50 PSC†

Control Option 1 – 3-Discrete Potentiometer Field Speed Adjustment Control Option 2 – Variable Flow 0-10 VDC or 4-20 mA Control Option 3 – 4-Discrete Potentiometer Field Speed Adjustment

36

AHRI capacity ratings

42C Series Units

The 42C Series fan coil units are certified in compliance with the Air-Conditioning, Heating and Refrigeration Institute (AHRI) Industry Standard 440 for room fan coil units. Approved standard ratings are tabulated below.

AHRI APPROVED STANDARD RATINGS*

UNIT

42CA,CE,CG,CK

LEGEND

GPM — Gallons per minute MBtuh — Capacity (Btuh in thousands)

*Ratings based on motor at high fan speed, standard air and dry coil oper-

ation, 10° F water temperature rise; entering-air temperature 67 F wb; 80 F db; entering water temperature 45 F.

†Motor type permanent split capacitor operating at 115-1-60 voltage.

UNIT

SIZE

02 03 300 1.8 9.0 6.3 85 04 400 2.5 12.1 8.8 165 06 600 3.6 17.3 13.0 225 08 800 4.6 22.6 16.2 235 10 1000 5.5 27.5 21.0 305 12 1200 6.6 32.8 25.0 435

02 03 300 2.1 9.8 6.5 85 04 400 2.8 13.8 9.8 145 06 600 4.0 19.6 14.3 220 08 800 5.1 25.5 18.8 235 10 1000 6.2 31.0 22.0 300 12 1200 7.5 37.2 27.7 425

COIL

ROWS

3

4

NOMINAL

CFM

200 1.2 6.0 4.4 87

200 1.4 6.9 4.3 87

GPM

COOLING CAPACITY

Tot al

MBtuh

Sensible

MBtuh

POWER

INPUT (WATTS)†

37

Physical data

42C Series Units

UNIT SIZE 42C 02 03 04 06 08 10 12 NOMINAL AIRFLOW (cfm) 200 300 400 600 800 1000 1200 SHIPPING WEIGHT (lb)*

42CA 36 39 49 59 64 95 107 42CE 55 60 70 82 95 135 154 42CG 98 118 126 168 176 215 245 42CK 115 120 135 150 155 227 241

COIL WATER WEIGHT (Approx lb per row of coil) 42CA, CE, CG, CK 0.7 0.8 1.0 1.4 1.7 2.3 2.7

COILS FPI 10 fins/inch Coil Face Area (sq ft) 0.8 1.1 1.4 1.9 2.3 3.2 3.7

MOTOR (qty) 42C Series 111 1 122

BLOWER (qty) 42CA, CE, CG, CK 112 2 2 44

FILTERS Nominal Size (in.) (1-in. thick) 42CA NA NA NA NA NA NA NA 42CE† 10 x 18 10 x 22 10 x 28 10 x 33 10 x 40 10 x 54 10 x 62 42CG Bottom Return 10 x 23 Rear Return 8 x 231/ 42CK Bottom Return 10 x 28 10 x 28 10 x 33 10 x 45 10 x 45 10 x 62 10 x 62 Rear Return 7 x 21 7 x 21 7 x 27 7 x 38 7 x 38 7 x 52 7 x 52 Qty 111 1 111

SUPPLY DUCT COLLAR 1-in. PIPING CONNECTIONS (Sweat) (in.)

Coil Outlet and Inlet Drain Connection Tell-Tale Drain

*Calculate operating weight of unit: shipping weight + coil water

weight x number of coil rows.

†Filter size if located in return-air plenum.

1

/

2 2

10 x 28 10 x 321/

8 x 28 8 x 321/

2 2

10 x 37 10 x 41 10 x 541/

8 x 37 8 x 41 8 x 541/

5

/8 OD

7

/8 OD

5

/8 OD

10 x 63

2 2

8 x 63

38

1

2

3

1

(25)

3

(76)

B

A

2-1/4

(64)

1-1/8

(29)

6

(152)

1-1/2

(38)

D’

A’

5

4

E

MTG. HOLES

H

6

3/4

(19)

3/4

(19)

11

5

16

(406)

SUPPLY

AIR

F

G

7/8

(22)

7

10

8

9

17-1/2

(445) 8-3/8 (213)

1

(25)

Base unit dimensions

42C Series Units

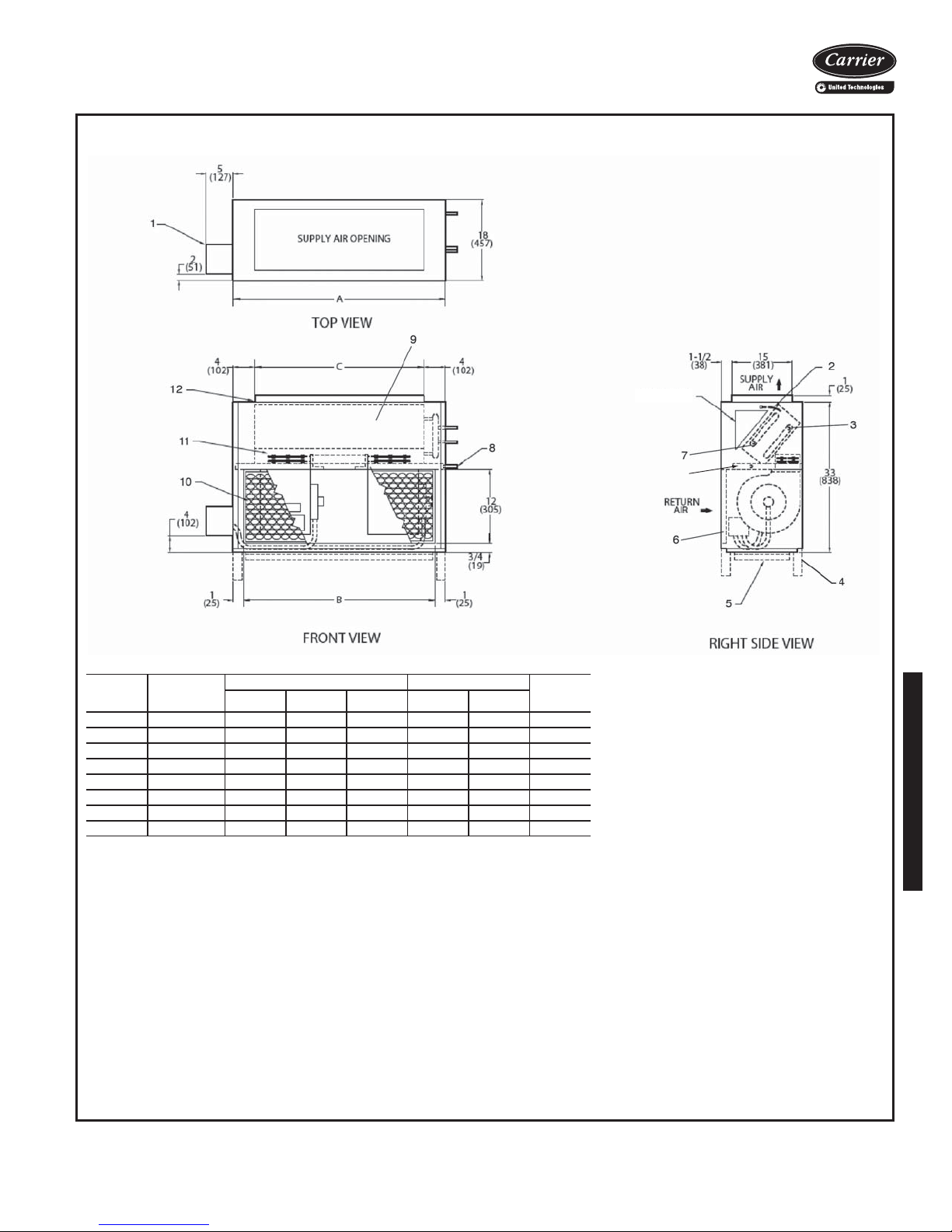

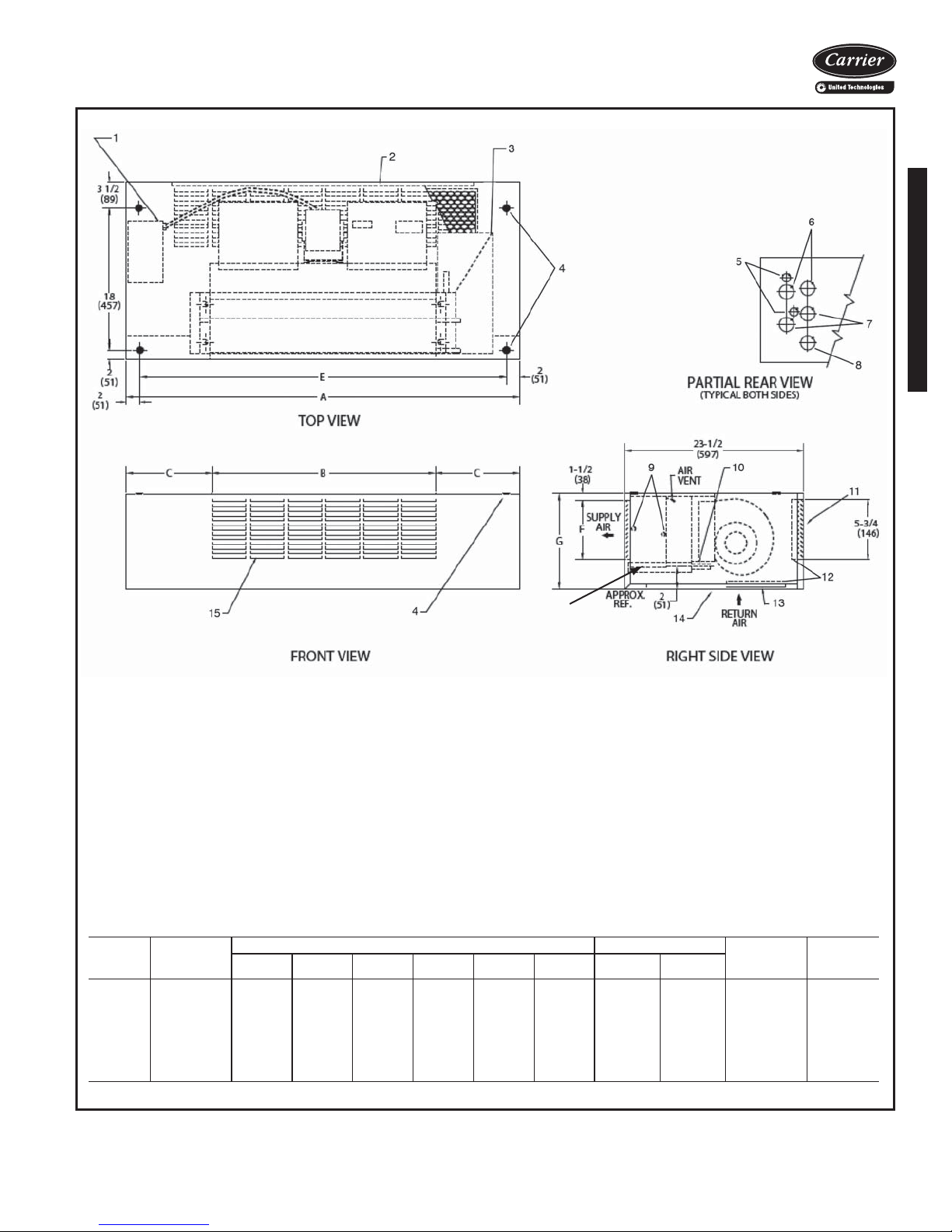

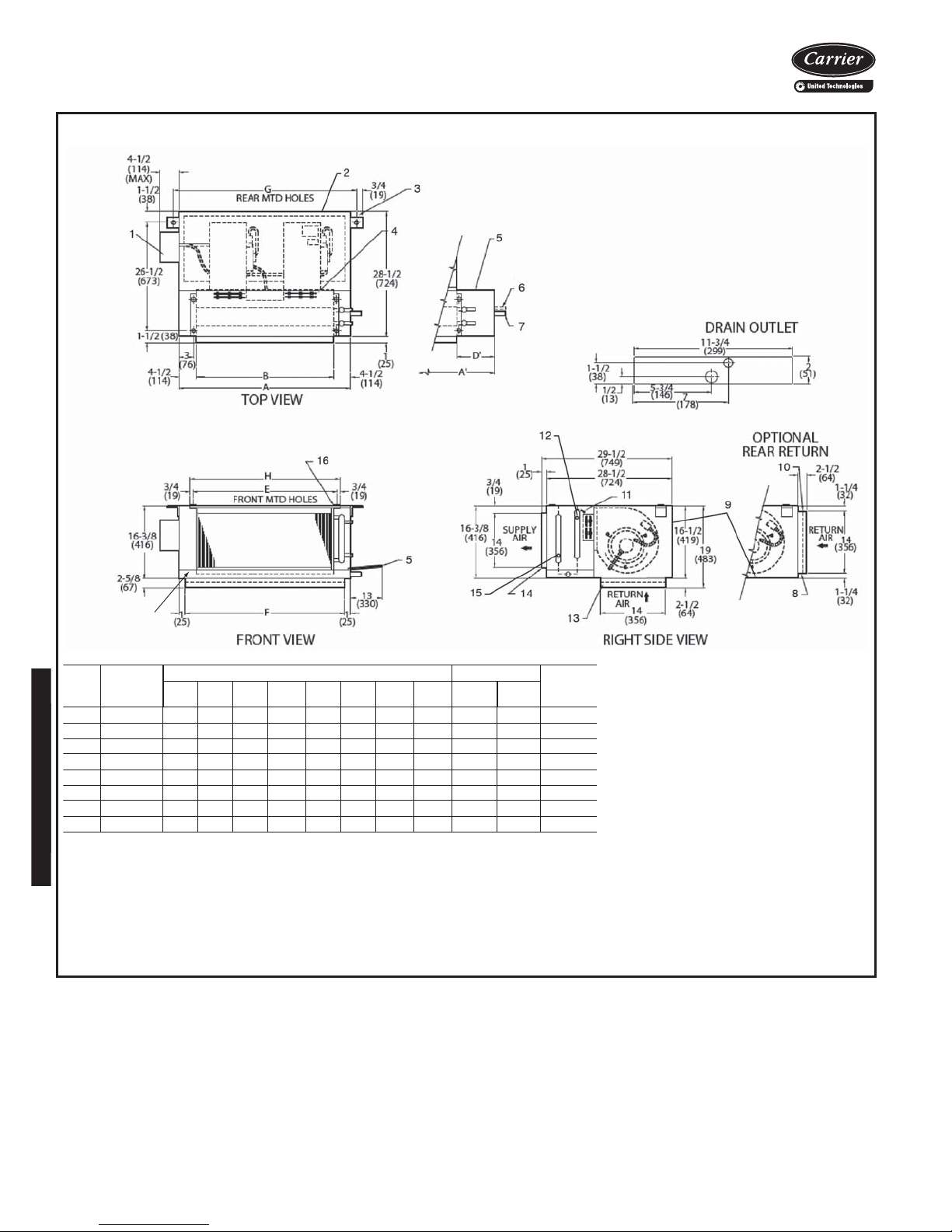

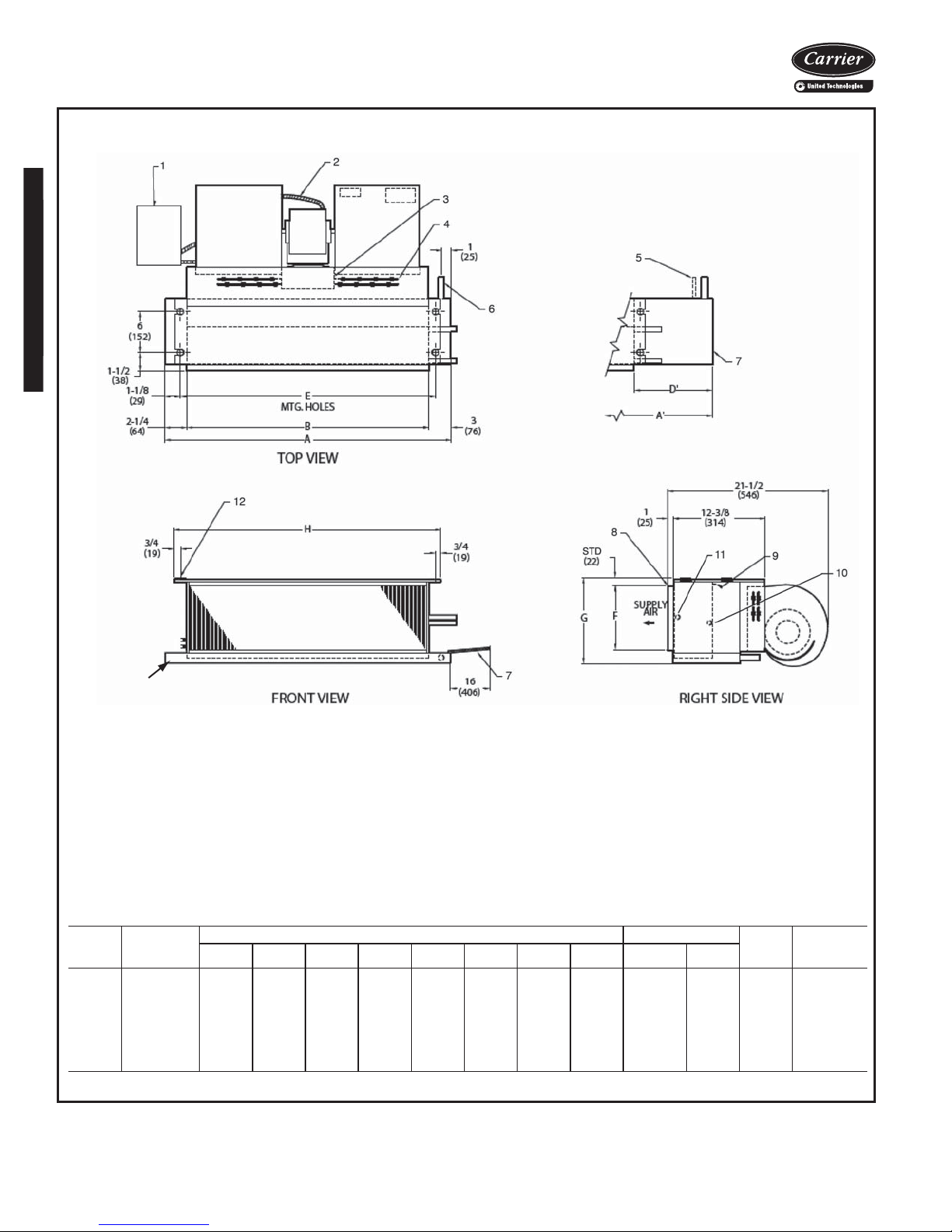

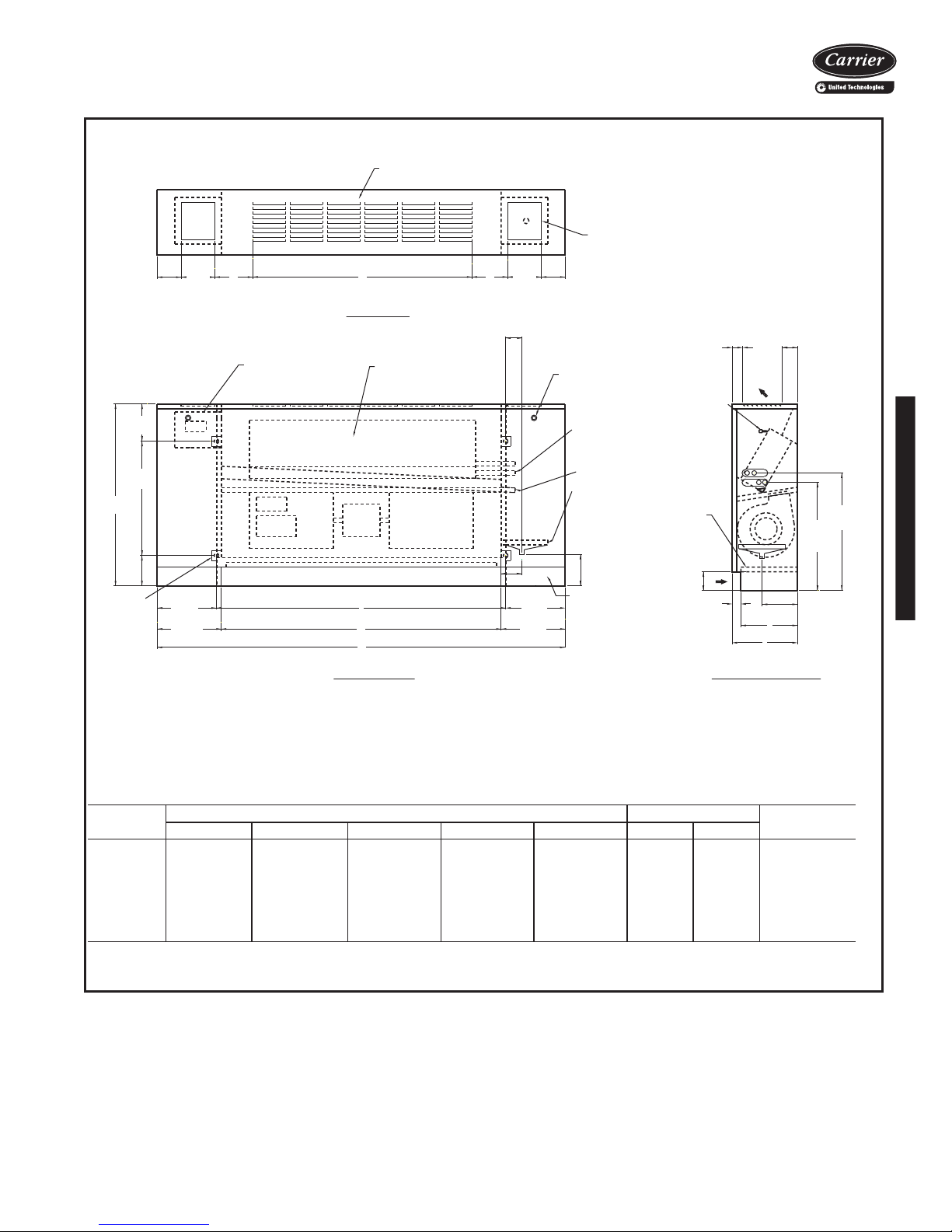

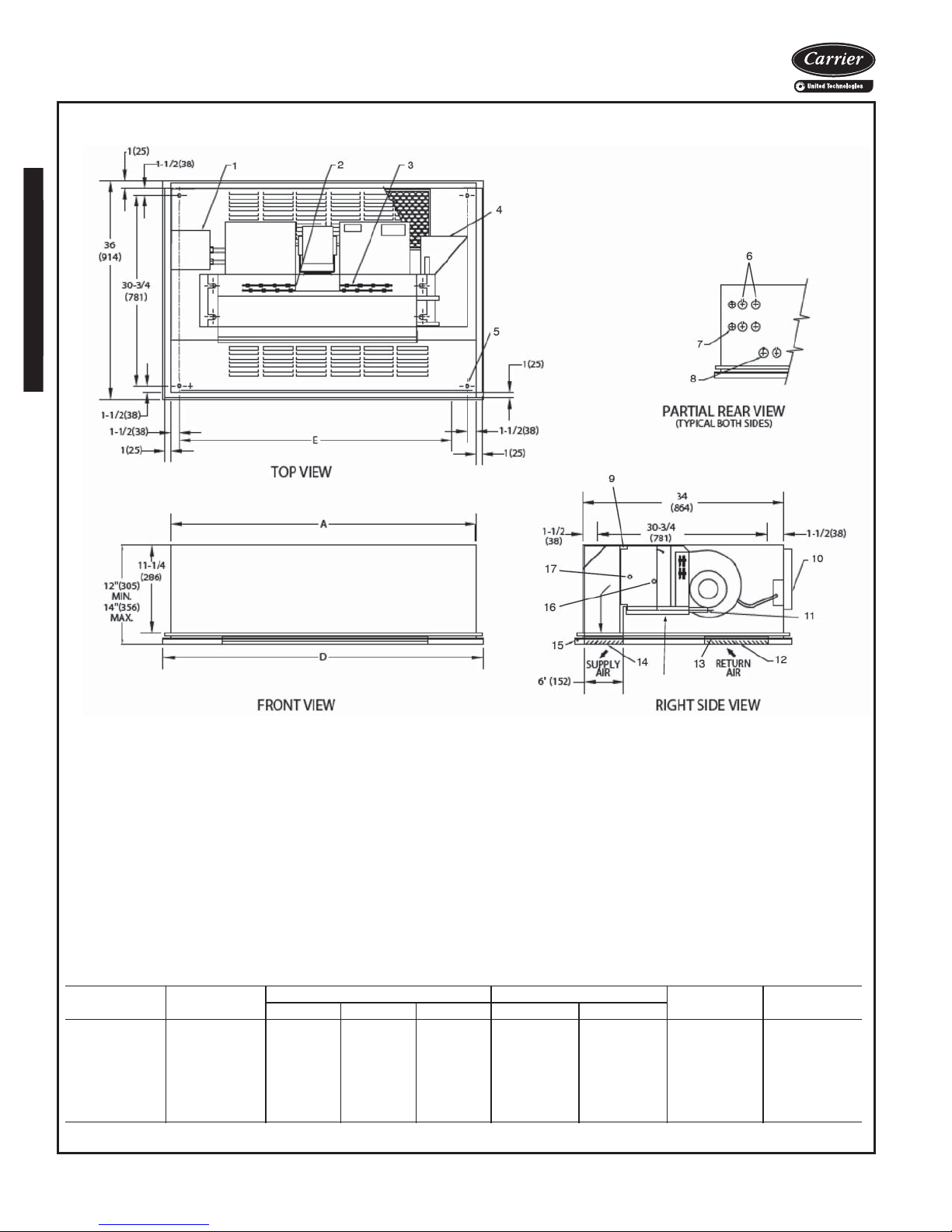

42CA FURRED-IN HORIZONTAL UNIT

LEGEND

1—Junction Box (remote mount) 2—Flexible Metal Conduit 3—Drain Conn, 4 — Tell-Tale Drain Conn, 5—Drip Lip (optional) 6—Hanger Slots (4), Rubber Grommet

has

7—Supply Duct Collar, 1-in. 8—Air Vent, 9—Return Conn, 10 — Supply Conn, 11 — Drain Pan

UNIT SIZE

NOM

AIRFLOW

(Cfm)

02 200 21 03 300 25 04 400 31 06 600 36 08 800 43 10 1000 57 12 1200 65

*Unit weights are based on dry coils and minimum rows. Weights exclude packaging, valves, and other components.

7

/8-in. OD

3

/8-in. Diameter Hole

1

/8-in. MPT

5

/8-in. OD

5

/8-in. OD

AA’BD’E F GH

1

/4311/

1

/4361/

1

/4431/

1

/4431/

1

/4571/

1

/4651/

1

/4751/

5

/8-in. OD (optional)

16 13 181/

4

20 14 221/

4

26 15 281/

4

31 10 331/

4

38 17 401/

4

52 11 541/

4

60 13 621/

4

DIMENSIONS (in.) QTY/UNIT FACE

NOTES:

1. Right hand unit shown; left hand unit opposite. Coil connection locations are ±

2. Unit sizes 02 and 03 have one motor, one blower; sizes 04 through 08 have one motor, 2 blowers; sizes 10 and 12 have 2 motors, 4 blowers.

3. Standard 3-row coil shown.

4. Overall unit dimension increases by 4 in. with optional electric heat.

5. Not shown: 3-speed fan switch; wall plate, closed cell foam on main drain pan.

6. Units have galvanized finish.

7. See 42CA-203-1 for optional coil connections.

8. Dimensions shown in inches (mm).

5

/8-inches.

61/

4

61/

4

61/

4

71/

4

71/

4

71/

4

71/

4

2

83/ 83/ 83/

193/

4

233/

4

293/

4

10 343/ 10 413/ 10 553/ 10 633/

4

a42-4099.eps

Blower Motor

1 1 0.83 36 1 1 1.08 39 2 1 1.35 49 2 1 1.88 59 2 1 2.31 64 4 2 3.16 95 4 2 3.65 107

AREA (sq ft)

UNIT

WEIGHT*

(lb)

39

13

Base unit dimensions (cont)

42C Series Units

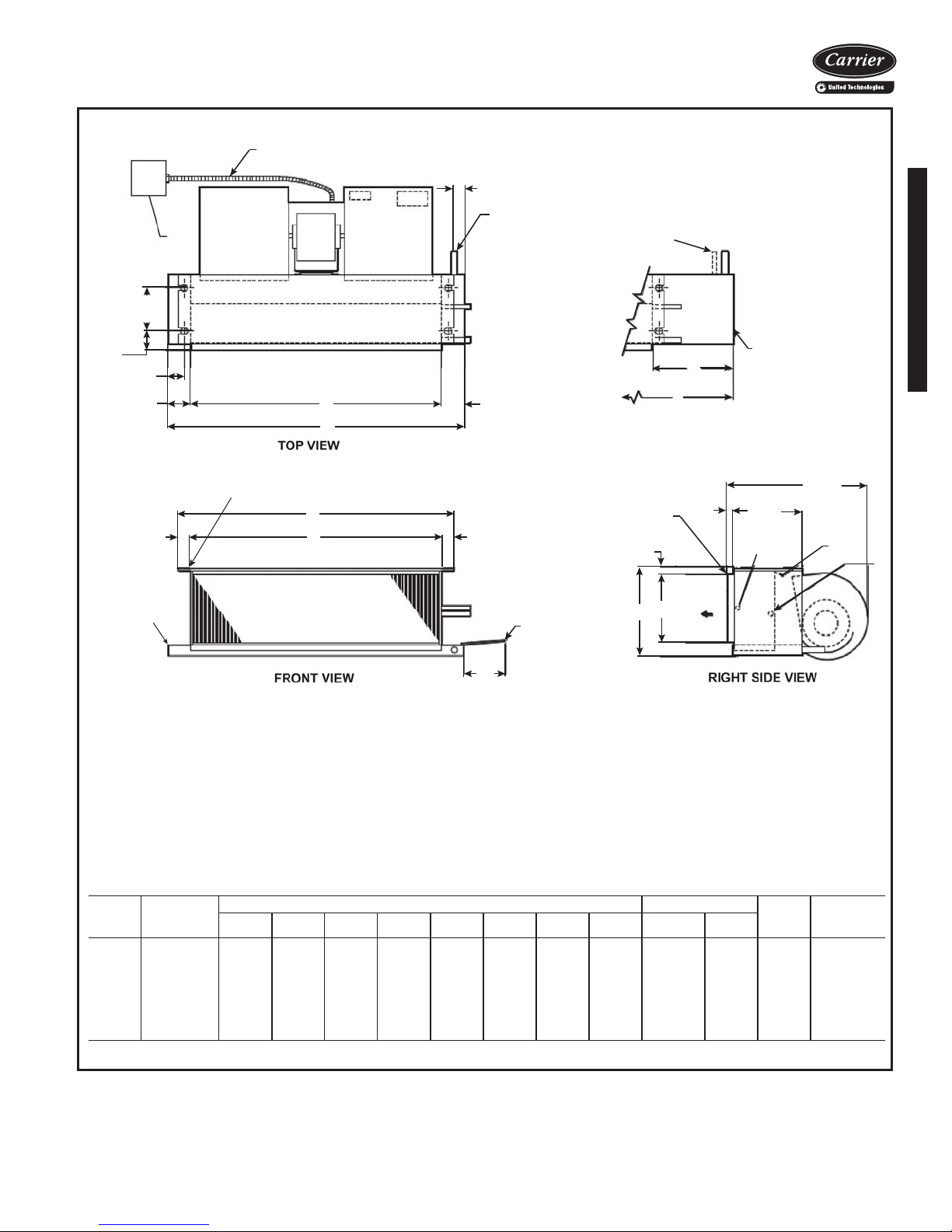

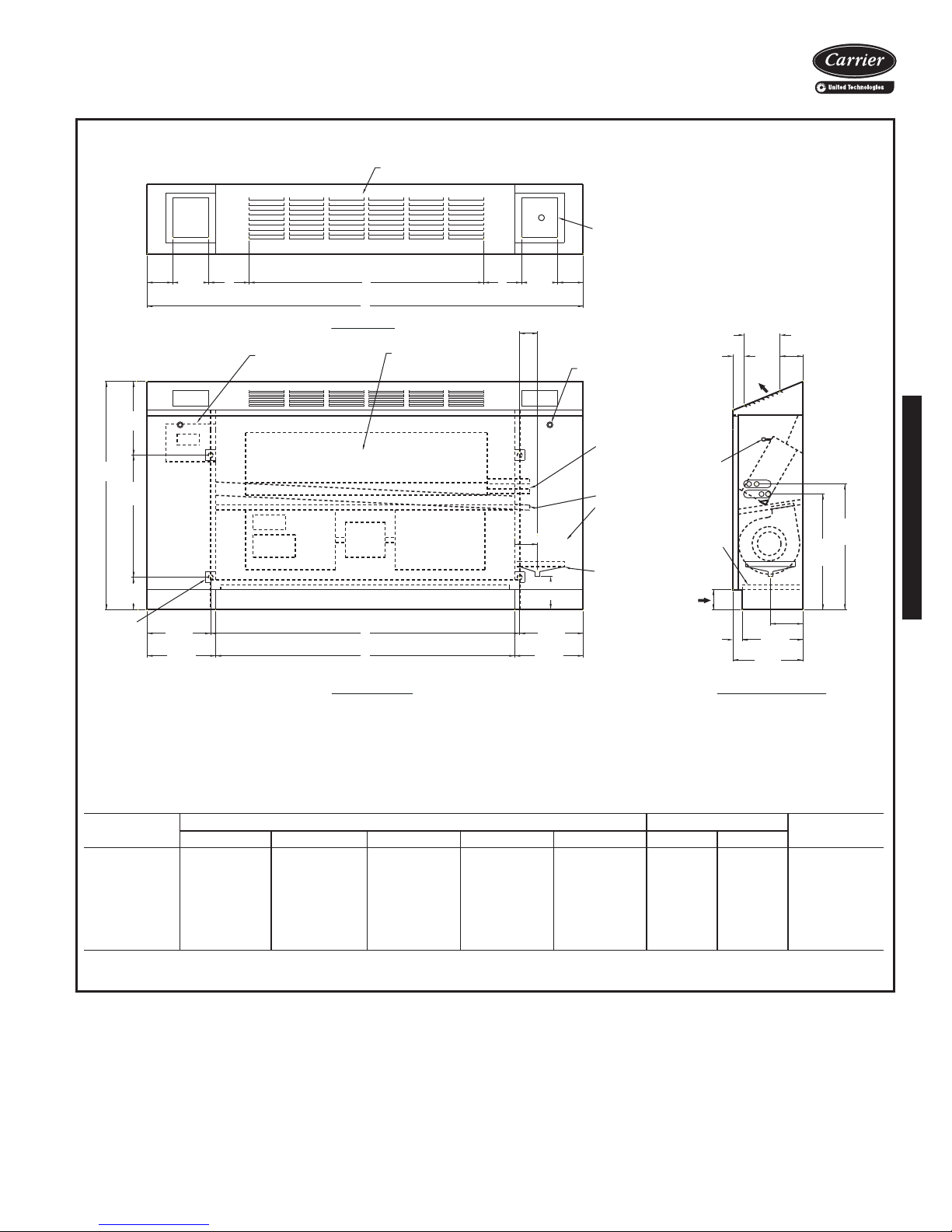

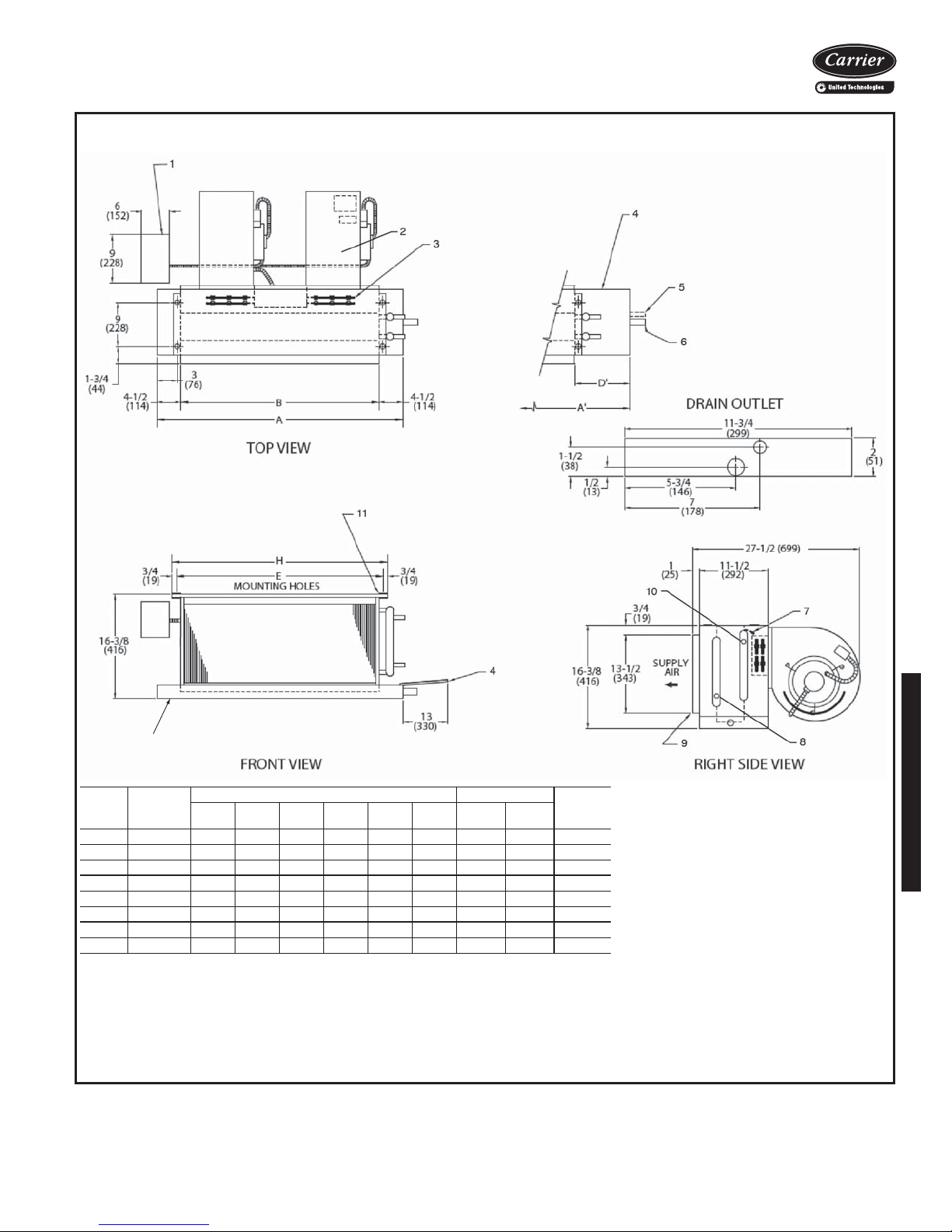

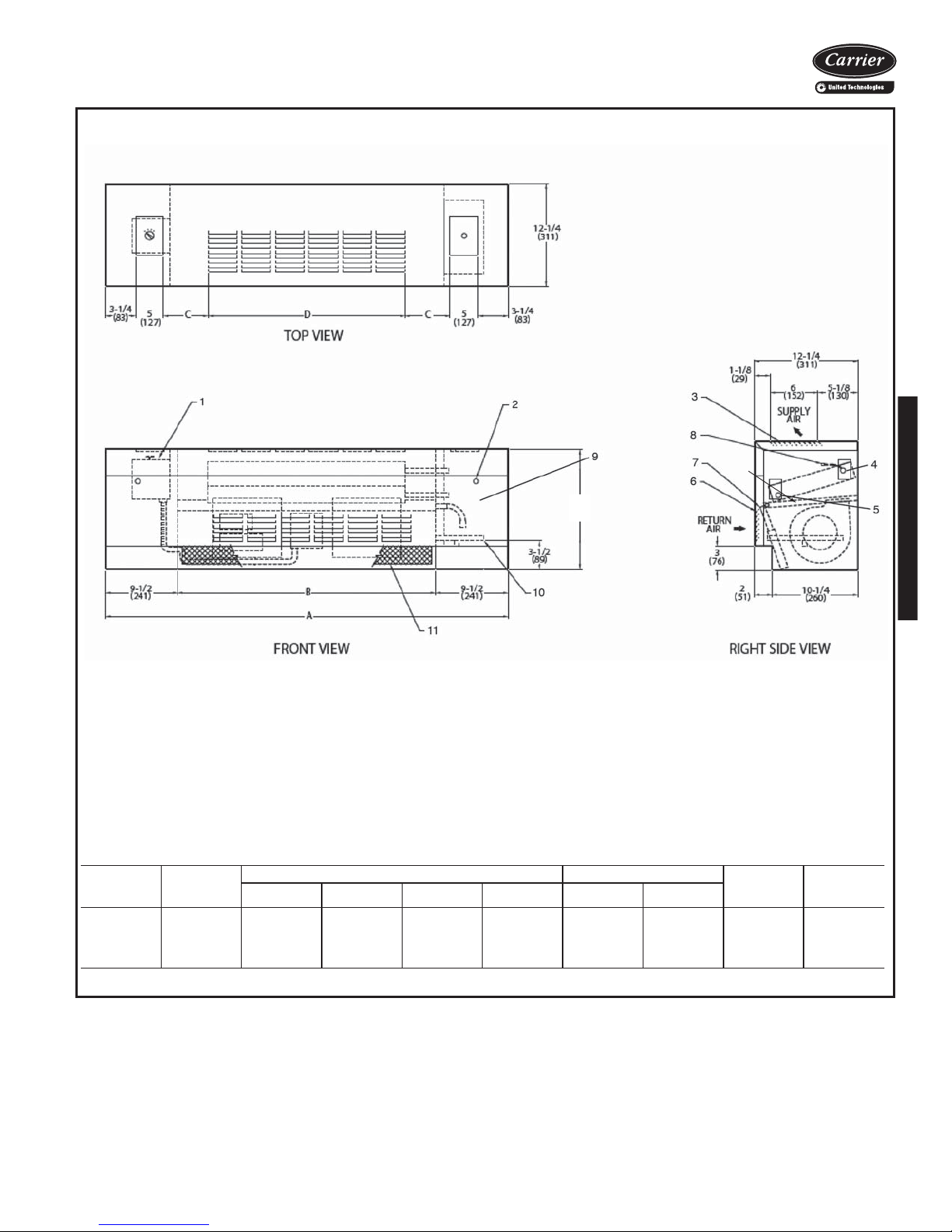

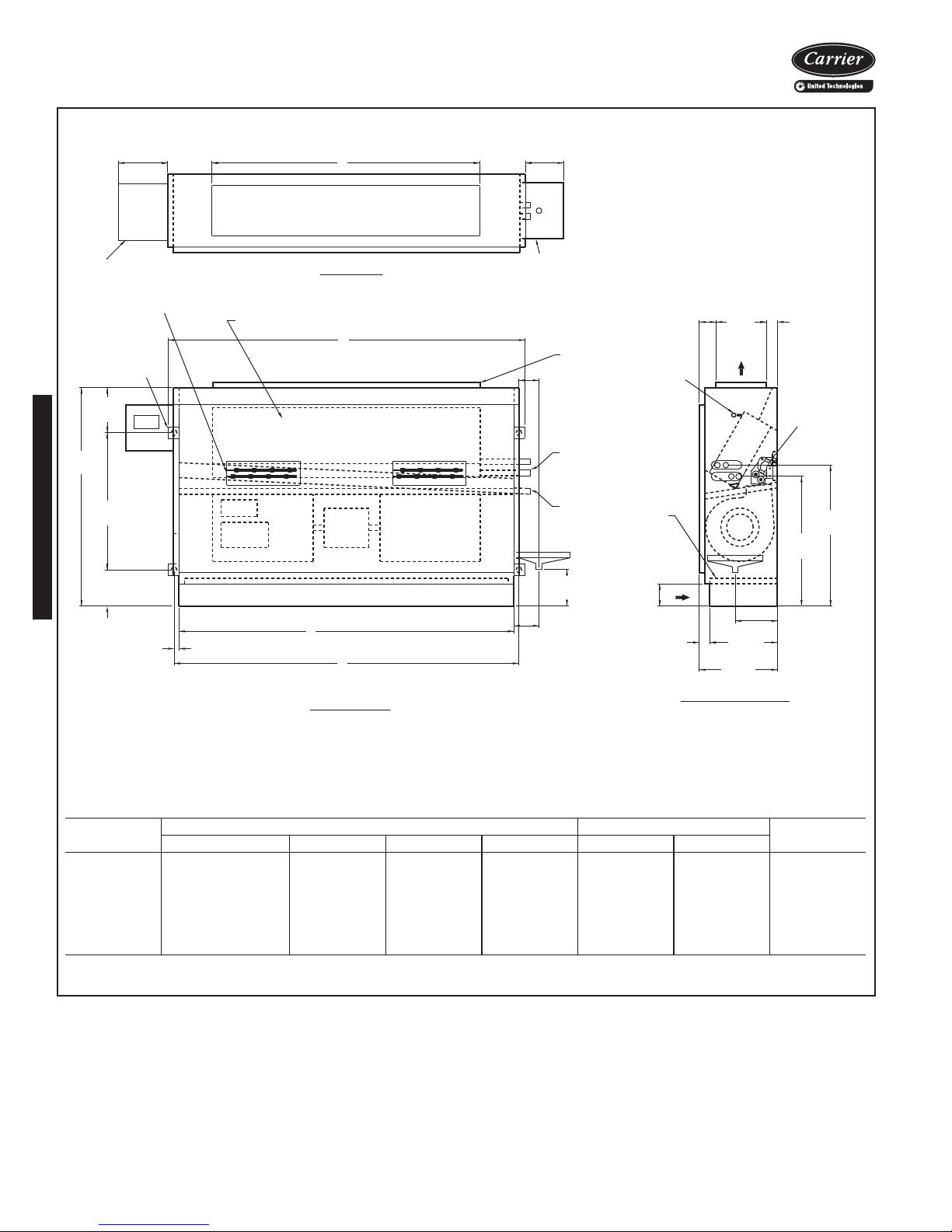

42CA FURRED-IN HORIZONTAL UNIT WITH ELECTRIC HEAT

LEGEND

1—Junction Box (remote mount) 2—Flexible Metal Conduit 3 — Strip Heater High Limit 4 — Electric Strip Heater Element 5 — Tell-Tale Drain Conn, 6—Drain Conn, 7/8-in. OD 7—Drip Lip (optional) 8—Supply Duct Collar, 1-in. 9—Air Vent, 10 — Return Conn, 5/8-in. OD 11 — Supply Conn, 12 — Hanger Slots (4), Rubber Grommet

has 3/8-in. Diameter Hole

1

/8-in. MPT

5

/8-in. OD (optional)

5

/8-in. OD

NOTES:

1. Right hand unit shown; left hand unit opposite. Coil connection locations are ±

2. Unit sizes 02 and 03 have one motor, one blower; sizes 04 through 08 have one motor, 2 blowers; sizes 10 and 12 have 2 motors, 4 blowers.

3. Standard 3-row coil shown.

4. Overall unit dimension increases by 4 in. with optional electric heat.

5. Not shown: 3-speed fan switch; wall plate, closed cell foam on main drain pan.

6. Units have galvanized finish.

7. See 42CA-203-1 for optional coil connections.

8. Dimensions shown in inches (mm).

5

/8-inches.

13 — Drain Pan

UNIT SIZE

NOM

AIRFLOW

(Cfm)

02 200 21 03 300 25 04 400 31 06 600 36 08 800 43 10 1000 57 12 1200 65

AA’BD’E F GH

1

/

311/

4

1

/

4

1

/

4

1

/

4

1

/

4

1

/

4

1

/

4

361/ 431/ 431/ 571/ 651/ 751/

4

DIMENSIONS (in.) QTY/UNIT FACE

Blower Motor

16 13 181/ 20 14 221/ 26 15 281/ 31 10 331/ 38 17 401/ 52 11 541/ 60 13 621/

61/

4

61/

4

61/

4

71/

4

71/

4

71/

4

71/

4

2

83/ 83/ 83/

193/

4

233/

4

293/

4

10 343/ 10 413/ 10 553/ 10 633/

1 1 0.83 38

4

1 1 1.08 41

4

2 1 1.35 51

4

2 1 1.88 61

4

2 1 2.31 66

4

4 2 3.16 97

4

4 2 3.65 109

4

*Unit weights are based on dry coils and minimum rows. Weights exclude packaging, valves, and other components.

a42-4100.eps

AREA (sq ft)

WEIGHT*

UNIT

(lb)

40

16

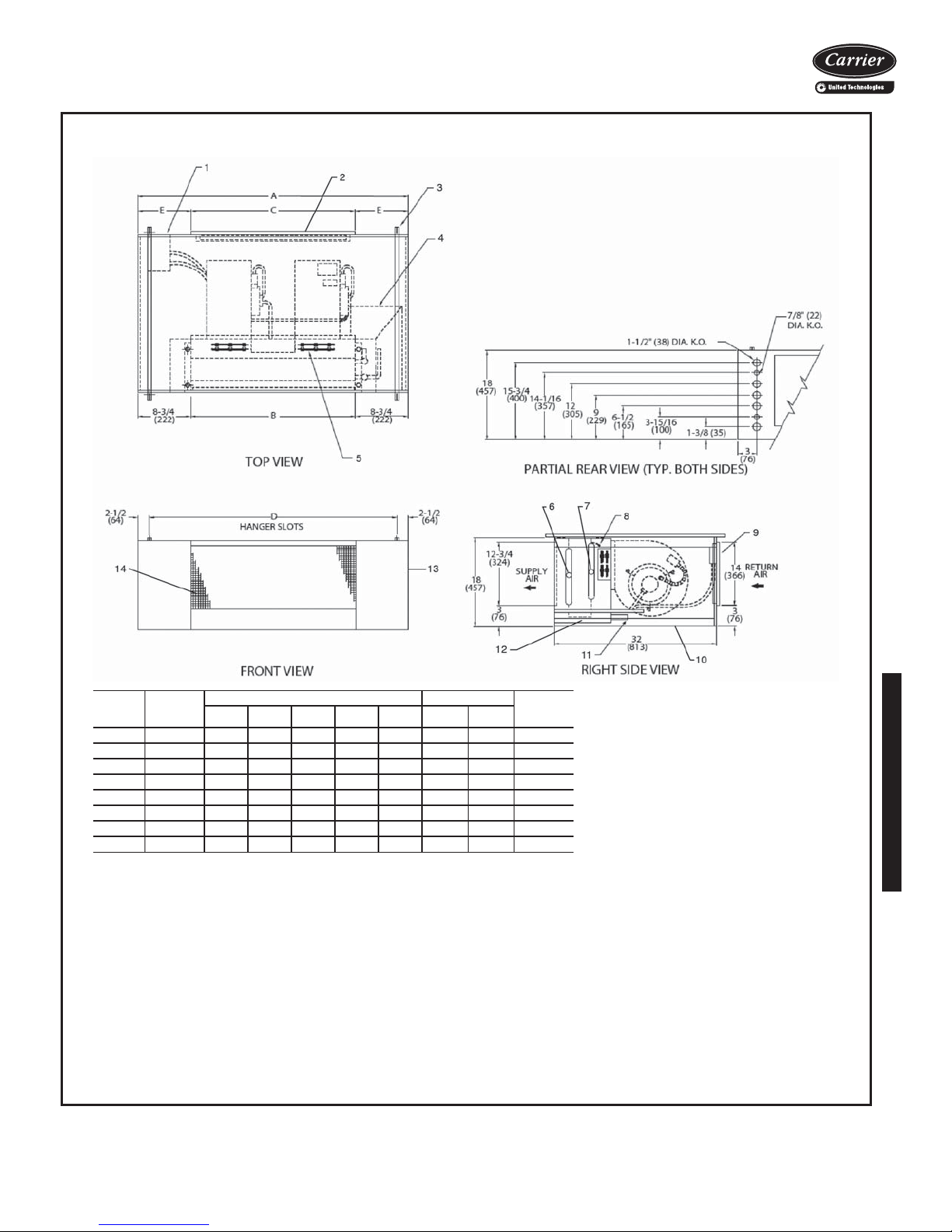

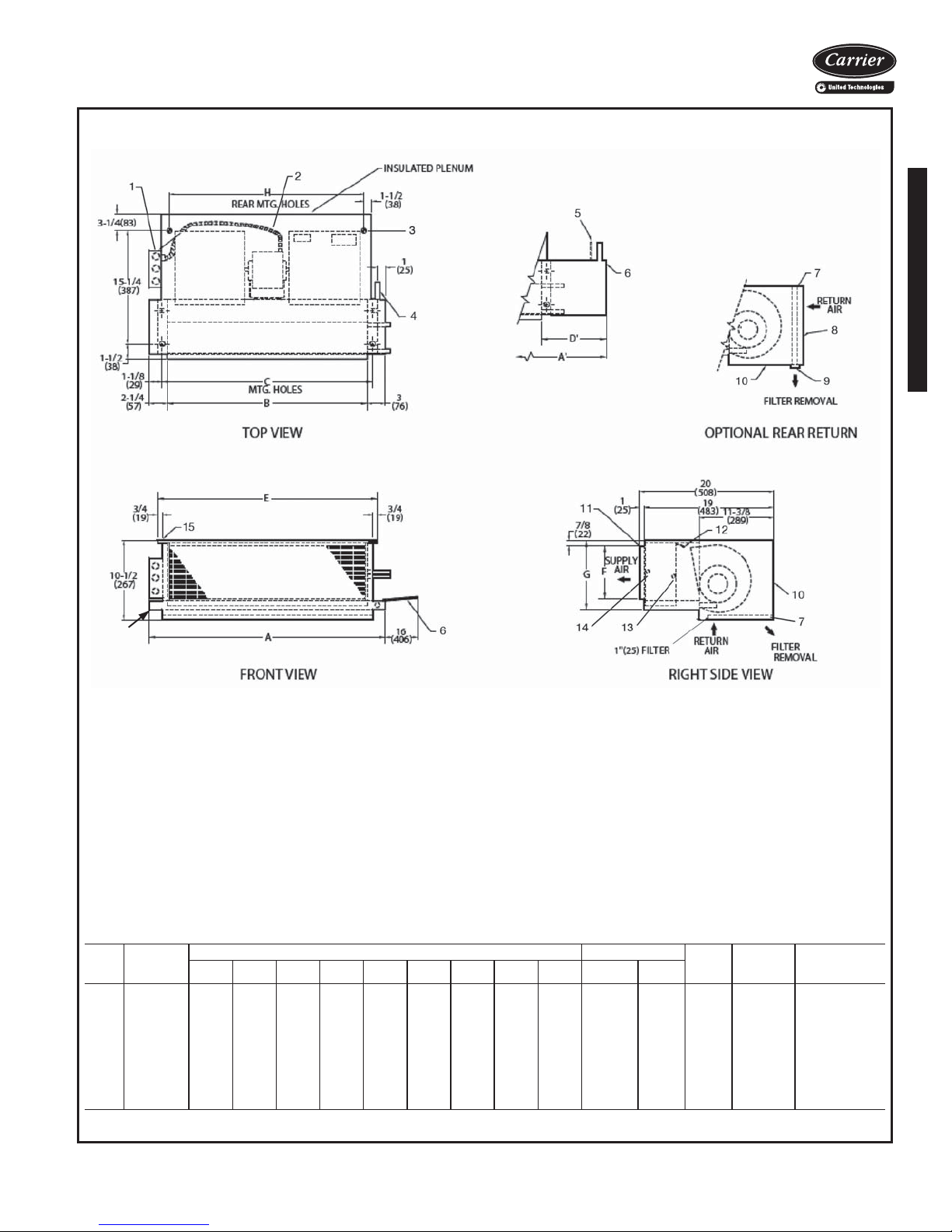

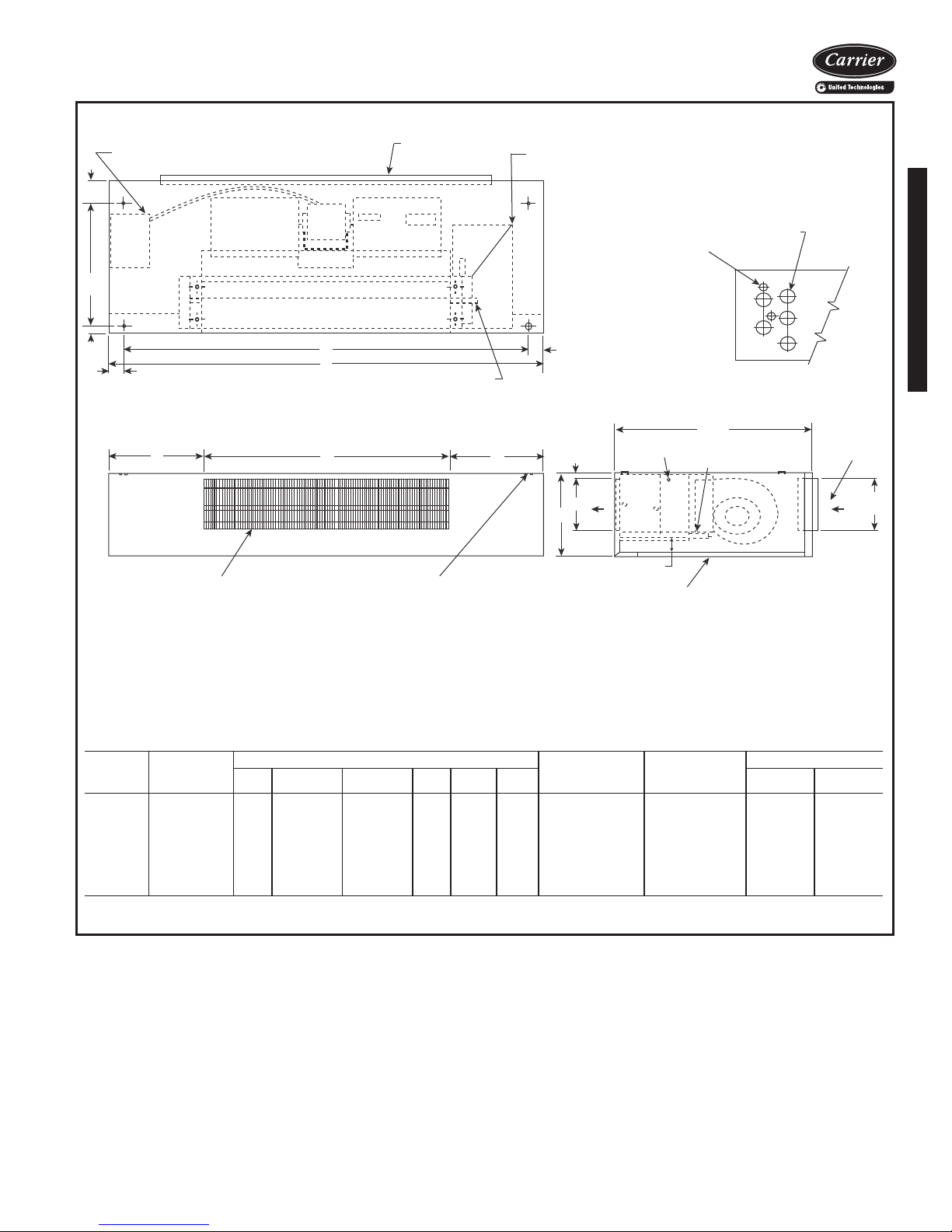

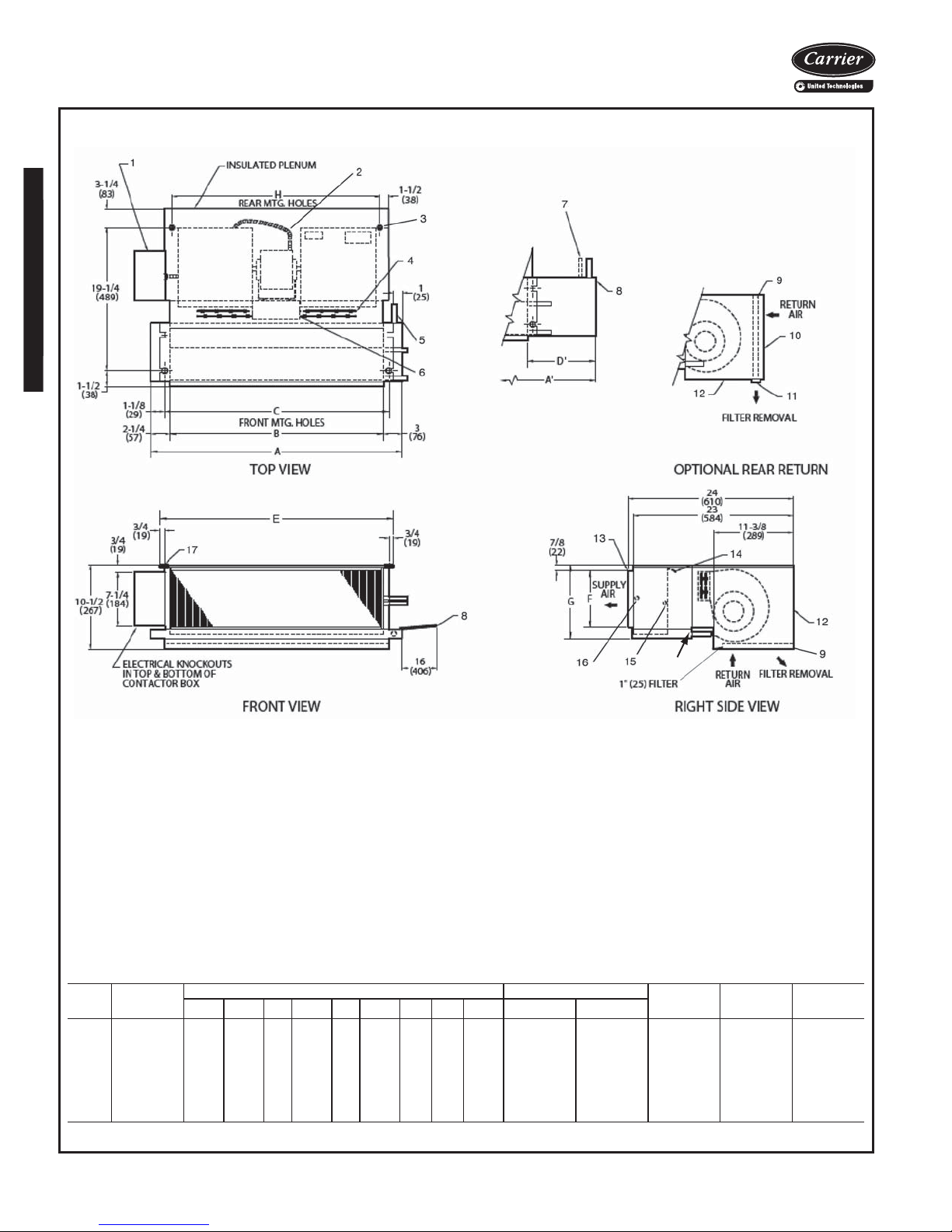

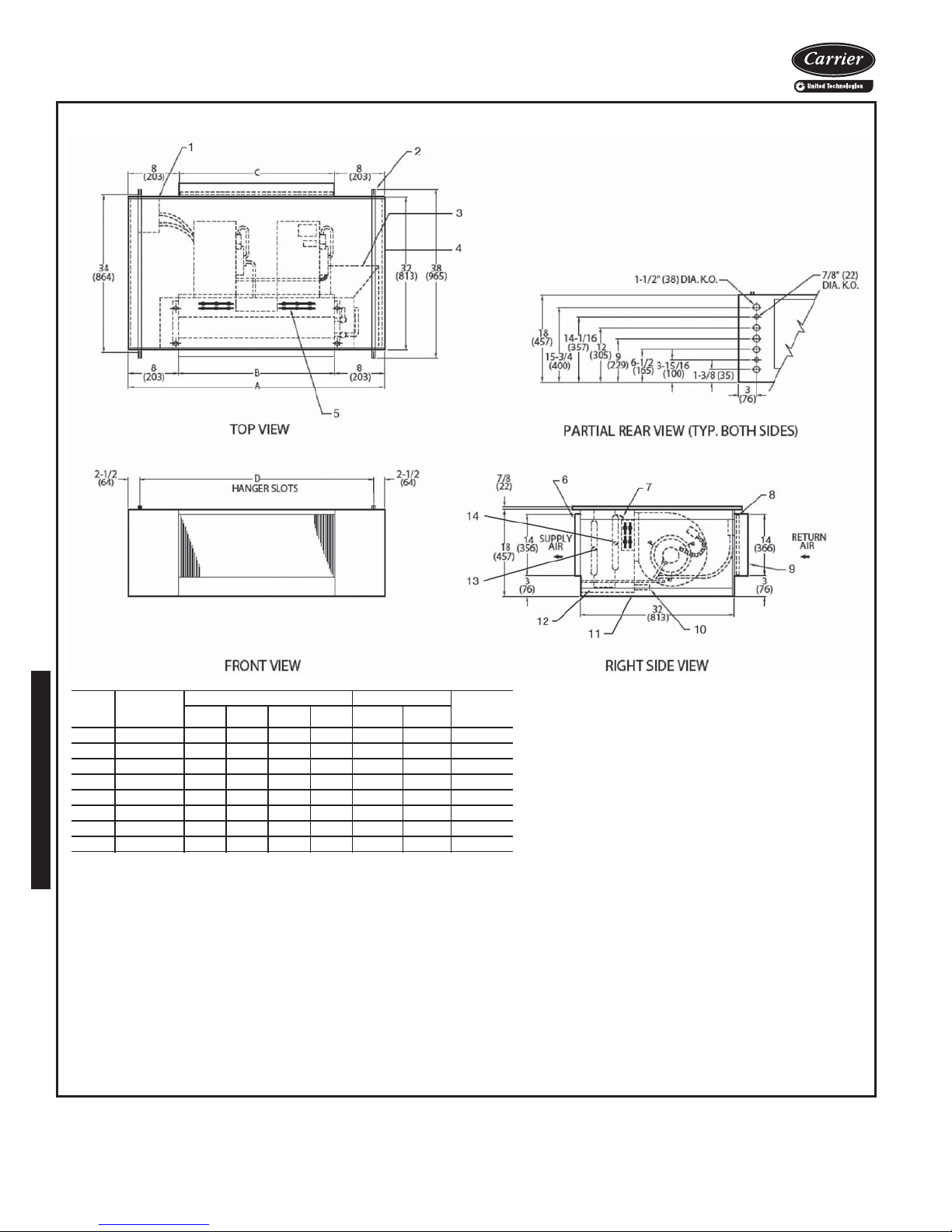

42CE FURRED-IN HORIZONTAL UNIT WITH PLENUM

42C Series Units

LEGEND

1— Junction Box, 4 in. x 4 in. 2— Flexible Metal Conduit 3— Mounting Bracket 4— Drain Conn, 5— Tell-Tale Drain Conn, 5/8-in. OD (optional) 6— Drip Lip (optional, shipped loose) 7— Filter 8— Return Duct Collar, 1-in.

9— Filter Access Panel 10 — Access Panel 11 — Supply Duct Collar, 1-in. 12 — Air Vent, 13 — Return Conn, 14 — Supply Conn, 5/8-in. OD 15 — Hanger Slots (4), Rubber Grommet has

3

/8-in. Diameter Hole

16 — Drain Pan

UNIT

SIZE

NOM

AIRFLOW

(Cfm)

02 200 03 300

04 400 06 600 08 800 10 1000 12 1200

7

/8-in. OD

1

/8-in. MPT

5

/8-in. OD

AA’BCD’E F GHBlowerMotor

211/4311/416 181/413 193/461/483/4153/ 251/4361/420 221/414 233/461/483/4193/

311/4431/426 281/415 293/461/483/4253/

361/4431/431 331/410 343/471/

431/4571/438 401/417 413/471/

571/4651/452 541/411 553/471/

651/4751/460 621/413 633/471/

DIMENSIONS (in.) QTY/UNIT FACE

NOTES:

1. Right hand unit with standard 3-row coil shown; left hand unit opposite. Coil connection locations are ±

2. Unit sizes 02 and 03 have one motor, one blower; sizes 04 through 08 have one motor, 2 blowers; sizes 10 and 12 have 2 motors, 4 blowers.

3. Standard 3-row coil shown.

4. Unit available with bottom or rear return air.

5. Dimension increases by 4 in. with optional electric heat.

6. Not shown: 3-speed fan switch; wall plate, inside of plenum, closed cell foam on main drain pan.

7. Units have galvanized finish.

8. See 42CA-203-1 for optional coil connections.

9. Dimensions shown in inches (mm).

5

/8-inches.

a42-4101

AREA (sq ft)

1 1 0.83 55 10.5 x 18.25

8

1 1 1.08 60

8

2 1 1.35 70

8

2

10 303/

10 373/

10 513/

10 593/

2 1 1.88 82

8

2 1 2.31 95

8

4 2 3.16 135

8

4 2 3.65 154

8

*Unit weights are based on dry coils and minimum rows. Weights exclude packaging, valves, and other components.

1

/2-in. fiberglass insulation on

UNIT

WEIGHT*

(lb)

RETURN AIR

DUCT

10.5 x 22.25

10.5 x 28.25

10.5 x 33.25

10.5 x 40.25

10.5 x 54.25

10.5 x 62.25

41

Base unit dimensions (cont)

42C Series Units

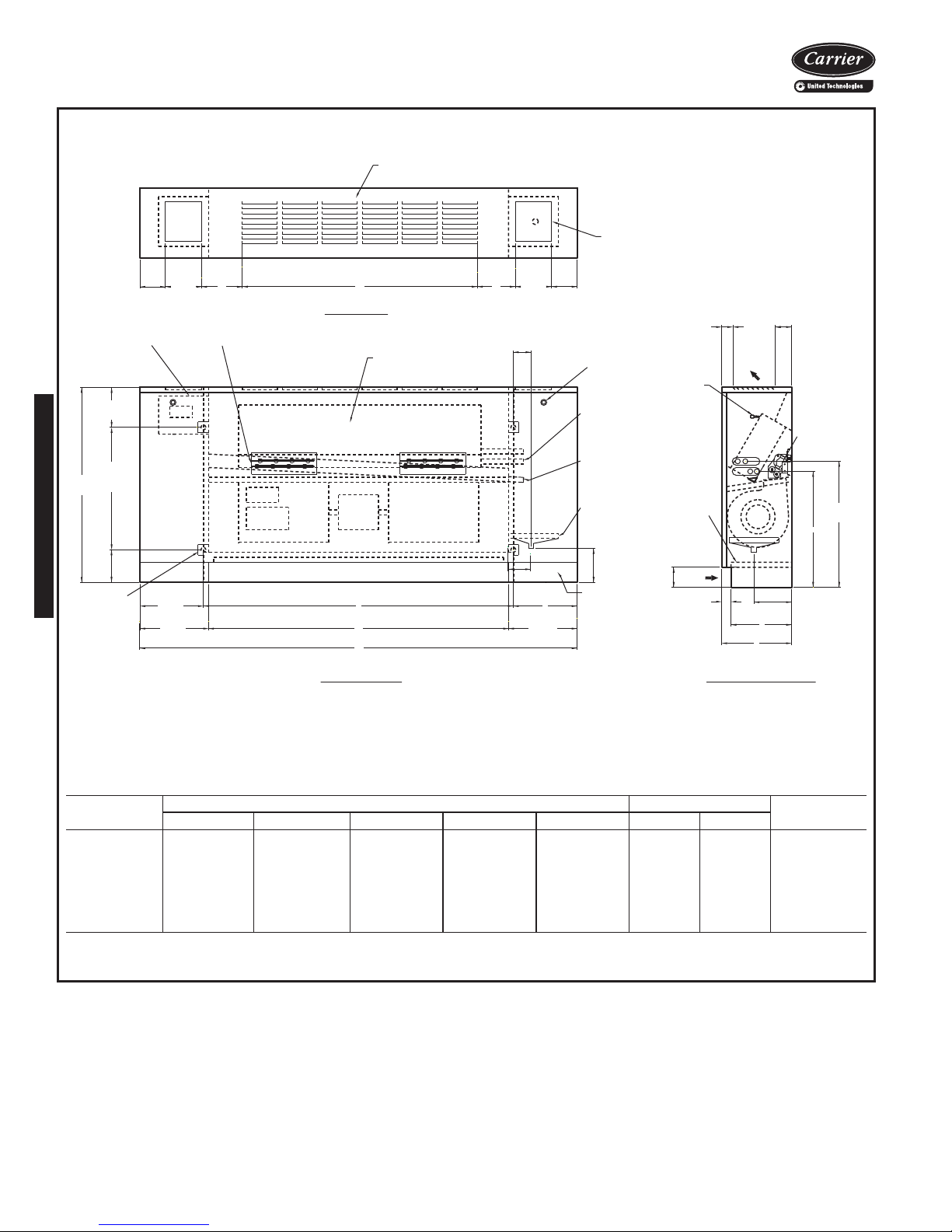

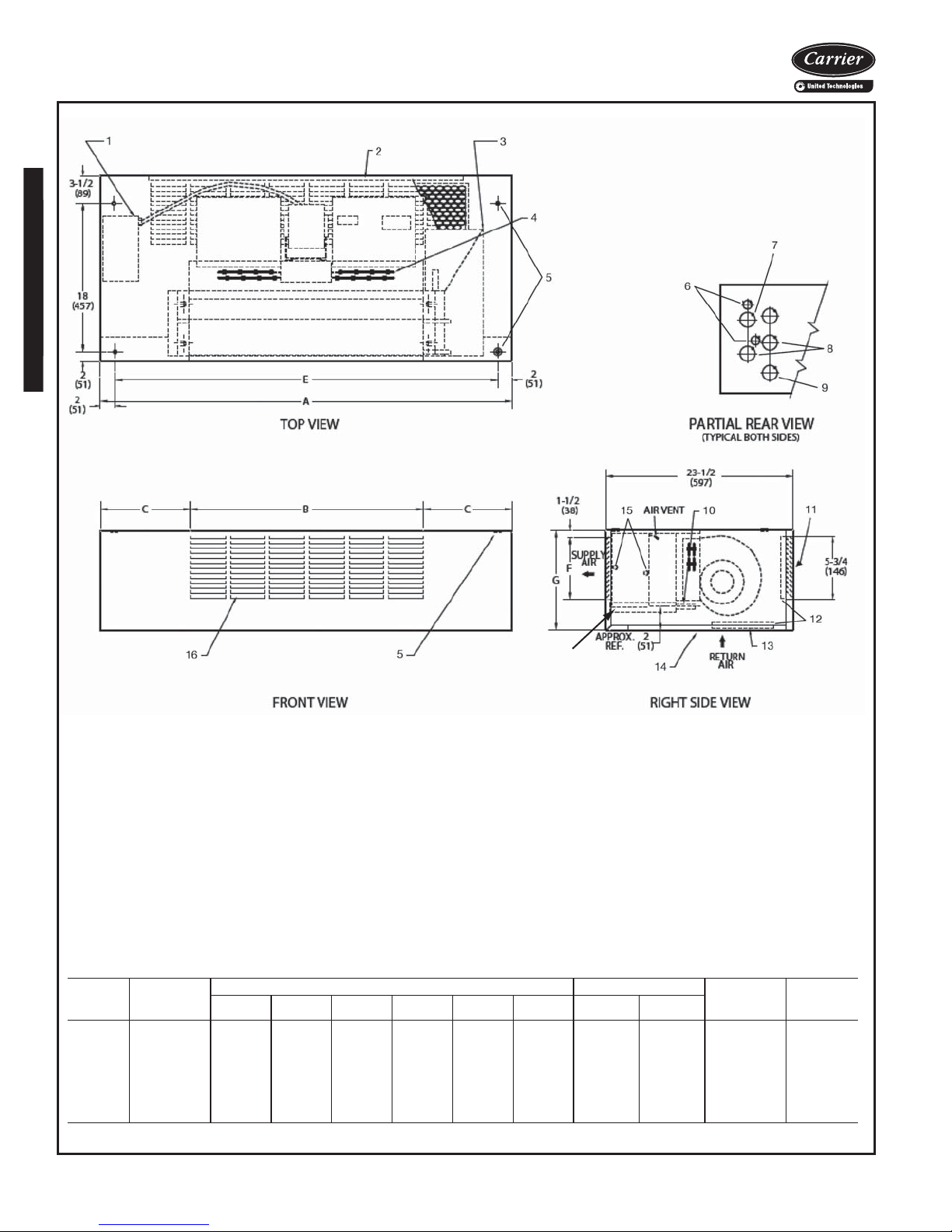

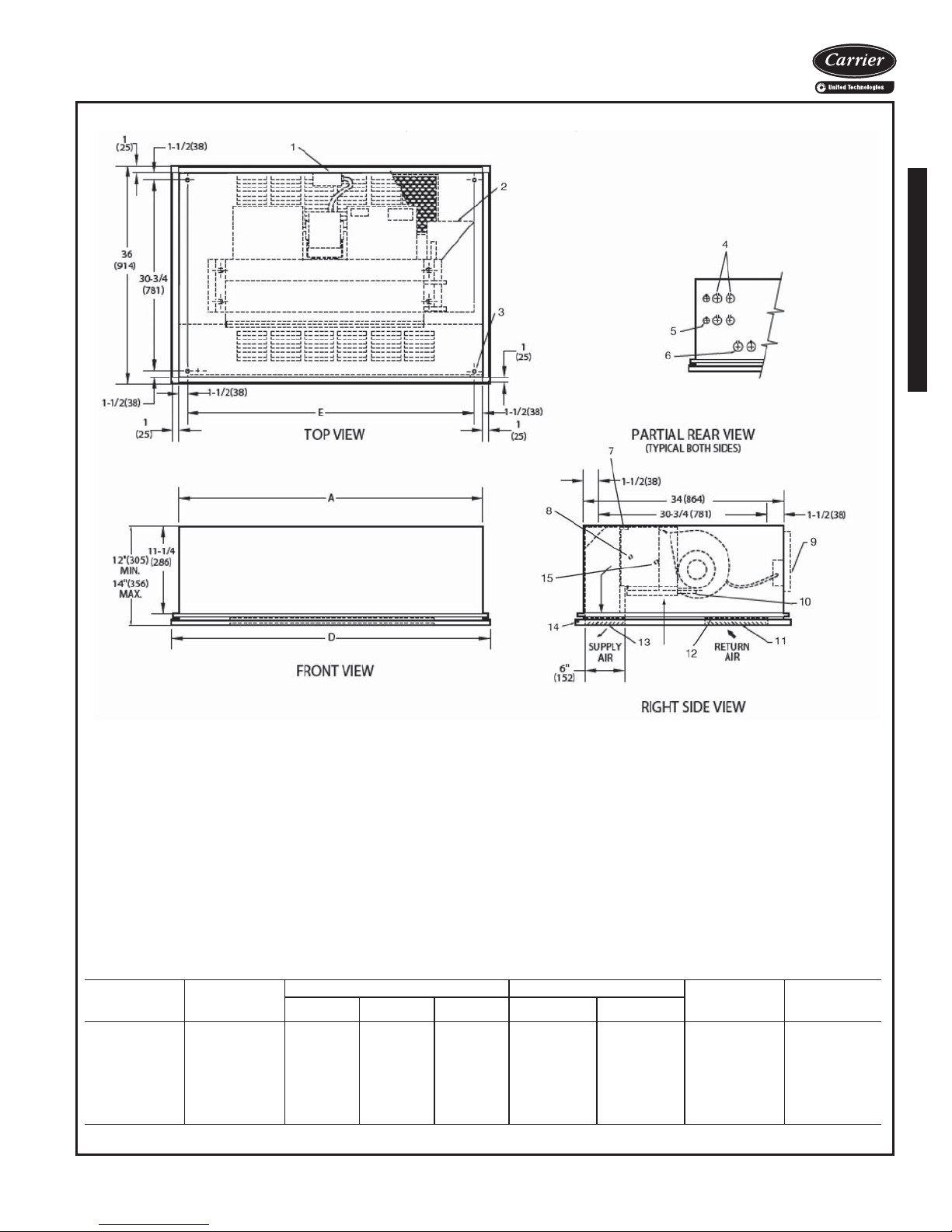

42CE FURRED-IN HORIZONTAL UNIT WITH PLENUM AND ELECTRIC HEAT

18

LEGEND

1— Junction Box, 4 in. x 4 in. 2— Flexible Metal Conduit 3— Mounting Bracket 4— Electric Strip Heater Element 5— Drain Conn, 6— Strip Heater High Limit 7— Tell-Tale Drain Conn, 8— Drip Lip (optional, shipped loose)

9— Filter 10 — Return Duct Collar, 1-in. 11 — Filter Access Panel 12 — Access Panel 13 — Supply Duct Collar, 1-in. 14 — Air Vent, 15 — Return Conn, 16 — Supply Conn, 17 — Hanger Slots (4), Rubber Grommet has

3

/8-in. Diameter Hole

18 — Drain Pan

UNIT

SIZE

02 200 21 03 300 25 04 400 31 06 600 36 08 800 43 10 1000 57 12 1200 65

NOM

AIRFLOW

(Cfm)

7

/8-in. OD

5

/8-in. OD (optional)

1

/8-in. MPT

5

/8-in. OD

5

/8-in. OD

A A’ B C D’ E F G H Blower Motor

1

/4311/416 181/413 193/461/483/4153/

1

/4361/420 221/414 233/461/483/4193/

1

/4431/426 281/415 293/461/483/4253/

1

/4431/431 331/410 343/471/210 303/

1

/4571/438 401/417 413/471/210 373/

1

/4651/452 541/411 553/471/210 513/

1

/4751/460 621/413 633/471/210 593/

DIMENSIONS (in.) QTY/UNIT FACE

NOTES:

1. Right hand unit with standard 3-row coil shown; left hand unit opposite. Coil connection locations are ±

2. Unit sizes 02 and 03 have one motor, one blower; sizes 04 through 08 have one motor, 2 blowers; sizes 10 and 12 have 2 motors, 4 blowers.

3. Standard 3-row coil shown.

4. Unit available with bottom or rear return air.

5. Dimension increases by 4 in. with optional electric heat.

6. Not shown: 3-speed fan switch; wall plate, inside of plenum, closed cell foam on main drain pan.

7. Units have galvanized finish.

8. See 42CA-203-1 for optional coil connections.

9. Dimensions shown in inches (mm).

5

/8-inches.

1

A42-4102

AREA

1 1 0.83 57 10.5 X 18.25

8

1 1 1.08 62 10.5 X 22.25

8

2 1 1.35 72 10.5 X 28.25

8

2 1 1.88 84 10.5 X 33.25

8

2 1 2.31 97 10.5 X 40.25

8

4 2 3.16 137 10.5 X 54.25

8

4 2 3.65 156 10.5 X 62.25

8

(sq ft)

*Unit weights are based on dry coils and minimum rows. Weights exclude packaging, valves, and other components.

/2-in. fiberglass insulation on

UNIT

WEIGHT* (lb)

RETURN AIR

DUCT

42

16

42CG HORIZONTAL CABINET UNIT

42C Series Units

LEGEND

1— Junction Box, 4 in. x 4 in. 2— Optional Return Air Location 3— Optional Drip Lip, shipped loose 4— Mounting Holes (4), Rubber Grommets

5— Electrical Knockout, 7/8-in. Diameter 6— Return Knockout, 1-in. Diameter 7— Supply Knockout, 1 8— Drain Knockout, 11/2-in. Diameter

9— Supply, Return Connections, 10 — Drain Connection, 7/8-in. OD 11 — Optional Valve Package (inside cabinet) 12 — Filter 13 — Standard Stamped-Return Air Grille 14 — Removeable Hinged Access Panel 15 — Supply Grille, Stamped, Standard 16 — Drain Pan

UNIT SIZE

02 200 38 17 03 300 42 21 04 400 48 25 06 600 53 34 08 800 60 39 10 10 1000 74 52 12 1200 82 60

3

/8-in. Diameter Hole

have

NOM

AIRFLOW

(Cfm)

1

/2-in. Diameter

5

/8-in. OD

ABCEFG

1

/

8

1

/

2

7

/

8

5

/

8

1

/

8

7

/

8

DIMENSIONS (in.) QTY/UNIT FACE

107/

16

101/

4

111/

16

93/

16

1

/

2

1015/

16

109/

16

NOTES:

1. Right hand unit shown; left hand unit opposite. Coil connection locations are ±

2. Unit sizes 02 and 03 have one motor, one blower; sizes 04 through 08 have one motor, 2 blowers; sizes 10 and 12 have 2 motors, 4 blowers.

3. Cabinet has an Arctic White baked finish.

4. Refer to supply and return connections above for coil stub-out locations.

5. Not shown: optional drip lip, 3-speed fan switch; wall plate, fiberglass insulation on inside of casing, closed cell foam on main drain pan.

6. See 42CA-203-1 for optional coil connections.

7. Valve package is factory-installed inside the cabinet when ordered with the unit (based on component size).

8. Dimensions shown in inches (mm).

5

/8-inches.

A42-4105

Blower Motor

34 53/ 38 53/ 44 53/ 49 63/ 56 63/ 70 63/ 78 63/

4

11 1 1 0.83 98 11 1 1 1.08 118 11 2 1 1.35 126 12 2 1 1.88 168 12 2 1 2.31 176 12 4 2 3.16 215 12 4 2 3.65 245

*Unit weights are based on dry coils and minimum rows. Weights exclude packaging, valves, and other components.

AREA (sq ft)

1

/2-in.

WEIGHT*

UNIT

(lb)

43

Base unit dimensions (cont)

42C Series Units

42CG HORIZONTAL CABINET WITH ELECTRIC HEAT

17

LEGEND

1— Junction Box, 4 in. x 4 in. 2— Optional Stamped Rear Return Grille 3— Optional Drip Lip, shipped loose 4— Electric Strip Heater Element 5— Mounting Holes (4), Rubber Grommets

6— Electrical Knockout, 7— Return Knockout, 1-in. Diameter 8— Supply Knockout, 1

9— Drain Knockout, 1 10 — Drain Connection, 11 — Optional Valve Package (inside cabinet) 12 — Filter 13 — Standard Stamped-Return Air Grille 14 — Removeable Hinged Access Panel 15 — Supply, Return Connections, 16 — Supply Grille, Stamped, Standard 17 — Drain Pan

UNIT SIZE

02 200 38 17 03 300 42 21 04 400 48 25 06 600 53 34 08 800 60 39 10 10 1000 74 52 12 1200 82 60

3

have

/8-in. Diameter Hole

NOM

AIRFLOW

(Cfm)

7

/8-in. Diameter

1

/2-in. Diameter

1

/2-in. Diameter

7

/8-in. OD

5

/8-in. OD

ABCEFG

1

/

8

1

/

2

7

/

8

5

/

8

1

/

8

7

/

8

DIMENSIONS (in.) QTY/UNIT FACE

107/

16

101/

4

111/

16

93/

16

1

/

2

1015/

16

109/

16

NOTES:

1. Right hand unit shown; left hand unit opposite. Coil connection locations are ±

2. Unit sizes 02 and 03 have one motor, one blower; sizes 04 through 08 have one motor, 2 blowers; sizes 10 and 12 have 2 motors, 4 blowers.

3. Cabinet has an Arctic White baked finish.

4. Refer to supply and return connections above for coil stub-out locations.

5. Not shown: optional drip lip, 3-speed fan switch; wall plate, fiberglass insulation on inside of casing, closed cell foam on main drain pan.

6. See 42CA-203-1 for optional coil connections.

7. Valve package is factory-installed inside the cabinet when ordered with the unit (based on component size).

8. Dimensions shown in inches (mm).

5

/8-inches.

A42-4106

Blower Motor

34 53/ 38 53/ 44 53/ 49 63/ 56 63/ 70 63/ 78 63/

4

11 1 1 0.83 98 11 1 1 1.08 118 11 2 1 1.35 126 12 2 1 1.88 168 12 2 1 2.31 176 12 4 2 3.16 215 12 4 2 3.65 245

*Unit weights are based on dry coils and minimum rows. Weights exclude packaging, valves, and other components.

AREA (sq ft)

1

/2-in.

WEIGHT*

UNIT

(lb)

44

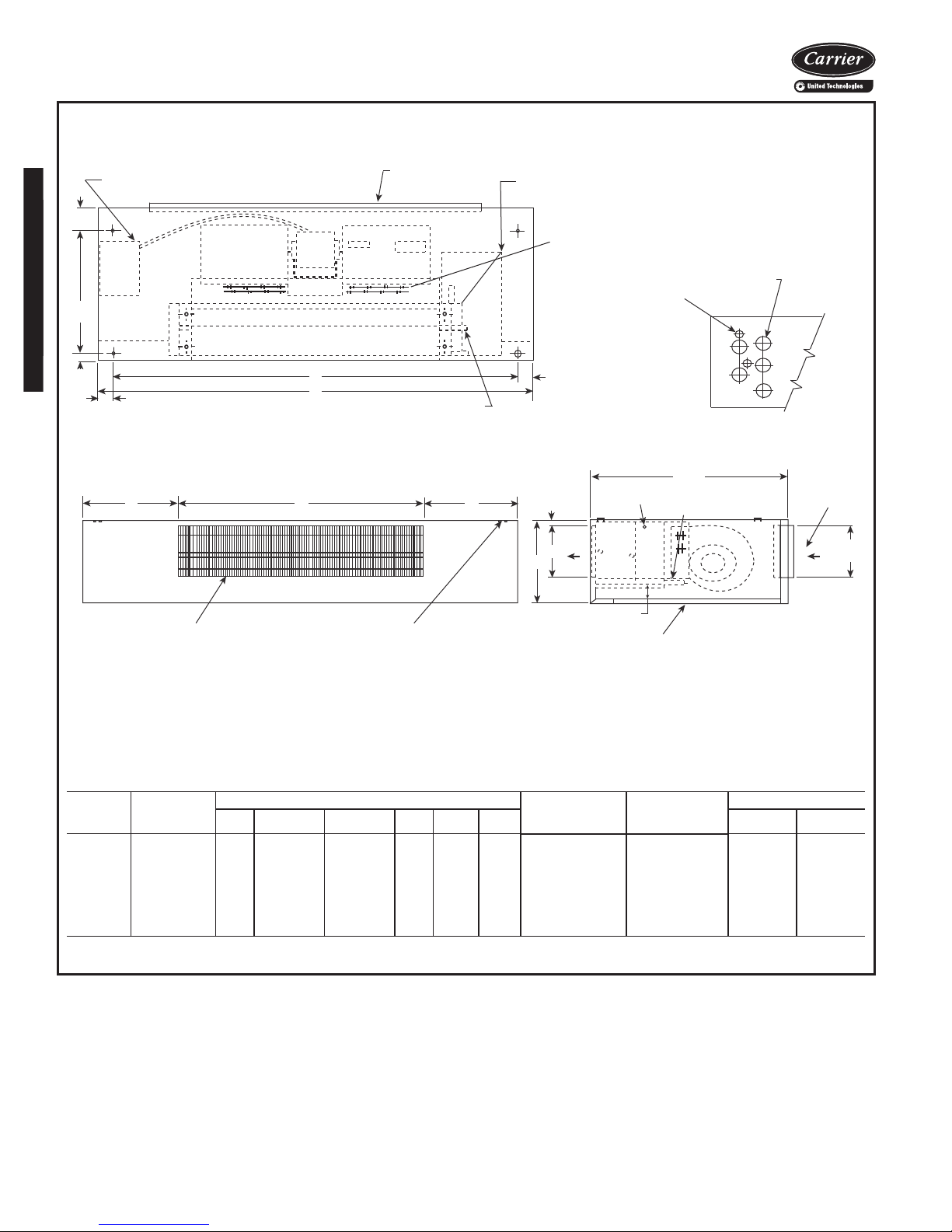

DOUBLE DEFLECTION SUPPLY AIR GRILLE

C

B

C

RESILIENT MOUNTING GROMMETS WITH 3/8" (10) DIA HOLE (TYP. OF 4)

Ø7/8" (22) KNOCKOUT (TYP. OF 2)

Ø1-1/2" KNOCKOUT (TYPE. OF 5)

PARTIAL REAR VIEW

(TYPICAL BOTH SIDES)

2

(51)

CHILLED/HOT WATER

SUPPLY & RETURN

CONNECTIONS

TOP VIEW

CONTACTOR BOX (J-BOX ON UNITS WITH NO CONTROLS)

3-1/2

(89)

2

(51)

2

(51)

E

A

18

(457)

1" RETURN DUCT COLLAR & 1" (25) FILTER

OPTIONAL “L” SHAPED DRIP LIP, SHIPPED LOOSE

FRONT VIEW

REMOVABLE HINGED RA/ACCESS PANEL

23-1/2

(597)

1" RETURN

DUCT COLLAR

&

1" (25) FILTER

6

(152)

RETURN

AIR

1-1/2

(38)

G

F

SUPPLY

AIR

AIR VENT

7/8" (22) O.D.

CONDENSATE

DRAIN CONNECTION

RIGHT SIDE VIEW

2

(51)

APPROX.

REF.

42CG HORIZONTAL CABINET WITH DOUBLE DEFLECTOR SUPPLY AIR GRILLE AND DUCT REAR RETURN

42C Series Units

a42-4317

UNIT SIZE

NOM

AIRFLOW

(Cfm)

AB CEFG

02 200 38 17 03 300 42 21 04 400 48 25 06 600 53 34 08 800 60 39 10 10 1000 74 52 12 1200 82 60

DIMENSIONS (in.)

1

/

8

1

/

2

7

/

8

5

/

8

1

/

8

7

/

8

107/

101/

111/

93/

1015/

109/

NOTES:

1. Right hand unit shown; left hand unit opposite.

2. Internal factory valve package and drains may not align with cabinet knockouts.

3. All dimensions ±

1

/4-in.

4. Cabinet is Arctic White polyester powder coat paint.

34 53/411 6 x 211/

16

38 53/411 6 x 253/

4

44 53/411 6 x 301/

16

49 63/412 6 x 341/

16

1

/

56 63/412 6 x 39 8 x 41 2 1

2

70 63/412 6 x 52 8 x 541/

16

78 63/412 6 x 603/

16

DUCTED REAR

RETURN SIZE

(in.)

2

4

2

4

FILTER SIZE

(in.)

8 x 231/

2

8 x 28 1 1

8 x 321/

2

8 x 37 2 1

2

8 x 63 4 2

QTY/UNIT

Blower Motor

11

21

42

45

DOUBLE DEFLECTION SUPPLY AIR GRILLE

C

B

C

RESILIENT MOUNTING GROMMETS WITH 3/8" (10) DIA HOLE (TYP. OF 4)

Ø7/8" (22) KNOCKOUT (TYP. OF 2)

Ø1-1/2" KNOCKOUT (TYPE. OF 5)

PARTIAL REAR VIEW

(TYPICAL BOTH SIDES)

2

(51)

CHILLED/HOT WATER

SUPPLY & RETURN

CONNECTIONS

TOP VIEW

CONTACTOR BOX (J-BOX ON UNITS WITH NO CONTROLS)

3-1/2

(89)

2

(51)

2

(51)

E

A

18

(457)

1" RETURN DUCT COLLAR & 1" (25) FILTER

OPTIONAL “L” SHAPED DRIP LIP, SHIPPED LOOSE

FRONT VIEW

REMOVABLE HINGED RA/ACCESS PANEL

23-1/2

(597)

1" RETURN

DUCT COLLAR

&

1" (25) FILTER

6

(152)

RETURN

AIR

1-1/2

(38)

G

F

SUPPLY

AIR

AIR VENT

7/8" (22) O.D.

CONDENSATE

DRAIN CONNECTION

RIGHT SIDE VIEW

2

(51)

APPROX.

REF.

OPTIONAL ELECTRIC STRIP HEATER ELEMENT

Base unit dimensions (cont)

42C Series Units

42CG HORIZONTAL CABINET WITH DOUBLE DEFLECTOR SUPPLY AIR GRILLE,

DUCT REAR RETURN AND HEATER

A42-4315

UNIT SIZE

NOM

AIRFLOW

(Cfm)

AB CEFG

02 200 38 17 03 300 42 21 04 400 48 25 06 600 53 34 08 800 60 39 10 10 1000 74 52 12 1200 82 60

DIMENSIONS (in.)

1

/

8

1

/

2

7

/

8

5

/

8

1

/

8

7

/

8

107/

16

101/

4

111/

16

93/

16

1

/

2

1015/

16

109/

16

NOTES:

1. Right hand unit shown; left hand unit opposite.

2. Internal factory valve package and drains may not align with cabinet knockouts.

3. All dimensions ±

4. Cabinet is Arctic White polyester powder coat paint.

DUCTED REAR

RETURN SIZE

34 53/411 6 x 211/ 38 53/411 6 x 253/ 44 53/411 6 x 301/ 49 63/412 6 x 341/

(in.)

1

/4-in.

FILTER SIZE

2

4

2

QTY/UNIT

(in.)

8 x 231/

Blower Motor

2

11

8 x 28 1 1

8 x 321/

2

21

8 x 37 2 1 56 63/412 6 x 39 8 x 41 2 1 70 63/412 6 x 52 8 x 541/

4

8 x 63 4 2

78 63/412 6 x 603/

2

42

46

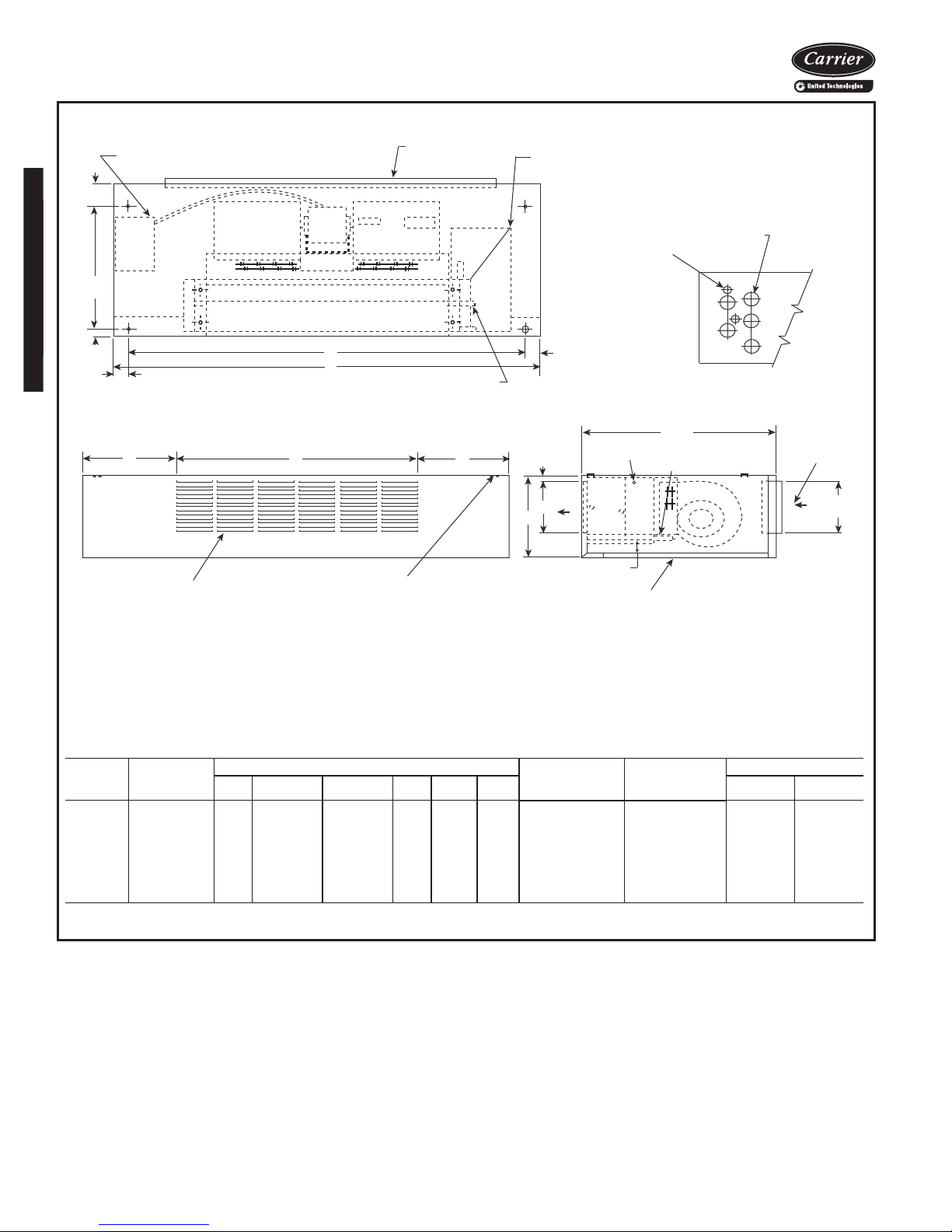

STANDARD STAMPED SUPPLY AIR GRILLE

C

B

C

RESILIENT MOUNTING GROMMETS WITH 3/8" (10) DIA HOLE (TYP. OF 4)

Ø7/8" (22) KNOCKOUT (TYP. OF 2)

Ø1-1/2" KNOCKOUT (TYPE. OF 5)

PARTIAL REAR VIEW

(TYPICAL BOTH SIDES)

2

(51)

CHILLED/HOT WATER

SUPPLY & RETURN

CONNECTIONS

TOP VIEW

CONTACTOR BOX (J-BOX ON UNITS WITH NO CONTROLS)

3-1/2

(89)

2

(51)

2

(51)

E

A

18

(457)

1" RETURN DUCT COLLAR & 1" (25) FILTER

OPTIONAL “L” SHAPED DRIP LIP, SHIPPED LOOSE

FRONT VIEW

REMOVABLE HINGED RA/ACCESS PANEL

23-1/2

(597)

1" RETURN

DUCT COLLAR

&

1" (25) FILTER

6

(152)

RETURN

AIR

1-1/2

(38)

G

F

SUPPLY

AIR

AIR VENT

7/8" (22) O.D.

CONDENSATE

DRAIN CONNECTION

RIGHT SIDE VIEW

2

(51)

APPROX.

REF.

42CG HORIZONTAL CABINET WITH STAMPED SUPPLY AIR GRILLE AND DUCT REAR RETURN

42C Series Units

a42-4318

UNIT SIZE

NOM

AIRFLOW

(Cfm)

AB CEFG

02 200 38 17 03 300 42 21 04 400 48 25 06 600 53 34 08 800 60 39 10 10 1000 74 52 12 1200 82 60

DIMENSIONS (in.)

1

/

8

1

/

2

7

/

8

5

/

8

1

/

8

7

/

8

107/

101/

111/

93/

1015/

109/

NOTES:

1. Right hand unit shown; left hand unit opposite.

2. Internal factory valve package and drains may not align with cabinet knockouts.

3. All dimensions ±

4. Cabinet is Arctic White polyester powder coat paint.

34 53/411 6 x 211/

16

38 53/411 6 x 253/

4

44 53/411 6 x 301/

16

49 63/412 6 x 341/

16

1

/

56 63/412 6 x 39 8 x 41 2 1

2

70 63/412 6 x 52 8 x 541/

16

78 63/412 6 x 603/

16

DUCTED REAR

RETURN SIZE

1

/4-in.

FILTER SIZE

(in.)

2

4

2

4

(in.)

8 x 231/

8 x 28 1 1

8 x 321/

8 x 37 2 1

8 x 63 4 2

2

QTY/UNIT

Blower Motor

11

21

42

47

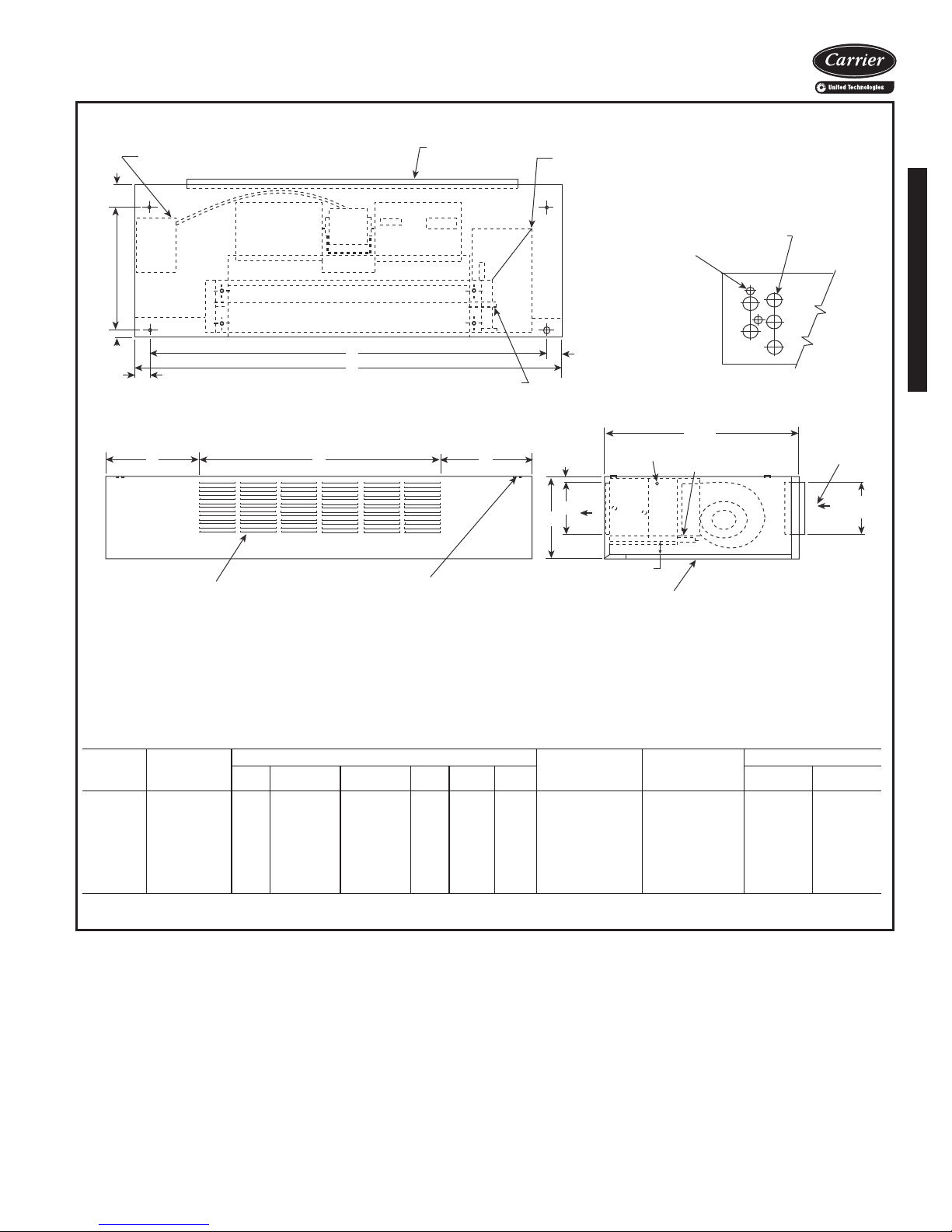

STANDARD STAMPED SUPPLY AIR GRILLE

C

B

C

RESILIENT MOUNTING GROMMETS WITH 3/8" (10) DIA HOLE (TYP. OF 4)

Ø7/8" (22) KNOCKOUT (TYP. OF 2)

Ø1-1/2" KNOCKOUT (TYPE. OF 5)

PARTIAL REAR VIEW

(TYPICAL BOTH SIDES)

2

(51)

CHILLED/HOT WATER

SUPPLY & RETURN

CONNECTIONS

TOP VIEW

CONTACTOR BOX (J-BOX ON UNITS WITH NO CONTROLS)

3-1/2

(89)

2

(51)

2

(51)

E

A

18

(457)

1" RETURN DUCT COLLAR & 1" (25) FILTER

OPTIONAL “L” SHAPED DRIP LIP, SHIPPED LOOSE

FRONT VIEW

REMOVABLE HINGED RA/ACCESS PANEL

23-1/2

(597)

1" RETURN

DUCT COLLAR

&

1" (25) FILTER

6

(152)

RETURN

AIR

1-1/2

(38)

G

F

SUPPLY

AIR

AIR VENT

7/8" (22) O.D.

CONDENSATE

DRAIN CONNECTION

RIGHT SIDE VIEW

2

(51)

APPROX.

REF.

Base unit dimensions (cont)

42C Series Units

42CG HORIZONTAL CABINET WITH STAMPED SUPPLY AIR GRILLE, DUCTED REAR RETURN AND HEATER

UNIT SIZE

a42-4316

NOM

AIRFLOW

(Cfm)

AB CEFG

02 200 38 17 03 300 42 21 04 400 48 25 06 600 53 34 08 800 60 39 10 10 1000 74 52 12 1200 82 60

DIMENSIONS (in.)

1

/

8

1

/

2

7

/

8

5

/

8

1

/

8

7

/

8

107/

101/

111/

1015/

109/

93/

NOTES:

1. Right hand unit shown; left hand unit opposite.

2. Internal factory valve package and drains may not align with cabinet knockouts.

3. All dimensions ±

4. Cabinet is Arctic White polyester powder coat paint.

34 53/411 6 x 211/

16

38 53/411 6 x 253/

4

44 53/411 6 x 301/

16

49 63/412 6 x 341/

16

1

/

56 63/412 6 x 39 8 x 41 2 1

2

70 63/412 6 x 52 8 x 541/

16

78 63/412 6 x 603/

16

DUCTED REAR

RETURN SIZE

1

/4-in.

FILTER SIZE

(in.)

2

4

2

4

QTY/UNIT

(in.)

8 x 231/

Blower Motor

2

11

8 x 28 1 1

8 x 321/

2

21

8 x 37 2 1

2

42

8 x 63 4 2

48

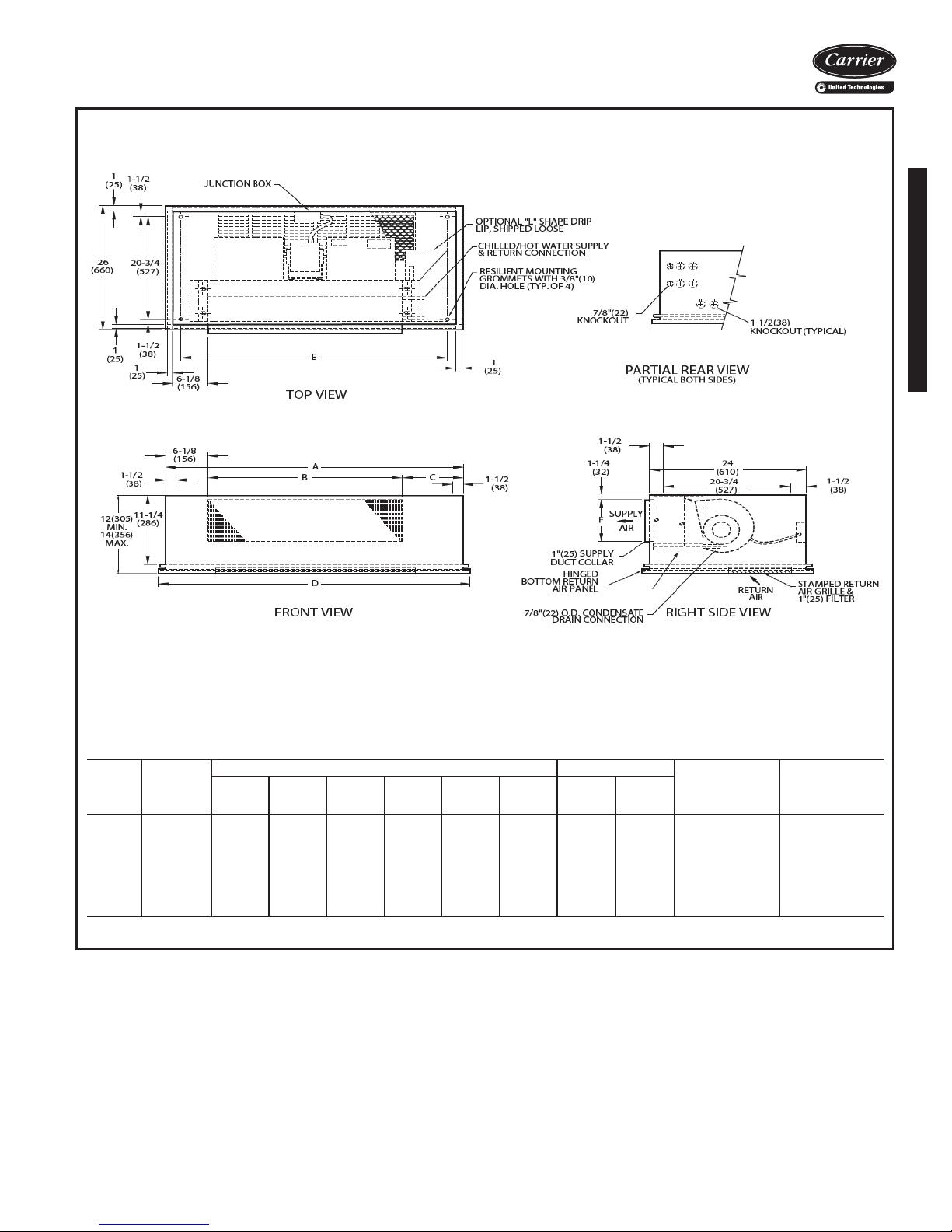

42CK HORIZONTAL CABINET UNIT WITH TELESCOPIC ACCESS PANEL,

FRONT SUPPLY, AND BOTTOM RETURN

*Unit weights are based on dry coils and minimum rows. Weights exclude packaging, valves, and other components.

UNIT SIZE

NOM

AIRFLOW

(Cfm)

DIMENSIONS (in.) QTY/UNIT BOTTOM

RETURN

FILTER SIZE

(in.)

UNIT WEIGHT*

(lb)

ABCDEFBlowerMotor

02 200 35 16 12

3

/

4

37 32 6 1 1 10 x 21 115

03 300 35 20 8

3

/

4

37 32 6 1 1 10 x 21 120

04 400 41 26 8

3

/

4

43 38 6 2 1 10 x 27 135

06 600 53 31 15

3

/

4

55 50 7 2 1 10 x 38 150

08 800 53 38 8

3

/

4

55 50 7 2 1 10 x 38 155

10 1000 75 52 16

3

/

4

77 72 7 4 2 10 x 52 227

12 1200 75 60 8

3

/

4

77 72 7 4 2 10 x 52 241

NOTES:

1. Right hand unit shown; left hand unit opposite.

2. Internal factory valve package and drains may not align with cabinet knockouts.

3. Dimensions shown in inches (mm). All dimensions are ±

1

/4 inches.

4. Bottom panel is Arctic White polyester powder coat paint.

DRAIN PAN

42C Series Units

A42-4149

49

Base unit dimensions (cont)

42C Series Units

42CK HORIZONTAL CABINET UNIT WITH TELESCOPIC ACCESS PANEL,

FRONT SUPPLY, BOTTOM RETURN, AND HEATER

12

11

13

10

9

LEGEND

1 — Contactor Box 2 — Strip Heater High Limit 3 — Electric Strip Heater Element 4 — Optimal L-shape Drip Lip, shipped loose 5 — Chilled/Hot Water Supply and Return Connection 6 — Resilient Mounting Grommets with

(typically 4)

7 — Electrical Knockout, 8 — Drain Knockout, 11/2-in. Diameter

9 — Stamped Return Air Grille and 1-in. Filter 10 — Condensate Drain Connection, 11 — Hinged Bottom Return Air Panel 12 — Supply Duct Collar, 1-in. OD 13 — Drain Pan

UNIT SIZE

NOM

AIRFLOW

(Cfm)

7

/8-in. Diameter

ABCDEFBlowerMotor

02 200 35 16 12 03 300 35 20 8 04 400 41 26 8 06 600 53 31 15 08 800 53 38 8 10 1000 75 52 16 12 1200 75 60 8

3

/8-in. Diameter Hole

7

/8-in. OD

DIMENSIONS (in.) QTY/UNIT BOTTOM

3

/

4

3

/

4

3

/

4

3

/

4

3

/

4

3

/

4

3

/

4

37 32 6 1 1 10 x 21 117 37 32 6 1 1 10 x 21 122 43 38 6 2 1 10 x 27 137 55 50 7 2 1 10 x 38 152 55 50 7 2 1 10 x 38 157 77 72 7 4 2 10 x 52 229 77 72 7 4 2 10 x 52 243

NOTES:

1. Right hand unit shown; left hand unit opposite.

2. Internal factory valve package and drains may not align with cabinet knockouts.

3. Dimensions shown in inches (mm). All dimensions are

1

±

/4 inches.

4. Bottom panel is Arctic White polyester powder coat paint.

RETURN

FILTER SIZE

*Unit weights are based on dry coils and minimum rows. Weights exclude packaging, valves, and other components.

(in.)

a42-4150

UNIT WEIGHT*

(lb)

50

42CK HORIZONTAL CABINET UNIT WITH TELESCOPIC ACCESS PANEL,

FRONT SUPPLY, AND REAR RETURN

*Unit weights are based on dry coils and minimum rows. Weights exclude packaging, valves, and other components.

UNIT SIZE

NOM

AIRFLOW

(Cfm)

DIMENSIONS (in.) QTY/UNIT

REAR RETURN

FILTER SIZE (in.)

UNIT WEIGHT*

(lb)

ABCDE FBlowerMotor

02 200 35 16 12

3

/

4

37 32 6 1 1 7 x 21 115

03 300 35 20 8

3

/

4

37 32 6 1 1 7 x 21 120

04 400 41 26 8

3

/

4

43 38 6 2 1 7 x 27 135

06 600 53 31 15

3

/

4

55 50 7 2 1 7 x 38 150

08 800 53 38 8

3

/

4

55 50 7 2 1 7 x 38 155

10 1000 75 52 16

3

/

4

77 72 7 4 2 7 x 52 227

12 1200 75 60 8

3

/

4

77 72 7 4 2 7 x 52 241

a42-4151

NOTES:

1. Right hand unit shown; left hand unit opposite.

2. Internal factory valve package and drains may not align with cabinet knockouts.

3. Dimensions shown in inches (mm). All dimensions are ±

1

/4 inches.

4. Bottom panel is Arctic White polyester powder coat paint.

LEGEND

1 — Junction Box 2 — 1-in. Ducted Rear Return and 1-in. Filter 3 — Optimal L-shape Drip Lip, shipped loose 4 — Chilled/Hot Water Supply and Return Connection 5 — Resilient Mounting Grommets with

3

/8-in. Diameter Hole

(typically 4)

6 — Electrical Knockout,

7

/8-in. Diameter

7 — Drain Knockout, 1

1

/2-in. Diameter

8 — 1-in. Ducted Rear Return and 1-in. Filter 9 — Condensate Drain Connection,

7

/8-in. OD

10 — Hinged Bottom Return Air Panel 11 — Supply Duct Collar, 1-in. OD 12 — Drain Pan

1

42C Series Units

2

3

4

5

10

11

6

7

8

12

9

51

42CK HORIZONTAL CABINET UNIT WITH TELESCOPIC ACCESS PANEL,

FRONT SUPPLY, REAR RETURN, AND HEATER

NOTES:

1. Right hand unit shown; left hand unit opposite.

2. Internal factory valve package and drains may not align with cabinet knockouts.

3. Dimensions shown in inches (mm). All dimensions are ±

1

/4 inches.

4. Bottom panel is Arctic White polyester powder coat paint.

*Unit weights are based on dry coils and minimum rows. Weights exclude packaging, valves, and other components.

UNIT SIZE

NOM

AIRFLOW

(Cfm)

DIMENSIONS (in.) QTY/UNIT

REAR RETURN

FILTER SIZE (in.)

UNIT WEIGHT*

(lb)

ABCDE FBlowerMotor

02 200 35 16 12

3

/

4

37 32 6 1 1 7 x 21 117

03 300 35 20 8

3

/

4

37 32 6 1 1 7 x 21 122

04 400 41 26 8

3

/

4

43 38 6 2 1 7 x 27 137

06 600 53 31 15

3

/

4

55 50 7 2 1 7 x 38 152

08 800 53 38 8

3

/

4

55 50 7 2 1 7 x 38 157

10 1000 75 52 16

3

/

4

77 72 7 4 2 7 x 52 229

12 1200 75 60 8

3

/

4

77 72 7 4 2 7 x 52 243

a42-4152

LEGEND

1 — Contactor Box 2 — Strip Heater High Limit 3 — Electric Strip Heater Element 4 — 1-in. Ducted Rear Return and 1-in. Filter 5 — Optimal L-shape Drip Lip, shipped loose 6 — Chilled/Hot Water Supply and Return Connection 7 — Resilient Mounting Grommets with

3

/8-in. Diameter Hole

(typically 4)

8 — Electrical Knockout,

7

/8-in. Diameter

9 — Drain Knockout,1

1

/2-in. Diameter

10 — 1-in. Ducted Rear Return and 1-in. Filter 11 — Condensate Drain Connection,

7

/8-in. OD

12 — Hinged Bottom Return Air Panel 13 — Supply Duct Collar, 1-in. OD 14 — Drain Pan

Base unit dimensions (cont)

42C Series Units

14

52

16

42CK HORIZONTAL CABINET UNIT WITH TELESCOPIC ACCESS PANEL, BOTTOM SUPPLY, BOTTOM RETURN*

LEGEND

1— Junction Box, 4 in. x 4 in. 2— Optional Drip Lip, shipped loose 3— Mounting Holes (4), Rubber Grommets

have

3

/8-in. Diameter Hole

4— Piping Knockout, 11/2-in. Diameter 5— Electrical Knockout,

7

/8-in. Diameter

6— Drain Knockout, 1

1

/2-in. Diameter

7— Supply Duct Collar 8— Return Connection,

5

/8-in. OD.

9— Optional Rear Return. Consult factory for

collar dimensions.

10 — Drain,

7

/8-in. OD.

11 — Stamped Bottom Return Air Grille 12 — Filter 13 — Stamped Air Supply Grille 14 — Hinged Bottom Access Panel 15 — Supply Connection,

5

/8-in. OD.

16 — Drain Pan

†Unit weights are based on dry coils and minimum rows. Weights exclude packaging, valves, and other components.

UNIT SIZE

NOM

AIRFLOW

(Cfm)

DIMENSIONS (in.) QTY/UNIT

FACE AREA

(sq ft)

UNIT

WEIGHT†

(lb)

ADE

Blower Motor

02 200 35 37 32 1 1 0.83 115 03 300 35 37 32 1 1 1.08 120 04 400 41 43 38 2 1 1.35 135 06 600 53 55 50 2 1 1.88 150 08 800 53 55 50 2 1 2.31 155 10 1000 75 77 72 4 2 3.16 227 12 1200 75 77 72 4 2 3.65 241

* ETO — Engineered to Order. NOTES:

1. Right hand unit shown; left hand unit opposite. Coil connection locations are ±

5

/8-inches.

2. Unit sizes 02 and 03 have one motor, one blower; sizes 04 through 08 have one motor, 2 blowers; sizes 10 and 12 have 2 motors, 4 blowers.

3. Bottom access panel has an Arctic White baked finish.

4. Refer to supply and return connections above for coil stub-out locations.

5. Not shown: optional drip lip, 3-speed fan switch; wall plate,

1

/2-in. fiberglass insulation on inside of casing, closed cell foam on main drain pan.

6. See 42CA-203-1 for optional coil connections.

7. Valve package is factory-installed inside the cabinet when ordered with the unit (based on component size).

8. Bottom return or bottom supply is an ETO (engineering to order) request.

9. Dimensions shown in inches (mm).

A42-4107

42C Series Units

53

18

Base unit dimensions (cont)

42C Series Units

42CK HORIZONTAL CABINET WITH TELESCOPIC ACCESS PANEL BOTTOM SUPPLY, BOTTOM RETURN,

AND ELECTRIC HEAT*

LEGEND

1— Junction Box, 4 in. x 4 in. 2— Strip Heater High Limit 3— Electric Strip Heater Element 4— Optional Drip Lip, shipped loose 5— Mounting Holes (4), Rubber Grommets

6— Piping Knockout, 1 7— Electrical Knockout, 8— Drain Knockout, 1 9— Supply Duct Collar

10 — Optional Rear Return. Consult factory for

11 — Drain, 12 — Stamped Bottom Return Air Grille 13 — Filter 14 — Stamped Air Supply Grille 15 — Hinged Bottom Access Panel 16 — Supply Connection, 17 — Return Connection, 5/8-in. OD. 18 — Drain Pan

UNIT SIZE

3

/8-in. Diameter Hole

have

collar dimensions.

7

/8-in. OD.

NOM AIRFLOW

(Cfm)

1

/2-in. Diameter

7

/8-in. Diameter

1

/2-in. Diameter

5

/8-in. OD.

DIMENSIONS (in.) QTY/UNIT

ADEBlowerMotor

* ETO — Engineered to Order. NOTES:

1. Right hand unit shown; left hand unit opposite. Coil connection locations are ±

2. Unit sizes 02 and 03 have one motor, one blower; sizes 04 through 08 have one motor, 2 blowers; sizes 10 and 12 have 2 motors, 4 blowers.

3. Bottom access panel has an Arctic White baked finish.

4. Refer to supply and return connections above for coil stub-out locations.

5. Not shown: optional drip lip, 3-speed fan switch; wall plate, fiberglass insulation on inside of casing, closed cell foam on main drain pan.

6. See 42CA-203-1 for optional coil connections.

7. Valve package is factory-installed inside the cabinet when ordered with the unit (based on component size).

8. Bottom return or bottom supply is an ETO (engineering to order) request.

9. Dimensions shown in inches (mm).

5

/8-inches.

A42-4108

FACE AREA

(sq ft)

02 200 35 37 32 1 1 0.83 117 03 300 35 37 32 1 1 1.08 122 04 400 41 43 38 2 1 1.35 137 06 600 53 55 50 2 1 1.88 152 08 800 53 55 50 2 1 2.31 157 10 1000 75 77 72 4 2 3.16 229 12 1200 75 77 72 4 2 3.65 243

†Unit weights are based on dry coils and minimum rows. Weights exclude packaging, valves, and other components.

1

/2-in.

UNIT WEIGHT†

(lb)

54

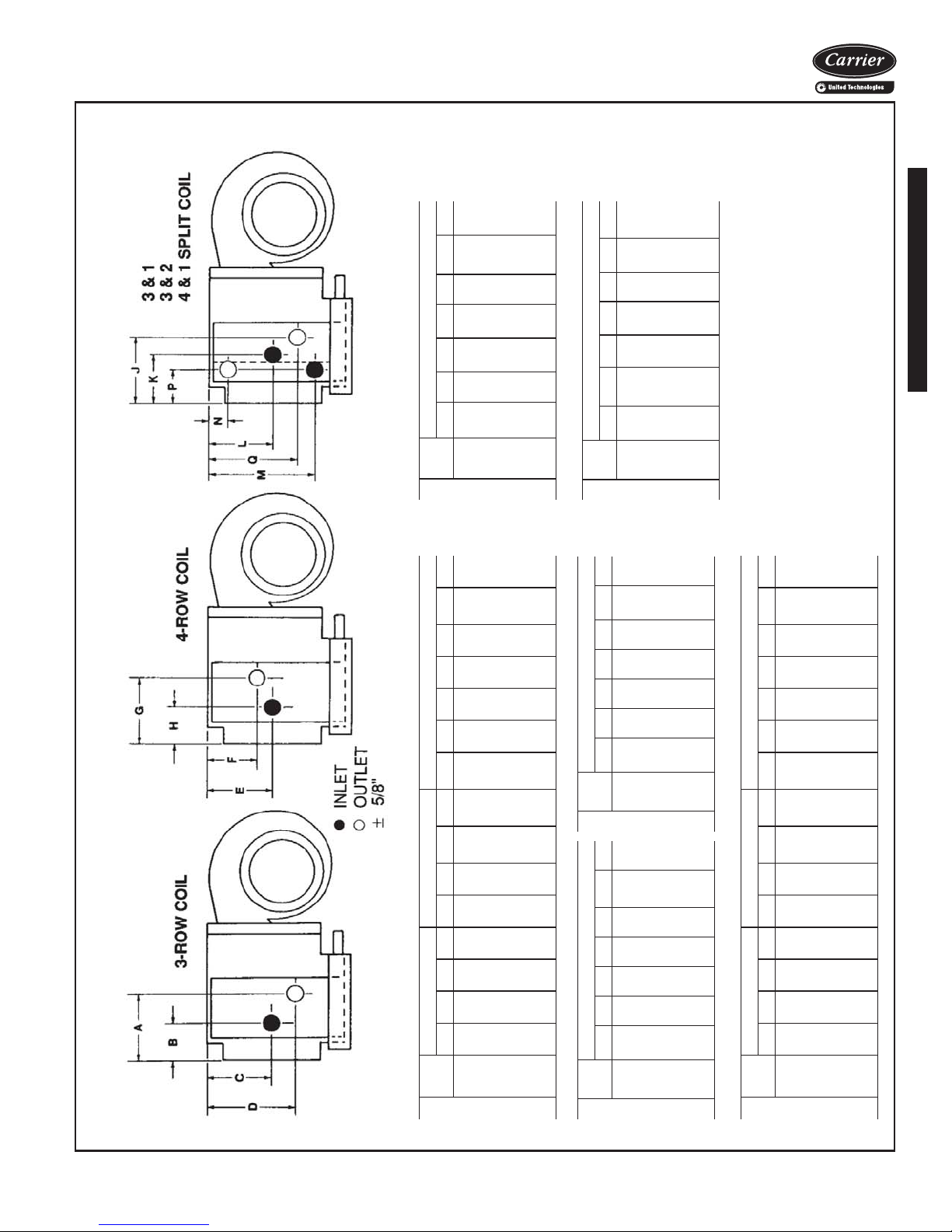

Accessory dimensions

42C Series Units

8

4

/

5

1

3

4

16

/

11

2

8

/

1

4

/

3

51

6

8

4

/

5

1

3

4

8

/

1

4

16

/

5

03 6

04 6

06 6

T

HAN

1

11

1

3

1

5

3

16

/

11

2

8

/

1

51

8

/

5

3

3 AND 2 SPLIT COIL

8

/

1

4

16

/

JKLMNP Q

5

02 6

SIZE

UNIT

LEF

4

8

/

7

4

16

/

11

2

8

/

1

4

/

3

6

4

8

/

5

4

3

8

/

1

4

16

/

5

08 6

10 6

12 6

D

4 AND 1 SPLIT COIL

JKLMNPQ

SIZE

UNIT

LEF

8

4

8

/

5

3

16

/

9

1

2

/

1

5

8

/

5

3

8

/

5

2

16

/

3

5

02 5

03 5

04 5

T

HAN

8

/

1

7

4

16

/

9

1

2

/

1

4

/

3

6

4

8

/

1

5

4

3

8

/

5

2

16

/

5

06 5

08 5

10 5

12 5

D

inch.

4

/

1

inOD.

8

/

5

chilled/hot water coils only, with hot water coil in standard

reheat position.

3. Dimensions do not apply to units with factory valve packages.

4. All connection sizes

1. Right hand unit shown; left hand unit opposite.

2. All dimensions are in inches ±

NOTES:

5. Split coil connections shown are for 4-pipe combinations;

4

8

4

8

4

/

1

7

4

16

/

1

2

8

/

1

3

1

8

/

5

7

5

4

/

1

7

4

8

/

1

3

16

/

5

16

/

1

2

16

/

5

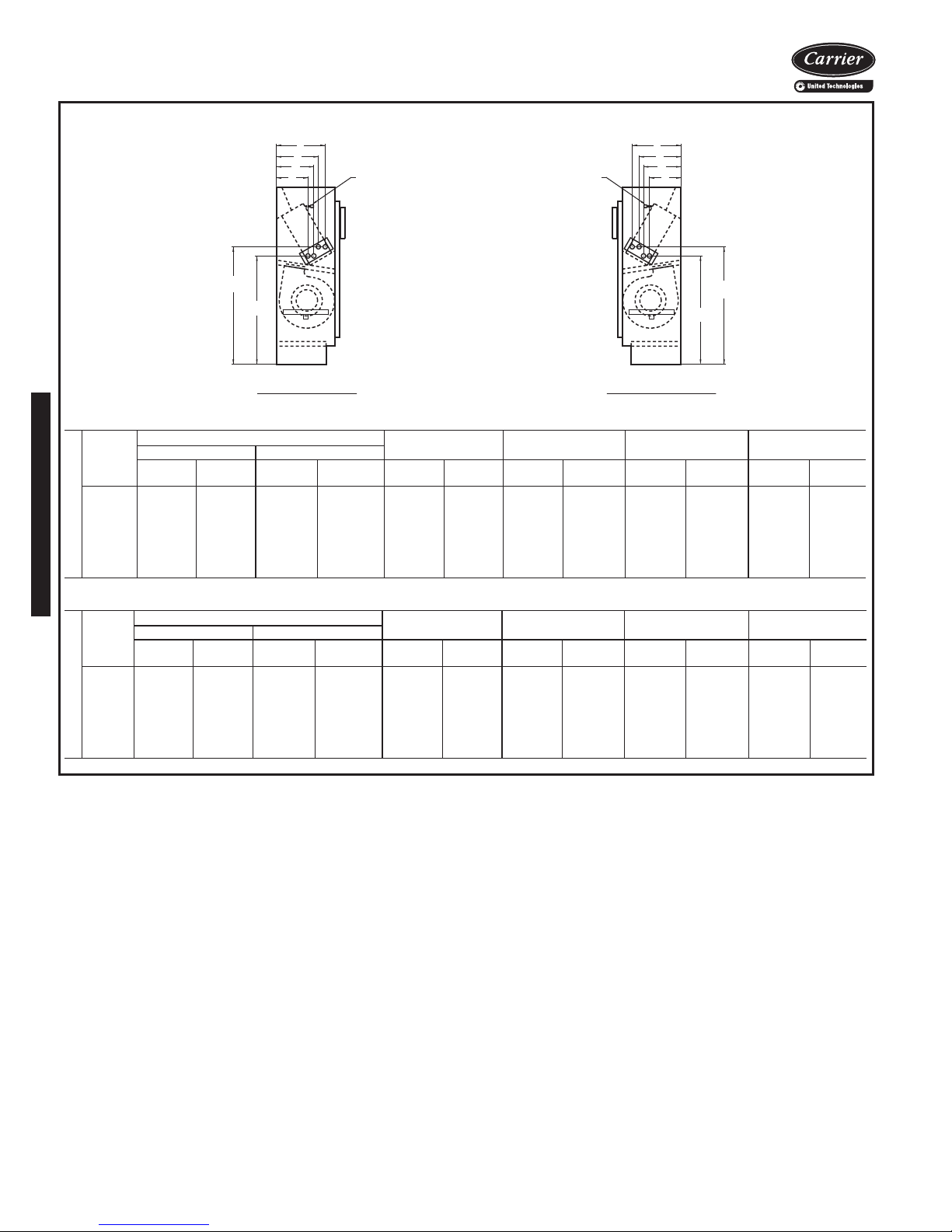

42C OPTIONAL COIL CONNECTION LOCATION SIZES 02–12

COIL CONNECTION DIMENSIONS

3-ROW COIL 4-ROW COIL 3 AND 1 SPLIT COIL

ABCDEF G H J KLMN P Q

5

4

/

1

7

4

8

/

5

1

3

4

/

1

7

4

/

1

5

4

8

/

5

2

4

/

3

4

/

7

1

4

16

/

1

2

8

/

3

2

8

/

7

6

8

2

/

7

1

4

5

8

/

1

3

16

/

5

16

/

1

2

16

/

5

8

4

8

/

1

7

4

2

8

4

/

5

1

5

3

4

8

/

7

5

4

3

8

/

5

7

3

4

8

/

5

2

4

/

3

/

1

4

16

/

9

1

8

/

1

8

/

5

4

/

1

4

8

/

5

2

16

/

3

5

02 5

03 5

I

HTHAN

G

4

/

1

4

16

/

11

2

4

/

3

1

8

/

5

4

/

1

4

8

/

1

4

16

/

JKLMNPQ JKLMNPQ

5

/

5

2

16

/

5

04 5

4

/

1

4

16

/

11

2

4

/

3

1

8

/

5

4

/

1

4

8

/

1

4

16

/

5

4 AND 1 SPLIT COIL

SIZE

UNIT

R

3 AND 2 SPLIT COIL

/

7

1

4

16

/

9

1

8

/

3

2

8

/

7

6

8

/

7

1

4

8

/

5

2

16

/

5

06 5

08 5

8

/

7

1

4

16

/

11

32

8

/

7

6

8

/

7

1

4

8

/

1

4

16

/

5

4

/

1

4

16

/

9

1

8

/

3

2

8

/

7

6

2

/

1

5

8

/

5

2

16

/

5

10 5

12 5

D

4

8

/

7

4

16

/

11

32

8

/

7

6

2

/

1

5

8

/

1

4

16

/

5

3-ROW COIL 4-ROW COIL 3 AND 1 SPLIT COIL

ABCDEF G H J KLMN P Q

8

4

8

/

5

1

3

16

/

1

2

/

1

3

5

8

/

5

1

3

8

/

1

3

16

/

5

16

/

1

2

16

/

5

8

/

5

1

3

4

/

1

7

4

/

1

5

4

/

1

7

4

8

/

5

2

4

/

3

8

/

1

7

4

16

/

1

2

/

1

4

/

3

6

4

8

/

1

5

4

3

8

/

1

3

16

/

5

16

/

1

2

16

/

5

2

8

2

/

5

1

5

3

4

8

4

8

/

1

7

4

8

/

5

7

3

4

8

/

7

5

4

3

8

/

5

2

4

/

3

SIZE

UNIT

I

R

02 4

03 4

04 4

HTHAN

G

06 4

08 4

10 4

12 4

D

SIZE

UNIT

I

R

03 6

04 6

02 6

HTHAN

G

06 6

08 6

10 6

12 6

D

SIZE

UNIT

LEF

03 4

04 4

06 4

08 4

10 4

HAN

12 4

D

02 4

T

55

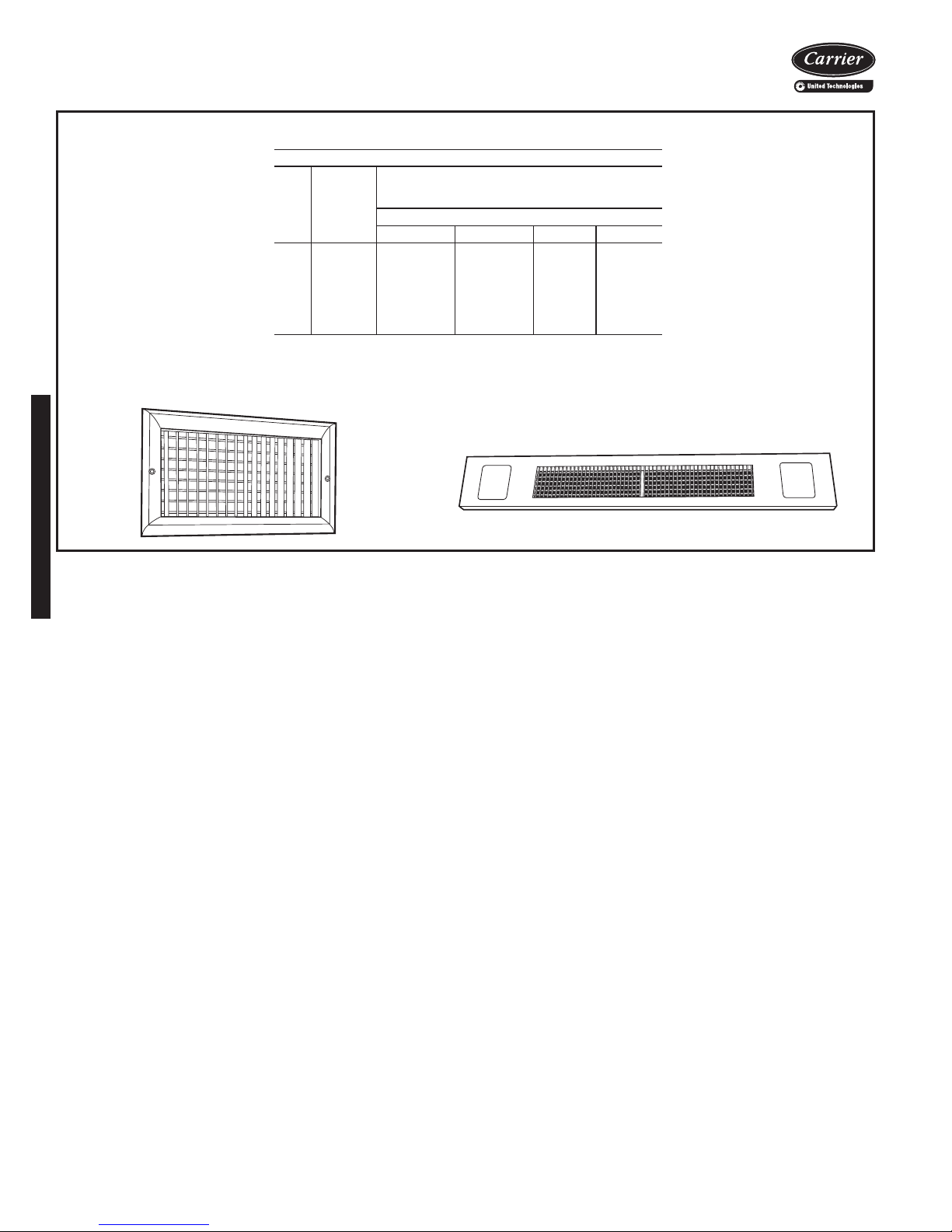

Accessory dimensions (cont)

42C Series Units

DISCHARGE AIR GRILLES

DISCHARGE GRILLES

Unit Size

*Refer to unit dimensions to size field transitions.

Nominal

Airflow

(Cfm)

02 200 16 x 6 03 300 20 x 6 04 400 26 x 6 06 600 30 x 6 08 800 38 x 6 10 1000 52 x 6 12 1200 60 x 6

Recommended Grille

Sizes (in.)

Unit

42C*

INTEGRAL DOUBLE-DEFLECTION GRILLE

FOR HORIZONTAL UNITS

(Installed on 42CG Unit as Shown)

A42-4117

56

42C Series Units

Performance data

AIR DELIVERY (CFM)

42C SERIES — 60 Hz PSC MOTOR

UNIT COIL

3-Row

42CA

4-Row

3-Row

42CE

4-Row

3-Row

42CG

4-Row

3-Row

42CK

4-Row

NOTE: Air delivery is based on operation with dry coils and clean air filter.

UNIT SIZE

Low Med High High High High High High High High

02 221 271 357 338 318 298 277 256 234 212 03 238 291 384 359 333 308 282 258 233 209 04 296 410 656 610 565 522 479 438 398 360 06 275 402 733 698 663 626 587 547 506 464 08 367 700 928 893 856 818 779 738 696 652 10 622 845 1291 1215 1140 1068 997 929 862 798 12 726 1300 1560 1478 1394 1305 1213 1117 1017 913 02 218 260 327 312 296 279 262 244 224 205 03 218 264 337 313 291 271 252 234 219 204 04 279 382 567 526 488 452 418 387 358 331 06 266 388 683 652 619 585 550 514 476 437 08 350 670 902 857 815 775 737 700 666 633 10 612 824 1208 1146 1084 1022 959 897 834 771 12 696 1245 1480 1407 1330 1249 1164 1075 982 885 02 198 232 285 270 254 237 221 204 186 168 03 221 270 346 325 304 283 260 237 212 187 04 265 358 523 491 459 428 397 368 338 309 06 267 384 650 619 586 549 509 466 420 371 08 356 642 789 752 713 672 630 586 540 492 10 552 738 1063 1008 953 899 846 794 742 691 12 668 1122 1307 1241 1173 1103 1031 958 884 807 02 194 230 276 261 245 228 211 193 175 155 03 213 258 325 305 284 262 239 216 192 166 04 259 346 490 462 434 406 377 349 320 291 06 275 390 628 597 563 525 483 438 390 337 08 349 622 755 726 692 655 612 566 515 459 10 541 723 1023 971 918 865 813 761 709 657 12 635 1079 1271 1204 1136 1066 995 922 847 771 02 211 259 333 310 287 265 244 224 204 184 03 216 270 353 335 317 297 277 256 234 211 04 303 398 572 544 515 486 456 427 396 365 06 294 422 712 676 637 597 554 509 462 413 08 375 678 821 786 748 707 664 617 568 516 10 536 719 1098 1038 978 916 853 790 726 660 12 634 1115 1313 1248 1180 1111 1041 969 896 821 02 196 240 302 277 253 232 212 194 178 164 03 210 262 340 322 303 284 264 243 221 199 04 286 375 523 495 466 437 407 377 347 316 06 277 400 666 628 588 547 505 461 417 371 08 364 652 776 737 696 653 608 560 511 459 10 508 680 1019 964 907 850 791 732 672 611 12 598 1032 1188 1131 1072 1012 949 885 818 750 02 203 241 306 290 271 249 225 199 170 139 03 220 273 335 325 310 289 263 232 195 153 04 279 371 519 493 466 439 410 380 350 318 06 308 418 640 602 564 526 487 447 408 368 08 314 625 776 746 710 669 622 570 513 450 10 474 648 1027 965 900 833 764 693 620 544 12 684 1179 1226 1154 1082 1009 935 861 785 710 02 191 233 291 271 250 229 207 184 161 137 03 195 256 320 296 272 247 220 192 163 133 04 263 348 481 458 434 407 378 347 315 280 06 293 402 606 565 525 486 446 408 369 332 08 296 595 728 701 665 621 568 507 439 361 10 447 607 981 920 855 786 713 635 553 466 12 578 972 1108 1040 971 901 830 759 686 613

0.00 0.05 0.10 0.15 0.20 0.25 0.30 0.35

EXTERNAL STATIC PRESSURE (in. wg)

Fan Speed

57

PSC Motor Fan Curve: 3-Row

-

5-Row

4-Row

0

0.05

0.10

0.15

0.20

0.25

0.30

0.35

0.40

0.45

0.50

0 50 100 150 200 250 300 350

ESP (in. wg)

Low

Med

High

Performance data (cont)

42C Series Units

AIR DELIVERY FAN CURVES

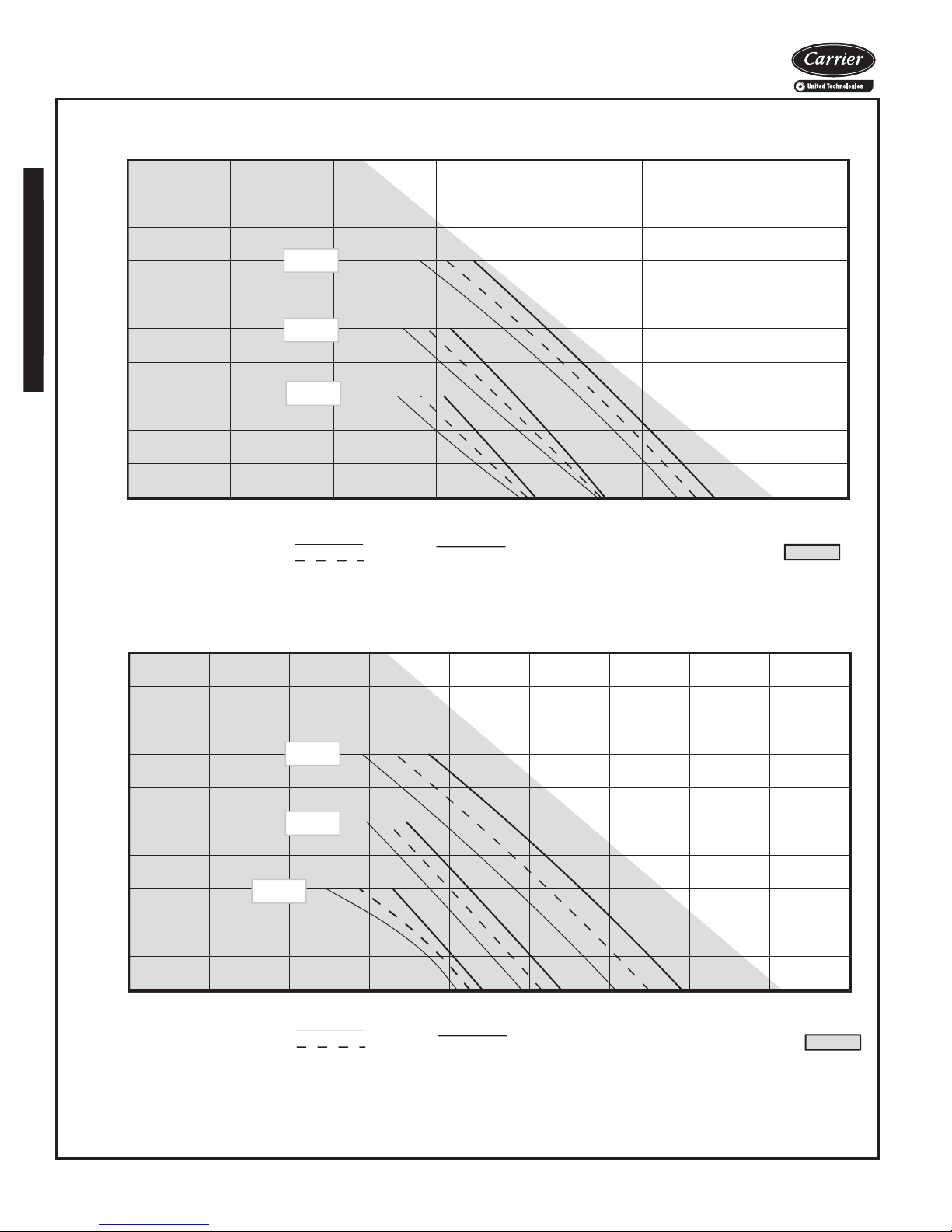

42CE SERIES — 02 UNIT SIZE

0.50

0.45

0.40

0.35

0.30

0.25

ESP (in. wg)

0.20

0.15

0.10

0.05

SCFM

ECM Operating Range:

42CE SERIES — 03 UNIT SIZE

High

Med

Low

58

0

0 50 100 150 200 250 300 350 400 450

PSC Motor Fan Curve: 3-Row

LEGEND

ECM — Electronically Commutated Motor ESP — External Static Pressure PSC — Permanent Split Capacitor SCFM — Square Cubic Feet per Minute

-

4-Row

5-Row

SCFM

ECM Operating Range:

0.50

42C Series Units

0.45

0.40

AIR DELIVERY FAN CURVES (cont)

42CE SERIES — 04 UNIT SIZE

0.35

High

0.30

0.25

ESP (in. wg)

0.20

0.15

Low

Med

0.10

0.05

0

100 150 200 250 300 350 400 450 500 550 600 650

SCFM

PSC Motor Fan Curve: 3-Row-5-Row

4-Row

42CE SERIES — 06 UNIT SIZE

ECM Operating Range:

0.50

0.45

0.40

0.35

High

0.30

0.25

ESP (in.wg)

0.20

Med

Low

0.15

0.10

0.05

0

100 150 200 250 300 350 400 450 500 550 600 650 700 750

SCFM

PSC Motor Fan Curve: 3-Row 5-Row

4-Row

LEGEND

ECM — Electronically Commutated Motor ESP — External Static Pressure PSC — Permanent Split Capacitor SCFM — Square Cubic Feet per Minute

ECM Operating Range:

59

PSC Motor Fan Curve: 3-Row-5-Row

4-Row

0

0.05

0.10

0.15

0.20

0.25

0.30

0.35

0.40

0.45

0.50

200 250 300 350 400 450 500 550 600 650 700 750 800 850

ESP (in. wg)

Low

Med

High

-

Performance data (cont)

42C Series Units

AIR DELIVERY FAN CURVES (cont)

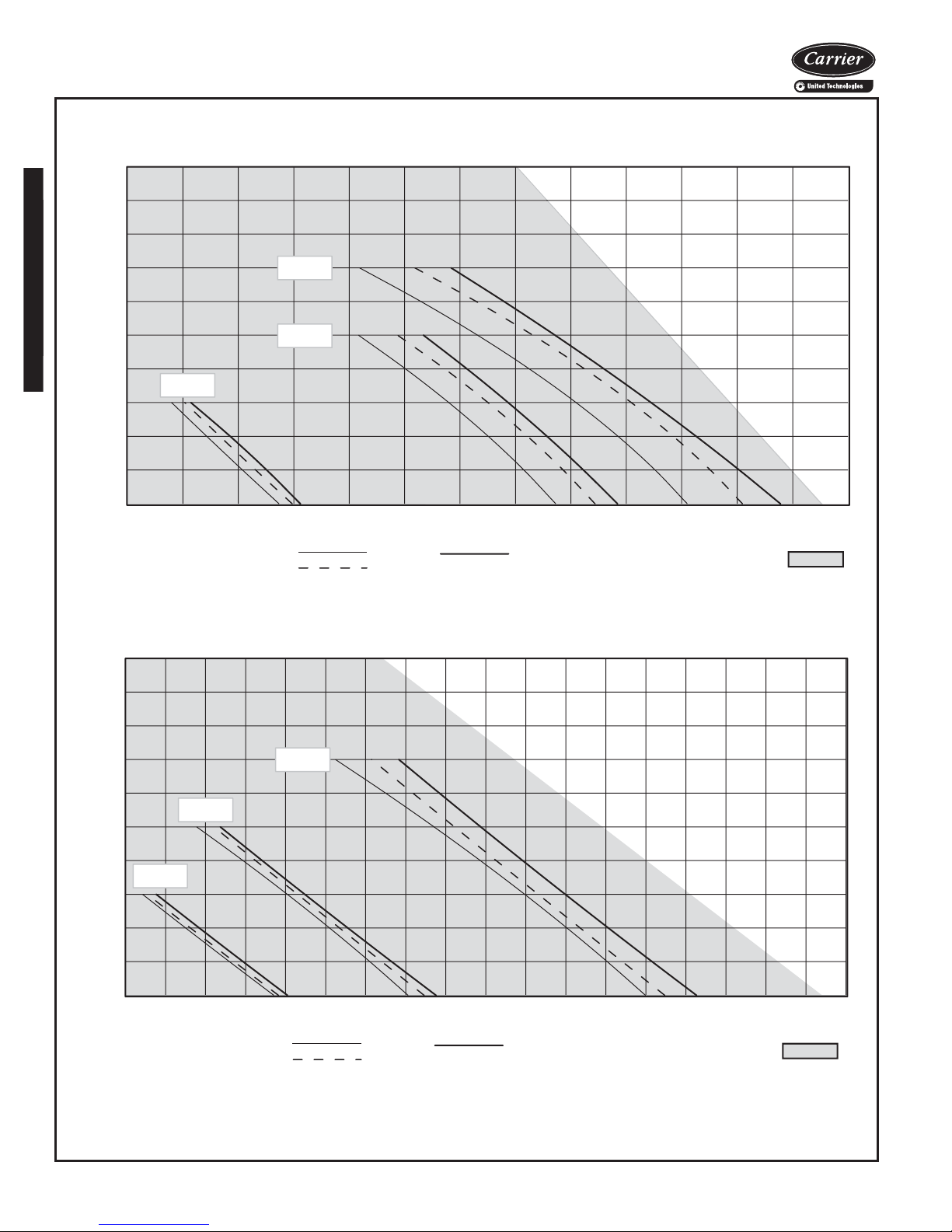

42CE SERIES — 08 UNIT SIZE

SCFM

ECM Operating Range:

42CE SERIES — 10 UNIT SIZE

0.50

0.45

0.40

0.35

0.30

0.25

ESP (in. wg)

0.20

0.15

0.10

0.05

0

350 400 450 500 550 600 650 700 750 800 850 900 950 1000 1050 1100 1150 1200 1250

PSC Motor Fan Curve: 3-Row-5-Row

LEGEND

ECM — Electronically Commutated Motor ESP — External Static Pressure PSC — Permanent Split Capacitor SCFM — Square Cubic Feet per Minute

60

Med

Low

4-Row

High

SCFM

ECM Operating Range:

AIR DELIVERY FAN CURVES (cont)

PSC Motor Fan Curve: 3-Row-5-Row

4-Row

0

0.05

0.10

0.15

0.20

0.25

0.30

0.35

0.40

0.45

0.50

350 450 550 650 750 850 950 1050 1150 1250 1350 1450 1550

ESP (in. wg)

Low

Med

High

-

42C Series Units

42CE SERIES — 12 UNIT SIZE

SCFM

ECM Operating Range:

LEGEND

ECM — Electronically Commutated Motor ESP — External Static Pressure PSC — Permanent Split Capacitor SCFM — Square Cubic Feet per Minute

61

Performance data (cont)

42C Series Units

42CA HORIZONTAL FURRED-IN CEILING UNIT

SOUND POWER DATA

UNIT RATING

CASING

RADIATED

02

DUCTED

DISCHARGE

CASING

RADIATED

03

DUCTED DIS-

CHARGE

CASING

RADIATED

04

DUCTED

DISCHARGE

CASING

RADIATED

06

DUCTED

DISCHARGE

CASING

RADIATED

08

DUCTED

DISCHARGE

CASING

RADIATED

10

DUCTED

DISCHARGE

CASING

RADIATED

12

DUCTED

DISCHARGE

NOTES:

1. Unit Test Configuration: Open Return / Front Supply, 3 Row, 10 FPI (fins per inch) Coil, 0.0 in. ESP at High Speed, 115 VAC PSC (permanent split capacitor) Motor.

2. Casing Radiated Testing per AHRI (Air-Conditioning, Heating and Refrigeration Institute) 260-2012: 4.2.2.3 Casing radiated with free inlet, Sound Rating of Ducted Air Moving and Conditioning Equipment.

3. Ducted Discharge Testing per AHRI 260-2012: 4.2.2.1 Ducted discharge, Sound Rating of Ducted Air Moving and Conditioning Equipment.

4. Sound power data is expressed decibels, dB RE: 1 x 10 (picowatts).

FAN

SPEED

H 280 58 56 57 56 52 48 43 60

M 200 52 50 51 49 44 38 37 53

L 165 48 45 45 43 37 33 37 47

H 280 56 53 52 48 45 38 38 54

M 200 51 47 46 41 37 32 36 47

L 165 48 43 41 35 31 30 36 43

H 300 58 55 58 57 54 49 44 61

M 210 52 47 49 47 42 37 37 51

L 165 50 43 43 41 36 32 36 46

H 300 55 52 53 50 47 40 38 55

M 210 50 46 47 42 38 32 35 48

L 165 48 42 41 36 32 30 35 43

H 625 64 62 63 62 60 56 52 67

M 415 58 53 54 52 47 42 39 56

L 315 53 46 47 44 38 33 37 48

H 625 67 57 59 57 52 46 43 61

M 415 62 48 49 45 40 33 36 51

L 315 57 43 42 37 31 30 36 45

H 750 67 63 63 62 59 55 52 66

M 460 59 51 52 49 45 40 38 54

L 350 54 44 43 41 36 32 36 46

H 750 67 63 63 62 59 55 52 66

M 460 59 51 52 49 45 40 38 54

L 350 54 44 43 41 36 32 36 46

H 875 65 66 67 66 63 60 57 71

M 720 62 61 62 61 57 54 50 65

L 425 53 48 49 46 41 36 36 51

H 875 73 62 63 62 57 54 51 66

M 720 72 59 59 57 52 48 45 62

L 425 63 45 46 41 35 32 35 50

H12206767676763605671

M 840 62 57 59 56 51 47 42 60

L 645 58 51 52 48 42 37 36 53

H12206862646256524966

M 840 65 54 55 51 44 39 37 56

L 645 62 47 48 43 36 31 34 50

H15256868696965625973

M13306565666561575469

L 820 56 53 55 51 46 41 38 56

H15256864666459565268

M13306561636055514865

L 820 56 49 52 46 40 35 35 52

CFM

SOUND POWER LEVEL, Lw (dB one reference pico watt) - Hz

125 Hz 250 Hz 500 Hz 1000 Hz 2000 Hz 4000 Hz 8000 Hz

A-wgt (dBA)

-12

W

62

UNIT RATING

42C Series Units

42CE HORIZONTAL FURRED-IN WITH PLENUM CEILING UNIT

SOUND POWER DATA

SOUND POWER LEVEL, Lw (dB one reference pico watt) - Hz

FAN

SPEED

CFM

125 Hz 250 Hz 500 Hz 1000 Hz 2000 Hz 4000 Hz 8000 Hz

A-wgt (dBA)

02

03

04

06

08

10

12

CASING

RADIATED

DUCTED

DISCHARGE

CASING

RADIATED

DUCTED DIS-

CHARGE

CASING

RADIATED

DUCTED

DISCHARGE

CASING

RADIATED

DUCTED

DISCHARGE

CASING

RADIATED

DUCTED

DISCHARGE

CASING

RADIATED

DUCTED

DISCHARGE

CASING

RADIATED

DUCTED

DISCHARGE

H 250 59 57 57 51 46 40 38 57

M 170 57 53 52 45 40 35 37 52

L 135 55 49 48 40 34 31 36 48

H 250 60 53 53 48 45 39 37 54

M 170 57 48 48 43 40 33 36 49

L 135 54 44 43 37 34 30 36 45

H 285 57 58 58 50 47 43 39 58

M 195 50 50 50 41 37 33 36 49

L 140 46 45 44 35 30 31 36 44

H 285 56 51 52 49 46 40 37 54

M 195 52 46 46 42 39 33 35 48

L 140 49 41 41 37 32 30 35 43

H 510 65 64 63 58 53 48 44 64

M 360 62 57 56 50 44 38 37 56

L 265 59 50 49 43 36 32 37 50

H 510 68 59 61 58 54 47 43 63

M 360 64 51 53 49 44 37 37 55

L 265 60 45 47 42 36 31 36 49

H 660 65 64 62 57 52 48 44 63

M 410 58 53 53 45 39 34 36 53

L 310 53 47 45 37 31 31 36 46

H 660 66 59 60 57 52 48 44 62

M 410 58 48 49 45 39 34 36 51

L 310 53 42 42 37 30 30 36 44

H 770 66 68 65 59 56 53 50 66

M 650 64 65 62 55 51 48 44 63

L 390 57 51 50 42 36 32 35 50

H 770 68 63 63 62 57 54 50 66

M 650 67 59 59 57 52 49 44 62

L 390 61 46 46 42 36 32 35 49

H 995 67 70 66 61 56 51 46 67

M 700 65 61 59 52 46 41 37 59

L 540 62 53 53 44 38 32 35 53

H 995 70 63 64 62 56 52 47 66

M 700 71 55 57 53 47 41 36 59

L 540 68 49 51 45 39 33 34 54

H13056770696358555169

M11456568666055524766

L 700 56 55 55 47 41 36 36 55

H13056765666459565168

M11456462636156524765

L 700 55 50 53 48 42 36 35 53

NOTES:

1. Unit Test Configuration: Open Return / Front Supply, 3 Row, 10 FPI (fins per inch) Coil, 0.0 in. ESP at High Speed, 115 VAC PSC (permanent split capacitor) Motor.

2. Casing Radiated Testing per AHRI (Air-Conditioning, Heating, and Refrigeration Institute) 260-2012: 4.2.2.3 Casing radiated with free inlet, Sound Rating of Ducted Air Moving and Conditioning Equipment.

3. Ducted Discharge Testing per AHRI 260-2012: 4.2.2.1 Ducted discharge, Sound Rating of Ducted Air Moving and Conditioning Equipment.

4. Sound power data is expressed decibels, dB RE: 1 x 10 (picowatts).

-12

63

W

Electrical data

42C Series Units

ELECTRIC HEATER DATA

HEATER

VO LTAGE

120 4.28.312.516.725.0————— 208 2.4 4.8 7.2 9.6 14.4 19.2 24.0 28.8 38.5 — 240 2.1 4.2 6.3 8.3 12.5 16.7 20.8 25.0 33.3 41.7 277 1.8 3.6 5.4 7.2 10.8 14.4 18.05 21.7 28.9 36.1

0.5 1.0 1.5 2.0 3.0 4.0 5.0 6.0 8.0 10.0

HEATER kW

FLA

LEGEND FLA — Full Load Amps NOTE: All heaters are single-stage and single-phase.

42CA,CE,CG AND CK PSC MOTOR DATA

UNIT SIZE

V-Ph-Hz

115-1-60

208-1-60

230-1-60

277-1-60

FAN

SPEED

Nominal

Hp

H M 58 0.31 62 0.50 91 0.70 86 0.72

1

/

30

L 440.27 470.34 680.45 600.45 H M 750.29 750.29 880.43 920.47

1

/

30

L 490.15 490.15 540.22 550.24 H

1

M 870.31 860.32 1040.45 1110.52

/

30

L 570.15 570.15 620.24 650.28 H

1

M 860.26 910.26 1070.43 1120.43

/

30

L 550.16 570.16 650.25 670.35

02 03 04 06

Watt s Amps

78 0.53

98 0.48

114 0.48

104 0.35

Nominal

Hp

1

/

30

1

/

30

1

/

30

1

/

30

Watt s Amp s

89 0.83

99 0.48

112 0.48

112 0.35

Nominal

Hp

1

/

12

1

/

12

1

/

12

1

/

12

Watts Amps

144 1.40

120 0.69

137 0.69

143 0.69

Nominal

Hp

1

/

12

1

/

12

1

/

12

1

/

12

Watts Amps

151 1.40

132 0.69

150 0.69

155 0.69

V-P h-Hz

115-1-60

FAN

SPEED

Nominal

Hp

H

1

M 166 1.50 184 1.40 307 2.80

/

6

08 10* 12*

Watts Amps

223 2.50

L 83 1.20 134 0.90 166 1.20

208-1-60

H

1

M 109 0.69 182 0.94 208 1.33

/

6

189 1.30

L 60 0.47 109 0.46 120 0.94

230-1-60

H

1

M 128 0.70 210 1.00 241 1.34

/

6

206 1.30

L 72 0.50 130 0.50 143 1.00

277-1-60

H

1

M 152 0.62 219 0.80 293 1.20

/

6

245 0.91

L 120 0.35 132 0.25 234 0.66

*Total motor amps and watts shown for units with 2 motors. NOTES:

1. Motor nameplate amps may vary.

2. Fan coil units comply with ETL, Canadian Standards Association (CSA), and ETL of Canada standards.

42C HIGH-STATIC PSC MOTOR DATA

SIZE NOMINAL HP AMPS WATTS 42C*02 42C*03 42C*04 42C*06 42C*08 42C*10 42C*12

NOTES:

1. High-static PSC motors are available on 42CA,CE,CK for 60 Hz voltages with a special quote.

1

/

12

1

/

12

1

/

6

1

/

6

1

/

5

1

/

6

1

/

5

UNIT SIZE

Nominal

Hp

Watt s Amps

286 2.80

1

/12 (2)

245 1.38

1

/12 (2)

281 1.38

1

/12 (2)

288 1.38

1

/12 (2)

1.4 59

1.4 100

2.5 195

3.6 277

5.0 360

7.2 513

2. Motor amps and watts based on 115V motors.

Nominal

Hp

1

/6 (2)

1

/6 (2)

1

/6 (2)

1

/6 (2)

Watts Amps

399 5.00

325 2.60

356 2.60

426 1.82

64

42C ECM MOTOR DATA

42C Series Units

SIZE NOMINAL HP

1

/6 (2)

1

/6 (2)

/

7

1

/

7

1

/

6

1

/

6

1

/

6

42C*02

42C*03

42C*04

42C*08

42C*10

42C*12

AMPS

120V 208V 230V 277V

1.4 1.3 1.2

2.4

1.6 1.5 1.042C*06

3.2 3.0 2.0

65

Design Series (A or C*)

Motor Options 1 – 120-v High-Static Permanent Split Capacitor (HSPSC) 2 – 208/1/60 HSPSC 3 – 230/1/60 HSPSC 4 – 277/1/60 HSPSC A – 120-v Electonically Commutated Motor (ECM)

with Control Option 1

B – 120-v ECM with Control Option 2 C – 120-v Permanent Split Capacitor (PSC) (Standard) D – 208/1/60 PSC E – 230/1/60 PSC F – 277/1/60 PSC G – 120-v ECM with Control Option 3 H – 208-v ECM with Control Option 1 J – 208-v ECM with Control Option 2 K – 208-v ECM with Control Option 3 L – 230-v ECM with Control Option 1 M – 230-v ECM with Control Option 2 N – 230-v ECM with Control Option 3 P – 277-v ECM with Control Option 1 Q – 277-v ECM with Control Option 3 R – 277-v ECM with Control Option 2 V – 220/1/50 PSC†

* Model 42VA, VB, and VF. † Contact Application Engineering for data on the 50 Hz motor.

VA

Control Option 1 – 3-Discrete Potentiometer Field Speed Adjustment Control Option 2 – Variable Flow 0-10 VDC or 4-20 mA Control Option 3 – 4-Discrete Potentiometer Field Speed Adjustment

Model number nomenclature

42V Series Units

66

AHRI capacity ratings

42V Series Units

The 42V Series fan coil units are certified in compliance with the Air-Conditioning, Heating and Refrigeration Institute (AHRI) Industry Standard 440 for room fan coil units. Approved standard ratings are tabulated below:

AHRI APPROVED STANDARD RATINGS*

UNIT

42VA,VB,VF

42VG

42VC,VE

LEGEND

GPM — Gallons per minute MBtuh — Capacity (Btuh in thousands)

*Ratings based on motor at high fan speed, standard air and dry coil oper-

ation, 10° F water temperature rise; entering-air temperature 67 F wb; 80 F db; entering water temperature 45 F.

†Motor type permanent split capacitor operating at 115-1-60 voltage.

**Shaded pole motor.

UNIT

SIZE

02 03 300 1.5 8.1 5.9 110 04 400 2.4 11.6 8.8 135 06 600 3.0 18.7 13.4 190 08 800 4.0 20.8 14.4 200 10 1000 4.8 31.7 21.1 275 12 1200 5.3 34.1 23.9 355

02 03 300 2.0 9.2 6.5 110 04 400 2.7 12.7 9.1 135 06 600 3.8 20.6 14.2 190 08 800 4.2 21.7 14.3 200 10 1000 5.9 30.7 19.9 275 12 1200 7.8 38.9 25.6 350

01 03 300 1.5 5.2 4.7 270**

02 03 300 2.0 8.6 6.7 135 04 400 2.6 12.3 8.3 150 06 600 3.6 18.3 13.2 260

02 03 300 2.4 10.9 7.1 130 04 400 3.0 13.4 8.8 145 06 600 4.1 21.1 14.6 250

COIL

ROWS

3

4

2

3

NOMINAL

CFM

200 1.0 6.9 4.7 80

200 — — — —

150 0.6 2.1 1.6 135**

200 1.2 5.1 3.6 68

200 1.3 5.5 3.8 68

GPM

COOLING CAPACITY

Tot al

MBtuh

Sensible

MBtuh

POWER

INPUT (WATTS)†

67

Physical data

42V Series Units

UNIT SIZE 42V 01 02 03 04 06 08 10 12 NOMINAL AIRFLOW (cfm) 150 200 300 400 600 800 1000 1200 SHIPPING WEIGHT (lb)*

42VA —42 47 57 77 79108127 42VB — 63 68 82 99 101 133 154 42VC — 50 60 72 110 — — — 42VE — 72 100 108 154 — — — 42VF — 64 69 83 100 102 135 156 42VG 40 — 74 — — — — —

COIL WATER WEIGHT (Approx lb per row of coil) 42VA, VB, VC†, VF — 0.7 0.8 1.0 1.4 1.7 2.3 2.7 42VE — 0.9 1.2 1.6 2.3 — — — 42VG 0.4 — 1.0 — — — — —

COILS FPI (42VA, VB, VF) 12 fins/inch FPI (42VC, VE, VG) 10 fins/inch Coil Face Area (sq ft) 0.8 0.8 1.1 1.4 1.9 2.3 3.2 3.7

MOTOR (qty) 42VA, VB, VF —11 1 1122 42VC, VE —1 1 1 2 ——— 42VG 1— 2 — — ———

BLOWER (qty) 42VA, VB, VF —11 2 2244 42VC, VE —2 2 2 4 ——— 42VG 1— 2 — — ———

FILTERS Nominal Size (in.) (1-in. thick) 42VA, VB, VF —7 42VC, VE —7 x 21 42VG 10 x 14 Qty 111 1 1 111

SUPPLY DUCT COLLAR 1-in. PIPING CONNECTIONS (Sweat) (in.)

Coil Outlet and Inlet Drain Connection

*Calculate operating weight of unit: shipping weight + coil water

weight x number of coil rows.

†Available in sizes 02-06.

3

/4 x 213/

1

/

2

— 10 x 28 — — — — —

73/4 x 213/

4

3

/

7 x 263/

4

73/4 x 313/

4

7 x 343/

4

5

/8 OD

3

/4 MPT

73/4 x 413/

7 x 483/

73/4 x 433/

4

———

4

73/4 x 573/

4

73/4 x 653/

4

68

TOP VIEW

SUPPLY AIR OPENING

ACCESS PANEL

REMOVABLE FRONT

DUCT COLLAR

1" (25) SUPPLY

3/4" (19) MPT CONNECTION

DRAIN PAN WITH

PLASTIC AUXILIARY 7X7

RETURN AIR OPENING

SUPPLY

AIR

2

(51)

5

(127)

2-1/4

(57)

A

6-1/2

(165)

B

9-1/4

(235)

4

(102)

11-3/4

(298)

25

(635)

3-3/4 (95) *

3-3/4

(95) *

D

MOUNTING HOLES RIGHT SIDE VIEW

AIR

RETURN

2-7/8

(73)

C

5-1/2

(140)

STD.

OPTIONAL CONTROL

BOX SHOWN

(STD IS

2X4 J-BOX)

2

(51)

DRAIN TROUGH

SUPPLY & WATER

RETURN CONNECTIONS

AIR VENT

9 1/4

(235)

1

(25)

8-1/4

(210)

1" (25)

FILTER

14-1/2

(368)

16-1/8

(410)

1/2" (13)

MOUNTING

HOLES

(TYP OF 4)

4

(102)

1/2(2X)

(13)

4-1/2

(114)

(DIMENSION FROM INSIDE CASE LEG)

(DIMENSION FROM MOUNTING HOLE)

Base unit dimensions

42V Series Units

42VA FURRED-IN VERTICAL UNIT

UNIT

SIZE

02 24 03 24 04 34 06 44 08 46 10 60 12 68

*Unit weights are based on dry coils and minimum rows. Weights exclude packaging, valves, and other components.

DIMENSIONS (in.) QTY/UNIT

ABCD

3

/

16

3

/

16

3

/

16

3

/

16

3

/

16

3

/

16

3

/

16

2-1/2

(64)

FRONT VIEW

NOTES:

22 23 16 1 1 42 22 23 18 1 1 47 32 33 26 2 1 57 42 43 36 2 1 77

44 45 38 2 1 79

58 59 52 4 2 108 66 67 60 4 2 127

1. All dimensions are ± 1/4-in. (6).

2. Standard 3-row coil shown.

3. Right hand unit shown, left hand unit is opposite.

4. Dimensions shown in inches (mm).

Blower Motor

UNIT WEIGHT*

(lb)

69

Base unit dimensions (cont)

42V Series Units

42VA FURRED-IN VERTICAL UNIT WITH ELECTRIC HEATER

5-1/2 (140)

STD.

OPTIONAL CONTROL BOX

SHOWN (STD IS 2X4 J-BOX)

STRIP HEATER

HIGH LIMIT

1/2" (13)

MOUNTING

HOLES

(TYP OF 4)

9-1/4

(235)

25

(635)

11-3/4

(298)

4

(102)

1/2(2X)

(13)

3-3/4 (95) *

SUPPLY AIR OPENING

REMOVABLE FRONT ACCESS PANEL

RETURN AIR OPENING

B

MOUNTING HOLES

FRONT VIEW

D

TOP VIEW

A

C

3-3/4 (95) *

6-1/2

(165)

PLASTIC AUXILIARY 7X7 DRAIN PAN WITH 3/4" (19) MPT CONNECTION

2-1/4

(57)

1" (25) SUPPLY DUCT COLLAR

2

(51)

(DIMENSION FROM MOUNTING HOLE)

SUPPLY & RETURN WATER CONNECTIONS

DRAIN TROUGH

4

(102)

2-1/2

(64) (DIMENSION FROM INSIDE CASE LEG)

AIR VENT

1" (25)

FILTER

2-7/8

RETURN

AIR

(73)

(25)

1

RIGHT SIDE VIEW

NOTES:

1. All dimensions are ± 1/4-in. (6).

2. Standard 3-row coil shown.

3. Right hand unit shown, left hand unit is opposite.

4. Dimensions shown in inches (mm).

5

(127)

SUPPLY

AIR

8-1/4

(210)

9 1/4

(235)

(51)

14-1/2

(368)

4-1/2

(114)

2

ELECTRIC STRIP HEATER ELEMENT

16-1/8

(410)

UNIT SIZE

02 24 03 24 04 34 06 44 08 46 10 60 12 68

A BCD

3

/16 22 23 16 1 1 42

3

/16 22 23 18 1 1 47

3

/16 32 33 26 2 1 57

3

/16 42 43 36 2 1 77

3

/16 44 45 38 2 1 79

3

/16 58 59 52 4 2 108

3

/

16

DIMENSIONS (in.) QTY/UNIT

66 67 60 4 2 127

*Unit weights are based on dry coils and minimum rows. Weights exclude packaging, valves, and other components.

70

Blower Motor

UNIT WEIGHT*

(lb)

11-3/4

(298)

4

(102)

9-1/4

(235)

2-7/8

(73)

RETURN

AIR

SUPPLY

RETURN AIR OPENING

REMOVABLE FRONT ACCESS PANEL

TOP VIEW

FRONT VIEW RIGHT SIDE VIEW

1-3/4

(45)

5-3/4

(146)

1-1/2

(38)

PLASTIC AUXILIARY 7X7 DRAIN PAN WITH 3/4" (19) MPT CONNECTION

9

(229)

9

(229)

9-1/2

(241)

9-1/2

(241)

OPTIONAL

1/4 TURN PANEL FASTENER TYP.

1/2" (13)

MTG. HOLES

(TYP. OF 4)

3-3/4

(95)

5

(127)

5

(127)

3-3/4

(95)

STANDARD STAMPED SUPPLY GRILLE

CONTROL ACCESS DOOR STD. (2)

MOUNTING HOLES

A

B

C

E

D

25

(635)

(OPTIONS AVAILABLE)

2

(51)

DRAIN TROUGH

SUPPLY & RETURN WATER CONNECTIONS

9

(229)

3/4 (19)

8-1/4

(210)

1" (25)

FILTER

14-1/2

(368)

16-1/8

(410)

AIR VENT

4-1/2

(114)

CONTROL BOX SHOWN

(STD BOX IS 2X4)

4

(102)

(DIMENSION FROM MOUNTING HOLE)

(DIMENSION FROM INSIDE CASE LEG)

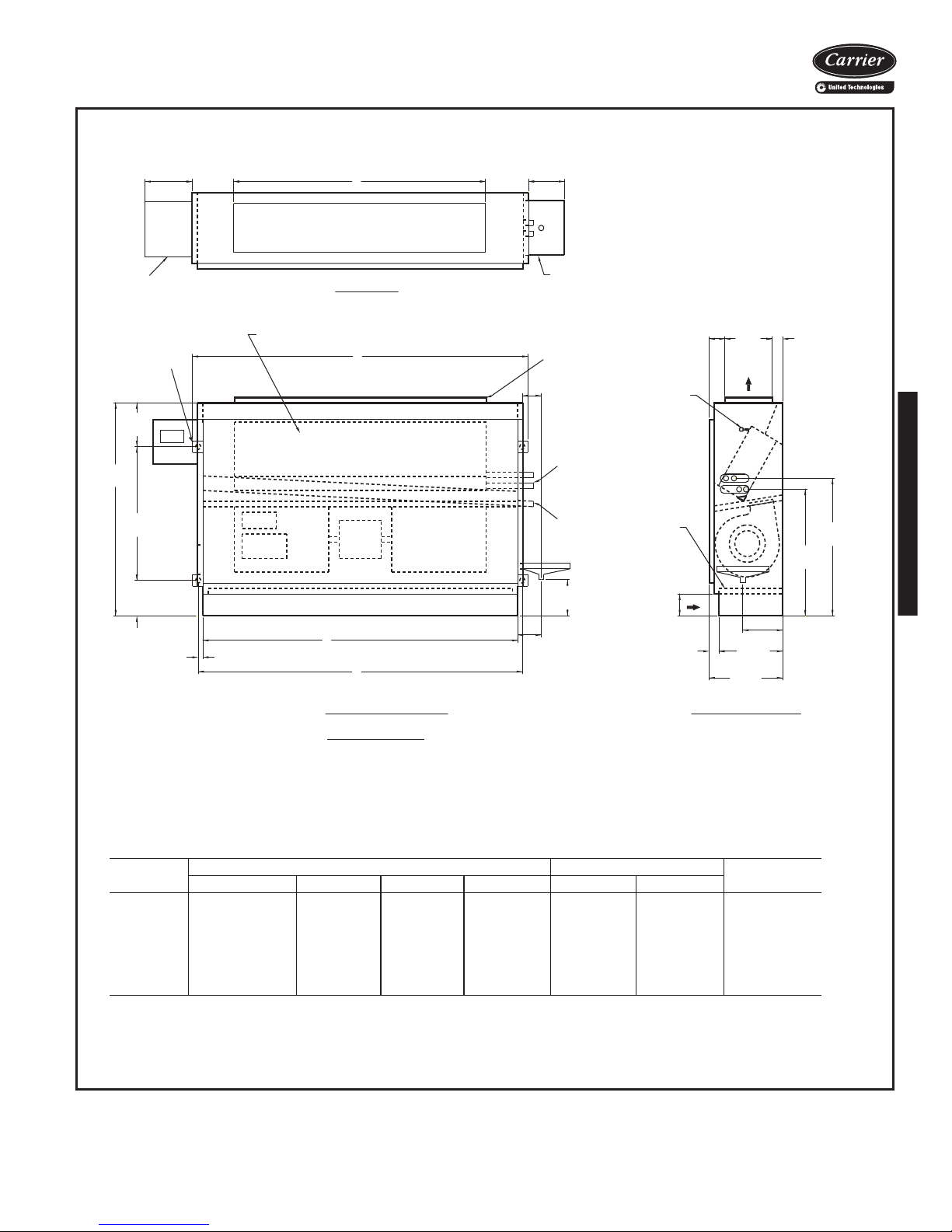

42VB VERTICAL CABINET UNIT

A42-4110

NOTES:

1. All dimensions are ± 1/4-in. (6).

2. Standard 3-row coil shown.

3. Right hand unit shown, left hand unit is opposite.

4. Dimensions shown in inches (mm).

*Unit weights are based on dry coils and minimum rows. Weights exclude packaging, valves, and other components.

UNIT

SIZE

DIMENSIONS (in.) QTY/UNIT

UNIT WEIGHT*

(lb)

AB C D E

Blower Motor

02 41 22 23 17

1

/

4

3 1/8 11 63

03 41 22 23 17

1

/

4

3 1/8 11 68

04 51 32 33 26 3

3

/

4

21 82

06 61 42 43 39 2

1

/

4

21 99

08 63 44 45 39 3

1

/

4

21 101

10 77 58 59 52

1

/8 3

5

/

8

42 133

12 85 66 67 61 3

1

/

4

42 154

42V Series Units

2-1/2

(64)

71

11-3/4

(298)

4

(102)

9-1/4

(235)

2-7/8

(73)

RETURN

AIR

SUPPLY

RETURN AIR OPENING

REMOVABLE FRONT ACCESS PANEL

TOP VIEW

FRONT VIEW RIGHT SIDE VIEW

1-3/4

(45)

5-3/4

(146)

1-1/2

(38)

PLASTIC AUXILIARY 7X7 DRAIN PAN WITH 3/4" (19) MPT CONNECTION

9

(229)

9

(229)

9-1/2

(241)

9-1/2 (241)

OPTIONAL

CONTROL

BOX SHOWN

(STD BOX IS 2X4)

1/4 TURN PANEL FASTENER TYP.

1/2" (13)

MTG. HOLES

(TYP. OF 4)

3-3/4

(95)

5

(127)

5

(127)

3-3/4

(95)

STANDARD STAMPED SUPPLY GRILLE

CONTROL ACCESS DOOR STD. (2)

MOUNTING HOLES

A

B

C

E

D

25

(635)

(OPTIONS AVAILABLE)

2

(51)

DRAIN TROUGH

SUPPLY & RETURN WATER CONNECTIONS

9

(229)

3/4

(19)

8-1/4

(210)

1" (25)

FILTER

14-1/2

(368)

16-1/8

(410)

AIR VENT

4-1/2

(114)

4

(102)

(DIMENSION FROM MOUNTING HOLE)

(DIMENSION FROM INSIDE CASE LEG)

STRIP HEATER

HIGH LIMIT

ELECTRIC STRIP HEATER ELEMENT

Base unit dimensions (cont)

42V Series Units

42VB VERTICAL CABINET UNIT WITH ELECTRIC HEATER

UNIT

SIZE

02 41 22 23 17 03 41 22 23 17 04 51 32 33 26 3 06 61 42 43 39 2

ABCDE

08 63 44 45 39 3 10 77 58 59 52 12 85 66 67 61 3

*Unit weights are based on dry coils and minimum rows. Weights exclude packaging, valves, and other components.

DIMENSIONS (in.) QTY/UNIT

2-1/2

1

/

4

1

/

4

1

/

8

(64)

3 1/ 3 1/

3 5/

3

1

NOTES:

1. All dimensions are ± 1/4-in. (6).

2. Standard 3-row coil shown.

3. Right hand unit shown, left hand unit is opposite.

4. Dimensions shown in inches (mm).

8

/

4

/

4

/

4

8

/

4

Blower Motor

11 63 11 68 21 82 21 99 2 1 101 4 2 133 4 2 154

UNIT WEIGHT*

(lb)

72

13

(330)

AIR VENT

AIR

SUPPLY

RETURN AIR OPENING

REMOVABLE FRONT ACCESS PANEL

TOP VIEW

FRONT VIEW

1-3/4

(45)

5-3/4

(146)

1-1/2

(38)

OPTIONAL CONTROL BOX SHOWN (STD BOX IS 2X4)

1/4 TURN PANEL FASTENER TYP.

STANDARD STAMPED SUPPLY GRILLE

CONTROL ACCESS DOOR STD. (2)

B

9-1/2

(241)

C

9

(229)

MOUNTING HOLES

9-1/2

(241)

9

(229)

4

(102)

11-3/4

(298)

1/2" (13)

MTG. HOLES

(TYP. OF 4)

A

3-3/4

(95)

5

(127)

E D E

5

(127)

3-3/4

(95)

RIGHT SIDE VIEW

2-7/8

(73)

AIR

RETURN

1" (25) FILTER

28-3/4

(730)

(OPTIONS AVAILABLE)

PLASTIC AUXILIARY 7X7 DRAIN PAN WITH 3/4" (19) MPT CONNECTION

DRAIN TROUGH

SUPPLY & RETURN WATER CONNECTIONS

9

(229)

3/4 (19)

8-1/4

(210)

14-1/2

(368)

16-1/8

(410)

(102)

4

4-1/2

(114)

(DIMENSION FROM MOUNTING HOLE)

2-1/2

(64)

2

(51)

(DIMENSION FROM INSIDE CASE LEG)

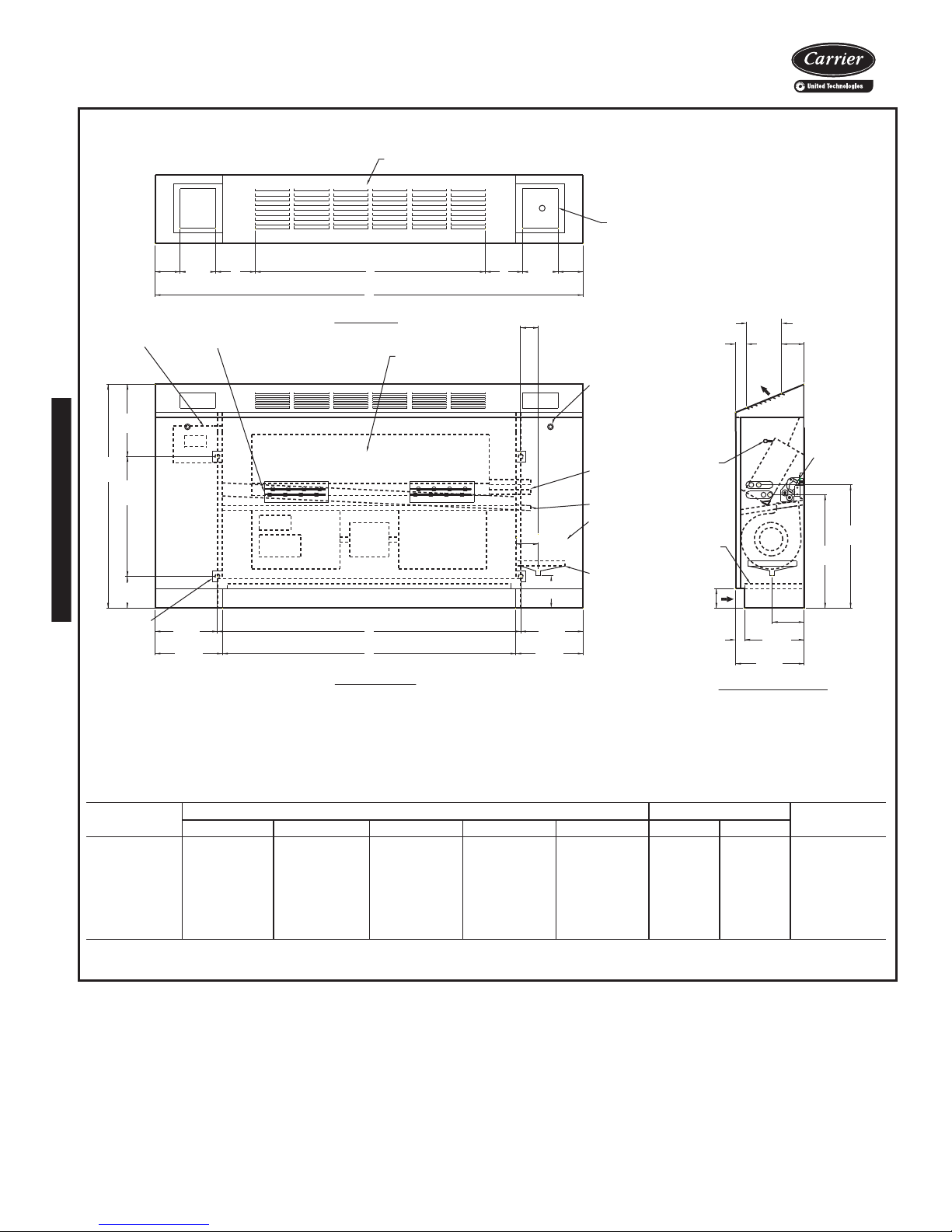

42VF VERTICAL CABINET UNIT WITH SLANT TOP

42V Series Units

A42-4111

UNIT SIZE

02 41 22 23 17

ABCDE

03 41 22 23 17 04 51 32 33 26 3 06 61 42 43 39 2 08 63 44 45 39 3 10 77 58 59 52 12 85 66 67 61 3

*Unit weights are based on dry coils and minimum rows. Weights exclude packaging, valves, and other components.

NOTES:

1. All dimensions are ± 1/4-in. (6).

2. Standard 3-row coil shown.

3. Right hand unit shown, left hand unit is opposite.

4. Dimensions shown in inches (mm).

DIMENSIONS (in.) QTY/UNIT

1

/

4

1

/

4

1

/

8

3 1/8 11 64 3 1/8 11 69

3

/4 21 83

1

/4 2 1 100

1

/4 2 1 102

3 5/8 4 2 135

1

/4 4 2 156

Blower Motor

UNIT WEIGHT*

(lb)

73

Base unit dimensions (cont)

13

(330)

AIR VENT

AIR

SUPPLY

RETURN AIR OPENING

REMOVABLE FRONT ACCESS PANEL

TOP VIEW

FRONT VIEW

1-3/4

(45)

5-3/4

(146)

1-1/2

(38)

1/4 TURN PANEL FASTENER TYP.

STANDARD STAMPED SUPPLY GRILLE

CONTROL ACCESS DOOR STD. (2)

B

9-1/2

(241)

C

9

(229)

MOUNTING HOLES

9-1/2

(241)

9

(229)

4

(102)

11-3/4

(298)

1/2" (13)

MTG. HOLES

(TYP. OF 4)

A

3-3/4

(95)

5

(127)

E D E

5

(127)

3-3/4

(95)

RIGHT SIDE VIEW

2-7/8

(73)

AIR

RETURN

1" (25)

FILTER

28-3/4

(730)

(OPTIONS AVAILABLE)

PLASTIC AUXILIARY 7X7 DRAIN PAN WITH 3/4" (19) MPT CONNECTION

DRAIN TROUGH

SUPPLY & RETURN WATER CONNECTIONS

9

(229)

3/4 (19)

8-1/4

(210)

14-1/2

(368)

16-1/8

(410)

(102)

4

4-1/2

(114)

(DIMENSION FROM MOUNTING HOLE)

2-1/2

(64)

2

(51)

(DIMENSION FROM INSIDE CASE LEG)

OPTIONAL

CONTROL

BOX SHOWN

(STD BOX

IS 2X4)

STRIP HEATER

HIGH LIMIT

ELECTRIC STRIP HEATER ELEMENT

42V Series Units

42VF VERTICAL CABINET UNIT WITH SLANT TOP AND ELECTRIC HEATER

UNIT SIZE

ABCDE

02 41 22 23 17 03 41 22 23 17 04 51 32 33 26 3 06 61 42 43 39 2 08 63 44 45 39 3 10 77 58 59 52 12 85 66 67 61 3

*Unit weights are based on dry coils and minimum rows. Weights exclude packaging, valves, and other components.

74

NOTES:

1. All dimensions are ± 1/4-in. (6).

2. Standard 3-row coil shown.

3. Right hand unit shown, left hand unit is opposite.

4. Dimensions shown in inches (mm).

DIMENSIONS (in.) QTY/UNIT

1

/

4

1

/

4

1

/8 3 5/8 4 2 135

3 1/

8

3 1/8 11 69

3

/4 21 83

1

/4 2 1 100

1

/4 2 1 102

1

/4 4 2 156

UNIT WEIGHT*

Blower Motor

11 64

(lb)

42VC FURRED-IN LOWBOY UNIT

42V Series Units

14-3/8

(368)

9

LEGEND

1— Optional Unit Mounted Control Box 2— Drain Pan, Auxiliary, Shipped Loose 3— Supply Conn, 4— Drain, 5— Return Conn, 5/8-in. OD 6— Air Vent, 7— Discharge Opening 8— Filter

3

/4-in. MPT

1

/8-in. MPT

5

/8-in. OD

9— Drain Pan

UNIT SIZE

NOM

AIRFLOW

(Cfm)

DIMENSIONS (in.) QTY/UNIT

ABC

NOTES:

1. Right hand unit shown; left hand unit opposite. Coil connection locations are ±

2. Unit sizes 02 through 04 have one motor, 2 blowers; size 06 has 2 motors, 4 blowers.

3. Standard 2-row coil shown.

4. Optional unit-mounted switch box and controls, when specified, are installed on opposite side from cooling connections.

5. Height increases by 2 in. with electric heat.

6. Not shown: 3-speed fan switch, inside of casing, closed cell foam on main drain pan.

7. Units have galvanized finish.

8. See 42VC-203-1 for optional coil connections.

9. Dimensions shown in inches (mm).

5

/8-inches.

1

Blower Motor

/2-in. fiberglass insulation on

A42-4112

FACE AREA

(sq ft)

WEIGHT* (lb)

UNIT

02 200 23 22 17 2 1 1.18 50 03 300 28 27 22 2 1 1.53 60 04 400 36 35 30 2 1 2.08 72 06 600 50 49 44 4 2 3.06 110

*Unit weights are based on dry coils and minimum rows. Weights exclude packaging, valves, and other components.

75

10

Base unit dimensions (cont)

42V Series Units

42VC FURRED-IN LOWBOY UNIT WITH ELECTRIC HEAT

LEGEND

1— Unit-Mounted Control Box (Optional) 2— Drain Pan, Auxiliary, Shipped Loose 3— Air Vent, 4— Supply Conn, 5— Drain, 6— Return Conn, 7— Filter 8— Electical Sheath Heater Element 9— Discharge Opening

10 — Drain Pan

UNIT SIZE

02 200 23 22 17 2 1 1.18 50 03 300 28 27 22 2 1 1.53 60 04 400 36 35 30 2 1 2.08 72 06 600 50 49 44 4 2 3.06 110

*Unit weights are based on dry coils and minimum rows. Weights exclude packaging, valves, and other components.

1

/8-in. MPT

5

3

/4-in. MPT

5

NOM

AIRFLOW

(Cfm)

/8-in. OD

DIMENSIONS (in.) QTY/UNIT

ABC

NOTES:

1. Right hand unit shown; left hand unit opposite. Coil connection locations are ± 5/8-inches.

2. Unit sizes 02 through 04 have one motor, 2 blowers; size 06 has 2 motors, 4 blowers.

3. Standard 2-row coil shown.

4. Optional unit-mounted switch box and controls, when specified, are installed on opposite side from cooling connections.

5. Height increases by 2 in. with electric heat.

6. Not shown: 3-speed fan switch, inside of casing, closed cell foam on main drain pan.

7. Units have galvanized finish.

8. See 42VC-203-1 for optional coil connections.

9. Dimensions shown in inches (mm).

Blower Motor

1

/2-in. fiberglass insulation on

A42-4113

FACE AREA

(sq ft)

UNIT

WEIGHT* (lb)

76

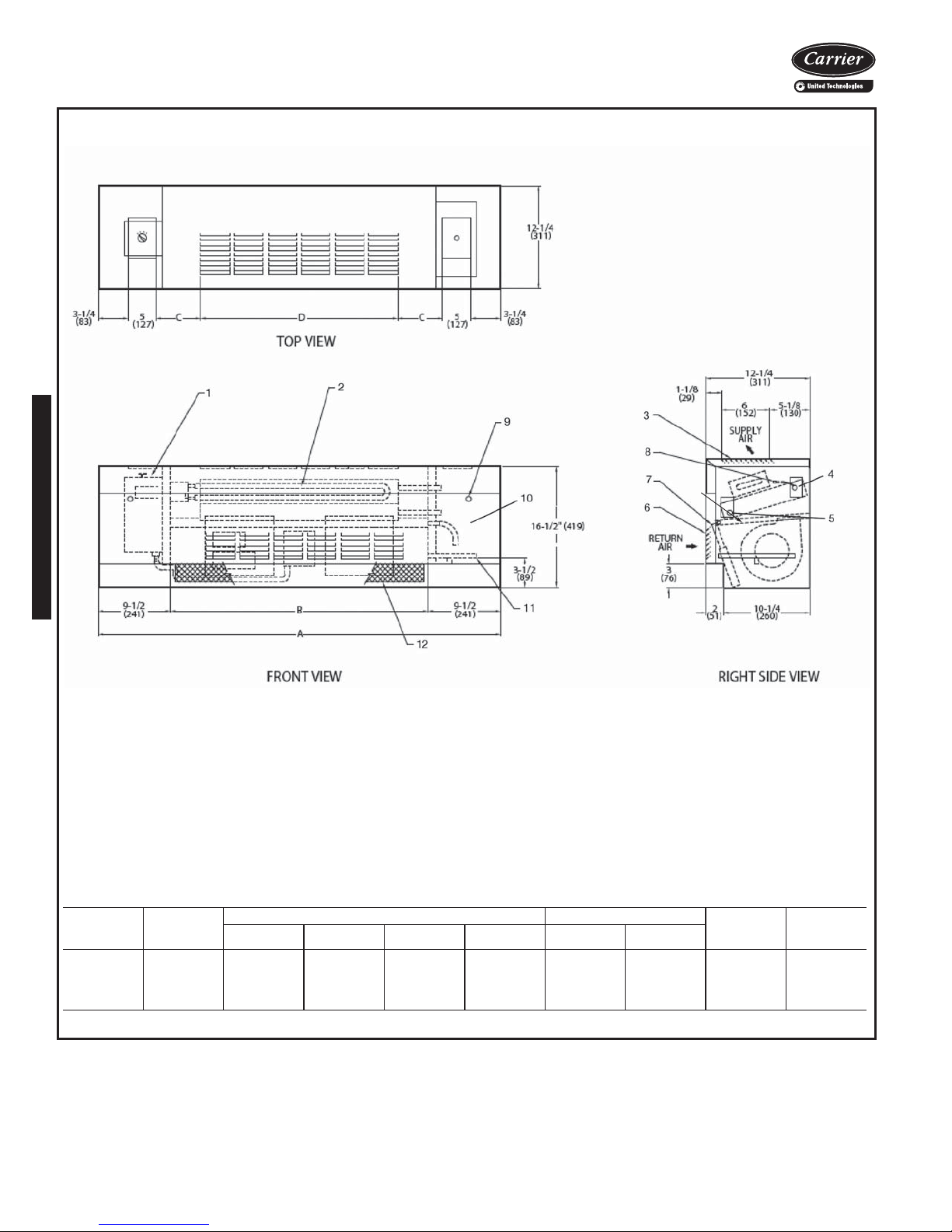

42VE CABINET LOWBOY UNIT

42V Series Units

14-3/8

(368)

12

LEGEND

1— Fan Switch, 3-Speed, behind Access Door 2— Front Panel Fastener 3— Stamped Supply Grille 4— Supply Conn, 5— Return Conn, 5/8-in. OD 6— Stamped Return Grille 7— Filter 8— Air Vent, 9— Optional Valve Package (inside cabinet)

10 — Drain Pan, Auxiliary, with

Drain Connection

11 — Return Air Grille 12 — Drain Pan

UNIT SIZE

AIRFLOW

1

/8-in. MPT

NOM

(Cfm)

5

/8-in. OD

3

/4-in. MPT

ABCD

02 200 41 03 300 46 04 400 54 06 600 68

DIMENSIONS (in.) QTY/UNIT

22 27

35 49

NOTES:

1. Right hand unit shown; left hand unit opposite. Coil connection locations are ±

2. Unit sizes 02 through 04 have one motor, 2 blowers; size 06 has 2 motors, 4 blowers.

3. Cabinet has an Arctic White baked finish.

4. Height increases by 2 in. with electric heat.

5. Standard 2-row coil shown.

6. Not shown: closed cell foam on main drain pan.

7. See 42VC-203-1 for optional coil connections.

8. Valve package is factory-installed inside the cabinet when ordered with the unit (based on component size).

5

/8-inches.

1

/2-in. fiberglass insulation on inside of casing,

9. Dimensions shown in inches (mm).

Blower Motor

3

/

4

421

5

3

/

8

1

4

/

16

17 2 1 1.18 72

1

301/ 433/

/

2

4

8

2 1 1.53 100 2 1 2.08 108 4 2 3.06 154

*Unit weights are based on dry coils and minimum rows. Weights exclude packaging, valves, and other components.

A42-4114

FACE AREA

(sq ft)

UNIT

WEIGHT*

(lb)

77

Base unit dimensions (cont)

42V Series Units

42VE CABINET LOWBOY UNIT WITH ELECTRIC HEAT

13

LEGEND

1— Fan Switch, 3-Speed, behind Access Door 2— Electrical Sheath Heater Element 3— Stamped Supply Grille 4— Supply Conn, 5— Return Conn, 6— Stamped Return Grille 7— Filter 8— Air Vent,

9— Front Panel Fastener 10 — Optional Valve Package (inside cabinet) 11 — Drain Pan, Auxiliary, with

Drain Connection

12 — Return Air Grille 13 — Drain Pan

UNIT SIZE

AIRFLOW

1

/8-in. MPT

NOM

(Cfm)

5

/8-in. OD

5

/8-in. OD

3

/4-in. MPT

DIMENSIONS (in.) QTY/UNIT

ABCD

02 200 41 22 3 03 300 46 27 4 21 04 400 54 35 3 06 600 68 49 4

NOTES:

1. Right hand unit shown; left hand unit opposite. Coil connection locations are ±

2. Unit sizes 02 through 04 have one motor, 2 blowers; size 06 has 2 motors, 4 blowers.

3. Cabinet has an Arctic White baked finish.

4. Height increases by 2 in. with electric heat.

5. Standard 2-row coil shown.

6. Not shown: closed cell foam on main drain pan.

7. See 42VC-203-1 for optional coil connections.

8. Valve package is factory-installed inside the cabinet when ordered with the unit (based on component size).

9. Dimensions shown in inches (mm).

5

/8-inches.

1

/2-in. fiberglass insulation on inside of casing,

Blower Motor

3

/

4

5

/

8

1

/

16

17 2 1 1.18 72

1

301/ 433/

/

2

4

8

2 1 1.53 100 2 1 2.08 108 4 2 3.06 154

*Unit weights are based on dry coils and minimum rows. Weights exclude packaging, valves, and other components.

A42-4115

FAC E A R E A

(sq ft)

UNIT

WEIGHT*

(lb)

78

12

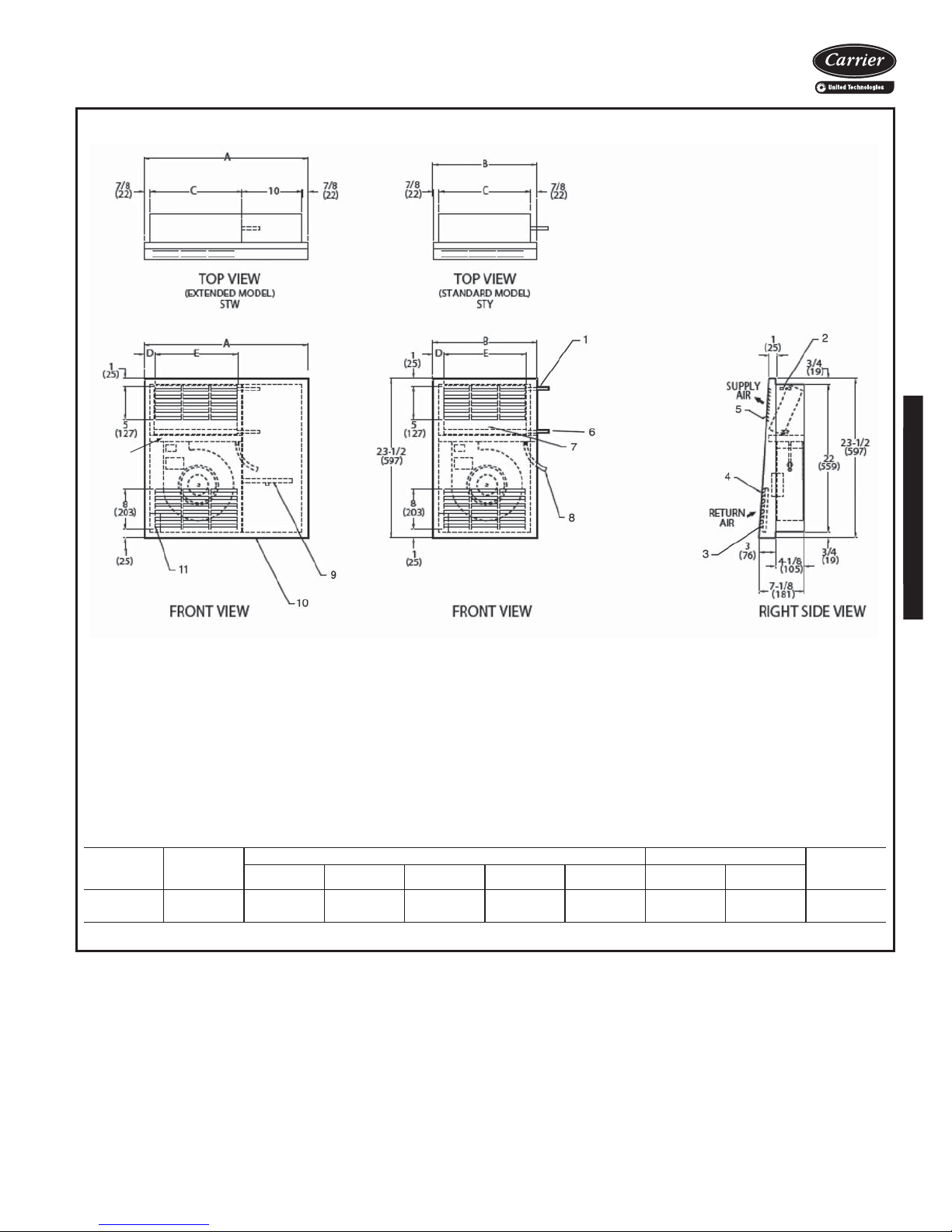

42VG FURRED-IN WALL UNIT

42V Series Units

a42-4116

LEGEND

1— Supply Conn, 2— Air Vent, 3— Filter 4— Return Air Grille, Stamped 5— Stamped Supply Grille 6— Return Conn, 7— Removable Front Panel 8— Drain Conn,

9— Auxilary Drain Pan 10 — Valve Compartment - (Optional) 11 — Junction Box 12 — Drain Pan

UNIT SIZE

AIRFLOW

1

/8-in. MPT

NOM

(Cfm)

5

/8-in. OD

5

/8-in. OD

7

/8-in. OD

01 150 25 03 300 39

DIMENSIONS (in.) QTY/UNIT UNIT

ABCDE

3

/

4

3

/

4

153/ 293/

4

NOTES:

1. Right hand unit shown; left hand unit opposite. Coil connection locations are ±

2. Front panel has an Arctic White baked finish.

3. Standard 2-row coil shown.

4. Unit size 01 has one motor, one blower; size 03 has 2 motors, 2 blowers.

5. Unit has

6. Front panel hooks at top of unit, swing down and snap in at bottom against a spring clip.

7. Not shown: 3-speed fan switch, wall plate, tion on inside of casing, closed cell foam on main drain pan.

8. Dimensions shown in inches (mm).

5

/8-inches.

1

/2-in. flanges for mounting to wall surface.

Blower Motor

14 11/ 28 115/

2

16

123/ 257/

4

8

1140 2274

*Unit weights are based on dry coils and minimum rows. Weights exclude packaging, valves, and other components.

1

/2-in. fiberglass insula-

WEIGHT*

(lb)

79

AIR VENT

RIGHT SIDE VIEW

F

G

H

J

AIR VENT

14-1/2

16-1/8

F

G

H

J

LEFT SIDE VIEW

14-1/2

16-1/8

Accessory dimensions

42V Series Units

42VA,VB,VF OPTIONAL COIL CONNECTION LOCATION SIZES 02–12

COIL CONNECTION DIMENSIONS (in.)

LEFT SIDE DIMENSIONS

R

I G H

T

H A N D

UNIT SIZE

02 4 03 4 04 4 06 5 08 5 10 5 12 4

3-ROW COIL 4-ROW COIL

H

SUPPLYFRETURNHSUPPLYFRETURNGSUPPLYJRETURNGSUPPLYJRETURNGSUPPLYJRETURN

1

/

4 1/

2

3

/

4

1

/

8

1

/

4

1

/

4

3

/

4

3

/

4

65

5 1/

56

56 5 1/ 4 1/

4 1/

2

4

2

5 3/

5 3/ 5 3/

2

1

/

4

1

/

4

1

/

4

56

4 1/

4

5 1/

4

676 676

5 1/

4

5 1/

4

1-ROW HEAT WITH

3-ROW COOL

1

/

5 1/

4

76

7 1/

2

7 1/

4

6 1/

2

7 1/

7 1/ 6 1/

2

1

/

4

3

/

8

3

/

8

2

1-ROW HEAT WITH

4-ROW COOL

7 1/ 5 1/ 7 1/ 7 1/ 7 1/ 7 3/ 7 1/

5 3/

2

4

8

4

7 1/ 6 1/ 7 1/ 7 1/ 7 1/ 7 1/

4

2

4

2

2-ROW HEAT WITH

3-ROW COOL

66

7 1/

4

7 1/

4

7 1/

8

7 1/

8

7 1/

4

7 1/

4

6 3/ 5 3/ 7 1/ 7 1/ 7 1/ 7 1/

1

/

4

2

a42-4390

QUANTITY/UNIT

BLOWER MOTOR

11 11 21 21 41 42 42

L E F T

H A N D

UNIT

SIZE

02 4 03 5 04 4 06 4 08 4 10 5 12 6

LEFT SIDE DIMENSIONS

3-ROW COIL 4-ROW COIL

H

SUPPLYFRETURNHSUPPLYFRETURNGSUPPLYJRETURNGSUPPLYJRETURNGSUPPLYJRETURN

1

/

1

/

3

/

3

/

3

/

3

/

1

/

4 1/

2

4 1/

2

4 1/

4

4 1/

8

4 1/

8

5 1/

4

5 1/

4

4 1/

2

4

2

4

2

4

6 1/ 5 3/ 5 1/ 5 1/ 5 3/ 5 1/

2

4

2

4

2

4 7/ 4 3/ 5 1/ 5 1/ 5 1/ 5 1/ 5 1/

1-ROW HEAT WITH

8

4

8

2

4

7 3/

7 1/ 6 1/

3-ROW COOL

5 3/

4

66 76 66 66

4

1

/

4

1

/

2

1

/

4

1

/

4

7 1/

2

6 1/

2

1-ROW HEAT WITH

4-ROW COOL

5 1/

2

77 66 77 77

7 1/

2

7 1/

4

6 3/

7 1/ 7 1/

4

1

/

2

3

/

4

1

/

8

1

/

8

2

4

2-ROW HEAT WITH

3-ROW COOL

5 3/ 7 1/

75 6 1/ 6 1/ 7 1/

77

5 3/

4

2

4

6 3/

7 1/ 7 1/ 7 1/

4

3

/

4

2

1

/

4

QUANTITY/UNIT

BLOWER MOTOR

11 11 21 21 21 42 42

80

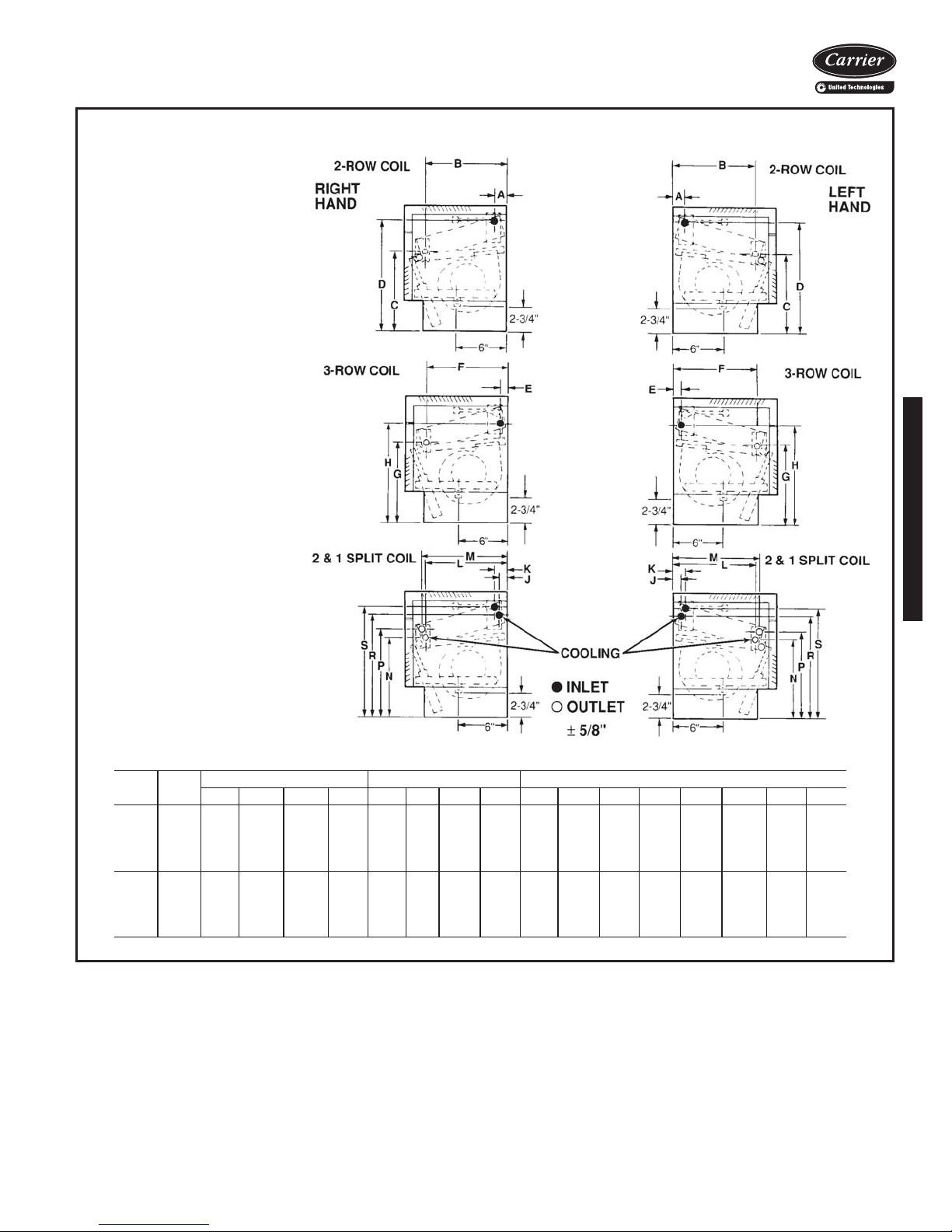

42VC,VE OPTIONAL COIL CONNECTION LOCATION SIZES 02–06

42V Series Units

NOTES:

1. Coil connection dimensions are for coil stubouts only (valve packages not included).

2. All dimensions are in inches.

3. Split coil connections shown are for 4-pipe combinations; chilled/hot water coils only, with hot water coil in standard reheat position.

COIL CONNECTION DIMENSIONS (in.)

UNIT SIZE

R

I G H T

L E F T

02 110

H

03 1103/8107/16111/415/1610 83/8121/

A N

04 1103/8107/16111/411/293/4815/16117/

D

06 11/410 10 113/411/293/4815/16117/811/415/1693/493/4815/16109/16103/4123/

02 1

H

03 11/4103/1691/4123/815/1610 83/8121/211/1615/1610 103/883/8101/2113/8123/

A N

04 11/4103/1691/4123/811/410 10 103/411/16115/1610 103/883/8101/2113/8123/

D

06 17/

2-ROW COIL 3-ROW COIL 2 AND 1 SPLIT COIL

AB C DEFGHJKLMN PRS

3

/8107/16111/415/1610 83/8121/

1

/4103/1691/4123/815/1610 83/8121/211/16115/1610 103/8103/8101/2113/8123/

10 10 113/411/410 10 103/411/4115/1693/4107/16815/16101/2103/4123/

16

7

/8115/16101/893/491/2109/16101/4123/

2

7

/815/16101/893/491/2109/16101/4123/

2

7

/815/16101/893/491/2109/16101/4123/

8

81

Accessory dimensions (cont)

42V Series Units

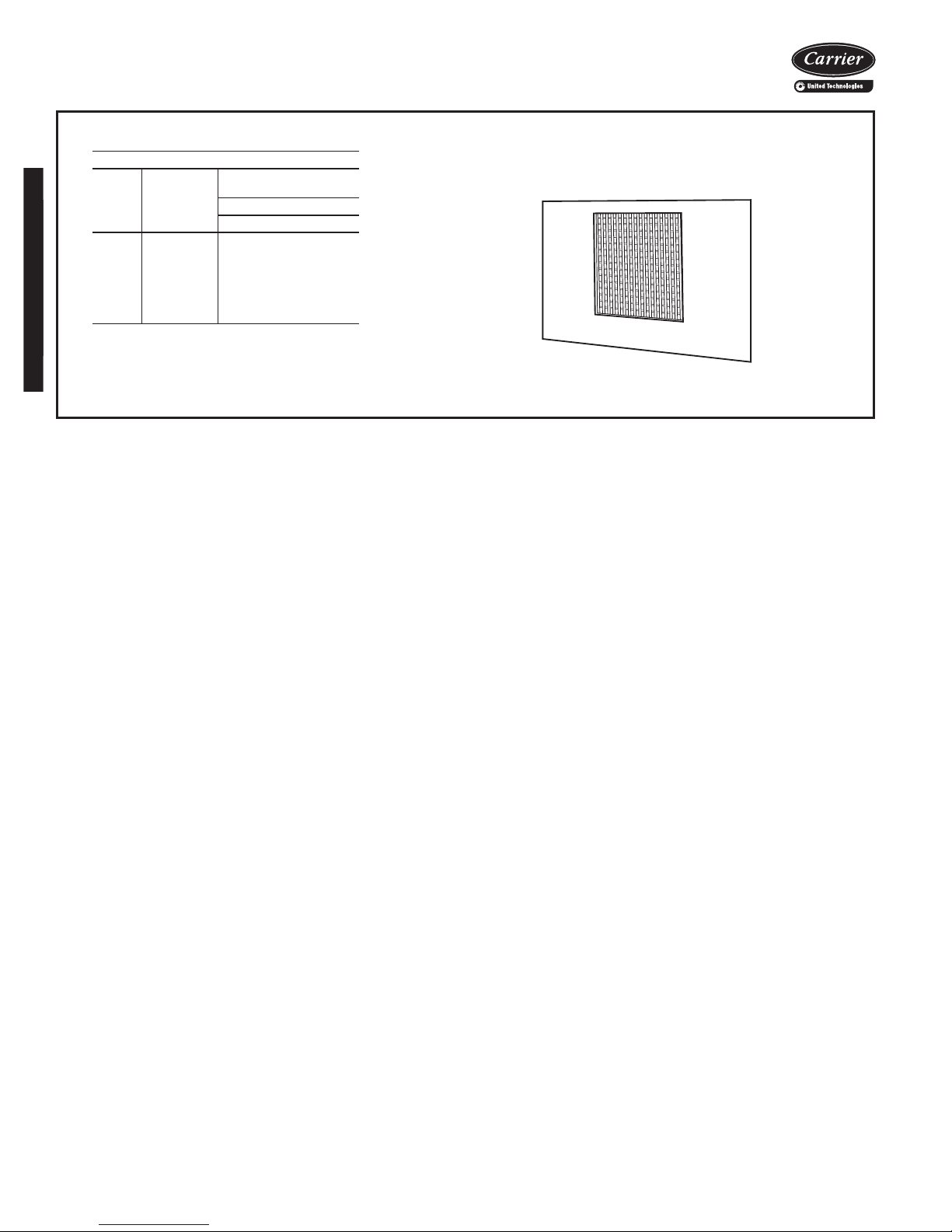

DISCHARGE AIR GRILLES

DISCHARGE GRILLES

Nominal

Unit

Airflow

Size

(Cfm)

02 200 16 x 5 16 x 6 16 x 5 16 x 6 03 300 18 x 5 16 x 6 22 x 5 22 x 6 04 400 26 x 5 26 x 6 30 x 5 30 x 6 06 600 36 x 5 36 x 6 44 x 5 44 x 6 08 800 38 x 5 38 x 6 — — 10 1000 52 x 5 52 x 6 — — 12 1200 60 x 5 60 x 6 — —

*Refer to unit dimensions to size field transitions.

Recommended Grille Sizes (in.)

42VA 42VB,VF 42VC* 42VE

Unit

ANODIZED ALUMINUM DOUBLE-DEFLECTION

GRILLE (With Frame)

INTEGRAL DOUBLE-DEFLECTION GRILLE

FOR VERTICAL UNITS

A42-4118

82

Performance data

42V Series Units

AIR DELIVERY (CFM)

42V SERIES — 60 Hz PSC MOTOR

UNIT SIZE COIL

02 3-Row 147 208 244 222 201 180

03

04

42VA,VB,VF

42VC,VE

NOTE: Air delivery is based on operation with PSC motors, dry coils and clean air filter.

06

08

10

12

02

03

04

06

3-Row 224 262 317 300 283 266 248 4-Row 213 256 310 292 274 255 236 3-Row 279 350 487 461 434 407 379 4-Row 266 344 463 439 414 389 363 3-Row 383 553 629 598 568 539 511 4-Row 373 536 611 582 554 527 501 3-Row 377 603 689 645 600 555 510 4-Row 364 579 664 620 575 530 484 3-Row 590 723 971 923 874 823 772 4-Row 557 690 896 885 811 762 711 3-Row 738 1029 1166 1119 1070 1020 968 4-Row 718 974 1094 1052 1009 963 915 2-Row 125 170 250 225 190 150 120 3-Row 115 155 230 210 180 145 115 2-Row 195 285 370 345 305 275 235 3-Row 185 265 345 315 285 255 230 2-Row 240 350 480 440 400 360 320 3-Row 230 335 460 420 385 345 310 2-Row 395 575 750 700 660 660 560 3-Row 355 510 670 625 580 540 495

CFM AT 0.0 ESP FOR FAN SPEED HIGH SPEED CFM AT ESP INDICATED

LOW MED HIGH 0.05 0.1 0.15 0.2

159

SOUND POWER DATA

42VA, VB, AND VF VERTICAL FLOOR FAN COIL UNITS

UNIT

SIZE

02

03

04

06

08

10

12

NOTES:

1. Testing in compliance with AHRI (Air-Conditioning, Heating, and Refrigeration Institute) 350, Sound Performance Rating of NonDucted Indoor Air-Conditioning Equipment.

FAN

SPEED

H 58.2 55.6 60.1 51.9 46.3 41.8 36,0 35.2 M 58.4 53.5 57.4 47.9 41.4 37.6 31.2 34.5 L 58.2 48.4 45.6 40.4 33.4 28.1 28.9 34.4 H 58.9 62.4 63.0 58.2 55.2 48.1 43.9 38.6 M 58.9 58.6 58.3 54.3 49.1 42.4 37.0 35.5 L 58.3 55.6 54.8 50.9 43.8 36.7 31.9 34.8 H 59.0 62.4 67.5 59.6 56.2 51.0 46.3 40.6 M 58.2 56.2 62.5 53.3 48.9 43.2 36.9 35.2 L 57.7 53.9 52.0 47.1 44.1 34.9 30.8 34.4 H 57.4 66.2 69.0 61.7 58.9 52.3 48.2 42.2 M 60.0 65.3 67.1 59.8 56.3 49.7 44.8 38.9 L 58.1 58.8 53.9 49.6 43.9 36.3 31.4 34.8 H 61.5 65.6 68.8 63.1 60.3 54.0 50.9 45.7 M 60.4 65.5 70.8 61.4 58.3 51.7 47.8 42.7 L 57.7 63.3 60.3 53.5 46.6 40.6 34.4 34.8 H 61.8 63.9 67.2 63.7 60.2 53.7 48.5 41.7 M 59.3 58.4 61.5 57.9 51.6 45.2 38.4 35.0 L 61.6 54.4 55.9 52.0 44.8 38.4 31.6 34.2 H 60.9 67.5 72.3 65.8 62.2 56.1 51.9 46.8 M 59.6 67.7 72.3 64.0 60.2 53.8 49.4 43.9 L 57.9 64.7 62.7 55.6 49.5 42.6 36.7 33.6

63 Hz 125 Hz 250 Hz 500 Hz 1000 Hz 2000 Hz 4000 Hz 8000 Hz

SOUND POWER LEVEL, L

(dB one reference picowatt)

w

2. Sound power data is based on an exposed cabinet model with 115/1/60 PSC motor, 3 row coil, standard 1-in. throwaway filter and standard louvered discharge.

3. Sound power data is expressed decibels, dB RE: 1 x 10 (picowatts).

-12

W

83

Electrical data

42V Series Units

ELECTRIC HEATER DATA

HEATER

VO LTAGE

120 8.3 12.5 16.7 25.0 — — — 208 4.8 7.2 9.6 14.4 19.2 — — 240 4.2 6.3 8.3 12.5 16.7 — — 277 3.6 5.4 7.2 10.8 14.4 18.05 21.7

1.0 1.5 2.0 3.0 4.0 5.0 6.0

LEGEND FLA — Full Load Amps NOTE: All heaters are single-stage and single-phase.

42VA,VB, AND VF PSC MOTOR DATA

V-P h- Hz

115-1-60

208-1-60

230-1-60

277-1-60

FAN

SPEED

FAN

SPEED

(RPM)

Nominal Hp Watts Amps Nominal Hp Watts Amps Nominal Hp Watts Amps Nominal Hp Watts Amps

H 1200 M 980 50 0.35 60 0.51 85 0.73 140 1.30

02 03 04 06

60 0.39

1

/

40

1

/

30

L 790 45 0.28 50 0.42 60 0.56 85 0.76

H 1200

1

M 980 65 0.24 70 0.35 85 0.41 100 0.51

/

40

70 0.26

1

/

30

L 790 60 0.22 50 0.24 55 0.26 60 0.31

H 1200

1

M 980 70 0.26 85 0.36 100 0.43 115 0.51

/

40

75 0.28

1

/

30

L 790 65 0.24 60 0.25 60 0.28 70 0.33

H 1200

1

M 980 60 0.13 85 0.37 105 0.41 135 0.49

/

40

70 0.16

1

/

30

L 790 55 0.10 55 0.21 65 0.24 110 0.41

HEATER kW

FLA

UNIT SIZE

80 0.69

95 0.45

110 0.47

105 0.52

1

/

12

1

115 0.54

125 1.20

1

/

12

1

130 0.56

1

/

12

1

130 0.57

1

/

12

1

180 1.94

/

6

145 0.74

/

6

160 0.72

/

6

185 0.68

/

6

UNIT SIZE

260 2.54

V-P h- Hz

115-1-60

FAN

SPEED

H 1200 M 980 150 1.35 175 1.54 255 2.43

FAN

SPEED

Nominal Hp Watts Amps Nominal Hp Watts Amps Nominal Hp Watts Amps

08 10* 12*

195 1.92

1

/

6

1

/12 (2)

L 790 80 0.72 135 1.18 160 1.47

208-1-60

H 1200

1

M 980 100 0.52 175 0.81 190 0.97

/

6

155 0.79

1

/12 (2)

225 1.06

L 790 55 0.30 110 0.51 120 0.62

230-1-60

H 1200

1

M 980 115 0.54 200 0.84 210 0.97

/

6

170 0.80

1

/12 (2)

260 1.10

L 790 65 0.33 130 0.54 140 0.66

H 1200

277-1-60 M 980 135 0.53 215 0.80

1

/

6

195 0.74

1

/12 (2)

275 1.14 295 1.37

L 790 110 0.43 140 0.47 215 0.79

*Total motor amps and watts shown for units with 2 motors. NOTES:

1. Motor nameplate amps may vary.

2. Fan coil units comply with ETL, Canadian Standards Association (CSA), and ETL of Canada standards.

1

/6 (2)

270 1.36

335 3.75

1

/6 (2)

295 1.37

1

/6 (2)

1

/6 (2) 250 0.91

84

42VC,VE PSC MOTOR DATA

42V Series Units

V-Ph-Hz

FAN

SPEED

H1200

115-1-60

M 980 45 0.30 65 0.60

L 790 25 0.20 40 0.30

208-1-60

230-1-60

H1200 L 790 35 0.20 55 0.30 H1200 L 790 42 0.22 65 0.28 H1200

277-1-60

M 980 45 0.12 85 0.33

L 790 35 0.07 55 0.22

V-P h- Hz

FAN

SPEED

H1200

115-1-60

M 980 65 0.60 125 1.20

L 790 40 0.30 85 0.80

208-1-60

230-1-60

H1200

L 790 58 0.30 103 0.50

H1200

L 790 67 0.30 120 0.52

H1200

277-1-60

M 980 88 0.34 155 0.65

L 790 57 0.22 100 0.40

*Total motor amps and watts shown for units with 2 motors. NOTES:

1. Motor nameplate amps may vary.

2. Fan coil units comply with ETL, Canadian Standards Association (CSA), and ETL of Canada standards.

FAN

SPEED

(RPM)

FAN

SPEED

Nominal

Hp

1

/

20

1

/

20

1

/

20

1

/

20

Nominal

Hp

1

/

12

1

/

12

1

/

12

1

/

12

UNIT SIZE

02 03

Watt s Amps

Nominal

Hp

68 0.60

1

/

12

56 0.50

64 0.50

1

/

12

1

/

12

85 0.30

1

/

12

UNIT SIZE

04 06*

Watts Amps

Nominal

Hp

150 1.60

1

/12 (2)

116 0.66

138 0.66

1

/12 (2)

1

/12 (2)

140 0.50

1

/12 (2)

Watts Amps

135 1.60

109 0.66

128 0.66

135 0.50

Watt s Amps

260 3.20

232 1.32

245 1.32

260 1.00

42VG PSC MOTOR DATA

V-P h-Hz

FAN

SPEED

FAN

SPEED

(RPM)

Nominal

Hp

H1200

115-1-60

M 980 83 1.00 167 1.91

1

/

20

L 790 69 0.80 138 1.54

*Total motor amps and watts shown for units with 2 motors. NOTES:

1. Motor nameplate amps may vary.

2. Fan coil units comply with ETL, Canadian Standards Association (CSA), and ETL of Canada standards.

01 03*

Watts Amps

135 1.60

UNIT SIZE

Nominal

Hp

1

/20 (2)

Watts Amps

270 3.20

85

Electrical data (cont)

42V Series Units

42VA, VB, VC, VE, VF ECM MOTOR DATA

SIZE NOMINAL HP

1

/6 (2)

1

/6 (2)

/

7

1

/

7

1

/

6

1

/

6

1

/

6

42V*02

42V*03

42V*04

42V*06

42V*08

42V*10

42V*12

AMPS

120V 208V 230V 277V

1.4 1.3 1.2

2.4

1.6 1.5 1.0

3.2 3.0 2.0

86

B

w

A – 120V Electronically Commutated Motor (ECM) with Control Option 1

B – 120V ECM with Control Option 2 C – 120V PSC-STD D – 208/1/60 PSC E – 230/1/60 PSC F – 277/1/60 PSC G – 120V ECM with Control Option 3 H – 208V ECM with Control Option 1 J – 208V ECM with Control Option 2 K – 208V ECM with Control Option 3 L – 230V ECM with Control Option 1 M – 230V ECM with Control Option 2 N – 230V ECM with Control Option 3 P – 277V ECM with Control Option 1 Q – 277V ECM with Control Option 3 R – 277V ECM with Control Option 2 V – 220/1/50 PSC*

Control Option 1 – 3-Discrete Potentiometer Field Speed Adjustment Control Option 2 – Variable Flow 0-10 VDC or 4-20 mA Control Option 3 – 4-Discrete Potentiometer Field Speed Adjustment

* Contact Application Engineering for data on the 50 Hz motor.

Model number nomenclature

42D Series Units

LEGEND

PSC — Permanent Split Capacitor

* Contact Application Engineering for Data on the 50Hz motor.

AHRI capacity ratings

The 42D Series fan coil units are certified in compliance with the Air-Conditioning, Heating and Refrigeration Institute (AHRI) Industry Standard 440 for room fan coil units. Approved standard ratings are tabulated below:

UNIT

TYPE

42DF

*Ratings based on motor at high fan speed, standard air and dry coil

operation, 10°F water temperature rise; entering-air temperatures of 80 F db, 67 F wb; entering-water temperature 45 F.

†With standard 4-row coil.

UNIT SIZE†

06 600 3.7 18,100 13,700 225 08 800 5.0 23,400 17,600 275 10 1000 6.9 33,300 24,000 400 12 1200 8.7 41,800 30,200 450 14 1400 10.0 48,900 34,000 470

NOMINAL

a42-3995

AHRI APPROVED STANDARD RATINGS*

CFM

GPM

COOLING CAPACITY

Tot al

Heat Btuh

**Motor type, permanent split capacitor, operating at 115-1-60 voltage.

Sensible

Heat Btuh

POWER

INPUT (WATTS)**

87

Physical data

42D Series Units

UNIT SIZE 42D 06 08 10 12 14 16 18 20 NOMINAL AIRFLOW (cfm) 600 800 1000 1200 1400 1600 1800 2000 SHIPPING WEIGHT (lb)*

42DA 64 79 90 108 119 124 141 151 42DC 94 107 150 169 174 178 195 220 42DD 135 145 155 180 190 200 215 230 42DE 150 160 170 195 205 215 230 235 42DF 157 167 177 202 215 225 240 255

COIL WATER WEIGHT (Approx lb per row of coil)

COILS FPI 10 fins/inch Coil Face Area (sq ft) 1.6 2.1 2.5 3.0 3.5 4.1 4.6 5.0

MOTOR (qty) 11122222 BLOWER (qty) 11122222 FILTERS

Nominal Size (in.) (1-in. thick) 42DA NA 42DC 14 x 21 14 x 26 14 x 30 14 x 35 14 x 40 14 x 45 14 x 50 14 x 54 42DD

(Front Return) 12

(Bottom Return) 12 42DE 14 x 14 42DF 14 x 14 14 x 20 14 x 24 14 x 28 14 x 34 14 x 38 14 x 44 14 x 48 Qty

SUPPLY DUCT COLLAR 1-in. PIPING CONNECTIONS

Coil Inlet/Outlet (in. OD) 1 and 2 Row 3 Row 4 Row 5 Row 6 Row 8 Row

*Calculate Operating Weight of unit: Shipping Weight + Coil Water Weight x Number of Coil Rows.

1.3 1.6 1.9 2.3 2.7 3.0 3.4 3.7

3

/

x 21 12

4

3

/

x 20 12

4

3

/

3

/

x 26 12

4

3

/

x 25 12

4

3

14 x 19

4

/

3

/

x 30 12

4

3

/

x 29 12

4

3

14 x 23

4

/

3

/

x 35 12

4

3

/

x 34 12

4

3

14 x 28

4

/

3

/

x 40 12

4

3

/

x 39 12

4

3

14 x 33

4

/

3

/

x 45 12

4

3

/

x 44 12

4

3

14 x 38

4

/

3

/

x 50 12

4

3

/

x 49 12

4

3

14 x 43

4

/

3

14 x 47

4

1

5

/

8

5

/

8

7

/

8

7

/

8

7

/

8

1

/

8

5

/

8

5

/

8

7

/

8

7

/

8

7

/

8

1

/

8

5

/

8

7

/

8

7

/

8

7

/

8

7

/

8

1

/

8

5

/

8

7

/

8

7

/

8

7

/

8

7

/

8

1

/

8

5

/

8

7

/

8

7

/

8

1

/

8

1

/

8

5

1

/

8

5

/

8

7

/

8

1

/

8

1

/

8

1

/

8

5

1

/

8

5

/

8

7

/

8

1

/

8

1

/

8

1

/

8

5

1

/

8

/

4

/

4

5

7

1 1 1 1

x 54 x 53

/

8

/

8

1

/

8

1

/

8

1

/

8

5

/

8

3

/

4

88

12

Base unit dimensions

42D Series Units

42DA FURRED-IN CEILING UNIT WITH ELECTRIC HEAT

UNIT

SIZE

NOM

AIRFLOW

(Cfm)

A A’ B D’ E H Blower Motor

DIMENSIONS (in. ±

06 600 23 32 14 13 08 800 28 37 19 13 10 1000 32 42 23 14 12 1200 37 47 28 14 14 1400 42 52 33 14 16 1600 47 56 38 13 18 1800 52 62 43 14 20 2000 56 66 47 14

*Unit weights are based on dry coils and minimum rows. Weights exclude packaging, valves, and other

components.

NOTES:

1. Right hand unit shown; left hand unit opposite. Coil connection locations are ±

2. Sizes 06, 08 and 10 have one motor, one blower; sizes 12 through 20 have 2 motors, 2 blowers.

3. Standard 4-row coil shown. Other coil option dimensional data available on request.

4. See 42DA-203-1 for optional coil connections.

5. Fan switch, wall plate not shown.

6. Galvanized finish provided as standard.

7. Dimensions are in inches (mm).

1

/8) QTY/UNIT

1

/217 181/

1

/222 231/

1

/226 271/

1

/231 321/

1

/236 371/

1

/241 421/

1

/246 471/

1

/250 511/

2

UNIT

WEIGHT*

(lb)

11 64 11 79 11 90 2 2 108 2 2 119 2 2 124 2 2 141 2 2 151

5

/8 inches.

LEGEND

1— Motor Junction Box 2— Motor-Blower Assembly 3— Electric Strip Heater Element (optional) 4— Auxiliary Drip Lip (Optional, Shipped Loose) 5— Tell-Tale Drain (optional) 6— Drain Connection, 7— Air Vent, 8— Supply Connection

9— Supply Duct Collar, 1 inch 10 — Return Connection 11 — Mounting Holes (four,

Rubber Grommets with

12 — Drain Pan

1

/8-in. MPT

7

/8-in. OD

3

/4-in. diameter) have

3

/8-in. holes.

a42-4120

89

17

1. Right hand unit shown; left hand unit opposite. Coil connection locations are ±

5

/8 inches.

2. Sizes 06, 08 and 10 have one motor, one blower. Sizes 12 through 20 have 2 motors, 2 blowers.

3. Filter and filter rack are standard.

4. Standard 4-row coil shown. Other coil option dimensional data available on request.

5. See 42DA-203-1 for optional coil connections.

6. Fan switch, wall plate not shown.

7. Galvanized finish provided as standard.

8. Dimensions are in inches (mm).

UNIT SIZE

NOM

AIRFLOW

(Cfm)

DIMENSIONS (in. ±

1

/8) QTY/UNIT

UNIT

WEIGHT*

(lb)

A A’ B D’ E F G H Blower Motor

06 600 23 32 14 13

1

/217 21 251/4181/

2

11 94

08 800 28 37 19 13

1

/222 26 301/4231/

2

11107

10 1000 32 42 23 14

1

/226 30 341/4271/

2

11150

12 1200 37 47 28 14

1

/231 35 391/4321/

2

22169

14 1400 42 52 33 14

1

/236 40 441/4371/

2

22174

16 1600 47 56 38 13

1

/241 45 491/4421/

2

22178

18 1800 52 62 43 14

1

/246 50 541/4471/

2

22195

20 2000 56 66 47 14

1

/250 54 581/4511/

2

22220

Base unit dimensions (cont)

42D Series Units

42DC FURRED-IN CEILING UNIT WITH PLENUM AND ELECTRIC HEAT

1— Motor Junction Box Opposite Piping 2— Insulated Return Air Plenum 3— Mounting Clips (Shipped Loose) 4— Electrical Strip Heater Element (optional) 5— Auxiliary Drip Lip (Shipped Loose) with

Hole

6— Tell-Tale Drain (optional) 7— Drain Connection, 8— Filter Retainer Angle

9— Access Panel 10 — Return Duct Collar, 2 11 — Air Vent, 12 — Return Connection 13 — Filter, 1-in. 14 — Supply Duct Collar, 1 inch 15 — Supply Connection 16 — Mounting Holes (four,

Rubber Grommet

17 — Drain Pan

1

/8-in. MPT

7

/8-in. OD

1

/2 inches

3

/4-in. diameter) with

A42-4121

LEGEND

3

/8-in.

90

42DD VERTICAL UNIT WITH FULL CASING AND ELECTRIC HEAT

42D Series Units

SEE NOTE 8

13

UNIT

SIZE

06 600 23 21 15 1 1 135 08 800 28 26 20 1 1 145 10 1000 32 30 24 1 1 155 12 1200 37 35 29 2 2 180 14 1400 42 40 34 2 2 190 16 1600 47 45 39 2 2 200 18 1800 52 50 44 2 2 215 20 2000 56 54 48 2 2 230

*Unit weights are based on dry coils and minimum rows. Weights exclude packaging, valves, and other components.

NOTES:

1. Right hand unit shown; left hand unit opposite. Coil connection locations are ±

5

/8 inches.

2. Standard 4-row coil shown. Other coil option dimensional data available on request.

3. Sizes 06, 08 and 10 have one motor, one blower. Sizes 12 through 20 have 2 motors, 2 blowers.

4. Supply and return connections terminate within unit when valves are factory installed.

5. See 42DD-203-1 for optional coil connections.

6. Fan switch and wall plate are not shown.

7. Galvanized finish provided as standard.

8. Units with internal factory valve packages have external connections located in triangular section above coil.

9. Consult Carrier for ducted front return air and external filter rack with 1-in. duct collar and throwaway filters.

10. Units with electric heat require additional access on the side of unit for servicing contactor box.

11. With bottom return, access to filter is through the front access panel.

NOM

AIRFLOW

(Cfm)

DIMENSIONS (in. ±

A B C Blower Motor

1

/8) QTY/UNIT UNIT

WEIGHT*

(lb)

1— Motor Junction Box 2— Air Vent, 3— Return Connection (See table on page 95.) 4— Optional 6-in. Legs 5— Bottom Return (optional) 6— Return Air Opening 7— Supply Connection (See table on page 95.) 8— Drain Connection,

9— Front Access Panel 10 — Filter, Throwaway 11 — Electric Strip Heater Element (optional) 12 — Supply Duct Connection, 1-in. 13 — Drain Pan

LEGEND

1

/8-in. MPT

A42-4122

7

/8-in. OD

12. Dimensions are in inches (mm).

91

42DE CEILING UNIT WITH FULL CASING AND ELECTRIC HEAT

*Unit weights are based on dry coils and minimum rows. Weights exclude packaging, valves, and other components.

NOTES:

1. Right hand unit shown; left hand unit opposite.

2. Coil stub-out location data available on request.

3. Unit fabricated of galvanized steel.

4. Internal parts fabricated of galvanized steel.

5. Sizes 06, 08 and 10 have one motor, one blower. Sizes 12 through 20 have 2 motors, 2 blowers.

6. Units must have drain line pitched and trapped externally.

7. See 42DA-203-1 for optional coil connections.

8. Fan switch, wall plate not shown.

9. Galvanized finished provided as standard.

10. Dimensions are in inches (mm).

UNIT

SIZE

NOM

AIRFLOW

(Cfm)

DIMENSIONS (in. ±

1

/8) QTY/UNIT UNIT

WEIGHT*

(lb)

ABCDBlowerMotor

06 600 31 15 15 26 1 1 150 08 800 36 20 20 31 1 1 160 10 1000 40 24 24 35 1 1 170 12 1200 45 29 29 40 2 2 195 14 1400 50 34 34 45 2 2 205 16 1600 55 39 39 50 2 2 215 18 1800 60 44 44 55 2 2 230 20 2000 64 48 48 59 2 2 235

LEGEND

1— Motor Junction Box 2— Unit Mounting Channel (2), 14-gage; 4 Mounting

Slots,

1

/2-in. x 2-in.

3— Auxiliary Drip Lip (optional, shipped loose) 4— Side Access Panels 5— Electrical Strip Heater Element (optional) 6— Supply Air Duct Connection, 1 in. 7— Manual Air Vent 8— Filter, Throwaway, 1-in. 9— Return Air Duct Connection, 2

1

/2 in.

10 — Drain,

7

/8-in. OD

11 — Bottom Access Panel 12 — Drain Pan 13 — Coil Inlet (see table on page 94), Copper Sweat Con-

nection

14 — Coil Outlet (see table on page 94), Copper Sweat

Connection

Base unit dimensions (cont)

42D Series Units

92

A42-4123

*Unit weights are based on dry coils and minimum rows. Weights exclude packaging, valves, and other components. NOTES:

1. Right hand unit shown; left hand unit opposite.

2. Coil stub-out connection data available on request.

3. Units fabricated of galvanized steel with an Arctic White baked finish.

4. Internal parts fabricated of galvanized steel.

5. Sizes 06, 08 and 10 have one motor, one blower. Sizes 12 through 20 have 2 motors, 2 blowers.

6. Units must have drain line pitched and trapped externally.

7. Stamped supply and return grilles are not available.

8. Bottom return air is not available.

9. See 42DA-203-1 for optional coil connections.

10. Fan switch and wall plate are not shown.

11. Dimensions are in inches (mm).

UNIT SIZE

NOM

AIRFLOW

(Cfm)

DIMENSIONS (in. ±

1

/8) QTY/UNIT UNIT

WEIGHT*

(lb)

A B C D E Blower Motor

06 600 31 13

1

/214 26 81/

2

1 1 150

08 800 36 18

1

/220 31 8 1 1 160

10 1000 40 22

1

/224 35 8 1 1 170

12 1200 45 27

1

/228 40 81/

2

2 2 195

14 1400 50 32

1

/234 45 8 2 2 205

16 1600 55 37

1

/238 50 81/

2

2 2 215

18 1800 60 42

1

/244 55 8 2 2 230

20 2000 64 46

1

/248 59 8 2 2 235

LEGEND

1—Junction Box 2—Return Air Grille, Hinged, Bar Type, with Fil-

ter Frame (Anodized Aluminum Only)

3—Unit Mounting Channel (2), 14-gage; 4

Mounting Slots,

1

/2 in. x 2-in.

4—Auxiliary Drip Lip 5—Electric Strip Heater Element (optional) 6—Coil Inlet (See table on page 94), Copper

Sweat Connection

7—Coil Outlet (See table on page 94), Copper

Sweat Connection

8—Manual Air Vent 9—Filter, Throwaway 10 — Bottom Access Panel 11 — Drain,

7

/8-in. OD

12 — Drain Pan Insulated with Styrofoam 13 — Side Access Panel (2) 14 — Discharge Air Grille (Double Deflection)

42DF EXPOSED CEILING UNIT WITH DISCHARGE AND RETURN GRILLE AND ELECTRIC HEAT

42D Series Units

A42-4124

93

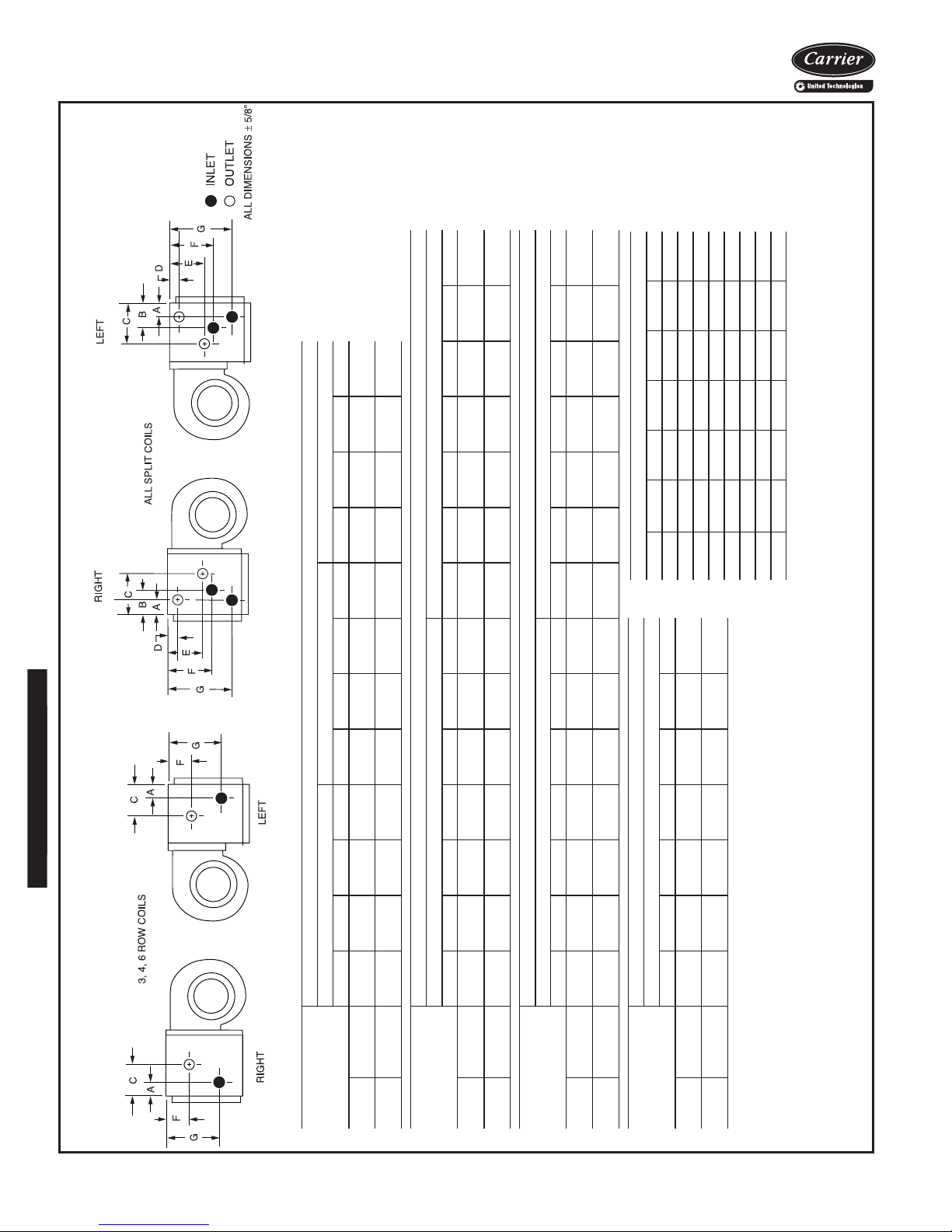

42DA,DC,DE AND DF OPTIONAL COIL CONNECTION LOCATION SIZES 06–20

a42-3996

Accessory dimensions

42D Series Units

16

/

7

10

16

/

13

4

8

/

1

7

4

/

3

1

16

/

7

10

4

/

1

13

16

/

7

5

13

15

7

9

7

10

16

/

13

16

/

7

5

8

/

1

7

4

/

3

1

16

/

13

9

16

/

5

7

13

15

7

5

4

7

4

/

3

16

/

1

6

8

/

7

3

4

/

1

2

4

/

1

13

16

/

7

13

9

10

16

/

7

13

5

4

/

3

8

/

1

7

8

/

7

3

4

/

1

2

COIL CONNECTIONS SIZES (OD COPPER SWEAT) (in.)

cfm 1-2 Row 3 Row 4 Row 5 Row 6 Row 8 Row

/

1

/

7

/

7

/

7

/

5

/

5

600

8

/

1

7

5

1

8

/

8

/

8

/

8

/

8

/

1000

1

7

5

1

8

/

8

/

8

/

8

/

8

/

1200

5

1

7

5

/ 1

8

/ 1

8

/ 1

8

/

8

/

8

/

1400

1

8

/

7

8

/

7

8

/

7

8

/

5

8

/

5

800

/

5

1

8

/

1

8

/

1

8

/

1

8

/

7

8

/

5

1600

/

5

1

/

1

/

1

/

1

/

7

/

5

1800

8

/

5

1

8

/

1

8

/

1

8

/

1

8

/

7

8

/

5

2000

NOTE: Does not apply to connection size when optional valve

packages are used.

COIL CONNECTION DIMENSIONS (in.)

5

3-Row 4-Row 6-Row

7

ACFGACFGACFG

UNIT CFM

16

/ 7

16

/ 7

6

8

/ 3

600-800

Right

16

/

13

4

16

/

1

6

16

/

13

2

13

7

16

/

5

9

16

/

15

9

6

8

/

7

3

1000-2000

Hand

7

1

13

16

/ 7

16

/ 7

6

8

/ 3

600-800

Left

16

/ 5

16

/ 6

16

/ 2

16

/

7

10

16

/

7

5

6

8

/

7

3

1000-2000

Hand

COIL CONNECTION DIMENSIONS (in.)

9

5

1

3 and 1 Split Coil 3 and 2 Split Coil

1

7

ABCDE FGABCDE FG

13

UNIT CFM

16

/ 13

16

/ 7

16

/ 7

16

/ 1

16

/ 6

8

/ 3

16

/ 2

600-800

Right

16

/

9

13

16

/

13

9

16

/

13

4

16

/

1

16

/

1

6

8

/

7

3

16

/

13

2

1000-2000

Hand

15

7

1

7

13

16

/

12

16

/ 7

16

/ 7

16

/

16

/ 6

8

/ 3

16

/ 2

600-800

Left

16

/

15

12

16

/

7

10

16

/

7

5

16

/

7

16

/

1

6

8

/

7

3

16

/

13

2

1000-2000

Hand

COIL CONNECTION DIMENSIONS (in.)

4 and 1 Split Coil 4 and 2 Split Coil

ABCDE FGABCDE FG

UNIT CFM

16

/

15

12

16

/

7

10

16

/

13

4

16

/

7

16

/

1

6

16

/

13

2

4

/

3

600-2000

Right

Hand

16

/

9

13

16

/

13

9

16

/

7

5

16

/

1

16

/

1

6

16

/

13

2

4

/

3

600-2000

Left

Hand

COIL CONNECTION DIMENSIONS (in.)

6 and 1 Split Coil

ABCDE FG

UNIT CFM

600-800

Right

4

/

1

13

8

/

3

10

4

/

3

4

8

/

3

4

/

1

8

/

7

2

4

/

3

1

1000-2000

Hand

1

3

1

7

3

600-800

Left

4

/

13

8

/ 10

4

/ 4

8

/

4

/ 8

8

/ 2

4

/ 1

1000-2000

Hand

1. Refer to pages 92 and 93 for coil inlet and outlet knockout locations on DE and DF units.

2. Cooling coil is first in the airstream.

3. Split coil connections shown are for 4-pipe combination chilled water/hot water coils only,

NOTES:

94

42D Series Units

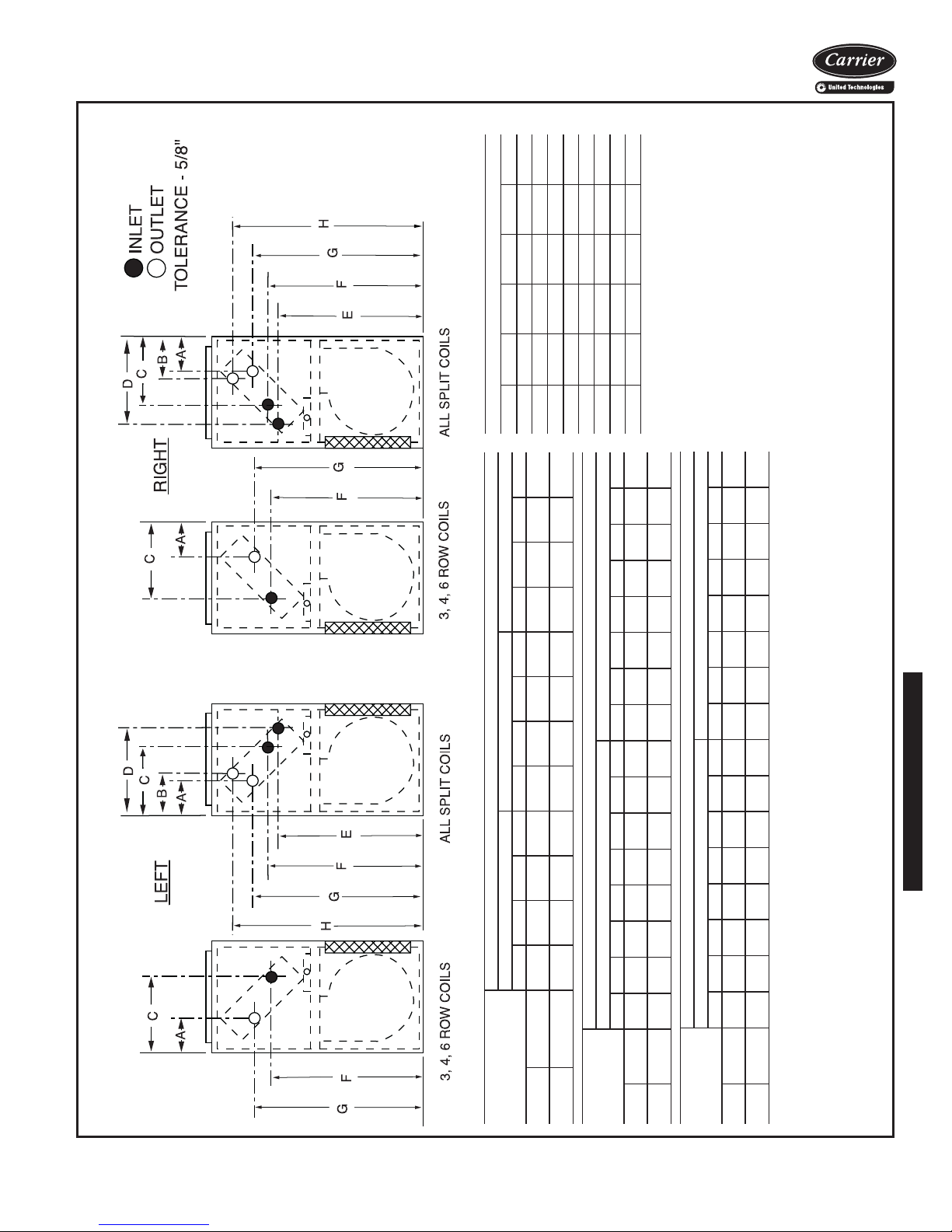

42DD OPTIONAL COIL CONNECTION LOCATION SIZES 06–20

cfm 1-2 Row 3 Row 4 Row 5 Row 6 Row

COIL CONNECTIONS SIZES (OD COPPER SWEAT) (in.)

COIL CONNECTION DIMENSIONS (in.)

3-Row 4-Row 6-Row

UNIT CFM

8

/

7

8

/

7

8

/

7

8

/

5

8

/

5

600

800

8

/

7

25

16

/

15

23

8

/

1

11

2

/

1

3

2

/

1

26

8

/

3

23

16

/

3

10

2

/

1

4

8

/

7

24

27

16

/

15

23

26

2

8

/

1

7

8

9

16

/

8

/

ACFGACFGACFG

3

11

5

6

600-800

1000-2000

Hand

Right

8

/

7

8

/

7

8

/

7

8

/

7

8

/

5

1000

1200

8

/

3

25

2

/

1

24

4

/

3

10

8

/

7

3

16

/

15

25

16

/

15

23

8

/

7

9

4

/

3

4

8

2

/

3

1

24

26

16

/

16

/

15

7

5

16

/

8

3

/

7

8

10

8

/

3

5

7

600-800

1000-2000

Left Hand

8

/

1

8

/

1

8

/

1

7

1

8

/

7

8

/

5

1400

1600

COIL CONNECTION DIMENSIONS (in.)

3 and 1 Split Coil 3 and 2 Split Coil

UNIT CFM

8

/

1

8

/

1

8

/

1

8

/

7

8

/

5

1800

2000

8

/

7

31

16

/

5

24

16

/

7

25

4

/

1

20

4

/

3

12

8

/

5

7

16

/

9

5

4

/

3

5

16

/

5

31

16

/

5

24

16

/

7

25

16

/

11

19

16

/

7

12

8

/

5

7

4

/

1

5

4

/

3

ABCDEF GHABCDEFGH

5

600-800

Right

8

/

7

31

16

/

1

26

16

/

5

23

4

/

1

20

4

/

3

12

16

/

15

8

16

/

9

5

16

/

7

4

16

/

5

31

16

/

7

26

16

/

5

23

16

/

11

19

16

/

7

12

16

/

15

8

4

/

1

5

16

/

7

4

1000-2000

Hand

NOTE: Does not apply to connection size when

8

/

7

31

4

/

3

23

16

/

15

24

4

/

1

20

4

/

3

12

16

/

15

7

16

/

9

5

8

/

1

6

16

/

7

31

4

/

3

23

16

/

15

24

16

/

3

20

8

/

1

12

16

/

15

7

16

/

15

4

8

/

1

6

600-800

Left

/

7

31

/

7

25

/

13

22

/

1

20

/

3

12

/

1

9

/

9

5

/

3

4

/

7

31

/

15

25

/

13

22

/

3

20

/

1

12

/

1

9

/

15

4

/

3

4

1000-2000

Hand

optional valve packages are used.

8

16

4

16

4

16

COIL CONNECTION DIMENSIONS (in.)

16

8

4

16

4

a42-3997

7

13

1

3

1

9

1

7

3

1

4 and 1 Split Coil 4 and 2 Split Coil

3

13

ABCDE FGHABCDE FGH

7

UNIT CFM

Right

8

/

7

31

8

/

3

25

16

/

5

23

22

4

/

1

20

4

/

3

12

4

16

/

15

9

8

16

/

9

5

2

8

/

7

3

8

16

/

7

31

32

8

16

/

7

25

26

8

/

7

23

4

/

1

20

8

16

/

3

13

16

8

/

7

9

10

16

/

13

5

6

4

16

/

3

600-2000 4

1. Does not apply to connection size when optional valve packages are used.

NOTES:

with hot water in the reheat position, as standard.

2. Cooling coil is first in the airstream.

3. Split coil connections shown are for 4-pipe combination chilled water/hot water coils only,

Left

Hand

95

Performance data

42D Series Units

AIR DELIVERY (CFM)

UNIT SIZE COIL

CFM AT 0.0 ESP FOR FAN SPEED HIGH SPEED CFM AT ESP INDICATED

LOW MED HIGH 0.10 0.20 0.25 0.30 0.40 0.50 0.60

3-Row 545 645 800 740 680 650 4-Row 530 360 780 720 660 630

06

6-Row 505 595 740 680 620 590 3-Row 645 885 1080 1010 940 910

08

4-Row 630 870 1060 990 920 890 6-Row 600 830 1010 940 870 840 3-Row 825 1045 1280 1260 1240 1190

10

4-Row 805 1020 1250 1230 1210 1160 6-Row 765 975 1190 1170 1140 1090 3-Row 945 1125 1450 1360 1270 1220

12

4-Row 925 1100 1420 1330 1240 1200

42DA

6-Row 885 1055 1360 1270 1180 1130 3-Row 890 1405 1875 1730 1590 1520

14

4-Row 860 1355 1810 1680 1550 1490 6-Row 820 1300 1730 1590 1450 1380 3-Row 900 1420 2080 1940 1800 1730

16

4-Row 875 1385 2030 1890 1750 1680 6-Row 845 1335 1960 1810 1660 1590 3-Row 1160 1720 2630 2570 2485 2415

18

4-Row 1145 1685 2445 2380 2285 2215 6-Row 1115 1615 2075 1990 1885 1820 3-Row 1225 1860 2780 2700 2605 2545

20

4-Row 1210 1825 2595 2510 2405 2345 6-Row 1180 1755 2225 2120 2010 1945 3-Row 535 630 780 710 640 600

06

4-Row 520 610 760 690 620 580 6-Row 485 570 710 640 570 540 3-Row 590 810 990 920 850 820

08

4-Row 575 795 970 900 830 790 6-Row 560 770 940 860 780 740 3-Row 755 955 1170 1140 1100 1040

10

4-Row 735 930 1140 1110 1070 1010 6-Row 690 875 1070 1030 990 930 3-Row 1040 1240 1600 1480 1360 1300

12

4-Row 1035 1235 1590 1460 1330 1270

42DC,

DD,DE

6-Row 965 1145 1480 1360 1240 1180 3-Row 1290 1770 1940 1795 1660 1595

14

4-Row 1260 1710 1880 1740 1610 1550 6-Row 1200 1590 1745 1625 1510 1455 3-Row 1105 1710 2380 2230 2100 2015

16

4-Row 1075 1650 2320 2175 2050 1970 6-Row 1015 1530 2180 2060 1950 1875 3-Row 1105 1675 2515 2450 2355 2275

18

4-Row 1090 1640 2355 2260 2155 2075 6-Row 1060 1570 1990 1870 1755 1680 3-Row 1170 1815 2690 2580 2475 2405

20

4-Row 1155 1780 2505 2390 2275 2205 6-Row 1125 1710 2140 2000 1880 1810

NOTE: Ratings based on standard cfm at sea level, 70 F entering dry coil. Ratings include factory-installed filter and/or grille, where applicable.

620 560 470 330

600 540 430 260

560 470 330 —

870 800 710 590

850 770 680 540

800 710 590 —

1130 1010 910 640

1100 970 840 700

1030 890 720 —

1180 1090 990 850

1150 1060 950 790

1090 990 850 —

1450 1310 1170 920

1420 1270 1110 890

1310 1170 970 —

1660 1510 1350 1110

1610 1460 1280 1000

1510 1350 1110 —

2340 2170 1945 —

2145 1985 1770 —

1755 1615 1425 —

2470 2310 2120 —

2275 2125 1950 —

1885 1755 1600 —

570 500 410 280

550 470 380 230

500 410 280 —

780 700 590 430

760 670 550 350

700 590 430 —

990 910 810 700

960 860 760 660

880 760 620 —

1240 1120 980 780

1200 1070 920 700

1120 980 780 —

1525 1390 1280 1085

1485 1350 1210 1015

1400 1265 1065 —

1945 1785 1640 —

1905 1745 1570 —

1820 1660 1425 —

2185 2045 1850 —

1990 1860 1657 —

1600 1490 1330 —

2315 2185 2025 —

2120 2000 1855 —

1730 1630 1505 —

96

AIR DELIVERY (CFM) (cont)

42D Series Units

UNIT SIZE COIL

CFM AT 0.0 ESP FOR FAN SPEED HIGH SPEED CFM AT ESP INDICATED

LOW MED HIGH 0.10 0.20 0.25 0.30 0.40 0.50 0.60

3-Row 465 545 680 4-Row 460 540 670

06

6-Row 445 520 650 3-Row 490 670 820

08

4-Row 480 665 810 6-Row 465 640 780 3-Row 660 835 1020

10

4-Row 645 820 1000 6-Row 620 785 960 3-Row 810 960 1240

12

4-Row 795 945 1220

42DF

6-Row 775 925 1190 3-Row 700 1105 1470

14

4-Row 680 1090 1450 6-Row 665 1050 1400 3-Row 685 1085 1590

16

4-Row 680 1070 1570 6-Row 650 1030 1510 3-Row 1155 1505 1800

18

4-Row 1140 1485 1780 6-Row 1090 1420 1700 3-Row 1280 1675 2030

20

4-Row 1260 1650 2000 6-Row 1225 1600 1940

NOTE: Ratings based on standard cfm at sea level, 70 F entering dry coil. Ratings include factory-installed filter and/or grille, where applicable.

———————

97

Performance data (cont)

42D Series Units

42DA HORIZONTAL FURRED-IN DUCTED UNIT

SOUND POWER DATA

UNIT SIZE

06

08

10

12

14

16

18

20

NOTES:

1. Unit Test Configuration: Open Return / Front Supply, 4 Row, 10 FPI (fins per inch) Coil, 0.20 in. ESP at High Speed, 115 VAC PSC (permanent split capacitor) Motor.

2. Casing Radiated Testing per AHRI (Air-Conditioning, Heating and Refrigeration Institute) 260-2001: 4.2.2.3 Casing radiated with free inlet, Sound Rating of Ducted Air Moving and Conditioning Equipment.

3. Ducted Discharge Testing per AHRI 260-2012: 4.2.2.1 Ducted discharge, Sound Rating of Ducted Air Moving and Conditioning Equipment.

RATING

CASING

RADIATED

DUCTED

DISCHARGE

CASING

RADIATED

DUCTED

DISCHARGE

CASING

RADIATED

DUCTED

DISCHARGE

CASING

RADIATED

DUCTED

DISCHARGE

CASING

RADIATED

DUCTED

DISCHARGE

CASING

RADIATED

DUCTED

DISCHARGE

CASING

RADIATED

DUCTED

DISCHARGE

CASING

RADIATED

DUCTED

DISCHARGE

FAN

SPEED

H 765 61 64 66 67 65 61 M 660 58 61 64 64 61 56

L 570 55 59 61 61 57 52 H 765 61 55 56 54 51 47 M 660 59 52 53 50 47 43

L 570 56 49 49 47 43 39 H 1030 64 66 67 68 66 61 M 685 58 60 61 62 58 52

L 510 52 55 55 55 49 40 H 1030 62 57 58 55 52 50 M 685 57 51 51 49 45 41

L 510 51 46 46 42 36 31 H 1155 75 72 69 71 68 64 M 875 69 66 65 65 62 57

L 610 57 60 57 57 50 42 H 1155 71 64 61 60 56 54 M 875 66 58 56 53 50 46

L 610 56 52 48 45 40 34 H 1340 62 65 67 68 65 61 M 1045 58 61 63 63 60 54

L 810 55 57 59 58 53 45 H 1340 62 57 60 57 52 49 M 1045 57 53 54 52 46 41

L 810 53 48 50 46 39 33 H 1970 74 68 69 71 68 64 M 1560 70 64 66 66 63 58

L 1090 63 59 60 60 55 47 H 1970 72 62 63 62 57 55 M 1560 69 58 59 56 52 48

L 1090 64 52 53 49 44 38 H 2180 68 70 71 72 70 67 M 2005 66 68 70 70 68 64

L 1450 61 63 64 64 61 55 H 2180 67 62 63 63 58 56 M 2005 66 61 62 60 56 53

L 1450 61 56 55 53 49 45 H 2390 69 72 74 76 74 70 M 1950 65 68 71 71 68 63

L 1360 58 63 64 63 58 51 H 2390 69 67 67 68 62 61 M 1950 65 63 63 61 57 55

L 1360 59 58 56 53 48 43 H 2500 71 75 72 74 72 69 M 1900 65 71 67 68 65 61

L 1325 57 61 60 60 55 48 H 2500 72 69 67 68 63 61 M 1900 67 64 61 59 56 53

L 1325 60 54 54 51 46 40

CFM

125 Hz 250 Hz 500 Hz 1000 Hz 2000 Hz 4000 Hz

SOUND POWER LEVEL, L

4. Sound power data is expressed decibels, dB RE: 1 x 10 (picowatts).

(dB one reference pico watt)

w

-12

W

98

SOUND POWER DATA

42D Series Units

42DC HORIZONTAL FURRED-IN WITH PLENUM DUCTED UNIT

UNIT

SIZE

06

08

10

12

14

16

18

20

NOTES:

1. Unit Test Configuration: Rear Return / Front Supply, 4 Row, 10 FPI

2. Casing Radiated Testing per AHRI (Air-Conditioning, Heating, and

RATING

CASING

RADIATED

DUCTED

DISCHARGE

CASING

RADIATED

DUCTED

DISCHARGE

CASING

RADIATED

DUCTED

DISCHARGE

CASING

RADIATED

DUCTED

DISCHARGE

CASING

RADIATED

DUCTED

DISCHARGE

CASING

RADIATED

DUCTED

DISCHARGE

CASING

RADIATED

DUCTED

DISCHARGE

CASING

RADIATED

DUCTED

DISCHARGE

(fins per inch) Coil, 0.20 in. ESP at High Speed, 115 VAC PSC (permanent split capacitor) Motor.

Refrigeration Institute) 260-2012: 4.2.2.3 Casing radiated with free

FAN

SPEED

H 695 66 61 60 58 56 51 43 63

M 625 64 59 59 56 53 48 40 61

L 555 62 57 57 54 50 45 38 59

H 695 63 55 55 56 50 46 39 59

M 625 61 53 54 51 47 43 37 56

L 555 60 51 51 49 45 40 35 54

H 905 68 64 61 59 56 52 44 65

M 670 64 60 58 55 51 45 38 60

L 500 57 55 53 48 43 36 35 54

H 905 64 59 57 56 52 49 40 60

M 670 59 54 53 50 46 42 36 55

L 500 53 48 47 44 38 33 35 49

H 995 75 70 64 61 58 54 46 68

M 810 71 66 61 58 55 50 41 64

L 620 64 59 55 52 46 39 36 57

H 995 69 64 60 58 55 52 42 64

M 810 65 60 57 55 51 48 39 60

L 620 58 52 50 47 43 38 36 52

H 1325 69 65 63 61 59 55 47 67

M 1200 68 63 62 59 57 52 44 65

L 1050 66 61 60 57 55 49 41 62

H 1325 64 61 61 60 54 50 41 64

M 1200 63 60 60 57 52 47 39 62

L 1050 62 57 57 55 49 44 38 59

H 1700 72 66 64 62 60 56 49 68

M 1650 71 65 63 61 59 55 47 67

L 1340 68 62 60 58 55 49 41 63

H 1700 68 63 63 62 57 53 44 66

M 1650 66 61 62 61 55 52 43 65

L 1340 64 58 58 56 51 46 39 61

H 2025 72 67 65 65 62 59 51 69

M 1780 70 65 64 63 60 56 47 67

L 1375 66 61 61 58 55 49 40 63

H 2025 67 64 64 63 58 56 47 67

M 1780 66 62 62 62 56 53 44 65

L 1375 62 58 58 55 51 47 38 60

H 2125 68 66 65 65 60 59 50 69

M 1870 66 63 63 61 57 54 46 66

L 1405 60 57 58 54 49 45 38 59

H 2125 72 69 67 67 64 61 54 71

M 1870 69 66 65 63 61 57 49 68

L 1405 63 61 60 58 54 48 40 62

H 2150 74 74 66 65 63 60 53 71

M 1880 70 68 63 61 59 55 47 67

L 1385 62 61 58 54 50 44 37 60

H 2150 72 70 65 64 60 57 49 69

M 1880 69 62 62 59 56 52 43 64

L 1385 61 55 55 52 48 42 36 57

CFM

125 Hz 250 Hz 500 Hz 1000 Hz 2000 Hz 4000 Hz 8000 Hz

SOUND POWER LEVEL, L

(dB one reference pico watt)

w

inlet, Sound Rating of Ducted Air Moving and Conditioning Equipment.

3. Ducted Discharge Testing per AHRI 260-2012: 4.2.2.1 Ducted discharge, Sound Rating of Ducted Air Moving and Conditioning Equipment.

4. Sound power data is expressed decibels, dB RE: 1 x 10 (picowatts).

A-wgt (dbA)

-12

W

99

Electrical data

42D Series Units

42D ELECTRIC HEATER DATA

HEATER

VOLTAGE

2.0 3.0 4.0 5.0 6.0 7.0 8.0 9.0 10.0 12.0 14.0

HEATER kW

FLA 120 16.725.0————————— 208 9.6 14.4 19.2 24.0 28.8 33.7 38.5 43.3 48.1 57.7 67.3 240 8.3 12.5 16.7 20.8 25.0 29.2 33.3 37.5 41.7 50.0 58.3 277 7.2 10.8 14.4 18.0 21.7 25.3 28.9 32.5 36.1 43.3 50.5

LEGEND FLA — Full Load Amps NOTES:

1. All heaters are single-stage and single-phase.

2. In all units using over 48 amps, the heating elements are subdivided and protected. Additional cost is incurred because of added components.

3. A separate power source is required for motor and heaters except when motors and heaters of same voltage are ordered in conjunction with a single power source wiring option. This option, which meets NEC (National Electric Code) requirements, consists of a factory-furnished and installed junction box and fuse for 6.25 amp (max) fan and control circuit connection to a single power source. Power supply circuit to unit must be field furnished and installed in accordance with applicable codes.

42DA PSC MOTOR DATA

UNIT SIZE

Nominal

Hp

1

/

4

/

4

/

4

Watts Amps

470 5.60

430 2.00

425 1.62

Nominal

Hp

1

/8 (2)

1

/5 (2)

1

/5 (2)

Watts Amps

550 5.30

450 2.10

550 2.40

V-P h- Hz

115-1-60

208/230-1-60

277-1-60

FAN

SPEED

H 1200 M L

H 1200 M L H M L

FAN

SPEED

(RPM)

Nominal

Hp

1

980 200 2.00 225 2.25 360 3.70 305 2.92

/

06 08 10 12*

Watts Amps

280 2.70

8

Nominal

Hp

1

/

5

Watts Amps

330 3.10

790 140 1.50 135 1.44 240 2.60 205 1.93

10

240 1.10

1

980 175 0.74 280 1.26 260 1.20 325 1.45

/

5

420 1.80

790 110 0.50 155 0.73 165 0.80 215 1.00

1200

980 175 0.69 175 0.69 260 1.04 355 1.38

1

/

5

275 1.15

/

5

275 1.21

1

790 90 0.33 90 0.34 155 0.65 175 0.67

V-P h-Hz

FAN

SPEED

115-1-60

208/230-1-60

277-1-60

*Total motor amps and watts shown for units with 2 motors (size 12 through 20). NOTES:

1. Motor nameplate amps may vary.

2. Fan coil units comply with ETL, Canadian Standards Association (CSA), and ETL of Canada standards.

FAN

SPEED

(RPM)

H 1200 M L

980 440 4.60 705 6.90 770 8.30 770 8.30 790 280 3.00 430 4.20 460 5.30 460 5.30

H 1200 M L

980 325 1.45 360 1.80 5.45 2.48 545 2.48 790 220 1.00 220 1.20 330 1.60 330 1.60

H 1200 M L

980 510 1.90 560 2.20 550 2.20 550 2.20 790 330 1.30 335 1.40 320 1.40 320 1.40

Nominal

Hp

1

/5 (2)

1

/5 (2)

1

/4 (2)

14* 16* 18* 20*

Watts Amps

650 6.40

465 2.10

735 2.70

Nominal

Hp

1

/4 (2)

1

/5 (2)

1

/4 (2)

Watts Amps

900 8.80

740 3.60

940 3.60

UNIT SIZE

Nominal

Hp

1

/4 (2)

1

/4 (2)

1

/4 (2)

Watts Amps

1180 11.80

925 4.10

980 3.72

Nominal

Hp

1

/4 (2)

1

/4 (2)

1

/4 (2)

Watts Amps

1180 11.80

925 4.10

980 3.72

100
