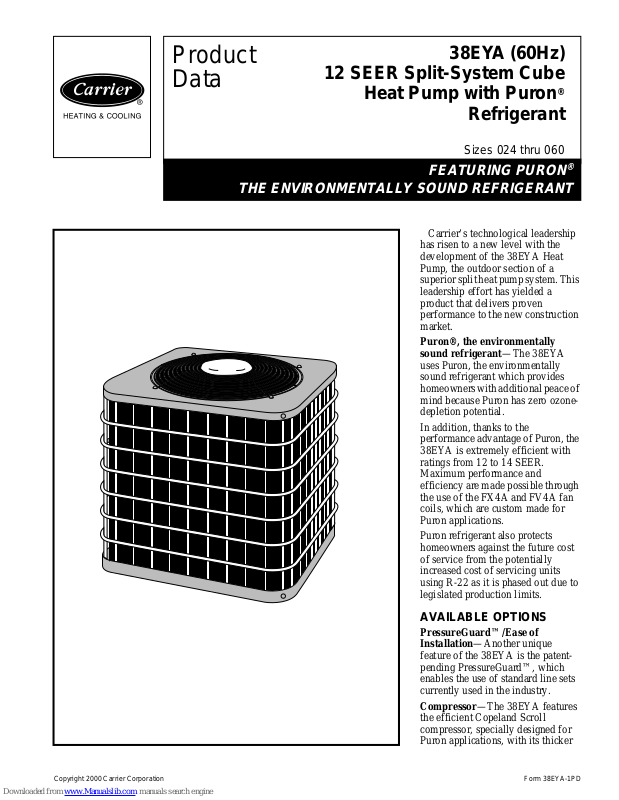

Product Data
THE ENVIRONMENTALLY SOUND REFRIGERANT
38EYA (60Hz)
Heat Pump with Puron
Refrigerant
Sizes 024 thru 060
FEATURING PURON
Carrier’s technological leadership has risen to a new level with the development of the 38EYA Heat Pump, the outdoor section of a superior split heat pump system. This leadership effort has yielded a product that delivers proven performance to the new construction market.
Puron®, the environmentally sound refrigerant
uses Puron, the environmentally sound refrigerant which provides homeowners with additional peace of mind because Puron has zero ozone­depletion potential.
In addition, thanks to the performance advantage of Puron, the 38EYA is extremely efficient with ratings from 12 to 14 SEER. Maximum performance and efficiency are made possible through the use of the FX4A and FV4A fan coils, which are custom made for Puron applications.
Puron refrigerant also protects homeowners against the future cost of service from the potentially increased cost of servicing units using R-22 as it is phased out due to legislated production limits.
—The 38EYA
®
®
Copyright 2000 Carrier Corporation Form 38EYA-1PD
AVAILABLE OPTIONS
PressureGuard™/Ease of Installation
feature of the 38EYA is the patent­pending PressureGuard™, which enables the use of standard line sets currently used in the industry.
Compressor —The 38EYA features
the efficient Copeland Scroll compressor, specially designed for Puron applications, with its thicker
—Another unique
Page 2
shell and an anti-reverse rotation device for superior reliability and quiet operation. In addition, each compressor is mounted on rubber isolators for additional sound reduction. Continuous operation is approved down to -30°F (-34.4°C) in the heating mode and down to 55°F (12.8°C) in the cooling mode. (See heating and performance tables.) The scroll compressor is covered with a standard 5-year limited warranty.
Discharge Muffler —Minimizes low-
frequency sound and pressure pulsation generated by compressor discharge gas.
Defrost Control Board —
Incorporates a defrost relay, defrost timer, and low-voltage terminations. The defrost control is a time and temperature initiation/termination control which includes 4 field­selectable (DIP switch) time periods of 30, 60, 90, and 120 minutes. The control includes built-in 5-minute compressor delay for units equipped with single-phase scroll compressors. This control also includes a field­selectable (DIP switch) Quiet Shift mode, which if selected, maintains quiet operation during defrost.
Patent-Pending Accumulator/ Reliable Operation
—Unique to the 38EYA is the patent-pending accumulator, which ensures an oil
rich flow of refrigerant to the compressor. This oil return is especially beneficial during start up when compressor-protecting lubrication is needed most.
Built-In Reliable Components —
The 38EYA delivers additional compressor protection with factory installed high and low-pressure switches. Reliable operation is also optimized with a heavy-duty service reversing valve.
Thermostatic Expansion Valve
—The 38EYA Heat Pump
(TXV)
must be installed with a Puron TXV on the indoor coil. The FX4 and FV4 indoor fan coils are factory-equipped with a bi-flow Puron TXV, which if installed with this application, requires no further change. If another indoor fan coil or furnace coil is used, an accessory bi-flow Puron TXV must be installed. See accessory list in this publication for correct part number.
WeatherArmor II Protective Cabinet
—The casing steel is protected with a galvanized coating and treated with a layer of zinc phosphate. A modified polyester powder coating is then applied and baked on, providing each unit with a hard, smooth finish that will last for many years.
All screws on cabinet exterior are
coated for a long-lasting, rust­resistant, quality appearance.
Unit Design —All units are equipped
with totally enclosed fan motors for greater reliability under adverse weather conditions. The large, wraparound coil uses copper tube and enhanced aluminum fin and is designed for optimum heat transfer during heating and cooling. The vertical air discharge carries the sound and air up and away from adjacent patio areas and foliage. Coil can be cleaned with a common garden hose.
External Service Valves —Both
service valves are brass, front seating type. Valves are externally located so refrigerant tube connections can be made quickly and easily. Each valve has a service port for ease of checking operating refrigerant pressures. The 38EYA has sweat field connections.
Limited Warranty —Standard
1-year limited warranty on parts. Additional 4-year limited warranty on compressor.
Model number nomenclature
38EYA 024
Standard 12 SEER Split-System Puron Heat Pump
Nominal Capacity
024 — 24,000 Btu 042 — 42,000 Btu 030— 30,000 Btu 048 — 48,000 Btu 036— 36,000 Btu 060 — 60,000 Btu
This heat pump can be part of a Comfort Heat Pump System which can provide higher heating supply air temperatures, as well as up to 30 times more humidity removal in cooling mode. A Comfort Heat Pump System requires the use of a 40FKA (Fan Coil with Thermidistat Control) or an FV4A Fan Coil and a B-series
HEAT PUMP SYSTEM
2
Thermidistat Control.
301
Packaging
Series
Electrical
3—208/230-1 5—208/230-3
Page 3
T
O
D
E
A
I
R
F
I
I
T
A
R
S
E
C
R
E
R
U
T
C
A
F
U
N
A
M
A
R
CERTIFICATION APPLIES ONLY WHEN THE
COMPLETE SYSTEM IS LISTED WITH ARI.
C
O
M
H
P
E
A
Y
R
A
T
I
N
U
I
S
T
L
T
Y
P
I
U
N
M
G
P
W
I
T
H
®
E
T
Q
N
U
E
I
P
M
0
4
2
D
A
R
N
A
D
As an ENERGY STAR® Partner, Carrier Corporation has deter­mined that this product meets the ENERGY STAR® guidelines for energy efficiency.
REGISTERED
QUALITY SYSTEM
Physical data
UNIT SIZE-SERIES 024-30, 31 030-30, 31 036-30, 31, 50 042-30, 31 048-30, 31, 50 060-30, 31, 50 OPERATING WEIGHT (Lb)
COMPRESSOR
Manufacturer Type
REFRIGERANT
Control Charge (Lb) @ 15 Ft†
CONDENSER FAN
Air Discharge Air Quantity (CFM) Motor HP Motor RPM
CONDENSER COIL
Face Area (Sq Ft) Fins per In. Rows Circuits
VALVE CONNECTION (In. ID)
Vapor Liquid
† Charge quantity is for 15 ft of interconnecting tubing. For tubing lengths other than 15 ft, see Residential Split-Systems Long-Line Application Guideline for
additional refrigerant requirements.
NOTE: 1. See unit Installation Instructions for proper installation.
142 146 180 198 202 248
Copeland
Scroll (ZP)
Puron
4.63 5.63 6.63 8.88 9.88 12.5 Propeller Type, Direct Drive
1900 2300 2800 3300 3300 3000
1/8 1/4 1/5 1/4 1/4 1/4
1125 1125 825 1100 1100 1100
10.76 14.07 16.03 22.4 22.40 18.5
25 25 25 25 25 20
111112 234445
Copper Tube, Aluminum Plate Fin
5/8 3/4 3/4 7/8 7/8 7/8
Piston
Vertical
Sweat
3/8
LIQUID TUBE DIAMETER (IN.) VAPOR TUBE DIAMETER (IN.)
UNIT SIZE
024 030 036
042, 048
060
0 to 50 Ft
Tube Length Alternate
3/8 3/8 5/8 3/4 ACR 3/4 3/8 3/8 3/4 7/8 1-1/8 3/8 3/8 3/4 7/8 1-1/8 3/8 3/8 7/8 7/8 3/4 and 1-1/8 3/8 3/8 1-1/8 7/8 3/4
* RST — Refrigeration Service Tubing, standard refrigerant grade tubing.
NOTES:
1. Tube diameters are for lengths up to 50 ft. For tubing lengths greater than 50 ft, consult the Application Guideline and Service Manual for Residential Split­System Air Conditioners and Heat Pumps using Puron Refrigerant.
2. Refrigerant tubes and indoor coils must be evacuated to 500 microns to minimize contamination and moisture in the system.
UNIT SIZE SERIES OUTDOOR PISTON INDOOR TXV*
024 030 036 042 048 060
* TXV must be installed when indoor coil is not equipped with a Puron approved TXV. TXV listed is for any approved coil
combination. All TXVs are Puron specific bi-flow, hard shutoff.
RECOMMENDED TUBE DIAMETERS
0 to 50 Ft
Tube Length Alternate
METERING DEVICE
REQUIRED
SUBCOOLING (°F)
30, 31 46 KSATX0201HSZ 10 30, 31 52 KSATX0201HSZ 11 30, 31, 50 57 KSATX0301HSZ 12 30, 31 59 KSATX0301HSZ 13 30, 31, 50 63 KSATX0401HSZ 16 30, 31, 50 78 KSATX0501HSZ 11
RST*
(Not Permitted)
3
Page 4
Accessories
ORDERING
NUMBER DESCRIPTION
KAATD0101TDR
KSALA0301410
KAAFT0101AAA
KHAIR0101AAA KSAHS1501AAA KSAHS1601AAA
Standard
KAACS0201PTC
KAACH1201AAA
Standard
KHAOT0301FST
KHAOT0201SEC
KHASA0101AAA†
KHAIC0101AAA
KSATX0201HSZ‡ KSATX0301HSZ‡ KSATX0401HSZ‡
KSATX0501HSZ‡ KH45LG140 (RCD) KH45LG141 (RCD)
KHALS0401LLS KAACF1001MED KAACF1101LRG KSASH1801COP KSASH0601 COP KSASH2101COP
P165-0001 (RCD) (2 REQ’D/UNIT)
KSACG1004CSM KSACG1404CSM KSACG1804CSM KSACG2304CSM KSACG2004CSM
† For indicator light function, thermostat specified must be used and wired according to service alarm Installation Instructions. ‡ Must be applied on coils not equipped with Puron TXV.
Time-Delay Relay — All Sizes Low-Ambient Pressure Switch — All Sizes Evaporator Freeze Thermostat — All Sizes Isolation Relay — All Sizes Start Capacitor and Relay — Sizes 024–042 Start Capacitor and Relay — Sizes 048, 060 Start Assist — PTC — Sizes 024–048 (30), 024 (31) Start Assist — PTC — Size 060 (30), 030–060 (31) Crankcase Heater — Sizes 024–042 Crankcase Heater — Sizes 048, 060 Outdoor Thermostat — All Sizes Secondary Outdoor Thermostat — All Sizes Service Alarm — All Sizes Interface Control (Optimizer II®) — All Sizes Bi-Flow TXV (Hard Shutoff) — Size 024, 030 Bi-Flow TXV (Hard Shutoff) — Sizes 036, 042 Bi-Flow TXV (Hard Shutoff) — Size 048 Bi-Flow TXV (Hard Shutoff) — Size 060 Filter Drier— Suction Line — Sizes 024–036 Filter Drier— Suction Line — Sizes 042–060 Liquid-Line Solenoid Valve — All Sizes Coastal Filter — Sizes 024, 030 Coastal Filter — Sizes 036-060 Sound Hood — Sizes 024, 030 Sound Hood — Sizes 036-048 Sound Hood — Size 060 Unit Risers — All Sizes Inlet Grille Kit — Size 024 Inlet Grille Kit — Size 030 Inlet Grille Kit — Size 036 Inlet Grille Kit — Size 042, 048 Inlet Grille Kit — Size 060
THERMOSTAT/SUBBASE PKG DESCRIPTION
TSTATCCNHP01-B TSTATCCPHP01-B
TSTATCCBHP01*
TSTATCCSHP01
TSTATXXSEN01-B**
TSTATCCPDF01-B*
TSTATCCPRH01-B*
TSTATXXNBP01† TSTATXXPBP01† TSTATXXSBP01† TSTATXXBBP01† TSTATXXCNV10‡
* Do not use in zoning heat pump applications. † This plate is designed to cover surrounding wall area located behind thermostat. ‡ Thermostat conversion kit is a 24-vac accessory that can turn a 4-wire thermostat application into a 5-wire application. This kit can also be used to replace
a broken thermostat wire, or add an extra wire when needed.
** Outdoor temperature sensor is an accessory for all Carrier electronic thermostats, except the non-programmable air conditioner version and builder’s
thermostats. It allows the temperature at a remote location (outdoors) to be displayed on the thermostat. The outdoor air temperature sensor The outdoor air temperature sensor is included with the Thermidistat Control and dual fuel thermostat.
must be
Thermostat — Auto Changeover, Non-Programmable, °F/°C, 2-Stage Heat, 1-Stage Cool Thermostat — Auto Changeover, 7-Day Programmable, °F/°C, 2-Stage Heat, 1-Stage Cool Builder’s Thermostat — Heat Pump, Non-Programmable, °F/°C, 2-Stage Heat, 1-Stage Cool,
Manual Changeover Standard Programmable Thermostat—Manual Changeover, 5-2 Day Programmable, °F/°C, 1-Stage Heat/
1-Stage Cool Outdoor Air Temperature Sensor Dual Fuel Thermostat — Auto Changeover, 7-Day Programmable, °F/°C, Includes Outdoor Sensor
(TSTATXXSEN01-B) Thermidistat™ Control — Non-Programmable/Programmable Thermostat with Humidity Control
(For use in Dual Fuel, AC, HP, and 2S applications. Includes Outdoor Air Temperature Sensor.) Backplate for Non-Programmable Thermostat Backplate for Programmable Thermostat and Thermidistat™ Control Backplate for Standard Programmable Thermostat Backplate for Builder’s Thermostat Thermostat Conversion Kit (4 to 5 Wire) — 10 Pack
used with the dual fuel thermostat.
4
Page 5
Accessory usage guideline
REQUIRED FOR LOW-AMBIENT
ACCESSORY
Crankcase Heater
APPLICATIONS
(BELOW 55°F)
Yes Yes
Evaporator Freeze Thermostat Yes No
Compressor Start Assist — Capacitor and Relay Yes Yes
Puron Low Ambient Pressure Switch Yes No
Wind Baffle
See Low-Ambient
Pressure Switch Instructions
Support Feet Recommended No
Puron Hard Shutoff TXV Yes† Yes†
Puron Liquid-Line Solenoid Valve for Heating No
* For tubing line sets between 50 and 175 ft and/or 20 ft elevation difference between indoor and outdoor units, refer to the Application Guideline and Service Man-
ual for Residential Split-System Air Conditioners and Heat Pumps using Puron Refrigerant.
† Required for all applications.
REQUIRED FOR LONG-LINE
APPLICATIONS*
(OVER 50 FT)
No
See Long-Line
Application Guideline
Accessory description and usage (Listed alphabetically)
1. Coastal Filter
A mesh screen inserted under the top cover and inside the base pan to protect the condenser coil from salt damage without restricting airflow.
SUGGESTED USE: In geographic areas where salt damage could occur.
2. Compressor Start Assist — Capacitor and Relay
Start capacitor and start relay gives “hard” boost to compressor motor at each start-up.
SUGGESTED USE: Installations where interconnecting tube length exceeds 50 ft.
3. Compressor Start Assist — PTC Type
Solid state electrical device which gives a “soft” boost to the reciprocating compressor at each start-up.
SUGGESTED USE: Installations with marginal power supply.
4. Crankcase Heater
An electric resistance heater which mounts to the base of the compressor to keep the lubricant warm during off cycles. Improves compressor lubrication on restart and minimizes chance of refrigerant slugging. May or may not include a thermostat control.
SUGGESTED USE: When interconnecting tube length exceeds 50 ft.
5. Evaporator Freeze Thermostat
An SPST temperature actuated switch which stops unit operation when evaporator reaches freeze-up conditions.
SUGGESTED USE: All units to which Low-Ambient Pressure Switch has been added.
6. Filter Drier— Suction Line
A device for removing contaminants from refrigerant circulating in a heat pump system; 2-direction flow for heat pumps.
SUGGESTED USE: Split-system heat pumps.
7. Inlet Grille Kit
A field-installed enhanced inlet grille to replace the standard inlet grille on residential air conditioners and heat pumps.
SUGGESTED USE: For greater protection against inclement weather, incidental damage, and vandalism.
8. Interface Control (Optimizer II®)
An electric control for controlling a heat pump and gas or oil furnace system for maximum energy savings. It allows heat pump to operate down to a predetermined economic balance point temperature, then switches to allow furnace operation only below that temperature. KHAIC0101AAA requires outdoor thermostat (Item 11) to be adjusted for economic balance point temperature.
SUGGESTED USE: For heat pump and gas- or oil-fired furnace combination systems unless Duel Fuel Thermostat or Thermidistat™ Control is used.
9. Isolation Relay
An SPDT relay which switches the Low-Ambient Controller out of the outdoor fan motor circuit when the heat pump switches to heating mode.
SUGGESTED USE: All heat pumps where Low-Ambient Pressure Switch has been added.
10. Liquid-Line Solenoid Valve (LSV)
An electrically operated shutoff valve to be installed at the outdoor unit and which stops and starts refrigerant liquid flow in response to compressor operation. Maintains a column of refrigerant liquid ready for action at next compressor operation cycle.
SUGGESTED USE: In long-line applications. (Refer to the Residential Split-System Long-Line Application Guideline and Service Manual.)
11. Low-Ambient Pressure Switch
A long life pressure switch which is mounted to outdoor unit service valve. It is designed to cycle the outdoor fan motor in order to maintain head pressure within normal operating limits (approximately 200 psig to 365 psig). The control will maintain working head pressure at low-ambient temperatures down to 0°F (–17.8°C) when properly installed.
SUGGESTED USE: Cooling operation at outdoor temperatures below 55°F (12.8°C).
12. Outdoor Air Temperature Sensor
A device that allows the temperature at a remote location (outdoors) to be displayed at the thermostat.
SUGGESTED USE: All Carrier programmable thermostats.
13. Outdoor Thermostat
An SPDT temperature actuated switch which turns on supplemental electric heaters when outdoor air temperature drops below set point.
SUGGESTED USE: Heat pump installations with multiple-stage supplemental heaters.
14. Secondary Outdoor Thermostat
An SPDT temperature actuated switch which turns on third stage of supplemental electric heaters when outdoor air temperature drops below the second-stage set point.
SUGGESTED USE: Heat pump installations where 3-stage operation of supplemental heaters is desired.
15. Service Alarm
A current-sensing lockout relay which provides immediate notification that compressor is not operating during a call for heating or cooling. Used with proper room thermostat, a thermostat signal is turned on signifying service is required. This can minimize electrical cost increase due to operation of supplemental heaters only.
SUGGESTED USE: As a feature to notify owner immediately when the system is not operating most efficiently.
Installations where outdoor design temperature exceeds 105°F (40.6°C). Units installed with Low-Ambient Pressure Switch.
When unit will be operated below 55°F (12.8°C) outdoor air temperature. (Use with Low-Ambient Pressure Switch.) All commercial installations.
5
Page 6
Accessory description and usage (Listed alphabetically) continued
16. Thermostatic Expansion Valve (TXV) — Bi-Flow
A modulating flow control valve which meters refrigerant liquid flow rate into the evaporator in response to the superheat of the refrigerant gas leaving the evaporator. Kit includes valve, adapter tubes, external equalizer tube.
SUGGESTED USE: A TXV specifically designed for Puron refrigerant is required for all installations.
17. Time-Delay Relay
An SPST delay relay which briefly continues operation of the indoor blower motor to provide additional cooling after the compressor cycles off.
SUGGESTED USE: For improved efficiency ratings for certain combinations of indoor and outdoor units. (Refer to ARI Unitary Directory.)
18. Unit Risers
Six in. tall plastic rails that are used to elevate outdoor units above mounting pad. The risers are adjustable from 24- to 34-in. long.
SUGGESTED USE: Heat pump installations in light to moderate snowfall areas.
Required for use on all zoning systems.
Coastal installations. Windy areas or where debris can circulate. Rooftop installations.
Electrical data
MIN
UNIT SIZE-
SERIES V-PH
024-30, 31 030-30, 31 72.5 14.7 1.4 19.8 12/12 63/60 30 036-30, 31 83.0 19.0 1.1 24.9 12/12 50/48 35 042-30, 31 104.0 21.5 1.4 28.3 10/10 70/66 40 048-30, 31 109.0 20.5 1.4 27.0 10/10 74/70 40 060-30, 31 158.0 35.3 1.4 45.5 6/8 108/65 60
042-50 048-50 060-50
* Permissible limits of the voltage range at which unit will operate satisfactorily. Operation outside these limits may result in unit failure. † Time-delay fuse or Circuit Breaker. ‡ Length shown is as measured 1 way along the wire path between the unit and the service panel for voltage drop not to exceed 2%.
** If wire is applied at ambient greater than 30°C (86°F), consult Table 310-16 of the NEC (ANSI/NFPA 70). The ampacity of nonmetallic-sheathed cable (NM),
trade name ROMEX, shall be that of 60°C (140°F) conductors, per the NEC (ANSI/NFPA 70) Article 336-26. If other than uncoated (non-plated), 60° or 75°C (140° or 167°F) insulation, copper wire (solid wire for 10 AWG and smaller, stranded wire for larger than 10 AWG) is used, consult applicable tables of the NEC (ANSI/NFPA 70).
FLA — Full Load Amps
LRA — Locked Rotor Amps
MCA — Minimum Circuit Amps
RLA — Rated Load Amps
NOTE: Control circuit is 24v on all units and requires external power source. Copper wire must be used from service disconnect to unit. All motors/compressors
208-230-1 253 197
208-230-3 253 187
contain internal overload protection.
OPER VOLTS* COMPR
61.0 13.9 0.8 18.2 14/14 43/41 25
77.0 12.2 1.1 16.4 14/14 55/52 25
91.0 14.7 1.4 19.8 14/14 45/43 30
137.0 18.1 1.4 24.0 12/12 60/57 40
FAN FLA MCA
WIRE
SIZE
60°C/75°C**
MAX
LENGTH
(Ft)
60°C/75°C‡
MAX FUSE†
OR
CKT BKR
AMPSMax Min LRA RLA
Sound power
UNIT
SIZE–
SERIES
024-30, 31 76 68.5 70.5 70.5 68.5 65.0 60.5 56.5 030-30, 31 76 70.0 70.0 69.5 71.0 67.5 64.5 58.5
036-30, 31, 50 78 68.0 68.5 69.5 71.0 64.5 55.5 52.0
042-30, 31 78 70.5 73.5 70.5 69.5 65.5 62.5 57.0 048-30, 31, 50 78 70.5 71.5 70.5 71.5 66.5 64.5 57.5 060-30, 31, 50 80 71.5 72.5 73.0 74.5 67.0 64.0 59.0
NOTE: Tested in accordance with ARI Standard 270-95. (Not listed with ARI).
6
SOUND
LEVEL
(dBA)
125 250 500 1000 2000 4000 8000
A – WEIGHTED SOUND POWER LEVELS (dBA) WITHIN OCTAVE BAND SHOWN
Page 7

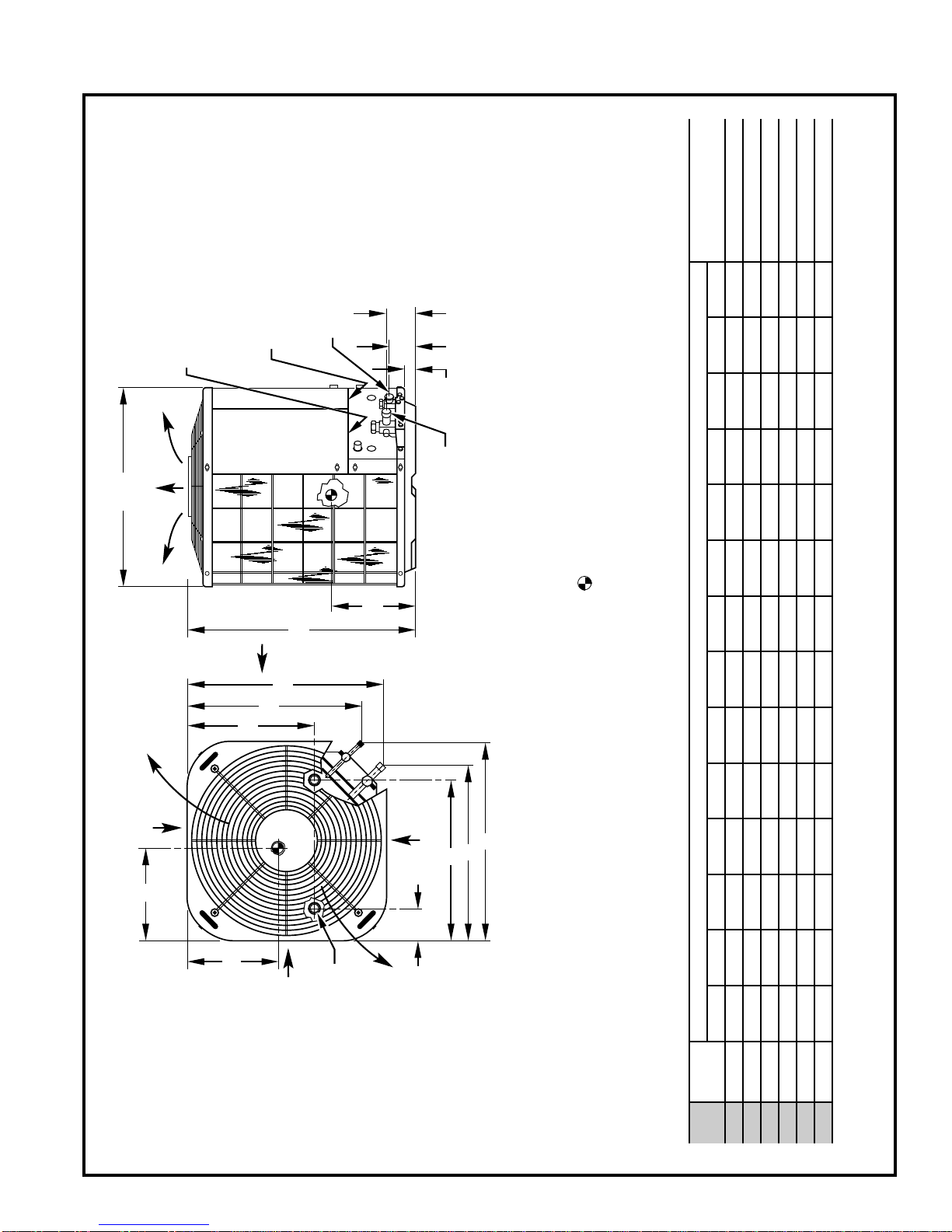

Dimensions
-IN. DIA
8
/
3
-IN. DIA KNOCKOUT
-IN. DIA HOLE WITH
8
/
1
8
/
KNOCKOUT
1
FIELD POWER SUPPLY CONN
7
AND 1
SQ
A
AIR DISCHARGE
FIELD CONTROL SUPPLY
-IN. DIA
8
/
7
HOLE
CONN
-IN. DIA LIQUID
8
/
LINE CONN
3
A00016
PAD DIMENSIONSABCDEFGHJKLMNP
MINIMUM MOUNTING
C
/8"
7
2
/4"
1
1
AIR DISCHARGE
AIR IN
M
D DIA VAPOR LINE CONN
P
B
AIR IN
L
K
J
AIR IN
NOTES:
F
G
1.Allow 30 in. clearance to service side of unit, 48 in. above unit, 6 in.
(unless low ambient control is used) max 125 F.°
Maximum outdoor operating ambient in heating mode is 66°F.3.
Series designation is the 13th position of the unit model number.4.
on one side, 12 in. on remaining side, and 24 in. between units for proper airflow.
Minimum outdoor operating ambient in cooling mode is 55°F2.
Center of gravity .5.
DIMENSIONS (IN.)
UNIT DIMENSIONS
H
E
N
AIR IN
TIEDOWN
/8 -IN. DIA
3
(2) PLACES
KNOCKOUTS
AIR DISCHARGE
024 30, 31 22-1/2 29-15/16 3-3/16 5/8 3-11/16 18-1/8 19-3/4 21-5/8 14-3/8 18-7/8 22-1/16 11 5 14 22-1/2 X 22-1/2
SIZE SERIES
UNIT
030 30, 31 22-1/2 37-15/16 3-3/16 3/4 3-11/16 18-1/8 19/3/4 21-5/8 14-3/8 18-7/8 22-1/16 11 5 15 22-1/2 X 22-1/2
036 30, 31, 50 30 29-15/16 3-3/16 3/4 6-1/2 23-1/2 27-1/4 29-1/8 20 26-3/8 29-9/16 16 14 12-1/2 30 X 30
042 30, 31 30 39-15/16 3-1/4 7/8 6-1/2 23-1/2 27-1/4 29-1/8 20 26-3/8 29-9/16 16 15 15-1/2 30 X 30
048 30, 31, 50 30 39-15/16 3-1/4 7/8 6-1/2 23-1/2 27-1/4 29-1/8 20 26-3/8 29-9/16 15 15-3/4 13 30 X 30
060 30, 31, 50 30 33-15/16 3-1/4 1-1/8 6-1/2 23-1/2 27-1/4 29-1/8 20 26-3/8 29-9/16 13-3/4 15-5/8 15 30 X 30
7
Page 8
NOTE: The performance shown includes the PressureGuard™ cycling the outdoor fan. The ambient temperature that the outdoor fan cycles depends
on the outdoor/indoor combination, indoor airflow, installation practices, and system maintenance, all of which affect system performance.
OUTDOOR TEMPERATURE, °F
Printed in U.S.A.
UNIT INTEGRATED HEATING CAPACITY, 1000 BTU/HR
-10 0
BUILDING HEAT LOSS, 1000 BTU/HR
10
20
30
40
50
60
70
80

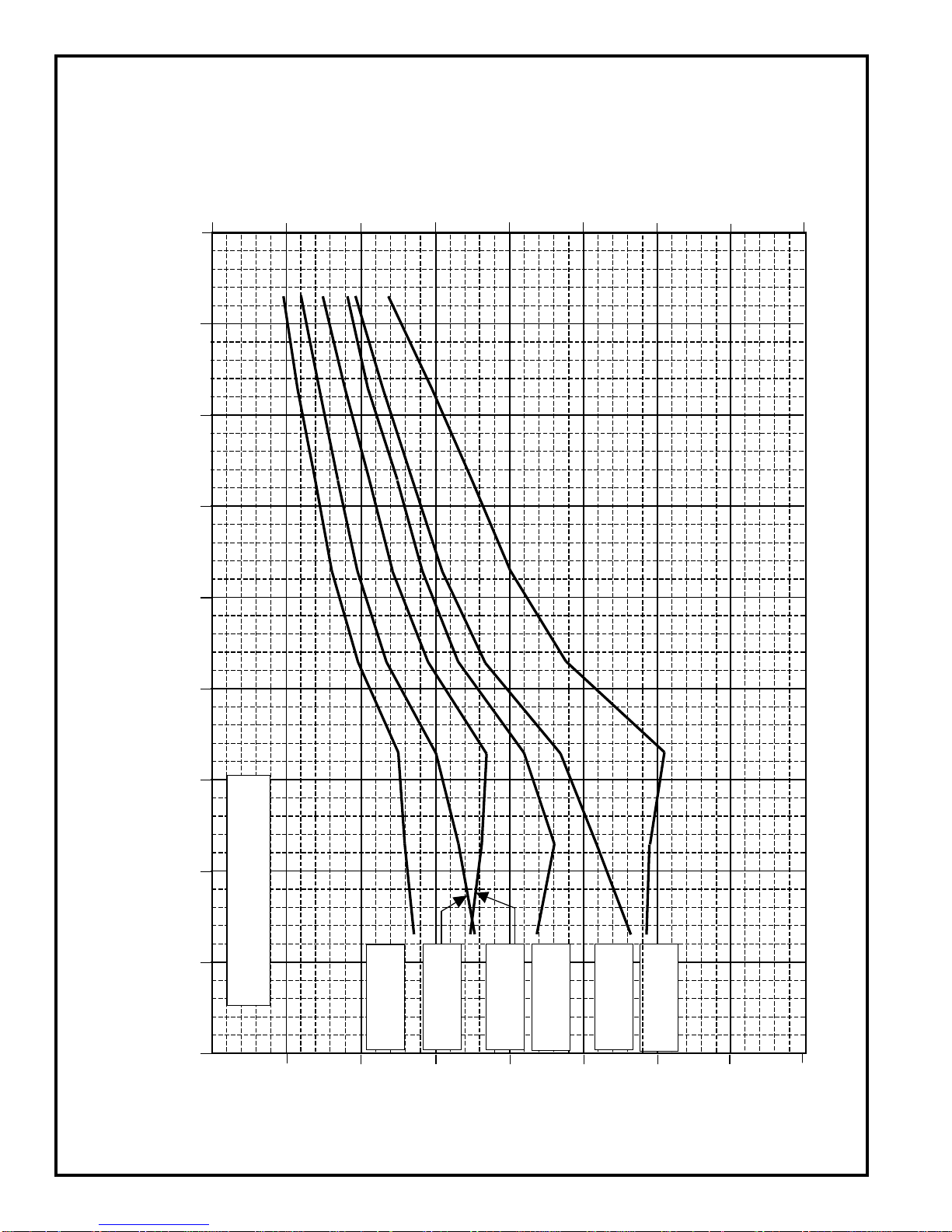

38EYA BALANCE POINT WORKSHEET
10 20 30 40
50 60 70 80
BASED ON INDOOR ENT. AIR AT 70°F
AND AT R ATED CFM
2.9
A00012
8
5.9
FX4A030
38EYA02 4-301
FX4A030
8.8
38EYA030-301
KW
FX4ANF 036
38EYA 042-301
FX4ANF042
38EYA036 -301
11.7
14.7
FX4A048
FX4ANF 06 0
38EYA04 8-301
17.6
20.5
23.4
38EYA06 0-301
Page 9
Combination ratings*
Factory-
Supplied
UNIT SIZE-
SERIES
024-30, 31
030-30, 31
F(A,B)4AN(F,B,C)042 33,600 TDR — 12.00 — 10.20 37,000 3.42 23,200 2.40 7.80
036-30, 31,
50
See notes on pg. 12.
F(A,B)4AN(F,B,C)048 34,000 TDR — 12.00 — 10.20 37,400 3.52 23,600 2.44 8.00
INDOOR
UNIT
FX4ANF030† 24,000 TXV+TDR 12.00 — — 9.75 25,000 3.26 15,400 2.20 7.30 40FKA/FK4CNF002 24,000 TDR‡‡ — 13.00 — 10.55 24,600 3.38 14,900 2.30 7.50 F(A,B)4AN(F,C)030 23,400 TDR — 11.70 — 9.60 25,000 3.14 15,300 2.16 7.00 F(A,B)4AN(F,C)036 24,000 TDR — 11.50 — 9.40 25,000 3.16 15,600 2.14 7.00
FC4BNF030 23,400 TDR‡‡ — 11.70 — 9.60 25,000 3.14 15,300 2.16 7.00 FC4BNF036 24,000 TDR‡‡ — 11.50 — 9.40 25,000 3.16 15,600 2.14 7.00
FF1(B,C,D)NA030 23,400 TDR — 11.50 — 9.50 25,000 3.18 15,500 2.16 7.00
FG3AAA036 23,400 NONE — — 11.50 9.55 25,000 3.12 15,400 2.14 7.00 FK4CNF001 24,000 TDR‡‡ — 13.00 — 10.50 24,600 3.26 14,800 2.24 7.20 FV4ANF002 24,000 TXV+TDR 13.00 — — 10.55 24,600 3.38 14,900 2.30 7.50
CC5A/CD5AA036 24,000 NONE — — 11.70 9.65 25,000 3.20 15,400 2.18 7.00
CC5A/CD5AW036 24,000 NONE — — 11.70 9.65 25,000 3.20 15,400 2.18 7.00
CE3AA036 24,000 NONE — — 11.70 9.60 25,000 3.14 15,400 2.16 7.00
CF5AA036 24,000 NONE — — 11.70 9.60 25,000 3.18 15,400 2.16 7.00
CK3BA036 24,000 NONE — — 12.00 9.70 25,000 3.26 15,500 2.20 7.00
CK5A/CK5BA036 24,000 NONE — — 12.00 9.70 25,000 3.26 15,500 2.20 7.00 CK5A/CK5BN036 23,400 NONE — — 11.50 9.70 25,000 3.26 15,500 2.20 7.00 CK5A/CK5BW036 24,000 NONE — — 12.00 9.70 25,000 3.26 15,500 2.20 7.00
CC5A/CD5AA036 24,000 TDR — 13.00 — 10.45 24,600 3.26 14,800 2.24 7.20
CC5A/CD5AW036 24,000 TDR — 13.00 — 10.45 24,600 3.26 14,800 2.24 7.20
CE3AA036 24,000 TDR — 12.70 — 10.35 24,600 3.18 14,800 2.22 7.00 CK3BA036 24,000 TDR — 13.00 — 10.60 24,600 3.34 14,800 2.28 7.20
CK5A/CK5BA036 24,000 TDR — 13.00 — 10.60 24,600 3.34 14,800 2.28 7.20 CK5A/CK5BN036 24,000 TDR — 12.70 — 10.50 24,600 3.32 14,900 2.28 7.20
CC5A/CD5AA036 24,000 TDR — 13.00 — 10.55 24,600 3.44 15,100 2.32 7.40
CC5A/CD5AW036 24,000 TDR — 13.00 — 10.55 24,600 3.44 15,100 2.32 7.40
CE3AA036 24,000 TDR — 13.00 — 10.40 25,000 3.34 15,100 2.28 7.20 CK3BA036 24,000 TDR — 13.00 — 10.65 25,000 3.48 15,100 2.34 7.50
CK5A/CK5BW036 24,000 TDR — 13.00 — 10.65 25,000 3.48 15,100 2.34 7.50
FX4ANF030† 28,000 TDR+TXV 12.00 — — 10.20 30,000 3.40 18,700 2.32 7.80 40FKA/FK4CNF002 28,000 TDR‡‡ — 13.00 — 11.05 29,000 3.52 18,000 2.40 8.00 40FKA/FK4CNF003 28,000 TDR‡‡ — 13.50 — 11.35 29,000 3.52 17,800 2.42 8.00 F(A,B)4AN(F,C)036 28,000 TDR — 11.50 — 9.90 30,000 3.30 18,900 2.26 7.50
FC4BNF036 28,000 TDR‡‡ — 11.50 — 9.90 30,000 3.30 18,900 2.26 7.50 FG3AAA036 28,000 NONE — — 11.50 10.00 30,000 3.28 18,700 2.26 7.50 FV4ANF002 28,000 TDR+TXV 13.00 — — 11.05 29,000 3.52 18,000 2.40 8.00 FV4ANF003 28,000 TDR+TXV 13.50 — — 11.40 29,000 3.54 17,800 2.44 8.00
CC5A/CD5AA036 28,000 NONE — — 12.00 10.15 30,000 3.36 18,700 2.30 7.50
CC5A/CD5AW036 28,000 NONE — — 12.00 10.15 30,000 3.36 18,700 2.30 7.50
CE3AA036 28,000 NONE — — 11.80 10.05 30,000 3.28 18,700 2.28 7.50
CF5AA036 28,000 NONE — — 11.80 10.10 30,000 3.32 18,700 2.28 7.50
CK3BA036 28,000 NONE — — 11.80 10.20 30,000 3.40 18,800 2.32 7.80
CK5A/CK5BA036 28,000 NONE — — 11.80 10.20 30,000 3.40 18,800 2.32 7.80
CK5A/CK5BW036 28,000 NONE — — 11.80 10.20 30,000 3.40 18,800 2.32 7.80
CC5A/CD5AA036 28,000 TDR — 13.00 — 10.95 29,000 3.38 18,000 2.36 7.70
CC5A/CD5AW036 28,000 TDR — 13.00 — 10.95 29,000 3.38 18,000 2.36 7.70
CE3AA036 28,000 TDR — 12.50 — 10.80 29,000 3.30 18,000 2.32 7.70 CK3BA036 28,000 TDR — 13.00 — 11.05 29,000 3.48 18,000 2.38 7.70
CK5A/CK5BA036 28,000 TDR — 13.00 — 11.05 29,000 3.48 18,000 2.38 7.70 CK5A/CK5BN036 28,000 TDR — 13.00 — 10.95 29,000 3.44 18,100 2.38 7.70 CK5A/CK5BW036 28,000 TDR — 13.00 — 11.05 29,000 3.48 18,000 2.38 7.70
CC5A/CD5AA036 28,000 TDR — 13.00 — 11.15 29,000 3.42 17,900 2.38 7.70
CC5A/CD5AW036 28,000 TDR — 13.00 — 11.15 29,000 3.42 17,900 2.38 7.70
CE3AA036 28,000 TDR — 13.00 — 11.00 29,000 3.34 17,900 2.34 7.70 CK3BA036 28,000 TDR — 13.00 — 11.25 29,000 3.50 17,900 2.42 8.00
CK5A/CK5BA036 28,000 TDR — 13.00 — 11.25 29,000 3.50 17,900 2.42 8.00 CK5A/CK5BN036 27,800 TDR — 12.80 — 11.10 28,400 3.48 18,000 2.40 7.70 CK5A/CK5BW036 28,000 TDR — 13.00 — 11.25 29,000 3.50 17,900 2.42 8.00
FX4ANF036† 34,000 TDR+TXV 12.00 — — 10.20 37,000 3.46 23,200 2.42 7.80 40FKA/FK4CNF003 34,000 TDR‡‡ — 13.50 — 11.35 35,600 3.50 22,000 2.52 8.00 40FKA/FK4CNF005 35,000 TDR‡‡ — 14.00 — 11.75 36,500 3.80 22,200 2.64 8.50
FC4BN(F,B)042 33,600 TDR‡‡ — 12.00 — 10.20 37,000 3.42 23,200 2.40 7.80 FC4BN(F,B)048 34,000 TDR‡‡ — 12.00 — 10.20 37,400 3.52 23,600 2.44 8.00
FG3AAA048 34,000 NONE — — 12.20 10.35 37,000 3.48 23,200 2.44 7.80 FV4ANF003 34,000 TDR+TXV 13.50 — — 11.35 35,400 3.54 22,000 2.52 8.00 FV4ANF005 35,000 TDR+TXV 14.00 — — 11.75 36,500 3.80 22,200 2.64 8.50 FX4ANF042 34,400 TDR+TXV 12.20 — — 10.35 37,000 3.56 23,400 2.46 8.00
TC
Enhance-
ment
COILS + 58U(H,X)V060-12 VARIABLE SPEED FURNACE
COILS + 58U(H,X)V080-16 VARIABLE SPEED FURNACE
COILS + 58U(H,X)V060-12 VARIABLE SPEED FURNACE
COILS + 58U(H,X)V080-16 VARIABLE SPEED FURNACE
ARI STANDARD RATINGS*
Cooling Heating
Seasonal Efficiency SEER
Standard
Rating
Field-Supplied
Accessory‡
Puron
Puron TXV
TXV
& TDR**
EER
High-Temp Low-Temp
TC COP TC COP
HSPF
9
Page 10
Combination ratings* continued
ARI STANDARD RATINGS*
Cooling Heating
Seasonal Efficiency SEER
Field-Supplied
Accessory‡
Puron
Puron TXV
TXV
& TDR**
UNIT SIZE-
SERIES
036-30, 31,
50
F(A,B)4AN(F,B,C)048 40,000 TDR — 12.00 — 10.30 42,000 3.40 27,600 2.46 7.60
042-30, 31
See notes on pg. 12.
Factory-
Supplied
INDOOR
UNIT
CC5A/CD5AA042 33,400 NONE — — 12.00 10.30 37,000 3.40 23,000 2.42 7.80
CC5A/CD5AC048 33,000 NONE — — 12.00 10.25 35,000 3.18 22,400 2.32 7.30 CC5A/CD5AW042 33,400 NONE — — 12.00 10.25 37,000 3.36 23,000 2.40 7.80 CC5A/CD5AW048 34,000 NONE — — 12.00 10.35 37,000 3.44 23,200 2.42 7.80
CD5AA048 34,000 NONE — — 12.20 10.35 37,000 3.44 23,200 2.44 7.80 CE3AA042 33,600 NONE — — 12.20 10.35 37,000 3.46 23,200 2.44 7.80 CE3AA048 34,000 NONE — — 12.20 10.40 37,000 3.50 23,200 2.46 7.80 CF5AA048 34,000 NONE — — 12.20 10.35 37,000 3.42 23,200 2.42 7.80 CK3BA042 33,600 NONE — — 12.00 10.35 37,000 3.46 23,200 2.44 7.80
CK3BA048 34,000 NONE — — 12.20 10.40 37,000 3.52 23,200 2.46 7.80 CK5A/CK5BA042 33,400 NONE — — 12.00 10.35 37,000 3.46 23,200 2.44 7.80 CK5A/CK5BA048 34,000 NONE — — 12.20 10.40 37,000 3.52 23,200 2.46 7.80 CK5A/CK5BN042 32,200 NONE — — 12.00 10.35 35,000 3.46 23,200 2.44 7.60 CK5A/CK5BN048 33,000 NONE — — 12.00 10.40 35,000 3.52 23,200 2.46 7.60
CK5A/CK5BT042 33,400 NONE — — 12.00 10.35 37,000 3.46 23,200 2.44 7.80 CK5A/CK5BT048 34,000 NONE — — 12.20 10.40 37,000 3.52 23,200 2.46 7.80
CK5A/CK5BW048 34,000 NONE — — 12.20 10.40 37,000 3.52 23,200 2.46 7.80
CC5A/CD5AA042 33,400 TDR — 13.00 — 10.95 36,000 3.38 22,200 2.44 7.80
CC5A/CD5AW042 33,400 TDR — 13.00 — 10.85 35,600 3.32 22,000 2.42 7.70
CE3AA042 33,400 TDR — 13.00 — 10.95 36,000 3.44 22,200 2.46 7.80
CK3BA042 33,400 TDR — 13.00 — 11.05 36,000 3.46 22,200 2.48 8.00
CC5A/CD5AA042 33,400 TDR — 13.00 — 11.20 35,600 3.42 22,000 2.48 7.80 CC5A/CD5AC048 33,400 TDR — 13.20 — 11.05 35,000 3.30 21,800 2.42 7.50
CC5A/CD5AW042 33,400 TDR — 13.00 — 11.10 35,400 3.36 22,000 2.46 7.80 CC5A/CD5AW048 33,400 TDR — 13.50 — 11.25 35,000 3.48 22,000 2.50 8.00
CD5AA048 33,400 TDR — 13.50 — 11.25 35,000 3.48 22,000 2.50 8.00
CE3AA042 33,400 TDR — 13.00 — 11.20 36,000 3.48 22,200 2.50 8.00
CE3AA048 33,400 TDR — 13.20 — 11.20 35,000 3.52 22,200 2.52 8.00
CK3BA042 33,400 TDR — 13.50 — 11.50 36,000 3.68 22,200 2.60 8.20
CK3BA048 33,400 TDR — 13.50 — 11.25 35,000 3.56 22,200 2.54 8.00 CK5A/CK5BA048 33,600 TDR — 13.50 — 11.25 35,400 3.56 22,200 2.54 8.00
CK5A/CK5BW048 33,400 TDR — 13.50 — 11.25 35,000 3.56 22,200 2.54 8.00
CC5A/CD5AA042 33,400 TDR — 13.50 — 11.30 35,000 3.44 21,800 2.50 7.80 CC5A/CD5AA048 33,800 TDR — 13.50 — 11.25 35,000 3.48 22,000 2.50 8.00
CC5A/CD5AW042 33,400 TDR — 13.50 — 11.25 35,000 3.38 21,800 2.46 7.80 CC5A/CD5AW048 34,000 TDR — 13.50 — 11.40 35,000 3.50 21,800 2.52 8.00
CE3AA042 33,400 TDR — 13.50 — 11.35 35,000 3.50 22,000 2.52 8.00
CE3AA048 34,000 TDR — 13.50 — 11.40 35,000 3.54 22,000 2.54 8.00
CK3BA042 33,400 TDR — 13.50 — 11.50 35,000 3.54 22,000 2.54 8.00
CK3BA048 34,000 TDR — 13.70 — 11.55 35,000 3.60 22,000 2.56 8.00 CK5A/CK5BA042 33,400 TDR — 13.50 — 11.50 35,000 3.54 22,000 2.54 8.00
CC5A/CD5AA042 33,400 TDR — 13.20 — 11.20 35,000 3.42 22,000 2.48 7.80 CC5A/CD5AC048 33,400 TDR — 13.00 — 11.10 35,000 3.32 21,800 2.44 7.50
CC5A/CD5AW042 33,400 TDR — 13.20 — 11.15 35,000 3.36 21,800 2.46 7.80 CC5A/CD5AW048 33,400 TDR — 13.50 — 11.30 35,000 3.48 22,000 2.50 8.00
CD5AA048 33,400 TDR — 13.50 — 11.30 35,000 3.48 22,000 2.50 8.00
CE3AA042 33,400 TDR — 13.30 — 11.25 35,000 3.48 22,000 2.50 8.00
CE3AA048 33,400 TDR — 13.50 — 11.25 35,000 3.52 22,200 2.52 8.00
CK3BA042 33,400 TDR — 13.50 — 11.40 35,000 3.54 22,000 2.54 8.00
CK3BA048 33,400 TDR — 13.50 — 11.45 35,000 3.60 22,000 2.56 8.00
CK5A/CK5B042 33,400 TDR — 13.50 — 11.40 35,000 3.54 22,000 2.54 8.00
FX4ANF042† 40,500 TDR+TXV 12.00 — — 10.40 42,000 3.42 27,600 2.48 7.60 40FKA/FK4CNF003 39,600 TDR‡‡ — 13.00 — 11.15 42,000 3.32 26,400 2.48 8.00 40FKA/FK4CNF005 41,500 TDR‡‡ — 13.50 — 11.60 42,000 3.62 26,400 2.64 8.50
FC4BN(F,B)048 40,000 TDR‡‡ — 12.00 — 10.30 42,000 3.40 27,600 2.46 7.60
FG3AAA048 39,600 NONE — — 12.00 10.40 42,000 3.32 27,200 2.44 7.60 FV4ANF003 39,600 TDR+TXV 13.00 — — 11.15 42,000 3.36 26,400 2.50 8.00 FV4ANF005 41,500 TDR+TXV 13.50 — — 11.60 42,000 3.64 26,400 2.64 8.50
CC5A/CD5AC048 39,400 NONE — — 12.00 10.25 42,000 3.12 27,200 2.36 7.60
CC5A/CD5AW048 39,600 NONE — — 12.00 10.40 42,000 3.28 27,200 2.42 7.60
CD5AA048 39,600 NONE — — 12.00 10.40 42,000 3.28 27,200 2.42 7.60 CE3AA048 39,600 NONE — — 12.00 10.50 42,000 3.34 27,400 2.46 7.60 CF5AA048 39,600 NONE — — 12.00 10.45 42,000 3.26 27,200 2.42 7.60
CK3BA048 39,600 NONE — — 12.00 10.45 42,000 3.34 27,400 2.46 7.60 CK5A/CK5BA048 39,600 NONE — — 12.00 10.45 42,000 3.34 27,400 2.46 7.60 CK5A/CK5BN048 38,400 NONE — — 12.00 10.45 41,000 3.34 27,400 2.46 7.60
CK5A/CK5BT048 39,600 NONE — — 12.00 10.45 42,000 3.34 27,400 2.46 7.60
CK5A/CK5BW048 39,600 NONE — — 12.00 10.45 42,000 3.34 27,400 2.46 7.60
TC
Enhance-
ment
COILS + 58U(H,X)V060-12 VARIABLE SPEED FURNACE
COILS + 58U(H,X)V080-16 VARIABLE SPEED FURNACE
COILS + 58U(H,X)V100-20 VARIABLE SPEED FURNACE
COILS + 58U(H,X)V120-20 VARIABLE SPEED FURNACE
Standard
Rating
EER
High-Temp Low-Temp
TC COP TC COP
HSPF
10
Page 11
Combination ratings* continued
ARI STANDARD RATINGS*
Cooling Heating
Seasonal Efficiency SEER
Field-Supplied
Accessory‡
Puron
Puron TXV
TXV
UNIT SIZE-
SERIES
042-30, 31
F(A,B)4AN(F,B,C)060 44,500 TDR — 11.70 — 9.75 47,000 3.44 29,800 2.40 8.00
048-30, 31,
50
See notes on pg. 12.
Factory-
Supplied
INDOOR
UNIT
CC5A/CD5AC048 39,000 TDR — 13.00 — 10.90 41,000 3.12 26,200 2.40 8.00
CC5A/CD5AW048 39,600 TDR — 13.00 — 11.05 41,000 3.28 26,400 2.46 8.20
CD5AA048 39,600 TDR — 13.00 — 11.10 41,000 3.30 26,400 2.48 8.20
CK3BA048 39,600 TDR — 13.00 — 11.15 42,000 3.38 26,400 2.50 8.20 CK5A/CK5BA048 39,600 TDR — 13.00 — 11.15 42,000 3.38 26,400 2.50 8.20 CK5A/CK5BN048 38,000 TDR — 13.00 — 11.00 41,000 3.36 26,600 2.48 8.00
CK5A/CK5BW048 39,000 TDR — 12.50 — 10.50 42,000 3.28 27,000 2.42 8.20
CC5A/CD5AC048 39,000 TDR — 13.00 — 11.15 41,000 3.16 26,000 2.42 8.00
CC5A/CD5AW048 39,000 TDR — 13.50 — 11.30 41,000 3.34 26,200 2.50 8.20
CD5AA048 40,000 TDR — 13.50 — 11.30 41,000 3.34 26,200 2.50 8.20
CK3BA048 40,000 TDR — 13.50 — 11.35 42,000 3.42 26,200 2.54 8.20 CK5A/CK5BA048 40,000 TDR — 13.50 — 11.35 42,000 3.42 26,200 2.54 8.20 CK5A/CK5BN048 39,600 TDR — 13.30 — 11.25 42,000 3.40 26,400 2.52 8.20
CK5A/CK5BW048 40,000 TDR — 13.50 — 11.35 42,000 3.42 26,200 2.54 8.20
CC5A/CD5AC048 39,000 TDR — 13.00 — 10.95 41,000 3.12 26,200 2.40 8.00
CC5A/CD5AW048 39,600 TDR — 13.00 — 11.10 41,000 3.30 26,400 2.48 8.20
CD5AA048 39,600 TDR — 13.00 — 11.10 41,000 3.30 26,400 2.48 8.20
CK3BA048 40,000 TDR — 13.50 — 11.30 42,000 3.40 26,200 2.52 8.20 CK5A/CK5BA048 40,000 TDR — 13.50 — 11.30 42,000 3.40 26,200 2.52 8.20 CK5A/CK5BN048 39,600 TDR — 13.30 — 11.20 42,000 3.40 26,400 2.52 8.20
CK5A/CK5BW048 40,000 TDR — 13.50 — 11.30 42,000 3.40 26,200 2.52 8.20
FX4ANF048† 45,000 TDR+TXV 12.00 — — 10.15 47,000 3.52 29,400 2.46 8.00 40FKA/FK4CNB006 45,500 TDR‡‡ — 13.50 — 11.35 45,500 3.78 28,200 2.64 8.60 40FKA/FK4CNF005 44,500 TDR‡‡ — 13.00 — 11.00 46,000 3.60 28,200 2.54 8.30
FB4ANB070 45,000 TDR — 12.00 — 10.25 47,000 3.62 29,400 2.50 8.20
FC4BN(F,B)060 44,000 TDR‡‡ — 11.50 — 9.75 47,000 3.44 29,800 2.40 8.00
FC4BNB070 45,000 TDR — 12.00 — 10.25 47,000 3.62 29,400 2.50 8.20 FG3AAA060 43,500 NONE — — 12.00 10.15 46,000 3.38 29,000 2.42 8.00 FV4ANB006 45,500 TDR+TXV 13.50 — — 11.35 45,500 3.78 28,200 2.64 8.60 FV4ANF005 44,500 TDR+TXV 13.00 — — 11.00 45,500 3.60 28,200 2.54 8.30 FX4ANB060 45,000 TDR+TXV 12.20 — — 10.25 47,000 3.62 29,400 2.50 8.50
CC5A/CD5AA060 43,000 NONE — — 12.00 10.05 45,000 3.26 28,800 2.36 7.70
CC5A/CD5AW060 44,000 NONE — — 12.00 10.25 46,000 3.44 29,000 2.44 8.00
CE3AA060 44,500 NONE — — 12.00 10.30 46,000 3.44 29,000 2.44 8.00
CK3BA060 44,000 NONE — — 12.00 10.30 46,000 3.52 29,000 2.46 8.00 CK5A/CK5BA060 44,000 NONE — — 12.00 10.30 46,000 3.52 29,000 2.46 8.00 CK5A/CK5BN060 44,000 NONE — — 12.00 10.40 46,000 3.56 29,000 2.48 8.00 CK5A/CK5BT060 44,000 NONE — — 12.00 10.30 46,000 3.52 29,000 2.46 8.00 CK5A/CK5BX060 45,000 NONE — — 12.00 10.40 46,000 3.56 29,000 2.48 8.00
CC5A/CD5AA060 43,000 TDR — 12.50 — 10.45 44,500 3.22 28,200 2.36 7.80
CC5A/CD5AW060 44,000 TDR — 12.80 — 10.70 45,000 3.44 28,200 2.46 8.00
CK3BA060 44,000 TDR — 12.50 — 10.60 45,500 3.52 28,400 2.48 8.00 CK5A/CK5BA060 44,000 TDR — 12.50 — 10.60 45,500 3.52 28,400 2.48 8.00 CK5A/CK5BN060 44,000 TDR — 12.80 — 10.70 45,500 3.54 28,600 2.50 8.00 CK5A/CK5BX060 44,000 TDR — 12.80 — 10.75 45,500 3.56 28,400 2.52 8.00
CC5A/CD5AA060 43,000 TDR — 12.80 — 10.75 44,000 3.28 27,800 2.40 7.80
CC5A/CD5AW060 44,000 TDR — 13.00 — 11.00 44,500 3.50 28,000 2.50 8.00
CK3BA060 44,500 TDR — 13.00 — 11.10 45,000 3.60 28,000 2.56 8.40 CK5A/CK5BA060 44,500 TDR — 13.00 — 11.10 45,000 3.60 28,000 2.56 8.40 CK5A/CK5BN060 45,000 TDR — 13.50 — 11.20 45,000 3.66 28,000 2.58 8.40 CK5A/CK5BX060 45,000 TDR — 13.50 — 11.25 45,000 3.66 28,000 2.58 8.40
CC5A/CD5AA060 43,000 TDR — 12.50 — 10.60 44,500 3.26 28,000 2.38 7.80
CC5A/CD5AW060 44,000 TDR — 13.00 — 10.85 45,000 3.46 28,200 2.48 8.00
CK3BA060 44,000 TDR — 13.00 — 10.95 45,000 3.58 28,200 2.54 8.40 CK5A/CK5BA060 44,000 TDR — 13.00 — 10.95 45,000 3.58 28,200 2.54 8.30 CK5A/CK5BN060 44,500 TDR — 13.00 — 11.05 45,000 3.62 28,200 2.56 8.40 CK5A/CK5BX060 44,500 TDR — 13.00 — 11.15 45,000 3.64 28,200 2.56 8.40
TC
Enhance-
ment
COILS + 58U(H,X)V080-16 VARIABLE SPEED FURNACE
COILS + 58U(H,X)V100-20 VARIABLE SPEED FURNACE
COILS + 58U(H,X)V120-20 VARIABLE SPEED FURNACE
COILS + 58U(H,X)V080-16 VARIABLE SPEED FURNACE
COILS + 58U(H,X)V100-20 VARIABLE SPEED FURNACE
COILS + 58U(H,X)V120-20 VARIABLE SPEED FURNACE
Standard
Rating
& TDR**
EER
High-Temp Low-Temp
TC COP TC COP
HSPF
11
Page 12
Combination ratings* continued
ARI STANDARD RATINGS*
Cooling Heating
Seasonal Efficiency SEER
Factory-
Supplied
UNIT SIZE-
SERIES
060-30, 31,
50
* Ratings are net values reflecting the effects of circulating fan heat. Supplemental electric heat is not included. Ratings are based on:
Cooling Standard: 80°F (27°C) db 67°F (19°C) wb indoor entering air temperature and 95°F (35°C) db air entering outdoor unit. High-Temp Heating Standard: 70°F (21°C) db indoor entering air temperature and 47°F (8°C) db 43°F (6°C) wb air entering outdoor unit. Low-Temp Heating Standard: 70°F (21°C) db indoor entering air temperature and 17°F (–9°C) db 15°F (–10°C) wb air entering outdoor unit.
† Outdoor section/indoor section combination tested in accordance with DOE test procedures for heat pumps. Ratings for other combinations are determined
under DOE computer simulation procedures.
‡ Based on computer simulation. TXV must be Puron compatible and hard shutoff type.
** In most cases, only 1 method should be used to achieve TDR function. Using more than 1 method in a system may cause degradation in performance. Use
either the accessory Time-Delay Relay KAATD0101TDR or a furnace equipped with TDR. All Carrier furnaces are equipped with TDR except for the 58GFA. †† Indoor Airflow ‡‡ Must replace factory-supplied R-22 TXV with Puron TXV.
SEER — Seasonal Energy Efficiency Ratio TC — Total Capacity (Btuh)
COP — Coefficient of Performance TDR — Time-Delay Relay
HSPF — Heating Seasonal Performance Factor TXV — Thermostatic Expansion Valve
EER — Energy Efficiency Ratio
INDOOR
UNIT
FX4ANB060† 57,000 TDR+TXV 12.00 — — 9.95 60,000 3.34 37,800 2.38 7.80
40FKA/FK4CNB006 57,500 TDR‡‡ — 12.50 — 10.50 59,500 3.44 37,000 2.46 8.00
FB4ANB070 57,000 TDR — 12.00 — 9.95 60,000 3.34 37,800 2.38 7.80 FC4BNB070 57,000 TDR‡‡ — 12.00 — 9.95 60,000 3.34 37,800 2.38 8.00 FV4ANB006 57,500 TDR+TXV 12.50 — — 10.50 59,500 3.44 37,000 2.44 8.00
CC5A/CD5AW060 55,000 NONE — — 12.00 9.80 59,000 3.10 37,000 2.28 7.50
CK5A/CK5BX060 55,000 NONE — — 12.00 9.95 59,000 3.26 37,200 2.34 7.60
CC5A/CD5AW060 55,000 TDR — 12.50 — 10.10 58,000 3.16 36,600 2.32 7.50
CK5A/CK5BX060 56,500 TDR — 12.50 — 10.35 59,000 3.32 36,800 2.40 7.80
CC5A/CD5AW060 55,000 TDR — 12.00 — 9.90 58,000 3.12 36,800 2.28 7.50
CK5A/CK5BX060 56,000 TDR — 12.50 — 10.20 59,000 3.30 37,000 2.38 7.80
TC
Enhance-
ment
COILS + 58U(H,X)V100-20 VARIABLE SPEED FURNACE
COILS + 58U(H,X)V120-20 VARIABLE SPEED FURNACE
Standard
Rating
Field-Supplied
Accessory‡
Puron
Puron TXV
TXV
& TDR**
EER
High-Temp Low-Temp
TC COP TC COP
HSPF
12
Page 13
Detailed cooling capacities*
EVAPORATOR
AIR
CFM EWB
75 85 95 105 115 125
Capacity
MBtuh†
Total
Sys-
tem
Kw**
Capacity
MBtuh†
CONDENSER ENTERING AIR TEMPERATURES °F
Total
Kw**
Sys-
tem
Capacity
MBtuh†
Total
Sys-
tem
Kw**
Capacity
MBtuh†
Total
Sys-
tem
Kw**
Capacity
MBtuh†
Total
Sys-
tem
Kw**
Capacity
MBtuh†
38EYA024-30, 31 Outdoor Section With FX4ANF030 Indoor Section
72 28.6 14.1 1.95 27.2 13.6 2.18 25.7 13.0 2.43 24.1 12.4 2.71 22.4 11.8 3.00 20.4 11.2 3.30
700
825
950
40FKA/FK4CNF 002 1.00 0.94 CK5A/CK5BW 036 1.00 1.02
F(A,B)4AN(F,C) 030 0.98 1.00
FF1(B,C,D)NA 030 0.98 1.01 CK3BA 036 1.00 0.93
FG3AAA 036 0.98 1.01 CK5A/CK5BA 036 1.00 0.93
CC5A/CD5AA 036 1.00 1.01 CC5A/CD5AA 036 1.00 0.96 CC5A/CD5AW 036 1.00 1.01 CC5A/CD5AW 036 1.00 0.96
CK5A/CK5BA 036 1.00 1.02 — — —
See notes on pg. 18.
67 26.2 17.7 1.94 24.9 17.2 2.17 23.6 16.6 2.41 22.1 16.0 2.68 20.5 15.4 2.97 18.8 14.7 3.27
63†† 24.4 17.3 1.93 23.2 16.7 2.15 21.9 16.2 2.40 20.6 15.6 2.66 19.1 14.9 2.95 17.5 14.3 3.24
62 24.0 21.3 1.93 22.8 20.7 2.15 21.6 20.1 2.40 20.3 19.5 2.66 18.9 18.7 2.94 17.6 17.6 3.24 57 23.0 23.0 1.92 22.1 22.1 2.15 21.1 21.1 2.39 20.0 20.0 2.66 18.9 18.9 2.94 17.5 17.5 3.24
72 29.2 14.9 2.00 27.7 14.3 2.23 26.2 13.8 2.48 24.5 13.2 2.75 22.7 12.6 3.04 20.7 11.9 3.34 67 26.8 19.1 1.98 25.4 18.5 2.21 24.0 18.0 2.46 22.5 17.4 2.73 20.8 16.7 3.02 19.0 16.1 3.31
63†† 25.0 18.6 1.97 23.7 18.0 2.20 22.4 17.4 2.45 21.0 16.8 2.71 19.4 16.2 2.99 17.8 15.5 3.29
62 24.6 23.1 1.97 23.4 22.5 2.20 22.2 21.9 2.44 20.9 20.9 2.71 19.7 19.7 3.00 18.2 18.2 3.30 57 24.1 24.1 1.97 23.1 23.1 2.20 22.1 22.1 2.44 20.9 20.9 2.71 19.6 19.6 3.00 18.2 18.2 3.30
72 29.7 15.7 2.04 28.1 15.1 2.27 26.5 14.5 2.52 24.8 14.0 2.79 22.9 13.4 3.09 20.8 12.7 3.39 67 27.2 20.4 2.03 25.8 19.8 2.25 24.3 19.3 2.50 22.8 18.7 2.77 21.1 18.0 3.06 19.2 17.3 3.36
63†† 25.4 19.8 2.02 24.1 19.2 2.24 22.7 18.6 2.49 21.2 18.0 2.76 19.7 17.3 3.04 17.9 16.6 3.34
62 25.2 24.8 2.02 24.0 24.0 2.24 22.8 22.8 2.49 21.6 21.6 2.76 20.3 20.3 3.05 18.7 18.7 3.35 57 25.1 25.1 2.02 24.0 24.0 2.24 22.8 22.8 2.49 21.6 21.6 2.76 20.3 20.3 3.05 18.7 18.7 3.35
Multipliers for Determining the Performance With Other Indoor Sections.
Indoor
Section Size
Cooling
Capacity Power Capacity Power
Indoor
Section Size
Cooling
FX4ANF 030 1.00 1.00 CK5A/CK5BN 036 0.98 1.02
COILS + 58U(H,X)V060-12 VARIABLE SPEED FURNACE
036 1.00 1.03 CC5A/CD5AA 036 1.00 0.94
FC4BNF 030 0.98 1.00 CC5A/CD5AW 036 1.00 0.94
036 1.00 1.03 CE3AA 036 1.00 0.94
FK4CNF 001 1.00 0.94 CK5A/CK5BN 036 1.00 0.94 FV4ANF 002 1.00 0.94
COILS + 58U(H,X)V080-16 VARIABLE SPEED FURNACE
CE3AA 036 1.00 1.01 CE3AA 036 1.00 0.96 CF5AA 036 1.00 1.01 CK3BA 036 1.00 0.95 CK3BA 036 1.00 1.02 CK5A/CK5BW 036 1.00 0.95
Total
Sys-
tem
Kw**Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡
13
Page 14
Detailed cooling capacities* continued
EVAPORATOR
AIR
CFM EWB
75 85 95 105 115 125
Capacity
MBtuh†
Total
System
Kw**
Capacity
MBtuh†
38EYA030-30, 31 Outdoor Section With FX4ANF030 Indoor Section
72 33.6 17.1 2.22 31.9 16.5 2.45 30.2 15.9 2.71 28.3 15.2 2.99 26.3 14.5 3.31 24.0 13.7 3.65 67 30.8 21.9 2.20 29.2 21.3 2.43 27.6 20.6 2.69 25.9 20.0 2.97 24.0 19.3 3.29 21.9 18.4 3.63
900
63†† 28.6 21.3 2.19 27.2 20.6 2.42 25.7 20.0 2.67 24.1 19.3 2.96 22.4 18.6 3.28 20.4 17.7 3.62
62 28.2 26.5 2.19 26.8 25.9 2.42 25.4 25.1 2.67 24.0 24.0 2.96 22.5 22.5 3.28 20.9 20.9 3.63 57 27.6 27.6 2.18 26.5 26.5 2.41 25.3 25.3 2.67 24.0 24.0 2.96 22.6 22.6 3.28 20.9 20.9 3.63
72 34.2 18.0 2.28 32.4 17.4 2.51 30.6 16.8 2.77 28.6 16.1 3.05 26.5 15.4 3.36 24.1 14.6 3.71
1050
1200
See notes on pg. 18.
67 31.3 23.5 2.26 29.7 22.9 2.49 28.0 22.3 2.75 26.2 21.6 3.03 24.3 20.8 3.35 22.1 20.0 3.69
63†† 29.2 22.8 2.25 27.7 22.2 2.48 26.1 21.5 2.73 24.4 20.8 3.02 22.6 20.0 3.33 20.6 19.2 3.68
62 28.9 28.6 2.24 27.6 27.6 2.48 26.3 26.3 2.73 24.9 24.9 3.02 23.3 23.3 3.34 21.6 21.6 3.69 57 28.8 28.8 2.24 27.6 27.6 2.48 26.2 26.2 2.73 24.9 24.9 3.02 23.3 23.3 3.34 21.6 21.6 3.69
72 34.6 18.9 2.34 32.8 18.3 2.57 30.9 17.7 2.82 28.9 17.0 3.11 26.7 16.3 3.42 24.3 15.6 3.76 67 31.7 25.1 2.32 30.0 24.5 2.55 28.3 23.8 2.80 26.5 23.1 3.09 24.5 22.3 3.40 22.3 21.4 3.75
63†† 29.5 24.3 2.30 28.0 23.6 2.53 26.4 22.9 2.79 24.7 22.2 3.08 22.8 21.4 3.39 20.8 20.4 3.74
62 29.7 29.7 2.30 28.4 28.4 2.54 27.0 27.0 2.79 25.5 25.5 3.08 23.9 23.9 3.40 22.1 22.1 3.75 57 29.7 29.7 2.31 28.4 28.4 2.54 27.0 27.0 2.79 25.5 25.5 3.08 23.9 23.9 3.40 22.1 22.1 3.75
Multipliers for Determining the Performance With Other Indoor Sections.
Indoor
Section Size
Capacity Power Capacity Power
FX4ANF 030 1.00 1.00
40FKA/FK4CNF 002 1.00 0.93 CC5A/CD5AA 036 1.00 0.93
003 1.00 0.91 CC5A/CD5AW 036 1.00 0.93
F(A,B)4AN(F,C) 036 1.00 1.02 CE3AA 036 1.00 0.93
FC4BNF 036 1.00 1.02 CK3BA 036 1.00 0.93 FG3AAA 036 1.00 1.01 CK5A/CK5BA 036 1.00 0.93
FV4ANF 002 1.00 0.93 CK5A/CK5BN 036 1.00 0.94
003 1.00 0.91 CK5A/CK5BW 036 1.00 0.93
CC5A/CD5AA 036 1.00 1.01
CC5A/CD5AW 036 1.00 1.01 CC5A/CD5AA 036 1.00 0.92
CE3AA 036 1.00 1.01 CC5A/CD5AW 036 1.00 0.92 CF5AA 036 1.00 1.01 CE3AA 036 1.00 0.92
CK3BA 036 1.00 1.01 CK3BA 036 1.00 0.92
CK5A/CK5BA 036 1.00 1.01 CK5A/CK5BA 036 1.00 0.92
CK5A/CK5BW 036 1.00 1.01 CK5A/CK5BN 036 0.99 0.92
—— —CK5A/CK5BW 036 1.00 0.92
CONDENSER ENTERING AIR TEMPERATURES °F
Total
System
Kw**
Cooling
Capacity
MBtuh†
Total
System
Kw**
Capacity
MBtuh†
Indoor
Section Size
COILS + 58U(H,X)V060-12 VARIABLE SPEED FURNACE
COILS + 58U(H,X)V080-16 VARIABLE SPEED FURNACE
Total
System
Kw**
Capacity
MBtuh†
Total
System
Kw**
Capacity
MBtuh†
Cooling
Total
System
Kw**Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡
14
Page 15
Detailed cooling capacities* continued
EVAPORATOR
AIR
CFM EWB
75 85 95 105 115
Capacity
MBtuh†
Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡
Total
System
Kw**
Capacity
MBtuh†
CONDENSER ENTERING AIR TEMPERATURES °F
Total
System
Kw**
Capacity
MBtuh†
Total
System
Kw**
Capacity
MBtuh†
Total
System
Kw**
Capacity
MBtuh†
Total
System
Kw**
Capacity
MBtuh†
125
Total
System
Kw**
38EYA036-30, 31, 50 Outdoor Section With FX4NF036 Indoor Section
72 40.7 20.3 2.62 38.7 19.6 2.92 36.5 18.8 3.25 34.2 18.0 3.62 31.6 17.1 4.00 28.7 16.1 4.41 67 37.3 25.9 2.61 35.4 25.2 2.91 33.4 24.4 3.24 31.2 23.5 3.60 28.9 22.6 3.98 26.2 21.6 4.38
1050
63†† 34.7 25.2 2.61 33.0 24.5 2.90 31.1 23.6 3.23 29.1 22.8 3.58 26.8 21.8 3.96 24.2 20.7 4.36
62 34.2 31.4 2.60 32.5 30.5 2.90 30.7 29.6 3.23 28.8 28.6 3.58 26.9 26.9 3.96 24.8 24.8 4.36 57 33.2 33.2 2.60 31.8 31.8 2.90 30.3 30.3 3.22 28.7 28.7 3.58 26.9 26.9 3.96 24.8 24.8 4.37
72 41.6 21.7 2.71 39.5 21.0 3.01 37.2 20.2 3.35 34.7 19.4 3.71 32.0 18.5 4.09 28.9 17.5 4.50 67 38.1 28.3 2.70 36.1 27.6 3.00 34.0 26.8 3.33 31.8 25.9 3.69 29.3 24.9 4.07 26.5 23.8 4.48
1275
63†† 35.5 27.5 2.70 33.6 26.7 2.99 31.7 25.9 3.32 29.6 25.0 3.67 27.2 24.0 4.05 24.6 22.8 4.45
62 35.2 34.4 2.69 33.5 33.4 2.99 31.8 31.8 3.32 30.0 30.0 3.68 28.1 28.1 4.06 25.8 25.8 4.47 57 34.9 34.9 2.69 33.4 33.4 2.99 31.8 31.8 3.32 30.0 30.0 3.67 28.1 28.1 4.06 25.8 25.8 4.47
72 42.1 23.0 2.80 39.9 22.3 3.10 37.5 21.5 3.44 35.1 20.7 3.80 32.3 19.8 4.19 29.1 18.8 4.60 67 38.7 30.7 2.79 36.6 29.9 3.09 34.4 29.0 3.42 32.1 28.1 3.78 29.6 27.1 4.16 26.8 25.8 4.57
1500
63†† 36.1 29.6 2.78 34.1 28.8 3.08 32.1 27.9 3.41 29.9 27.0 3.76 27.5 25.9 4.14 24.9 24.5 4.55
62 36.3 36.3 2.78 34.6 34.6 3.08 32.9 32.9 3.41 31.0 31.0 3.77 28.9 28.9 4.16 26.5 26.5 4.57 57 36.2 36.2 2.78 34.6 34.6 3.08 32.9 32.9 3.41 31.0 31.0 3.77 28.9 28.9 4.16 26.5 26.5 4.57
Multipliers for Determining the Performance With Other Indoor Sections.
Indoor
Section Size
Capacity Power Capacity Power
Cooling
FX4ANF 036 1.00 1.00
Indoor
Section Size
COILS + 58U(H,X)V080-16 VARIABLE SPEED FURNACE
40FKA/FK4CNF 003 1.00 0.90 CC5A/CD5AA 042 0.98 0.91
005 1.03 0.91 CC5A/CD5AC 048 0.98 0.91
F(A,B)4AN(F,B,C) 042 0.99 1.00 CC5A/CD5AW 042 0.98 0.91
048 1.00 1.02 048 0.98 0.91
FC4BN(F,B) 042 0.99 1.00 CD5AA 048 0.98 0.91
048 1.00 1.02 CE3AA 042 0.98 0.91
FG3AAA 048 1.00 0.99 048 0.98 0.92
FV4ANF 003 1.00 0.90 CK3BA 042 0.98 0.91
005 1.03 0.91 048 0.98 0.91
FX4ANF 042 1.01 1.01 CK5A/CK5BA 048 0.99 0.90 CC5A/CD5AA 042 0.98 0.99 CK5A/CK5BW 048 0.98 0.91 CC5A/CD5AC 048 0.97 0.97
COILS + 58U(H,X)V100-20 VARIABLE SPEED FURNACE
CC5A/CD5AW 042 0.98 0.99 CC5A/CD5AA 042 0.98 0.90
048 1.00 1.00 048 0.99 0.91
CD5AA 048 1.00 1.00 CC5A/CD5AW 042 0.98 0.90 CE3AA 042 0.99 0.99 048 1.00 0.90
048 1.00 0.99 CE3AA 042 0.98 0.90
CF5AA 048 1.00 1.00 048 1.00 0.91 CK3BA 042 0.99 0.99 CK3BA 042 0.98 0.89
048 1.00 0.99 048 1.00 0.89
CK5A/CK5BA 042 0.98 0.99 CK5A/CK5BA 042 0.98 0.89
048 1.00 0.99
COILS + 58U(H,X)V120-20 VARIABLE SPEED FURNACE
CK5A/CK5BN 042 0.95 0.99 CC5A/CD5AA 042 0.98 0.91
048 0.97 0.99 CC5A/CD5AC 048 0.98 0.91
CK5A/CK5BT 042 0.98 0.99 CC5A/CD5AW 042 0.98 0.91
048 1.00 0.99 048 0.98 0.91
CK5A/CK5BW 048 1.00 0.99 CD5AA 048 0.98 0.91
COILS + 58U(H,X)V060-12 VARIABLE SPEED FURNACE
CE3AA 042 0.98 0.91 CC5A/CD5AA 042 0.98 0.92 048 0.98 0.92 CC5A/CD5AW 042 0.98 0.92 CK3BA 042 0.98 0.90
CE3AA 042 0.98 0.93 048 0.98 0.90 CK3BA 042 0.98 0.92 CK5A/CK5BA 042 0.98 0.90
See notes on pg. 18.
Cooling
15
Page 16
Detailed cooling capacities* continued
EVAPORATOR
AIR
CFM EWB
75 85 95 105 115
Capacity
MBtuh†
Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡
Total
System
Kw**
Capacity
MBtuh†
CONDENSER ENTERING AIR TEMPERATURES °F
Total
System
Kw**
Capacity
MBtuh†
Total
System
Kw**
Capacity
MBtuh†
Total
System
Kw**
Capacity
MBtuh†
Total
System
Kw**
Capacity
MBtuh†
38EYA042-30, 31 Outdoor Section With FX4ANF042 Indoor Section
72 48.4 24.1 3.09 46.1 23.3 3.45 43.6 22.4 3.85 41.0 21.5 4.30 38.0 20.5 4.78 34.6 19.3 5.30
1225
1400
1575
See notes on pg. 18.
67 44.4 30.9 3.06 42.2 30.0 3.42 40.0 29.1 3.82 37.5 28.1 4.26 34.8 27.1 4.74 31.7 25.9 5.25
63†† 41.4 30.0 3.04 39.4 29.2 3.40 37.3 28.3 3.80 35.0 27.2 4.23 32.5 26.2 4.71 29.6 25.0 5.22
62 40.8 37.3 3.03 38.8 36.4 3.39 36.8 35.4 3.79 34.6 34.2 4.23 32.4 32.4 4.71 30.1 30.1 5.22 57 39.6 39.6 3.03 38.0 38.0 3.39 36.3 36.3 3.79 34.5 34.5 4.23 32.4 32.4 4.71 30.0 30.0 5.22
72 49.1 25.3 3.16 46.7 24.4 3.53 44.1 23.5 3.93 41.4 22.6 4.37 38.3 21.6 4.85 34.9 20.4 5.37 67 45.1 32.8 3.13 42.8 31.9 3.49 40.5 31.0 3.89 38.0 30.0 4.33 35.1 28.9 4.82 32.0 27.7 5.33
63†† 42.1 31.9 3.11 40.0 31.0 3.47 37.8 30.0 3.87 35.4 29.0 4.31 32.8 27.9 4.79 29.9 26.7 5.29
62 41.6 39.9 3.11 39.6 38.9 3.47 37.6 37.6 3.87 35.6 35.6 4.31 33.4 33.4 4.79 30.9 30.9 5.31 57 41.0 41.0 3.11 39.4 39.4 3.47 37.6 37.6 3.87 35.6 35.6 4.31 33.4 33.4 4.79 30.9 30.9 5.31
72 49.7 26.3 3.24 47.1 25.5 3.60 44.5 24.6 4.00 41.7 23.6 4.44 38.6 22.6 4.93 35.0 21.5 5.44 67 45.6 34.7 3.21 43.3 33.8 3.57 40.9 32.9 3.97 38.3 31.8 4.41 35.4 30.7 4.89 32.2 29.4 5.40
63†† 42.6 33.6 3.19 40.4 32.7 3.54 38.1 31.7 3.94 35.7 30.7 4.38 33.0 29.5 4.86 30.0 28.2 5.37
62 42.4 42.1 3.18 40.5 40.5 3.54 38.6 38.6 3.95 36.5 36.5 4.39 34.2 34.2 4.87 31.5 31.5 5.39 57 42.2 42.2 3.18 40.5 40.5 3.54 38.6 38.6 3.95 36.5 36.5 4.39 34.2 34.2 4.87 31.5 31.5 5.39
Multipliers for Determining the Performance With Other Indoor Sections.
Indoor
Section Size
Cooling
Capacity Power Capacity Power
Indoor
Section Size
Cooling
FX4ANF 042 1.00 1.00 CD5AA 048 0.98 0.93
40FKA/FK4CNF 003 0.98 0.92 CK3BA 048 0.98 0.93
005 1.02 0.92 CK5A/CK5BA 048 0.98 0.93
F(A,B)4AN(F,B,C) 048 0.99 1.01 CK5A/CK5BN 048 0.94 0.94
FC4BN(F,B) 048 0.99 1.01 CK5A/CK5BW 048 0.96 0.97
FG3AAA 048 0.98 0.99
COILS + 58U(H,X)V100-20 VARIABLE SPEED FURNACE
FV4ANF 003 0.98 0.92 CC5A/CD5AC 048 0.96 0.91
005 1.02 0.92 CC5A/CD5AW 048 0.96 0.92
CC5A/CD5AC 048 0.97 0.98 CD5AA 048 0.99 0.92
CC5A/CD5AW 048 0.98 0.99 CK3BA 048 0.99 0.91
CD5AA 048 0.98 0.99 CK5A/CK5BA 048 0.99 0.91
CE3AA 048 0.98 0.99 CK5A/CK5BN 048 0.98 0.92 CF5AA 048 0.98 0.99 CK5A/CK5BW 048 0.99 0.91
CK3BA 048 0.98 0.99
COILS + 58U(H,X)V120-20 VARIABLE SPEED FURNACE
CK5A/CK5BA 048 0.98 0.99 CC5A/CD5AC 048 0.96 0.92 CK5A/CK5BN 048 0.95 0.99 CC5A/CD5AW 048 0.98 0.93
CK5A/CK5BT 048 0.98 0.99 CD5AA 048 0.98 0.93
CK5A/CK5BW 048 0.98 0.99 CK3BA 048 0.99 0.92
COILS + 58U(H,X)V080-16 VARIABLE SPEED FURNACE
CK5A/CK5BA 048 0.99 0.92
CC5A/CD5AC 048 0.96 0.92 CK5A/CK5BN 048 0.98 0.92
CC5A/CD5AW 048 0.98 0.93 CK5A/CK5BW 048 0.99 0.92
125
Total
System
Kw**
16
Page 17
Detailed cooling capacities* continued
EVAPORATOR
AIR
CFM EWB
75 85 95 105 115
Capacity
MBtuh†
Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡
Total
System
Kw**
Capacity
MBtuh†
CONDENSER ENTERING AIR TEMPERATURES °F
Total
System
Kw**
Capacity
MBtuh†
Total
System
Kw**
Capacity
MBtuh†
Total
System
Kw**
Capacity
MBtuh†
Total
System
Kw**
Capacity
MBtuh†
125
38EYA048-30, 31, 50 Outdoor Section With FX4ANF048 Indoor Section
72 54.6 27.6 3.66 51.9 26.6 4.05 49.0 25.6 4.49 46.0 24.6 4.98 42.7 23.4 5.52 38.8 22.1 6.10 67 50.1 35.5 3.61 47.6 34.5 4.00 45.0 33.5 4.44 42.2 32.4 4.93 39.1 31.2 5.47 35.7 29.9 6.05
1400
63†† 46.8 34.5 3.58 44.4 33.5 3.97 42.0 32.5 4.40 39.4 31.4 4.89 36.5 30.2 5.43 33.4 28.9 6.01
62 46.1 43.2 3.57 43.8 42.1 3.96 41.5 40.9 4.40 39.2 39.2 4.89 36.8 36.8 5.43 34.1 34.1 6.03 57 45.1 45.1 3.56 43.2 43.2 3.95 41.4 41.4 4.40 39.2 39.2 4.89 36.9 36.9 5.44 34.1 34.1 6.03
72 55.3 28.9 3.76 52.5 27.9 4.15 49.5 26.9 4.59 46.4 25.9 5.07 42.9 24.7 5.61 39.0 23.4 6.19 67 50.8 37.8 3.71 48.2 36.8 4.10 45.5 35.8 4.54 42.6 34.7 5.02 39.5 33.5 5.56 35.9 32.1 6.14
1600
63†† 47.4 36.7 3.67 45.0 35.7 4.06 42.5 34.6 4.50 39.8 33.5 4.99 36.8 32.2 5.53 33.6 30.9 6.11
62 47.0 46.1 3.67 44.8 44.7 4.06 42.7 42.7 4.50 40.4 40.4 5.00 37.9 37.9 5.54 35.0 35.0 6.13 57 46.7 46.7 3.66 44.8 44.8 4.06 42.7 42.7 4.50 40.4 40.4 4.99 37.9 37.9 5.54 35.0 35.0 6.13
72 55.9 30.2 3.85 52.9 29.2 4.24 49.9 28.2 4.68 46.6 27.1 5.17 43.1 26.0 5.70 39.1 24.7 6.28 67 51.3 40.1 3.80 48.6 39.0 4.19 45.8 38.0 4.63 42.9 36.8 5.12 39.7 35.6 5.65 36.1 34.1 6.24
1800
63†† 47.9 38.8 3.76 45.5 37.7 4.16 42.8 36.6 4.59 40.1 35.5 5.08 37.1 34.2 5.62 33.8 32.7 6.20
62 48.1 48.1 3.77 45.9 45.9 4.16 43.7 43.7 4.61 41.3 41.3 5.10 38.7 38.7 5.64 35.7 35.7 6.23 57 48.0 48.0 3.77 46.0 46.0 4.16 43.7 43.7 4.60 41.4 41.4 5.10 38.7 38.7 5.64 35.7 35.7 6.23
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
Capacity Power Capacity Power
Cooling
FX4ANF 048 1.00 1.00
Indoor
Section Size
COILS + 58U(H,X)V080-16 VARIABLE SPEED FURNACE
40FKA/FK4CNB 006 1.01 0.91 CC5A/CD5AA 060 0.96 0.93
40FKA/FK4CNF 005 0.99 0.93 CC5A/CD5AW 060 0.98 0.93
F(A,B)4AN(F,B,C) 060 0.99 1.03 CK3BA 060 0.98 0.94
FB4ANB 070 1.00 1.00 CK5A/CK5BA 060 0.98 0.94
FC4BN(F,B) 060 0.98 1.03 CK5A/CK5BN 060 0.98 0.95
FC4BNB 070 1.00 1.00 CK5A/CK5BX 060 0.98 0.94 FG3AAA 060 0.97 0.98
COILS + 58U(H,X)V100-20 VARIABLE SPEED FURNACE
FV4ANB 006 1.01 0.91 CC5A/CD5AA 060 0.96 0.91 FV4ANF 005 0.99 0.93 CC5A-CD5AW 060 0.98 0.91
FX4ANB 060 1.00 1.00 CK3BA 060 0.99 0.91 CC5A/CD5AA 060 0.96 0.98 CK5A/CK5BA 060 0.10 0.91 CC5A/CD5AW 060 0.98 0.98 CK5A/CK5BN 060 1.00 0.91
CE3AA 060 0.99 0.98 CK5A/CK5BX 060 1.00 0.91 CK3BA 060 0.98 0.98
COILS + 58U(H,X)V120-20 VARIABLE SPEED FURNACE
CK5A/CK5BA 060 0.98 0.98 CC5A/CD5AA 060 0.96 0.92 CK5A/CK5BN 060 0.98 0.98 CC5A/CD5AW 060 0.98 0.92
CK5A/CK5BT 060 0.98 0.98 CK3BA 060 0.98 0.92
CK5A/CK5BX 060 1.00 0.98 CK5A/CK5BA 060 0.98 0.92
—— —CK5A/CK5BN 060 0.99 0.92
CK5A/CK5BX 060 0.99 0.92
See notes on pg. 18.
Cooling
Total
System
Kw**
17
Page 18
Detailed cooling capacities* continued
EVAPORATOR
AIR
CFM EWB
75 85 95 105 115
Capacity
MBtuh†
Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡
Total
System
Kw**
Capacity
MBtuh†
CONDENSER ENTERING AIR TEMPERATURES °F
Total
System
Kw**
Capacity
MBtuh†
Total
System
Kw**
Capacity
MBtuh†
Total
System
Kw**
Capacity
MBtuh†
Total
System
Kw**
38EYA060-30, 31, 50 Outdoor Section With FX4ANB060 Indoor Section
72 69.0 34.6 4.74 65.6 33.4 5.24 62.0 32.1 5.79 58.3 30.8 6.39 54.1 29.3 7.04 49.4 27.7 7.74
1750
2000
2250
67 63.4 44.3 4.67 60.3 43.1 5.17 57.0 41.8 5.71 53.5 40.4 6.32 49.8 39.0 6.97 45.4 37.3 7.68
63†† 59.1 43.2 4.62 56.2 41.9 5.12 53.2 40.6 5.66 50.0 39.2 6.27 46.5 37.7 6.93 42.5 36.0 7.63
62 58.2 53.8 4.61 55.4 52.4 5.11 52.5 51.0 5.65 49.4 49.3 6.26 46.5 46.5 6.93 43.2 43.2 7.64 57 56.7 56.7 4.60 54.4 54.4 5.09 52.0 52.0 5.65 49.4 49.4 6.26 46.5 46.5 6.93 43.2 43.2 7.64
72 69.9 36.2 4.86 66.5 35.0 5.36 62.8 33.7 5.91 58.8 32.4 6.51 54.5 30.9 7.16 49.6 29.3 7.85 67 64.3 47.2 4.79 61.1 45.9 5.29 57.7 44.6 5.83 54.1 43.2 6.43 50.1 41.7 7.09 45.7 40.0 7.79
63†† 60.0 45.8 4.74 57.0 44.5 5.23 53.9 43.2 5.78 50.5 41.8 6.38 46.9 40.3 7.04 42.8 38.5 7.75
62 59.3 57.6 4.73 56.5 56.0 5.23 53.8 53.8 5.78 51.0 51.0 6.39 47.9 47.9 7.06 44.3 44.3 7.77 57 58.8 58.8 4.73 56.3 56.3 5.23 53.8 53.8 5.78 51.0 51.0 6.39 47.9 47.9 7.06 44.3 44.3 7.77
72 70.7 37.8 4.97 67.1 36.6 5.47 63.3 35.3 6.02 59.3 34.0 6.62 54.8 32.5 7.27 49.8 30.9 7.97 67 64.9 49.9 4.91 61.7 48.7 5.40 58.2 47.3 5.95 54.5 45.9 6.55 50.5 44.3 7.20 46.0 42.6 7.91
63†† 60.7 48.4 4.86 57.7 47.1 5.35 54.4 45.7 5.90 51.0 44.3 6.50 47.3 42.7 7.15 43.1 40.9 7.86
62 60.5 60.5 4.85 57.9 57.9 5.35 55.2 55.2 5.91 52.2 52.2 6.52 49.0 49.0 7.18 45.3 45.3 7.89 57 60.5 60.5 4.85 57.9 57.9 5.35 55.2 55.2 5.91 52.2 52.2 6.52 49.0 49.0 7.18 45.3 45.3 7.89
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
FX4ANB
40FKA/FK4CNB
FB4ANB FC4BNB FV4ANB
CC5A/CD5AW
CK5A/CK5BX
Cooling
Capacity Power Capacity Power
060 1.00 1.00 006 1.01 0.96 070 1.00 1.00 070 1.00 1.00 006 1.01 0.96 060 0.96 0.98
Indoor
Section Size
COILS + 58U(H,X)V100-20 VARIABLE SPEED FURNACE
CC5A/CD5AW
CK5A/CK5BX
COILS + 58U(H,X)V120-20 VARIABLE SPEED FURNACE
CC5A/CD5AW
CK5A/CK5BX
060 0.96 0.96 060 0.99 0.96
060 0.96 0.97 060 0.98 0.97
060 0.96 0.98 — — —
Cooling
Capacity
MBtuh†
125
Total
System
Kw**
* Detailed cooling capacities are based on indoor and outdoor unit at the same elevation per ARI standard 210/240-94. If additional tubing length and/or
indoor unit is located above outdoor unit, a slight variation in capacity may occur. † Total and sensible capacities are net capacities. Blower motor heat has been subtracted. ‡ Sensible capacities shown are based on 80°F (27°C) entering air at the indoor coil. For sensible capacities at other than 80°F (27°C), deduct 835 Btuh
(245 kw) per 1000 CFM (480 L/S) of indoor coil air for each degree below 80°F (27°C), or add 835 Btuh (245 kw) per 1000 CFM (480 L/S) of indoor coil air
per degree above 80°F (27°C).
** System kw is total of indoor and outdoor unit kilowatts.
†† At TVA rating indoor condition (75°F edb/63°F ewb). All other indoor air temperatures are at 80°F edb.
EWB—Entering Wet Bulb
18
Page 19
Heat pump heating performance
INDOOR
AIR
EDB CFM
–3 7 172737475767
Capacity
(MBtuh)
Total Int* Kw† Total Int* Kw† Total Int* Kw† Total Int* Kw† Total Int* Kw† Total Int* Kw† Total Int* Kw† Total Int* Kw†
Total
Pwr
Capacity
(MBtuh)
Total
Pwr
OUTDOOR COIL ENTERING AIR TEMPERATURES °F
Capacity
(MBtuh)
Total
Pwr
Capacity
(MBtuh)
Total
Pwr
Capacity
(MBtuh)
Total
Pwr
Capacity
(MBtuh)
Total
Pwr
Capacity
(MBtuh)
Total
Pwr
38EYA024-30, 31 Outdoor Section With FX4ANF030 Indoor Section
700 10.6 9.72 1.86 12.8 11.7 1.89 15.3 14.0 1.94 18.0 16.0 2.00 21.3 19.4 2.08 24.9 24.9 2.17 25.8 25.8 2.28 27.2 27.2 2.34
65
825 10.7 9.87 1.90 13.0 11.9 1.91 15.5 14.2 1.94 18.3 16.3 1.99 21.6 19.7 2.06 25.3 25.3 2.13 26.4 26.4 2.23 27.4 27.4 2.24 950 10.9 10.0 1.96 13.1 12.1 1.95 15.7 14.4 1.97 18.6 16.5 2.00 21.9 20.0 2.05 25.7 25.7 2.12 26.9 26.9 2.20 27.5 27.5 2.17
700 10.5 9.68 1.96 12.7 11.7 1.99 15.2 13.8 2.05 17.9 15.9 2.11 21.0 19.1 2.19 24.5 24.5 2.29 25.4 25.4 2.40 26.7 26.7 2.46
70
825 10.7 9.83 2.00 12.9 11.8 2.01 15.4 14.0 2.05 18.2 16.1 2.10 21.4 19.5 2.17 25.0 25.0 2.25 26.0 26.0 2.34 27.2 27.2 2.37 950 10.8 9.97 2.06 13.1 12.0 2.05 15.6 14.2 2.07 18.4 16.3 2.11 21.7 19.7 2.16 25.4 25.4 2.23 26.5 26.5 2.31 27.6 27.6 2.32
700 10.5 9.64 2.07 12.6 11.6 2.10 15.0 13.7 2.16 17.7 15.7 2.23 20.8 18.9 2.31 24.2 24.2 2.41 25.1 25.1 2.52 26.3 26.3 2.50
75
825 10.6 9.80 2.11 12.8 11.8 2.12 15.3 13.9 2.16 18.0 16.0 2.21 21.1 19.2 2.28 24.7 24.7 2.37 25.6 25.6 2.46 26.9 26.9 2.51 950 10.8 9.94 2.16 13.0 11.9 2.16 15.5 14.1 2.18 18.2 16.2 2.22 21.4 19.5 2.28 25.1 25.1 2.35 26.1 26.1 2.43 27.3 27.3 2.45
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
Capacity Power Capacity Power
Heating
Indoor
Section Size
FX4ANF 030 1.00 1.00 CK5A/CK5BA 036 1.00 1.00 40FKA/FK4CNF 002 0.98 0.95 CK5A/CK5BN 036 1.00 1.00 F(A,B)4AN(F,C) 030 1.00 1.04 CK5A/CK5BW 036 1.00 1.00
036 1.00 1.03
COILS + 58U(H,X)V060-12 VARIABLE SPEED FURNACE
FC4BNF 030 1.00 1.04 CC5A/CD5AA 036 0.98 0.98
036 1.00 1.03 CC5A/CD5AW 036 0.98 0.98
FF1(B,C,D)NA 030 1.00 1.03 CE3AA 036 0.98 1.01
FG3AAA 036 1.00 1.04 CK3BA 036 0.98 0.96
FK4CNF 001 0.98 0.98 CK5A/CK5BA 036 0.98 0.96
002 0.98 0.95 CK5A/CK5BN 036 0.98 0.97
FV4ANF 002 0.98 0.95
COILS + 58U(H,X)V080-16 VARIABLE SPEED FURNACE
CC5A/CD5AA 036 1.00 1.02 CC5A/CD5AA 036 0.98 0.93
CC5A/CD5AW 036 1.00 1.02 CC5A/CD5AW 036 0.98 0.93
CE3AA 036 1.00 1.04 CE3AA 036 1.00 0.98 CF5AA 036 1.00 1.03 CK3BA 036 1.00 0.94 CK3BA 036 1.00 1.00 CK5A/CK5BW 036 1.00 0.94
See notes on pg. 24.
Heating
Capacity
(MBtuh)
Total
Pwr
19
Page 20
Heat pump heating performance continued
INDOOR
AIR
EDB CFM
–3 7 172737475767
Capacity
(MBtuh)
Total Int* Kw† Total Int* Kw† Total Int* Kw† Total Int* Kw† Total Int* Kw† Total Int* Kw† Total Int* Kw† Total Int* Kw†
Total
Pwr
Capacity
(MBtuh)
Total
Pwr
OUTDOOR COIL ENTERING AIR TEMPERATURES °F
Capacity
(MBtuh)
Total
Pwr
Capacity
(MBtuh)
Total
Pwr
Capacity
(MBtuh)
Total
Pwr
Capacity
(MBtuh)
Total
Pwr
Capacity
(MBtuh)
Total
Pwr
38EYA030-30, 31 Outdoor Section With FX4ANF030 Indoor Section
900 12.9 11.9 2.14 15.6 14.3 2.17 18.6 16.9 2.23 21.9 19.5 2.30 25.7 23.4 2.38 29.9 29.9 2.48 32.9 32.9 2.47 35.4 35.4 2.54
65
1050 13.1 12.1 2.20 15.8 14.5 2.21 18.9 17.2 2.25 22.3 19.8 2.31 26.1 23.8 2.38 30.4 30.4 2.45 33.6 33.6 2.43 36.0 36.0 2.48 1200 13.3 12.2 2.23 16.0 14.7 2.27 19.1 17.4 2.29 22.6 20.1 2.33 26.5 24.1 2.39 30.8 30.8 2.45 33.9 33.9 2.41 36.4 36.4 2.44
900 12.8 11.8 2.24 15.5 14.2 2.28 18.4 16.8 2.34 21.7 19.3 2.42 25.4 23.1 2.51 29.5 29.5 2.61 32.5 32.5 2.59 35.4 35.4 2.70
70
1050 13.1 12.0 2.30 15.7 14.4 2.32 18.7 17.1 2.37 22.1 19.6 2.43 25.8 23.5 2.50 30.0 30.0 2.58 33.1 33.1 2.56 35.4 35.4 2.61 1200 13.2 12.2 2.37 15.9 14.6 2.38 19.0 17.3 2.40 22.4 19.9 2.45 26.2 23.8 2.51 30.4 30.4 2.58 33.6 33.6 2.54 35.5 35.5 2.55
900 13.1 12.1 2.35 15.3 14.1 2.40 18.2 16.6 2.47 21.5 19.1 2.55 25.1 22.9 2.64 29.1 29.1 2.74 32.0 32.0 2.73 35.0 35.0 2.86
75
1050 13.0 11.9 2.41 15.6 14.3 2.44 18.5 16.9 2.49 21.8 19.4 2.55 25.5 23.2 2.63 29.6 29.6 2.72 32.6 32.6 2.69 35.2 35.2 2.76 1200 13.2 12.1 2.48 15.8 14.5 2.49 18.8 17.1 2.52 22.1 19.7 2.57 25.9 23.6 2.64 30.1 30.1 2.71 33.1 33.1 2.67 35.3 35.3 2.70
Multipliers for Determining the Performance With Other Indoor Sections.
Indoor
Section Size
Capacity Power Capacity Power
Heating
FX4ANF 030 1.00 1.00
Indoor
Section Size
COILS + 58U(H,X)V060-12 VARIABLE SPEED FURNACE
40FKA/FK4CNF 002 0.97 0.93 CC5A/CD5AA 036 0.97 0.97
003 0.97 0.93 CC5A/CD5AW 036 0.97 0.97
F(A,B)4AN(F,C) 036 1.00 1.03 CE3AA 036 0.97 1.00
FC4BNF 036 1.00 1.03 CK3BA 036 0.97 0.94
FG3AAA 036 1.00 1.04 CK5A/CK5BA 036 0.97 0.94
FV4ANF 002 0.97 0.93 CK5A/CK5BN 036 0.97 0.96
003 0.97 0.93 CK5A/CK5BW 036 0.97 0.94
CC5A/CD5AA 036 1.00 1.01
COILS + 58U(H,X)V080-16 VARIABLE SPEED FURNACE
CC5A/CD5AW 036 1.00 1.01 CC5A/CD5AA 036 0.97 0.96
CE3AA 036 1.00 1.04 CC5A/CD5AW 036 0.97 0.96 CF5AA 036 1.00 1.02 CE3AA 036 0.97 0.98 CK3BA 036 1.00 1.00 CK3BA 036 0.97 0.94
CK5A/CK5BA 036 1.00 1.00 CK5A/CK5BA 036 0.97 0.94
CK5A/CK5BW 036 1.00 1.00 CK5A/CK5BN 036 0.95 0.92
—— —CK5A/CK5BW 036 0.97 0.94
See notes on pg. 24.
Heating
Capacity
(MBtuh)
Total
Pwr
20
Page 21
Heat pump heating performance continued
INDOOR
AIR
EDB CFM
–3 7 172737475767
Capacity
(MBtuh)
Total Int* Kw† Total Int* Kw† Total Int* Kw† Total Int* Kw† Total Int* Kw† Total Int* Kw† Total Int* Kw† Total Int* Kw†
Total Pow-erCapacity
(MBtuh)
Total Pow-erCapacity
OUTDOOR COIL ENTERING AIR TEMPERATURES °F
(MBtuh)
Total Pow-erCapacity
(MBtuh)
Total Pow-erCapacity
(MBtuh)
Total Pow-erCapacity
(MBtuh)
Total Pow-erCapacity
(MBtuh)
Total Pow-erCapacity
(MBtuh)
Total Pow-
er
38EYA036-30, 31, 50 Outdoor Section With FX4ANF036 Indoor Section
1050 16.1 14.8 2.47 19.3 17.7 2.54 22.9 20.9 2.63 27.1 24.0 2.74 31.6 28.8 2.87 36.7 36.7 3.00 36.0 36.0 2.96 34.5 34.5 2.88
65
1275 16.4 15.1 2.57 19.7 18.1 2.61 23.4 21.3 2.68 27.6 24.5 2.76 32.3 29.4 2.87 37.5 37.5 2.99 36.9 36.9 2.92 35.4 35.4 2.83 1500 16.7 15.4 2.68 20.1 18.4 2.70 23.8 21.7 2.75 28.1 25.0 2.82 32.9 29.9 2.91 38.2 38.2 3.01 37.6 37.6 2.93 35.7 35.7 2.78
1050 16.0 14.7 2.59 19.1 17.6 2.66 22.7 20.7 2.76 26.8 23.8 2.88 31.2 28.4 3.01 36.2 36.2 3.16 35.4 35.4 3.11 33.9 33.9 3.03
70
1275 16.3 15.0 2.68 19.5 18.0 2.73 23.2 21.2 2.81 27.3 24.3 2.90 31.9 29.0 3.01 37.0 37.0 3.13 36.3 36.3 3.06 34.9 34.9 2.96 1500 16.6 15.3 2.79 19.9 18.3 2.82 23.6 21.5 2.88 27.8 24.7 2.95 32.5 29.5 3.04 37.7 37.7 3.15 37.1 37.1 3.06 35.4 35.4 2.93
1050 15.9 14.6 2.70 19.0 17.4 2.79 22.5 20.5 2.90 26.5 23.5 3.02 30.9 28.1 3.16 35.7 35.7 3.31 34.9 34.9 3.26 33.3 33.3 3.17
75
1275 16.2 14.9 2.80 19.4 17.8 2.86 23.0 20.9 2.94 27.0 24.0 3.04 31.5 28.7 3.16 36.5 36.5 3.29 35.8 35.8 3.21 34.3 34.3 3.10 1500 16.5 15.2 2.90 19.7 18.1 2.94 23.4 21.3 3.01 27.5 24.5 3.09 32.1 29.2 3.19 37.2 37.2 3.30 36.5 36.5 3.21 35.0 35.0 3.09
Multipliers for Determining the Performance With Other Indoor Sections.
Indoor
Section Size
Capacity Power Capacity Power
Heating
FX4ANF 036 1.00 1.00
Indoor
Section Size
COILS + 58U(H,X)V080-16 VARIABLE SPEED FURNACE
40FKA/FK4CNF 003 0.96 0.95 CC5A/CD5AA 042 0.96 0.97
005 0.99 0.90 CC5A/CD5AC 048 0.95 0.99
F(A,B)4AN(F,B,C) 042 1.00 1.01 CC5A/CD5AW 042 0.96 0.99
048 1.01 0.99 048 0.95 0.94
FC4BN(F,B) 042 1.00 1.01 CD5AA 048 0.95 0.94
048 1.01 0.99 CE3AA 042 0.97 0.97
FG3AAA 048 1.00 0.99 048 0.95 0.93
FV4ANF 003 0.96 0.94 CK3BA 042 0.97 0.91
005 0.99 0.90 048 0.95 0.92
FX4ANF 042 1.00 0.97 CK5A/CK5BA 048 0.96 0.93 CC5A/CD5AA 042 1.00 1.02 CK5A/CK5BW 048 0.95 0.92 CC5A/CD5AC 048 0.95 1.03
COILS + 58U(H,X)V100-20 VARIABLE SPEED FURNACE
CC5A/CD5AW 042 1.00 1.03 CC5A/CD5AA 042 0.95 0.95
048 1.00 1.01 048 0.95 0.94
CD5AA 048 1.00 1.01 CC5A/CD5AW 042 0.95 0.97
CE3AA 042 1.00 1.00 048 0.95 0.94
048 1.00 0.99 CE3AA 042 0.95 0.94
CF5AA 048 1.00 1.01 048 0.95 0.92
CK3BA 042 1.00 1.00 CK3BA 042 0.95 0.92
048 1.00 0.98 048 0.95 0.91
CK5A/CK5BA 042 1.00 1.00 CK5A/CK5BA 042 0.95 0.92
048 1.00 0.98
COILS + 58U(H,X)V120-20 VARIABLE SPEED FURNACE
CK5A/CK5BN 042 0.95 0.95 CC5A/CD5AA 042 0.95 0.96
048 0.95 0.93 CC5A/CD5AC 048 0.95 0.99
CK5A/CK5BT 042 1.00 1.00 CC5A/CD5AW 042 0.95 0.97
048 1.00 0.98 048 0.95 0.94
CK5A/CK5BW 048 1.00 0.98 CD5AA 048 0.95 0.94
COILS + 58U(H,X)V060-12 VARIABLE SPEED FURNACE
CE3AA 042 0.95 0.94
CC5A/CD5AA 042 0.97 1.00 048 0.95 0.93
CC5A/CD5AW 042 0.96 1.00 CK3BA 042 0.95 0.92
CE3AA 042 0.97 0.98 048 0.95 0.91
CK3BA 042 0.97 0.97 CK5A/CK5BA 042 0.95 0.92
See notes on pg. 24.
Heating
21
Page 22
Heat pump heating performance continued
INDOOR
AIR
EDB CFM
–3 7 172737475767
Capacity
(MBtuh)
Total Int* Kw† Total Int* Kw† Total Int* Kw† Total Int* Kw† Total Int* Kw† Total Int* Kw† Total Int* Kw† Total Int* Kw†
Total Pow-erCapacity
(MBtuh)
Total Pow-erCapacity
OUTDOOR COIL ENTERING AIR TEMPERATURES °F
(MBtuh)
Total Pow-erCapacity
(MBtuh)
Total Pow-erCapacity
(MBtuh)
Total Pow-erCapacity
(MBtuh)
Total Pow-erCapacity
(MBtuh)
Total Pow-erCapacity
(MBtuh)
38EYA042-30, 31 Outdoor Section With FX4ANF042 Indoor Section
1225 19.8 18.2 3.17 23.5 21.6 3.11 27.5 25.1 3.08 31.8 28.2 3.05 36.6 33.3 3.02 41.9 41.9 3.00 45.9 45.9 3.67 43.8 43.8 3.51
65
1400 20.1 18.4 3.24 23.8 21.9 3.16 27.9 25.4 3.10 32.3 28.7 3.05 37.2 33.8 3.01 42.6 42.6 2.98 46.8 46.8 3.61 44.6 44.6 3.44 1575 20.3 18.7 3.33 24.1 22.1 3.23 28.2 25.7 3.15 32.7 29.0 3.08 37.7 34.3 3.02 43.1 43.1 2.97 47.4 47.4 3.59 45.3 45.3 3.40
1225 19.6 18.0 3.31 23.2 21.3 3.27 27.2 24.8 3.23 31.4 27.9 3.20 36.2 32.9 3.18 41.3 41.3 3.16 45.3 45.3 3.86 43.0 43.0 3.69
70
1400 19.9 18.3 3.39 23.6 21.7 3.31 27.6 25.2 3.26 31.9 28.3 3.21 36.7 33.4 3.17 42.0 42.0 3.13 46.1 46.1 3.80 43.9 43.9 3.62 1575 20.1 18.5 3.47 23.9 21.9 3.38 28.0 25.5 3.30 32.3 28.7 3.23 37.2 33.9 3.18 42.6 42.6 3.12 46.8 46.8 3.78 44.6 44.6 3.58
1225 19.4 17.8 3.46 23.0 21.1 3.43 26.9 24.6 3.40 31.1 27.6 3.37 35.7 32.5 3.35 40.8 40.8 3.32 44.5 44.5 4.05 42.3 42.3 3.87
75
1400 19.9 18.3 3.53 23.3 21.4 3.47 27.3 24.9 3.42 31.6 28.0 3.37 36.3 33.0 3.33 41.4 41.4 3.29 45.4 45.4 4.00 43.2 43.2 3.80 1575 19.9 18.4 3.61 23.6 21.7 3.53 27.7 25.2 3.46 32.0 28.4 3.40 36.8 33.4 3.34 42.0 42.0 3.28 46.1 46.1 3.97 43.9 43.9 3.76
Multipliers for Determining the Performance With Other Indoor Sections.
Indoor
Section Size
Heating
Capacity Power Capacity Power
Indoor
Section Size
FX4ANF 042 1.00 1.00 CD5AA 048 0.98 1.01
40FKA/FK4CNF 003 1.00 1.03 CK3BA 048 1.00 1.01
005 1.00 0.94 CK5A/CK5BA 048 1.00 1.01
F(A,B)4AN(F,B,C) 048 1.00 1.01 CK5A/CK5BN 048 0.98 0.99
FC4BN(F,B) 048 1.00 1.01 CK5A/CK5BW 048 1.00 1.04
FG3AAA 048 1.00 1.03
COILS + 58U(H,X)V100-20 VARIABLE SPEED FURNACE
FV4ANF 003 1.00 1.02 CC5A/CD5AC 048 0.98 1.06
005 1.00 0.94 CC5A/CD5AW 048 0.98 1.00 CC5A/CD5AC 048 1.00 1.10 CD5AA 048 0.98 1.00 CC5A/CD5AW 048 1.00 1.04 CK3BA 048 1.00 1.00
CD5AA 048 1.00 1.04 CK5A/CK5BA 048 1.00 1.00
CE3AA 048 1.00 1.02 CK5A/CK5BN 048 1.00 1.01 CF5AA 048 1.00 1.05 CK5A/CK5BW 048 1.00 1.00
CK3BA 048 1.00 1.02
COILS + 58U(H,X)V120-20 VARIABLE SPEED FURNACE
CK5A/CK5BA 048 1.00 1.02 CC5A/CD5AC 048 0.98 1.07 CK5A/CK5BN 048 0.98 1.00 CC5A/CD5AW 048 0.98 1.01
CK5A/CK5BT 048 1.00 1.02 CD5AA 048 0.98 1.01
CK5A/CK5BW 048 1.00 1.02 CK3BA 048 1.00 1.01
COILS + 58U(H,X)V080-16 VARIABLE SPEED FURNACE
CK5A/CK5BA 048 1.00 1.01 CC5A/CD5AC 048 0.98 1.07 CK5A/CK5BN 048 1.00 1.01 CC5A/CD5AW 048 0.98 1.02 CK5A/CK5BW 048 1.00 1.01
See notes on pg. 24.
Heating
Total Pow-
er
22
Page 23
Heat pump heating performance continued
INDOOR
AIR
EDB CFM
–3 7 172737475767
Capacity
(MBtuh)
Total Int* Kw† Total Int* Kw† Total Int* Kw† Total Int* Kw† Total Int* Kw† Total Int* Kw† Total Int* Kw† Total Int* Kw†
Total Pow-erCapacity
(MBtuh)
Total Pow-erCapacity
OUTDOOR COIL ENTERING AIR TEMPERATURES °F
(MBtuh)
Total Pow-erCapacity
(MBtuh)
Total Pow-erCapacity
(MBtuh)
Total Pow-erCapacity
(MBtuh)
Total Pow-erCapacity
(MBtuh)
Total Pow-erCapacity
(MBtuh)
38EYA048-30, 31, 50 Outdoor Section With FX4ANF048 Indoor Section
1400 20.6 18.9 3.13 24.6 22.6 3.19 29.2 26.7 3.29 34.3 30.5 3.41 40.3 36.6 3.56 46.9 46.9 3.74 51.8 51.8 3.95 56.1 56.1 4.11
65
1600 20.9 19.2 3.23 24.9 22.9 3.26 29.6 27.0 3.33 34.8 30.9 3.43 40.9 37.2 3.57 47.6 47.6 3.72 52.7 52.7 3.92 57.3 57.3 4.06 1800 21.0 19.4 3.27 25.3 23.2 3.35 30.0 27.4 3.40 35.3 31.3 3.48 41.4 37.7 3.60 48.3 48.3 3.74 53.5 53.5 3.92 58.2 58.2 4.04
1400 20.5 18.8 3.29 24.4 22.5 3.36 29.0 26.4 3.46 34.0 30.2 3.59 39.8 36.2 3.75 46.3 46.3 3.93 51.0 51.0 4.15 55.2 55.2 4.31
70
1600 20.8 19.1 3.38 24.8 22.8 3.42 29.4 26.8 3.50 34.5 30.6 3.61 40.4 36.7 3.75 47.0 47.0 3.91 51.9 51.9 4.11 56.3 56.3 4.25 1800 21.1 19.4 3.49 25.1 23.1 3.50 29.8 27.2 3.56 34.9 31.0 3.65 40.9 37.2 3.77 47.7 47.7 3.92 52.7 52.7 4.11 57.3 57.3 4.23
1400 20.4 18.8 3.46 24.3 22.3 3.53 28.8 26.2 3.64 33.7 29.9 3.78 39.3 35.8 3.94 45.6 45.6 4.13 50.2 50.2 4.35 54.2 54.2 4.51
75
1600 20.7 19.1 3.55 24.7 22.7 3.59 29.2 26.6 3.68 34.2 30.3 3.79 39.9 36.3 3.94 46.4 46.4 4.11 51.1 51.1 4.32 55.4 55.4 4.46 1800 21.0 19.4 3.65 25.0 23.0 3.67 29.6 26.9 3.74 34.6 30.7 3.83 40.4 36.8 3.96 47.0 47.0 4.11 51.9 51.9 4.31 56.3 56.3 4.43
Multipliers for Determining the Performance With Other Indoor Sections.
Indoor
Section Size
Capacity Power Capacity Power
Heating
FX4ANF 048 1.00 1.00
Indoor
Section Size
COILS + 58U(H,X)V080-16 VARIABLE SPEED FURNACE
40FKA/FK4CNB 006 0.97 0.90 CC5A/CD5AA 060 0.95 1.04
40FKA/FK4CNF 005 0.98 0.96 CC5A/CD5AW 060 0.96 0.98
F(A,B)4AN(F,B,C) 060 1.00 1.02 CK3BA 060 0.97 0.97
FB4ANB 070 1.00 0.97 CK5A/CK5BA 060 0.97 0.97
FC4BN(F,B) 060 1.00 1.02 CK5A/CK5BN 060 0.97 0.96
FC4BNB 070 1.00 0.97 CK5A/CK5BX 060 0.97 0.96 FG3AAA 060 0.98 1.02
COILS + 58U(H,X)V100-20 VARIABLE SPEED FURNACE
FV4ANB 006 0.97 0.90 CC5A/CD5AA 060 0.94 1.00 FV4ANF 005 0.97 0.95 CC5A/CD5AW 060 0.95 0.95 FX4ANB 060 1.00 0.97 CK3BA 060 0.96 0.94
CC5A/CD5AA 060 0.96 1.03 CK5A/CK5BA 060 0.96 0.94
CC5A/CD5AW 060 0.98 1.00 CK5A/CK5BN 060 0.96 0.92
CE3AA 060 0.98 1.00 CK5A/CK5BX 060 0.96 0.92 CK3BA 060 0.98 0.98
COILS + 58U(H,X)V120-20 VARIABLE SPEED FURNACE
CK5A/CK5BA 060 0.98 0.98 CC5A/CD5AA 060 0.95 1.02 CK5A/CK5BN 060 0.98 0.97 CC5A/CD5AW 060 0.96 0.97
CK5A/CK5BT 060 0.98 0.98 CK3BA 060 0.96 0.94 CK5A/CK5BX 060 0.98 0.97 CK5A/CK5BA 060 0.96 0.94
—— —CK5A/CK5BN 060 0.96 0.93
CK5A/CK5BX 060 0.96 0.93
See notes on pg. 24.
Heating
Total Pow-
er
23
Page 24
Heat pump heating performance continued
INDOOR
AIR
EDB CFM
–3 7 172737475767
Capacity
(MBtuh)
Total Int* Kw† Total Int* Kw† Total Int* Kw† Total Int* Kw† Total Int* Kw† Total Int* Kw† Total Int* Kw† Total Int* Kw†
Total Pow-erCapacity
(MBtuh)
Total Pow-erCapacity
OUTDOOR COIL ENTERING AIR TEMPERATURES °F
(MBtuh)
Total Pow-erCapacity
(MBtuh)
Total Pow-erCapacity
(MBtuh)
Total Pow-erCapacity
(MBtuh)
Total Pow-erCapacity
(MBtuh)
Total Pow-erCapacity
(MBtuh)
Total Pow-
38EYA060-30, 31, 50 Outdoor Section With FX4ANB060 Indoor Section
1750 26.3 24.2 4.10 32.1 29.5 4.28 38.1 34.8 4.43 44.8 39.8 4.60 52.3 47.6 4.79 60.8 60.8 5.01 58.8 58.8 5.02 58.6 58.6 4.95
65
2000 26.6 24.5 4.22 32.6 29.9 4.37 38.7 35.2 4.48 45.4 40.4 4.62 53.1 48.3 4.79 61.7 61.7 4.98 59.8 59.8 4.97 59.6 59.6 4.88 2250 27.0 24.8 4.29 33.0 30.3 4.48 39.1 35.7 4.56 46.0 40.9 4.67 53.8 49.0 4.82 62.6 62.6 4.99 60.6 60.6 4.96 60.6 60.6 4.85
1750 25.7 23.6 4.21 31.8 29.2 4.47 37.8 34.5 4.65 44.4 39.4 4.83 51.8 47.1 5.04 60.0 60.0 5.26 58.0 58.0 5.27 57.6 57.6 5.19
70
2000 26.0 23.9 4.33 32.2 29.6 4.55 38.3 34.9 4.70 45.0 40.0 4.85 52.5 47.8 5.03 60.9 60.9 5.23 59.0 59.0 5.22 58.7 58.7 5.11 2250 26.4 24.2 4.40 32.6 30.0 4.66 38.8 35.4 4.77 45.6 40.5 4.90 53.2 48.4 5.05 61.8 61.8 5.24 59.8 59.8 5.20 59.6 59.6 5.08
1750 24.9 22.9 4.29 31.3 28.8 4.65 37.4 34.1 4.88 44.0 39.1 5.08 51.2 46.6 5.30 59.2 59.2 5.53 57.1 57.1 5.53 56.7 56.7 5.44
75
2000 25.1 23.1 4.40 31.8 29.2 4.73 38.0 34.6 4.92 44.6 39.6 5.10 52.0 47.3 5.28 60.2 60.2 5.49 58.1 58.1 5.47 57.8 57.8 5.36 2250 25.3 23.3 4.51 32.2 29.6 4.83 38.5 35.1 4.99 45.2 40.1 5.14 52.6 47.9 5.30 61.0 61.0 5.49 58.9 58.9 5.45 58.7 58.7 5.32
Multipliers for Determining the Performance With Other Indoor Sections.
Indoor
Section Size
FX4ANB 060 1.00 1.00
40FKA/FK4CNB 006 0.99 0.96 CC5A/CD5AW 060 0.97 1.02
FB4ANB 070 1.00 1.00 CK5A/CK5BX 060 0.98 0.99 FC4BNB 070 1.00 1.00 FV4ANB 006 0.99 0.96 CC5A/CD5AW 060 0.97 1.03
CC5A/CD5AW 060 0.98 1.06 CK5A/CK5BX 060 0.98 1.00
CK5A/CK5BX 060 0.98 1.01 — — —
* The Btuh heating capacity values shown are net “integrated’’ values from which the defrost effect has been subtracted. The Btuh heating from supplement
heaters should be added to those values to obtain total system capacity.
† The kw values include the compressor, outdoor fan motor, and indoor blower motor. The kw from supplement heaters should be added to these values to
obtain total system kilowatts.
EDB—Entering Dry Bulb
Capacity Power Capacity Power
Heating
Indoor
Section Size
COILS + 58U(H,X)V100-20 VARIABLE SPEED FURNACE
COILS + 58U(H,X)V120-20 VARIABLE SPEED FURNACE
Heating
er
NOTE: The performance shown includes the PressureGuard™ cycling the outdoor fan. The ambient temperature that
the outdoor fan cycles depends on the outdoor/indoor combination, indoor airflow, installation practices, and system maintenance, all of which affect system performance.
24
Page 25
System Design
1. Intended for outdoor installation with free air inlet and outlet. Outdoor fan external static pressure available is less than 0.01-in. wc.
2. Minimum outdoor operating air temperature for cooling mode without low-ambient operation accessory is 55°F (12.8°C).
3. Maximum outdoor operating air temperature for cooling mode is 125°F (51.7°C).
4. Minimum outdoor operating air temperature for heating mode is –30°F (–34.4°C).
5. Maximum outdoor operating air temperature for heating mode is 66°F (18.9°C).
6. For reliable operation, unit should be level in all horizontal planes.
7. Maximum elevation of indoor coil above or below base of outdoor unit is: indoor coil above = 50 ft/indoor coil below = 150 ft (see items 8 and 9 following).
8. For interconnecting refrigerant tube lengths greater than 50 ft and/or elevation differences between indoor and outdoor units greater than 20 ft, consult Residential Split­System Application Guideline and Service Manual for Air Conditioners and Heat Pumps using Puron refrigerant.
9. If ANY refrigerant tubing is buried, provide a minimum 6-in. vertical rise to the valve connections at the unit. Refrigerant tubing lengths up to 36 in. may be buried without further considerations. Buried refrigerant tubing lengths greater than 36 in. are not recommended.
10. Use only copper wire for electric connection at unit. Aluminum and clad aluminum are not acceptable for the type of connector provided.
11. Mixmatches of indoor coil capacity more than 1 size larger than outdoor unit capacity (unless so specified) may result in inadequate indoor comfort.
12. Do not apply capillary tube indoor coils to these units.
13. Factory-supplied filter drier must be installed.
25
Page 26
26
Page 27
27
Page 28
Guide specifications
GENERAL
System Description
Outdoor-mounted, air-cooled, split-system heat pump unit suitable for ground or rooftop installation. Unit consists of a hermetic compressor, an air-cooled coil, propeller-type condenser fan, and a control box. Unit will discharge supply air upward as shown on contract drawings. Unit will be used in a refrigeration circuit to match up to a packaged fan coil or coil unit.
Quality Assurance
Unit will be rated in accordance with the latest edition of ARI Standard 240.
Unit will be certified for capacity and efficiency, and listed in the latest ARI directory.
Unit construction will comply with latest edition of ANSI/ ASHRAE and with NEC.
Unit will be constructed in accordance with UL standards and will carry the UL label of approval. Unit will have C-UL approval.
Unit cabinet will be capable of withstanding Federal Test Method Standard No. 141 (Method 6061) 500-hr salt spray test.
Air-cooled condenser coils will be leak tested at 217 psig and pressure tested at 450 psig.
Delivery, Storage, and Handling
Unit will be shipped as single package only and is stored and handled per unit manufacturer’s recommendations.
Warranty (for inclusion by specifying engineer)
U.S. and Canada only.
PRODUCTS
Equipment
Factory assembled, single piece, air-cooled heat pump unit. Contained within the unit enclosure will be all factory wiring, piping, controls, compressor, refrigerant charge (Puron®), and special features required prior to field start-up.
Unit Cabinet
Unit cabinet will be constructed of galvanized steel, bonderized, and coated with a powder coat paint.
Fans
Condenser fan will be direct-drive propeller type, discharging air upward.
Air-Cooled, Split-System
Heat Pump
38EYA
2 to 5 Tons Nominal
Condenser fan motors will be totally enclosed, 1-phase type
with class B insulation and permanently lubricated bearings.
Shafts will be corrosion resistant. Fan blades will be statically and dynamically balanced. Condenser fan openings will be equipped with steel wire
safety guards. Compressor
Compressor will be hermetically sealed. Compressor will be mounted on rubber vibration isolators.
Condenser Coil
Condenser coil will be air cooled.
Coil will be constructed of aluminum fins mechanically bonded to copper tubes which are then cleaned, dehydrated, and sealed.
Refrigeration Components
Refrigeration circuit components will include liquid tube shutoff valve with sweat connections, suction tube shutoff valves with sweat connections, system charge of Puron® refrigerant, POE compressor oil, accumulator, and reversing valve.
Operating Characteristics
The capacity of the unit will meet or exceed Btuh at a suction temperature of °F. The power consumption at full load will not exceed kw.
Combination of the unit and the evaporator or fan coil unit will have a total net cooling capacity of Btuh or greater at conditions of CFM entering air temperature at the evaporator at °F wet bulb and °F dry bulb, and air entering the unit at °F.
The system will have an SEER of Btuh/watt or greater at DOE conditions.
Electrical Requirements
Nominal unit electrical characteristics will be v,
phase, 60 hertz. The unit will be capable of satisfactory
operation within voltage limits of v to v.
Unit electrical power will be single point connection.
Control circuit will be 24v.
Special Features
Refer to section of this literature identifying accessories and descriptions for specific features and available enhancements.
Carrier Corporation • Indianapolis, IN 46231 3-00
Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations.
Book 1 4 Page 28 Catalog No. 523-776 Printed in U.S.A. PC 101 Form 38EYA-1PD Tab 5a 5a
Replaces: NEW
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
